Andersen AB00010492901 Wall-mounted Window Control Transmitter User Manual Power Operator Owners Manual Draft 1 14 13 xxx

Andersen Corporation Wall-mounted Window Control Transmitter Power Operator Owners Manual Draft 1 14 13 xxx

manual

Power Window Control System Installation and Programming GuidePower Window Control System Installation and Programming Guide

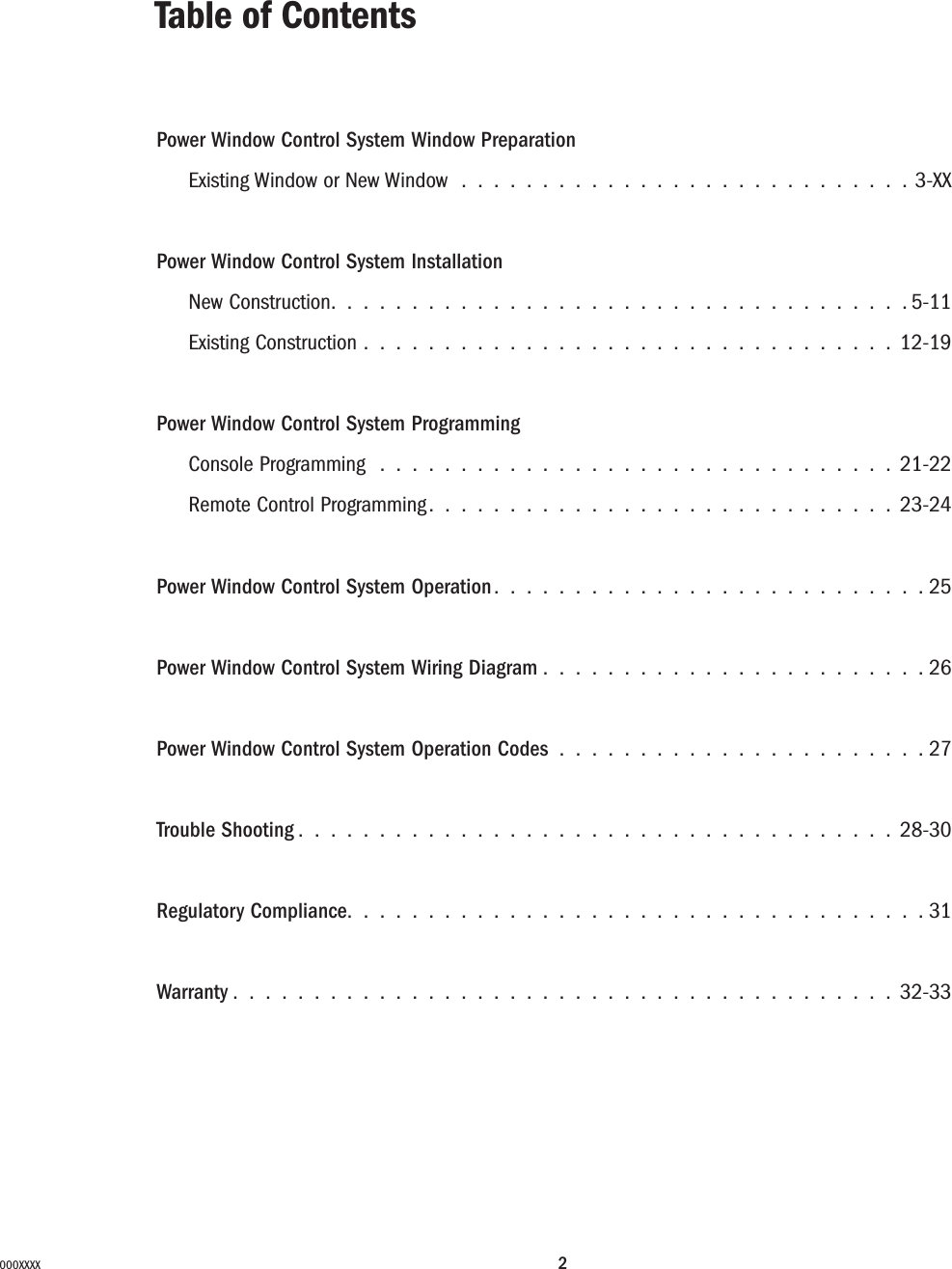

2000XXXXPower Window Control System Window PreparationExisting Window or New Window ............................3-XXPower Window Control System Installation New Construction. ...................................5-11Existing Construction . ................................12-19Power Window Control System ProgrammingConsole Programming ................................21-22Remote Control Programming.............................23-24Power Window Control System Operation ...........................25Power Window Control System Wiring Diagram ........................26Power Window Control System Operation Codes .......................27Trouble Shooting .....................................28-30Regulatory Compliance....................................31Warranty .........................................32-33Table of Contents
3000XXXXPower Window Control System Window PreparationPower Window Control System Window PreparationXX
Use caution when working at elevated heights and around unit openings. Follow manufacturers’ instructions for ladders and/or scaffolding. Failure to do so may result in injury or death.Sea cauteloso al trabajar en lugares elevados y cerca de las aberturas de la unidad. Siga las instrucciones del fabricante para el uso de escaleras y/o andamios. Si no lo hiciera, podrían producirse lesiones o la muerte.Follow manufacturers’ instructions for hand or power tools. Always wear safety glasses. Failure to do so may result in injury and/or product damage.Siga las instrucciones del fabricante para el uso de herramientas eléctricas o manuales. Utilice siempre gafas de seguridad. Si no lo hiciera, podrían producirse lesiones y/o daños al producto.XXXXXXX BA Revised 01/11/13Power Window Control System Installation GuidePower Window Control System Installation Guidefor Andersen® Awning Windows with Power Windowsfor Andersen® Awning Windows with Power WindowsThank you for choosing Andersen. / Gracias por elegir Andersen.▶For installation in new construction, see page 5.▶For installation in new construction, see page 5. ▶For installation in existing construction, see page 12.▶For installation in existing construction, see page 12. Parts Included / Parts Included(1) Power Box Components / Power Box Components(1) Key Pad / Key Pad(1) Mounting Ring / Mounting Ring(7) 1/2" Screws / 1/2" Screws(1) Installation Instructions / Installation InstructionsSupplies Needed / Supplies Needed∙18-3 Conductor Wire / 18-3 Strand Conductor Wire ∙14-2(min) High Voltage Wire / 14-2(min) High Voltage Wire∙1-5/8" Drywall Screws / 1-5/8” Drywall Screws∙Outlet Box Cable Clamps / Outlet Box Cable Clamps∙Wire Staples / Wire Staples∙Drywall Saw / Drywall SawTools Needed / Tools Needed∙Safety glasses / Safety glasses∙Tape measure / Tape measure∙Drill/Driver / Drill/Driver∙Wire Cutter / Wire Cutter∙Wire Stripper / Wire Stripper∙Phillips Head Screw Driver / Phillips Head Screw Driver∙1/2" Spade Bit / 1/2" Spade Bit∙Tape Measure / Tape Measure∙Hammer / Hammer∙Paper Clip / Paper Clip∙3/8" Drill Bit / 3/8” Drill BitPower BoxPower BoxMounting RingMounting RingKey PadKey PadFor questions call 1-888-888-7020. For more information and/or guides visit andersenwindows.com.Please leave this guide with building owner.Si tiene alguna pregunta llame al 1-888-888-7020. Para obtener más información y/o guías, visite andersenwindows.com.Deje esta guía con el dueño de la construcción.Thank you for choosing Andersen. / Gracias por elegir Andersen.▶Read guide from beginning to end before starting installation. Read all warnings and cautions during unit installation. Lea completamente la guía antes de comenzar la instalación. Lea y respete todas las advertencias y precauciones durante la instalación de la unidad.This document is under constructiondo not print, publish, or distribute▶Check with your local building code ofcial to identify and conrm compliance with local building code requirements. Consulte los códigos locales de construcción para identicar y conrmar que se cumplan los requisitos del código de construcción.“Andersen” and all other marks where denoted are trademarks of Andersen Corporation. ©2012-2012 Andersen Corporation. All rights reserved.“Andersen” y las demás marcas que aparezcan son marcas registradas de Andersen Corporation. ©2012-2012 Andersen Corporation. Todos los derechos reservados.Electric Operator Electric Operator

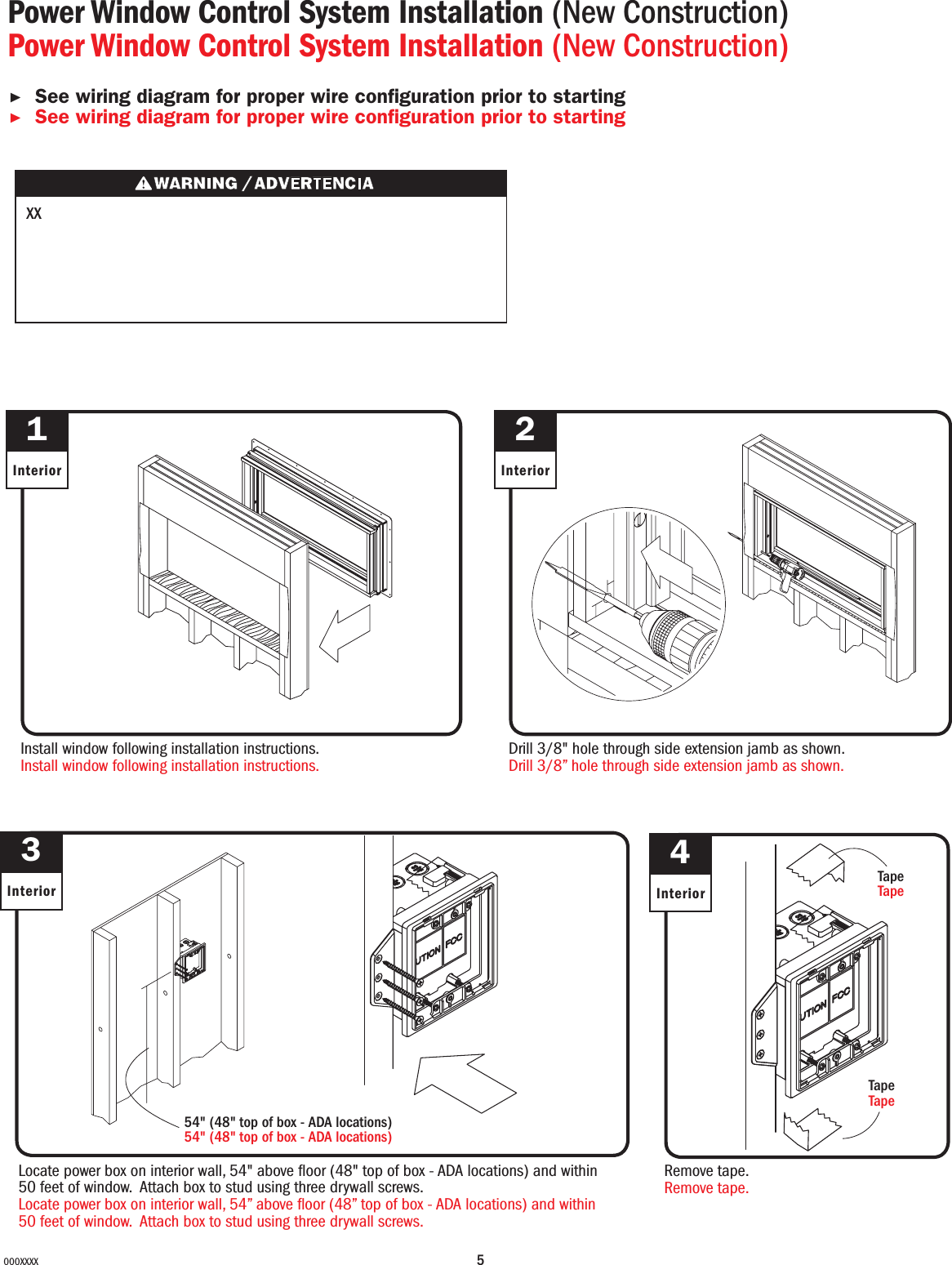

5000XXXX132InteriorInteriorInteriorInstall window following installation instructions.Install window following installation instructions.Drill 3/8" hole through side extension jamb as shown.Drill 3/8” hole through side extension jamb as shown.Locate power box on interior wall, 54" above oor (48" top of box - ADA locations) and within 50 feet of window. Attach box to stud using three drywall screws.Locate power box on interior wall, 54” above oor (48” top of box - ADA locations) and within 50 feet of window. Attach box to stud using three drywall screws.4InteriorRemove tape.Remove tape.54" (48" top of box - ADA locations)54" (48" top of box - ADA locations)TapeTapeTapeTapePower Window Control System Installation (New Construction)Power Window Control System Installation (New Construction)▶See wiring diagram for proper wire conguration prior to starting ▶See wiring diagram for proper wire conguration prior to starting XX

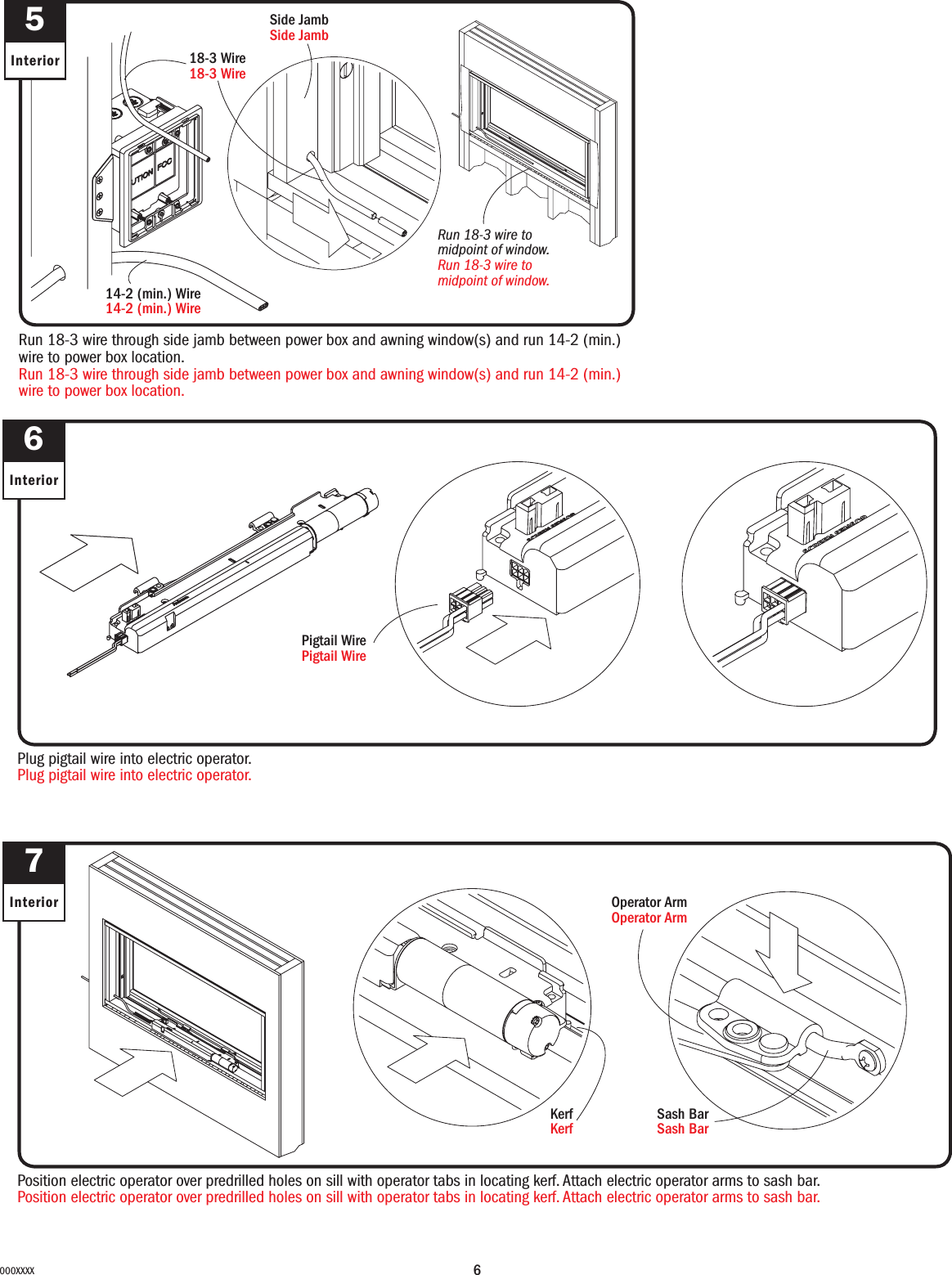

6000XXXXRun 18-3 wire through side jamb between power box and awning window(s) and run 14-2 (min.)wire to power box location.Run 18-3 wire through side jamb between power box and awning window(s) and run 14-2 (min.)wire to power box location.Run 18-3 wire to midpoint of window.Run 18-3 wire to midpoint of window.18-3 Wire18-3 Wire14-2 (min.) Wire14-2 (min.) WireSide JambSide Jamb5Interior6InteriorPlug pigtail wire into electric operator.Plug pigtail wire into electric operator.7InteriorPosition electric operator over predrilled holes on sill with operator tabs in locating kerf. Attach electric operator arms to sash bar.Position electric operator over predrilled holes on sill with operator tabs in locating kerf. Attach electric operator arms to sash bar.Sash Bar Sash BarOperator ArmOperator ArmKerfKerfPigtail WirePigtail Wire

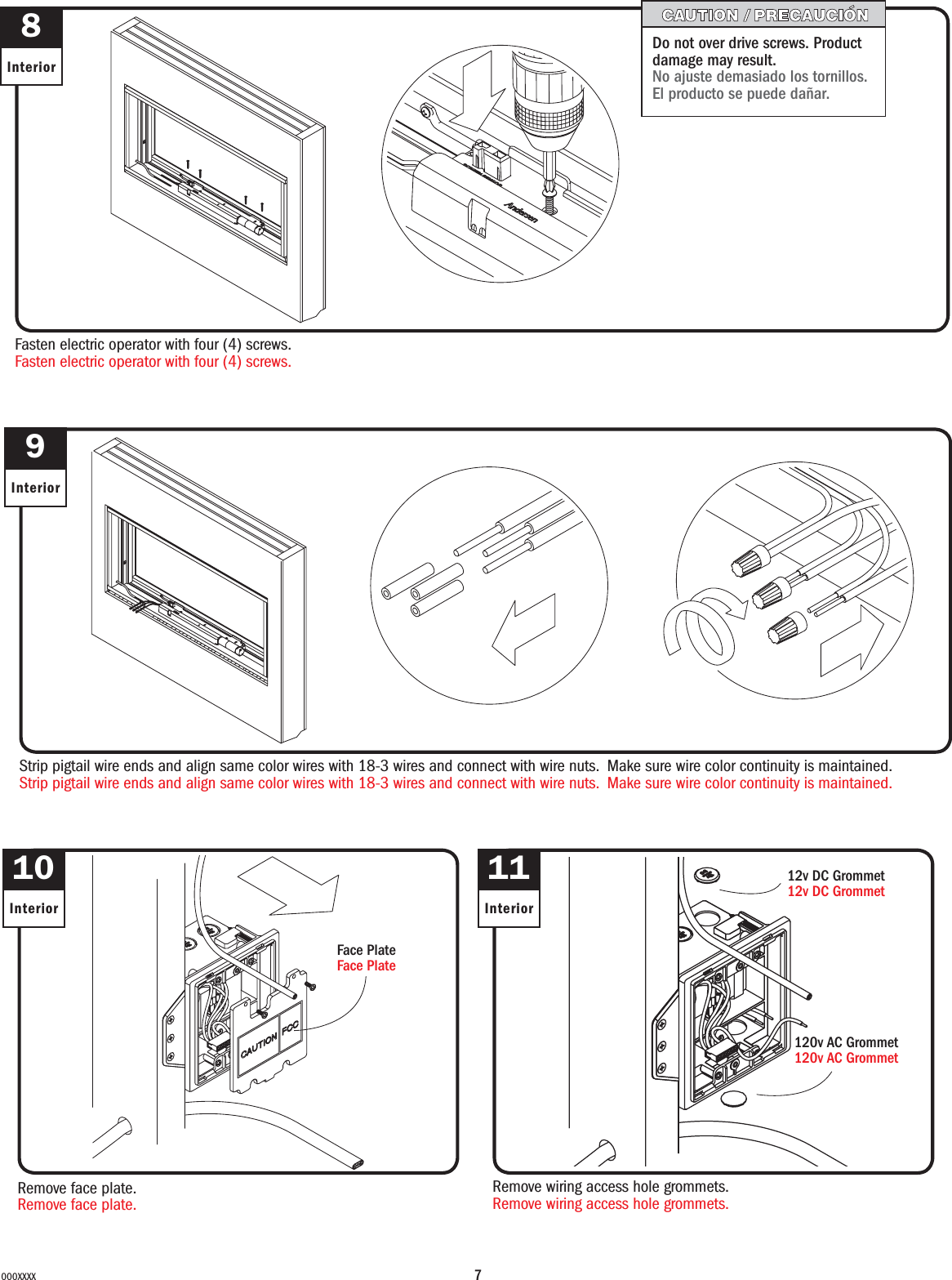

7000XXXX8InteriorFasten electric operator with four (4) screws.Fasten electric operator with four (4) screws.Do not over drive screws. Product damage may result.No ajuste demasiado los tornillos. El producto se puede dañar.10InteriorRemove face plate.Remove face plate.Face PlateFace Plate9InteriorStrip pigtail wire ends and align same color wires with 18-3 wires and connect with wire nuts. Make sure wire color continuity is maintained.Strip pigtail wire ends and align same color wires with 18-3 wires and connect with wire nuts. Make sure wire color continuity is maintained.11InteriorRemove wiring access hole grommets.Remove wiring access hole grommets.12v DC Grommet12v DC Grommet120v AC Grommet120v AC Grommet

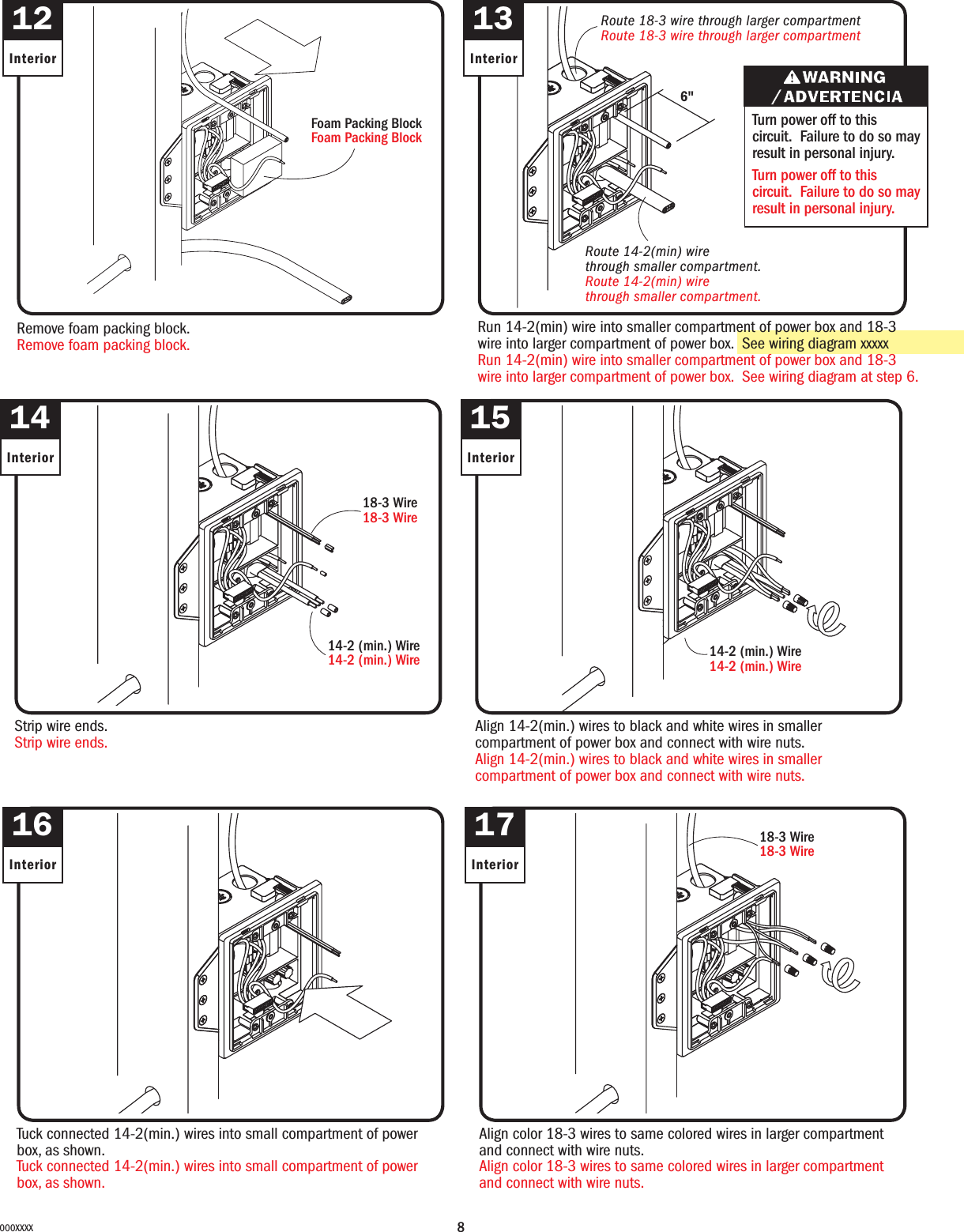

8000XXXX13InteriorRun 14-2(min) wire into smaller compartment of power box and 18-3 wire into larger compartment of power box. See wiring diagram xxxxxRun 14-2(min) wire into smaller compartment of power box and 18-3 wire into larger compartment of power box. See wiring diagram at step 6.Turn power off to this circuit. Failure to do so may result in personal injury.Turn power off to this circuit. Failure to do so may result in personal injury.Route 18-3 wire through larger compartmentRoute 18-3 wire through larger compartmentRoute 14-2(min) wire through smaller compartment. Route 14-2(min) wire through smaller compartment. 6"14InteriorStrip wire ends.Strip wire ends.15InteriorAlign 14-2(min.) wires to black and white wires in smaller compartment of power box and connect with wire nuts.Align 14-2(min.) wires to black and white wires in smaller compartment of power box and connect with wire nuts.14-2 (min.) Wire14-2 (min.) Wire16InteriorTuck connected 14-2(min.) wires into small compartment of power box, as shown.Tuck connected 14-2(min.) wires into small compartment of power box, as shown.17InteriorAlign color 18-3 wires to same colored wires in larger compartment and connect with wire nuts.Align color 18-3 wires to same colored wires in larger compartment and connect with wire nuts.12InteriorRemove foam packing block.Remove foam packing block.Foam Packing BlockFoam Packing Block18-3 Wire18-3 Wire18-3 Wire18-3 Wire14-2 (min.) Wire14-2 (min.) Wire

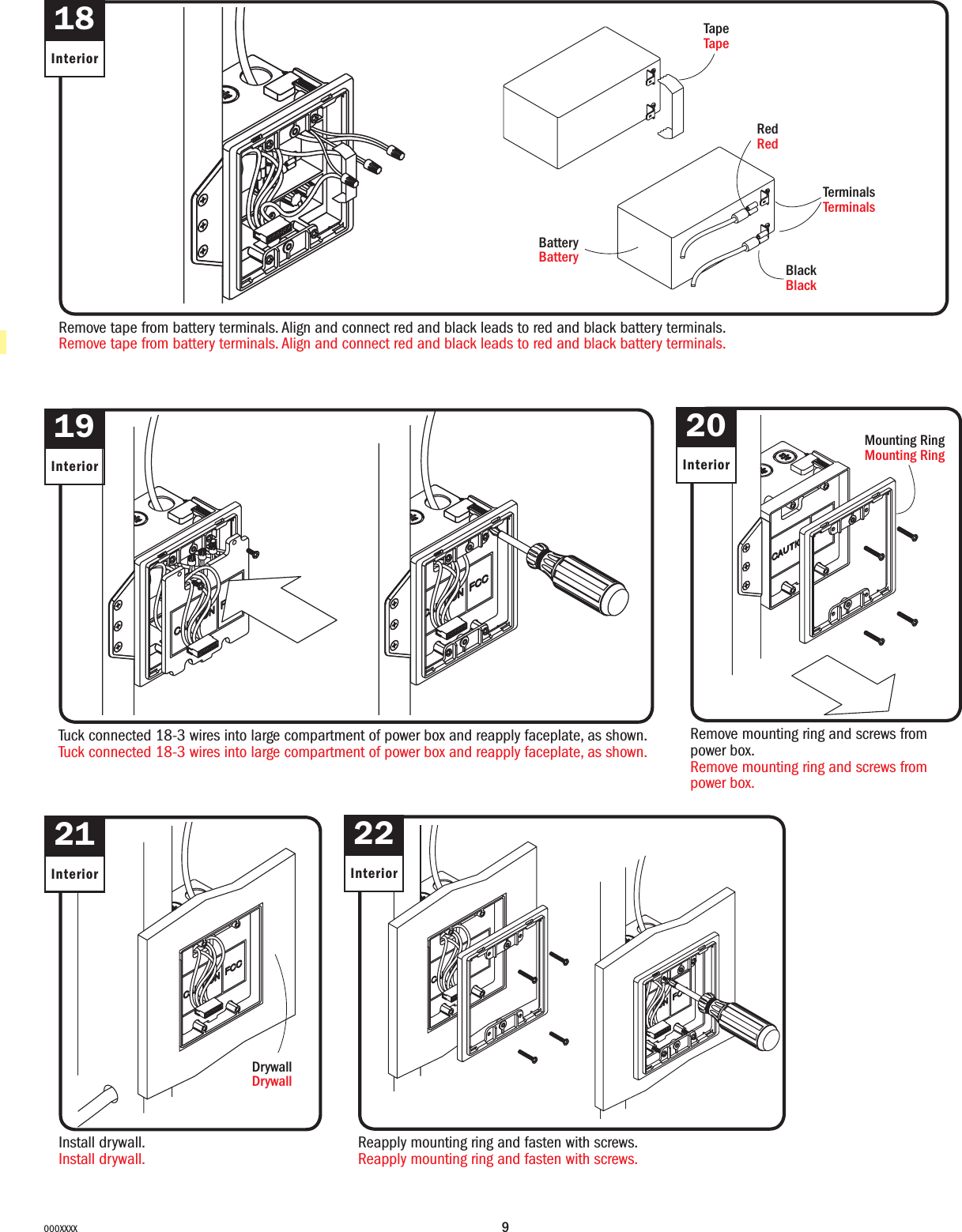

9000XXXX18InteriorRemove tape from battery terminals. Align and connect red and black leads to red and black battery terminals.Remove tape from battery terminals. Align and connect red and black leads to red and black battery terminals.Tuck connected 18-3 wires into large compartment of power box and reapply faceplate, as shown.Tuck connected 18-3 wires into large compartment of power box and reapply faceplate, as shown.RedRedTapeTapeBlackBlackTerminalsTerminalsBatteryBattery21InteriorInstall drywall.Install drywall.DrywallDrywall19Interior22InteriorReapply mounting ring and fasten with screws.Reapply mounting ring and fasten with screws.Mounting RingMounting Ring20InteriorRemove mounting ring and screws from power box.Remove mounting ring and screws from power box.

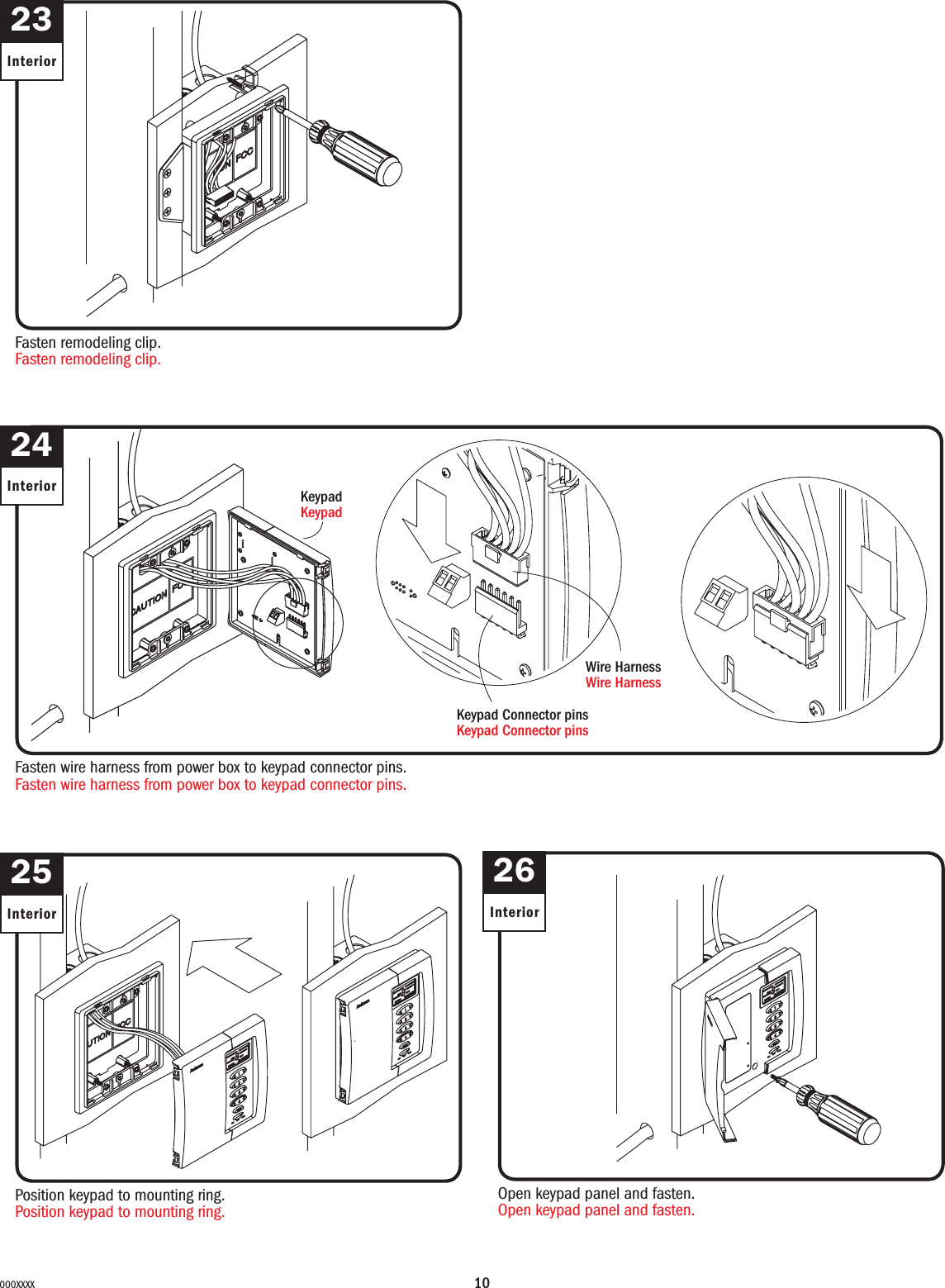

10000XXXX23InteriorFasten remodeling clip.Fasten remodeling clip.24InteriorFasten wire harness from power box to keypad connector pins.Fasten wire harness from power box to keypad connector pins.KeypadKeypadKeypad Connector pinsKeypad Connector pinsWire HarnessWire Harness25InteriorPosition keypad to mounting ring.Position keypad to mounting ring.26InteriorOpen keypad panel and fasten.Open keypad panel and fasten.

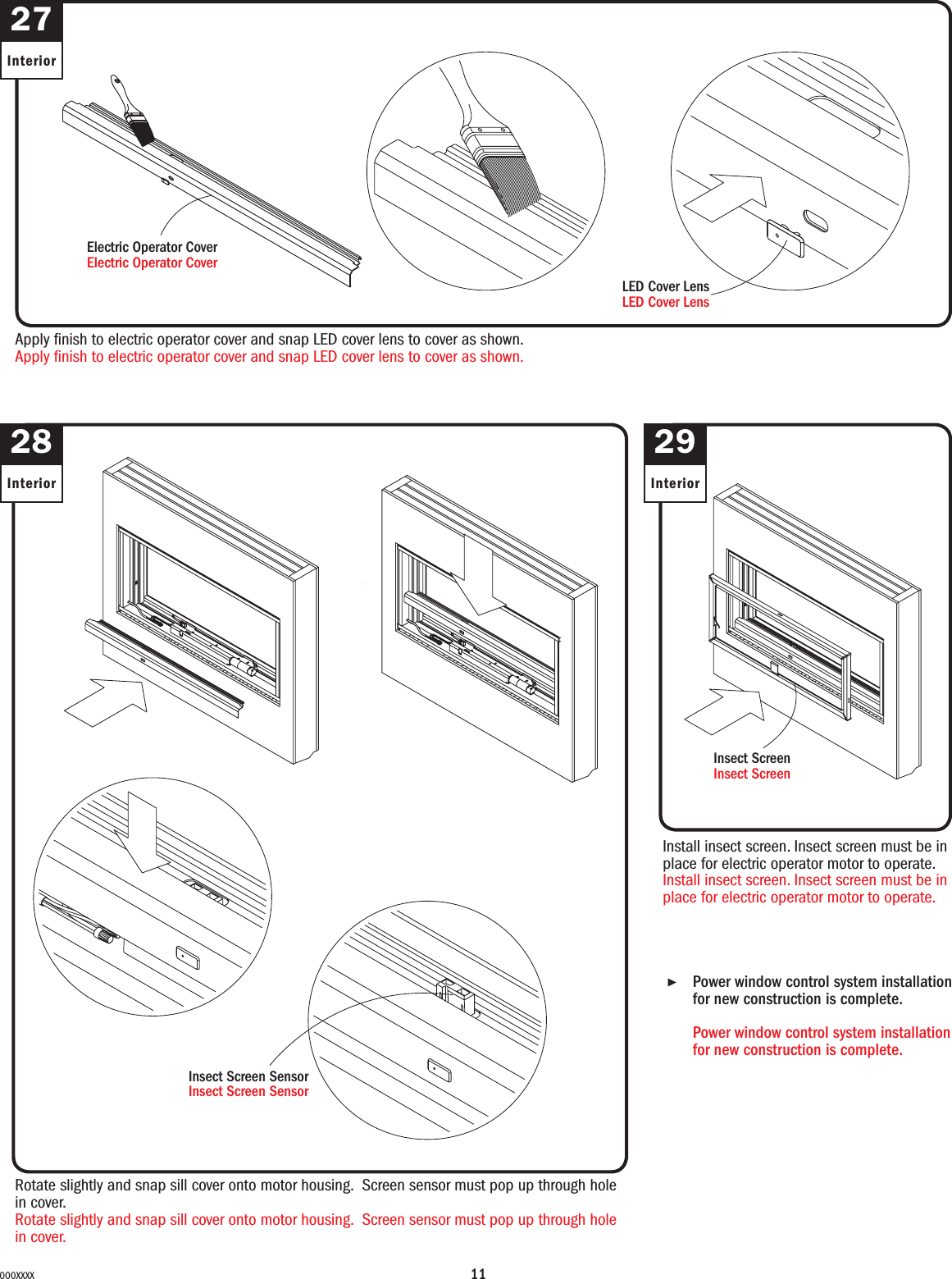

11000XXXX27InteriorApply nish to electric operator cover and snap LED cover lens to cover as shown.Apply nish to electric operator cover and snap LED cover lens to cover as shown.Rotate slightly and snap sill cover onto motor housing. Screen sensor must pop up through hole in cover.Rotate slightly and snap sill cover onto motor housing. Screen sensor must pop up through hole in cover.Insect Screen SensorInsect Screen Sensor28Interior2929InteriorInstall insect screen. Insect screen must be in place for electric operator motor to operate.Install insect screen. Insect screen must be in place for electric operator motor to operate.Insect ScreenInsect Screen▶Power window control system installation for new construction is complete. Power window control system installation for new construction is complete. LED Cover LensLED Cover LensElectric Operator CoverElectric Operator Cover

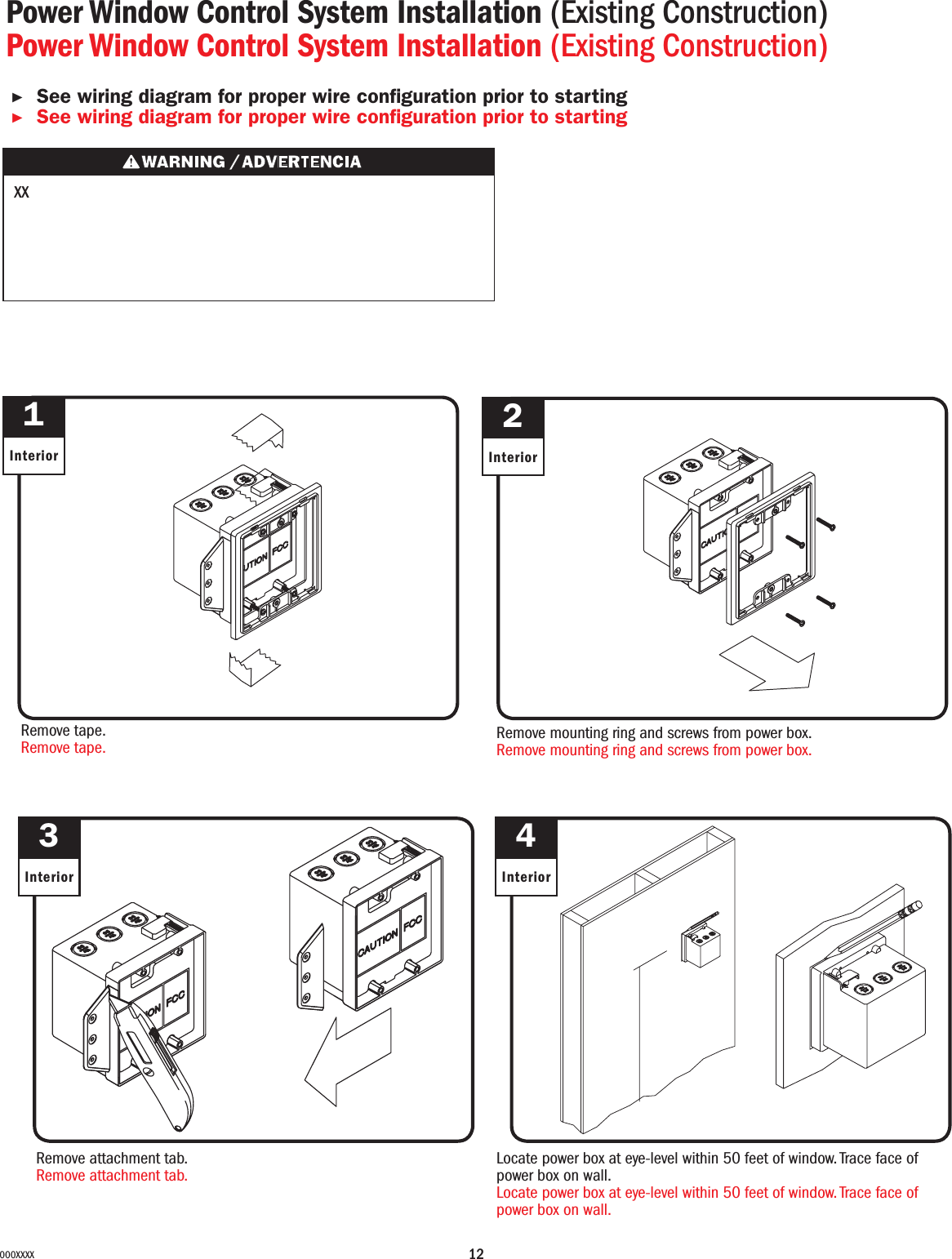

12000XXXXPower Window Control System Installation (Existing Construction)Power Window Control System Installation (Existing Construction)▶See wiring diagram for proper wire conguration prior to starting ▶See wiring diagram for proper wire conguration prior to starting 12Interior InteriorRemove tape.Remove tape. Remove mounting ring and screws from power box.Remove mounting ring and screws from power box.3InteriorRemove attachment tab.Remove attachment tab.4InteriorLocate power box at eye-level within 50 feet of window. Trace face of power box on wall.Locate power box at eye-level within 50 feet of window. Trace face of power box on wall.XX

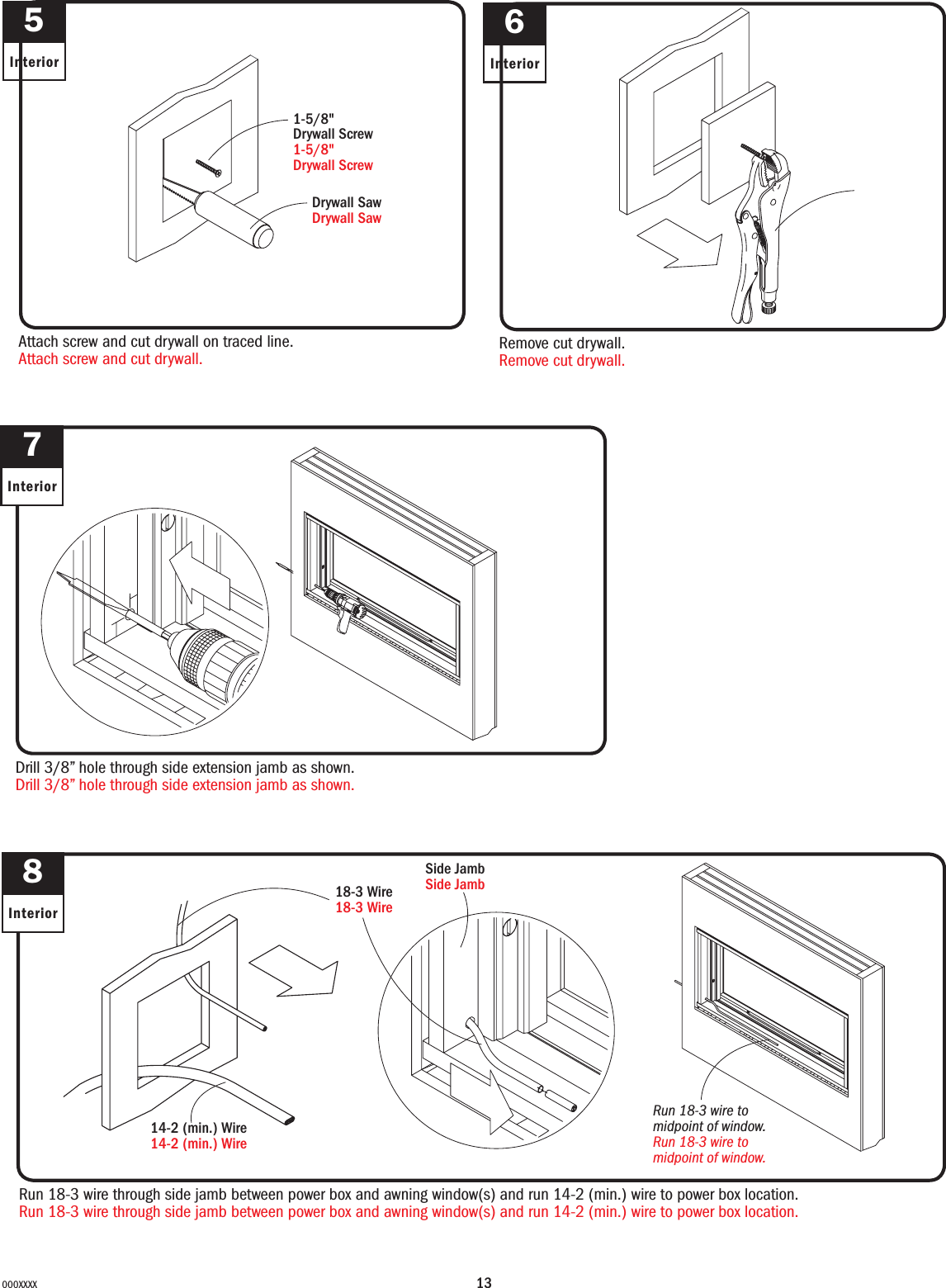

13000XXXX5InteriorAttach screw and cut drywall on traced line.Attach screw and cut drywall.1-5/8"Drywall Screw 1-5/8"Drywall ScrewDrywall SawDrywall Saw6InteriorRemove cut drywall.Remove cut drywall.78InteriorInteriorDrill 3/8” hole through side extension jamb as shown.Drill 3/8” hole through side extension jamb as shown.Run 18-3 wire through side jamb between power box and awning window(s) and run 14-2 (min.) wire to power box location.Run 18-3 wire through side jamb between power box and awning window(s) and run 14-2 (min.) wire to power box location.Run 18-3 wire to midpoint of window.Run 18-3 wire to midpoint of window.918-3 Wire18-3 WireSide JambSide Jamb14-2 (min.) Wire14-2 (min.) Wire

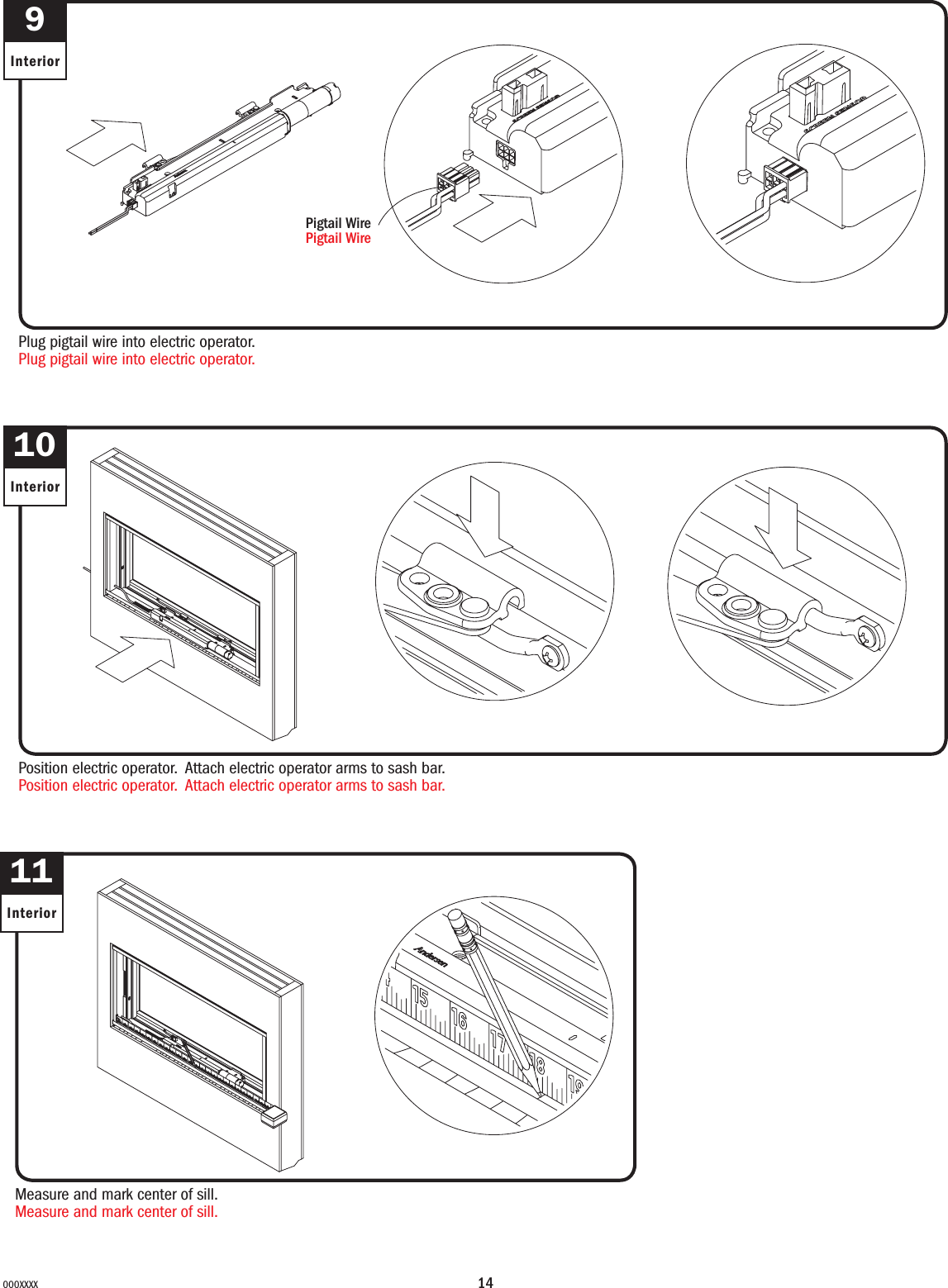

14000XXXX9InteriorPlug pigtail wire into electric operator.Plug pigtail wire into electric operator.Pigtail WirePigtail Wire10InteriorPosition electric operator. Attach electric operator arms to sash bar.Position electric operator. Attach electric operator arms to sash bar.11InteriorMeasure and mark center of sill.Measure and mark center of sill.

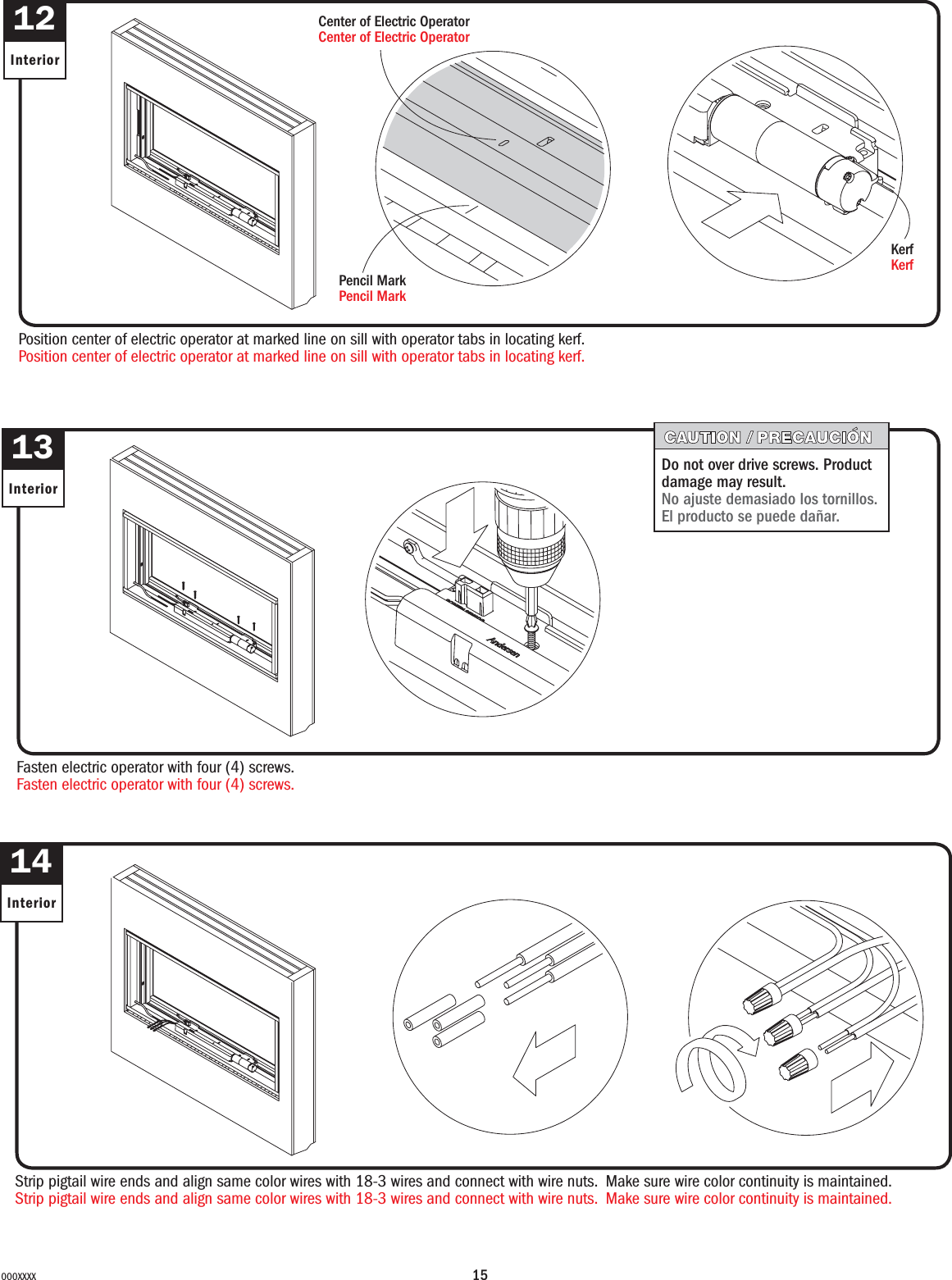

15000XXXX12InteriorPosition center of electric operator at marked line on sill with operator tabs in locating kerf.Position center of electric operator at marked line on sill with operator tabs in locating kerf.KerfKerf13InteriorFasten electric operator with four (4) screws.Fasten electric operator with four (4) screws.Do not over drive screws. Product damage may result.No ajuste demasiado los tornillos. El producto se puede dañar.14InteriorStrip pigtail wire ends and align same color wires with 18-3 wires and connect with wire nuts. Make sure wire color continuity is maintained.Strip pigtail wire ends and align same color wires with 18-3 wires and connect with wire nuts. Make sure wire color continuity is maintained.Pencil MarkPencil MarkCenter of Electric OperatorCenter of Electric Operator

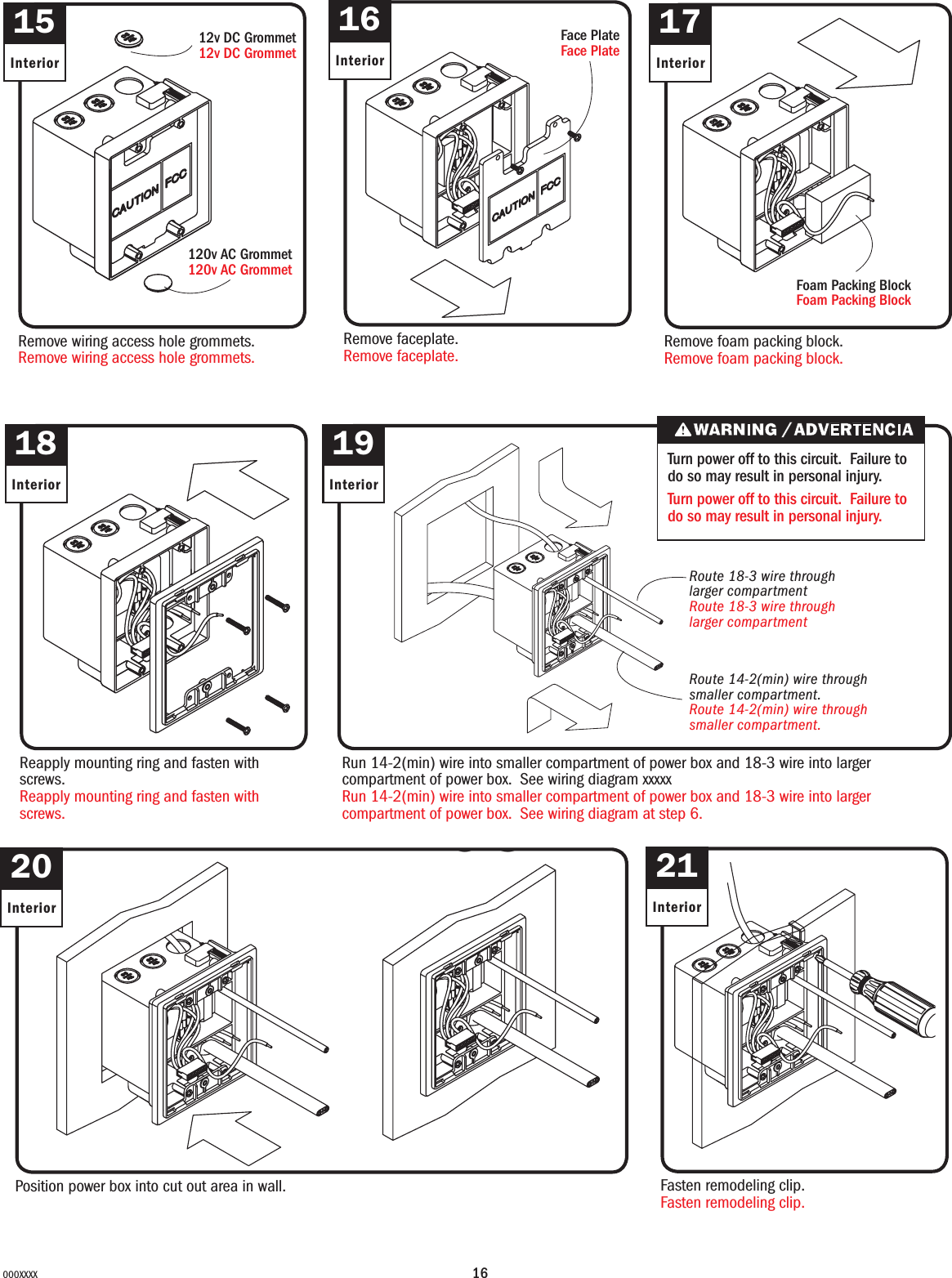

16000XXXX15InteriorRemove wiring access hole grommets.Remove wiring access hole grommets.16InteriorRemove faceplate.Remove faceplate.17InteriorRemove foam packing block.Remove foam packing block.18InteriorReapply mounting ring and fasten with screws.Reapply mounting ring and fasten with screws.19InteriorRun 14-2(min) wire into smaller compartment of power box and 18-3 wire into larger compartment of power box. See wiring diagram xxxxxRun 14-2(min) wire into smaller compartment of power box and 18-3 wire into larger compartment of power box. See wiring diagram at step 6.20InteriorPosition power box into cut out area in wall.21InteriorFasten remodeling clip.Fasten remodeling clip.20a12v DC Grommet12v DC Grommet120v AC Grommet120v AC GrommetFace PlateFace PlateFoam Packing BlockFoam Packing BlockRoute 18-3 wire through larger compartmentRoute 18-3 wire through larger compartmentRoute 14-2(min) wire through smaller compartment. Route 14-2(min) wire through smaller compartment. Turn power off to this circuit. Failure to do so may result in personal injury.Turn power off to this circuit. Failure to do so may result in personal injury.

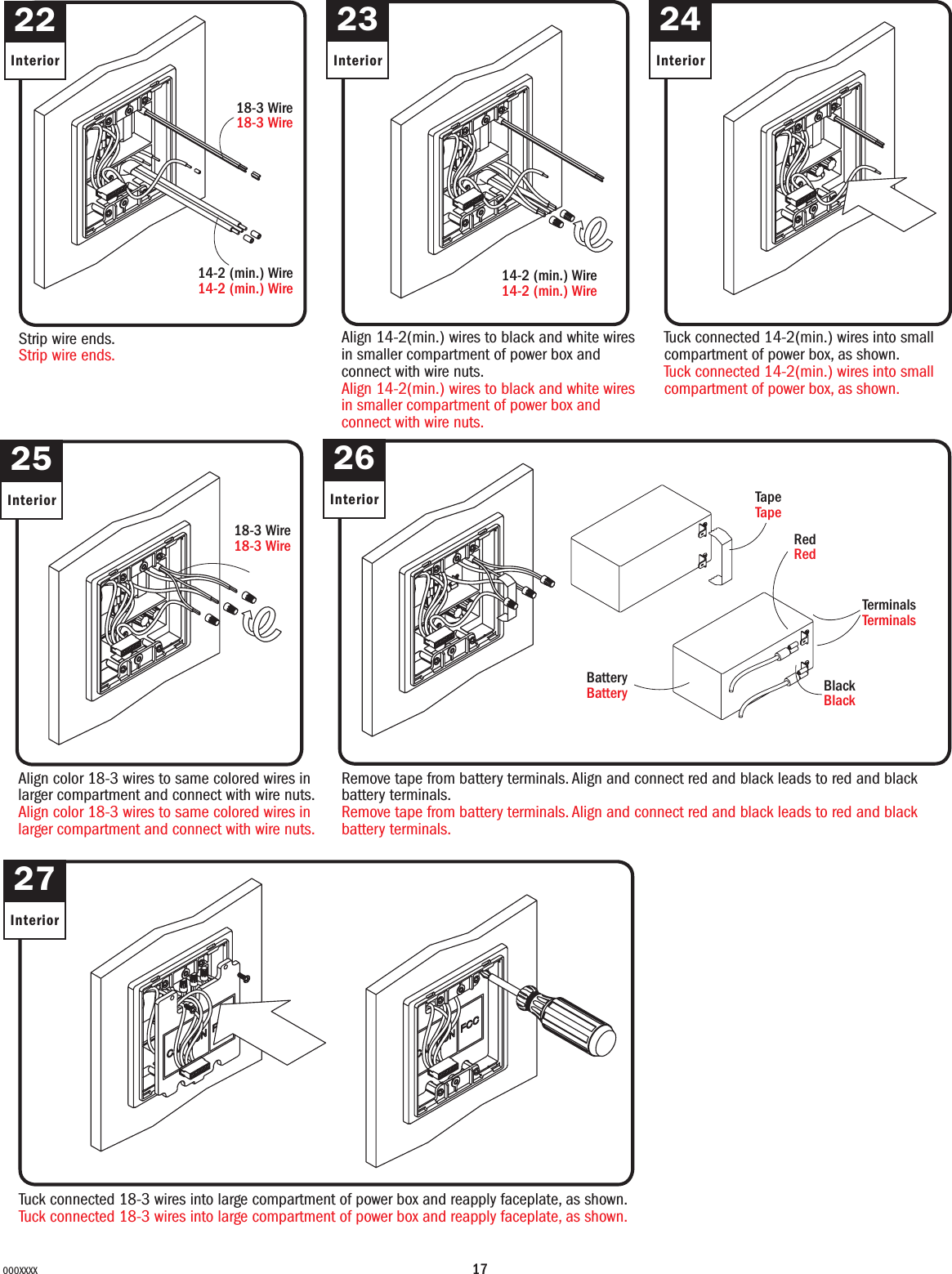

17000XXXX22Interior23Interior24Interior25Interior26Interior27InteriorStrip wire ends.Strip wire ends.18-3 Wire18-3 Wire14-2 (min.) Wire14-2 (min.) WireAlign 14-2(min.) wires to black and white wires in smaller compartment of power box and connect with wire nuts.Align 14-2(min.) wires to black and white wires in smaller compartment of power box and connect with wire nuts.14-2 (min.) Wire14-2 (min.) WireRedRedTapeTapeBlackBlackTerminalsTerminalsBatteryBatteryTuck connected 14-2(min.) wires into small compartment of power box, as shown.Tuck connected 14-2(min.) wires into small compartment of power box, as shown.Align color 18-3 wires to same colored wires in larger compartment and connect with wire nuts.Align color 18-3 wires to same colored wires in larger compartment and connect with wire nuts.18-3 Wire18-3 WireRemove tape from battery terminals. Align and connect red and black leads to red and black battery terminals.Remove tape from battery terminals. Align and connect red and black leads to red and black battery terminals.Tuck connected 18-3 wires into large compartment of power box and reapply faceplate, as shown.Tuck connected 18-3 wires into large compartment of power box and reapply faceplate, as shown.

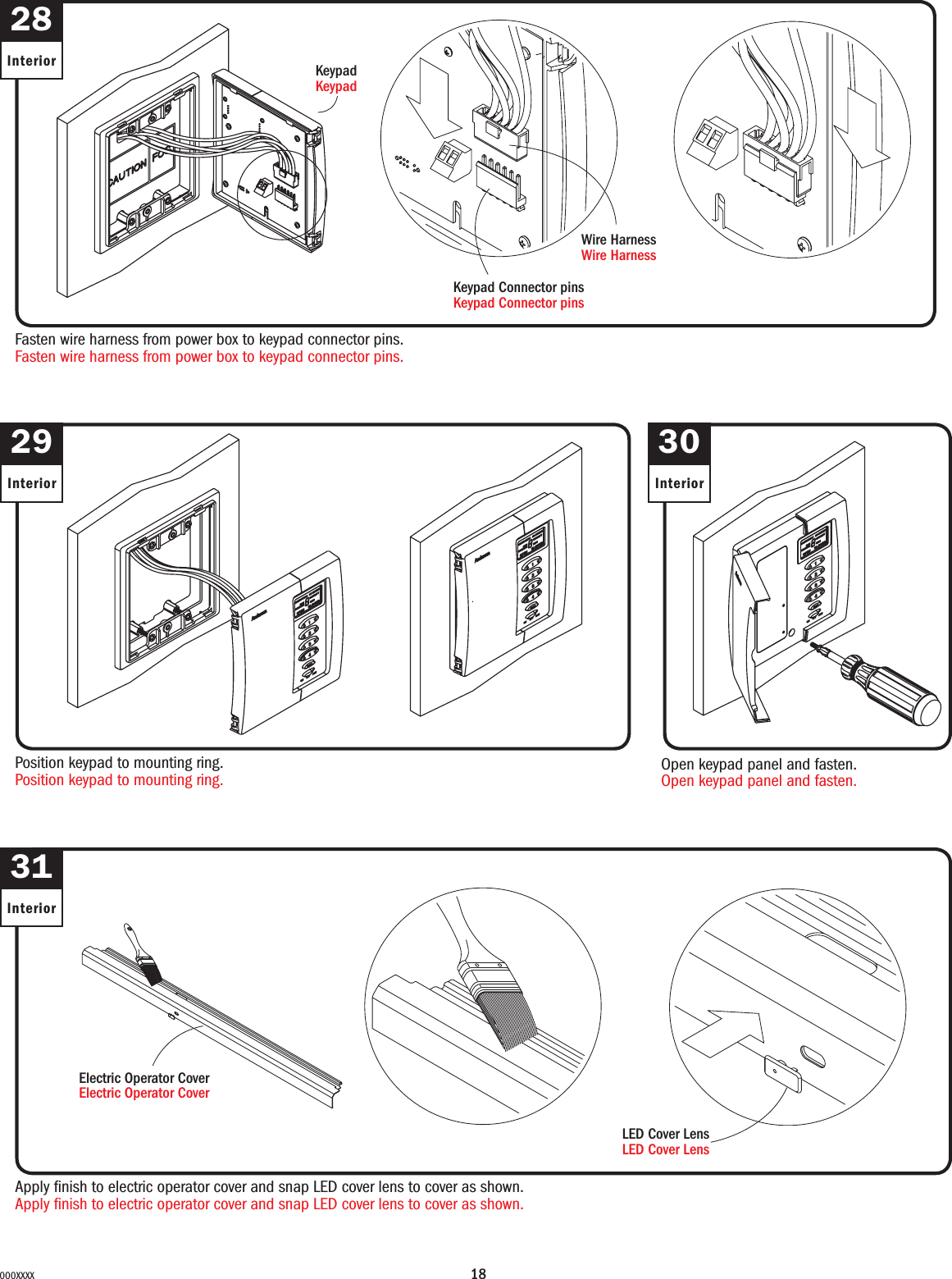

18000XXXX28InteriorFasten wire harness from power box to keypad connector pins.Fasten wire harness from power box to keypad connector pins.KeypadKeypadKeypad Connector pinsKeypad Connector pinsWire HarnessWire Harness30Interior29Interior31InteriorApply nish to electric operator cover and snap LED cover lens to cover as shown.Apply nish to electric operator cover and snap LED cover lens to cover as shown.LED Cover LensLED Cover LensPosition keypad to mounting ring.Position keypad to mounting ring.Open keypad panel and fasten.Open keypad panel and fasten.Electric Operator CoverElectric Operator Cover

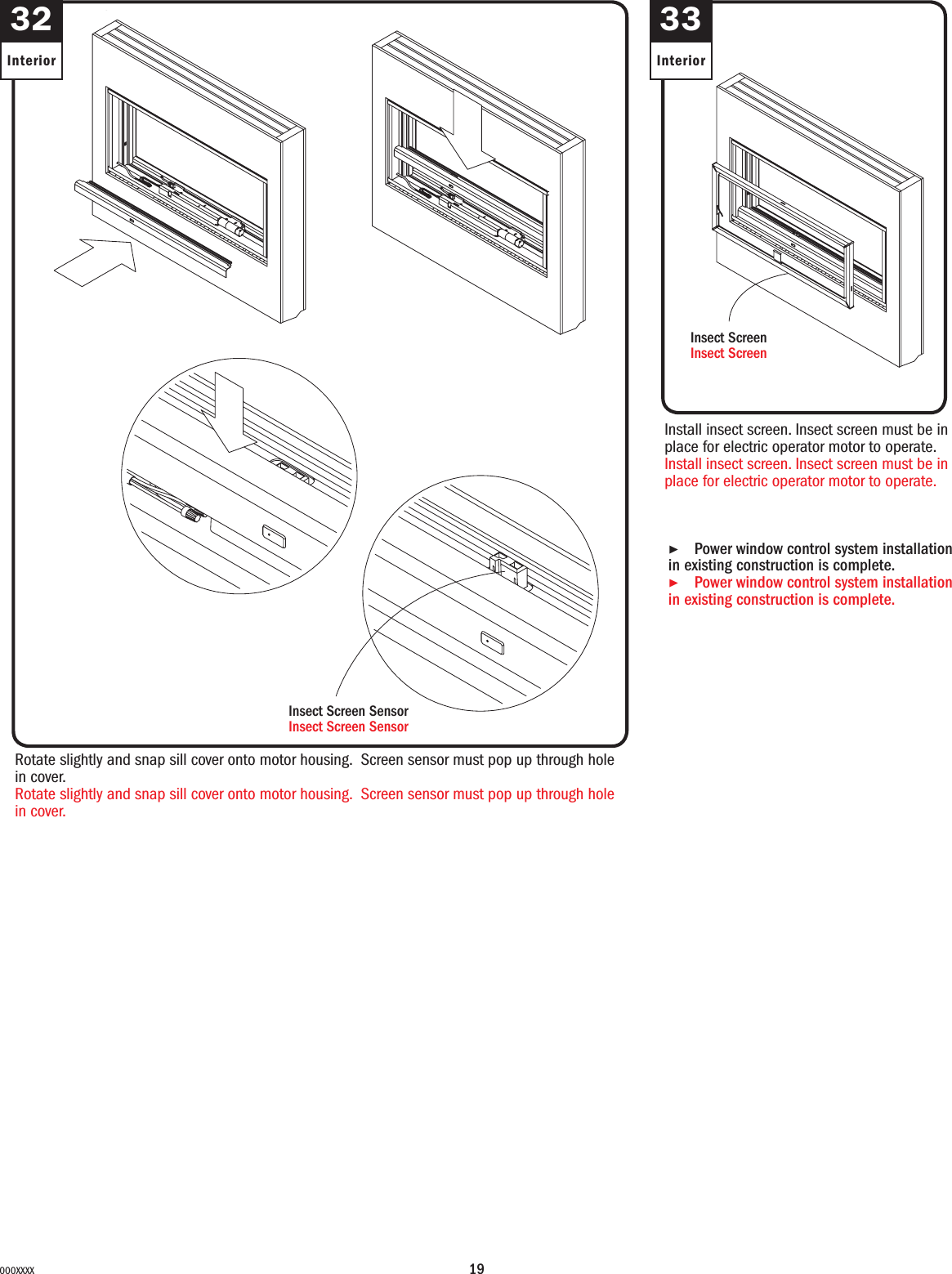

19000XXXXRotate slightly and snap sill cover onto motor housing. Screen sensor must pop up through hole in cover.Rotate slightly and snap sill cover onto motor housing. Screen sensor must pop up through hole in cover.Insect Screen SensorInsect Screen Sensor32Interior33InteriorInstall insect screen. Insect screen must be in place for electric operator motor to operate.Install insect screen. Insect screen must be in place for electric operator motor to operate.▶Power window control system installation in existing construction is complete. ▶Power window control system installation in existing construction is complete. Insect ScreenInsect Screen3
Use caution when working at elevated heights and around unit openings. Follow manufacturers’ instructions for ladders and/or scaffolding. Failure to do so may result in injury or death.Sea cauteloso al trabajar en lugares elevados y cerca de las aberturas de la unidad. Siga las instrucciones del fabricante para el uso de escaleras y/o andamios. Si no lo hiciera, podrían producirse lesiones o la muerte.Follow manufacturers’ instructions for hand or power tools. Always wear safety glasses. Failure to do so may result in injury and/or product damage.Siga las instrucciones del fabricante para el uso de herramientas eléctricas o manuales. Utilice siempre gafas de seguridad. Si no lo hiciera, podrían producirse lesiones y/o daños al producto.Power Window Control System Console and Remote Control Operation and ProgramingPower Window Control System Console and Remote Control Operation and Programingfor Andersen® Awning Windows with Power Windowsfor Andersen® Awning Windows with Power WindowsThank you for choosing Andersen. / Gracias por elegir Andersen.For questions call 1-888-888-7020. For more information and/or guides visit andersenwindows.com.Please leave this guide with building owner.Si tiene alguna pregunta llame al 1-888-888-7020. Para obtener más información y/o guías, visite andersenwindows.com.Deje esta guía con el dueño de la construcción.Thank you for choosing Andersen. / Gracias por elegir Andersen.▶Read guide from beginning to end before starting installation. Read all warnings and cautions during unit installation. Lea completamente la guía antes de comenzar la instalación. Lea y respete todas las advertencias y precauciones durante la instalación de la unidad.This document is under constructiondo not print, publish, or distribute▶Check with your local building code ofcial to identify and conrm compliance with local building code requirements. Consulte los códigos locales de construcción para identicar y conrmar que se cumplan los requisitos del código de construcción.“Andersen” and all other marks where denoted are trademarks of Andersen Corporation. ©2013-2013 Andersen Corporation. All rights reserved.“Andersen” y las demás marcas que aparezcan son marcas registradas de Andersen Corporation. ©2013-2013 Andersen Corporation. Todos los derechos reservados.ConsoleConsoleRemote ControlRemote Control▶For console programming, see page 21.▶For console programming, see page 21. ▶For remote control programming, see page 23.▶For remote control programming, see page 23.

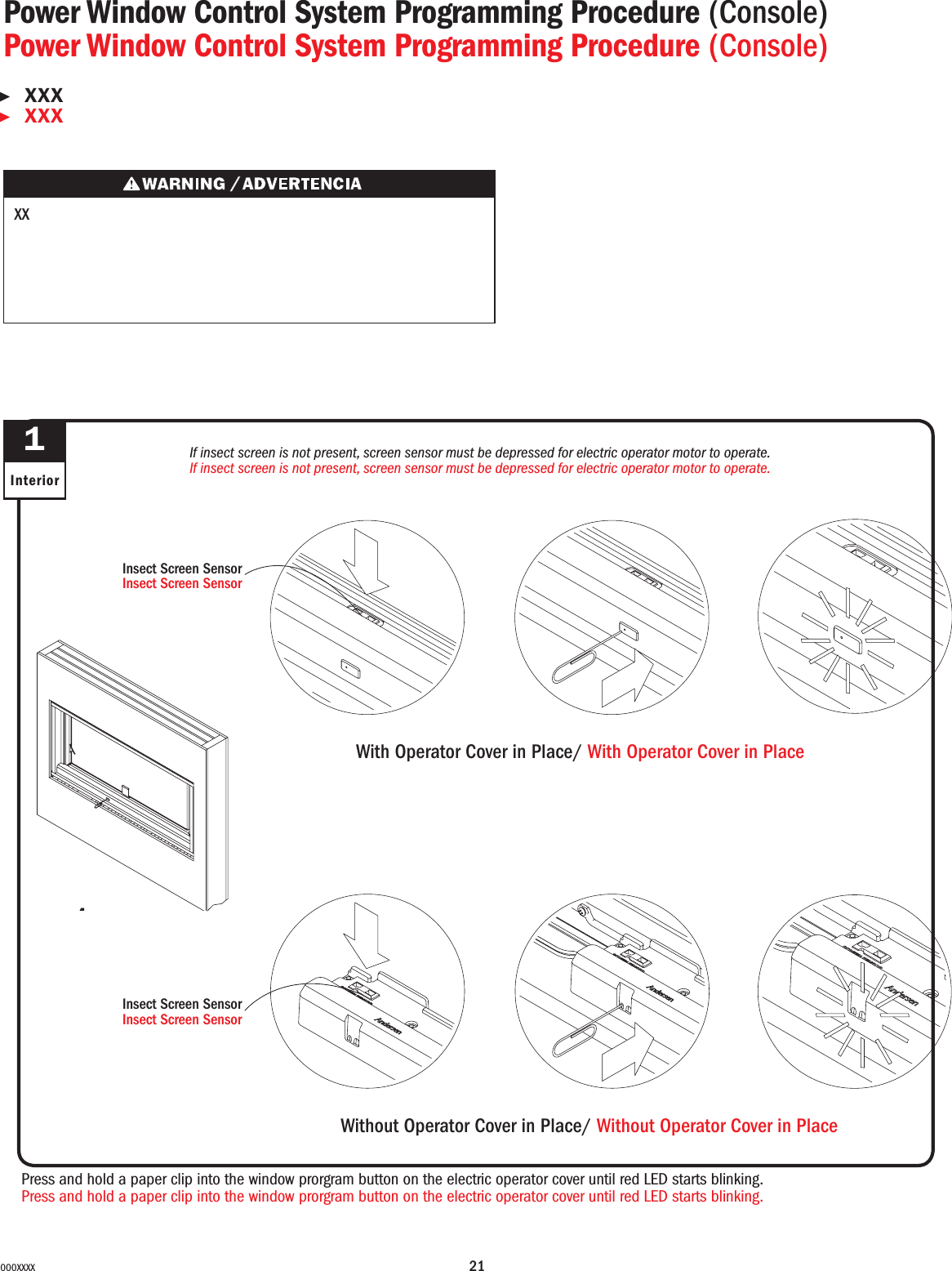

21000XXXXPress and hold a paper clip into the window prorgram button on the electric operator cover until red LED starts blinking.Press and hold a paper clip into the window prorgram button on the electric operator cover until red LED starts blinking.1InteriorPower Window Control System Programming Procedure (Console)Power Window Control System Programming Procedure (Console)▶XXX▶XXX XXWith Operator Cover in Place/ With Operator Cover in PlaceIf insect screen is not present, screen sensor must be depressed for electric operator motor to operate.If insect screen is not present, screen sensor must be depressed for electric operator motor to operate.1Insect Screen SensorInsect Screen SensorWithout Operator Cover in Place/ Without Operator Cover in PlaceInsect Screen SensorInsect Screen Sensor

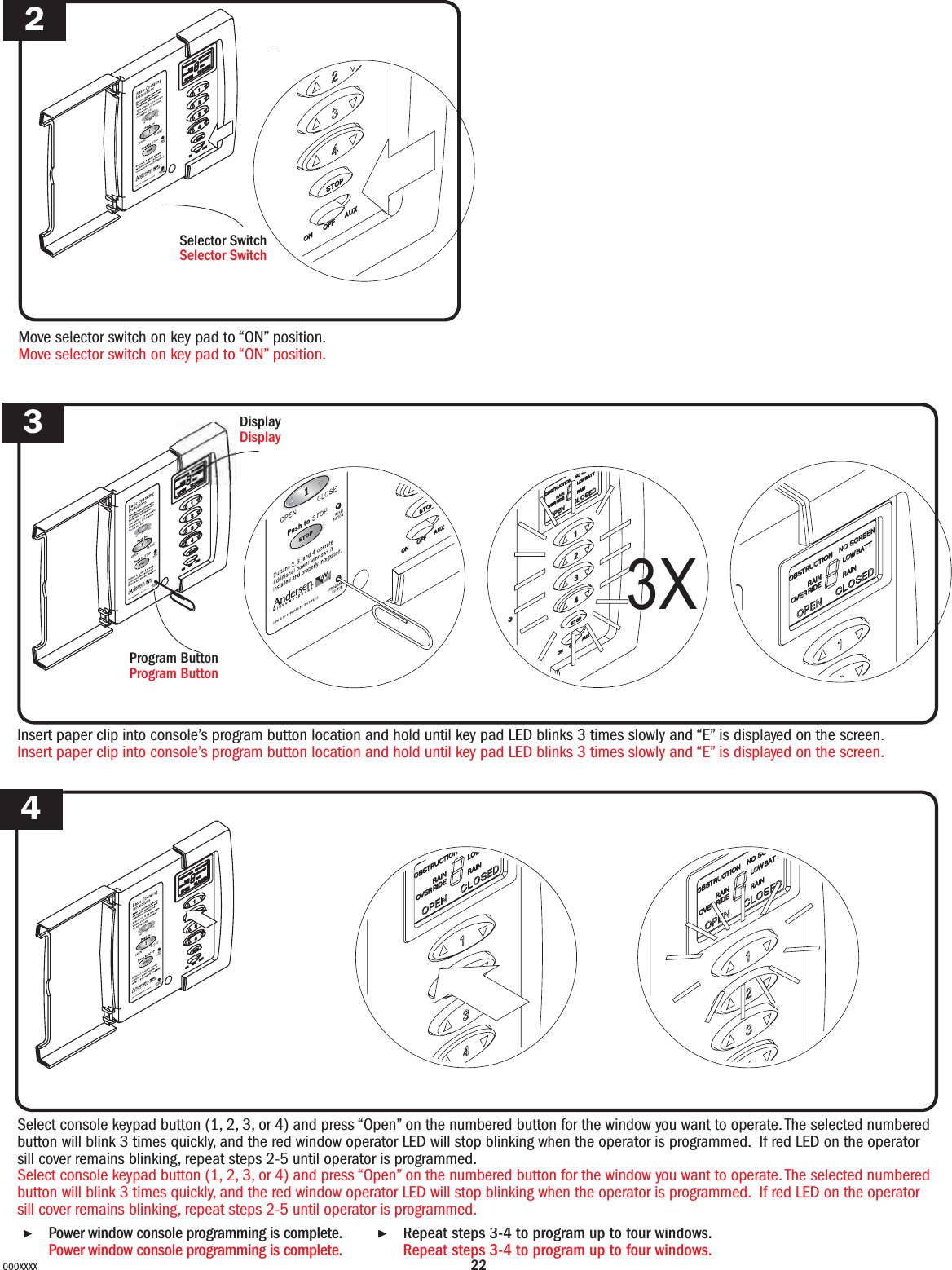

22000XXXXMove selector switch on key pad to “ON” position.Move selector switch on key pad to “ON” position.234▶Repeat steps 3-4 to program up to four windows. Repeat steps 3-4 to program up to four windows. Selector SwitchSelector SwitchaInsert paper clip into console’s program button location and hold until key pad LED blinks 3 times slowly and “E” is displayed on the screen.Insert paper clip into console’s program button location and hold until key pad LED blinks 3 times slowly and “E” is displayed on the screen.DisplayDisplayProgram ButtonProgram Button3XSelect console keypad button (1, 2, 3, or 4) and press “Open” on the numbered button for the window you want to operate.The selected numbered button will blink 3 times quickly, and the red window operator LED will stop blinking when the operator is programmed. If red LED on the operator sill cover remains blinking, repeat steps 2-5 until operator is programmed.Select console keypad button (1, 2, 3, or 4) and press “Open” on the numbered button for the window you want to operate. The selected numbered button will blink 3 times quickly, and the red window operator LED will stop blinking when the operator is programmed. If red LED on the operator sill cover remains blinking, repeat steps 2-5 until operator is programmed.▶Power window console programming is complete.Repeat stepsPower window console programming is complete.

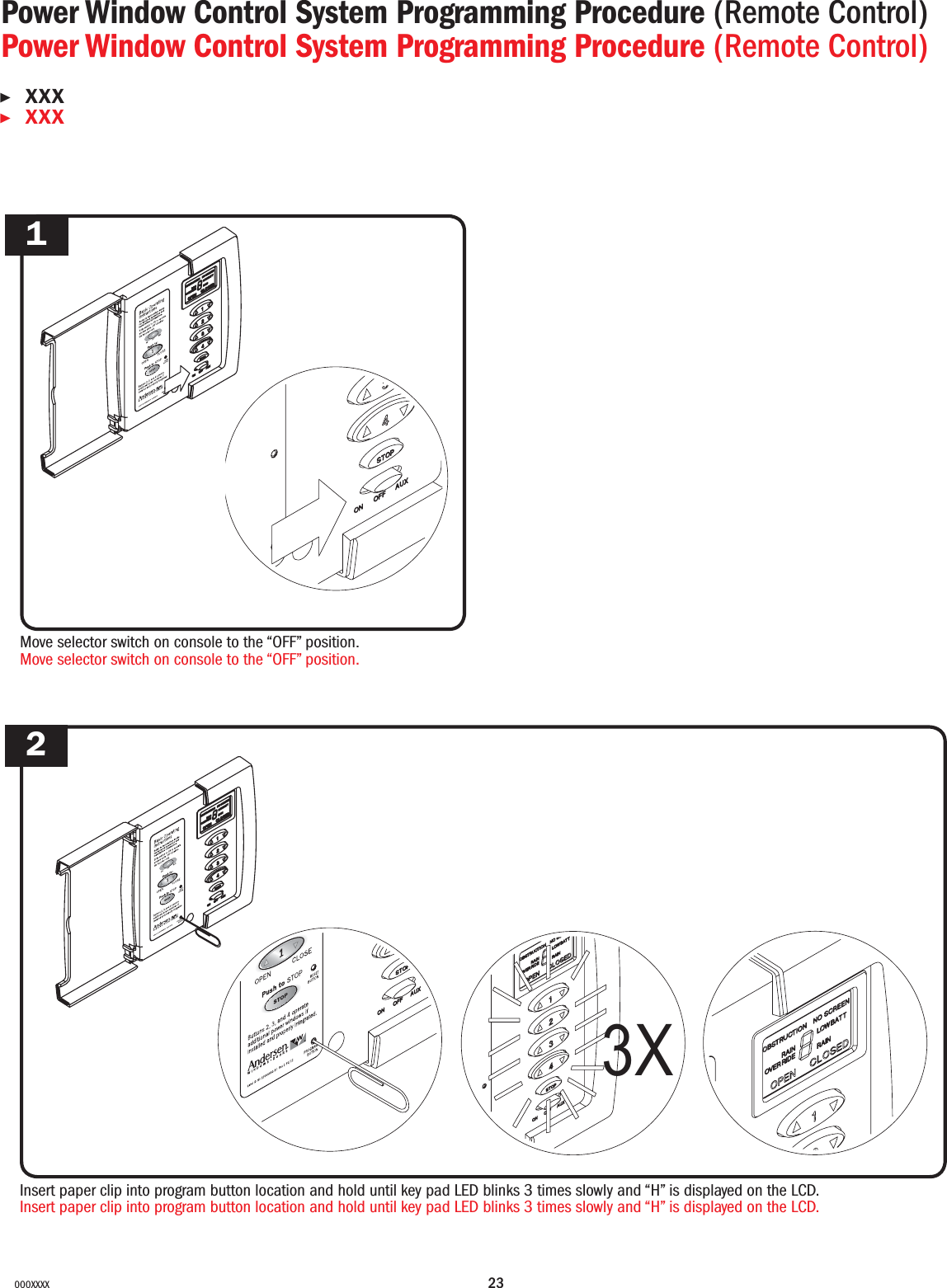

23000XXXXMove selector switch on console to the “OFF” position.Move selector switch on console to the “OFF” position.1Insert paper clip into program button location and hold until key pad LED blinks 3 times slowly and “H” is displayed on the LCD.Insert paper clip into program button location and hold until key pad LED blinks 3 times slowly and “H” is displayed on the LCD.23XPower Window Control System Programming Procedure (Remote Control)Power Window Control System Programming Procedure (Remote Control)▶XXX▶XXX

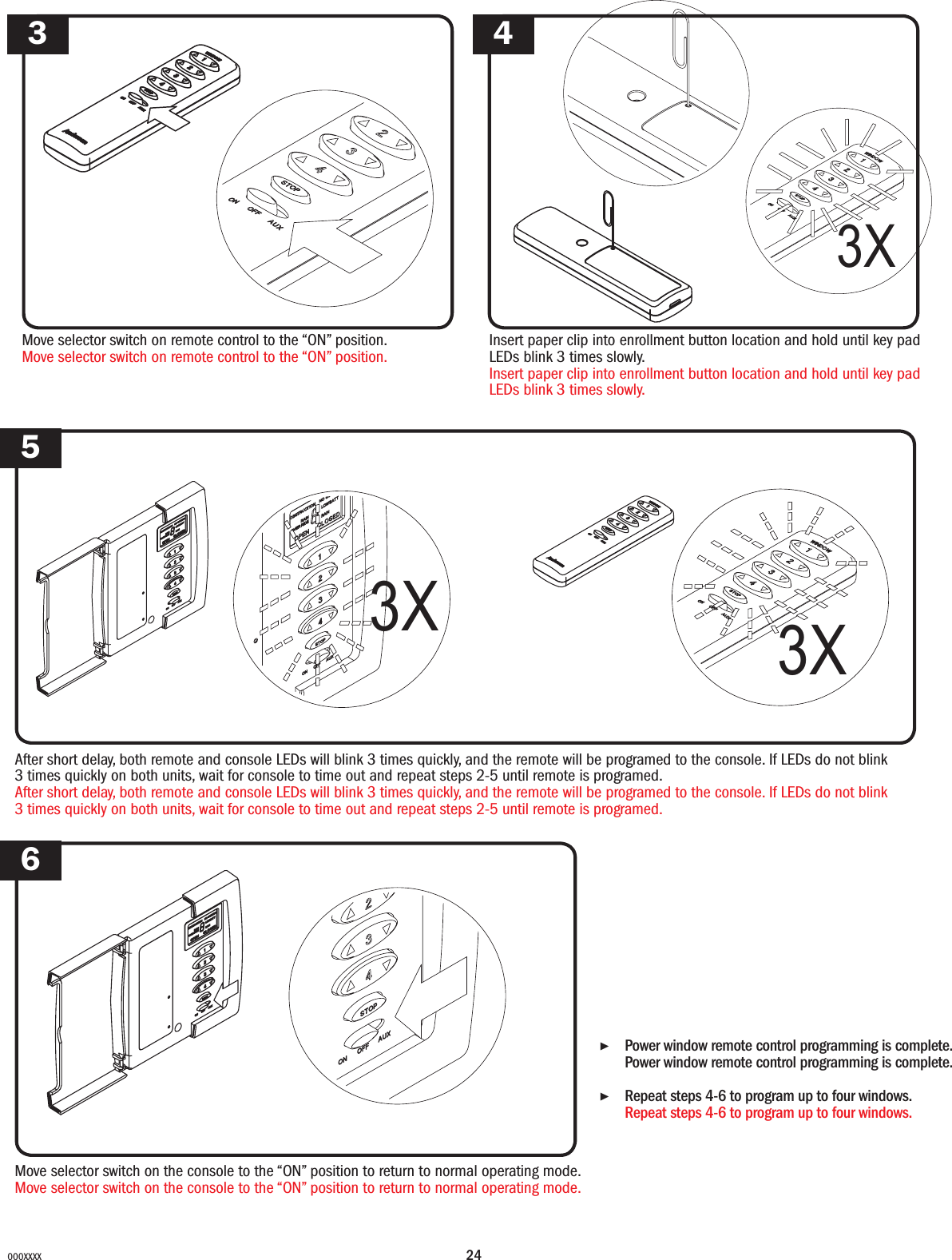

24000XXXXAfter short delay, both remote and console LEDs will blink 3 times quickly, and the remote will be programed to the console. If LEDs do not blink 3 times quickly on both units, wait for console to time out and repeat steps 2-5 until remote is programed.After short delay, both remote and console LEDs will blink 3 times quickly, and the remote will be programed to the console. If LEDs do not blink 3 times quickly on both units, wait for console to time out and repeat steps 2-5 until remote is programed.▶Power window remote control programming is complete. Power window remote control programming is complete. ▶Repeat steps 4-6 to program up to four windows. Repeat steps 4-6 to program up to four windows. 5Move selector switch on the console to the “ON” position to return to normal operating mode.Move selector switch on the console to the “ON” position to return to normal operating mode.63X 3XMove selector switch on remote control to the “ON” position.Move selector switch on remote control to the “ON” position.Insert paper clip into enrollment button location and hold until key pad LEDs blink 3 times slowly.Insert paper clip into enrollment button location and hold until key pad LEDs blink 3 times slowly.3 43X

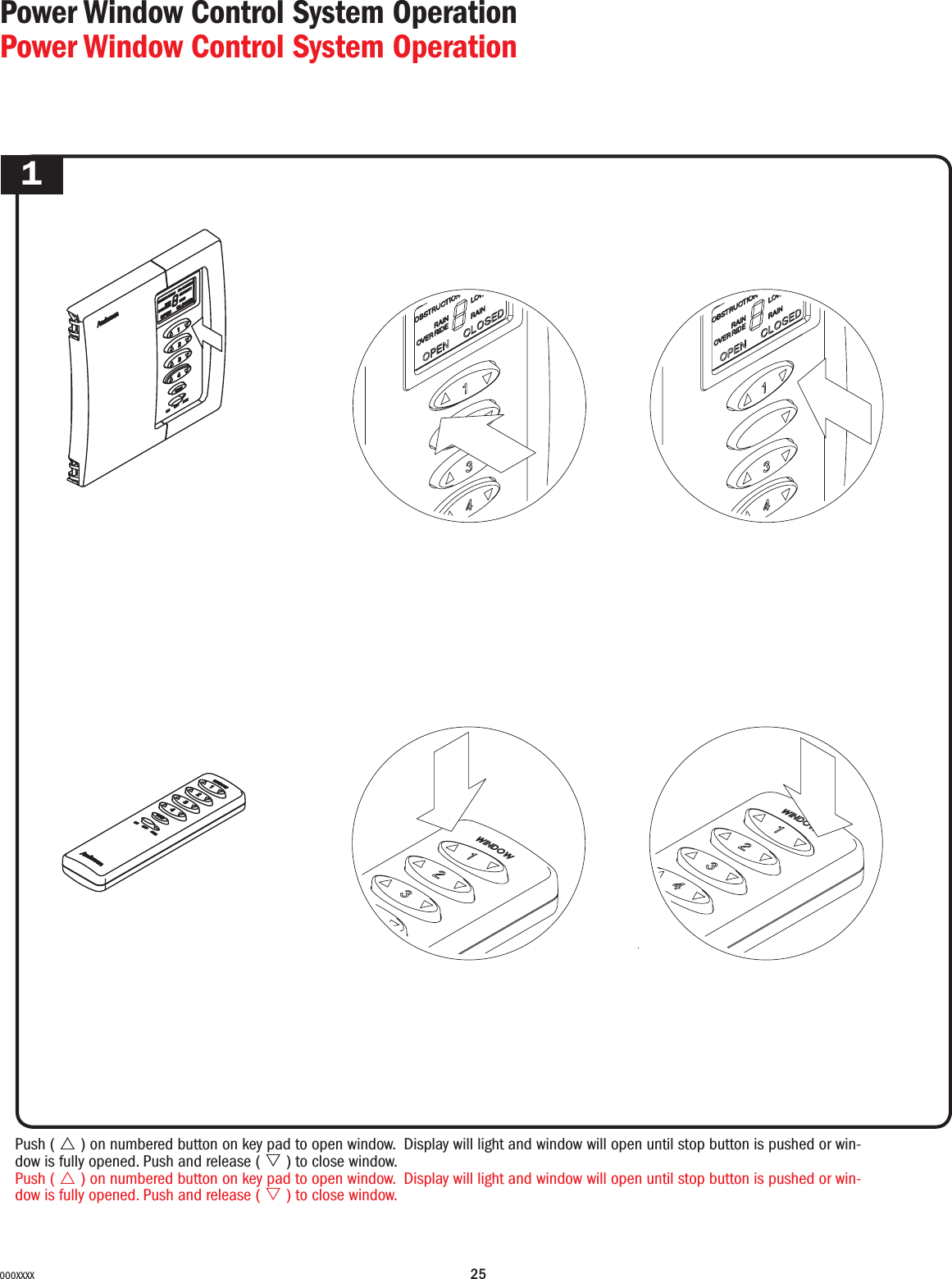

25000XXXX Power Window Control System OperationPower Window Control System Operation1Push ( U ) on numbered button on key pad to open window. Display will light and window will open until stop button is pushed or win-dow is fully opened. Push and release ( V ) to close window.Push ( U ) on numbered button on key pad to open window. Display will light and window will open until stop button is pushed or win-dow is fully opened. Push and release ( V ) to close window.

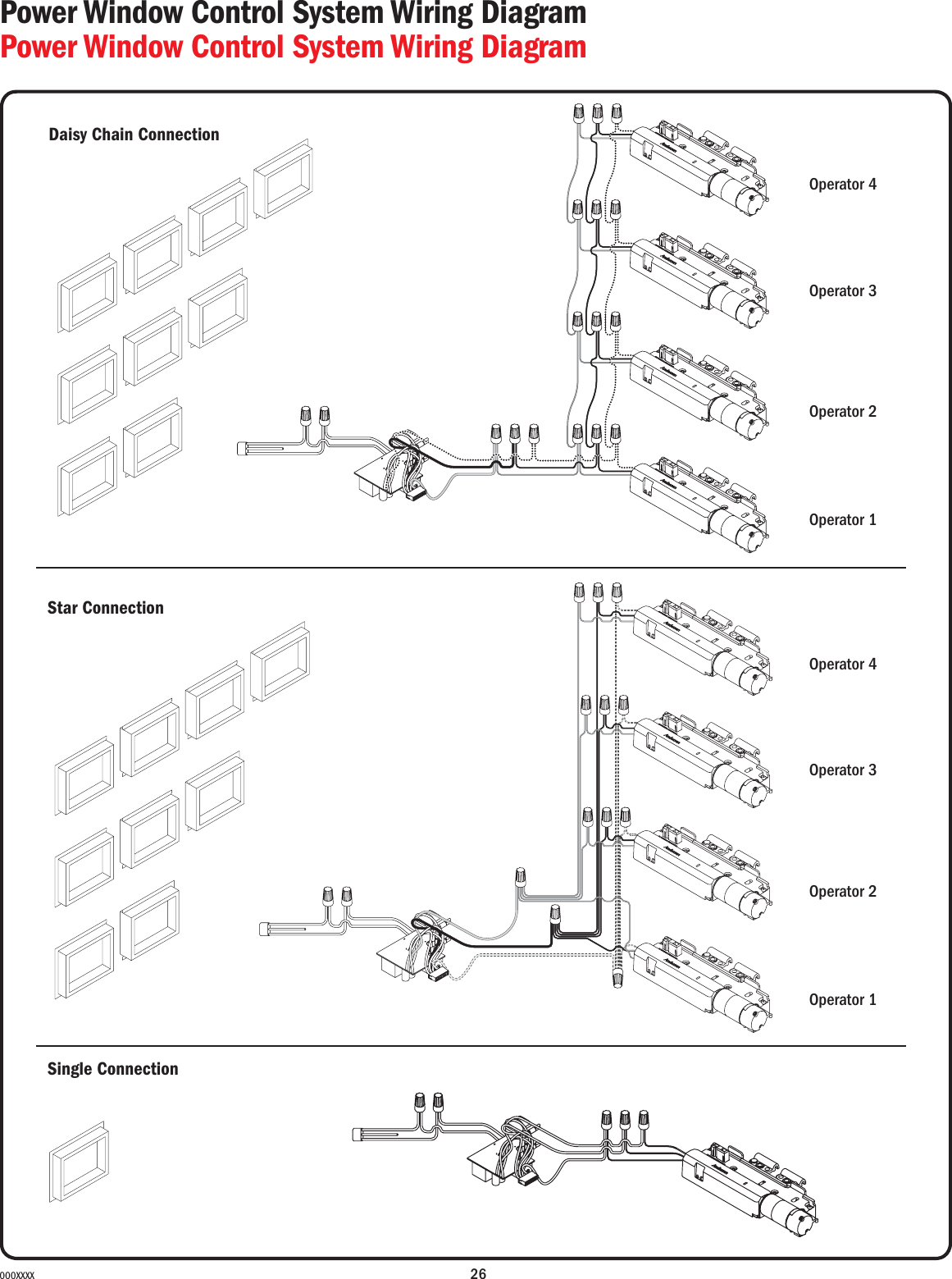

26000XXXXDaisy Chain ConnectionStar ConnectionOperator 1Operator 2Operator 3Operator 4Single ConnectionOperator 1Operator 2Operator 3Operator 4Power Window Control System Wiring DiagramPower Window Control System Wiring Diagram

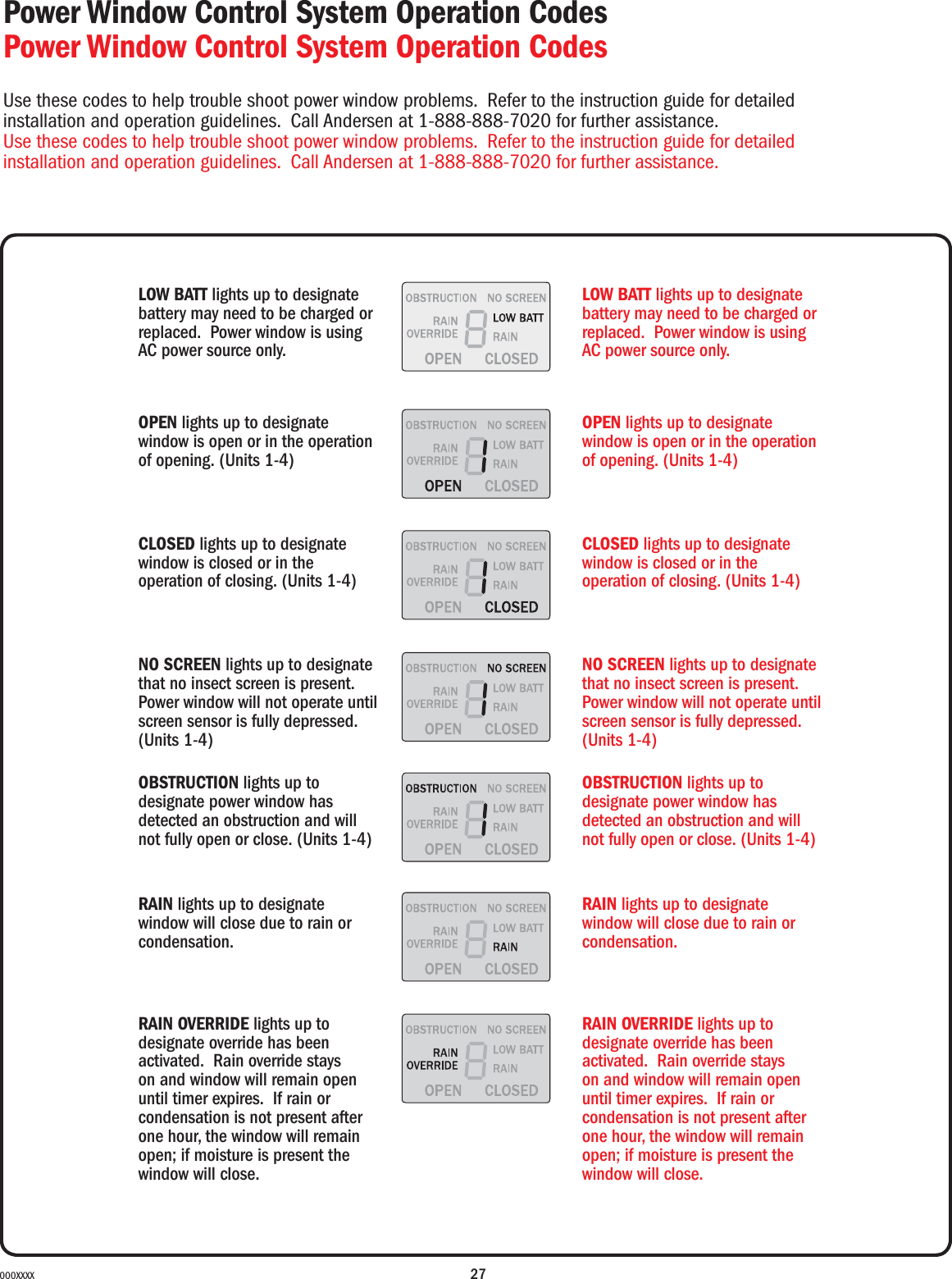

27000XXXXUse these codes to help trouble shoot power window problems. Refer to the instruction guide for detailed installation and operation guidelines. Call Andersen at 1-888-888-7020 for further assistance.Use these codes to help trouble shoot power window problems. Refer to the instruction guide for detailed installation and operation guidelines. Call Andersen at 1-888-888-7020 for further assistance.LOW BATT lights up to designate battery may need to be charged or replaced. Power window is using AC power source only.OPEN lights up to designate window is open or in the operation of opening. (Units 1-4)CLOSED lights up to designate window is closed or in the operation of closing. (Units 1-4)NO SCREEN lights up to designate that no insect screen is present. Power window will not operate until screen sensor is fully depressed. (Units 1-4)OBSTRUCTION lights up to designate power window has detected an obstruction and will not fully open or close. (Units 1-4)RAIN lights up to designate window will close due to rain or condensation.RAIN OVERRIDE lights up to designate override has been activated. Rain override stays on and window will remain open until timer expires. If rain or condensation is not present after one hour, the window will remain open; if moisture is present the window will close.LOW BATT lights up to designate battery may need to be charged or replaced. Power window is using AC power source only.OPEN lights up to designate window is open or in the operation of opening. (Units 1-4)CLOSED lights up to designate window is closed or in the operation of closing. (Units 1-4)NO SCREEN lights up to designate that no insect screen is present. Power window will not operate until screen sensor is fully depressed. (Units 1-4)OBSTRUCTION lights up to designate power window has detected an obstruction and will not fully open or close. (Units 1-4)RAIN lights up to designate window will close due to rain or condensation.RAIN OVERRIDE lights up to designate override has been activated. Rain override stays on and window will remain open until timer expires. If rain or condensation is not present after one hour, the window will remain open; if moisture is present the window will close.Power Window Control System Operation CodesPower Window Control System Operation Codes

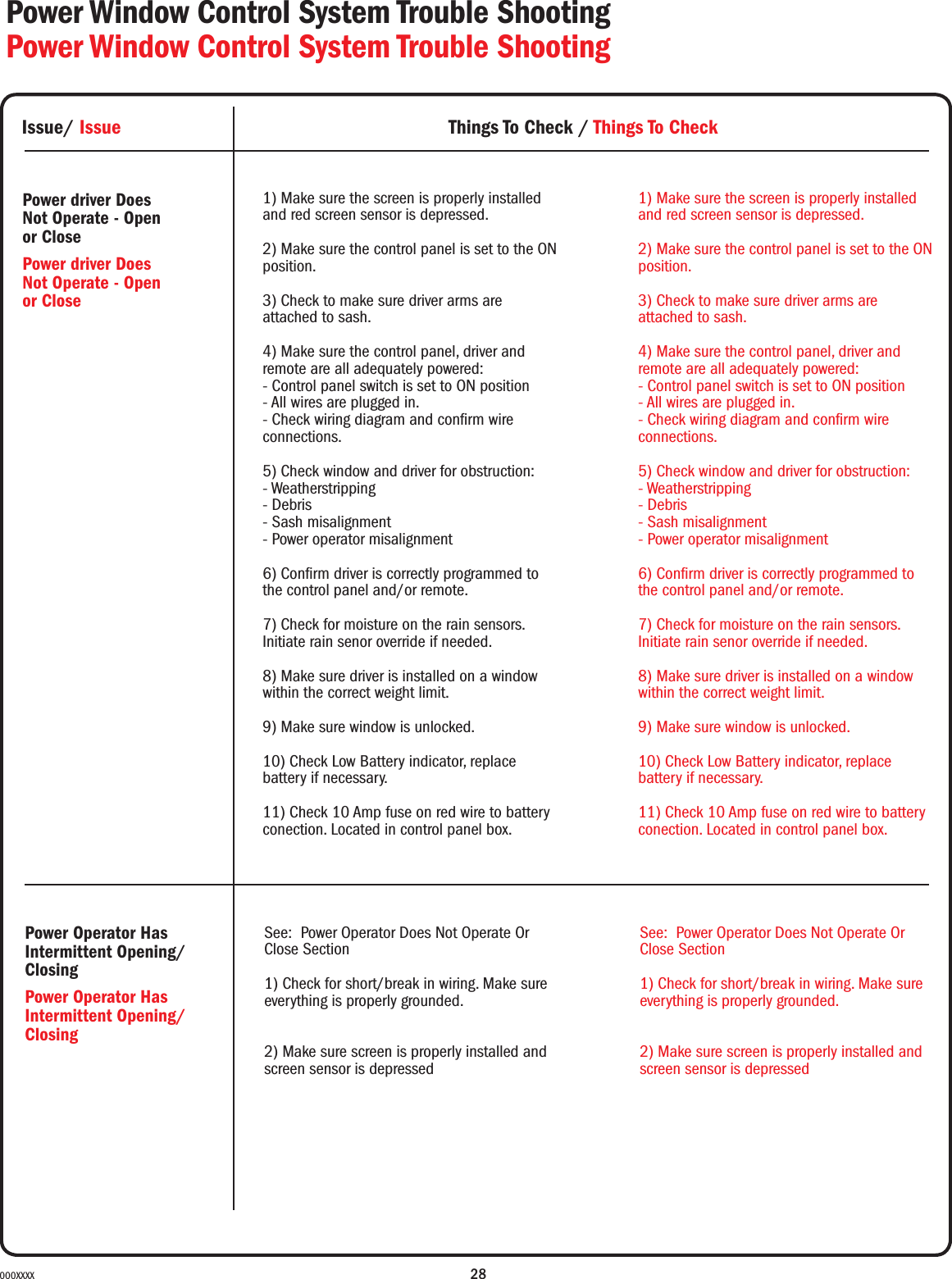

28000XXXX1) Make sure the screen is properly installed and red screen sensor is depressed.2) Make sure the control panel is set to the ON position.3) Check to make sure driver arms are attached to sash.4) Make sure the control panel, driver and remote are all adequately powered:- Control panel switch is set to ON position- All wires are plugged in.- Check wiring diagram and conrm wire connections.5) Check window and driver for obstruction:- Weatherstripping- Debris- Sash misalignment- Power operator misalignment6) Conrm driver is correctly programmed to the control panel and/or remote.7) Check for moisture on the rain sensors.Initiate rain senor override if needed.8) Make sure driver is installed on a window within the correct weight limit.9) Make sure window is unlocked.10) Check Low Battery indicator, replace battery if necessary.11) Check 10 Amp fuse on red wire to battery conection. Located in control panel box.Power driver Does Not Operate - Open or ClosePower driver Does Not Operate - Open or CloseIssue/ Issue Things To Check / Things To CheckSee: Power Operator Does Not Operate Or Close Section1) Check for short/break in wiring. Make sure everything is properly grounded.2) Make sure screen is properly installed and screen sensor is depressedPower Operator Has Intermittent Opening/ClosingPower Operator Has Intermittent Opening/Closing1) Make sure the screen is properly installed and red screen sensor is depressed.2) Make sure the control panel is set to the ON position.3) Check to make sure driver arms are attached to sash.4) Make sure the control panel, driver and remote are all adequately powered:- Control panel switch is set to ON position- All wires are plugged in.- Check wiring diagram and conrm wire connections.5) Check window and driver for obstruction:- Weatherstripping- Debris- Sash misalignment- Power operator misalignment6) Conrm driver is correctly programmed to the control panel and/or remote.7) Check for moisture on the rain sensors.Initiate rain senor override if needed.8) Make sure driver is installed on a window within the correct weight limit.9) Make sure window is unlocked.10) Check Low Battery indicator, replace battery if necessary.11) Check 10 Amp fuse on red wire to battery conection. Located in control panel box.See: Power Operator Does Not Operate Or Close Section1) Check for short/break in wiring. Make sure everything is properly grounded.2) Make sure screen is properly installed and screen sensor is depressedPower Window Control System Trouble ShootingPower Window Control System Trouble Shooting

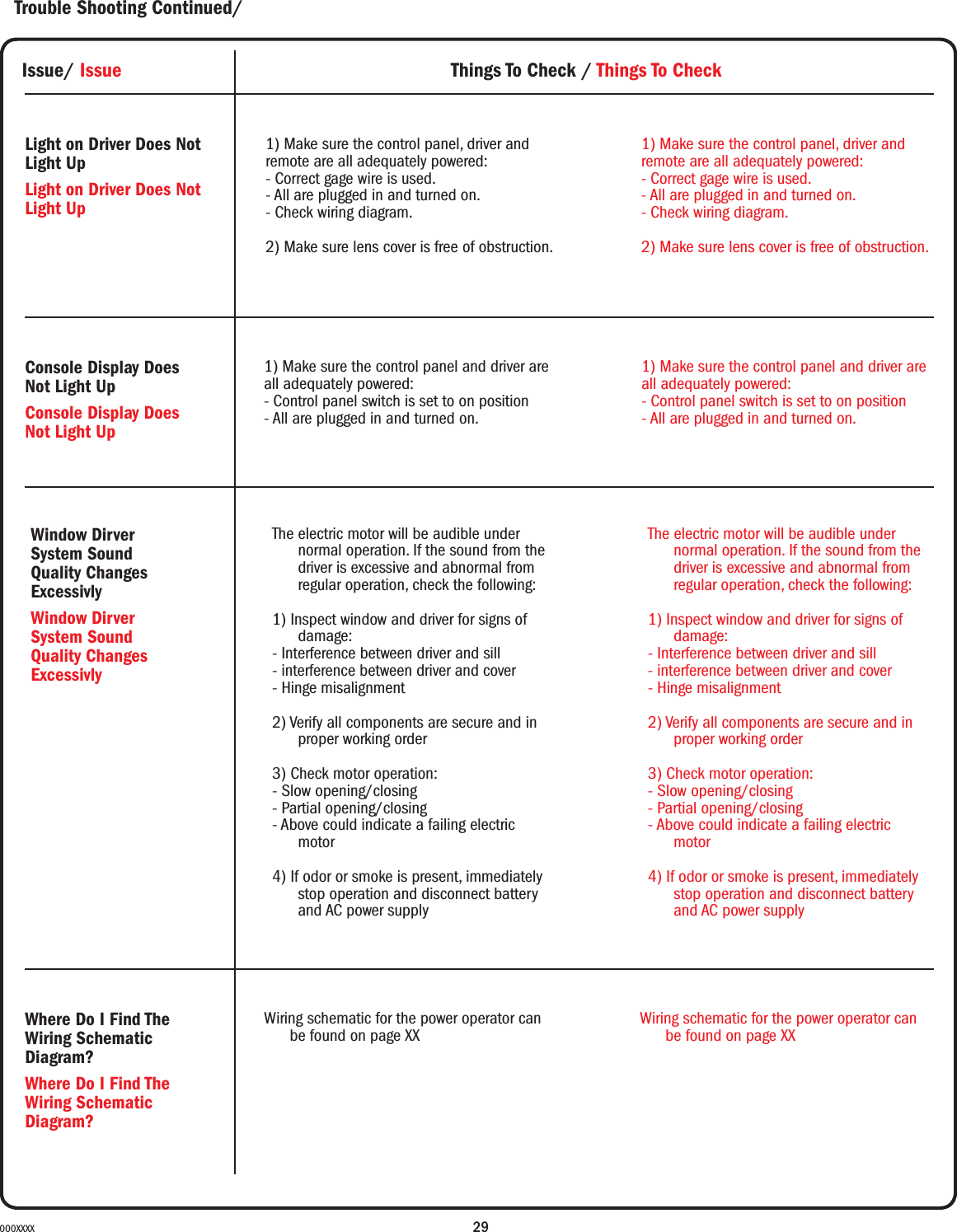

29000XXXXThe electric motor will be audible under normal operation. If the sound from the driver is excessive and abnormal from regular operation, check the following:1) Inspect window and driver for signs of damage:- Interference between driver and sill- interference between driver and cover- Hinge misalignment2) Verify all components are secure and in proper working order3) Check motor operation:- Slow opening/closing- Partial opening/closing- Above could indicate a failing electric motor4) If odor or smoke is present, immediately stop operation and disconnect battery and AC power supplyWindow Dirver System Sound Quality Changes ExcessivlyWindow Dirver System Sound Quality Changes ExcessivlyWiring schematic for the power operator can be found on page XXWhere Do I Find The Wiring Schematic Diagram?Where Do I Find The Wiring Schematic Diagram?The electric motor will be audible under normal operation. If the sound from the driver is excessive and abnormal from regular operation, check the following:1) Inspect window and driver for signs of damage:- Interference between driver and sill- interference between driver and cover- Hinge misalignment2) Verify all components are secure and in proper working order3) Check motor operation:- Slow opening/closing- Partial opening/closing- Above could indicate a failing electric motor4) If odor or smoke is present, immediately stop operation and disconnect battery and AC power supplyWiring schematic for the power operator can be found on page XX1) Make sure the control panel, driver and remote are all adequately powered:- Correct gage wire is used.- All are plugged in and turned on.- Check wiring diagram.2) Make sure lens cover is free of obstruction.Issue/ Issue Things To Check / Things To Check1) Make sure the control panel, driver and remote are all adequately powered:- Correct gage wire is used.- All are plugged in and turned on.- Check wiring diagram.2) Make sure lens cover is free of obstruction.Light on Driver Does Not Light UpLight on Driver Does Not Light Up1) Make sure the control panel and driver are all adequately powered:- Control panel switch is set to on position- All are plugged in and turned on.Console Display Does Not Light UpConsole Display Does Not Light Up1) Make sure the control panel and driver are all adequately powered:- Control panel switch is set to on position- All are plugged in and turned on.Trouble Shooting Continued/

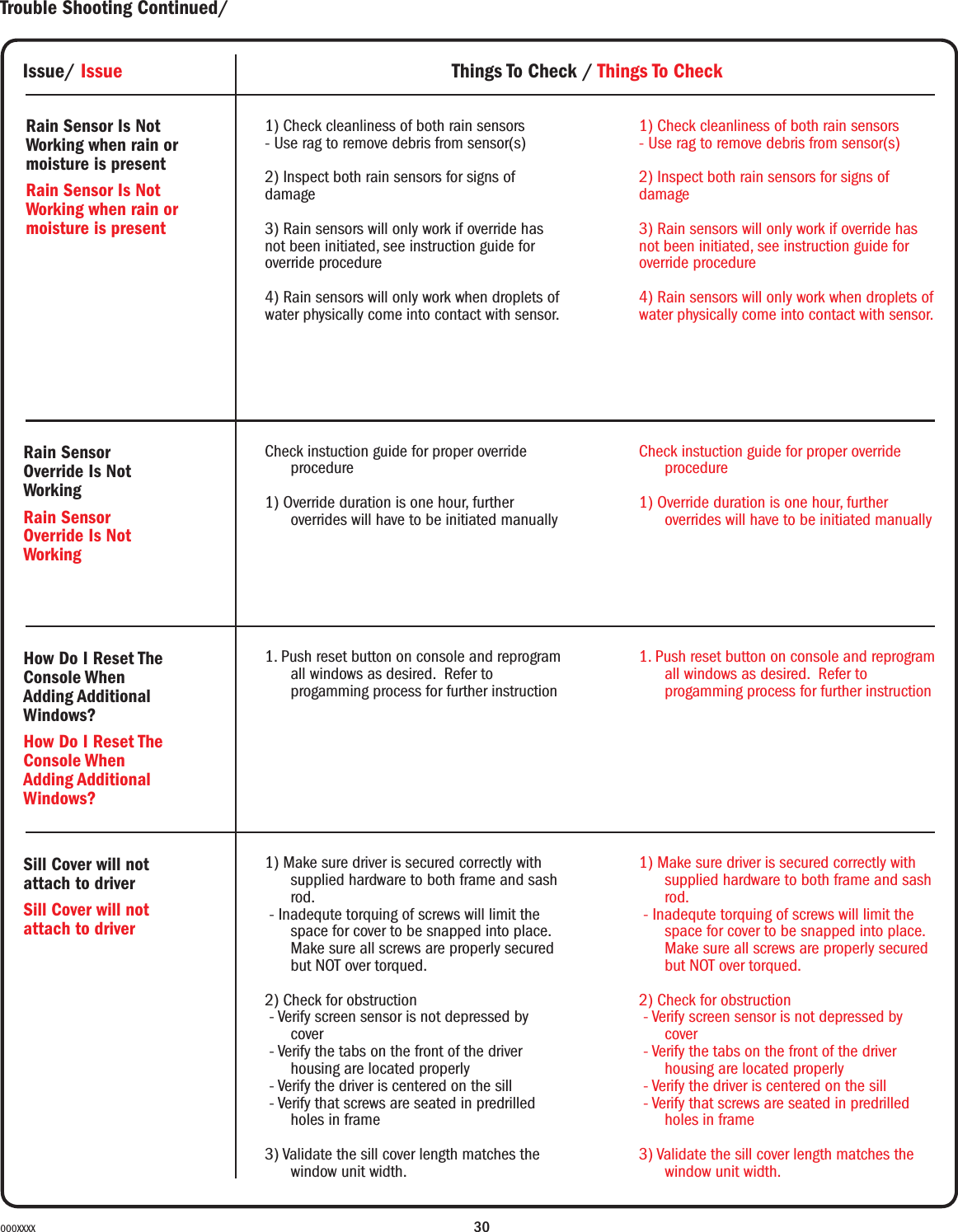

30000XXXXIssue/ Issue Things To Check / Things To CheckCheck instuction guide for proper override procedure1) Override duration is one hour, further overrides will have to be initiated manually Rain Sensor Override Is Not WorkingRain Sensor Override Is Not Working1) Check cleanliness of both rain sensors- Use rag to remove debris from sensor(s)2) Inspect both rain sensors for signs of damage3) Rain sensors will only work if override has not been initiated, see instruction guide for override procedure4) Rain sensors will only work when droplets of water physically come into contact with sensor.Rain Sensor Is Not Working when rain or moisture is present Rain Sensor Is Not Working when rain or moisture is present1. Push reset button on console and reprogram all windows as desired. Refer to progamming process for further instructionHow Do I Reset The Console When Adding Additional Windows?How Do I Reset The Console When Adding Additional Windows?1) Make sure driver is secured correctly with supplied hardware to both frame and sash rod. - Inadequte torquing of screws will limit the space for cover to be snapped into place.Make sure all screws are properly secured but NOT over torqued.2) Check for obstruction - Verify screen sensor is not depressed by cover - Verify the tabs on the front of the driver housing are located properly - Verify the driver is centered on the sill - Verify that screws are seated in predrilled holes in frame3) Validate the sill cover length matches the window unit width.Sill Cover will not attach to driverSill Cover will not attach to driverCheck instuction guide for proper override procedure1) Override duration is one hour, further overrides will have to be initiated manually 1) Check cleanliness of both rain sensors- Use rag to remove debris from sensor(s)2) Inspect both rain sensors for signs of damage3) Rain sensors will only work if override has not been initiated, see instruction guide for override procedure4) Rain sensors will only work when droplets of water physically come into contact with sensor.1. Push reset button on console and reprogram all windows as desired. Refer to progamming process for further instruction1) Make sure driver is secured correctly with supplied hardware to both frame and sash rod. - Inadequte torquing of screws will limit the space for cover to be snapped into place.Make sure all screws are properly secured but NOT over torqued.2) Check for obstruction - Verify screen sensor is not depressed by cover - Verify the tabs on the front of the driver housing are located properly - Verify the driver is centered on the sill - Verify that screws are seated in predrilled holes in frame3) Validate the sill cover length matches the window unit width.Trouble Shooting Continued/

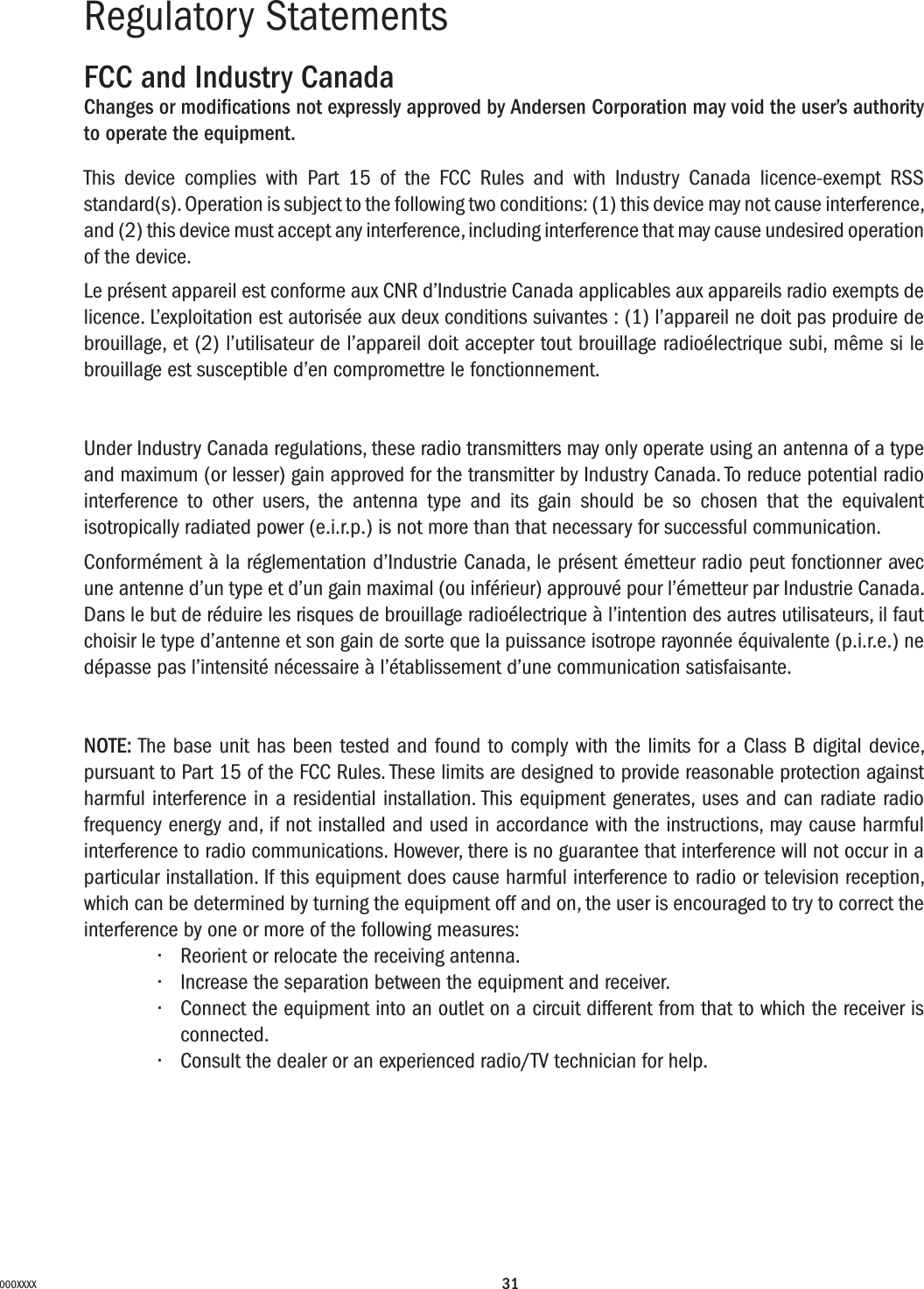

31000XXXXRegulatory Statements FCC and Industry CanadaChanges or modifications not expressly approved by Andersen Corporation may void the user’s authority to operate the equipment.This device complies with Part 15 of the FCC Rules and with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.Under Industry Canada regulations, these radio transmitters may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pour l’émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l’intention des autres utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire à l’établissement d’une communication satisfaisante.NOTE: The base unit has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorientorrelocatethereceivingantenna.• Increasetheseparationbetweentheequipmentandreceiver.• Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.• Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
