Users Manual
2x45W RRH for E-UTRAN Band 25 (FCC ID: S8L-AA190045)

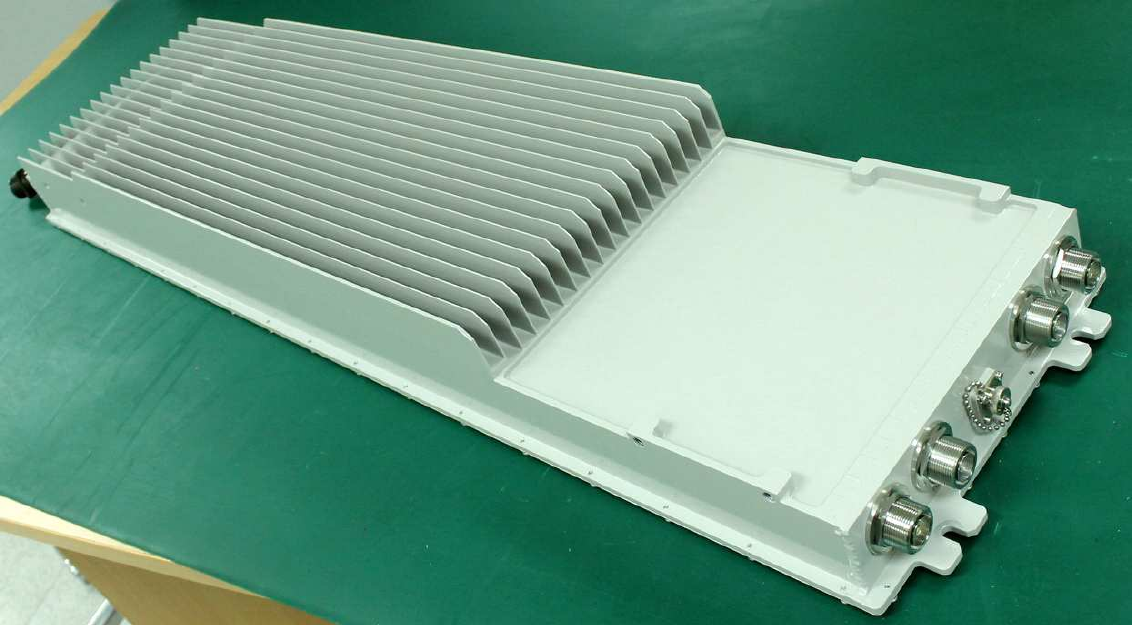

Product Description
Key Specifications:
Base-Station Interface: CPRI High Speed Digital I/O (PCS LTE Traffic + Control)
2 Duplexed Antenna Ports:
Tx Frequency Range: 1930-1995MHz; 45WRF (+46.5dBm) max each port;
Rx Frequency Range: 1850-1915MHz; sensitivity -101.5 dBm (10MHz LTE)
And 2 RX Ports:
Rx Frequency Range: 1850-1915MHz; sensitivity -101.5 dBm (10MHz LTE)
Power Input: -48VDC nominal; Load Current 8.4 ADC (with 2x45WRF)

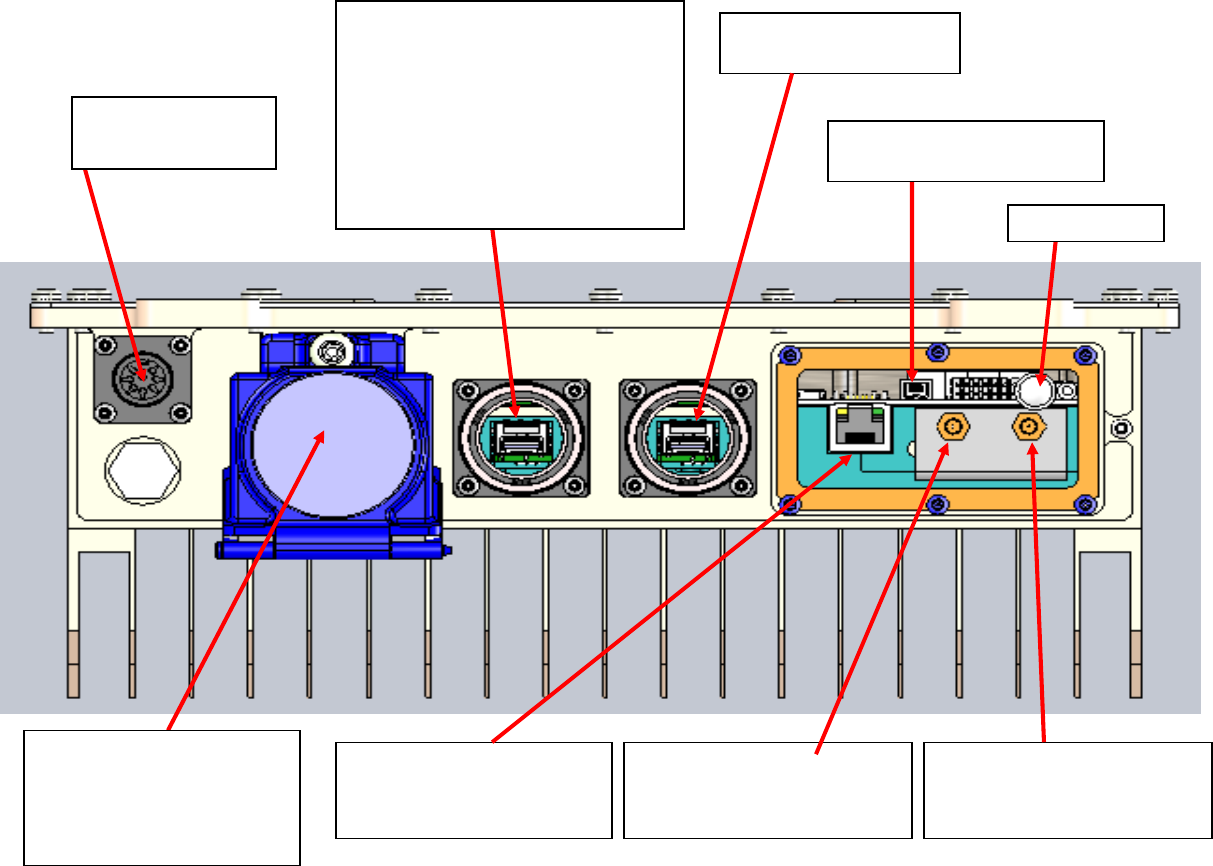

2x45W 1900MHz RRH – Interface Ports (Bottom)
8) DC Power Port: Input.
-48V (-38.5V to 58V) With
Tx1=Tx2=45W, 8A
2.2A after boot-up
3
.
0
A
b
i
a
s
O
N
,
n
o
R
F
7
)
Et
h
e
r
n
e
t
M
a
in
t
e
n
a
n
ce
Port: Input/Output
10/100 Base-T
5) Tx2 Monitor Port:
Output -40dBc sample of
RF on Tx2/Rx2 port
6) Tx1 Monitor Port:
Output -40dBc sample of
RF on Tx1/Rx1 port
2) Secondary CRPI Port
Serial Digital Traffic &
Control Input/Output.
(accepts optical or electrical
SFP modules)
Supported Data rates:
Rate 2: 1.2288Gbps
Rate 3: 2.457.6Gbps
R
a
te
4
:
3
.
07
20
G
b
p
s
Status LED
1) External
alarms port
3) Primary CPRI Port
4) Serial RS232
Connection JTAG DSP

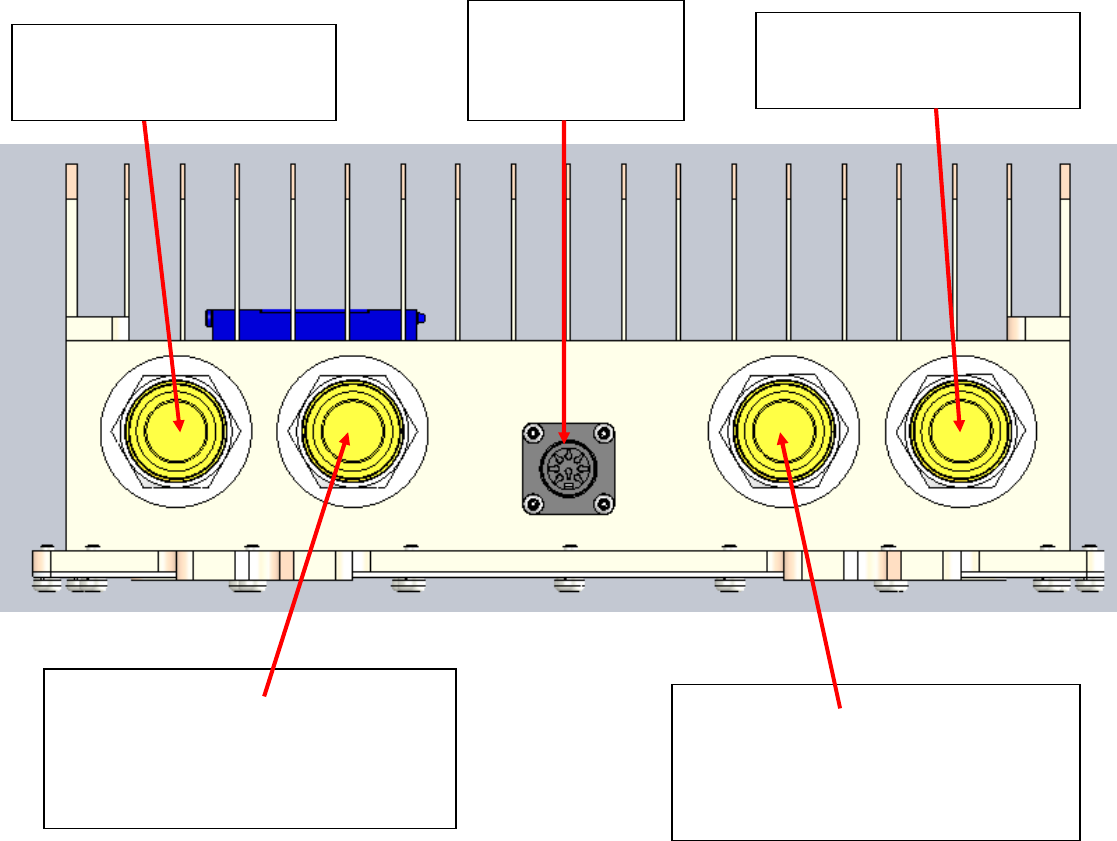

2x45W 1900MHz RRH – Interface Ports (Top)
10) AISG Port
Input/Output,
RS485 signaling
+24VDC/2A
11) Rx3 Port:
Up-link RF In: 1850-1915MHz;
-102dBm to -40dBm
13)
Tx2
/Rx2
Port:
Duplexed Antenna Ports Input/Output.
Down-link RF Out: 1930-1995MHz;
+46.5 dBm (45W each)
Up-link RF In: 1850-1915MHz;
-102dBm to -40dBm
12) Tx1/Rx1 Port:
Duplexed Antenna Ports Input/Output.
Down-link RF Out: 1930-1995MHz;
+46.5 dBm (45W each)
Up-link RF In: 1850-1915MHz;
-
102dBm to
-
40dBm
9) Rx4 Port:
Up-link RF In: 1850-1915MHz;
-102dBm to -40dBm
FCC Statement/ FCC ID: S8L-AA190045
This device complies with Part 2, 15 and 24 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
Warning
Changes of modifications not expressly approved by the
manufacturer could void the user’s authority to operate the
equipment.
RF exposure compliance is addressed at the time of licensing, as
required by the responsible FCC Bureau(s), including antenna co-
location requirements of 1.1307(b)(3).
