ION®-U

7P/80-85P/17P/19P Remote Unit

User's Manual

M0200A8C

Page 2 M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U

DISCLAIMER:

This document has been developed by CommScope, and is intended for the use of its

customers and customer support personnel. The information in this document is subject to

change without notice. While every effort has been made to eliminate errors, CommScope

disclaims liability for any difficulties arising from the interpretation of the information

contained herein. The information contained herein does not claim to cover all details or

variations in equipment, nor to provide for every possible incident to be met in connection

with installation, operation, or maintenance. This document describes the performance of the

product under the defined operational conditions and does not cover the performance under

adverse or disturbed conditions. Should further information be desired, or should particular

problems arise which are not covered sufficiently for the purchaser’s purposes, contact

CommScope.

CommScope reserves the right to change all hardware and software characteristics without

notice.

This document is protected by copyright. No part of this document may be reproduced,

stored in a retrieval system, or transmitted, in any form or by any means, electronic,

mechanical photocopying, recording, or otherwise without the prior written permission of

CommScope.

TRADEMARKS

All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of

CommScope. Names of products mentioned herein are used for identification purposes only

and may be trademarks and / or registered trademarks of their respective companies.

Andrew Wireless Systems GmbH, 08-July-2015

Table of Contents

M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U Page 3

TABLE OF CONTENTS

1. GENERAL 6

1.1. USED ABBREVIATIONS 6

1.2. HEALTH AND SAFETY 7

1.3. PROPERTY DAMAGE WARNINGS 7

1.4. COMPLIANCE 8

1.5. ABOUT COMMSCOPE 11

1.6. INTERNATIONAL CONTACT ADDRESSES FOR CUSTOMER SUPPORT 12

2. INTRODUCTION 14

2.1. PURPOSE 14

2.2. ION-U HIGH POWER REMOTE UNITS 14

3. FUNCTIONAL DESCRIPTION 15

4. COMMISSIONING 16

4.1. GENERAL 16

4.2. HIGH POWER RU MECHANICAL INSTALLATION 16

4.2.1. Health and Safety for mechanical installation 16

4.2.2. Property Damage Warnings for mechanical installation 16

4.2.3. Wall mounting procedure 18

4.2.4. Pole mounting procedure with screw bands 19

4.2.5. Pole mounting procedure with brackets 20

4.3. ELECTRICAL INSTALLATION 22

4.3.1. Health and Safety for electrical installation 22

4.3.2. Property Damage Warnings for electrical installation 22

4.3.3. Connections 23

4.3.4. Grounding (Earthing) 26

4.3.5. Connection of the antenna cable 27

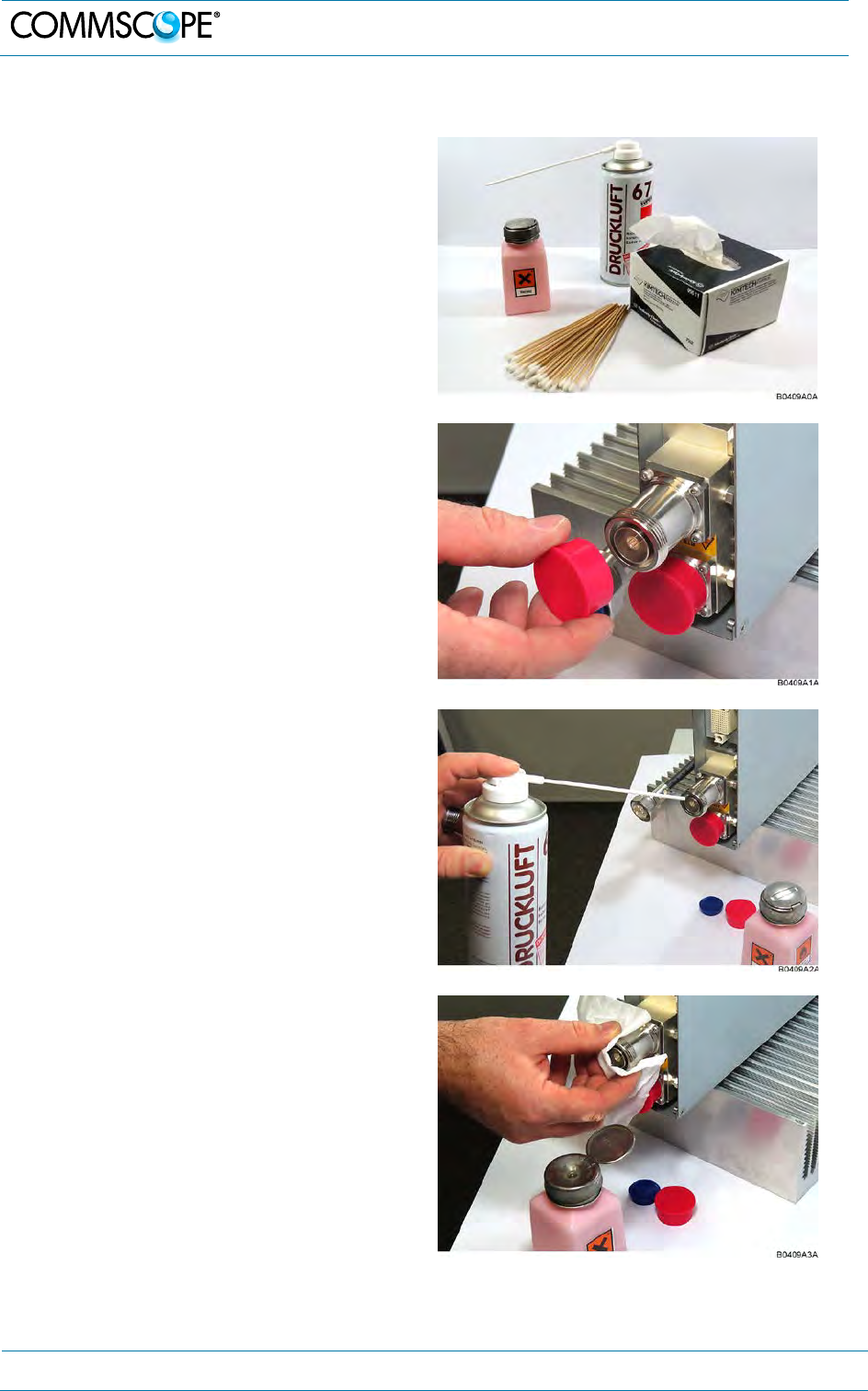

4.3.5.1. Cleaning procedure for RF cable connectors 28

4.3.5.2. Antenna cable connector assembly 31

4.3.6. Mains power connection 32

4.3.6.1. Mains power connection AC 32

4.3.6.2. Mains power connection DC 34

4.3.7. Extension Unit port connection 36

4.3.8. External alarm In / Out port 37

4.3.9. RS 485 /+28 V port 37

4.3.10. Local interface port 38

4.3.11. Coupling Probe 38

4.3.12. Optical-fiber cable connection 39

Table of Contents

Page 4 M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U

4.3.13. Assembly instructions for optical LC patch cables 41

4.3.13.1. Assemble optical Opus short plug components 42

4.3.13.2. Connect Opus short plug to RU 44

4.3.13.3. Disconnect Opus short plug from RU 45

4.3.14. Optional equipment for optical fiber connection 45

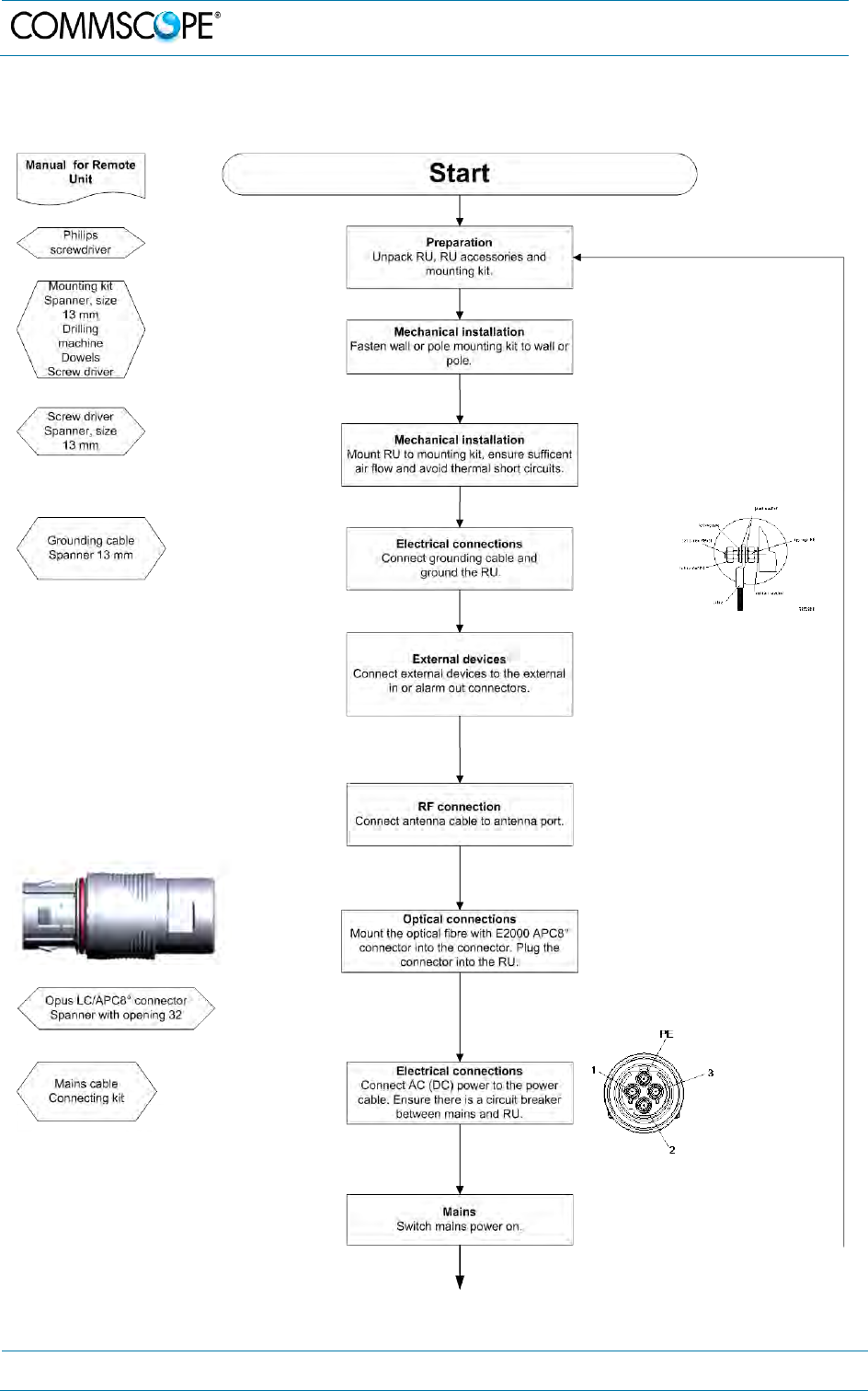

4.4. COMMISSIONING FLOW-CHART 46

5. ALARMS 48

5.1. BITE AND ALARMS 48

5.2. TROUBLESHOOTING 48

5.3. STATUS LED ALARMS 48

5.4. EXTERNAL ALARM INPUTS AND OUTPUTS 49

6. MAINTENANCE 50

6.1. GENERAL 50

6.2. REPLACING THE FAN UNIT 51

6.3. CLEANING THE HEAT SINK 52

7. APPENDIX 53

7.1. ILLUSTRATIONS 53

7.2. SPECIFICATIONS 54

7.3. SPARE PARTS 54

7.4. LIST OF CHANGES 54

8. INDEX 55

Figures and Tables

M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U Page 5

FIGURES AND TABLES

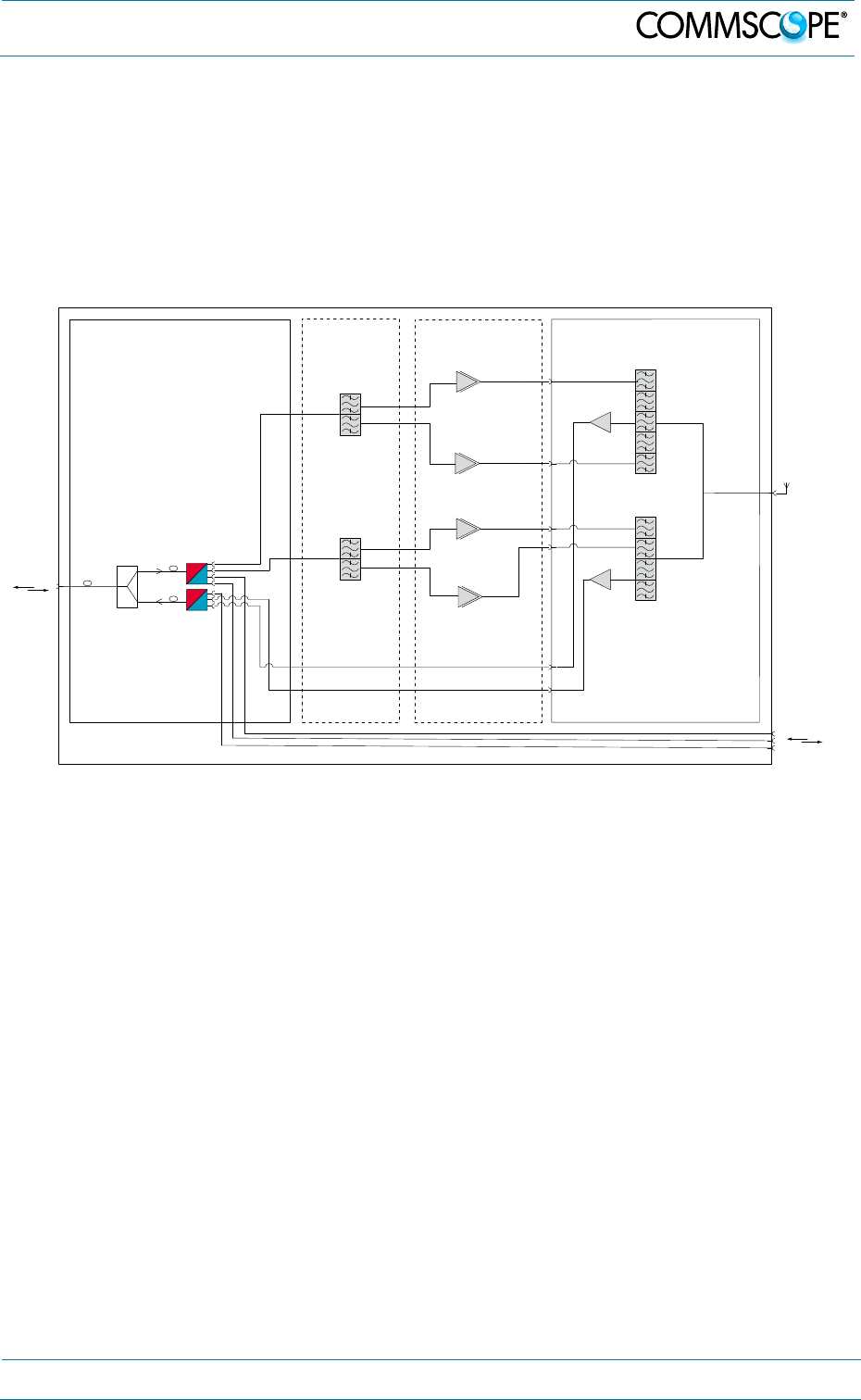

figure 3-1 ION-U High Power RU block diagram ...................................................... 15

figure 4-1 Wall mounting - pitches ............................................................................ 18

figure 4-2 Pole mounting - pitches ............................................................................ 19

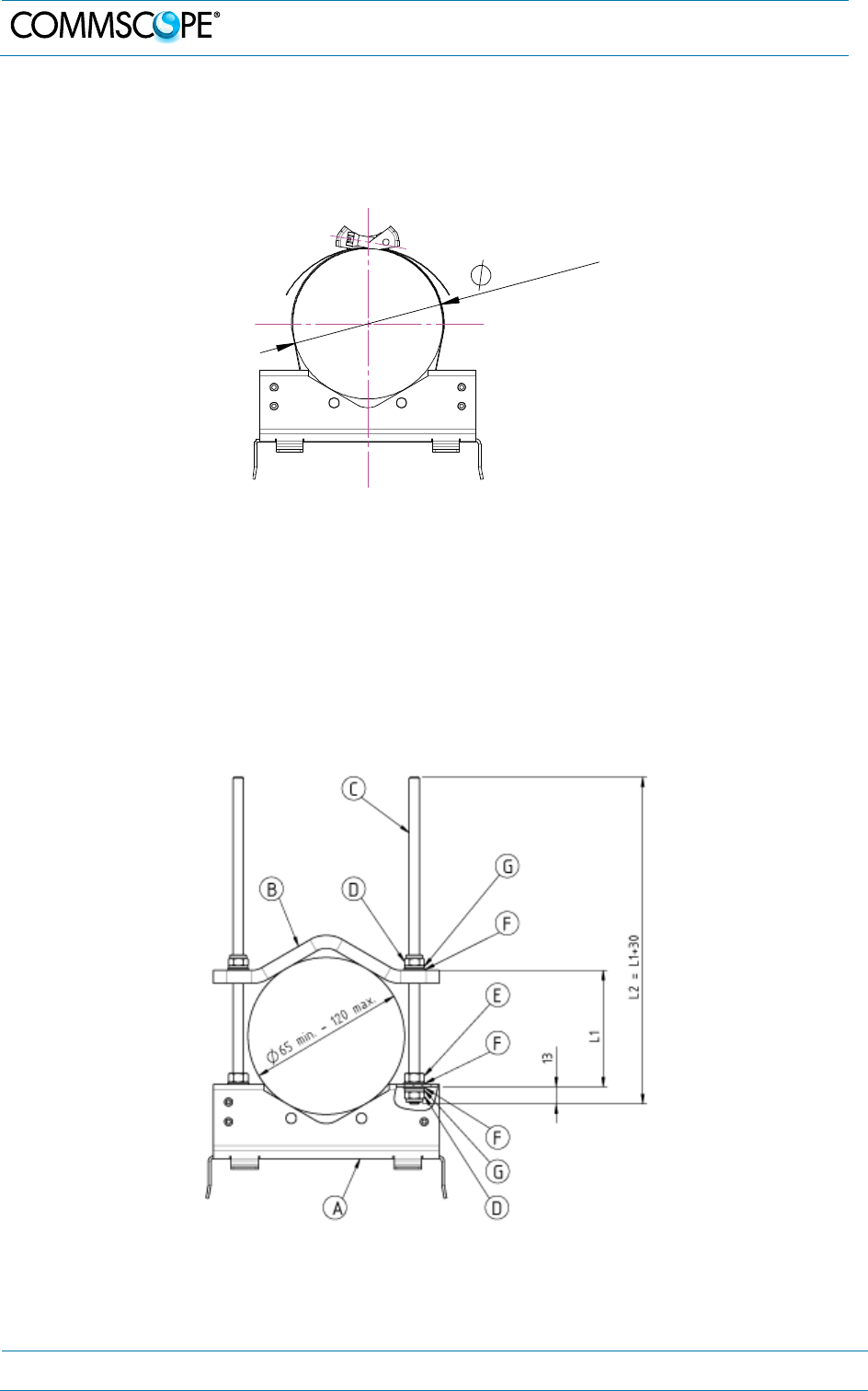

figure 4-3 Pole mounting - screw bands ................................................................... 19

figure 4-4 Pole mounting - fasten RU ....................................................................... 19

figure 4-5 Pole mounting – max. diameter ................................................................ 20

figure 4-6 Pole mounting – with brackets .................................................................. 20

figure 4-7 Pole mounting - pitches ............................................................................ 21

figure 4-8 Pole mounting - brackets .......................................................................... 21

figure 4-9 Pole mounting - fasten RU ....................................................................... 21

figure 4-10 ION-U H 7P/80-85P/17P/19P AC version connector flange ................... 23

figure 4-11 ION-U H 7P/80-85P/17P/19P DC version connector flange ................... 25

figure 4-12 Grounding bolts ...................................................................................... 26

figure 4-13 Grounding bolt, schematic view .............................................................. 26

figure 4-14 Mains power connector .......................................................................... 33

figure 4-15 Mains power cable - AC ......................................................................... 33

figure 4-16 EU connector and cable bridge .............................................................. 36

figure 4-17 Mounting the EU cable bridge ................................................................ 36

figure 4-18 Alarm connector ..................................................................................... 37

figure 4-19 RS485 /+28 VDC connector ................................................................... 37

figure 4-20 Local interface connector ....................................................................... 38

figure 4-21 Contents of the Opus short plug kit ........................................................ 41

figure 4-22 LC/APC patch cable requirements ......................................................... 41

figure 4-23 Opus short plug clamp and nut ............................................................... 42

figure 4-24 Simplex split gasket ................................................................................ 42

figure 4-25 Duplex split gasket ................................................................................. 42

figure 4-26 Simplex cavity A ..................................................................................... 43

figure 4-27 Duplex cavity A & B ................................................................................ 43

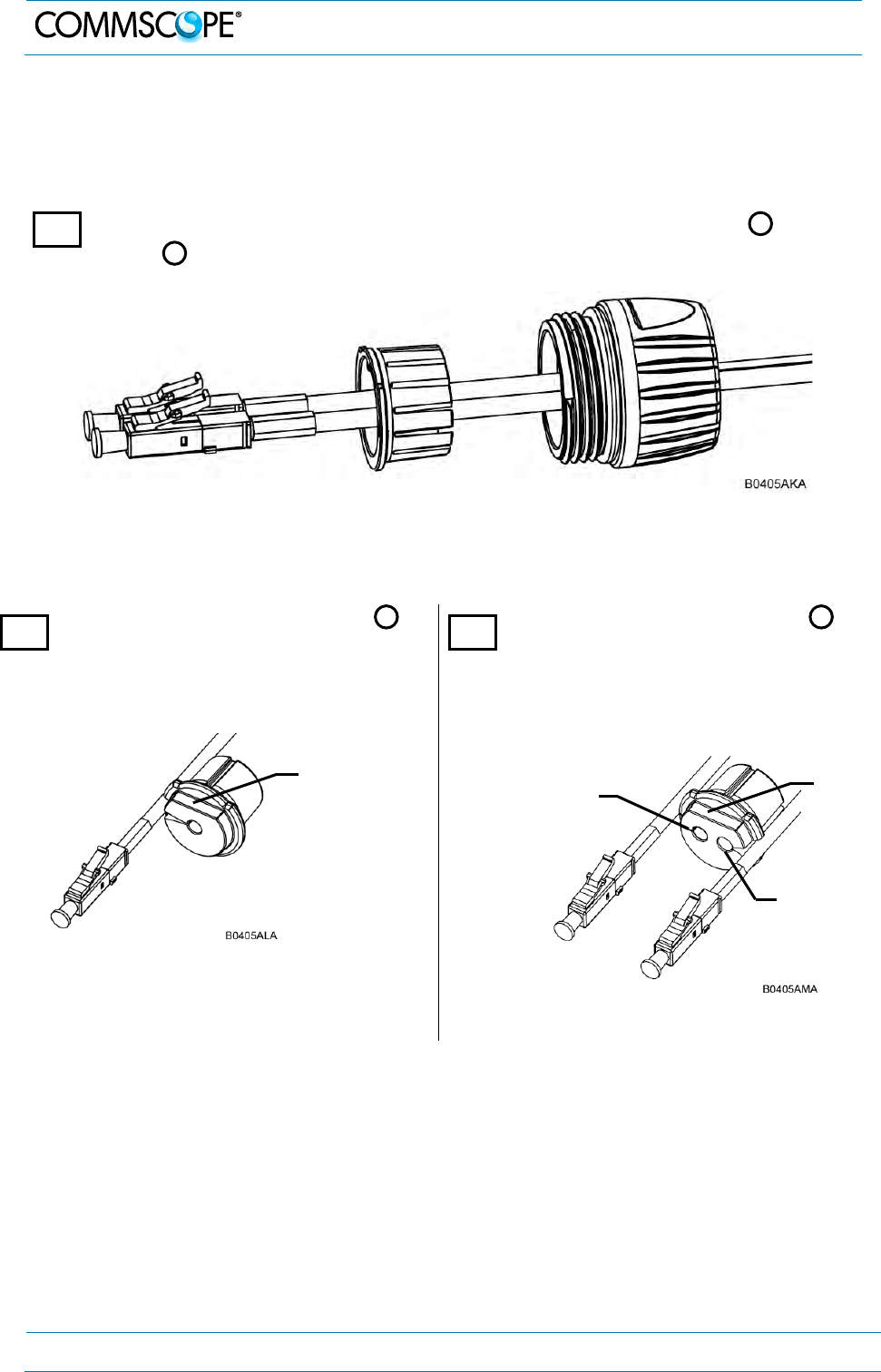

figure 4-28 Assemble Opus short plug ..................................................................... 43

figure 4-29 Insert LC connector plug into plug body ................................................. 43

figure 4-30 Tighten Opus short plug adapter nut ...................................................... 44

figure 4-31 Remove Opus short plug protective cap ................................................. 44

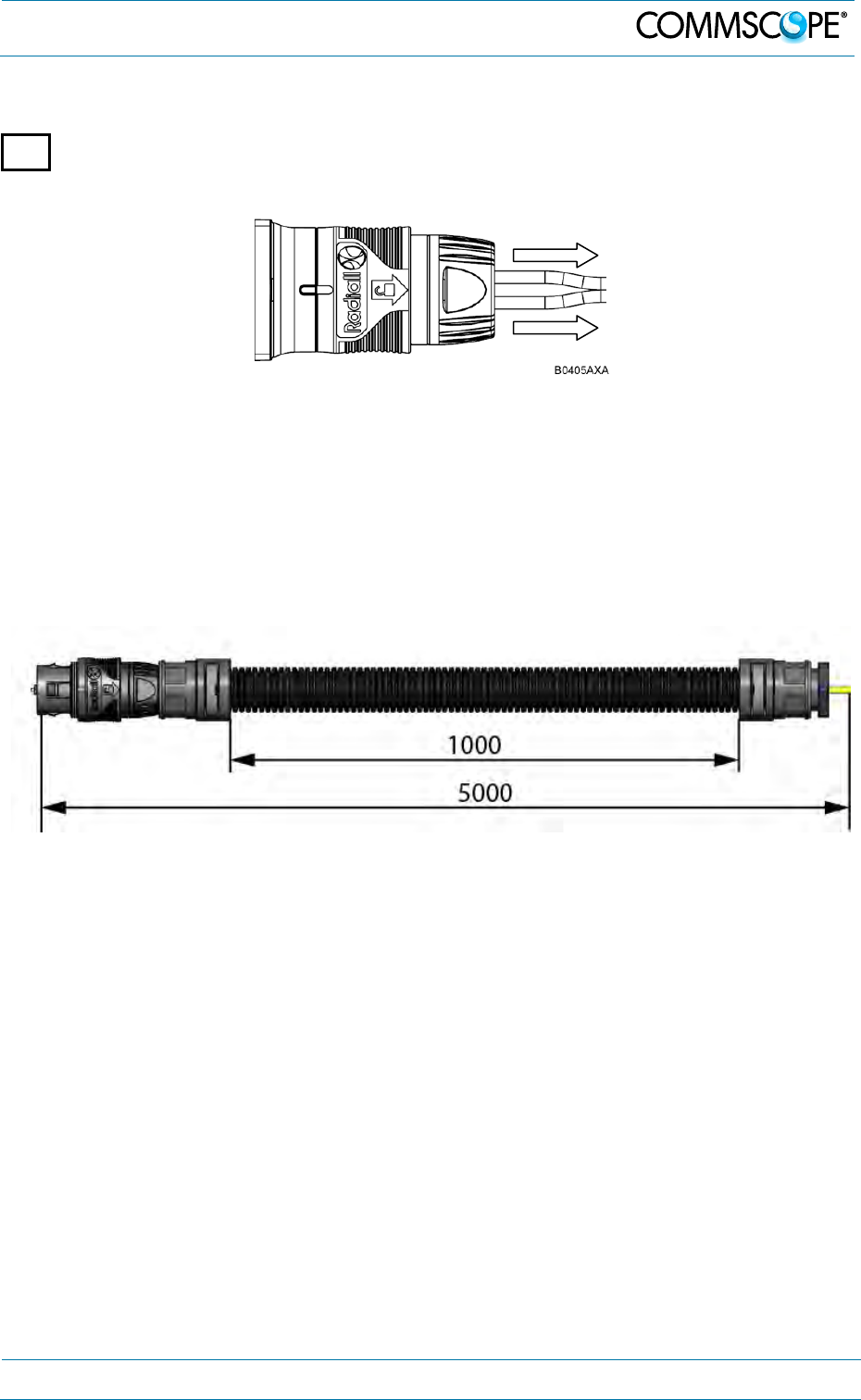

figure 4-32 Insert Opus short plug into RU receptacle .............................................. 44

figure 4-33 Disconnect Opus short plug from RU ..................................................... 45

figure 4-34 Optional pigtail kit ................................................................................... 45

figure 5-1 Alarm inputs and outputs .......................................................................... 49

figure 7-1 ION-U H 7P/80-85P/17P/19P required space .......................................... 53

table 4-1 Specified torques ....................................................................................... 17

table 4-2 ION-U H RU connectors ............................................................................ 24

table 4-3 AC power cable pinning ............................................................................. 33

table 4-4 Alarm connector pinning ............................................................................ 37

table 4-5 RS485/+28V pinning .................................................................................. 37

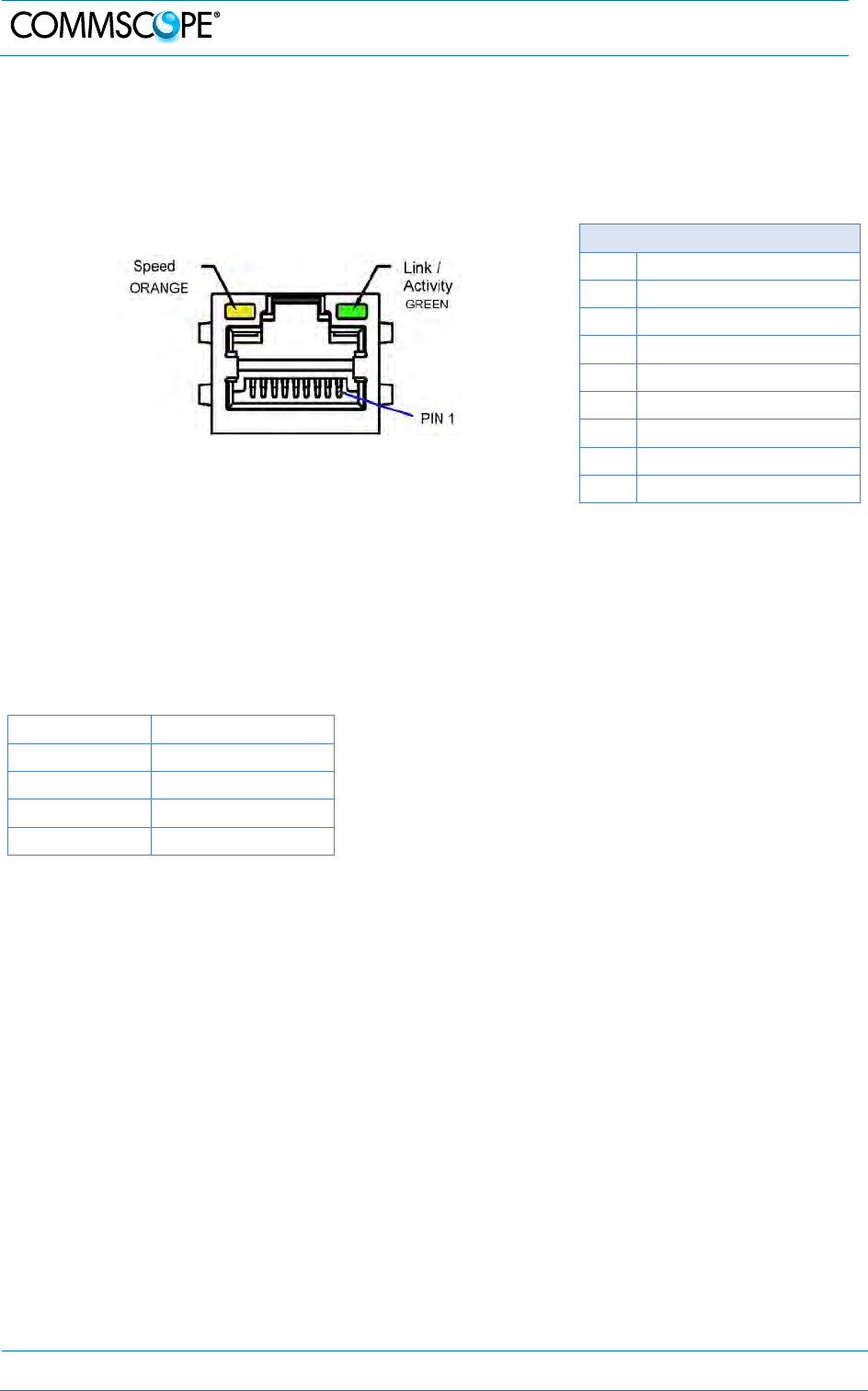

table 4-6 Local interface connector pinning .............................................................. 38

1. General

Page 6 M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U

1. General

1.1. Used Abbreviations

AC/DC Alternating current / Direct Current

AIMOS Andrew Integrated Management and

Operating System

ALC Automatic Level Control

BITE Built-In Test Equipment

BTS Base Transceiver Station

CDMA Code Division Multiple Access

CE "Conformité Européenne"

("European Conformity")

CFR Code of Federal Regulations

DL Downlink

DoC Declaration of Conformity

EP Extension Port

ESD Electrostatic Discharge

EU Extension Unit

GSM Global System for Mobile

Communication

GND Ground (Earth)

GUI Graphical User Interface

ICP3 Intercept Point 3rd order

ID No Identification Number

ION Intelligent Optical Network

LED Light Emitting Diode

LMT Local Maintenance Terminal

LTE Long Term Evolution

MIMO Multiple Input Multiple Output

MS Mobile Station

MU Main Unit

NF Noise Figure

OMC Operations and Maintenance Center

OTRx Optical Transceiver

PIM Passive Intermodulation

Pin Input power

Pout Output power

Rev Revision

RF Radio Frequency

RU Remote Unit

RX Receiver

SISO Single Input Single Output

SNMP Simple Network Management

Protocol

TX Transmitter

UL Uplink

UMTS Universal Mobile Telecommunication

System

UPS Uninterruptible Power Supply

VSWR Voltage Standing Wave Ratio

WCDMA Wideband Code Division Multiple

Access

WDM Wavelength Division Multiplex

XML Extensible Markup Language

1. General

M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U Page 7

1.2. Health and Safety

1. Danger: Electrical hazard. Danger of death or fatal injury from electrical

current. Obey all general and regional installation and safety regulations

relating to work on high voltage installations, as well as regulations

covering correct use of tools and personal protective equipment.

2. Danger: Electrical hazard. Danger of death or fatal injury from electrical

current inside the unit in operation. Before opening the unit, disconnect

mains power.

3. Caution: Laser radiation. Risk of eye injury in operation. Do not stare into the

beam; do not view it directly or with optical instruments.

4. Caution: High frequency radiation in operation. Risk of health hazards associated

with radiation from the unit’s inner conductor of the antenna port(s). Disconnect

mains before connecting or replacing antenna cables.

5. Caution: High frequency radiation in operation. Risk of health hazards associated

with radiation from the antenna(s) connected to the unit. Implement prevention

measures to avoid the possibility of close proximity to the antenna(s) while in

operation.

1.3. Property Damage Warnings

1. Attention: Due to power dissipation, the Remote Unit may reach a very high

temperature. Do not operate this equipment on or close to flammable materials.

Use caution when servicing the unit.

2. Attention: Only authorized and trained personnel are allowed to open the unit

and get access to the inside.

3. Notice: Although the Remote Unit is internally protected against overvoltage, it is

strongly recommended to ground (earth) the antenna cables close to the

repeater’s antenna connectors for protection against atmospheric discharge.

4. Notice: ESD precautions must be observed. Before commencing maintenance

work, use the available grounding (earthing) system to connect ESD protection

measures.

5. Notice: Only suitably qualified personnel are allowed to work on this unit and only

after becoming familiar with all safety notices, installation, operation and

maintenance procedures contained in this manual.

6. Notice: Keep operating instructions within easy reach and make them available

to all users.

1. General

Page 8 M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U

7. Notice: Read and obey all the warning labels attached to the unit. Make sure that

all warning labels are kept in a legible condition. Replace any missing or

damaged labels.

8. Notice: Only license holders for the respective frequency range are allowed to

operate this unit.

9. Notice: Make sure the repeater settings are correct for the intended use (refer to

the manufacturer product information) and regulatory requirements are met. Do

not carry out any modifications or fit any spare parts, which are not sold or

recommended by the manufacturer.

1.4. Compliance

1. Notice: For installations which have to comply with European EN50385 exposure

compliance requirements, the following Power Density limits/guidelines (mW/cm²)

according to ICNIRP are valid:

o 0.2 for frequencies from 10 MHz to 400 MHz

o F (MHz) / 2000 for frequencies from 400 MHz to 2 GHz

o 1 for frequencies from 2 GHz to 300 GHz

2. Notice: For installations, which have to comply with FCC RF exposure

requirements, the antenna selection and installation must be completed in a way

to ensure compliance with those FCC requirements. Depending on the RF

frequency, rated output power, antenna gain, and the loss between the repeater

and antenna, the minimum distance D to be maintained between the antenna

location and human beings is calculated according to this formula:

]/[

][

4cmmW

cm PD

D∗∗

where

• P (mW) is the radiated power at the antenna, i.e. the max. rated repeater

output power in addition to the antenna gain minus the loss between the

repeater and the antenna.

• PD (mW/cm²) is the allowed Power Density limit acc. to 47 CFR 1.1310 (B)

for general population / uncontrolled exposures which is

o F (MHz) / 1500 for frequencies from 300MHz to 1500MHz

o 1 for frequencies from 1500MHz to 100,000MHz

RF exposure compliance may need to be addressed at the time of licensing, as

required by the responsible FCC Bureau(s), including antenna co-location

requirements of 1.1307(b)(3).

1. General

M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U Page 9

3. Notice: Installation of this equipment is in full responsibility of the installer, who

has also the responsibility, that cables and couplers are calculated into the

maximum gain of the antennas, so that this value, which is filed in the FCC Grant

and can be requested from the FCC data base, is not exceeded. The industrial

boosters are shipped only as a naked booster without any installation devices or

antennas as it needs for professional installation.

4. Notice: For installations which have to comply with FCC/Industry Canada

requirements:

English:

This device complies with FCC Part 15 and Industry Canada license exempt RSS

standard(s). Operation is subject to the following two conditions: (1) this device may not

cause interference, and (2) this device must accept any interference, including

interference that may cause undesired operation of the device.

This device complies with Health Canada’s Safety Code. The installer of this device

should ensure that RF radiation is not emitted in excess of the Health Canada’s

requirement. Information can be obtained at http:

//www.hc-sc.gc.ca/ewh-semt/pubs/radiation/radio_guide-lignes_direct-eng.php.

Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

French:

Cet appareil est conforme à FCC Partie15 d’Industrie Canada RSS standard exempts de

licence (s). Son utilisation est soumise à Les deux conditions suivantes: (1) cet appareil

ne peut pas provoquer d’interférences et (2) cet appareil doit accepter Toute

interférence, y compris les interférences qui peuvent causer un mauvais fonctionnement

du dispositif.

Cet appareil est conforme avec Santé Canada Code de sécurité 6. Le programme

d’installation de cet appareil doit s’assurer que les rayonnements RF n’est pas émis au-

delà de I’exigence de Santé Canada. Les informations peuvent être obtenues:

http://www.hc-sc.gc.ca/ewh-semt/pubs/radiation/radio_guide-lignes_direct-fra.php

Les changements ou modifications non expressément approuvés par la partie

responsable de la conformité pourraient annuler l'autorité de l'utilisateur à utiliser cet

équipement.

5. Notice: Corresponding local particularities and regulations must be observed. For

national deviations, please refer to the respective documents included in the

manual CD that is delivered with the unit.

6. Note: The Manufacturer's rated output power of this equipment is for single

carrier operation. For situations when multiple carrier signals are present, the

rating would have to be reduced by 3.5 dB, especially where the output signal is

reradiated and can cause interference to adjacent band users. This power

reduction is to be by means of input power or gain reduction and not by an

attenuator at the output of the device.

1. General

Page 10 M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U

7. Notice: The unit complies with Overvoltage Category II. It also complies with the

surge requirement according to EN 61000-4-5 (fine protection); however,

installation of an additional medium (via local supply connection) and/or coarse

protection (external surge protection) is recommended depending on the

individual application in order to avoid damage caused by overcurrent.

For Canada and US, components used to reduce the Overvoltage Category shall

comply with the requirements of IEC 61643-series. As an alternative,

components used to reduce the Overvoltage Category may comply with

ANSI/IEEE C62.11, CSA Certification Notice No. 516, CSA C22.2 No. 1, or UL

1449. Suitability of the component for the application shall be determined for the

intended installation.

8. Note: For a Class A digital device or peripheral:

This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference when the equipment is

operated in a commercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

his own expense.

9. Note: This unit complies with European standard EN60950.

Equipment Symbols Used / Compliance

Please observe the meanings of the following symbols used in our equipment and

the compliance warnings:

Symbol

Compliance

Meaning / Warning

--- FCC

Unit is for FCC Part 20 purposes - COMMERCIAL

MOBILE SERVICES – only.

WARNING: This is NOT a CONSUMER device. It is

designed for installation by FCC LICENSEES and

QUALIFIED INSTALLERS. You MUST have an FCC

LICENSE or express consent of an FCC Licensee to

operate this device. Unauthorized use may result in

significant forfeiture penalties, including penalties in

excess of $100,000 for each continuing violation.

Alert sign to R&TTE

To be sold exclusively to mobile operators or

authorized installers – no harmonized frequency

bands, operation requires license. Intended use: EU

and EFTA countries

Indicates conformity with the R&TTE directive

1999/5/EC certified by the notified body no. 0700.

1. General

M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U Page 11

1.5. About CommScope

CommScope is the foremost supplier of one-stop, end-to-end radio frequency (RF)

solutions. Part of the CommScope portfolio are complete solutions for wireless

infrastructure from top-of-the-tower base station antennas to cable systems and

cabinets, RF site solutions, signal distribution, and network optimization. For patents

see www.cs-pat.com.

CommScope has global engineering and manufacturing facilities. In addition, it

maintains field engineering offices throughout the world.

Andrew Wireless Systems GmbH based in Buchdorf/ Germany, which is part of

CommScope, is a leading manufacturer of coverage equipment for mobile radio

networks, specializing in high performance, RF and optical repeaters. Our optical

distributed networks and RF repeater systems provide coverage and capacity

solution for wireless networks in both indoor installations and outdoor environments,

e.g. tunnels, subways, in-trains, airport buildings, stadiums, skyscrapers, shopping

malls, hotels and conference rooms.

Andrew Wireless Systems GmbH operates a quality management system in

compliance with the requirements of ISO 9001 and TL 9000. All equipment is

manufactured using highly reliable material. To maintain highest quality of the

products, comprehensive quality monitoring is conducted at all fabrication stages.

Finished products leave the factory only after a thorough final acceptance test,

accompanied by a test certificate guaranteeing optimal operation.

This product meets the requirements of the R&TTE directive and the Declaration of

Conformity (DoC) itself. A current version of the CE DoC is included in this manual

CD delivered *. Any updated version of the DoC is available upon request from the

local sales offices or directly from CommScope via the local Customer Support at

one of the addresses listed in the following chapter.

According to the DoC, our "CE"-marked equipment can be used in all member

states of the European Union.

F Note: Exceptions of and national deviations from this intended use may be

possible. To observe corresponding local particularities and

regulations, please refer to the respective documents (also in

national language) which are included in the manual CD delivered.

* In case the Declaration of Conformity (DoC) for the product was not included in the manual CD

delivered, it is available upon request from the local sales offices or directly from CommScope at

one of the addresses listed in the following chapter.

To make the most of this product, we recommend you carefully read the instructions

in this manual and commission the system only according to these instructions.

For technical assistance and support, please also contact the local office or

CommScope directly at one of the addresses listed in the following chapter.

1. General

Page 12 M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U

1.6. International Contact Addresses for Customer Support

Canada

United States

CommScope Canada

Andrew LLC, A CommScope Company

Mail

505 Consumers Road, Suite 803

Toronto M2J 4V8, Canada

Mail

620 North Greenfield Parkway

Garner, NC 27529, U.S.A.

Phone

+1-905-878-3457 (Office)

+1-416-721-5058 (Cell)

Phone +1-888-297-6433

Fax

+1-905-878-3297

Fax

+1-919-329-8950

E-mail

wisupport@commscope.com

E-mail

wisupport@commscope.com

Caribbean & South American Region

Caribbean & Central American Region

CommScope Cabos do Brasil Ltda.

CommScope Mexico S.A. de C.V.

Mail

CALA Tech Support for Distributed

Coverage & Capacity Solutions (DCCS)

products:

Rua Guaporanga, 49

Praça Seca – Rio de Janeiro – RJ

ZIP: 21320-180, Brazil

Mail

CALA Tech Support for Distributed

Coverage & Capacity Solutions

(DCCS) products:

Av. Insurgentes Sur 688, Piso 6

Col. Del Valle, CP: 03100

Mexico City, Mexico

Phone

+1-815-546-7154 (Cell)

+55-15-9104-7722 (Office)

Phone +52-55-1346-1900 (Office)

Fax

+ 55-15-2102-4001

Fax

+52-55-1346-1901

E-mail

wisupport@commscope.com

E-mail

wisupport@commscope.com

China, India and Rest of Asia

Australia & New Zealand

Andrew International Corporation

Andrew Corporation (Australia) Pty Ltd.

Mail

Room 915, 9/F

Chevalier Commercial Centre

8 Wang Hoi Rd

Kowloon Bay, Hong Kong

Mail

Unit 1

153 Barry Road

Campbellfield

VIC 3061, Australia

Phone

+852-3106-6100

Phone

+613-9300-7969

Fax

+852-2751-7800

Fax

+613-9357-9110

E-mail

wisupport.China@commscope.com

E-mail

wisupport.Australia@commscope.com

Middle East & North Africa

Africa

Middle

East

South Africa

CommScope Solutions International Inc.

(Branch)

Andrew Wireless Solutions Africa

(PTY) LTD

Mail

PO Box 48 78 22

Unit 3206, Floor 32,

Jumeirah Business Center 5,

Jumeirah Lakes Towers,

Dubai, United Arab Emirates

Mail

11 Commerce Crescent West

Eastgate, Sandton

PO Box 786117

Sandton 2146

South Africa

Phone

+971 4 390 09 80

Phone

+ 27 11-719-6000

Fax

+971 4 390 86 23

Fax

+ 27 11-444-5393

E-mail

wisupport@commscope.com

E-mail

wisupport@commscope.com

1. General

M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U Page 13

United Kingdom

Scandinavia

Andrew Wireless Systems UK Ltd

Andrew Norway (AMNW)

Mail

Unit 15, Ilex Building

Mulberry Business Park

Fishponds Road

Wokingham Berkshire

RG41 2GY, England

Mail

P.O. Box 3066

Osloveien 10

Hoenefoss 3501

Norway

Phone

+44-1189-366-792

Phone

+ 47 32-12-3530

Fax

+44-1189-366-773

Fax

+ 47 32-12-3531

E-mail

wisupport.uk@commscope.com

E-mail

wisupport@commscope.com

Germany

France

Andrew Wireless Systems GmbH

CommScope France

Mail

Industriering 10

86675 Buchdorf

Germany

Mail

Immeuble Le Lavoisier

4, Place des Vosges

92052 Courbevoie, France

Phone

+49-9099-69-0

Phone

+33-1 82 97 04 00

Fax

+49-9099-69-930

Fax

+33-1 47 89 45 25

E-mail

wisupport@commscope.com

E-mail

wisupport@commscope.com

Austria

Switzerland

Andrew Wireless Systems (Austria) GmbH

CommScope Wireless Systems AG

Mail

Weglgasse 10

2320 Wien-Schwechat

Austria

Mail

Tiergartenweg 1

CH-4710 Balsthal

Switzerland

Phone

+43-1706-39-99-10

Phone

+41-62-386-1260

Fax

+43-1706-39-99-9

Fax

+41-62-386-1261

E-mail

wisupport.austria@commscope.com

E-mail

wisupport.ch@commscope.com

Italy

Iberia Region - Spain & Portugal

CommScope Italy S.r.l., Faenza, Italy

Andrew España S.A. A CommScope Company

Mail

Via Mengolina, 20

48018 Faenza (RA)

Italy

Mail

Avda. de Europa, 4 - 2ª pta.

Parque Empresarial de la Moraleja

Alcobendas, Madrid 28108, Spain

Phone

+39-0546-697111

Phone

+34-91-745-20 40

Fax

+39-0546-682768

Fax

+34-91-661-87 02

E-mail

wisupport.italia@commscope.com

E-mail

wisupport.iberia@commscope.com

Czech Republic

CommScope Solutions Czech Republic

C-Com, spol. s r.o

Mail

U Moruší 888

53006 Pardubice, Czech Republic

Phone

+49 871 9659171 (Office)

+49 171 4001166 (Mobile)

Fax

+49 871 9659172

E-mail

wisupport@commscope.com

2. Introduction

Page 14 M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U

2. Introduction

2.1. Purpose

Mobile telephone systems transmit signals in two directions between base

transceiver station (BTS) and mobile stations (MS) within the signal coverage area to

carry voice and data traffic.

If weak signal transmissions occur within the coverage area because of indoor

applications, topological conditions or distance from the transmitter, extension of the

transmission range can be achieved by means of an optical distributed antenna

system (DAS).

Office buildings, sports arenas, college campuses, industrial parks, and other areas

of high demand require the specialized capacity boost that an optical DAS can

provide to meet increasing customer demands for voice and data.

An optical DAS contains optical Master Units and a sufficient number of Remote

Units to provide the necessary coverage. The number of the Remote Units depends

on the coverage requirements of the DAS. The Remote Units are connected to the

Master Unit with optical links.

The Master Unit is the connection to the Base Transceiver Stations. The

configuration of a Master Unit depends on the number of the Remote Units and the

frequency range.

RF signals are transported to and from the Remote Units via optical fibers.

2.2. ION-U High Power Remote Units

The ION-U is an optical fiber based DAS system that efficiently takes the outputs of

multiple Base Transceiver Stations (BTS) sectors and converts those RF signals to

optical to send them over fiber optic cables to Remote Units to provide coverage in

indoor and outdoor locations. The system supports both low power and high power

remotes units and SISO and MIMO operation.

The ION-U H 7P/80-85P/17P/19P is a multi-band, multi-operator Remote Unit used

in conjunction with a Master Unit in the ION optical distribution system. This system

transports up to five frequency bands simultaneously (700 MHz, 800/850 MHz,

1700/2100 MHz, and 1900 MHz), providing a cost-effective solution for distributing

capacity from one or more base stations.

It has been specifically tested and optimized for GMSK, EDGE, CDMA, UMTS,

HSPA+, LTE, and other OFDM modulations. Furthermore it is provisioned for future

modulation scheme evolutions.

These Remote Units feature independent downlink and uplink gain adjustments and

an integrated channel power detector for in-band spectrum and PIM analysis and

end-to-end auto leveling.

3. Functional Description

M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U Page 15

The unit utilizes a single fiber to support multiple bands in both the uplink and

downlink directions. WDM (Wave Division Multiplex) filters are integrated in the

optical modules. For the UL, a wavelength within 1546 nm – 1550 nm is used. For

the DL, a wavelength of 1310 ±10 nm is used. The maximum optical output power for

the UL and DL is 6.7 mW.

3. Functional Description

figure 3-1 ION-U High Power RU block diagram

In the Downlink (DL) path, the Remote Unit provides:

• Optical to RF conversion of the input optical signal

• Automatic Gain Control (AGC) of each converted signal to compensate for

optical losses

• RF amplification of the converted RF signal for transmission while maintaining

an excellent signal-to-noise ratio

• RF filtering to reject spurious emissions

In the Uplink (UL) path, the Remote Unit provides:

• RF amplification to boost the signals received by the antennas to maintain an

excellent signal-to-noise ratio

• RF filtering to reject spurious emissions

• Automatic Level Control (ALC) to adjust the RF signal level to meet blocking

requirements

• RF-to-optical conversion of the signal, which is conveyed to the optical port

The Remote Unit can be paired with further EUs (Extension Unit) to provide

additional bands.

WDM DL

UL/DL

700 MHz

800-850 MHz

1900 MHz

Amp

From / To

Mobile Station

From / To

Master Unit

LC/APC 8°

Optical Transceiver

(OTRx)

Power Amplifier Duplexer Unit

4.3-10 Connector

From / To

Extension Unit

2100 MHz

Amp

Diplexer Unit

4. Commissioning

Page 16 M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U

4. Commissioning

4.1. General

Read and observe chapter 1.2 Health and Safety as well as the description carefully

to avoid mistakes and proceed step by step as described.

• Do not operate the Remote Unit without terminating the antenna connectors.

The antenna connectors may be terminated by connecting them to their

respective antennas or to a dummy load.

• Only qualified personnel should carry out the electrical, mechanical,

commissioning, and maintenance activities that require the unit to be powered

on when open.

• When opening the Remote Unit do not damage the warranty labels on the

internal devices. The warranty is void if the seals are broken.

4.2. High Power RU Mechanical Installation

4.2.1. Health and Safety for mechanical installation

Read and observe chapter 1.2 Health and Safety.

1. Caution: Risk of injury by the considerable weight of the unit falling. Ensure there

is adequate manpower to handle the weight of the system.

2. Caution: Risk of serious personal injury by equipment falling due to improper

installation. The installer must verify that the supporting surface will safely

support the combined load of the electronic equipment and all attached hardware

and components. The screws and dowels (wall anchors) used should also be

appropriate for the structure of the supporting wall.

4.2.2. Property Damage Warnings for mechanical installation

1. Attention: Do not install the unit in a way or at a place where the specifications

outlined in the Environmental and Safety Specifications leaflet of the supplier are

not met.

2. Attention: Due to power dissipation, the Remote Unit may reach a very high

temperature. Ensure sufficient airflow for ventilation.

3. Notice: Exceeding the specified load limits may cause the loss of warranty.

4. Notice: When connecting and mounting the cables (RF, optical, mains, ...)

ensure that no water can penetrate into the unit through these cables.

5. Notice: Ensure that there is free access to the electrical connections as well as

to the cabinet. The approved bending radius of the connected cables must not be

exceeded. See chapter 7.1 for more details.

4. Commissioning

M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U Page 17

6. Notice: If any different or additional mounting material is used, ensure that the

mounting remains as safe as the mounting designed by the manufacturer. The

specifications for stationary use of the Remote Unit must not be exceeded.

Ensure that the static and dynamic strengths are adequate for the environmental

conditions of the site. The mounting itself must not vibrate, swing or move in any

way that might cause damage to the Remote Unit.

7. Notice: Observe all additional rules or restrictions regarding mounting that apply

to specific Remote Unit types. For details refer to the mechanical specifications in

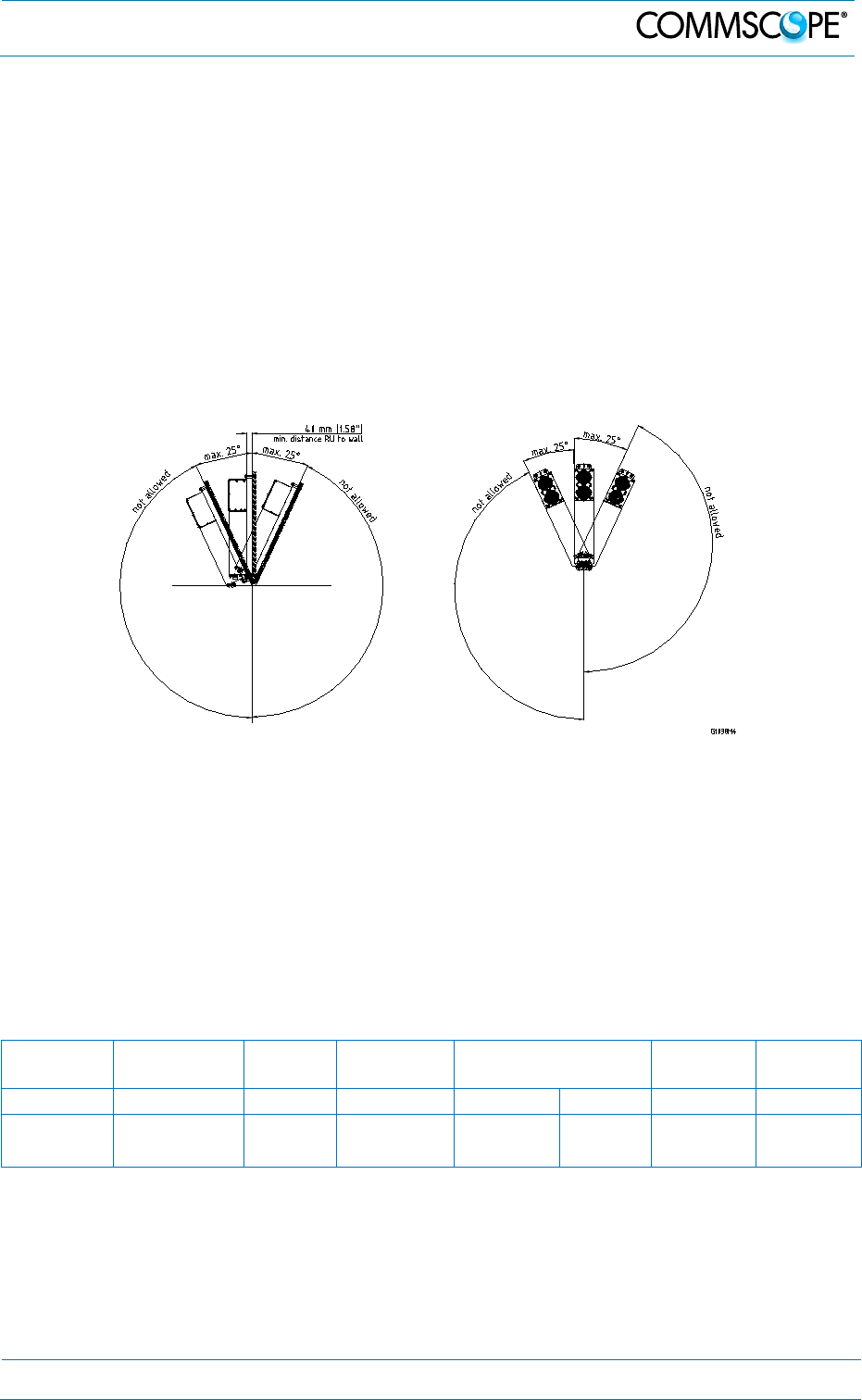

the data sheet for the unit. Install the unit vertically with the fan unit at the top. A

maximum tilt angle of 25° from a vertical position must be maintained, as shown

in the following illustrations:

8. Notice: A spacing of 40 mm (1.58 inch) around the unit is required.

9. Notice: To ensure sufficient airflow when mounting the unit in enclosed spaces,

two lid openings (one for the air inlet and the other for the air outlet) must be

provided. Do not block these air inlets and outlets when mounting the Remote

Unit. The size of each opening must equal at least 18 x 18 cm (> 300 cm2).

Ensure that there is no thermal short circuit between the air inlet and air outlet.

Make sure free airflow is not deflected or otherwise obstructed.

Specified torques must be observed for certain mounting procedures according to the

following table:

Type

Tallow-drop

screws

Hex

nuts

Screw

band lock

Spacing

bolts

(plastic)

(alum.)

Thread

M 4

M 8

M 4

M 8

PG 13.5

PG 29

Specified

torques

3.3 N-m

27 N-m

6 N-m

2.3 N-m

27 N-m

3.75 N-m

10 N-m

table 4-1 Specified torques

4. Commissioning

Page 18 M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U

4.2.3. Wall mounting procedure

Notice: It is the responsibility of the installer to verify that the supporting surface will

safely support the combined load of the electronic equipment and all attached

hardware and components and to ensure that the RU is safely and securely

mounted.

Mark the position of the drilling

holes (for pitches refer to figure

4-1 Wall mounting)

. Drill four

holes at the marked positions and

insert dowels*.

2. Mount the brackets (A) to the wall

using the

M8x80 screws (B), split

lock washers (C), and

washers

(D).

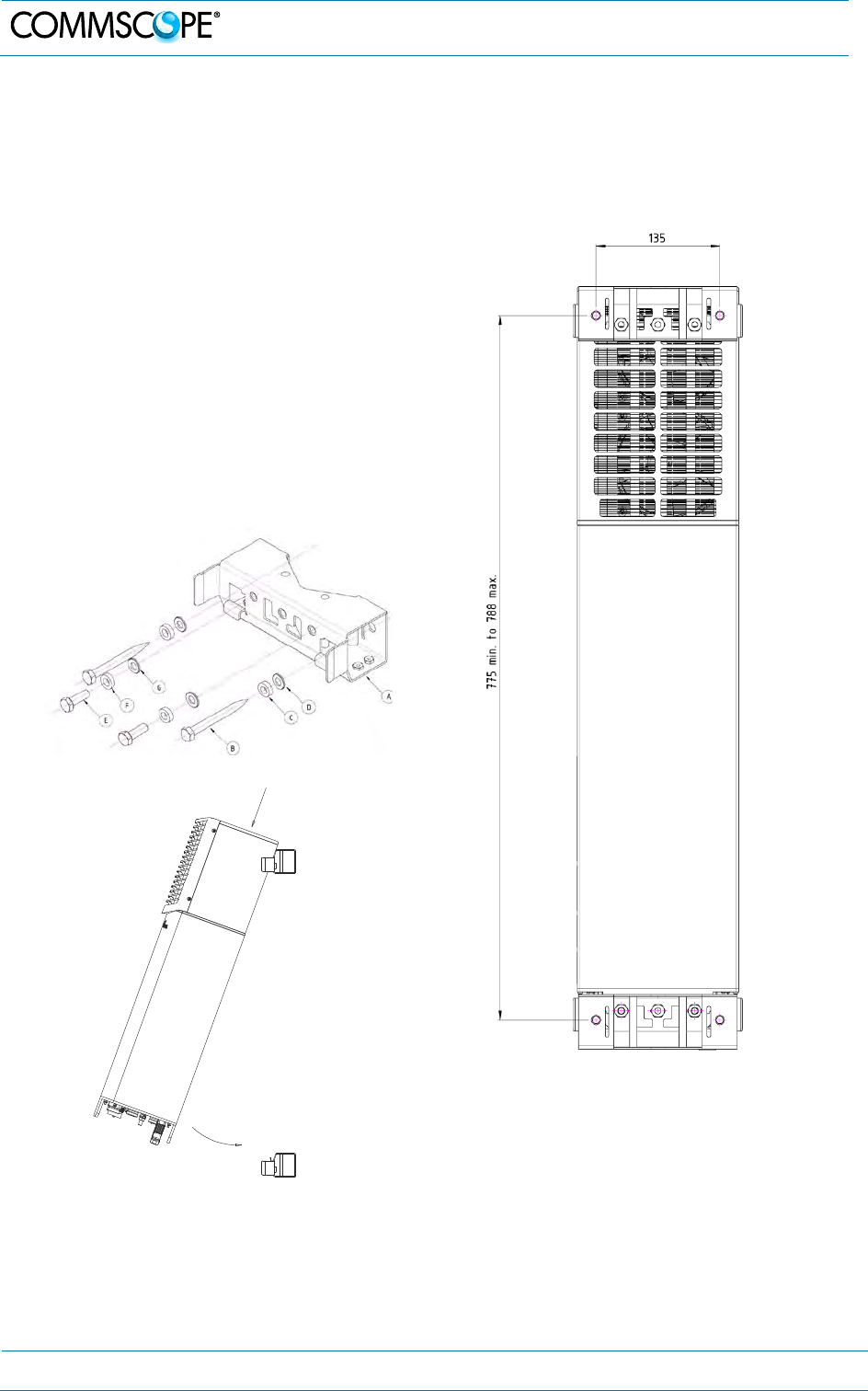

figure 4-1 Wall mounting - pitches

3. Hang the Remote

Unit into the upper

bracket, insert it to the lower bracket, and

fasten it to the lower bracket with the

M8x25 screws (E), split lock washers (F),

and washers (G).

* The dowels are not included with the delivery because the suitable type depends on the on-site

conditions (material of wall).

4. Commissioning

M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U Page 19

4.2.4. Pole mounting procedure with screw bands

Standard mounting hardware cannot be used to mount the Remote Unit to a pole, a

column, or other similar structures. Additional hardware must be used for this type of

installation. The pole-mounting kit includes

• two mounting brackets with screw bands, (worm gear) clamps to mount the

brackets to the pole

• and two M8x25 screws, flat washers, and split lock washers per bracket to

attach the Remote Unit to the bracket.

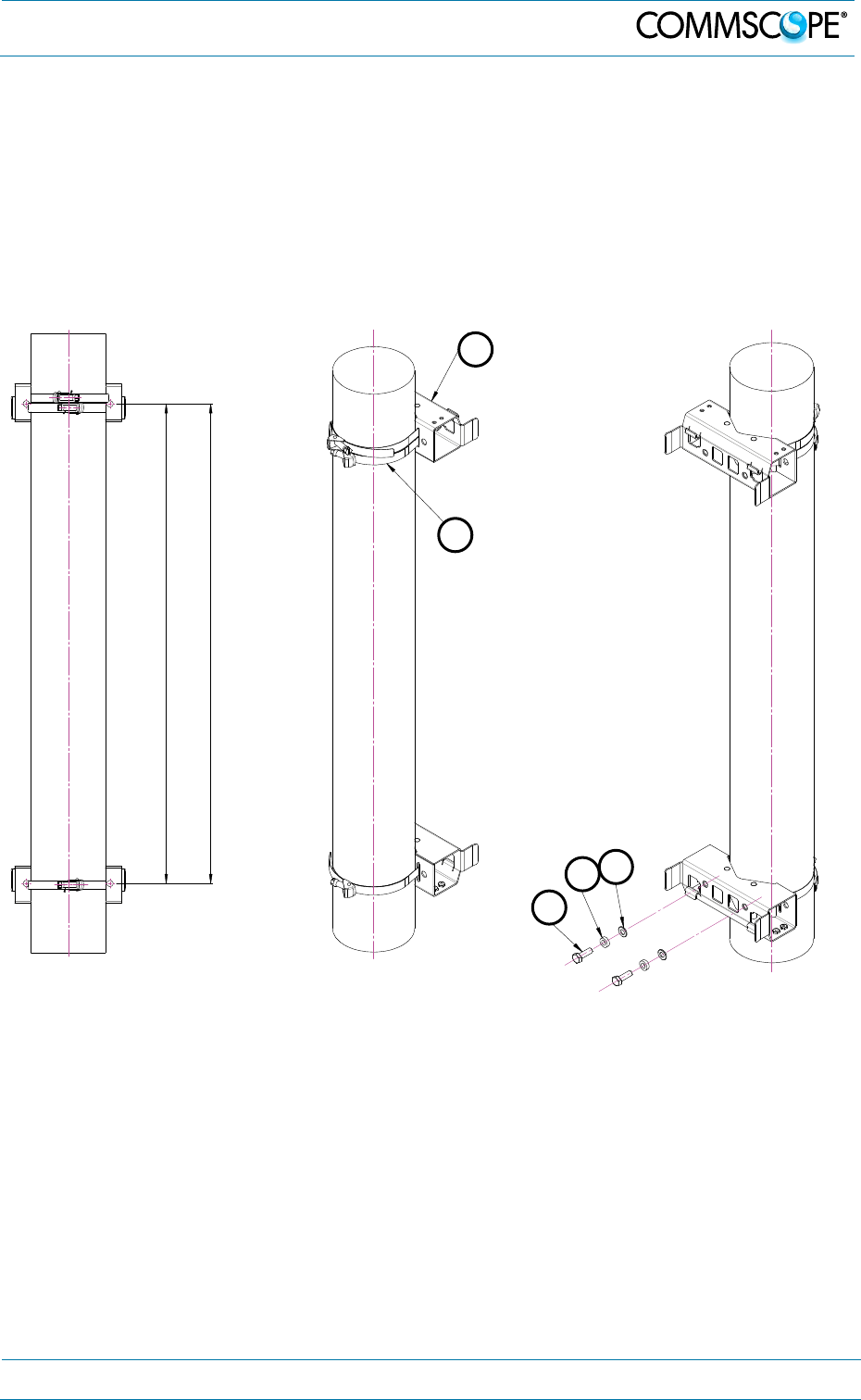

figure 4-2 Pole mounting

- pitches

figure 4-3 Pole mounting

- screw bands

figure 4-4 Pole mounting -

fasten RU

1. Use two screw bands (B) for the upper and one for the lower bracket to fasten the

two brackets (A) to the pole.

2. Place the bands around the pole or post and feed the loose end into the lock and

tighten the slotted screw securely. When the screw is turned clockwise, it acts as

a worm drive pulling the threads of the band causing the band to tighten around

the pole.

F Note: When fastening the brackets make sure that they are installed

congruently and not at an angle to each other. To determine the distance

between the clamps refer to figure 4-2 Pole mounting - pitches.

775 min.

788 max.

4. Commissioning

Page 20 M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U

3. Hang the Remote Unit into the upper bracket, insert it into the lower bracket, and

fasten it to the lower bracket with the M8x25 screws (C), split lock washers (D)

and washers (E), see chapter 4.2.3.

The maximum diameter of the pole or column must not exceed 120 mm (4.7 inch).

figure 4-5 Pole mounting – max. diameter

4.2.5. Pole mounting procedure with brackets

The pole-mounting kit with brackets includes

• two mounting brackets (A), two counter brackets (B), four threaded bolts (C),

flat (F) and split lock (G) washers, hexagon (E) and locking (D) nuts to mount

the brackets to the pole

• and two M8x25 screws (H), flat (F) and split lock (G) washers to attach the

Remote Unit to the bracket.

figure 4-6 Pole mounting – with brackets

120max.

4. Commissioning

M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U Page 21

figure 4-7 Pole

mounting - pitches

figure 4-8 Pole

mounting - brackets

figure 4-9 Pole mounting - fasten RU

1. Apply this procedure to both mounting brackets on both sides:

Screw a hexagon nut (E) to the threaded bolt and place a flat washer (F)) on it.

Insert this side of the bolt into the mounting bracket (A). Then, fasten the

mounting bracket with a flat washer (F), split lock washer (G), and the locking nut

(D). See figure 4-6 Pole mounting – with brackets.

2. Place the pre-mounted brackets with threaded bolts to the pole or post, slide the

counter bracket (B) on the threaded bolts and fasten the kit with a flat washer (F),

split lock washer (G), and the locking nut (D).

F Note: When fastening the brackets make sure that they are installed

congruently and not at an angle to each other. To determine the distance

between the clamps refer to figure 4-7 Pole mounting - pitches.

3. Hang the Remote Unit into the upper bracket, insert it into the lower bracket (see

chapter 4.2.3), and fasten it to the lower bracket with the M8x25 screws (H), split

lock washers (G), and flat washers (F).

The diameter of the pole or column must be in the range from 65 to 120 mm (2.6 to

4.7 inch).

4. Commissioning

Page 22 M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U

4.3. Electrical Installation

4.3.1. Health and Safety for electrical installation

Read and observe the notices in chapter 1.2 Health and Safety.

1. Danger: Electrical hazard. Danger of death or fatal injury from electrical

current. Obey all general and regional installation and safety regulations

relating to work on high voltage installations, as well as regulations

covering correct use of tools and personal protective equipment.

4.3.2. Property Damage Warnings for electrical installation

1. Attention: It is compulsory to ground (earth) the unit before connecting the

power supply. Grounding bolts are provided on the cabinet to connect the

ground-bonding cable.

2. Attention: If the mains connector of the Remote Unit is not easily accessible, a

disconnect device in the mains power circuit must be provided within easy reach.

3. Attention: A connection of the mains supply to a power socket requires the

power socket to be nearby the Remote Unit.

4. Attention: Before connecting or disconnecting the mains connector at the

Remote Unit, ensure that mains power supply is disconnected.

5. Attention: Make sure that an appropriate circuit breaker acting as a disconnect

device (as required by IEC/EN60950-1) and an overcurrent limiting device are

connected between mains power and the Remote Unit.

6. Attention: Incorrectly wired connections can destroy electrical and electronic

components.

7. Notice: Although the Remote Unit is internally protected against overvoltage, it is

strongly recommended to ground (earth) the antenna cables close to the antenna

connectors of the Remote Unit for protection against atmospheric discharge. In

areas with strong lightning, it is strongly recommended to install additional

lightning protection.

8. Notice: To avoid corrosion at the connectors caused by electrochemical

processes, the material of the cable connectors must not cause a higher potential

difference than 0.6 V (see electrochemical contact series).

9. Notice: Use an appropriate torque wrench for the coupling torques:

- for N-type connectors (2 N-m / 20 in lb) with 13/16 in opening,

e. g. item no. 244379 available from the CommScope e-catalog

- for 7/16 DIN-type (25 N-m / 19 ft lb) with 1 ¼ in opening,

e. g. item no. 244377 available from the CommScope e-catalog

- for 4.3-10 type connectors (5 N-m, 44 in lb) with 22mm (7/8) in

opening

Do NOT use your hands or any other tool (e.g. a pair of pliers). This might cause

damage to the connector and lead to a malfunction of the Remote Unit.

4. Commissioning

M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U Page 23

10. Notice: For unstabilized electric networks, which frequently generate spikes, the

use of a voltage limiting device is advised.

11. Notice: Observe the labels on the front panels before connecting or

disconnecting any cables.

12. Notice: Unused connectors must be closed with their protective covers to

ensure water tightness.

4.3.3. Connections

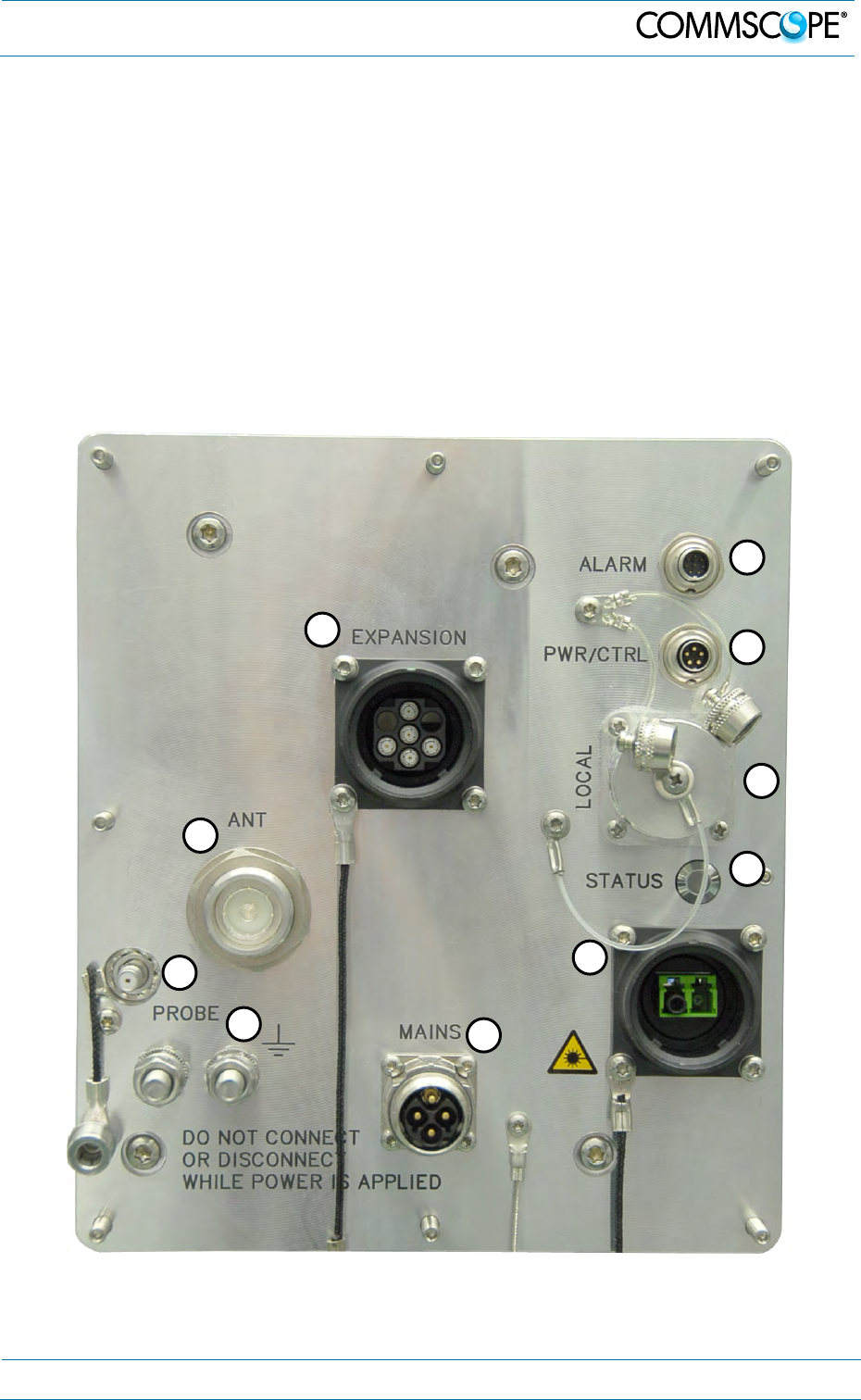

The ION-U RU ports and connectors shown in the following are located at the base

of the RU.

figure 4-10 ION-U H 7P/80-85P/17P/19P AC version connector flange

4. Commissioning

Page 24 M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U

ION-U High Power RU Connectors/Indicators

Port/Conn

Purpose

Type

EXPANSION This connector is used to interconnect to an

Extension Unit to provide additional bands of

coverage.

Radiall Opus

M424400-

003

EXTERNAL

ALARM

IN/OUT

This connector provides two alarm contact inputs

and two alarm contact outputs.

Binder 712

series 8-pin

RS 485 /

+28V

This connector provides RS 485 communications

and +28 VDC power (500 mA)

Binder 712

series 5-pin

LOCAL

INTERFACE

This port is used for a local connection to a

laptop PC.

RJ45

ANT

This connector is used for transmitting and

receiving signals to and from an antenna,

antenna splitter, or cross-band coupler.

4.3-10 type

female

STATUS

This LED provides a visual warning of an alarm

condition. The color of the LED indicates the

severity of the alarm.

LED

OPTICAL

This connector is used to connect an optical fiber

cable to receive downlink signals from and to

send uplink signals back to the OTRx module of

the ION-U Master Unit.

LC/APC8°

PROBE

This connector is used as measurement probe to

antenna port.

QMA

Grounding

Bolts Ground (earth) bolts for connecting the

mandatory ground cable to the RU

M6 bolts,

hex nut, &

washers

MAINS This connector provides the power to RU models

that use standard AC (100 to 240 Vac) power.

Coninvers

M17 –Series

P20, 4-Pin

table 4-2 ION-U H RU connectors

4. Commissioning

M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U Page 25

figure 4-11 ION-U H 7P/80-85P/17P/19P DC version connector flange

ION-U High Power RU Connectors/Indicators

Port/Conn

Purpose

Type

All, except

MAINS

The connectors and indicators for the AC and the

DC version are identical except for the MAINS

connector.

MAINS This connector provides the power to RU models

that use standard DC (-60 to -48 Vdc) power.

M6 bolts,

hex nut, &

washers

4. Commissioning

Page 26 M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U

4.3.4. Grounding (Earthing)

The RU must be grounded (earthed).

When double grounding lugs are used they must support M6 studs with a stud hole

spacing of 15.88 mm (5/8”).

1. Connect an earth-bonding cable to one or both of the grounding bolt connections

provided on the connector flange of the Remote Unit. Do not use the grounding

connection to connect external devices.

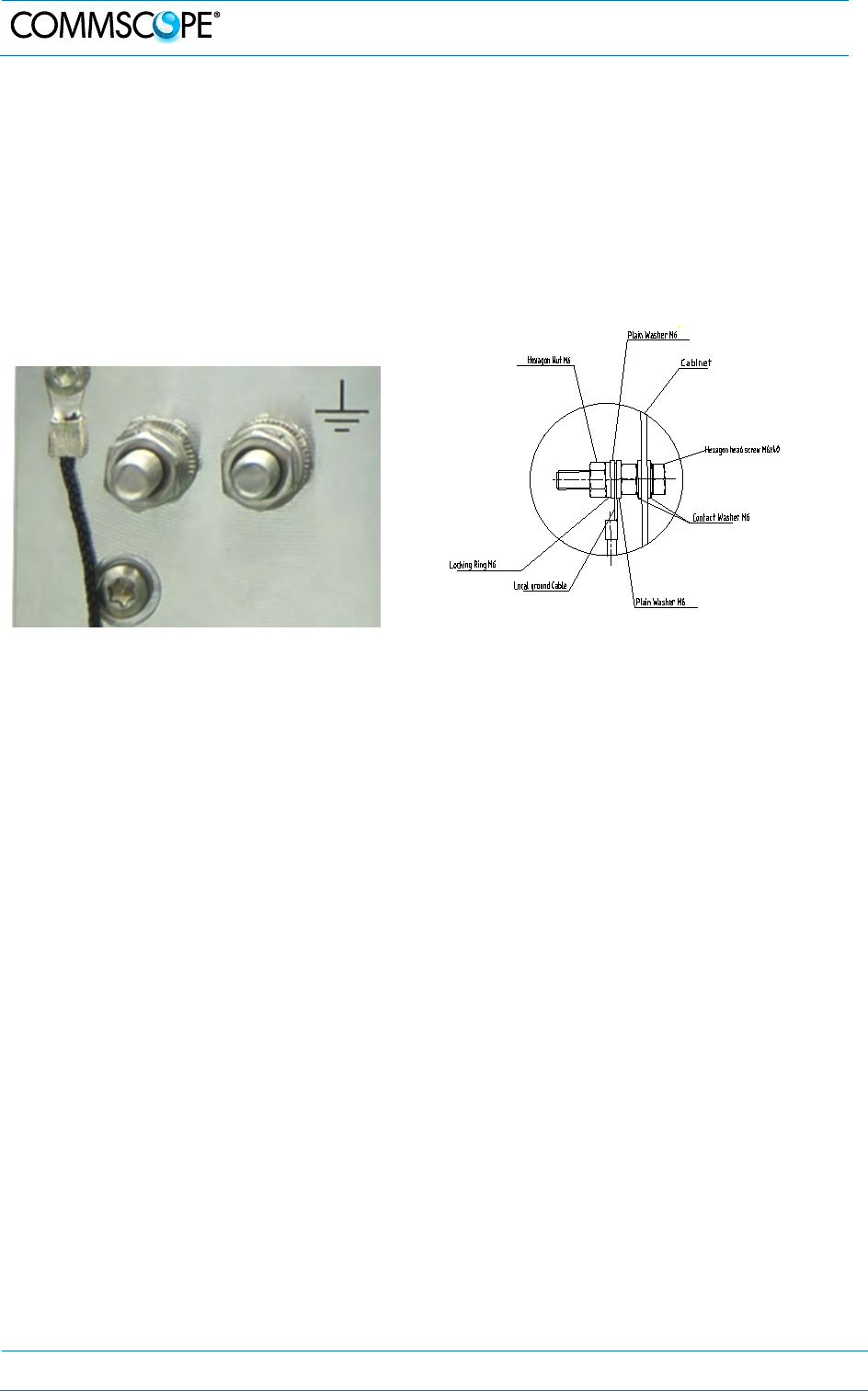

figure 4-12 Grounding bolts figure 4-13 Grounding bolt, schematic view

2. After loosening the hex nut(s), connect the earth-bonding cable between the two

washers as illustrated in the figures above.

3. Then, fasten all parts again by tightening the hex nut(s).

4. Connect the other end of the ground wire to a suitable permanent ground.

Note: Ground of a second unit (for example RU + EU) has to be connected to the

same equipotential bonding terminal as the Remote Unit. Use bonding cables

of the same length, as short as possible, and with a large wire cross section.

Follow local electrical code practices.

4. Commissioning

M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U Page 27

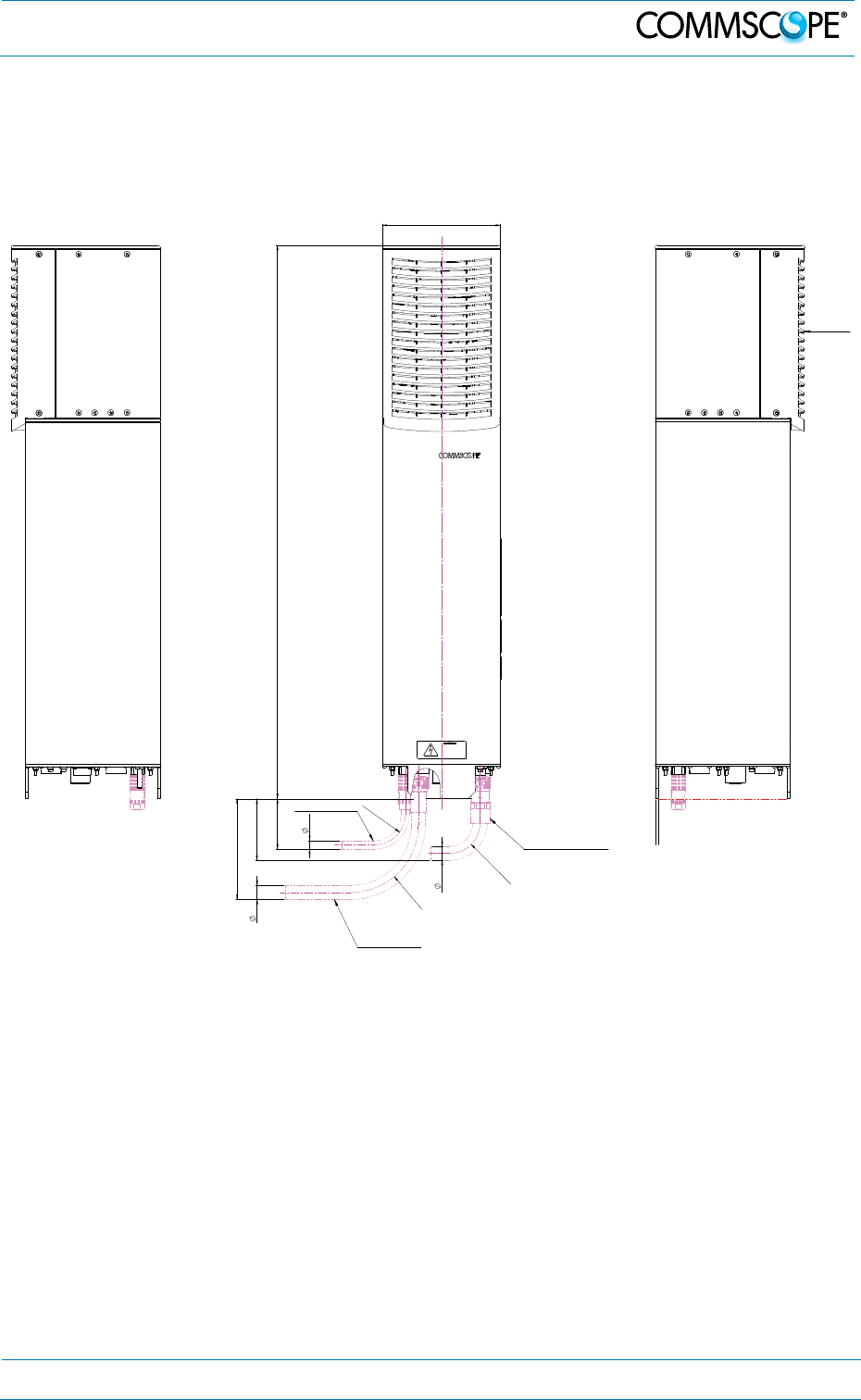

4.3.5. Connection of the antenna cable

The Remote Unit has one 4.3-10 type antenna connector labeled “ANT”.

When attaching the antenna cable connector, it is recommended to refer to the

corresponding documentation of the connector manufacturer. The bending radius of

the antenna cable must remain within the given specifications.

The selection of cable and antenna is an important consideration. On the one hand, a

cable with higher loss is less expensive but, on the other hand, it impairs

performance.

Notice: Use an appropriate torque wrench for the coupling torques:

- for N-type connectors (2 N-m / 20 in lb) with 13/16 in opening,

e. g. item no. 244379 available from the CommScope e-catalog

- for 7/16 DIN-type (25 N-m / 19 ft lb) with 1 ¼ in opening,

e. g. item no. 244377 available from the CommScope e-catalog

- for 4.3-10 type connectors (5 N-m, 44 in lb) with 22 mm (7/8) in

opening

Do NOT use your hands or any other tool (e.g. a pair of pliers). This might

cause damage to the connector and lead to a malfunction of the Remote

Unit.

Attention: To minimize passive inter-modulation (PIM) distortion, attention has to be

paid to the physical condition of the connector junctions:

• Do not use connectors that show signs of corrosion on the metal surface.

• Prevent the ingress of water or dirt into the connector.

• Use protective caps for the connectors when not mounted.

• Before mounting clean the connectors with dry compressed air.

• Before mounting clean the mating surfaces of the connector with a lint-free

alcohol-drenched cloth on a wooden or non-metallic item.

• Attach and torque the connectors properly.

• Avoid metallic abrasion when mounting the connectors by only screwing the

connecting nut, but not turning the whole connector.

• Use a torque wrench to fasten the connector, see above.

• Clean the protective caps before mounting for antenna cable replacement.

4. Commissioning

Page 28 M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U

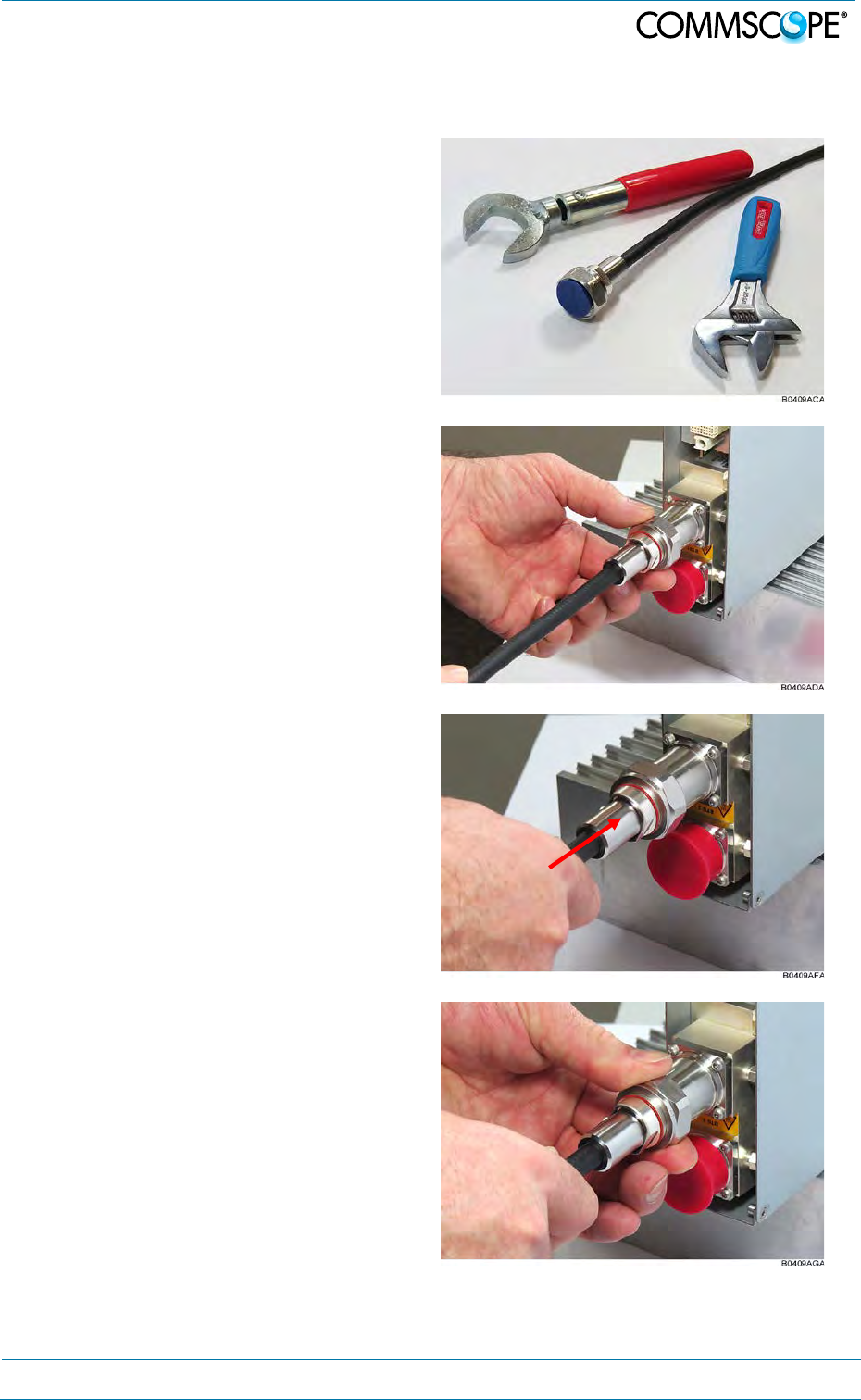

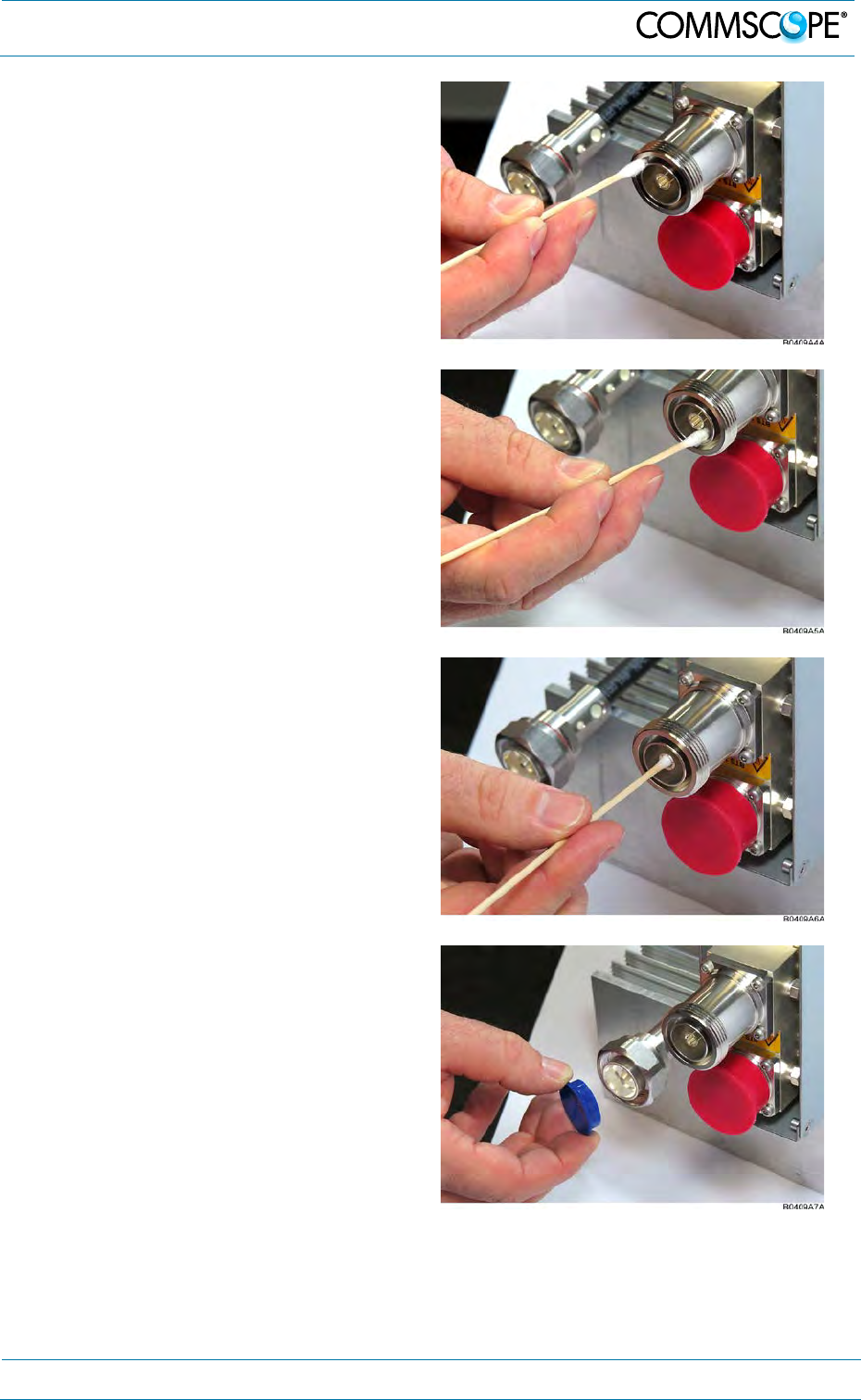

4.3.5.1. Cleaning procedure for RF cable connectors

1. What is needed for the cleaning?

a. Isopropyl alcohol

b. Compressed air

c. Lint-free wipe

d. Cotton buds

2. Remove protective cap from the RF

connector.

3. Remove metal chips and small

particles from the mating and inner

surfaces of the connector using

compressed air.

4. Clean the connector winding with lint-

free wipe drenched with isopropyl

alcohol.

4. Commissioning

M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U Page 29

5. Clean the lip of the inner ring with

lint-free wipe drenched with isopropyl

alcohol.

6. Clean the inside surface of the inner

ring with lint-free wipe drenched with

isopropyl alcohol.

7. Clean the inside of the center

conductor spring tines with a cotton

bud drenched with isopropyl alcohol.

8. Clean in the similar way the

connector of the connected cable.

Remove protective caps from the unit

connector first.

4. Commissioning

Page 30 M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U

9. Remove metal chips and small

particles from the mating and inner

surfaces of the connector using

compressed air.

10. Continue with the winding area using

lint-free wipe drenched with isopropyl

alcohol.

11. Continue with the inside mating

surface of the inner ring.

12. Clean the outside surface of the

center pin.

4. Commissioning

M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U Page 31

4.3.5.2. Antenna cable connector assembly

1. What is needed for the connector

assembly?

a. Torque wrench.

b. (Adjustable) counter

wrench

2. Join the connectors and turn the

coupling nut until the thread grips.

3. Push in the connector until it clicks.

4. Fasten the coupling nut hand-tight. Do

not turn the connector but the coupling

nut only.

4. Commissioning

Page 32 M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U

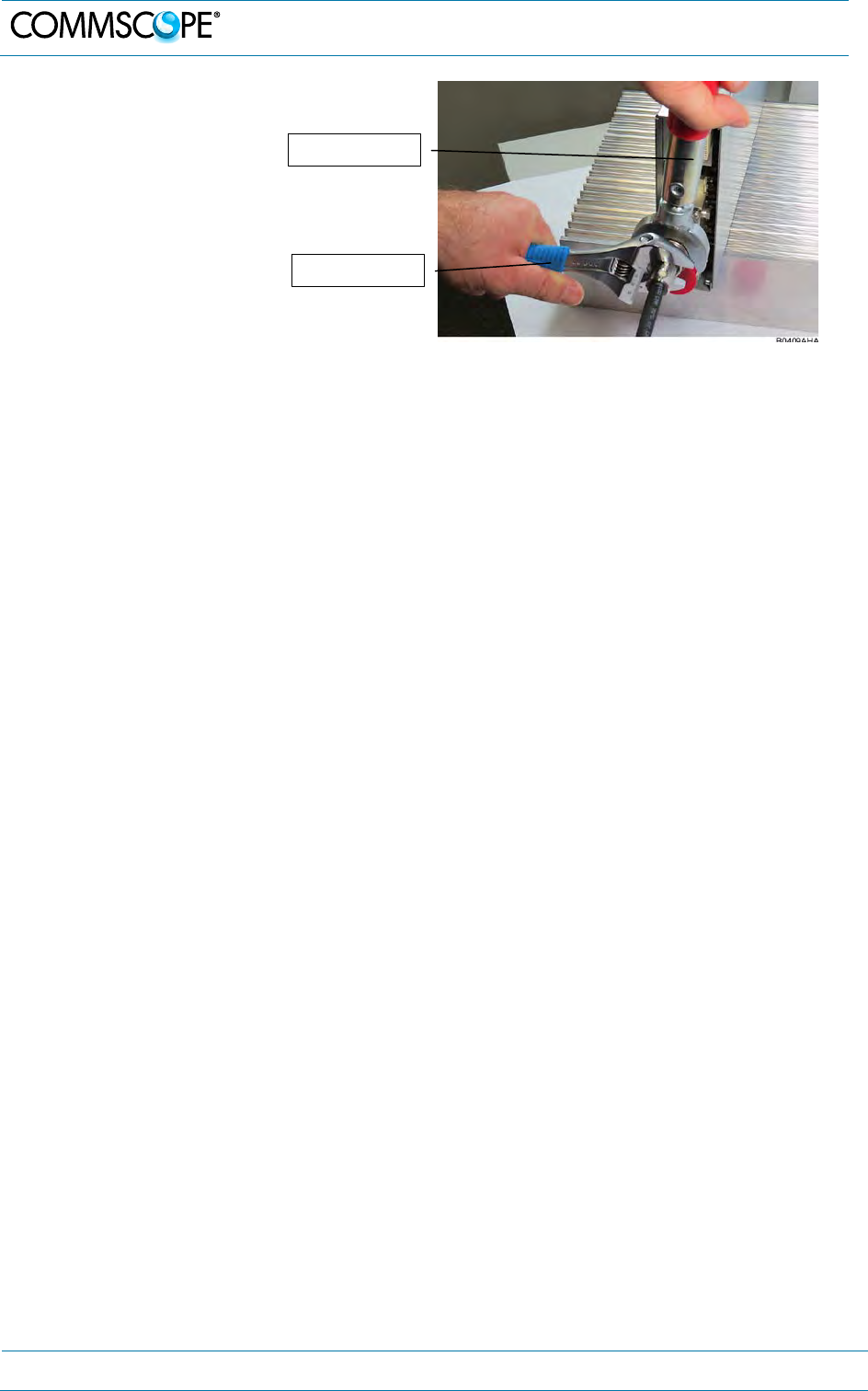

5. Retain the cable connector with the

counter wrench and fasten the

coupling nut with the

torque wrench until the torque is

applied (torque wrench clicks).

For angled antenna connectors use your hand to retain the cable connector and

fasten the coupling nut with the torque wrench. Make sure only the coupling nut is

turned, not the cable connector.

4.3.6. Mains power connection

Before connecting electrical power to the unit, the system must be grounded as

described in the previous chapter.

Mains power must be connected at the mains connector of the unit.

4.3.6.1. Mains power connection AC

1. Take the Mains power cable that was delivered with the RU.

2. Locate or install a suitable power junction box or receptacle near the RU and

route the power cable from the power source to the RU. Do not connect the

cable to the RU’s Mains connector at this time. The power source must be

interruptible.

3. The Mains cable must be properly secured observing local regulations and

electrical codes. Be sure to allow enough slack in the cable at the RU to plug

or unplug the cable into the Mains connector of the RU.

4. Wire the power cable to the junction box or receptacle. Refer to the color code

and pin numbers shown in figure 4-15 (AC cable), and table 4-3.

5. With the cable’s Mains plug disconnected from the RU, turn the circuit breaker

on, unscrew the plug’s protective cover, and carefully test the plug with a

voltmeter to ensure that the voltage and polarity are correct.

6. Once the testing has been completed, turn off the circuit breaker.

7. Unscrew the protective cover from the Mains connector of the RU (figure

4-14).

8. Insert the plug into the Mains connector and tighten the clamping ring until it is

hand tight. Do not over-tighten the clamping ring.

Torque wrench

Counter wrench

4. Commissioning

M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U Page 33

figure 4-14 Mains power connector figure 4-15 Mains power cable - AC

The Mains cable is part of the delivery. It’s available in two wiring configurations:

Wiring 1

Name

Color

Phase

Black

Neutral

White

n.c.

n.c

Ground

Green

Wiring 2

Name

Color

Phase

Brown

Neutral

Blue

n.c.

n.c

Ground

Green/Yellow

table 4-3 AC power cable pinning

For the AC power supply connection, a minimum cross section of 1.5

mm2 is required. Each wire must observe the applicable national

regulations regarding loop impedance, voltage drop, and methods of

installation. Make sure to connect the correct voltage to the unit.

F Note: Do not connect or disconnect the power cord at the mains connector while

power is on. Turn off mains* power before connecting the power cord at

the Remote Unit, then, engage mains again.

* Mains power must be interrupted with an external mains breaker. For the mains breaker, observe

the following recommendation:

120 Volt / 20 Amp max. or 240 Volt / 16 Amp, single-phase, 50 / 60 Hz AC service is needed, i.e. the

external AC breaker should be 20 Amps max. for 120-Volt service or 13 - 16 Amps for 240-Volt

service.

Pin PE

Pin1

Pin2

Pin3

Protective Cap

4. Commissioning

Page 34 M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U

4.3.6.2. Mains power connection DC

Caution: Danger of electrical hazard by high current. Disconnect mains

power before opening the DC connector housing.

Note: The Mains cable must be properly secured observing loc

al regulations and

electrical codes. Be sure to allow enough slack in the cable at the RU to

mount or

dismount the cable into the DC Mains connector of the RU.

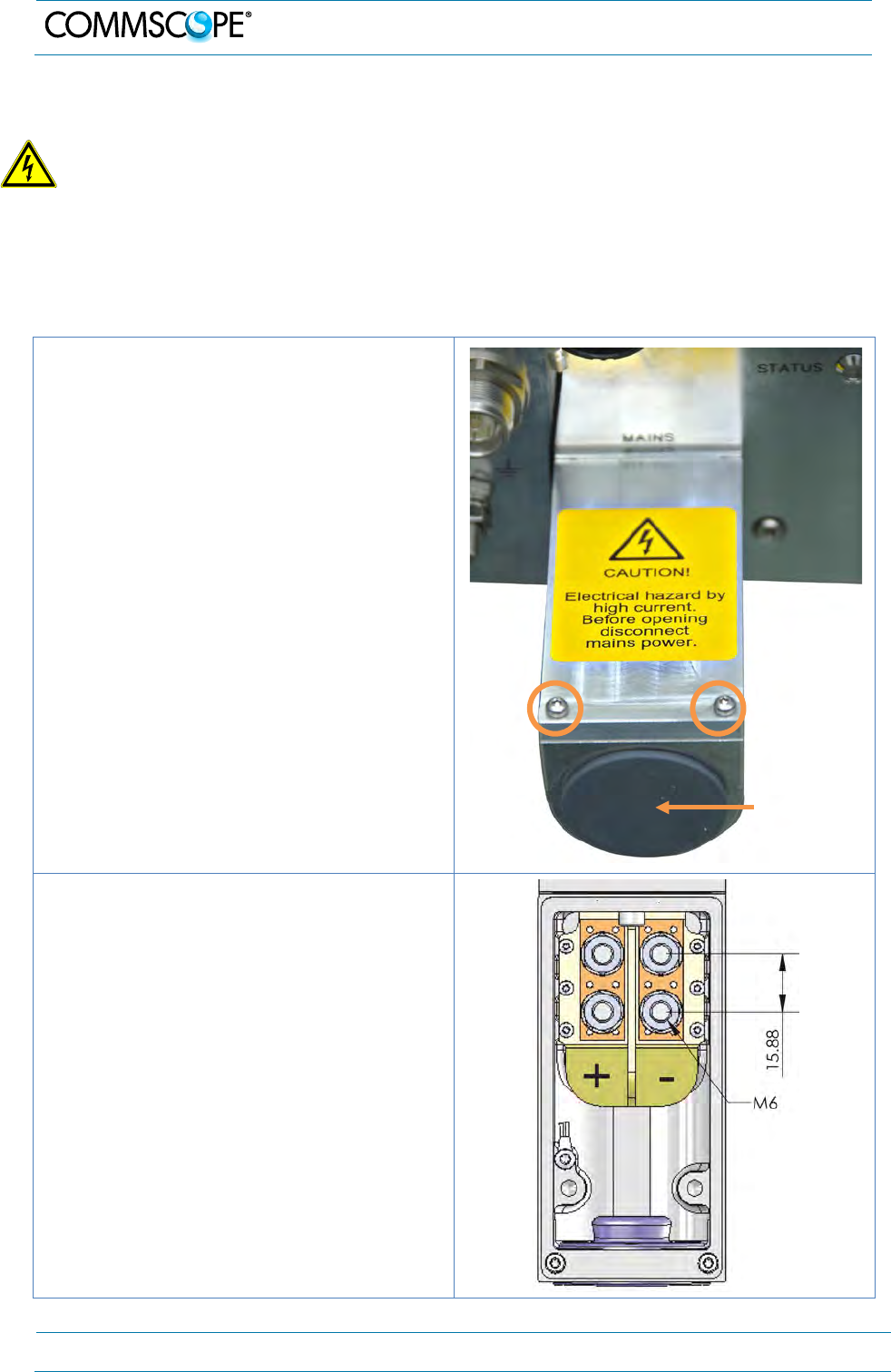

Unscrew the two M3 x 12 captive screws

and take off the cover from the DC Mains

connector housing.

At the RU housing

the cover is inserted into a recess, so first

lift the cover at the front and carefully pull

it out from the recess.

Then remove the rubber plug.

Double lug DC cable connectors need to

be M6 with a stud hold spacing of 15.88

mm (5/8”).

Rubber

plug

4. Commissioning

M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U Page 35

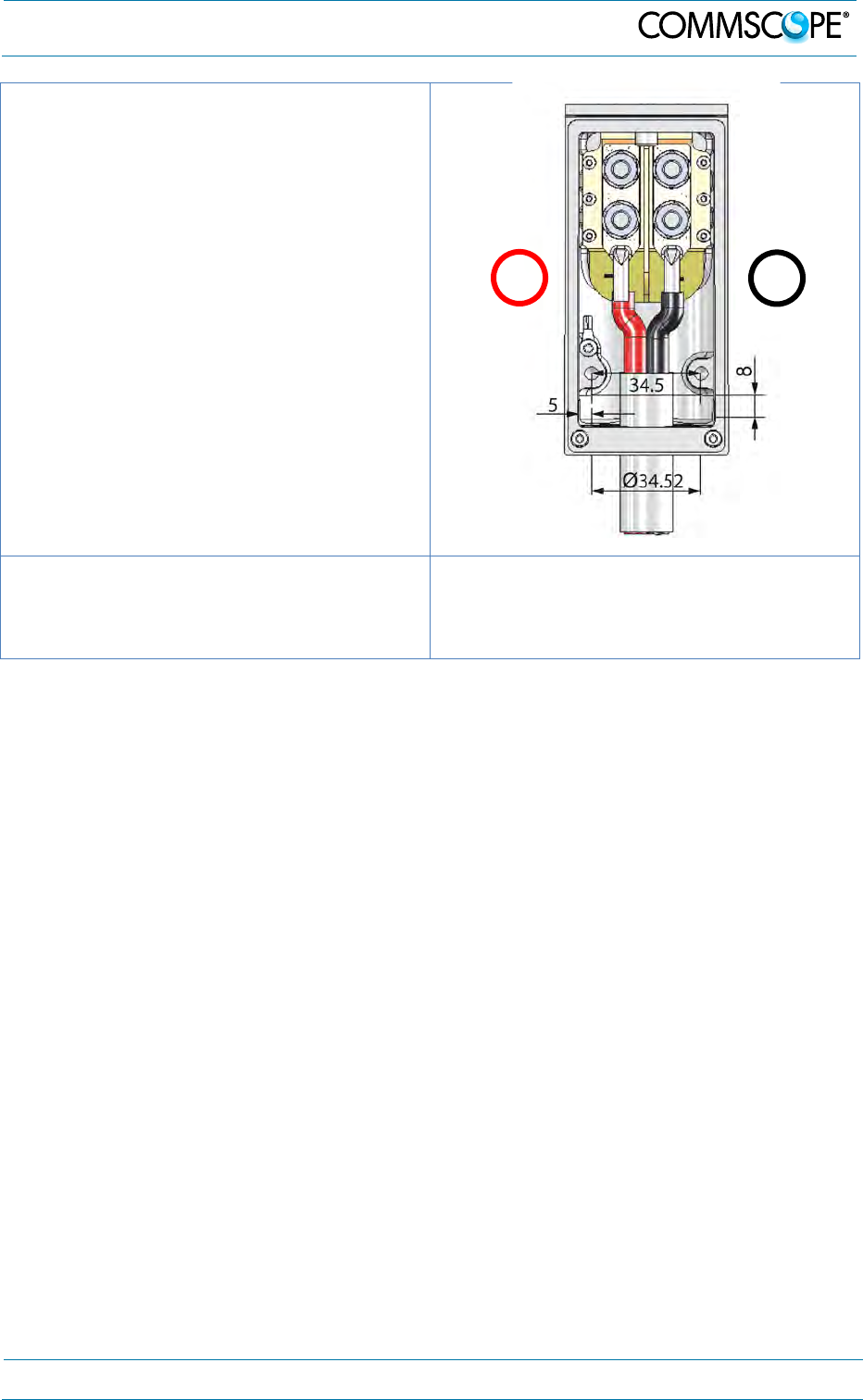

First, install a conduit fitting (not

contained in scope of delivery) to the

34.52 mm hole. This must be a suitable

fitting for a 1 Inch conduit with lock nut.

Inside, t

he clearance around the hole is

5 mm

, the maximum space for the nut is

8 mm

. Then, insert your wiring through

the opening and mount it to the M6 mains

terminals. Observe the correct polarity.

Close the conduit fitting to ensure water

tightness. F

or strain release, two M5

threaded holes are provided; the distance

between the threaded holes is 34.5 mm.

Mount the housing cover by inserting it

into the recess at the repeater cabinet

and fastening the two M3 x 12 captive

screws.

Attention: For the DC power supply connection, a minimum cross section of

6.6 mm2 (≤ AWG 9) per potential is required. Each wire must

observe the applicable national regulations regarding loop

impedance, voltage drop, and methods of installation. Make sure

to connect the correct voltage to the unit. To ensure water-

tightness of the unit, use the correct size of cable gland.

F Note: Do not connect or disconnect the power cord at the mains connector while

power is on. Turn off mains* power before connecting the power cord at

the Remote Unit, then, engage mains again.

* Mains power must be interruptible with an external mains breaker (40 A). For the mains breaker,

observe the local regulations of the DC provider.

4. Commissioning

Page 36 M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U

4.3.7. Extension Unit port connection

The Expansion connector is used to connect a cable bridge to an optional Extension

Unit to provide additional bands of coverage. This port provides control and RF

signaling to and from the Extension Unit.

Attention: The cable bridge connector is a push-pull connector. Ensure not to insert

it at an angle into the EU connector. The connector coupler has to be inserted before

the Pin-holder is pushed in. Otherwise the connectors might be damaged.

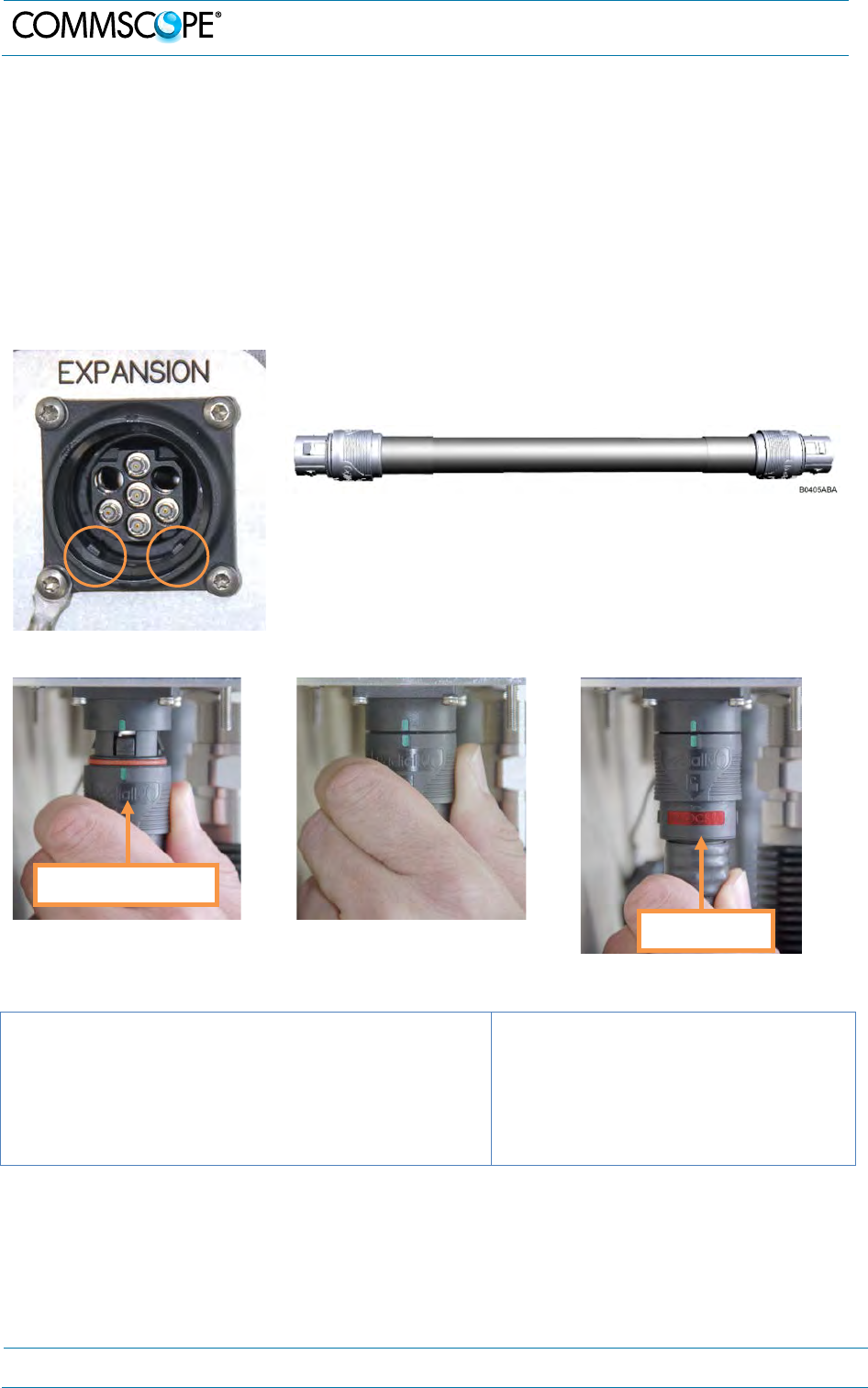

The cable bridge connector provides two notches, the

EU connector two noses.

figure 4-16 EU connector and cable bridge

figure 4-17 Mounting the EU cable bridge

Take the cable bridge connector at the

connector coupler and insert it carefully to the

EU connector. Use the green markings to align

the connector, turn it without pressure until the

noses catch the notches and carefully push it at

right angle into the connector.

Then take the cable bridge

connector (Pin-

holder) and push it

into the EU connector until the lock

clicks. The red ‘UNLOCK’ marking

must be completely covered by the

connector coupler.

Connector coupler

Pin-holder

4. Commissioning

M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U Page 37

4.3.8. External alarm In / Out port

The Alarm port provides external alarm contacts (two inputs and two outputs) that are

used to monitor and report alarms generated by other equipment or to provide

contact closures for RU alarms. The connector is an 8-pin Binder 712 series

connector.

Front View

8-Pin Binder 712 Series

Assignment

EXT_IN_1

GND_Isolated

EXT_IN_2

EXT_Out_1_normally

closed

EXT_Out_1_common

EXT_Out_2_normally

open

EXT_Out_2_common

EXT_Out_2_normally

closed

figure 4-18 Alarm connector table 4-4 Alarm connector

pinning

4.3.9. RS 485 /+28 V port

This 5 pin connector provides RS 485 communications and +28 VDC power.

Front View

5-Pin Binder 712

Series

Assignment

+28V/500 mA

GND

RS485_RD-

RS485_RD+

GND

figure 4-19 RS485 /+28 VDC connector table 4-5 RS485/+28V

pinning

B0405AFA

B0405AEA

4. Commissioning

Page 38 M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U

4.3.10. Local interface port

The Local Interface port is a RJ45 network port, which can be used for a local

connection to a laptop PC. This interface is used by factory for the initial setup of the

RU.

Front View

RJ45

Assignment

TXD+

TXD-

RXD+

RXD-

figure 4-20 Local interface connector table 4-6 Local interface

connector pinning

4.3.11. Coupling Probe

The coupling probe is a QMA measurement probe that allows the measurement of

the antenna output without disconnecting the antenna. The coupling is as follows:

Port

Coupling dB typ.

700 MHz

800/850 MHz

1900 MHz

1700 MHz

4. Commissioning

M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U Page 39

4.3.12. Optical-fiber cable connection

Main optical system parameters:

Fiber:

• Single mode fiber, type is E9/125 µm

• Attenuation: <0.36 dB / km @ 1310 nm / <0.26 dB / km @ 1550 nm

• Dispersion: <3.5 ps / nm km @ 1310 nm / <18.0 ps / nm km @ 1550 nm

• Fiber-cable connectors LC/APC8°

• The pigtails for the connection between Master Unit and Remote Unit must

have a sufficient length. Protection for the optical fibers must be provided

where the fibers feed into the units.

• The system attenuation of the optical fibers, including the connectors, must

not exceed 10 dB for optimal performance. Up to 20 dB optical loss can be

compensated by the system, but with impact on the performance.

System attenuation and attenuation of optical components must be determined. This

can be achieved by measuring attenuation and reflection with an appropriate

measuring instrument. For pigtails, a total value of <0.4 dB (measured to a reference

plug) can be assumed due to the dead zone of the reflectometer. These

measurements must be made with a sufficient length of optical fiber, at the input and

output of the device which has to be measured.

Fiber-System Installation:

Fiber-cable connectors have to be of the same type (LC/APC8°) as the connectors

used for the unit. The fiber-optic cables are connected to the optical transceiver.

Notice: Angled connectors are not compatible with straight optical connectors; non-

compatibility of connectors will result in permanent damage to both

connectors.

Before connecting the fiber cables, follow the procedure below to ensure optimized

performance. It is important for these procedures to be carried out with care:

Ø Remove fiber-optic protective caps.

Ø Do not bend the fiber-optic cable in a tight radius (<4 cm) as this may cause

cable damage and interrupt transmission.

Ø Using high-grade alcohol and lint-free cotton cleaning swabs, clean the end of

the fiber-optic cable that will be inserted in the optical connectors on the donor

interface box. Use a fiber end-face inspection tool to scan both, the class fiber

and its surrounding area.

Ø Check for dirt on the cladding, chips/pits, dirt on the ferrule, and scratches.

4. Commissioning

Page 40 M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U

Ø Connect the fiber-optic cables by inserting the cable end into the laser

receptacle and aligning the key (on the cable end) with the keyed slot.

Ø Do not use any index-matching gels or fluids of any kind in these connectors.

Gels are intended for laboratory use and attract dirt in the field.

Notice: Care should be taken when connecting and disconnecting fiber-optic cables -

use the connector housing to plug or unplug a fiber. Scratches and dust

significantly affect system performance and may permanently damage the

connector. Always use protective caps on fiber-optic connectors not in use.

Cleaning Procedure for Fiber-Optical Components:

Any contamination in the fiber connection results in additional optical transmission

loss which could cause whole system failure. It is thus recommended that every fiber

connector be inspected and cleaned prior to mating.

The goal is to eliminate any dust or contamination and to provide a clean

environment for the fiber-optic connection.

When you clean fiber components, always complete the following steps carefully:

Caution: Laser radiation. Risk of eye injury in operation. Do not stare into the

beam; do not view it directly or with optical instruments.

1. Turn off the ION system (laser sources) before you inspect fiber connectors.

2. Check the connectors or adapters with a fiberscope before cleaning.

3. If the connector is dirty, clean it with a lint-free wipe (dry cleaning).

4. Inspect the connector.

5. If the connector is still dirty, repeat the dry cleaning technique.

6. Inspect the connector.

7. If the connector is still dirty, clean it with 99% isopropyl alcohol (wet cleaning)

followed immediately with a dry clean in order to ensure no residue is left on

the end face.

8. Repeat steps 5 through 7 until end face is clean.

Note: For a more detailed description, please refer to:

http://www.cisco.com/en/US/tech/tk482/tk876/technologies_white_paper09186

a0080254eba.shtml

4. Commissioning

M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U Page 41

4.3.13. Assembly instructions for optical LC patch cables

The ION-U H 7P/80-85P/17P/19P utilizes a single fiber cable for both uplink and

downlink. The RU optical connector (Opus short plug kit) supports both simplex (one

fiber cable) and duplex (two fiber cables) operation.

The Opus short plug kit, which is included with the delivery of the RU, has the

following components.

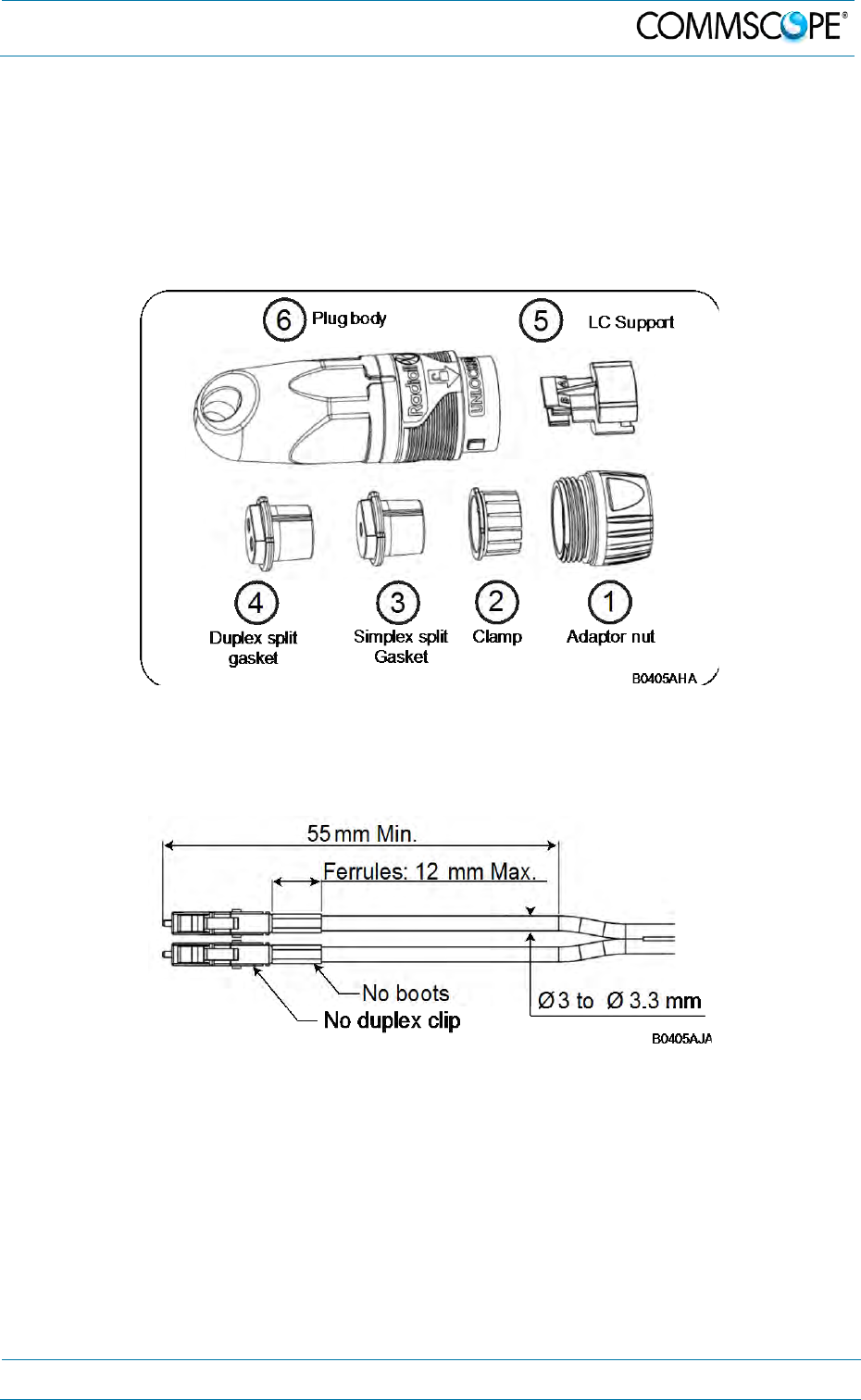

figure 4-21 Contents of the Opus short plug kit

The LC/APC patch cables must meet the following requirements shown in figure 4-22

for use with the RU and the Opus short plug kit.

figure 4-22 LC/APC patch cable requirements

F Note: You must pay close attention to the integrity of the fiber during the

assembly process.

4. Commissioning

Page 42 M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U

4.3.13.1. Assemble optical Opus short plug components

The following instructions cover both simplex and duplex fiber cables. Steps that

apply only to duplex cables have “b” following the step number.

Unscrew the nut and take out the plug clamp. Slide the adaptor nut and the

clamp onto and along the fiber patch cable as shown.

figure 4-23 Opus short plug clamp and nut

Simplex Cable

Duplex Cable

Place the simplex split gasket

the cable using the split on the side of

the gasket with the larger diameter of

the gasket toward the front.

Place the duplex split gasket

on the

cables using the split on both sides of

the gasket with the larger diameter of the

gasket toward the front. Ensure that the

channel positioning is correct as shown.

figure 4-24 Simplex split gasket figure 4-25 Duplex split gasket

Flat surface

Channel B

Channel A

Flat surface

4. Commissioning

M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U Page 43

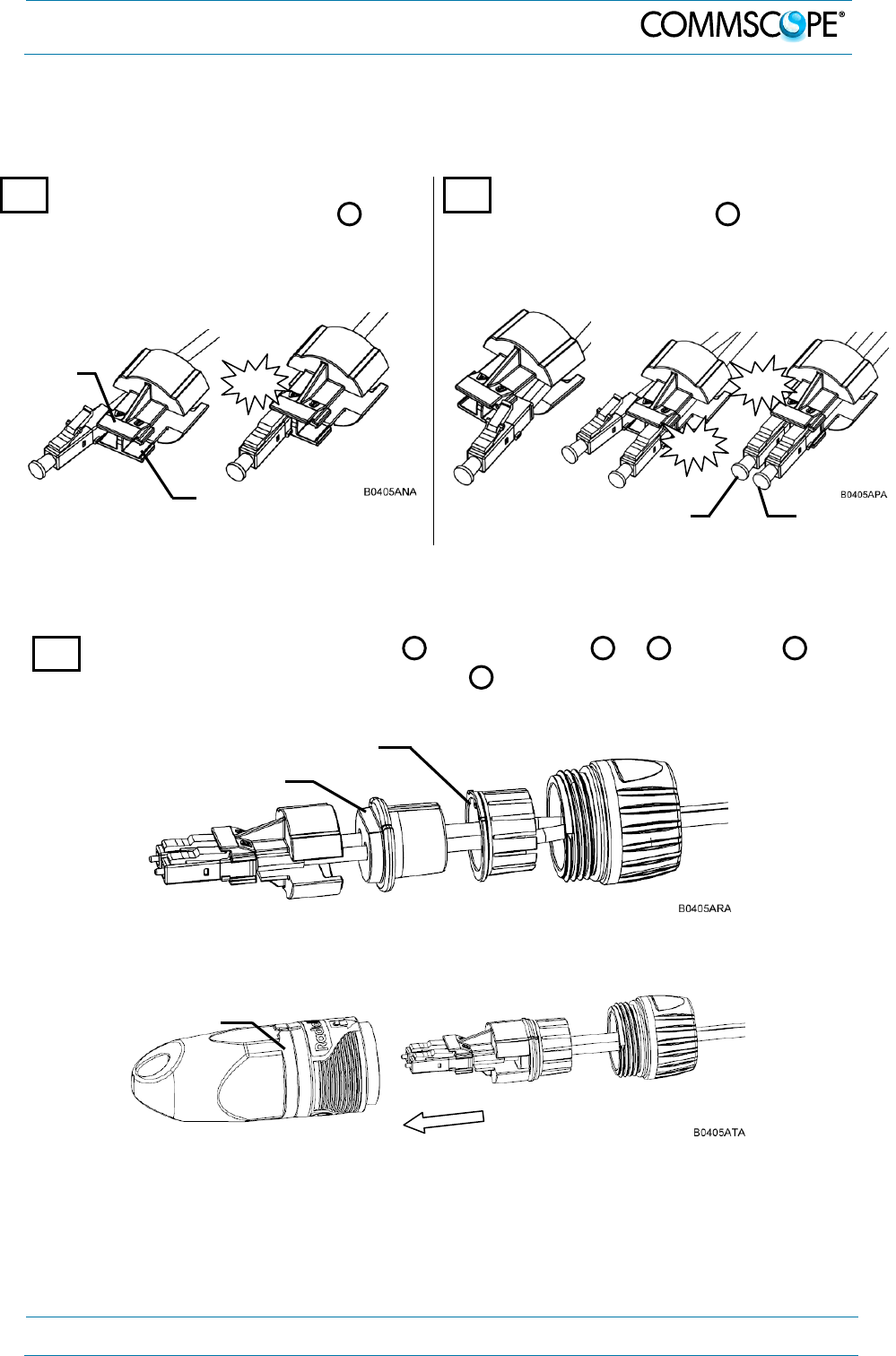

Note: The LC latch must be pressed down in order to slide

it into the cavity of the LC

support.

Insert the LC connector by its side

into Cavity A of LC support

until it

clicks into place.

Insert the LC connectors by their sides

into the LC support

until they click

into place.

Ensure that the channel

positioning is correct as shown.

figure 4-26 Simplex cavity A figure 4-27 Duplex cavity A & B

Align and assemble LC support with split gasket or and clamp .

Insert this assembly into the plug body as shown. The inside pin of the

clamp must be aligned with the groove in the split gasket.

figure 4-28 Assemble Opus short plug

figure 4-29 Insert LC connector plug into plug body

click

Channel B

Channel A

click

Channel A

Free slot

Inside Pin

Flat surface

Slot alignment mark

4. Commissioning

Page 44 M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U

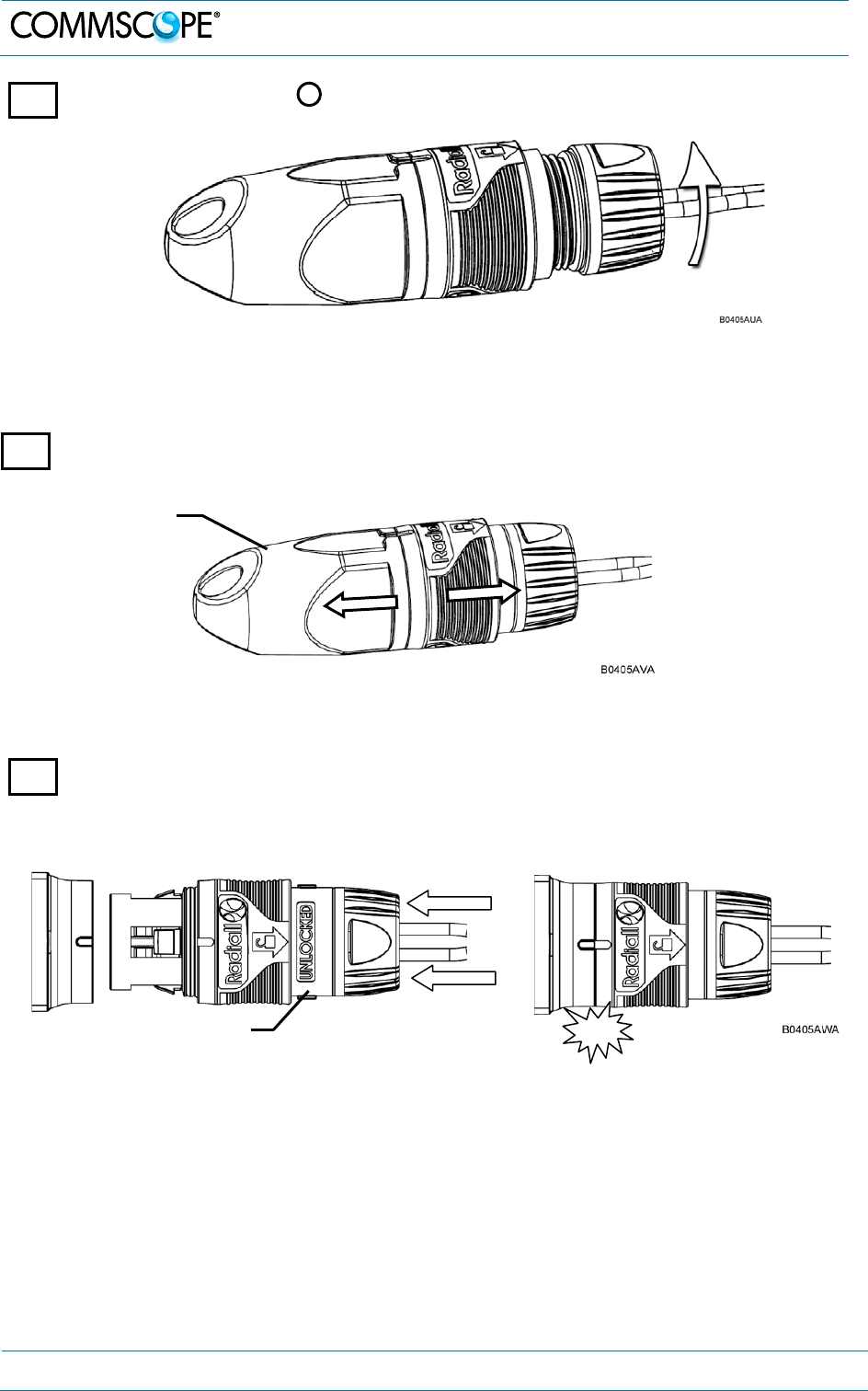

Screw the adapter nut onto the body (2 N-m maximum torque).

figure 4-30 Tighten Opus short plug adapter nut

4.3.13.2. Connect Opus short plug to RU

Pull on the plug’s collar to remove the protection cap.

figure 4-31 Remove Opus short plug protective cap

Push the plug body into the receptacle until the collar is in the locked position.

The “UNLOCKED” label on the connector body will no longer be visible when

the connector is properly locked into the receptacle on the RU.

figure 4-32 Insert Opus short plug into RU receptacle

Protective cap

click

Unlocked label

4. Commissioning

M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U Page 45

4.3.13.3. Disconnect Opus short plug from RU

To disconnect the Opus short plug, pull on the collar to release the plug.

figure 4-33 Disconnect Opus short plug from RU

4.3.14. Optional equipment for optical fiber connection

To ease the optical connection additional equipment is available as an option:

- optical LC/APC pigtail, 5000 mm

- ready-made optical pigtail kit with Opus connector and protective tube, 5000 mm

figure 4-34 Optional pigtail kit

For connecting/disconnecting the Opus plug of the optical pigtail kit see chapters

4.3.13.2 and 4.3.13.3.

4. Commissioning

Page 46 M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U

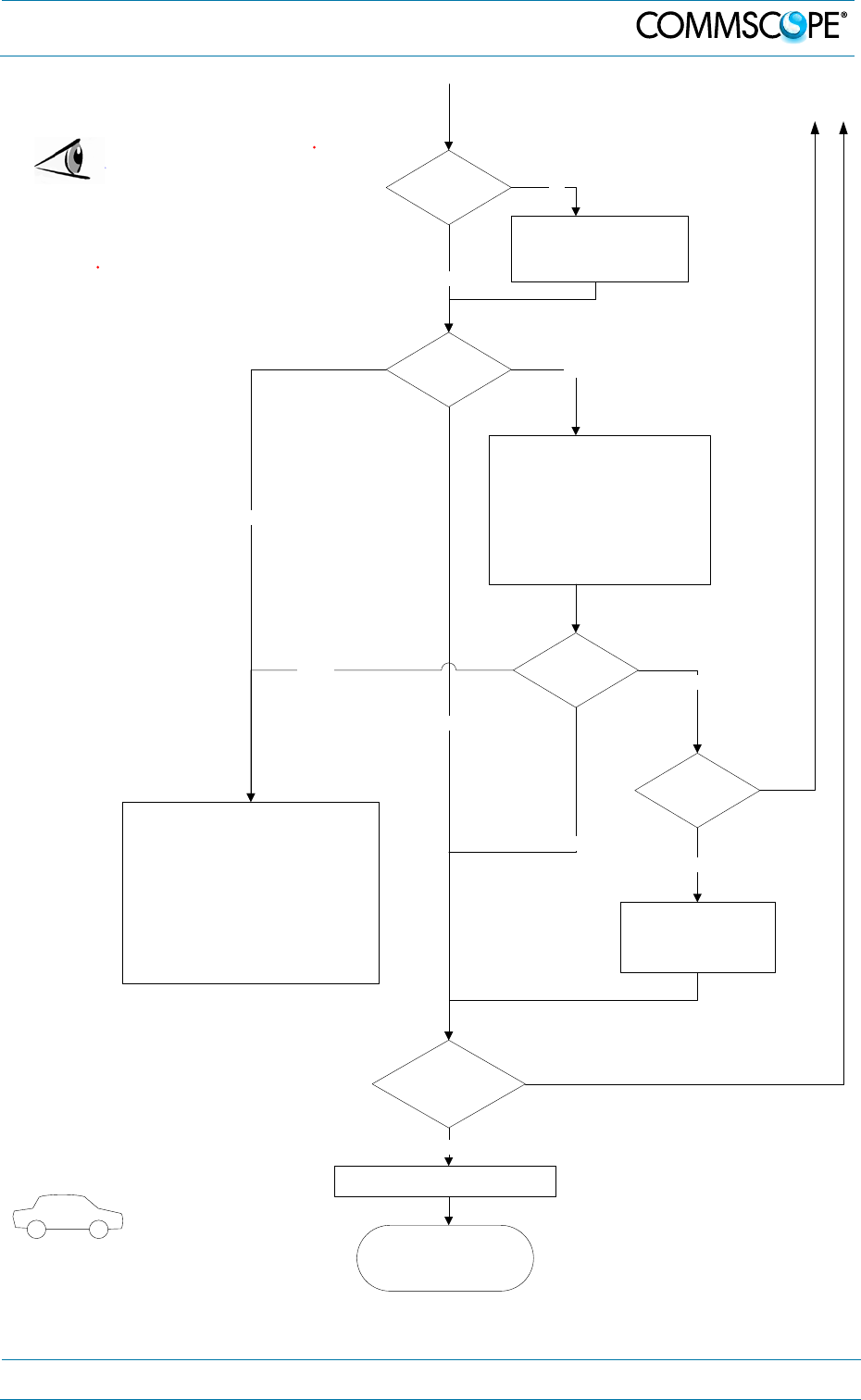

4.4. Commissioning Flow-Chart

4. Commissioning

M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U Page 47

Output:

All RUs okay.

Go to MU

External error

Check fibre loss of optical link.

Check optical connectors.

Clean optical connectors.

Check optical output power of corresponding

OTRx at MU.

LED status

Proceed to MU to set up the SW

Yellow

Yes

Internal Error

Red

LED status

Yellow

Green

Red

Finished setting up

all RUs?

Green

Spare RU

available?

Yes

Contact customer

service

Yes

LED on?

Check mains cabling.

Check mains power.

5. Alarms

Page 48 M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U

5. Alarms

5.1. Bite and Alarms

The Built-In Test concept comprises the monitoring of the power supplies, the power

amplifiers, fan units and the optical interface.

All occurring alarms can be checked via software at the Master Unit.

As soon as the software acknowledges a valid alarm, a message is transmitted to the

Master Unit.

If the reason for the alarm has been cleared or if the alarm should continue, a new

alarm message will not be repeated. If there was an interruption of at least five

seconds after acknowledgement, a new alarm message will be generated.

5.2. Troubleshooting

The status of the Remote Unit can be checked via the Master Unit (for details please

refer to the ION-U Site Manager software manual). Locally, the status can be

checked at the LED.

5.3. Status LED Alarms

For local supervision, a status LED on the connector flange of the Remote Unit

provides a visual indication of possible reasons for alarms. The color of the LED

indicates the severity of the alarm. Detailed alarm information is available through the

ION-U software interface.

Status LED Indication

Alarms

Possible on-site measures

Green

No alarm

Status ok

Orange Optical alarm Rx

Check fiber loss of optical link.

Check optical connectors.

Clean optical connectors.

(MU: Check optical output power

of corresponding OTRx at MU).

Red Hardware failure

Reboot the RU via SM software or

reboot the RU by shortly

interrupting mains supply.

Status LED off Mains

Check mains cabling.

Check mains power.

5. Alarms

M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U Page 49

5.4. External Alarm Inputs and Outputs

The eight-pin EXT ALARM IN/OUT connector supports two external alarm inputs and

two external alarm outputs. Chapter 4.3.8 External alarm In / Out port includes the

connector’s pin-out information and chapter 4.3.3 Connections identifies the

connector’s location.

The alarm outputs are realized with relays (switching capacity max. 60 VDC, max.

2 A, max 60 W). They can be used to monitor alarms with an external alarm

indicator.

F Note: The manufacturer / supplier of this system accepts no liability for

damage caused by equipment connected to external outputs or by

effects from such equipment.

With the external alarm inputs, it is possible to monitor the status of connected

devices, e.g. a UPS, via software. All alarm inputs are normally high (5 V) without

connection. The polarity (high/ low) can be set via the software at the Master Unit (for

details please see the appropriate ION-U software manual).

The device to be monitored must be connected so that the alarm contacts will be

closed in case of an alarm (I max = 5 mA). The alarm inputs are potential-free with

common ground (earth).

Subminiature circular connectors series 712 with eight contacts, which are included

in the alarm kit, can be ordered directly from the Binder Connector Group, the

manufacturer, or indirectly from CommScope.

figure 5-1 Alarm inputs and outputs

Ext In 1

Ext In 2

Common for Inputs

Closed in Alarm condition

Open in Alarm condition

Ext Out 1

Ext Out 2

Closed in Alarm condition

6. Maintenance

Page 50 M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U

6. Maintenance

6.1. General

Read and observe the notices in chapter 1.2 Health and Safety.

Caution: Rotating fans. Risk of injury in operation. Wear tight-fitting clothes and

disconnect mains before connecting or replacing or cleaning the fan unit.

Caution: The unit reaches high temperature in operation. Risk of burns by hot

surface. Do not touch the unit before it has sufficiently cooled down.

F Note: The Remote Unit does not require preventative maintenance measures.

F Note: We recommend checking the cleanliness of the unit and in particular of

the heat sink / fan(s) at appropriate intervals depending on the degree of

dust and dirt at the installation site. If necessary, any dusty or dirty areas /

parts should be cleaned at regular intervals, which also depend on the

degree of dust and dirt at the installation site.

Maintenance of the ION-U High Power RUs should be performed by replacing only

components that are described in this chapter. In order to maintain the warranty,

avoid unintentional damage to the seals on the modules.

The spare parts list, (see chapter 7.3) includes only units that can be replaced in the

field without tuning or soldering work.

F Note: When sending back the unit, use appropriate packaging. Use of the

original packaging for shipping the unit is strongly recommended.

F Note: Defective parts should only be replaced by original parts from the

supplier. All service work performed inside the housing is performed at

the users own risk.

F Note: Ensure the Remote Unit has been disconnected from mains power

during maintenance.

F Note: Label any unlabelled cables before disconnecting them to ensure

correct reconnection.

For most maintenance procedures, appropriate tools are required to ensure correct

handling. All of these tools can be ordered from the supplier.

F Note: All Remote Unit screws have a right-hand thread, and are tightened by

turning the screws clockwise and loosened by turning them counter-

clockwise with an appropriate tool.

Due to the design of the Remote Unit, the fan unit is the only component that should

be replaced in the field. Please contact the supplier for replacement of any other

components.

6. Maintenance

M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U Page 51

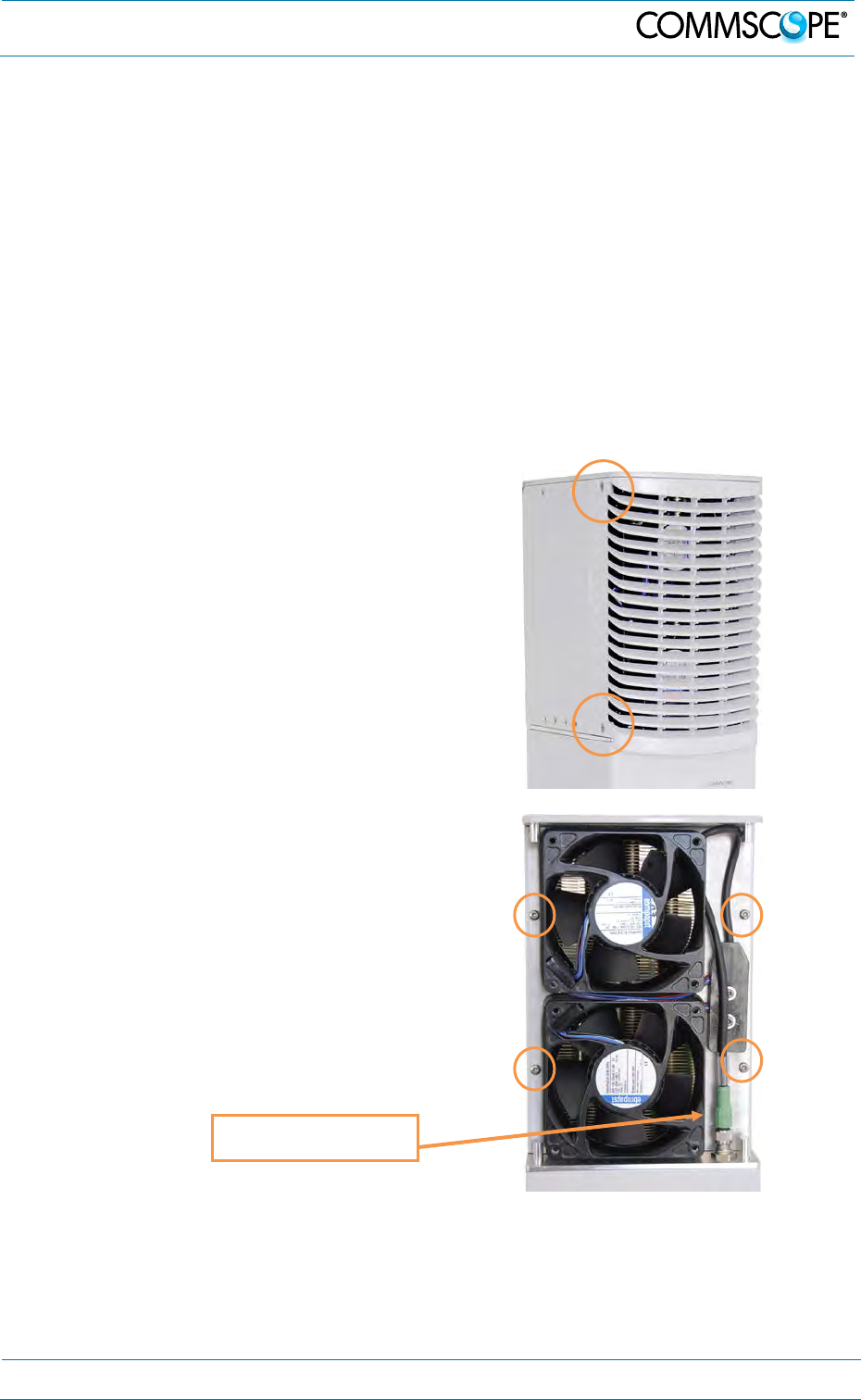

6.2. Replacing the Fan Unit

Replacement of the fan unit is not required as a preventative measure. Only when an

alarm indicates a malfunctioning of a fan, must the unit be exchanged.

F Note: Please observe that the fan unit can only be replaced as a whole. Do

not remove the fans separately.

Read and observe chapter 1.2 Health and Safety as well as the instructions in

chapter 6.1 General before starting with the replacement.

1. Switch off the Remote Unit. Make sure that mains power is disconnected for the

following replacement procedure. Then, proceed as follows:

2. Unscrew the four Pan-head screws

(

two at each side of the cabinet) and

remove the fan cover.

3. Unscrew and disconnect the fan

connector and unscrew the four Pan-

head screws the fan plate is fastened

to the cabinet. Take out the

fan unit,

replace it by the new one, fasten the

four Pan-

head screws for the fan unit,

re-

connect the fan connector and

mount the cover to the cabinet.

Fan connector

6. Maintenance

Page 52 M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U

6.3. Cleaning the Heat Sink

F Note: Read and observe chapter 1.2 Health and Safety as well as the

instructions in chapter 6.1 General before starting with the replacement

procedure. Then, proceed as follows:

1. Switch off the Remote Unit. Make sure that mains power is disconnected for the

following procedure.

2. Remove the fan cover and fan unit from the Remote Unit as described in chapter

6.2 Replacing the Fan Unit.

3. Use compressed air (max. 5 bars) to blow out any dust, dirt, or other debris in the

heat sink from back to front.

4. If the dirt cannot be blown out completely and parts of it stick to the ribs of the

heat sink, clean the parts concerned carefully from the front using e.g. a brush.

Take care that the heat sink material is not scratched or damaged.

5. After cleaning the heat sink, remount the fan unit according to chapter 6.2

Replacing the Fan Unit. Then, switch the Remote Unit back on.

7. Appendix

M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U Page 53

7. Appendix

7.1. Illustrations

figure 7-1 ION-U H 7P/80-85P/17P/19P required space

R45min.

12.5

R100min.

150

Airflow

Power IN Cable

Extension Unit

Cable bridge to

Protective Tube Kit

176

824

45min.

7. Appendix

Page 54 M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U

7.2. Specifications

This manual is valid for the following Remote Units:

ID No

Denomination

7698400-xxxx*

ION-U H 7P/80-85P/17P/19P

* The xxxx suffix is the identifier for the specific configuration of the Remote Unit.

Please refer to the ION-U H 7P/80-85P/17P/19P data sheet for the ION-U HP RU

specifications.

7.3. Spare Parts

Maintenance of the RU should be performed on an FRU (Field Replaceable Unit)

basis only. If any FRU not contained in the following list needs to be replaced, please

contact customer service for additional instructions.

Designation: ID No

Fan Unit M2-Cabinet

7661556-xx

Optical pigtail, 5 m

7704220

Optical pigtail kit, 5 m

7704209-xx

The manufacturer reserves the right to replace the spare parts listed above by

equivalent substitutes.

F Note: Only the spare part listed above is a FRU and can be replaced by the

user. For replacement of any other parts, please send the entire

Remote Unit back to the manufacturer.

7.4. List of Changes

Version

Changes

Release Date

M0200A8B

30-June-2015

M0200A8C

- chapter 1.4 adjusted

08-July-2015

8. Index

M0200A8C_uc_ION-U_H_7P_80-85P_17P_19P User’s Manual for ION®-U Page 55

8. Index

Alarm In/Out port .................................................. 37

Alarm port ............................................................. 24

Alarms

External Inputs ................................................. 49

Handling of Alarms .......................................... 48

List ................................................................... 48

Outputs ............................................................ 49

RU ................................................................... 48

Status LED ....................................................... 48

Block Diagram ION-U H 7P/80-85P/17P/19P ....... 15

CE Declaration of Conformity (DoC) ..................... 11

Cleaning the Heat Sink ......................................... 52

Commissioning ..................................................... 16

CommScope ......................................................... 11

Compliance............................................................. 8

Connections

Antenna ........................................................... 27

Connector Panel .............................................. 23

Optical-Fiber Cable .......................................... 39

Connectors

AC Mains ......................................................... 24

Alarm In/out ..................................................... 24

ANT RF ............................................................ 24

DC Mains ......................................................... 25

Extension Unit Connector ................................ 24

Grounding Bolt ................................................. 24

Local Interface ................................................. 24

Optical.............................................................. 24

Probe ............................................................... 24

RS 485/28V ..................................................... 24

Contact Addresses, Customer Support .......... 12, 13

Coupling Port ........................................................ 38

DC Mains Connector ............................................ 34

Declaration of Conformity (DoC) ........................... 11

Extension Unit Port ............................................... 36

Fiber-Optical Components

Cleaning Procedure ......................................... 40

System Installation ........................................... 39

Grounding (Earthing) ............................................ 26

Health and Safety ................................................... 7

Illustrations ........................................................... 53

Installation

Electrical .......................................................... 22

Mechanical ...................................................... 16

LC/APC Patch Cable Requirements ..................... 41

Local Interface Port .............................................. 38

Mains Connector .................................................. 32

Mains Power Connection ...................................... 32

Maintenance ......................................................... 50

Mounting

Pole with brackets............................................ 20

Pole with screw bands ..................................... 19

Wall .................................................................. 18

Optical-Fiber Connection

Optional pigtail ................................................. 45

Opus Short Plug .............................................. 41

Opus Short Plug kit............................................... 41

Pole Mounting ................................................ 19, 20

Property Damage Warnings ................................... 7

Replacement of Fan Unit ...................................... 51

RS 485/+28V port ................................................. 37

Spare Parts .......................................................... 54

Status LED ........................................................... 24

Troubleshooting .................................................... 48

Wall Mounting ....................................................... 18

Andrew Wireless System UH781719P ION-U Remote Unit for cellular systems User Manual User s Manual for ION U

Andrew Wireless System ION-U Remote Unit for cellular systems User s Manual for ION U

Contents

user manual

Navigation menu

Namespaces

Views

Navigation
