Anelto ANC1115 Charging Cradle User Manual Quick Start Guide FCC Jan 22

Anelto, Inc. Charging Cradle Quick Start Guide FCC Jan 22

Quick Start Guide - FCC Jan 22

Personal Mobile Alert System

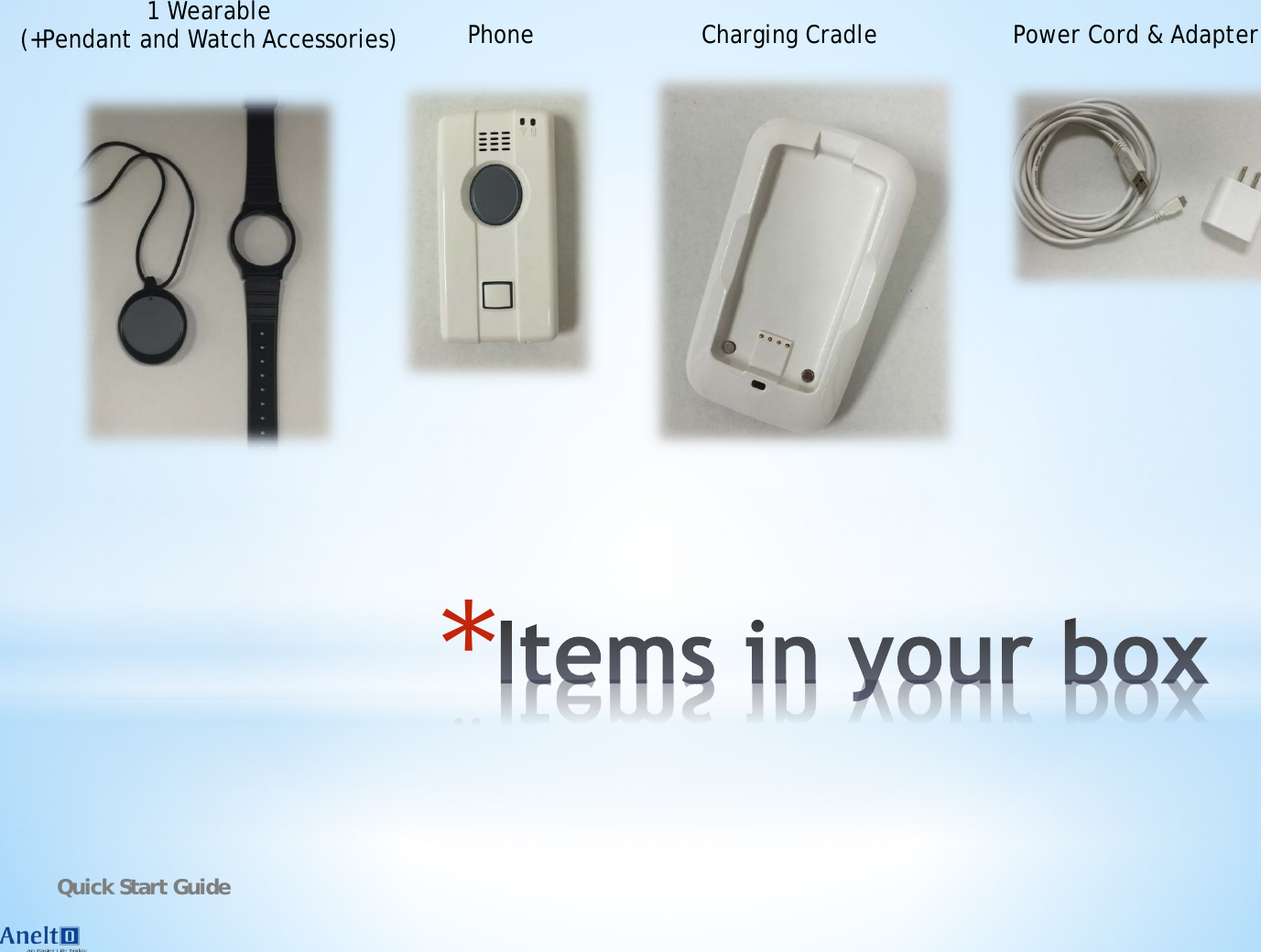

* Phone 1 Wearable (+Pendant and Watch Accessories) Charging Cradle Power Cord & Adapter Quick Start Guide

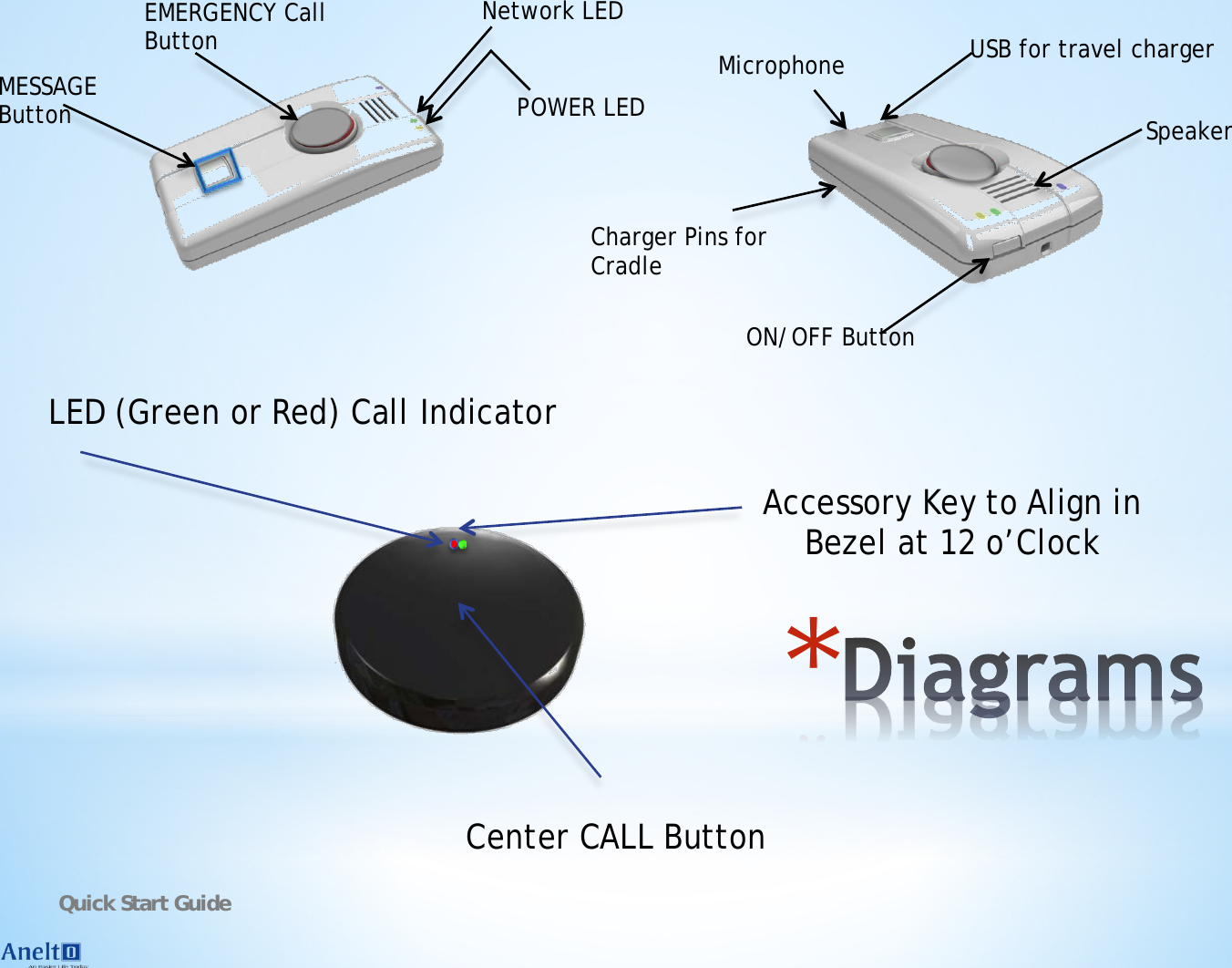

* ON/OFF Button USB for travel charger Charger Pins for Cradle Speaker EMERGENCY Call Button MESSAGE Button Microphone Network LED POWER LED Center CALL Button Accessory Key to Align in Bezel at 12 o’Clock Quick Start Guide LED (Green or Red) Call Indicator

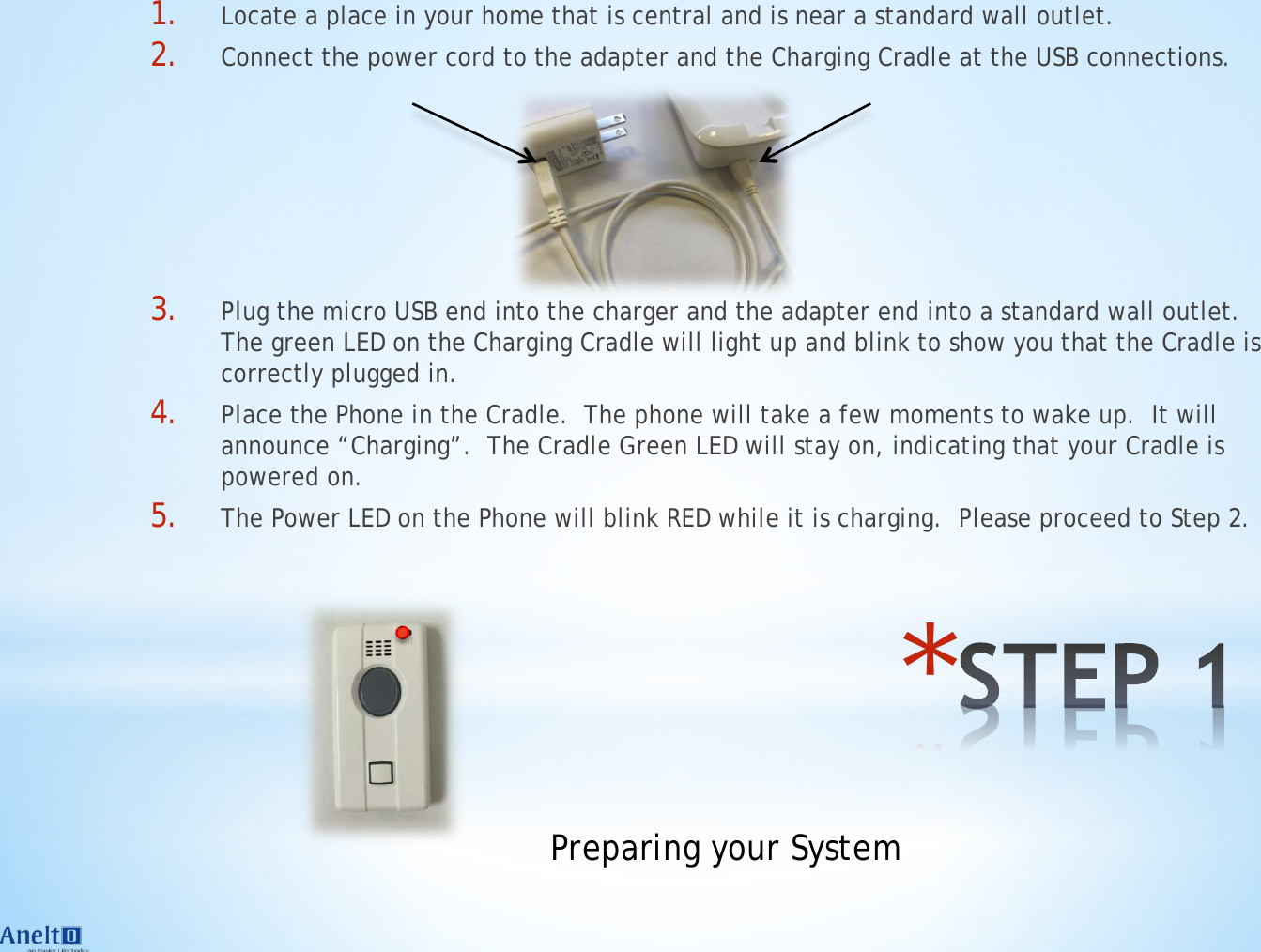

* 1. Locate a place in your home that is central and is near a standard wall outlet. 2. Connect the power cord to the adapter and the Charging Cradle at the USB connections. 3. Plug the micro USB end into the charger and the adapter end into a standard wall outlet. The green LED on the Charging Cradle will light up and blink to show you that the Cradle is correctly plugged in. 4. Place the Phone in the Cradle. The phone will take a few moments to wake up. It will announce “Charging”. The Cradle Green LED will stay on, indicating that your Cradle is powered on. 5. The Power LED on the Phone will blink RED while it is charging. Please proceed to Step 2. Preparing your System

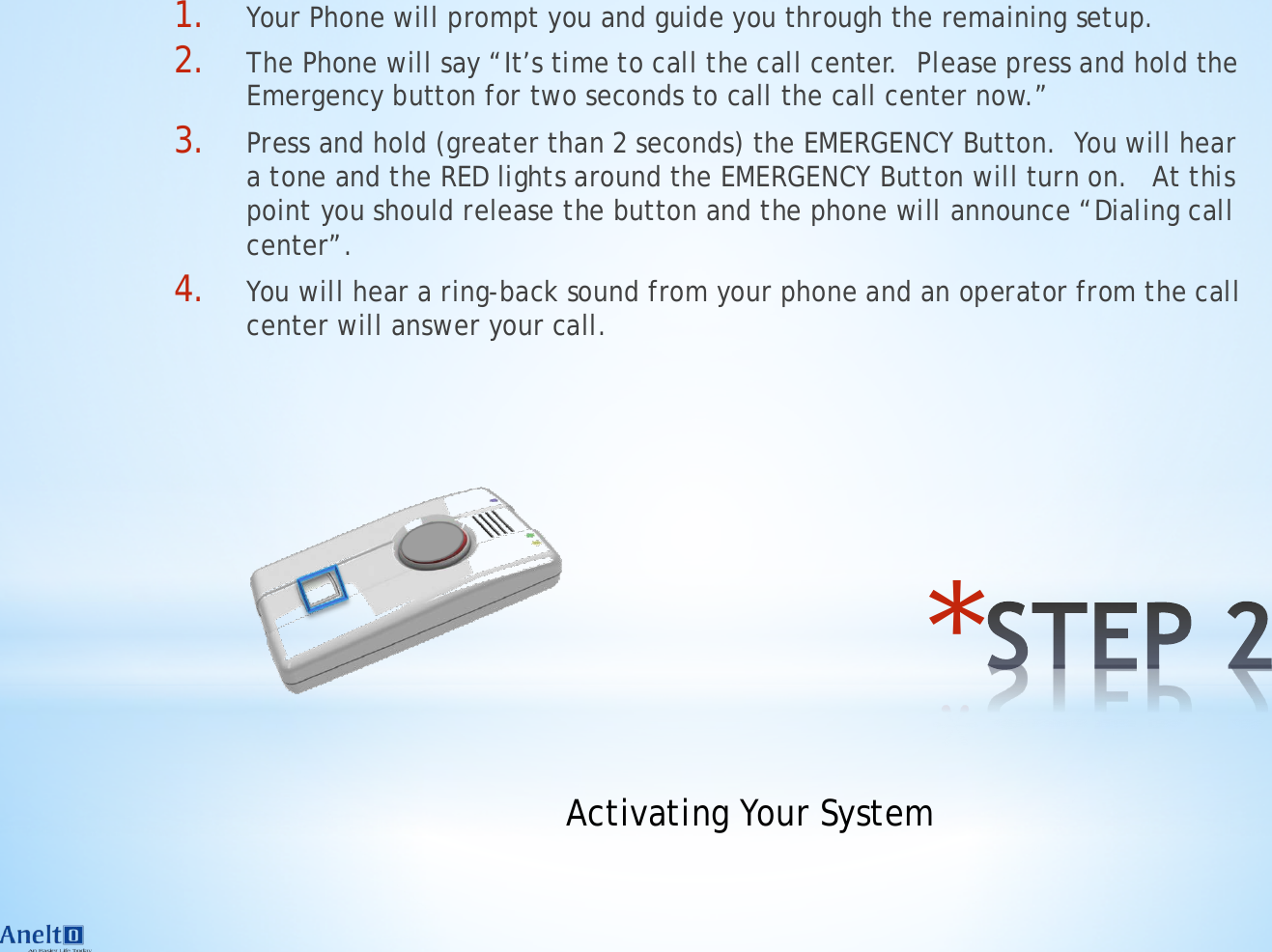

* 1. Your Phone will prompt you and guide you through the remaining setup. 2. The Phone will say “It’s time to call the call center. Please press and hold the Emergency button for two seconds to call the call center now.” 3. Press and hold (greater than 2 seconds) the EMERGENCY Button. You will hear a tone and the RED lights around the EMERGENCY Button will turn on. At this point you should release the button and the phone will announce “Dialing call center”. 4. You will hear a ring-back sound from your phone and an operator from the call center will answer your call. Activating Your System
* 1. The operator should have your name from your original order form, as well as the address where your cradle will be located. The operator will confirm: a. Your Name b. Your Address** c. The call quality of your call d. Confirm your location e. Answer any questions you may have 2. The Phone will automatically end the call when the operator hangs up. 3. The Phone will announce “Thank you, call ended”. 4. Place your phone back on the Cradle. When you are home, your Phone should always be returned to the Charging Cradle. **Please note that the location of the Cradle at your call center registered address is a key part of identifying your location. PLEASE DO NOT MOVE THE CRADLE TO ANOTHER ADDRESS WITHOUT NOTIFYING THE CALL CENTER Talking to the Call Center

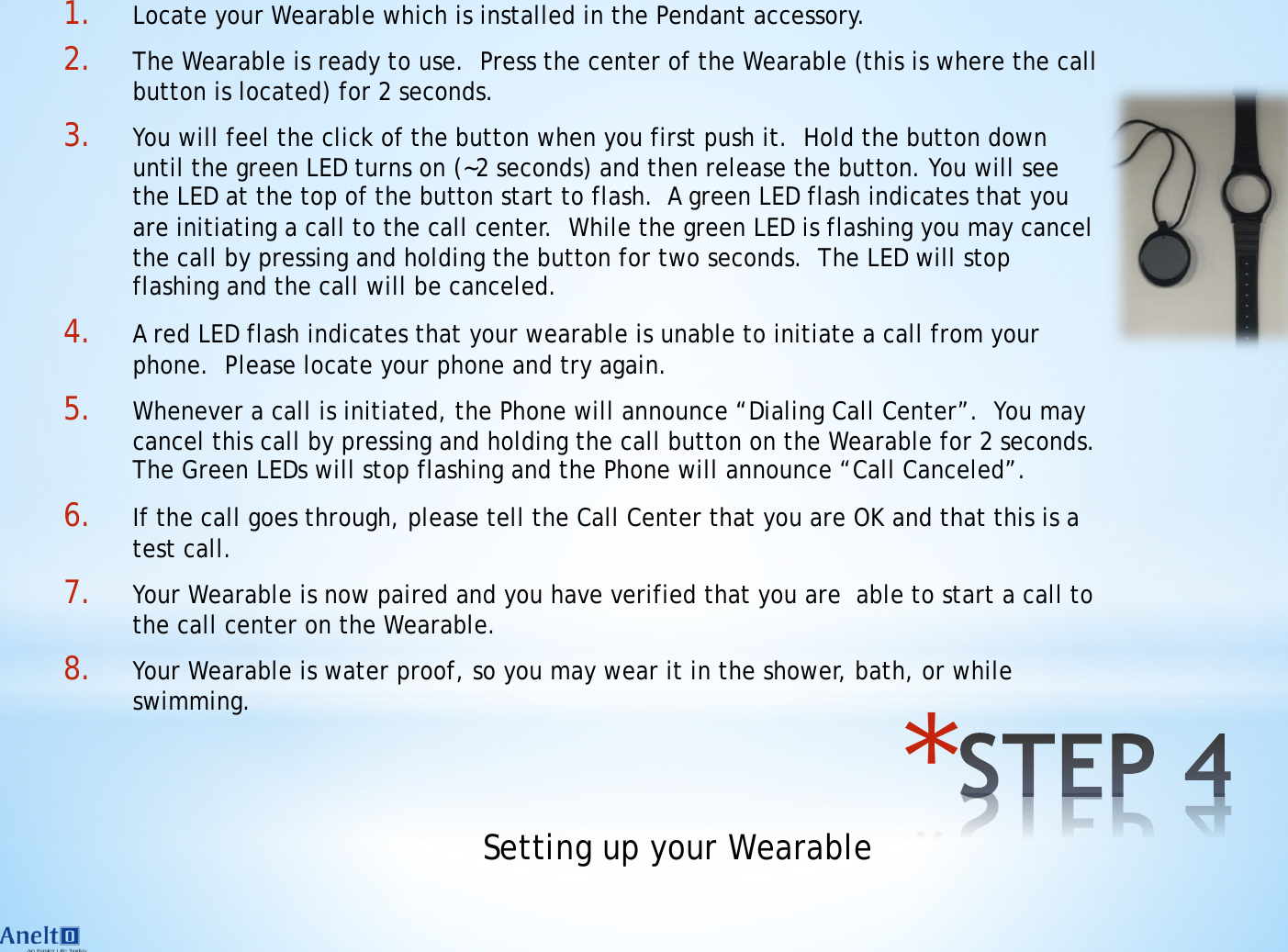

* 1. Locate your Wearable which is installed in the Pendant accessory. 2. The Wearable is ready to use. Press the center of the Wearable (this is where the call button is located) for 2 seconds. 3. You will feel the click of the button when you first push it. Hold the button down until the green LED turns on (~2 seconds) and then release the button. You will see the LED at the top of the button start to flash. A green LED flash indicates that you are initiating a call to the call center. While the green LED is flashing you may cancel the call by pressing and holding the button for two seconds. The LED will stop flashing and the call will be canceled. 4. A red LED flash indicates that your wearable is unable to initiate a call from your phone. Please locate your phone and try again. 5. Whenever a call is initiated, the Phone will announce “Dialing Call Center”. You may cancel this call by pressing and holding the call button on the Wearable for 2 seconds. The Green LEDs will stop flashing and the Phone will announce “Call Canceled”. 6. If the call goes through, please tell the Call Center that you are OK and that this is a test call. 7. Your Wearable is now paired and you have verified that you are able to start a call to the call center on the Wearable. 8. Your Wearable is water proof, so you may wear it in the shower, bath, or while swimming. Setting up your Wearable

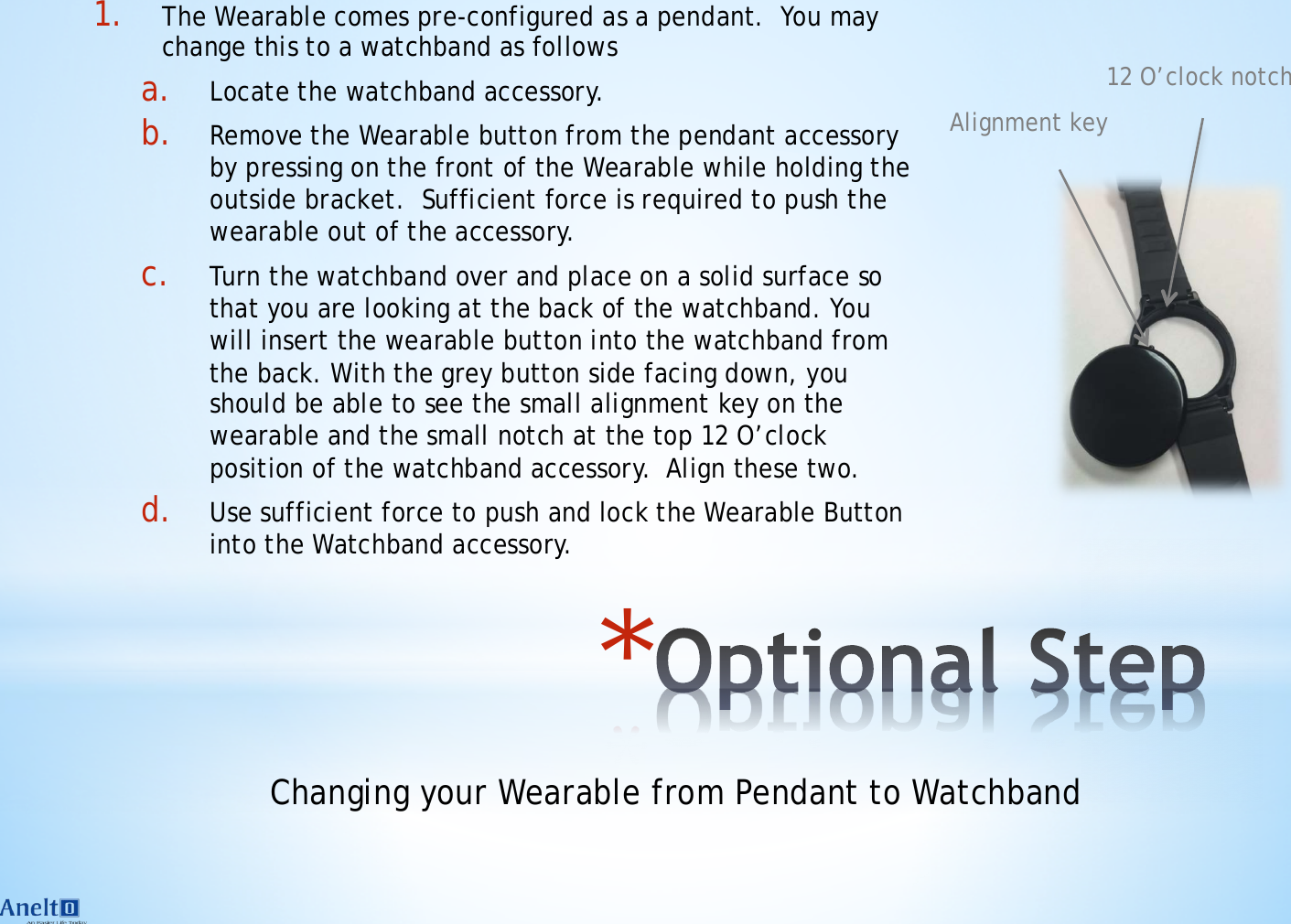

* 1. The Wearable comes pre-configured as a pendant. You may change this to a watchband as follows a. Locate the watchband accessory. b. Remove the Wearable button from the pendant accessory by pressing on the front of the Wearable while holding the outside bracket. Sufficient force is required to push the wearable out of the accessory. c. Turn the watchband over and place on a solid surface so that you are looking at the back of the watchband. You will insert the wearable button into the watchband from the back. With the grey button side facing down, you should be able to see the small alignment key on the wearable and the small notch at the top 12 O’clock position of the watchband accessory. Align these two. d. Use sufficient force to push and lock the Wearable Button into the Watchband accessory. Changing your Wearable from Pendant to Watchband 12 O’clock notch Alignment key

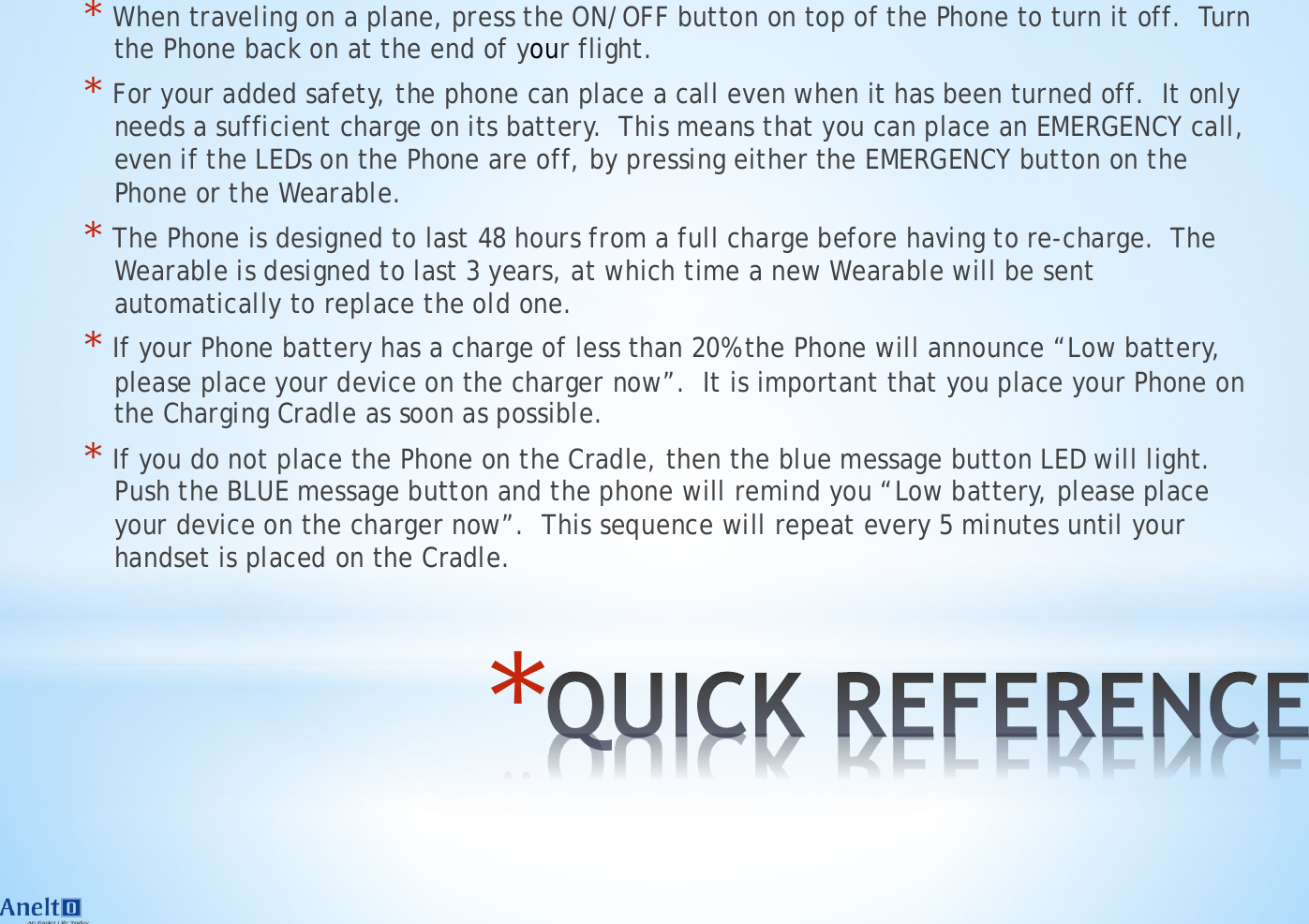

* * When traveling on a plane, press the ON/OFF button on top of the Phone to turn it off. Turn the Phone back on at the end of your flight. * For your added safety, the phone can place a call even when it has been turned off. It only needs a sufficient charge on its battery. This means that you can place an EMERGENCY call, even if the LEDs on the Phone are off, by pressing either the EMERGENCY button on the Phone or the Wearable. * The Phone is designed to last 48 hours from a full charge before having to re-charge. The Wearable is designed to last 3 years, at which time a new Wearable will be sent automatically to replace the old one. * If your Phone battery has a charge of less than 20% the Phone will announce “Low battery, please place your device on the charger now”. It is important that you place your Phone on the Charging Cradle as soon as possible. * If you do not place the Phone on the Cradle, then the blue message button LED will light. Push the BLUE message button and the phone will remind you “Low battery, please place your device on the charger now”. This sequence will repeat every 5 minutes until your handset is placed on the Cradle.

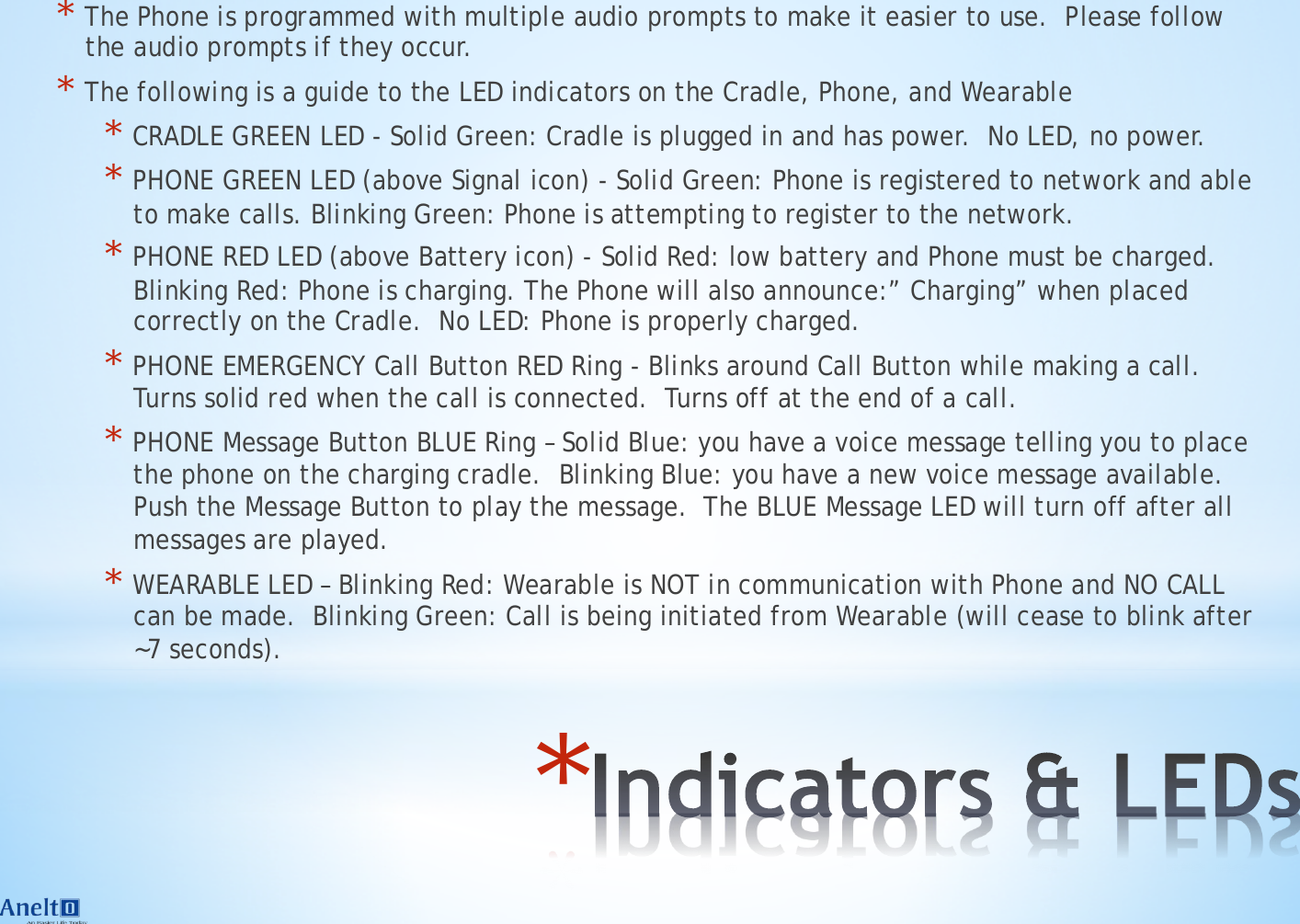

* * The Phone is programmed with multiple audio prompts to make it easier to use. Please follow the audio prompts if they occur. * The following is a guide to the LED indicators on the Cradle, Phone, and Wearable * CRADLE GREEN LED - Solid Green: Cradle is plugged in and has power. No LED, no power. * PHONE GREEN LED (above Signal icon) - Solid Green: Phone is registered to network and able to make calls. Blinking Green: Phone is attempting to register to the network. * PHONE RED LED (above Battery icon) - Solid Red: low battery and Phone must be charged. Blinking Red: Phone is charging. The Phone will also announce:” Charging” when placed correctly on the Cradle. No LED: Phone is properly charged. * PHONE EMERGENCY Call Button RED Ring - Blinks around Call Button while making a call. Turns solid red when the call is connected. Turns off at the end of a call. * PHONE Message Button BLUE Ring – Solid Blue: you have a voice message telling you to place the phone on the charging cradle. Blinking Blue: you have a new voice message available. Push the Message Button to play the message. The BLUE Message LED will turn off after all messages are played. * WEARABLE LED – Blinking Red: Wearable is NOT in communication with Phone and NO CALL can be made. Blinking Green: Call is being initiated from Wearable (will cease to blink after ~7 seconds).

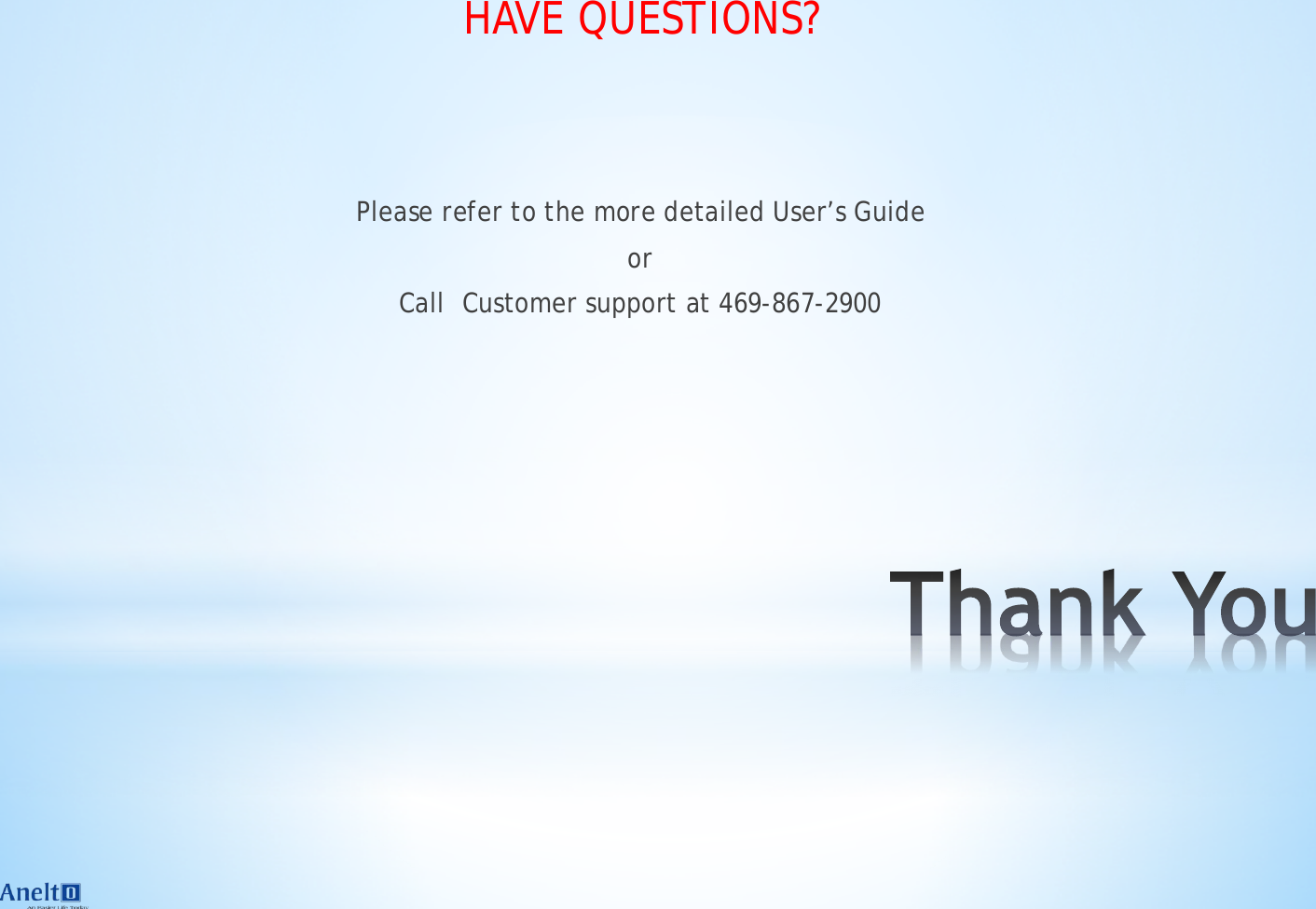

HAVE QUESTIONS? Please refer to the more detailed User’s Guide or Call Customer support at 469-867-2900
REGULATORY COMPLIANCE FCC The user’s manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ! For a Class B digital device or peripheral, the instructions furnished the user shall include the following or similar statement, placed in a prominent location in the text of the manual: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This equipment has been tested and found to comply with the limits pursuant toPart15SubpartB, Part22, and Part 24 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in an appropriate installation. This equipment generates, uses, and can radiate radio frequency energy and, if not used in accordance with instructions, can cause harmful radiation to radio communication. However, there is no guarantee that interference will not occur in a particular installation.

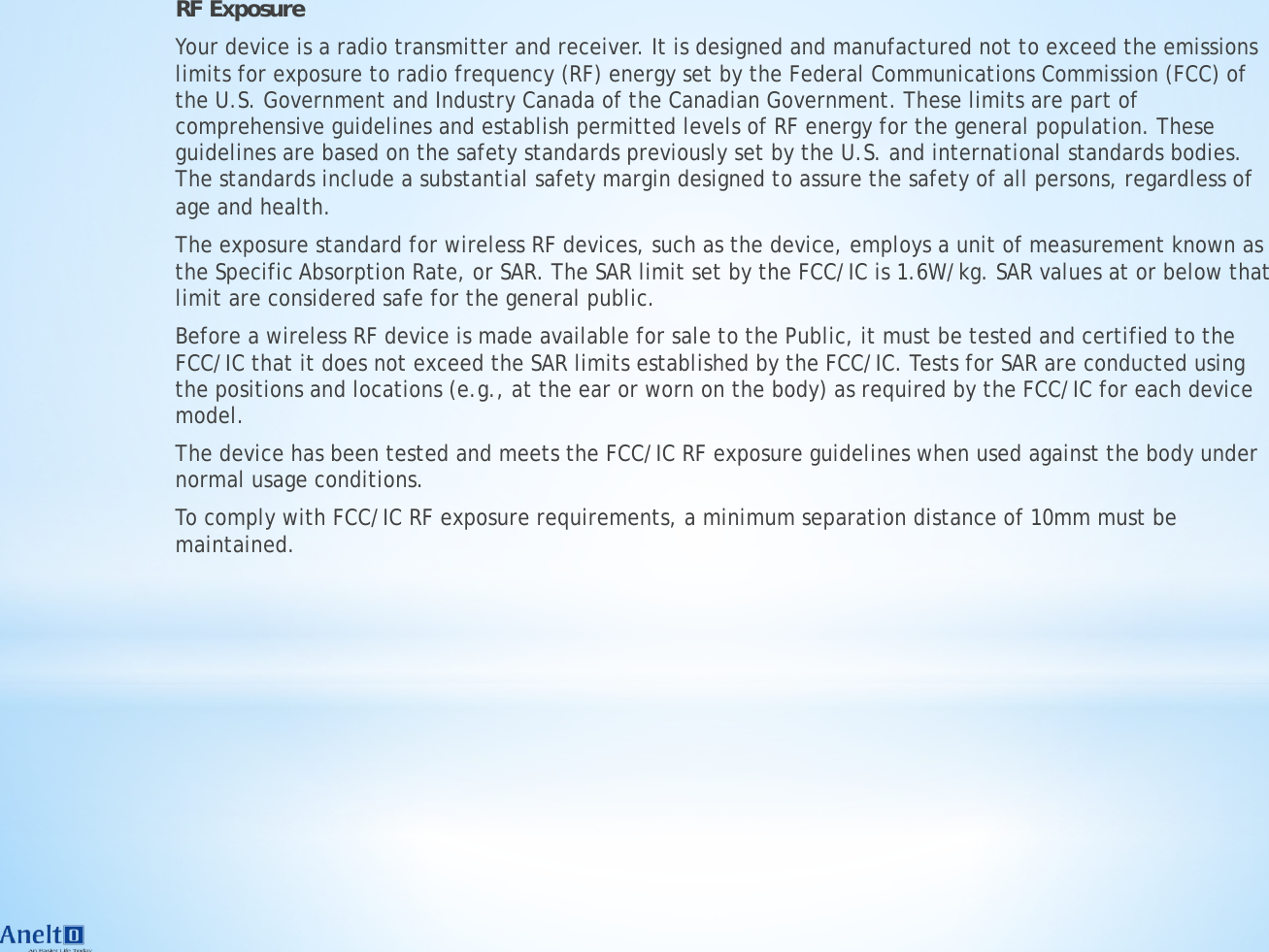

RF Exposure Your device is a radio transmitter and receiver. It is designed and manufactured not to exceed the emissions limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government and Industry Canada of the Canadian Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. These guidelines are based on the safety standards previously set by the U.S. and international standards bodies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless RF devices, such as the device, employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC/IC is 1.6W/kg. SAR values at or below that limit are considered safe for the general public. Before a wireless RF device is made available for sale to the Public, it must be tested and certified to the FCC/IC that it does not exceed the SAR limits established by the FCC/IC. Tests for SAR are conducted using the positions and locations (e.g., at the ear or worn on the body) as required by the FCC/IC for each device model. The device has been tested and meets the FCC/IC RF exposure guidelines when used against the body under normal usage conditions. To comply with FCC/IC RF exposure requirements, a minimum separation distance of 10mm must be maintained.

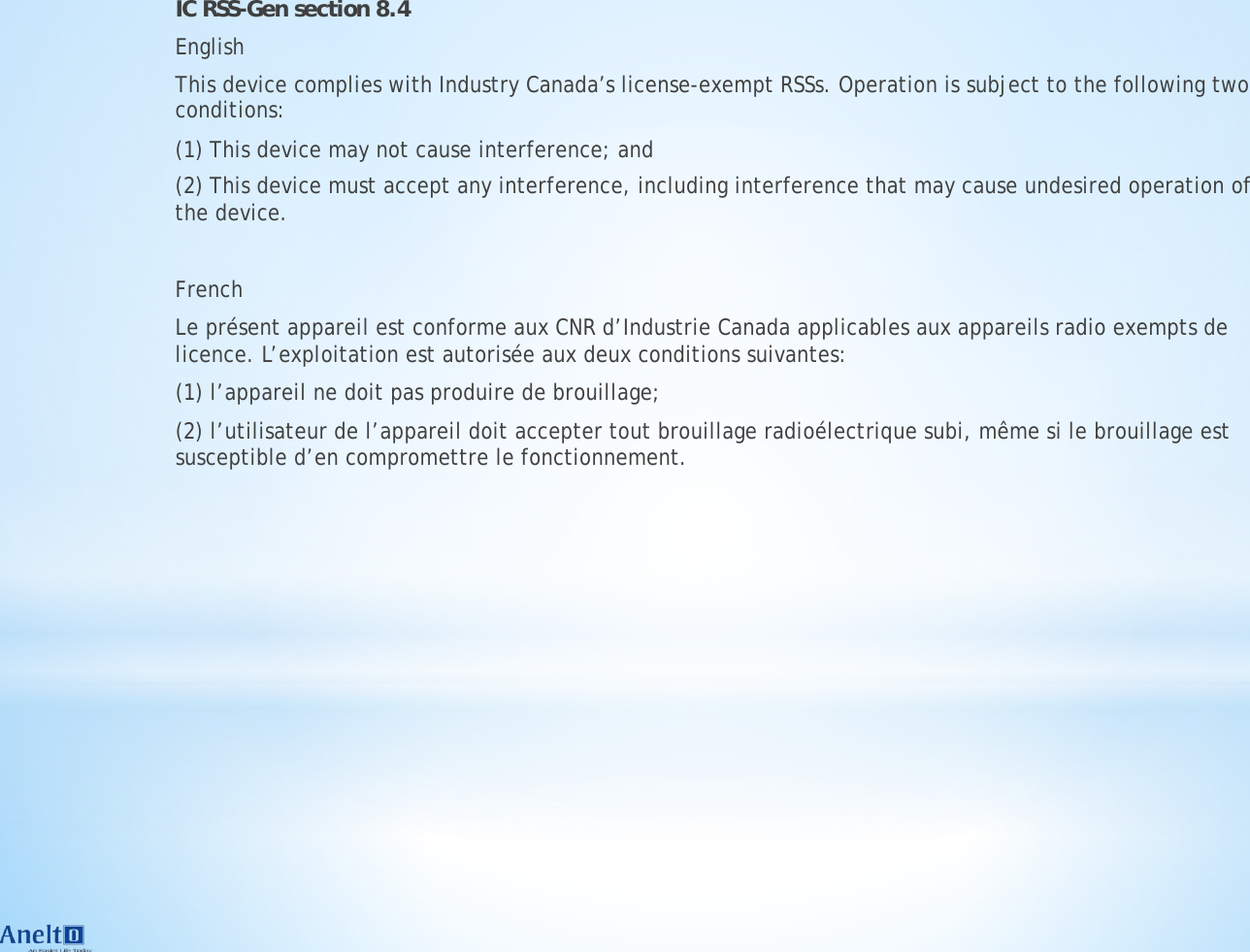

IC RSS-Gen section 8.4 English This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. ! French Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage; (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
