User Manual
Ultra-Portable Bluetooth Speaker
Quick Start Guide
Designed and Engineered By
Please visit TheOontZ.com
Table of Contents Pages
In the Package
Buttons and Connectors
Charging the Battery
Turning On and Off
Pairing & Connecting
Pairing & Connecting -- From Your Mobile Device
Pairing & Connecting -- From Your Apple Mac or Windows Computer
Playing From Your Laptop, Computer and Non-Bluetooth Devices Using the 3.5mm Audio Cable
IPX5 Water Resistance
Wireless Hands Free Personal Speakerphone
Troubleshooting & Customer Support
Resetting Your OontZ Angle 3
Safety and Precautions
1
2
3 - 4
5
6
7
7
8
9
10
11 - 13
14
15

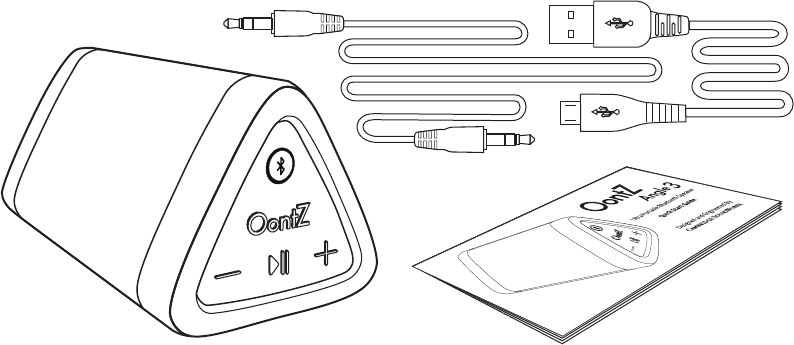

In the Package
USB Micro Charging Cable
OontZ Angle 3
Speaker
3.5mm Audio Cable
Quick-Start Guide
Page 1
Volume Down Button
Play/Pause Button Volume Up Button
Buttons and Connectors
Power Button
AUX IN Jack
(located under rubber flap)
Micro USB Charging Port
(located under rubber flap)
Rubber Flap
(lifts up from bottom)
Charging LED Light (Red)
(LED visible when connected to a
charging source)
Built-in Mic for Speakerphone
Bluetooth Button
(Dual-Function)
Bluetooth LED Light (Blue)
(LED is only visible when
speaker is turned on)
Page 2

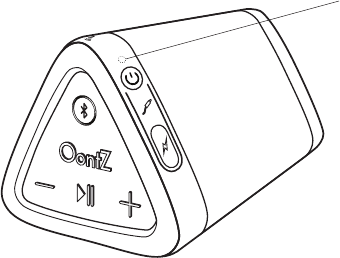

Charging the Battery
Step 2: Insert the smaller end of the Micro USB Cable
into the Micro USB Charging Port as shown.
Step 3: Insert the other end of the Micro USB cable into
either a USB wall charger for a Smartphone or iPhone,
or a USB port on your laptop to charge the battery.
Step 1: Lift up the rubber flap from the bottom to
access the Micro USB Charging Port.
To charge the battery:
The lithium ion rechargeable battery will have a partial
charge and be ready to play. For maximum playtime,
fully charge the battery. You can play while charging.
Charging LED Light (Red)
(LED visible when connected to a charging source)
Slowly flashing Red when charging
Solid Red when fully charged
Charging LED
Light (Red)
Page 3
Note: Close the rubber flap when not charging. The rubber
flap needs to be closed to keep the speaker water resistant
Charging the Battery (continued)
Music Play Time
Up to 7 hours on a full charge, with volume at 60%.
Louder volumes will reduce the battery play time.
Low Charge
Remaining Indicator
When the battery charge
is down to about 15% the
Charging LED Light (Red)
will begin flashing Red
and will remain flashing
until the speaker is turned
off. The volume will
decrease to preserve the
remaining battery charge.
Charging Time
It will take about 5 to 6
hours to fully charge a
low battery.
Power Saving Feature
- When playing from battery power the OontZ
Angle 3 will turn off after 15 minutes of not
playing audio to conserve the battery charge.
- When plugged in to a charging source the
OontZ Angle 3 will remain on until you turn
the power off. You can continue to keep the
speaker plugged in to a charging source even
when it is fully charged.
Play while charging
You can play the OontZ Angle 3 while it is charging.
Page 4
Turning On and Off
Bluetooth LED
Light (Blue)
Bluetooth LED Light (Blue)
Blue light will turn on
Flashing Blue indicates speaker is in
pairing mode
Solid Blue indicates speaker is connected
to a source device and ready to play
Bluetooth LED Light
Blue light will turn off
Press and Release the Power Button
Press and Hold Down the Power Button
for 3 Seconds
Turn ON
Turn OFF
Page 5
Pairing & Connecting
- Your source device needs to be within 30 unobstructed feet of the OontZ Angle 3
- Make sure your OontZ Angle 3 battery has a sufficient charge
Turn ON your OontZ Angle 3
The Bluetooth LED Light (Blue) will turn on.
If the blue light is flashing the OontZ Angle 3 is ready to pair and connect.
If the blue light is solid the OontZ Angle 3 has automatically reconnected to the last
source device the speaker was connected to and is ready to play. Note: The OontZ Angle 3
will automatically try to connect to the last source device it was connected to each time it is
turned on and that source device is within range.
The OontZ Angle 3 can be connected to one source device at a time.
To pair and connect to a different source device, you need to first disconnect the
currently paired source device. To disconnect it, press and hold down the Bluetooth button for 3 seconds.
The blue light will begin flashing and the OontZ Angle 3 is ready to pair and connect.
Page 6
Pairing & Connecting -- From Your Mobile Device
- Go to Settings > Bluetooth, check Bluetooth is on
- Select ‘OontZ Angle’ when it appears under OTHER DEVICES
- The speaker will connect in a few seconds
- The Bluetooth LED Light (Blue) will be solid blue
- You can now play your audio wirelessly to your OontZ Angle 3
Note: Your Smartphone or Tablet instructions may vary, please check
your mobile device’s manual for specific pairing instructions
- Go to Settings > Bluetooth, check Bluetooth is on
- Scan or Search and select ‘OontZ Angle’ when it appears
under AVAILABLE DEVICES
- The speaker will connect in a few seconds
- The Bluetooth LED Light (Blue) will be solid blue
- You can now play your audio wirelessly to your OontZ Angle 3
To pair and connect from an iPhone, iPad, or iPod: To pair and connect from a Smartphone or Tablet:
Pairing & Connecting -- From Your Apple Mac or Windows Computer
Some older Windows computers and operating systems may have difficulty pairing and connecting over Bluetooth. If this occurs
it is recommended to connect using the 3.5mm audio cable. Please go to page 8: ‘Playing from Your Laptop, Computer and
Non-Bluetooth Devices Using the 3.5mm Audio Cable’.
For the pairing and connecting guide for your Apple Mac or Windows computer, please visit: TheOontZ.com/pairing
Page 7

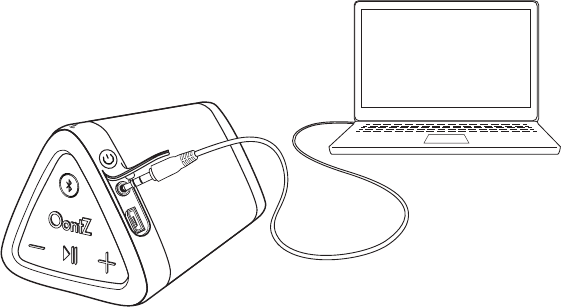

Playing From Your Laptop, Computer and
Non-Bluetooth Devices Using the 3.5mm Audio Cable
Plug one end of the included
3.5mm audio cable into the AUX IN
Jack on the back of your speaker.
Plug the other end of the 3.5mm
audio cable into the headphone
jack on your source device.
You are now ready to play.
- Make sure your OontZ Angle 3 battery has a sufficient charge
- Note: The Bluetooth on the OontZ Angle 3 is disabled when the 3.5mm audio cable is connected to the speaker.
You need to remove the 3.5mm audio cable from the speaker in order to connect to a Bluetooth source device.
Page 8
- Note: Close the rubber flap when not using the 3.5mm audio cable. The rubber flap needs to be closed to keep the speaker water resistant.
No more worries about the
rain or getting splashed.
Listen to music in the shower.
Perfect for taking to the
beach or by the pool.
IPX5 rating - The OontZ Angle 3 can resist gentle water spray & splash but cannot be partially or fully submerged or left in a wet
environment for an extended period of time, any of which could cause unrepairable damage to the speaker.

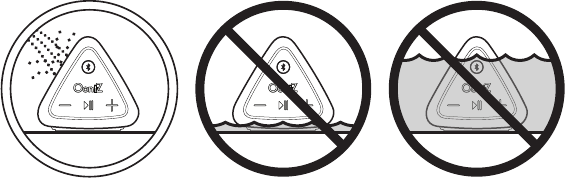

IPX5 Water Resistance
DO NOT allow speaker
to sit in water
DO NOT allow speaker
to submerge fully or
partially in water
Gentle Water Spray
or Splash is okay
Page 9
- Note: The rubber flap needs to be closed to keep the speaker water resistant. When charging or using the 3.5mm audio cable, please keep the
speaker away from water as it can be damaged by water entering the connectors.
Wireless Hands Free Personal Speakerphone
The Wireless Hands Free Personal Speakerphone feature
works over Bluetooth with Smartphones and iPhones for
cell phone calls only.
Please keep the speaker close in front of you so you may
be heard clearly by the listener.
You can use your Smartphone or iPhone to switch between
using Hands Free Speakerphone and your phone.
To answer an Incoming Call / To End a Call
Press and Release the Bluetooth Button
To Reject an Incoming Call
Press and Hold Down the Bluetooth Button for 3 Seconds
Bluetooth Button
(Dual Function)
Page 10
Troubleshooting & Customer Support
OontZ Angle 3 will not turn on
For assistance with questions or any issue with your OontZ Angle 3 that is not answered in the troubleshooting
tips below, please contact us by visiting: TheOontZ.com/support and filling out our customer service form.
• The battery may have become fully drained. Charge the OontZ Angle 3 using a USB wall charger from a Smartphone/iPhone or tablet for at least 15
minutes, then press the power button to turn the speaker on. Then continue charging the battery.
• Reset the OontZ Angle 3, follow the reset instructions on page 14.
Cannot pair or connect to the OontZ Angle 3
• Check that your OontZ Angle 3 has a sufficient battery charge, the speaker may not connect when the battery has a low charge. Connect the speaker
to a charging source and try again to pair and connect.
• Your source device may be out of range. Move it closer to within 30 unobstructed feet of your speaker.
• Check the Bluetooth LED light (Blue) to make sure it is flashing. If it is solid blue the OontZ Angle 3 is already connected to another source device.
The OontZ Angle 3 can be connected to one source device at a time. You need to disconnect the connected source device then you can connect to
the next source device. Please see instructions on page 6.
• Your source device may have a temporary Bluetooth connection issue please try the following steps which can resolve this: (continued next page)
Page 11
For iPhone, iPad, iPod
• Turn off the OontZ Angle 3 speaker, go to the Bluetooth device list on your iPhone, iPad or iPod and check if the OontZ Angle is listed. If it listed press
the icon next to the OontZ Angle and then forget this device, twice.
With the OontZ Angle removed from the list or if it was not listed, do a hard reset on your iPhone, iPad or iPod by pressing and holding down the
Home and sleep buttons at the same time for about 10 seconds until the Apple icon appears and it restarts. When it restarts turn on the OontZ
Angle 3 and then try again to pair and connect. Please see instructions on page 7.
Cannot pair or connect to the OontZ Angle 3 (continued)
For Smartphones and Tablets
• Turn off the OontZ Angle 3 speaker, go to the Bluetooth device list on your Smartphone or Tablet and check if the OontZ Angle is listed. If it listed
press the icon next to the OontZ Angle and then press Unpair this device. With the OontZ Angle unpaired or if it was not listed, do a hard restart on
your Smartphone or Tablet. When it restarts turn on the OontZ Angle 3 and then try again to pair and connect. Please see instructions on page 7.
For Apple Mac
• Please go to the Bluetooth device list and if the OontZ Angle is listed please remove it. With the OontZ Angle removed or if was not listed, restart your
Apple Mac and then try again to pair and connect. For pairing and connecting Guide for your Apple Mac visit TheOontZ.com/Pairing
For Windows systems
• Please go to the Bluetooth device list and if the OontZ Angle is listed please remove it. With the OontZ Angle removed or if was not listed, restart your
Computer and then try again to pair and connect. – For pairing and connecting Guide for your Windows system go to TheOontZ.com/Paring
• If your Windows system displays an error message requesting a driver. You need to update your computer's Bluetooth driver. The OontZ Angle 3
does not require a special driver itself and there is no driver for it. Go to the support site for your system manufacturer and specific model and select
the Bluetooth driver. Download and install the Bluetooth driver, restart your system and try again to pair and connect to your OontZ Angle 3 speaker.
For pairing and connecting Guide for your Windows system visit TheOontZ.com/Pairing
Page 12
Page 13
No audio playing from the OontZ Angle 3 when connected over Bluetooth
• Reset the OontZ Angle 3, follow the reset instructions on page 14.
• Remove the OontZ Angle 3 from the Bluetooth device list on your source device, restart your source device, and then re-pair and connect to the speaker.
• Make sure the volume is up on your OontZ Angle 3 and your source device.
• Make sure your Bluetooth device is playing audio, and is not paused and volume is up.
• Your Bluetooth device may be out of range, move closer within 30 unobstructed feet.
• Turn your OontZ Angle 3 off and back on.
• Some apps have their own volume setting. Please check the app to make sure the volume is not on mute and the volume is up.
Poor sound quality when connected over Bluetooth
• Your Bluetooth device may be out of range, move closer within 30 unobstructed feet.
• Remove the OontZ Angle 3 from the Bluetooth device list on your source device, restart your source device, and then re-pair and connect to the speaker.
• Turn your OontZ Angle 3 off and back on.
• Some devices need to have their WIFI turned off to improve audio quality over Bluetooth.
No audio playing from the OontZ Angle 3 when connected with the 3.5mm audio cable
• Make sure the 3.5mm audio cable is fully inserted into the OontZ Angle 3 and Device. Some devices have cases that prevent a proper fit and
need to be removed to connect. Make sure your device is on and playing and music
• Increase the volume level on the OontZ Angle 3 and the device.
Poor sound quality when connected with the 3.5mm audio cable
• Reduce the volume level on the AUX source.
• Remove the charging cable while playing.
No response when pressing any button or speaker will not turn off
• Reset the OontZ Angle 3, follow the reset instructions on page 14.

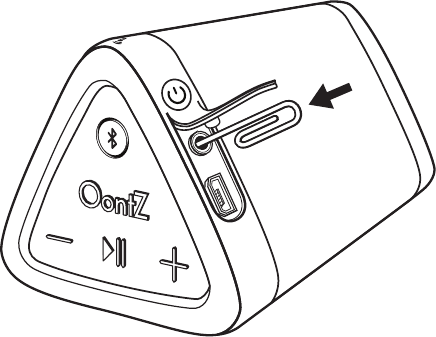

Resetting Your OontZ Angle 3
To reset the OontZ Angle 3 insert either a
toothpick or straightened paper clip into
the AUX IN jack until it makes contact with
the micro switch. Gently push and release
the switch and the speaker will reset.
Page 14
Safety and Precautions
1. Follow all instructions – All operating and use instructions should be followed.
2. Do not use this apparatus near water while plugged in for charging, due to risk of electric shock.
3. Protect the Micro USB charging cable from pinched particularly at the connectors.
4. Unplug the Micro USB charging cable during lightning storms or when unused for long periods of time.
Page 15

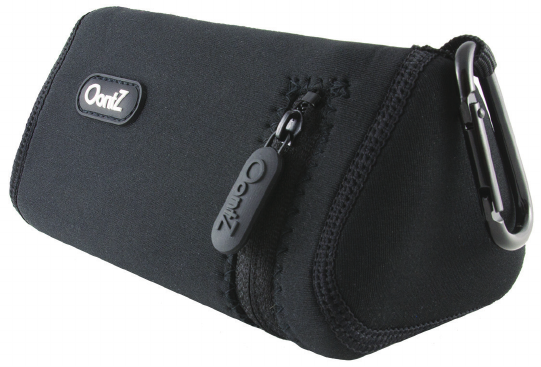

OontZ Angle 3 Carry Case
Sold separately
Available at TheOontZ.com:
TheOontZ.com/angle3-carry-case
Page 16
• Lightweight neoprene rubber with
reinforced zipper
• Includes a durable aluminum carabiner
for easily attaching to backpacks, luggage,
laptop bags, coolers, camera bags,
purses, belts, and other clippable items
FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
NOTE 2: Any changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
