User Manual

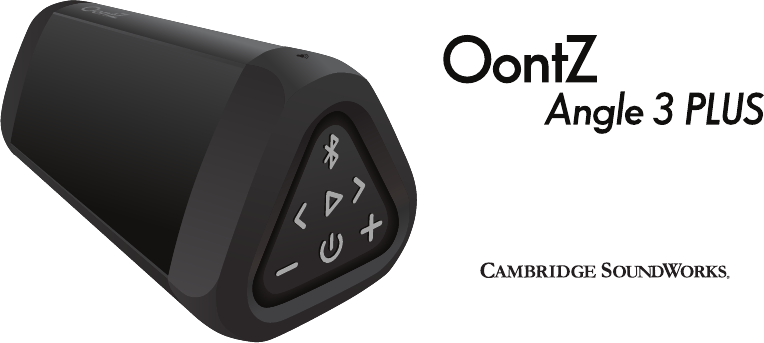

Ultra-Portable Bluetooth Speaker
Quick Start Guide
Designed and Engineered By
TheOontZ.com
Table of Contents Pages
In the Package
Play Controls
Lights and Connectors
Charging the Battery
Battery Features
Turning On and Off
Pair & Connect - Step 1
Pair & Connect - Step 2 --
-- From Your From Your iPhone, iPad, Smartphone, Tablet and Mobile Devices
-- From Your Apple Mac or Windows Laptop/Computer
-- From Your Amazon Echo Dot
Playing From Non-Bluetooth Audio Source Devices Using the 3.5mm Audio Cable
IPX5 Water Resistant
Wireless Hands Free Personal Speakerphone
Troubleshooting

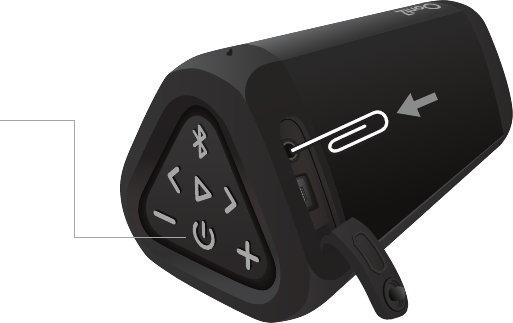

Resetting Your OontZ Angle 3 PLUS
Customer Support
Safety and Precautions
1
2
3
4 - 5
6
7
8
9
9
10 - 11
12
13
14
15 - 19
20
21
21 - 22

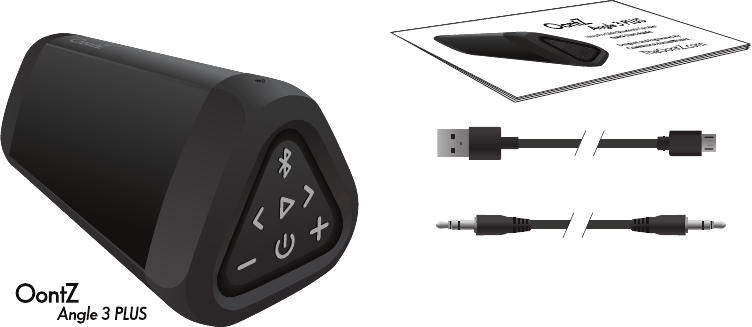

In the Package
The
Quick Start Guide
Page 1
Micro USB Charging Cable
3.5mm Audio Cable
Note: The Micro USB Charging Cable and the 3.5mm Audio
Cable are packed below the cardboard insert in the box.
Slide out the cardboard insert to locate the cables.
Track Back Track Forward
Power Button
- Make sure the volume level is set high on your audio source device. The volume on the OontZ Angle 3 PLUS and your audio source device both need to
be set to the highest level for the loudest volume. The volume controls on your audio source device and the speaker work independently of each other.
- Some apps may not support track back, track forward, or play/pause
Note:
Play/Pause
Play Controls
Page 2
Bluetooth Button (Dual Function)
Press and Release to go to the beginning
of the current track. Press and Release a
second time to play previous track
Press and Release to Pause/Play
Press and Release to play next track
Volume Down
Press to decrease volume
Volume Up
Press to increase volume
Lights and Connectors
AUX IN Jack
located under rubber flap
Micro USB Charging Connector
located under rubber flap
Rubber Flap
pull gently from the top
Red Light when charging:
- slowly flashing Red charging
- solid Red fully charged
Built-in Mic for Speakerphone
Page 3
Note: The rubber flap needs to be closed
to keep the speaker water resistant
Blue Light when speaker is on:
- flashing Blue speaker is in pairing mode
- solid Blue speaker is connected

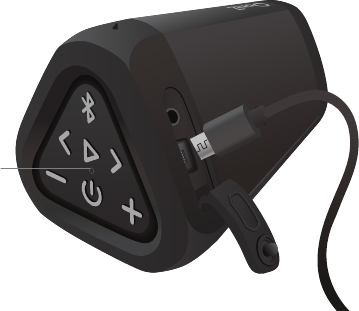

Step 2: Insert the smaller end of the
Micro USB Charging Cable into the Micro
USB Charging Connector as shown.
Step 1: Pull down the rubber flap
from the top to access the Micro USB
Charging Connector.
Charging the Battery
Step 3: Insert the other end of the Micro
USB Charging cable into either a USB
wall charger for a Smartphone or
iPhone, or a USB port on your
laptop/computer to charge the battery
(see illustrations on page 5).
To charge the battery:
The rechargeable battery comes
with a partial charge and the
speaker is ready to play.
For maximum playtime,
fully charge the battery.
You can play while
charging.
Red Light when charging:
- slowly flashing Red
indicates battery is charging
- solid Red
indicates battery is fully charged
Page 4
Charging Time:
Up to 8 hours to fully charge a low battery.

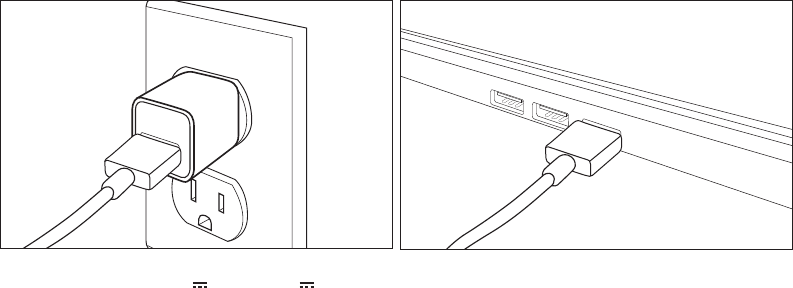

Insert the larger end of the Micro USB charging cable into either a USB wall charger for a Smartphone or iPhone
(a USB wall charger that is 5V 1.0A up to 5V 2.4A maximum) or a USB port on your laptop/computer to charge the
OontZ Angle 3 PLUS battery.
Page 5
Charging the Battery (continued)
Low Charge Remaining
When the battery charge has less than
15% remaining the
Red Light
will begin
flashing. The volume will decrease to
preserve the remaining battery charge.
Battery Features
*Exception: when connected to an Amazon Echo Dot, the power saving feature is disabled and the speaker will remain on.
Power Saving Feature
- When playing from battery power the OontZ
Angle 3 PLUS will turn off after 15 minutes of not
playing audio to conserve the battery charge. *
- When plugged into a charging source the
OontZ Angle 3 PLUS will remain on until you
turn the power off. You can continue to
keep the speaker plugged into a charging
source even when it is fully charged.
You can play the OontZ Angle 3 PLUS while it is charging.
Page 6
Turning On and Off
Page 7
- Blue Light will turn on
Flashing Blue indicates the speaker is on and
in pairing mode
Solid Blue indicates the speaker is on and
connected to a source device and ready to play
- Blue Light will turn off
Press and Release the Power Button
Press and Hold Down the Power Button
for 2 Seconds
Turn ON
Turn OFF
Blue Light
Power Button
Pair & Connect -- Step 1
Page 8
- Make sure your OontZ Angle 3 PLUS battery has a sufficient charge, it is not able to connect when the charge is too low
- Your audio source device needs to be within 33 unobstructed feet of the OontZ Angle 3 PLUS
Turn ON your OontZ Angle 3 PLUS
The Blue Light will turn on.
If the Blue Light is flashing the OontZ Angle 3 PLUS is ready to pair and connect.
If the Blue Light is solid the OontZ Angle 3 PLUS has automatically reconnected to the
last audio source device the speaker was connected to and is ready to play.
Note: The OontZ Angle 3 PLUS will automatically try to connect to the last audio source device it was connected
to each time it is turned on and that audio source device is within range.
The OontZ Angle 3 PLUS can be connected to one audio source device at a time.
To pair and connect to a different audio source device, you need to first disconnect the
currently paired audio source device. To disconnect it, press and hold down the Bluetooth
button for 2 seconds. The Blue Light will begin flashing and the OontZ Angle 3 PLUS is ready
to pair and connect.
- Go to Settings > Bluetooth, check Bluetooth is on
- Select ‘OontZ Angle 3 PLUS’ when it appears
under DEVICES
- The speaker will connect in a few seconds
- The Blue Light will turn solid blue
- You can now play your audio wirelessly to your
OontZ Angle 3 PLUS Note: Your Smartphone or Tablet instructions may vary
- Go to Settings > Bluetooth, check Bluetooth is on
- Scan or Search and select ‘OontZ Angle 3 PLUS’ when it appears
under AVAILABLE DEVICES
- The speaker will connect in a few seconds
- The Blue Light will turn solid blue
- You can now play your audio wirelessly to your OontZ Angle 3 PLUS
Pair & Connect -- Step 2 --
-- From Your iPhone, iPad, or iPod -- From Your Smartphone, Tablet and Mobile Devices
-- From Your Apple Mac or Windows Laptop/Computer
For the pairing and connecting guide for your Apple Mac or Windows laptop/computer, please visit: TheOontZ.com/pairing
Page 9
Important: Make sure the volume level is set high on your audio source device. The volume on the OontZ Angle 3 PLUS and your audio source device both need
to be set to the highest level for the loudest volume. The volume controls on your audio source device and the speaker work independently of each other.
Pair & Connect -- Step 2 --
-- From Your Amazon Echo Dot
Page 10
- Open the Alexa app
- Go to the ‘Home’ menu by pressing the 3 horizontal lines in the upper left corner next to ‘Home’
- Press ‘Settings’
- Select your Amazon Echo Dot under ‘Devices’ by pressing it
- Press ‘Bluetooth’
- Press ‘Pair a New Device’. In a few seconds the ‘OontZ Angle 3 PLUS’ will appear in the list of ‘Available Speakers’
- Select ‘OontZ Angle 3 PLUS ‘
- In a few seconds you will hear Alexa’s voice coming through the OontZ Angle 3 PLUS: “Connected to OontZ Angle 3 PLUS”
- The audio from the Amazon Echo Dot will now play through the OontZ Angle 3 PLUS
First make sure to disconnect any other Bluetooth device from the Amazon Echo Dot.
The Amazon Echo Dot can only connect to one Bluetooth device at a time.
Turn on your OontZ Angle 3 PLUS first and make sure it is in pairing mode (refer to Page 8)
To pair and connect your OontZ Angle 3 PLUS the first time from the Amazon Echo Dot
you need to use the Alexa app on your iPhone, iPad, Smartphone, or Tablet.
Now that the Amazon Echo Dot is paired to the OontZ Angle 3 PLUS, if the speaker becomes disconnected or turned off, to
re-connect turn on the OontZ Angle 3 PLUS and just say “Alexa, connect my speaker ” or “Alexa, pair”
Important Note: When the OontZ Angle 3 PLUS is playing from battery power and connected to the Amazon Echo Dot, the
Amazon Echo Dot disables the power saving feature on the OontZ Angle 3 PLUS. The speaker will remain on and it will not
automatically turn off after 15 minutes of not playing audio. The Amazon Echo Dot is continuing to communicate to the speaker
even when not playing audio and will use up the battery charge, at the same rate as full volume audio.
We recommend either: 1) Keeping the OontZ Angle 3 PLUS plugged into a USB wall charger or USB port on a
laptop/computer, so it can remain on and available to play from the Amazon Echo Dot, without having the battery becoming
drained. Or, 2) Turning the OontZ Angle 3 PLUS off when you are done listening. You can turn the OontZ Angle 3 PLUS off
by pressing and releasing the Power button on the OontZ Angle 3 PLUS, or you can say "Alexa, disconnect my speaker" and
the OontZ Angle 3 PLUS will automatically turn off after 15 minutes. When you want to play to the speaker again turn on the
OontZ Angle 3 PLUS and say “Alexa, connect my speaker ” or “Alexa, pair” and the Amazon Echo Dot will connect and the
audio will play through the OontZ Angle 3 PLUS.
If you need assistance with your Alexa app, contact Amazon's support through the app.
Open the Alexa app and select Help & Feedback > Email Customer Service
Page 11
Pair & Connect -- Step 2 --
-- From Your Amazon Echo Dot (continued)
Playing From Non-Bluetooth Audio Source Devices
Using the 3.5mm Audio Cable
- Make sure your OontZ Angle 3 PLUS
battery has a sufficient charge
Note: The Bluetooth on the OontZ Angle 3 PLUS is disabled when the 3.5mm audio cable is connected to the speaker.
You need to remove the 3.5mm audio cable from the speaker in order to connect to a Bluetooth audio source device.
Page 12

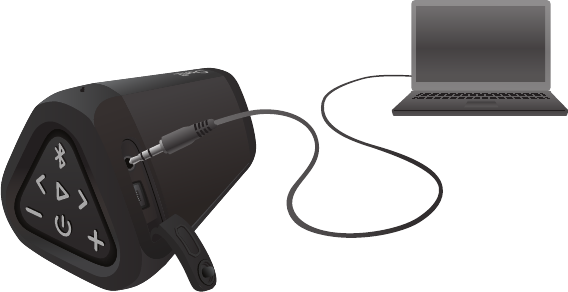

Plug one end of the included 3.5mm
audio cable into the AUX IN Jack on
the back of your speaker.
Plug the other end of the 3.5mm
audio cable into the headphone jack
on your non-Bluetooth audio device.
You are now ready to play.
No more worries about the
rain or getting splashed
Listen to music in the shower
Perfect for taking to the
beach or by the pool
IPX5 rating - The OontZ Angle 3 PLUS can resist gentle water spray & splash but cannot be partially or fully submerged or left in a wet environment for an
extended period of time, any of which could cause unrepairable damage to the speaker

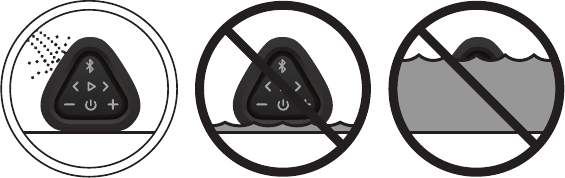

IPX5 Water Resistant
DO NOT allow speaker
to sit in water
DO NOT allow speaker
to submerge fully or
partially in water
Gentle Water Spray
or Splash is okay
Page 13
Note: The rubber flap needs to be closed to keep the speaker water resistant. When charging or using the 3.5mm audio cable, please keep the
speaker away from water as it can be damaged by water entering the connectors.
Wireless Hands Free Personal Speakerphone
Bluetooth Button
(Dual Function)
Page 14
Please keep the speaker close in front of you so you may
be heard clearly by the listener.
You can use your Smartphone or iPhone to switch between
using Hands Free Speakerphone and your phone.
The Wireless Hands Free Personal Speakerphone feature
works for calls with Smartphones and iPhones only,
connected over Bluetooth.
To answer an Incoming Call / To End a Call
Press and Release the Bluetooth Button
To Reject an Incoming Call
Press and Hold Down the Bluetooth Button for 3 Seconds
Troubleshooting
OontZ Angle 3 PLUS will not turn on
• The battery may have become fully drained. Charge the OontZ Angle 3 PLUS using a USB wall charger from a Smartphone/iPhone or tablet for
at least 15 minutes, then press the power button to turn the speaker on. Then continue charging the battery.
• Reset the OontZ Angle 3 PLUS, follow the reset instructions on page 20.
Cannot pair or connect to the OontZ Angle 3 PLUS
• Check that your OontZ Angle 3 PLUS has a sufficient battery charge, the speaker may not connect when the battery has a low charge. Connect the
speaker to a charging source and try again to pair and connect.
• Your source device may be out of range. Move it closer to within 30 unobstructed feet of your speaker.
• Check the Blue Light to make sure it is flashing. If it is solid blue the OontZ Angle 3 PLUS is already connected to another source device. The
OontZ Angle 3 PLUS can be connected to one source device at a time. You need to disconnect the connected source device then you can connect
to the next source device. Please see instructions on page 8.
• Your source device or the speaker may have a temporary Bluetooth connection issue, please try the following steps which can resolve this:
(continued next page)
Page 15
For the most up to date troubleshooting tips please visit: TheOontZ.com/troubleshooting/oontz-angle-3-plus
-- For iPhone, iPad, iPod
• Turn off the OontZ Angle 3 PLUS speaker. Go to the Bluetooth device list on your iPhone, iPad or iPod and check if the OontZ Angle 3 PLUS is
listed. If it listed press the icon next to the OontZ Angle 3 PLUS and then forget this device, twice. Restart your iPhone, iPad or iPod. Next reset
the OontZ Angle 3 PLUS, following the instructions on page 20. After you have reset your speaker, try to pair and connect again from your
iPhone, iPad or iPod. Please see pairing and connecting instructions on page 9.
Cannot pair or connect to the OontZ Angle 3 PLUS (continued)
-- For Smartphones and Tablets
• Turn off the OontZ Angle 3 PLUS speaker, go to the Bluetooth device list on your Smartphone or Tablet and check if the OontZ Angle 3 PLUS is
listed. If it listed press the icon next to the OontZ Angle 3 PLUS and then press Unpair this device. With the OontZ Angle 3 PLUS unpaired or if it
was not listed, restart your Smartphone or Tablet. Next reset the OontZ Angle 3 PLUS, following the instructions on page 20. After you have
reset your speaker, try to pair and connect again from your Smartphone or Tablet . Please see pairing and connecting instructions on page 9.
• Turn off the OontZ Angle 3 PLUS speaker. Please go to the Bluetooth device list and if the OontZ Angle 3 PLUS is listed please remove it. With
the OontZ Angle 3 PLUS removed or if was not listed, restart your Apple Mac. Next reset the OontZ Angle 3 PLUS, following the instructions on
page 20. After you have reset your speaker, try to pair and connect again from your Apple Mac. For pairing and connecting guide for your
Apple Mac visit TheOontZ.com/Pairing
-- For Apple Mac
Page 16
Troubleshooting
-- For Windows systems
• Turn off the OontZ Angle 3 PLUS speaker. Please go to the Bluetooth device list and if the OontZ Angle 3 PLUS is listed please remove it. With
the OontZ Angle 3 PLUS removed or if was not listed, restart your Computer. Next reset the OontZ Angle 3 PLUS, following the instructions on
page 20. After you have reset your speaker, try to pair and connect again from your Computer. For pairing and connecting guide for your
Windows system go to TheOontZ.com/Pairing.
• If your Windows system displays an error message requesting a driver, you need to update your computer's Bluetooth driver. The OontZ Angle 3
PLUS does not require a special driver itself and there is no driver for it. Go to the support site for your system manufacturer and specific model
and select the Bluetooth driver. Download and install the Bluetooth driver, restart your system and try again to pair and connect to your OontZ
Angle 3 PLUS speaker. For pairing and connecting guide for your Windows system visit TheOontZ.com/Pairing.
No audio playing from the OontZ Angle 3 PLUS when connected over Bluetooth
• Reset the OontZ Angle 3 PLUS, follow the reset instructions on page 20.
• Remove the OontZ Angle 3 PLUS from the Bluetooth device list on your audio source device, restart your source device, and then re-pair and
connect to the speaker.
• Make sure the volume is up on your OontZ Angle 3 PLUS and your audio source device.
• Make sure your Bluetooth device is playing audio, and is not paused and volume is up.
• Your Bluetooth device may be out of range, move closer within 30 unobstructed feet.
• Turn your OontZ Angle 3 PLUS off and back on.
• Some apps have their own volume setting. Please check the app to make sure the volume is not on mute and the volume is up.
Page 17
Cannot pair or connect to the OontZ Angle 3 PLUS (continued)
Troubleshooting
Page 18
Poor sound quality when connected over Bluetooth
• Your Bluetooth device may be out of range, move closer within 30 unobstructed feet.
• Remove the OontZ Angle 3 PLUS from the Bluetooth device list on your source device, restart your source device, and then re-pair and connect
to the speaker.
• Turn your OontZ Angle 3 PLUS off and back on.
• Some devices need to have their WIFI turned off to improve audio quality over Bluetooth.
No audio playing from the OontZ Angle 3 Plus when connected with the 3.5mm audio cable
• Make sure the 3.5mm audio cable is fully inserted into the OontZ Angle 3 PLUS and Device. Some devices have cases that prevent a proper fit
and need to be removed to connect. Make sure your device is on and playing music.
• Increase the volume level on the OontZ Angle 3 PLUS and the device.
Poor sound quality when connected with the 3.5mm audio cable
• Reduce the volume level on the AUX source.
• Remove the charging cable while playing.
No response when pressing any button or speaker will not turn off
• Reset the OontZ Angle 3 PLUS, follow the reset instructions on page 20.
Troubleshooting
Page 19
If you're having trouble trying to connect your Amazon Echo Dot to your OontZ Angle 3 PLUS
Poor quality or skipping audio when connected to Amazon Echo Dot
Your OontZ Angle 3 PLUS battery charge becomes drained when connected to Amazon Echo Dot despite not playing audio
• Make sure that the OontZ Angle 3 PLUS is not connected to any other audio source device. If the blue light is solid you will need to disconnect the
currently paired audio source device (see page 8)
• Check that the battery for your OontZ Angle 3 PLUS has a sufficient charge, plug your speaker into a charging source.
• Disconnect any other Bluetooth devices from Amazon Echo Dot. Amazon Echo Dot can only connect to one Bluetooth device at a given time.
• Try to reconnect the OontZ Angle 3 PLUS to Amazon Echo Dot. Set the speaker to pairing mode, and then say, "Alexa, connect my speaker" or “Alexa, pair”
• Amazon Echo Dot continues to communicate to the speaker even when it is not playing audio. The Amazon Echo Dot is keeping the
speaker on and ready to play. In order to conserve your speaker's battery charge, you can turn the OontZ Angle 3 PLUS off by pressing
and releasing the Power button on the OontZ Angle 3 PLUS, or say "Alexa, disconnect my speaker" when you are done listening and the
OontZ Angle 3 PLUS will automatically turn off after 15 minutes.
• Make sure you have an adequate WiFi signal to your Amazon Echo Dot. Move your Amazon Echo Dot to a location with a stronger signal and
away from sources of interference, such as microwave ovens, baby monitors, and other wireless devices.
Troubleshooting
Resetting Your OontZ Angle 3 PLUS
Step 1: Remove the Micro USB charging cable
and 3.5mm Audio cable, if connected
Step 2: Press and Release the Power Button
Step 3: Insert either a toothpick or straightened
paper clip into the AUX IN jack until it makes
contact with the micro switch. Gently push and
release the switch and the speaker will reset.
Page 20
If you have any issues with your OontZ Angle 3 PLUS, we want to assist you. Please contact us by visiting:
TheOontZ.com/support
and fill out our customer support form.
Safety and Precautions
Page 21
Customer Support
1. Follow all instructions – All operating and use instructions should be followed.
2. Do not use this speaker near water while it is plugged in for charging, due to risk of electric shock.
3. Protect the Micro USB charging cable from being pinched, particularly at the connectors.
4. Unplug the Micro USB charging cable during lightning storms.
Apple, iPhone, iPad, iPod, and Mac are registered trademarks of Apple Inc.
Amazon, Alexa, and Amazon Echo Dot are registered trademarks of Amazon.com, Inc.
Windows is a registered trademark of Microsoft Corporation
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Safety and Precautions (continued)
1. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
3. Any changes to this device not expressly approved by SoundWorks, INC may void the user’s authority to operate this device.
Page 22
2. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
