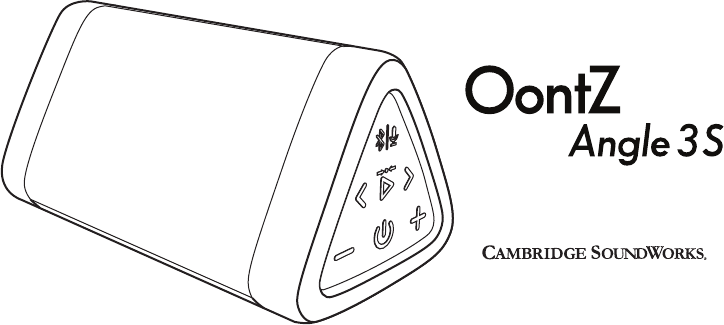

AngSi Technology OONTZA3S Bluetooth speaker User Manual oontz angle 3 S manual
Shenzhen AngSi Technology Co., LTD Bluetooth speaker oontz angle 3 S manual
User Manual
Portable Bluetooth Speaker
Quick Start Guide
Designed and Engineered By
TheOontZ.com

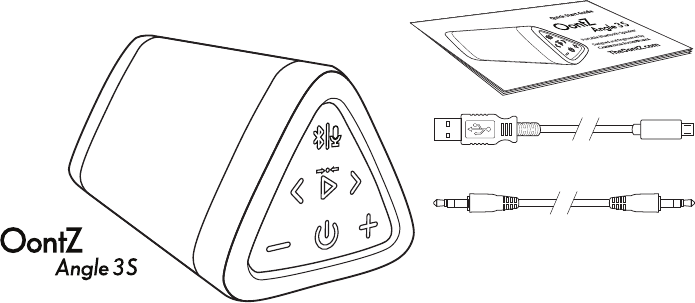

In the Package
Micro USB Charging Cable
3.5mm Audio Cable
Note: The cables are packed below the
cardboard insert in the box. Slide out the
insert to locate the cables.
Quick-Start Guide
Buttons, Lights and Connectors
Play Horizontally or Vertically
Battery Features and Charging the Battery
Turning On and Off
Pair & Connect with Your Device
To Play with Non-Bluetooth Devices Use the 3.5mm Audio Cable
OontZ Wireless Dual Stereo - Connect two OontZ Angle 3 S Speakers Together

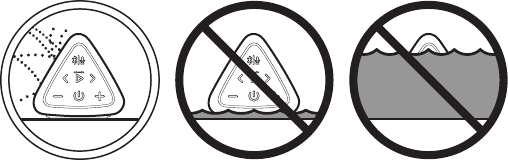

IPX5 Water Resistance
Wireless Hands Free Personal Speakerphone
Reset Function
Contacting Customer Support
Safety and Precautions
Table of Contents Pages
1 - 3
4
5 - 7
8
9 - 12
13
14 - 18
19
20
21
22
23
Buttons
Page 1
Important - The volume control on your device and the speaker work independently of each other.
To play the speaker at the loudest volume, set the volume on your device to maximum and raise the volume on the speaker to maximum.
Important - Some apps may not support track back, track forward, or play/pause
Track Back Track Forward
Power
Play/Pause
Bluetooth (Dual Function)
Press and Release to Pause/Play
Press and Release to
go to next track
Volume Down
Press to decrease volume
Volume Up
Press to increase volume
Press and Release to go to the
beginning of the track.
Press and Release twice to go
to previous track
Lights
Page 2
Red Light lit when charging:
- Slowly flashing Red
battery is charging
- Solid Red
battery is fully charged
Blue Light lit when speaker is on:
- Flashing Blue
speaker is in Bluetooth pairing mode
- Solid Blue
speaker is connected
- Blue Light will turn to Solid Green
when the 3.5mm audio cable is plugged
into the AUX IN Jack
- With a second OontZ Angle 3 S speaker
(sold separately) you can wirelessly
connect both speakers together to play
with OontZ Wireless Dual Stereo.
- For OontZ Wireless Dual Stereo
instructions please see page 14.
White/Orange Light lit
when speaker is in
OontZ Wireless Dual Stereo
Connectors
AUX IN Jack
Micro USB
Charging Connector
Built-in Mic for
Speakerphone
Page 3
Rubber Flap
- covers connectors
- pull gently from the bottom to
access connectors, it is a snug fit to
provide water resistance
Note: The rubber flap needs
to be closed to keep the
speaker water resistant
Play Horizontally or Vertically
Page 4
Passive Bass Radiator
Dual Precision Stereo Drivers
Play Vertically
Controls on top
Play Horizontally
Controls on side
Battery Features
Music Play Time
Up to 12 hours on a full charge, at 2/3 volume.
Louder volumes will reduce the battery play time.
Page 5
- The rechargeable battery comes with a partial
charge and the speaker is ready to play.
- For maximum playtime, fully charge the battery.
- You can play while charging.
Low Charge Remaining
- When the battery charge has less than 15%
remaining the Red Light will begin flashing rapidly.
- The volume will decrease to preserve the
remaining battery charge.
*Exception: when connected to certain devices, including the Amazon
Echo Dot or Amazon Echo, the Power Saving Feature is disabled and
the speaker will remain on until you turn the power off.
Power Saving Feature
- When playing from battery power the OontZ Angle 3 S will turn off after
15 minutes of not playing audio to conserve the battery charge. *
- When plugged into a charging source the OontZ Angle 3 S will remain on
until you turn the power off.
- You can continue to keep the speaker plugged into a charging source even
when it is fully charged, keeping the speaker turned on and available
Charging the Battery
Page 6
- Insert the small end of the Micro
USB Charging Cable into the
Charging Connector as shown.
- Insert the larger end of the Micro
USB Charging cable into a USB wall
charger for a Smartphone or
iPhone, or a USB port on your
laptop/computer to charge the
battery (see illustrations on page 7).
Charging Time:
- Up to 4.5 hours to fully
charge a low battery.
Red Light lit
when charging:
- Slowly flashing Red
battery is charging
- Solid Red
battery is fully charged

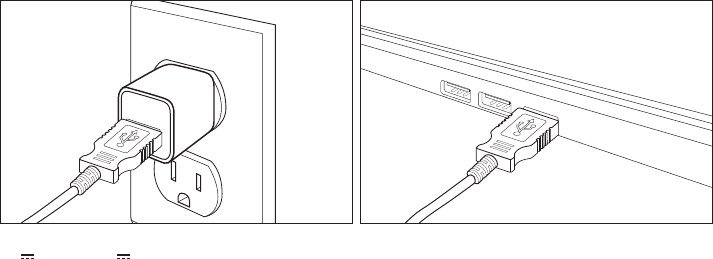

Insert the larger end of the Micro USB charging cable into a USB wall charger for a Smartphone or iPhone
(5V 1.0A up to 5V 2.4A maximum), or a USB port on your laptop/computer to charge the OontZ Angle 3 S battery.
Charging the Battery (continued)
Page 7
Turning On and Off
Page 8
Blue Light will turn on
after Red Light turns off
Red Light will turn
on for 3 seconds
Blue Light will turn off
- Flashing Blue
The speaker is in pairing mode
- Solid Blue
Your device has connected with the
OontZ Angle 3 S and is ready to play
Press and Release
the Power Button
Press and Hold Down the Power Button
for 2 Seconds
Turn ON
Turn OFF
Pair & Connect with Your Device -- Step 1
Page 9
- Your device needs to be within 100 unobstructed feet of the OontZ Angle 3 S to pair and connect.
If there is an issue when connecting please move your device closer to the speaker, then pair and connect.
- When the charge is too low indicated by a flashing red light on the speaker, your device will not be able to connect with the speaker.
Turn ON your OontZ Angle 3 S
Flashing Blue Light
- The OontZ Angle 3 S is ready to pair and connect.
Solid Blue Light
- Your device has connected to the OontZ Angle 3 S and is ready to play.
- The OontZ Angle 3 S allows the last device it was connected with to automatically reconnect
with the speaker each time the speaker is turned on and that device is within range.*
The OontZ Angle 3 S can be connected to one device at a time.
- To pair and connect to a different device, you need to first disconnect the currently paired device.
- To disconnect the current device, press and hold down the Bluetooth button for 3 seconds.
- The Blue Light will begin flashing and the OontZ Angle 3 S is ready for the next device to pair and connect.
*Exception: certain devices may not automatically reconnect.
Amazon Echo devices will not automatically reconnect. You will need to say "Alexa, connect my speaker"
Pair & Connect with Your Device -- Step 2 --
Page 10
- Go to Settings > Bluetooth, check Bluetooth is on
- Select 'OontZ_Angle 3S xxx' when it appears under DEVICES
(xxx: 3 characters which are unique to your speaker)
- Your device will connect in a few seconds
- The Blue Light will turn solid blue and there will be
a quiet chime
- You can now play your audio wirelessly to your
OontZ Angle 3 S
- Go to Settings > Bluetooth, check Bluetooth is on
- Scan or Search and select 'OontZ_Angle 3S xxx' when it appears
under AVAILABLE DEVICES (xxx: 3 characters which are unique to
your speaker)
- Your device will connect in a few seconds
- The Blue Light will turn solid blue and there will be a quiet chime
- You can now play your audio wirelessly to your OontZ Angle 3 S
Note: Your Smartphone or Tablet instructions may vary
-- With Your iPhone, iPad, or iPod -- With Your Smartphone, Tablet & Mobile Devices
-- With Your Apple Mac or Windows Laptop/Computer
For the pairing and connecting guide for your Apple Mac or Windows laptop/computer, please visit: TheOontZ.com/pairing
Important - The volume control on your device and the speaker work independently of each other. To play the speaker at the loudest
volume, set the volume on your device to maximum and raise the volume on the speaker to maximum.
Pair & Connect with Your Device -- Step 2 --
-- With Your Amazon Echo or Amazon Echo Dot
Page 11
- Open the Alexa app
- Go to the 'Home' menu by pressing the 3 horizontal lines in the upper left corner next to 'Home'
- Press 'Settings'
- Select your Amazon Echo device under 'Devices' by pressing it
- Press 'Bluetooth'
- Select the 'OontZ_Angle 3S xxx' (xxx: 3 characters unique to your speaker) when it appears in the list of 'Available Speakers'
- Alexa will announce: "Connected to OontZ_Angle 3S xxx"
To connect the next time, turn on the OontZ Angle 3 S and say "Alexa, connect my speaker" or "Alexa, pair"
To pair and connect with the Amazon Echo or Amazon Echo Dot the first time use the Alexa app.
For other Amazon Alexa devices please refer to their pairing and connecting instructions.
Important Note: When the OontZ Angle 3 S is playing from battery power and connected to the Amazon Echo device, the
speaker will remain on and it will not automatically turn off after 15 minutes of not playing audio.
This will use up the battery charge.
We recommend to:
1) Keep the OontZ Angle 3 S plugged into a USB wall charger.
It can remain on and available to play from the Amazon Echo device.
- Or -
2) Turn off the OontZ Angle 3 S when you are done listening.
- Either turn off the speaker by pressing and holding down the power button for 2 seconds,
- or say "Alexa, disconnect my speaker" and the OontZ Angle 3 S will automatically turn off after 15 minutes.
- When you want to connect and play to the speaker again turn on the OontZ Angle 3 S and say "Alexa, connect my
speaker" or "Alexa, pair".
Page 12
Pair & Connect with Your Device -- Step 2 --
-- With Your Amazon Echo or Amazon Echo Dot (continued)
For assistance with the Alexa app, contact Amazon's Customer Service.
Open the Alexa app and select Help & Feedback > Email Customer Service
- Plug one end of the 3.5mm audio cable into the AUX IN Jack
on the speaker.
- The Blue Light will turn solid Green.
- Plug the other end of the 3.5mm audio cable into the
headphone jack on your device.
- Make sure both ends of the cable are fully inserted
- You are now ready to play.
Important: The Bluetooth on the OontZ Angle 3 S is disabled when the 3.5mm audio cable is connected to the speaker.
You need to remove the 3.5mm audio cable from the speaker in order to connect to a Bluetooth device.
Page 13
- Note: When the rubber flap is open to allow the 3.5mm audio cable to be connected, the speaker is not water resistant.
The rubber flap needs to be closed to keep the speaker water resistant.
Turn ON your OontZ Angle 3 S
To Play with Non-Bluetooth Devices Use the 3.5mm Audio Cable
- Note: The volume control on your device and the speaker work independently of each other. To play the speaker at the loudest
volume, set the volume on your device to maximum and raise the volume on the speaker to maximum.
Page 14
Play your music wirelessly through both speakers up to 100 feet apart*
*Placing the speakers on the ground or having walls or obstructions between the
speakers will significantly reduce the distance apart the two speakers can play together
OontZ Wireless Dual Stereo -
Connect two OontZ Angle 3 S speakers together
Left Channel - Right Channel
for stereo separation
Left Channel Right Channel
Bluetooth
for playing music
Audio Cable
for playing the
audio from a video
or
Bluetooth
for playing music
Audio Cable
for playing the
audio from a video
or
Dual Stereo
for full stereo in separate areas
Full Stereo Full Stereo
– Turn on both OontZ Angle 3 S speakers.
– Pair and Connect one of the speakers with your device. When connected the Blue Light will be lit solid.
This speaker will serve as the Play Control Speaker.
– The second speaker must not be connected to any device, its Blue Light needs to be flashing. If the second speaker
has a solid Blue Light it is connected to a device and you need to disconnect it, by pressing and holding down the
Bluetooth button for 3 seconds until the Blue Light begins flashing.
- On the Play Control Speaker (speaker with solid Blue Light) press and hold down the Play/Pause button
for 5 seconds until the flashing White Light appears and the speaker says “Dual Pairing”.
- After a few seconds the Play Control Speaker will say “Left Channel” and the second speaker will say “Right Channel”
and the speakers will be connected together for Left Channel - Right Channel and you are ready to play.
Connecting two OontZ Angle 3 S Speakers together for Left Channel - Right Channel
Page 15
Page 16
– Use the buttons on the Play Control Speaker to adjust volume, play/pause, track back, track forward,
answer and end phone calls. These controls are disabled on the second speaker when paired together.
– Use the Play Control Speaker for connecting to different audio devices via Bluetooth or AUX IN. The
Bluetooth and AUX IN are disabled on the second speaker when paired together.
– Speakerphone call audio will only play through the Play Control Speaker
Play Control Speaker Second Speaker
Two OontZ Angle 3 S Speakers connected for Left Channel - Right Channel
Blue Light lit solid
White Light lit solid
Blue Light OFF
White Light lit solid
Page 17
Changing to Dual Stereo from Left Channel - Right Channel
Changing back to Left Channel - Right Channel from Dual Stereo
- To change back to Left Channel - Right Channel, press and hold down the Track Forward button on the Play Control Speaker
for 5 seconds until the Orange Lights turn solid White on both speakers.
- The
Play Control Speaker will say “Left Channel” and the second speaker will say “Right Channel” and you are ready to play.
Use Dual Stereo when placing the two speakers in different areas, and both speakers will play in full stereo.
– To set both speakers for Dual Stereo they must first be connected together for Left Channel - Right Channel (see page 15).
– With the speakers connected together for Left Channel - Right Channel, you can change the speakers to Dual Stereo.
–
To change to Dual Stereo, press and hold down the Track Forward button on the Play Control Speaker for 5 seconds until the
White Lights turn solid Orange on both speakers.
–
Both speakers will say “Dual Stereo” and you are ready to play.
Turning the speakers off
– Turning the Play Control Speaker off will turn both speakers off.
– Turning the second speaker off first will only turn that speaker off and the Play Control Speaker will play as a single speaker.
Turning the speakers back on
– Turn both speakers on and they will automatically try to connect to each other again.
– Turn one of the speakers on and a device can connect with it, and play as a single speaker.
Disconnecting the two speakers from each other
– Both speakers need to be turned on.
– On the Play Control Speaker press and hold down the Play/Pause button for 5 seconds.
The White Lights will turn off and the speakers will be disconnected from each other.
Playing the audio from a video in OontZ Wireless Dual Stereo
–To play the audio from a video or TV in OontZ Wireless Dual Stereo you will need to connect the Play Control Speaker to your
device or TV using the 3.5mm audio cable, allowing the audio and video to play in sync with each other. If the Play Control
Speaker is connected over Bluetooth to your device or TV there will be a delay in the audio playback from a video.
Page 18
OontZ Wireless Dual Stereo - Important Notes
No more worries about the rain
or getting splashed
Perfect for taking to the beach
or by the pool
The rubber flap needs to be
closed to keep the speaker
water resistant and dustproof
IPX5 rating - The OontZ Angle 3 S can resist gentle water spray & splash but cannot be partially or fully submerged or left in a wet environment
for an extended period of time, any of which could cause unrepairable damage to the speaker.
Safety Precaution: When the OontZ Angle 3 S speaker is plugged in to a charging source with the Micro USB
charging cable, never use the speaker in the shower, bath, or near water, to prevent risk of electric shock.
IPX5 Water Resistance
DO NOT allow speaker
to sit in water DO NOT allow speaker
to submerge fully or
partially in water
Gentle Water Spray or
Splash is okay
Page 19
When charging or using the 3.5mm audio cable, please keep the speaker away from water as it can be damaged by water entering the connectors.
Wireless Hands Free Personal Speakerphone
- The Wireless Hands Free Personal Speakerphone feature works over
Bluetooth with Smartphones and iPhones only
- This feature is not supported when connected to PCs, laptops, Apple Mac
or other types of devices.
To answer an Incoming Call / To End a Call
- Press and Release the Bluetooth Button
To Reject an Incoming Call
- Press and Hold Down the Bluetooth Button for 3 Seconds.
- Please keep the speaker close in front of you so you may be heard
clearly by the listener.
- You can use your Smartphone or iPhone to switch between using
Hands Free Speakerphone and your phone.
Page 20
Step 1: Remove the Micro USB charging cable
and 3.5mm Audio cable, if connected.
Step 2: Press and hold down the Power button
for 8 seconds, then release.
Step 3: The speaker has now been reset and
you can turn it on.
Reset Function
Page 21
Page 22
For online troubleshooting tips please visit:
TheOontZ.com/troubleshooting
and select the OontZ Angle 3 S
Contact us at:
TheOontZ.com/support
and fill in our customer support form
If you have a question about your OontZ Angle 3 S or experience an
issue with the speaker, our Customer Support Team wants to assist you.
Customer Support
Page 23
Safety and Precautions
When the OontZ Angle 3 S speaker is plugged in to a charging source with the Micro USB charging cable, never use the
speaker in the shower, bath, or near water, to prevent risk of electric shock.
Read and follow all instructions.
Protect the Micro USB charging cable from being pinched, particularly at the connectors.
Unplug the Micro USB charging cable during lightning storms or when unused for long periods of time.
Do not place speaker near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
Refer all servicing to qualified personnel. Servicing is required when the speaker has been damaged in any way.
Do NOT make unauthorized alterations to this speaker.
Use this speaker only with an agency approved power supply which meets local regulatory requirements (e.g., UL, CSA, VDE,
CCC) in accordance with the manufacturer’s specifications.
Do NOT place naked flame sources, such as lighted candles, on or near the speaker.
Do not expose products containing batteries to excessive heat (e.g. from storage in direct sunlight, fire or the like)
If the battery leaks, do not allow the liquid to come in contact with the skin or eyes. If contact is made, seek medical advice.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Page 24
Apple, iPhone, iPad, iPod, and Mac are registered trademarks of Apple Inc.
Amazon, Alexa, Amazon Echo and Amazon Echo Dot are registered trademarks of Amazon.com, Inc.
Windows is a registered trademark of Microsoft Corporation
Bluetooth is a registered trademark of Bluetooth SIG, Inc.
FCC Warnning
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Any changes to this device not expressly approved by SoundWorks, INC may void the user’s authority to operate this device.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.

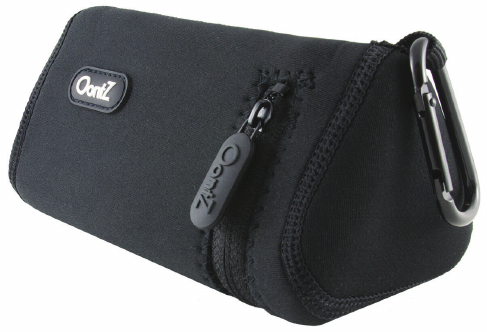

OontZ Angle 3 S Carry Case
Sold separately
Available at TheOontZ.com
• Lightweight neoprene rubber with
reinforced zipper
• Includes a durable aluminum carabiner
for easily attaching to backpacks, luggage,
laptop bags, coolers, camera bags,
purses, belts, and other clippable items
