Angel Speed Users Manual Op V0403

1

CONTENTS

WARNINGS

Important Safety Instructions & Guidelines 2

OPERATING INSTRUCTIONS 3

Charging 3

Switching on 4

Propellant Air/Nitrogen Supply 5

Macro Line Hose/Connector attachment 5

Macro Line Hose removal and re-attachment 5

OPTOTM Board 6

Bolt Removal Rotor BreechTM 6

Velocity Adjustment 7

Gated FeedTM 7

EXTERNAL ELECTRONIC LED MENUS

SENSiTM Test 8

Switching SENSiTM ON/OFF 9

MROF 10

Battery Status 1 1

INTERNAL ELECTRONIC LED MENUS

Factory Settings 12

Dwell 13

SENSiTM Modes 14

MAINTENANCE

General Care and Cleaning 16

Sub Assemblies 17

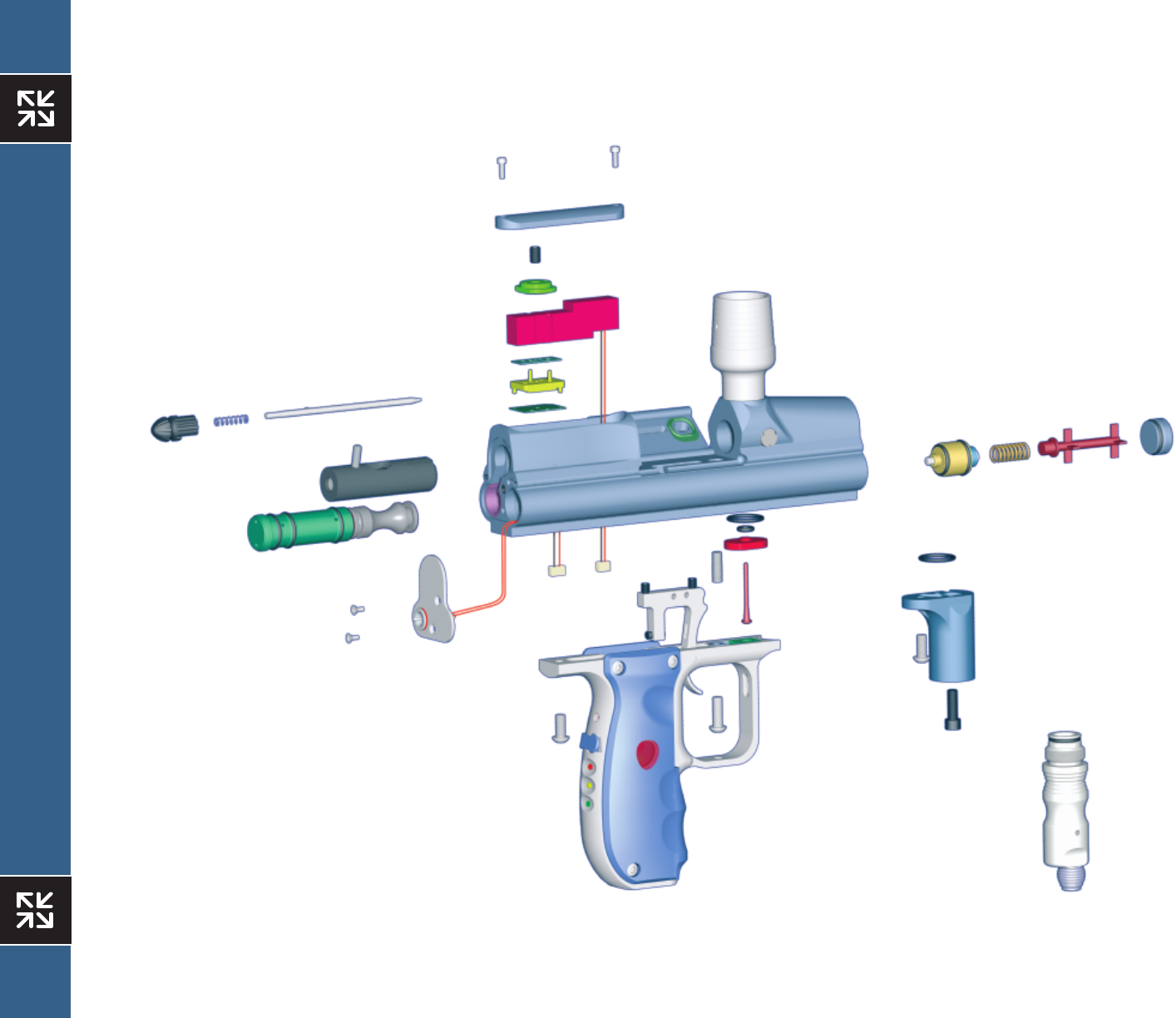

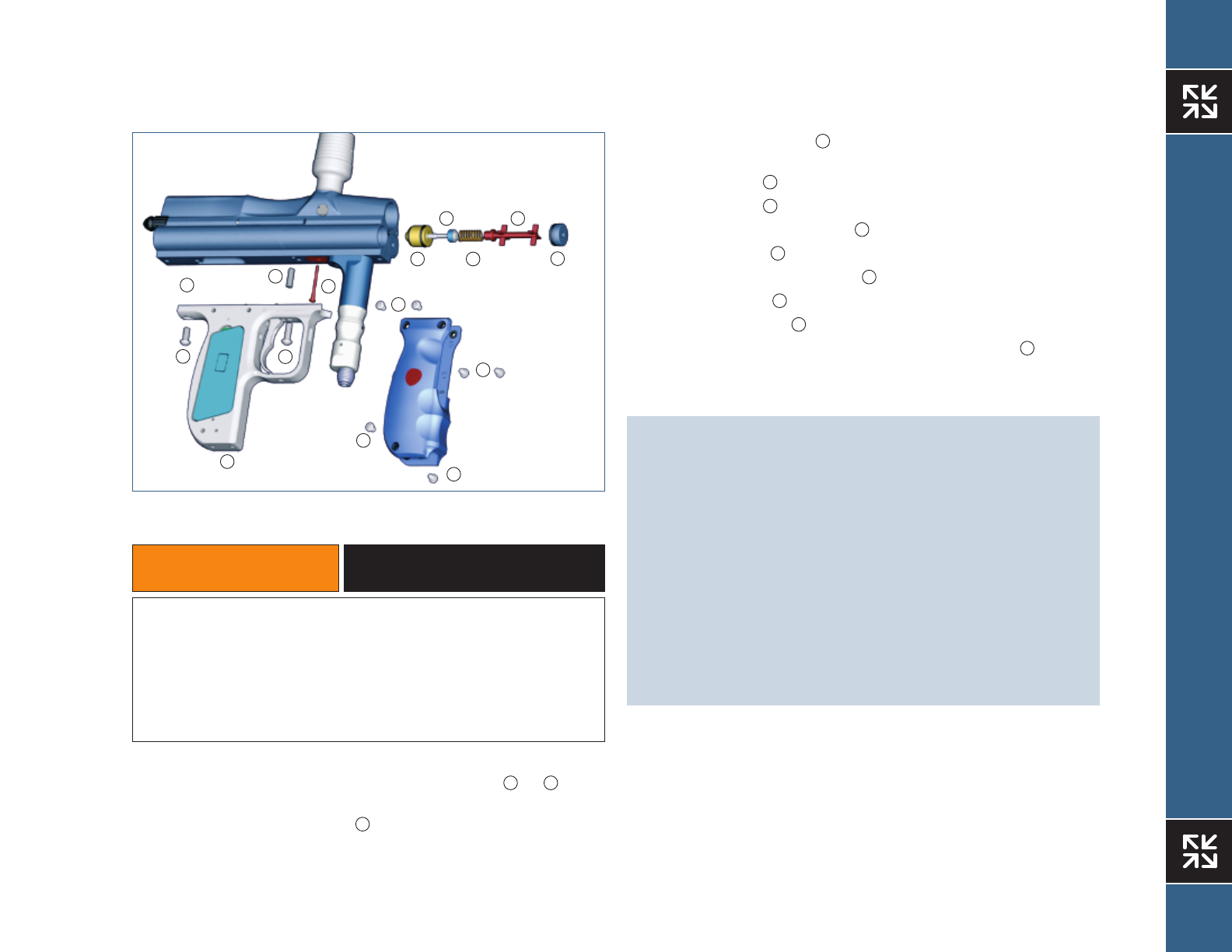

Exploded Left Hand View 18

Exploded Right Hand View 19

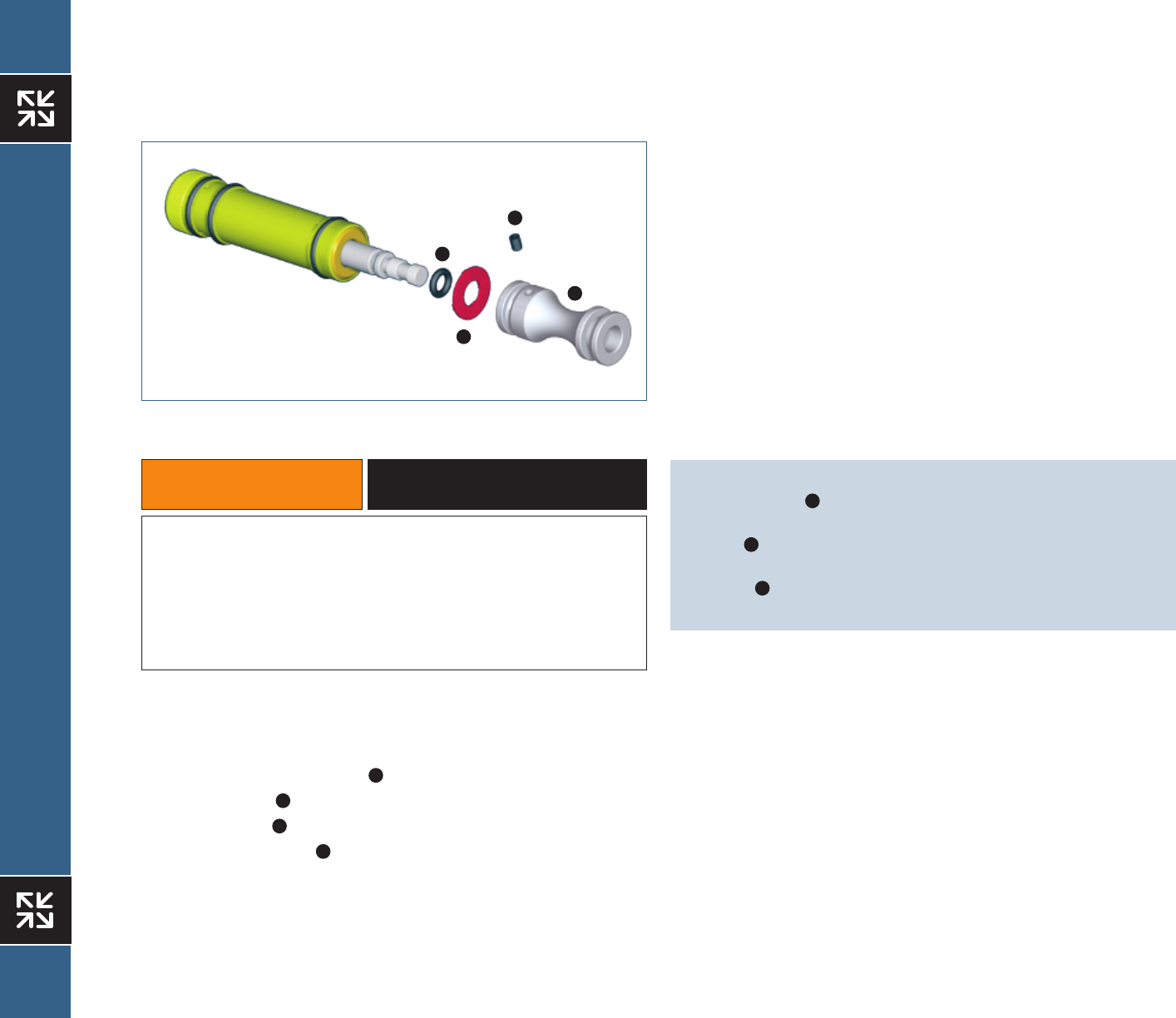

Mini-Regulator Service 20

Anti-Double Ball Detent Service 21

Low Pressure Regulator (LPR) Adjustment 22

LPR Assembly Removal 24

LPR Main Seal Replacement 25

Exhaust Valve Stem Removal 26

Exhaust Guide Removal 27

RAM Stroke Adjustment 28

RAM Removal 29

Servicing 30

Trigger Return, Over-Travel & Toe Adjustments 31

Trigger Pivot Point Adjustments 33

Battery Removal 34

Wiring Connections 35

APPENDIX

Fault Finding Table 36

Useful Conversions 37

Terms of Warranty - EEC/R.O.W Exc USA/CAN 38

WDP Ltd. Express Warranty USA/CAN Only 39

Updates 40

Your Personal Details 41

CONTENTS – ANGELTM OPERATORS MANUAL

• This Operators and Users Manual is in English.

• It contains important safety guidelines and

Instructions.

• Should you be unsure at any stage, or unable

to understand the contents within this manual

you must seek expert advice.

• Este manual de (operarios y) usarios està

en Inglés.

• Contiene importantes normas de seguridad e

instrucciones.

• Si no esta seguro de algún punto o no

entiende los contenidos de este manual debe

conultar con un experto.

• Diese Bedienungs- und Benutzeranleitung ist

in Englisch.

• Sie enthält wichtige Sicherheitsrichtlinien und

-bestimmungen.

• Sollten Sie sich in irgendeiner Weise unsicher

sein, oder den Inhalt dieses Heftes nicht

verstehen, lassen Sie siche bitte von einem

Experten beraten.

• Le mode d’emploi est en Anglais.

• Il contient des instructions et mesures de

sécurité importantes.

• En cas de doute, ou s’il vous est impossible de

comprendre le contenu du monde d’emploi,

demandez conseil à un expert.

v0403

2

WARNINGS

IMPORTANT SAFETY INSTRUCTIONS & GUIDELINES

WARNINGS FOR SAFE ANGELTM HANDLING

· The ANGELTM is not a toy.

· Careless or improper use, including failure to follow instructions and

warnings within this Operator Manual and attached to the ANGELTM, could

cause death or serious injury.

· Do not remove or deface any warnings attached to the ANGELTM.

· Paintball industry standard eye/face/ear and head protection designed

specifically to stop paintballs and meeting ASTM standard F1776 (USA) or

CE standard (Europe) must be worn by user and any person within range.

· Must be at least 18 years of age to purchase the ANGELTM.

· Persons under 18 years of age must have adult supervision when using or

handling the ANGELTM.

· Observe all local and national laws, regulations and guidelines.

· Use only on professional paintball fields where codes of safety are strictly

enforced.

· Use compressed air/nitrogen gas only. Do not use CO2.

· Do not exceed 850 psi (58 bar) input pressure.

· Always follow instructions, warnings and guidelines given with any first

stage regulator you use with the ANGELTM.

· Use 0.68 calibre paintballs only.

· Keep the ANGELTM switched off until ready to shoot.

· Treat every marker as if it is loaded.

· Never point the ANGELTM at anything you do not intend to shoot.

· Do not shoot at persons at close range.

· Do not shoot at fragile objects such as windows.

· Always measure your markers velocity before playing paintball, using a

suitable chronograph.

· Never shoot at velocities in excess of 300 feet (91.44 meters) per second, or

at velocities greater than local or national laws allow.

· Do not fire the ANGELTM with the breech open or without the bolt in the

breech, as high pressure gas will be emitted.

· Do not fire the ANGELTM with the pull knob in the unlocked position.

· Never look into the barrel or breech area of the ANGELTM whilst the marker is

switched on and able to fire.

· Never put your finger or any foreign objects into the paintball feed tube of

the ANGELTM

· Never allow pressurised gas to come into contact with any part of your body.

· Always switch off the ANGELTM when not in use.

· Always fit a barrel blocking device to your ANGELTM when not in use on the

field of play.

· Always remove all paintballs from the ANGELTM when not in use on the field

of play.

· The Gated Feed is designed to retain a number of paintballs in the feed tube

and breech area of the ANGELTM Always ensure that these paintballs are

removed from the ANGELTM when it is not in use on the field of play.

· Always remove the first stage regulator and relieve all residual gas pressure

from the ANGELTM before disassembly.

· The ANGELTM can hold a small residual charge of gas, typically 2 shots, with

the first stage regulator removed. Always discharge the marker in a safe

direction to relieve this residual gas pressure.

· Always remove first stage regulator and all residual gas pressure from the

ANGELTM for transport and storage.

· Always follow warnings and guidelines given with your first stage regulator

for safe transport and storage.

· Only charge the ANGELTM using the charger supplied.

· Only use 12 Volt negative earth vehicles as a power supply for the charger.

· Do not leave the ANGELTM unattended whilst charging.

· Always store the ANGELTM in a secure place.

· THIS OPERATOR MANUAL MUST ALWAYS ACCOMPANY THE PRODUCT

IN THE EVENT OF RESALE OR NEW OWNERSHIP.

· SHOULD YOU BE UNSURE AT ANY STAGE YOU MUST SEEK EXPERT

ADVICE.

WARNINGS – IMPORTANT SAFETY INSTRUCTIONS & GUIDELINES

mWARNING ADHERE STRICTLY TO THESE AND ALL OTHER SAFETY INSTRUCTIONS AND GUIDELINES

3

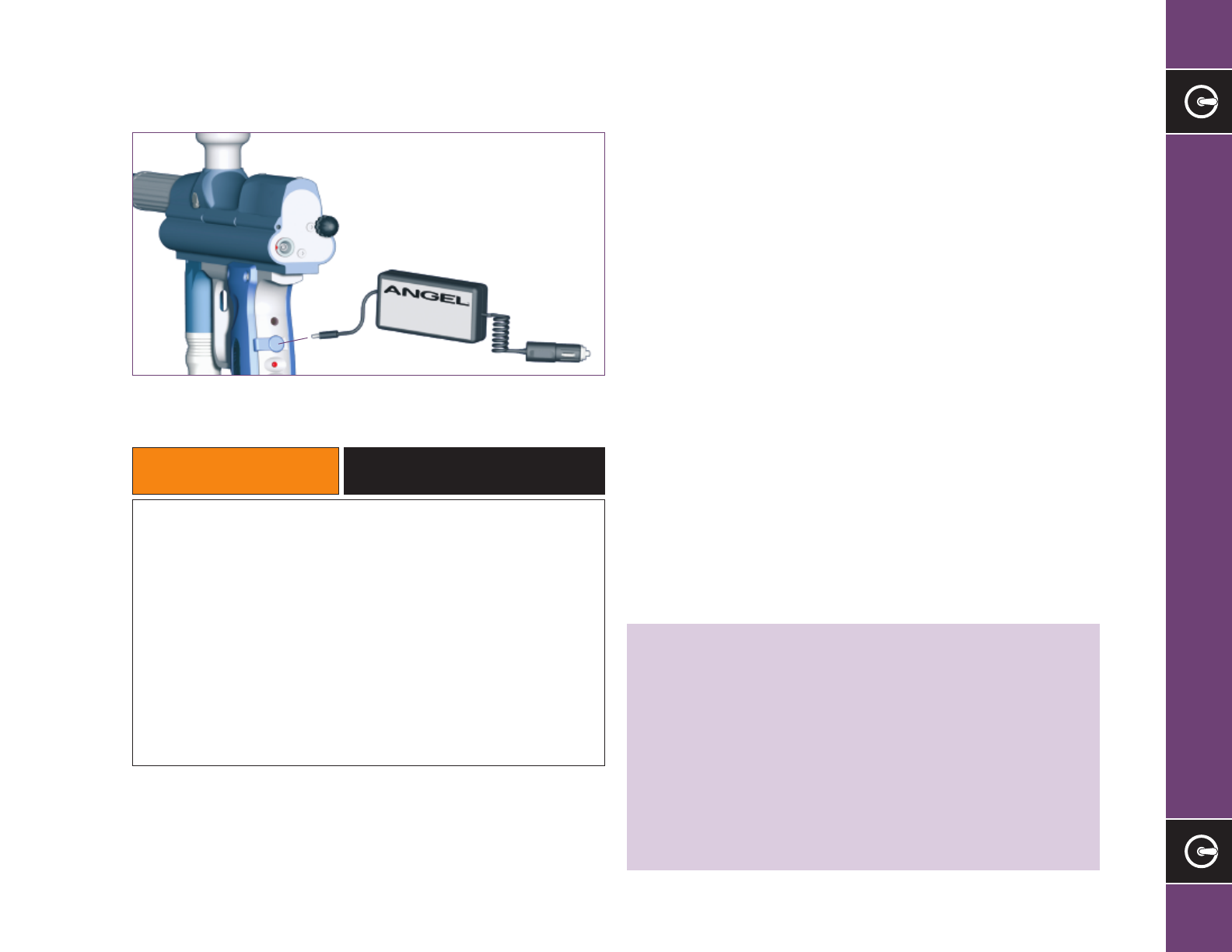

CHARGING

OPERATING INSTRUCTIONS

CHARGING

Before initial use of the ANGELTM, it is necessary to give the power pack a full charging

cycle of 4 hours prior to use as this will ensure a long life for the power pack.

Subsequent charges will be in the region of 3 hours for a full charge, the electronics will

control the charging cycle and ensure that your battery is fully charged.

The ANGELTM may be left charging for prolonged periods without damage occurring to

the battery pack.

· A full charge will give sufficient power for approximately 150,000 consecutive

shots.

· A 1-hour charge at 12.5V DC will give sufficient power for approximately 40,000

consecutive shots.

The ANGELTM will continue to use power whilst it is switched ON.

To save the charge the isolator switch must be switched OFF to isolate the battery.

We recommend the isolating switch be placed in the off position when the ANGELTM

is in storage, transit or not in use.

· Insert cigar lighter adaptor into a negative earth socket as found in most motor

vehicles (red light on charger will illuminate to indicate that power is present).

· Insert remote plug from charger into the socket on the rear of the ANGELTM

The socket is located on the rear of the grip frame under a rubber protection grommet.

· Ensure the isolator switch is in the ON position at the rear panel of the

ANGELTM. See SWITCHING ON YOUR ANGELTM - page 4.

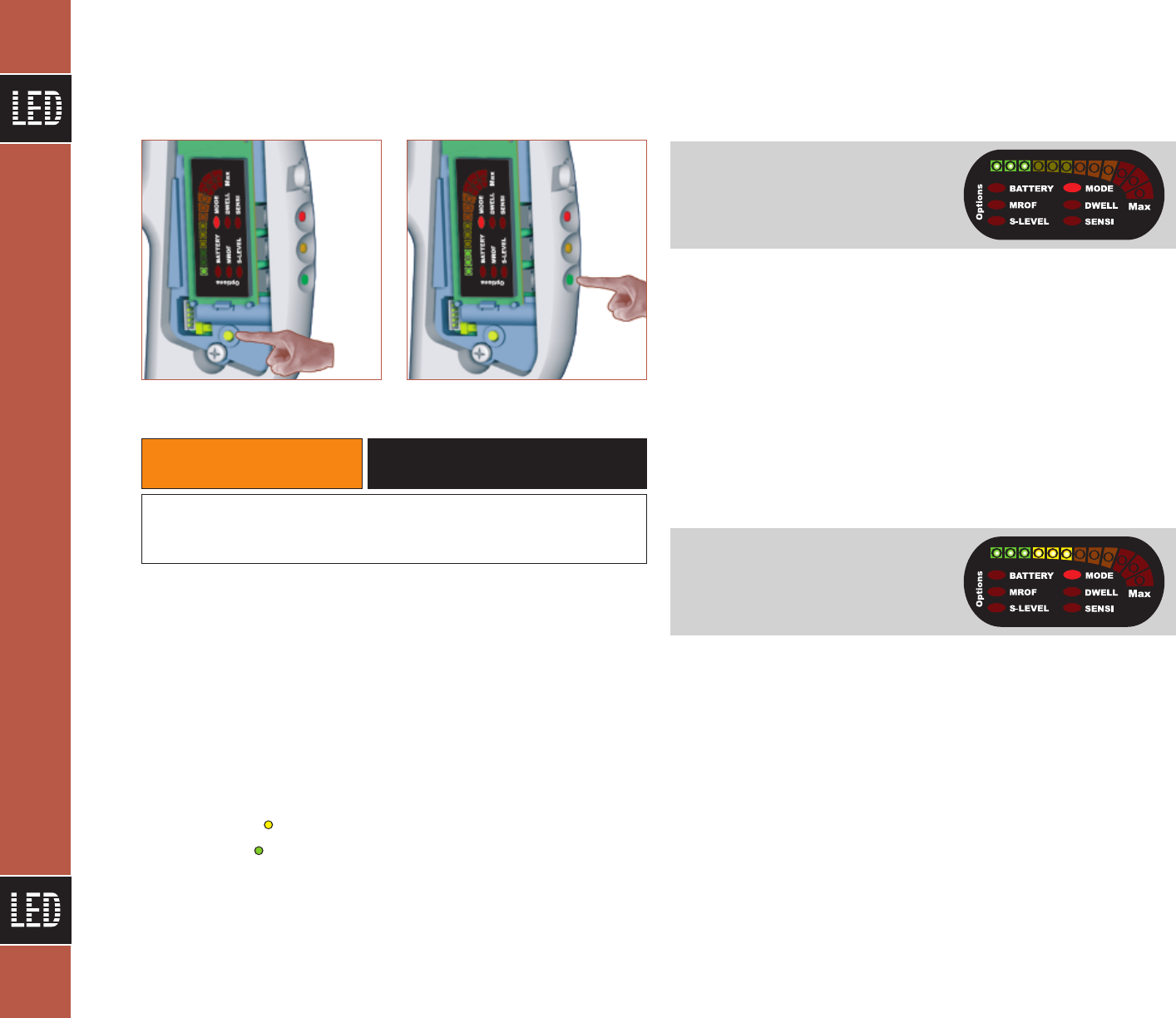

· The LED’s on the ANGELTM display will indicate the status of the charging cycle, the

bar graph segments on the display will cascade to indicate charge is being taken.

· When a full charge has been taken the bar graph segments will remain illuminated

for a short period of time, then a single Green LED will be illuminated. Removal of the

charger before a full charge cycle has been completed will result in a short charge.

· Unplug the charger from the ANGELTM and replace the rubber grommet cover on

the rear of the grip frame to prevent the entry of dirt or debris.

IMPORTANT NOTES: For Battery Charging

· The insertion of the charger will make the ANGELTM unable to fire and

removal of the charger will cause the marker to remain in this state

until the ON/OFF switch on the back panel is toggled to the off position

then the on position to make the marker live.

· Supply voltage must be minimum 12V DC, maximum 24V DC, negative earth.

· The isolator switch on the back of the ANGELTM must be in the ON position to

charge the battery.

· The battery must be plugged into the circuit board.

· Removal of the charger before a full charge cycle has been completed will result

in a short charge.

• Ensure a barrel blocking device is fitted to the ANGELTM

• Ensure the hopper is removed from the ANGELTM

• Ensure that there are no paintballs in the ANGELTM

• Paintball industry standard eye/face/ear and head protection designed

specifically to stop paintballs and meeting ASTM standard F1776 (USA) or CE

standard (Europe) must be worn by user and any person within range.

• This charger will become hot during use.

• Do not cover the charger.

• Do not leave unattended.

• Do not exceed 14.5 Volts input.

• Do not immerse in water.

• Do not use this charger for any purpose other than charging the

ANGELTM paintball marker.

• Check your vehicle handbook for voltage and current capabilities prior to use.

• Use only the charger supplied for charging the ANGELTM

mWARNING ADHERE STRICTLY TO THESE

AND ALL OTHER SAFETY

INSTRUCTIONS AND GUIDELINES

OPERATION – CHARGING

4

SWITCHING ON YOUR ANGELTM

· Ensure the battery is charged.

· Switch the isolator switch to the ON position.

· The LED display will now display a single Green LED.

OPERATION – SWITCHING ON YOUR ANGELTM

• Ensure a barrel blocking device is fitted to the ANGELTM

• Ensure the hopper is removed from the ANGELTM

• Ensure that there are no paintballs in the ANGELTM

• Paintball industry standard eye/face/ear and head protection designed

specifically to stop paintballs and meeting ASTM standard F1776 (USA) or CE

standard (Europe) must be worn by user and any person within range.

mWARNING ADHERE STRICTLY TO THESE

AND ALL OTHER SAFETY

INSTRUCTIONS AND GUIDELINES

• THE ANGELTM IS LIVE AND CAPABLE OF DISCHARGING.

mWARNING ADHERE STRICTLY TO THESE

AND ALL OTHER SAFETY

INSTRUCTIONS AND GUIDELINES

OFF ON

5

PROPELLANT AIR / NITROGEN SUPPLY

The ANGELTM is designed to operate on air/nitrogen gas. This needs to be supplied to the

ANGELTM at an ideal regulated pressure of 400 psi (27.5 BAR) using a suitable first stage

paintball regulator, such as the ANGELTM A.I.R.

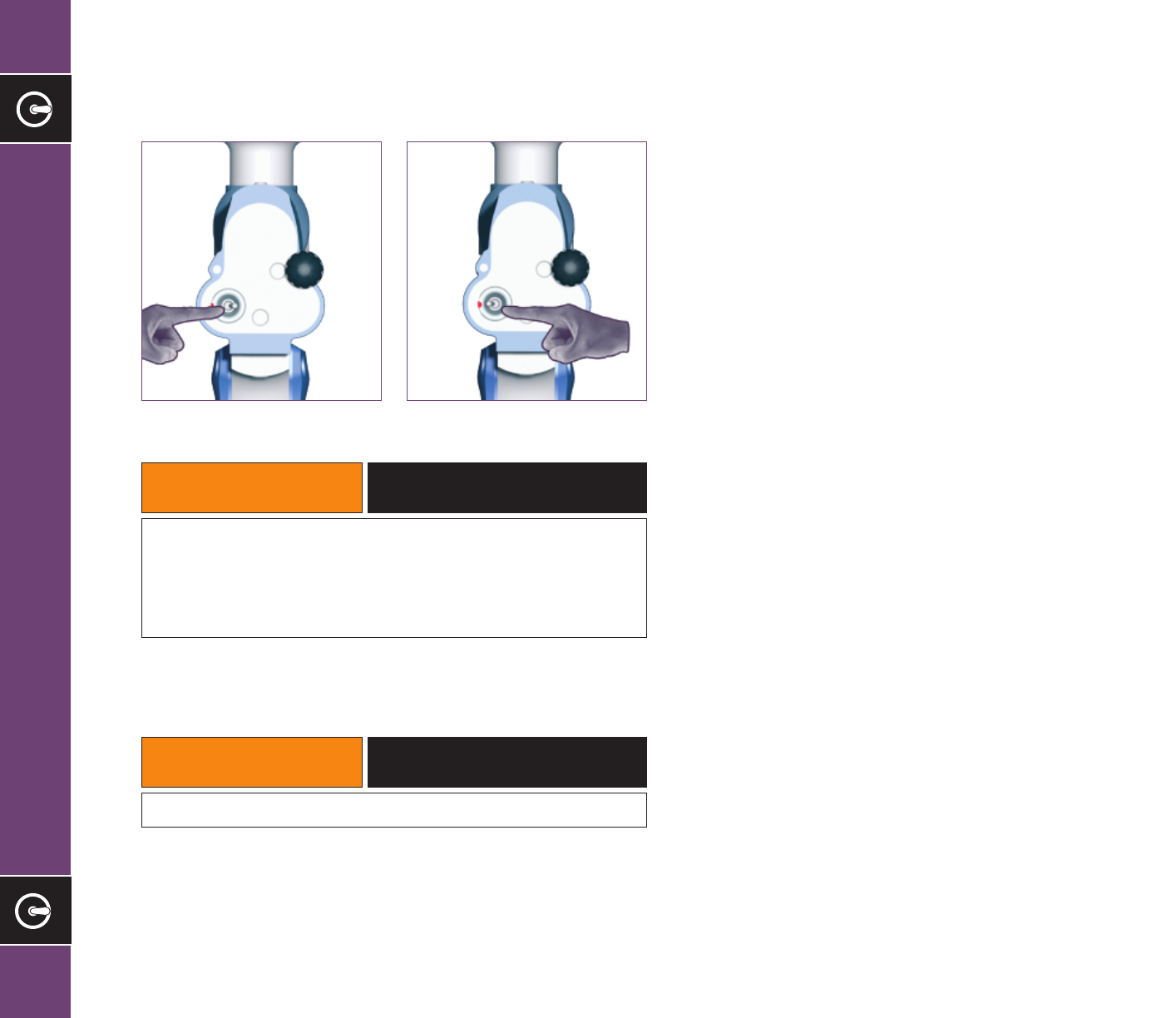

MACRO LINE HOSE / CONNECTOR ATTACHMENT

· Connect the Macro Line connector to your first stage regulator outlet port using a

suitable wrench or spanner

· If necessary shorten the Macro Line hose using a sharp knife to the required length

to suit your ANGELTM and first stage regulator set up.

· Push the free end of the hose firmly into the Macro Line connector attached to the

ANGELTM second stage regulator.

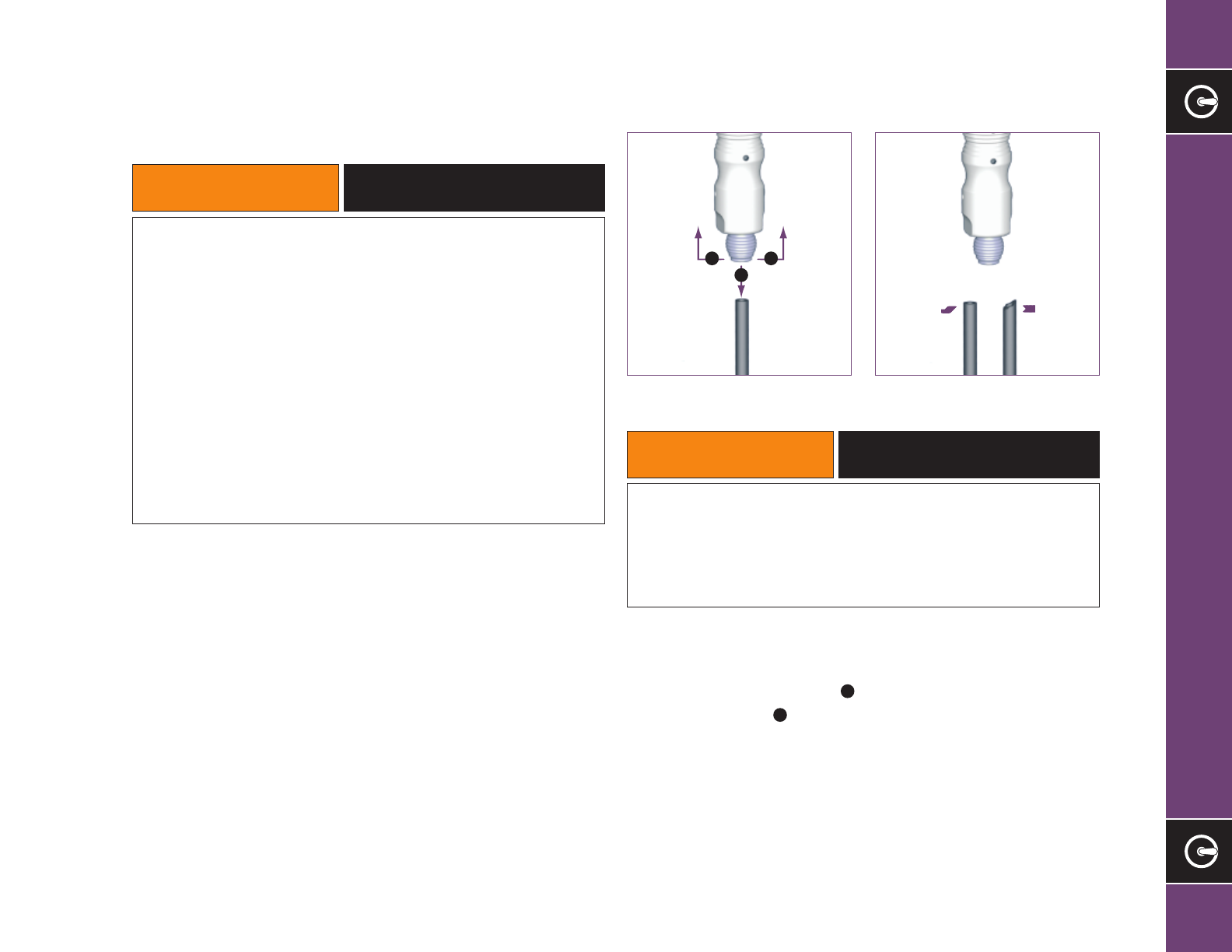

MACRO LINE HOSE REMOVAL AND RE-ATTACHMENT

· The Macro Line hose may be removed from the Macro Line connectors to facilitate

maintenance.

· Pull back the collet on the connector and keep the collet depressed.

· Pull the Macro Line hose out of the connector firmly.

· Cut back the Macro Line hose cleanly and square.

· Push the hose firmly into the Macro Line connector to re-attach.

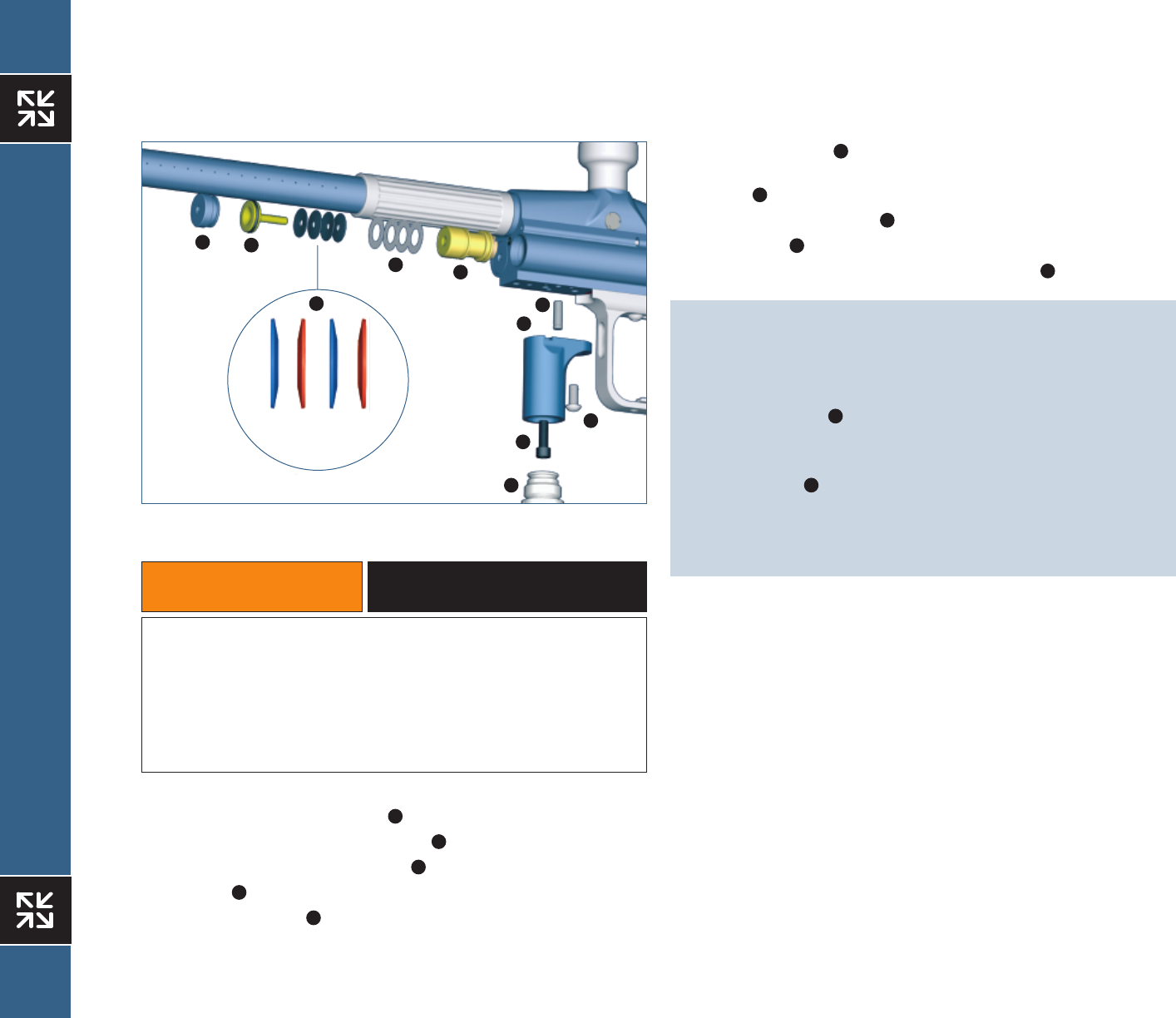

1 2 3 4 5 6 8 9 10  11  12  13 7

OPERATION – PROPELLANT AIR / NITROGEN SUPPLY

• Ensure a barrel blocking device is fitted to the ANGELTM

• Ensure the hopper is removed from the ANGELTM

• Ensure that there are no paintballs in the ANGELTM

• Ensure the ANGELTM is switched off via the isolating switch at the rear of the

marker prior to fitting your first stage regulator.

• Paintball industry standard eye/face/ear and head protection designed

specifically to stop paintballs and meeting ASTM standard F1776 (USA) or CE

standard (Europe) must be worn by user and any person within range.

• Always follow instructions, warnings and guidelines given with any first stage

regulator you use with the ANGELTM

• Use compressed air/nitrogen gas only DO NOT USE CO2

• Only use a paintball regulator that has been designed for air or nitrogen gas.

• Do not exceed 850 psi (58bar) input pressure to the ANGELTM

• Take suitable precautions when using sharp cutting instruments.

• The Macro Line hose must be cut back cleanly and square prior to attachment

or re-attachment to ensure secure fitment

• SHOULD YOU BE UNSURE AT ANY STAGE YOU MUST SEEK EXPERT

ADVICE

mWARNING ADHERE STRICTLY TO THESE

AND ALL OTHER SAFETY

INSTRUCTIONS AND GUIDELINES

• All gas pressure must be relieved from the ANGELTM and second stage regulator

prior to the Macro Line hose removal.

• The ANGELTM can hold a small residual charge of gas, typically 2 shots with the

first stage regulator removed. Always discharge the marker in a safe direction to

relieve this residual gas pressure.

• The Macro Line hose must be cut back cleanly and square prior to reattachment

to ensure secure fitment.

mWARNING ADHERE STRICTLY TO THESE

AND ALL OTHER SAFETY

INSTRUCTIONS AND GUIDELINES

1 2 3 4 5 6 8 9 10  11  12  13 7

6

OPTOTM BOARD / BOLT REMOVAL ROTOR BREECH

OPTOTM BOARD

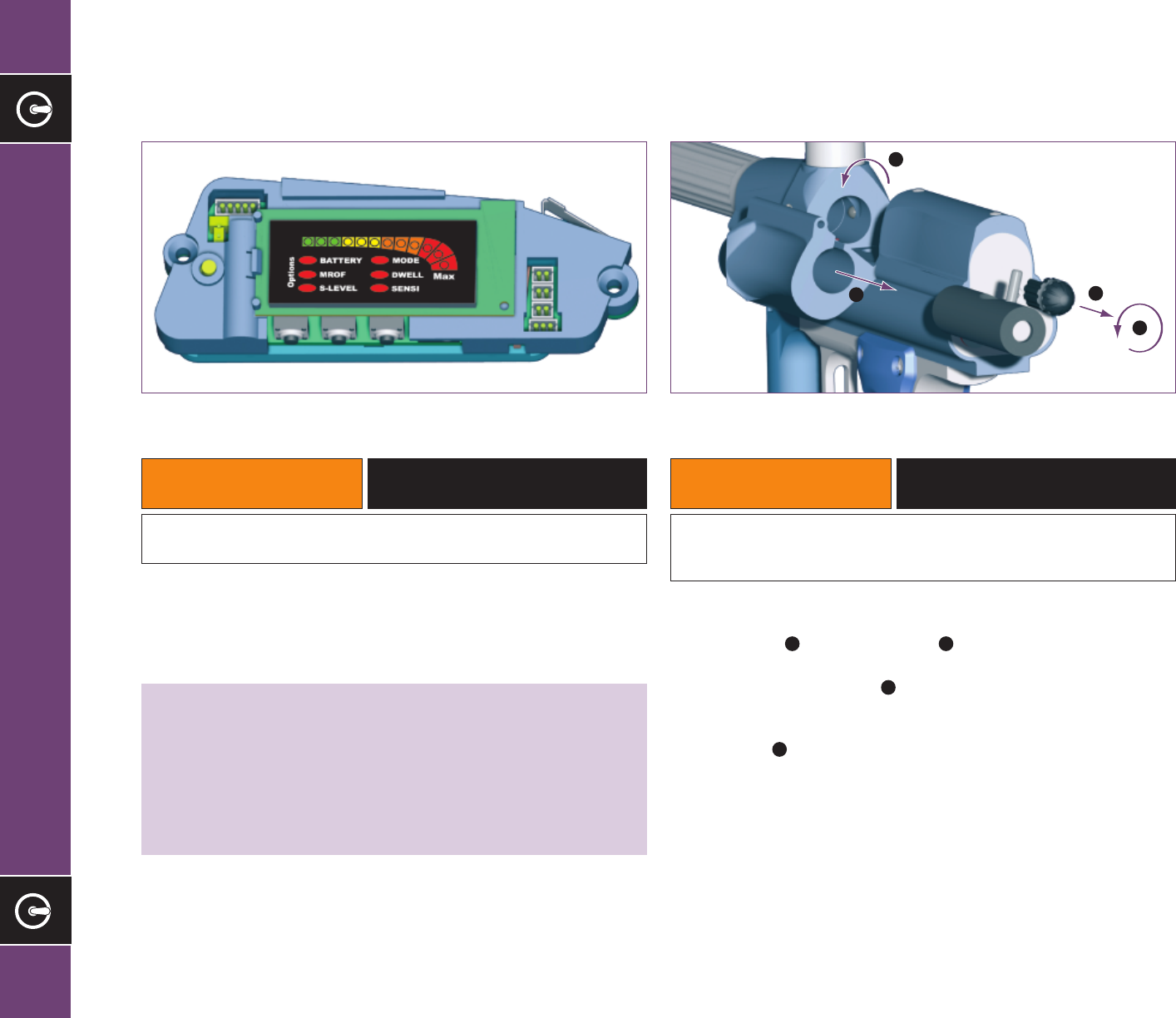

The ANGELTM incorporates the OPTOTM board. This is the latest development in trigger

sensing function. It achieves unsurpassed advancements in trigger repeatability and

sensitivity, its non-mechanical switching results in faster, shorter and lighter trigger

strokes that give the user higher prolonged achievable rates of fire.

IMPORTANT NOTES:

· When accessing the Internal Tournament LED menus the OPTOTM board should

not be exposed to direct sunlight or strong external sources of light without the

grip cheek fitted as this light will induce a safety feature, that will prevent the

ANGELTM from firing whilst it remains exposed to the strong external light.

· The OPTOTM board is a non-mechanical switch that is silent in its operation and

no audible click is present.

BOLT REMOVAL ROTOR BREECH

· Ensure the ANGELTM isolator switch is in the OFF position.

· Pull the Pull knob and rotate 90 degrees so that the knob remains in the

unlocked position.

· Swing out the Rotor Breech block so that the bolt is exposed. The breech will

not open if the bolt is in the forward position. Ensure it is retracted by either:

momentarily gassing the ANGELTM or pushing the bolt back with a squeegee.

· Extract the bolt by pulling rearwards.

· To replace the bolt follow the stages in reverse order.

1 2 3 4 5 6 8 9 10  11  12  13 7

OPERATION – OPTOTM BOARD / BOLT REMOVAL ROTOR BREECH

• Do not attempt to modify the OPTOTM board assembly in any way as this will

invalidate your warranty and could lead to safety concerns.

mWARNING ADHERE STRICTLY TO THESE

AND ALL OTHER SAFETY

INSTRUCTIONS AND GUIDELINES

• Do not fire the ANGELTM with the breech open or without the bolt in the breech,

as high pressure gas will be admitted.

• Do not fire the ANGELTM with the pull knob in the unlocked position.

mWARNING ADHERE STRICTLY TO THESE

AND ALL OTHER SAFETY

INSTRUCTIONS AND GUIDELINES

1 2 3 4 5 6 8 9 10  11  12  13 7

1 2 3 4 5 6 8 9 10  11 7

1 2 3 4 5 6 8 9 10  11  12  13 7

7

VELOCITY ADJUSTMENT / GATED FEEDTM

VELOCITY ADJUSTMENT

DECREASING VELOCITY

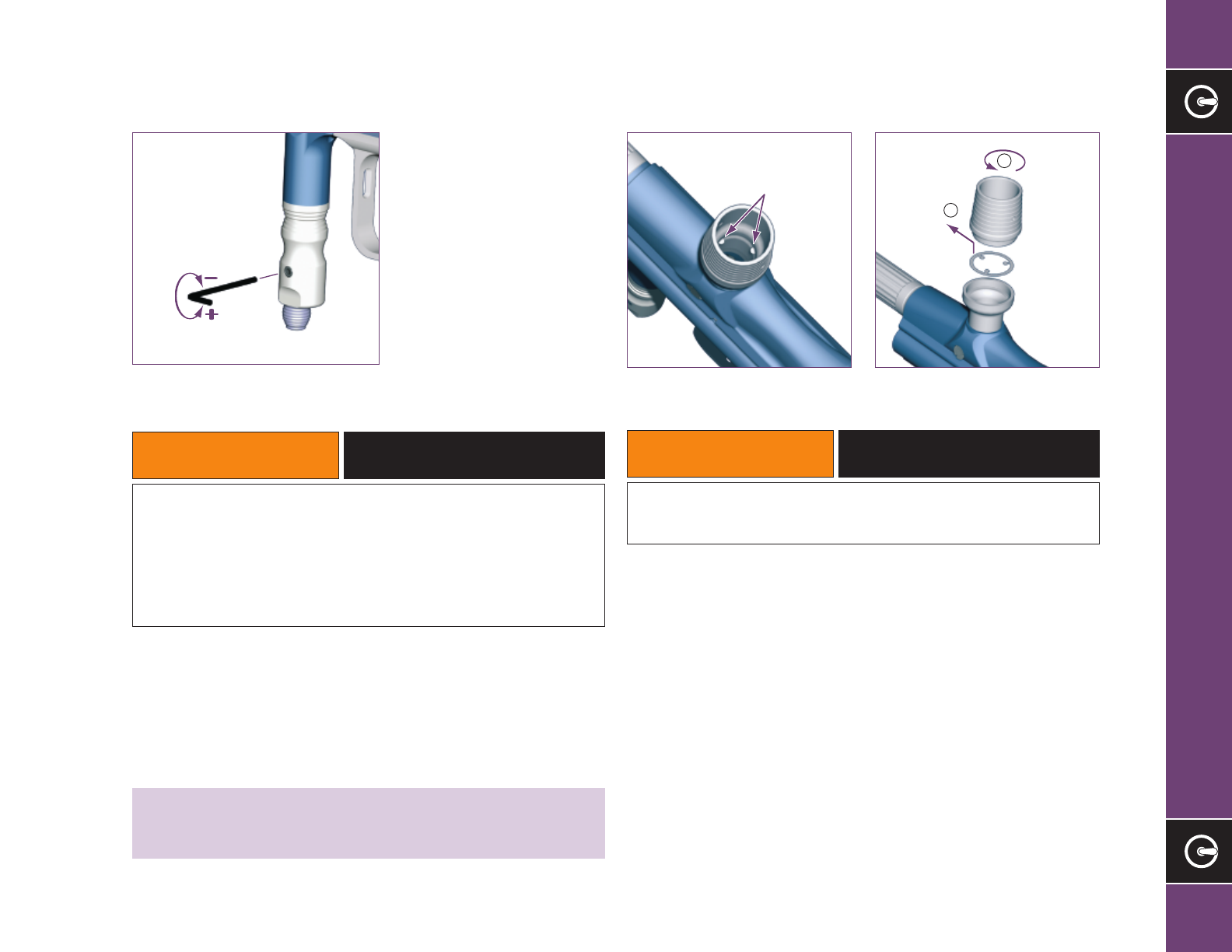

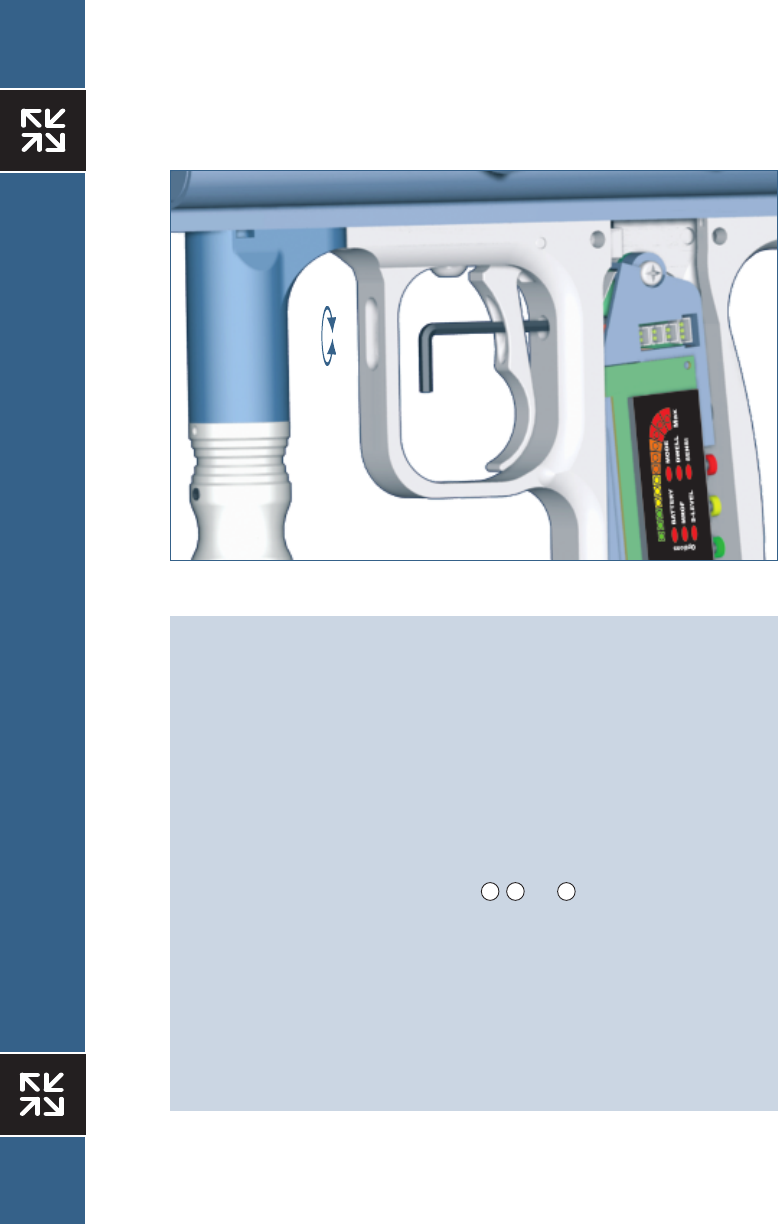

The velocity adjusting screw is located on the lower portion of the front grip.

· To decrease the velocity, insert 3.0mm A/F Allen key and rotate CLOCKWISE.

INCREASING VELOCITY

The velocity adjusting screw is located on the lower portion of the front grip.

· To increase the velocity, insert 3.0mm A/F Allen key and rotate

ANTI-CLOCKWISE.

IMPORTANT NOTE:

· When reducing velocity, allow four shots for the complete system to be at the

new regulated pressure.

GATED FEEDTM

The Gated FeedTM is a feature that retains the paintballs in the breech to prevent them

rolling back into the hopper. The Gated FeedTM uses a retention system that offers

minimal resistance to a paintball as it travels into the breech and maximum resistance to

a paintball returning up the feed tube. The retainer is a removable item that may be

replaced if it becomes damaged.

OPERATION – VELOCITY ADJUSTMENT / GATED FEEDTM

• The ANGELTM is live and capable of discharging.

• Paintball industry standard eye/face/ear and head protection designed

specifically to stop paintballs and meeting ASTM standard F1776 (USA) or CE

standard (EU) must be worn by user and any person within range.

• Always measure your markers velocity before playing paintball, using a suitable

chronograph.

• Never shoot at velocities in excess of 300ft (91.44 meters) per second, or at

velocities greater than local or national laws allow.

mWARNING ADHERE STRICTLY TO THESE

AND ALL OTHER SAFETY

INSTRUCTIONS AND GUIDELINES

• The Gated FeedTM is designed to retain a number of paintballs in the feed tube

and breech area of the ANGELTM. Always ensure that these paintballs are

removed from the ANGELTM when it is not in use on the field of play.

mWARNING ADHERE STRICTLY TO THESE

AND ALL OTHER SAFETY

INSTRUCTIONS AND GUIDELINES

1 2 3 4 5 6 8 9 10  11  12  13 7

GATES

8

SENSiTM TEST

EXTERNAL ELECTRONIC LED MENUS

SENSiTM Test

This allows you to test the SENSiTM sensor

· Switch the ANGELTM OFF.

· Press and hold the GREEN button and Switch the ANGELTM ON.

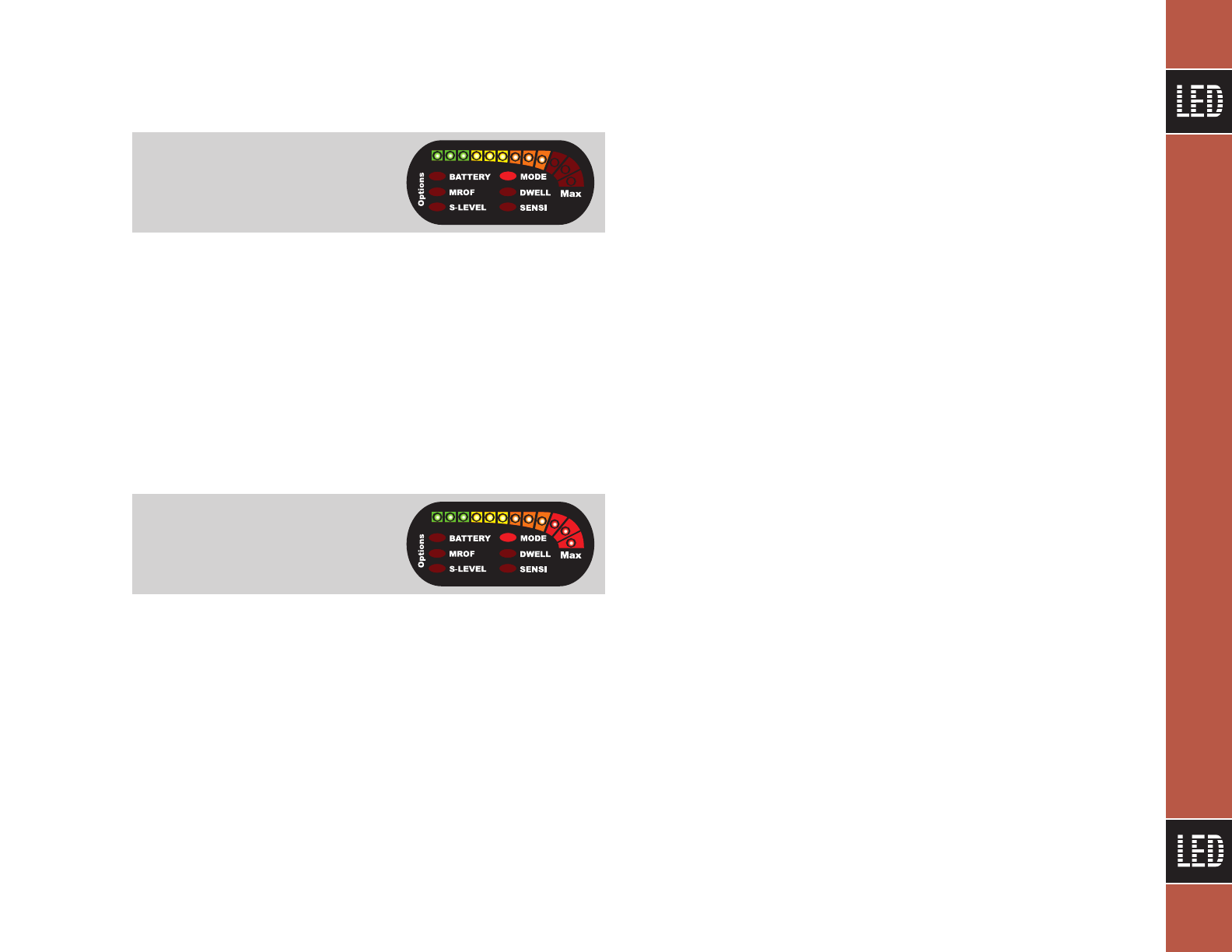

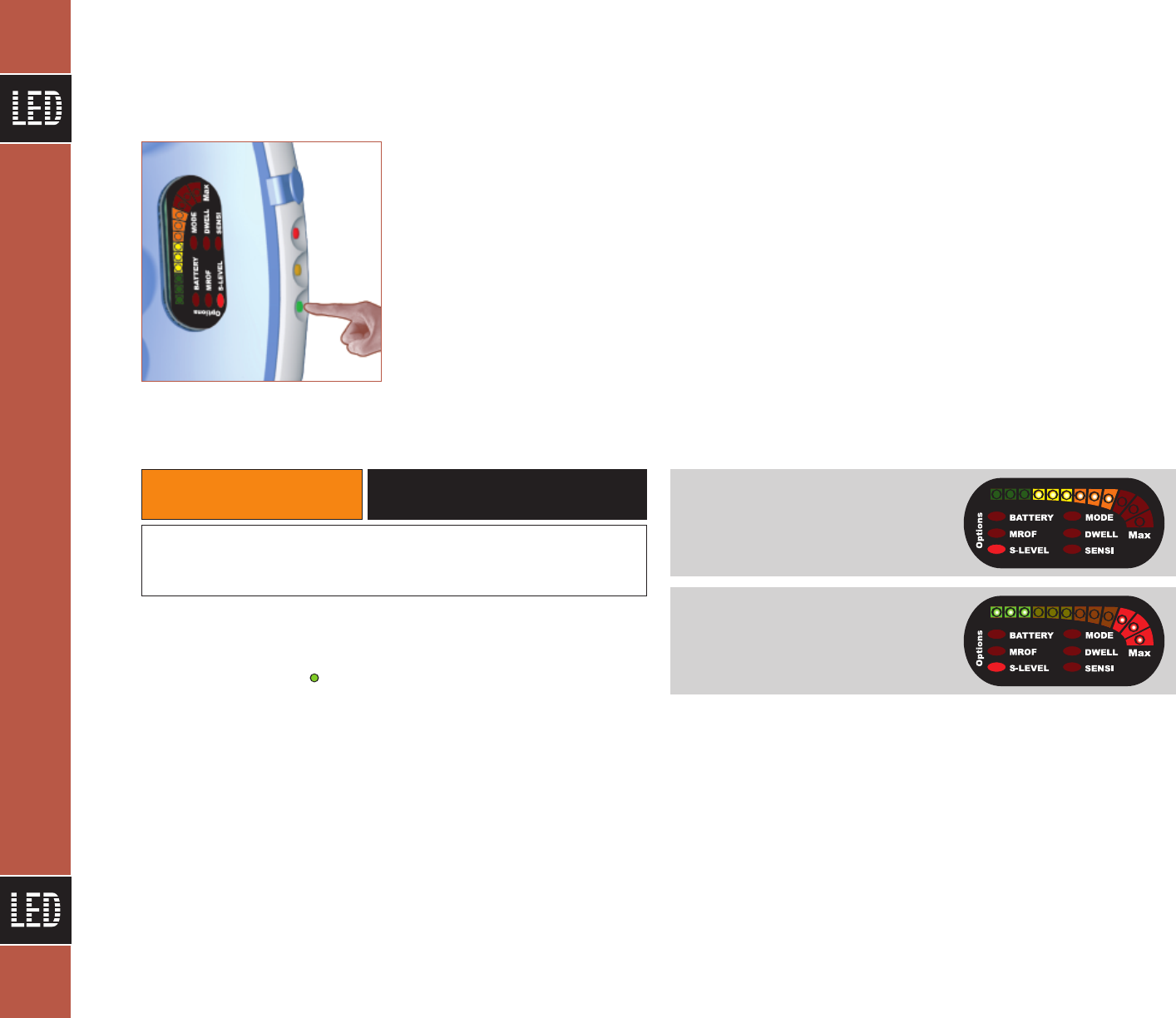

· The display will show the S-Level LED Illuminated and the Yellow and Orange

LED’s illuminated.

· Whilst you are in this test feature the ANGELTM is incapable of firing.

· Drop a ball into the feed tube, onto the sensor.

· The Green and Red LED’s will flash when a ball has been detected, this indicates

a pass.

· If the Green and Red LED’s do not illuminate, this indicates that the SENSiTM is

damaged and needs replacement.

· This test may be repeated by simply dropping further paintballs into the feed tube.

· To exit this test feature, switch the ANGELTM OFF.

· WARNING: REMOVE ALL PAINTBALLS USED FOR THE TEST AFTER COMPLETION.

SENSiTM TEST STATE

BALL DETECTED (PASSED)

EXTERNAL ELECTRONIC LED MENUS – SENSiTM TEST

• Ensure a barrel blocking device is fitted to the ANGELTM

• Ensure the hopper is removed from the ANGELTM

• Ensure that there are no paintballs in the ANGELTM

mWARNING ADHERE STRICTLY TO THESE

AND ALL OTHER SAFETY

INSTRUCTIONS AND GUIDELINES

9

SWITCHING SENSiTM ON/OFF

EXTERNAL ELECTRONIC LED MENUS

SWITCHING SENSiTM ON/OFF

· Switch the ANGELTM ON.

· Press the RED button to enable SENSiTM – the SENSiTM LED will illuminate.

· Press the RED button again to disable SENSiTM – the SENSiTM LED will

extinguish.

EXTERNAL ELECTRONIC LED MENUS – SWITCHING SENSiTM ON/OFF

• Ensure a barrel blocking device is fitted to the ANGELTM

• Ensure the hopper is removed from the ANGELTM

• Ensure that there are no paintballs in the ANGELTM

mWARNING ADHERE STRICTLY TO THESE

AND ALL OTHER SAFETY

INSTRUCTIONS AND GUIDELINES

10

MROF

MROF (Maximum Rate Of Fire limit with SENSITM option OFF)

This allows you to tune your maximum rate of fire to your style of play and feed system.

Certain modes are capped or non-adjustable were applicable. The rate of fire should not

be set greater than your feed system is capable of delivering. This may be changed by

the external menu only when the SENSITM feature is switched off; the range of

adjustment is 11-22 shots per second.

· Switch the ANGELTM ON.

· Press the ORANGE button to scroll the menu until the MROF LED illuminates.

· Press the GREEN button to adjust the MROF to the level required.

MROF - 1 1 shots/sec

MROF - 16 shots/sec

MROF - 22 shots/sec

EXTERNAL ELECTRONIC LED MENUS – MROF

• Ensure a barrel blocking device is fitted to the ANGELTM

• Ensure the hopper is removed from the ANGELTM

• Ensure that there are no paintballs in the ANGELTM

mWARNING ADHERE STRICTLY TO THESE

AND ALL OTHER SAFETY

INSTRUCTIONS AND GUIDELINES

11

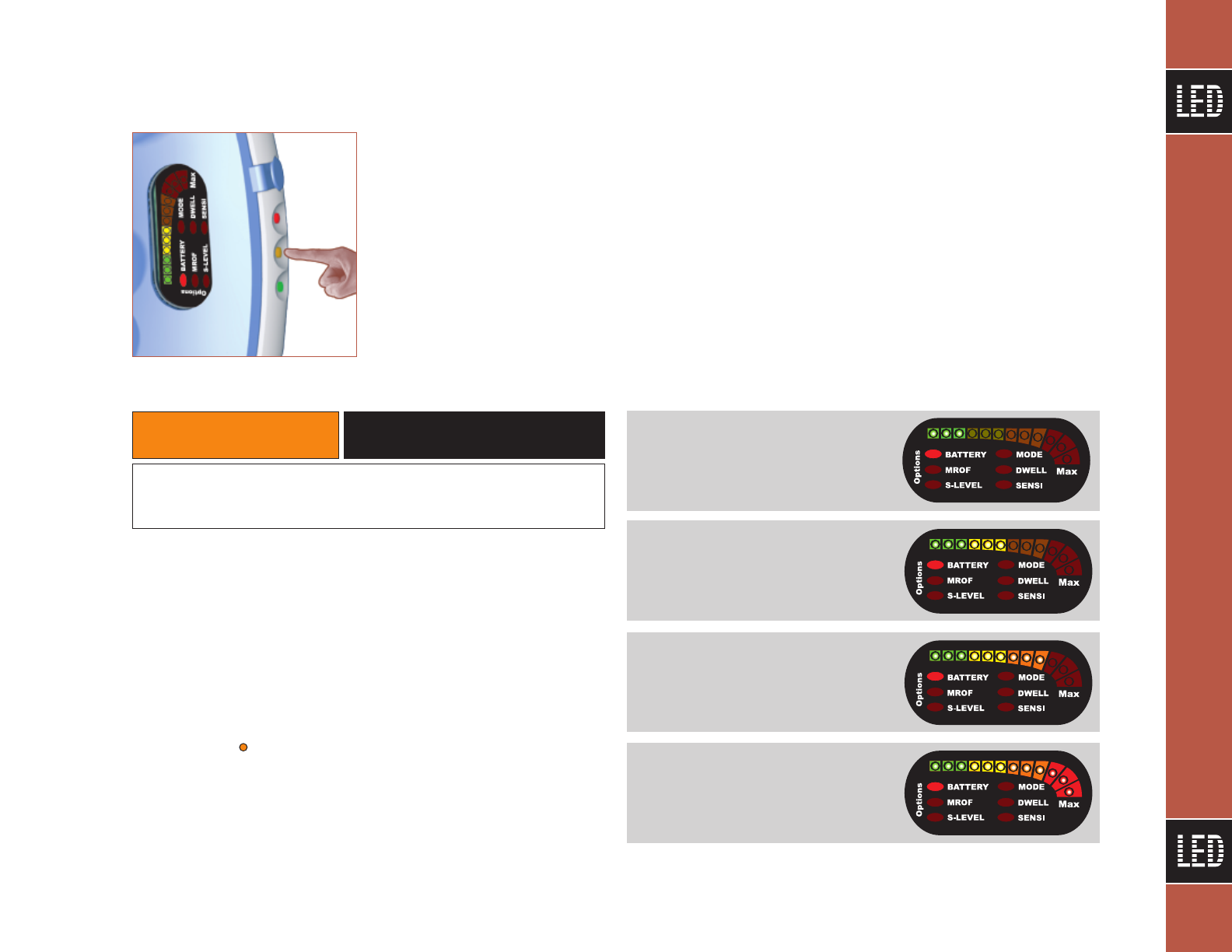

BATTERY STATUS

The battery status can be checked by two methods, the LED display bar graph will

indicate battery power remaining.

Method 1:

· Switch the ANGELTM ON.

· During Boot-Up, the battery status will be displayed.

Method 2:

· Switch the ANGELTM ON.

· Press the Orange button to scroll the display to the battery status menu.

Power is drawn whilst the ANGELTM has power connected. A battery will last

approximately 100 hours until it is discharged. To prevent this discharge ensure the

isolator switch is in the OFF position at the end of the day or event. The last segment

indicates that you have approximately 16,000 shots left.

25% (Quarter) POWER

50% (Half) POWER

75% (Three-Quarters) POWER

100% (Full) POWER

EXTERNAL ELECTRONIC LED MENUS – BATTERY STATUS

• Ensure a barrel blocking device is fitted to the ANGELTM

• Ensure the hopper is removed from the ANGELTM

• Ensure that there are no paintballs in the ANGELTM

mWARNING ADHERE STRICTLY TO THESE

AND ALL OTHER SAFETY

INSTRUCTIONS AND GUIDELINES

12

FACTORY SETTINGS

INTERNAL ELECTRONIC LED MENUS

· The ANGELTM has a number of features that can be adjusted to suit your individual

needs. These features that can change the performance of the gun are only

adjustable via the internal menu. This is to ensure that they pass tournament and

field operator requirements.

· The settings you have selected may be viewed externally but cannot be adjusted

externally.

· The menus can only be accessed when the marker is switched ON.

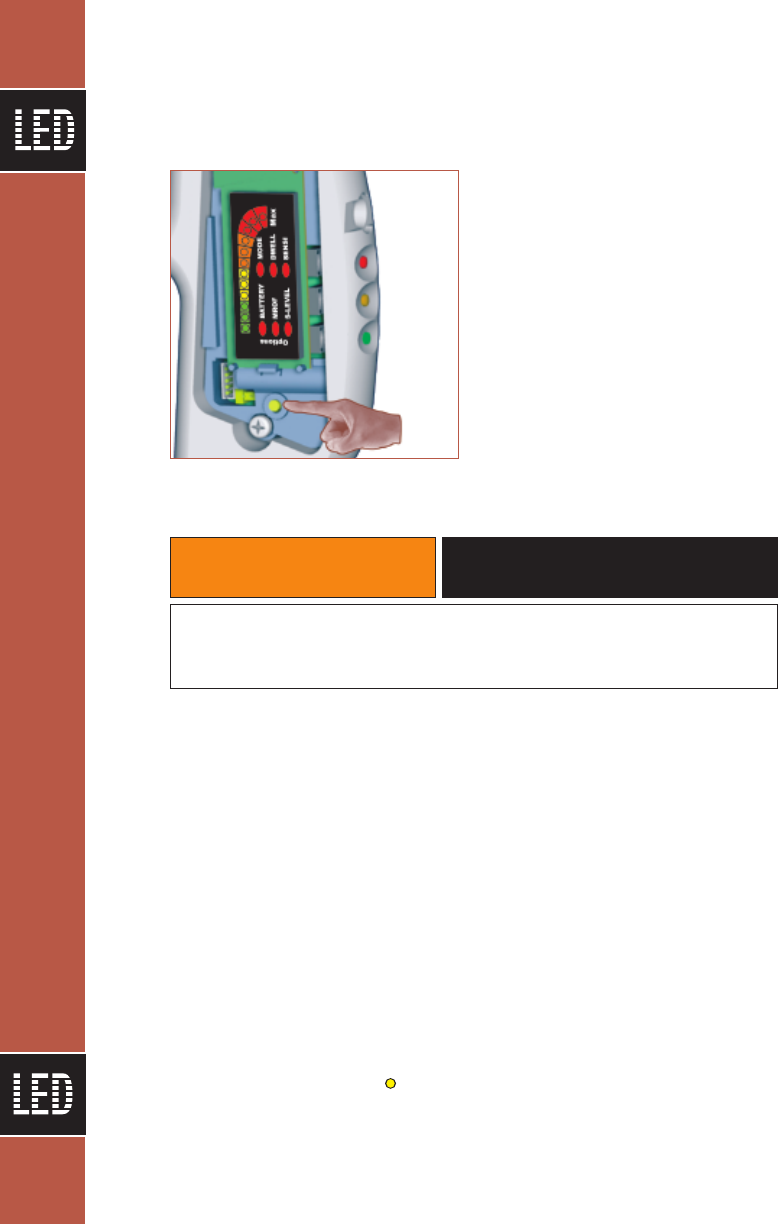

· Remove left hand grip cover screws to expose the circuit board.

· Follow the internal menu list diagrams for relevant settings.

· The ANGELTM has the unique feature that allows you to return to the factory

defaults settings by pressing and holding the internal menu button for 2 seconds.

FACTORY DEFAULT SETTING

· Press and hold the YELLOW until the whole display illuminates then release.

· The ANGELTM default settings have now been loaded.

INTERNAL ELECTRONIC LED MENUS – FACTORY SETTINGS

• Ensure a barrel blocking device is fitted to the ANGELTM

• Ensure the hopper is removed from the ANGELTM

• Ensure that there are no paintballs in the ANGELTM

mWARNING ADHERE STRICTLY TO THESE

AND ALL OTHER SAFETY

INSTRUCTIONS AND GUIDELINES

13

DWELL

· The ANGELTM has a number of features that can be adjusted to suit your individual

needs. These features that can change the performance of the gun are only

adjustable via the internal menu. This is to ensure that they pass tournament and

field operator requirements.

· The settings you have selected may be viewed externally but cannot be adjusted

externally.

· The menus can only be accessed when the marker is switched ON.

· Remove left hand grip cover screws to expose the circuit board.

· Follow the internal menu list diagrams for relevant settings.

Dwell controls the valve opening time. Longer dwell uses more gas and generates

pressure variables. Shorter dwell uses less gas and reduces noise, but is less tolerant of

poor quality paint the range available is 8–19 milliseconds.

· Switch the ANGELTM ON.

· Press the YELLOW button to scroll the menu until the DWELL LED illuminates.

· Press the GREEN button to adjust the DWELL to the level required.

IMPORTANT NOTE:

· Adjustment is only recommended if you wish to fine-tune your marker to specific

accessories.

DWELL - 8 milliseconds

DWELL - 12 milliseconds

DWELL - 19 milliseconds

INTERNAL ELECTRONIC LED MENUS – DWELL

• Ensure a barrel blocking device is fitted to the ANGELTM

• Ensure the hopper is removed from the ANGELTM

• Ensure that there are no paintballs in the ANGELTM

mWARNING ADHERE STRICTLY TO THESE

AND ALL OTHER SAFETY

INSTRUCTIONS AND GUIDELINES

14

SENSiTM MODES

· The ANGELTM has a number of features that can be adjusted to suit your individual

needs. These features that can change the performance of the gun are only

adjustable via the internal menu. This is to ensure that they pass tournament and

field operator requirements.

· The settings you have selected may be viewed externally but cannot be adjusted

externally.

· The menus can only be accessed when the marker is switched ON.

· Remove left hand grip cover screws to expose the circuit board.

· Follow the internal menu list diagrams for relevant settings.

· Switch the ANGELTM ON.

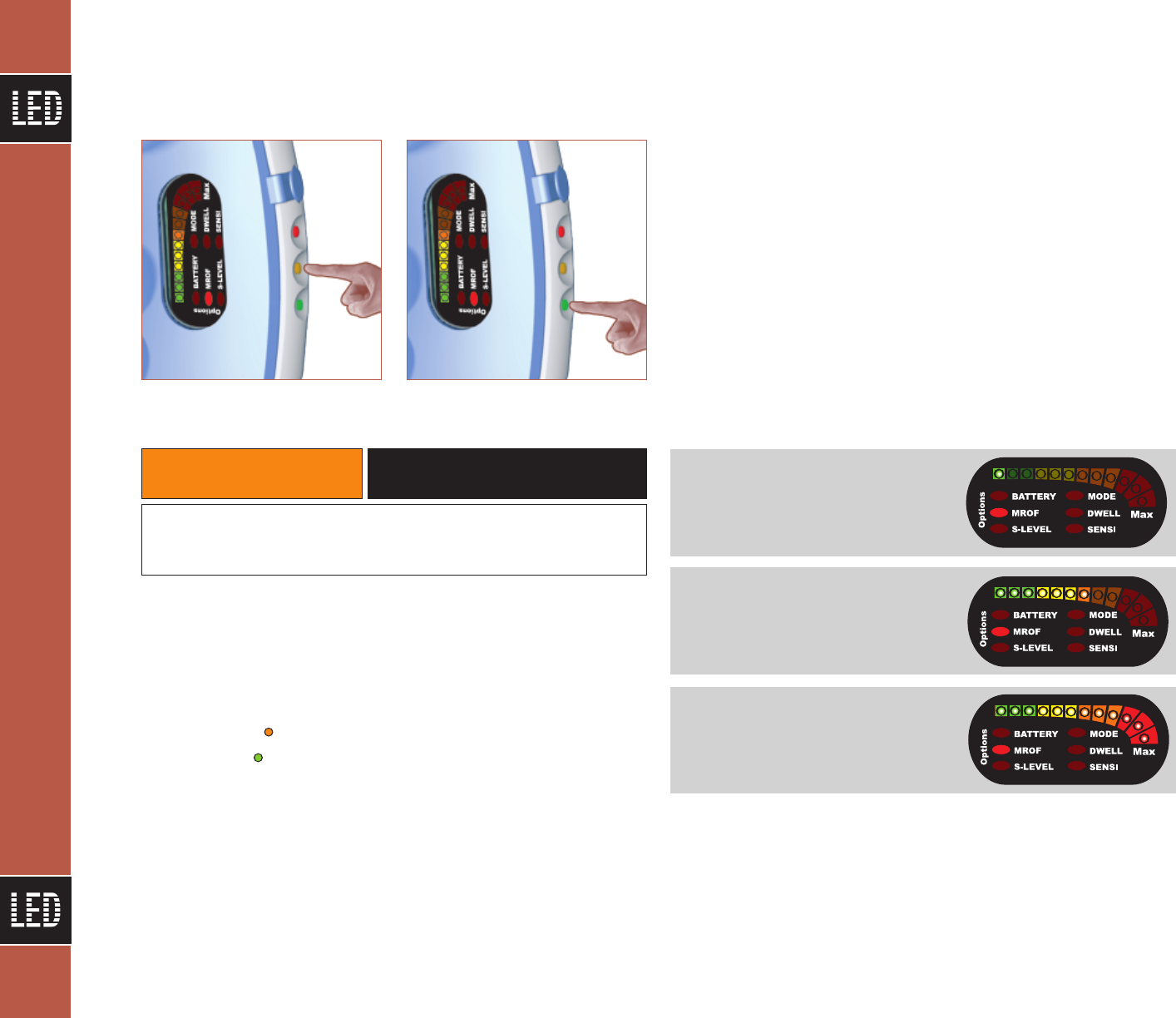

· Press the YELLOW button to scroll the menu until the MODE LED illuminates.

· Press the GREEN button to change the MODE.

The ANGELTM is supplied with four SENSiTM MODES and one Non-SENSiTM MODE.

SENSiTM MODE 1 has the following features:

· This mode is Semi-Auto and has a shorter cycle time resulting in higher peak

achievable rates of fire.

This SENSiTM Mode works on the following principles:

· Should a ball be detected within the window of opportunity, the ANGELTM will fire

in response to a trigger pull.

· Should a ball not be detected within the window of opportunity, the ANGELTM will

not fire and wait a small time period for the ball to be present.

· This Mode will not allow the ANGELTM to fire, unless a paintball is present, or

arrives during the window of opportunity. In such cases, it is necessary to release

and re-pull the trigger to initiate the next shot.

SENSiTM MODE 2 has the following features:

· This mode is Semi-Auto and has a shorter cycle time resulting in higher peak

achievable rates of fire.

This SENSiTM Mode works on the following principles:

· Should a ball be detected within the window of opportunity, the ANGELTM will fire

in response to a trigger pull.

· Should a ball not be detected within the window of opportunity, a small delay will

be added and the ANGELTM will fire after this delay irrespective of whether or not a

paintball is present.

· This Mode carries a risk of chopping a paintball, but negates the need for a release

and re-pull of the trigger to initiate the next shot.

SENSiTM MODE 1

SENSiTM MODE 2

INTERNAL ELECTRONIC LED MENUS – SENSiTM MODES

• Ensure a barrel blocking device is fitted to the ANGELTM

• Ensure the hopper is removed from the ANGELTM

• Ensure that there are no paintballs in the ANGELTM

mWARNING ADHERE STRICTLY TO THESE

AND ALL OTHER SAFETY

INSTRUCTIONS AND GUIDELINES

15

SENSiTM MODES

SENSiTM MODE 3 has the following features:

· This mode is Semi-Auto and has a longer cycle time resulting in more

sustainable rates of fire.

This SENSiTM Mode works on the following principles:

· Should a ball be detected within the window of opportunity, the ANGELTM will fire

in response to a trigger pull.

· Should a ball not be detected within the window of opportunity, the ANGELTM will

not fire and wait a small time period for the ball to be present.

· This Mode will not allow the ANGELTM to fire, unless a paintball is present, or

arrives during the window of opportunity. In such cases, it is necessary to release

and re-pull the trigger to initiate the next shot.

SENSiTM MODE 4 has the following features:

· This mode is Semi-Auto and has a longer cycle time resulting in more

sustainable rates of fire.

This SENSiTM Mode works on the following principles:

· Should a ball be detected within the window of opportunity, the ANGELTM will fire

in response to a trigger pull.

· Should a ball not be detected within the window of opportunity, a small delay will

be added and the ANGELTM will fire after this delay irrespective of whether a not a

paintball is present.

· This Mode carries a risk of chopping a paintball, but negates the need for a release

and re-pull of the trigger to initiate the next shot.

Non-SENSiTM OPTION

Whenever SENSiTM is switched OFF, the ANGELTM will revert to Non-SENSiTM semi-

automatic mode only. See SWITCHING SENSiTM ON/OFF - page 9.

Whenever the SENSiTM is switched ON, the ANGELTM will revert to whatever semi-mode is

selected by the user.

The user has the option of setting the MROF to suit their loader. See MROF - page 10.

SENSiTM MODE 3

SENSiTM MODE 4

16

MAINTENANCE

GENERAL CARE & CLEANING

The ANGELTM should be cleaned externally using a synthetic oil moistened cloth only.

Under no circumstances should you use hydrocarbon based oils, as these

will cause irrevocable damage to the internal seals, e.g.: WD40, Vaseline, Duck

Oil, Engine oil, Plus Gas, 3in1. The suitable oil is LOVE JUICE OILTM.

The ram shaft and internal parts that are accessible during disassembly and reassembly

should be lubricated with LOVE JUICE EXTREME GREASETM. The frequency of lubrication

should be at least every event or 8000 shots for oil lubrication and 20,000 shots for

grease lubrication. The ANGELTM should never be immersed into water otherwise

damage may occur to the electronics. The electronics are moisture/damp proof to IP65.

Ensure correct tools are used.

IMPORTANT NOTES: For General Maintenance

· No solvents or abrasive cleaning products should be used. All external and internal

accessible moving parts should be lubricated using light synthetic oil only.

· All threads are metric except gun accessory mountings onto the grip frame,

which is industry standard 10/32 UNF at centres 0.75 inches. The screw thread

length must not exceed 0.375 inches (10mm) into the bottom of the frame

otherwise damage will occur to the electronics. We recommend that you

remove the left-hand cheek cover and ensure the screws do not project into the

circuit board cavity when fitting.

MAINTENANCE – GENERAL CARE & CLEANING

• Always wear industrial standard eye protection when performing any

maintenance on the ANGELTM

mWARNING ADHERE STRICTLY TO THESE

AND ALL OTHER SAFETY

INSTRUCTIONS AND GUIDELINES

• Ensure a barrel blocking device is fitted to the ANGELTM

• Ensure the hopper is removed from the ANGELTM

• Ensure that there are no paintballs in the ANGELTM

• Always remove the first stage regulator and relieve all residual gas pressure

from the ANGELTM before disassembly.

• The ANGELTM can hold a small residual charge of gas, typically 2 shots, with the

first stage regulator removed. Always discharge the marker in a safe direction to

relieve this residual gas pressure.

mWARNING ADHERE STRICTLY TO THESE

AND ALL OTHER SAFETY

INSTRUCTIONS AND GUIDELINES

17

SUB-ASSEMBLIES

MAINTENANCE – SUB-ASSEMBLIES

FLASH TANK ASSEMBLY

SOLENOID ASSEMBLY

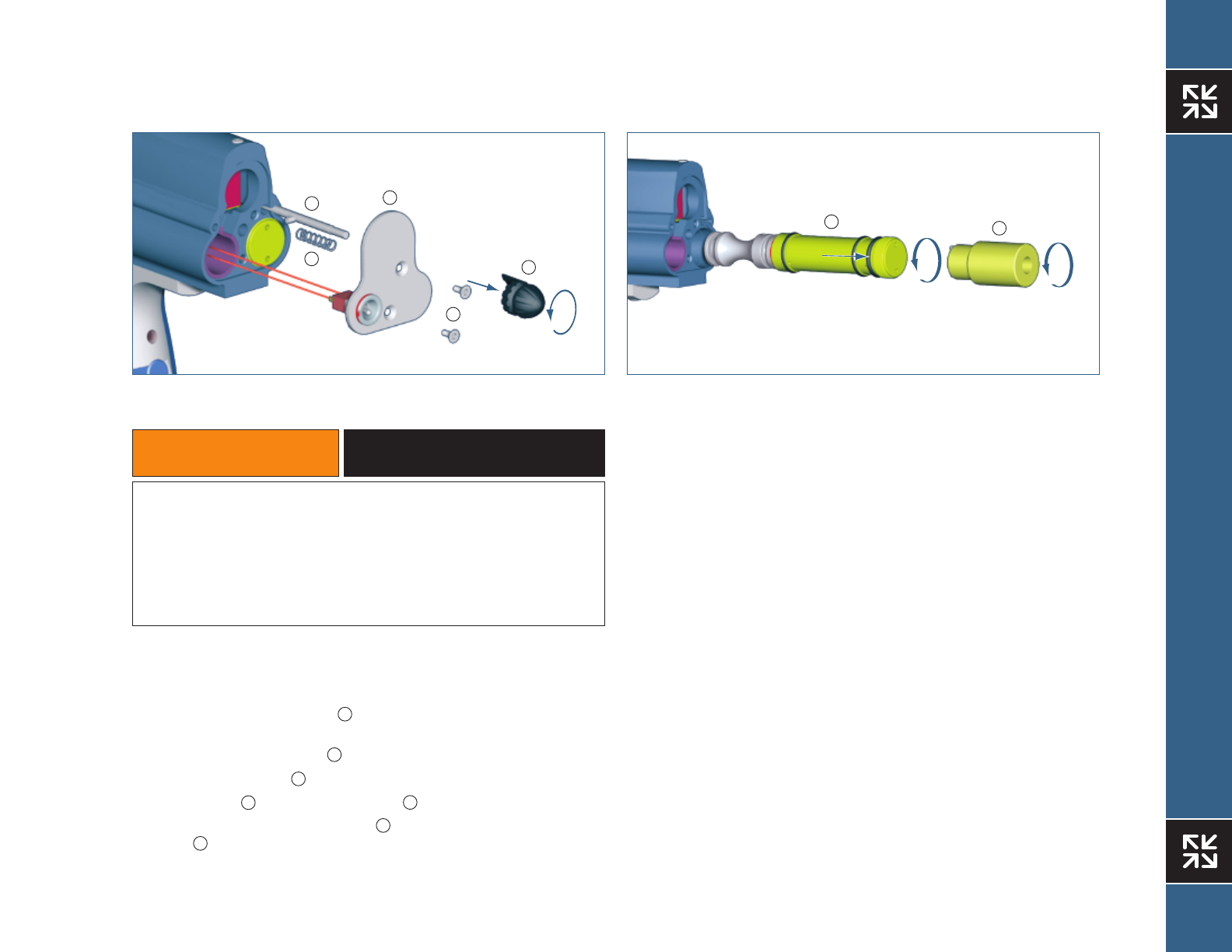

SENSITM ASSEMBLY SENSITM SENSOR LOCATION

18

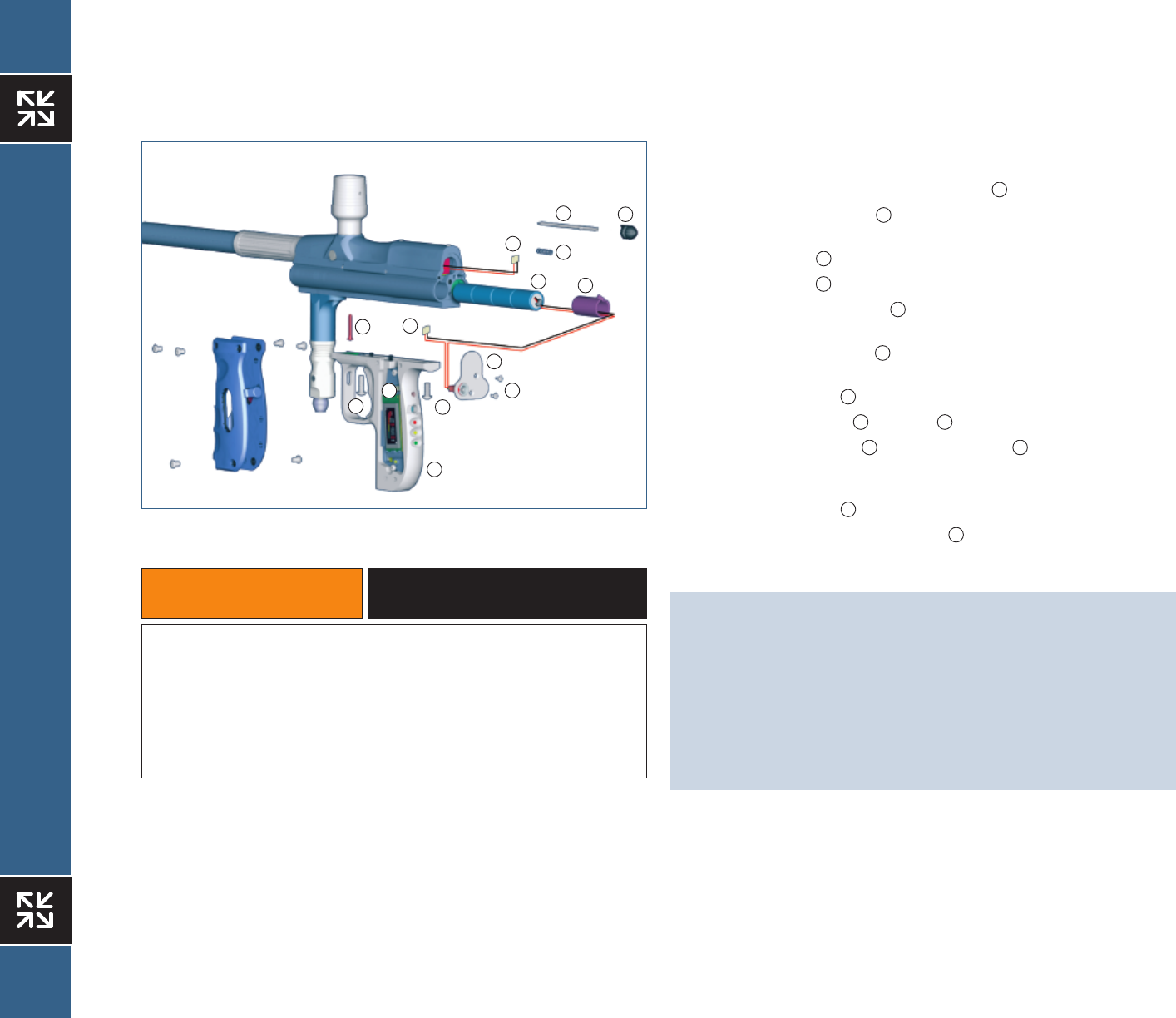

GENERAL ASSEMBLY, LEFT HAND VIEW

MAINTENANCE – GENERAL ASSEMBLY, LEFT HAND VIEW

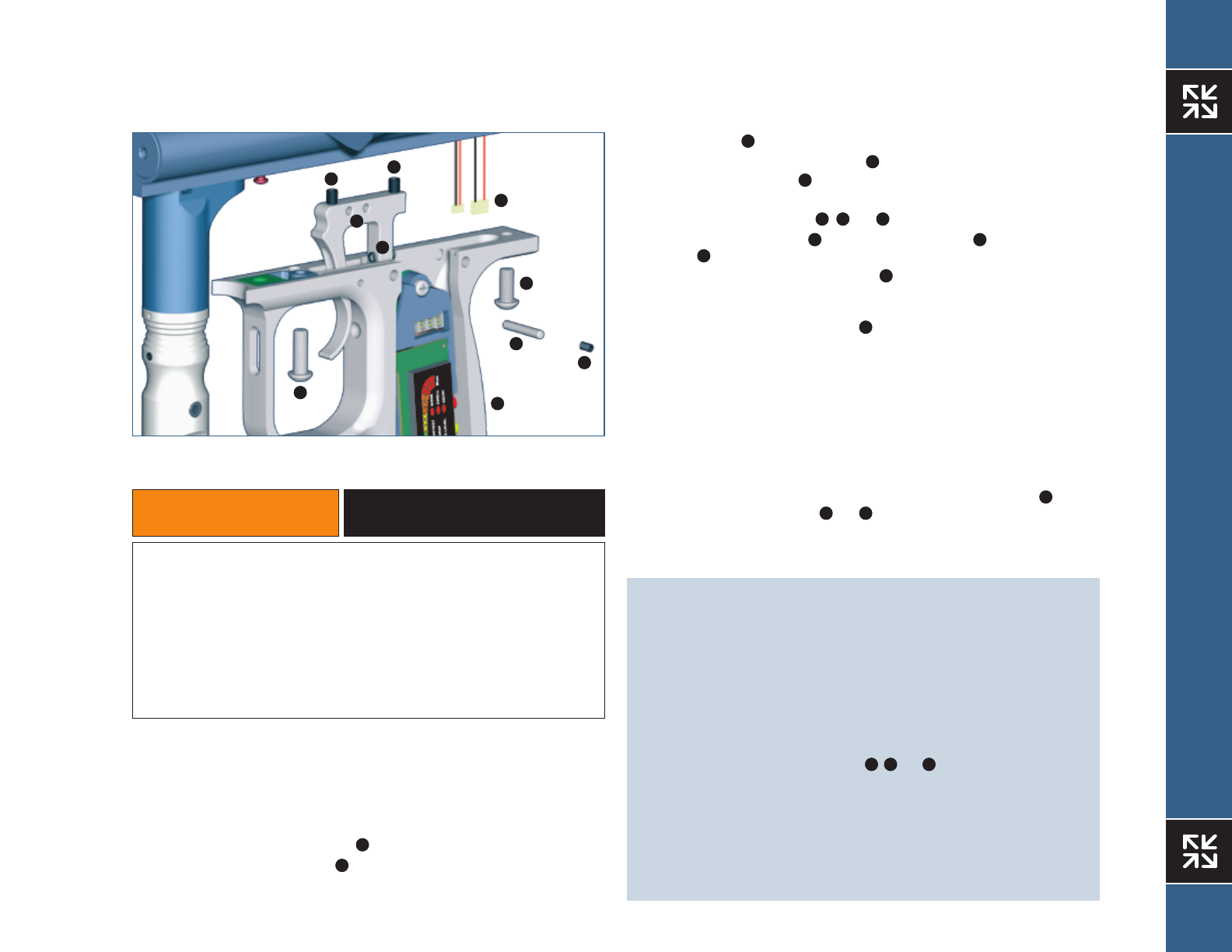

SOLENOID

ASSEMBL

COVER PLATE

PULL PIN ASSEMBLY

RAM ASSEMBLY

BACK PLATE

GRIP FRAME

SENSITM

ASSEMBLY

FLASH TANK

ASSEMBLY

MINI-REG

ASSEMBLY

EXHAUST VALVE

ASSEMBLY

END

PLUG

19

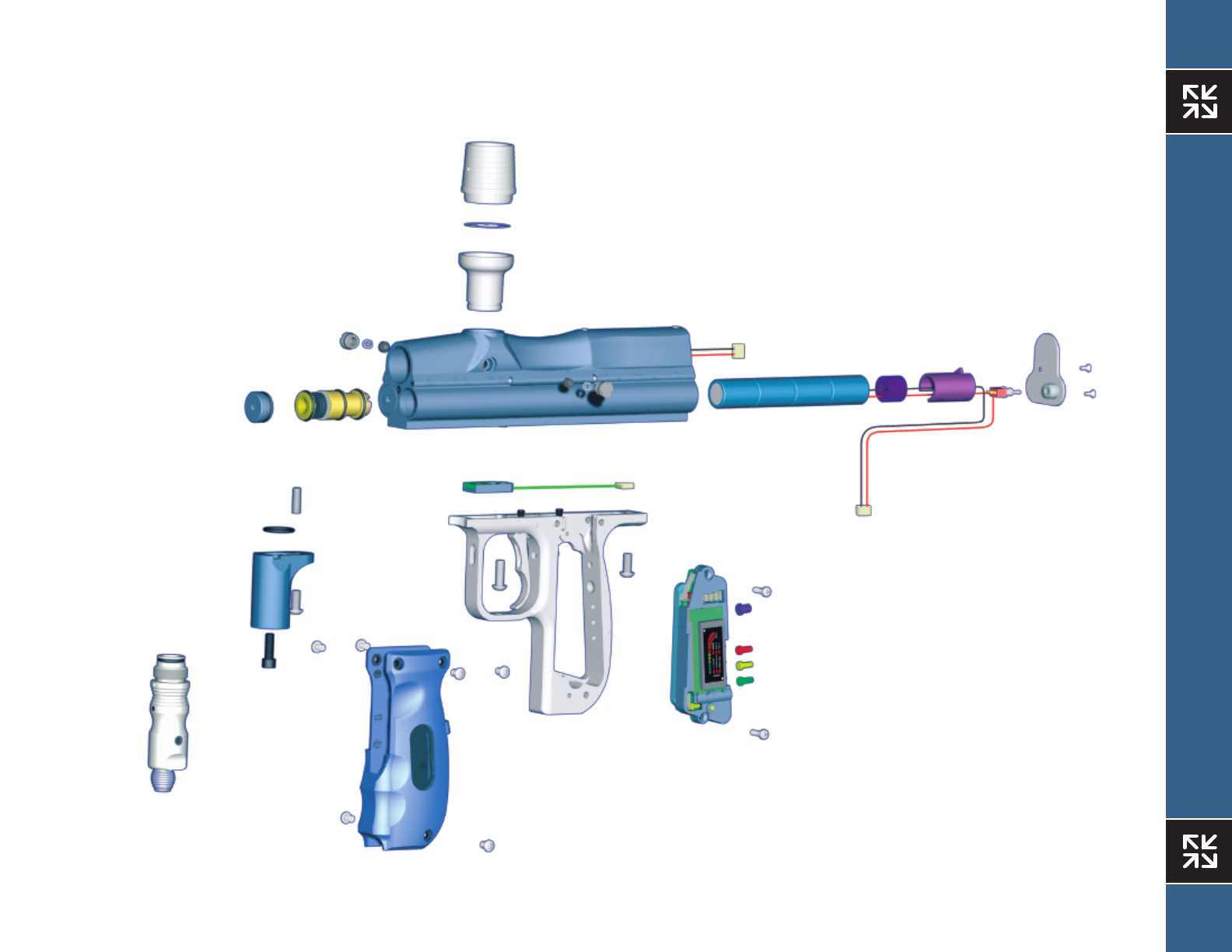

GENERAL ASSEMBLY, RIGHT HAND VIEW

MAINTENANCE – GENERAL ASSEMBLY, RIGHT HAND VIEW

FLASH TANK

ASSEMBLY

GRIP FRAME

SENSITM

SENSOR

MINI-REG

ASSEMBLY

GATED FEEDTM

ASSEMBLY

LPR

ASSEMBLY

ANTI-DOUBLE BALL

DETENT ASSEMBLY

GRIP CHEEK

ASSEMBLY

CONTROL

BUTTONS

PCB

ASSEMBLY

BATTERY ASSEMBLY

END

PLUG

20

MINI-REGULATOR SERVICE

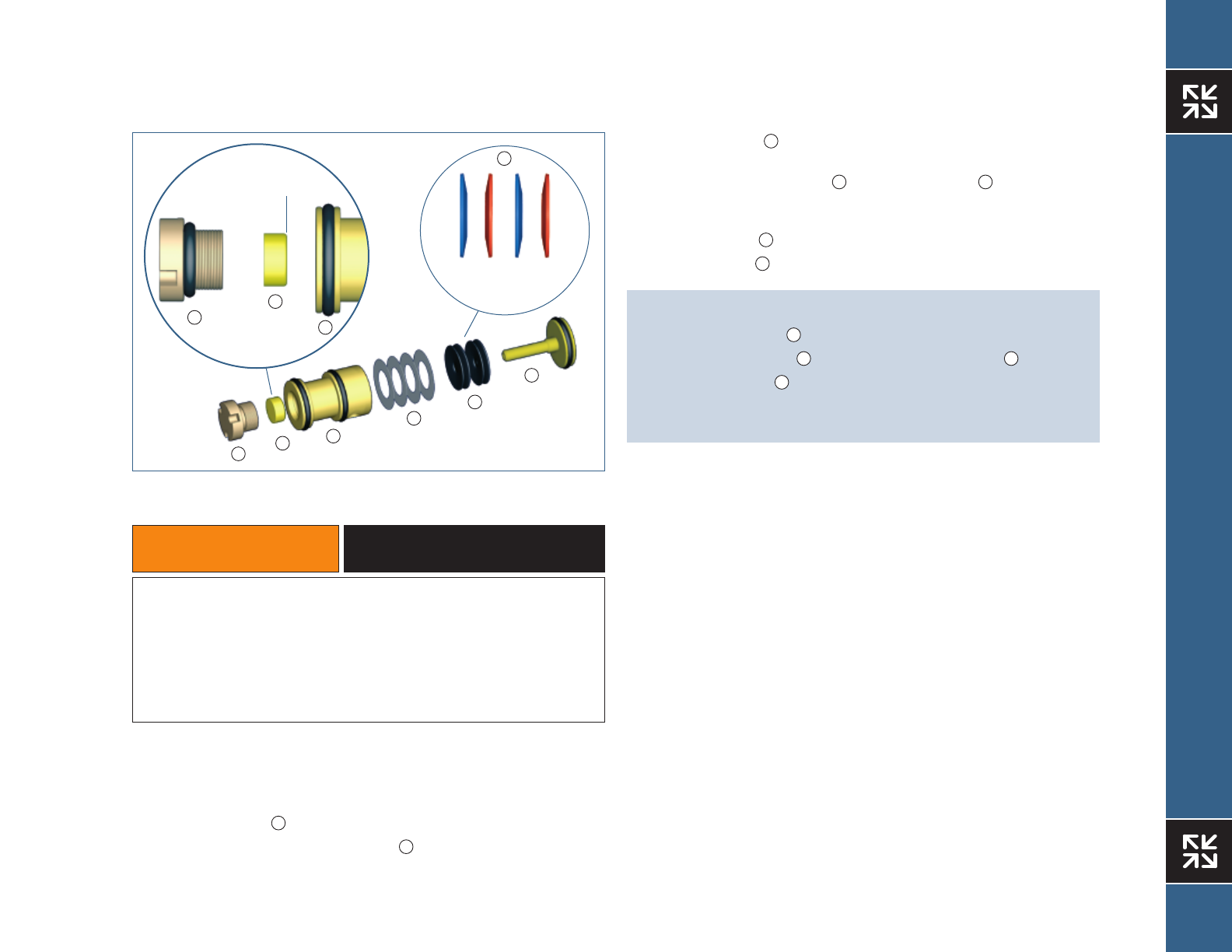

The mini-regulator is a second stage regulator that is used to control the velocity and

regulate the gas pressure. It can be deleted only if a suitable first stage regulator is used

that incorporates a high flow and good regulation properties across the tank pressure

range. The thread interface is to ASTM industry standard form.

· Remove the macro line hose from the mini regulator by following the procedure

and warnings given in PROPELLANT AIR/NITROGEN SUPPLY - page 5.

· Remove the mini-regulator from the flash tank by screwing counter- clockwise.

· Remove the circlip using circlip pliers.

· Invert the mini-regulator body and tap it down firmly onto a smooth surface to

shock the internals out of the mini-regulator body.

· Ensure the large piston , Spring stack , small piston and the ball bearing

are removed.

· Inspect the O rings for damage and replace if necessary.

· Inspect the small piston face seal for damage and replace the whole small piston

if necessary.

· Inspect the large piston sealing face for damage and replace the whole large

piston if necessary.

IMPORTANT NOTES: For re-assembly of components

· Due care and attention must be shown to ensure you do not score or damage

the bores within the mini-regulator body whilst performing maintenance.

· If the small piston or large piston seal faces are damaged the must be replaced

· We recommend that you lubricate the parts during re-assembly with Love Juice

Extreme GreaseTM.

· Ensure the spring stack is in the correct order.

· Ensure the circlip is re-located correctly in the groove.

· Ensure you follow the procedure and warnings given in PROPELLANT

AIR/NITROGEN SUPPLY - page 5, when re-attaching the micro-line hose.

1 2 3 4 5 6 8 9 10  11  12  13 7

1 2 3 4 5 6 8 9 10 11 12 137

1 2 3 4 5 6 8 9 10  11  12  13 7

MAINTENANCE – MINI-REGULATOR SERVICE

• Ensure a barrel blocking device is fitted to the ANGELTM

• Ensure the hopper is removed from the ANGELTM

• Ensure that there are no paintballs in the ANGELTM

• Always remove the first stage regulator and relieve all residual gas pressure

from the ANGELTM before disassembly.

• The ANGELTM can hold a small residual charge of gas, typically 2 shots, with the

first stage regulator removed. Always discharge the marker in a safe direction to

relieve this residual gas pressure.

mWARNING ADHERE STRICTLY TO THESE

AND ALL OTHER SAFETY

INSTRUCTIONS AND GUIDELINES

1 2 3 4 5 6 8 9 10  11  12  13 7

SERVICEABLE O-RINGS

SPRING STACK

ORDER

1 2 3 4 5 6 8 9 10  11  12  13 7

21

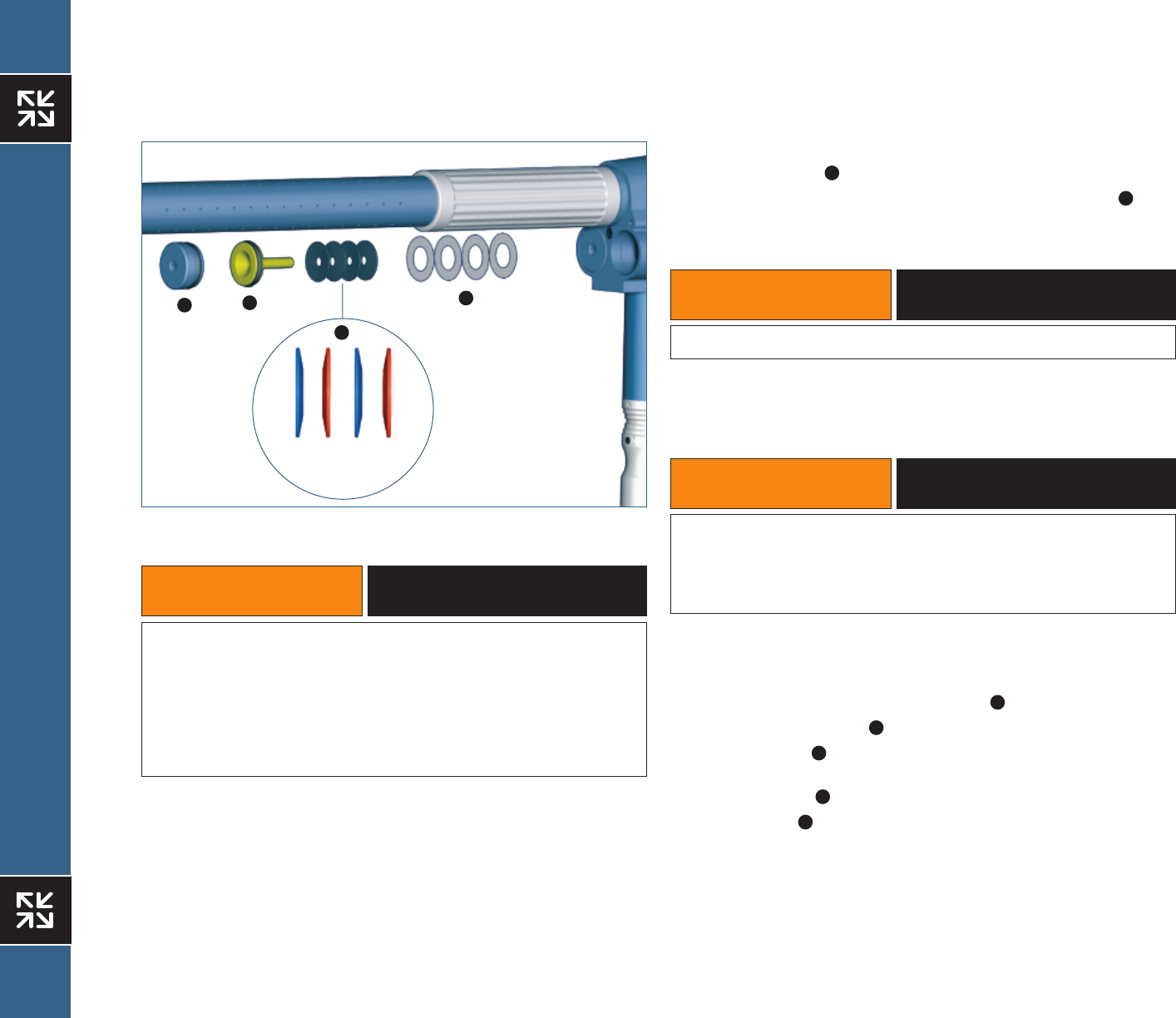

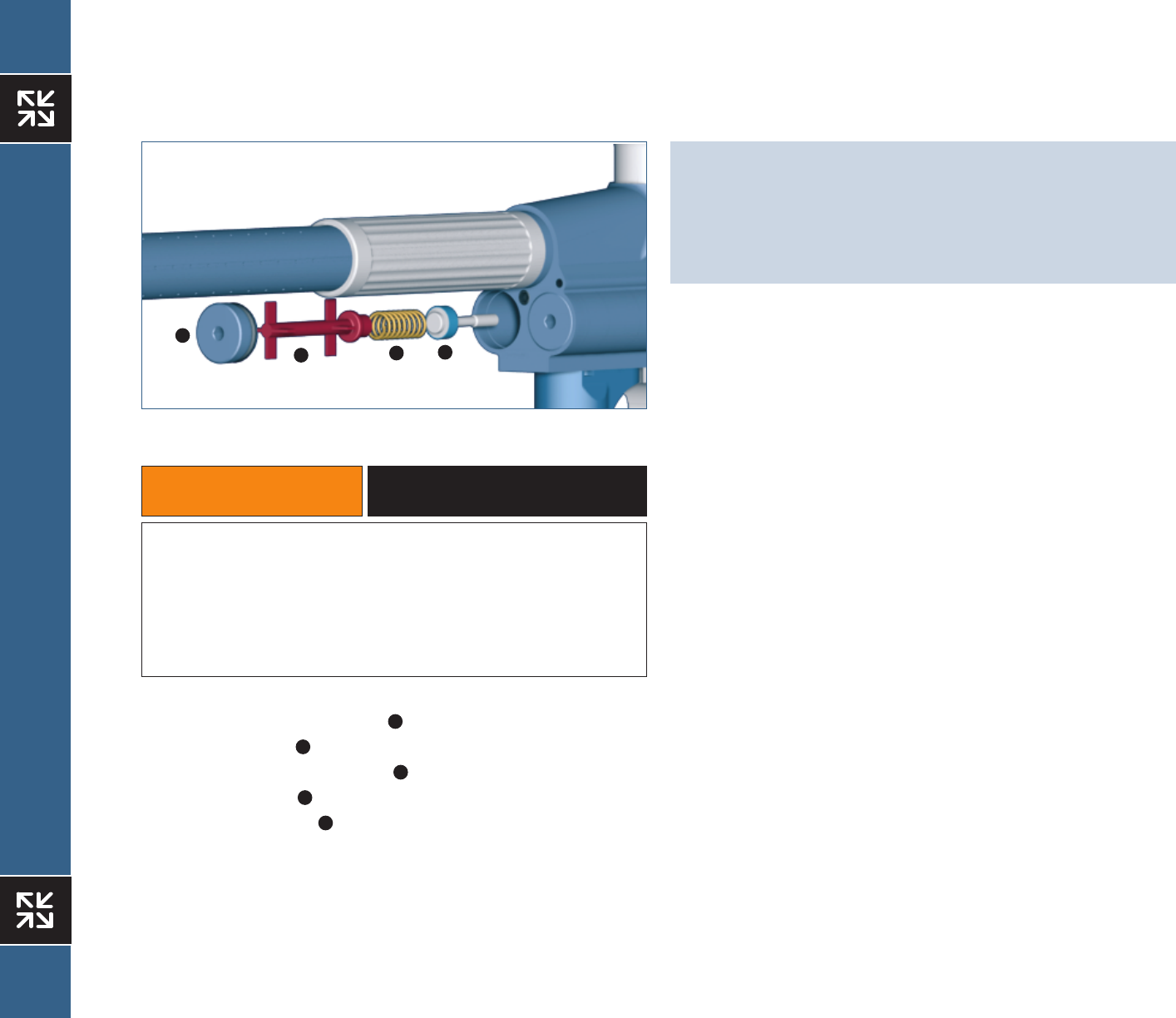

ANTI-DOUBLE BALL DETENT SERVICE

There are two anti-double ball assemblies that can be removed and the internal parts

serviced if necessary. These are located on either side of the body below the feed tube.

· Using a coin, rotate the anti-double ball assembly counter-clockwise to remove the

anti-double case .

· Remove the spring .

· Remove the anti-double ball .

· Repeat for other side.

· Inspect parts and replace if necessary.

IMPORTANT NOTES: For re-assembly of components

· Due care and attention must be shown to ensure you do not mark the

anti-double ball case or ANGELTM body whilst performing maintenance.

· Ensure the anti-double ball is re-located correctly.

· Ensure the spring is located correctly onto the anti-double ball.

· Ensure the anti-double ball cases are inserted correctly into the

ANGELTM body.

1 2 3 4 5 6 8 9 10  11  12  13 7

MAINTENANCE – ANTI-DOUBLE BALL DETENT SERVICE

• Ensure a barrel blocking device is fitted to the ANGELTM

• Ensure the hopper is removed from the ANGELTM

• Ensure that there are no paintballs in the ANGELTM

• Always remove the first stage regulator and relieve all residual gas pressure

from the ANGELTM before disassembly.

• The ANGELTM can hold a small residual charge of gas, typically 2 shots, with the

first stage regulator removed. Always discharge the marker in a safe direction to

relieve this residual gas pressure.

mWARNING ADHERE STRICTLY TO THESE

AND ALL OTHER SAFETY

INSTRUCTIONS AND GUIDELINES

1 2 3 4 5 6 8 9 10  11  12  13 7

22

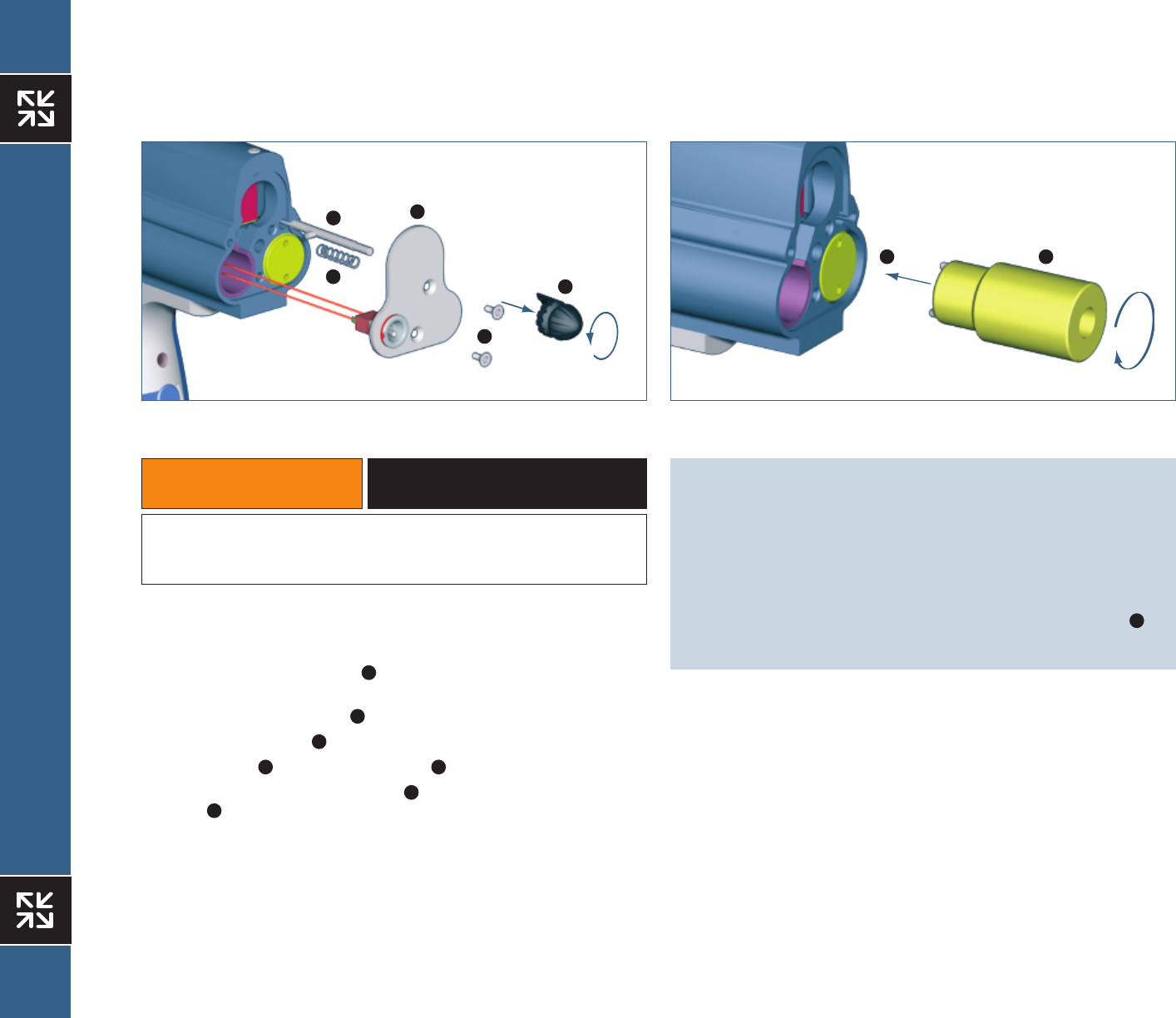

LPR ADJUSTMENT

The low-pressure regulator controls the pneumatic cycle of the ANGELTM and is located

in the right-hand chamber at the front of the ANGELTM body. The pressure needs to be at

82 PSI (5.7) output at a pressure of 350 PSI at the second stage regulator.

LPR adjustment is achieved by the removal of shims. Each shim equals approximately

5 PSI/0.35 BAR. We recommend the use of the optional service tools and lubrication of parts

with Love Juice Extreme GreaseTM only (see general assembly diagrams - pages 17-18).

· Ensure the ANGELTM is de-gassed and switched OFF.

· Remove the left end cap using suitable metric 4.0 A/F Allen key.

· Insert the optional pressure gauge adaptor into the hole that the end cap was

removed from.

· Re-Gas the ANGELTM and switch the ANGELTM ON.

· Fire 6 shots with NO paintballs present to stabilize the LPR pressure.

Note the pressure reading. Should the reading be too high or low, proceed to the

next stage.

· Ensure the ANGELTM is degassed and switched OFF.

· Remove the pressure gauge adaptor and insert an M 2.5mm screw or the piston

extracting tool (optional extra) into the brass piston and withdraw slowly.

· Remove the four piston springs .

· Add or subtract shims as necessary, note the number of shims may vary from

the diagram shown (maximum 20).

· Replace piston springs in correct order onto the piston.

· Re-insert the piston ensuring that it is located correctly.

· Insert the optional pressure gauge adaptor into the hole that the end cap was

removed from.

· Re-Gas the ANGELTM and switch the ANGELTM ON.

1 2 3 4 5 6 8 9 10  11  12  13 7

1 2 3 4 5 6 8 9 10  11 7

1 2 3 4 5 6 8 9 10  11  12  13 7

MAINTENANCE – LPR ADJUSTMENT

• Ensure a barrel blocking device is fitted to the ANGELTM

• Ensure the hopper is removed from the ANGELTM

• Ensure that there are no paintballs in the ANGELTM

• Always remove the first stage regulator and relieve all residual gas pressure

from the ANGELTM before disassembly.

• The ANGELTM can hold a small residual charge of gas, typically 2 shots, with the

first stage regulator removed. Always discharge the marker in a safe direction to

relieve this residual gas pressure.

mWARNING ADHERE STRICTLY TO THESE

AND ALL OTHER SAFETY

INSTRUCTIONS AND GUIDELINES

• The ANGELTM is live and capable of discharging.

mWARNING ADHERE STRICTLY TO THESE

AND ALL OTHER SAFETY

INSTRUCTIONS AND GUIDELINES

• Always remove the first stage regulator and relieve all residual gas pressure

from the ANGELTM before disassembly.

• The ANGELTM can hold a small residual charge of gas, typically 2 shots, with the

first stage regulator removed. Always discharge the marker in a safe direction to

relieve this residual gas pressure.

mWARNING ADHERE STRICTLY TO THESE

AND ALL OTHER SAFETY

INSTRUCTIONS AND GUIDELINES

SPRING STACK

ORDER

1 2 3 4 5 6 8 9 10  11  12  13 7

23

LPR ADJUSTMENT

· Verify the LPR pressure by following the procedure described above.

· Once the desired pressure has been achieved proceed to the next stage.

· Ensure the ANGELTM is degassed and switched OFF.

· Remove the pressure gauge adaptor & replace the end cap .

1 2 3 4 5 6 8 9 10  11  12  13 7

LPR ADJUSTMENT Continued

• The ANGELTM is live and capable of discharging.

mWARNING ADHERE STRICTLY TO THESE

AND ALL OTHER SAFETY

INSTRUCTIONS AND GUIDELINES

• Always remove the first stage regulator and relieve all residual gas pressure

from the ANGELTM before disassembly.

• The ANGELTM can hold a small residual charge of gas, typically 2 shots, with the

first stage regulator removed. Always discharge the marker in a safe direction to

relieve this residual gas pressure.

mWARNING ADHERE STRICTLY TO THESE

AND ALL OTHER SAFETY

INSTRUCTIONS AND GUIDELINES

24

LPR ASSEMBLY REMOVAL

· Unscrew and remove the mini regulator .

· Remove the flash tank internal retaining screw using a 4.0mm A/F Allen key.

· Remove flash tank external retaining screw using a 3.0mm A/F Allen key.

· Ensure O ring is not lost.

· Remove LPR retaining pin using suitable grips.

· Remove the right end cap using suitable metric 4.0mm A/F Allen key.

· Insert an M 2.5mm screw or the piston extracting tool (optional extra) into the

brass piston and withdraw slowly.

· Remove the 4 piston spring stack .

· Remove the shims , Note: the number of shims may vary from shown diagram.

· Using a suitable blunt pick, carefully withdraw the LPR body .

IMPORTANT NOTES: For re-assembly of components

· Care must be taken so that the bore is not scored or the seals damaged.

· Ensure the LPR’s pin location hole is aligned with the pin retaining hole within the

ANGELTM body prior to insertion.

· Ensure the spring stack is inserted in the correct order.

· We recommend that you verify your LPR pressure if it has been removed

(see LPR ADJUSTMENT procedure - page 22).

· Ensure the end cap is located correctly.

· Ensure the springs or shims are not lost (see LPR assembly). Insert or remove

shims as necessary.

· Each shim equals approximately 5 PSI/0.35 BAR.

1 2 3 4 5 6 8 9 10  11  12  13 7

MAINTENANCE – LPR ASSEMBLY REMOVAL

• Ensure a barrel blocking device is fitted to the ANGELTM

• Ensure the hopper is removed from the ANGELTM

• Ensure that there are no paintballs in the ANGELTM

• Always remove the first stage regulator and relieve all residual gas pressure

from the ANGELTM before disassembly.

• The ANGELTM can hold a small residual charge of gas, typically 2 shots, with the

first stage regulator removed. Always discharge the marker in a safe direction to

relieve this residual gas pressure.

mWARNING ADHERE STRICTLY TO THESE

AND ALL OTHER SAFETY

INSTRUCTIONS AND GUIDELINES

1 2 3 4 5 6 8 9 10  11  12  13 7

SPRING STACK

ORDER

1 2 3 4 5 6 8 9 10  11  12  13 7

25

LPR MAIN SEAL REPLACEMENT

The LPR may be serviced once it has been removed by following the LPR ASSEMBLY

REMOVAL procedure on page 24. The serviceable parts are the external O rings and the

internal main seal.

· Remove the LPR piston .

· Remove the LPR spring stack noting the order .

· Remove the LPR shims , Note: the number of shims may vary from shown

diagram.

· Remove the LPR main seal retainer nut from the LPR body using a suitable

tool. To prevent the body from rotating in your hand you may insert the LPR lock

pin into the LPR body to give some leverage.

· Remove the main seal noting the radius on the edge of the seal.

· Discard the main seal and replace with new item.

IMPORTANT NOTES: For re-assembly of components

· Ensure the new main seal is replaced with the radius edge going in first.

· Ensure the seal retainer nut is tight and flush with the LPR body .

· Ensure the spring stack is in the correct order.

· Ensure that the LPR pressure is reset as per LPR ADJUSTMENT

procedure - page 22.

1 2 3 4 5 6 8 9 10  11  12  13 7

MAINTENANCE – LPR MAIN SEAL REPLACEMENT

• Ensure a barrel blocking device is fitted to the ANGELTM

• Ensure the hopper is removed from the ANGELTM

• Ensure that there are no paintballs in the ANGELTM

• Always remove the first stage regulator and relieve all residual gas pressure

from the ANGELTM before disassembly.

• The ANGELTM can hold a small residual charge of gas, typically 2 shots, with the

first stage regulator removed. Always discharge the marker in a safe direction to

relieve this residual gas pressure.

mWARNING ADHERE STRICTLY TO THESE

AND ALL OTHER SAFETY

INSTRUCTIONS AND GUIDELINES

1 2 3 4 5 6 8 9 10  11  12  13 7

RADIUS

SPRING STACK

ORDER

26

EXHAUST VALVE STEM REMOVAL

· Unscrew and remove the mini regulator .

· Remove the left end cap using suitable metric 4.0mm A/F Allen key.

· Remove the valve spring support bobbin .

· Remove the valve spring .

· Remove exhaust valve stem .

IMPORTANT NOTES: For re-assembly of components

· Ensure exhaust valve is located in exhaust body within the ANGELTM.

· Ensure the spring is located onto the exhaust valve stem.

· Ensure the spring is located onto the valve spring support bobbin.

· Ensure the end cap is located correctly.

1 2 3 4 5 6 8 9 10  11  12  13 7

MAINTENANCE – EXHAUST VALVE STEM REMOVAL

• Ensure a barrel blocking device is fitted to the ANGELTM

• Ensure the hopper is removed from the ANGELTM

• Ensure that there are no paintballs in the ANGELTM

• Always remove the first stage regulator and relieve all residual gas pressure

from the ANGELTM before disassembly.

• The ANGELTM can hold a small residual charge of gas, typically 2 shots, with the

first stage regulator removed. Always discharge the marker in a safe direction to

relieve this residual gas pressure.

mWARNING ADHERE STRICTLY TO THESE

AND ALL OTHER SAFETY

INSTRUCTIONS AND GUIDELINES

1 2 3 4 5 6 8 9 10  11  12  13 7

27

EXHAUST GUIDE REMOVAL

· Remove the grip cheek cover by removing the 6 retaining screws and using a

metric 2.5mm A/F Allen key.

· Unplug the battery and solenoid plugs .

· Remove the 2 grip frame screws holding the frame to the body using a suitable

3mm A/F Allen key.

· Remove the grip frame from the body.

· Ensure the SENSITM rod is not lost.

· Pull out the exhaust valve retaining pin located in the body using suitable grips.

· Remove the left end cap using suitable metric 4.0mm A/F Allen key.

· Remove the valve spring support bobbin .

· Remove the valve spring .

· Remove exhaust valve stem .

· Using a suitable blunt hooked pick carefully retract exhaust valve guide by

inserting the pick into the exhaust valve hole that the exhaust valve stem located into.

· Inspect and service parts as necessary..

IMPORTANT NOTES: For re-assembly of components

· Care must be taken so that the bore is not scored or the seals damaged.

· Ensure the exhaust valve guide body is free from damage that may score the bore.

· Ensure you do not damage the exhaust valve guide sealing face.

· Ensure the location hole in the exhaust valve guide is in the correct orientation to

the lock hole within the main body prior to refitting.

· Slowly insert the valve guide pushing it down with a blunt soft faced rod,

· When the holes line up insert the lock pin into the hole.

· Ensure the SENSiTM rod is re-inserted.

· Ensure no wires become trapped between the body and grip frame during

re-assembly.

· Ensure the plugs are located in the correct sockets.

1 2 3 4 5 6 8 9 10  11  12  13 7

MAINTENANCE – EXHAUST GUIDE REMOVAL

• Ensure a barrel blocking device is fitted to the ANGELTM

• Ensure the hopper is removed from the ANGELTM

• Ensure that there are no paintballs in the ANGELTM

• Always remove the first stage regulator and relieve all residual gas pressure

from the ANGELTM before disassembly.

• The ANGELTM can hold a small residual charge of gas, typically 2 shots, with the

first stage regulator removed. Always discharge the marker in a safe direction to

relieve this residual gas pressure.

mWARNING ADHERE STRICTLY TO THESE

AND ALL OTHER SAFETY

INSTRUCTIONS AND GUIDELINES

1 2 3 4 5 6 8 9 10  11  12  13 7

28

RAM STROKE ADJUSTMENT

· Ensure the ANGELTM is gassed and switched OFF.

· Ensure bolt is fully retracted.

· Remove the breech block pull knob by gently pulling and unscrewing

counter-clockwise.

· Remove the countersunk screws, using a suitable 2.0mm A/F metric Allen key.

· Carefully lift the back plate off.

· Retract the spring and breech block lock pin .

· Using circlip pliers or the ram location tool optional accessory rotate ram

assembly clockwise until slight resistance is felt in opening the breech block.

If rotated too far the breech will not open so rotate counter-clockwise and repeat

operation. The ram must always be rotated clockwise when setting.

IMPORTANT NOTES: For re-assembly of components

· There are wires attached to the back plate and a spring is located under the back

plate. Care must be taken so that the wires are not pulled or trapped during

maintenance.

· The ram must always be rotated clockwise when setting.

· Ensure the spring is replaced correctly

· Ensure the breech block opens correctly after refitting the breech block knob .

· Ensure that no wires become trapped during re-assembly.

1 2 3 4 5 6 8 9 10  17

1 2 3 4 5 6 8 9 10  11  12  13 7

MAINTENANCE – RAM STROKE ADJUSTMENT

• Ensure a barrel blocking device is fitted to the ANGELTM

• Ensure the hopper is removed from the ANGELTM

• Ensure that there are no paintballs in the ANGELTM

mWARNING ADHERE STRICTLY TO THESE

AND ALL OTHER SAFETY

INSTRUCTIONS AND GUIDELINES

1 2 3 4 5 6 8 9 10  11  12  13 7

29

RAM REMOVAL

· Ensure the ANGELTM is degassed and switched OFF.

· Open the breech block and remove the bolt.

· Remove the breech block pull knob by gently pulling and unscrewing

counter-clockwise.

· Remove the countersunk screws, using a suitable 2.0mm A/F metric Allen key.

· Carefully lift the back plate off.

· Retract the spring and breech block lock pin .

· Using circlip pliers or the ram location tool optional accessory rotate ram

assembly clockwise until slight resistance is felt in opening the breech block.

If rotated too far the breech will not open so rotate counter-clockwise and repeat

operation. The ram must always be rotated clockwise when setting.

IMPORTANT NOTES: For re-assembly of components

· There are wires attached to the back plate and a spring is located under the back plate.

Care must be taken so that the wires are not pulled or trapped during maintenance.

· Ensure the ram assembly is lubricated with Love juice Extreme GreaseTM prior

to re-fitment.

· Ensure the ram assembly external O rings are not damaged.

· Ensure the ram assembly is inserted slowly to prevent damage to the O rings.

1 2 3 4 5 6 8 9 10  11  12  13 7

MAINTENANCE – RAM REMOVAL

• Ensure a barrel blocking device is fitted to the ANGELTM

• Ensure the hopper is removed from the ANGELTM

• Ensure that there are no paintballs in the ANGELTM

• Always remove the first stage regulator and relieve all residual gas pressure

from the ANGELTM before disassembly.

• The ANGELTM can hold a small residual charge of gas, typically 2 shots, with the

first stage regulator removed. Always discharge the marker in a safe direction to

relieve this residual gas pressure.

mWARNING ADHERE STRICTLY TO THESE

AND ALL OTHER SAFETY

INSTRUCTIONS AND GUIDELINES

1 2 3 4 5 6 8 9 10  11  12  13 7

30

SERVICING

· The ram must be removed as per the RAM REMOVAL procedure - page 29, prior to

servicing. The ram has three components that may be replaced these are the

following: Hammer, Bumper, Ram clamp seal.

· Remove the ram hammer lock screw using a suitable metric Allen key.

· Remove the hammer from the ram rod using suitable SOFT faced grips

· Remove the bumper and inspect for damage, replace if necessary.

· Remove the ram clamp seal and replace.

IMPORTANT NOTES: For re-assembly of components

· The ram clamp seal must be replaced with a new item if removed.

· We recommend that LoctiteTM medium strength adhesive is applied to the

hammer if removed.

· We recommend that Loctite medium strength adhesive is applied to the hammer

lock screw if removed.

· We recommend that you lubricate the ram shaft with Love Juice Extreme GreaseTM.

1 2 3 4 5 6 8 9 10  11  12  13 7

MAINTENANCE – SERVICING

• Ensure a barrel blocking device is fitted to the ANGELTM

• Ensure the hopper is removed from the ANGELTM

• Ensure that there are no paintballs in the ANGELTM

• Always remove the first stage regulator and relieve all residual gas pressure

from the ANGELTM before disassembly.

• The ANGELTM can hold a small residual charge of gas, typically 2 shots, with the

first stage regulator removed. Always discharge the marker in a safe direction to

relieve this residual gas pressure.

mWARNING ADHERE STRICTLY TO THESE

AND ALL OTHER SAFETY

INSTRUCTIONS AND GUIDELINES

1 2 3 4 5 6 8 9 10  11  12  13 7

31

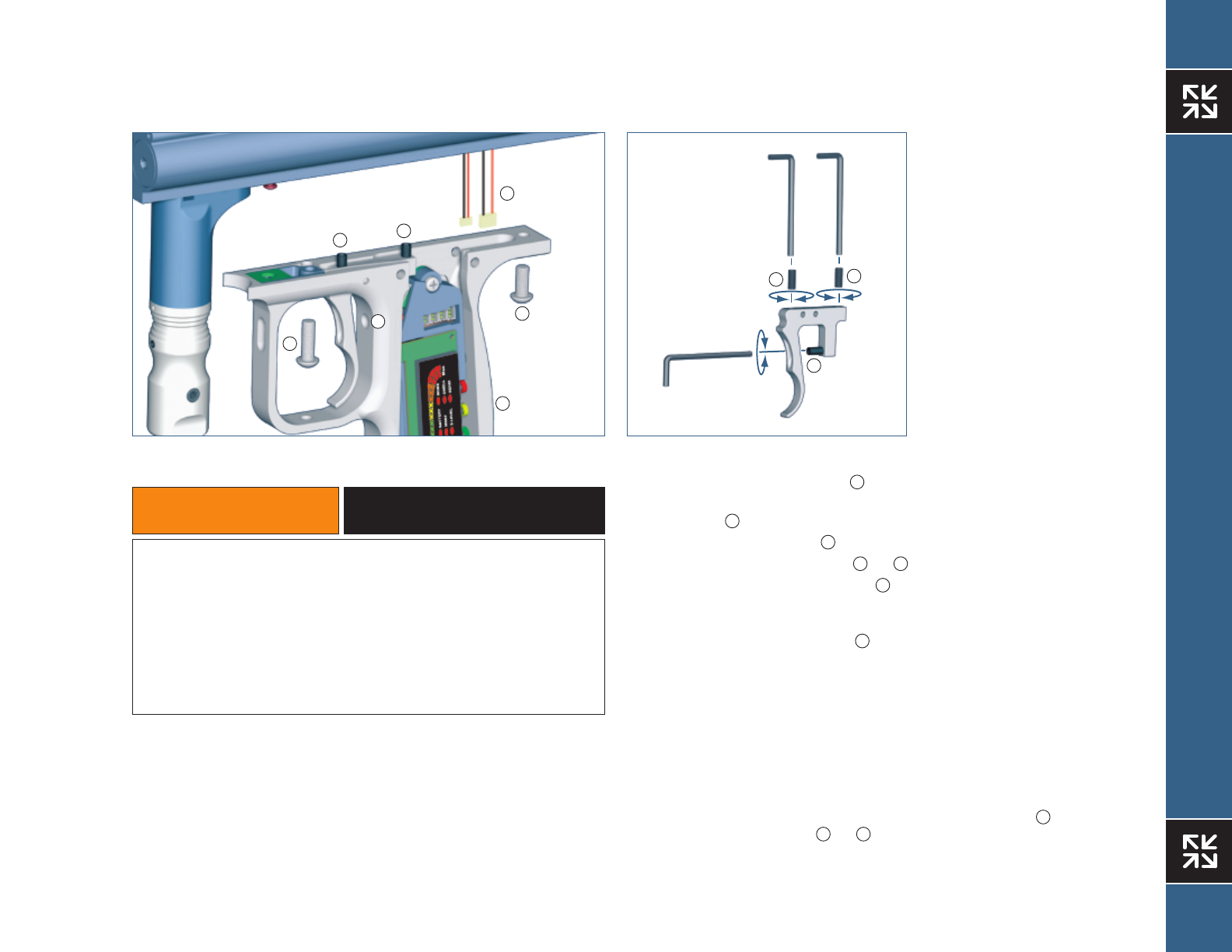

TRIGGER RETURN, OVER-TRAVEL & TOE ADJUSTMENTS

The trigger return stroke, over-travel and toe adjustments should be carried out in the

order shown and will enable the user to have total adjustment on the tactile feel and

trigger movement.

· Ensure the ANGELTM is degassed and switched off.

· Remove the left-hand side grip cheek cover by removing the 3 screws using a

suitable metric Allen key.

· Unplug the battery and solenoid plugs .

· Remove the two grip frame screws holding the frame to the body using a suitable

metric Allen key .

· Remove the frame from the body .

· Back off the trigger adjustment screws and .

· The screw furthest from the finger location that projects above the trigger

controls the over-travel. Using a suitable metric Allen key adjust to suit. Counter

clockwise reduces the over travel.

· The screw closest to the finger location that projects above the trigger controls

the return stroke. Using a suitable metric Allen key adjust to suit. Counter

clockwise reduces the return-stroke.

· Replace the solenoid and battery connectors into the PCB.

· Switch the ANGELTM on. Offer the frame to the body and ensure that the trigger

operates by pulling the trigger.

· The LED display power bar will cascade when the trigger is pulled. Should this not

occur see the important notes below.

· Replace grip frame screws and remaining wiring connections into the PCB.

· Further fine tuning can be achieved by adjusting the toe adjuster screw within

the limits set by adjuster screws and .

· Verify the trigger is functioning correctly.

· Replace grip cheek cover screws using a suitable metric Allen key.

1 2 3 4 5 6 8 9 10  11  12  13 7

MAINTENANCE – TRIGGER RETURN, OVER-TRAVEL & TOE ADJUSTMENTS

• Ensure a barrel blocking device is fitted to the ANGELTM

• Ensure the hopper is removed from the ANGELTM

• Ensure that there are no paintballs in the ANGELTM

• Always remove the first stage regulator and relieve all residual gas pressure

from the ANGELTM before disassembly.

• The ANGELTM can hold a small residual charge of gas, typically 2 shots, with the

first stage regulator removed. Always discharge the marker in a safe direction to

relieve this residual gas pressure.

• Never adjust your trigger so fine that accidental discharge can occur due to

shock loads or vibration.

mWARNING ADHERE STRICTLY TO THESE

AND ALL OTHER SAFETY

INSTRUCTIONS AND GUIDELINES

1 2 3 4 5 6 8 9 10  11  12  13 7

32

TRIGGER RETURN, OVER-TRAVEL & TOE ADJUSTMENTS

TRIGGER RETURN Continued

IMPORTANT NOTES: For re-assembly of components

· There must be sufficient over travel to activate the OPTOTM board, otherwise the

opto-trigger will not operate correctly

· There must be sufficient return stroke to reset the OPTOTM board otherwise the

opto-trigger will not operate correctly.

· Do not trap any wiring or damage could occur to the wiring resulting in a fault

developing.

· Should the trigger be incorrectly adjusted, re-adjust the return stroke screw by

repeating the procedures listed above or re-adjust the over travel screw by

repeating the procedures listed above.

· When adjusting the trigger stroke screws , and we recommend you apply

a small amount of Loctite low strength thread lock to prevent movement due to

vibration prior to adjustment.

· The OPTOTM board is a non-mechanical switch that is silent in its operation and no

audible click is present.

· The OPTOTM board should not be exposed to direct sunlight or external strong

sources of light without the grip cheek fitted as this light will induce a safety

feature, that will prevents the ANGELTM from firing whilst it remains exposed to the

external strong light.

1 2 3 4 5 6 8 9 10  11  12  13 7

33

TRIGGER PIVOT POINT ADJUSTMENTS

TRIGGER PIVOT POINT ADJUSTMENT

The two pivot point adjustments should be carried out in the order shown and will

enable the user to have total adjustment on the tactile feel and trigger movement.

· Ensure the ANGELTM is degassed and switched OFF.

· Remove the left-hand side grip cheek cover.

· Unplug the battery and solenoid plugs .

· Remove the two grip frame screws using a suitable metric Allen key.

· Remove the frame from the body.

· Remove the trigger pivot lock grub screw using a suitable imperial 1/16 Allen key.

· Remove the trigger pivot pin using a suitable punch on the opposite side that

the pivot lock screw was removed from.

· Back off the adjustment screws , and .

· Select the required pivot point and re-insert the pivot pin and the pivot pin

lock screw .

· The screw furthest from the finger location that projects above the trigger

controls the over-travel. Using a suitable metric Allen key adjust to suit. Counter-

clockwise reduces the over travel.

· The screw closest to the finger location that projects above the trigger controls

the return stroke. Using a suitable metric Allen key adjust to suit. Counter-

clockwise reduces the return-stroke.

· Replace the solenoid and battery connectors into the PCB.

· Switch the ANGELTM ON. Offer the frame to the body and ensure that the trigger

operates by pulling the trigger.

· The LED display power bar will cascade when the trigger is pulled. Should this not

occur see the important notes below.

· Replace grip frame screws and remaining wiring connections into the PCB.

· Further fine tuning can be achieved by adjusting the toe adjuster screw within

the limits set by adjuster screws and .

· Verify the trigger is functioning correctly.

· Replace grip cheek cover screws using a suitable metric Allen key.

IMPORTANT NOTES: For re-assembly of components

· There must be sufficient over travel to activate the OPTOTM board, otherwise the

OPTO-Trigger will not operate correctly.

· There must be sufficient return stroke to reset the OPTOTM board otherwise the OPTO-

Trigger will not operate correctly.

· Do not trap any wiring or damage could occur to the wiring resulting in a fault

developing.

· Should the trigger be incorrectly adjusted, re-adjust the return stroke screw or the

over travel screw by repeating the procedures listed above.

· When adjusting the trigger stroke screws , and ,we recommend you apply a

small amount of Loctite low strength thread lock to prevent movement due to

vibration prior to adjustment.

· The OPTOTM board is a non-mechanical switch that is silent in its operation and no

audible click is present.

· The OPTOTM board should not be exposed to direct sunlight or external strong sources of

light without the grip cheek fitted as this light will induce a safety feature that prevents

the ANGELTM from firing whilst it remains exposed to the external strong light.

1 2 3 4 5 6 8 9 10  11  12  13 7

MAINTENANCE – TRIGGER PIVOT POINT ADJUSTMENTS

• Ensure a barrel blocking device is fitted to the ANGELTM

• Ensure the hopper is removed from the ANGELTM

• Ensure that there are no paintballs in the ANGELTM

• Always remove the first stage regulator and relieve all residual gas pressure

from the ANGELTM before disassembly.

• The ANGELTM can hold a small residual charge of gas, typically 2 shots, with the

first stage regulator removed. Always discharge the marker in a safe direction to

relieve this residual gas pressure.

• Never adjust your trigger so fine that accidental discharge can occur due to

shock loads or vibration.

mWARNING ADHERE STRICTLY TO THESE

AND ALL OTHER SAFETY

INSTRUCTIONS AND GUIDELINES

1 2 3 4 5 6 8 9 10  11  12  13 7

34

BATTERY REMOVAL

The battery is a metal hydride 4.8 volt stick and is a item that will wear out with time

dependant on the number of charges / discharges it has completed. An indication of

a worn battery is that it will not charge fully or that it will not hold a charge for a

prolonged period.

· Remove the grip cheek cover by removing the 6 retaining screws using a metric

2.5mm A/F Allen key.

· Unplug the battery and solenoid plugs from the PCB .

· Remove the 2 grip frame screws, holding the frame to the body using a suitable

3mm A/F Allen key.

· Remove the grip frame from the body.

· Ensure the SENSITM rod is not lost.

· Remove the breech block pull knob by gently pulling and unscrewing counter-

clockwise.

· Remove the countersunk screws holding the back plate in place using a suitable

2.0mm A/F metric Allen key.

· Carefully lift the back plate off.

· Retract breech block lock pin and spring .

· Carefully feed the battery plug and the solenoid plug that was inserted into

the PCB though the ANGELTM body and withdraw the wires from the rear of the

ANGELTM

· Remove the battery spacer from the battery cavity.

· Carefully withdraw the metal hydride battery from the ANGELTM body.

· Re-assemble in reverse order.

IMPORTANT NOTES: For re-assembly of components

· Do not pull or apply excessive force to the wires.

· Do not trap any wiring or damage will occur to the wiring resulting in a fault

developing.

· Do not attempt to disassemble the battery stick.

· Ensure that when the switch is replaced that it is rotated so that the ON

position is as per the diagram in the section SWITCHING ON YOUR

ANGELTM - page 4.

1 2 3 4 5 6 8 9 10  11  12  13 7

MAINTENANCE – BATTERY REMOVAL

• Ensure a barrel blocking device is fitted to the ANGELTM

• Ensure the hopper is removed from the ANGELTM

• Ensure that there are no paintballs in the ANGELTM

• Always remove the first stage regulator and relieve all residual gas pressure

from the ANGELTM before disassembly.

• The ANGELTM can hold a small residual charge of gas, typically 2 shots, with the

first stage regulator removed. Always discharge the marker in a safe direction to

relieve this residual gas pressure.

mWARNING ADHERE STRICTLY TO THESE

AND ALL OTHER SAFETY

INSTRUCTIONS AND GUIDELINES

1 2 3 4 5 6 8 9 10  11  12  13 7

35

WIRING CONNECTIONS

· Ensure the ANGELTM is degassed and switched OFF.

· Remove the left-hand side grip cheek cover by removing the 3 screws using a

suitable metric Allen key.

· Access to the PCB connections is now gained.

IMPORTANT NOTES: For re-assembly of components

· Do not trap any wiring or damage could occur to the wiring resulting in a fault

developing.

· Do not pull the plugs out from the PCB by the wiring use a suitable tool.

MAINTENANCE – WIRING CONNECTIONS

• Ensure a barrel blocking device is fitted to the ANGELTM

• Ensure the hopper is removed from the ANGELTM

• Ensure that there are no paintballs in the ANGELTM

• Always remove the first stage regulator and relieve all residual gas pressure

from the ANGELTM before disassembly.

• The ANGELTM can hold a small residual charge of gas, typically 2 shots, with the

first stage regulator removed. Always discharge the marker in a safe direction to

relieve this residual gas pressure.

mWARNING ADHERE STRICTLY TO THESE

AND ALL OTHER SAFETY

INSTRUCTIONS AND GUIDELINES

SOLENOID

VALVE

SOLENOID

BATTERY

SENSITM

METAL

HYDRIDE 4V

AUTOMOBILE

CHARGER

LED

DISPLAY

SENSITM

SENSOR

OPTOTM SWITCH

CIRCUIT BOARD

36

FAULT FINDING TABLE

ANGELTM WILL NOT FIRE

No air or nitrogen present? Propellant Air/Nitrogen Supply . 5

Is the battery pack charged? Charging the ANGELTM 3

The battery is not charging. Check vehicle voltage. -

Is the ANGELTM in safe Switching the ANGELTM on. 4

Is the isolator switched off? Switching the ANGELTM on. 4

Is the trigger not closing the switch? Trigger Adjustment. 31-33

Is the trigger not releasing the switch? Trigger Adjustment. 31-33

is the bolt jammed forward? Clear the blockage from breech. -

Is the LPR set correctly? LPR Adjustment. 22

Is the OPTOTM Trigger functioning? OPTOTM Trigger Adjustment. 31-33

Are the connectors plugged in correctly? Circuit board layout. 35

VELOCITY VARIATIONS

Are good quality paintballs been used? Use good paintballs. -

Is the barrel bore correct for the paint? Use suitable barrel. -

Is the paint swollen, cold or hot? Review your storage of paint. -

Is the barrel bore clean? Clean the barrel. -

Is the tank regulator choking on gas supply? Check tank regulator assembly. -

Is the tank regulator operating correctly? Check tank regulator assembly. -

Is the mini-regulator operating correctly? Mini-Regulator Service. 20

Is the mini-regulator choking on gas supply? Mini-Regulator Service. 20

Are non-suitable after market parts fitted? Use genuine ANGELTM parts. -

Is the bolt worn? Replace Bolt. 6

Is the LPR set correctly? LPR Adjustment. 22

Is the valve dwell set correctly? Dwell Adjustment. 13

Is the ram set correctly? Ram Stroke Adjustment. 28

VELOCITY TOO LOW / HIGH

Is the high pressure regulator set correctly? Check at Gas source. -

Is the velocity adjuster screw set correctly? Velocity Adjustment. 7

Is the bolt sticking? Check Anti-Double Ball. 21

Is the LPR set correctly? LPR Adjustment. 22

Is the valve dwell set correctly? Dwell Adjustment. 13

Is the Ram set correctly? Ram Stroke Adjustment. 28

BREAKING PAINTBALLS

Is the paint too fragile? Use less fragile paint. -

Is the barrel bore correct for the paint? Use suitable barrel. -

Is the paint swollen, cold, hot? Review your storage of paint. -

Is the loader battery weak/dead? Replace batteries. -

Is a suitable working loader fitted? Replace loader. -

Is the rate of fire set too high? MROF Adjustment. 9

Is the anti-double balls functioning? Clean or replace. 21

CHOPPING PAINTBALLS

Is the loader battery weak/dead Replace batteries. -

Is a suitable working loader fitted? Replace loader. -

Is the loader dirty? Clean loader. -

Is the Gated FeedTM damaged? Replace the Gated FeedTM insert. 7

Are the paintballs swollen? Replace the paintballs. -

Is the SENSITM on? SENSITM Test. 8

Rate of fire set too high MROF Adjustment. 9

Anti-double balls functioning? Clean or replace. 21

FIRING TOO SLOW

Is the rate of fire set correctly? MROF Adjustment. 9

Is SENSITM functioning correctly? SENSITM Adjustment. 8

EXCESSIVE NOISE / GAS CONSUMPTION

Is the valve Dwell set correctly? Dwell Adjustment. 13

Is the LPR pressure set correctly? LPR Adjustment. 20

Is the exhaust valve worn? Exhaust Valve replacement. 24

GAS LEAKING

From the back cover? Check solenoid valve. 15

From the Ram assembly Check ram body O rings. 28

From the gas joints? Check all fittings. 15-17

From exhaust valve? Check Exhaust valve stem. 24

PROBLEM SOLUTION PAGE PROBLEM SOLUTION PAGE

APPENDIX – FAULT FINDING TABLE

37

USEFUL CONVERSIONS

Listed are some useful conversions relating to pressure, velocity, mass and distance.

PRESSURE

1 atm = 1.01325 bar

1 atm = 14.6959 psi

1 bar = 14.5038 psi

1 psi = 0.0689476 bar

VELOCITY

1 Ft/s = 0.3048 m/s

1 Ft/s = 0.6818180 Mph

1 m/s = 3.28084 Ft/s

1 m/s = 2.23694 Mph

1 m/s = 3.6 Kph

MASS

1 g = 0.05274 oz

1 Kg = 2.20462 Ib

1 oz = 0.0283495 Kg

DISTANCE

1 mm = 0.0393701 Inch

1 Inch = 25.4mm

1 thou = 25.4 micron

1 micron = 0.0393701thou

FORMULA TO CONVERT FEET PER SECOND (Ft/s) TO FOOT Ibs (Force)

1 foot Ibs (force)= 1.35582 Joules

1 Joule = 0.737562 foot Ibs (force)

1 Gram = 15.4324 Grains

1 Grain = 0.000142857 lb

1 lb = 7000 Grains

Velocity squared x Projectile weight

450240

VELOCITY = Ft/s (feet per second)

PROJECTILE WEIGHT = GRAINS

Therefore a paintball @ 3.2grams @ 300Ft/s= 9.9 foot lbs (ftlb)

APPENDIX – USEFUL CONVERSIONS

38

TERMS OF WARRANTY - EEC/ROW (Exc USA/CAN)

TERMS OF WARRANTY - EEC/R.O.W.

Excluding USA / CANADA

Subject to the conditions set out below WDP Ltd. warrants that the ANGELTM will correspond to its

specification at the time of delivery and will be free from defects in materials and workmanship for

a period of six months from the date of purchase.

WDP Ltd gives this warranty subject to the following conditions:

· Proof of purchase is required in all warranty claims.

· Warranty is not transferable.

· The company shall be under no liability in respect of any defect arising from fair wear and tear.

· Seals, batteries, wiring, circuit boards, displays and exhaust valves are not covered by this

warranty. Wilful damage, negligence, abnormal working conditions, weather, accident,

tampering, failure to follow manufacturers instructions (whether oral or in writing), misuse or

alteration or repair of the ANGELTM without the company’s written approval will invalidate this

warranty and the company shall be under no obligation whatsoever to the purchaser in respect of

any of the above breaches of this warranty.

· The above warranty does not extend to parts, materials or equipment not manufactured by the

company, in respect of which the purchaser shall only be entitled to the benefit of any such

warranty or guarantee as given by the manufacturer to the company.

This warranty does not cover the following:

· Repairs, alterations or replacements not authorised by the manufacturer.

· The gradual reduction in performance linked to the age of the ANGELTM or usage.

· Anything caused directly or indirectly by vandalism or theft.

· Any damage to parts which are recalled by the Manufacturer.

· Any loss, damage or failure, which a qualified engineer appointed by the Manufacturer, believes

could have been avoided or was totally or partly caused by a lack of maintenance.

Subject as expressly provided in these conditions and except where the goods are sold to a person

dealing as a consumer (within the meaning of the Unfair Contract Terms Act 1977) all warranties,

conditions or other terms implied by statute or common law are excluded to the fullest extent

permitted by law.

Where the goods are sold under a consumer transaction (as defined by the Unfair Terms in

Consumer Contracts Regulations 1994 S13159) the statutory rights of the purchaser are not affected

by these conditions. Carriage charges in relation to warranty claims shall be borne by the customer.

Where any valid claim in respect of the ANGELTM is based in the quality or condition of the ANGELTM

or its failure to meet specification, and such valid claim is notified to the company in writing and is

in accordance with the company’s standard terms and conditions of sale, the company shall be

entitled to repair or replace the goods or the part in question free of charge or, at the company’s

sole discretion, refund to the purchaser the price of the goods (or a proportionate part of the price)

but the company shall have no further liability to the purchaser.

Except in respect of death or personal injury caused by the company’s negligence, the company

shall not be liable to the purchaser by reason of any representation, or any implied warranty,

condition or other term, or any duty at common law, or under the express terms of this guarantee,

for any direct or indirect, special or consequential loss or damage, whether to persons or property,

costs, expenses or other claims for compensation or damages whatsoever (whether caused by the

negligence of the company, its employees or agents or otherwise) which arise out of or in

connection with the supply of the ANGELTM its use, or misuse, or resale by the purchaser, or any

individual, and the entire liability of the company under or in connection with the purchase or use

or misuse of the ANGELTM shall not exceed the purchase price of the ANGELTM. Purchaser agrees to

adhere strictly to all warnings and safety procedures and the contents of the Operators Manual.

The laws of England shall govern this warranty and the purchaser agrees to submit to the non-

exclusive jurisdiction of the English courts.

The supply and purchase of the ANGELTM is subject to the company’s standard terms and conditions

of sale, a copy of which is available on request. ANGELTM patents applied for, design rights and all

rights reserved. The ANGELTM is marketed and distributed by WDP Ltd. company, registered in

England No. 2114341.

No warranty is given to parts not manufactured by the manufacturer and all liability for loss

damage or injury is excluded.

This warranty must be construed and read in conjunction with the products terms and conditions

of sale.

To make a warranty claim, buyer must first contact the nearest authorised ANGELTM Service Centre

for instructions. A list of authorised ANGELTM Service Centres may be obtained through WDP Ltd.

website: www.wdp.tv, or by contacting WDP by mail at WDP Ltd., Metro Triangle,

221 Mount Street, Nechells, Birmingham, England, B7 5QT, or by fax at +(44) (0)121 327 3967, or by

calling +(44) (0)121 328 2228.

APPENDIX – TERMS OF WARRANTY - EEC/ROW (Exc USA/CAN)

39

WDP LTD. EXPRESS WARRANTY - USA/CAN ONLY

WDP LTD. EXPRESS WARRANTY

USA / CANADA ONLY

1. General Express Warranties.

WDP Ltd. warrants to the buyer who is purchasing to place into use (Buyer) only, that the

ANGELTM (Product) shall be free from material manufacturing defects in materials and

workmanship for six months from the date

of purchase, subject to the requirements, disclaimers and limitations of this Warranty. This is not a

Warranty of performance, but a limited Warranty as to the condition of the Product at the

beginning of the Warranty period, this Warranty is only against such defects and not against any

other failures such as, but not limited to, those due to wear and tear, exposure to the elements,

unusual operating environments, misuse, negligence, accident, alteration or repair in any respect

which, in the judgement of WDP Ltd., adversely affects the condition or operation of the Product.

Normal maintenance and perishable items such as seals, batteries, wiring, indicator lamps and

exhaust valves are excluded from this limited Warranty against defects. This Warranty is not

transferable and it may not be waived or expanded except in writing signed by WDP Ltd. The terms

and limitations of this Warranty shall also apply to any additional goods or information, which may

be distributed by WDP Ltd., relating to the ANGELTM.

2. Disclaimer and Limitation of Express and Implied Warranties.

There are no express Warranties other than those contained in this Warranty. Whether or not the

Product is to be used exclusively by Buyer, there shall be no third party beneficiaries to this

Warranty herein. NO WARRANTY IS PROVIDED TO DISTRIBUTORS OR DEALERS EXCEPT AS MAY BE

EXPRESSLY PROVIDED IN A SEPARATE AGREEMENT OF SALE. All descriptions, illustrations of the

Product and other information in catalogues, brochures and price lists or otherwise provided by

WDP or others are intended for general information only. WDP Ltd., is not responsible for any errors

or omissions therein or for any loss or damage resulting from reliance on them. WDP Ltd., does not

warrant that the Product is in compliance with any law or industry standards, guidelines or

procedures. WDP Ltd. standard terms and conditions of sale also apply if Buyer is a direct

purchaser from WDP Ltd. WDP LTD. DISCLAIMS ALL IMPLIED WARRANTIES INCLUDING, BUT NOT

LIMITED TO, THOSE OF FITNESS FOR A PARTICULAR PURPOSE AND MERCHANTABILITY.

3. Remedy and Limitation of WDP Ltd. liability.

Defective or non-conforming Product or parts thereof discovered and returned to WDP Ltd. freight

prepaid, with proof of purchase, during the Warranty period shall be repaired or replaced by WDP

Ltd. without any additional charge and shipped to Buyer, FOB WDP Ltd. In lieu of repair or

replacement, if WDP Ltd. elects, WDP Ltd. may, upon return of such product and making a

determination of non- conformity or defect, keep the product and refund the purchase price paid

by Buyer. Buyer’s remedies shall be limited (even in the event of WDP Ltd. default of its Warranty

obligations) exclusively to those provided in this Warranty. UNDER NO CIRCUMSTANCES SHALL

WDP LTD. OR ANY SUPPLIER, DISTRIBUTOR, DEALER, OR OTHER PERSON BE LIABLE FOR

EXEMPLARY, PUNITIVE, CONSEQUENTIAL OR INCIDENTAL DAMAGES, NOR FOR ANY AMOUNT IN

EXCESS OF THE BUYER’S PURCHASE PRICE. Buyer waives any causes of action or theories of

liability including, but not limited to, those arising under contract, tort, strict liability, Product

liability, statutes, or otherwise, except as to those specifically provided by the Uniform Commercial

Code (as adopted in Michigan) as excluded, modified and limited in this warranty.

4. Additional Consumer Protection.

The products are offered for sale for end use in supervised commercial establishments where

professional safety codes are enforced, and not for personal, family or household use.

Nevertheless, if the Product is determined in a transaction to be a customer Product under

applicable law, the following provisions shall become applicable:

(a) THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS OF THE PRODUCT FOR A

PARTICULAR PURPOSE THAT CANNOT BE DISCLAIMED ARE LIMITED IN DURATION TO THE INITIAL

EXPRESS WARRANTY PERIOD.

(b) Some states do not allow limitations on how long an implied Warranty lasts, so the above

limitation in (a) may not apply.

(c) Some states do not allow the exclusion or limitation of incidental or consequential damages, so

such limitations may not apply.

(d) And this Warranty gives buyer specific legal rights, and buyer may also have other rights

provided for by law.

5. Parts, Service and Training performed by WDD Ltd.

All Warranty and non-Warranty parts, labour and service, if any, provided by WDP Ltd. related to the

product are subject to all limitations and disclaimers of warranties and remedies provided in this

Warranty. The replacement or repair of a product by WDP Ltd. does not give rise to any new

Warranty except the Warranty period provided for herein shall be extended by the length of any

period in which defective or non-conforming product is in possession of WDP Ltd. WDP Ltd. may

have access to the Product after purchase of the Product. WDP Ltd. is not under any duty to inspect

the product for any defects or any improper use or modification of the Product, nor to correct or

advise anyone of any such condition, use or modification, which is observed. Any notification,

which may be given, is voluntary and subject to all limitations and disclaimers in this Warranty.

APPENDIX – WDP LTD. EXPRESS WARRANTY - USA/CAN ONLY

40

WDP LTD EXPRESS WARRANTY - USA/CAN ONLY

WDP LTD. EXPRESS WARRANTY

USA / CANADA ONLY CONTINUED

6. User’s Responsibility for Safety and Indemnification

It is Buyer’s or other user’s responsibility to obtain all training and means that may be necessary to

effectively protect all individuals and property from damage and bodily injury, which otherwise

may result from the use or maintenance of the Product, and to use the Product in accordance with

operating instructions and due care.

If operating instructions are not provided with the Product or have been lost, a copy will be

provided by WDP Ltd. without cost on request. Buyer shall use and shall require all others to use all

safety devices and guards furnished with or intended to be used with the Product, and to follow

proper safe operating procedures in accordance with general industry standards and as set forth in

manuals and instruction information furnished by WDP Ltd. If Buyer fails to comply with the

obligations set forth in this section, the buyer shall defend and indemnify WDP Ltd. harmless from

any claim, liability or obligation incurred by WDP Ltd. or its suppliers, distributors, or dealers to

persons injured directly or indirectly in connection with the use of the product contrary to this

Warranty or any warning or instruction from WDP Ltd.

7. Law and Jurisdiction.

This Warranty shall be governed by the laws of Michigan, and Buyer irrevocably submits to the

non-exclusive jurisdiction of courts sitting in Michigan to resolve all disputes arising from or related

to this warranty or use of the Product.

8. Claims and information procedure.

To make a warranty claim, Buyer must first contact the nearest authorised ANGELTM Service Centre

for instructions. A list of authorised ANGELTM Service Centres may be obtained through WDP Ltd.

website: www.wdp.tv, or by contacting WDP Ltd. by mail at WDP Ltd., Metro Triangle,

221 Mount Street, Nechells, Birmingham, England, B7 5QT, or by fax at 011 44 121 327 3967, or by

calling 011 44 121 328 2228.

UPDATES

The specification and photographs in this material are for general guidance purposes only.

Our products are continuously updated and changes may be made to specifications, design,

or appearance from time to time.

For the latest specification, virtual products and on line technical support we recommend that

you visit our website: www.wdp.tv.

APPENDIX – WDP LTD. EXPRESS WARRANTY - USA/CAN ONLY / UPDATES

41

PERSONAL INFORMATION

APPENDIX – YOUR PERSONAL DETAILS

Completing these details upon purchase will enable us to help you with your enquiries.

PURCHASE DETAILS

MODEL/COLOUR

BODY/BLOCK SERIAL No

UNIQUE ELECTRONIC ID No.

PURCHASED FROM

DATE

Street

CITY

STATE

COUNTRY

ZIP/POSTCODE

PHONE

YOUR DETAILS

NAME

STREET

CITY

STATE

COUNTRY

ZIP/POSTCODE

PHONE

42

NOTES

43

NOTES

44

NOTES

Angel Speed Users Manual Op V0403

Navigation menu

Versions of this User Manual:

Views

Navigation
