Angelcare Canada AC403R 2.4GHz Analog Modulation Parent Unit User Manual
Angelcare Monitors Inc. 2.4GHz Analog Modulation Parent Unit
User Manual
OWNER’S MANUAL
MOVEMENT & SOUND MONITOR
Model AC403
ES
59
FR
29
EN
2
FOR YOUR PEACE OF MIND
Pre-programmed
to monitor sound
and movement.
Sensor Pad will alarm
if no movement
is detected.
01mf3_User_guide_AC403_12001_NA.indd 1 2013-12-19 5:03 PM
TABLE OF CONTENT
Warnings ..................................................................................................... 3

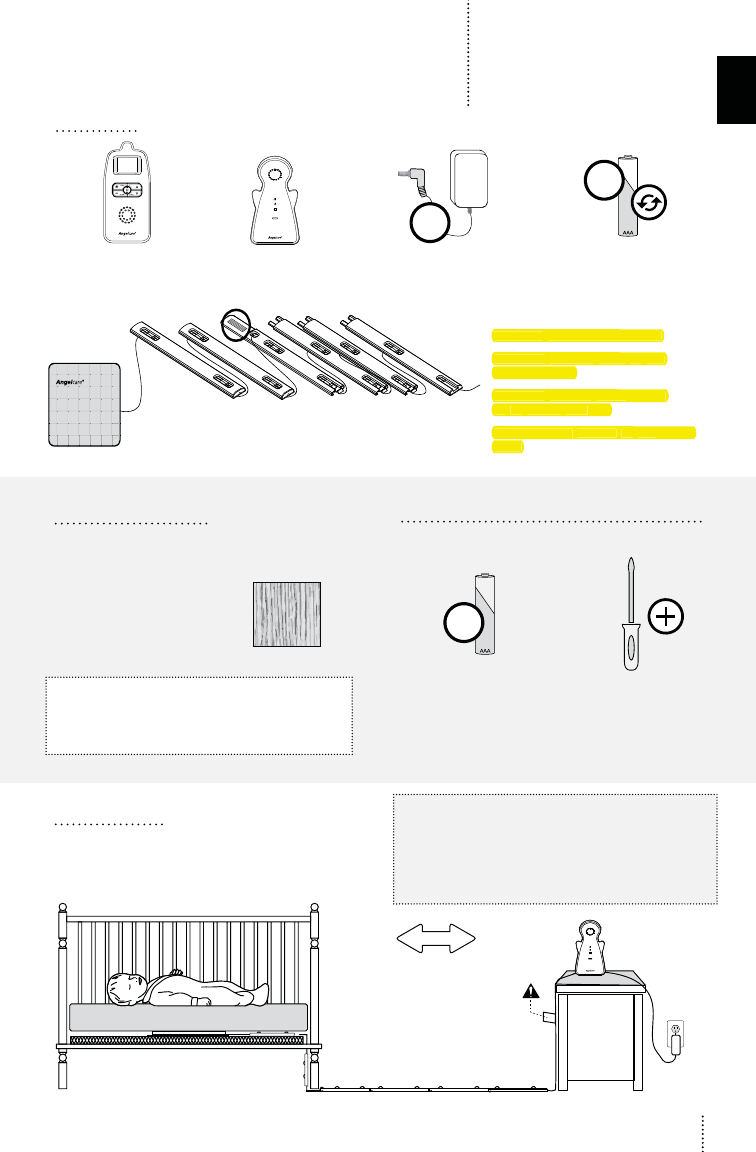

AC403 SETUP REQUIREMENTS .......................................................7

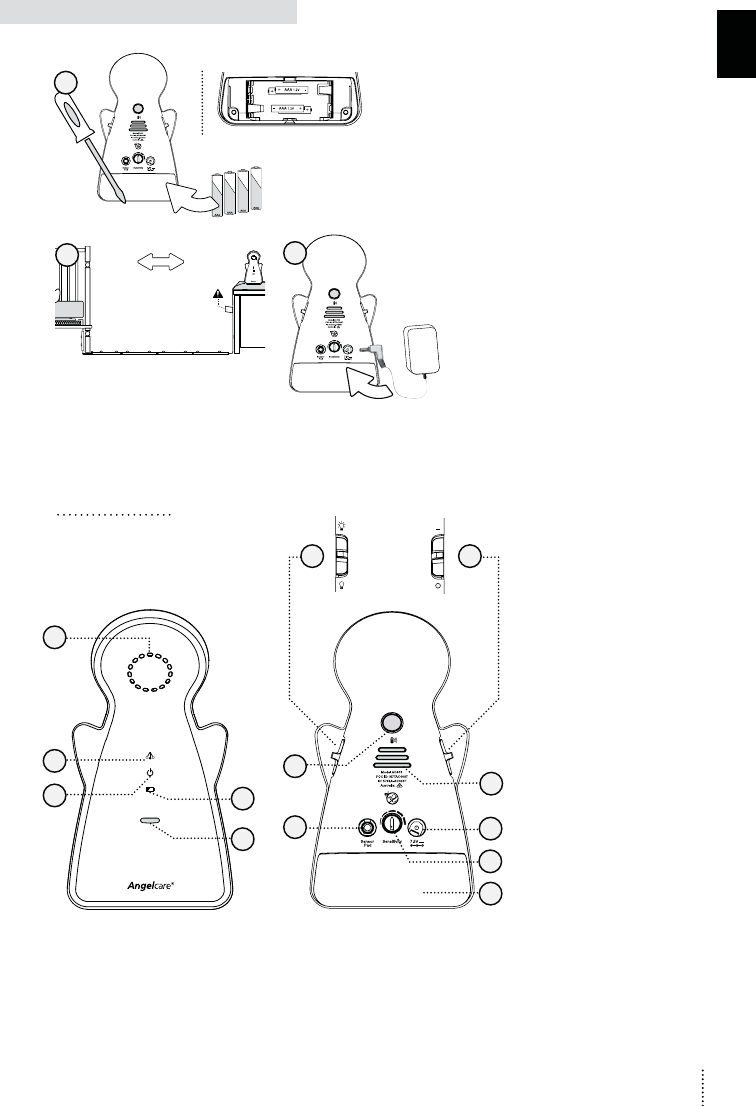

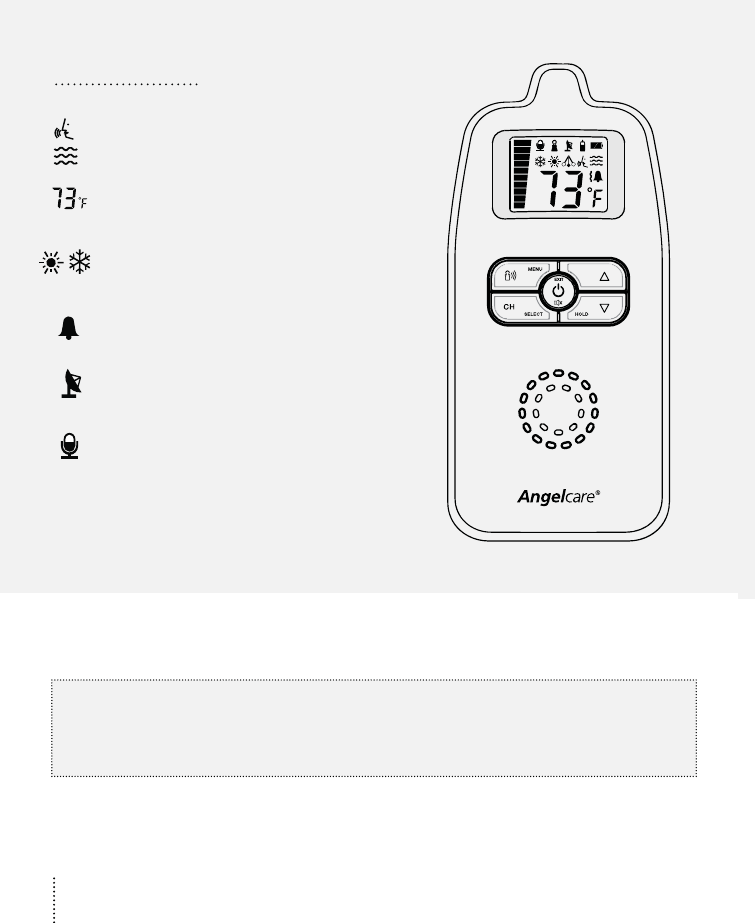

STEP 1 - Charge Parent Unit ............................................................. 8
STEP 2 - Install Sensor Pad ..............................................................10
STEP 3 - Setup Nursery Unit ............................................................. 11

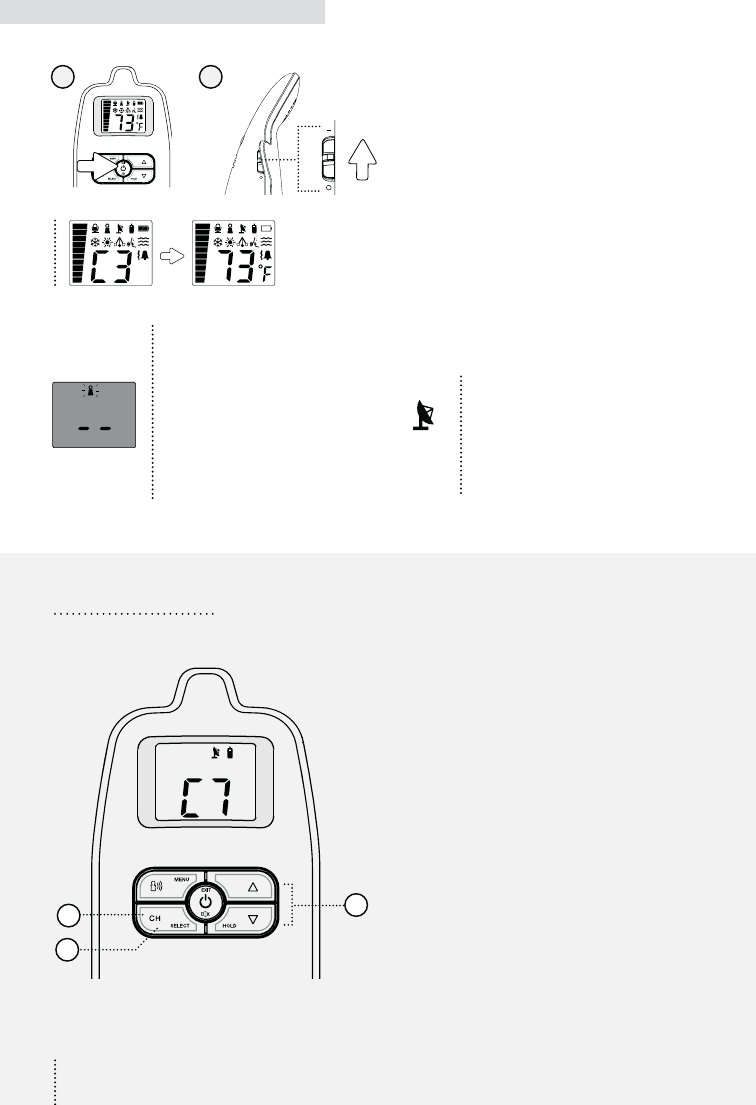

STEP 4 - Turn on your Monitor ........................................................ 12

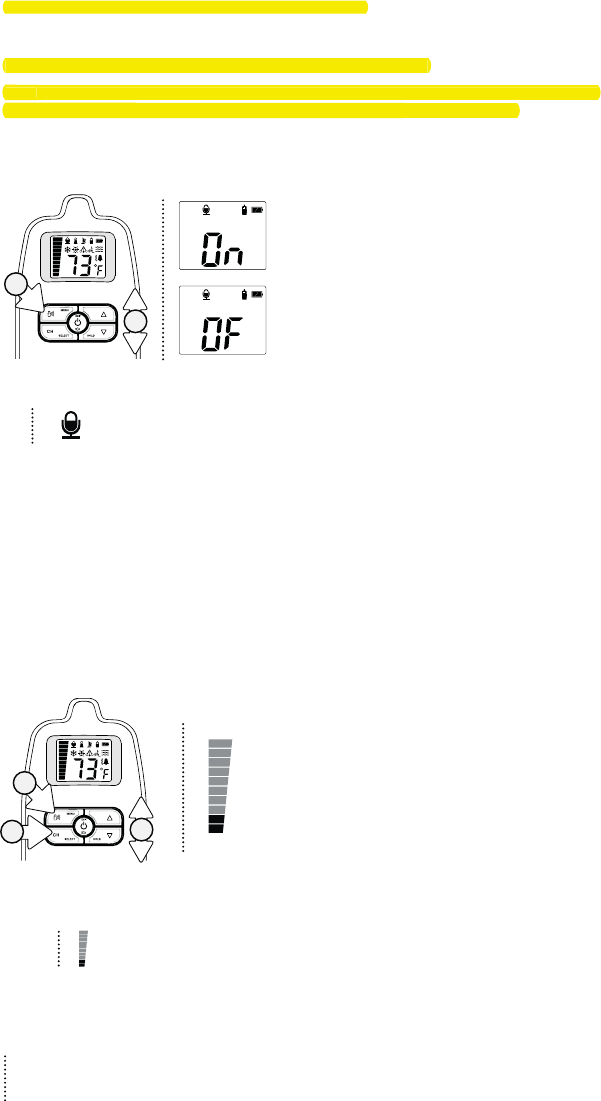

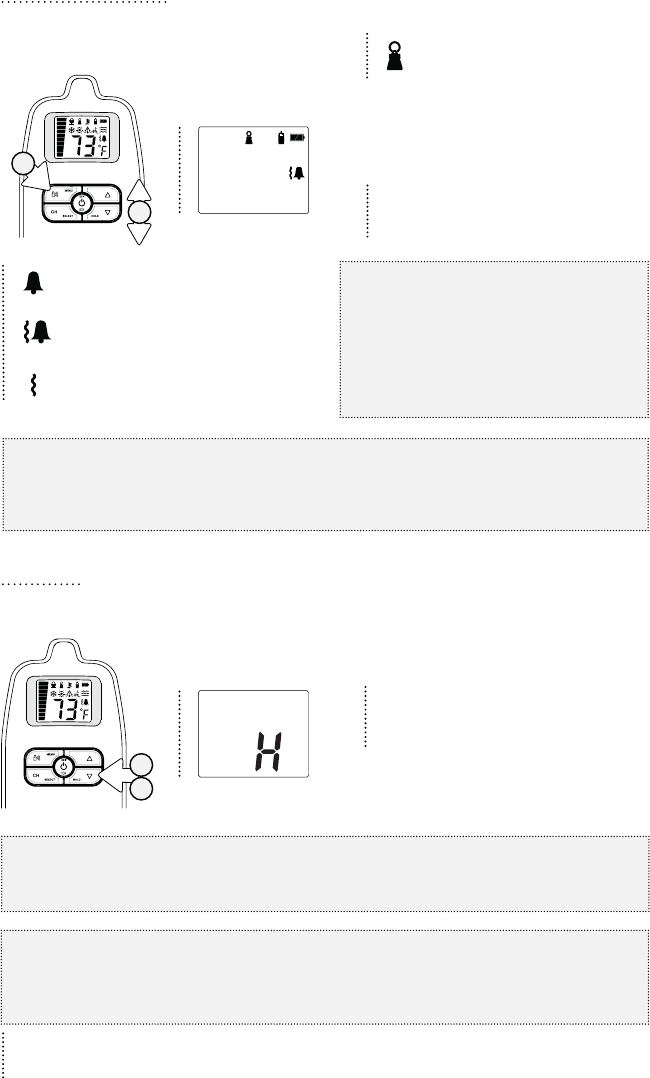

STEP 5 - Test and get to know your Monitor ............................14
STEP 6 - Activate and deactivate additional functions .......22
Troubleshooting .....................................................................................23
Warranty ..................................................................................................25
Technical specifications .....................................................................26
OWNER’S MANUAL
KEEP YOUR OWNER’S MANUAL FOR FUTURE REFERENCE.
PLEASE READ THE WARNINGS AND INSTRUCTIONS CAREFULLY BEFORE
ASSEMBLING & USING THE PRODUCT.
FAILURE TO FOLLOW THE WARNINGS AND THE INSTRUCTIONS COULD RESULT
IN SERIOUS INJURY OR DEATH OR DAMAGES TO THE PRODUCT.
THE SENSOR PAD FEATURE IS NOT FOR USE WITH ADULTS, CHILDREN OR INFANTS
OLDER THAN 24 MONTHS.
WARNING
Adult assembly required.
Keep small parts away from children when assembling.
We, at Angelcare®, stand behind all of our products.
If you are not completely satisfied or have any questions,
United States and Canada: please contact us at: anglecare@cdecinc.ca
Other countries: please contact your local Distributor.
2
1. THIS PRODUCT CANNOT REPLACE RE-
SPONSIBLE ADULT SUPERVISION. This
product is designed to aid in the monitoring
of your child. When using the monitor, you
must still provide the supervision necessary
for the continued safety of your child. Moni-
toring of premature babies, or those consid-
ered to be at risk, should always be carried
out under the supervision of a health pro-
fessional. This monitor is not intended to be
used as a medical monitor.

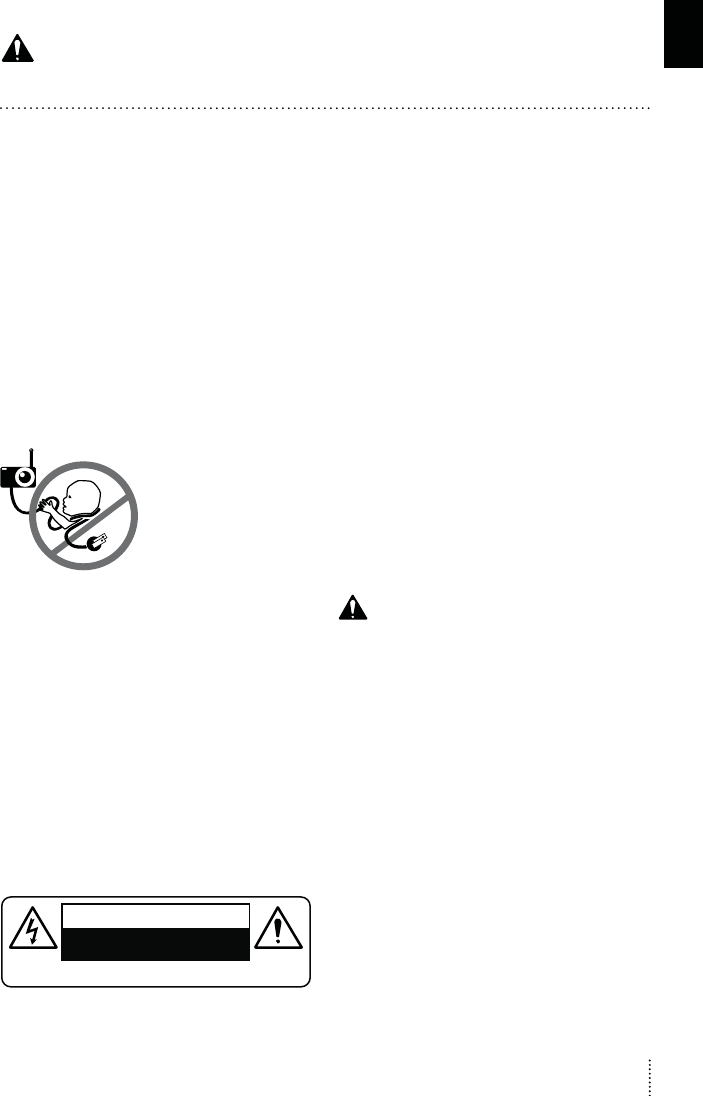

2. STRANGULATION HAZARD—
Children have STRANGLED in cords.
Keep adapter cords out of the reach of
children (more than 3 feet (0.9 m) away)
NEVER attempt to use Sensor Pad
without the protective cord covering. Check
protective cord covering before each use to
ensure it is securely
placed under the leg
of the crib. Discontin-
ue use of Sensor Pad
if protective covering
is damaged or broken.
3. Never use extension cords with AC adapt-
ers. ONLY use the AC adapters provided.
4. When an AC Adapter is plugged into an
electrical outlet, DO NOT touch the exposed
end.
5. ALWAYS be sure that both the transmit-
ter and receiver are working properly and are
within range of each other. Test monitor be-
fore first use, periodically and when changing
location of the Nursery Unit.
6. ALWAYS be sure to immediately check on
baby whenever an alarm sounds.
7. DO NOT use monitor near water (such as
bath tub, sink, etc.).
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
DO NOT EXPOSE TO RAIN OR MOISTURE
8. Keep monitor AWAY from heat sources
(such as stoves, radiators, etc.).
9. ALWAYS place both the Nursery Unit and
Parent Unit on a flat surface in an upright
position and allow for proper ventilation.
DO NOT place on sofas, cushions, beds, etc.
which may block ventilation.
10. This monitor uses public airwaves to
transmit signals. The Parent Unit may pick
up signals or interference from other nursery
monitors in your area. Your monitor may even
be picked up by other households. To protect
your privacy, make sure both units are turned
OFF when not in use. If you experience in-
terference, change the channel on both units.
11. This product is NOT a toy. DO NOT allow
children to play with it.
12. This product contains small parts. Adult
assembly required. Exercise care when un-
packing and assembling the product and
keep small parts away from children.
13. Use and store the monitor at a tempera-
ture between 50°F (10°C) and 104°F (40°C).
BATTERY WARNING
14. Use ONLY AAA RECHARGEABLE batter-
ies for the Parent Unit. DO NOT mix old and
new batteries. DO NOT mix alkaline, standard
or rechargeable batteries. Insert batteries
with correct polarity. DO NOT short-circuit
supply terminals. ONLY use the recommend-
ed batteries or equivalent (volts and size) and
the correct adapter. Remove batteries when
product is stored for long periods of time or
when batteries are exhausted. Dispose ex-
hausted batteries properly. DO NOT recharge
non-rechargeable batteries. Rechargeable
batteries are ONLY to be charged under adult
supervision. Keep all batteries away from chil-
dren.
WARNING
3
E
N
IMPORTANT SAFETY INSTRUCTIONS
15.1 Read these instructions - All the safety
instructions should be read before the prod-
uct is operated.
15.2 Keep these instructions. The safety and
operating instructions should be retained for
future reference.
15.3 Heed all warnings – All warnings on the
product and in the operating instructions
should be adhered to.
15.4 Follow all instructions – All operating and
use instructions should be followed.
15.5 Water and moisture - DO NOT use this
apparatus near water. For example, near a
bath tub, wash bowl, kitchen sink, laundry
tub, in a wet environment or near a swimming
pool and the like. Care should be taken so
that objects DO NOT fall onto units and that
liquids are not spilled into either unit or Sen-
sor Pad through its openings.
15.6 Cleaning - Disconnect all units before
cleaning. DO NOT immerse in water any part
of the Nursery Unit, Parent Unit. Clean only
with dry cloth. DO NOT spray with cleaning
products or solvents. Wipe Sensor Pad with a
cloth moistened very slightly with an antisep-
tic or mild detergent.
15.7 Ventilation - DO NOT block any ventila-
tion openings. Allow for proper ventilation
when units are in use. DO NOT cover the
Nursery Unit or Parent Unit with any object
such as a blanket. DO NOT place it in a draw-
er or in any location which would muffle the
sound or interfere with the normal flow of air.
15.8 Heat sources - DO NOT install near any
heat sources such as radiators, heat registers,
stoves, TVs or other apparatus (including am-
plifiers) that produce heat. Heat can damage
the case or electrical parts.
15.9 Power cord protection - Protect the Sen-
sor Pad cord and Adapter’s power cord from
being walked on or pinched by furniture or
other items – Power supply cords should be
routed so that they are not likely to be walked
on or pinched by items upon or against them,
paying particular attention to cords and
plugs, convenience receptacle, and the point
where they exit from the product.
15.10 Accessories - Only use attachments/ac-
cessories specified by the manufacturer. DO
NOT place this product on an unstable cart,
stand, tripod, bracket or table. The product
may fall, causing serious injury to a child or
adult and serious damage to the product.
Use ONLY with a cart, stand, tripod, bracket
or table recommended by the manufacturer
or sold with the product. Any mounting of
the product should follow the manufacturer’s
instructions.
15.11 Unplug this appliance during lightning
storms or when not used for long periods of
time.
15.12 Servicing - DO NOT attempt to service
this product yourself as opening or removing
covers (except battery doors) may expose
you to dangerous voltage or other hazards.
15.13 Replacement parts - When replacement
parts are required, be sure the replacement
parts specified by the manufacturer have
the same characteristic as the original part.
Unauthorized substitution may result in fire,
electric shock or other hazards.
15.14 Usage - This baby monitor is intended
as an aid. It is NOT a substitute for responsible
and proper adult supervision and should not
be used as such. Use this appliance ONLY for
its intended use as described in this manual.
15.15 Power Sources - Operate this product
only from the type of power source indicated
on the type plate of the adaptor. If you are
unsure of the type of power supply to your
home, consult your dealer or local power
company.
15.16 Overloading - DO NOT overload wall
outlets, extension cords or integral conve-
nience receptacles as this can result in a risk
of fire or electric shock.
15.17 Object and Liquid Entry - NEVER push
objects of any kind into this product through
casing slots as they may touch dangerous
voltage points or short out parts that could
result in a risk of fire or electric shock. NEVER
spill liquid of any kind on the product.
15.18 Antenna - The antenna used for this
transmitter must be installed to provide a
separation distance of at least 20 cm (7.9”)
from all persons and must not be collocated
or operating in conjunction with any other
antenna or transmitter.
15.19 Power Lines - An outside antenna sys-
tem should NOT be located in the vicinity of
overhead power lines or other electric light
or power circuit, or where it can fall into such
power lines or circuits as contact with them
may be fatal.
4
15.20 STRANGULATION HAZ-
ARD—Children have STRANGLED in
cords. Keep adapter cords out of the reach of
children (more than 3 feet (0.9 m) away)
NEVER attempt to use Sensor Pad
without the protective cord covering. Check
protective cord covering before each use
to ensure it is securely
placed under the leg
of the crib.Discontinue
use of Sensor Pad if
protective covering is
damaged or broken.
15.21 Interference - This monitor uses public
airwaves to transmit signals. The Parent Unit
may pick up signals or interference from oth-
er nursery monitors in your area. Your moni-
tor may even be picked up by other house-
holds. To protect your privacy, make sure
both units are turned OFF when not in use.
If you experience interference, change the
channel on both units.
15.22 Vibration Source - When the monitor
is in use, DO NOT use a crib mobile or other
crib accessories that may produce vibrations.
Other sources of vibrations may include fans,
washing machines, loud music, etc. These
sources of vibration may interfere with the
performance of your Angelcare® monitor and
the alarm will not sound if it continues to de-
tect any movement other than your baby’s.
Be sure all vibration sources are eliminated
before using the monitor.
You may experience false alarms for several
reasons. The most common reason is the
Nursery Unit has not been turned OFF after
you have removed your baby from the crib.
Another reason is the Sensor Pad has not
been placed under the mattress properly.
Be sure the Sensor Pad is on a flat, firm sur-
face with the printed side facing up. The sen-
sitivity level may also need to be adjusted.
Refer to step 5.3. Always be sure to imme-
diately check on baby whenever an alarm
sounds.
15.23 Sensor Pad - Your Sensor Pad can be
used in any crib that is stationary and de-
signed to safely hold a baby. If the crib has
a spring or slat base, place a hard board be-
tween the crib base and the Sensor Pad mea-
suring at least 13” x 13” (33 x 33 cm) and 1/4
inch (6 mm) thick. Only use your Angelcare®
monitor in a stationary sleeping environment
such as a crib where the Sensor Pad can rest
on a completely flat, firm surface.
IMPORTANT SAFETY INSTRUCTIONS
RELATED TO USE OF BATTERIES
16.1 Use ONLY the type and size of batter-
ies specified in the owner’s manual. There is a
risk of explosion if batteries are replaced with
an incorrect type.
16.2 Use ONLY AAA rechargeable batter-
ies and/or the AC Adapters provided for the
Parent Unit. You must use only rechargeable
batteries in the Parent Unit. DO NOT use al-
kaline batteries or you will severely damage
the unit.
16.3 Charge the batteries for 15 hours prior to
first use. Be sure to have the monitor in the
OFF position during this period. ONLY use
the AC Adapters included with your monitor.
16.4 DO NOT use these adapters with any
other equipments.
16.5 When unplugging the AC Adapter from
the Nursery Unit, be sure it is switched to the
OFF position. If it isn’t, the unit will revert to
battery mode if batteries are installed.
16.6 DO NOT use rechargeable batteries in
the Nursery Unit. Use alkaline batteries ONLY.
16.7 DO NOT dispose batteries in fire. They
may explode. Check with local regulations for
possible special disposal instructions.
16.8 Exercise care in handling batteries in or-
der not to short out the batteries with con-
ducting materials such as rings, bracelets and
keys. Overcharging, short circuiting, reverse
charging, mutilation, or incineration of batter-
ies must be avoided to prevent one or more
of the following occurrences: release of toxic
materials, release of hydrogen and/or oxygen
gas, rise in surface temperature.
16.9 DO NOT attempt to recharge batteries
provided with or identified for use with this
product that are not intended to be charged.
The batteries may leak corrosive electrolyte
or explode.
16.10 DO NOT attempt to rejuvenate the bat-
teries provided with or identified for use with
this product by heating them. Sudden release
of battery electrolyte may occur, causing
burns or irritation to eyes or skin.
5
E
N
16.11 If and when necessary, the batteries
must be replaced with identical new ones or
equivalent (volts and size). If a battery to be
replaced is connected with other batteries in
series, replace the other batteries at the same
time as well. DO NOT mix old and new bat -
teries.
16.12 Reverse polarity installation of the bat -
teries in the end product must be avoided.
Reverse insertion of batteries can cause
charging, and that may result in leakage or
explosion.
16.13 Remove batteries from this product if
you store the product over 30 days because
the batteries could leak and damage the
product.
16.14 Discard ‘dead’ batteries as soon as pos -
sible since ‘dead’ batteries are more likely to
leak in a product. If a battery has leaked or
vented, it should be replaced immediately us -
ing protective gloves.
16.15 DO NOT store this product, or the bat -
teries provided with or identied for use with
this product, in high-temperature areas.
WARNING
(North America Only)
17.1 Modications not authorized by the man -
ufacturer may void users authority to operate
this device.
17.2 NOTE: This equipment has been tested
and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to
provide reasonable protection against harm -
ful interference in a residential installation.
This equipment generates, uses and can ra -
diate radio frequency energy and, if not in -
stalled and used in accordance with the in -
structions, may cause harmful interference to
radio communications.
17.3 However, there is no guarantee that in -
terference will not occur in a particular instal -
lation. If this equipment does cause harmful
interference to radio or television reception,
which can be determined by turning the
equipment OFF and ON, the user is encour -
aged to try to correct the interference by one
or more of the following measures:
t Reorient or relocate the receiving
antenna.
t Increase the separation between
the equipment and receiver.
t Connect the equipment into an
outlet on a circuit dierent from that
to which the receiver is connected.
t Consult the dealer or an experienced
radio/TV technician for help.
17.4 This device complies with part 15 of the
FCC Rules. Operation is subject to the follow -
ing two conditions:
(1) This device may not cause harmful inter -
ference, and
(2) This device must accept any interference
received, including interference that may
cause undesired operation.
FCC AND IC REGULATIONS
RF radiation exposure statement
The Nursery Unit complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. Caution: To maintain the compliance with the FCC’s RF exposure guideline, install
the Nursery Unit at least 20cm from nearby baby and persons.
Industry Canada
This product meets the applicable Industry Canada technical specications.
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept
interference that may cause undesired operation of the device.
CAN ICES-3 (B)/NMB-3(B)
6
IMPORTANT
Place the crib near a supporting wall and
far from air currents. Install the Nursery
Unit on a flat, stable surface facing the crib
at a distance of at least 1 meter (3 feet).
YOU MUST PREPARE:
One hardboard (not included)
Thickness: 6 mm (1/4’’)
Minimum dimensions:
33 cm (13’’) x 33 cm (13’’)
Maximum dimensions:
equal to the mattress size
WHAT YOU WILL NEED (NOT INCLUDED):
Parent Unit(s) 2 AC Adapters (AC403) or
3 AC Adapters (AC403-2P
Nursery Unit
Sensor Pad
3 Rechargeable AAA
Batteries (AC403) or
6 Rechargeable AAA
Batteries (AC403-2P)
4 AAA Alkaline
Batteries
for Nursery Unit
MOVEMENT &
SOUND MONITOR
Model AC403
IMPORTANT
The hardboard must be larger than
the Sensor Pad(s) surface area.
BABY’S ROOM:
SETUP REQUIREMENTS
4X
3X
INCLUDED:
Miniature Phillips
Screwdriver
2X
Cover 1: Under the mattress
Cover 2: Vertical stick to run
parallel to leg
Cover 3: Double sided taped
to fit under crib leg
Cover 4,5,6: Covers to run along
floor
123 45 6
Keep
at least
36in
IMPORTANT
1
2345 6
7
E
N
Co
v
e
r 1:
U
n
de
r th
e
m
a
ttr
e
ss
Co
v
e
r 2:
Ve
rti
ca
l sti
c
k
to
run
parallel to le
g
Co
v
e
r
3
:D
oub
l
e
s
i
ded
ta
p
ed
t
o
fi
t
u
n
der
c
ri
b
l
e
g
C
over 4
,
5
,
6:
Co
v
e
rs
to
r
u
nalon
g
f
loor
STEP 1 - CHARGE PARENT UNIT (15 HOURS)
2 3 1) Remove the battery cover and insert
the Rechargeable Batteries (included).
2) Connect the AC Adapter to the Parent
Unit and into an electrical outlet.
3) Charge the unit for 15 continuous hours
(prior to first use).
NOTE:
To optimize your battery performance please
refer to Battery Guidelines in the Trouble
Shooting section.
15
IMPORTANT
Never use regular
alkaline batteries
in the Parent Unit;
they may explode.
1
1.1 - BATTERIES
HOW TO CHECK THE BATTERIES:
Unplug the AC Adapters from both units.
• If the Nursery Unit Power Indicator
does not show or if the Low Battery
Indicator does show, replace
the batteries.
• If the Parent Unit screen does not
light up or it switches off, recharge
the batteries.

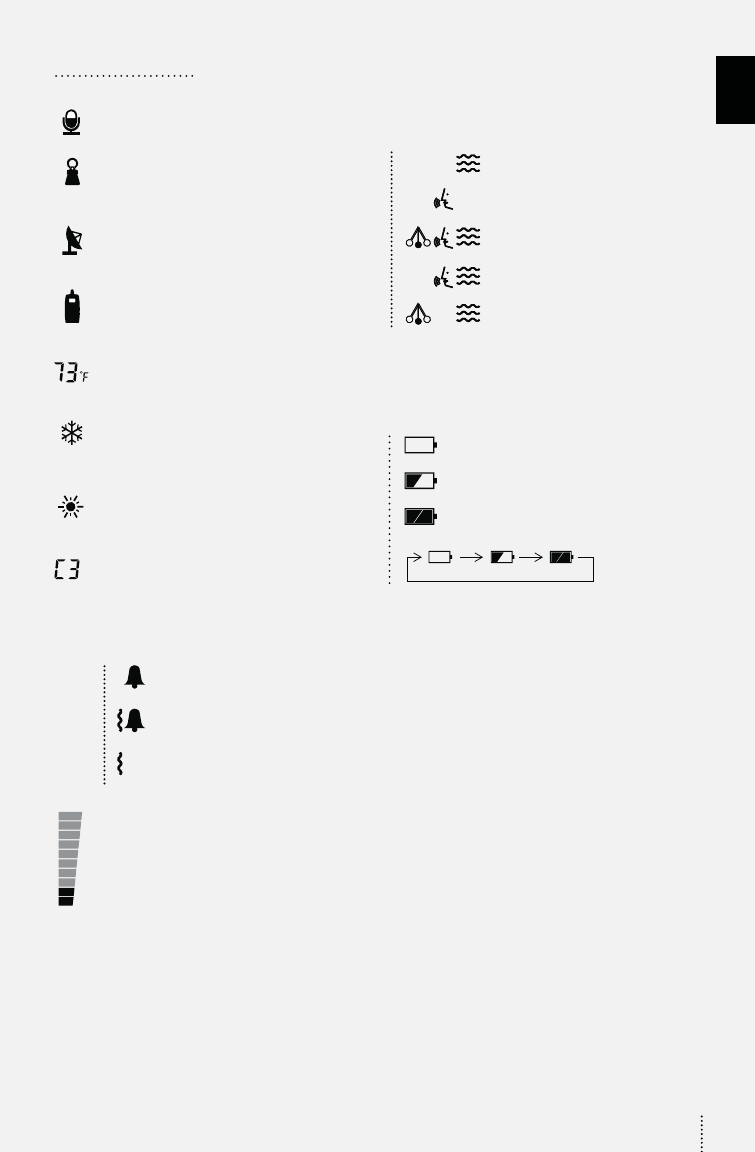

PARENT UNIT BATTERY ALARM
• Alarm activates when batteries need to be recharged.
• Parent Unit will emit a beep sound every 15 seconds.
• Battery Alarm icon will show on screen.
The Power Indicator
on the Nursery Unit
The Low Battery Indicator
on the Nursery Unit
8
HOW TO CHARGE THE BATTERIES
IN THE PARENT UNIT:
Plug the AC into the Parent Unit and
a working electrical outlet. Your Parent
Unit can function with the batteries
at 1/2 capacity but it is recommended
that they are fully charged before
unplugging from the AC Adaptor
and power outlet for maximum use.
empty 1/2 full full

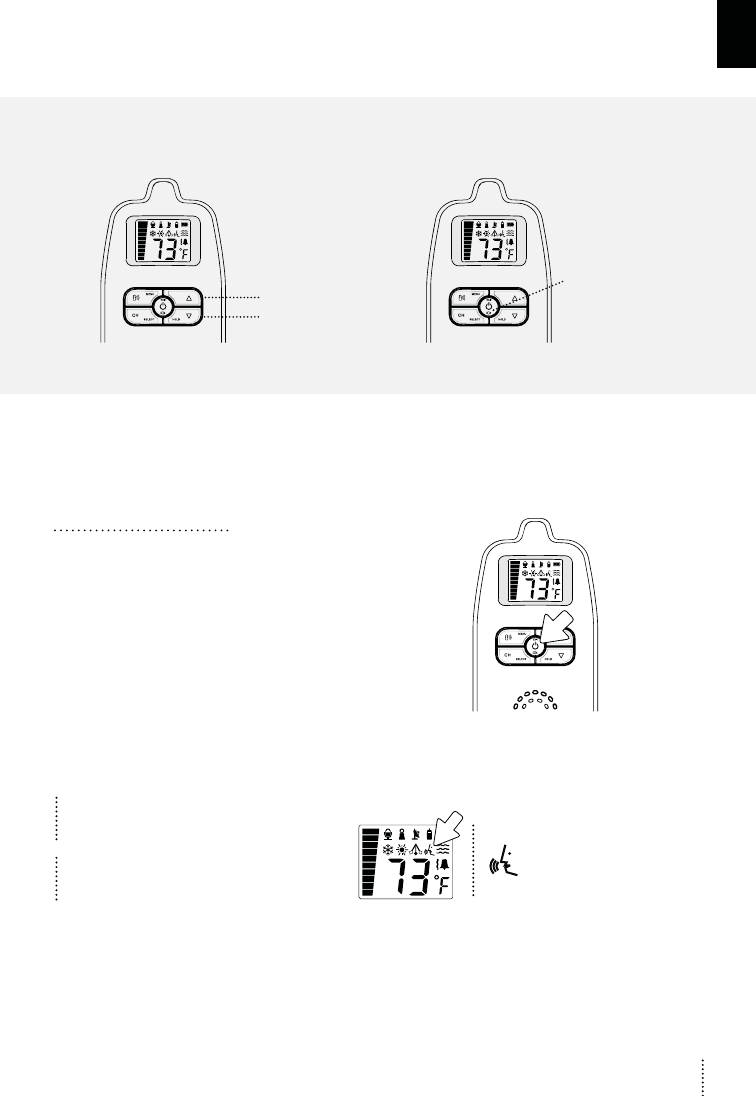

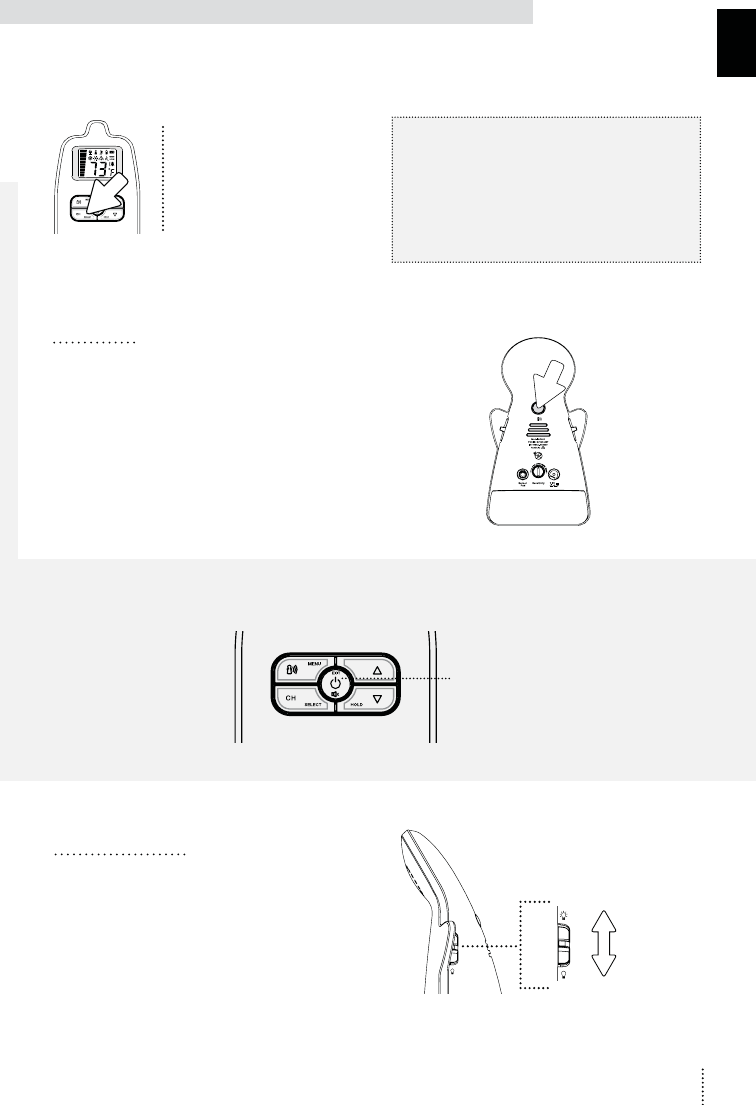

PARENT UNIT:
Front View Rear View
E
G
H
I
C
D
A) LCD Screen
B) Power ON/OFF
C) MENU Button
D) Channel Button
E) Sound Volume
UP/DOWN and HOLD
F) Speaker
G) Belt Clip
H) Battery Cover
I) AC Adapter Outlet
F
B
A
9
E
N
STEP 2 - INSTALL SENSOR PAD(S)
1
2
3
5
4
IMPORTANT
• Keep the cord on the floor, well out of reach of children.
• The Sensor Pad is not designed for use with adults, children or infants older
than 24 months.
• Once you have finished using the Sensor Pad, please remove it from the baby’s
crib and store it away.
or 2 Sensor Pads
(Dependant on Model)
1 Sensor Pad
Hardboard
The Sensor Pad functions with any
size and type of mattress except
memory-foam mattresses and hollow-
frame mattresses.
The hardboard maintains a constant
pressure on the Sensor Pad, enabling
it to detect the baby’s movements
even when the baby is at the edges
of the crib.
STRANGULATION HAZARD
Children have STRANGLED in cords. Keep the Adapter
cords and Sensor Pad cord out of the reach of children.
DO NOT put the Nursery Unit inside a crib or play yard.
Because of the serious strangulation risk to infants and
toddlers, parents and caregivers should never place the
Nursery Unit within 1 meter (3 feet) of a crib. NEVER use
extension cords with AC Adapters. ONLY use the
AC Adapters provided.
1) Place the hardboard in the middle
of the crib between the base of the crib
and the mattress.
2) Place the SensorPad – print side up –
on top of the hardboard in the middle
of the crib.
3) Safely pass the SensorPad cord through
the slatted base/springs of the crib
keeping the cord well away from baby.
NOTE:
If your crib has a solid hardwood base;
drill a hole in the hardwood base and pass
the SensorPad cord safely through the hole,
keeping the cord well away from baby.
4) Safely secure the SensorPad cord
by wrapping it around one of the crib
legs and attach it securely using
a plastic cable tie.
5) Plug the SensorPad cord into the
Nursery Unit, with the SensorPad cord
running safely out of reach of children.
1 m
(3 ft)
10
Pl
ace
th
e
h
a
r
dboa
r
d
in th
e
mi
dd
l
e
o
f
the crib between the base o
f
the crib
a
n
d
t
he
m
a
ttr
e
ss
.
2
)
Place the SensorPad – print side up –
on top of the hardboard in the middle
of the crib.
3)
Safely pass the SensorPad cord through
the slatted base/springs of the crib
k
eeping the cord well away from baby.
N
OTE
:
If
y
our crib has a solid hardwood base;
drill a hole in the hardwood base and
p
ass
t
he SensorPad cord safely through the hole,
keeping the cord well away
f
rom baby
.
4
)
Safel
y
secure the SensorPad cord
by
wrapping it around one o
f
the crib
l
egs an
d
attac
h
it secure
ly
using
a
p
lastic cable tie
.
5
)
P
l
u
g
t
h
e SensorPa
d
cor
d
into t
h
e
Nursery Unit, wit
h
t
h
e SensorPa
d
cor
d
r
unning sa
f
el
y
out o
f
reach o
f
children
.
IMP
O
RTAN
T
•Kee
p
the cord on the floor,
we
l
l
o
ut
o
f r
e
a
c
h
o
f
c
hildr
e
n.
•
The Sensor Pad is not desi
g
ned
f
or use with adults, children or in
f
ants olde
r
t
h
an 24 mont
h
s
.
•
the Sensor Pad, please remove it from the baby’s
Once you have finished using
cri
b
an
d
store it away.
Keep
at least
36in
IMPORTANT
1
2345 6
STEP 3 - SETUP NURSERY UNIT
2
1) Remove the battery cover and insert
4 AAA Alkaline Batteries (not included).
2) Place the Nursery Unit at a minimum
of 1m (3ft) away from the crib.
3) Connect the AC Adapter to the Nursery
Unit and plug into an electrical outlet.
NOTE:
The batteries maintain power
supply in case of power outage.
NURSERY UNIT:
Front View Rear View
A
K
I
M
A) Microphone
B) Movement ‘TIC’
Indicator (flashing)
C) Power ON Indicator
D) Low Battery Indicator
E) Speaker
F) Night Light Switch ON/OFF
G) Power ON/OFF
H) Pager Button
I) Sensor Pad Outlet
J) Slots for ventilation
K) AC Adapter Outlet
L) Sensor Pad Sensitivity Dial
M) Battery Cover
3
B
C
E
L
D
J
F G
H
1
11
E
N
STEP 4 - TURN ON YOUR MONITOR
1) Press the Parent Unit ON/OFF button
for 2 seconds.
2) Slide ON the Nursery Unit Power
ON/OFF button.
NOTE:
The screen of the Parent Unit will show
the channel of transmission (C1 to C8) and
after 5 seconds the room temperature and
function icons.
The connecting process should be done
within 30 seconds. If this sequence is not
completed within 30 seconds you will need
to switch the units off and start again.
CHANNEL SELECTION
1 2
When the Parent Unit is turned
ON and the Nursery Unit is OFF:
• No channel icon will appear
on the screen but the Nursery
Unit icon will blink.
• After 1 minute the Parent Unit
will start to beep. The Parent
Unit will continue to beep
for 5 seconds and then shut
itself off.
1) Press and hold the select button
to enter the channel mode.
2) Pressing either the UP or DOWN arrow
will change the channel your monitor
transmits on. (C1 to C8)
3) Press the select button again
to confirm your channel selection.
NOTE :
If the transmission is not clear, or if you hear
interference sounds, you should change
the channel.
12
3
TO SELECT THE CHANNEL:
If there is a lost connection
between the 2 units
(refer to troubleshooting p.21):
• The Out-of-range icon
(if activated) will blink
on the screen and the Parent
Unit will beep.
12
SOUND TRANSMISSION (VOX)
Nursery Unit:
Appears when options are being set
for the Nusery Unit
Out-of-Range:
Indicates the loss of connection
between the Parent Unit and
Nursery Unit.
Parent Unit:
Appears when options are being set
for the Parent Unit
Temperature Display:
Indicates room temperature
Low Temperature:
Appears when low temperature
alert is ON
High Temperature:
Appears when high temperature
alert is ON
Channel Display:
Indicates selected channel
Alarm mode icons:
Indicates selected alarm mode
Sound alarm
Sound alarm
and vibration
Vibration only
Volume/VOX sensitivity Level:
Indicates the volume and
VOX sensitivity level.
IMPORTANT ICONS
Detection Mode Icons:
Indicates selected dectection mode:
Movement Only
Sound only
‘TIC’, Sound & Movement
Sound & Movement
‘TIC’ & Movement
Battery Level icon:
Indicates battery level
Empty
1/2 Full
Full
Charging
13
E
N
5.1 - MENU ACCESS AND CHANGING THE SETTINGS
STEP 5 - TEST AND GET TO KNOW YOUR MONITOR
The Angelcare® monitor can be used with the pre-program factory settings
or you can also customize your settings to your preference.
The menu settings are accessed by using the MENU button on the Parent Unit.
The MENU functions are in a loop. Each time you press the menu button briefly you move
on to the next MENU function. The MENU functions are in the following order:
PRESS 1 TIME: ‘TIC’, Movement & Sound .….….….….….…. STEP 5.2 & STEP 5.3
PRESS 2 TIMES: Out of Range .….….….….….….….….….….….…. STEP 5.4
PRESS 3 TIMES: Sound Transmission .….….….….….….….….…. STEP 5.5
PRESS 4 TIMES: Alarm .….….….….….….….….….….….….….….….…. STEP 5.7
PRESS 5 TIMES: Temperature.….….….….….….….….….….….….…. STEP 5.9
All changes and adjustments made
in the main menu and sub-menu will
not be activated unless you confirm
them by pressing the SELECT
button followed by the EXIT button.
NOTE:
By continuing to press the MENU button you will
be continuously moving through the loop. Once
you have selected your preferred settings you must
press SELECT and then EXIT or your changes will
not be saved.
5.2 - SENSOR PAD
SENSOR PAD FUNCTIONS:
‘TIC’: Allows you to detect baby’s
movements as well as hear a TIC sound
at each movement. (This function can
ONLY be activated in conjunction with
the Movement Function).
Sound Only: Allows you to detect the
baby’s sounds ONLY. Movement detection
will be deactivated.
Movement Only: Allows you to detect the
baby’s movements with the TIC sound
as an option.
IMPORTANT
When in MENU or SUB-MENU mode
NO sound, alarm or vibration will be
emitted from either the Parent Unit
or the Nursery Unit even if they were
activated before pressing the MENU
or SUB-MENU mode.
14
IF THE ALARM DOES NOT SOUND
It’s possible that the Sensor Pad
detects a continuous vibration from
the floor or an air current, or someone
is in contact with the crib.
• Avoid contact with crib
while Sensor Pad is in operation.
• Place crib near a supporting wall.
• Adjust Sensor Pad sensitivity level.

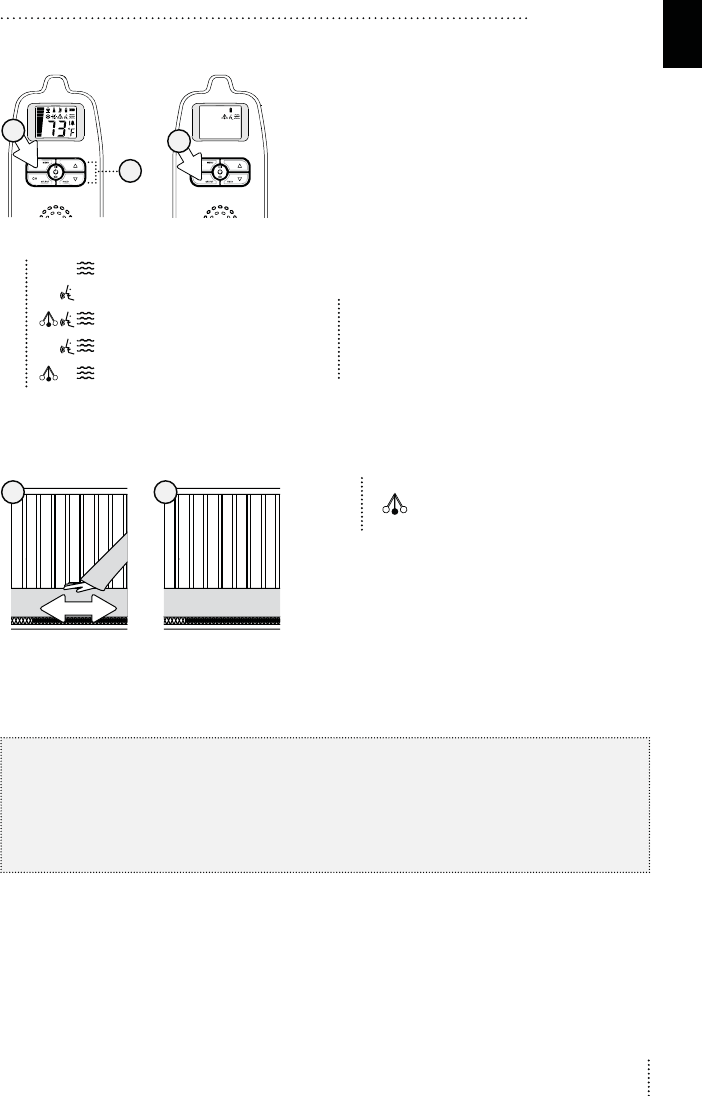

5.3 - CHANGING THE MOVEMENT AND SOUND MONITORING FUNCTIONS
1) Press the MENU button once and
the flashing icons will appear.
2) Use the UP and DOWN Arrows to select
your preferred detection mode.
3) Press the SELECT button to confirm
your choice.
4) Press the MENU to view the next option,
or EXIT if you wish to stop programming.
1) Move your hand lightly on the mattress.
Pendulum icon will appear
on Parent Unit indicator bar.
It will move as you move your
hand and trigger a ‘TIC’ sound.
2) Remove your hand from the mattress.
After 15 seconds you will hear a
‘TIC’ pre-alarm sound, and 5 seconds
later the Movement Alarm will trigger.
3) Repeat by moving your hand lightly
in all four corners of the mattress.
Ensure the Nursery Unit Movement
Indicator is still flashing.
1 2
TO SET DETECTION MODE:
TO TEST THE SENSOR PAD:
MOVEMENT ALARM
• If NO movement is detected after 15 seconds you will hear a single ‘TIC’ pre-alarm sound from
the Nursery Unit.
• If after a further 5 seconds there is still NO movement detected both the Parent Unit and Nursery
Unit speakers will emit loud warning sound.
• Nursery Unit icon flashes on the Parent Unit
• Green light on the Nursery Unit will turn off to indicate NO movement is being detected.
3
2
1
If you press the MENU button for too long
the unit will go in to connection mode and the
Out-of-Range indicator will start flashing. If this
happens, wait 20 seconds and then press
the MENU to start again.
Movement Only
Sound Only
‘TIC’, Sound & Movement
Sound & Movement
‘TIC’ & Movement
15
E
N
TO STOP THE ALARM
Place your hand
back on the
mattress.
Press
any key
to put on
Hold (see
section 6.6)
Shut the Nursery
Unit OFF
OR OR
You can adjust the Nursery Unit
sensitivity dial to change your Sensor Pad
from less sensitive to very sensitive.
This sensitivity dial is located on the back
of the Nursery Unit.
NOTE:
If you are experiencing false alarms,
adjust the sensitivity level.
TO ADJUST THE SENSOR PAD SENSITIVITY LEVEL:
5.4 - OUT OF RANGE SETTINGS
IMPORTANT
• The Sensor Pad is not designed for use with adults, children or infants older
than 24 months.
• Once you are finished using the Sensor Pad, please remove it from the baby’s
crib and store it away.
For optimal results begin with the sensitivity level
dial on the 3rd bar, adjusting the sensitivity
by half a bar increases or decreases as required.
Your monitor has an Out-of-Range function that advises you when your two units
are not communicating. Out-of-Range situations can be caused by distance or
by physical interferences.
RANGE:
Approx up to 250 meters / 820 ft (open field)
16
TO ACTIVATE THIS FUNCTION:
IMPORTANT
If the Out-of-Range function is activated and you turn the Nursery Unit OFF
the Out-of-Range Alarm will sound and/or vibrate (depending on the alarm mode
chosen). Turn the Nursery Unit ON again to reactivate the link.
1
2
ON
OFF
1) Press MENU button 2 times.
The Out-of-Range Indicator
will blinks.
2) Using the UP and DOWN Arrows,
turn the function ON or OFF.
3) Press the SELECT button and then EXIT
to confirm your choice.
OUT-OF-RANGE ALARM
• Alarm activates when your two units are not communicating.
• The Parent Unit will emit a double beep every 8 seconds.
• Out of Range Icon will flash on the screen.
The Out-of range Icon will also flash
when channel is being changed or
the unit is reconnecting
TO STOP THE OUT-OF-RANGE ALARM:
Press 2 seconds
to turn the Parent
Unit OFF OR
Turn the Nursery
Unit ON
3
5.5 - SOUND TRANSMISSION (VOX)
Your monitor has the option of “VOX” (voice activated - only picks up noise based on
sensitivity level) or “Continuous” transmission.
TO TEST SOUND:
Ask someone to speak into the Nursery Unit
or place the unit near a radio to ensure
that sound is being picked up.
IF YOU HEAR NO SOUND:
• Check that both units are switched ON.
• Check that both units are plugged into
functioning electrical outlets.
• Check the batteries in both units
(replace or recharge them as necessary
per unit).
• Bring the Parent Unit closer
to the Nursery Unit.
IMPORTANT
To avoid feedback (whistling), keep both
units at least 3 meters apart (10 feet).
17
E
N
1
2
3
TO ADJUST SOUND SENSITIVITY (VOX):
The sensitivity of the microphone is adjustable and has 4 levels (the most sensitive is
level 4). This means that sound will only transmit based on the level that you set.
1) Press MENU button 4 times.
Sensitivity Level icon will appear.
2) With the arrow keys select desired microphone sensitivity level.
3) Press SELECT button to confirm your choice.
VOX
Sensitivity
Level
(4 levels)
VOICE ACTIVATION (VOX) OR CONTINOUS SOUND MODE
Allows you to select your option on how you monitor sound:
VOX (voice activation picks up sound based on the setting of the sensitivity level) or
Continuous (sound monitoring is continuously on, picking up all sounds).
TO ACTIVATE VOX MODE:
1) Press Menu button 3 times.
The Vox icon will appear.
2) Using the arrows, to turn the function ON or OFF.
NOTE:
By deactivating VOX the Continuous setting is ON.
3) Press Select button to confirm your choice.
1
2
ON VOX
(VOX)
OFF VOX
(Continuous)
18
VOICE ACTIVATION
(
VOX
)
OR CONTINOUS SOUND MOD
E
Allows you to select your option on how you monitor sound:
VO
X
(
(voice activation picks up sound based on the setting of the sensitivity level) or
Cont
i
nuous (soun
d
monitoring is continuous
l
y on, pic
k
ing up a
ll
soun
d
s)
.
ADJUST THE SOUND LEVEL PUT IN TEMPORARY MUTE MODE
Raise volume
Lower volume
Press the SOUND/OFF
button once to mute
the sound
(see section 6.4).
5.6 - TEMPORARY MUTE
Allows you to put your monitor
in temporary MUTE mode.
TO ACTIVATE MUTE:
Press the SOUND/OFF button.
TO DEACTIVATE MUTE:
Press the SOUND/OFF button again
to hear sounds.
NOTE:
The Sound Icon will blink
on the Parent Unit whilst
the Temporary MUTE
is activated.
After 2 minutes the sound function
will be automatically reactivated.
If you press too long on the
SOUND/OFF button it will shut
down the Parent Unit.
19
E
N
1) Press and hold the Down Volume
arrow for 2 seconds.
The Hold Icon will appear on the screen.
The Parent Unit will emit a double beep every
minute to remind you that your monitor
is on HOLD.
2) To deactivate this function, press
and hold the Down Volume arrow
for 2 seconds.
5.7 - ALARM SETTINGS
Allows you to select your preferred
alarm mode.
IMPORTANT
Vibration option will work when the
following alarm functions are activated:
• Out-of-range
• Temperature alert
• No movement detection
for 20 seconds.
Sound alarm will replace vibration
mode when the Parent Unit
is charging.
Sound alarm
Sound alarm
and vibration
Vibration only (the alarm will
not sound on Parent Unit but
it will on Nursery Unit).
1
2
1) Press MENU button 5 times.
The Nursery Unit
Indicator blinks.
2) Using the arrows, select
the desired alarm mode.
NOTE:
Vibration mode not available in some countries.
5.8 - HOLD
Allows you to put your Angelcare monitor on HOLD.
1
2
IMPORTANT
When your monitor is in HOLD mode, the movement alarm will not go off and the sound
will not be transmitted. When your monitor is in Sound only mode, the HOLD function
cannot be activated.
IMPORTANT
When your monitor is on HOLD, the movement-detection feature and movement alarm
are disabled.
IMPORTANT
When in MENU or SUB-MENU mode NO sound, alarm or vibration will be emitted
from either the Parent Unit or the Nursery Unit even if they were activated before
pressing the MENU or SUB-MENU mode.
20
5.9 - TEMPERATURE
TO ACTIVATE THE TEMPERATURE ALARM:
TO SET TEMPERATURE RANGE: 1) Press the MENU button 6 times.
The Temperature Indicator
(Low and High) will appear.
2) Using the arrows, turn the function ON.
3) Press the SELECT button to confirm
your choice.
4) Press the MENU button and the
Snow Flake (Low Temperature icon)
will appear.
5) Press the arrows to set the LOW
temperature alarm (5 to 19˚Celsius
/ 41 to 67˚ Fahrenheit)
6) Press the SELECT button to confirm
your choice.
7) Press the MENU button and the Sun
(High Temperature icon) will appear.
8) Use the arrows to set HIGH temperature
alarm (22 to 40˚Celsius
/ 72 to 97˚Fahrenheit).
9) Press the SELECT button and then
the EXIT button to confirm your choice.
TEMPERATURE ALARM
• Alarm activates when the temperature reaches the maximum or minimum set temperature.
• Parent Unit will emit 3 consecutive beeps, every 5 seconds if the temperature reaches levels out
of your chosen range. The relevant icon will flash on the Parent Unit screen to alert you.
1) Press the MENU button 6 times.
The Temperature Indicator
(Low and High) will appear.
2) Using the arrows, to turn the function
ON or OFF.
3) Press SELECT button to confirm
your choice.
1
2
1
3
6 9
4 7
2
58
21
E
N
Detection Mode:
Sound & Movement
Temperature Unit: Celsius
Temperature Alarm: OFF
Temperature Alarm Setting:
High 30oC / 86oF
Low: 19oC / 66oF
Alarm Mode: Sound Only
Out of Range: OFF
Sound transmission (VOX): OFF
DEFAULT SETTINGS
YOU ARE NOW READY
TO USE YOUR MONITOR
The Angelcare® monitor can be used with the pre-program factory settings
or you can also customize your settings to your preference.
IMPORTANT
• Test your monitor before first use.
• Test your monitor regularly to ensure it is functioning correctly.
• Test your monitor every time you move the Sensor Pad to a different place.
22
STEP 6 – ACTIVATE AND DEACTIVATE ADDITIONAL FUNCTIONS
The Angelcare® monitor can be used with the pre-program factory settings
or you can also customize your settings to your preference.
All changes and
adjustments made in the
main menu and sub-menu
will not be activated
unless you confirm them
by pressing the SELECT
button followed by the
EXIT button.
IMPORTANT
When in MENU or SUB-MENU mode
NO sound, alarm or vibration will be
emitted from either the Parent Unit
or the Nursery Unit even if they were
activated before pressing the MENU
or SUB-MENU mode.
6.1 - PAGER
Allows you to locate the Parent Unit.
TO LOCATE THE PARENT UNIT:
Press and release the Nursery Unit Pager
button on the rear of the Nursery Unit.
The Parent Unit will emit a paging sound.
TO STOP THE PAGING SOUND:
Press the Power button
on the Parent Unit
Slide the Night Light button
on the Nursery Unit
to turn it ON or OFF.
6.2 - NIGHT LIGHT
23
E
N
3
4
1) Turn OFF the Parent Unit and switch it
back ON. LCD will only show ‘——‘ with
back light on and nursery unit icon
will flash.
2) By pressing and holding for 3 seconds
the Parent Unit “MENU/CONNECT”
button, the Parent Unit will be set in
to connectivity mode (you will hear a
beep tone and the antenna icon will flash
for 15 seconds).
3) To set the Nursery Unit in to connectivity
mode, press and hold the Page button
for 4 seconds (on the back of the
Nursery Unit). The Power LED will light
and a beep tone will be emitted as
the connection procedure should
be completed.
NOTE:
If step 3 is not followed within the duration,
the Parent Unit will exit the connectivity
mode and you will need to start this
process again.
4) When the Parent Unit and Nursery
Unit are connected, the parent unit
emits a confirmation tone and will
show the channel number which will be
replaced by the temperature (normal
screen) a few seconds later.
1
2
NOTE:
If the TIC light is flashing, do not
press the “Page” button or the link may
be interrupted.
LOSS OF CONNECTIVITY
In the case of loss of connectivity, the first step is to bring the Parent Unit and Nursery Unit
closer together and make sure that both units are ON to restore the connection. If there is
still no connection and no out of range warning after the above has been done, then and
only then should the re-connection procedure below be done.
TROUBLESHOOTING
TAKING CARE OF YOUR RECHARGEABLE BATTERIES
• Ensure that you fully charge your batteries for 15hrs before their first use.
• To maintain maximum battery life it is recommended that you fully discharge
your batteries periodically. Battery performance can be diminished by leaving
the batteries constantly charging. If your parent unit is not in use, please turn it off.
• Inadequate battery power can impair the performance of your monitor. If you are not
happy with the performance of your Parent Unit/Monitor please replace the rechargeable
batteries (4 x NiMH Rechargeable Batteries).
• It is advisable to change the batteries every 6 months.
Re-connection procedure:
24
FALSE ALARMS
• Verify the connection between Sensor Pad and Nursery Unit. Unplug and reconnect
the cord.
• Make sure there is no bedding between the mattress and the Sensor Pad.
• If the crib has a spring or slat base, place a hardboard between the crib base and
the Sensor Pad measuring at least 13” x 13” (33x33 cm) and 1/4 inch (6 mm) thick.
• Make sure the Sensor Pad is positioned as described under the setup requirements.
Sensitivity may need to be adjusted, refer to step 5.3.
ALARM WILL NOT SOUND
• Avoid contact with the crib when the monitor is ON.
• Place the crib near a solid supporting wall to avoid Sensor Pad from detecting
movement from outside the crib.
• You may need to increase the sensitivity, refer to step 5.3.
NO SOUND IS BEING TRANSMITTED
• Ensure that both units are switched ON.
• Check that the sound has not been turned down on the Parent Unit. Increase
the volume level on the Parent Unit, refer to step 5.5.
• Check on the Parent Unit screen to see if the monitor is in temporary MUTE mode
instead of ON mode. Deactivate the temporary MUTE function, refer to step 5.6.
• If there is no power to any unit check/replace the batteries, recharge the Parent Unit
& check the AC Adaptors are working. Change electrical outlets if required.
• Bring the Parent Unit and Nursery Unit closer together.
NURSERY UNIT POWER ON INDICATOR (GREEN LIGHT) DOES NOT LIGHT UP
• Turn the switch behind the left wing ON.
• Check connections or change to another electrical outlet.
WEAK RECEPTION
• Bring units closer together.
• Change the position of one or both units.
• Place units on a flat surface away from baby’s reach.
• Replace the batteries or recharge Parent Unit.
STATIC, DISTORTION, INTERFERENCES
(FROM OTHER MONITORS, WIRELESS PHONES, WALKIE-TALKIES, ETC...)
• Rotate the Parent Unit or move it away from source of interference.
• Try a different channel, refer to Step 4.
FEEDBACK (LOUD NOISES EMITTED FROM THE PARENT UNIT)
• Move the units farther apart (at least 3 meters/10 feet apart).
• Decrease the volume on the Parent Unit.
THE PARENT UNIT SCREEN IS BLACK (PARENT UNIT IS OFF)
• Turn the Parent Unit back ON by pushing and holding the power button.
• Replace the batteries or recharge the Parent Unit.
25
E
N
If you experience a problem that is not noted in this manual,
please do not return the product to the store. If you are not completely
satisfied or have any questions:
United States and Canada: please contact us at: angelcare@cdecinc.ca
Other countries: please contact your local Distributor.
We may have a simple solution to your problem.
LIMITED WARRANTY
Angelcare® warrants to the original owner of this product that Angelcare® rechargeable,
movement and sound monitor (model AC403) is free from any material and workmanship
defects, for a period of one (1) year (rechargeable batteries not included) from the date
of the original purchase. If this monitoring system fails to function properly when used as
directed under normal conditions within the one year period, Angelcare® will either repair or
replace the product, at our discretion, free of charge. Please contact your distributor.
The product must be accompanied by a proof of purchase, either a bill of sale or other
proof that the monitoring system is within the warranty period. Angelcare® will bear the
cost of repairing or replacing the product and shipping it back to you.
This warranty does not apply to a product which has been damaged as a result of
improper maintenance, an accident, improper voltage supply or any other form of
misuse. The warranty is also void if the owner repairs or modifies the product in any
way. Angelcare® is not liable for any incidental or consequential damages with regard
to this product. The warranty also excludes any liability other than what is stated above.
No other warranty is given.
LEGAL RIGHTS VARY FROM COUNTRY TO COUNTRY. SOME COUNTRIES DO NOT ALLOW
THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO
THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
WE ARE NOT IN ANY WAY RESPONSIBLE FOR ANY OUTCOME RESULTING FROM
THE USE OF THIS PRODUCT.
IMPORTANT!
This Angelcare® monitor is a personal care product. Please do not return this product
to the store. If you have questions or need help, please call your distributor before returning
this product.
REGISTER ANGELCARE PRODUCTS
Register your Angelcare® monitor and other
Angelcare® products on our website:
www.angelcare-monitor.com
ANGELCARE MONITORS INC.
9975, avenue De Catania, Local B
Brossard, Québec, Canada
J4Z 3V6
26
TECHNICAL SPECIFICATIONS
Range:
up to 820 ft. (250m)
Number of Channels:
USA/Canada: 8 channels.
Europe: 8 channels.
Power Supply:
4 AAA alkaline batteries (not included)
or 100-240V AC/7.5V DC adapter
for Nursery Unit.
3 AAA rechargeable batteries and
100-240V AC/7.5V DC adapter
for the Parent Unit.
Caution: To reduce the risk of electric
shock, do not expose this product to rain or
moisture.
Danger of explosion if batteries are
incorrectly replaced. The included Batteries
are 3 AAA NIMH rechargeable batteries,
manufactured by GPI INTERNATIONAL
LIMITED (GN60AAAHC, 1.2V 600mAh) or
by HIGHPOWER TECHNOLOGY CO., LTD
(HFR-44AAAJ600, 1.2V 600mAh).
They may only be replaced by 3 AAA
NIMH rechargeable batteries.
ErP COMPLIANCE
SOUTH AFRICA-BRAZIL-ECUADOR-EUROPEAN UNION
Use only Angelcare® Brand power supply-model number T07505V001
GERMANY
Use only Angelcare® Brand power supply-model number T07505F002
AUSTRALIA
Use only Angelcare® brand power supply-model number T07505S002
NORTH AMERICA
Use only Angelcare® brand power supply-model number T07505U002
UK-MALTA-ASIA-CYPRUS
Use only Angelcare® brand power supply-model number T07505B001
PROTECT THE ENVIRONMENT
This electronic equipment contains reusable material and must not be disposed
with domestic waste. Please take it to a collecting point for electric and electronic
equipment (ask your local authorities for details).
Batteries:
• DO NOT mix old and new batteries.
• DO NOT mix alkaline standard
(carbon-zinc), or rechargable
(NI-CD, NIMH, etc) batteries.
Transmission:
Settings transmission from the Parent Unit
to the Nursery Unit is made on the 2.4 GHZ
frequency. Transmission from the Nursery
Unit to the Parent Unit is made on the
864 MHz frequency in Europe/Asia/Africa
and on the 927 MHz frequency for North
America/Ecuador/Oceania.
This Device complies with the requirements
set out in the R&TTE 1999/05/EC Directive.
27
E
N
IM403-NA-112213
