SafetyInstructions
Read and understand all instructions before you use this device. Do not
make any changes or settings that are not described in this manual.
If physical injury, loss of data or damage is caused by failure to follow
instructions, the warranty does not apply.
Setup
• To reduce the risk of fire and/or electric shock, do not expose the
device to rain or moisture, and objects filled with liquids, such as
vases, should not be placed on the device.
• Do not place the device on soft surfaces such as tablecloths or
carpets as doing so could be a fire-hazard.
• Do not place the device in areas susceptible to excessive dust and
dirt or near any appliance generating a strong magnetic field.
• To prevent overheating, do not block or clog the ventilation openings.
• Never place the device in a confined space. Always leave enough
space around the device for ventilation.
• Protect the device against direct sunlight, heat, large temperature
fluctuations and moisture.
• When the device runs for a long period of time and the surface
becomes hot, shut it down and unplug the power cord. Resume
operation only after the device has cooled.
• Always handle the device with care. Avoid touching the lens.
• Never place heavy or sharp objects on the device or the power cord.
• To avoid electric shock, do not disassemble.
• Only use attachments or accessories specified by the manufacturer.
• Avoid extreme vibration. It may damage the internal components.
• Do not allow children to handle the device without supervision.
• Under the following conditions, a layer of moisture can appear
inside the device which can lead to malfunctions: a) if the device is
moved from a cold to a warm area; b) after a cold room is heated; c)
when the device is placed in a damp room. To avoid any moisture,
seal the device in a plastic bag before moving it to another room,
and wait for one to two hours before you take it out of the bag.
English
English
02 03
Power Supply
• Use only the provided power adapter.
• Power off the device before removing the power supply from the socket.
• Protect the power cord from being walked on or pinched, particularly
at plugs, convenience receptacles, and the point where they exit from
this device.
• Unplug this device if there are lightning storms or when unused for a
long period of time.
• Where the
power
plug or an appliance coupler is used as the disconnect
device, the disconnect device shall remain readily operable.
• Before you make or change any connections, ensure that all devices
are disconnected from the power outlet.
• Never touch the power cable or the power connector with wet hands.
Hearing Safety
• To avoid hearing damage, do not listen for extended periods at high
volume. Set the volume at a safe level.
Battery
• Do not replace the built-in battery yourself. Contact an authorized
service center to replace it.
• The remote control contains coin type batteries which can be
swallowed. Keep the batteries out of reach of children.
• Risk of explosion! Keep batteries away from heat, direct sunlight, or
fire. Never discard batteries in fire.
• When the remote control is not used for a long period of time, remove
the batteries.
• There is a danger of explosion if the battery is incorrectly replaced.
Replace only with the same or equivalent type.
• Batteries contain chemical substances, they should be disposed of
properly.
• Charge the device regularly. Do not store the device with a
completely discharged battery.
Cleaning
• Power off the device and remove it from the power supply before
cleaning the surface.
• Use a soft, lint-free cloth. Never use liquid, gaseous, or easily
flammable cleansers (like sprays, abrasives, polishes, and alcohol).
• Do not use any liquid cleaning agents to clean the lens as they may
damage the protective coating on the lens.
• Wipe over the surfaces gently. Be careful that you do not scratch the
surfaces.
• Use lens cleaning paper to clean the lens of the projector.
Repairs
• Do not make any repairs to the device yourself. Only have your device
repaired by an authorized service center.
• Improper maintenance can result in injuries or damage to the device.
Class II equipment symbol
This symbol indicates that the unit has a double insulation system.
Laser Safety
CLASS 1
LASER PRODUCT
IEC 60825-1:2014. Complies with IEC 62471:2006 Risk Group 2.
Caution:
• Possibly hazardous optical radiation emitted from this device.
• Do not stare at operating beam. The bright light may hurt your eyes.
English
English
04 05
What’sIncluded
Main unit
Power Adapter Power cord
Remote control with batteries
Manual
Owner’s Manual

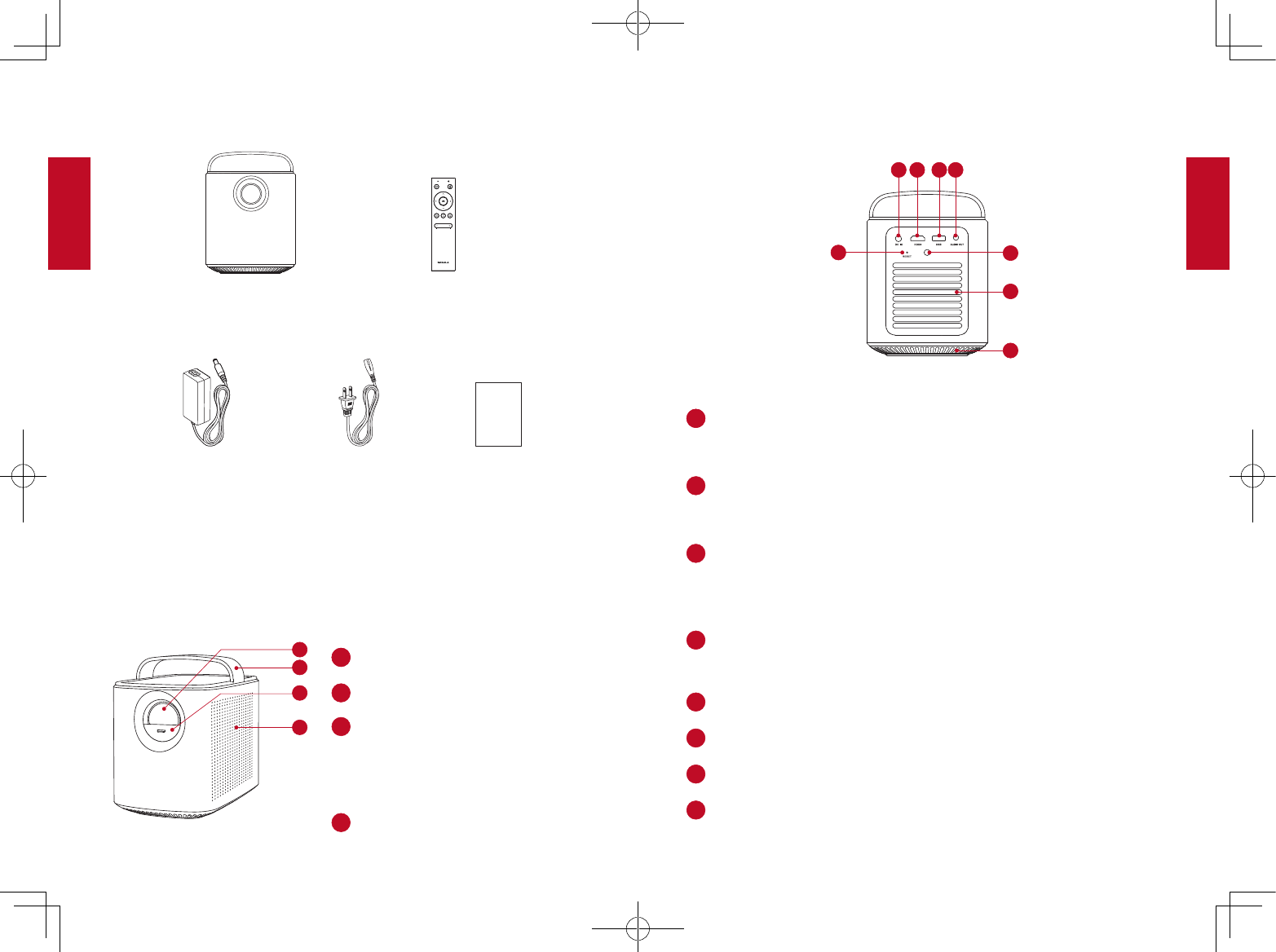

Overview
1. FrontView
2
1
3
4
11
Lens
2
Handle
3
Lens cover
• Slide down to power on and
automatically adjust focus
• Slide up to power off
4
Loudspeaker
2. RearView
2
134
6
5
7
8
11
DC IN
• Connect to power supply
2
HDMI
• Connect to a playback device with HDMI output
3
USB
• Connect to a USB storage device
• Charge a USB device as a power bank
4
AUDIO OUT
• Connect to a headphone or an external speaker
5
Infrared Receiver
6
Air ventilation (outlet)
7
Air ventilation (inlet)
8
RESET
English
English
06 07

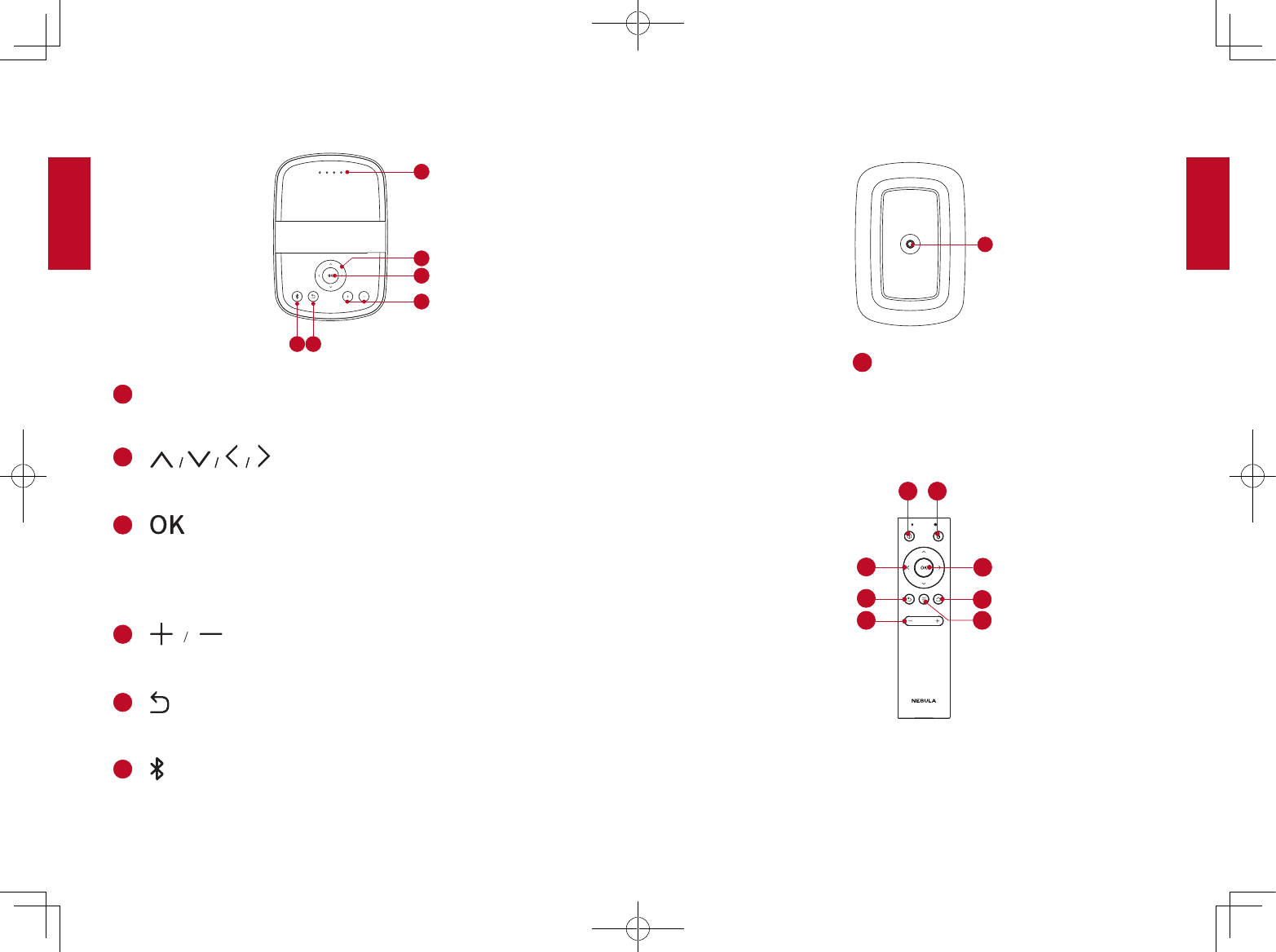

3. TopView
2
1
3
4
65
11
LED indicators
• Power level
2
Navigation buttons
• Navigate menus or adjust the selected contents
3
• Press to confirm a selection or entry
• Pause / resume play
4
• Volume up / down
5
• Return to the previous menu
6
• Press to enter/exit Bluetooth mode
• In standby mode, press to wake up the projector
4. BottomView
1
11
Tripod socket
5. RemoteControl
7
8
2
1
3
4
6
5
English
English
08 09
11
• Power on / off / switch to standby
2
• Press to enter / exit mouse key mode.
3
• Press to confirm a selection or entry
• Pause / resume during play
4
• Press to access the home menu
5
• Access more options during play (availability of options are
dependent on the source input).
• Press and hold to adjust focus
6
Navigation buttons
• Navigate menus or adjust the selected contents
7
• Return to a previous menu
8
• Volume down / up
GettingStarted

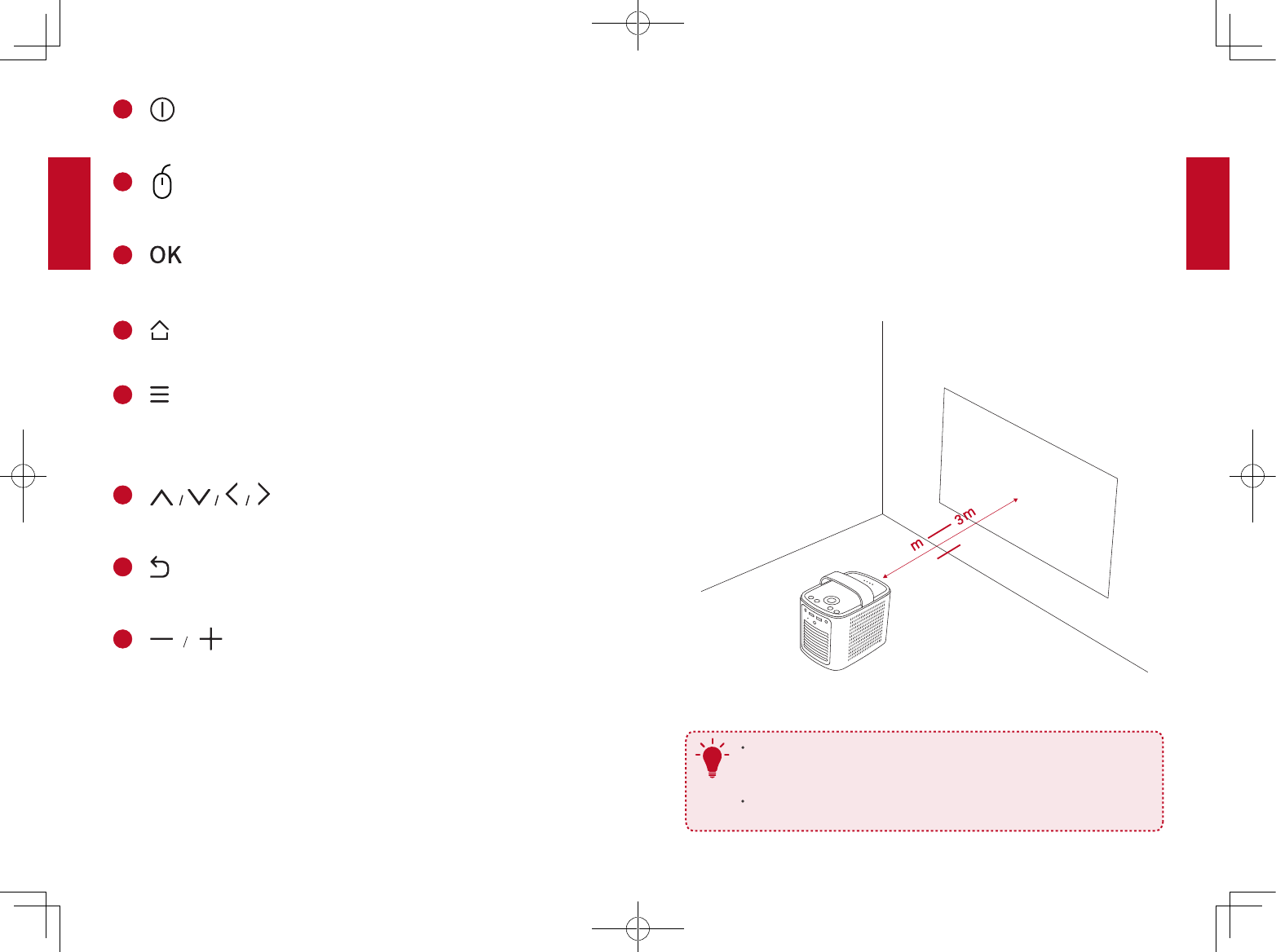

1. Placement
Place Mars II on a stable, flat foundation in front of the projection
surface. For the best results, the projection surface should be white
and flat. The distance between the projector and the projection surface
must be a minimum of 1 meter (39.4 inches) and a maximum of 3
meters (118 inches).
39.4”
1
118”
T
It is unnecessary to tilt the projector towards the projection
surface. You can correct the projection image with the built-in
keystone correction.
The distance between the device and the projection surface
determines the image size.
English
English
10 11
2. PreparetheRemoteControl
①For first time use, remove the plastic battery insulation tab to
activate the remote control batteries.
②To replace the batteries, slide off the battery compartment backplate
to open the battery compartment, insert new batteries (matching the
polarity (+/-) indicated), and close the battery compartment.

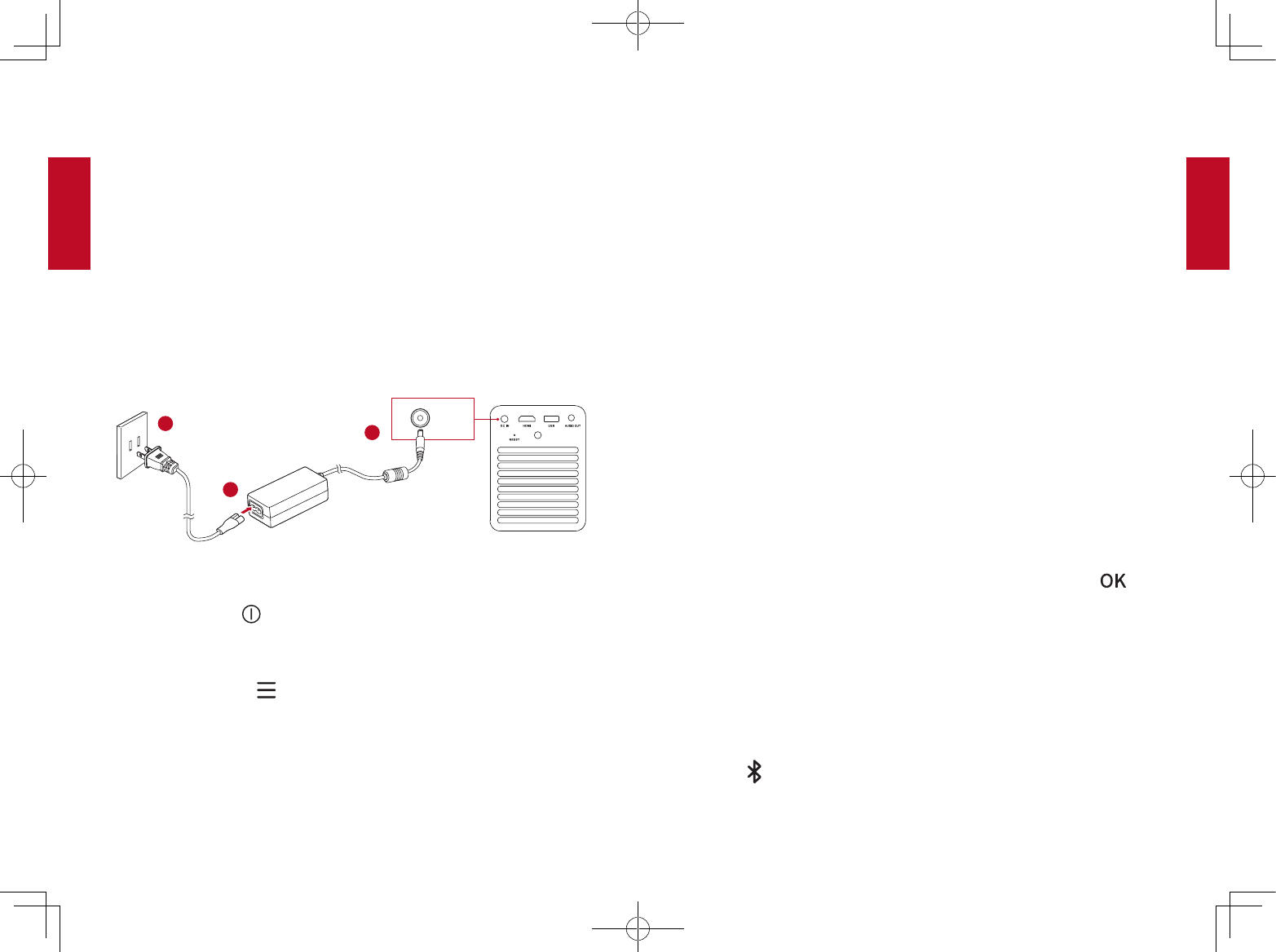

3. GetStarted
①Fully charge the built-in battery before using for the first time.
②Connect the projector to the outlet by using the provided power
adapter and power cord, the built-in battery will be charged and the LED
indicators will light on.
DC IN
2
1
3
③
Slide down the lens cover, and the projector will automatically turn on.
You can also press on the remote control to turn it on.
④ Angle the projector towards a suitable projection surface or wall.
⑤ To focus the image, slightly move the projector to engage auto-focus
or press and hold the on the remote control to manually adjust.
For first time use, follow the on-screen instructions to complete the
basic set-up.
NebulaApp
To easily control this projector, we recommend you to download the
dedicated Nebula app, Nebula Connect. Using this app, you can use
your smartphone’s keyboard to input text and use the screen as a
mouse.
①Download the Nebula Connect app from the App Store (iOS devices)
or Google Play (Android devices).
②Enable Bluetooth on your smartphone and select
[Nebula]
as the
device to be connected.
③Open the Nebula Connect app and follow the on-screen instructions
to complete connection setup.
Settings
Go through the set-up process main settings when you turn on the projector
for the first time.
1. Network
This projector can be connected to the Internet via a wireless (Wi-Fi)
connection.
①On the home menu, select
[Settings]
>
[Network]
and press ..
②Follow the on-screen instructions to complete the network
connection.
2. Bluetooth
Bluetooth Speaker Mode
You can use this projector as a standalone Bluetooth speaker.
①Press on the projector to switch to Bluetooth speaker mode.
②Enable Bluetooth on your smartphone and select
[Nebula]
as the
device to be connected.
English
English
12 13
Projector Mode
You can connect Bluetooth headphones or a speaker to Mars II while
it’s in projector mode.
① On the home menu, select [Settings] > [Bluetooth] and press .
②Follow the on-screen instructions to complete the Bluetooth
connection.
3. Projector
On the home menu, select [Settings] > [Projector], and press .
[Image Mode] [Auto] / [Standard Mode] / [Battery Mode]
[Color Temperature] [Normal] / [Cool] / [Warm]
[Auto Keystone Correction]
Enable / disable auto keystone correction.
[Keystone Correction]
Manually make keystone correction. The
default value is 0.
[Auto Focus] Enable / disable auto focus.
[Projector Mode]
[Front]: The device is located in front of the
projection surface.
[Rear]: The device is located behind the
projection surface.
[Front Ceiling]: The device is hanging from
the ceiling in an upside down position. The
image is rotated by 180 degrees.
[Rear Ceiling]: The device is hanging from
the ceiling in an upside down position
behind the projection surface. The image
is rotated by 180 degrees and horizontally
mirrored.
4. AppManager
①
On the home menu, select [Settings] > [App Manager] and press .
② Select an app and check the current version, open or force stop,
check the storage used, clear data or cache, or uninstall it.
T
When more than 3 apps are installed, you can select [All] at the
bottom line of the home page to enter the [Apps] page. Select
an app and press in the remote control, and then you can
select [Move To Home] or [Uninstall].
5. Others
On the home menu, select [Settings] to find more setting options.
[General]
[Language] Select an on-screen display language.
[Keypad Tone] Turn the keypad tone on/off.
[Automatic Sleep
Interval] 5 min / 15 min / 30 min
[Background] Select a background.
[Clear Cache] Clear all the cached data stored on the
projector.
[Date&Time]
[Automatic Date&Time] Enable / disable automatic date and time.
[Date] Manually set date.
[Time] Manually set time.
[Select time zone] Select time zone.
[Use 24-hour format] Select 24-hour format or 12-hour format.
[Upgrade]
[Check Update]
Check if it is the latest version. Follow
the on-screen instructions to update the
software version.
[About]
[Recovery] All data on the built-in storage will be erased.
English
English
14 15
UsingtheNebulaMarsII

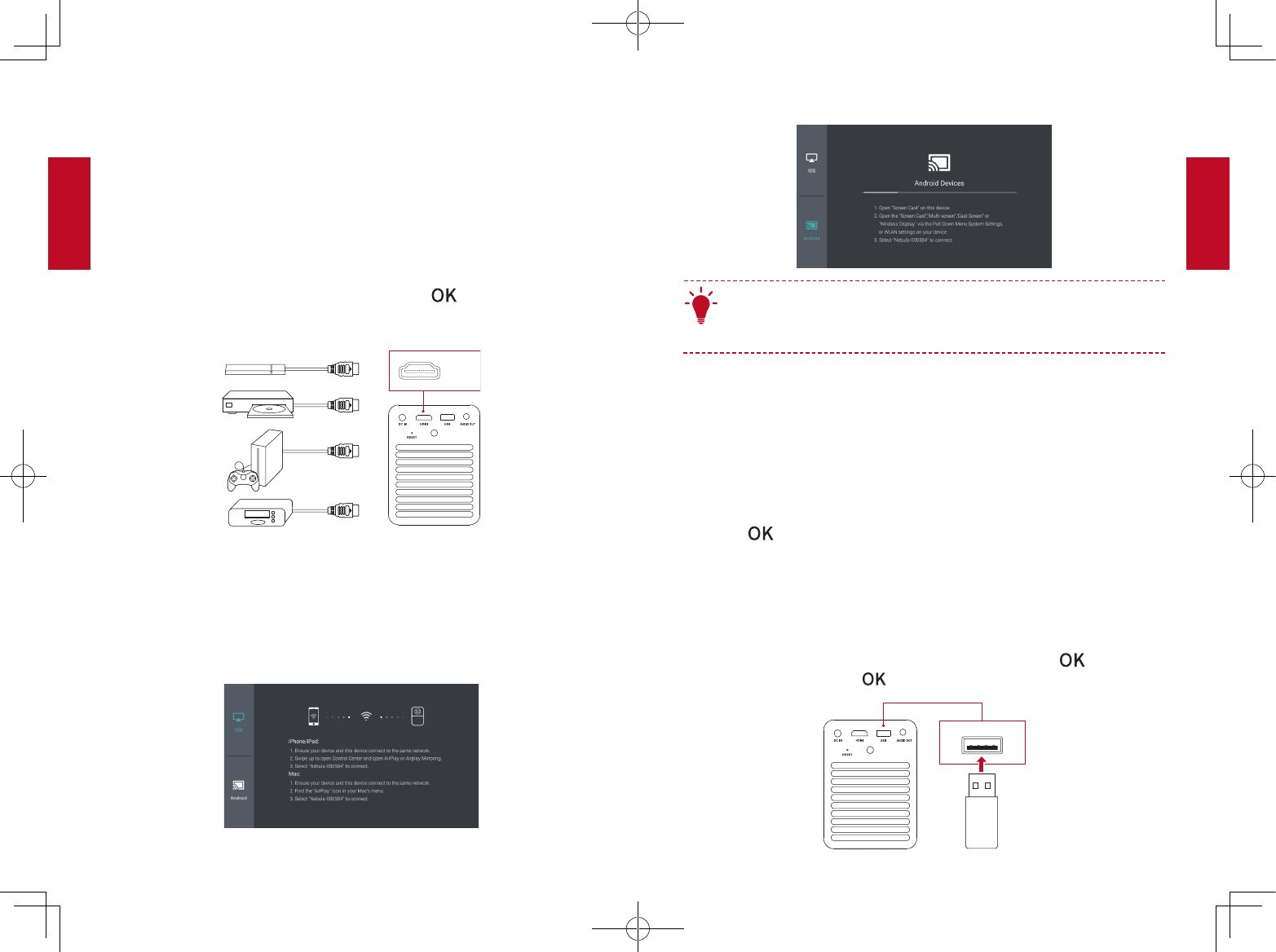

1. ConnecttoHDMIPlaybackDevices
This device supports connections with various HDMI playback devices
such as TV stick, TV box, DVD player, set-top box (STB), game console
or other devices.
①Connect this device to an HDMI playback device with an HDMI cable
(not provided).
②
On the home menu, select [HDMI] , and press . (*It will
automatically start the HDMI playback when connected to an HDMI
playback device for the first time.)
HDMI
2. ScreenCast
You can wirelessly cast the screen of your smartphone or tablet onto
the projection surface.
For iOS devices:
For Android devices:
T
Certain content may be unavailable for screen casting due to
copyright restrictions. In this case, you can play the content
directly by using the same app installed on your Nebula Mars II.
3. SelectanApp
Once connected to a wireless network, you can access online services,
enjoy movies, music and pictures, and browse the internet. Apart from
the apps installed by default, you can also install any other apps from
the Nebula Store or from a USB flash drive.
• On the home menu, select an Internet service from “Apps” or “Nebula
Store”.
• Press
to confirm.
4. ConnecttoaUSBStorageDevice
With this projector, you can enjoy music, video, and pictures, or install
apps that are stored on a USB 2.0 storage device by using the OTG
cable (not provided).
①On the home menu, select [File Manager] and press
.
②Select a file, then press .
USB
English
English
16 17
Specifications
Specifications are subject to change without notice.
Power supply: DC 19V 3A
Power consumption: < 57W
Standby power consumption: < 0.5W
Display technology: 0.3 inch 1280*720p DLP
Light source: RGB LED
Projection image size: 30 - 150 inch
Resolution: 1280 x 720 pixels
Brightness: 300 ANSI Lumens/ 1,500 lm
Contrast ratio: 1000:1
Projection ratio: 1.2
Speaker drivers: 10 w x 2
Bluetooth: V4.0
Built-in battery type: Li-Polymer
Capacity: 12500 mAh 3.8V
Video play duration: 4 hours
Music play duration: 30 hours
Remote control batteries: CR2032 x 2
Operating temperature: 0°C to 35°C / 32°F to 95 °F
Operating humidity: 15% ~ 85% (non-condensing)
Storage temperature and humidity: < 65°C / 149°F, < 90% humidity
Dimension (W*H*D): 122 × 138 × 178 mm / 4.8 × 5.4 × 7 in
Weight: 1,483 g / 52.3 oz
Troubleshooting
①Fail to power on by the remote control?
• Make sure that the device is connected to the power supply.
• Slide down the lens cover.
②Fail to power on by sliding down the lens cover?
• Make sure that the device is connected to the power supply.
• Slide up the lens cover and wait for 10 seconds, then try again.
③The remote control doesn’t work?
• Remove the battery insulation tab to activate the remote control
batteries.
• Replace new batteries.
④Blurred image?
• You can either slightly move the projector or press the navigation
buttons to focus the image.
⑤Reversed projection image?
• On the home menu, select [Settings] > [Projector mode]
and switch to
the correct state.
English
18
Notice
Declaration of Conformity
This product complies with the radio interference requirements
of the European Community. Hereby, Anker Technology Co.,
Limited. declares that this device is in compliance with the
essential requirements and other relevant provisions of Directive
2014/53/EU. For the Declaration of Conformity, visit the Web
site www.SeeNebula.com/certification.
Due to the used enclosure material, the product shall only be
connected to a USB
Interface of version 2.0 or higher. The connection to so called
power USB is prohibited.
A statement regarding the AC/DC adapter as disconnect device
is missing in the user manual.
The statement shall require a socket outlet that is installed near
equipment and that shall be easily accessible.
The adapter shall be installed near the equipment and shall be
easily accessible.
Do not use the Device in the environment at too high or too low
temperature, never expose the Device under strong sunshine or
too wet environment.
The suitable temperature for the product and accessories is 0°C
to 40°C.
When charging, please place the device in an environment that
has a normal room temperature and good ventilation.
It is recommended to charge the device in an environment
with a temperature that ranges from 5°C~25°C.
Please ensure to use only the charger offered by the
manufacturer. Using unauthorized charger may cause danger
and violate the authorization
of the projecter and the guarantee article.
This charger is for indoor use only
The charger type is NSA60ED-190300, output voltage/current is
19Vdc/3A. The plug considered as disconnect device of adapter.
RF exposure information: The Maximum Permissible Exposure
(MPE) level has been calculated based on a distance of d=20
cm between the device and the human body. To maintain
compliance with RF exposure requirement, use product that
maintain a 20cm distance between the device and human body.
CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN
INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO
THE INSTRUCTIONS
BT Maximum output power: 8 dBm; BT Frequency band: 2402~2480
MHz;
Wi-Fi Max Output Power: 19 dBm (2.4G); 14 dBm (5G);
Wi-Fi Frequency Band: 2412~2472 MHz (2.4G); 5150~5250 MHz,
5725~5850 MHz (5G).
5150~5250 MHz can be used indoor only.
This product is designed and manufactured with high quality
materials and components, which can be recycled and reused.
This symbol means the product must not be discarded as
household waste, and should be delivered to an appropriate
collection facility for recycling. Follow local rules and never
dispose of the product and rechargeable batteries with normal
household waste. Correct disposal of old products and
rechargeable batteries helps prevent negative consequences
for the environment and human health.
FCC notice
This device complies with the FCC rules, Part 15. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
Warning: Changes or modifications not expressly approved by the
partly responsible for compliance could void the user’s authority to
operate the equipment.
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth
for an uncontrolled environment. This equipment should be installed
and operated with a minimum distance of 20cm between the radiator
and your body. This transmitter must not be co-located or operated in
conjunction with any other antenna or transmitter.
Notice: Shielded cables
All connections to other computing devices must be made using
shielded cables to maintain compliance with FCC regulations.
Trademarks
HDMI, and HDMI logo and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI licensing LLC in the
United States and other countries.
The Bluetooth® word mark and logos are registered trademarks owned
by Bluetooth SIG, Inc.
Warranty
30-Day Money-Back Guarantee for Any Reason
You may return your undamaged product and packaging within 30 days
of purchase to receive a FULL REFUND for any reason. If the reason
for return isn’t quality-related, the customer must pay for the return
shipping.
12-Month Warranty for Quality-Related Issues
Nebula’s products are warrantied to be free from material and
workmanship defects for 12 months from the date of purchase. Within
this period, Nebula will provide a replacement and cover any return
shipping costs for products that fail in normal use.
Please Note: Any provided shipping labels must be used within 20 days
from the date they’re issued by Nebula Support.
