Anker Innovations T9146 Smart Scale User Manual

Anker Innovations Limited Smart Scale

user manual

Owner’s Manual
BodySense C1 Smart Scale
Important Safety Instructions
• Read all instructions before using the device. Keep the manual for future reference.
• Only use the device as described in this user manual. Any misuse may cause electric shocks,
burns, start a fire or other unexpected hazards.
• This device can be used by individuals over 16 years old and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved. Children should not play with the appliance. Cleaning and user maintenance
should not be done by children without supervision.
• Be aware that this device is designed for individuals to measure their weight and to monitor
their body composition. Any information provided by this device is in no way meant to treat, cure,
or prevent diseases or illnesses from happening.
• DO NOT use this device if you are pregnant or if you suspect you may be pregnant. The
effects of this device on a fetus are unknown and untested.
• DO NOT use this device if you use a wearable or implanted electronic device such as a
defibrillator or pacemaker.
• This device should not be used by individuals who are acutely or chronically ill, suffering from
diseases or taking medications that can affect water levels. The accuracy of the readings for
these individuals has not been verified. Specific medical advice should be obtained from a
physician.
• The device is equipped with a data transmission function that emits electromagnetic energy.
Portable Radio Frequency (RF) communications equipment (including peripherals such as
antenna cables and external antennas) should not be used within 30 cm (12 inches) of the
device, otherwise, performance may be affected.
• Do not modify this device.
• Do not expose this device to extreme temperatures, direct sunlight, moisture, or corrosive
environments.
• To prevent slipping, do not step on the device after bathing or showering.
• This device should not be used when it is adjacent to or stacked on top of another device
because it could cause the device to operate improperly. If such use is necessary, this device
and the other device should be observed to verify that they are operating normally.
• This device is powered by three AAA batteries. Do not attempt to recharge non-rechargeable
batteries as this can cause the batteries to leak or explode.
• This device can be powered by rechargeable batteries.
• Do not mix and use different types of batteries together e.g. lithium-ion (Li-ion) and nickel-
metal hydride (NiMH) batteries.
• Do not mix new and used batteries.
• Used batteries should be placed in a sealed plastic bag and disposed of safely according to
local environmental regulations.
• If the device will not be used for an extended period of time, remove batteries before storing
the device in a cool and dry place.
Usage Tips:
To ensure measurement accuracy, follow the instructions below when you start your
measurement:
• Place the scale on a flat, hard surface. Soft surfaces such as carpeting will affect the
performance of the scale.
• Step on the platform with bare feet. Stand still and keep full contact with the electrodes until
the measurement is complete.
• For the most consistent measurements, weigh yourself at the same time of day and location.
• Avoid weighing yourself immediately after strenuous exercise, sitting in the sauna, taking a
bath, or drinking and eating.
• The condition of the skin on the bottom of your feet can affect the measurement. The natural
effects of aging or activity can make this skin hard. Take the reading with clean, slightly damp
feet for best accuracy.
• Body fat percentage estimates will vary with the amount of water in the body, and can be
affected by dehydration or overhydration due to factors such as alcohol consumption,
menstruation, illness, intense exercise etc.
What’s In the Box
BodySense C1 Smart Scale
AAA Battery (×3)
Owner’s Manual &
Quick Start Guide
Inserting the Batteries
1. Turn the scale over and place it on a flat surface.
2. Open the battery door and insert three AAA batteries. Make sure the positive and negative
ends are facing the correct polarity directions marked in the battery compartment.
- The digits “ ” will show on the LED display.
3. Close the battery door and wait until the digits “ ” are shown on the LED display.
Tip:
will appear on the LED display when the batteries are low. Replace all three batteries at the
same time. Do not mix new and used batteries.
Selecting the Measuring Unit
Press the UNIT button at the bottom of the scale to cycle through and select the measuring unit:
lb (Pound) / kg (Kilogram). The measuring unit can be selected from within the EufyLife app as
well.
Installing the EufyLife App and Pairing
1. Download the EufyLife app from the App Store (iOS devices) or Google Play (Android
devices).
2. Enable Bluetooth on your smartphone or tablet.
3. Open the EufyLife app and follow the on-screen instructions to pair the scale with your device.
- Once paired, the app and scale will automatically connect the next time the app is opened.
Status Icon
Indicates
Flashing
Pairing
Solid
Connected
- This scale is compatible with devices running iOS 8.0 and above or Android 4.3 and above.
- Do not pair the scale from your smartphone’s Bluetooth menu. Use the EufyLife app to pair the
scale with your smartphone.
Starting a Measurement
Before taking your first measurement, you will need to create and set up a user ID in the
EufyLife app. It is possible to create up to 16 user IDs.
1. Place the scale on a hard and flat surface.
2. Open the EufyLife app and select Smart Scale on the device homepage.
3. Step barefoot onto the scale.
➢ An analysis of your body’s composition will begin automatically.
Step on the center of the scale barefoot. Stand still and keep full contact with the electrodes
until the measurement is complete.
Weight-Only Measurement
This scale can also be used as a conventional weight-reading scale. You can simply step on the
scale to measure your current weight without opening the EufyLife app.
Maintenance
Regularly clean the scale with a dry or slightly dampened soft cloth.
- Do not wash the scale with water or immerse it in water.
- Never use detergents to clean the scale as this may cause it to malfunction or discolor.
Troubleshooting
Error Message
Error Display
Description
Solution
Overload. The device
will power off.
Stop using this scale for
measurement.
Low battery. The
device will
power off.
Replace all three batteries at the
same time.
Measurement failure.
• Step barefoot and keep full contact
with the electrodes.
• Stand still until the measurement on
the LED display locks.
When Measuring
Issue
Cause
Abnormal measurement
results:
• Too high
• Too low
• Huge difference between
two recent measurements
Incorrect posture.
Device is placed on soft
carpeting or uneven
surface.
LED display does not turn
on after stepping onto the
scale.
Batteries not installed.
Worn batteries.
Scale does not proceed to
analyse body composition.
Taking a measurement
while wearing shoes or
socks.
Specifications
Product Model
T9146
Power
4.5 V (3 × AAA batteries)
LED Display
67 × 29 mm / 2.6 × 1.2 in
Measurement Units
Pound / Kilogram
Unit Increments
0.1 lb / 0.1 kg
Body Fat Unit Increments
0.1 %
Body Water Unit Increments
0.1 %
Muscle Mass Unit Increments
0.1 %
Measurement Range
11-397 lb / 5-180 kg
Working Environment
Temperature: 5 - 40 °C
Humidity: 20 - 90% RH
Storage Environment
Temperature: -20 - 50 °C
Humidity: <= 90% RH
Operating Frequency Range
2402 - 2480 MHz
Radio-Frequency Power
4 dBm
Dimension
280 × 280 × 23 mm / 11.0 × 11.0 × 0.9 in
Net Weight
3.31 lb / 1. 5 kg
Notice
This symbol means the product must not be discarded as household waste, and should be
delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps
protect natural resources, human health and the environment. For more information on disposal
and recycling of this product, contact your local municipality, disposal service, or the shop where
you bought this product.
This symbol means ”Refer to instruction manual or booklet”.
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Warning: Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures: (1) Reorient or relocate the
receiving antenna. (2) Increase the separation between the equipment and receiver. (3)
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected. (4) Consult the dealer or an experienced radio / TV technician for help.
RF Warning Statement
The device has been evaluated to meet general RF exposure requirements. The device can be
used in portable exposure conditions without restriction.
IC Statement
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired operation
of the device.
Déclaration d'Industrie Canada
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne
doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
Declaration of Conformity
This product complies with the radio interference requirements of the European Community.
Hereby, Anker Innovations Limited declares that the radio equipment type T9146 is in
compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is
available at the following internet address: https://www.eufylife.com/.
Maximum output power: 4 dBm
Frequency band: 2.4G band (2.4000GHz - 2.4835GHz)

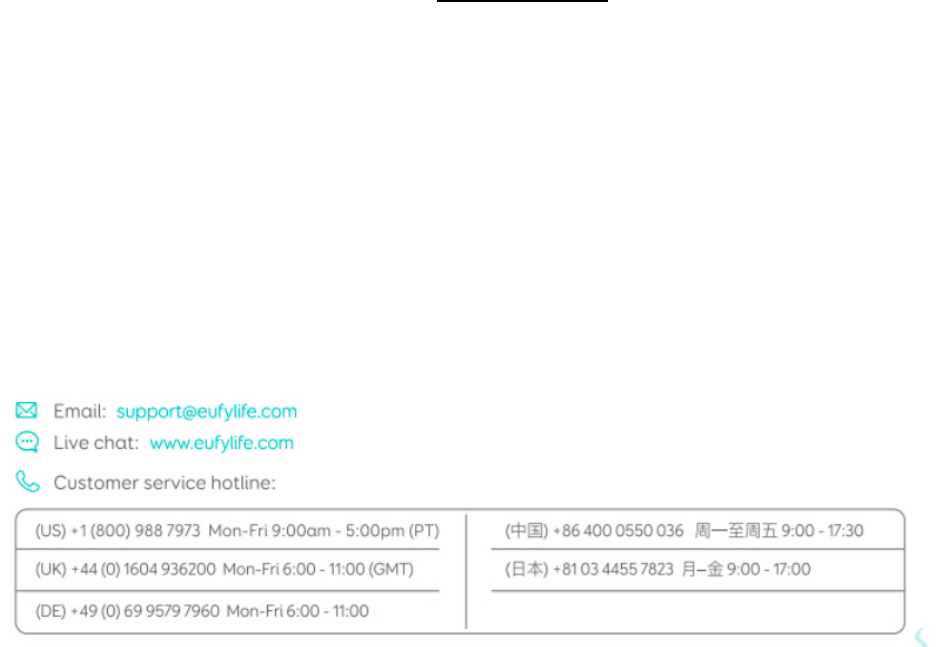

Customer Service
For FAQs and more information, please visit www.eufylife.com.
Email: support@eufylife.com
Live Chat: www.eufylife.com
(US) +1 (800) 988 7973 Mon-Fri 9:00am - 5:00pm (PT)
(UK) +44 (0) 1604 936200 Mon-Fri 6:00 - 11:00 (GMT)
(DE) +49 (0) 69 9579 7960 Mon-Fri 6:00 - 11:00
(中国) +86 400 0550 036 周一至周五 9:00 - 17:30
(日本) +81 03 4455 7823 月-金 9:00 - 17:00
