1 OVERVIEW
This page is where you can view the streaming related features include the usage of the ADP-601.
2 ANOTO STREAMER TEST TOOL
This Tool is included in the Toolkit to deploy from Anoto the application program, check the
streaming of the pen, and force sensor value, coordinate PenID can know the status value, etc..
2.1 Installation

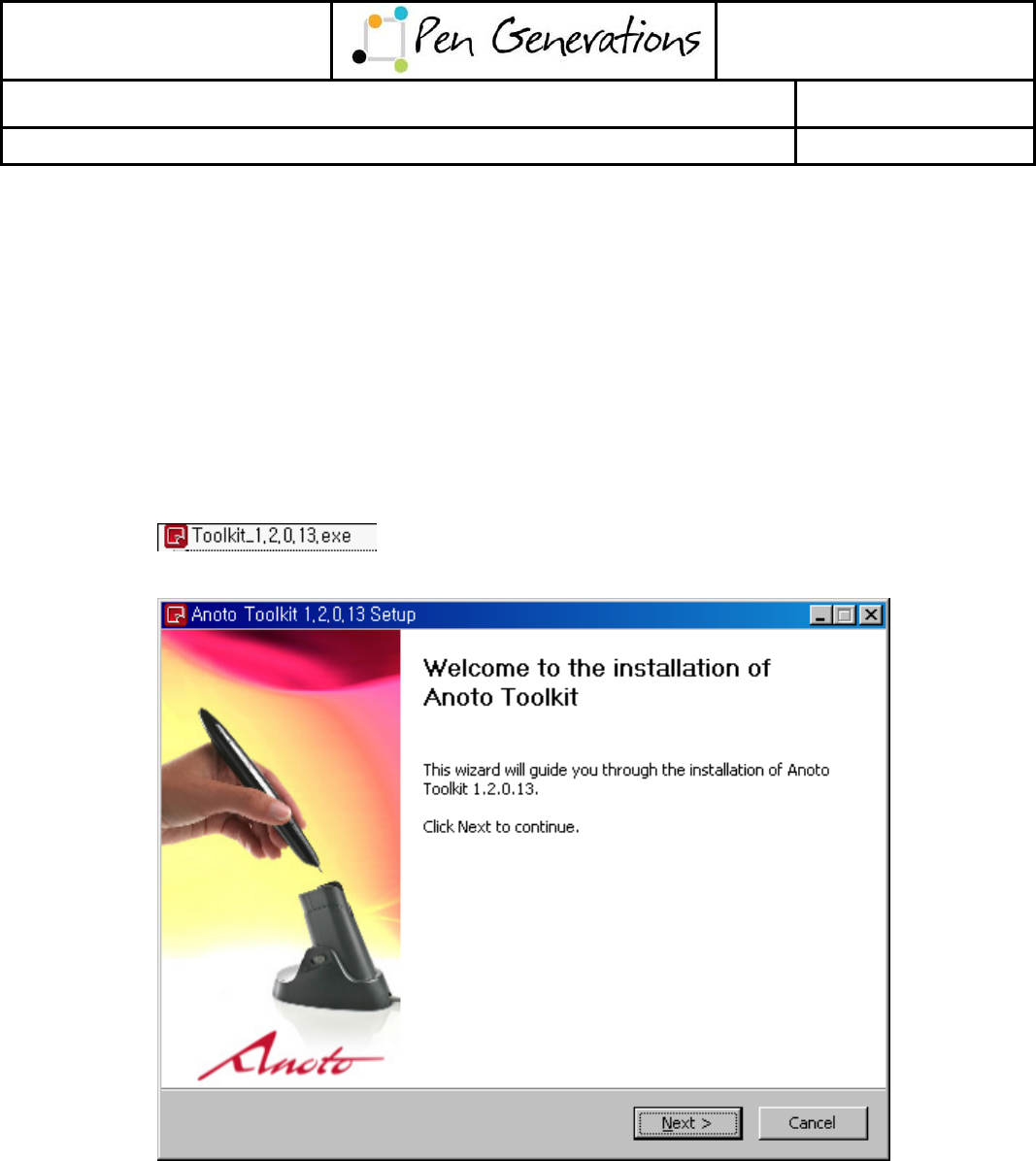

Toolkit_x.x.x.exe (means the toolkit version x.x.x) double click
A. “Next” button click
CONFIDENTIAL
Document No:
PG-CM- UserManual
Title: <ADP601> Users Manual Revision: 20111230
Prepared by:
Taeyoung Ko
Date: 2012.01.04.
___________________________________________________________________________
Doc No. PG-CM-Users Manual- 20111104
Page 4 of 28
Propriety Information, No Dissemination or Use Allowed Without Prior Written Permission All printed copies
are considered Uncontrolled copies unless the copies are stamped with “For Information Only” or “Controlled
Copy” by Documentation Control group.

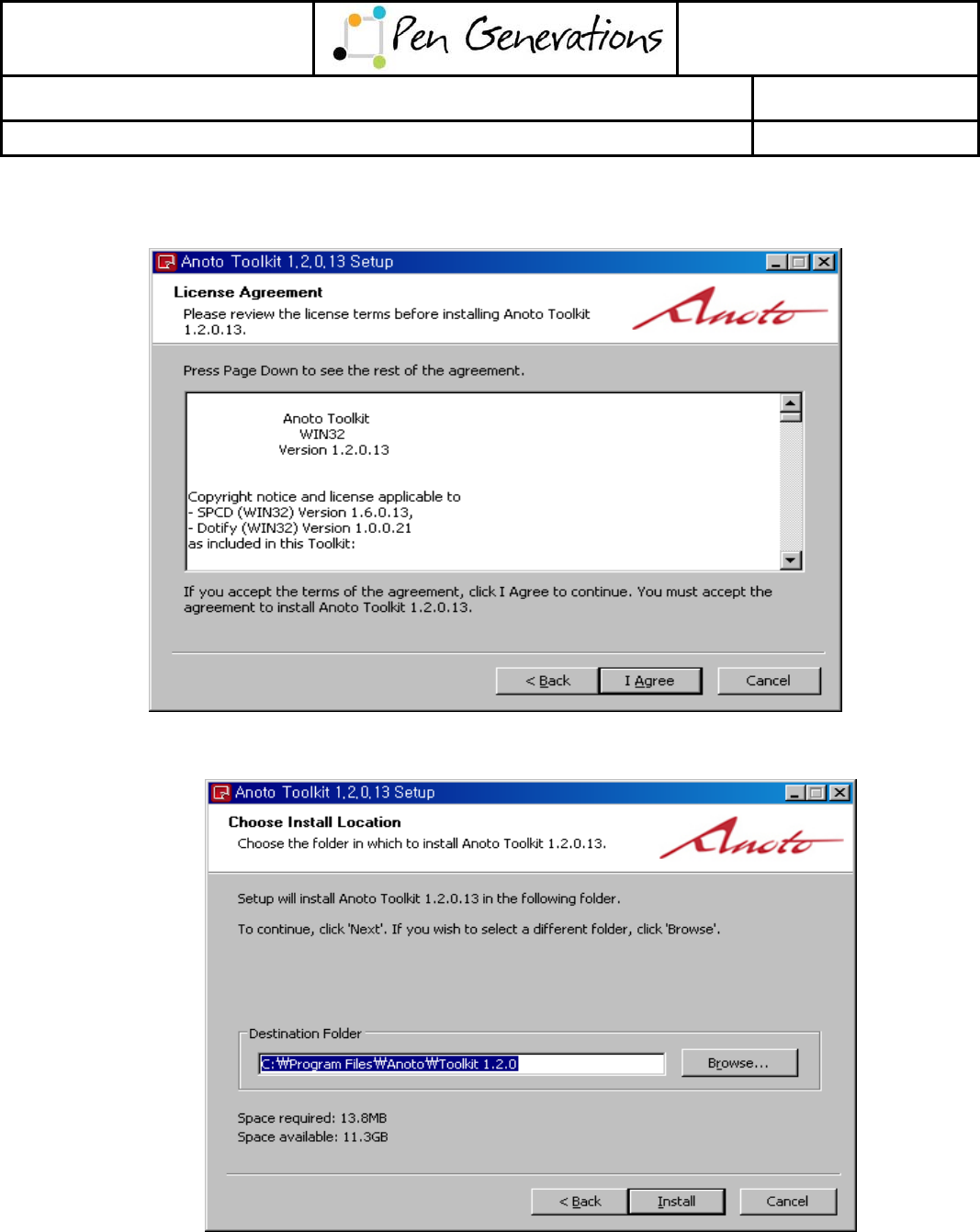

B. “I Agree” button click
C. Specifies the installation path, click the "Install"
button.
CONFIDENTIAL
Document No:
PG-CM- UserManual
Title: <ADP601> Users Manual Revision: 20111230
Prepared by:
Taeyoung Ko
Date: 2012.01.04.
___________________________________________________________________________
Doc No. PG-CM-Users Manual- 20111104
Page 5 of 28
Propriety Information, No Dissemination or Use Allowed Without Prior Written Permission All printed copies
are considered Uncontrolled copies unless the copies are stamped with “For Information Only” or “Controlled
Copy” by Documentation Control group.

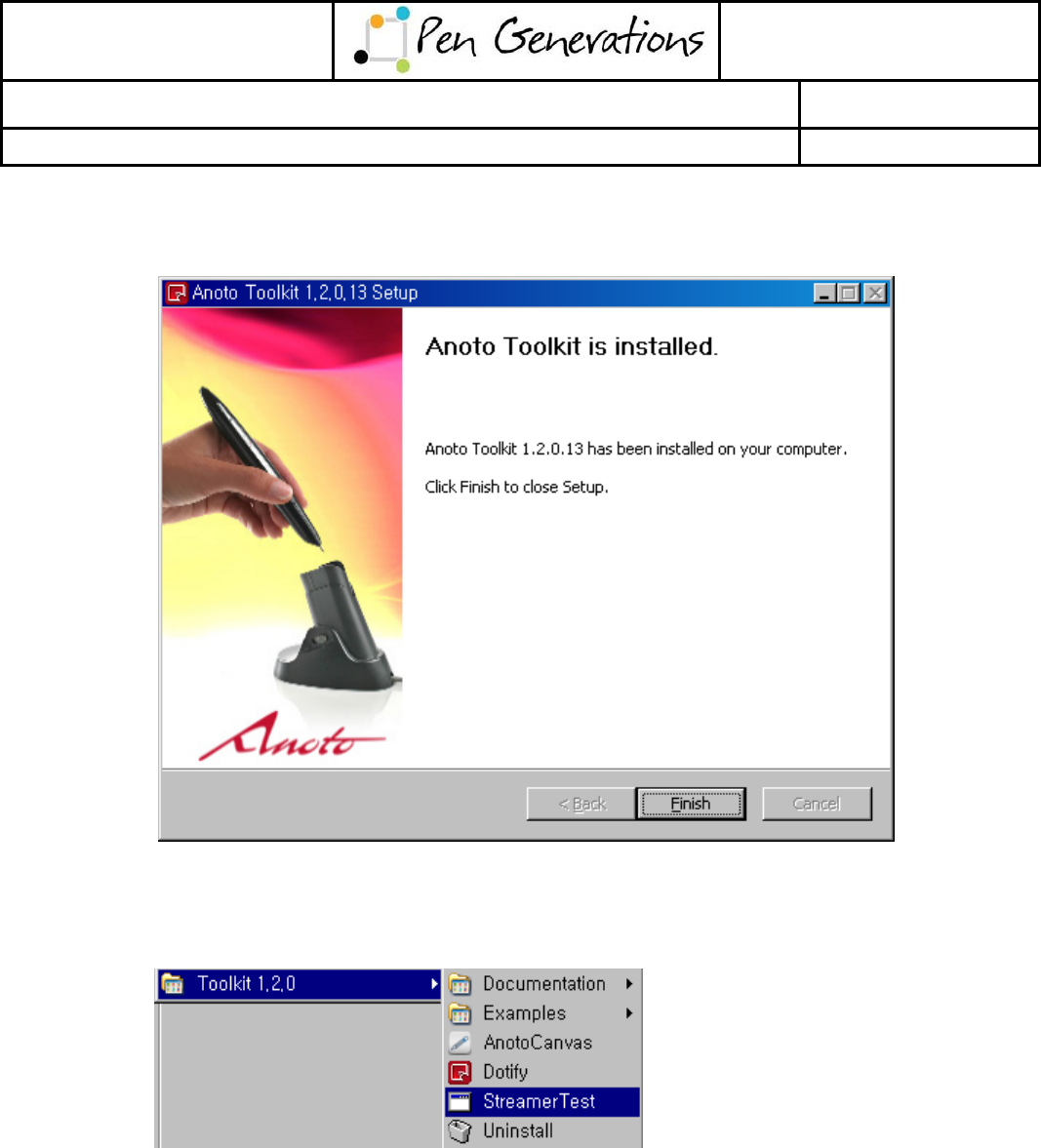

D. Click on the button "Finish" to complete the
installation.
2.2 Streaming test

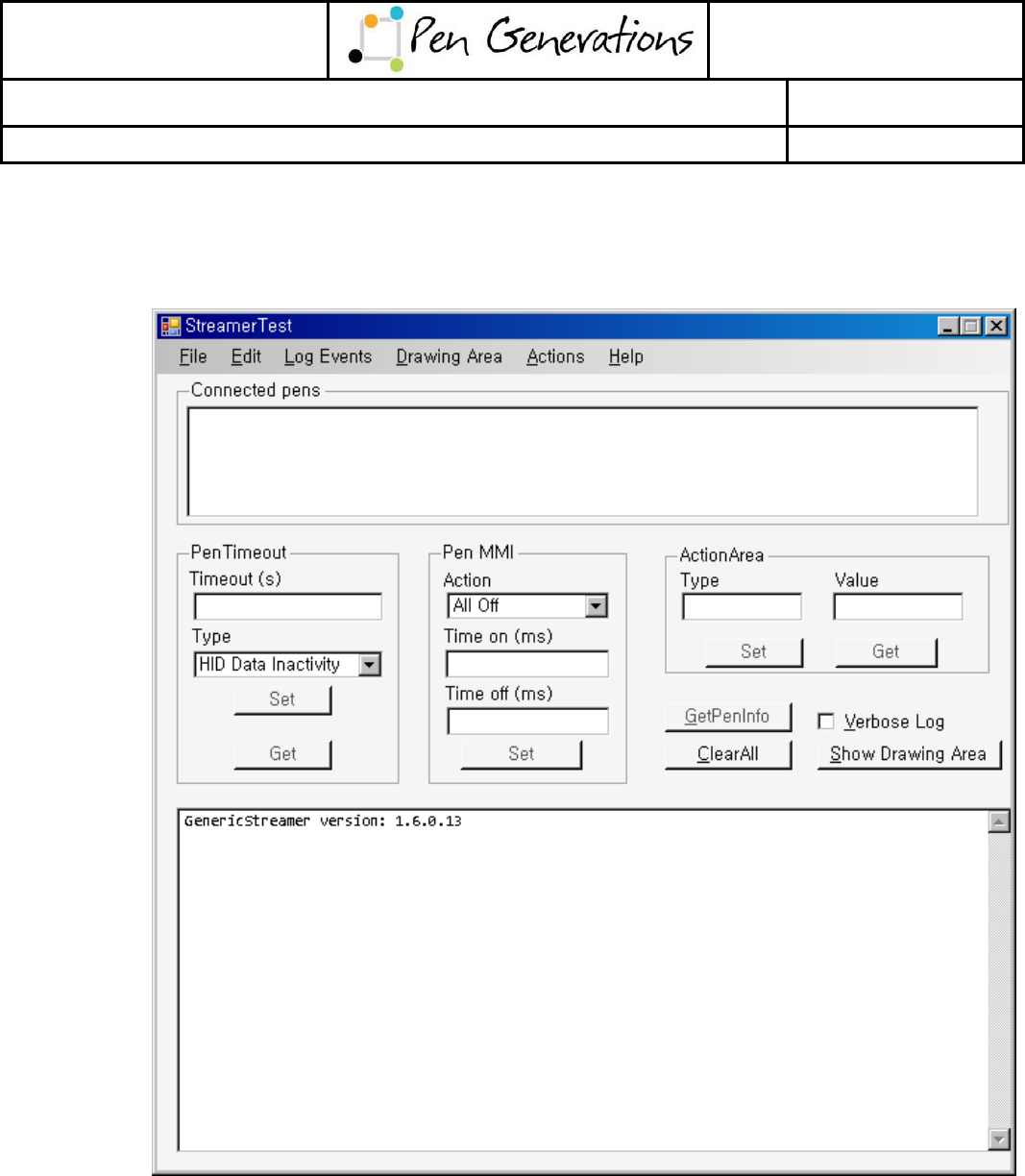

A. Start->Program->Anoto->Toolkit x.x.x->StreamerTest
CONFIDENTIAL
Document No:
PG-CM- UserManual
Title: <ADP601> Users Manual Revision: 20111230
Prepared by:
Taeyoung Ko
Date: 2012.01.04.
___________________________________________________________________________
Doc No. PG-CM-Users Manual- 20111104
Page 6 of 28
Propriety Information, No Dissemination or Use Allowed Without Prior Written Permission All printed copies
are considered Uncontrolled copies unless the copies are stamped with “For Information Only” or “Controlled
Copy” by Documentation Control group.
B. When you run the program, run as shown
below.

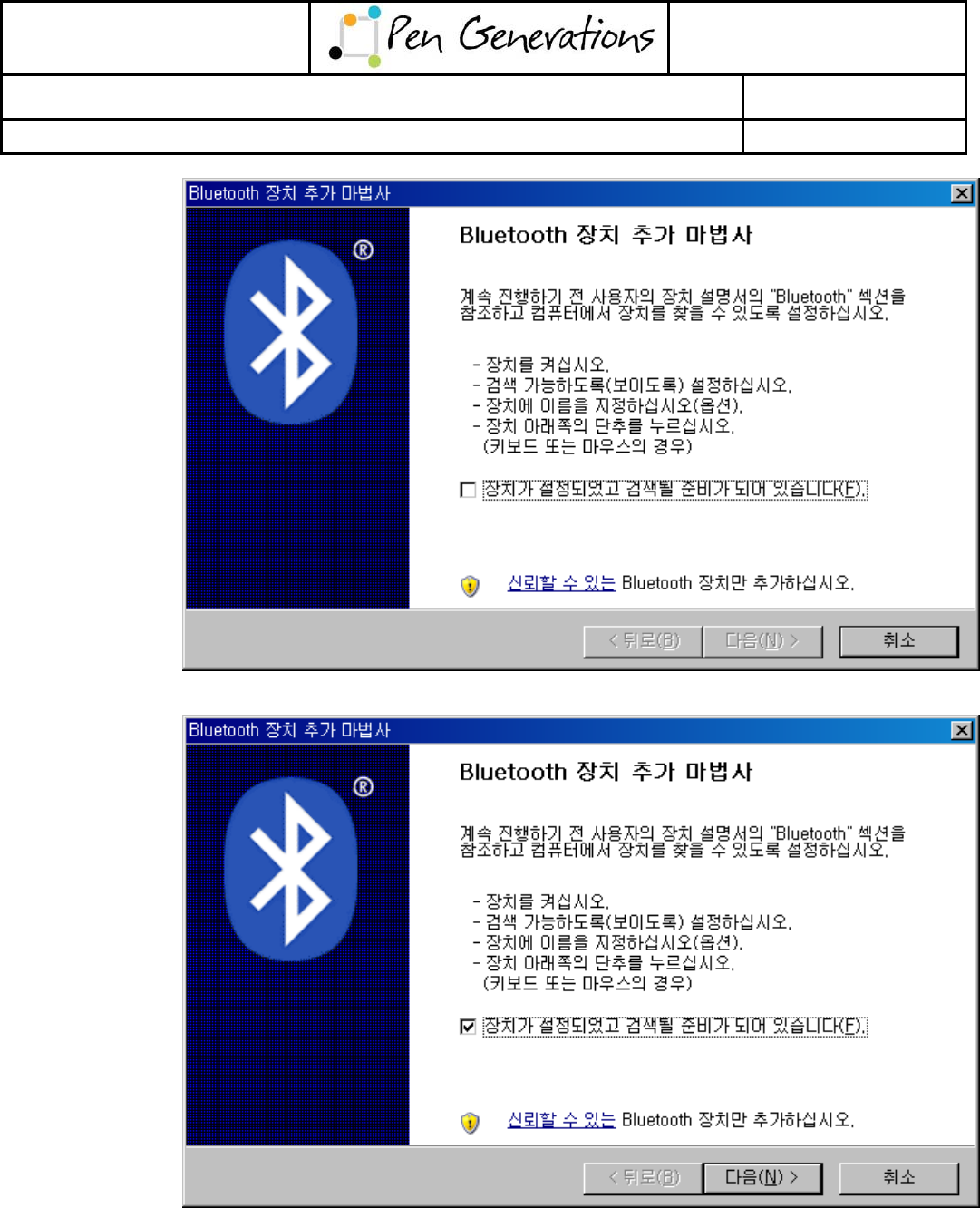

C. Appication is installed to your PC and Bluetooth pairing between the pen test.
i. Support for Bluetooth on the PC, if you do not need a Bluetooth dongle

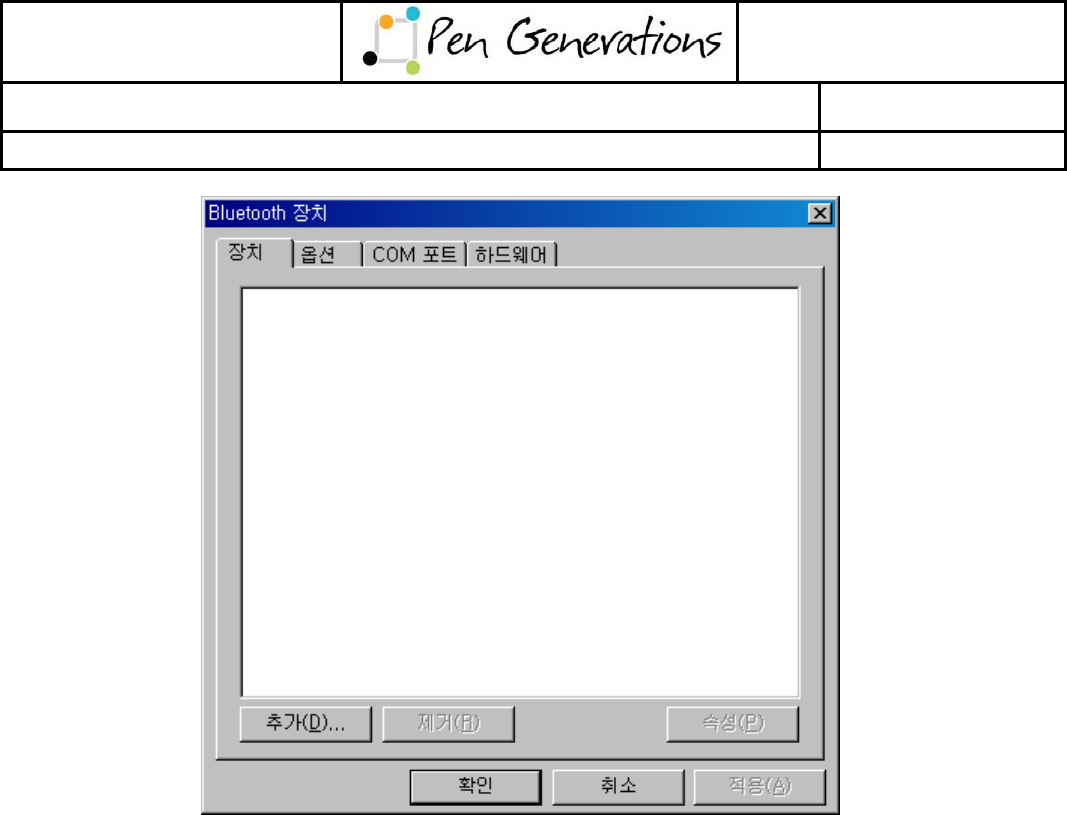

ii. Start-> settings -> control panel-> Bluetooth Devices Double click
CONFIDENTIAL
Document No:
PG-CM- UserManual
Title: <ADP601> Users Manual Revision: 20111230
Prepared by:
Taeyoung Ko
Date: 2012.01.04.
___________________________________________________________________________
Doc No. PG-CM-Users Manual- 20111104
Page 7 of 28
Propriety Information, No Dissemination or Use Allowed Without Prior Written Permission All printed copies
are considered Uncontrolled copies unless the copies are stamped with “For Information Only” or “Controlled
Copy” by Documentation Control group.
iii. After Pen ON, Add button click
CONFIDENTIAL
Document No:
PG-CM- UserManual
Title: <ADP601> Users Manual Revision: 20111230
Prepared by:
Taeyoung Ko
Date: 2012.01.04.
___________________________________________________________________________
Doc No. PG-CM-Users Manual- 20111104
Page 8 of 28
Propriety Information, No Dissemination or Use Allowed Without Prior Written Permission All printed copies
are considered Uncontrolled copies unless the copies are stamped with “For Information Only” or “Controlled
Copy” by Documentation Control group.
iv. After you select the check box, select the button "next"

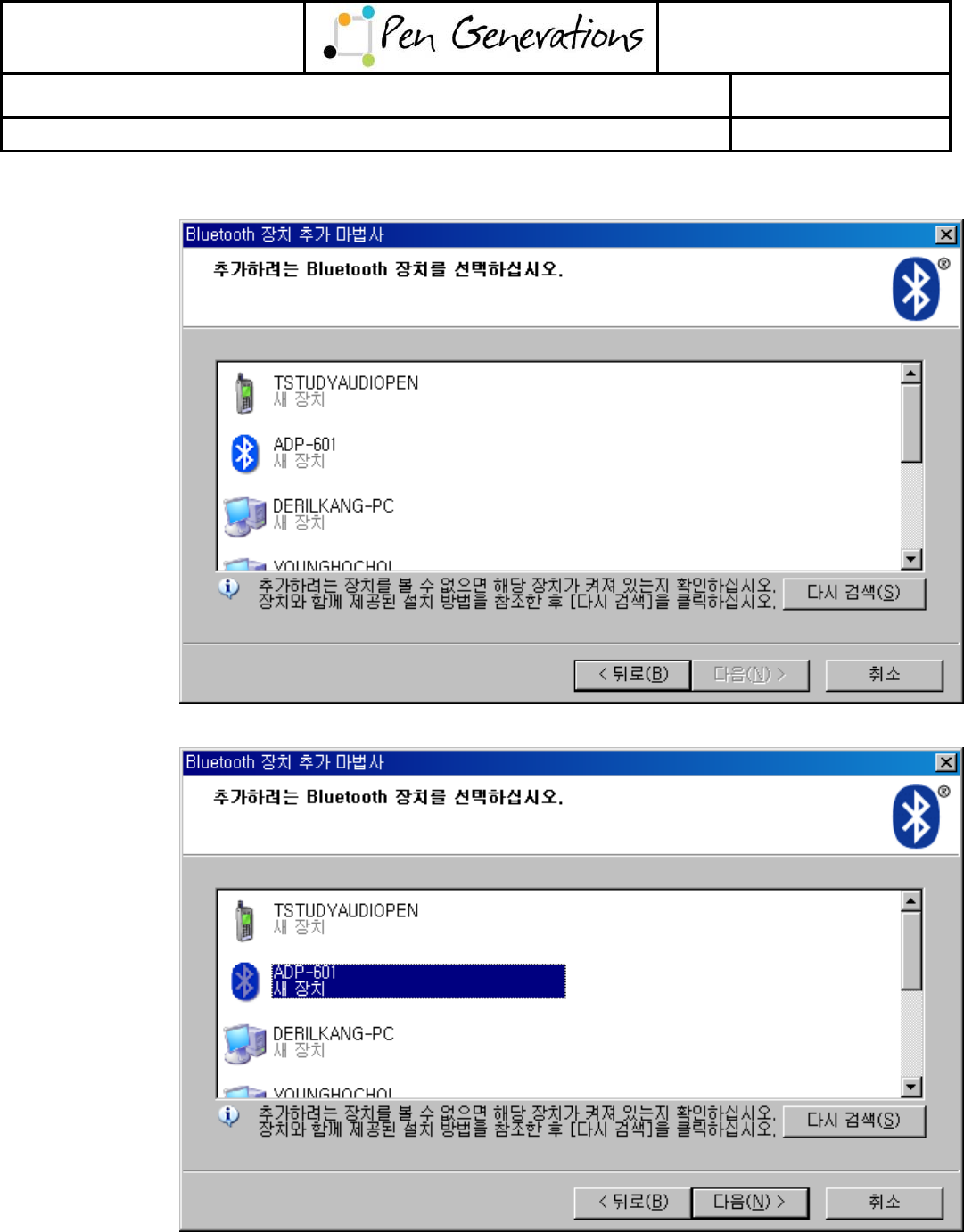

v. Device ADP-601 device is a search via a search, as shown below. If this fails, press the
"search again". (During a search, you need to have ADP601 the pen is ON the Green
CONFIDENTIAL
Document No:
PG-CM- UserManual
Title: <ADP601> Users Manual Revision: 20111230
Prepared by:
Taeyoung Ko
Date: 2012.01.04.
___________________________________________________________________________
Doc No. PG-CM-Users Manual- 20111104
Page 9 of 28
Propriety Information, No Dissemination or Use Allowed Without Prior Written Permission All printed copies
are considered Uncontrolled copies unless the copies are stamped with “For Information Only” or “Controlled
Copy” by Documentation Control group.
LED is flashing quickly. If you are a slow blink, this idle state, so that pen the pen tip on
the paper test set Penn State switched to discoverable mode.)
vi. Select ADP-601, click on the button "next"
CONFIDENTIAL
Document No:
PG-CM- UserManual
Title: <ADP601> Users Manual Revision: 20111230
Prepared by:
Taeyoung Ko
Date: 2012.01.04.
___________________________________________________________________________
Doc No. PG-CM-Users Manual- 20111104
Page 10 of 28
Propriety Information, No Dissemination or Use Allowed Without Prior Written Permission All printed copies
are considered Uncontrolled copies unless the copies are stamped with “For Information Only” or “Controlled
Copy” by Documentation Control group.

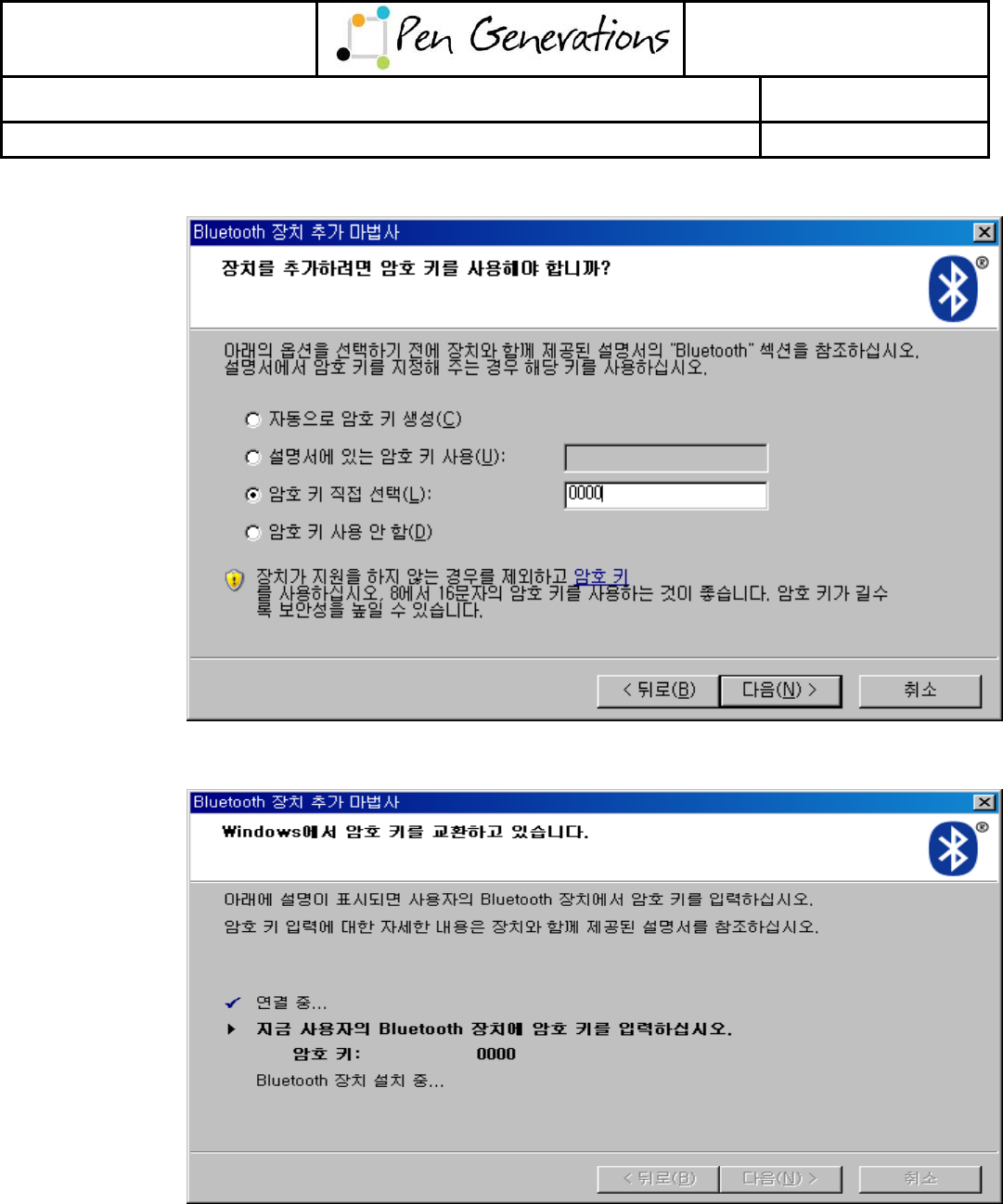

vii. “Let me choose my own passkey” Select, password(0000) Insert Æ Select the "next"
viii. Pairing the progress screen is the same as below, if you fail to complete the password or
Bluetooth pairing environment, USAID tries again pairing.
CONFIDENTIAL
Document No:
PG-CM- UserManual
Title: <ADP601> Users Manual Revision: 20111230
Prepared by:
Taeyoung Ko
Date: 2012.01.04.
___________________________________________________________________________
Doc No. PG-CM-Users Manual- 20111104
Page 11 of 28
Propriety Information, No Dissemination or Use Allowed Without Prior Written Permission All printed copies
are considered Uncontrolled copies unless the copies are stamped with “For Information Only” or “Controlled
Copy” by Documentation Control group.
ix. “Finish” button click.
CONFIDENTIAL
Document No:
PG-CM- UserManual
Title: <ADP601> Users Manual Revision: 20111230
Prepared by:
Taeyoung Ko
Date: 2012.01.04.
___________________________________________________________________________
Doc No. PG-CM-Users Manual- 20111104
Page 12 of 28
Propriety Information, No Dissemination or Use Allowed Without Prior Written Permission All printed copies
are considered Uncontrolled copies unless the copies are stamped with “For Information Only” or “Controlled
Copy” by Documentation Control group.
D. Streamer pairing succeeds, the application on-screen ID and Pen test Pen log looks related to
connect.

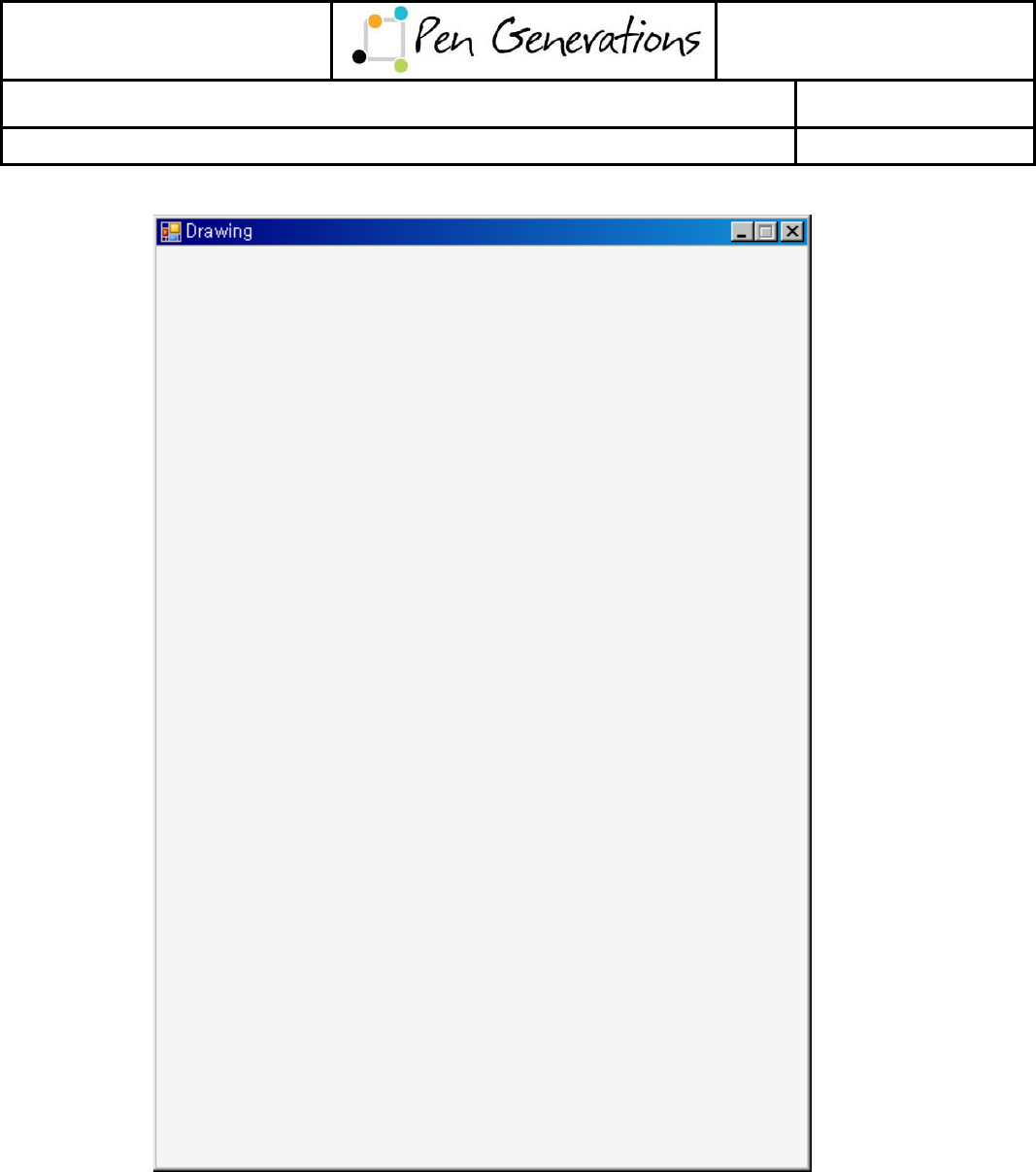

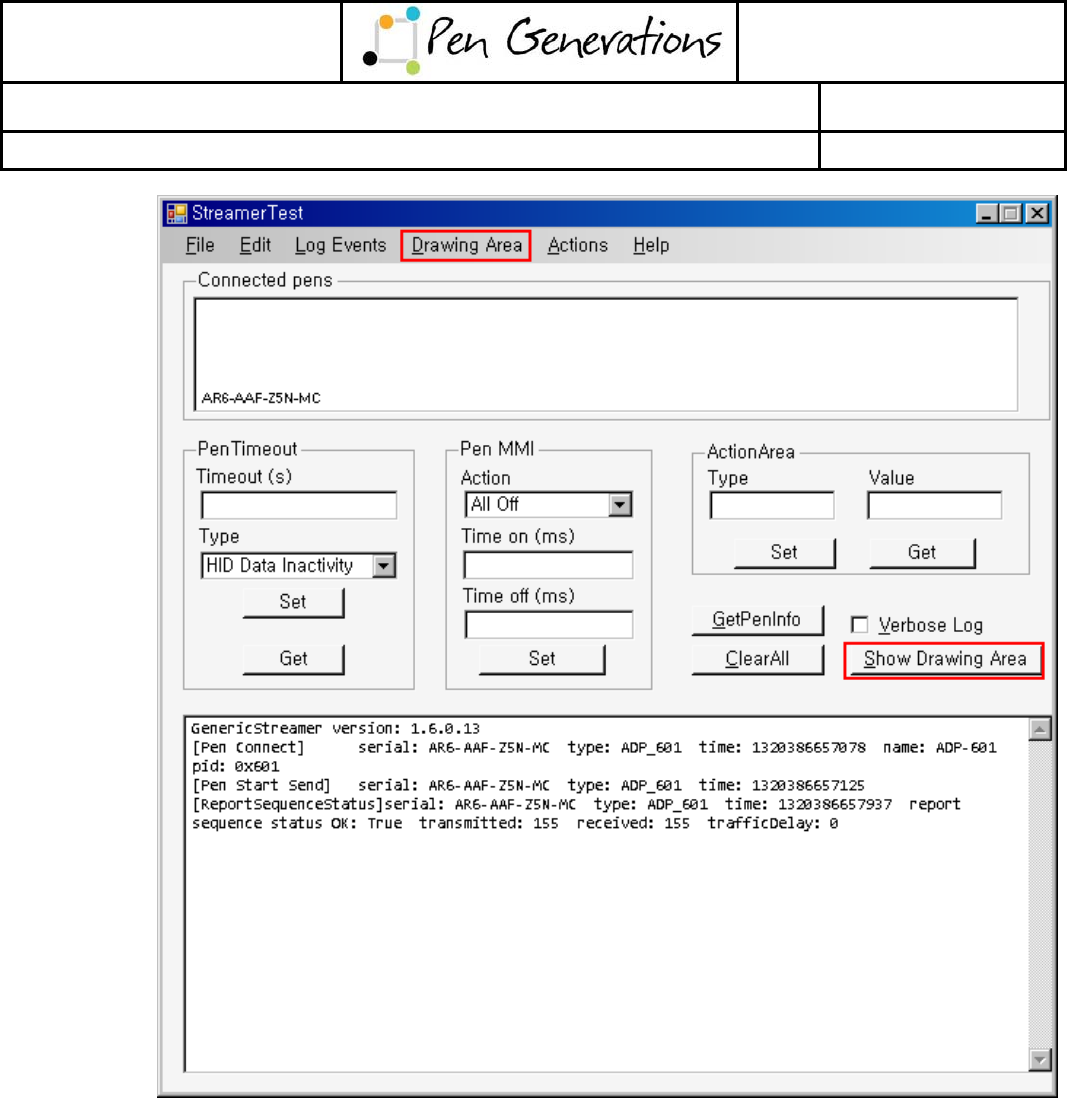

E. Choose one of the following methods to run the box Drawing
i. “Show Drawing Area” button select
ii. “Drawing Area” -> “Show” button select
CONFIDENTIAL
Document No:
PG-CM- UserManual
Title: <ADP601> Users Manual Revision: 20111230
Prepared by:
Taeyoung Ko
Date: 2012.01.04.
___________________________________________________________________________
Doc No. PG-CM-Users Manual- 20111104
Page 13 of 28
Propriety Information, No Dissemination or Use Allowed Without Prior Written Permission All printed copies
are considered Uncontrolled copies unless the copies are stamped with “For Information Only” or “Controlled
Copy” by Documentation Control group.
CONFIDENTIAL
Document No:
PG-CM- UserManual
Title: <ADP601> Users Manual Revision: 20111230
Prepared by:
Taeyoung Ko
Date: 2012.01.04.
___________________________________________________________________________
Doc No. PG-CM-Users Manual- 20111104
Page 14 of 28
Propriety Information, No Dissemination or Use Allowed Without Prior Written Permission All printed copies
are considered Uncontrolled copies unless the copies are stamped with “For Information Only” or “Controlled
Copy” by Documentation Control group.

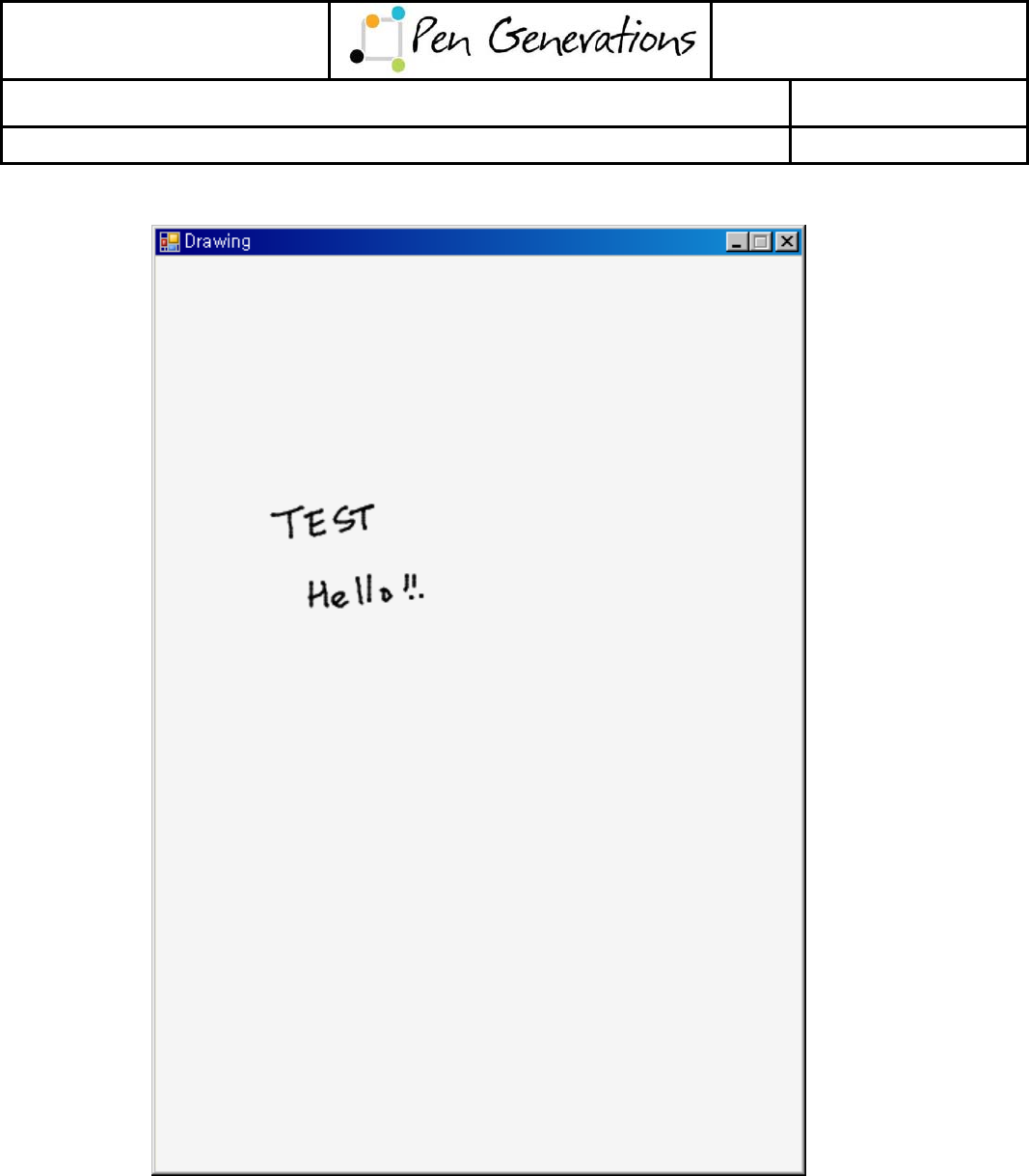

F. Drawing a box popup after it has been written on the paper using a pen test attempts
CONFIDENTIAL
Document No:
PG-CM- UserManual
Title: <ADP601> Users Manual Revision: 20111230
Prepared by:
Taeyoung Ko
Date: 2012.01.04.
___________________________________________________________________________
Doc No. PG-CM-Users Manual- 20111104
Page 15 of 28
Propriety Information, No Dissemination or Use Allowed Without Prior Written Permission All printed copies
are considered Uncontrolled copies unless the copies are stamped with “For Information Only” or “Controlled
Copy” by Documentation Control group.
G. The user wrote in the Box If your handwriting Drawing equally on exam paper.
CONFIDENTIAL
Document No:
PG-CM- UserManual
Title: <ADP601> Users Manual Revision: 20111230
Prepared by:
Taeyoung Ko
Date: 2012.01.04.
___________________________________________________________________________
Doc No. PG-CM-Users Manual- 20111104
Page 16 of 28
Propriety Information, No Dissemination or Use Allowed Without Prior Written Permission All printed copies
are considered Uncontrolled copies unless the copies are stamped with “For Information Only” or “Controlled
Copy” by Documentation Control group.
3 DOTNOTE
This manual is a program to distribute the application as in Tstudy, shows on the screen, and note-
taking information of the pen..
3.1 Installation

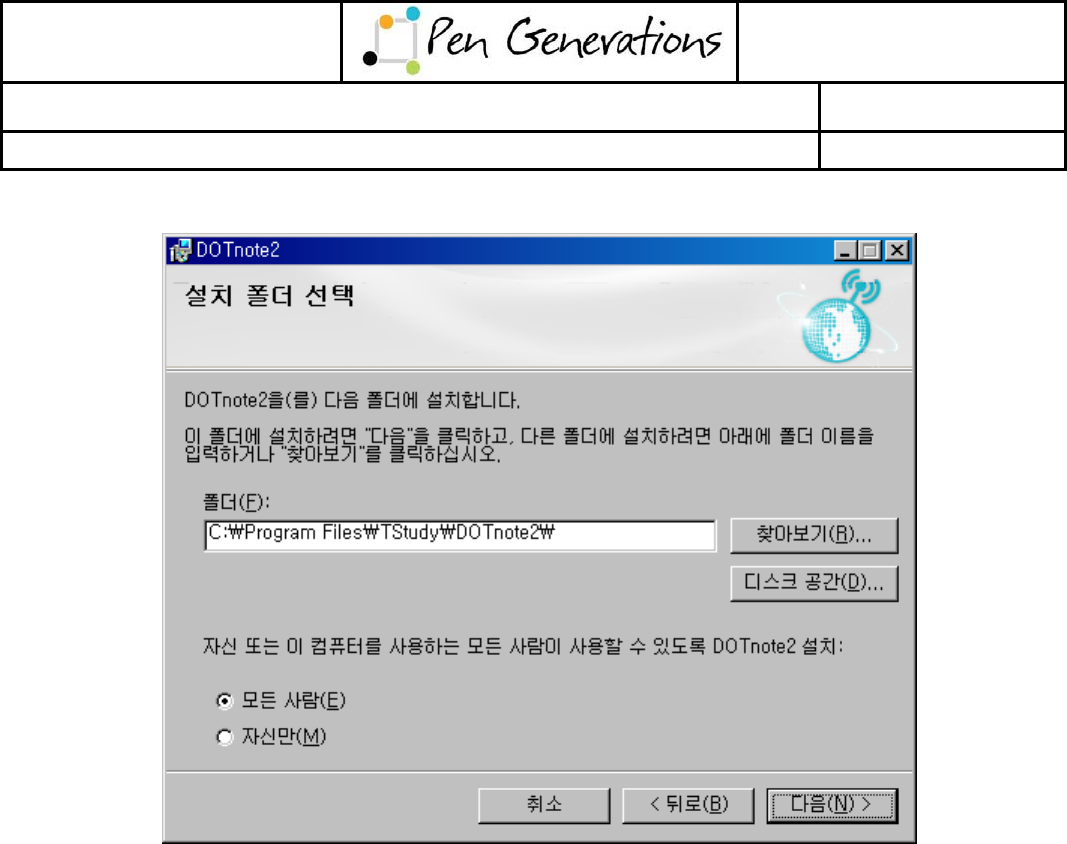

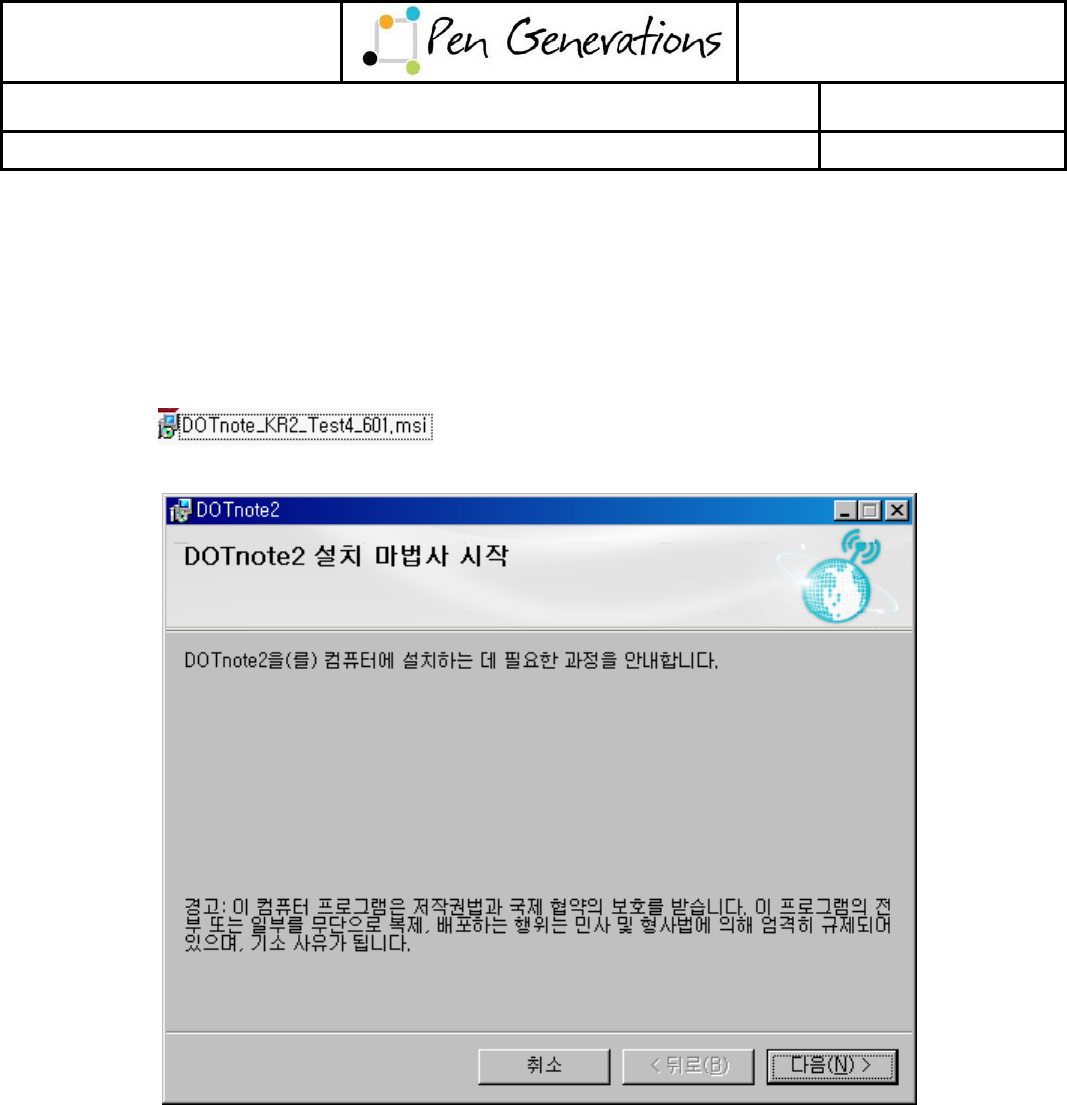

A. DOTnote_KR2_Test4_601.msi double click

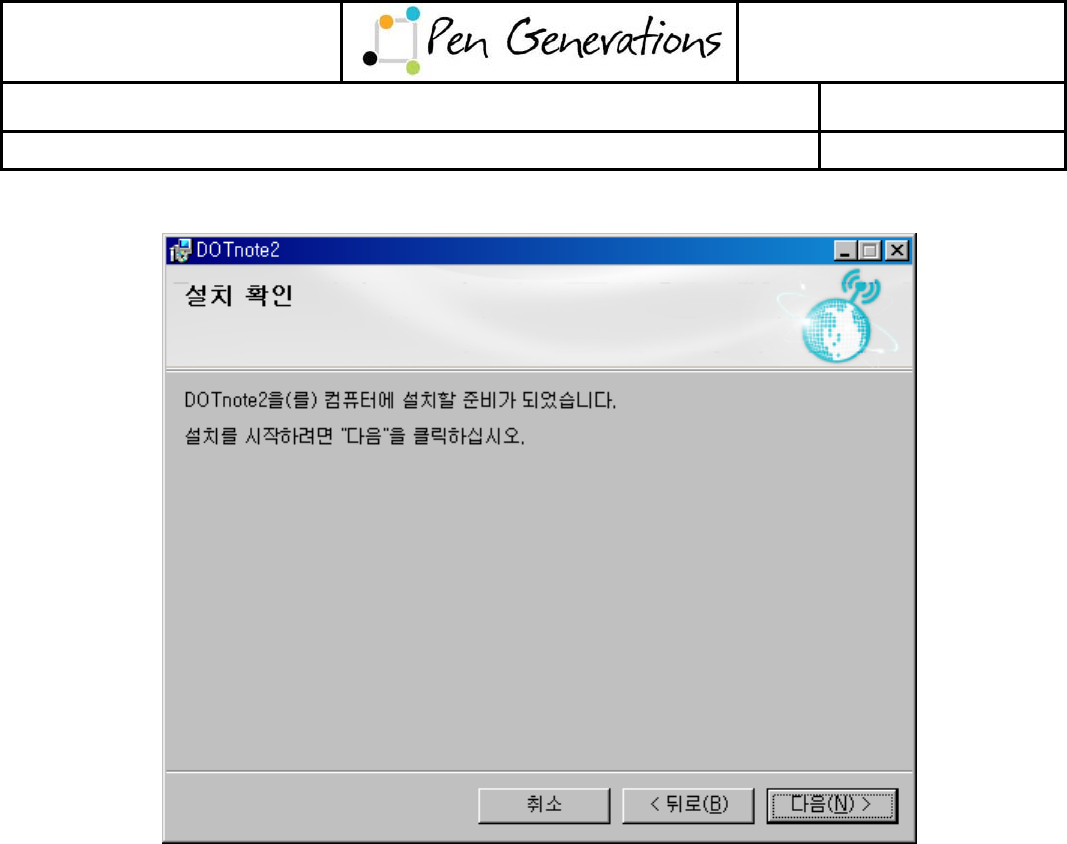

B. The Setup Wizard starts, click to select the "next"
CONFIDENTIAL
Document No:
PG-CM- UserManual
Title: <ADP601> Users Manual Revision: 20111230
Prepared by:
Taeyoung Ko
Date: 2012.01.04.
___________________________________________________________________________
Doc No. PG-CM-Users Manual- 20111104
Page 17 of 28
Propriety Information, No Dissemination or Use Allowed Without Prior Written Permission All printed copies
are considered Uncontrolled copies unless the copies are stamped with “For Information Only” or “Controlled
Copy” by Documentation Control group.
C. Select the installation path, and select "next"
CONFIDENTIAL
Document No:
PG-CM- UserManual
Title: <ADP601> Users Manual Revision: 20111230
Prepared by:
Taeyoung Ko
Date: 2012.01.04.
___________________________________________________________________________
Doc No. PG-CM-Users Manual- 20111104
Page 18 of 28
Propriety Information, No Dissemination or Use Allowed Without Prior Written Permission All printed copies
are considered Uncontrolled copies unless the copies are stamped with “For Information Only” or “Controlled
Copy” by Documentation Control group.
D. Select "next" once again
CONFIDENTIAL
Document No:
PG-CM- UserManual
Title: <ADP601> Users Manual Revision: 20111230
Prepared by:
Taeyoung Ko
Date: 2012.01.04.
___________________________________________________________________________
Doc No. PG-CM-Users Manual- 20111104
Page 19 of 28
Propriety Information, No Dissemination or Use Allowed Without Prior Written Permission All printed copies
are considered Uncontrolled copies unless the copies are stamped with “For Information Only” or “Controlled
Copy” by Documentation Control group.

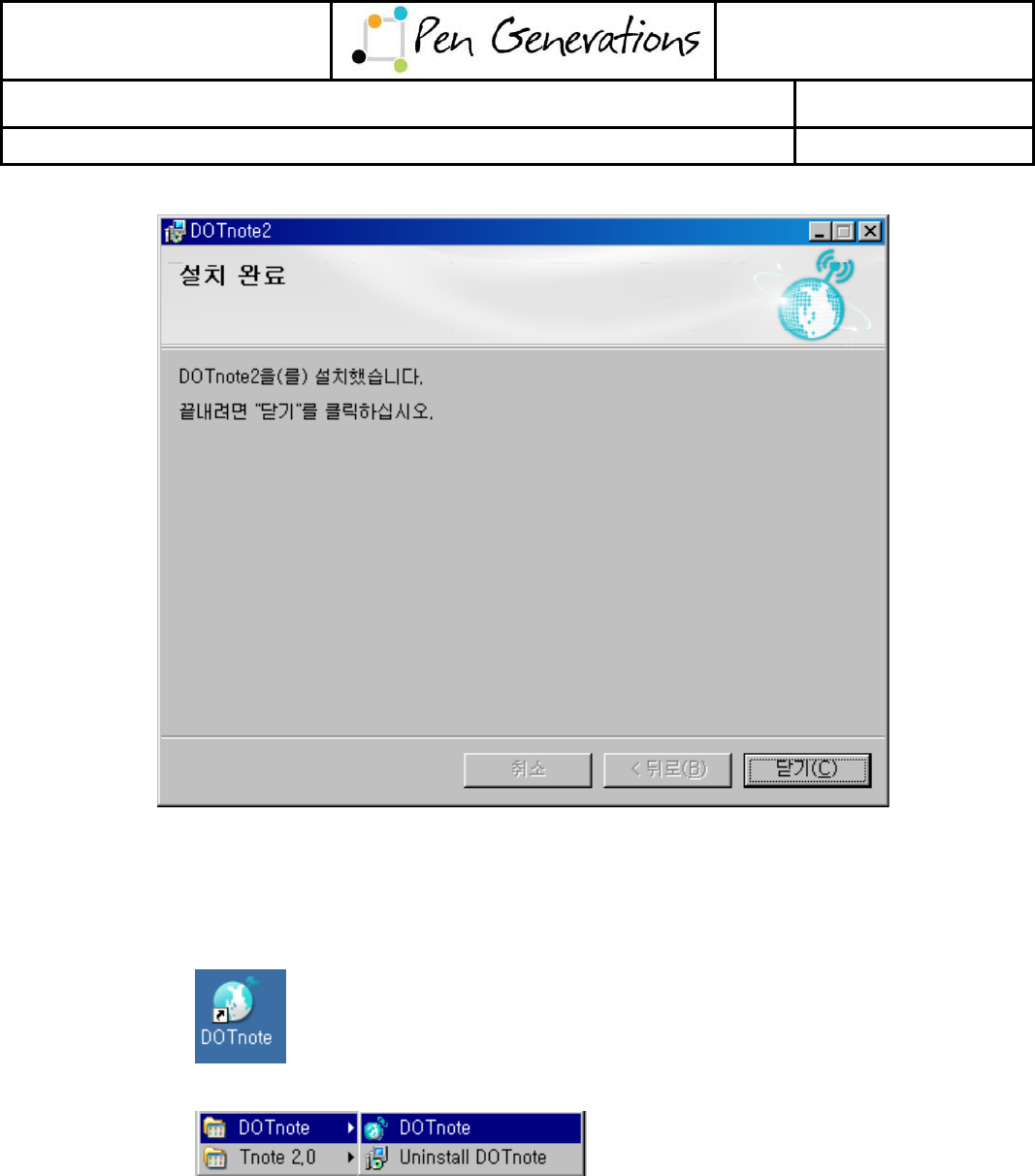

E. Wait until the installation is complete, press the "close" to complete the installation.
3.2 Streaming test
A. One of the following methods to run the application using DOTnote
i. On the desktop, double click on the "DOTnote" icon
ii. start -> program -> Tstudy -> DOTnote -> DOTnote select
CONFIDENTIAL
Document No:
PG-CM- UserManual
Title: <ADP601> Users Manual Revision: 20111230
Prepared by:
Taeyoung Ko
Date: 2012.01.04.
___________________________________________________________________________
Doc No. PG-CM-Users Manual- 20111104
Page 20 of 28
Propriety Information, No Dissemination or Use Allowed Without Prior Written Permission All printed copies
are considered Uncontrolled copies unless the copies are stamped with “For Information Only” or “Controlled
Copy” by Documentation Control group.

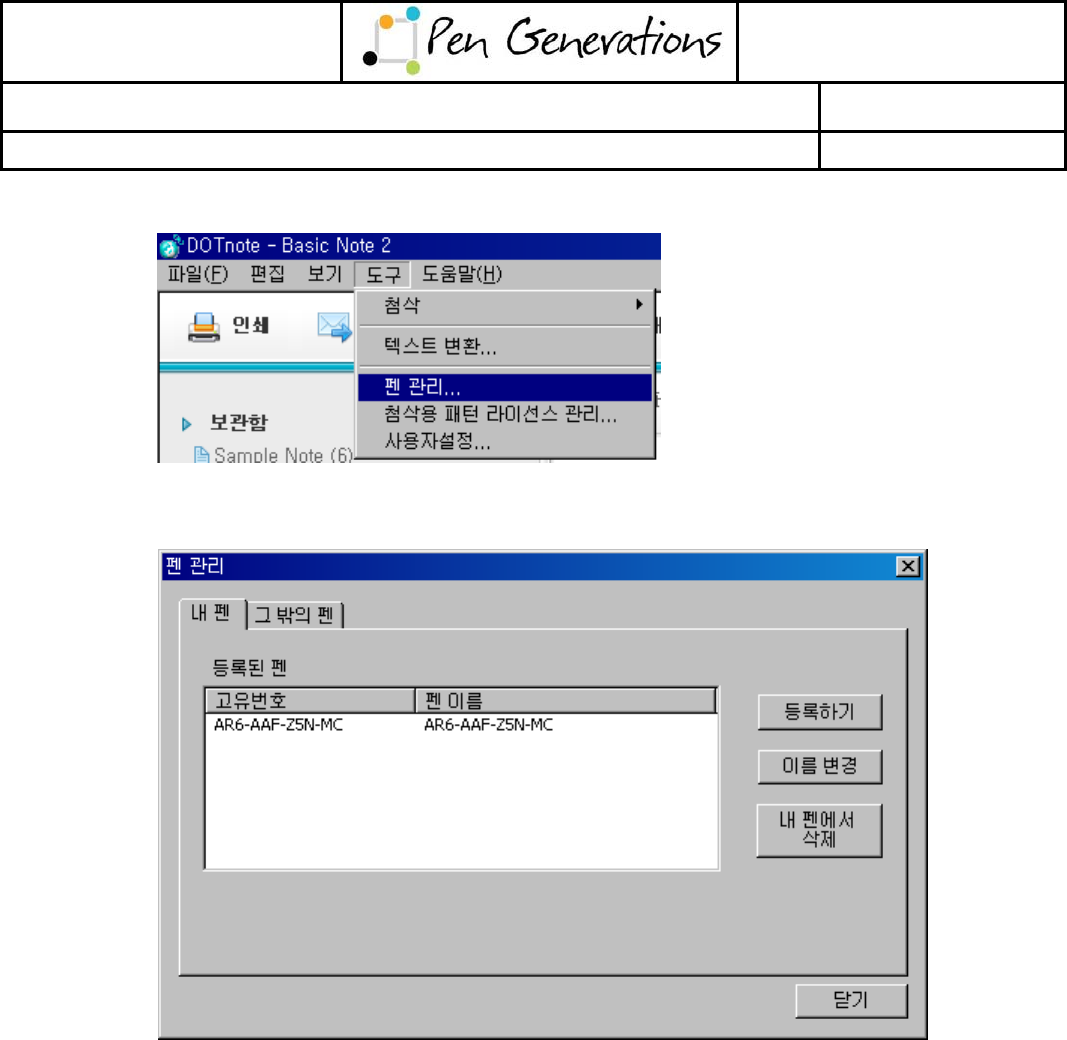

B. menu -> Tools -> Pen manager
C. Run the test pen and PC-to-Bluetooth pairing
D. If the test is set to notes, pen tips , “My Pen” Tab in the test pen Pen ID is shown.
CONFIDENTIAL
Document No:
PG-CM- UserManual
Title: <ADP601> Users Manual Revision: 20111230
Prepared by:
Taeyoung Ko
Date: 2012.01.04.
___________________________________________________________________________
Doc No. PG-CM-Users Manual- 20111104
Page 21 of 28
Propriety Information, No Dissemination or Use Allowed Without Prior Written Permission All printed copies
are considered Uncontrolled copies unless the copies are stamped with “For Information Only” or “Controlled
Copy” by Documentation Control group.

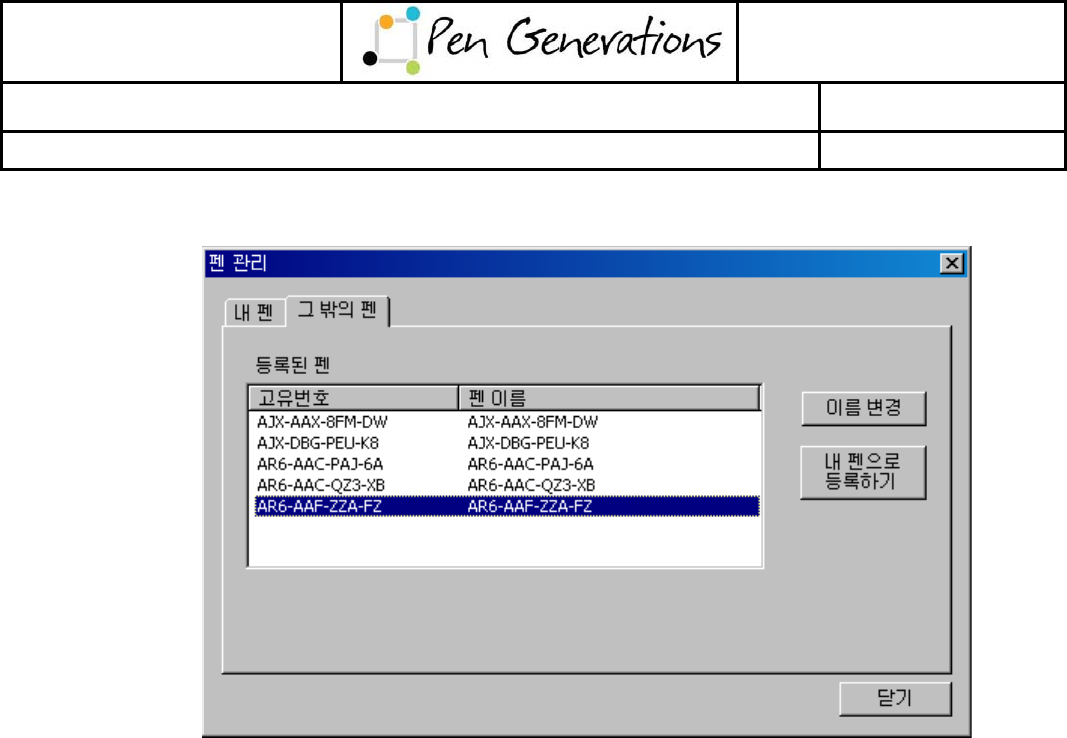

i. If you don't see the Pen ID is that out of the pen "tab," Pen, make sure that the ID and
select the pen, the pen register "after" my registration button.
ii. “other pen” Pen ID does not exist, you should check that the Bluetooth pairing this
exactly once again
E. “Pen manager” Dialog box, use the "close" button to exit.

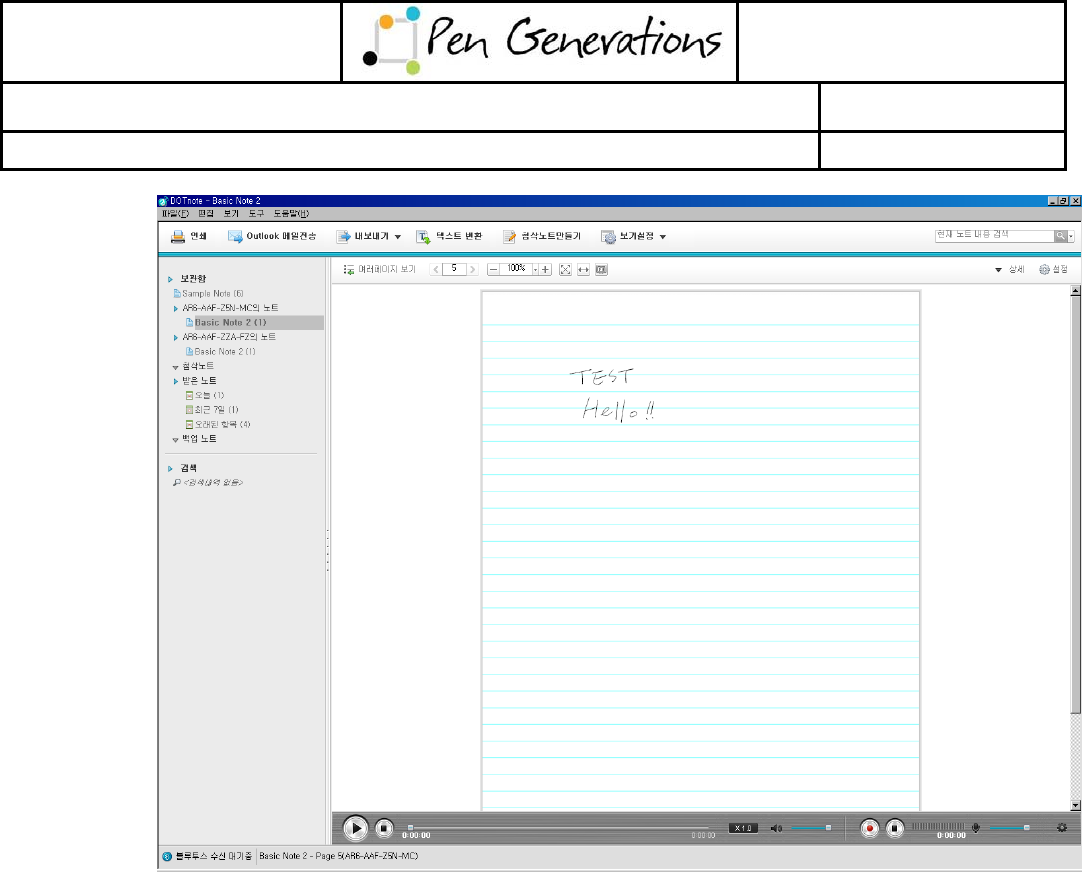

F. Note to use a pen to write, as shown below appears on the screen DOTnote.
CONFIDENTIAL
Document No:
PG-CM- UserManual
Title: <ADP601> Users Manual Revision: 20111230
Prepared by:
Taeyoung Ko
Date: 2012.01.04.
___________________________________________________________________________
Doc No. PG-CM-Users Manual- 20111104
Page 22 of 28
Propriety Information, No Dissemination or Use Allowed Without Prior Written Permission All printed copies
are considered Uncontrolled copies unless the copies are stamped with “For Information Only” or “Controlled
Copy” by Documentation Control group.
CONFIDENTIAL
Document No:
PG-CM- UserManual
Title: <ADP601> Users Manual Revision: 20111230
Prepared by:
Taeyoung Ko
Date: 2012.01.04.
___________________________________________________________________________
Doc No. PG-CM-Users Manual- 20111104
Page 23 of 28
Propriety Information, No Dissemination or Use Allowed Without Prior Written Permission All printed copies
are considered Uncontrolled copies unless the copies are stamped with “For Information Only” or “Controlled
Copy” by Documentation Control group.
4 BATTERY CHARGING
This manual describes how to charge the battery .
4.1 Preparation

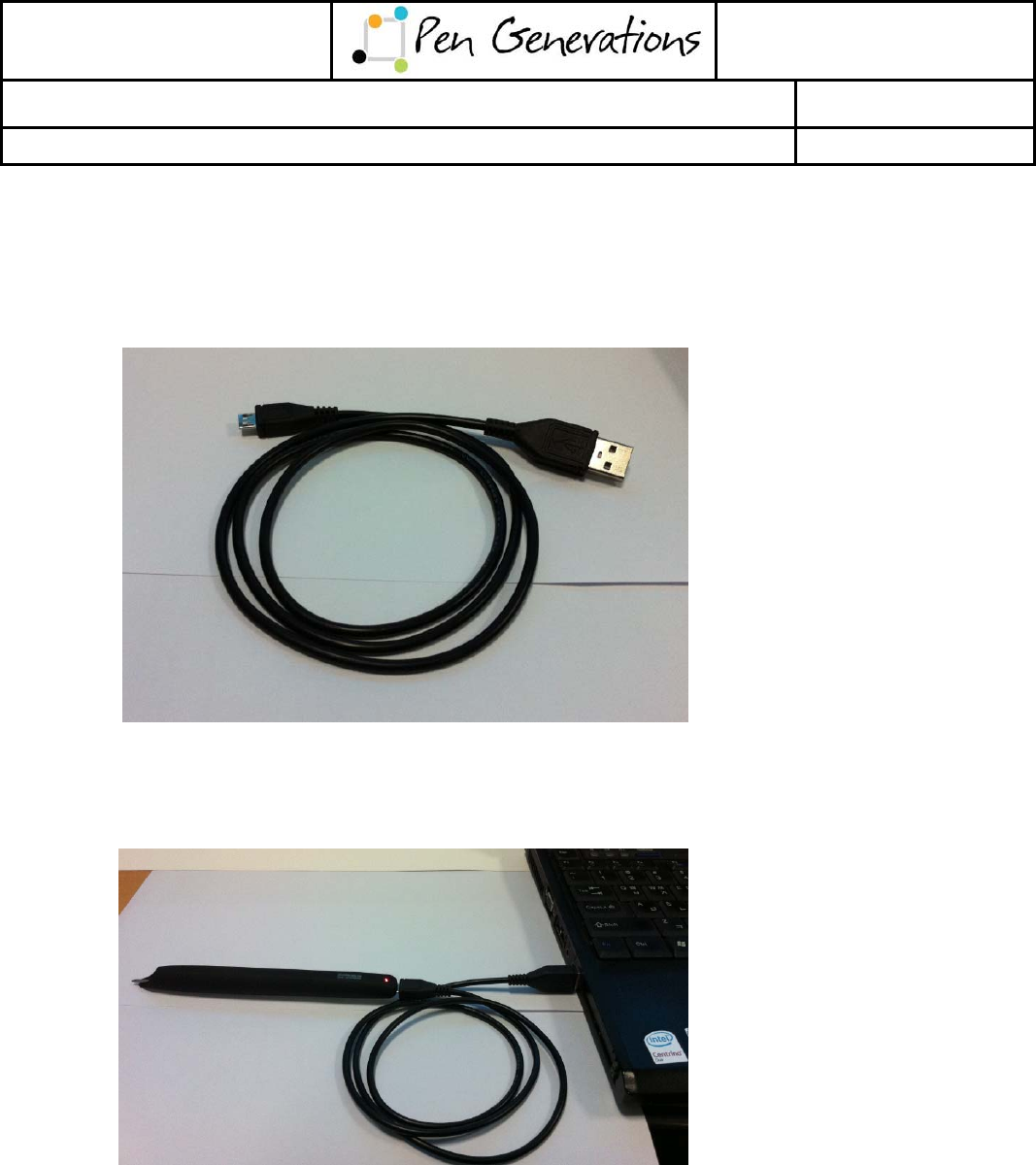

A. USB CABLE(USB A to micro B 1m)
4.2 Charging Method

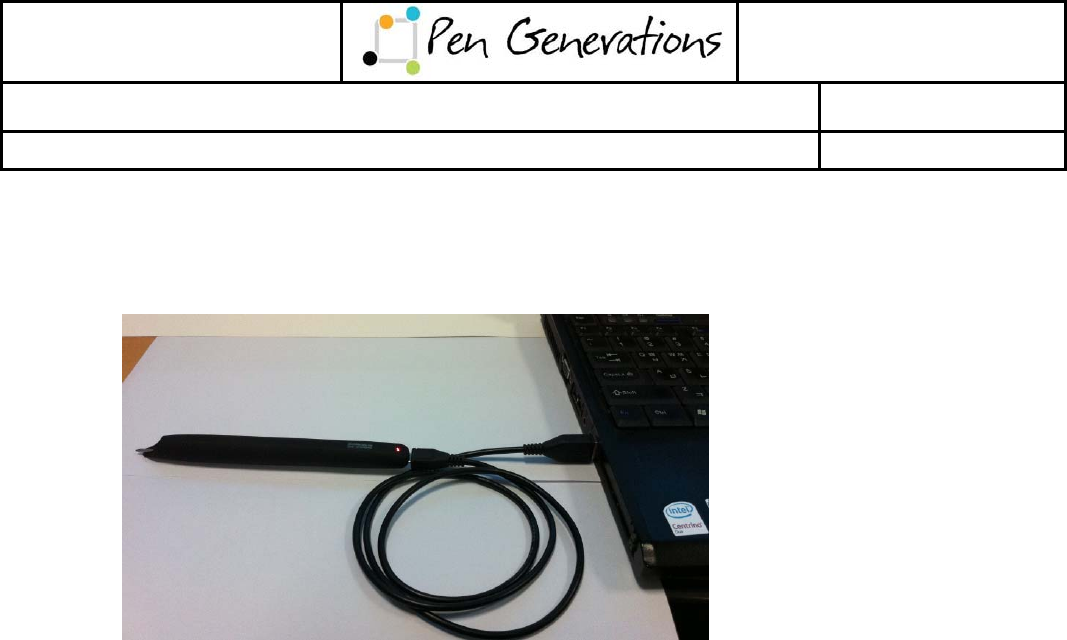

A. USB CABLE to the connector on the ADP-601 now connect to PC.
CONFIDENTIAL
Document No:
PG-CM- UserManual
Title: <ADP601> Users Manual Revision: 20111230
Prepared by:
Taeyoung Ko
Date: 2012.01.04.
___________________________________________________________________________
Doc No. PG-CM-Users Manual- 20111104
Page 24 of 28
Propriety Information, No Dissemination or Use Allowed Without Prior Written Permission All printed copies
are considered Uncontrolled copies unless the copies are stamped with “For Information Only” or “Controlled
Copy” by Documentation Control group.

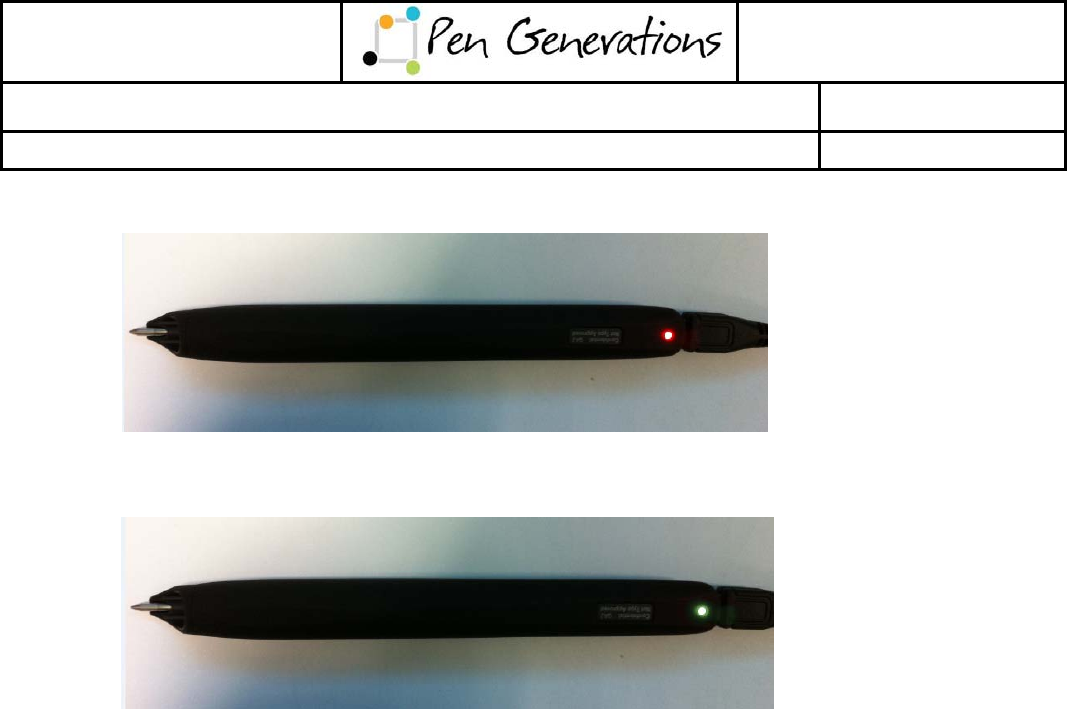

B. ADP-601 the colour of the LED when the discharge is red.
C. The colour of the LED ADP-601 charging is completed, green changes.
D. ADP-601 to remove it from the PC.
CONFIDENTIAL
Document No:
PG-CM- UserManual
Title: <ADP601> Users Manual Revision: 20111230
Prepared by:
Taeyoung Ko
Date: 2012.01.04.
___________________________________________________________________________
Doc No. PG-CM-Users Manual- 20111104
Page 25 of 28
Propriety Information, No Dissemination or Use Allowed Without Prior Written Permission All printed copies
are considered Uncontrolled copies unless the copies are stamped with “For Information Only” or “Controlled
Copy” by Documentation Control group.
5 FIRMWARE UPGRADE
This manual explains manual about ADP601 firmware upgrade program.
USB CABLE to the connector on the ADP-601 now connect to PC.
5.1 Upgrade Steps
A. Firmware Upgrade Method 1
Firmware is automatically upgraded through this function.
A-1. First of all, a tester connects a target device, ADP601 , to a computer that upgrade
program was installed.
Then, the tester can confirm the device’s ID in dropdown control and selects the target
device’s ID.
A-2. Choose the device’s ID and push the “Connect” button.
A-3. Before firmware upgrade starts, the tester configures a new package binary for upgrade
through “File Open” button.
When the tester pushes the button “File Open”, a dialog for file selection is popped up and
then chooses the new package binary.
After finishing configuration completely, some parameters of the package binary are displayed
in upgrade panel. And the tester confirms a status by message of process in “Control” panel.
A-4. After finishing the configuration, start firmware upgrade pushing a “Start Firmware
Upgrade” button.
CONFIDENTIAL
Document No:
PG-CM- UserManual
Title: <ADP601> Users Manual Revision: 20111230
Prepared by:
Taeyoung Ko
Date: 2012.01.04.
___________________________________________________________________________
Doc No. PG-CM-Users Manual- 20111104
Page 26 of 28
Propriety Information, No Dissemination or Use Allowed Without Prior Written Permission All printed copies
are considered Uncontrolled copies unless the copies are stamped with “For Information Only” or “Controlled
Copy” by Documentation Control group.
After finishing the firmware upgrade, all information of parameters is displayed in
“Parameters” panel.
And the tester confirms a result not only by a message in “Control” panel’s status, but also by
a message in “General Information” panel’s result.
There are 3 procedures for upgrade, full read eeprom, upgrade Infineon and upgrade Freescale.
All procedures are continuously processed automatically.

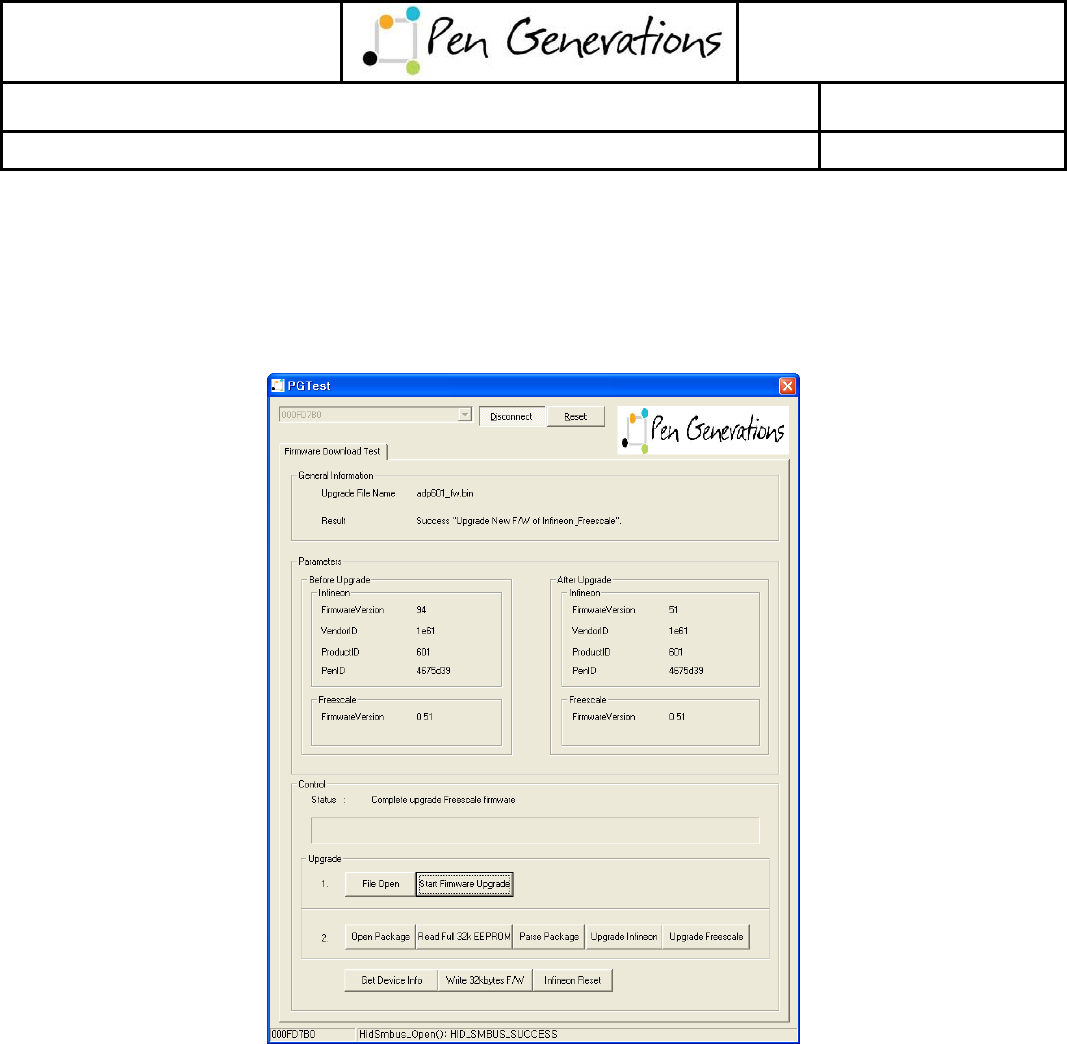

Figure 1. Result of Firmware Upgrade
B. Firmware Upgrade Method 2
This method provides for the tester to upgrade FW into DUT step by step.
B-1. First of all, a tester connects a target device, ADP601 , to a computer that
Upgrade program was installed.
Then, the tester can confirm the device’s ID in dropdown control and selects the target
device’s ID.
B-2. Choose the device’s ID and push the “Connect” button.
CONFIDENTIAL
Document No:
PG-CM- UserManual
Title: <ADP601> Users Manual Revision: 20111230
Prepared by:
Taeyoung Ko
Date: 2012.01.04.
___________________________________________________________________________
Doc No. PG-CM-Users Manual- 20111104
Page 27 of 28
Propriety Information, No Dissemination or Use Allowed Without Prior Written Permission All printed copies
are considered Uncontrolled copies unless the copies are stamped with “For Information Only” or “Controlled
Copy” by Documentation Control group.
B-3. Before firmware upgrade starts, the tester configures a new package binary for
upgrade through “Open Package” button.
When the tester pushes the button “Open Package”, a dialog for file selection is popped up and then
chooses the new package binary.
After finishing configuration completely, some parameters of the package binary are displayed in
upgrade panel. And the tester confirms a status by message of process in “Control” panel.
B-4 . Read a full 32k EEPROM data
When ADMLib parses the new package, a full 32k EEPROM data is needed. So in order the upgrade,
the tester reads a full 32k EEPROM data through this function.
B-5. Parse a new Package with read data
This function will extract the new firmwares for Infineon and Freescale by using the read data.
B-6. Upgrade a new Infineon
This function will upgrade a new Infineon firmware.
B-7. Upgrade a new Freescale
This function will upgrade a new Freescale firmware.
