Anova Applied Electronics, Inc. Precision Cooker
User Manual
1
PRECISION
COOKER
USER GUIDE
2
PROPRO
3
At Anova our mission has always been to create
products that allow everyone to cook like a pro. This
is why we developed the Anova Precision Cooker
Pro. It is our most powerful and most accurate
precision cooker we have ever created.
We have been constantly listening to our users
feedback as to what device they wanted. The Pro is
that product, it was created to allow our home cooks
to take their precision cooking to the next level.
In this manual you will find everything you need to
know, but as always our white glove customer
service is at your fingertips through our Anova App.
ANOVA PRECISION COOKER PRO
THE NEXT LEVEL OF PRECISION
4
PROPRO
5
1
2
3
4
5
6
7
8
9
setting up
connection
interface
smart home
precision
containers
design
care
safety + warranty
USER GUIDE
CONTENTS
6
SETTING UP
EASY TO GET STARTED
Anova Pro to a pot or other
heat-safe container by adjusting the clamp
height and clamp opening
your container with water between the
min and max line
Anova Pro and place your sealed food
in the water bath
the device with the manual settings
or Anova Culinary App
1
2
3
4
7
PROPRO
12
34
8
CONNECTION
DOWNLOAD THE APP
Connect your Anova to get started!
all on the Anova Culinar y app .
9
The Anova Precision Cooker Pro comes equipped
with 2.4 Ghz Wi-Fi. This means you can monitor your
cook while you are away from home among other
features.
: Create and save your own recipes. Share
your recipes with the community
: Control multiple precision cookers at
once
: Set up your cooker with a cold bath of ice
and then remotely start it so your food is ready right
when you arrive home from work.
CONNECTION
COOK FROM ANYWHERE
10

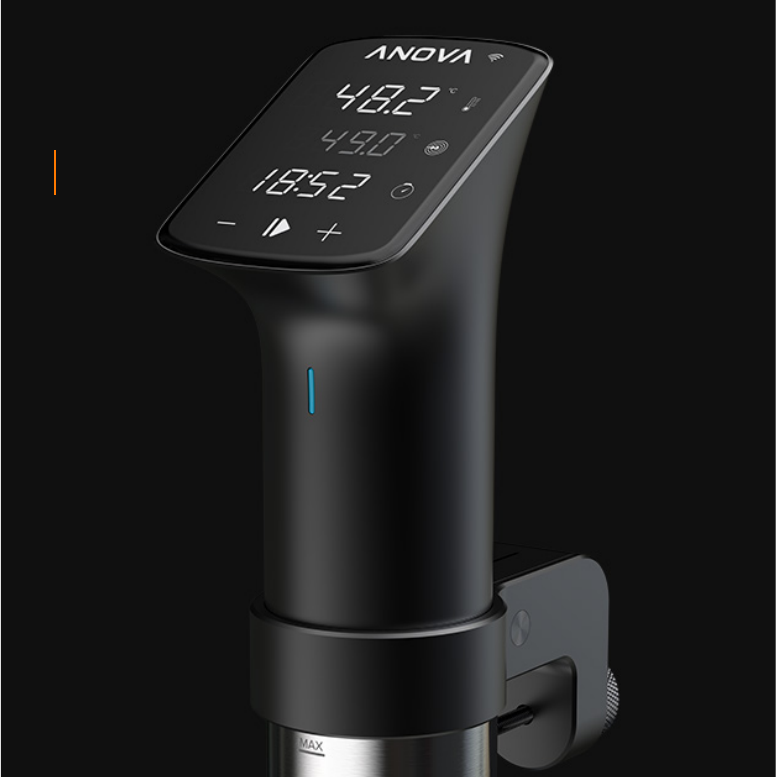

Current Temperature
Target Temperature
Timer
Start/Stop
Temperature/Time Increase
Temperature/Time Decrease
Press the Target Temperature icon on the interface
Press the +/- buttons to increase or decrease
temperature
Press the Timer icon on the interface
Press the +/- buttons to increase or decrease time
Press the Start button
A
Download and open the Anova Culinary App
Choose either an existing guide, recipe, or one of
your own previously saved recipes
Press Start within the app
INTERFACE
KEY + GUIDE
PRO
11
PRO
12
PRO
13
PRO
14
PRO
15
The Anova Precision Cooker Pro comes equipped
with support for Amazon Echo with Alexa and Google
Home smart products. This enables you to.....
SMART HOME
AMAZON + GOOGLE HOME
16
0.05°C Precision is achieved by...
This is important because...
PRECISION
THE MOST PRECISE EVER
17
PROPRO
18

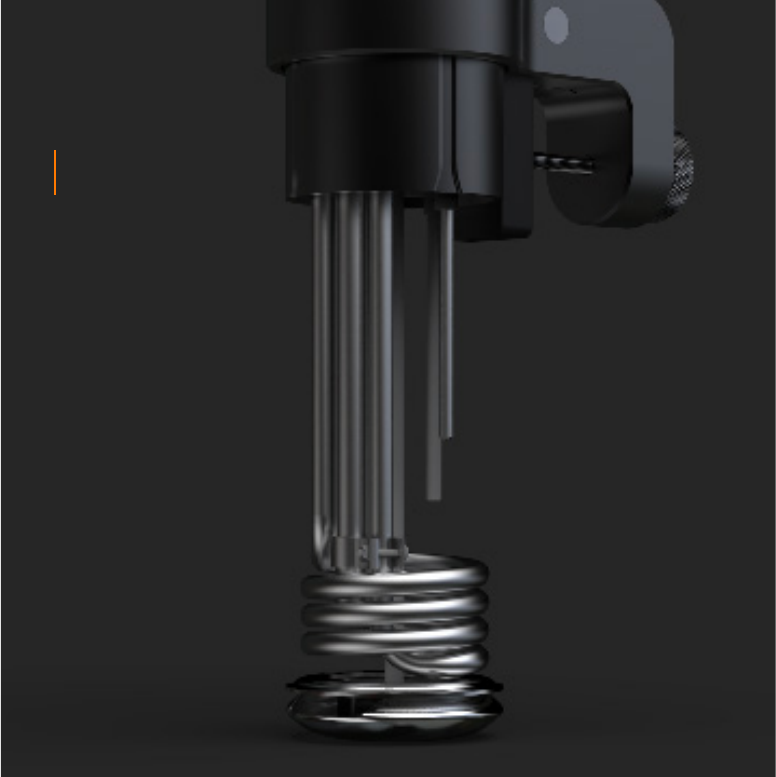

The Pro is equipped to cook for containers as big as
60L / 15Gl. This is achieved by a 1200W heater in
combination with a powerful 12L/Minute flow rate.
Within the app you can adjust and control the flow
rate and heating power depending on the size of
your container.
When using multiple sous vide devices together, we
recommend lowering the heating power to ensure
you do not blow the circuit breaker during warm up
cycles.
CONTAINER SIZE
POWER + FLOW RATE
19
PRO
Infographics of container sizes and
ow rates required to maintain ow
20
PRO
21

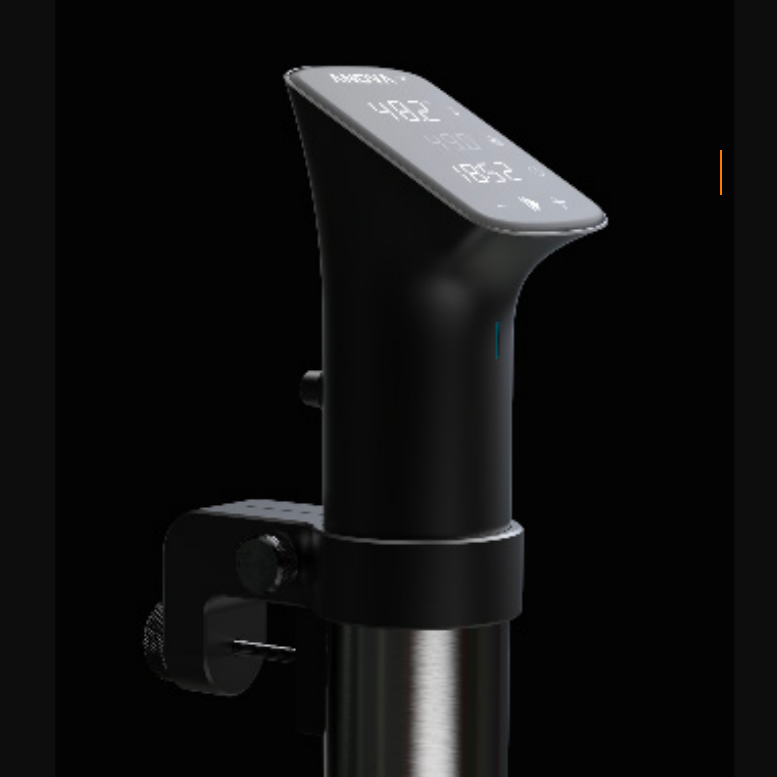

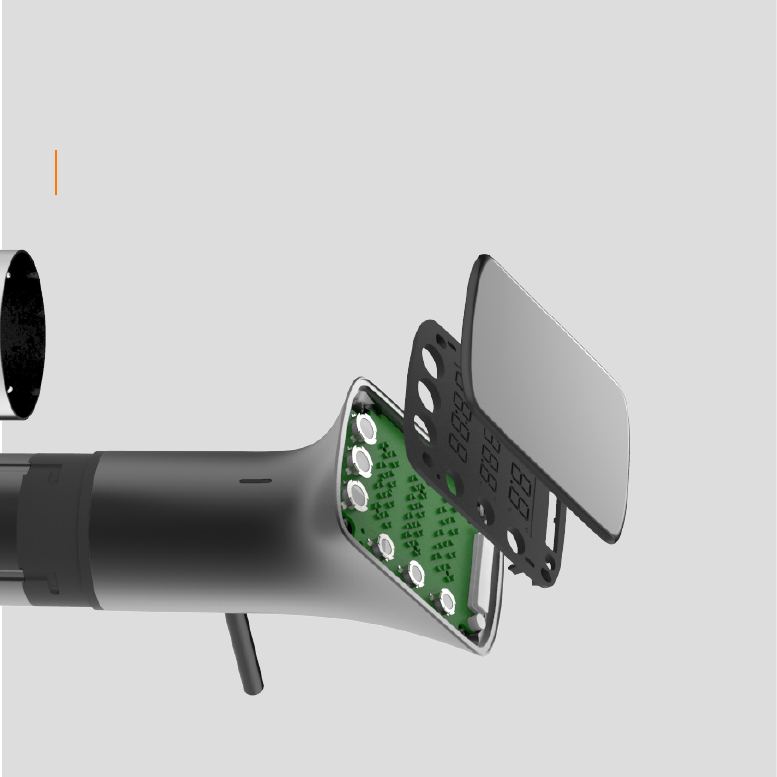

Designed to the highest quality the Pro is
constructed using a teflon coated housing and
stainless steel skirt providing a clean professional
look all while being the most robust cooker available.
PREMIUM MATERIALS
MATERIAL QUALITY
22
The Anova Precision Cooker Pro
See what others are making and share your sous
vide creations with the #anovafoodnerd family.
COMMUNITY
COMMUNITY
23
PRO
24

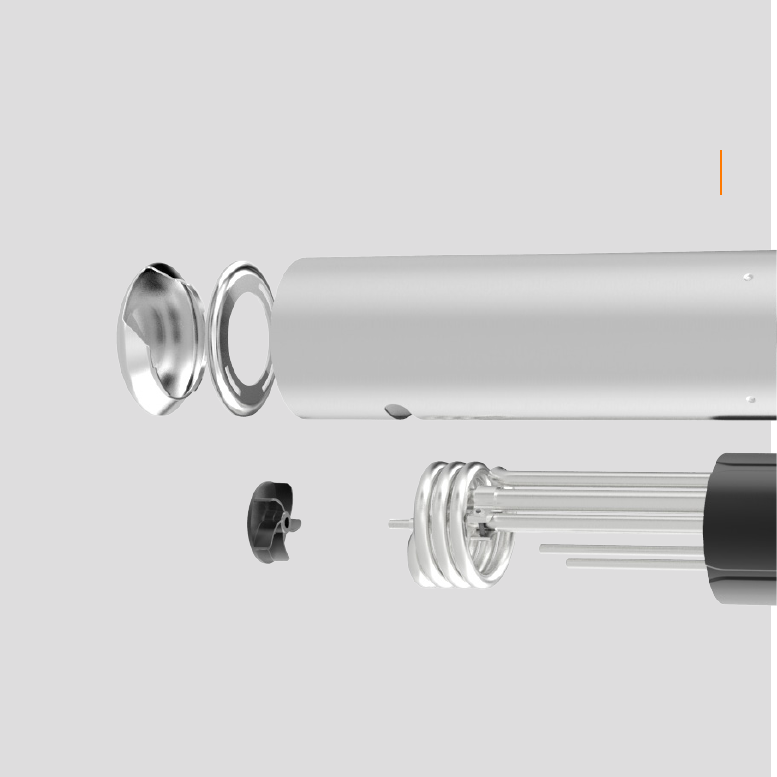

1. Remove the skirt and end cap (see this article for disassembly instructions)
2. Place the skirt and end cap in the dishwasher or wash them in the sink with
dish soap
3. VINEGAR BATH
4. Dilute equal parts water and white vinegar in a small pot
5. Place your cooker in the pot
6. Set the temperature to 140ºF/60ºC and let your cooker heat the liquid
7. Cleaning is complete once the cooker has reached temperature
8. This method is best for cleaning build up on your cooker. Build up is
normal and is due to mineral deposits mostly from tap water. Build up can
be brown, black, or even green depending on your water pipes and water
source.
9. CLEANING THE INSIDES
10. Use a tooth brush with a mild cleaner like dish soap to scrub the circulator,
impeller, heating coil, pump shaft, and sensor
11. Rinse with a damp cloth
12. When cleaning the unit make sure you do not bend the impeller shaft. If
you do it may rub against the steel skirt after you reassemble it.
13. CLEANING THE DISPLAY
14. Dampen a microfiber cloth
15. Wipe the display gently
16. Dry gently with a dry microfiber cloth
CARE
CARE
25
SAFETY
SAFETY
To Reduce The Risk Of Fire, Electric Shock, Or Injury:
1. Do not use with damaged cord or plug.
2. If appliance is not working as it should, has been
dropped, damaged, left outdoors, or dropped into
water, return it to a service center before using.
3. Do not use outdoors.
4. Unplug the electrical cord when not in use and before
servicing.
5. Do not allow to be used as a toy. Close attention is
necessary when used by or near children.
6. Use only as described in this manual. Use only
manufacturer’s recommended attachments.
7. Do not pull or carry by cord or use cord as a handle.
8. Do not use extension cords or outlets with inadequate
current carrying capacity.
9. Do not unplug by pulling on cord. To unplug, grasp the
plug, not the cord.
10. Do not handle plug or appliance with wet hands.
11. Do not put any object into openings. Do not use with
any opening blocked; keep free of dust, lint, hair, and
anything that may reduce airflow.
12. Do not use appliance in flammable or combustible
liquids such as gasoline, or use in areas where they
may be present.
13. Store your appliance indoors in a cool, dry area.
Always Exercise Basic Safety Precautions When Operating
Electrical Appliances, Including The Following:
1. Read all instructions. Including the instructions you’re
reading now.
2. Do not touch hot surfaces.
3. o protect against electrical shock, do not immerse cord,
plugs, or the device’s electrical components in water or
other liquid.
4. Close supervision is necessary when appliance is used
by or near children.
5. Unplug from outlet when not in use and before
cleaning. Allow device to cool before assembling or
disassembling.
6. Do not operate any appliance with a damaged cord or
plug. Do not operate the appliance if it has
malfunctioned or been damaged in any manner. Contact
Anova Support at supporanovaculinary.com for
assistance.
7. The use of accessory attachments is not recommended
by the appliance manufacturer and may cause injuries.
8. Do not use outdoors.
9. Do not let cord hang over the edge of the table or
counter. Do not let the cord come in contact with hot
surfaces.
10. Do not place the device on or near hot gas or electric
burner, or in a heated oven.
11. Use extreme caution when moving an appliance
containing hot liquids.
12. To operate, plug cord into the wall outlet. To disconnect,
press’ stop” on the device interface or in the Anova
Culinary App, then remove plug from wall outlet.
13. Do not use appliance for anything other than its
intended use.
14. Do not open bottom enclosure while device is plugged in
or operating as there are heating elements and moving
parts.
15. Do not use directly on a granite or marble surface. Always
place an insulating surface between the hot pot and
granite or marble surface.
26
One (1) Year Warranty Provision
The following Warranty provisions shall apply to products sold by Anova (“Seller”) to the entity shown as
buyer (“Buyer”) on Seller’s invoice.
Initial Warranty. Seller warrants to the Buyer that the products manufactured by the seller are free from
defects in material and workmanship for a period not to exceed one (1) year, from the date the product is
received by Buyer from the Seller (the “initial warranty”).
Exclusions: The Initial Warranty does not include damage to the product resulting from accident, misuse, the
use of a plug converter or transformer, improper installation or operation, unauthorized or improper repair,
replacement or alteration (including but not limited to repairs, replacements, or alterations made or
performed by persons other than Seller’s employees or authorized representatives), failure to provide
proper maintenance, unreasonable use or abuse of the product, or failure to follow written instructions or
operating instructions. Water damage and use of deionized water is not covered on warranty. Buyer must
return the product’s record of purchase to the seller or one of Seller’s authorized representatives within 365
days of the date the product is received by Buyer from Seller in order to make a claim under the Initial
Warranty.
Governing Law. The Warranty Provisions and all questions relating to their validity, interpretation,
performance, and enforcement shall be construed in accordance with, and shall be governed by, the
substantive laws of the State of Texas.
Shipping. Seller will arrange and pay for shipping and handling charges for the unit to be returned to the
Seller. Seller will arrange and pay for shipping and handling for the return of the unit to the Buyer.
Commercial Usage. This system is not covered under warranty if used in commercial environments.
WARRANTY
WARRANTY
27
PRO
28
PRO
FCC/IC COMPLIANCE / TM / WARRANTY
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and
Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:
Caution: Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of
the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation,
Sciences et Développement économique Canada applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes :
1) L’appareil ne doit pas produire de brouillage;
2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en
compromettre le fonctionnement.
3) NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measure
Apple, the Apple logo and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a
service mark of Apple Inc. Android, Google Play, and the Google Play logo are trademarks of Google Inc. The Bluetooth®
word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks is under
license. All other trademarks and trade names are properties of their respective owners.
Precision™ is a trademark of Anova Applied Electronics, Inc. ©2018 Anova Applied Electronics, Inc. San Francisco, CA,
US | Stockholm, SE. All Rights Reserved.
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
To satisfy FCC&IC RF exposure requirements, a separation distance of 20 cm or more should be maintained
between the antenna of this device and persons during device operation.
To ensure compliance, operations at closer than this distance is not recommended.
Les antennes installées doivent être situées de facon à ce que la population ne puisse
y être exposée à une distance de moin de 20 cm. Installer les antennes de facon à ce
que le personnel ne puisse approcher à 20 cm ou moins de la position centrale de l’
antenne.
System Requirements:
iOS 9.0+, iPhone 5s or later, or
Android 6.0+
LIMITED WARRANTY.
Full details available at
anovaculinary.com/warranty
