Ansen Electronics Co 0781TX-1 Remote Sensor User Manual 89 20668 103N

Ansen Electronics Co Remote Sensor 89 20668 103N

users manual

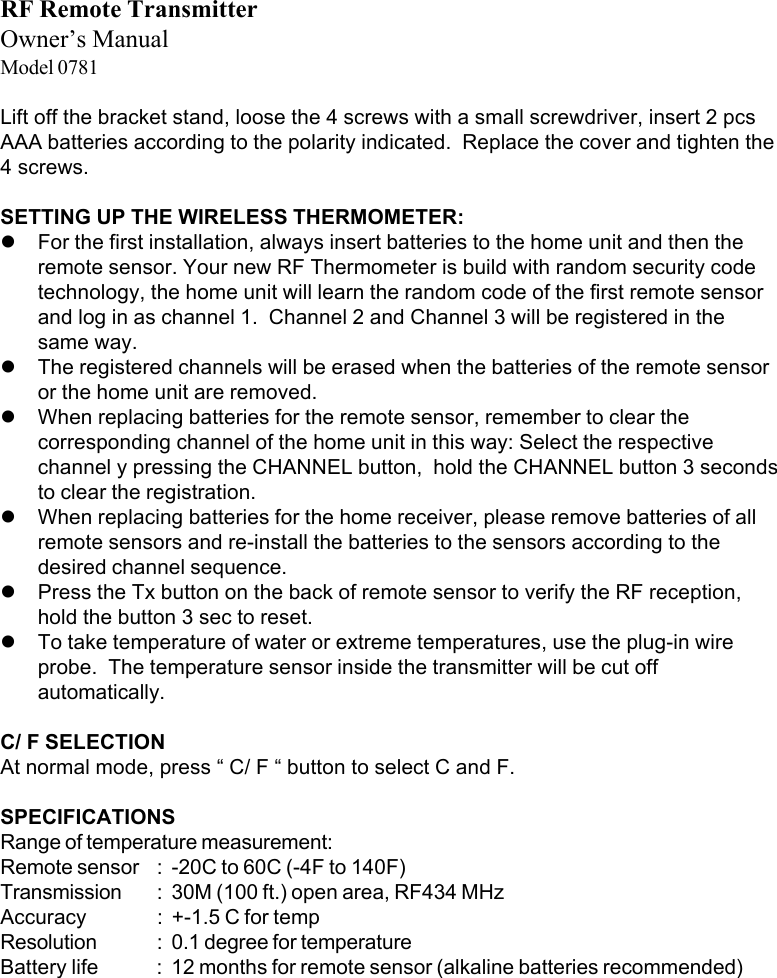

RF Remote TransmitterOwner’s ManualModel 0781Lift off the bracket stand, loose the 4 screws with a small screwdriver, insert 2 pcsAAA batteries according to the polarity indicated. Replace the cover and tighten the4 screws.SETTING UP THE WIRELESS THERMOMETER:!For the first installation, always insert batteries to the home unit and then theremote sensor. Your new RF Thermometer is build with random security codetechnology, the home unit will learn the random code of the first remote sensorand log in as channel 1. Channel 2 and Channel 3 will be registered in thesame way.!The registered channels will be erased when the batteries of the remote sensoror the home unit are removed.!When replacing batteries for the remote sensor, remember to clear thecorresponding channel of the home unit in this way: Select the respectivechannel y pressing the CHANNEL button, hold the CHANNEL button 3 secondsto clear the registration.!When replacing batteries for the home receiver, please remove batteries of allremote sensors and re-install the batteries to the sensors according to thedesired channel sequence.!Press the Tx button on the back of remote sensor to verify the RF reception,hold the button 3 sec to reset.!To take temperature of water or extreme temperatures, use the plug-in wireprobe. The temperature sensor inside the transmitter will be cut offautomatically.C/ F SELECTIONAt normal mode, press “ C/ F “ button to select C and F.SPECIFICATIONSRange of temperature measurement:Remote sensor : -20C to 60C (-4F to 140F)Transmission : 30M (100 ft.) open area, RF434 MHzAccuracy : +-1.5 C for tempResolution : 0.1 degree for temperatureBattery life : 12 months for remote sensor (alkaline batteries recommended)

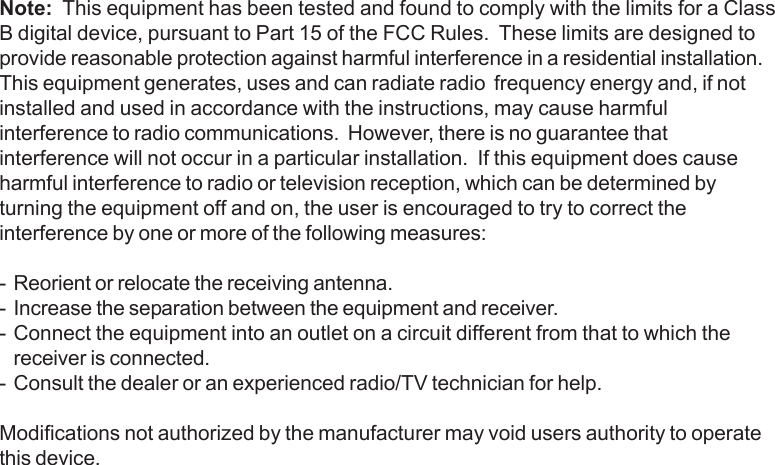

Note: This equipment has been tested and found to comply with the limits for a ClassB digital device, pursuant to Part 15 of the FCC Rules. These limits are designed toprovide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and can radiate radio frequency energy and, if notinstalled and used in accordance with the instructions, may cause harmfulinterference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does causeharmful interference to radio or television reception, which can be determined byturning the equipment off and on, the user is encouraged to try to correct theinterference by one or more of the following measures:- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit different from that to which thereceiver is connected.- Consult the dealer or an experienced radio/TV technician for help.Modifications not authorized by the manufacturer may void users authority to operatethis device.
