AnyDATA Korea ADU-520C CDMA Wireless Data Modem User Manual

AnyDATA Korea Inc. CDMA Wireless Data Modem

User Manual

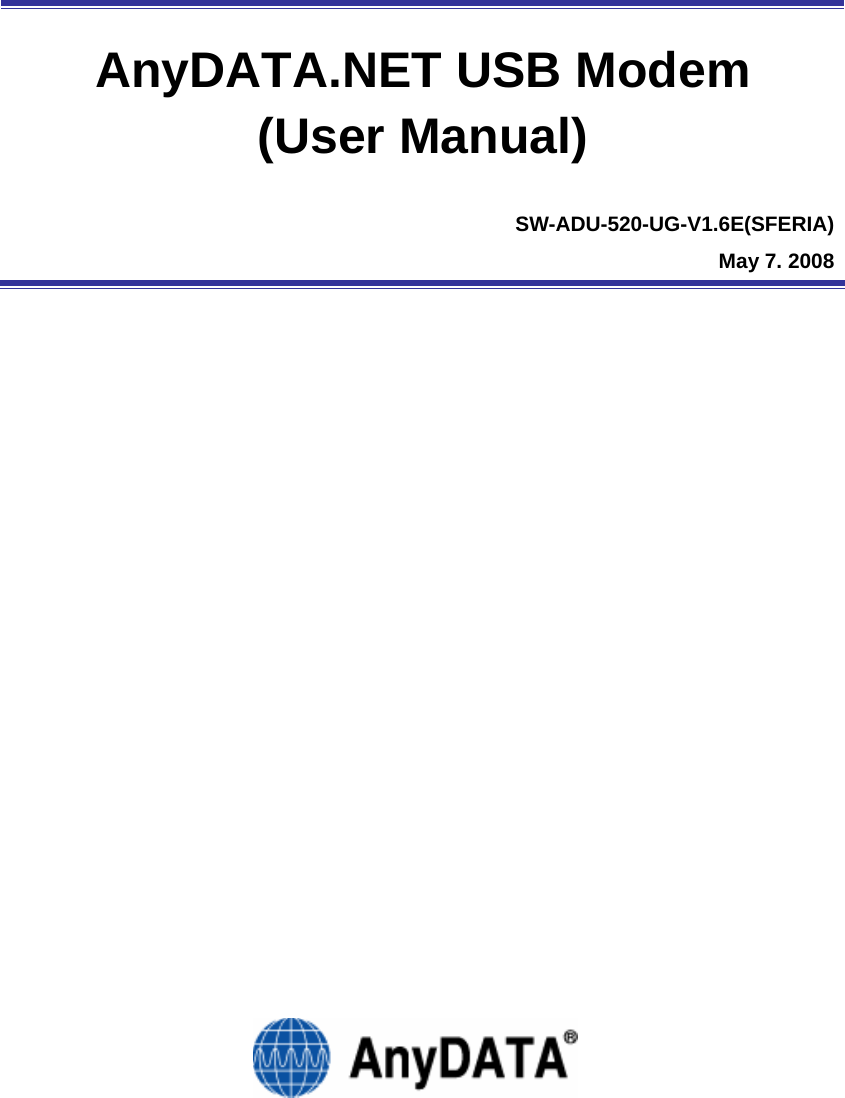

AnyDATA.NET USB Modem (User Manual) SW-ADU-520-UG-V1.6E(SFERIA)May 7. 2008

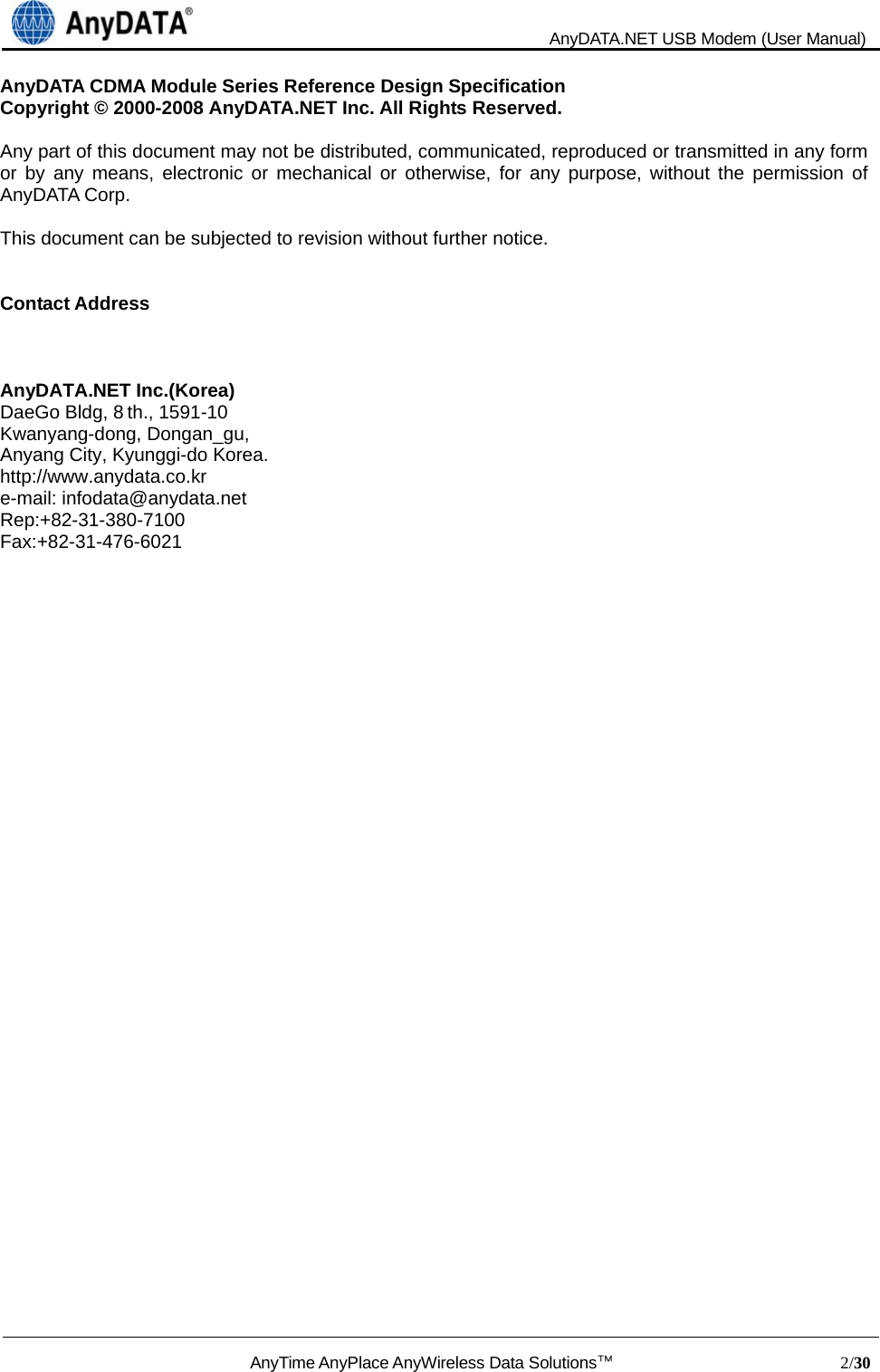

AnyDATA.NET USB Modem (User Manual) AnyTime AnyPlace AnyWireless Data Solutions™ 2/30 AnyDATA CDMA Module Series Reference Design Specification Copyright © 2000-2008 AnyDATA.NET Inc. All Rights Reserved. Any part of this document may not be distributed, communicated, reproduced or transmitted in any form or by any means, electronic or mechanical or otherwise, for any purpose, without the permission of AnyDATA Corp. This document can be subjected to revision without further notice. Contact Address AnyDATA.NET Inc.(Korea) DaeGo Bldg, 8 th., 1591-10 Kwanyang-dong, Dongan_gu, Anyang City, Kyunggi-do Korea. http://www.anydata.co.kr e-mail: infodata@anydata.net Rep:+82-31-380-7100 Fax:+82-31-476-6021

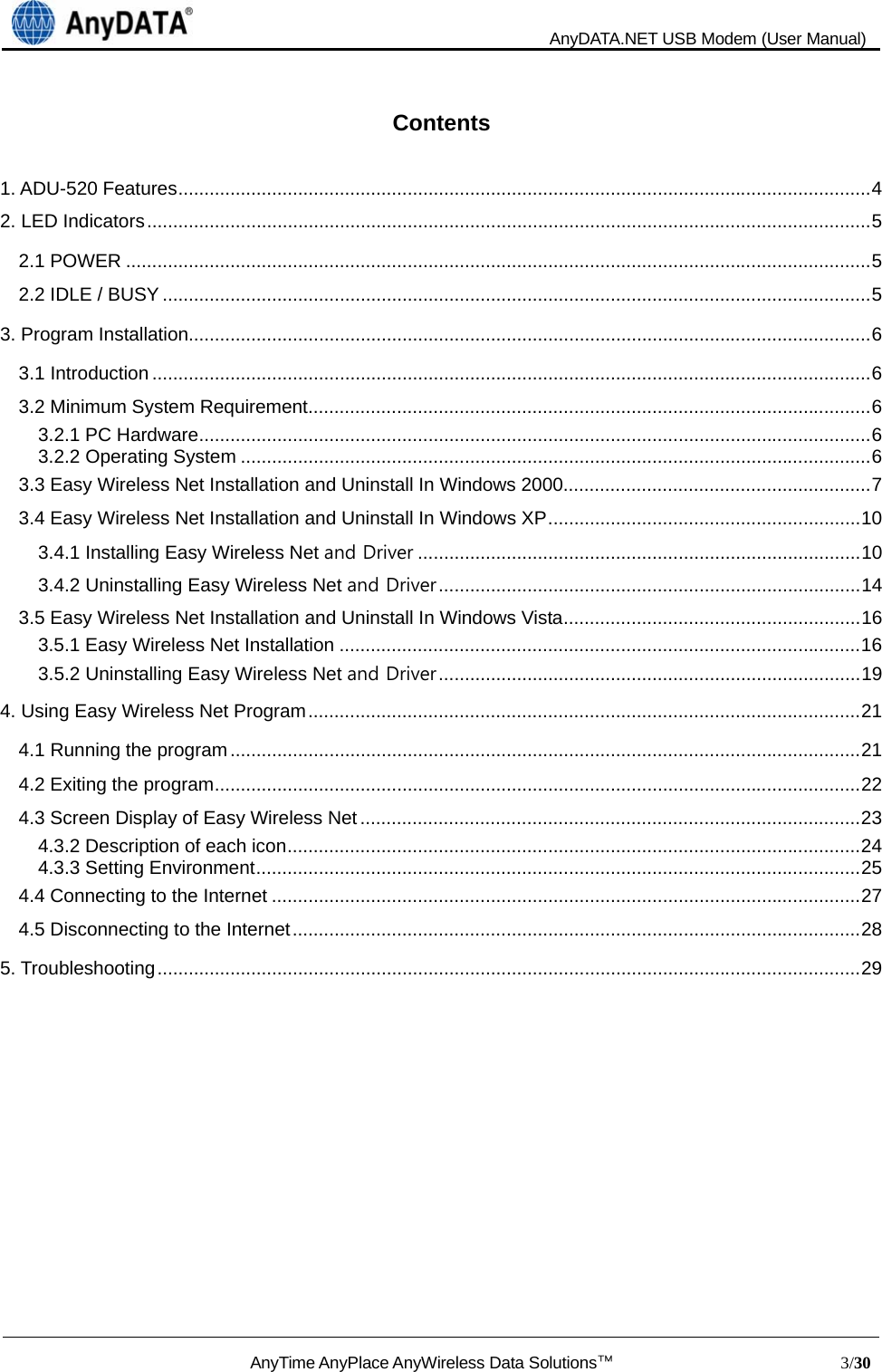

AnyDATA.NET USB Modem (User Manual) AnyTime AnyPlace AnyWireless Data Solutions™ 3/30 Contents 1. ADU-520 Features.....................................................................................................................................4 2. LED Indicators...........................................................................................................................................5 2.1 POWER ...............................................................................................................................................5 2.2 IDLE / BUSY ........................................................................................................................................5 3. Program Installation...................................................................................................................................6 3.1 Introduction ..........................................................................................................................................6 3.2 Minimum System Requirement............................................................................................................6 3.2.1 PC Hardware.................................................................................................................................6 3.2.2 Operating System .........................................................................................................................6 3.3 Easy Wireless Net Installation and Uninstall In Windows 2000...........................................................7 3.4 Easy Wireless Net Installation and Uninstall In Windows XP............................................................10 3.4.1 Installing Easy Wireless Net and Driver .....................................................................................10 3.4.2 Uninstalling Easy Wireless Net and Driver.................................................................................14 3.5 Easy Wireless Net Installation and Uninstall In Windows Vista.........................................................16 3.5.1 Easy Wireless Net Installation ....................................................................................................16 3.5.2 Uninstalling Easy Wireless Net and Driver.................................................................................19 4. Using Easy Wireless Net Program..........................................................................................................21 4.1 Running the program.........................................................................................................................21 4.2 Exiting the program............................................................................................................................22 4.3 Screen Display of Easy Wireless Net ................................................................................................23 4.3.2 Description of each icon..............................................................................................................24 4.3.3 Setting Environment....................................................................................................................25 4.4 Connecting to the Internet .................................................................................................................27 4.5 Disconnecting to the Internet.............................................................................................................28 5. Troubleshooting.......................................................................................................................................29

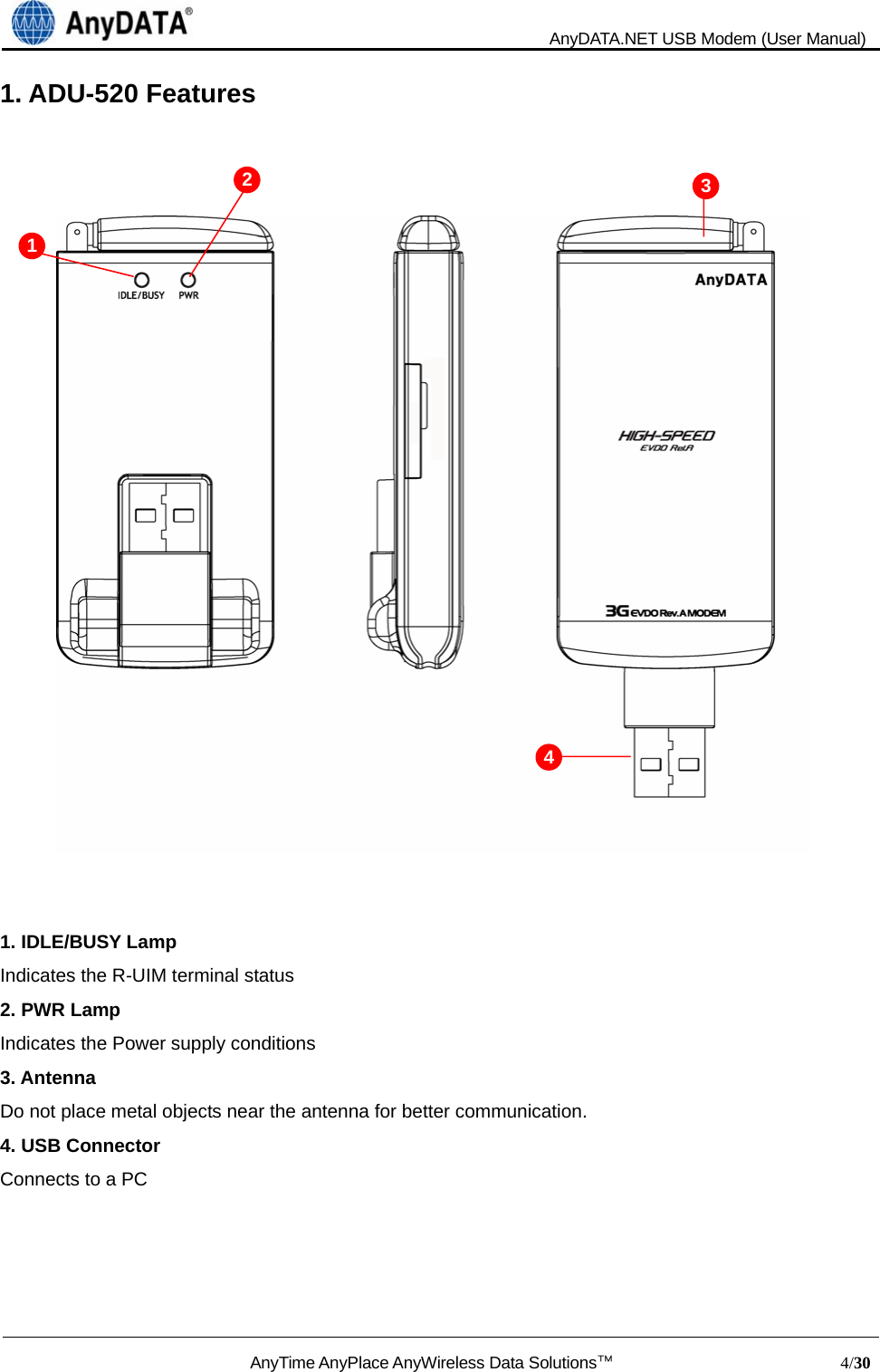

AnyDATA.NET USB Modem (User Manual) AnyTime AnyPlace AnyWireless Data Solutions™ 4/30 1. ADU-520 Features 1. IDLE/BUSY Lamp Indicates the R-UIM terminal status 2. PWR Lamp Indicates the Power supply conditions 3. Antenna Do not place metal objects near the antenna for better communication. 4. USB Connector Connects to a PC 1 2 3 4

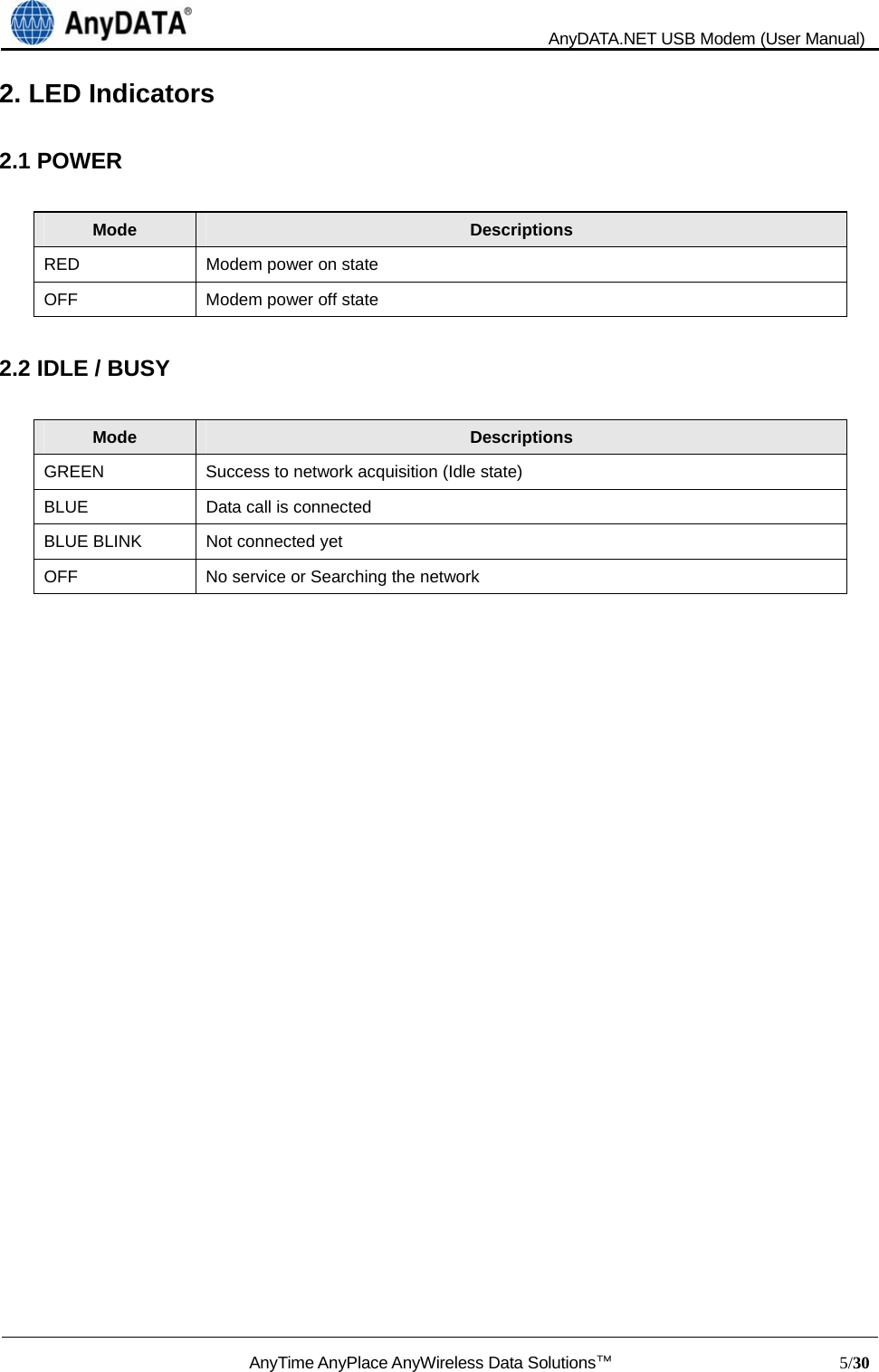

AnyDATA.NET USB Modem (User Manual) AnyTime AnyPlace AnyWireless Data Solutions™ 5/30 2. LED Indicators 2.1 POWER Mode Descriptions RED Modem power on state OFF Modem power off state 2.2 IDLE / BUSY Mode Descriptions GREEN Success to network acquisition (Idle state) BLUE Data call is connected BLUE BLINK Not connected yet OFF No service or Searching the network

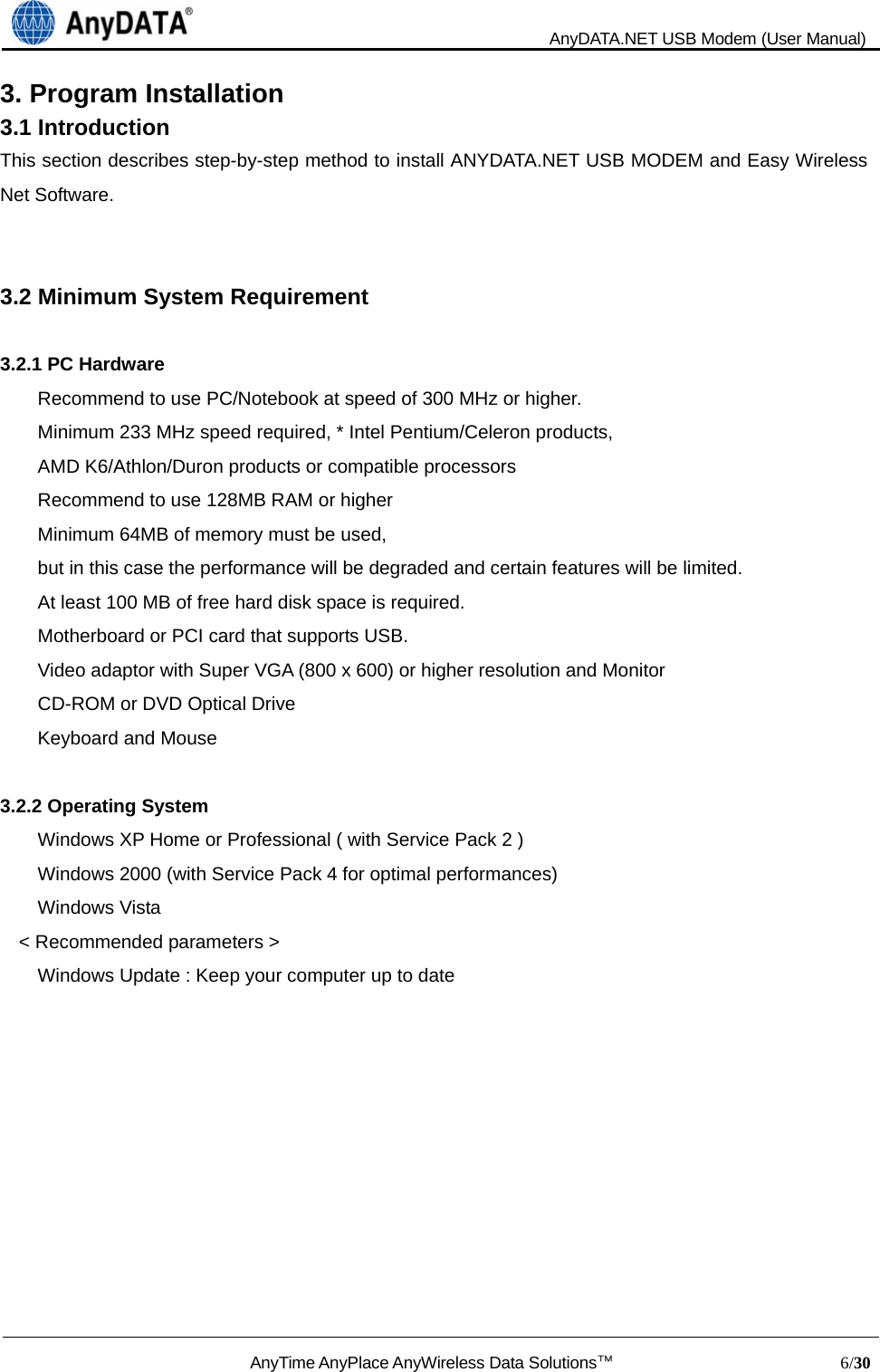

AnyDATA.NET USB Modem (User Manual) AnyTime AnyPlace AnyWireless Data Solutions™ 6/30 3. Program Installation 3.1 Introduction This section describes step-by-step method to install ANYDATA.NET USB MODEM and Easy Wireless Net Software. 3.2 Minimum System Requirement 3.2.1 PC Hardware Recommend to use PC/Notebook at speed of 300 MHz or higher. Minimum 233 MHz speed required, * Intel Pentium/Celeron products, AMD K6/Athlon/Duron products or compatible processors Recommend to use 128MB RAM or higher Minimum 64MB of memory must be used, but in this case the performance will be degraded and certain features will be limited. At least 100 MB of free hard disk space is required. Motherboard or PCI card that supports USB. Video adaptor with Super VGA (800 x 600) or higher resolution and Monitor CD-ROM or DVD Optical Drive Keyboard and Mouse 3.2.2 Operating System Windows XP Home or Professional ( with Service Pack 2 ) Windows 2000 (with Service Pack 4 for optimal performances) Windows Vista < Recommended parameters > Windows Update : Keep your computer up to date

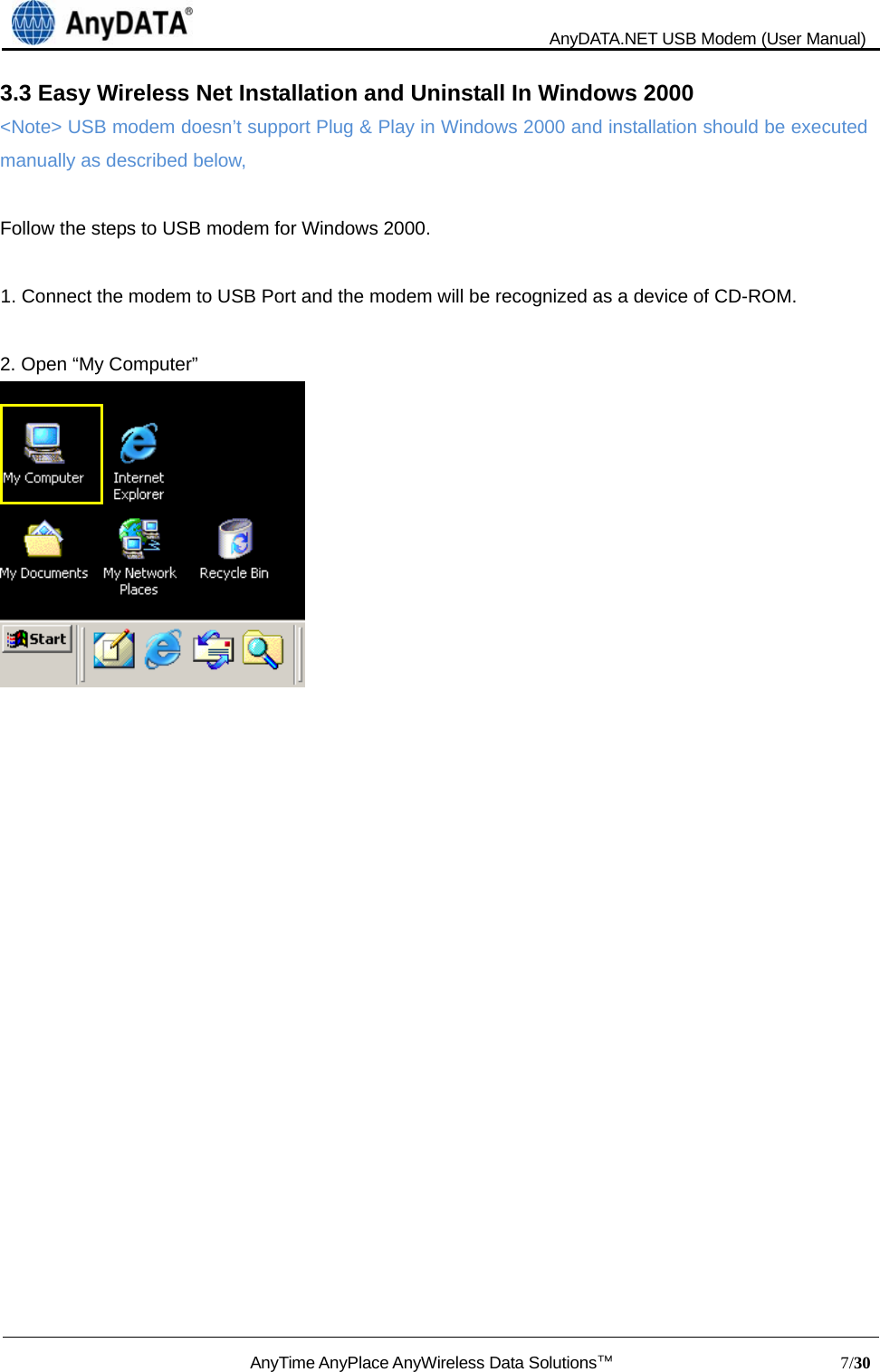

AnyDATA.NET USB Modem (User Manual) AnyTime AnyPlace AnyWireless Data Solutions™ 7/30 3.3 Easy Wireless Net Installation and Uninstall In Windows 2000 <Note> USB modem doesn’t support Plug & Play in Windows 2000 and installation should be executed manually as described below, Follow the steps to USB modem for Windows 2000. 1. Connect the modem to USB Port and the modem will be recognized as a device of CD-ROM. 2. Open “My Computer”

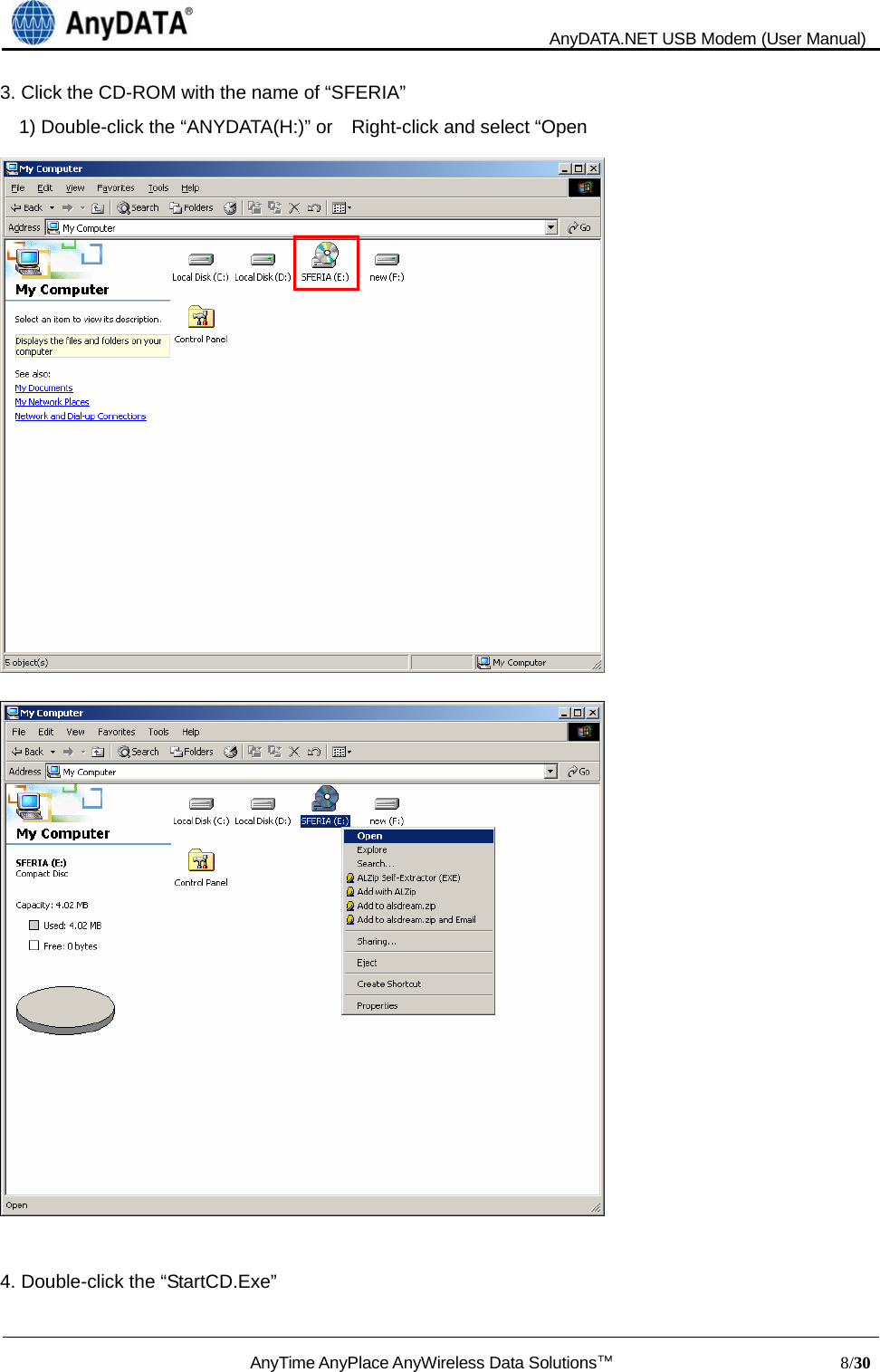

AnyDATA.NET USB Modem (User Manual) AnyTime AnyPlace AnyWireless Data Solutions™ 8/30 3. Click the CD-ROM with the name of “SFERIA” 1) Double-click the “ANYDATA(H:)” or Right-click and select “Open 4. Double-click the “StartCD.Exe”

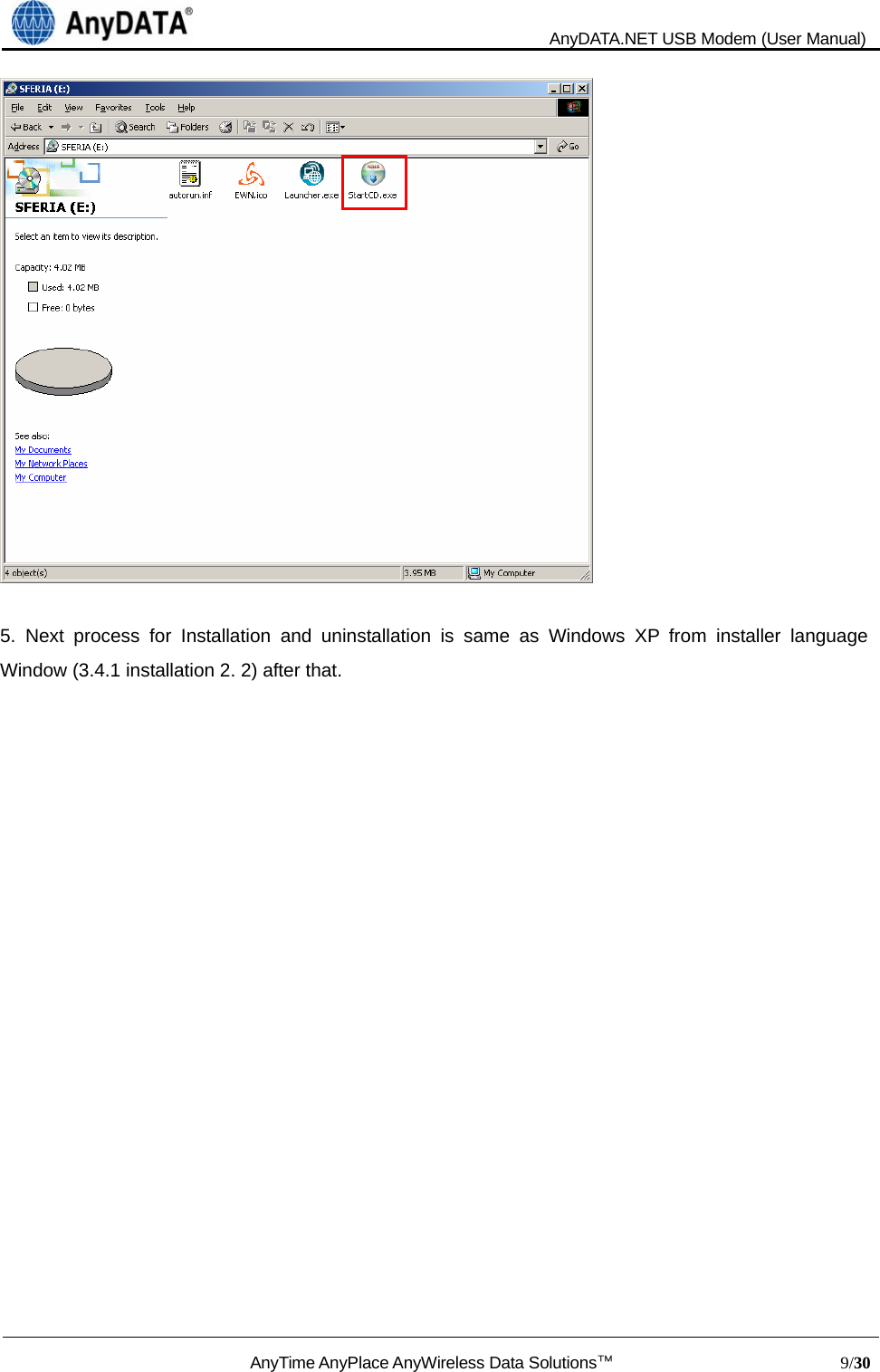

AnyDATA.NET USB Modem (User Manual) AnyTime AnyPlace AnyWireless Data Solutions™ 9/30 5. Next process for Installation and uninstallation is same as Windows XP from installer language Window (3.4.1 installation 2. 2) after that.
AnyDATA.NET USB Modem (User Manual) AnyTime AnyPlace AnyWireless Data Solutions™ 10/30 3.4 Easy Wireless Net Installation and Uninstall In Windows XP 3.4.1 Installing Easy Wireless Net and Driver There are two different ways of installation. • Installation 1: Using CD , please insert CD to CD-ROM and run the StartCD.EXE without connecting the modem to PC. • Installation 2: Using Plug & Play 1. Connect the modem to USB Port. If USB Driver isn’t installed, Modem Package Installer will run automatically. 2. Select the desire language as shown below. 3. Press button to proceed. By pressing button, the installation of Easy Wireless Net Program will stop.
AnyDATA.NET USB Modem (User Manual) AnyTime AnyPlace AnyWireless Data Solutions™ 11/30 4. You can install Easy Wireless NET Program and modem driver by choosing the installing option.
AnyDATA.NET USB Modem (User Manual) AnyTime AnyPlace AnyWireless Data Solutions™ 12/30 5. Press button for ending the program installation. 6. The computer needs to restart after the driver installation completed. To restart the computer later, select <I want to manually reboot later>.
AnyDATA.NET USB Modem (User Manual) AnyTime AnyPlace AnyWireless Data Solutions™ 13/30 <Note> Connect the modem and PC`s USB port, and check if the driver is installed properly in <Device Manager>. See the followings to the location of <Device Manager> [Start ▶ Control Panel ▶ System ▶ Hardware Tab ▶ Device Manager] As shown in below with red boxed that shows <AnyDATA CDMA USB Modem> and <AnyDATA CDMA USB Serial 1/2 Device>, the driver has been successfully installed.
AnyDATA.NET USB Modem (User Manual) AnyTime AnyPlace AnyWireless Data Solutions™ 14/30 3.4.2 Uninstalling Easy Wireless Net and Driver 1. [Start ▶ Programs ▶ Sferia ▶ Uninstall] 2. Click <Yes> to remove the modem driver. 3. Click <Yes>. Following screen will appear twice.
AnyDATA.NET USB Modem (User Manual) AnyTime AnyPlace AnyWireless Data Solutions™ 15/30 4. The computer must restart after the driver is uninstalled.
AnyDATA.NET USB Modem (User Manual) AnyTime AnyPlace AnyWireless Data Solutions™ 16/30 3.5 Easy Wireless Net Installation and Uninstall In Windows Vista 3.5.1 Easy Wireless Net Installation 1. Connect the modem to USB Port. If USB Driver isn’t installed, Modem Package Installer will run automatically. 2. Select the desire language as shown below. 3. Press button to proceed. By pressing button, the installation of Easy Wireless Net Program will stop. 4. You can install Easy Wireless NET Program and modem driver by choosing the installing option. 5. Press button for ending the program installation.
AnyDATA.NET USB Modem (User Manual) AnyTime AnyPlace AnyWireless Data Solutions™ 17/30 6. The computer needs to restart after the driver installation completed. To restart the computer later, select <I want to manually reboot later>.
AnyDATA.NET USB Modem (User Manual) AnyTime AnyPlace AnyWireless Data Solutions™ 18/30 <Note> Connect the modem and PC`s USB port, and check if the driver is installed properly in <Device Manager>. See the followings to the location of <Device Manager> [Start ▶ Control Panel ▶ System and Maintenance ▶ Device Manager] As shown in below with red boxed that shows <AnyDATA CDMA USB Modem> and <AnyDATA CDMA USB Serial 1/2 Device>, the driver has been successfully installed.
AnyDATA.NET USB Modem (User Manual) AnyTime AnyPlace AnyWireless Data Solutions™ 19/30 3.5.2 Uninstalling Easy Wireless Net and Driver 1. [Start ▶ Programs ▶ Sferia ▶ Uninstall] 2. Click <Yes> to remove the modem driver. 3. Click <Yes>. Following screen will appear twice.
AnyDATA.NET USB Modem (User Manual) AnyTime AnyPlace AnyWireless Data Solutions™ 20/30 4. The computer must restart after the driver is uninstalled.
AnyDATA.NET USB Modem (User Manual) AnyTime AnyPlace AnyWireless Data Solutions™ 21/30 4. Using Easy Wireless Net Program 4.1 Running the program There are 2 (two) ways to run the installed Easy Wireless Net program. 1) Double-click shortcut icon on the desktop. 2) Navigate and run Easy Wireless Net program by clicking, start, program and Easy Wireless Net. [Start All Program ▶▶Sferia ▶ ]
AnyDATA.NET USB Modem (User Manual) AnyTime AnyPlace AnyWireless Data Solutions™ 22/30 4.2 Exiting the program <Note> If DUN is running, the program will end after the completion of these commands.
AnyDATA.NET USB Modem (User Manual) AnyTime AnyPlace AnyWireless Data Solutions™ 23/30 4.3 Screen Display of Easy Wireless Net Information Internet Action Window End&Minimize Setting DRC
AnyDATA.NET USB Modem (User Manual) AnyTime AnyPlace AnyWireless Data Solutions™ 24/30 4.3.2 Description of each icon Display Function RSSI Signal Strength Indicator Rx Diversity Mode. Only EVDO mode available USB connected Roaming Connected to the Modem Either the cable is disconnected to the modem or improper port connection. Internet connected Internet disconnected connected to the Internet button. Disconnecting to the Internet Setup Easy Wireless Net
AnyDATA.NET USB Modem (User Manual) AnyTime AnyPlace AnyWireless Data Solutions™ 25/30 4.3.3 Setting Environment There are two sections for setting environment. One is data from operator for connecting to the Internet, and another is to set the proper port for modem information communications. [Basic] Tab The basic configuration for connect to the network using EV-DO modem. All values are set automatically, however if wants to change the value press button to take effect after writing. “UserName”, “Password”, “ServiceNum” will be provided by the local carrier.
AnyDATA.NET USB Modem (User Manual) AnyTime AnyPlace AnyWireless Data Solutions™ 26/30 [ About] Tab Display the software version for EV-DO modem S/W and Easy Wireless Net program. <Note> When you click on the MANUAL button, MANUAL can be seen.
AnyDATA.NET USB Modem (User Manual) AnyTime AnyPlace AnyWireless Data Solutions™ 27/30 4.4 Connecting to the Internet Must set proper “UserName”, “Password” and “ServiceNum” in the above settings. Then press button, it will automatically connected to the Internet. If the modem is trying to connect or connected to the Internet, this icon will appear as shown above. If it cannot connect to the Internet, then icon will appear.
AnyDATA.NET USB Modem (User Manual) AnyTime AnyPlace AnyWireless Data Solutions™ 28/30 4.5 Disconnecting to the Internet When user is ready to disconnect from the Internet, press button to end the connection. Please check the following if abrupt disconnection of modem occurred: 1) Did I intentionally disconnect USB modem? 2) Are cables properly connected? 3) Did I intentionally change Port number in environment settings? 4) Did I quit/exit the program?
AnyDATA.NET USB Modem (User Manual) AnyTime AnyPlace AnyWireless Data Solutions™ 29/30 5. Troubleshooting Q: I cannot connect to the Internet? A: Please check “environment setting” of program for correct ID, password and Service number. For proper ID, password and Service number, please contact service provider for more information. Q: The Internet connection is poor and frequently it gets disconnected. A: The CDMA frequency is at unstable state. Try to move to a different place then use it again. Also, if you touch or block the USB modem with hand/body contact, the modem connection speed degrades. Please be careful not to touch the modem with your hand or any part of the body. Q: After the installation of the program, the program does not run and displays following message A: This means that USB modem and the compute are not connected properly. Please double check whether USB modem is connected properly to the computer. Q: During the running of the program, following message appears and the program halts. A: The actual connection of USB modem and computer has been disconnected. Please check whether modem is connected to PC properly.
AnyDATA.NET USB Modem (User Manual) AnyTime AnyPlace AnyWireless Data Solutions™ 30/30 [RF Exposure Warning] ※ The radiated output power of this device is below the FCC radio frequency exposure limits. Nevertheless, the device should be used in such a manner that the potential for human contact during normal operation is minimized. In order to avoid the possibility of exceeding the FCC radio frequency exposure limit, human proximity to the antenna should not be less than 20cm during normal operation and the gain of the antenna must not exceed 1dBi. [Information to user] ※ The user’s manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. In cases where the manual is provided only in a form other than paper, such as on a computer disk or over the Internet, the information required by this section may be included in the manual in that alternative form, provided the user can reasonably be expected to have the capability to access information in that form. Thank you.
