RF Exposure Warning
:
The radiated output power of this device is below the FCC radio frequency
exposure limits. Nevertheless, the device should be used in such a manner that
the potential for human contact during normal operation is minimized. In order
to avoid the possibility of exceeding the FCC radio frequency exposure limit,
human proximity to the antenna should not be less than 20 Cm.
L'exposition RF Avertissement
:
La puissance de sortie rayonnée de cet appareil est inférieure aux limites
d'exposition de radio de fréquence IC. Néanmoins, le dispositif doit être
utilisé de telle manière que le potentiel de contact humain pendant
l'utilisation normale soit minimisé. Afin d'éviter la possibilité de dépasser
la limite d'exposition de fréquence radio de la IC, la proximité humaine à
l'antenne ne doit pas être inférieure à 20 cm.
Information to user (FCC Part 15.21):
Changes or modifications not expressively approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Statement according to FCC part15.19
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions :
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Information to user (Industry Canada license-exempt RSS standards)
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference, and
(2) This device must accept any interference, including interference that
may cause undesired operation of the device.
Cet appareil est conforme à Industrie Canada une licence standard RSS
exonérés (s).
Son fonctionnement est soumis aux deux conditions suivantes:
(1) s Cet appareil ne doit pas provoquer d'interférences
(2) Cet appareil doit accepter toute interference reçue, y compris les
interférences pouvant provoquer un fonctionnement indésirable de l'appareil.
ACT10 Users Manual
All Rights Reserved.
I
NTRODUCTION
1.1 P
URPOSE
This manual discusses the purpose and usage of the Bluetooth OBD Vehicle
Device (ACT10).
1.2 T
ECHNICAL
D
ETAIL
Please refer to Technical Manual.pdf for a more detailed description of the
ACT10.
1.3 R
EVISION
H
ISTORY
The revision history for this manual is shown in Table 1.1.
Table 1.1: Revision History
Version
Date Description
V
0
.
1
AUG
20
1
4
Initial Release
–
ACT1
0
ACT10 Users Manual
All Rights Reserved.
2 P
HYSICAL
C
ONTENTS

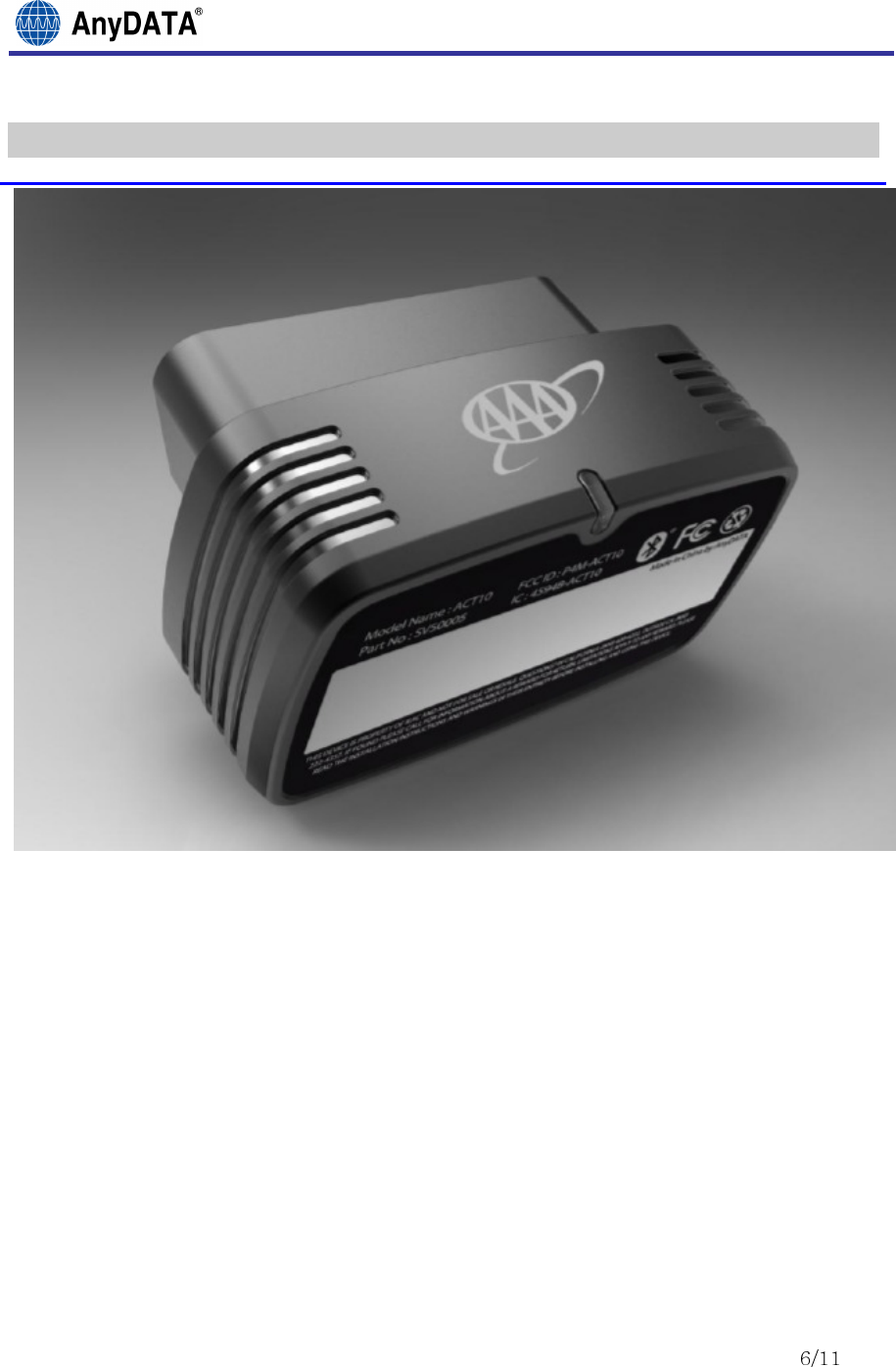

Figure 2.1: Package Contents
The box should contain:
• One ACT10 Bluetooth OBD Vehicle Device
• One User Guide
ACT10 Users Manual
All Rights Reserved.
3 D
ESCRIPTION
:
B
LUETOOTH
OBD
V
EHICLE
D
EVICE
(ACT10)
3.1 T
HE
L
ATEST
OBD
V
EHICLE
D
EVICE IN
B
LUETOOTH
T
ECHNOLOGY
ACT10 is the car tracking device for communicating several vehicle
information to owners via Bluetooth Networks. ACT10 consists of two parts;
OBD-II interface circuit and Bluetooth circuits.STN1170 of micro processor
has been used for interface to vehicle with several OBD protocols, which
include the CAN, ISO, and J1850 transceivers. Bluetooth system is supposed
to provide several vehicle information to user by app.
3.2 A
LERTS
&
M
ESSAGES
ACT10 has no button for user-set alert functions; It is supposed to provide
alerts including the vehicle information.
3.3
BLUETOOTH SYSTEM
The ACT10 adapted integrating Bluetooth Basic Rate(BR) / Enhanced Data
Rate(EDR) / Low Energy(LE) features fully compliant with the Bluetooth 4.0
specification up to the HCI Layer. This device is connected to Smartphone
by proper application program.

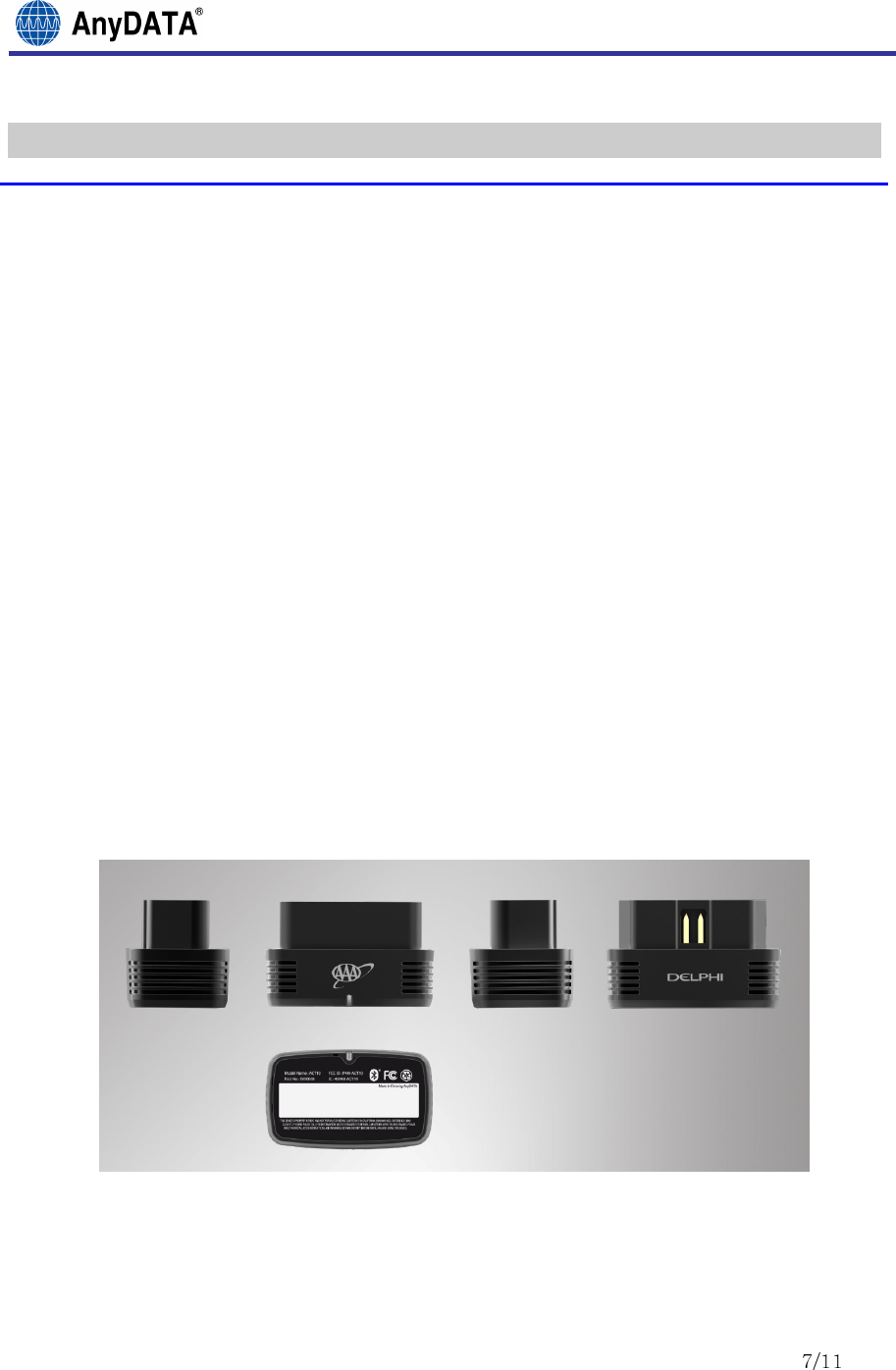

Figure 3.1: External Interface
ACT10 Users Manual
All Rights Reserved.
4 H
ANDING
B
LUETOOTH
OBD
V
EHICLE
D
EVICE
4.1 S
ET
-
UP
1. Most of vehicle has an OBD-II (On Board Diagnostics) connector, which
is located within 2 feet of the steering wheel.
2. The installation is very easy, just put the ACT10 to the OBD-II
connector in user vehicle.
3. The ACT10 will power on automatically from vehicle battery and start
initiation for Bluetooth system.
4. After install of device to vehicle, all services are ready.

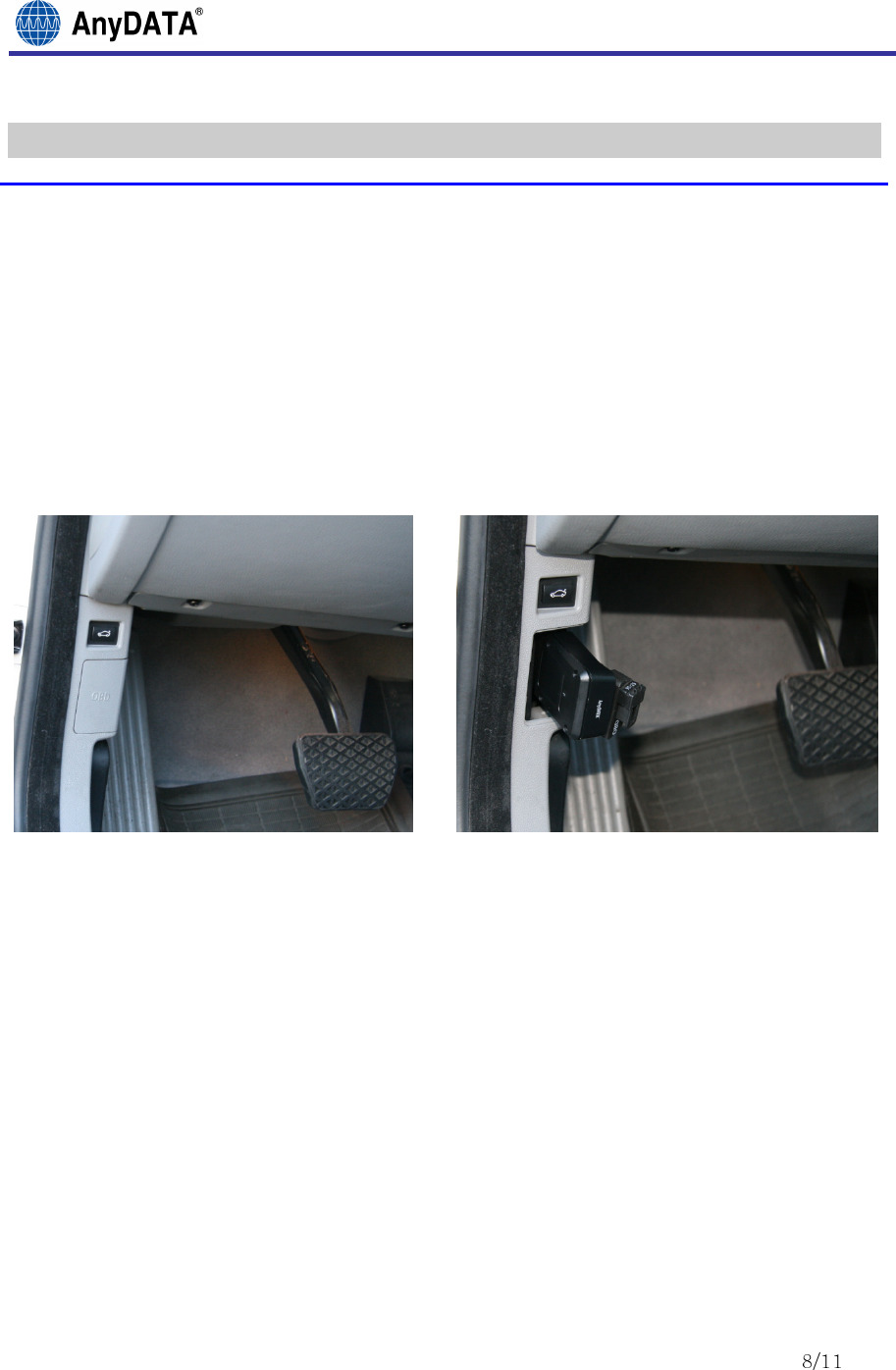

Figure 4.1: Installation of ACT10 in vehicle
4.2 P
OWER SUPPLY FROM VEHICLE
(
TYPICAL
13.5V)
1. After insertion of ACT10 to OBD-II connector, the device has
automatically power-on with the car battery, typically 9~20V.
2. If the engine has off, then the device decides to power off the
OBD interface circuit.
3. If the engine has on, then the device work on the OBD interface
circuit, which is charge of gathering the vehicle information such
as fuel gauge, speed, engine RMP, and so on to report it to user
via Bluetooth network.
ACT10 Users Manual
All Rights Reserved.
5 P
OWERING
O
N
/O
FF THE
B
LUETOOTH
OBD
V
EHICLE
D
EVICE
5.1 P
OWERING
O
N
/OFF
To Power ON:
1. Insert the device to OBD-II connector.
2. Then, the device has automatically powered on according to vehicle
condition.
3. There is no visual way to confirm whether device has power-on or not.
4. But, user can make sure from application.
To Power OFF:
1. If the device is needed for totally power-off, then just remove it
from the OBD-II connector.
2. In case of the car has engine off with ACT10, and passed several
days, the device has automatically power-off to protect the battery
drain fully.
3. The device will stay power-off until the car ignition-on again.
4. If the device detects the battery level over 13.5V, then start the
powering on.
ACT10 Users Manual
All Rights Reserved.
6 B
LUETOOTH
OBD
V
EHICLE
D
EVICE
S
PECIFICATIONS
6.1 F
ORM
F
ACTOR
• Dimensions : 48 x 28 mm, 30mm in Height
• Weight 21.7g
6.2 H
ARDWARE
S
PECIFICATIONS
• Operating Voltage 9 ~ 20V, (internally 3.5V for Bluetooth)
• Max Output Power 20mW
• Current Consumption Idle mode (45mA @ 13.3V)
• Light Sleep Mode (35mA @ 12.5V)
• Deep Sleep Mode (1.5mA @ 12.5V)
• Bluetooth : 2402MHz ~ 2480MHz
6.3 S
OFTWARE
S
PECIFICATIONS
• GATT : Bluetooth Generic Attribute Profile
• SPP : Bluetooth serial port profile
6.4 E
XTERNAL
INTERFACE
• OBD-II
6.5 E
NVIRONMENTAL
• Operating Temperature : -30 ~ +70C
• Storage Temperature : -40 ~ +85C
• Humidity (Operating) 5% ~ 95% non-condensing, (50C)
ACT10 Users Manual
All Rights Reserved.
7 L
IMITATIONS OF
L
IABILITY
AnyDATA expressly assumes no responsibility for any error, omission,
interruption, deletion, defect, delay in operation or transmission,
communications failure, theft or destruction or unauthorized access to, or
alteration of, any use of the AnyDATA Locating Service through the Internet
or other communication services.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL
TRIPTRAK OR ITS SUPPLIERS BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT,
PUNITIVE OR CONSEQUENTIAL DAMAGES WHATSOEVER, INCLUDING, BUT NOT LIMITED TO,
DAMAGES FOR: LOSS OF PROFITS OR REVENUES, LOSS OF CONFIDENTIAL OR OTHER
INFORMATION, BUSINESS INTERRUPTION, VEHICLE INJURY, DEATH, LOSS OF PRIVACY,
CORRUPTION OR LOSS OF DATA, FAILURES TO TRANSMIT OR RECEIVE DATA OR ANY
OTHER PECUNIARY LOSS WHATSOEVER ARISING OUT OF OR IN ANY WAY RELATED TO THE
USE OF OR INABILITY TO USE THE DEVICE, TRIPTRAK LOCATING SERVICE, OR THE
SUPPORT SERVICES OR OTHERWISE IN CONNECTION WITH ANY PROVISION OF THIS
AGREEMENT, EVEN IF COMPANY OR ANY SUPPLIER HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
