AnyDATA ACT210 OBD-II Vehicle Tracking Device User Manual ACT210 v0 1x
AnyDATA Corporation OBD-II Vehicle Tracking Device ACT210 v0 1x
AnyDATA >
Users Manual
Personal GPS Locator Users Manual (ACT210)
All Rights Reserved. 1/12
CDMA VEHICLE TRACKER
Users Manual
Oct, 2012
ACT210, V0.1
AnyDATA
AnyTime AnyPlace Any Wireless Data Solutions™
Personal GPS Locator Users Manual (ACT210)
All Rights Reserved. 2/12
AnyDATA CDMA ACT210
Copyright © 2009 AnyDATA Corp. All Rights Reserved.
Any part of this document may not be distributed, communicated, reproduced
or transmitted in any form or by any means, electronic or mechanical or
otherwise, for any purpose, without the permission of AnyDATA Corp.
This document can be subjected to revision without further notice.
Contact Address
Headquarter
AnyData Corporation
5 Oldfield, Irvine, CA 92618,
http://www.anydata.net
e-mail: info@anydata.com
Rep:1-949-833-0011
Fax: 1-949-833-0022
AnyData(China)
489 Song Tao Road, Sector B,
1st Fl. Pudong ZhanJiang Hi-
Tech Park, Shanghai, 201203,
P.R.China
http://www.anydata.net.cn
e-mail: info@anydata.net.cn
Rep:+86-21-5080-4828
Fax:+86-21-5080-3828
AnyData.Net Inc.(Korea)
DaeGo Bldg, 8th., 1591-10
Kwanyang-dong, Dongan_gu,
Anyang City, Kyunggi-do Korea.
http://www.anydata.co.kr
e-mail: infodata@anydata.net
Rep:+82-31-380-7100
Fax:+82-31-476-6021
Personal GPS Locator Users Manual (ACT210)
All Rights Reserved. 3/12
Contents
Contents 3
Figures 3
Tables 3
1 Introduction 5
1.1 Purpose ......................................................................................................................... 5
1.2 Technical Detail ...................................................................................................... 5
1.3 Revision History ...................................................................................................... 5
2 Physical Contents 6
3 Description: Vehicle GPS Locator (ACT210) 7
3.1 The Latest Vehicle Tracker in GPS Technology ............................................ 7
3.2 Alerts & Messages .................................................................................................... 7
3.3 Tracking Reports ...................................................................................................... 7
4 handing the Vehicle GPS Locator 9
4.1 Set-up ........................................................................................................................... 9
4.2 Power supply from vehicle (typical 13.5V) .................................................. 9
5 Powering On/Off the Vehicle GPS Locator 10
5.1 Powering On/OFF ...................................................................................................... 10
6 Vehicle GPS Locator Specifications 11
6.1 Form Factor .............................................................................................................. 11
6.2 Hardware Specifications ..................................................................................... 11
6.3 Software Specifications ..................................................................................... 11
6.4 External INTERFACE ................................................................................................ 11
6.5 Environmental .......................................................................................................... 12
7 Limitations of Liability 12
Figures
Figure 2.1: Package Contents ............................................................................................... 6
Figure 3.1: External Interface .......................................................................................... 8
Figure 4.1: Installation of ACT210 in vehicle ........................................................... 9
Tables
Table 1.1: Revision History .............................................................................................. 5
Personal GPS Locator Users Manual (ACT210)
All Rights Reserved. 4/12
!
RF Exposure Warning:
The radiated output power of this device is below the FCC radio
frequency exposure limits. Nevertheless, the device should be
used in such a manner that the potential for human contact
during normal operation is minimized. In order to avoid the
possibility of exceeding the FCC radio frequency exposure
limit, human proximity to the a
n
tenna should not be less than
20 mm.
Information to user (FCC Part 15.21):
Changes or modifications not expressive
l
y approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
Statement according to FCC part15.19
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions :
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired
operation.
Information to user (Industry Canada license-exempt RSS standards)
This device complies with Industry Canada license-exempt RSS
standard(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference, and
(2) This device must accept any interference, including
interference that may cause undesired operation of the
device.
Personal GPS Locator Users Manual (ACT210)
All Rights Reserved. 5/12
1 INTRODUCTION
1.1 PURPOSE
This manual discusses the purpose and usage of the Vehicle GPS Locator
(ACT210).
1.2 TECHNICAL DETAIL
Please refer to Technical Manual.pdf for a more detailed description of the
ACT210.
1.3 REVISION HISTORY
The revision history for this manual is shown in Table 1.1.
Table 1.1: Revision History
Version Date Description
V 0.1
O
CT 2012 Initial Release
–
A
CT
2
10
Personal GPS Locator Users Manual (ACT210)
All Rights Reserved. 6/12
2 PHYSICAL CONTENTS
Figure 2.1: Package Contents
The box should contain:
• One ACT210 Vehicle GPS Tracker
• One User Guide
Personal GPS Locator Users Manual (ACT210)
All Rights Reserved. 7/12
3 DESCRIPTION: VEHICLE GPS LOCATOR (ACT210)
3.1 THE LATEST VEHICLE TRACKER IN GPS TECHNOLOGY
Utilizing both assisted and standalone GPS, ACT210 is able to determine
your location via a combination of cell triangulation and the greatest
number of GPS satellites available. ACT210 charges via the included USB
wall charger. ACT210 is equipped with a battery life of 3-7 days with
normal usage.
3.2 ALERTS & MESSAGES
ACT210 has no button for user-set alert functions; the LBS (Location based
server) can only know the device location and alerts including the vehicle
information.
3.3 TRACKING REPORTS
The ACT210 can be configured to report its location on a sw scenario based
chronological interval. The interval is remotely configurable and can be
set via appropriate web and mobile software platforms. In addition to
interval tracking, the ACT210 is capable of servicing single location
requests on demand via one-time-fix requests made through the web/mobile
platforms.
Personal GPS Locator Users Manual (ACT210)
All Rights Reserved. 8/12

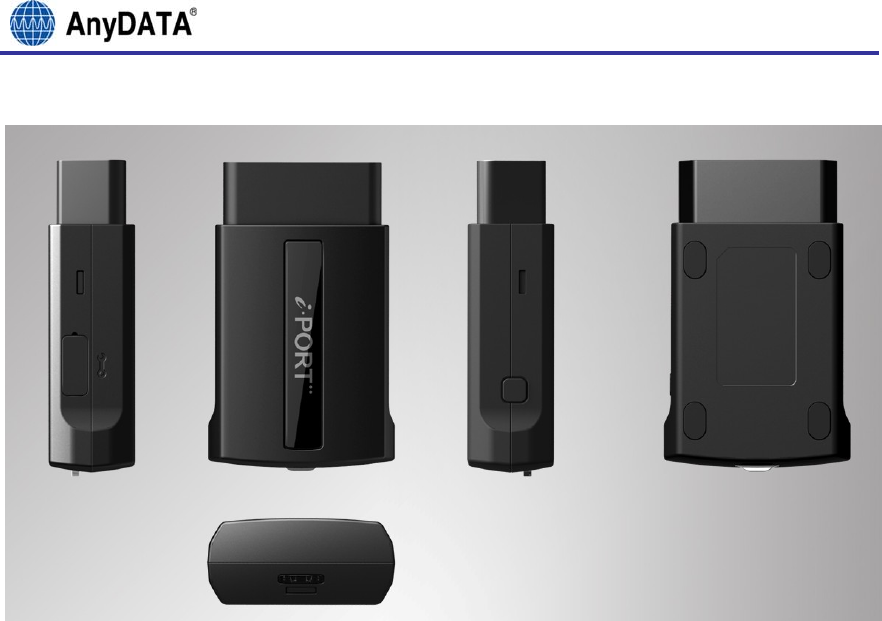

Figure 3.1: External Interface
Personal GPS Locator Users Manual (ACT210)
All Rights Reserved. 9/12
4 HANDING THE VEHICLE GPS LOCATOR
4.1 SET-UP
1. Most of vehicle has an OBD-II (On Board Diagnostics) connector, which
is located within 2 feet of the steering wheel.
2. The installation is very easy, just put the ACT210 to the OBD-II
connector in user vehicle.
3. The ACT210 will power on automatically from vehicle battery and start
initiation for CDMA network access.
4. After install of device to vehicle, all services are served by server.

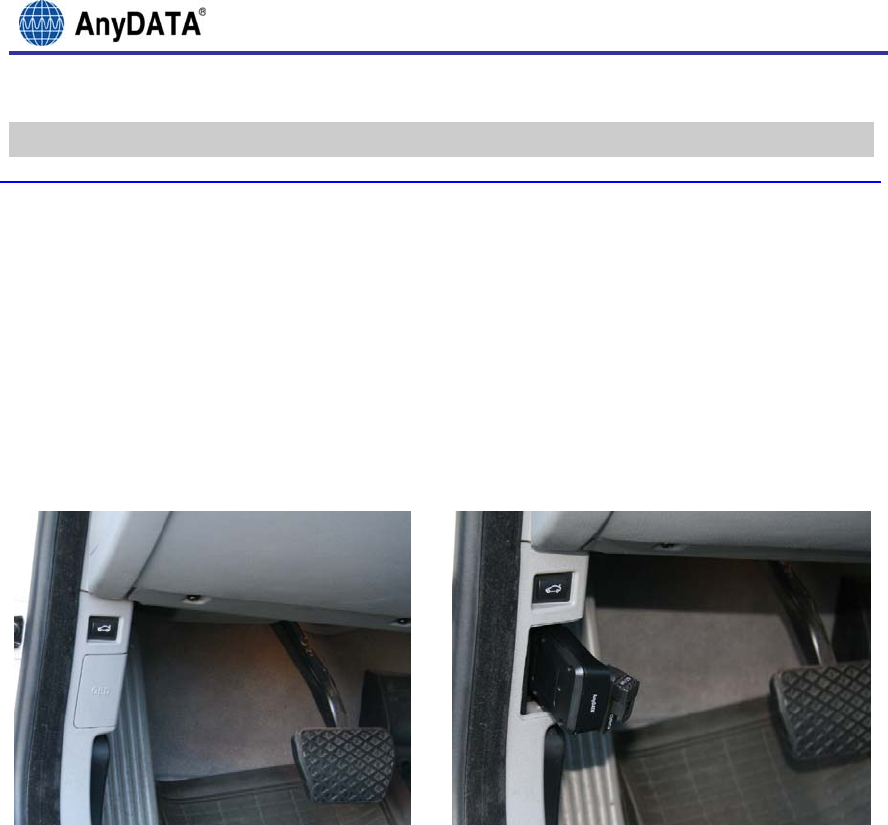

Figure 4.1: Installation of ACT210 in vehicle
4.2 POWER SUPPLY FROM VEHICLE (TYPICAL 13.5V)
1. After insertion of ACT210 to OBD-II connector, the device has
automatically power-on with the car battery, typically 9~20V.
2. If the engine has off, then the device decide to power off the OBD
interface circuit, and run the CDMA RF with GPS for the
unauthorized movement function.
3. If the engine has on, then the device work on the OBD interface
circuit, which is charge of gathering the vehicle information such
as fuel gauge, speed, engine RMP, and so on to report it to LBS
server via the CDMA network.
Personal GPS Locator Users Manual (ACT210)
All Rights Reserved. 10/12
5 POWERING ON/OFF THE VEHICLE GPS LOCATOR
5.1 POWERING ON/OFF
To Power ON:
1. Insert the device to OBD-II connector.
2. Then, the device has automatically powered on according to vehicle
condition.
3. There is no visual way to confirm whether device has power-on or not.
4. But, user can make sure the location from web-server, or application.
To Power OFF:
1. If the device is needed for totally power-off, then just remove it
from the OBD-II connector.
2. In case of the car has engine off with ACT210, and passed several
days, the device has automatically power-off to protect the battery
drain fully.
3. The device will stay power-off until the car ignition-on again.
4. If the device detects the battery level over 13.5V, then start the
powering on.
Personal GPS Locator Users Manual (ACT210)
All Rights Reserved. 11/12
6 VEHICLE GPS LOCATOR SPECIFICATIONS
6.1 FORM FACTOR
• Dimensions : 80 x 45 mm, 22mm in Height
• Weight 66.5g
6.2 HARDWARE SPECIFICATIONS
• Full TIA/EIA/IS-98D Compliance Assisted & Standalone GPS
• Operating Voltage 9 ~ 20V, (internally 3.5V for CDMA RF)
• Max Output Power 0.3W
• Current Consumption Idle mode (50mA @ 12V)
• Light Sleep Mode (20mA @ 12V)
• Deep Sleep Mode (4mA @ 12V)
• Sensitivity Less than -104dBm
• Receive Frequency 869.04 ~ 893.97MHz for BC0, 1931.25 ~ 1988.75MHz
for BC1.
• Transmit Frequency 824.04 ~848.97MHz for BC0, 1851.25 ~ 1908.75MHz
• Bluetooth (2.1+EDR) : 2402MHz ~ 2480MHz
6.3 SOFTWARE SPECIFICATIONS
• CDMA2000: CDMA2000 protocol between IS-707-A.5: Packet Data Service
for Mobile and Base Station
• IS-95A/B: CDMA protocol between TIA/EIA-637: Short Message Service
for Mobile and Base Station
• IS-801 & TIA-801-A: Position determination Built-in TCP/IP service
standard for Dual-Mode spread spectrum systems
6.4 EXTERNAL INTERFACE
• OBD-II
• Micro USB (Type B)
Personal GPS Locator Users Manual (ACT210)
All Rights Reserved. 12/12
6.5 ENVIRONMENTAL
• Operating Temperature : -30 ~ +70C
• Storage Temperature : -40 ~ +85C
• Humidity (Operating) 5% ~ 95% non-condensing, (50C)
7 LIMITATIONS OF LIABILITY
AnyDATA expressly assumes no responsibility for any error, omission,
interruption, deletion, defect, delay in operation or transmission,
communications failure, theft or destruction or unauthorized access to, or
alteration of, any use of the AnyDATA Locating Service through the Internet
or other communication services.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL
TRIPTRAK OR ITS SUPPLIERS BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT,
PUNITIVE OR CONSEQUENTIAL DAMAGES WHATSOEVER, INCLUDING, BUT NOT LIMITED TO,
DAMAGES FOR: LOSS OF PROFITS OR REVENUES, LOSS OF CONFIDENTIAL OR OTHER
INFORMATION, BUSINESS INTERRUPTION, VEHICLE INJURY, DEATH, LOSS OF PRIVACY,
CORRUPTION OR LOSS OF DATA, FAILURES TO TRANSMIT OR RECEIVE DATA OR ANY
OTHER PECUNIARY LOSS WHATSOEVER ARISING OUT OF OR IN ANY WAY RELATED TO THE
USE OF OR INABILITY TO USE THE DEVICE, TRIPTRAK LOCATING SERVICE, OR THE
SUPPORT SERVICES OR OTHERWISE IN CONNECTION WITH ANY PROVISION OF THIS
AGREEMENT, EVEN IF COMPANY OR ANY SUPPLIER HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
