AnyDATA ADUE100D CDMA EVDO Dual Band USB Modem User Manual
AnyDATA Corporation CDMA EVDO Dual Band USB Modem
AnyDATA >
User Manual
AnyTime AnyPlace AnyWireless Data Solutions™
1
ADU-E100D
AnyDATA USB Modem
User Manual
V7.0.0
2006.5.19
AnyTime AnyPlace AnyWireless Data Solutions™
2
AnyDATA CDMA Module Series USB Modem Reference Design Specification
Copyright © 2005 AnyDATA Corp. All Rights Reserved.
Any part of this document may not be distributed, communicated, reproduced or transmitted in
any form or by any means, electronic or mechanical or otherwise, for any purpose, without the
permission of AnyDATA Corp.
AnyDATA Inc. does not assume any liability arising out of the application or use of its products.
AnyDATA Inc. assumes no responsibility for any damage or loss resulting from the misuse of its
products. AnyDATA Inc. assumes no responsibility for any loss or claims by third parties, which
may arise through the use of its products. AnyDATA Inc. assumes no responsibility for any
damage or loss caused by the deletion or loss of data as a result of malfunctions or repairs
This document can be subject to revision without further notice.
Contact Address
Headquarter
AnyData Corporation
18902 Bardeen Ave, lrvine,
CA 92612-1522 U.S.A.
http://www.anydata.com
e-mail: info@uct.net
Rep:1-949-833-0011
Fax: 1-949-833-0022
AnyData(China)
489 Song Tao Road, Sector B,
1 st Fl. Pudong ZhanJiang Hi-
Tech Park, Shanghai, 201203,
P.R.China
http://www.anydata.net.cn
e-mail: info@anydata.net.cn
Rep:+86-21-5080-4828
Fax:+86-21-5080-3828
AnyData.Net Inc.(Korea)
DaeGo Bldg, 8 th., 1591-10
Kwanyang-dong, Dongan_gu,
Anyang City, Kyunggi-do Korea.
http://www.anydata.co.kr
e-mail: infodata@anydata.net
Rep:+82-31-380-7100
Fax:+82-31-476-6021
!
Warning: Exposure to Radio Frequency Radiation
The radiated output power of this device is far below the FCC radio frequency
exposure limits. Nevertheless, the device should be used in such a manner that the
potential for human contact during normal operation is minimized. In order to avoid
the possibility of exceeding the FCC radio frequency exposure limits, human proximity
to the antenna should not be less than 20cm during normal operation and the gain of
the external antenna must not exceed 1dBi.
This device contains AnyDATA DTEV-DUAL module whose FCC ID is
P4M-DTEVDUAL and IC certificate number is 4594A-DTEVDUAL
AnyTime AnyPlace AnyWireless Data Solutions™
3
Contents
0. Revision History
1. About AnyDATA USB MODEM
(1) Product Description and Feature
(2) Technical Specification
2. Getting Started
(1) USB Modem Components
A) LED indicator Information
B) Other Components
3. Program Installation
(1) Introduction
(2) Minimum System requirement
A) PC Hardware
B) Operating System
(3) Installing Easy Wireless Net Software
(4) Connecting to AnyDATA USB Modem and Driver installation and Uninstallation
A) Proper connection and Driver Installation

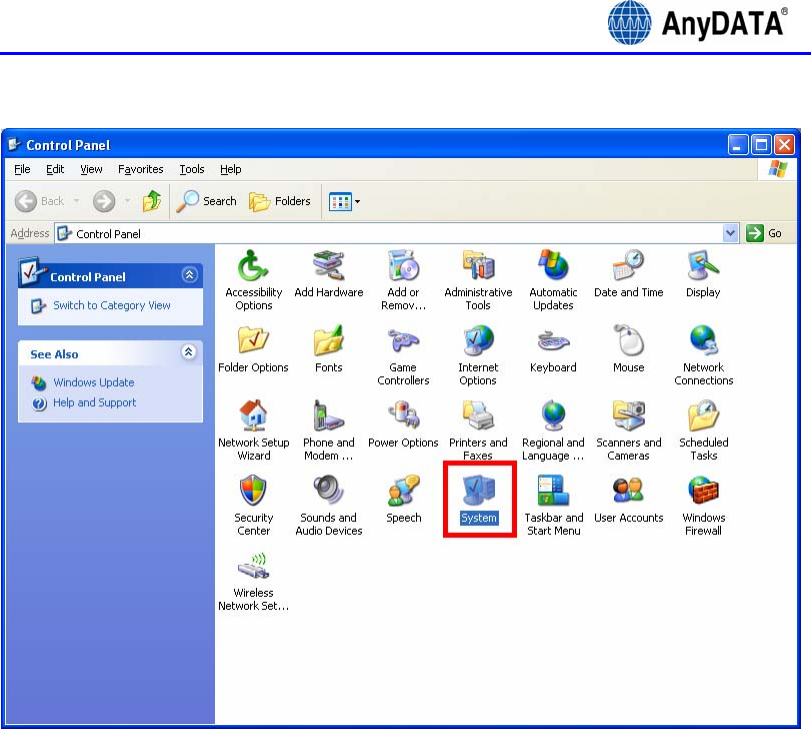

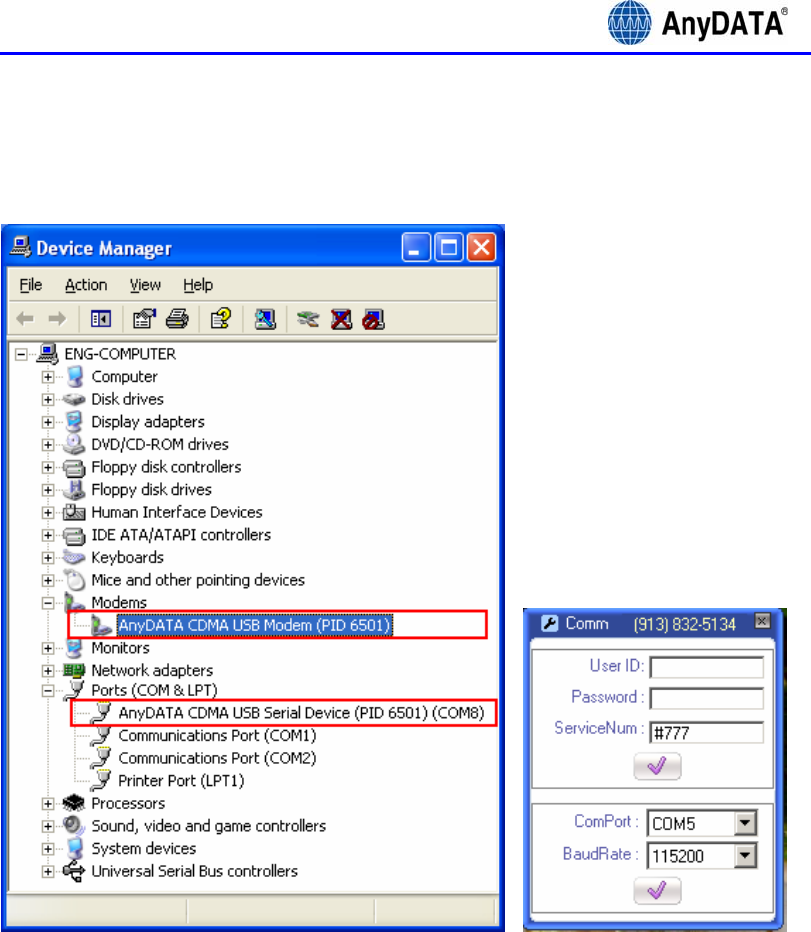

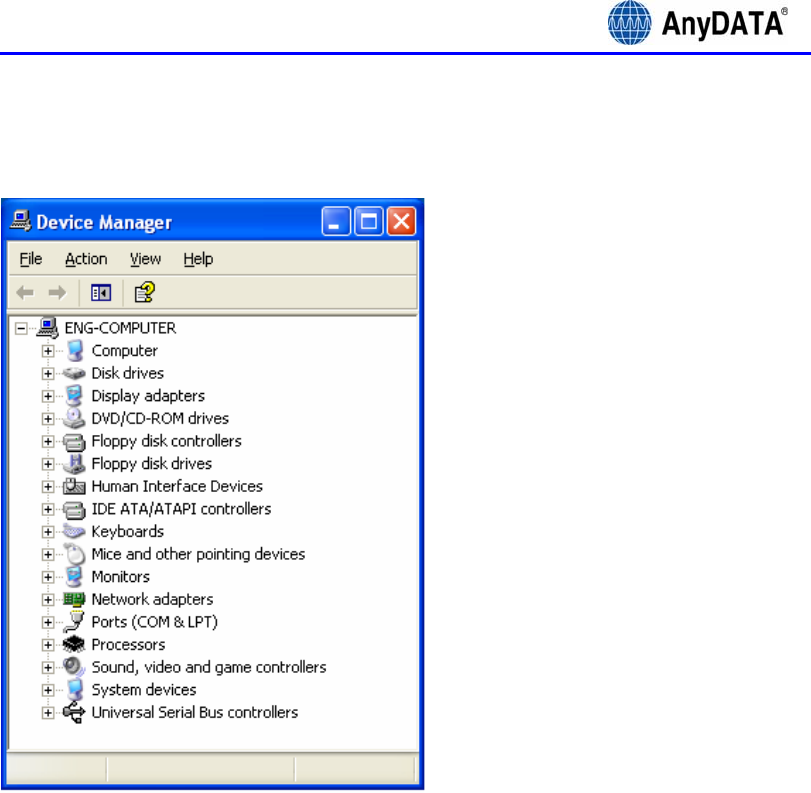

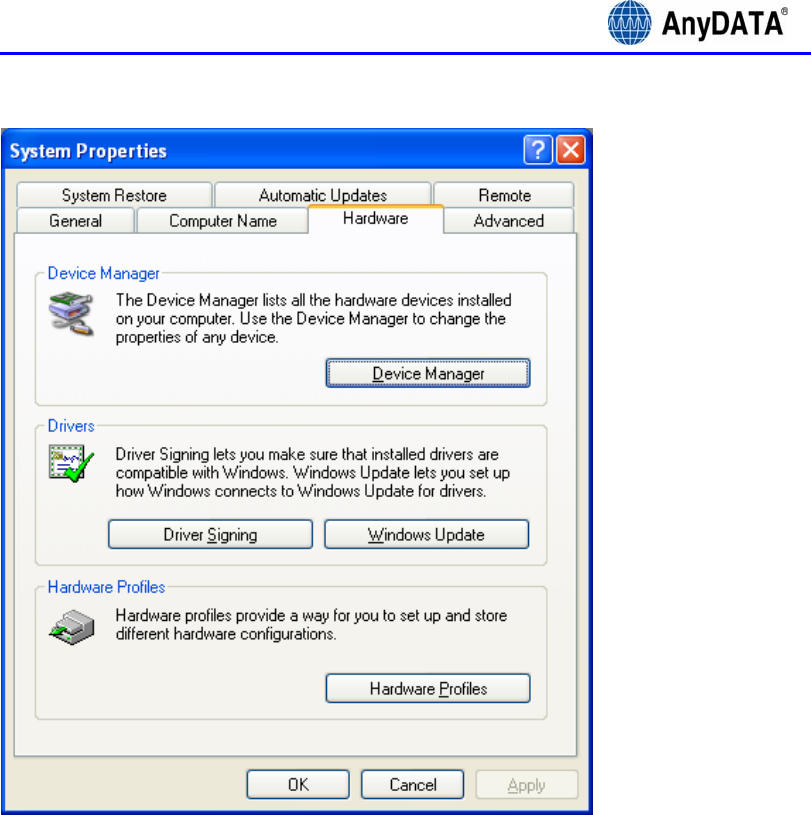

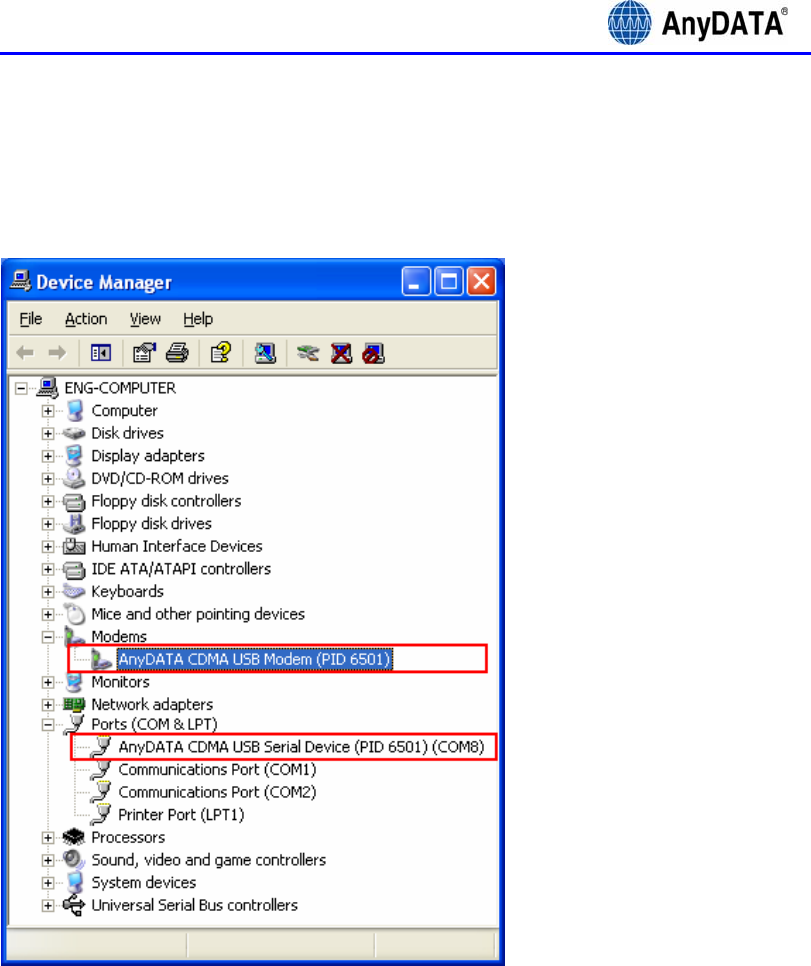

B) Checking the proper installation of the Driver
C) Uninstallation
4. Using Easy Wireless Net program

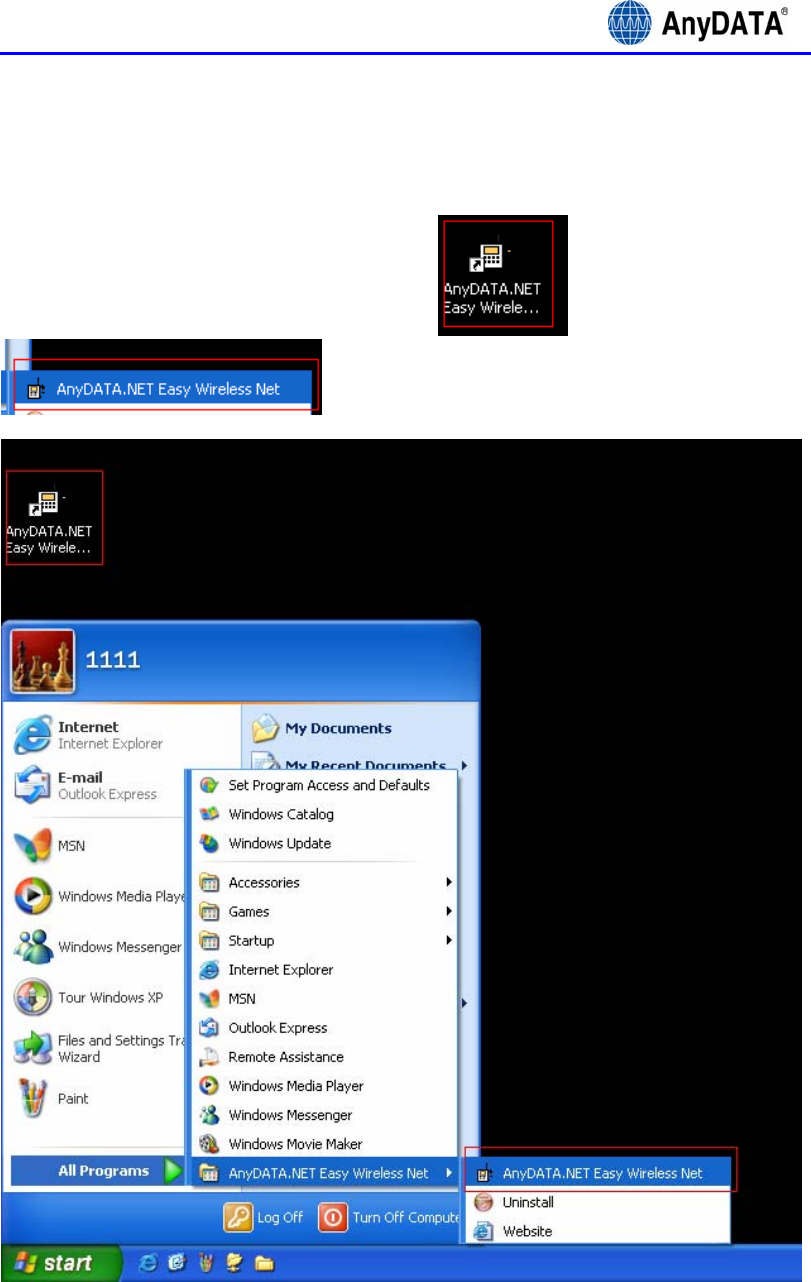

(1) Running the program
(2) Exiting the program

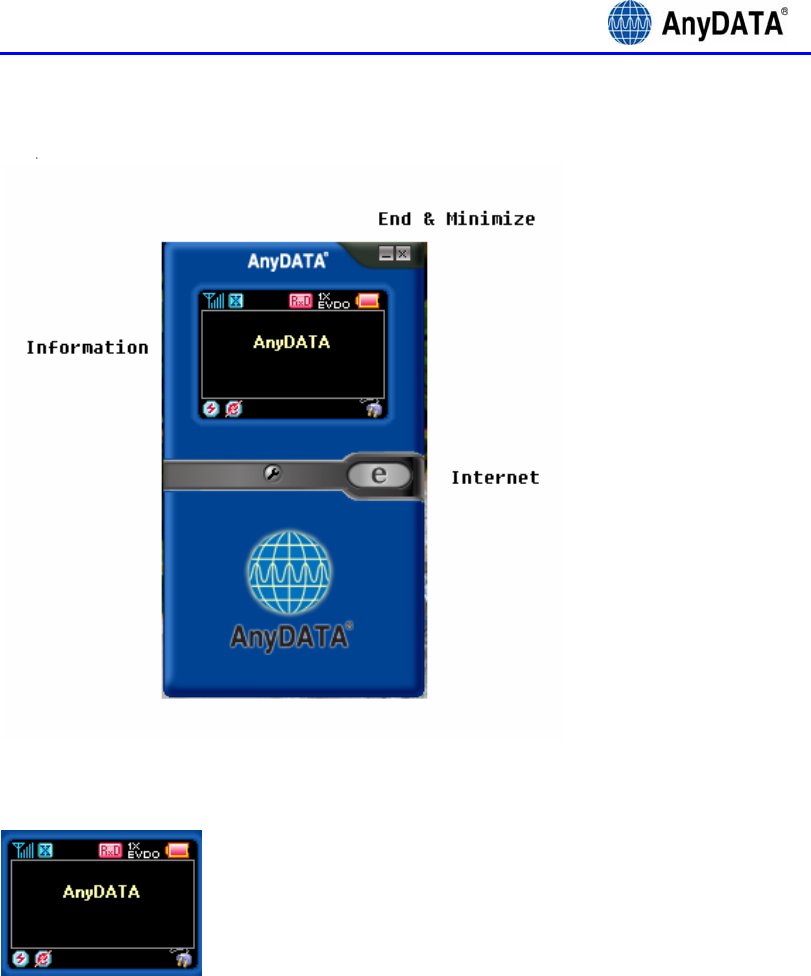

(3) Screen display of Easy Wireless Net

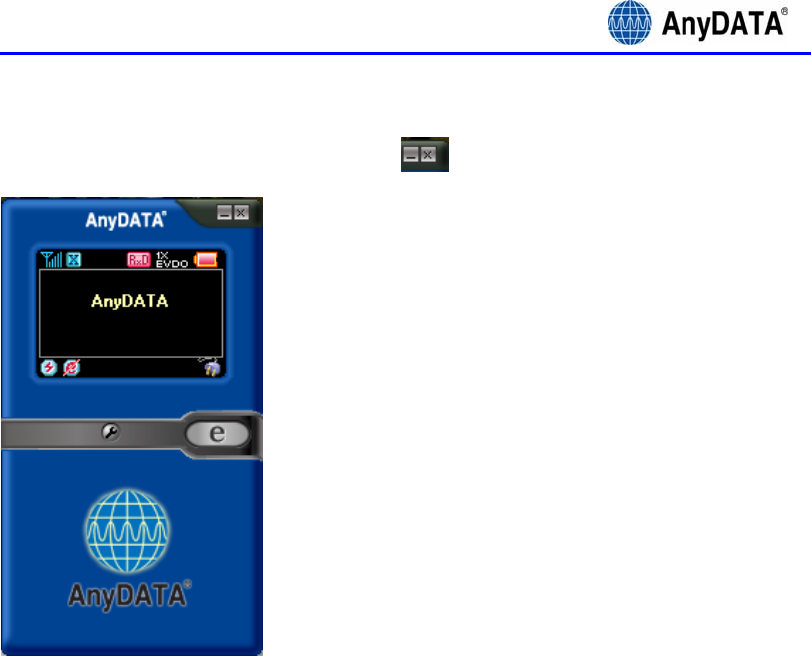

A) Executed Screen
B) Window for information and input

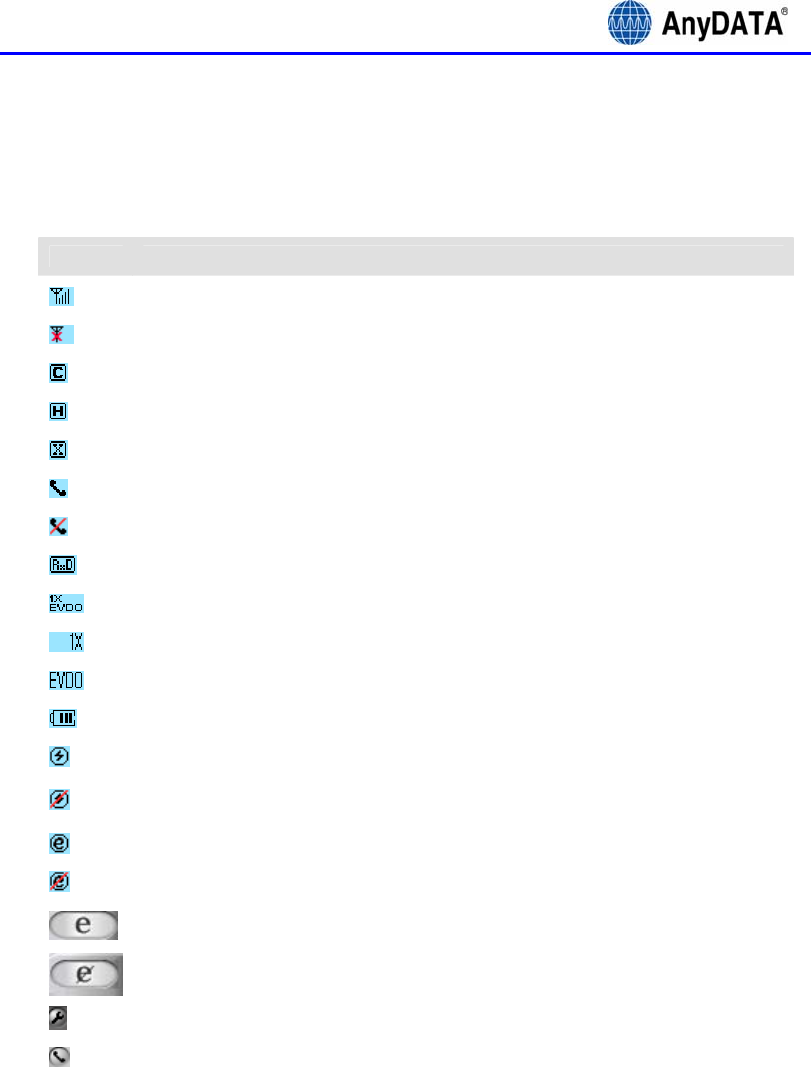

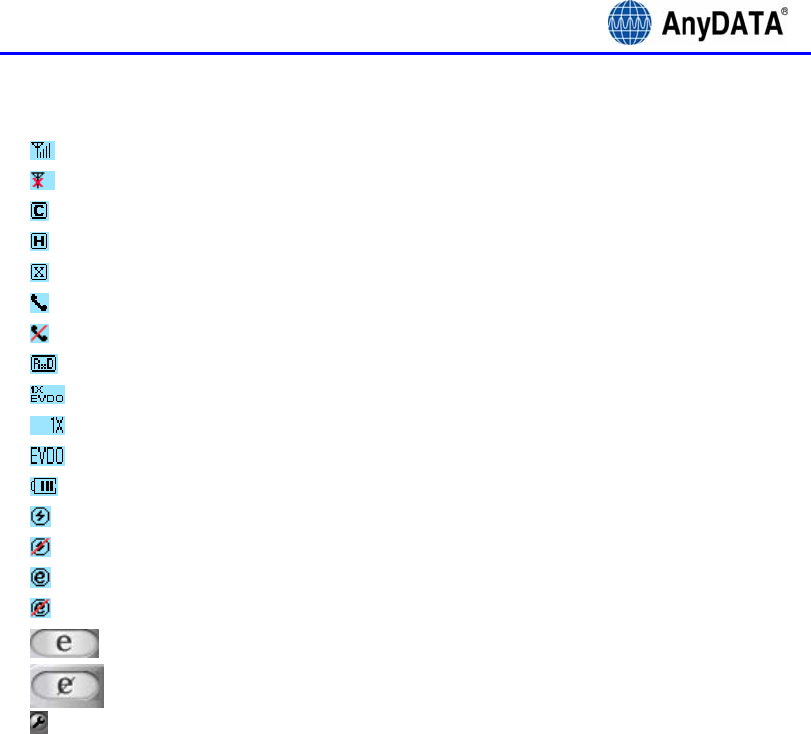

C) Description of each icon
(4) Setting environment

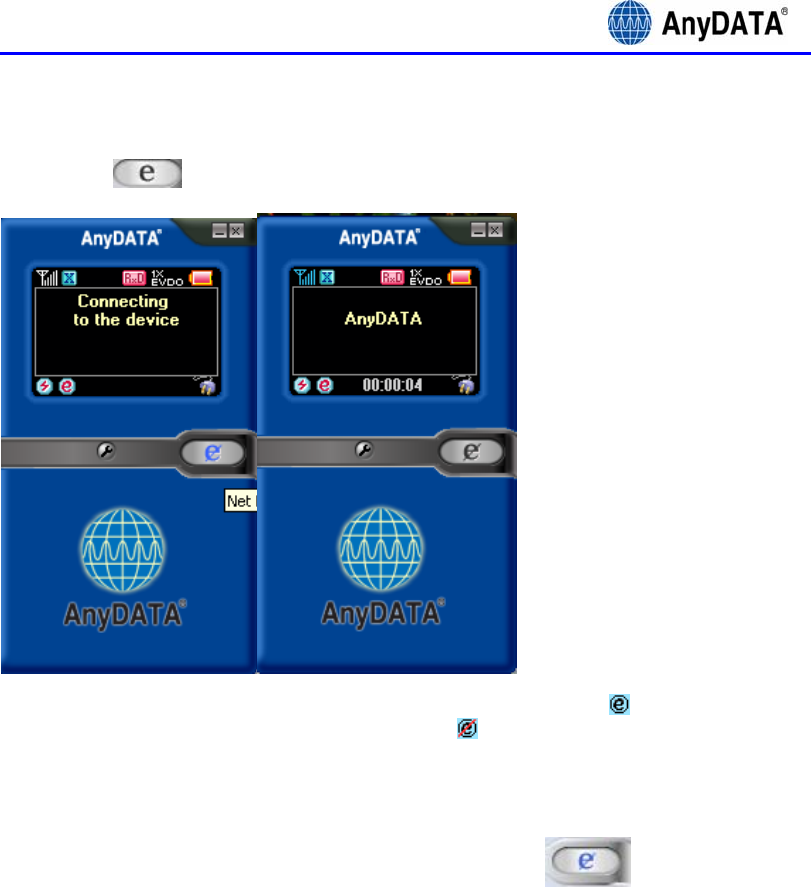

(5) Connecting to Internet
(6) Disconnecting from the Internet
(7) Sending and Receiving calls.
(8) Sending and Receiving SMS.
A) Writing New Message.
B) Viewing Sent Message.
C) Viewing Received or Saved Message.
5. Troubleshooting.

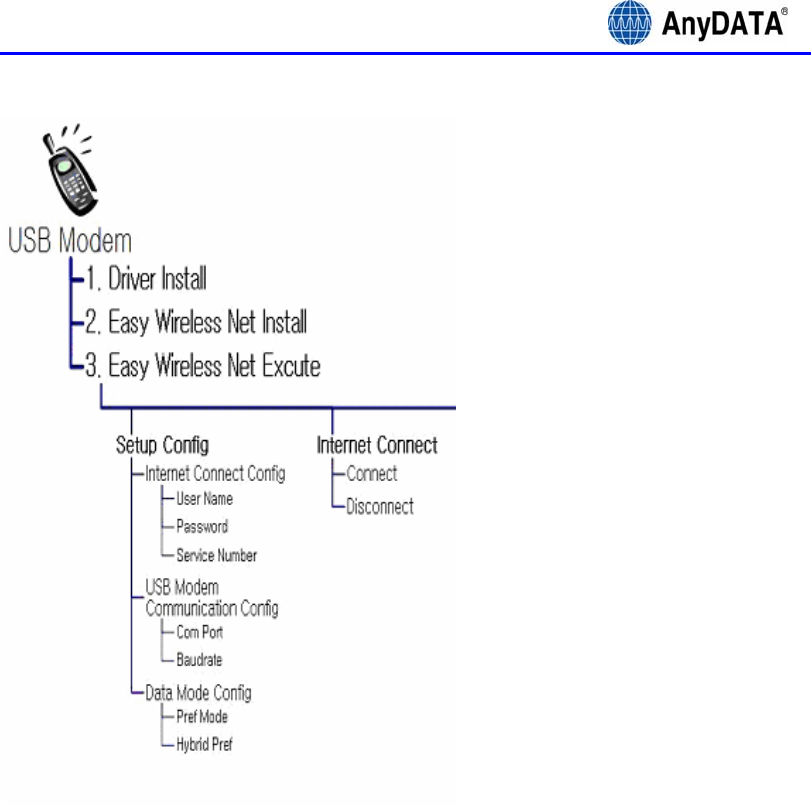

6. Quick Guide
AnyTime AnyPlace AnyWireless Data Solutions™
4
0. Revision History.
The revision history for this manual is show.
Revision History
Version Date Description
1.0 May. 14. 2005 Initial release – AnyDATA USB Modem
1.1 May. 16. 2005 Add Hardware Information
1.2 May. 17. 2005 Uct e-mail id change
2.0.0 July. 4. 2005 1. Version Recreate – manual flow
2. Troubleshooting. add
3. Quick Guide add
3.0.0 July.8.2005 Modify Troubleshooting.
Hangul Font Removed
Etc…
4.0.0 July. 14. 2005 Bug And Capture Image
5.0.0 Aug. 1. 2005 LED operation change
Add hardware technical standards
Add Power Key operation
Add FCC warning statement
6.0.0 May. 19.2006
Removed UIM Function for ADU-E100D V3.0U
Removed voice/SMS support
AnyTime AnyPlace AnyWireless Data Solutions™
5
1. About AnyDATA USB MODEM
(1) Product Description and Feature
In today’s fast-moving economy, the need to remain connected is essential. The world’s most
compact EVDO USB modem, ADU-E100D, offers the appropriate solution to home and mobile
connectivity using antenna diversity that enables better connectivity and data speed in poor
signal environment and internal antenna technology. It provides extensive and reliable wireless
data communication at speed up to 2.4Mbps downlink and 153kbps uplink, The AnyDATA EVDO
USB modem connects to USB port, and the application software effortlessly integrates into a
Windows based PC as well as notebook computer.
- EVDO technology based on Qualcomm MSM6500 chipset
- Support CDMA EVDO and 1xRTT
- High speed wireless data up to 2.4Mbps downlink and 153kpbs uplink
- Internal antenna supporting diversity
- 4 LEDs
- Support USB 2.0 interface with PC
- Battery included, 1660mAh
AnyTime AnyPlace AnyWireless Data Solutions™
6
(2) Technical Specification
Technical Standard - CDMA EVDO
- CDMA 1xRTT
- TCP/IP and PPP
RF Technology - Antenna Diversity
- Internal Antenna
Electrical - Sensitivity : Lower than –104dBm
- Transmit Power : 400mW(26dBm) max.
- 4 LED indicators
Input Power - External Power : DC 5V
- Battery : 4.2V Li-Ion, 1660mAh
Interface - Mini-B type USB
- DC Power Jack
- External Antenna Port
Current Consumption - Traffic Mode: 750mA max. at 5V
- Idle Mode : 110mA
- Sleep Mode : 9mA
Antenna - Two internal antennas to support diversity
Data Speed - Download: 2.4Mbps max.
- Upload : 153kbps
System Requirement - Windows 2000/XP
- USB Port
- Above 64MB RAM
Frequency -RX :869.04MHz~893.37MHz,1931.25MHz~1988.75MHz
-TX :824.04MHz~848.97MHz,1851.25MHz~1908.75MHz
Size - 100mm(L)*56mm(W)*14mm(H) without battery
- 100mm(L)*56mm(W)*25mm(H) with battery
Weight - 61g without battery
- 124g with battery
Software Spec. - CDMA2000 High rate packet data air interface
- CDMA 1xRTT, IS-95A/B
- IS-637A
- IS-707-A
- IS-837, IS-856, IS-866, IS-890
Hardware Spec. - IS-98E
- IS-866
Environmental - Operating Temperature: -30℃ ~ 60℃ without battery
- -20℃ ~ 50℃ with battery
AnyTime AnyPlace AnyWireless Data Solutions™
7
2. Getting Started
In order to use the AnyDATA USB MODEM, the following must be satisfied:
1. Easy Wireless Net Software and AnyDATA USB MODEM Driver have been installed on the
computer.
2. Must have a proper user name and password from the local CDMA operator.
3. AnyDATA EVDO USB MODEM must have certification from the local CDMA operator.
CAUTION: PLEASE CONNECT THE BATTERY OR EXTERNAL AC/DC ADAPTOR TO
INSURE OPERATION OF THE MODEM. USING THE MODEM ON-THE-ROAD,
PLEASE KEEP BATTERY INTACT WITH THE MODEM. AND MAKE SURE THE
BATTEY IS FULLY CHARGED BEFORE USING. WHEN THE BATTEY VOLTAGE
IS LOW, MAKE SURE TO CHARGE IT BEFORE CONTINUING TO USE.
AnyTime AnyPlace AnyWireless Data Solutions™
8

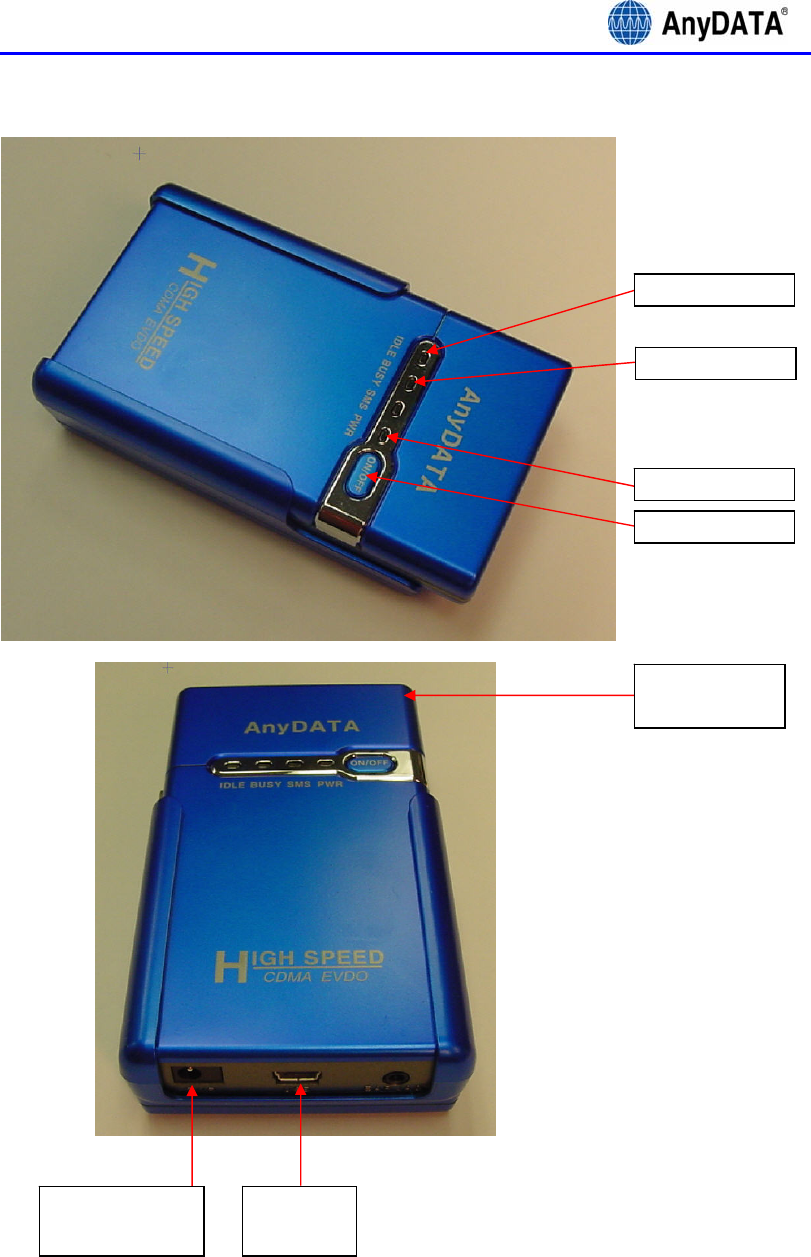

(1) USB Modem Components
IDLE LED
BUSY
LED
POWER LED
POWER KEY
+5V DC
POWER JACK Mini
USB Port
INTERNAL
ANTENNA
AnyTime AnyPlace AnyWireless Data Solutions™
9

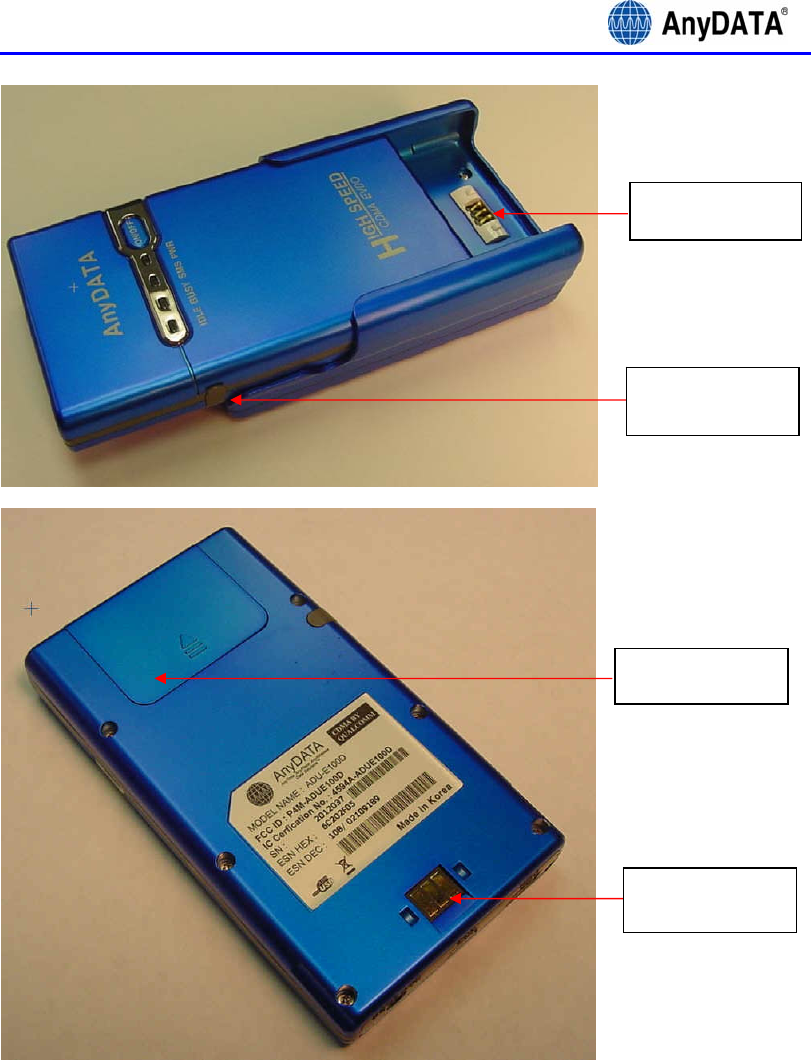

* Caution : When dismounting the battery, push the bottom of modem upward to slide easily out
from the battery cradle.
Battery
Contact Switch
Primary Channel
RF Test Port
Battery Contact
Pins
Second Channel
RF Test Port
AnyTime AnyPlace AnyWireless Data Solutions™
10
A) LED indicator Information
1. POWER :
• Red : Modem is on.
• Off : Modem is off.
2. IDLE (Service/Mode) :
• Blue : In service area
• Off : Out of service area
3. BUSY (Traffic) :
• Blue : Data call connected
• Off : Not in connection
AnyTime AnyPlace AnyWireless Data Solutions™
11
B) Other Components
1. Internal Antenna
• Two antenna for diversity reception are already installed in the device.
2. +5V DC Power Jack
• +5V main power supply to USB modem and is used for charging. Modem works with external
+5V power only.
3. Mini USB Port
• Connected to desktop or notebook computer.
• Modem doesn’t work if both of battery and AC/DC adaptor are removed.
4. Ear Jack (Not Supported)
5. Battery Contact Switch
6. External Antenna Port
• Used as a test port in manufacturing.
7. Battery Contact Pins
8. Power Key
• Press shortly to turn the modem on
• Press for more than 2 seconds then release to turn off the modem
AnyTime AnyPlace AnyWireless Data Solutions™
12
3. Program Installation
(1) Introduction
This section describes a step-by-step method to install the AnyDATA USB MODEM and the
Easy Wireless Net Software.
Note : Must install the software before connecting the AnyDATA USB MODEM to PC/Notebook.
(2) Minimum System Requirement
A) PC Hardware
Recommended: PC/Notebook at speed of 300 MHz or higher.
Minimum: 233 MHz speed required, * Intel Pentium/Celeron products,
AMD K6/Athlon/Duron products or compatible processors
Recommend to use 128MB RAM or higher
Minimum 64MB of memory must be used,
but in this case the performance will be degraded and certain features will be limited.
Required: At least 100 MB of free hard disk space is required.
Motherboard or PCI card that supports USB.
Video adaptor with Super VGA (800 x 600) or higher resolution and Monitor
CD-ROM or DVD Optical Drive
Keyboard and Mouse
B) Operating System
Windows XP Home or Professional
Windows 2000 (with Service Pack 3 for optimal performances)
AnyTime AnyPlace AnyWireless Data Solutions™
13
(3) Installing Easy Wireless Net Software.

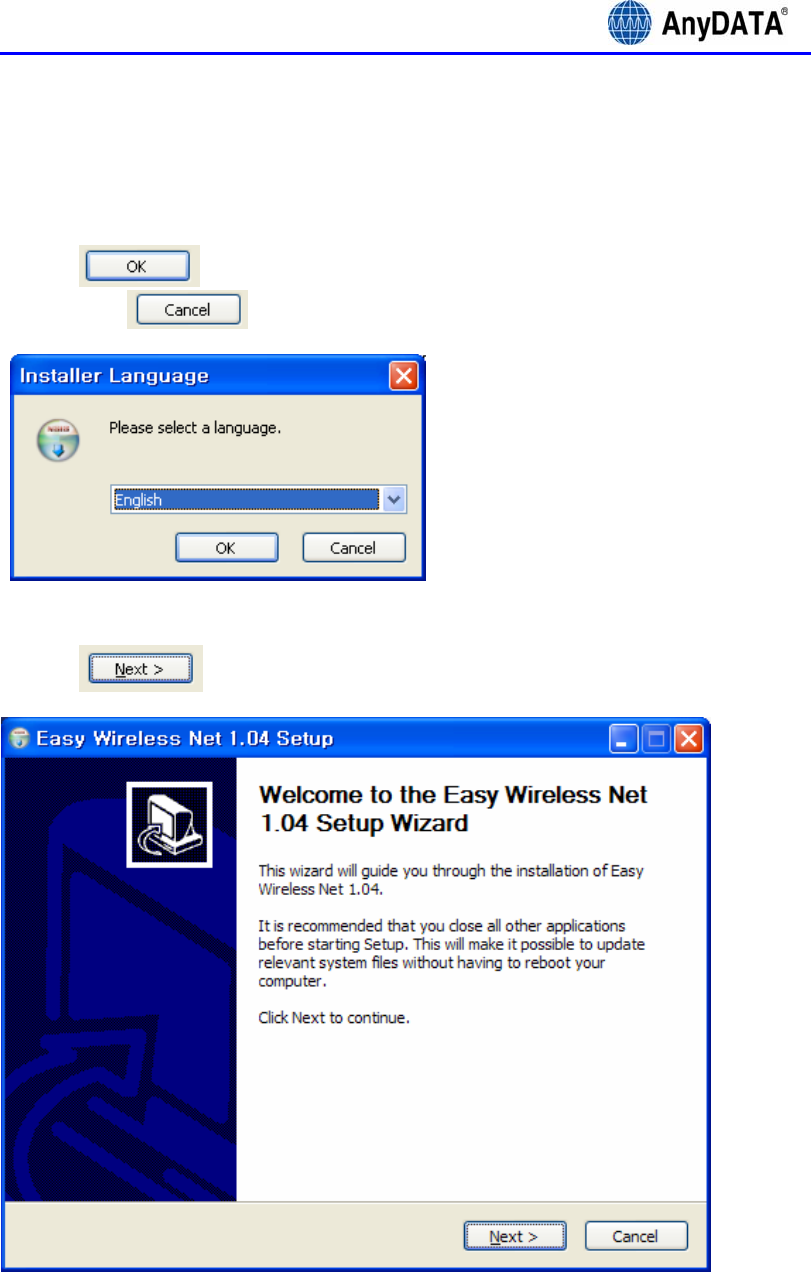

1. Double click “setup.exe” from the supplied CD.
2. Select the desire language as shown below.
3. Press button to proceed.
By pressing button, the installation of the Easy Wireless Net Program will stop.
4. Welcoming message for using the Easy Wireless Net Program window will appear.
5. Press button to proceed.
AnyTime AnyPlace AnyWireless Data Solutions™
14

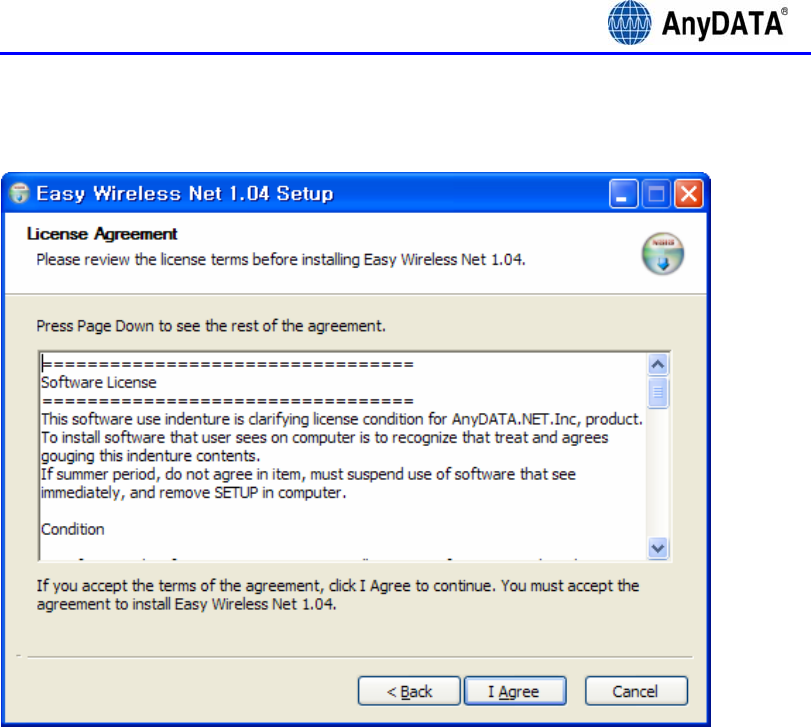

6. Next window is related to License Agreement. Please read carefully.
7. Press “I Agree” button to advance to the next step.
AnyTime AnyPlace AnyWireless Data Solutions™
15
8. Next window asks for the proper path for installing the program.
Default path is “C:\Program Files\Easy Wireless Net”.
9. Press button to install the program.
AnyTime AnyPlace AnyWireless Data Solutions™
16

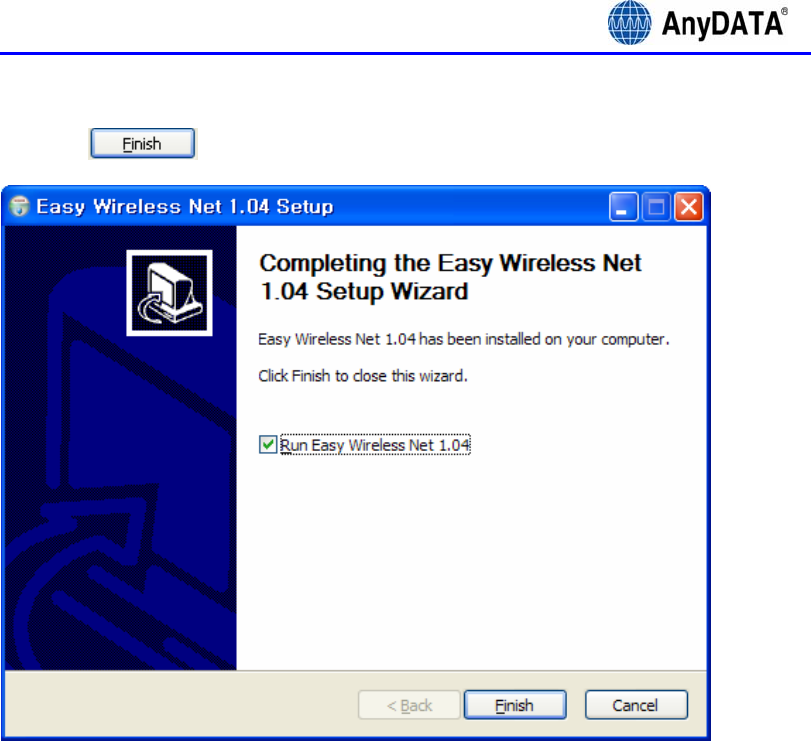

10. When program has been successfully installed, following window will display.
11. Press button for ending the program installation.
The Easy Wireless Net program is now installed on your computer.

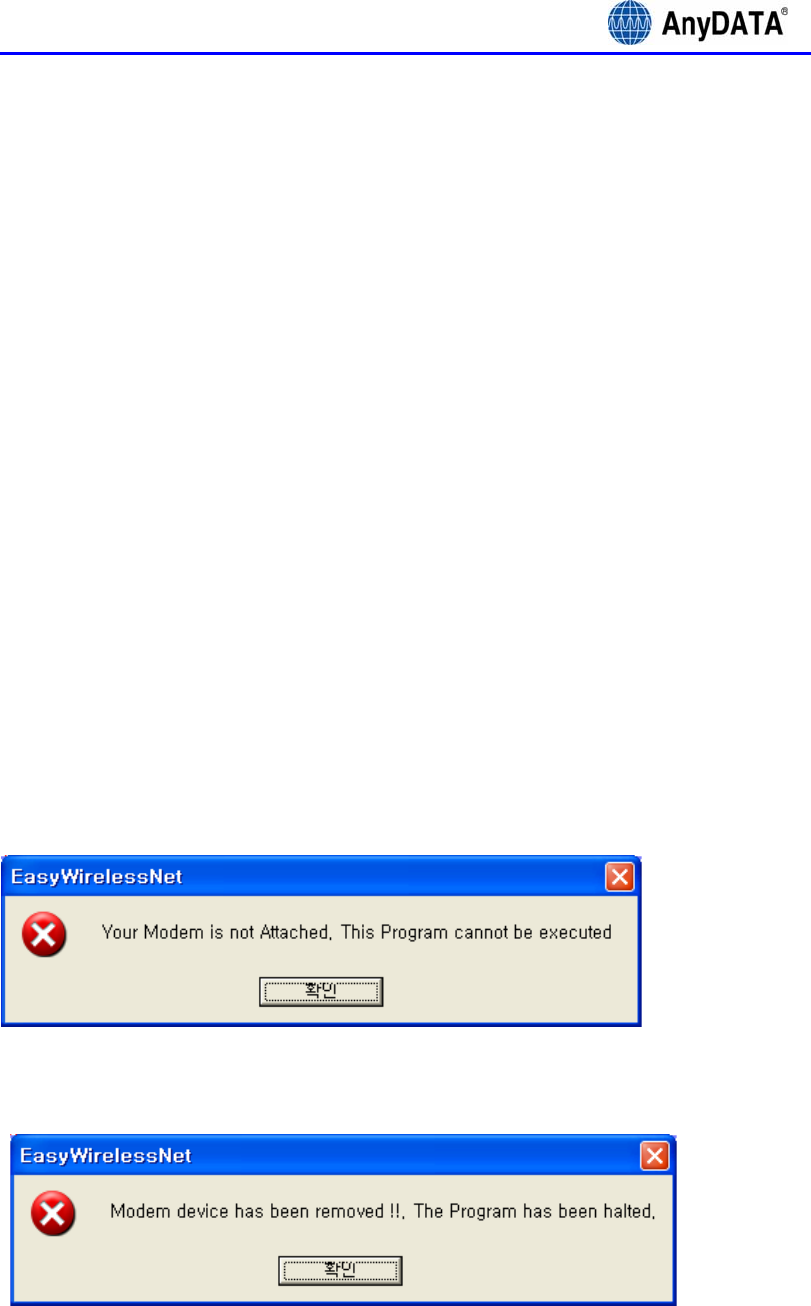

<Remark>
If modem is not connected to the PC/Notebook and the device driver is not installed, then the
program will not launch even after completion of this installation program.
Device driver installation is explained in the next section.
AnyTime AnyPlace AnyWireless Data Solutions™
17
(4) Connecting to AnyDATA USB MODEM and Driver Installation
and Uninstallation
A) Proper connection and Driver Installation
1. Connect the modem to the PC’s USB port using the supplied USB cable.

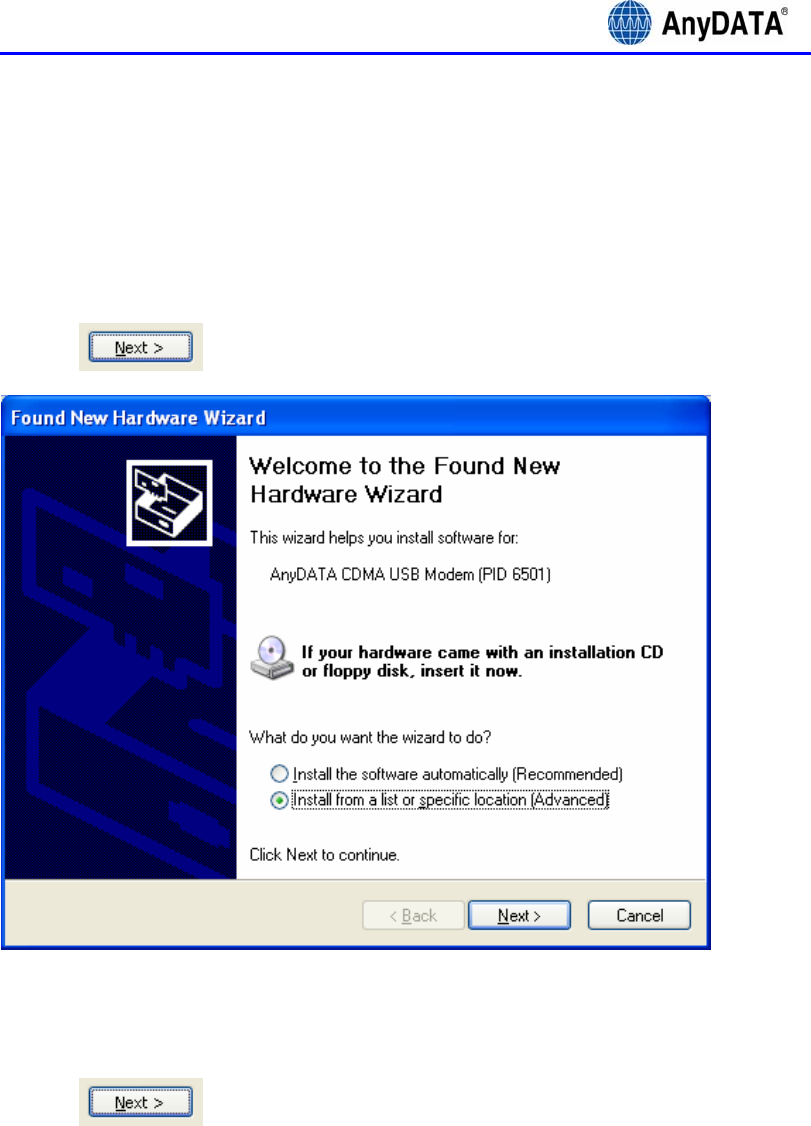

2. Installing “AnyDATA USB Modem Driver” window will appear.
Select “Install from a list or specific location (Advanced)”.
3. Press button to proceed.
4. A window that asks for the proper path of the Driver will appear.
5. Select from the CD’s path “CDRomDirve:\Driver\” folder for appropriate OS.
6. Press button to proceed.
AnyTime AnyPlace AnyWireless Data Solutions™
18

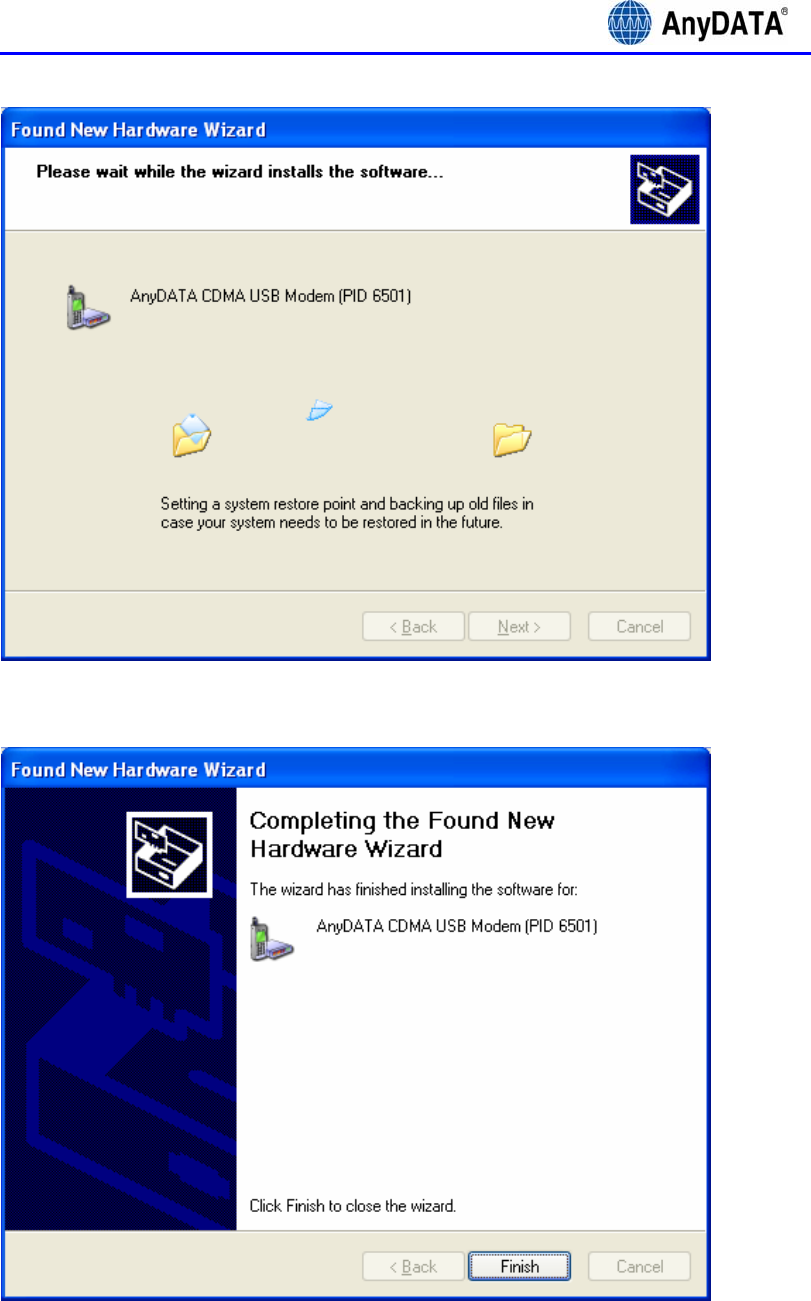

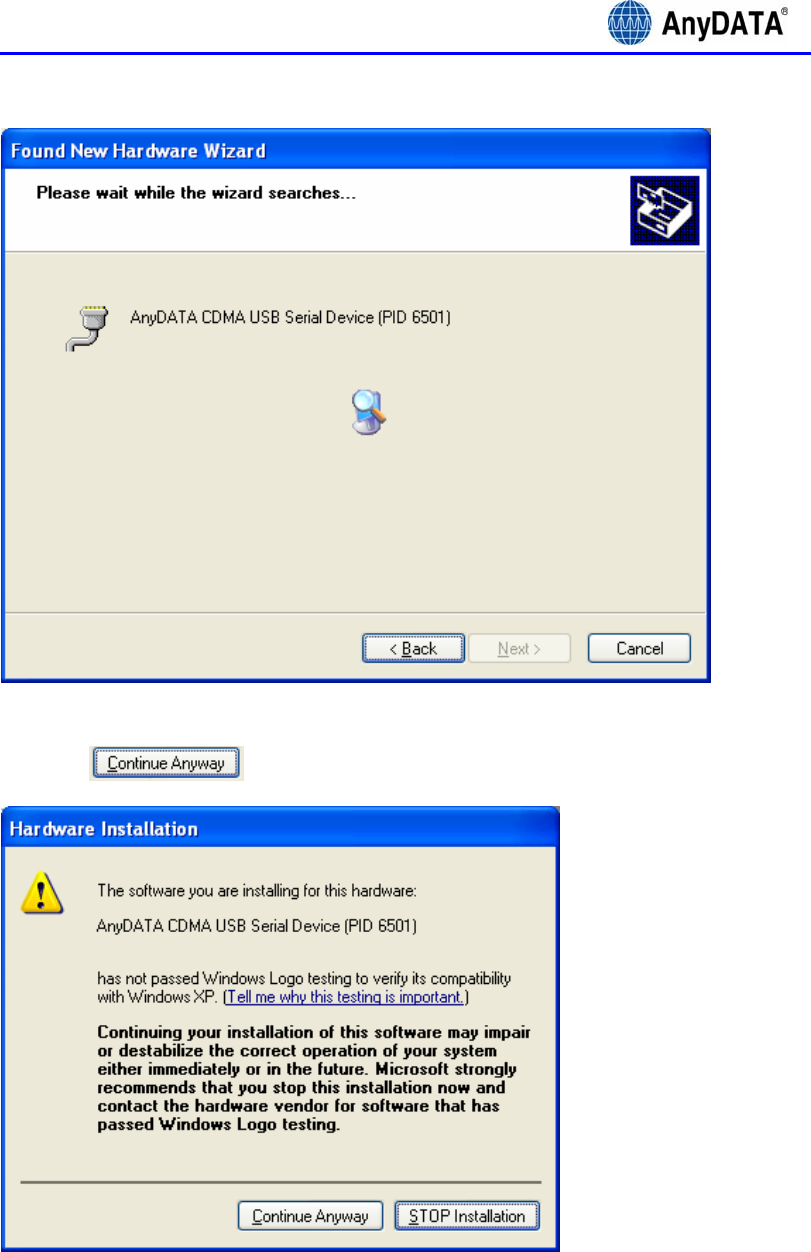

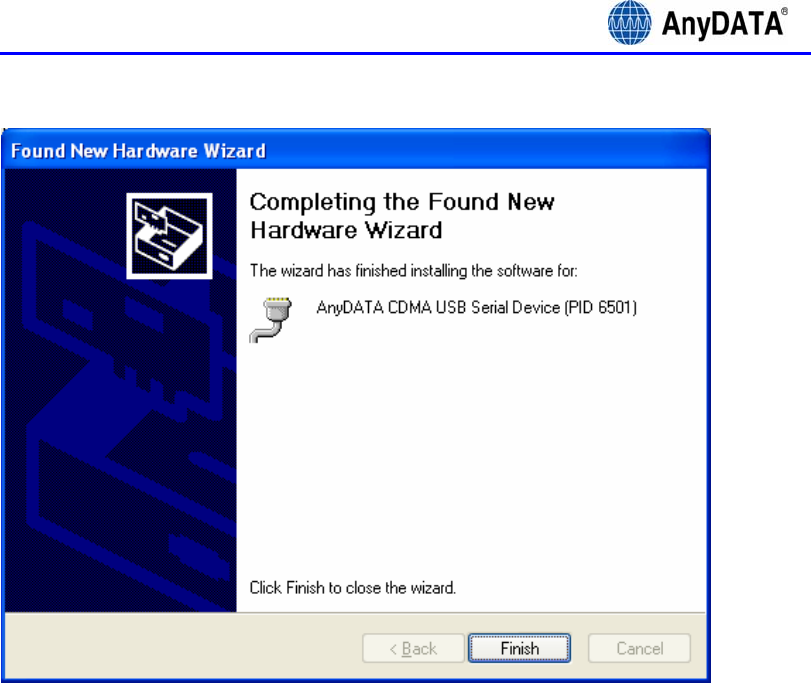

7. Windows that searches for the “AnyDATA CDMA USB Modem Device.”
8. If windows finds the “AnyDATA CDMA USB Modem” it will asks for installation.
9. Press button to move to the next step.
AnyTime AnyPlace AnyWireless Data Solutions™
19
10. In the process of installing “AnyDATA CDMA USB Modem” Driver.
11. If the installation of “AnyDATA CDMA USB Modem” has been successfully completed, the
following window will appear.
AnyTime AnyPlace AnyWireless Data Solutions™
20
12.Next, Install the “AnyDATA CDMA USB Serial Device” Driver.
13. Select “Install from a list or specific location (Advanced)”.
14. Press button to proceed.
15. Select the proper path from the CD window.
16. Select from the CD’s path “CDRomDirve:\Driver\” folder for appropriate OS.
17. Press button to move to next step.
AnyTime AnyPlace AnyWireless Data Solutions™
21
18. Windows then searches for the “AnyDATA CDMA USB Serial Device” will appear.
19. When the “AnyDATA CDMA USB Serial Device” has been found, it asks for installation.
20. Press button to proceed.
AnyTime AnyPlace AnyWireless Data Solutions™
22
21. If the installation has done properly, the following window will appear.
This completes the driver installation.
AnyTime AnyPlace AnyWireless Data Solutions™
23
B) Checking for the proper installation of the Driver
If the Driver has been installed properly, it is possible to check for the proper operation from
Control Panel.

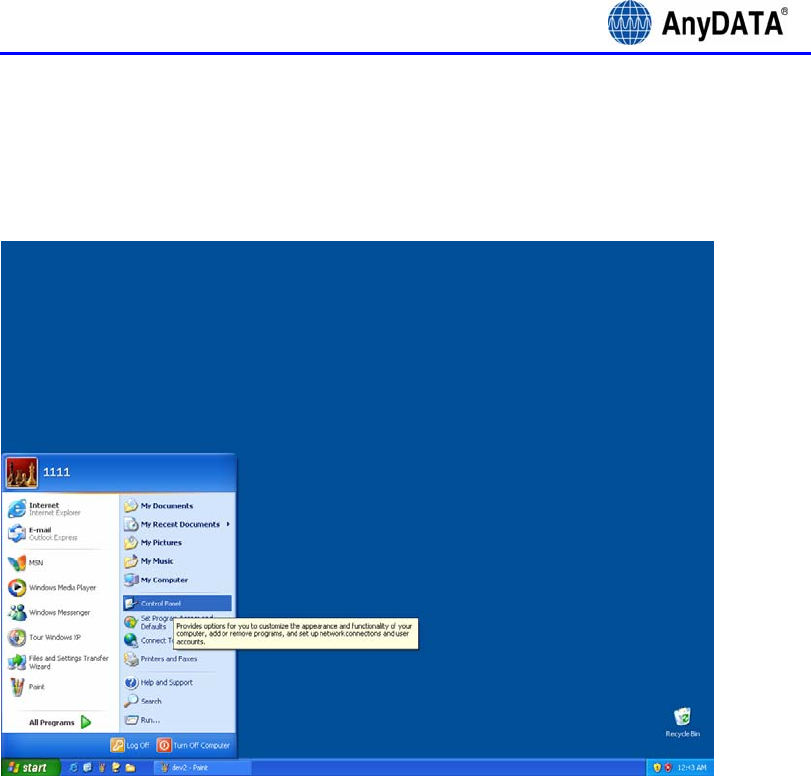

1. Start Control Panel.
AnyTime AnyPlace AnyWireless Data Solutions™
24

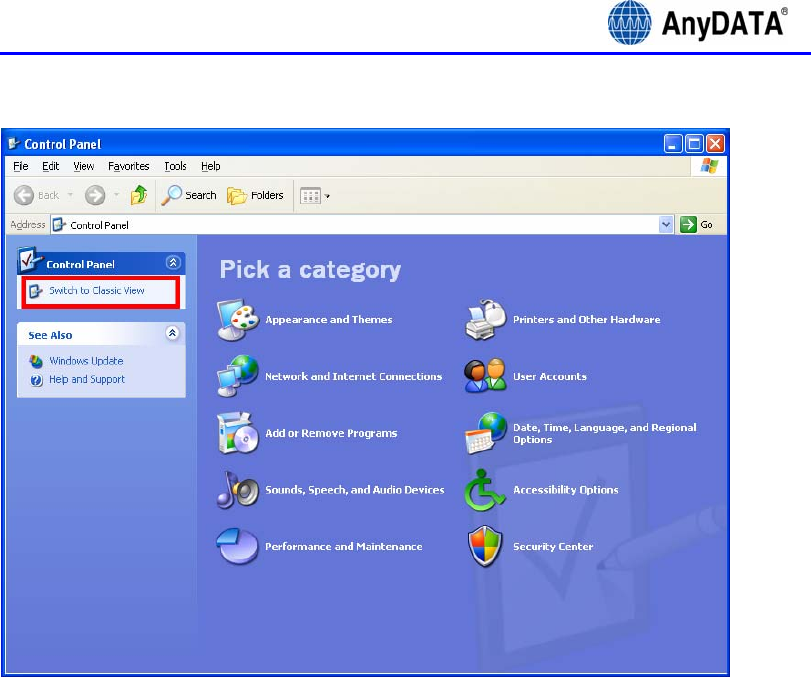

2. Select “Switch to Classic View.”
AnyTime AnyPlace AnyWireless Data Solutions™
25
3. Select System.
AnyTime AnyPlace AnyWireless Data Solutions™
26
4. Select “Device Manager” from “Hardware” Tab.
AnyTime AnyPlace AnyWireless Data Solutions™
27
5. As shown below, with the red boxes the “AnyDATA CDMA USB Modem” and the “AnyDATA
CDMA USB Serial Device,” the Driver has been successfully installed.
[Note] Please pay attention and write down the COM number in “AnyDATA CDMA USB Serial
Device (PID 6501) “(COM8)”. In this case it was COM8, but it might be different for other
installations. This COM port number will be used in the “Easy Wireless Net” program for
selecting the proper port number.
AnyTime AnyPlace AnyWireless Data Solutions™
28
C) Uninstallation
When disconnecting the USB cable from the AnyDATA USB MODEM and the USB port, the
diver will be automatically uninstalled.
AnyTime AnyPlace AnyWireless Data Solutions™
29
4. Using Easy Wireless Net Program
(1) Running the program
There are 2 (two) ways to run the installed Easy Wireless Net program.
As shown below, either pressing the shortcut icon on the Desktop or pressing
this program.
AnyTime AnyPlace AnyWireless Data Solutions™
30
(2) Exiting the program
From the Easy Wireless Net program, pressing button will quit the program.
[Note] If DUN is running, the program will end after the completion of these commands.
AnyTime AnyPlace AnyWireless Data Solutions™
31
(3) Screen Display of Easy Wireless Net
A) Executed Screen.
B) Window for information and input
AnyTime AnyPlace AnyWireless Data Solutions™
32
C) Description of each icon
RSSI Signal Strength Indicator
No signal
1X Mode
EVDO Mode
Hybrid Mode
Calling Possible
Calling not Possible
Rx Diversity Mode.
Supports Hybrid mode
Only 1X mode available
Only EVDO mode available
Battery Indicator
Connected to the Modem
Either the cable is disconnected to the modem or improper port connection.
Internet connected
Internet disconnected
Button to connect to the Internet.
Button to disconnect to the Internet
Setup Easy Wireless Net
AnyTime AnyPlace AnyWireless Data Solutions™
33
(4) Setting Environment
There are two sections for setting the environment. One is data from operator for connecting to
the Internet, and another is to set the proper port for status monitoring.
Set ServiceNum. For Sprint, enter #777 and the User ID and Password is not necessary.
Select the proper port. This is the same port from the device manager com port section.
Select BaudRate at 115200.
AnyTime AnyPlace AnyWireless Data Solutions™
34
(5) Connecting to the Internet
Must set proper UserName, Password, and ServiceNum in the above settings.
Then press button, the tool will automatically connect to the Internet.
If the modem is trying to connect or is connected to the Internet, this icon will appear as
shown above. If it cannot connect to the Internet, then icon will appear.
(6) Disconnecting from the Internet
When user is ready to disconnect from the Internet, press button to end the
connection.
Please check the following if abrupt disconnection of modem occurred:
1) Did I intentionally disconnect USB modem?
2) Are cables properly connected?
3) Did I intentionally change Port number in environment settings?
4) Did I quit/exit the program?
AnyTime AnyPlace AnyWireless Data Solutions™
35
5. Troubleshooting
Q: I cannot connect to the Internet?
A: Please check “environment setting” of program for correct ID, password and Service number.
For proper ID, password and Service number, please contact service provider for more
information.
Q: The Internet connection speed is too slow.
A; Please check whether the modem is set at 1X mode. If USB modem is set at 1X mode, then
the Internet is not connected as EVDO mode. EVDO icon must be appeared in the display to
ensure that the modem has been connected in EVDO mode.
Q: The Internet connection is poor and frequently it gets disconnected.
A: The CDMA frequency is at unstable state. Try to move to a different place then use it again.
Also, if you touch or block the USB modem with hand/body contact, the modem connection
speed degrades. Please be careful not to touch the modem with your hand or any part of the
body.
Q: Can I leave the external power adopter in the electric socket even after the battery is fully
charged?
A: Yes, it is safe to leave adopter in the electric socket even after the battery is fully charged if
you are using genuine battery and adopter from the manufacturer.
Q: No matter how long I pressed the power button, the power does not get turned off.
A: Please check whether the external power is connected or not. If external power adopter is
connected then the power will not turn off.
Q: All of the display on the program’s screen shows as prohibited icons.
A: Please check whether the port is properly set for communicating between computer and the
modem in the “environment setting” category.
Q: After the installation of the program, the program does not run and displays following
message.
A: This means that USB modem and the computer are not connected properly. Please double
check whether USB modem is connected properly to the computer.
Q: During the running of the program, the following message appears and the program halts.
AnyTime AnyPlace AnyWireless Data Solutions™
36
A: The actual connection of USB modem and computer has been disconnected. Please check
whether the cable is dismounted, cable is disconnected or USB modem power has been turned
off. Then try to reconnect the modem.
Q: Cannot make a call
A: If you see a [EVDO] icon in the display, call cannot be made. Please change mode other than
[EVDO] mode then try to make a call. There are three different icons in that field, [1X],
[1X/EVDO] and [EVDO].
Q: How many people can I send SMS messages at once?
A: It is possible to send maximum of 5 people at once.
Q: The program has ended but the USB modem power has not turned off.
A: The power of USB modem is not controlled by the program. The point when the USB modem
turns on automatically is when the USB cable is connected to the PC/Notebook. In order to turn
off the modem, press ON/OFF button for at least 5 seconds.
Q: I tried to turn-on the modem by pressing ON/OFF button but was unsuccessful.
A: Please dismount the battery and disconnect the USB cable, then remount the battery and
connect the USB cable. If the power is still not on, please contact A/S center for further
information.
AnyTime AnyPlace AnyWireless Data Solutions™
37
6. Quick Guide.
(1) Display Indicators.
The display may show the following icons to indicate the usb modem’s status or fundtion.
Display Function
RSSI Signal Strength Indicator
No signal
1X Mode
EVDO Mode
Hybrid Mode
Calling Possible
Calling not Possible
Rx Diversity Mode.
Supports Hybrid mode
Only 1X mode available
Only EVDO mode available
Battery Indicator
Connected to the Modem
Either the cable is disconnected to the modem
or improper port connection.
Internet connected
Internet disconnected
Connecting to the Internet button.
Disconnecting to the Internet
Setup Easy Wireless Net
Voice call menu.
AnyTime AnyPlace AnyWireless Data Solutions™
38
(2) USB Modem Quick Start Map
Thank you.
