AnyDATA APC500N EV-DO Rev. A PCMCIA Modem User Manual
AnyDATA Corporation EV-DO Rev. A PCMCIA Modem Users Manual
AnyDATA >
Users Manual
AnyDATA Confidential & Proprietary
18902 Bardeen Avenue, Irvine, California 92612 Tel. 949-833-0011 Fax. 949-833-0022 http://www.anydata.com
Product Specification
Project Name: NCR
Model Name: PC Card
Version: 1.6
Proprietary and Confidential
All data and information contained in or disclosed by this document are
confidential and proprietary information of AnyDATA Inc. and all rights therein are
expressly reserved. By accepting this material, the recipient agrees that this
material and the information obtained therein are held in confidence and in trust
and will not be used, copied, reproduced in whole or in part, nor its contents
revealed in any manner to others without the express written permission of
AnyDATA. The specification herein is a baseline and is subject to change.
AnyDATA Confidential & Proprietary
18902 Bardeen Avenue, Irvine, California 92612 Tel. 949-833-0011 Fax. 949-833-0022 http://www.anydata.com
Revision History
Revision Version Date Author Comments
1 0.1 01/31/2007 Sidney S. Park Initial draft based on NCR – Lucent
tentative requirements
2 1.0 2/5/2007 Sidney S. Park Modification
3 1.1 3/8/2007 Sidney S. Park Summary Version
4 1.2 4/18/2007 Sidney S. Park Modified per spec finalization meeting
5 1.3 4/23/2007 Sidney S. Park Modifications requested by NCR
RF Frequency - changed
PRL condition - removed
FCC condition - removed
6 1.4 4/27/2007 Sidney S. Park Standards and Certifications added to
section 6
7 1.5 7/22/2007 Douglas Kwon NDIS support – changed
Operating frequency – changed
FCC - changed
8 1.6 12/20/2008 Eric Hyun Modification (Rev.0 – removed)
FCC Notice
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation. This device meets the FCC Radio Frequency Emission Guidelines and is certified with the FCC as FCC ID number: P4M-
APC500N
Radio Frequency Exposure Information (SAR)
This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed
the emission limits for exposure to radio frequency (RF) energy set by the U.S. Federal Communications Commission. The exposure
standard for wireless devices employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the
FCC is 1.6 W/kg. Tests for SAR are conducted using standard operating positions accepted by the FCC with the device transmitting at its
highest certified power level in all tested frequency bands. The highest measured SAR value for the device as reported to the FCC when
installed with laptop contacted with human body directly is 1.41 W/kg. The FCC has granted an Equipment Authorization for this model
device with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines.
AnyDATA Confidential & Proprietary
18902 Bardeen Avenue, Irvine, California 92612 Tel. 949-833-0011 Fax. 949-833-0022 http://www.anydata.com
Table of Contents
Revision History ................................................................................................................................................... 2
1. Overview ...................................................................................................................................................... 4
2. Design Concept............................................................................................................................................ 4
3. Key Features ................................................................................................................................................ 4
4. Form Factor .................................................................................................................................................. 5
5. Technical Specification ................................................................................................................................. 6
5.1. Frequency Band ................................................................................................................................ 6
5.2. Air Protocol ........................................................................................................................................ 6
5.3. Data Rate ........................................................................................................................................... 6
5.4. Electrical Specification ....................................................................................................................... 6
5.5. Environmental .................................................................................................................................... 6
6. Standards ..................................................................................................................................................... 6
6.1. Standards ........................................................................................................................................... 6
6.2. Certifications ...................................................................................................................................... 6
7. Client Software ............................................................................................................................................. 8
7.1. System Requirements ....................................................................................................................... 8
7.2. User Interface .................................................................................................................................... 8
7.3. Icons .................................................................................................................................................. 8
7.3.1. Main Application Window Icons .............................................................................................. 8
7.3.2. Settings Sub-menu Icons........................................................................................................ 8
7.3.3. Other Features ........................................................................................................................ 8
AnyDATA Confidential & Proprietary
18902 Bardeen Avenue, Irvine, California 92612 Tel. 949-833-0011 Fax. 949-833-0022 http://www.anydata.com
1. Overview
AnyDATA PCMCIA EV-DO Rev. A Modem enables users to connected to high speed EV-DO Rev. A
network, at peak data rate of download 3.1 Mbps and upload 1.8 Mbps. Diversity antenna enhances
performance.
2. Design Concept
z Existing building blocks from Qualcomm technology and AnyDATA’s modules will be utilized.
z RF section will be re-designed to handle 700 / 1900 MHz.
3. Key Features
z Main Chipset: MSM 6800
z Protocol: IS-856 EV-DO Rev. A
z Data Rate: Up to 3.1Mbps(FL) and 1.8Mbps(RL) peak
z Form Factor: PC Card Type II extended
z Dual receive diversity antennas encased in extended dome
z Frequencies:
- 700 MHz
- 1900 MHz (network dependent)
z Data connectivity only
z AGPS (gpsOne) capable
z SGPS capable
z Connection Manager
AnyDATA Confidential & Proprietary
18902 Bardeen Avenue, Irvine, California 92612 Tel. 949-833-0011 Fax. 949-833-0022 http://www.anydata.com
4. Form Factor
z PCMCIA (CardBus) Type II Extended Card
z Size: 130~132mm (L) x 54mm (W) x 5mm (H) , Antenna 13mm (H)
z Weight: approximately 55g
z Dual Receive Diversity Antenna
z External antenna connectors, Main & Auxiliary (RX Diversity & GPS)
z Extended part has clearance of approximately 5~7mm for obstruction due to laptop mechanical
design or PCMCIA port cover

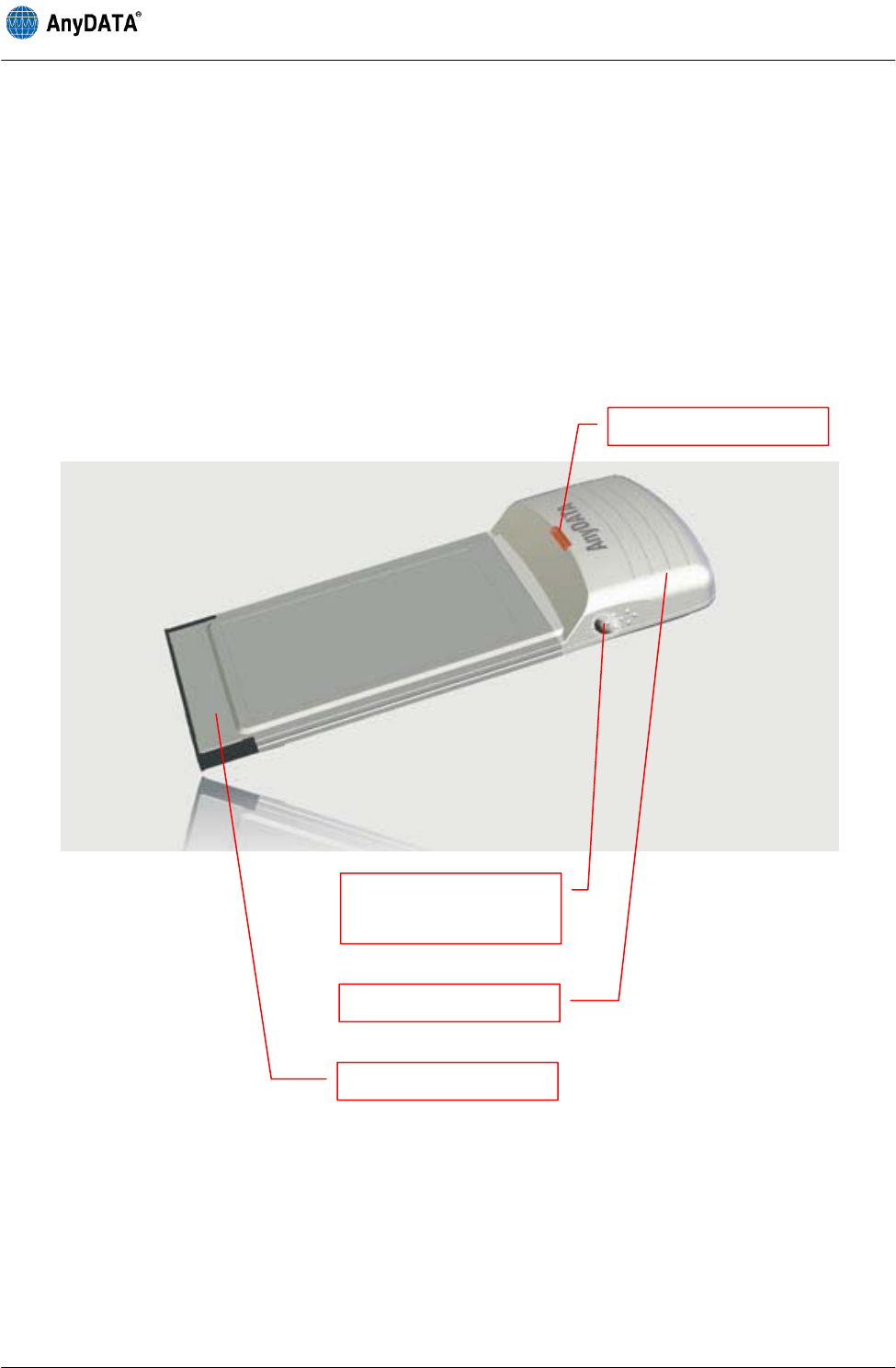

z Below rendering is provided for reference only. Final design may vary.
Signal Indicator LED
2 RF connectors
(One on each side)
Rx Diversity Antennas
PCMCIA Connector
AnyDATA Confidential & Proprietary
18902 Bardeen Avenue, Irvine, California 92612 Tel. 949-833-0011 Fax. 949-833-0022 http://www.anydata.com
5. Technical Specification
5.1. Frequency Band
z CDMA 700 MHz
RX 763 ~ 768 MHz (Base Station to Mobile Station transmission)
TX 793 ~ 798 MHz (Mobile Station to Base Station transmission)
z CDMA 1900 MHz (Band Class 1) – capability available
No certification
Roaming & Certification with commercial network is out of scope of this document
5.2. Air Protocol
z CDMA 1xEV-DO Rev. A
5.3. Data Rate
z 1xEV-DO Rev. A - Max 3.1 Mbps Forward Link, 1.8 Mbps Reverse Link
5.4. Electrical Specification
z Interface: PCMCIA Standard 8.0, 68pin connector
z Input voltage: +3.3V +/- 9%, Peak 1000mA, Norm 750mA
5.5. Environmental
z Operating Temperature: -20 ~ +50° C
z Storage Temperature: -40 ~ +80° C
z Humidity: 0 ~ 95% non-condensing at 35° C
6. Standards
6.1. Standards
z IS-866 CDMA 1xEV-DO Rev A
z IS-856-A CDMA 1xEV-DO Rev A (IS-856-A-1 only)
z IS-707A Data
z IS-835A Data
z IS-637A SMS – network dependent, not supported on NCR network
z IS-637B SMS – network dependent, not supported on NCR network
z IS-683-A Service Provisioning – network dependent
z PC Card Specification 8.0
6.2. Certifications
z FCC (pending)
- Part 15
- Part 24
- Part 90
z Others
AnyDATA Confidential & Proprietary
18902 Bardeen Avenue, Irvine, California 92612 Tel. 949-833-0011 Fax. 949-833-0022 http://www.anydata.com
- Microsoft WHQL (pending)
AnyDATA Confidential & Proprietary
18902 Bardeen Avenue, Irvine, California 92612 Tel. 949-833-0011 Fax. 949-833-0022 http://www.anydata.com
7. Client Software
7.1. System Requirements
z One (1) PC Card Type II (CardBus) Slot
z Operating System: Windows 2000, Windows XP
z Processor: Pentium 150MHz or higher
z Disk space: 10MB Hard Disk
z Memory: 64MB RAM

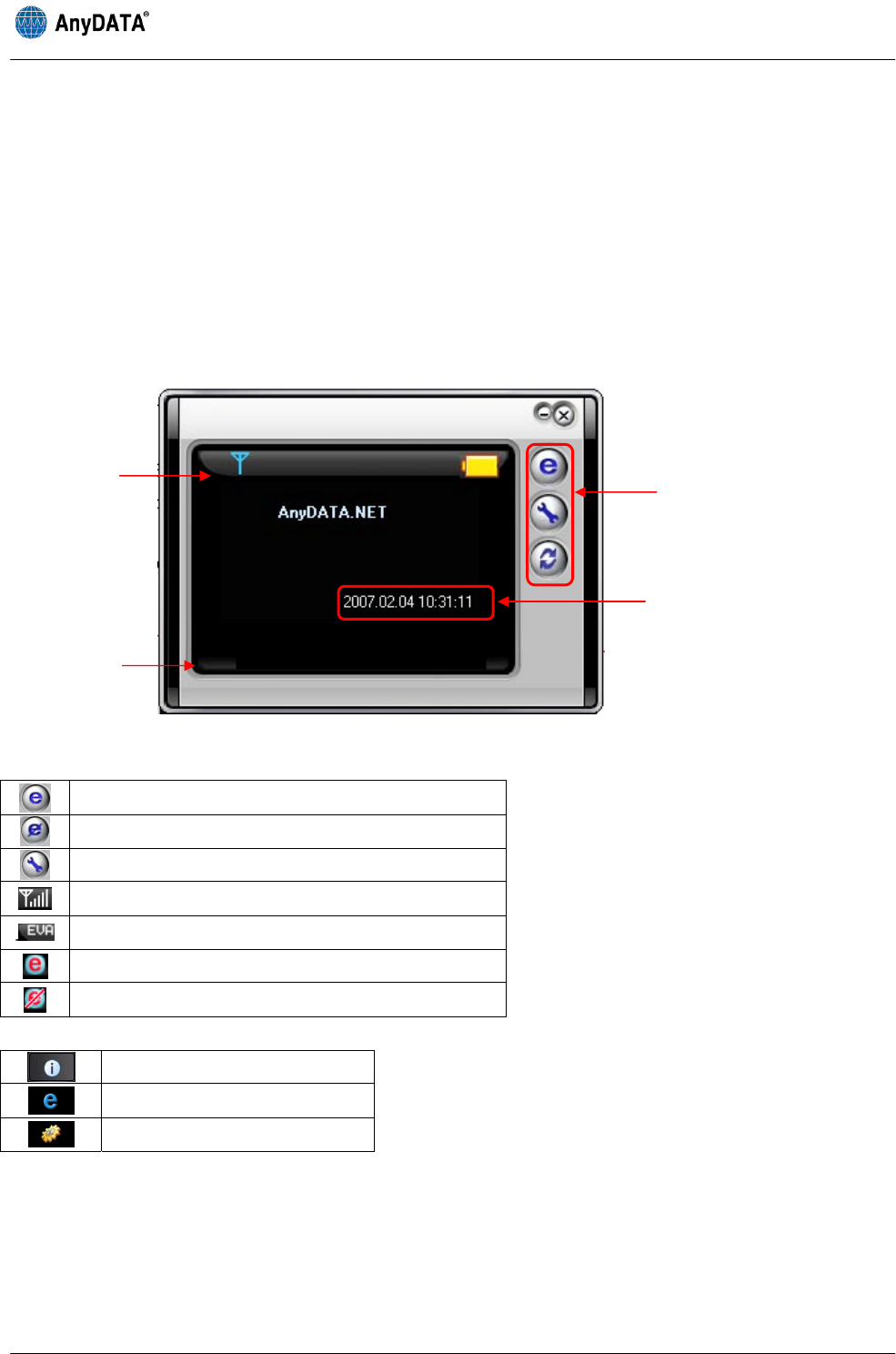

7.2. User Interface
Below diagram is provided for reference only. Final design may vary.
7.3. Icons
7.3.1. Main Application Window Icons
Wireless Internet Connection
Wireless Internet Disconnection
Settings
Signal Strength Indicator
System Mode (EV-A) Indicator
Wireless Internet Connected Indicator
Wireless Internet Disconnected Indicator
7.3.2. Settings Sub-menu Icons
Packet Call Meter
Internet Settings
Network Settings
7.3.3. Other Features
z Installer Package: Setup.exe, DUN or NDIS auto-setup, install GUI, user manual
z Sub-menus
Signal
Strength
Connection
Status
Menu
Date and Time
AnyDATA Confidential & Proprietary
18902 Bardeen Avenue, Irvine, California 92612 Tel. 949-833-0011 Fax. 949-833-0022 http://www.anydata.com
About menu: Firmware Version, H/W Version, PRL Version display
Config menu:
ID/password, Dialup Digits, COM Port, Baud-rate
Preference mode (if applicable)
History (Packet Call Meter)
Total Byte, Connection Time, Reset Counter
z Service menu
Basic service provisioning (enter with secret code or SPC)
NAM if applicable
PRL if applicable
Authentication parameters if applicable
z SMS – disabled
z Minimize to tray
z Auto-start
