DTP-600W User Manual / Datasheet
01-DTP-600W-V1-X5
May, 2009
WCDMA DATA TERMINAL (DTP-600W Reference Manual)
AnyTime AnyPlace AnyWireless Data Solutions™ 2/14
AnyDATA CDMA Module Series Reference Design Specification
Copyright © 2005 AnyDATA Corp. All Rights Reserved.
Any part of this document may not be distributed, communicated, reproduced or transmitted in any form
or by any means, electronic or mechanical or otherwise, for any purpose, without the permission of
AnyDATA Corp.
This document can be subjected to revision without further notice.
Contact Address
Headquarter
AnyData Corporation
18902 Bardeen Ave, lrvine,
CA 92612-1522 U.S.A.
http://www.anydata.net
e-mail: info@anydata.com
Rep:1-949-833-0011
Fax: 1-949-833-0022
AnyData(China)
489 Song Tao Road, Sector B,
1 st Fl. Pudong ZhanJiang Hi-
Tech Park, Shanghai, 201203,
P.R.China
http://www.anydata.net.cn
e-mail: info@anydata.net.cn
Rep:+86-21-5080-4828
Fax:+86-21-5080-3828
AnyData.Net Inc.(Korea)
DaeGo Bldg, 8 th., 1591-10
Kwanyang-dong, Dongan_gu,
Anyang City, Kyunggi-do Korea.
http://www.anydata.co.kr
e-mail: infodata@anydata.net
Rep:+82-31-380-7100
Fax:+82-31-476-6021
WCDMA DATA TERMINAL (DTP-600W Reference Manual)
AnyTime AnyPlace AnyWireless Data Solutions™ 3/14
Contents
1 Revision History .................................................................................................................................... 4
2. Overview ............................................................................................................................................... 5
2.1 Application Descriptions ................................................................................................................ 5
2.2 Technical Specifications ............................................................................ ..................................... 7
2.2.1 General Specifications ....................................................................................................... 7
2.2.2 Receive Specifications ....................................................................................................... 8
2.2.2.1 WCDMA/HSDPA ............................................................................................................. 8
2.2.2.2 GSM / GPRS .................................................................................................................. 8
2.2.3 Transmit Specifications ...................................................................................................... 9
2.2.3.1 WCDMA/HSDPA ............................................................................................................. 9
2.2.3.2 GPRS/EDGE .................................................................................................................. 9
2.2.4 QSC6270 Chipset Highlights ........................................................................................... 11
2.2.5 Standards ........................................................................................................................ 11
2.2.6 Connectivity ..................................................................................................................... 11
3. PIN Description and Pin outs ................... ................................ ................................ .......................... 12
4. Mechanical Dimensions ..................................................................................................................... 13
4.1 DTP-600W Outline ......................................................................................................................... 13
WCDMA DATA TERMINAL (DTP-600W Reference Manual)
AnyTime AnyPlace AnyWireless Data Solutions™ 4/14
1 Revision History
The revision history for this document is shown in Table 1-1.
Table 1-1 Revision History
Version Date Description
V1_X1 Nov. 2008 Initial Release
V1_X2 Mar. 2009 2n
d
Release
V1_X3 Apr. 2009 3r
d
Release
V1_X4 May 2009 4
th
Release. Added FCC warning statement
V1_X5 May 2009 5
th
Release. Updated FCC and R&TTE warning statement
WCDMA DATA TERMINAL (DTP-600W Reference Manual)
AnyTime AnyPlace AnyWireless Data Solutions™ 5/14
2. Overview
2.1 Application Descriptions
The WCDMA Wireless Data Module is a complex consumer communications instrument that relies
heavily on both digital signal and embedded processor technologies. The Wireless Data Module
manufactured by AnyDATA.NET supports Wide-band-Code-Division-Multiple-Access(WCDMA), High
Speed Downlink Packet Access(HSDPA), Global System for Mobile communication(GSM) and General
packet Radio Service(GPRS). This operates in both the UMTS and GSM spectrum band.
The DTP-600W is AnyDATA’s latest compact Wireless Data Module operating in UMTS and GSM
spectrum, also contains complete digital modulation and demodulation system for WCDMA/HSDPA
standards as specified in 3GPP TS 34.121, and GSM/GPRS standards as specified in 3GPP TS
51.010-1.
The subsystem within the DTP-600W includes a WCDMA/HSDPA and GSM/GPRS processor
(QSC6270), an RS-232 serial interface supporting forward link data communications at a rate of 4Mbps.
The DTP-600W provides an external interface that includes the standard RS-232, External reset control,
and USIM USB host or slave mode.
The DTP-600W has the capability to power down unused circuits in order to dynamically minimize
power consumption.
! FCC Regulations:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
This device has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiated radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
WCDMA DATA TERMINAL (DTP-600W Reference Manual)
AnyTime AnyPlace AnyWireless Data Solutions™ 6/14
Changes or modifications not expressly approved by the party responsible for compliance could
void the user‘s authority to operate the equipment.
The antenna(s) used for this transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
! RF Exposure Information:
This device meets the government’s requirements for exposure to radio waves.
This device is designed and manufactured not to exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal Communications Commission of the U.S. Government.
This device complies with FCC radiation exposure limits set forth for an uncontrolled
environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure
limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal
operation.
Maximum antenna gain allowed for use with this device is +2 dBi.
When the module is installed in the host device, the FCC ID label must be visible through a
window on the final device or it must be visible when an access panel, door or cover is easily re-
moved. If not, a second label must be placed on the outside of the final device that contains the
following text: “Contains FCC ID: P4M-DTP600W”
! R&TTE Regulation:
In all cases assessment of the final product must be mase against the Essential requirements of
the R&TTE Directive Articles 3.1(a) and (b), safety and EMC respectively, as well as any relevant
Article 3.3 requirements.
The maximum antenna gain for frequeny 900 is +2 dBi; for frequeny 1800 is +2 dBi and the
antenna separation distance is 20cm.
WCDMA DATA TERMINAL (DTP-600W Reference Manual)
AnyTime AnyPlace AnyWireless Data Solutions™ 7/14
2.2 Technical Specifications
2.2.1 General Specifications
Parameters Descriptions
External Access Wide band - Code-Division-Multiple-Access (WCDMA)
Global System for Mobile communication(GSM) , General Packet Radio
Service(GPRS)
Protocol 3GPP TS 34.121 (WCDMA/HSDPA), 3GPP TS 51.010-1 (GSM/GPRS)
Data Rate (max) HSDPA 3.6Mbps (down link), 384Kbps
(uplink)
WCDMA 384Kbps
GPRS multi slot class 12 : 48Kbps (up link),
48Kbps (down link)
EDGE 384Kbps @MSC9 (down/up link)
Transmit/Receive Frequency Interval WCDMA/HSDPA 850 45MHz
WCDMA/HSDPA 1900 80MHz
WCDMA/HSDPA 2100 190MHz
GPRS/EDGE 850 45MHz
GPRS/EDGE 900 45MHz
GPRS/EDGE1800 95MHz,
GPRS/EDGE1900 80MHz,
Max output power WCDMA/HSDPA 23dBm (Power class : 3)
GPRS 850/900 33dBm (Power class : 4)
GPRS1800/1900 30dBm (Power class : 1)
EDGE 850/900 27dBm (Power class : E2)
EDGE 1800/1900 26dBm (Power class : E2)
RF technology Zero Intermediate Frequency (WCDMA/HSDPA)
Operating Voltage VBATT_INT : +3.4V ~ +4.2V
Current Consumption Sleep mode ( USB off ) 1mA
Stand by mode Average 3mA max
(GSM MFRM=5, WCDMA DRX=9)
Traffic mode Average 700mA ( WCDMA 23dBm)
Peak Current 1.2A ( GPRS 33dBm )
Operating Temperature -10ºC ~ +60ºC
Frequency Stability WCDMA/HSDPA 800 ±80Hz
WCDMA/HSDPA 2100 ±170Hz
GSM/GPRS ±0.1ppm (at carrier frequency)
Size (max) 30 X 50.95X 4.55mm
Weight 13mg
WCDMA DATA TERMINAL (DTP-600W Reference Manual)
AnyTime AnyPlace AnyWireless Data Solutions™ 8/14
2.2.2 Receive Specifications
2.2.2.1 WCDMA/HSDPA
Parameters Descriptions
Frequency Range DL : 2110 ~ 2170MHz WCDMA2100
DL : 1930 ~ 1990MHz WCDMA1900
DL : 869 ~ 894MHz WCDMA850
Reference Sensitivity Level -107.7 dBm WCDMA2100
-105.7 dBm WCDMA1900
-104.7 dBm WCDMA850
Adjacent Channel Selectivity (-33dBm @±5MHz) : -92.7dBm
WCDMA2100/1900/
850
Inter modulation -46dBm±10MHz, ±20MHz : -10.3.7dBm
Spurious Response -44dBm/-103.7dBm
In-Band Blocking ±5MHz, ±10MHz -103.7dBm
Peak throughput 3.6Mbps HSDPA
2.2.2.2 GSM / GPRS
Parameters Band Descriptions
Frequency Range
GPRS/EDGE 850 DL 869 ~ 894MHz
GPRS/EDGE 900 DL 925 ~ 960MHz
GPRS/EDGE 1800 DL 1805 ~ 1880MHz
GPRS/EDGE 1900 DL 1930 ~ 1990MHz
Minimum Input level
for Reference
Performance
GPRS850/900/1800/1900
Type of channel
Propagation condition :
Static, BLER : 10%
under
PDTCH/CS-1 (dBm) -104
PDTCH/CS-2(dBm) -104
PDTCH/CS-3(dBm) -104
PDTCH/CS 4(dBm) -101
EDGE850/900/1800/1900
PDTCH/MCS-5 (dBm) -99
PDTCH/MCS-6 (dBm) -97
PDTCH/MCS-7 (dBm) -94
PDTCH/MCS-8 (dBm) -91.5
PDTCH/MCS-9 (dBm) -87
WCDMA DATA TERMINAL (DTP-600W Reference Manual)
AnyTime AnyPlace AnyWireless Data Solutions™ 9/14
2.2.3 Transmit Specifications
2.2.3.1 WCDMA/HSDPA
Parameters Descriptions
Frequency Range
UL : 824 ~ 849MHz WCDMA850
UL : 1850 ~ 1910MHz WCDMA1900
UL : 1920 ~ 1980MHz WCDMA2100
Maximum Output Power 21dBm~25dBm, Power Class III
Minimum Output Power Below –50dBm
Spectrum Emission Mask
Below -35dBc @ 2.5~3.5MHz Offset(30KHz)
Below -35dBc @ 3.5~7.5MHz Offset (1MHz)
Below -39dBc @ 7.5~8.5MHz Offset (1MHz)
Below -49dBc @8.5~12.5MHz Offset (1MHz)
Occupied Bandwidth Below 5MHz
ACLR ±5MHz 33dB, ±10MHz 43dB
2.2.3.2 GPRS/EDGE
Parameters Band Descriptions
Frequency Range
GPRS/EDGE850 DL 824 ~ 849MHz
GPRS/EDGE900 DL 880 ~ 915MHz
GPRS/EDGE1800 DL 1710 ~ 1785MHz
GPRS/EDGE1900 DL 1850 ~ 1910MHz
Frequency error GPRS/EDGE ±0.1ppm (at carrier frequency)
Phase error GPRS Peak phase error 20 degree
RMS phase error 5 degree
Modulation
accuracy
EDGE Quad band :
8PSK
RMS EVM 9% under
Peak EVM 30% under
Transmitter
output power
GPRS/EDGE 850/900
Power level
Output
power
(dBm)
Tolerence (dBm)
5 33 ±2
6 31 ±3
7 29 ±3
8 27 ±3
EDGE
9 25 ±3
10 23 ±3
11 21 ±3
12 19 ±3
13 17 ±3
14 15 ±3
15 13 ±3
16 11 ±5
17 9 ±5
WCDMA DATA TERMINAL (DTP-600W Reference Manual)
AnyTime AnyPlace AnyWireless Data Solutions™ 10/14
18 7 ±5
19 5 ±5
GPRS/EDGE1800/1900
0 30 ±2
1 28 ±3
2 26 ±3
EDGE
3 24 ±3
4 22 ±3
5 20 ±3
6 18 ±3
7 16 ±3
8 14 ±3
9 12 ±4
10 10 ±4
11 8 ±4
12 6 ±4
13 4 ±4
14 2 ±5
15 0 ±5
ORFS@Spectrum
due to modulation
GSM/GPRS 850/900
Frequency offset
(KHz)
0 ~
±100
±200 ±250 ±400 ±600~
<±1800
Relative (dB) +0.5 -30 -33 -60 -60
Absolute (dBm) -36 -51
GSM/GPRS 1800/1900
Frequency offset
(KHz)
0 ~
±100
±200 ±250 ±400 ±600~
<±1800
Relative (dB) +0.5 -30 -33 -60 -60
Absolute (dBm) -36 -56
ORFS@Spectrum
due to switching
transient
GSM/GPRS 850/900
Power (dBm) Frequency offset (KHz)
±400 ±600 ±1200 ±1800
33 -19 -21 -21 -24
31 -21 -23 -23 -26
29 -23 -25 -25 -28
27 -23 -26 -27 -30
25 -23 -26 -29 -32
23 -23 -26 -31 -34
≤21 -23 -26 -32 -36
GSM/GPRS 1800/1900
Power (dBm) Frequency offset (KHz)
±400 ±600 ±1200 ±1800
30 -22 -24 -24 -27
28 -23 -25 -26 -29
26 -23 -26 -28 -31
24 -23 -26 -30 -33
22 -23 -26 -31 -35
≤20 -23 -26 -32 -36
WCDMA DATA TERMINAL (DTP-600W Reference Manual)
AnyTime AnyPlace AnyWireless Data Solutions™ 11/14
2.2.4 QSC6270 Chipset Highlights
Enhanced Processing power a. ARM926EJ-S processor with Java accelerator
b. Advanced QDSP4000 DSP cores
Radio-One ZIF Architecture Support a. Saves board space
b. Integrated solution
High Data Rates HSDPA / EGPRS/GPRS support
2.2.5 Standards
- 3GPP TS 34.121(WCDMA/HSDPA)
- 3GPP TS 51.010-1 (GSM/GPRS)
- HSDPA 3.6 Mbps peak rate category 6
- WCDMA (UMTS) R99/GSM Phase 2+
- GPRS/EGPRS Multislot Class 12, Phase 2+
- DTM Multislot Class 11
2.2.6 Connectivity
- Universal serial bus (USB 2.0)
- UART
WCDMA DATA TERMINAL (DTP-600W Reference Manual)
AnyTime AnyPlace AnyWireless Data Solutions™ 12/14
3. PIN Description and Pin outs
System connector interface
Pin # Type Name Pin # Type Name
51 Input UART_DTR/ 52 Input VEXT_3.3V
49 Output WAN_HOST_WAKE 50 GND GND
47 Output UART_RI/ 48 Input N/C
45 Output UART_DCD/ 46 Output VREG_MSME
43 GND GND 44 Input WAN_USB_EN
41 Input VEXT_3.3V 42 Output LED_WWAN/
39 Input VEXT_3.3V 40 GND GND
37 GND GND 38 Bi USB_CON_D_P
35 GND GND 36 Bi USB_CON_D_M
33 Bi RESOUT_N 34 GND GND
31 Input TRST/ 32 Bi I2C_DATA
29 GND GND 30 Output I2C_CLK
27 GND GND 28 - N/C
25 Input TMS 26 GND GND
23 Input TDI 24 Input VEXT_3.3V
21 GND GND 22 Input WAN_SHUTDOWN_N
19 - PS_HOLD 20 Input WAN_DISABLE_N
17 Input TCK 18 GND GND
15 GND GND 16 - N/C
13 Output TDO 14 Output UIM_RESET
11 Output RTCK 12 Output UIM_CLK
9 GND GND 10 Bi UIM_DATA
7 Output UART_TXD 8 Output VREG_UIM
5 Input UART_CTS/ 6 - N/C
3 Input UART_RXD 4 GND GND
1 Output UART_RFR/ 2 Input VEXT_3.3V
WCDMA DATA TERMINAL (DTP-600W Reference Manual)
AnyTime AnyPlace AnyWireless Data Solutions™ 13/14
4. Mechanical Dimensions
4.1 DTP-600W Outline

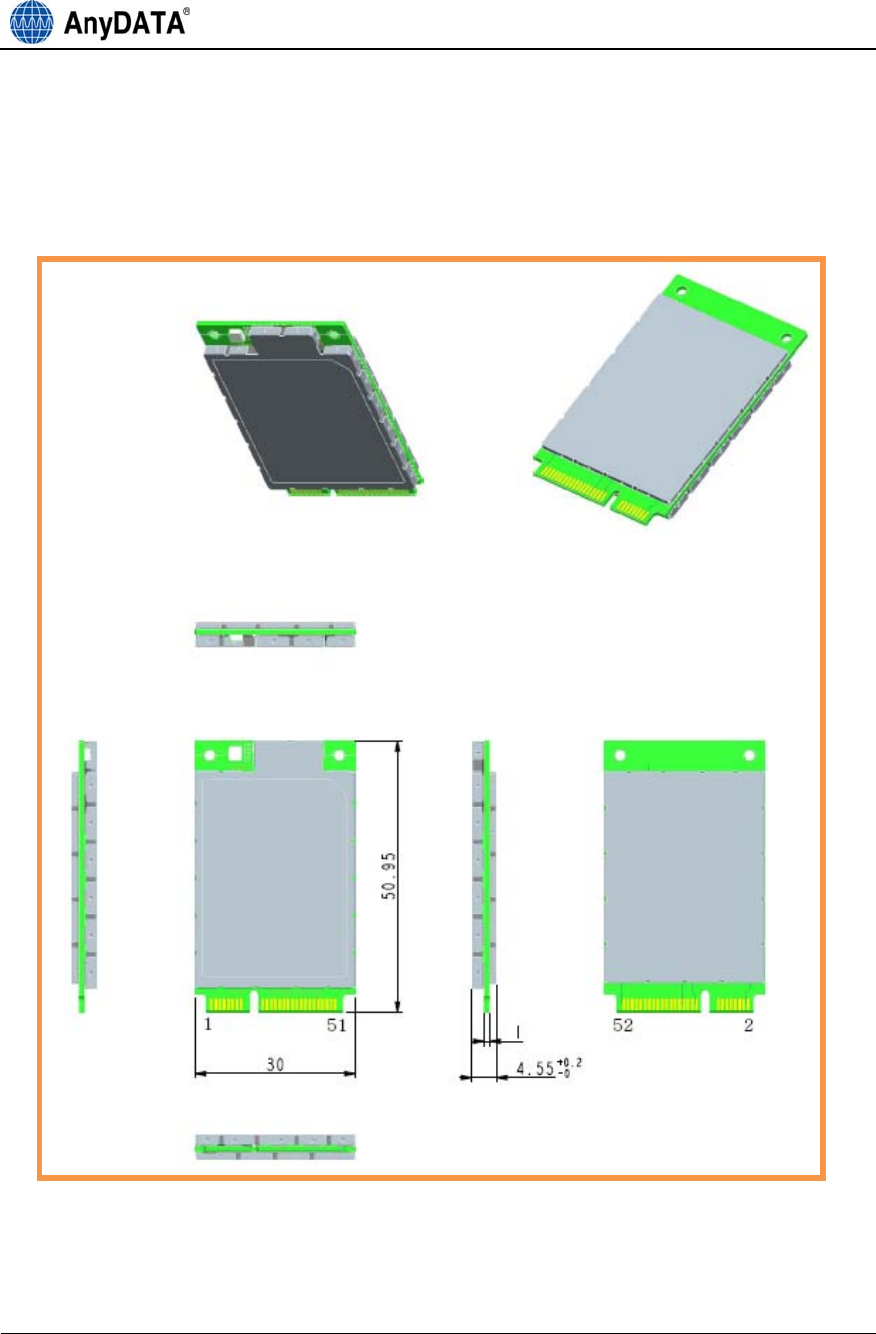

Figure 4-1 DTP-600W Outline (Units: mm)
WCDMA DATA TERMINAL (DTP-600W Reference Manual)
AnyTime AnyPlace AnyWireless Data Solutions™ 14/14
4.2 RF Connector

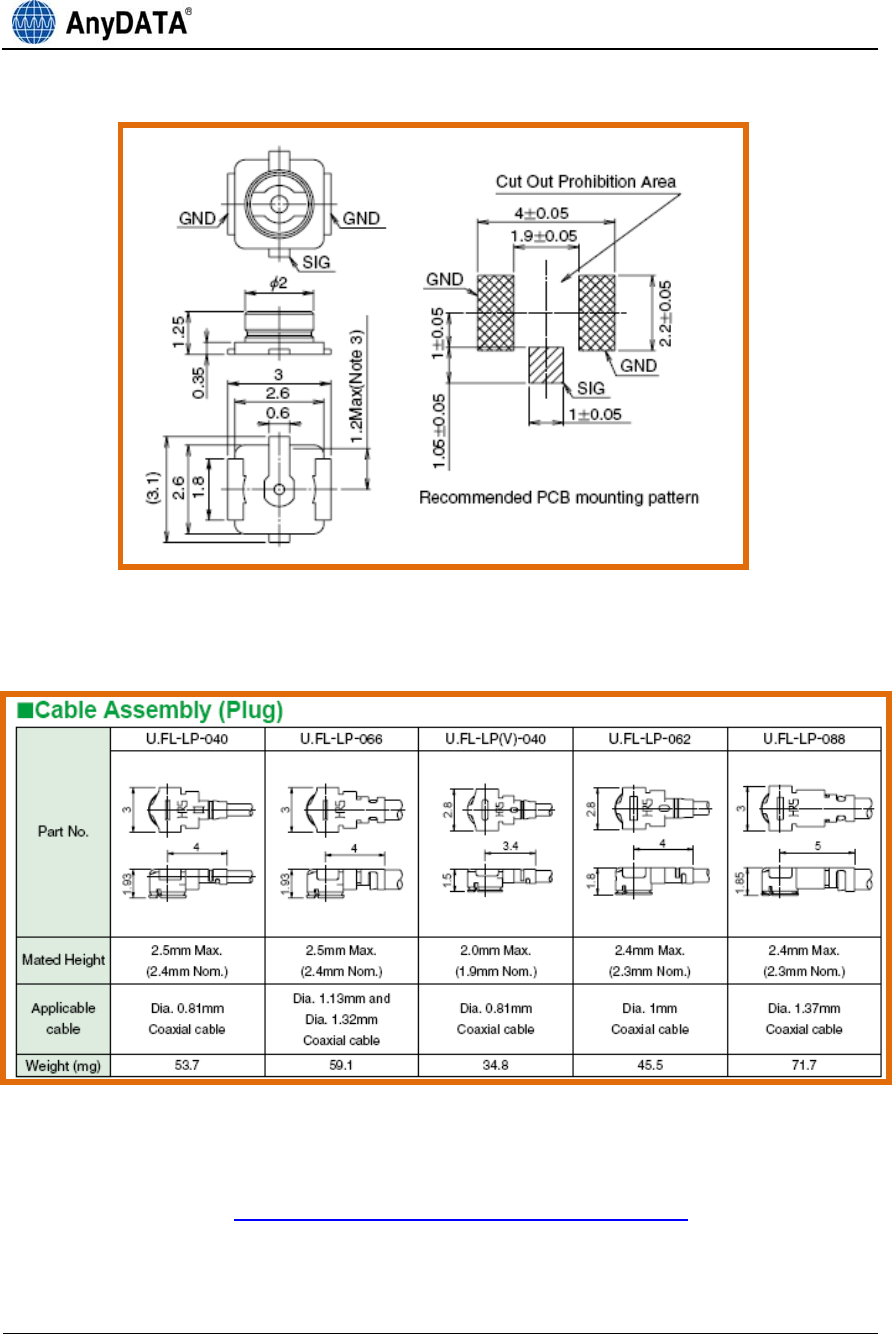

Figure 4-2 RF Connector (Hirose U.FL-R-SMT , Units: mm)
Counter-Part:
Figure 4-3 Mechanical Characteristics of Cable Harness Assembly (Units: mm)
Part name: U.FL-LP
Note: For more information about the RF connector parts, please refer to the file found at
http://www.hirose.co.jp/cataloge_hp/e32119372.pdf
