AnyDATA WDTL718-W HSPA+ Module User Manual DTL718 W FCC x

AnyDATA (Shanghai) Co., Ltd HSPA+ Module DTL718 W FCC x

User Manual

AnyDATA
DTL718-W(-P) Module
AT Command Reference
M2M-AT014-03
2013.3.13
Send Technical Questions to:
support_sh@anydata.com
AnyDATA (Shanghai)
489 SongTao Road, Sector B, 1st FL.
Pudong ZhangJiang Hi-Tech Park, Shanghai, 201203
Tel: +86(021) 5080-4828
Fax: +86(021) 5080-3828
AnyDATA Corporation
5 Oldfield
Irvine, California 92618
USA
http://www.anydata.com
Copyright © AnyDATA Co., Ltd. 2011. All rights reserved.
All data and information contained in or disclosed by this document are confidential and proprietary
information of AnyDATA Corporation, and all rights therein are expressly reserved. By accepting
this material, the recipient agrees that this material and the information contained therein are held in
confidence and in trust and will not be used, copied, reproduced in whole or in part, nor its contents
revealed in any manner to others without the express written permission of AnyDATA Corporation.
Restricted Distribution.
This document contains critical information about AnyDATA Corporation products and may not be
distributed to anyone without permission of AnyDATA Corporation. All data and information
contained in this document are proprietary and confidential information of AnyDATA Corporation.
No part of this document may be reproduced, in any form or any means without written permission
of AnyDATA Corporation.
Notice
Although the information in this document has been carefully reviewed and its believed to be reliable.
AnyDATA Corporation does not assume any liability arising out of the application or use of any
product described herein, Neither does it convey any license under its patent rights nor rights of
others.
AnyDATA DTL718-W(-P) Module AT Command Reference

DocumentHistory
Version Date Description
00 2012-5-25 Initial Version
01 2012-8-2
Add +CLVL\+CMUT commands
Delete set command of +WS46
02 2012-8-28
Add +CNMP command
Add +CMUT command
Modify ATS7 default value
03 2013-3-13
Add +ACELLINFO command
Add GPS-related command
Add $QCPDPP command
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 1 of 82
Contents
1Overview...........................................................................................................................3
1.1Scope of Document ................................................................................................... 3
1.2Normative References ............................................................................................... 4
1.3Abbreviations ............................................................................................................. 4
1.4Definitions.................................................................................................................. 5
2BasicCommands ............................................................................................................. 6
2.1A/, Repeating A Command Line................................................................................. 6
2.2ATE, Command Echo ................................................................................................ 7
2.3+CGMI, Request Manufacturer Identification............................................................. 7
2.4+CGMR, Request Revision Identification................................................................... 7
2.5+CGSN, Request Serial Number Identification .......................................................... 7
2.6+CSCS, Select TE Character Set .............................................................................. 8
2.7+CIMI , Request International Mobile Subscriber Identity (IMSI) ............................... 8
2.8+GCAP, Capabilities List............................................................................................ 9
2.9+CMEE, Report Mobile Equipment Error ................................................................... 9
3CallControlCommands ................................................................................................. 10
3.1ATA, Answer............................................................................................................. 10
3.2ATD, Dial.................................................................................................................. 11
3.3ATH, Disconnect ...................................................................................................... 11
3.4ATS0, Enables/disables Automatic Answering......................................................... 11
3.5+CSTA, Selects Type of Address ............................................................................. 12
3.6+CHUP, Hangup Call ............................................................................................... 12
3.7+CRLP, Radio Link Protocol..................................................................................... 13
3.8+CEER, Extended Error Report............................................................................... 14
3.9+VTS, DTMF And Tone Generation ......................................................................... 14
3.10ATS, S Parameters .................................................................................................. 15
3.11+CHLD, Call Related Supplementary Services........................................................ 16
4NetworkServiceCommands......................................................................................... 17
4.1+CNUM, Subscriber Number ................................................................................... 17
4.2+CREG, Network Registration Report...................................................................... 18
4.3+CGREG, GPRS Network Registration Status......................................................... 19
4.4+COPS, Operator Selection..................................................................................... 20
4.5+CPOL, Preferred Operator List .............................................................................. 21
4.6+CPLS, Selection of Preferred PLMN List ............................................................... 22
4.7+COPN, Read Operator Names .............................................................................. 23
4.8+CNMP, Preferred Mode Seletion............................................................................ 23
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 2 of 82

4.9+CLCK, Facility Lock/Unlock.................................................................................... 24
4.10+CPWD, Change Facility Password ........................................................................ 25
4.11+CLIP, Calling Line Identification Presentation ........................................................ 26
4.12+CLIR, Calling Line Identification Restriction........................................................... 27
4.13+COLP, Connected Line Identification Presentation ................................................ 28
4.14+FCLASS, Select Mode........................................................................................... 29
4.15+CBST, Select Bearer Service Type ........................................................................ 30
4.16+CCUG, Closed User Group.................................................................................... 31
4.17+ACELLINFO, Cell Information Request ................................................................. 32
5MEControl&StatusCommands...................................................................................33
5.1+CPAS, Phone Activity Status.................................................................................. 33
5.2+CFUN, Set Phone Functionality............................................................................. 34
5.3+CPIN, Enter PIN..................................................................................................... 35
5.4+CSQ, Signal Quality............................................................................................... 36
5.5+CCLK, Clock .......................................................................................................... 36
5.6+CSIM, Generic SIM access.................................................................................... 37
5.7+CLAC, List all available AT commands .................................................................. 37
5.8+CTZU, Automatic Time Zone Update ..................................................................... 38
5.9+CTZR, Time Zone Reporting.................................................................................. 38
5.10+IFC, MT-TE Local Flow Control.............................................................................. 39
5.11&D, Set DTE Ready (DTR) Line Mode..................................................................... 40
5.12&C, Set Carrier Detection (DCD) Line Mode............................................................ 40
5.13+IPR, Fixed DTE Rate ............................................................................................. 41
5.14&F, Set to Factory Defined Configuration................................................................. 41
5.15&W, Store User Settings .......................................................................................... 42
5.16+WS46, Select Wireless Network ............................................................................ 42
6SMSCommands............................................................................................................. 42
6.1+CPMS, Preferred Message Storage....................................................................... 43
6.2+CMGF, Message Format........................................................................................ 44
6.3+CMGL, List Messages............................................................................................ 44
6.4+CMGD, Delete Message........................................................................................ 47
6.5+CMGR, Read Message.......................................................................................... 48
6.6+CMGS, Send Message .......................................................................................... 50
6.7+CMGW, Write Message To Memory....................................................................... 51
6.8+CMSS, Send Message from Storage ..................................................................... 52
6.9+CNMI, New Message Indications To TE................................................................. 53
6.10+CNMA, New Message Acknowledgement.............................................................. 55
6.11+CMT, New Message Indication .............................................................................. 56
6.12+CMTI, Memory Location Indication ........................................................................ 58
6.13+CSDH, Show Text Mode Parameters..................................................................... 58
6.14+CSCA, Service Centre Address ............................................................................. 59
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 3 of 82

6.15+CSCB, Select Cell Broadcast Message Types....................................................... 60
6.16+CSMP, Set Text Mode Parameters......................................................................... 61
6.17+CSMS, Select Message Service............................................................................ 61
6.18+CMMS, More Messages to Send........................................................................... 62
6.19+CGSMS, Select service for MO SMS messages ................................................... 63
7PhonebookCommands................................................................................................. 64
7.1+CPBS, Select Phonebook Memory Storage........................................................... 64
7.2+CPBR, Read Phonebook Entries........................................................................... 65
7.3+CPBW, Write Phonebook Entry ............................................................................. 66
7.4+CPBF, Find Phonebook Entry ................................................................................ 67
8GPRSCommands........................................................................................................... 68
8.1+CGATT, PS Attach or Detach ................................................................................. 68
8.2+CGDCONT, Define PDP Context ........................................................................... 69
8.3$QCPDPP, PDP Authentication ............................................................................... 70
8.4+CGACT, PDP Context Activate or Deactivate ........................................................ 71
8.5+CGDATA, Enter Data State .................................................................................... 72
8.6+CGPADDR, Show PDP address ............................................................................ 72
9GPSCommands ..............................................................................................................73
9.1^GPSMODE, GPS Mode Set................................................................................... 73
9.2^GPSLOC, Launch Positioning................................................................................ 74
9.3^GPSEND, End Current Positioning ........................................................................ 74
9.4^GPSMPCIP, MPC Server IP & Port ..................................................................... 74
9.5^GPSRES, Reset Position Infomation ..................................................................... 75
9.6^GPSQOS, GPS QOS............................................................................................. 75
9.7^GPSPORT, GPS NMEA Serial Port........................................................................ 76
9.8^GPSFMT, NMEA Data Format................................................................................ 76
9.9Standalone Positioning ............................................................................................ 77
9.10AGPS Positioning .................................................................................................... 78
9.11NMEA Data Format.................................................................................................. 78
9.12Reset Position Infomation........................................................................................ 79
9.13Set GPS QOS Parameters ...................................................................................... 80
1 Overview
1.1 ScopeofDocument
This document describes all AT commands implemented on AnyDATA DTL718-W module, for
internal or manufacturer use.
As the firmware of DTL718-W-P and DTL718-W module are the same, the document can also be
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 4 of 82

applied to DTL718-W-P module.
1.2 NormativeReferences
The following documents contain provisions which, through reference in this text, constitute
provisions of the present document.
[1] ETSI GSM 07.07
[2] ETSI GSM 07.07
[3] TIA-EIA-IS-707-A.3
[4] ITU-T Recommendation V.25 ter [14]
1.3 Abbreviations
Abbreviations Full Spelling
3GPP Third Generation Partnership Project
BER Bit Error Rate
CDMA Code Division Multiple Access
CLIP Call Line Identifier presentation
DCE Data Circuit Equipment
DCS Data coding scheme
DTE Data Terminal Equipment
GPRS General Packet Radio Service
GSM Global System for Mobile Communications
IMEI International Mobile Equipment Identity
ITU-T International Telecommunication Union-
Telecommunication Standardization Sector
IWF Interworking Function
MT Mobile Terminal
PDP Packet Data Protocol
PIN Personal Identity Number
PLMN Public land mobile network
PUK PIN Unblocking Key
RPLMN Registered PLMN
RSSI Receive signal strength indicator
SCA Service Center Address
SIM GSM Subscriber Identity Module
SM Short message
TE Terminal Equipment
UIM User Identity Module
URC Unsolicited result code
USIM Universal Subscriber Identity Module
WCDMA Wideband CDMA
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 5 of 82

1.4 Definitions
The following syntactical definitions apply:
<CR> Carriage return character, is the command line and result code terminator character,
which value, in decimal ASCII between 0 and 255,is specified within parameter S3. The default
value is 13.
<LF> Linefeed character, is the character recognized as line feed character. Its value, in
decimal ASCII between 0 and 255, is specified within parameter S4. The default value is 10. The
line feed character is output after carriage return character if verbose result codes are used (V1
option used ) otherwise, if numeric format result codes are used (V0 option used) it will not
appear in the result codes.
<...> Name enclosed in angle brackets is a syntactical element. They do not appear in the
command line.
[...] Optional subparameter of a command or an optional part of TA information response is
enclosed in square brackets. Brackets themselves do not appear in the command line. When
subparameter is not given in AT commands which have a Read command, new value equals to
its previous value. In AT commands which do not store the values of any of their subparameters,
and so have not a Read command, which are called action type commands, action should be
done on the basis of the recommended default setting of the subparameter.
As 3GPP TS 17.007 describes, there is a TA part between TE and MT. And in the TIA/EIA IS
707-A’s description, TA part is ignored. In order to describe uniformly, PC or AP is considered as
TE; TA part is merged into MT.

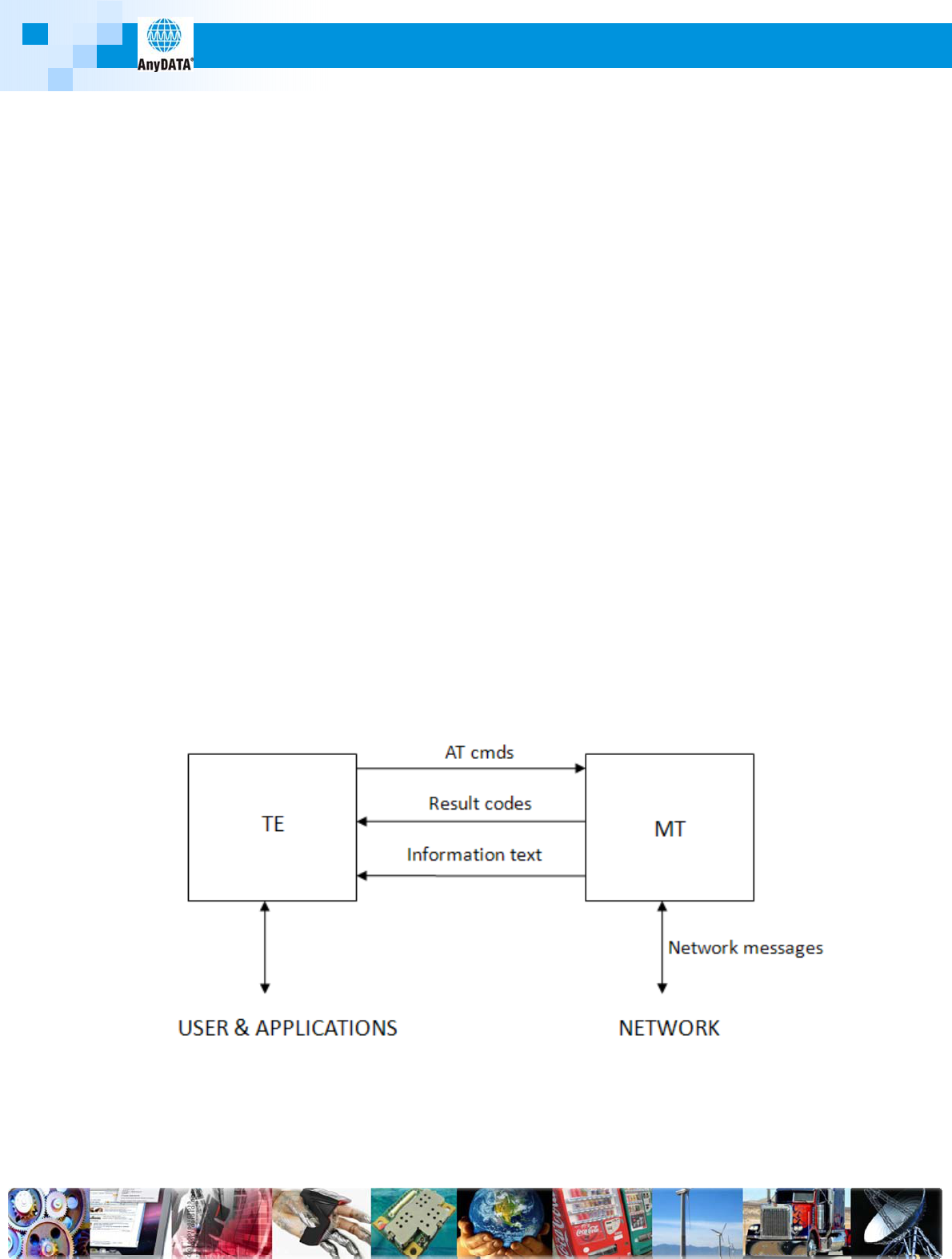

The following is a figure of Data exchange structure:
AT command is transmitted as data packets through the communication ports. In addition to
these two characters “AT”, data packets can receive up to 260 characters in length (including the
final null character). The maximum length of the URC or response messages reported by MT is
limited to 668 characters range.
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 6 of 82

Each command line can contain one AT command. For the URC or response messages, it is not
allowed to report more than one message in a line. Each line ends with a carriage return. S3/S4
command modification is unavailable to users. These principles are applied in the
communications between MT and TE.
To increase the readability and normativity of the command, there should be no space after a
comma or colon in a new defined interface, for example: AT+XXX:<arg0>,<arg1>.
When an AT command is transmitted from TE, the second command will be transmitted after a
response of the first command from MT, otherwise the second one will not be executed.
It may take a long time to feedback the results of the AT command, and the responses may be
broken by URC. To avoid this interface, it is recommended to report the result codes
asynchronously. There are two kinds of interface. One is that an URC is reported when waiting
for a response. The command is still in the implementation process and the result codes will be
reported after the URC. The other is that the response will be reported mixing up with the URC.
The RING command is a special URC. For some special cases, it will be used as a command
terminator. For example, when it is in the implementation process of a hang-up command, the
RING URC will terminate the hang-up process abnormally.
Unless otherwise specified, all the default encoding format between TE and MT are GSM 7 bit
Default Alphabet, according to 3GPP TS 23.038 Section 6. Characters @ is still transmitted in
7bit encoding as 0x00. MT and TE should be able to handle the character. MT transmits the
carriage return character (<CR>) and line feed character (<LF>) in the string as a space.
The definition of the string: stream of bytes up by the double quotes, without quotes or commas.
A group of quote and comma character should not appear in strings, otherwise strings cannot be
distinguished from the parameters. For UCS2 encoded data format, its value is reported as the
character encoding format, such as that a character of the UCS2 coded 0x553a is reported as
553a.
2 BasicCommands
2.1 A/,RepeatingACommandLine
Description
If the prefix "A/" or "a/" is received, the module shall immediately execute once again
the body of the preceding command line.
Syntax
Execution command A/
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 7 of 82

Example
AT+CSQ
+CSQ: 99,0
OK
A/
+CSQ: 99,0
2.2 ATE,CommandEcho
Description
Set command enables/disables the command echo.
Syntax
Set command ATE[<n>]
Response OK
Parameter
<n> 0 - disables command echo
1 - enables command echo (factory default) , hence command sent to the
device are echoed back to the DTE before the response is given.
Note: if parameter is omitted, the command has the same behavior of ATE1.
2.3 +CGMI,RequestManufacturerIdentification
Description
Execution command returns the device manufacturer identification code.
Syntax
Execution command AT+CGMI
Response AnyDATA CO., LTD
OK
2.4 +CGMR,RequestRevisionIdentification
Description
Execution command returns device software revision number.
Syntax
Execution command AT+CGMR
Response <version>
OK
2.5 +CGSN,RequestSerialNumberIdentification
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 8 of 82

Description
Execution command returns the device ESN.
Syntax
Execution command AT+CGSN
Response <sn>
Parameter
<sn> the device board serial number , an octet in hexadecimal format
Example
AT+CGSN
42FB40B5
OK
2.6 +CSCS,SelectTECharacterSet
Description
Set command sets the current character set used by the device.
Syntax
Set command
Response
AT+CSCS=<chset>
OK
Read command
Response
AT+CSCS?
+CSCS: <chset>
Test command
Response
AT+CSCS=?
+CSCS: (list of supported <chset>s)
Parameter
<chset> character set
“IRA” - ITU-T.50 (default)
”UCS2” - 16-bit universal multiple-octet coded character set
Example
AT+CSCS=?
+CSCS: ("IRA","UCS2")
OK
AT+CSCS?
+CSCS:”IRA”
OK
2.7 +CIMI,RequestInternationalMobileSubscriberIdentity(IMSI)
Description
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 9 of 82

Execution command returns the value of the Internal Mobile Subscriber Identity.
Syntax
Execution command AT+CIMI
Response <imsi>
Parameter
<imsi> the value of the Internal Mobile Subscriber Identity, a string of decimal digits
Example
AT+CIMI
460016191604844
OK
2.8 +GCAP,CapabilitiesList
Description
Execution command returns the equipment supported command set list. The command works
only when UIM card exists.
Syntax
Execution command AT+GCAP
Response +GCAP: <cap>
Parameter
<cap> the equipment supported command set list.
+CGSM: GSM supported
+FCLASS: Fax command set
+ES: Error control command set
+DS: Data Service common modem command set
Example
AT+GCAP
+GCAP: +CGSM,+ES ,+DS +FCLASS
OK
2.9 +CMEE,ReportMobileEquipmentError
Description
Set command enables/disables the report of result code: +CME ERROR: <err> as an indication
of an error relating to the commands issued. When enabled, device related errors cause the
+CME ERROR: <err> final result code instead of the default ERROR final result code. ERROR is
anyway returned normally when the error is not related to MT.
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 10 of 82

Syntax
Set command
Response
AT+CMEE=<n>
OK
Read command
Response
AT+CMEE?
+CMEE: <n>
Test command
Response
AT+CMEE=?
+CMEE: (list of supported <n>s)
Parameter
<n>
enable flag
0 - disable +CME ERROR:<err> reports, use only ERROR report
1 - enable +CME ERROR:<err> reports, with <err> in numeric format
2 - enable +CME ERROR: <err> reports, with <err> in verbose format(default)
Example
AT+CMEE=0
OK
AT+CGSN
ERROR
AT+CMEE=1
OK
AT+CGSN
+CME ERROR: 23
AT+CMEE=2
OK
AT+CGSN
+CME ERROR: memory failure
AT+CMEE=?
+CMEE: (0, 1, 2)
3 CallControlCommands
3.1 ATA,Answer
Description
Execution command is used to answer to an incoming call if automatic answer is disabled.
Syntax
Execution command ATA
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 11 of 82

Response OK
or: ERROR
3.2 ATD,Dial
Description
Execution command starts a data call to the phone number given as parameter.
Syntax
Execution command ATD<phonenumber>;
ATD>mem<n>;
ATD><string>;
Response OK
or ERROR
Parameter
<phonenumber>
mem<n>
<string>
phone number to be dialed, a string of 0 or more of the characters:
“0 1 2 3 4 5 6 7 8 9 * #”
initiates a call from the currently selected phone book, location <n>
initiates a call from the currently selected phone book, the
parameter describes the text associated to the number in
phonebook
Example
ATD13800138000;
OK
ATD>“John”;
OK
3.3 ATH,Disconnect
Description
Execution command is used to close the current conversation.
Syntax
Execution command ATH<value>
Response OK
or: ERROR
3.4 ATS0,Enables/disablesAutomaticAnswering
Description
Set command sets the number of rings required before device automatically answers an
incoming call.
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 12 of 82

Syntax
Set command
Response
ATS0=<value>
OK
Read command
Response
ATS0?
<value>
Parameter
<value> 0 auto answer disabled (factory default)
1 to 255 number of rings required before automatic answer
Example
ATS0=2
OK
ATS?
002
3.5 +CSTA,SelectsTypeofAddress
Set command sets the type of address to dial.
Syntax
Set command
Response
AT+CSTA=<type>
OK
Read command
Response
AT+CSTA?
+CSTA: <type>
Test command
Response
AT+CSTA=?
+CSTA: (list of supported <type>s)
Parameter
<type>
type of address
129 - number in national format
145 - number in international format (contains the "+")
Example
AT+CSTA=129
OK
AT+CSTA=?
+CSTA: (129, 145)
3.6 +CHUP,HangupCall
Description
Execution command hangs up all active calls, giving an assured procedure to terminate an
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 13 of 82

alternating mode call.
Syntax
Execution command
Response
AT+CHUP
OK
3.7 +CRLP,RadioLinkProtocol
Description
Radio link protocol (RLP) parameters used for non-transparent data calls.
Syntax
Set command
Response
AT+CRLP=<iws>,<mws>,<T1>,<N>,<ver>
OK
Read command
Response
AT+CRLP?
+CRLP: <iws>,<mws>,<T1>,<N>,0
+CRLP: <iws>,<mws>,<T1>,<N>,1
+CRLP: <iws>,<mws>,<T1>,<N>,2
Test command
Response
AT+CRLP=?
+CRLP: (list of supported <iws>,<mws>,<T1>,<N>s),0
+CRLP: (list of supported <iws>,<mws>,<T1>,<N>s),1
+CRLP: (list of supported <iws>,<mws>,<T1>,<N>s),2
Parameter
<ver> version
For Version 0 and 1, the following parameter values are supported:
<iws>
<mws>
<T1>
<N>
IWF to MS window size, range from 0 to 61
MS to IWF window size, range from 0 to 61
acknowledgement timer , in 10ms units, range from 38 to 255
retransmission attempts , range from 1 to 255
For Version 2, the following parameter values are supported:
<iws>
<mws>
<T1>
<N>
IWF to MS window size, range from 0 to 488
MS to IWF window size, range from 0 to 488
acknowledgement timer , in 10ms units, range from 42 to 255
retransmission attempts, range from 1 to 255
Example
AT+CRLP=61,61,48,6,0
OK
AT+CRLP=?
+CRLP: (0-61),(0-61),(38-255),(1-255),0
+CRLP: (0-61),(0-61),(38-255),(1-255),1
+CRLP: (0-488),(0-488),(42-255),(1-255),2
OK
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 14 of 82

AT+CRLP?
+CRLP: 61,61,48,6,0
+CRLP: 61,61,48,6,1
+CRLP: 240,240,52,6,2
OK
3.8 +CEER,ExtendedErrorReport
Description
Execution command returns information text, which offers the user an extended report for the
reason of the failure of the last unsuccessful call set up (originating or answering) or in-call
modification.
Syntax
Execution command
Response
AT+CEER
+CEER: <report>
Parameter
<report> an extended report for
- the failure in the last unsuccessful call setup(originating or answering) or
in-call modification;
- the last call release;
- the last unsuccessful GPRS attach or unsuccessful PDP context
activation;
- the last GPRS detach or PDP context deactivation.
Example
ATD13800138000;
OK
NO CARRIER
AT+CEER
+CEERUser busy
OK
3.9 +VTS,DTMFAndToneGeneration
Description
Set command allows the transmission of DTMF tones.
Syntax
Set command
Response
AT+VTS=<string>
OK
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 15 of 82

Test command
Response
ATVTS<string>
+VTS: (list of supported <string>s)
Parameter
<string> a single ASCII character in the set 0-9, #,*,A-D
Example
ATD10010;
OK
AT+VTS=3
AT+VTS?
+VTS: (0-9, A-D, *, #)
OK
3.10 ATS,SParameters
Description
Basic commands that begin with the letter “S” are known as “S-Parameters”. The number
following the “S” indicates the “parameter number” being referenced.
Syntax
Set command
Response
ATSn=<value>
OK
Read command
Response
ATSn?
Sn: <value>
Parameter
S0
S3
S4
S5
S6
S7
set the number of rings required before device automatically answers an
incoming call.
<value>=0 auto answer disabled (factory default)
1 to 255 number of rings required before automatic answer
set the value of the character recognized by the device as command line
terminator, range is 0 to 127; factory default value is 013 (ASCII CR)
set the value of the character generated by the device as part of the header,
trailer, and terminator for result codes and information text, range is 0 to 127;
factory default value is 010 (ASCII LF)
set the value of the character recognized by the device as a request to delete
from the command line the immediately preceding character, range is 0 to 127;
factory default value is 008 (ASCII BS).
set the pause before blind dialing, range is 2 to 10; factory default value is 002
sets number of seconds to wait for completion of call answering or originating
procedure before giving up and disconnecting; range is 0 to 255, factory default
value is 000
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 16 of 82

S8
specifies the amount of time, in seconds, that the TE shall pause, during
signaling of call addressing information to the network (dialing), when a ","
(comma) dial modifier is encountered in a dial string. range is 1 to 255, factory
default value is 002.
Example
ATS6=8
OK
ATS6?
008
3.11 +CHLD,CallRelatedSupplementaryServices
Description
Set command allows call control using Call Hold and MultiParty.
Syntax
Set command
Response
AT+CHLD=<n>
OK
Test command
Response
AT+CHLD=?
+CHLD: (list of supported <n>s)
Parameter
<n> 0 – release all held calls or sets User Determined User Busy(UDUB) for a
waiting call
1 – releases all active calls (if any exist) and accepts the other (held or
waiting) call
1x – releases a specific active call X
2 – places all active calls (if any exist) on hold and accepts the other (held
or waiting) call
2x – places all active calls on hold except call X with which communication
shall be supported.
3 – adds a held call to the conversation
4 – connects the two calls and disconnects the subscriber from both
calls(ECT)
Note:
1. X is range from 1 to 7
2. This is based on the GSM supplementary services HOLD (Call Hold),
MPTY (MultiParty) and ECT (Explicit Call Transfer). The application of
the command depends on various carriers, such as AT+CHLD=3.
3. Set AT+CHLD=1 first to release the active call, then the current
conversation can be closed by ATH.
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 17 of 82

Example
ATD10086;
ATD10010;
AT+CLCC
+CLCC: 1,0,1,0,0,”10086”,129,”CCCC
+CLCC: 2,0,0,0,0,”10010”,129
OK
AT+CHLD=3
OK
AT+CLCC
+CLCC: 1,0,0,0,1,”10086”,129,”CCCC
+CLCC: 2,0,0,0,1,”10010”,129
OK
AT+CHLD=22
OK
AT+CLCC
+CLCC: 1,0,1,0,0,”10086”,129,”CCCC
+CLCC: 2,0,0,0,0,”10010”,129
AT+CHLD=?
+CHLD(0,1,1x,2,2x,3,4)
OK
4 NetworkServiceCommands
4.1 +CNUM,SubscriberNumber
Description
Execution command returns the MSISDNs related to the subscriber. If subscriber has different
MSISDN for different services, each MSISDN is returned in a separate line.
Syntax
Execution command
Response
AT+CNUM
+CNUM: [<alpha1>],<number1>,<type1>
+CNUM: [<alpha2>],<number2>,<type2>
[...]]
Parameter
<alphax> optional alphanumeric string associated with <numberx>, as
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 18 of 82

<numberx>
<typex>
defined in +CSCS
string type phone number of format specified by <typex>
type of address octet in integer format
Example
AT+CNUM
+CNUM: ,"13925275265",129
+CNUM: ,"13145854693",129
OK
4.2 +CREG,NetworkRegistrationReport
Description
Set command enables/disables network registration reports. The unsolicited results code reports
the network registration status.
Syntax
Set command
Response
AT+CREG=<n>
OK
Read command
Response
AT+CREG?
+CREG: <n>,<stat>[,<lac>,<ci>]
Test command
Response
AT+CREG=?
+CREG: (list of supported <n>s)
Unsolicited message +CREG: <stat>[,<lac>,<ci>]
Parameter
<n>
<stat>
<lac>
<ci>
0 - disable network registration unsolicited result code
1 - enable network registration unsolicited result code +CREG: <stat>
2 - enable network registration and location information unsolicited result
code +CREG: <stat>[,<lac>,<ci>]
0 - not registered, ME is not currently searching a new operator to register to
1 - registered, home network
2 - not registered, but ME is currently searching a new operator to register to
3 - registration denied
4 - unknown
5 - registered, roaming
string type; two byte location area code in hexadecimal format (e.g. "00C3"
equals 195 in decimal)
string type; two byte cell ID in hexadecimal format
Example
AT+CREG=2
OK
AT+CREG?
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 19 of 82

+CREG: 2,1,250040,7C48
OK
AT+CREG=?
+CREG: (0-2)
OK
4.3 +CGREG,GPRSNetworkRegistrationStatus
Description
Set command enables/disables GPRS network registration reports. The unsolicited results code
reports the GPRS network registration status.
Syntax
Set command
Response
AT+CGREG=<n>
OK
Read command
Response
AT+CGREG?
+CGREG: <n>,<stat>[,<lac>,<ci>]
Test command
Response
AT+CGREG=?
+CGREG: (list of supported <n>s)
Unsolicited message +CGREG: <stat>[,<lac>,<ci>]
Parameter
<n>
<stat>
<lac>
<ci>
0 - disable network registration unsolicited result code
1 - enable network registration unsolicited result code +CGREG:
<stat>
2 - enable network registration and location information unsolicited
result code +CGREG: <stat>[,<lac>,<ci>]
0 - not registered, ME is not currently searching a new operator to
register to
1 - registered, home network
2 - not registered, but ME is currently searching a new operator to
register to
3 - registration denied
4 - unknown
5 - registered, roaming
string type; two byte location area code in hexadecimal format (e.g.
"00C3" equals 195 in decimal)
string type; two byte cell ID in hexadecimal format
Example
AT+CGREG=2
OK
AT+CGREG?
+CGREG: 2,1, 250040, 7C48
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 20 of 82

OK
4.4 +COPS,OperatorSelection
Description
Registers/displays network operators available.
Syntax
Set command
Response
AT+COPS=[<mode>[,<format>[,<oper>[,<AcT>]]]]
OK
Read command
Response
AT+COPS?
+COPS: <mode>[,<format>,<oper>,<AcT>]
Test command
Response
AT+COPS=?
+COPS: (<stat1>,<oper1(in<format>=0)>,
<oper1(in<format>=1)>,<oper1(in<format>=2)>,<AcT1>),
(<stat2>,<oper2(in<format>=0)>,<oper2(in<format>=1)>,
<oper2(in<format>=2)>,<AcT2>),[…]
(list of supported <mode>s),(list of supported <format>s)
Parameter
<mode>
<format>
<oper>
<AcT>
<stat>
registration mode
0 – automatic (<oper> field is ignored)
1 – manual (<oper> field shall be present)
2 – de-register from network
3 – set only <format> (for read command AT+COPS?), do not attempt
registration/de-registration (<oper> field is ignored); this value is not
applicable in read command response
4 – manual/automatic (<oper> field shall be present); If manual selection
falls, automatic mode <mode>=0) is entered
Note: If the selected operator is not available, other operators also
cannot be registered, except for <mode>=4
format of <oper> reports
0 – long format alphanumeric <oper>
1 - short format alphanumeric <oper>
2 – numeric <oper>
Shows the operator identity, within speech marks, in the format set by
<format>
access technology
0 – GSM
1 – GSM COMPACT
2 – UTRAN
availability of operator
0 – unknown
1 – available
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 21 of 82

2 – current
3 – forbidden
Example
AT+COPS=0,1,"46001",2
OK
AT+COPS?
+COPS: 0,1,"UNICOM",2
OK
AT+COPS=2
OK
AT+COPS?
+COPS: 2, 1,"UNICOM"2
OK
AT+COPS=?
+COPS:
(3,"CHINAMOBILE","CMCC","46000",0),(2,"CHN-UNICOM","UNICOM","46001",2),
(0,1,2,3,4),(0,1,2)
OK
4.5 +CPOL,PreferredOperatorList
Description
Set command is used to edit the SIM preferred list of networks. In EFPLMsel, one operator can
only be stored once. To modify the information of the operator, please delete the record, and
then add one.
Syntax
Set command
Response
AT+CPOL=[<index>][,<format>[,<oper>[,<GSM_AcT>,
<GSM_Compact_AcT>,<UTRAN_AcT>]]]
OK
Read command
Response AT+CPOL
+CPOL:<index>,<format>,<oper>,<GSM_AcT>,
<GSM_Compact_AcT>,<UTRAN_AcT>
Test command
Response
AT+CPOL=?
+CPOL: (list of supported <index>s), (list of supported <format>s)
Parameter
<index>
Integer type; the order number of operator in the SIM
preferred operator list. With the execute command, if
<index> is left out, the next free location shall be used
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 22 of 82

<format>
<oper>
<GSM_AcT>,
<GSM_Compact_AcT>,
<UTRAN_AcT>
if only the <format> is given, the result format changes for
the read command
0 – long format alphanumeric <oper>
1 - short format alphanumeric <oper>
2 – numeric <oper>
string type, Shows the operator identity, within speech
marks, in the format set by <format>
Note: To delete an entry, give <index> but leave out
<oper>
access technologies, set “1” to select and the other two
set “0”
Example
AT+CPOL=1,2,”46000”,0,0,1
OK
AT+CPOL=2
OK
AT+CPOL=,2
AT+CPOL
+CPOL: 1,2,”46000”,0,0,1
+CPOL: 3,2,”46001”,0,0,1
OK
AT+CPOL=?
+CPOL: (1-8),(0-2)
OK
4.6 +CPLS,SelectionofPreferredPLMNList
Description
Set command selects a preferred PLMN list from the UIM.
Syntax
Set command
Response
AT+CPLS=<list>
OK
Read command
Response
AT+CPLS?
+CPLS: <list>
Test command
Response
AT+CPLS=?
+CPLS: (list of supported <list>s)
Parameter
<list> 0 - User controlled PLMN selector with Access Technology EFPLMNwAcT, if not
found in the SIM/UICC then PLMN preferred list EFPLMNsel (this file is only
available in SIM card or GSM application selected in UICC)
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 23 of 82

1 - Operator controlled PLMN selector with Access Technology EFOPLMNwAcT
2 - HPLMN selector with Access Technology EFHPLMNwAcT
Example
AT+CPLS=?
+CPLS: 0,1,2
AT+CPLS=1
OK
4.7 +COPN,ReadOperatorNames
Description
Execution command returns the list of operator names from the module. Each operator code
<numericx> that has an alphanumeric equivalent <alphax> in the ME memory.
Syntax
Execution command
Response
AT+COPN
+COPN: <numeric1>,<alpha1>
+COPN: <numeric2>,<alpha2>
+COPN: [...]]
Parameter
<numericx>
<alphax>
string type, operator in numeric format (see AT+COPS)
string type, operator in long alphanumeric format (see AT+COPS)
Example
AT+COPN
+COPN: "46000","CHINA MOBILE"
+COPN: "46001","CHN-CUGSM"
OK
4.8 +CNMP,PreferredModeSeletion
Description
Execution command selects the state of the mode preference.
Syntax
Set command
Response
AT+CNMP=<mode>
OK
Read command
Response
AT+CNMP?
+CNMP: <mode>
Test command
Response
AT+CNMP=?
+CNMP: (list of supported <mode>s)
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 24 of 82

Parameter
<mode> preferred mode
2 - Automatic
13 - GSM Only
14 - WCDMA Only
19 - GSM+WCDMA
Example
AT+CNMP=13
OK
AT+CNMP?
+CNMP: 13
AT+CNMP=?
+CNMP: (1,2,3,13,14,19)
4.9 +CLCK,FacilityLock/Unlock
Description
Set command is used to lock or unlock a ME or a network facility.
Syntax
Set command
Response
AT+CLCK=<fac>,<mode>[,<passwd> [,<class>]]
when <mode>=2:
+CLCK: <status>[,<class>]
when <mode>=0 or 1:
OK
Test command
Response
AT+CLCK=?
+CLCK: (list of supported <fac>s)
Parameter
<fac>
facility
"AB" - All Barring services (not supported temporarily)
“AC” – All in Coming barring services (not supported temporarily)
“AG” – All out Going barring services (not supported temporarily)
"AI" - BAIC (Barr All Incoming Calls) (not supported temporarily)
"AO"- BAOC (Barr All Outgoing Calls) (not supported temporarily)
"IR" - BIC-Roam (Barr Incoming Calls when Roaming outside the home
country)
"OI" - BOIC (Barr Outgoing International Calls)
"OX" - BOIC-exHC (Barr Outgoing International Calls except to Home
Country)
"SC" - SIM (PIN request) (device asks SIM password at power-up and
when this lock command issued)
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 25 of 82

<mode>
< status >
<passwd>
<class>
“FD” – SIM card or active application in the UICC(GSM or USIM) fixed
dialing memory feature (not supported temporarily)
“PN” – network personalization (not supported temporarily)
“PU” – network sUbset personalization (not supported temporarily)
“PP” – service provider personalization (not supported temporarily)
“PC” – corporate personalization (not supported temporarily)
“PF” – lock phone to the very first inserted SIM/UICC card (not
supported temporarily)
defines the operation to be done on the facility
0 - unlock facility
1 - lock facility
2 - query status
current status of the facility
0 - not active
1 - active
shall be the same as password specified for the facility from the DTE
user interface or with command Change Password +CPWD; this field is
necessary when <mode>=0 or 1.
sum of integers each representing a class of information(not supported)
2 - data (refers to all bearer services)
4 - fax (facsimile services)
8 - short message service
Note: Password is normally needed to do such action. When querying the status of a network
service (<mode>=2) the response line for “not active” case (<status>=0) should be returned only
if service is not active for any <class>. This command should be aborted when network facilities
are set or interrogated.
When <fac> has been locked, it will return “sim failure” if lock <fac>. And when <fac> has been
unlocked, it also will return “sim failure” if unlock <fac>.
Example
AT+CLCK =?
+CLCK:("AB","AC","AG","AI","AO","IR","OI","OX","SC","FD","PN","PU","PP","PC","PF")
OK
AT+CLCK ="SC",1,"1234",1
OK
AT+CLCK="SC",2
+CLCK: 0
OK
4.10 +CPWD,ChangeFacilityPassword
Description
Execution command changes the password for the facility lock function defined by command
Facility Lock +CLCK.
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 26 of 82

Syntax
Set command
Response
AT+CPWD=<fac>,<oldpwd>,<newpwd>
OK
Test command
Response
AT+CPWD=?
+CPWD: (list of supported <fac>&<pwdlength>s)
Parameter
<fac>
<oldpwd>
<newpwd>
<pwdlength>
Facility
“SC” - SIM (PIN request)
“P2” - SIM PIN2
“AB” - All barring services(it is not supported temporarily)
string type value of the characters:“0 1 2 3 4 5 6 7 8 9”; it shall be the
same as password specified for the facility from the ME user
interface or with command +CPWD.
string type, it is the new password
the maximum length of their password
Example
AT+CPWD=“SC”,1234,5555
OK
AT+CPWD=?
+CPWD:("AB",4),("AC",4),("AG",4) ,("AI",4),
("AO",4) ,("IR",4),("OI",4) ,("OX",4),("SC",8) ,("P2",8)
OK
4.11 +CLIP,CallingLineIdentificationPresentation
Description
Set command enables/disables the presentation of the CLI (Calling Line Identity) at the TE. If
enabled the device will report the response after each RING.
This command refers to the GSM supplementary service CLIP (Calling Line Identification
Presentation) that enables a called subscriber to get the CLI of the calling party when receiving a
mobile terminated call.
Syntax
Set command
Response
AT+CLIP=[<n>]
OK
Read command
Response
AT+CLIP?
+CLIP: <n>,<m>
Test command
Response
AT+CLIP=?
+CLIP: (list of supported <n>s)
Unsolicited
message
+CLIP:<number>,<type>[,<subaddr>,<satype>[,[<alpha>][,<CLI
validity>]]]
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 27 of 82

Parameter
<n>
<m>
<number>
<type>
<subaddr>
<satype>
<alpha>
<CLI_validity>
0 - disables CLI indication (factory default)
1 - enables CLI indication
parameter shows the subscriber CLIP service status in the network
0 – CLIP not provisioned
1 – CLIP provisioned
2 – unknown(e.g. no network, etc.)
string type phone number of format specified by <type>
type of address octet in integer format
129 - unknown type of number and ISDN/Telephony numbering
plan
145 - international type of number ,contains the character "+"
string type subaddress of format specified by <satype>
type of subaddress octet in integer format
128 – default
string type; alphanumeric representation of <number>
corresponding to the entry found in phonebook; used character set
should be the one selected with +CSCS.
0 - CLI valid
1 - CLI has been withheld by the originator
2 - CLI is not available due to interworking problems or limitation or
originating network
Note: 3 fields are reserved between <type> and <CLI_validity>.
Example
AT+CLIP=1
OK
RING
+CLIP: ”12345678901”,129,,,”AAA”,0
AT+CLIP=?
+CLIP: (0-1)
OK
4.12 +CLIR,CallingLineIdentificationRestriction
Description
Set command enables/disables CLI to the called party, when originating a call.
Syntax
Set command
Response
AT+CLIR=<n>
OK
Read command
Response
AT+CLIR?
+CLIR: <n>,<m>
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 28 of 82

Test command
Response
AT+CLIR=?
+CLIR: (list of supported <n>s)
Parameter
<n>
<m>
this setting effects CLI status for following calls
0 – presentation indicator is used according to the subscription of
the CLIR service
1 – CLIR invocation (hide)
2 – CLIR suppression (show)
shows the subscriber CLIR service status in the network
0 – CLIR not provisioned
1 – CLIR provisioned in permanent mode
2 – unknown (e.g. no network, etc.)
3 – CLIR temporary mode presentation restricted
4 – CLIR temporary mode presentation allowed
Example
AT+CLIR?
+CLIR: 0,0
OK
AT+CLIR=?
+CLIR: (0-2)
OK
4.13 +COLP,ConnectedLineIdentificationPresentation
Description
Set command enables a calling subscriber to get the connected line identity (COL) of the called
party after setting up a mobile originated call.
Syntax
Set command
Response
AT+COLP=<n>
OK
Read command
Response
AT+COLP?
+COLP:<n>,<m>
Unsolicited message +COLP:<number>,<type>[,<subaddr>,<satype>[,<alpha>]]
Parameter
<n>
<m>
parameter sets/shows the result code presentation status in the TA
0 – disable
1 – enable
Parameter shows the subscriber COLP service status in the network
0 – COLP not provisioned
1 – COLP provisioned
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 29 of 82

<number>
<type>
<subaddr>
<satype>
<alpha>
2 – unknown (e.g. no network, etc.)
3 – COLP temporary mode presentation restricted
4 - COLP temporary mode presentation allowed string type phone
number of format specified by <type>
type of address octet in integer format
129 - unknown type of number and ISDN/Telephony numbering plan
145 - international type of number ,contains the character "+"
string type subaddress of format specified by <satype>
type of subaddress octet in integer format
128 – default
string type; alphanumeric representation of <number> corresponding to
the entry found in phonebook; used character set should be the one
selected with +CSCS.
Example
AT+COLP?
+COLP: 1,0
OK +COLP: "1001",129
AT+COLP=?
+COLP: (0-1)
OK
4.14 +FCLASS,SelectMode
Description
Set command puts the modem in to the correct mode of operation, allowing information to be
processed in a suitable manner.
Syntax
Set command
Response
AT+FCLASS=<n>
OK
Read command
Response
AT+FCLASS?
<n>
Test command
Response
AT+FCLASS=?
+FCLASS: (list of supported <n>s)
Parameter
<n> 0 – data
1 – fax
Example
AT+FCLASS=1
OK
AT+FCLASS?
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 30 of 82

0
OK
AT+FCLASS=?
+FCLASS: (0-1)
4.15 +CBST,SelectBearerServiceType
Description
Set command selects the bearer service for Mobile Originated calls. Values may also be used
during mobile terminated data call setup.
Syntax
Set command
Response
AT+CBST=<speed>[,<name>[,<ce>]]
OK
Read command
Response
AT+CBST?
+CBST: <speed>,<name>,<ce>
Test command
Response
AT+CBST=?
+CBST: (list of supported <speed>s),(list of supported
<name>s), (list of supported <ce>s)
Parameter
<speed>
0 - autobauding (automatic selection of the speed; this setting is possible
in case of 3.1 kHz modem and non-transparent service)
7 - 9600 bps (V.32)
12 - 9600 bps (V.34)
14 - 14400 bps (V.34)
16 - 28800 bps (V.34)
17 - 33600 bps (V.34)
39 - 9600 bps (V.120)
43 - 14400 bps (V.120)
48 - 28800 bps (V.120)
51 - 56000 bps (V.120)
71 - 9600 bps (V.110 or X.31 flag stuffing)
75 - 14400 bps (V.110 or X.31 flag stuffing)
80 - 28800 bps (V.110 or X.31 flag stuffing)
81 - 38400 bps (V.110 or X.31 flag stuffing)
83 - 56000 bps (V.110 or X.31 flag stuffing; this setting can be used in
conjunction with asynchronous non-transparent UDI or RDI service in
order to get FTM)
84 - 64000 bps (X.31 flag stuffing; this setting can be used in conjunction
with asynchronous non-transparent UDI service in order to get FTM)
116 - 64000 bps (bit transparent)
134 - 64000 bps (multimedia)
Note:
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 31 of 82

<name>
<ce>
Value 116 and 134 corresponding speed support synchronous and
transparent; Value 7 corresponding speed supports asynchronous and
transparent/non-transparent; The rest support asynchronous and
non-transparent.
Bearer service type
0 - data circuit asynchronous (UDI or 3.1 kHz modem)
1 - data circuit synchronous (UDI or 3.1 kHz modem)
4 - data circuit asynchronous (RDI)
Sets whether error correction is performed by RLP, or by other means
0 – transparent
1 – non-transparent
Example
AT+CBST?
+CBST: 0,0,1
OK
AT+CBST=?
+CBST: (0,7,12,14,16,17,39,43,48,51,71,75,80,81,83,84,116,134),(0,1,4),(0,1)
OK
AT+CBST=7,0,1
OK
4.16 +CCUG,ClosedUserGroup
Description
This command allows control of the Closed User Group supplementary service. Set command
enables the served subscriber to select a CUG index, to suppress the Outgoing Access (OA),
and to suppress the preferential CUG.
Syntax
Set command
Response
AT+CCUG=[<n>[,<index>[,<info>]]]
OK
Read command
Response
AT+CCUG?
+CCUG: <n>,<index>,<info>
Parameter
<n>
<index>
<info>
0 - disable CUG temporary mode
1 - enable CUG temporary mode
0~9 - CUG index
10 - no index (preferred CUG taken from subscriber data)
0 - no information
1 - suppress OA
2 - suppress preferential CUG
3 - suppress OA and preferential CUG
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 32 of 82

Example
AT+CCUG?
+CCUG: 0,0,0
OK
AT+CCUG=102
OK
4.17 +ACELLINFO,CellInformationRequest
Description
This command provides a periodic reporting of the serving cell and neighbor cells information.
Syntax
Set command
Response
AT+ACELLINFO=[<mode>]
For GSM serving cell:
+ACELLINFO:<type>,<MCC>,<MNC>,<LAC>,<Cell_ID>,<ARFCN>,
<BSIC>,<RX_LEV>,<C1>,<C2>,<TA>
For GSM neighbor cell:
+ACELLINFO:<type>,<MCC>,<MNC>,<LAC>,<Cell_ID>,<ARFCN>,
<BSIC>, <RX_LEV>
For WCDMA serving cell:
+ACELLINFO:<type>,<MCC>,<MNC>,<LAC>,<Cell_ID>,<PSC>,
<UARFCN>, <RSCP>, <ECIO>, <RAC>, <URA>
For WCDMA monitored set cell:
+ACELLINFO:<type>, <UARFCN>, <PSC>, <RSCP>, <ECIO>
Read command
Response
AT+ACELLINFO?
+ACELLINFO: <mode>
Test command
Response
AT+ACELLINFO=?
+ACELLINFO: (list of supported <mode>s)
Parameter
<mode>
<type>
<MCC>
<MNC>
0 - disable the periodic reporting
1 - report the cell information on a 5s cycle
If <mode> is omitted, the cell information will be reported once
cell type
0 - GSM serving cell
1 - GSM neighbor cell
2 - WCDMA serving cell
3 - WCDMA monitored cell
4 - WCDMA active cell
Mobile country code
Mobile network code
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 33 of 82

<LAC>
<Cell_ID>
<ARFCN>
<BSIC>
<RX_LEV>
<C1>
<C2>
<TA>
<PSC>
<UARFCN>
<RSCP>
<ECIO>
<RAC>
<URA>
Location area code, range is 0 to 65535
Cell ID, range is 0 to 65535
Absolute Radio Frequency Channel Number, range is 0 to 1023
Base Station Identity Code. see 24.008 10.5.1.3
RX level, range is 0 to 63. See 3GPP TS 45.008 Section 8.1.4
C1 value as defined in 45.008 6.4, coefficient for base station
selection, default: 0
C2 value as defined in 45.008 6.4, coefficient for Cell re-selection,
default: 0
Timing Advance; changes with the mobile distance from the base
station.
Serving cell primary scrambling code.
Serving cell DL UARFCN
Received Signal Code Power
Ec/Io value
Routing Area Code, 10.5.2.37b GSM04.08
UTRAN Registration Area (URA)
Example
AT+ACELLINFO=?
+ACELLINFO: 1-3
AT+ACELLINFO=1
+ACELLINFO: 0, 460, 1, 2184, 31691, 717, 30, 34, 22, 32, -1
+ACELLINFO: 1, 460, 1, 2184, 31693, 724, 28, 18,
+ACELLINFO: 1, 460, 1, 2184, 31692, 715, 16, 15,
OK
+ACELLINFO: 0, 460, 1, 2184, 31691, 717, 30, 39, 27, 37, -1
+ACELLINFO: 1, 460, 1, 2184, 31693, 724, 28, 18,
+ACELLINFO: 1, 460, 1, 2184, 31692, 715, 16, 15,
AT+ACELLINFO=0
OK
AT+ACELLINFO
+ACELLINFO: 0, 460, 1, 2184, 31691, 717, 30, 40, 28, 38, -1
+ACELLINFO: 1, 460, 1, 2184, 31693, 724, 28, 15,
+ACELLINFO: 1, 460, 1, 2184, 31692, 715, 16, 15,
OK
5 MEControl&StatusCommands
5.1 +CPAS,PhoneActivityStatus
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 34 of 82

Description
Execution command returns the activity status of the ME.
Syntax
Execution command
Response
AT+CPAS
+CPAS: <pas>
Test command
Response
AT+CPAS=?
+CPAS: (list of supported <pas>s)
Parameter
<pas> 0 - ready (ME allows commands from TE)
3 - ringing (ME is ready for commands from TE, but the ringer is active)
4 - call in progress (ME is ready for commands from TE, but a call is in
progress)
Example
AT+CPAS
+CPAS: 4
OK
AT+CPAS=?
+CPAS: (0, 3, 4)
OK
5.2 +CFUN,SetPhoneFunctionality
Description
Set command sets level of functionality provided by the modem.
Syntax
Set command
Response
AT+CFUN=<fun>[,<rst>]
OK
Read command
Response
AT+CFUN?
+CFUN: <fun>
Test command
Response
AT+CFUN=?
+CFUN: (list of supported <fun>s), (list of supported <rst>s)
Parameter
<fun>
the power saving function mode
0 - set to minimum functionality (ex-mode must be non-Offline)
1 - set to full functionality (ex-mode must be non-Offline)(default)
4 - disable phone both transmit and receive RF circuits(ex-mode must be
non-Offline)
5 - set to FTM mode (ex-mode must be Online)
6 - reset MT (ex-mode must be Offline)
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 35 of 82

<rst>
7 - set to Offline(ex-mode must be non-FTM mode)
whether to reset the MT before setting it to <fun> functionality level
0 - no reset before setting MT to <fun> functionality level (default)
1 - reset the MT before setting it to <fun> functionality level
Example
AT+CFUN?
+CFUN: 1
OK
AT+CFUN=?
+CFUN: (0-1,4-7), (0-1)
OK
AT+CFUN=7,0
OK
5.3 +CPIN,EnterPIN
Description
This command is used to query and enter a password which is necessary before the modem will
operate. If the PIN is to be entered twice, the modem shall automatically repeat the PIN.
Syntax
Set command
Response
AT+CPIN=<pin>
OK
Read command
Response
AT+CPIN?
+CPIN: <code>
Parameter
<pin>
<code>
string type values within “quotes”
READY - MT is not pending for any password
SIM PIN - MT is waiting SIM PIN to be given
SIM PUK - MT is waiting SIM PUK to be given
PH-SIM PIN - MT is waiting phone-to-SIM card password to be given
SIM PIN2 - MT is waiting UIM PIN2 to be given
SIM PUK2 - MT is waiting UIM PUK2 to be given
PH-NET PIN - MT is waiting network personalization password to be
given
Example
AT+CPIN?
+CPIN: READY
OK
AT+CPIN?
+CPIN: SIM PIN
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 36 of 82

AT+CPIN="1111"
OK
5.4 +CSQ,SignalQuality
Description
Set command returns the signal strength of the registered network.
Syntax
Exectuion command
Response
AT+CSQ
+CSQ:<rssi>,<ber>
Parameter
<rssi>
<ber>
signal strength indication
0 -113 dBm or less
1 -111 dBm
2...30 -109... -53 dBm
31 -51 dBm or greater
99 not known or not detectable
channel bit error rate, in percent
0...7 as RXQUAL values in the table in TS 45.008 [20] subclause 8.2.4
99 not known or not detectable
Example
AT+CSQ
+CSQ: 17, 99
5.5 +CCLK,Clock
Description
Set command sets the real-time clock of the MT. Read command returns the current setting of
the clock.
Syntax
Read Command
Response
AT+CCLK?
+CCLK: <time>
Set Command
Response
AT+CCLK=<time>
OK
Parameter
<time> current time as quoted string in the format :"YY/MM/DD, HH:MM:SS "
YY - year (two last digits are mandatory), range is 00 to 99
MM - month (two last digits are mandatory), range is 01 to 12
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 37 of 82

DD - day (two last digits are mandatory), range is 01 to 31 (if the month MM
has less than 31 days, the clock will be set for the next month)
HH - hour (two last digits are mandatory), range is 00 to 23
MM - minute (two last digits are mandatory), range is 00 to 59
SS - seconds (two last digits are mandatory), range is 00 to 59
Example
AT+CCLK?
+CCLK: "11/07/20,17:34:23"
5.6 +CSIM,GenericSIMaccess
Description
This command allows a direct control of the SIM by a distant application on the TE.
Syntax
Set command
Response
AT+CSIM=<length>,<command>
+CSIM:<length>,<response>
Parameter
<length>
<command>
<response>
integer type; length of the characters that are sent to TE in
<command> or <response> (two times the actual length of the
command or response)
command passed on by the MT to the SIM in the format as
described in GSM 51.011 [28] (hexadecimal character format; refer
+CSCS)
response to the command passed on by the SIM to the MT in the
format as described in GSM 51.011 [28] (hexadecimal character
format; refer +CSCS)
Example
AT+CSIM=14,"A0A40000026F07”
+CSIM: 4, "6E00"
5.7 +CLAC,ListallavailableATcommands
Description
Execution command causes the MT to return one or more lines of AT Commands.
Syntax
Execution command
Response
AT +CLAC
<AT Command1>
<AT Command2>
[…]
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 38 of 82

Parameter
<AT Command > defines the AT command. Text shall not contain the sequence
0<CR> or OK<CR>
Example
AT +CLAC
+GMI
+GCAP
+WS46
+CFUN
OK
5.8 +CTZU,AutomaticTimeZoneUpdate
Description
Set command enables and disables automatic time zone update via NITZ.
Syntax
Set command
Response
AT+CTZU=<onoff>
OK
Read command
Response
AT+CTZU?
+CTZU: <onoff>
Test command
Response
AT+CTZU=?
+CTZU: (list of supported <onoff>s)
Parameter
<onoff> integer type value indicating:
0 – Disable automatic time zone update via NITZ (default).
1 – Enable automatic time zone update via NITZ.
Example
AT+CTZU=?
+CTZU: (0-1)
AT+CTZU?
+CTZU: 1
OK
AT+CTZU=0
OK
5.9 +CTZR,TimeZoneReporting
Description
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 39 of 82

Set command enables and disables the time zone change event reporting.
Syntax
Set command
Response
AT+CTZR=<onoff>
OK
Read command
Response
AT+CTZR?
+CTZR: <onoff>
Test command
Response
AT+CTZR=?
+CTZR: (list of supported <onoff>s)
Parameter
<onoff> 0 – disable time zone change event reporting (default).
1 – enable time zone change event reporting
Example
AT+CTZR=?
+CTZR: (0-1)
OK
AT+CTZR?
+CTZR: 1
OK
AT+CTZR=0
OK
5.10 +IFC,MTTELocalFlowControl
Description
Set command selects the flow control behavior of the serial port in both directions: from MT to TE
& from TE to MT.
Syntax
Set command
Response
AT+IFC=<n1>,<n2>
OK
Read command
Response
AT+IFC?
+IFC: <n1>,<n2>
Test command
Response
AT+IFC =?
+IFC: (list of supported <n1>s, list of supported <n2>s)
Parameter
<n1>
flow control option for the data received by DTE
0 - flow control None
1 - XON/XOFF filtered
2 - RTS flow control(default)
3 - XON/XOFF not filtered
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 40 of 82

<n2> flow control option for the data sent by modem
0 - flow control None
1 - XON/XOFF filtered
2 - RTS flow control(default)
Example
AT+IFC=?
+IFC: (0-3), (0-2)
OK AT+IFC?
+IFC: 2, 2
OK
AT+IFC=2, 2
OK
5.11 &D,SetDTEReady(DTR)LineMode
Description
Set commands determines how DCE responds when ITU-T V.25 circuit 108/2 (or equivalent) is
changed from ON to OFF condition during online data state.
Syntax
Set command
Response
AT&D<n>
OK
Parameter
<n> 0 – DCE ignores status of DTR (default)
1 – change to command mode and retain the connected call when DTR
changes from ON to OFF
2 – disconnect data call(CSD, PS data service), change to command
mode when DTR changes from ON to OFF. When state DTR= OFF
auto-answer is off
Example
AT&D0
OK
5.12 &C,SetCarrierDetection(DCD)LineMode
Description
Set commands determines how ITU-T V.25 circuit 109 (or equivalent) relates to the detection of
received line signal from remote end (recommended default 1 i.e. 109 operation relates to
detection of received signal.)
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 41 of 82

Syntax
Set command
Response
AT&C<n>
OK
Parameter
<n> 0 – DCD line always is ON (default)
1 – DCD line is in ON in the presence of data carrier only
2 - DCD line is in OFF in 1 second after the presence of data carrier ; and
is always ON in other times
Example
AT&C0
OK
5.13 +IPR,FixedDTERate
Description
Set commands specifies the data rate at which the modem will accept commands.
Syntax
Set command
Response
AT+IPR=<baud rate>
OK
Read command
Response
AT+IPR?
+IPR: <baud rate>
Test command
Response
AT+IPR=?
+IPR: (list of supported <baud rate>s)
Parameter
<baud rate> specified shall be the rate in bits per second
Example
AT+IPR?
+IPR: 115200
OK
AT+IPR=38400
OK
AT+IPR=?
+IPR: (), (300,600,1200,2400,4800,9600,19200,38400,57600,115200,230400)
OK
5.14 &F,SettoFactoryDefinedConfiguration
Description
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 42 of 82

Set command set to factory defined configuration.
Syntax
Set command
Response
AT&F
OK
5.15 &W,StoreUserSettings
Description
Set command stores user setting to the profile, including S0\S7\S10\&C\&D\+IFC.
Syntax
Set command
Response
AT&W
OK
5.16 +WS46,SelectWirelessNetwork
Description
Read command returns the cellular network Wireless Data Service (WDS) operating with the
modem. Use +COPS command to force the choice of an operator.
Syntax
Read command
Response
AT+WS46?
<n>
Test command
Response
AT+WS46=?
+WS46: (list of supported <n>s)
Parameter
<n> Cellular network wireless data service
12 – GSM digital cellur
22 – WCDMA
25 – GSM +WCDMA
Example
AT+WS46?
25
AT+WS46=?
+WS46: (12,22,25)
6 SMSCommands
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 43 of 82

6.1 +CPMS,PreferredMessageStorage
Description
Set command selects memory storages to be used for reading, writing, sending and storing SMs.
Syntax
Set command
Response
AT+CPMS=<mem1>[,<mem2>[,<mem3>]]
+CPMS: <used1>,<total1>,<used2>,<total2>, <used3>,<total3>
Read command
Response
AT+CPMS?
+CPMS: <mem1>,<used1>,<total1>,<mem2>,<used2> ,<total2>,
<mem3>,<used3>,<total3>
Test command
Response
AT+CPMS=?
+CPMS: (list of supported <mem1>s), (list of supported
<mem2>s),(list of supported <mem3>s)
Parameter
<mem1>
<mem2>
<mem3>
<used1>
<used2>
<used3>
<total1>
<total2>
<total3>
memory from which messages are read and deleted(+CMGL\+CMGR\
+CMGD)
"SM" - SIM SMS memory storage
"ME" - ME internal storage
“BM” – broadcast message storage
“MT” –any of the storages associated with ME
“SR” – status report storage
memory to which writing and sending operations are made, options are
as same as <mem1>(+CMGS\+CMGW)
memory to which received SMs are preferred to be stored, options are as
same as <mem1>
received broadcasts are usually to be stored in “BM” or to be stored in the
storage which user selects; received SM reports are usually to be stored
in “SR” or in the storage which user selects
number of SMs stored into <mem1>
number of SMs stored into <mem2>
number of SMs stored into <mem3>
max number of SMs that <mem1> can contain
max number of SMs that <mem2> can contain
max number of SMs that <mem3> can contain
Example
AT+CPMS?
+CPMS:"ME",4,23,"ME",4,23,"SM",32,50
OK
AT+CPMS=?
+CPMS:("ME","MT","SM","SR"),("ME","MT","SM","SR"),("ME","MT","SM","SR")
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 44 of 82

OK
AT+CPMS="SM","ME","MT"
+CPMS: 32,50,4,23,4,23
OK
AT+CPMS?
+CPMS:"SM",32,50,"ME",4,23,"MT",4,23
OK
6.2 +CMGF,MessageFormat
Description
Set command selects the format of messages used with send, list, read and write commands.
Syntax
Set command
Response
AT+CMGF=<mode>
OK
Read command
Response
AT+CMGF?
+CMGF: <mode>
Test command
Response
AT+CMGF=?
+CMGF: (list of supported <mode>s)
Parameter
<mode>
0 - PDU mode, as defined in GSM 3.40 and GSM 3.41
1 - text mode
Example
AT+CMGF=?
+CMGF: (0-1)
OK
6.3 +CMGL,ListMessages
Description
Execution command reports the list of all the messages with status value <stat> stored into
<mem1> message storage. If status of the message is “received unread”, the status in the
storage changes to “received read”.
IF PDU MODE:
Syntax
Execution command
Response
AT+CMGL=<stat>
+CMGL:<index1>,<stat>,[<alpha>],<length><CR><LF><pdu>
+CMGL:<index2>,<stat>,[<alpha>],<length><CR><LF><pdu>
[...]]
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 45 of 82

Test command
Response
AT+CMGL =?
+CMGL: (list of supported <stat>s)
Parameter
<index>
<stat>
<alpha>
<length>
<pdu>
message position in the memory storage list
status of the message
0 - received unread message
1 - received read message
2 - stored message not yet sent
3- stored message already sent
4 - all messages
string type; alphanumeric representation of <oa/da> corresponding to the
entry found in phonebook; used character set should be the one selected
with +CSCS.
the length of the actual TP data unit in octets (i.e. the RP layer SMSC
address octets are not counted in the length)
protocol data unit in hexadecimal format
Example
AT+CMGL=?
+CMGL: (0-4)
OK
AT+CMGL=4
+CMGL: 1,1,,35
0891683108705505F0010F0B813120882624F7000808738B54084F1F592732344FF4429023A
+CMGL: 2,3,,21
0891683108705505F001100B813120882624F7000808738B54084F1F5927
OK
IF TEXT MODE:
Syntax
Set
command
Response
AT+CMGL=<stat>
if SMS-SUBMITs and/or SMS-DELIVERs:
+CMGL:<index>,<stat>,<oa/da>,[<alpha>],[<scts>][,<tooa/toda>,
<length>]<CR><LF><data>
+CMGL: <index>,<stat>,<da/oa>,[<alpha>],[<scts>][,<tooa/toda>,
<length>]<CR><LF><data>
[...]]
if SMS-STATUS-REPORTs:
+CMGL:<index>,<stat>,<fo>,<mr>,[<ra>],[<tora>],<scts>,<dt>,<st>
+CMGL:<index>,<stat>,<fo>,<mr>,[<ra>],[<tora>],<scts>,<dt>,<st>
[...]]
if SMS-COMMANDs:
+CMGL: <index>,<stat>,<fo>,<ct>
+CMGL: <index>,<stat>,<fo>,<ct>
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 46 of 82

[...]]
if CBM storage:
+CMGL:<index>,<stat>,<sn>,<mid>,<page>,<pages><CR><LF><dat
a>
+CMGL:<index>,<stat>,<sn>,<mid>,<page>,<pages><CR><LF><dat
a>
[...]]
Test
command
Response
AT+CMGL =?
+CMGL: (list of supported <stat>s)
Parameter
<index>
<stat>
<data>
<oa/da>
<alpha>
<scts>
<tooa/toda>
<length>
<fo>
<mr>
<ra>
<tora>
<dt>
<st>
<ct>
<sn>
<page>
<pages>
message position in the memory storage list
"REC UNREAD" - received unread message (i.e. new message)
"REC READ" - received read message
"STO UNSENT" - stored unsent message (only applicable to SMs)
"STO SENT" - stored sent message (only applicable to SMs)
"ALL" - all messages
TP-User-Data in text mode
destination/originating address in string format; used character set
should be the one selected with +CSCS.
string type; alphanumeric representation of <oa/da> corresponding to
the entry found in phonebook; used character set should be the one
selected with +CSCS.
Service-Centre-Time-Stamp in time-string format (refer <dt>)
type of number <oa/da>
129 - number in national format
145 - number in international format (contains the "+")
integer type value indicating the length of the message body <data>
depending on the command or result code: first octet of
SMS-DELIVER, SMS-SUBMIT (default 17), SMS-STATUS-REPORT,
or SMS-COMMAND (default 2) in integer format
TP-Message-Reference in integer format
recipient address in string format; type of address given by <tora>
type of recipient address, octet in integer format
discharge time in time-string format: “yy/MM/dd,hh:mm:sszz”, where
characters indicate year (two last digits), month, day, hour, minutes,
seconds and time zone. E.g. 6th of May 1994, 22:10:00 GMT+2 hours
equals to “94/05/06,22:10:00+08”
TP-Status in integer format
TP-Command-Type in integer format (default 0)
CBM Serial Number in integer format
CBM Page Parameter bits 4-7 in integer format
CBM Page Parameter bits 0-3 in integer format
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 47 of 82

Example
AT+CMGL=?
+CMGL: (“REC UNREAD”,”REC READ”,”STO UNSENT”,”STO SENT”,”ALL”)
OK
AT+CSDH?
+CSDH: 0
OK
AT+CMGL="ALL"
+CMGL: 1,"REC READ","13901234567”,,”11/08/22,09:19:13+32”
E8A2ABE5BC80E999A4000101
+CMGL: 2,"REC READ","13817894561", “AA”,”11/08/30,19:47:21+32”
E238D3958633EA46EE644EFA038576
OK
6.4 +CMGD,DeleteMessage
Description
Execution command deletes from memory <mem1> the message(s).
Syntax
Set command
Response
AT+CMGD=<index>[,<delflag>]
OK
Test command
Response
AT+CMGD=?
+CMGD: (list of supported <index>s)[,(list of supported <delflag>s)]
Parameter
<index>
<delflag>
message index in the selected storage <mem1>
an integer indicating multiple message deletion request
0 (or omitted) - delete message specified in <index>
1 - delete all read messages from <mem1> storage, leaving unread
messages and stored mobile originated messages (whether sent or not)
untouched
2 - delete all read messages from <mem1> storage and sent mobile
originated messages, leaving unread messages and unsent mobile
originated messages untouched
3 - delete all read messages from <mem1> storage, sent and unsent
mobile originated messages, leaving unread messages untouched
4 - delete all messages from <mem1> storage.
Note: if <delflag> is present and not set to 0 then <index> is ignored and
ME shall follow the rules for <delflag> shown above.
Note: if the location to be deleted is empty, an error message is reported.
Example
AT+CMGD=?
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 48 of 82

+CMGD: (0,1,3),(0-4)
OK
6.5 +CMGR,ReadMessage
Description
Execution command reports the message with location value <index> from <mem1> message
storage.
IF PDU MODE:
Syntax
Set command
Response
AT+CMGR=<index>[,<mode>]
+CMGR:<stat>,[<alpha>],<length><CR><LF><pdu>
Parameter
<index>
<mode>
<stat>
<alpha>
<length>
<pdu>
message position in the memory storage list
message status modification
0 (or omitted) – change the status of message to “REC READ”(default
value)
1 – not to change the status
status of the message
0 - received unread message
1 - received read message
2 - stored message not yet sent
3- stored message already sent
string type; alphanumeric representation of <oa/da> corresponding to
the entry found in phonebook; used character set should be the one
selected with +CSCS.
the length of the actual TP data unit in octets (i.e. the RP layer SMSC
address octets are not counted in the length)
protocol data unit in hexadecimal format
Example
AT+CMGR=1
+CMGR: 1,,25
00040B818139208263F300001150506195632306C8329BFD0E01
IF TEXT MODE:
Syntax
Set command
Response
AT+CMGR=<index>
if SMS-DELIVERs:
+CMGR:<stat>,<oa>,[<alpha>],[<scts>][,<tooa>,<fo>,<pid>,<dcs>,<sca>,
<tosca>,<length>]<CR><LF><data>
if SMS-SUBMITs:
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 49 of 82

+CMGR:<stat>,<da>,[<alpha>][,<toda>,<fo>,<pid>,<dcs>,[<vp>]<sca>,
<tosca>,<length>]<CR><LF><data>
if SMS-STATUS-REPORTs:
+CMGR:<stat>,<fo>,<mr>,[<ra>],[<tora>],<scts>,<dt>,<st>
if SMS-COMMANDs:
+CMGR:<stat>,<fo>,<ct>[,<pid>,[<mn>],[<da>],[<toda>],<length><CR>
<LF><cdata>]
if CBM storage:
+CMGR:<stat>,<sn>,<mid>,<dcs>,<page>,<pages><CR><LF><data>
Parameter
<index>
<stat>
<oa/da>
<alpha>
<scts>
<tooa/toda>
<fo>
<pid>
<dcs>
<sca>
<tosca>
<length>
<vp>
<mr>
<ra>
<tora>
<dt>
<st>
<ct>
<sn>
message position in the memory storage list
"REC UNREAD" - received unread message
"REC READ" - received read message
"STO UNSENT" - stored unsent message
"STO SENT" - stored sent message
destination/originating address in string format; used character set
should be the one selected with +CSCS.
string type; alphanumeric representation of <oa/da> corresponding to
the entry found in phonebook; used character set should be the one
selected with +CSCS.
Service-Centre-Time-Stamp in time-string format (refer <dt>)
type of number <oa/da>
129 - number in national format
145 - number in international format (contains the "+")
depending on the command or result code: first octet of
SMS-DELIVER, SMS-SUBMIT (default 17), SMS-STATUS-REPORT,
or SMS-COMMAND (default 2) in integer format
TP-Protocol-Identifier in integer format (default 0)
SMS Data Coding Scheme (default 0)
RP SC address string format, type of address given by <tosca>
type of RP SC address, octet in integer format
integer type value indicating the length of the message body <data>
depending on SMS-SUBMIT <fo> setting, TP-Validity-Period either in
integer format (default 167) or in time-string format (refer <dt>)
TP-Message-Reference in integer format
recipient address in string format; type of address given by <tora>
type of recipient address, octet in integer format
discharge time in time-string format: “yy/MM/dd,hh:mm:sszz”, where
characters indicate year (two last digits), month, day, hour, minutes,
seconds and time zone. E.g. 6th of May 1994, 22:10:00 GMT+2 hours
equals to “94/05/06,22:10:00+08”
TP-Status in integer format
TP-Command-Type in integer format (default 0)
CBM Serial Number in integer format
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 50 of 82

<mid>
<page>
<pages>
<data>
<cdata>
CBM Message Identifier in integer format
CBM Page Parameter bits 4-7 in integer format
CBM Page Parameter bits 0-3 in integer format
TP-User-Data in text mode
TP-Command-Data in text mode responses; ME/TA converts each
8-bit octet into two IRA character long hexadecimal number (e.g. octet
with integer value 42 is presented to TE as two characters 2A (IRA 50
and 65))
Example
AT+CSDH=1
OK
AT+CMGR=1
+CMGR:"REC UNREAD","13388888888",, ”11/09/02,15:21:43+32”,145,36,0,8,
”+8613010314500”,145,7
4F60600E4E488FD968377684554A
OK
6.6 +CMGS,SendMessage
Description
Execution command sends message from a TE to the network (SMS-SUBMIT). Message
reference value <mr> is returned to the TE on successful message delivery.
IF PDU MODE:
Syntax
Set command
Response
AT+CMGS=<length><CR>
PDU is given<ctrl-Z/ESC>
+CMGS: <mr>[,<ackpdu>]
Parameter
<length>
<mr>
<ackpdu>
the number of octets coded in the TP layer data unit to be given (i.e.
SMSC address octets are excluded)
TP-Message-Reference in integer format
RP-User-Data element of RP-ACK PDU; it is supported when <service>
is set to 1 in +CSMS and the network permits.
Example
AT+CMGS=19
>0031000D91683120882624F70000A704D4F29C0E<Ctrl-Z>
+CMGS: 20
OK
IF TEXT MODE:
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 51 of 82

Syntax
Set command
Response
AT+CMGS=<da>[,<toda>]<CR>
text is entered<ctrl-Z/ESC>
+CMGS: <mr>[,<scts>]
Parameter
<da>
<toda>
<mr>
<scts>
destination address in string format; used character set should be the
one selected with +CSCS.
type of number <da>
129 - number in national format
145 - number in international format (contains the "+")
TP-Message-Reference in integer format
Service-Centre-Time-Stamp in time-string format (refer <dt>)
Example
AT+CMGS="13316538879"
>test<ctrl-Z>
+CMGS: 19
OK
6.7 +CMGW,WriteMessageToMemory
Description
Execution command writes in the <mem2> memory storage a new message. Memory location
<index> of the stored message is returned. By default message status will be set to 'stored
unsent', but parameter <stat> allows also other status values to be given.
IF PDU MODE:
Syntax
Set command
Response
AT+CMGW=<length>[,<stat>]<CR>
PDU is given<ctrl-Z/ESC>
+CMGW: <index>
Parameter
<length>
<stat>
<index>
the number of octets coded in the TP layer data unit to be given (i.e.
SMSC address octets are excluded)
status of the message
0 - received unread message
1 - received read message
2 - stored message not yet sent
3- stored message already sent
message position in the memory storage list
Example
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 52 of 82

AT+CMGW=19
>0031000D91683120882624F70000A704D4F29C0E<ctrl-Z>
+CMGW: 0
OK
IF TEXT MODE:
Syntax
Set command
Response
AT+CMGW=<oa/da>[,<tooa/toda>[,<stat>]]<CR>
text is entered<ctrl-Z/ESC>
+CMGW: <index>
Parameter
<oa/da>
<tooa/toda>
<stat>
<index>
originating/destination address in string format; used character set
should be the one selected with +CSCS.
type of number <oa/da>
129 - number in national format
145 - number in international format (contains the "+")
"REC UNREAD" - received unread message
"REC READ" - received read message
"STO UNSENT" - stored unsent message
"STO SENT" - stored sent message
message position in the memory storage list
Example
AT+CMGW="13028862427",129
> test<ctrl-Z>
+CMGW: 1
OK
6.8 +CMSS,SendMessagefromStorage
Description
Execution command sends message with location value <index> from message storage
<mem2> to the network (SMS-SUBMIT or SMS-COMMAND). If new recipient address <da> is
given for SMS-SUBMIT, it shall be used instead of the one stored with the message.
IF PDU MODE:
Syntax
Set command
Response
AT+CMSS=<index>[,<da>[,<toda>]]
+CMSS: <mr>[,<ackpdu>]
Parameter
<index>
<da>
message position in the memory storage list
destination address in string format; used character set should be the
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 53 of 82

<toda>
<mr>
<ackpdu>
one selected with +CSCS.
type of number <da>
129 - number in national format
145 - number in international format (contains the "+")
TP-Message-Reference in integer format
RP-User-Data element of RP-ACK PDU; it is supported when when
+CSMS parameter <service> equals 1
Example
AT+CMGW=19
>0031000D91683113865589F80000A704D4F29C0E<ctrl-Z/ESC>
+CMGW: 2
OK
AT+CMSS=2,”13761111222”
+CMSS: 21
OK
IF TEXT MODE:
Syntax
Set command
Response
AT+CMSS=<index>[,<da>[,<toda>]]
+CMSS: <mr>[,<scts>]
Parameter
<index>
<da>
<toda>
<mr>
<scts>
message position in the memory storage list
destination address in string format; used character set should be the
one selected with +CSCS.
type of number <da>
129 - number in national format
145 - number in international format (contains the "+")
TP-Message-Reference in integer format
Service-Centre-Time-Stamp in time-string format (refer <dt>)
Example
AT+CMGW="13316855988"
> test<ctrl-Z>
+CMGW: 3
OK
AT+CMSS=3
+CMSS: 22
OK
6.9 +CNMI,NewMessageIndicationsToTE
Description
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 54 of 82

Set command selects the behavior of the device on how the receiving of new messages from the
network is indicated to the TE.
Syntax
Set command
Response
AT+CNMI=[<mode>[,<mt>[,<bm>[, <ds>[,<bfr>]]]]]
OK
Read command
Response
AT+CNMI?
+CNMI: <mode>,<mt>,<bm>,<ds>,<bfr>
Test command
Response
AT+CNMI=?
+CNMI: (list of supported <mode>s), (list of supported <mt>s),
(list of supported <bm>s), (list of supported <ds>s), (list of
supported <bfr>s)
Parameter
<mode>
<mt>
unsolicited result codes buffering option
0 - Buffer unsolicited result codes in the ME. If ME result code buffer is full,
indications can be buffered in some other place or the oldest indications
may be discarded and replaced with the new received indications.
1 –forward indication directly to the TE and reject new received message
unsolicited result codes, otherwise discard them
2 - Buffer unsolicited result codes in the ME in case the TE is busy and
flush them to the TE after reservation. Otherwise forward them directly to
the TE.
Note: Unsolicited result codes are buffered in ME. If MT is power off
before forwarding them, messages may be lost.
result code indication reporting for SMS-DELIVER; If AT command
interface is acting as the only display device, the ME must support storing
of class 0 messages and messages in the message waiting indication
group (discard message)
0 - No SMS-DELIVER indications are routed to the TE.
1 - If SMS-DELIVER is stored into MT, indication of the memory location is
routed to the TE using the following unsolicited result code:
+CMTI: <mem>,<index>
2 - SMS-DELIVERs are routed directly to the TE using unsolicited result
code:
(PDU mode)
+CMT: [<alpha>],<length><CR><LF><pdu>
(or TEXT mode)
+CMT: <oa>, [<alpha>],<scts>[,<tooa>,<fo>,<pid>,<dcs>,<sca>,<tosca>,
<length>]<CR><LF><data>
Note: Class 2 messages and messages in the message waiting indication
group (store message) result in indication as defined in <mt>=1.
3 - Class 3 SMS-DELIVERs are routed directly to TE using unsolicited
result codes defined in <mt>=2. Messages of other data coding schemes
result in indication as defined in <mt>=1.
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 55 of 82

<bm>
<ds>
<bfr>
the rules for storing received CBMs depend on its data coding scheme
0 - No CBM indications are routed to the TE.
1 - If CBM is stored into ME, indication of the memory location is routed to
the TE using unsolicited result code:
+CBMI: <mem>,<index>
2 - New CBMs are routed directly to the TE using unsolicited result code:
(PDU mode)
+CBM: <length><CR><LF><pdu>
(or TEXT mode)
+CBM: <sn>,<mid>,<dcs>,<page>,<pages><CR><LF><data>
3 - Class 3 CBMs are routed directly to TE using unsolicited result codes
defined in <bm>=2. If CBM storage is supported, messages of other
classes result in indication as defined in <bm>=1.
SMS status report indication
0 - No SMS-STATUS-REPORTs are routed to the TE.
1 - SMS-STATUS-REPORTs are routed to the TE using unsolicited result
code:
(PDU mode)
+CDS: <length><CR><LF><pdu>
(or TEXT mode)
+CDS: <fo>,<mr>,[<ra>],[<tora>],<scts>,<dt>,<st>
2 - If SMS-STATUS-REPORT is stored into ME, indication of the memory
location is routed to the TE using unsolicited result code:
+CDSI: <mem>,<index>
0 - TA buffer of unsolicited result codes defined within this command is
flushed to the TE when <mode> 1...3 is entered (OK response shall be
given before flushing the codes).
1 - TA buffer of unsolicited result codes defined within this command is
cleared when <mode> 1...3 is entered.
Example
AT+CNMI=?
+CNMI:(0,1,2),(0,1,2,3),(0,2),(0,1,2),(0,1)
OK
AT+CNMI=1,1,0,0,0
OK
AT+CMGF=1
OK
+CMTI: “SM”,7
OK
6.10 +CNMA,NewMessageAcknowledgement
Description
Execution command confirms correct reception of a new message (SMS-DELIVER or
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 56 of 82

SMS-STATUS-REPORT) which is routed directly to the TE. This acknowledgement command
(causing ME to send RP-ACK to the network) shall be used when +CSMS parameter <service>
equals 1. TA shall not send another +CMT or +CDS result code to TE before previous one is
acknowledged.
If ME does not get acknowledgement within required time (network timeout), ME should send
RP-ERROR to the network. ME/TA shall automatically disable routing to TE by setting both
<mt> and <ds> values of +CNMI to zero.
NOTE: In case that a directly routed message must be buffered in ME/TA (possible when
+CNMI parameter <mode> equals 0 or 2) or AT interpreter remains too long in a state where
result codes cannot be sent to TE (e.g. user is entering a message using +CMGS),
acknowledgement (RP-ACK) must be sent to the network without waiting +CNMA command
from TE. Later, when buffered result codes are flushed to TE, TE must send +CNMA[=0]
acknowledgement for each result code. In this way, ME/TA can determine if message should be
placed in non-volatile memory and routing to TE disabled (+CNMA[=0] not received). Refer
command +CNMI for more details how to use <mode> parameter reliably.
In PDU mode, it is possible to send either positive (RP-ACK) or negative (RP-ERROR)
acknowledgement to the network. Parameter <n> defines which one will be sent. Optionally
(when <length> is greater than zero) an acknowledgement TPDU (SMS-DELIVER-REPORT for
RP-ACK or RP-ERROR) may be sent to the network. The entering of PDU is done similarly as
specified in command Send Message +CMGS, except that the format of <ackpdu> is used
instead of <pdu> (i.e. SMSC address field is not present). PDU shall not be bounded by double
quotes. T
Syntax
Execution command
Response
(PDU mode)
AT+CNMA[=<n>[,<length>[<CR>PDU is given<ctrl-Z/ESC>]]]
(or TEXT mode)
AT+CNMA
OK
Parameter
<n> 0 - command operates similarly as defined for the text mode. If the only value
supported is 0, the device does not support sending of TPDU.
1 - send RP-ACK (or buffered result code received correctly)
2 - send RP-ERROR (if PDU is not given, ME/TA shall send
SMS-DELIVER-REPORT with GSM 03.40 TP-FCS value set to ‘FF’
(unspecified error cause))
6.11 +CMT,NewMessageIndication
Description
SMS-DELIVERs are routed directly to the TE using the unsolicited result code.
IF PDU MODE:
Syntax
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 57 of 82

Unsolicited message +CMT: [<alpha>],<length><CR><LF><pdu>
Parameter
<alpha>
<length>
<pdu>
string type; alphanumeric representation of <oa/da> corresponding to the
entry found in phonebook; used character set should be the one selected
with +CSCS.
the length of the actual TP data unit in octets (i.e. the RP layer SMSC
address octets are not counted in the length)
protocol data unit in hexadecimal format
Example
AT+CNMI=1,2,0,0,0
OK
+CMT: ,24
0891683110304105F0240D91683167019855F700001190804134432304F4F29C0E
IF TEXT MODE:
Syntax
Unsolicited message +CMT<oa>,[<alpha>],<scts>[,<tooa>,<fo>,<pid>,<dcs>,
<sca>,<tosca>,<length>]<CR><LF><data>
Parameter
<oa>
<alpha>
<scts>
<tooa>
<fo>
<pid>
<dcs>
<sca>
<tosca>
<length>
<data>
originating address in string format; used character set should be the one
selected with +CSCS.
string type; alphanumeric representation of <oa> corresponding to the
entry found in phonebook; used character set should be the one selected
with +CSCS.
Service-Centre-Time-Stamp in time-string format (refer <dt>)
type of number <oa>
129 - number in national format
145 - number in international format (contains the "+")
depending on the command or result code: first octet of SMS-DELIVER,
SMS-SUBMIT (default 17), SMS-STATUS-REPORT, or
SMS-COMMAND (default 2) in integer format
TP-Protocol-Identifier in integer format (default 0)
SMS Data Coding Scheme (default 0)
RP SC address string format, type of address given by <tosca>
type of RP SC address, octet in integer format
integer type value indicating the length of the message body <data>
TP-User-Data in text mode
Example
AT+CNMI=1,2,0,0,0
OK
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 58 of 82

+CMT:"+8613316855988",,"11/07/22 15:56:35+32"
TEST
6.12 +CMTI,MemoryLocationIndication
Description
The unsolicited result code indicate the memory location of SMS-DELIVER when +CNMI
parameter <mt> equals 1
Syntax
Unsolicited message +CMTI: <mem>,<index>
Parameter
<mem>
<index>
memory storage where the new message is stored: "SM" "ME"
location on the memory where SMS is stored.
Example
AT+CNMI=1,1,0,0,0
OK
+CMTI: "SM",15
OK
6.13 +CSDH,ShowTextModeParameters
Description
Set command controls whether detailed header information is shown in text mode result codes.
Syntax
Set command
Response
AT+CSDH[=<show>]
OK
Read command
Response
AT+CSDH?
+CSDH: <show>
Test command
Response
AT+CSDH=?
+CSDH: (list of supported <show>s)
Parameter
<show>
0 - do not show header values defined in commands +CSCA and +CSMP
(<sca>, <tosca>, <fo>, <vp>, <pid> and <dcs>) nor <length>, <toda> or
<tooa> in +CMT, +CMGL, +CMGR result codes for SMS-DELIVERs and
SMS-SUBMITs in text mode; for SMS-COMMANDs in +CMGR result
code, do not show <pid>, <mn>, <da>, <toda>, <length> or <cdata>
(default)
1 - show the values in result codes
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 59 of 82

Example
AT+CSDH?
OK
+CSDH: 0
AT+CMGL=“ALL”
+CMGL:1,”REC READ”,”10655752”,”11/08/22,09:19:13+32”
E8A2ABE5BC80E999A4000101
OK
AT+CSDH=1
OK
AT+CMGL=“ALL”
+CMGL:1,”REC READ”,”10655752”,”11/08/22,09:19:13+32”,161,12
E8A2ABE5BC80E999A4000101
OK
AT+CSDH=?
+CSDH: (0-1)
OK
6.14 +CSCA,ServiceCentreAddress
Description
Set command updates the SMSC address, through which mobile originated SMs are transmitted.
In text mode, setting is used by send and write commands. In PDU mode, setting is used by the
same commands, but only when the length of the SMSC address coded into <pdu> parameter
equals zero.
Syntax
Set command
Response
AT+CSCA=<sca>[,<tosca>]
OK
Read command
Response
AT+CSCA?
+CSCA: <sca>[,<tosca>]
Parameter
<sca>
<tosca>
RP SC address string format, type of address given by <tosca>
type of RP SC address, octet in integer format
Example
AT+CSCA="+8613800755500",145
OK
AT+CSCA?
+CSCA: "+8613800755500",145
OK
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 60 of 82

6.15 +CSCB,SelectCellBroadcastMessageTypes
Description
Set command selects which types of CBMs are to be received by the ME.
Syntax
Set command
Response
AT+CSCB=[<mode>[,<mids>[,<dcss>]]]
OK
Read command
Response
AT+CSCB?
+CSCB: <mode>,<mids>,<dcss>
Test command
Response
AT+CSCB=?
+CSCB: (list of supported <mode>s)
Parameter
<mode>
<mids>
<dcss>
0 - message types specified in <mids> and <dcss> are accepted (default)
1 - message types specified in <mids> and <dcss> are not accepted
string type; all different possible combinations of CBM message identifiers
(default is empty string); e.g. "0,1,5,320-478,922"
string type; all different possible combinations of CBM data coding
schemes (default is empty string); e.g. "0-3,5"
Example
AT+CSCB=?
+CSCB: (0-1)
OK
AT+CSCB=1
OK
AT+CSCB?
+CSCB: 1, "",""
OK
AT+CSCB=0,"0-1","1-2"
OK
AT+CSCB?
+CSCB: 0, "0-1,0-65535","1-2"
OK
AT+CSCB=0,"2-3","3-4"
OK
AT+CSCB?
+CSCB: 0, "2-3,0-1,0-65535","3-4"
OK
AT+CSCB=1,"5-6","1-5"
OK
AT+CSCB?
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 61 of 82

+CSCB: 1,"2-3,0-1,0-65535","1-5"
OK
6.16 +CSMP,SetTextModeParameters
Description
Set command is used to select values for additional parameters needed when SM is sent to the
network or placed in a storage when text format message mode is selected. It is possible to set
the validity period starting from when the SM is received by the SMSC
Syntax
Set command
Response
AT+CSMP=[<fo>[,<vp>[,<pid>[,<dcs>]]]]
OK
Read command
Response
AT+CSMP?
+CSMP: [<fo>[,<vp>[,<pid>[,<dcs>]]]]
Parameter
<fo>
<vp>
<pid>
<dcs>
depending on the command or result code: first octet of SMS-DELIVER,
SMS-SUBMIT (default 17), SMS-STATUS-REPORT, or SMS-COMMAND
(default 2) in integer format
depending on SMS-SUBMIT <fo> setting; TP-Validity-Period either in
integer format (default 167) or in time-string format (refer <dt>)
TP-Protocol-Identifier in integer format (default 0)
SMS Data Coding Scheme (default 0)
Example
AT+CSMP?
+CSMP: ,,0,0
OK
AT+CSMP=17,255,0,0
OK
6.17 +CSMS,SelectMessageService
Description
Set command selects messaging service <service>. It returns the types of messages supported
by the ME: <mt> for mobile terminated messages, <mo> for mobile originated messages and
<bm> for broadcast type messages.
Syntax
Set command
Response
AT+CSMS=<service>
+CSMS: <mt>,<mo>,<bm>
Read command
Response
AT+CSMS?
+CSMS: <service>,<mt>,<mo>,<bm>
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 62 of 82

Test command
Response
AT+CSMS=?
+CSMS: (list of supported <service>s)
Parameter
<service>
<mt>,<mo>,<bm>
0 - GSM 03.40 and 03.41 (the syntax of SMS AT commands is
compatible with GSM 07.05 Phase 2 version 4.7.0; Phase 2+
features which do not require new command syntax may be
supported (e.g. correct routing of messages with new Phase 2+
data coding schemes))
1 - GSM 03.40 and 03.41 (the syntax of SMS AT commands is
compatible with GSM 07.05 Phase 2+ version; the requirement
of <service> setting 1 is mentioned under corresponding
command descriptions)
0 - type not supported
1 - type supported
Example
AT+CSMS?
+CSMS: 0,1,1,1
OK
AT+CSMS=?
+CSMS: (0-1)
OK
AT+CSMS=0
+CSMS: 1,1,1
OK
6.18 +CMMS,MoreMessagestoSend
Description
Set command controls the continuity of SMS relay protocol link. When feature is enabled (and
supported by network) multiple messages can be sent much faster as link is kept open.
Syntax
Set command
Response
AT+CMMS=<n>
OK
Read command
Response
AT+CMMS?
+CMMS: <n>
Test command
Response
AT+CMMS=
+CMMS: (list of supported <n>s)
Parameter
<n> 0 disable
1 keep enabled until the time between the response of the latest message
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 63 of 82

send command (+CMGS, +CMSS, etc.) and the next send command
exceeds 1-5 seconds (the exact value is up to ME implementation), then ME
shall close the link and TA switches <n> automatically back to 0
2 enable (if the time between the response of the latest message send
command and the next send command exceeds 1-5 seconds (the exact
value is up to ME implementation), ME shall close the link but TA shall not
switch automatically back to <n>=0)
Example
AT+CMMS?
+CMMS: 0
OK
AT+CMMS=1
OK
AT+CMMS=?
+CMMS: (0-2)
OK
6.19 +CGSMS,SelectserviceforMOSMSmessages
Description
Set command is used to specify the service or service preference that the MT will use to send
MO SMS messages.
Syntax
Set command
Response
AT+CGSMS[=<service>]
OK
Read command
Response
AT+CGSMS?
+CGSMS: <service>
Test command
Response
AT+CGSMS=?
+CGSMS: (list of supported <service>s)
Parameter
<service> a numeric parameter which indicates the service or service preference to
be used
0 - Packet Domain
1 - circuit switched
2 - Packet Domain preferred (use circuit switched if GPRS not available)
3 - circuit switched preferred (use Packet Domain if circuit switched not
available)
Example
AT+CGSMS=1
OK
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 64 of 82

AT+CGSMS?
+CGSMS: 1
OK
AT+CGSMS=?
+CGSMS: (0-3)
OK
7 PhonebookCommands
7.1 +CPBS,SelectPhonebookMemoryStorage
Description
Set command selects phonebook memory storage, which will be used by other phonebook
commands.
Syntax
Set command
Response
AT+CPBS=<storage>
OK
Read command
Response
AT+CPBS?
+CPBS: <storage>,<used>,<total>
Test command
Response
AT+CPBS=?
+CPBS: (list of supported <storage>s)
Parameter
<storage>
<used>
<total>
phonebook memory type
"SM" - UIM phonebook
“ME” - NV phonebook
the number of occupied records
the maximum index number
Example
AT+CPBS=”ME”
OK
AT+CPBS?
+CPBS: ”ME”,5,100
OK
AT+CPBS=?
+CPBS: (“SM”,”ME”)
OK
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 65 of 82

7.2 +CPBR,ReadPhonebookEntries
Description
Execution command returns phonebook entries in location number range <index1> to <index2>
from the current phonebook memory storage selected with +CPBS. If <index2> is omitted, only
location <index1> is returned.
Syntax
Execution command
Response
AT+CPBR=<index1>[,<index2>]
+CPBR: <index>,<number>,<type>,<text>
[+CPBR: <index>,<number>,<type>,<text>[…]]
Test command
Response
AT+CPBR=?
+CPBR: (list of supported <index>s)[,<nlength>][,<tlength>]
Parameter
<index1>&<index2>
<index>
<number>
<type>
<text>
<nlength>
<tlength>
integer type value in the range of location numbers of
phonebook memory
the current position number of the PB index (to see the range
of values use +CPBR=?)
string type phone number in format <type>
type of phone number octet in integer format
129 - national numbering scheme
145 - international numbering scheme
the alphanumeric text associated to the number in
phonebook; used character set should be the one selected
with command +CSCS.
maximum <number> field length, integer type
maximum <name> field length, integer type
Example
AT+CPBR=3
+CPBR: 3,”10010”,129,”CCC”
OK
AT+CPBR=4, 6
+CPBR: 4, “10086”, 129, “BBBBB”
+CPBR: 5, “13888888888”, 129, “DD”
+CPBR: 6, “18955555555”, 145, “ABC”
OK
AT+CPBR=6, 4
+CPBR: 4, “10086”, 129, “BBBBB”
+CPBR: 5, “13888888888”, 129, “DD”
+CPBR: 6, “18955555555”, 145, “ABC”
OK
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 66 of 82

AT+CPBS?
+CPBS: “ME”, 6, 100
AT+CPBR=?
+CPBR: (1-100), 40, 182
7.3 +CPBW,WritePhonebookEntry
Description
Set command stores a phonebook record at the position <index> defined by <number>, <type>
and <text> parameters. If <index> is given and <number> is omitted, the phonebook record at
this position will be deleted.
Syntax
Set command
Response
AT+CPBW=[<index>][,[<number>][,<type>],<text>]
OK
Test command
Response
AT+CPBW=?
+CPBW: (list of supported<index>s)[,<nlength>], (list of
supported <type>s)[, <tlength>]
Parameter
<index>
<number>
<type>
<text>
<nlength>
<tlength>
record position; If the parameter is omitted, the record will be written to
the next vacancy
string type phone number in format <type>, 0 or more of the characters:
“0 1 2 3 4 5 6 7 8 9 * # + ( ) -”. No matter characters”( ) -” appear in
which position of the string, they will be ignored. These characters
won’t cause an ERROR result code.
type of phone number octet in integer format
the alphanumeric text associated to the number in phonebook; used
character set should be the one selected with command +CSCS.
Note: The <text> must be enclosed in double quotes; but double
quotation marks are not permitted to appear in the content. For
example, “Lin”da” is a wrong expression.
maximum <number> field length, integer type
maximum <name> field length, integer type
Example
AT+CPBW=1,”10000”,129,”Linda”
OK
AT+CPBW=2,”10001”,129,”John”
OK
AT+CPBW=3,”10002”, ,”AAA”
OK
AT+CPBW=,”10003”,129,”BBB”
OK
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 67 of 82

AT+CPBW=,”+10004”, ,”CCC”
OK
AT+CPBR=1,5
+CPBR: 1,"10000",129,"Linda"
+CPBR: 2,"10001",129,"John"
+CPBR: 3,"10002",129,"AAA"
+CPBR: 4,"10003",129,"BBB"
+CPBR: 5,"+10004",145,"CCC"
OK
AT+CPBW=1
OK
AT+CPBW=2,””,129,”John”
OK
AT+CPBR=1,5
+CPBR: 3,"10002",129,"AAA"
+CPBR: 4,"10003",129,"BBB"
+CPBR: 5,"+10004",145,"CCC"
OK
7.4 +CPBF,FindPhonebookEntry
Description
Set command returns the phonebook records which the <text> field begins with the letters
defined by <findtext>.
Syntax
Set command
Response
AT+CPBF=<findtext>
+CPBF: <index1>,<number>,<type>,<text>
[+CBPF: <index2>,<number>,<type>,<text>
[...]]
Test command
Response
AT+CPBF=?
+CPBF: [<nlength>],[<tlength>]
Parameter
<index>
<number>
<type>
<text>,<findtext>
<nlength>
<tlength>
record position
string type phone number in format <type>, 0 or more of the
characters:“0 1 2 3 4 5 6 7 8 9 * # + ( ) -”
type of phone number octet in integer format
the alphanumeric text associated to the number in phonebook;
used character set should be the one selected with command
+CSCS.
maximum <number> field length, integer type
maximum <name> field length, integer type
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 68 of 82

Example
AT+CPBF= “C”
+CPBF: 3, “10010”, 129, “CCC”
+CPBF: 6, “+18955555555”, 145, “CBA”
OK
AT+CPBF= “CB”
+CPBF: 6, “+18955555555”, 145, “CBA”
OK
AT+CPBS?
+CPBS:”ME”, 7, 100
AT+CPBF=?
+CPBF: 40, 182
OK
8 GPRSCommands
8.1 +CGATT,PSAttachorDetach
Description
The execution command is used to attach the MT to, or detach the MT from, the Packet Domain
service. After the command has completed, the MT remains in V.25ter command state. If the MT
is already in the requested state, the command is ignored and the OK response is returned. Any
active PDP contexts will be automatically deactivated when the attachment state changes to
detached.
Syntax
Set command
Response
AT+CGATT=<state>
OK
Read command
Response
AT+CGATT?
+CGATT: <state>
Test command
Response
AT+CGATT=?
+CGATT: (list of supported <state>s)
Parameter
<state> indicates the state of PS attachment
0 - detached
1 - attached
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 69 of 82

Example
AT+CGATT?
+CGATT: 1
OK
AT+CGATT=0
OK
AT+CGATT=?
+CGATT: (0,1)
OK
8.2 +CGDCONT,DefinePDPContext
Description
The set command specifies PDP context parameter values for a PDP context identified by the
(local) context identification parameter, <cid>.
Syntax
Set command
Response
AT+CGDCONT=[<cid>[,<PDP_type>[,<APN>[,<PDP_addr>
[,<d_comp> [,<h_comp>]]]]]]
OK
Read command
Response
AT+CGDCONT?
+CGDCONT: <cid>,<PDP_type>,<APN>,<PDP_addr>, <d_comp>,
<h_comp>
Test command
Response
AT+CGDCONT=?
+CGDCONT: (range of supported <cid>s), <PDP_type>,,,(list of
supported <d_comp>s),(list of supported <h_comp>s)
[+CGDCONT: (range of supported <cid>s), <PDP_type>,,,(list of
supported <d_comp>s),(list of supported <h_comp>s)[...]]
Parameter
<cid>
<PDP_type>
<APN>
<PDP_addr>
a numeric parameter which specifies a particular PDP context
definition. The parameter is local to the TE-MT interface and is used
in other PDP context-related commands; range from 1 to 16
a string parameter which specifies the type of packet data protocol
IP Internet Protocol (IETF STD 5)
PPP Point to Point Protocol (IETF STD 51)
IPV6
IPV4V6
a string parameter which is a logical name that is used to select the
GGSN or the external packet data network. If the value is null or
omitted, then the subscription value will be requested.
a string parameter that identifies the MT in the address space
applicable to the PDP. If the value is null or omitted, then a value may
be provided by the TE during the PDP startup procedure or, failing
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 70 of 82

<d_comp>
<h_comp>
that, a dynamic address will be requested.
The read form of the command will continue to return the null string
even if an address has been allocated during the PDP startup
procedure. The allocated address may be read using the
+CGPADDR command.
a numeric parameter that controls PDP data compression
0 - off (default if value is omitted)
1 - on
a numeric parameter that controls PDP header compression
0 - off (default if value is omitted)
1 - on
Example
AT+CGDCONT=1,"IP","CMNET",,0,1
OK
AT+CGDCONT?
+CGDCONT: 1,"IP","CMCC”,””,0,1
+CGDCONT: 2,"PPP","",””0,0
+CGDCONT: 3,"IP","CMNET",””,0,0
AT+CGDCONT=?
+CGDCONT: (1-3), “IP”,,,(0-2),(0-3)
+CGDCONT: (1-3), “PPP”,,,(0-2),(0-3)
8.3 $QCPDPP,PDPAuthentication
Description
Set command defines authentication parameters for the PDP context id.
Syntax
Set command
Response
AT$QCPDPP=<cid>,<auth_type>,<auth_name>,<auth_pwd>
OK
Read command
Response
AT$QCPDPP?
$QCPDPP: <cid1>,<auth_type>,<auth_name>,<auth_pwd>
$QCPDPP: <cid2>,<auth_type>,<auth_name>,<auth_pwd>
Test command
Response
AT$QCPDPP=?
$QCPDPP: (list of supported <cid>s), (list of supported
<auth_type>s),[<auth_name>],[<auth_pwd>]
Parameter
<cid>
<auth_type>
specifies a particular PDP context definition. This is also used in
other PDP context-related commands.
indicates the types of authentication to be used for the specified
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 71 of 82

<auth_name>
<auth_pwd>
context.
0 - none
1 - PAP
2 - CHAP
3 - PAP or CHAP
specifies the user name used for authentication. It is required for the
authentication types PAP or CHAP.
specifies the password used for authentication. It is required for the
authentication types PAP or CHAP.
Example
AT$QCPDPP=?
$QCPDPP: (1-16),(0-3),,
AT$QCPDPP=1, 1, "hdth47","w58gdpv1@bizm.ocn.ne.jp"
OK
8.4 +CGACT,PDPContextActivateorDeactivate
Description
Set command is used to activate or deactivate the specified PDP context (s). After the command
has completed, the MT remains. If any PDP context is already in the requested state, the state
for that context remains unchanged. If the MT is not PS attached when the activation form of the
command is executed, the MT first performs a PS attach and them attempts to activate the
specified contexts.
Syntax
Set command
Response
AT+CGACT=<state>,<cid>
OK
Read command
Response
AT+CGACT?
+CGACT:<cid=1>,<state>
+CGACT:<cid=2>,<state>
+CGACT:<cid=3>,<state>
Test command
Response
AT+CGACT=?
+CGACT: (list of supported <state>s)
Parameter
<state>
<cid>
indicates the state of PDP context activation
0 - deactivated
1 - activated
a numeric parameter which specifies a particular PDP context
definition (see the +CGDCONT)
Example
AT+CGACT=1,1
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 72 of 82

OK
AT+CGACT=0,2
OK
AT+CGACT?
+CGACT: 1,1
+CGACT: 2,0
+CGACT: 3,0
OK
AT+CGACT=?
+CGACT: (0-1)
8.5 +CGDATA,EnterDataState
Description
Set command causes the MT to perform whatever actions are necessary to establish
communication between the TE and the network using one or more Packet Domain PDP types.
This may include performing a PS attach and one or more PDP context activations.
Syntax
Set command
Response
AT+CGDATA=<L2P>,<cid>
CONNECT
Test command
Response
AT+CGDATA=?
+CGDATA: (list of supported <L2P>s)
Parameter
<L2P>
<cid>
a string parameter that indicates the layer 2 protocol to be used
between the TE and MT
“PPP” Point-to-point protocol for a PDP such as IP
a numeric parameter which specifies a particular PDP context
definition (see the +CGDCONT)
Example
AT+CGDATA=”PPP”,2
CONNECT 7200000
AT+CGDATA=?
+CGDATA: (“PPP”)
8.6 +CGPADDR,ShowPDPaddress
Description
Set command returns a list of PDP addresses for the specified context identifiers.
Syntax
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 73 of 82

Set command
Response
AT+CGPADDR=<cid>[,<cid>]
+CGPADDR: <cid><PDP_addr>
[+CGPADDR: <cid><PDP_addr>]..]
Test command
Response
AT+CGPADDR=?
+CGPADDR: (list of supported <cid>s)
Parameter
<cid>
<PDP_addr>
a numeric parameter which specifies a particular PDP context
definition (see the +CGDCONT)
a string that identifies the MT in the address space applicable to the
PDP. The address may be static or dynamic. For a static address, it
will be the one set by the +CGDCONT command when the context
was defined. For a dynamic address it will be the one assigned during
the last PDP context activation that used the context definition
referred to by <cid>. <PDP_address> is omitted if none is available.
Example
AT+CGPADDR=1,2
+CGPADDR: 1,”10.101.23.210”
+CGPADDR: 2,”10.99.119.67”
OK
AT+CGPADDR=?
+CGPADDR: (1,2,3)
9 GPSCommands
9.1 ^GPSMODE,GPSModeSet
Description
Set command sets the GPS positioning mode.
Syntax
Set command
Response
AT^GPSMODE=<mode>
OK
Read command
Response
AT^GPSMODE?
^GPSMODE: <mode>
Test command
Response
AT^GPSMODE =?
^GPSMODE: (list of supported <mode>s)
Parameter
<mode> location mode
1 - Standalone(default)
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 74 of 82

2 - MS Based (A-GPS)
3 - MS-Assisted/Hybird
9.2 ^GPSLOC,LaunchPositioning
Description
Set command enables/disables the URC of positioning result and sets the interval of tracking
and positioning.
Syntax
Set command
Response
AT^GPSLOC=<mode>[,<interval>]
OK
Execution command
Response
AT^GPSLOC
OK
(output the NEMA data)
Read command
Response
AT^GPSLOC?
^GPSLOC:<mode>,<interval>
Test command
Response
AT^GPSLOC=?
^GPSLOC:(list of supported <mode>s),(list of supported
<interval>s)
Parameter
<mode>
<interval>
0 – disables the unsolicited result code
1 – enables the unsolicited result code
0 – single positioning(default)
1 to 3600 – interval of tracking and positioning, in sec
Note: The minimum reported interval of position information is subject to real interval set by
each location mode. If the interval is smaller than the real calculating time, the locating
calculation this time will not be discarded and locating information will be reported. After that, a
new positioning will be launched.
9.3 ^GPSEND,EndCurrentPositioning
Description
Execution command sets to end the current positioning.
Note: To a single positioning, ^GPSEND is unnecessary. Tracking and positioning must be
ended by this command.
Syntax
Execution command AT^GPSEND
Response OK
9.4 ^GPSMPCIP,MPCServerIP&Port
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 75 of 82

Description
Set command sets IP address and port of MPC(Mobile Position Center) Server according to the
carrier.
Syntax
Set command
Response
AT^GPSMPCIP=<ip>,<port>
OK
Read command
Response
AT^GPSMPCIP?
^GPSMPCIP:<ip>,<port>
Test command
Response
AT^GPSMPCIP=?
^GPSMPCIP:(<ip>),(list of supported <port>s)
Parameter
<ip>
<port>
MPC server IP address, in format of xxx.xxx.xxx.xxx, the value of
“xxx” is from 0 to 255.
range is 0 to 65535
9.5 ^GPSRES,ResetPositionInfomation
Description
Execution command reset all position related information. The following information will be
emptied or set zero:
GPS satellite calendar information
GPS satellite ephemeris information
accurate position information stored in MT
Note: If a previous positioning session has not finished, sending this command, an ERROR
response BUSY will be reported.
Syntax
Execution command AT^GPSRES
Response OK
9.6 ^GPSQOS,GPSQOS
Description
Set command sets the QOS parameters value of GPS
Syntax
Set command
Response
AT^GPSQOS=<threshold>,<performance>
OK
Read command
Response
AT^GPSQOS?
^GPSQOS:<threshold>,<performance>
Test command
Response
AT^GPSQOS=?
^GPSQOS: (list of supported <threshold>s),(list of supported
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 76 of 82

<performance>s)
Parameter
<threshold>
<performance>
position accuracy threshold
0 - 1000m
1 - 500m
2 - 250m
3 - 100m
4 - 50m
5 - 25m
time limit, range is 0 to 255
If a single positioning result is not reported in <performance>
seconds, this positioning is failed.
9.7 ^GPSPORT,GPSNMEASerialPort
Description
Set command sets specified to receive NMEA data. This function is subject to modules spec
whether it supports or not.
Syntax
Set command
Response
AT^GPSPORT=<port>[,<mode>]
OK
Read command
Response
AT^GPSPORT?
^GPSPORT:<port>,<mode>
Test command
Response
AT^GPSPORT=?
^GPSPORT:(list of supported <port>s),(list of supported
<mode>s)
Parameter
<port>
<mode>
0 - UART1(com port)
1 - UART2(com port)
2 - USB(USB NMEA port)
3 – USB_MDM (USB MDM port)
4 – USB_DIAG (USB DIAG port)
5 – USB_SER3 (USB AUX port)
0 – report NMEA data in 1Hz, no matter the positioning is
successful.
1 – report NMEA data when the positioning is successful.
9.8 ^GPSFMT,NMEADataFormat
Description
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 77 of 82

Set command enables/disables specified output format of NMEA data.
Syntax
Set command
Response
AT^GPSFMT=<format>[,<mode>]
OK
Read command
Response
AT^GPSFMT?
^GPSFMT:(list of enabled <format>s)
Test command
Response
AT^GPSFMT=?
^GPSFMT:(list of supported <format>s)
Parameter
<format>
<mode>
GGA - Global Positioning System Fix Data
RMC - Geographical Position - Latitude/Longitude
GSV - GPS Satellites in View
GSA - GPS DOP and Active Satellites
VTG - Course Over Ground and Ground Speed
0 – disables
1 – enables
9.9 StandalonePositioning
Standalone GPS positioning mode is the traditional positioning mode. It downloads data from the
satellite. It cannot be located indoor. The best testing environment is under the open sky outdoor.
Example
AT^GPSMODE=1 //set Standalone mode positioning
OK
AT^GPSLOC=1,1 //enable URC, set tracking & positioning, interval time is 1s
OK
AT^GPSPORT=5 //output the GPS data via AUX port
OK
AT^GPSLOC //launch positioning
OK
……
$GPGGA,021502.2,,,,,0,,,,,,,,*7E
$GPVTG,,T,,M,,N,,K,N*2C
$GPRMC,,V,,,,,,,,,,N*53
$GPGSA,A,1,,,,,,,,,,,,,,,*1E //NMEA is reported in 1Hz through UART1
……
$GPGGA,021551.2,3112.638069,N,12134.888934,E,1,04,26.5,-189.5,M,,,,*12
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 78 of 82

$GPVTG,,T,,M,0.0,N,0.0,K,N*2C
$GPRMC,021551.2,A,3112.638069,N,12134.888934,E,0.0,,110610,,,A*47
$GPGSA,A,3,09,15,21,26,,,,,,,,,43.7,26.5,34.7*09
$GPGSV,2,1,07,09,48,035,35,12,,,28,15,17,075,34,21,30,208,31*4E
$GPGSV,2,2,07,26,21,067,35,30,,,27,22,52,317,*7A //positioning success
……
AT^GPSEND //end the positioning
OK
9.10 AGPSPositioning
AGPS positioning is a mode assisted by network. Valid UIM card is necessary to establish a
connection to network. And IP & port of MPC server must be settled.
Example
AT^GPSMPCIP? //check MPC
^GPSMPCIP=xxx.xxx.xxx.xxx, xxxx
OK
AT^GPSMODE=2 // set MSB mode
OK
AT^GPSPORT=5 //output the GPS data via AUX port
OK
AT^GPSLOC=1,1 // enable URC, set tracking & positioning, interval time is 1s
OK AT^GPSLOC //launch positioning
OK
……
//report NMEA data
……
AT^GPSEND //end MSB positioning
OK
AT^GPSMODE=3 //set MSA/hybrid mode
OK
AT^GPSLOC // launch MSA positioning
OK
……
AT^GPSEND
OK
9.11 NMEADataFormat
Send ^GPSFMT command to set specified output format of NMEA data. And it must be set after
a positioning conversation, otherwise it is invalid.
Example
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 79 of 82

AT^GPSMODE=3 //set MSA/hybrid mode
OK
AT^GPSLOC=1,1 // enable URC, set tracking & positioning, interval time is 1s
OK
AT^GPSPORT=5 //output the GPS data via AUX port
OK
AT^GPSFMT?
^GPSFMT:GGA,RMC,GSV,GSA,VTG //list enabled format
OK
AT^GPSLOC //launch MSA positioning
OK
……
$GPGSV,3,1,09,09,11,045,,12,45,067,,14,45,324,,18,45,156,*72
$GPGSV,3,2,09,22,67,223,,24,11,213,,27,,,,30,55,135,*44 $GPGSV,3,3,09,31,22,246,*42
$GPGGA,033254.0,3112.530258,N,12134.821346,E,2,00,0.1,17.0,M,,,,*3F
$GPVTG,,T,,M,,N,,K,N*2C
$GPRMC,033254.0,A,3112.530258,N,12134.821346,E,,,120610,,,D*6B
$GPGSA,A,3,,,,,,,,,,,,,0.1,0.1,0.1*33
……
AT^GPSEND
OK
AT^GPSFMT=GSV,0 //disable GSV reported
OK
AT^GPSFMT=RMC,0 //disable RMC reported
OK
AT^GPSFMT=GSA,0 //disable GSA reported
OK
AT^GPSFMT=VTG,0 //disable VTG reported
OK
AT^GPSLOC
OK
……
$GPGGA,033429.0,3112.418249,N,12134.978738,E,2,00,0.1,18.0,M,,,,*37
…… //only GGA data reported
$GPGGA,033438.0,3112.522855,N,12134.982278,E,2,00,0.1,18.0,M,,,,*3C
……
AT^GPSEND
OK
9.12 ResetPositionInfomation
Send ^GPSRES command to delete positioning related information such as GPS satellite
calendar and satellite ephemeris information. This command can be used in Standalone GPS
cold-start testing.
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 80 of 82

Example
AT^GPSMODE=1 //set Standalone mode
OK
AT^GPSLOC=1,1
OK
AT^GPSRES //delete all positioning information
OK AT^GPSLOC // launch positioning (S-GPS cold start)
OK
……
//NMEA data reported
……
AT^GPSEND
OK
AT^GPSLOC // launch positioning again (hot start)
OK
……
/NMEA data reported
……
AT^GPSEND
OK
AT^GPSRES BUSY //after last positioning, MGP engine hasn’t been off yet, delete failed
……// wait for a moment
AT^GPSRES
OK
9.13 SetGPSQOSParameters
If positioning is unsuccessful in QOS limited time or can not achieve the specified position
accuracy threshold, the positioning is failed this time.
Example
AT^GPSMODE=1
OK
AT^GPSLOC=1,0 //set single positioning
OK
AT^GPSQOS=3,10 //set position accuracy threshold 100m, time limit 10secs
OK
AT^GPSPORT=5 //output the GPS data via AUX port
OK
AT^GPSLOC
OK
$GPGGA,052701.9,,,,,0,,,,,,,,*70
$GPGGA,052702.9,,,,,0,,,,,,,,*73
$GPGGA,052703.9,,,,,0,,,,,,,,*72
$GPGGA,052704.9,,,,,0,,,,,,,,*75
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 81 of 82

$GPGGA,052705.9,,,,,0,,,,,,,,*74
$GPGGA,052706.9,,,,,0,,,,,,,,*77
$GPGGA,052707.9,,,,,0,,,,,,,,*76
$GPGGA,052708.9,,,,,0,,,,,,,,*79
$GPGGA,052709.9,,,,,0,,,,,,,,*78
$PSTIS,*61 // NMEA is reported in 1Hz in 10s, position failed, this positioning is over
AT^GPSQOS=3,5 // set position accuracy threshold 100m, time limit 5secs
OK
AT^GPSLOC
OK
$GPGGA,053722.9,,,,,0,,,,,,,,*70
$GPGGA,053723.9,,,,,0,,,,,,,,*71
$GPGGA,053724.9,,,,,0,,,,,,,,*76
$GPGGA,053725.9,,,,,0,,,,,,,,*77
$PSTIS,*61 //this positioning costs 5s, failed
AT^GPSFMT?
^GPSFMT:GGA
OK
FCCCertificationRequirements.
Changes or modifications not expressly approved by the manufacturer could void the user’s
authority to operate the equipment.
According to the definition of mobile and fixed device is described in Part 2.1091(b),
this device is a mobile device.
And the following conditions must be met:
1. The EUT is a mobile device; maintain at least a 20 cm separation between the
EUT and the user’s body and must not transmit simultaneously with any other
antenna or transmitter.
2. The device is only for fixed operation mode. (A Class II Change would be required for
near-body Host applications.)
3. If the FCC ID of the module cannot be seen when it is installed, then the host label must
AnyDATA DTL718-W(-P) Module AT Command Reference
M2M-AT014-03 AnyDATA © 2001-2011 Page 82 of 82

include the text: Contains FCC ID: RHZWDTL718-W
4. To comply with FCC regulations limiting both maximum RF output power and human exposure
to RF radiation, maximum antenna gain (including cable loss) must not exceed 2dBi.

Navigation menu
