Aoedi Technology AD-968B Wireless FM Transmitter User Manual AD 968 for FCC

Shenzhen Aoedi Technology CO.,Ltd Wireless FM Transmitter AD 968 for FCC

User Manual

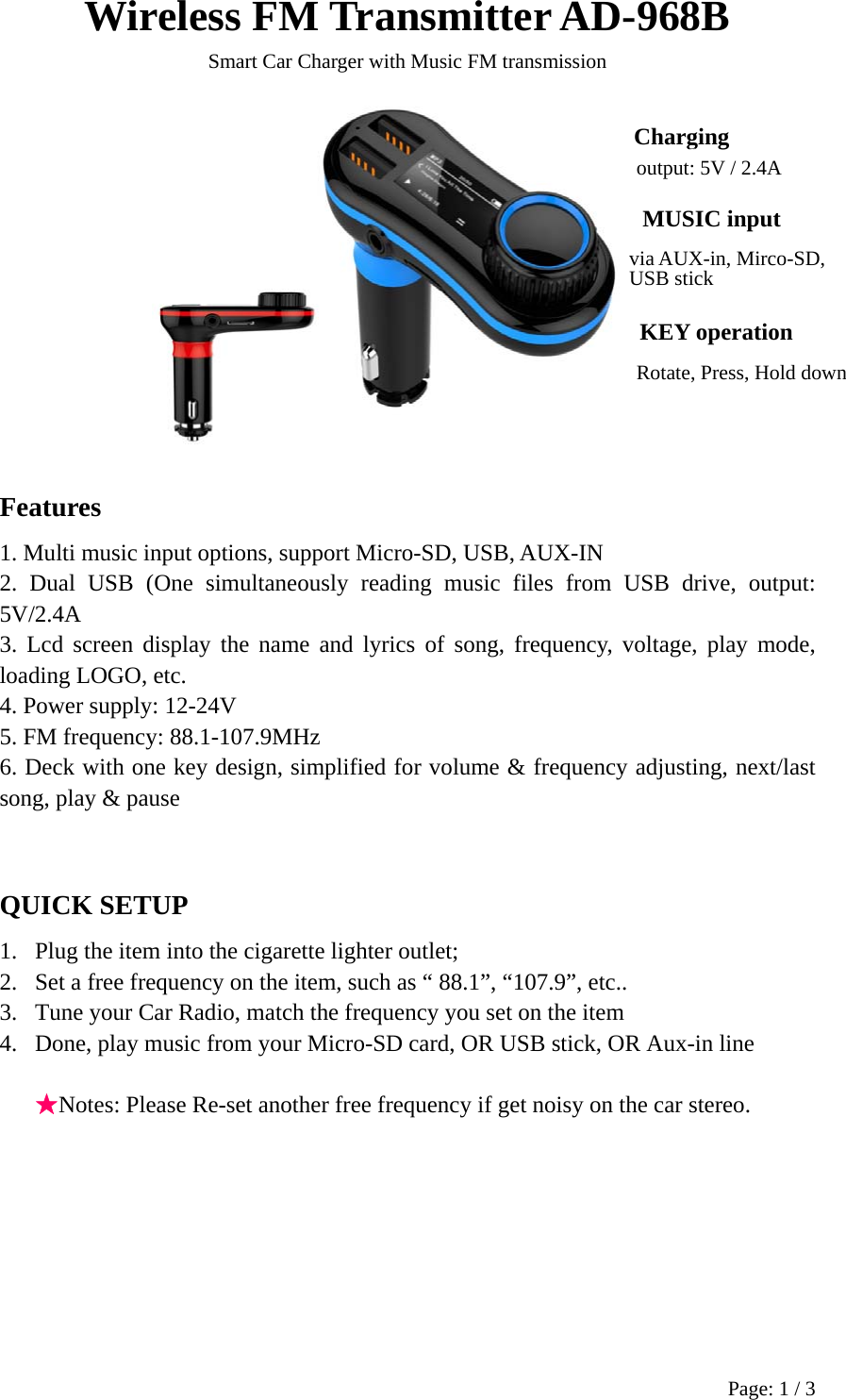

Page: 1 / 3 Wireless FM Transmitter AD-968B Smart Car Charger with Music FM transmission Features 1. Multi music input options, support Micro-SD, USB, AUX-IN 2. Dual USB (One simultaneously reading music files from USB drive, output: 5V/2.4A 3. Lcd screen display the name and lyrics of song, frequency, voltage, play mode, loading LOGO, etc. 4. Power supply: 12-24V 5. FM frequency: 88.1-107.9MHz 6. Deck with one key design, simplified for volume & frequency adjusting, next/last song, play & pause QUICK SETUP 1. Plug the item into the cigarette lighter outlet; 2. Set a free frequency on the item, such as “ 88.1”, “107.9”, etc.. 3. Tune your Car Radio, match the frequency you set on the item 4. Done, play music from your Micro-SD card, OR USB stick, OR Aux-in line ★Notes: Please Re-set another free frequency if get noisy on the car stereo. ChargingA RGING MUSIC input KEY operation via AUX-in, Mirco-SD,USB stick output: 5V / 2.4A Rotate, Press, Hold down

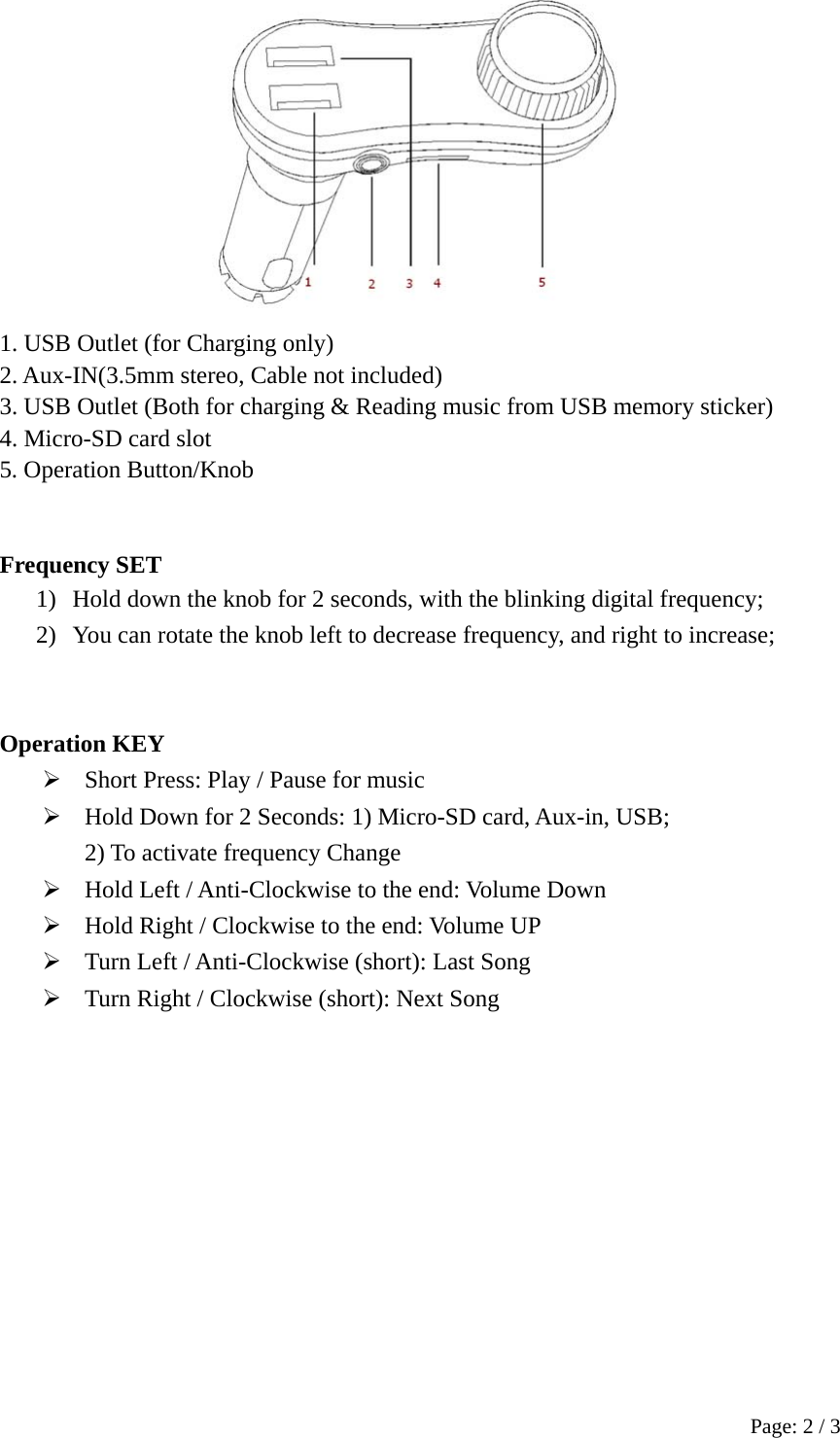

Page: 2 / 3 1. USB Outlet (for Charging only) 2. Aux-IN(3.5mm stereo, Cable not included) 3. USB Outlet (Both for charging & Reading music from USB memory sticker) 4. Micro-SD card slot 5. Operation Button/Knob Frequency SET 1) Hold down the knob for 2 seconds, with the blinking digital frequency; 2) You can rotate the knob left to decrease frequency, and right to increase; Operation KEY  Short Press: Play / Pause for music  Hold Down for 2 Seconds: 1) Micro-SD card, Aux-in, USB; 2) To activate frequency Change  Hold Left / Anti-Clockwise to the end: Volume Down  Hold Right / Clockwise to the end: Volume UP  Turn Left / Anti-Clockwise (short): Last Song  Turn Right / Clockwise (short): Next Song

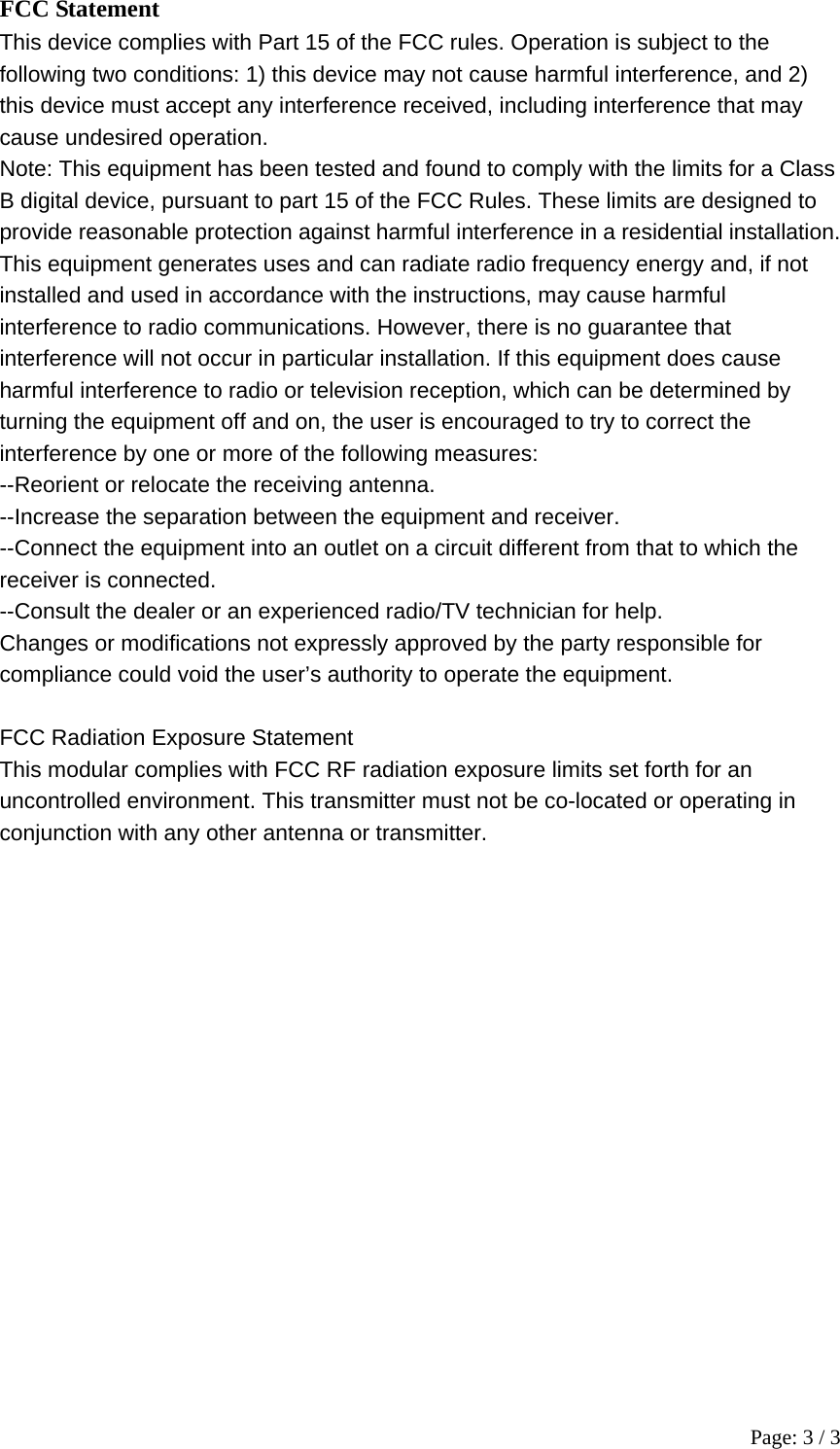

Page: 3 / 3 FCC Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Radiation Exposure Statement This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
