Chapter 3. Base Station Unit Web GUI
Operation of the Web GUI
The BSU and SU Web GUI pages share the basic elements identified in Figure 3-2.
Main Menu and Submenu
The Main Menu lists the various categories of functions available via the Web GUI. To
select an item from the Main Menu, click on it. Orange crescents will bracket the menu
item to show that it has been selected.
The Submenu is context-sensitivity, changing as different Main Menu items are selected.
The Submenu lists the pages available under the selected Main Menu category. Click on
the appropriately-labeled box in the Submenu to display the desired page.
Submitting and Uploading Changes
Pages on which configuration changes can be entered include a Submit button at the bot-
tom. Any change entered on the page does not take effect until the Submit button is
clicked. Clicking Submit affects only the current operation of the BSU or SU. The corre-
sponding configuration file located on the BSU’s permanent memory is not altered; there-
fore, the configuration change will be lost if the BSU or SU is reset or re-powered.
To update the BSU or SU permanent memory with changes made via the Web GUI, use the
Upload Configuration button on the BSU or SU Device Control Utility page. Clicking the
Upload Configuration button will cause all configuration changes currently in effect to be
written into the permanent memory.
Cancel and Refresh Buttons
Some pages include Cancel and/or Refresh buttons at the bottom. These buttons have
the following functions:
•Clicking on the Cancel button cancels any changes made on the page; altered fields
will return to their original contents.
•Clicking on the Refresh button refreshes the window with the most up-to-date infor-
mation.
Hyperlinks
Some Web GUI pages include hyperlinks to related pages. Hyperlinks are indicated in the
method defined in your browser configuration. In some cases, hyperlinks are imple-
mented using buttons similar to the Submit button.
Chapter 3. Base Station Unit Web GUI
3–4
070-20000750-01 Rev A
The Web GUI Home Page

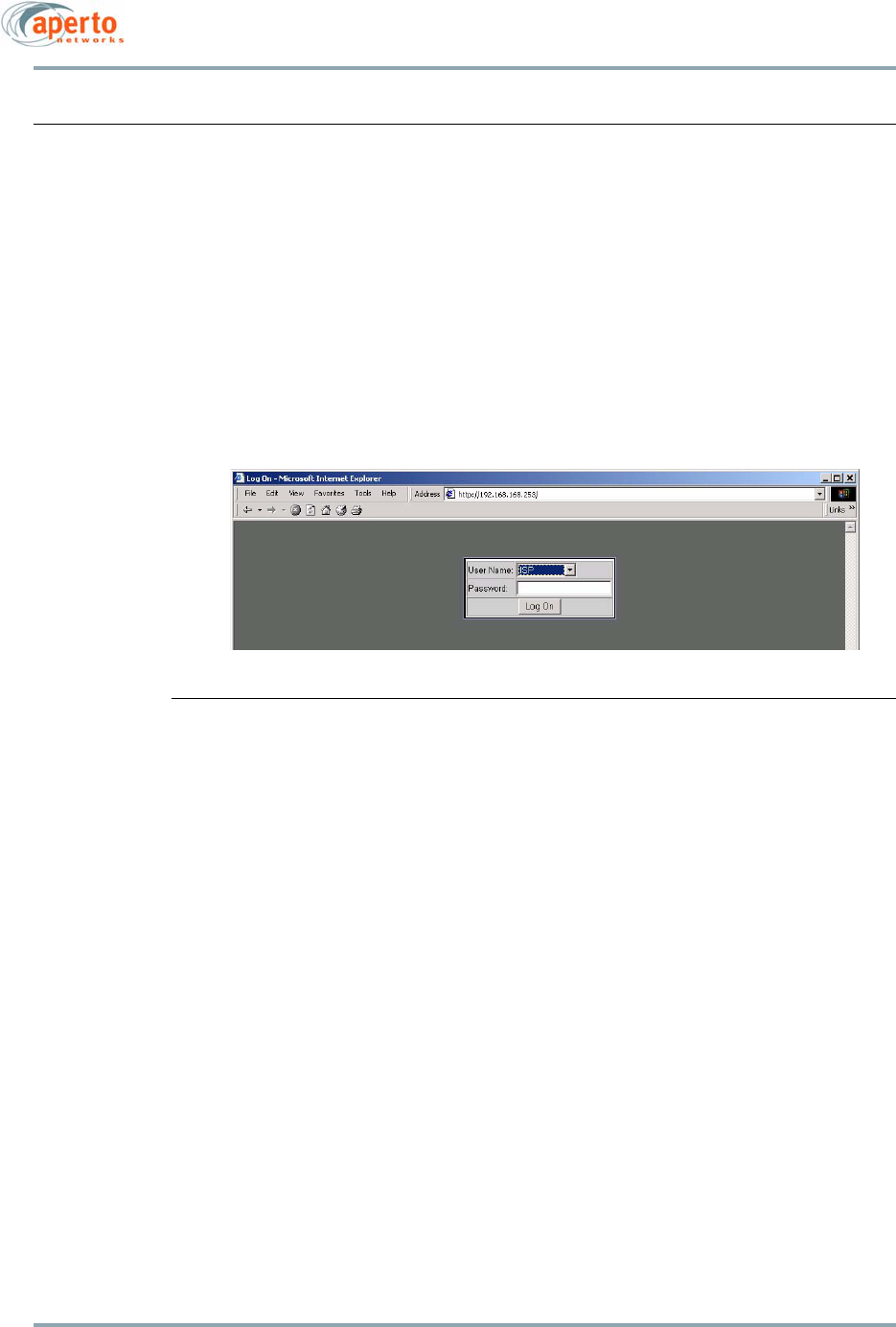

When you log on using the BSU’s IP address, you will be at the Home Page of the Base
Station Unit’s Web GUI as shown on Figure 3-3.
The Web GUI will log off after 15 minutes of inactivity. Activity can be either user input or
automatic status updates performed by the Web GUI (as in the connectivity views
described below). To keep the Web GUI from logging off when you will not be using it for
more than 15 minutes, go to a page on which status is automatically updated.
BSU/SU Connectivity
From the BSU Home Page, you can access graphical connectivity view of the BSU and SU
connection. Hyperlinks allow you to navigate through the connectivity view.
The connectivity view provides a quick way to identify the configured BSU/SU, and to
check their status. The arrows pointing to the Subscriber Unit in Figure 3-3 indicate wire-
less channel status: green if good or red the Subscriber Unit is down.

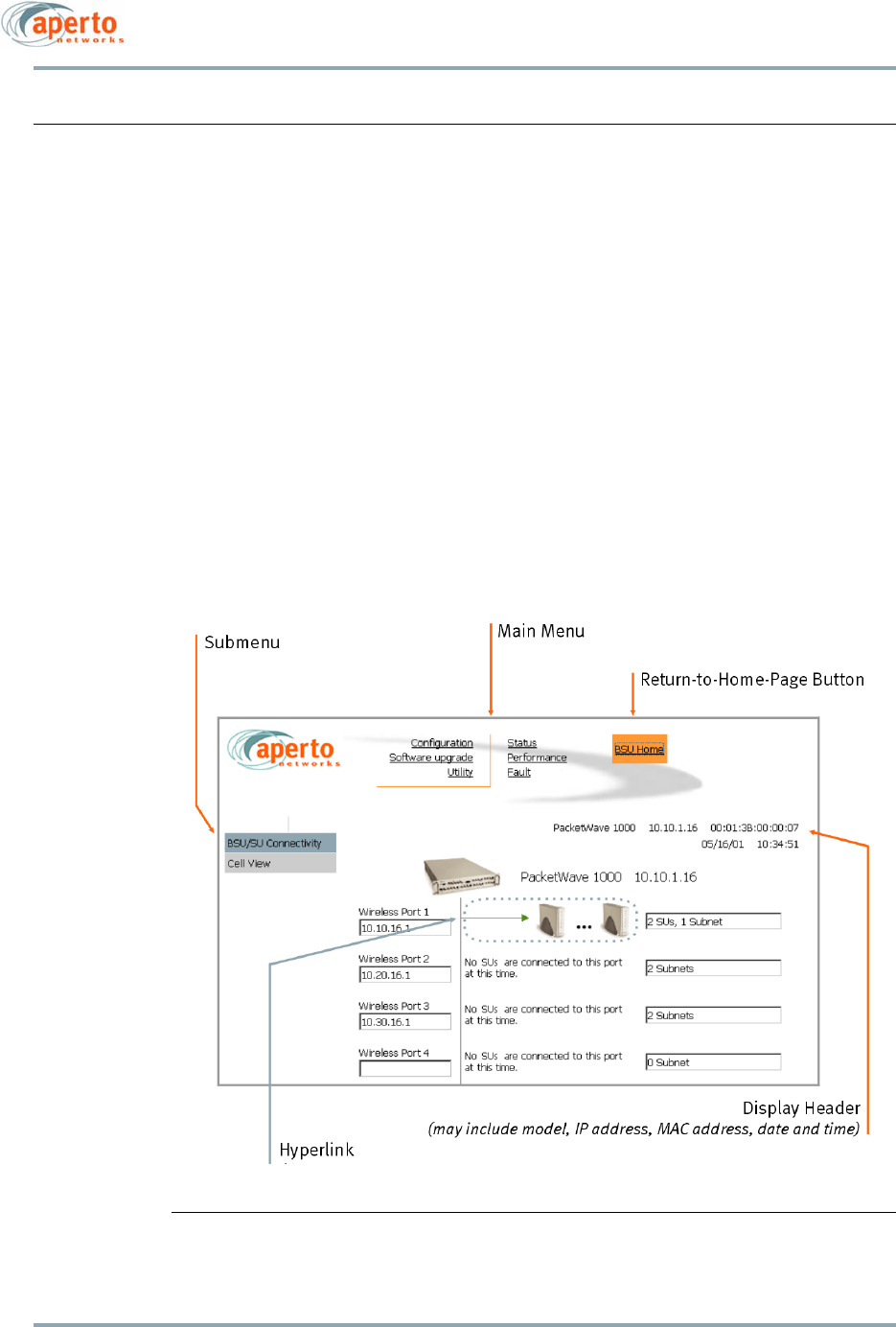

Figure 3-2 Basic Elements in BSU and SU Web GUI
3–5
070-20000750-01 Rev A
Chapter 3. Base Station Unit Web GUI

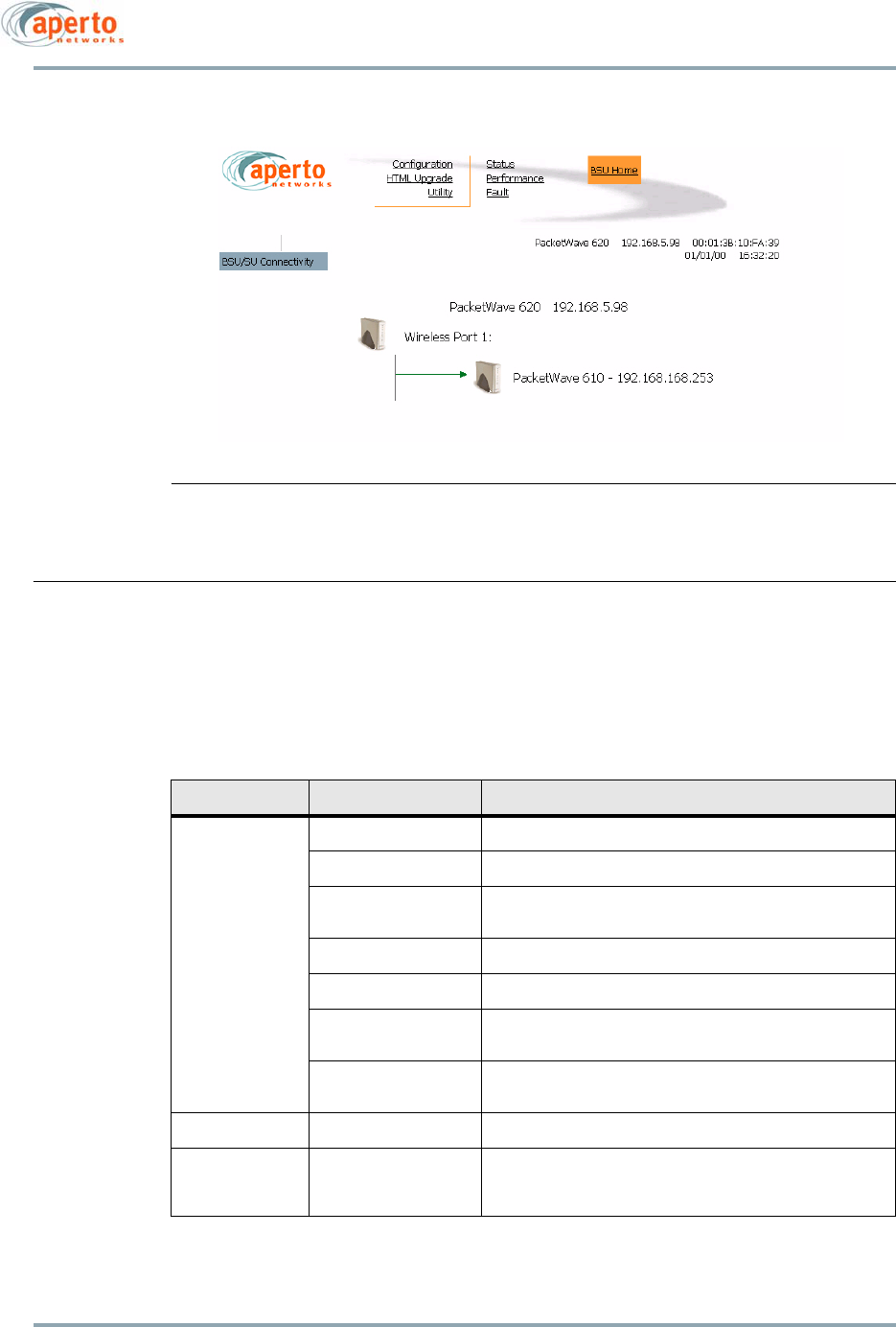

Figure 3-3 BSU Home: BSU/SU Connectivity
Overview of BSU Web GUI Functions
Table 3-A summarizes the functions available for each of the Main Menu and Submenu
selection.
Table 3-A Summary of the BSU Web GUI
Main Menu Submenu Functions
Configuration System Shows general BSU information and status. Read-only.
Administration Specifies contact, location, and cell name.
Password Allows users to change password for access to Web GUI,
SNMP, CLI, and FTP.
SNMP Configures SNMP management of BSU.
Local Time Sets local time, daylight savings parameters.
IP Filter Per Ethernet/WSS: List of all defined IP filters. Hyperlinks
to contents of individual filters. Read-only.
Wireless Interface Per WSS: Configuration pages for Frame, Channel, Radio.
Read-only.
HTML Upgrade HTML Upgrade Uploads new HTML pages for Web GUI.
Utility Device Control Several commands: Reset BSU; Turn WSS On/Off; Reset
WSS; Configuration Upload; Search IP address by Cus-
tomer Name.
Chapter 3. Base Station Unit Web GUI
3–6
070-20000750-01 Rev A
Configuration Pages
The Web GUI lets you check, and in some cases alter, the configuration of the Base Station
Unit. Numerous BSU configuration pages may be displayed, as indicated by the submenu
at the left of the page.
System Configuration
As shown in Figure 3-4, the System Configuration page identifies:
• Ethernet parameters
•Server settings
• Operating software and configuration files, and current boot status.
Status BSU System Status BSU software and hardware information, plus operational
status. Read-only.
SU Link Status Per WSS: Gives upstream or downstream link status for all
SUs with status. Read-only.
Performance BSU System
Statistics
One-hour, Transmit or Receive byte count graph. Read-
only.
Bandwidth Allocation Shows Upstream and Downstream allocation.
RF Signal Quality Shows RF signal quality statistics.
BSU Flow Statistics Gives performance statistics for all defined service flows.
Hyperlinks to specific flow details. Read-only.
SU Statistics Shows SU with transmit and receive byte counts. Hyper-
links to Subscriber Unit Web GUI. Read-only.
Fault Event logs List of logged BSU events. Read-only.

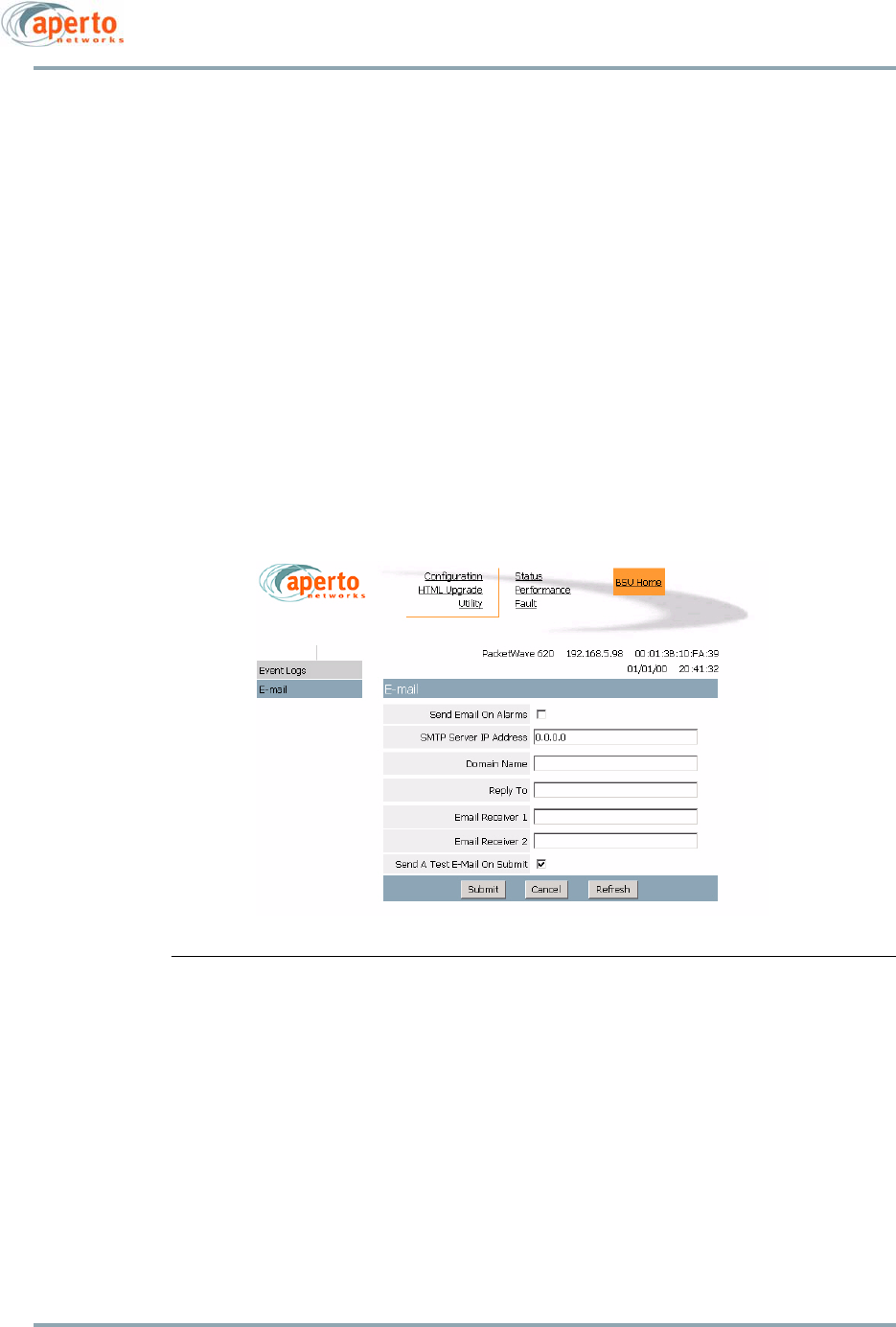

E-mail Configuration of e-mail alert reporting.
Table 3-A Summary of the BSU Web GUI
Main Menu Submenu Functions
3–7
070-20000750-01 Rev A
Chapter 3. Base Station Unit Web GUI

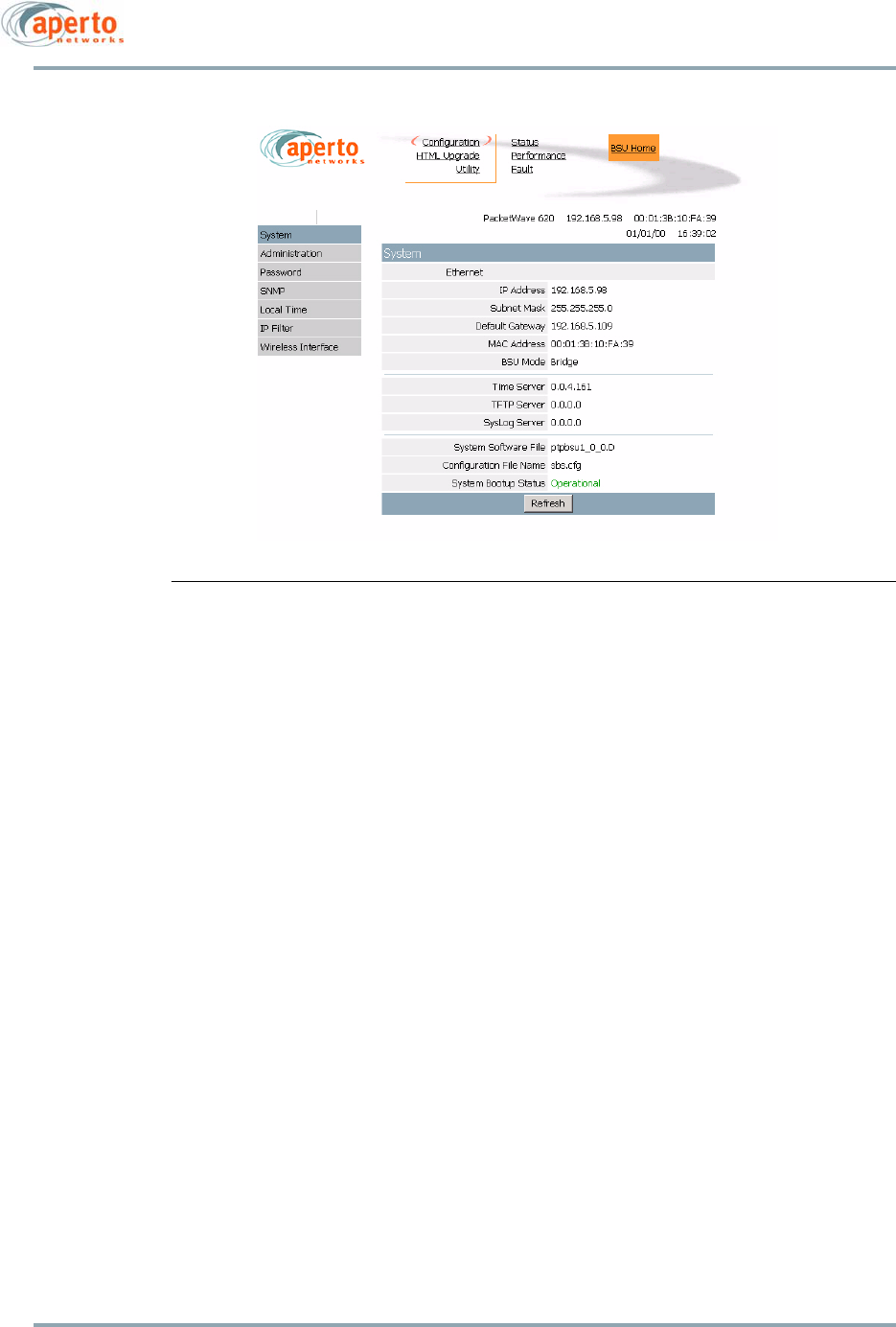

Figure 3-4 System Configuration Page (BSU in bridge mode)
Administration

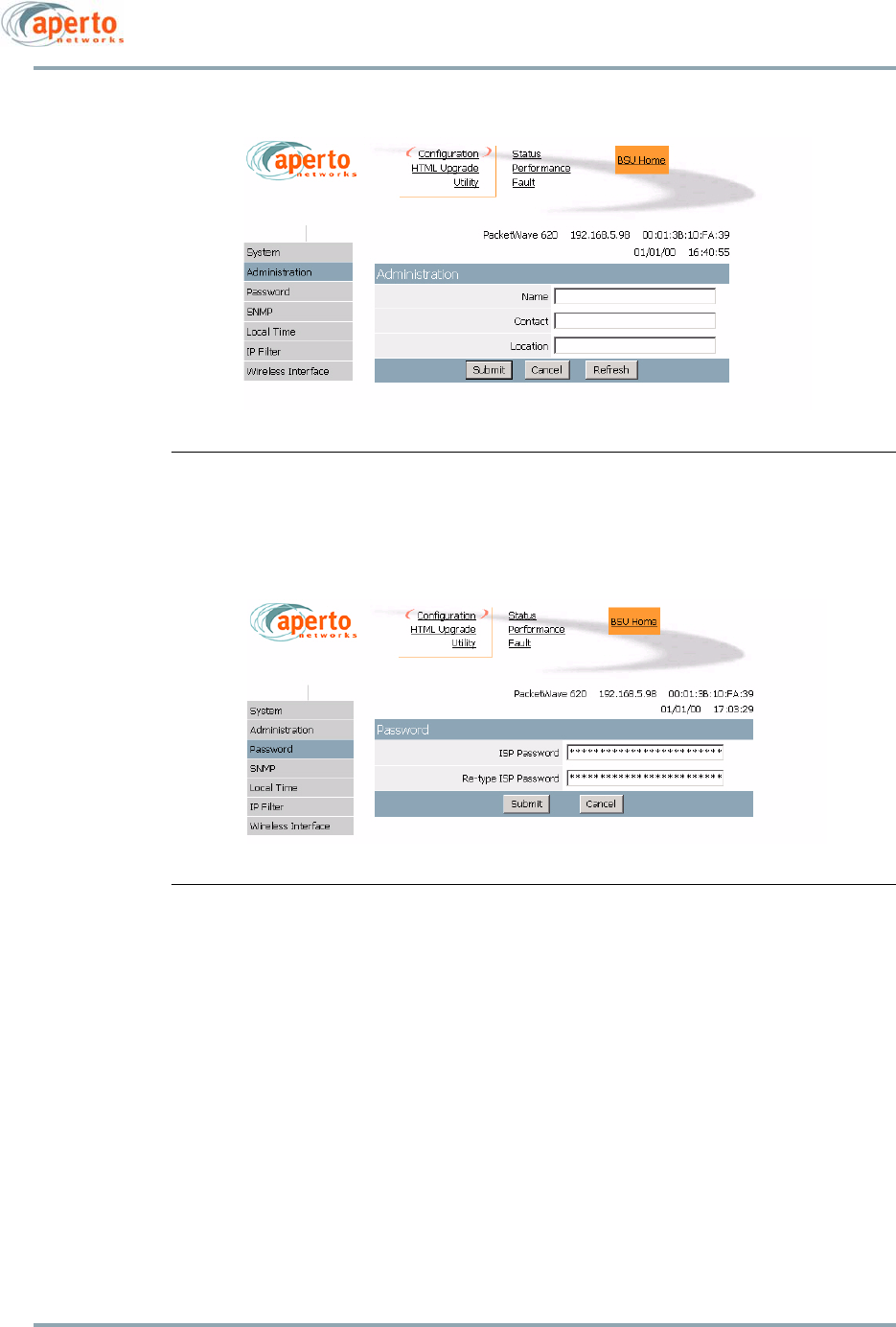

As shown in Figure 3-5, the Administration Configuration page allows viewing and altering
of text fields related to BSU and cell administration. These text fields can be used for what-
ever information system administrators deem useful. Click on the Submit button to acti-
vate any changes made on this page.
Password
The Password Configuration page, shown in Figure 3-6, allows you to change the pass-
word that is used to access the BSU’s Web GUI, SNMP, CLI, and FTP. Enter the password
exactly the same in the two fields (the password is case-sensitive). Then click the Submit
button.
Chapter 3. Base Station Unit Web GUI
3–8
070-20000750-01 Rev A
Figure 3-5 Administration Configuration Page
Figure 3-6 Password Configuration Page
SNMP

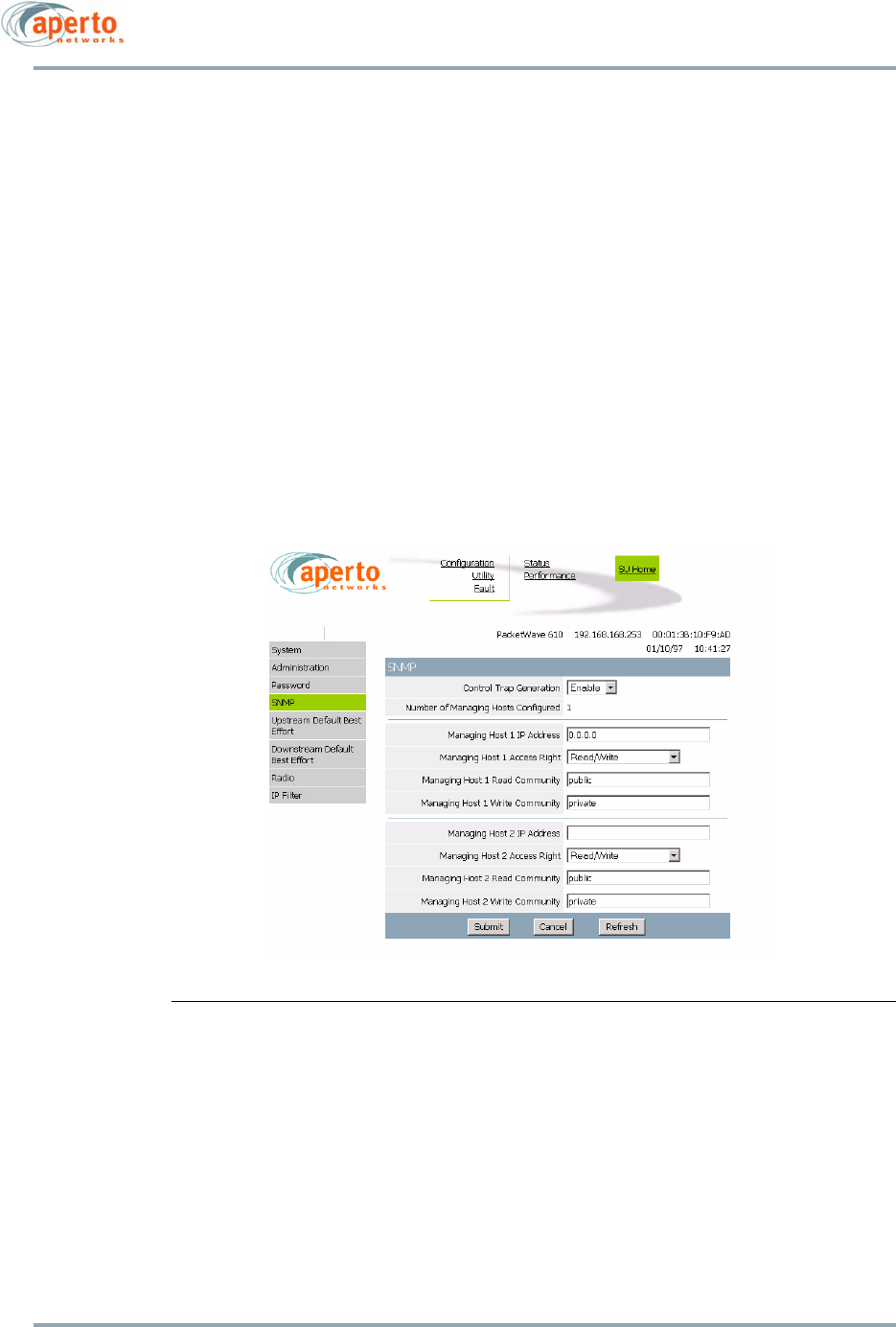

The SNMP Configuration page, shown in Figure 3-7
,
allows the viewing and altering of
SNMP parameters:
• Whether traps will be generated by the BSU.
• What SNMP manager(s) will be recognized, and what level of access they will have.
Click the Submit button to activate any changes made on this page.
3–9
070-20000750-01 Rev A
Chapter 3. Base Station Unit Web GUI

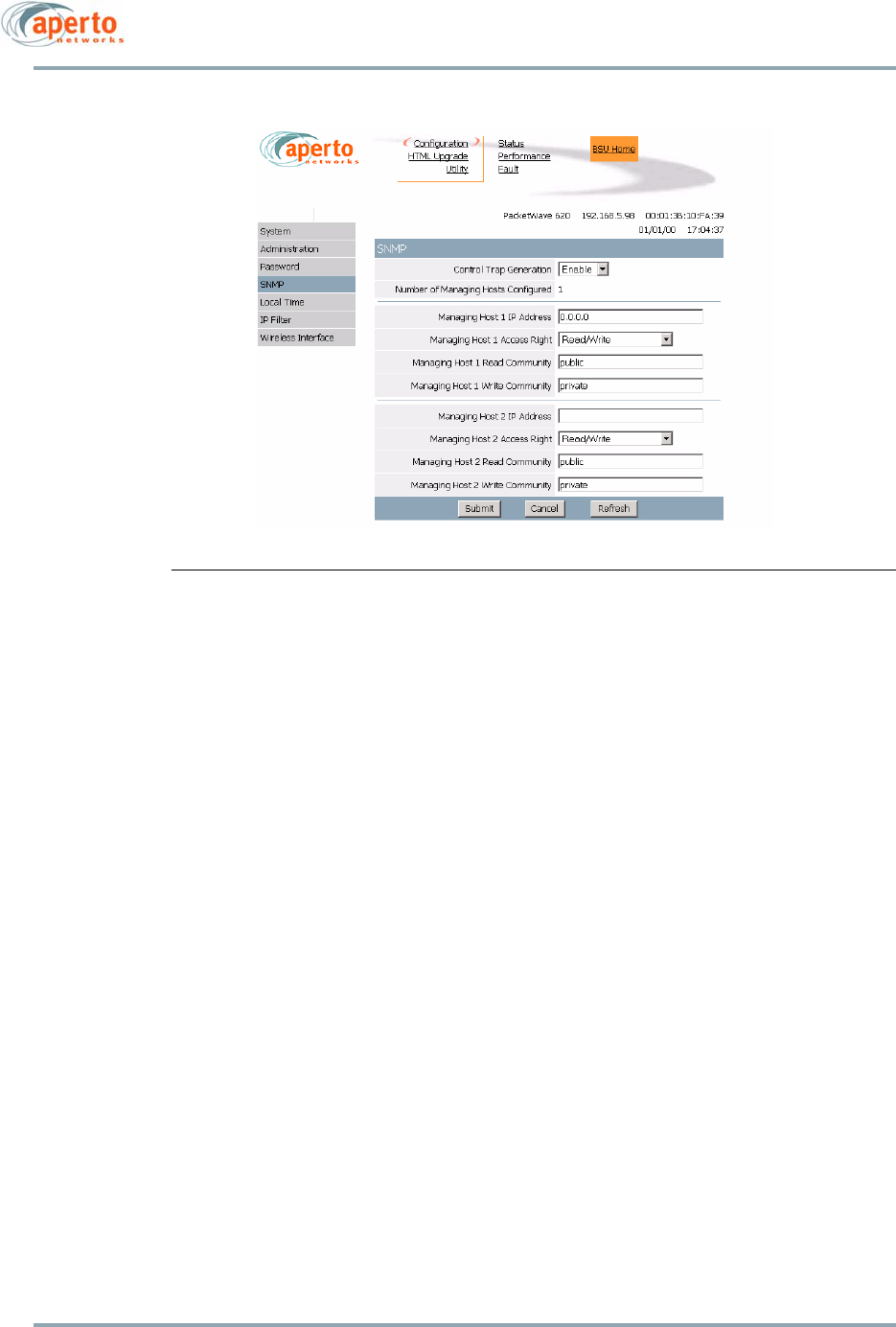

Figure 3-7 SNMP Configuration Page
Chapter 3. Base Station Unit Web GUI
3–10
070-20000750-01 Rev A
Local Time

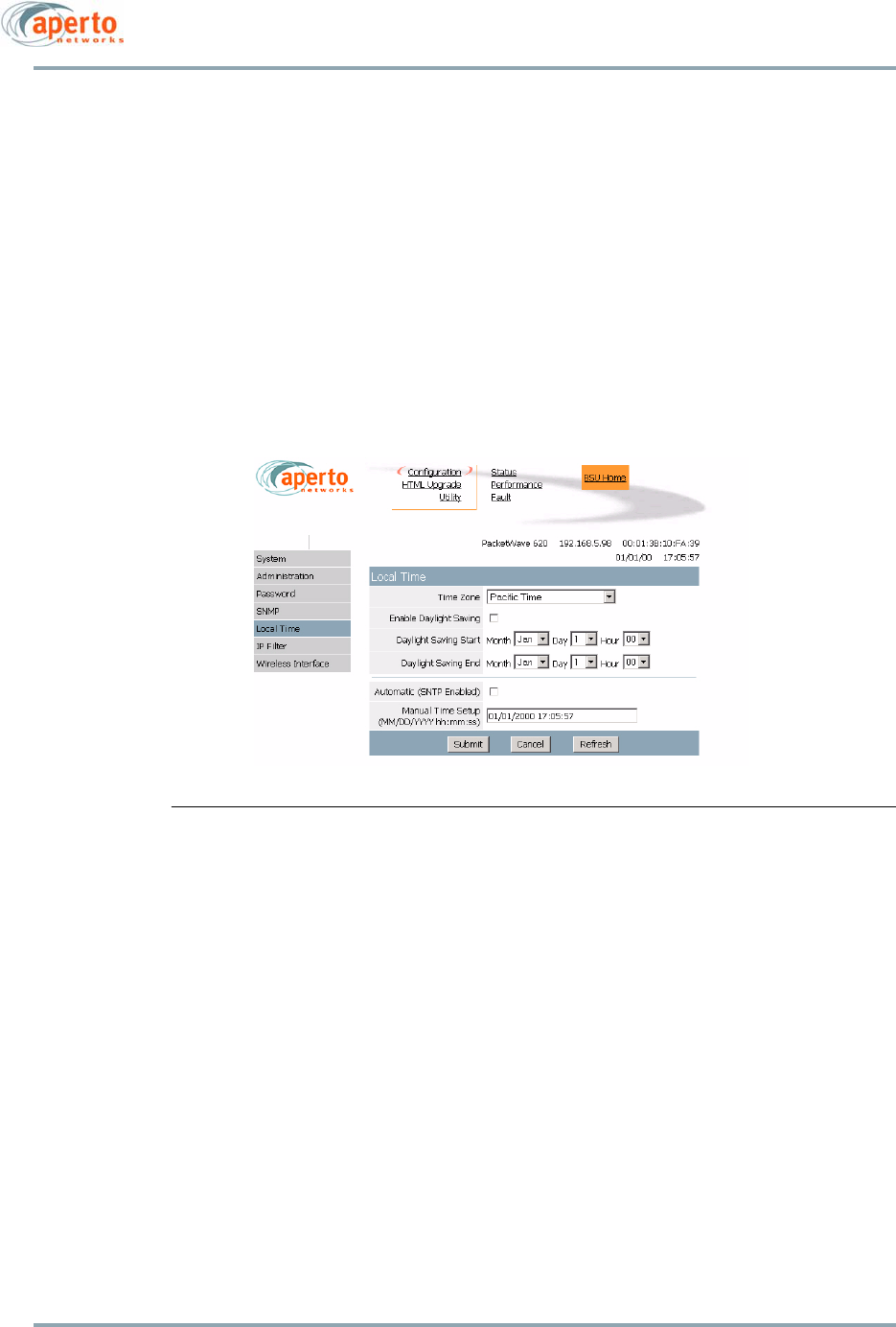

The Local Time Configuration page, shown in Figure 3-8, allows the specification of the
local time zone and daylight savings time options. These adjustments will be applied to
the time received from the Base Station Unit’s SNTP server.
Alternatively, obtaining of system time from the SNTP server can be disabled, and the time
entered on this page.
Click the Submit button to activate any changes made on this page.
Figure 3-8 Time Configuration Page
3–11
070-20000750-01 Rev A
Chapter 3. Base Station Unit Web GUI
IP Filters
IP Filter Configuration pages show any IP filters configured for the Base Station Unit’s wire-
less and Ethernet interfaces. IP Filter List pages list all filters configured for a particular
interface, as shown in Figure 3-9. Hyperlinks at the top of the page allow selection of the
Ethernet interface or a particular wireless interface.
Each filter listed has an identifier number which also functions as a hyperlink to an IP Filter
Contents page.
All IP Filter Configuration parameters are read-only.

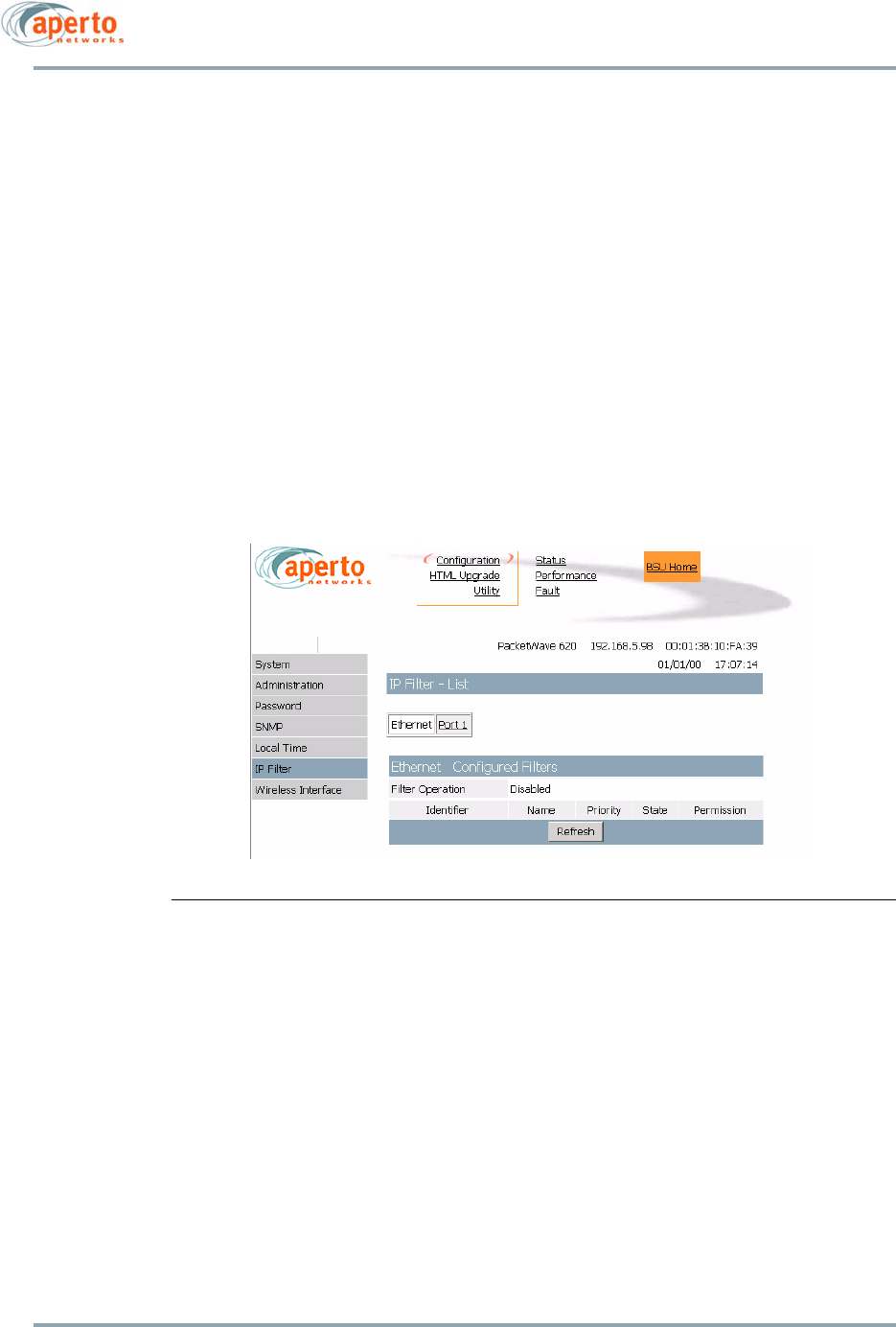

Figure 3-9 IP Filters List Page
Chapter 3. Base Station Unit Web GUI
3–12
070-20000750-01 Rev A
Wireless Interfaces
Selecting Wireless Interface from the Configuration submenu brings up the Frame Config-
uration page, as illustrated in Figure 3-10. Hyperlinks provide access to configuration
pages for three different wireless port parameters per wireless port:
• Wireless Interface Frame Configuration, as shown in Figure 3-10.
• Wireless Interface Channel Configuration, as shown in Figure 3-11.
• Wireless Interface Radio Configuration, as shown in Figure 3-12.
All Wireless Interface Configuration pages are read-only.

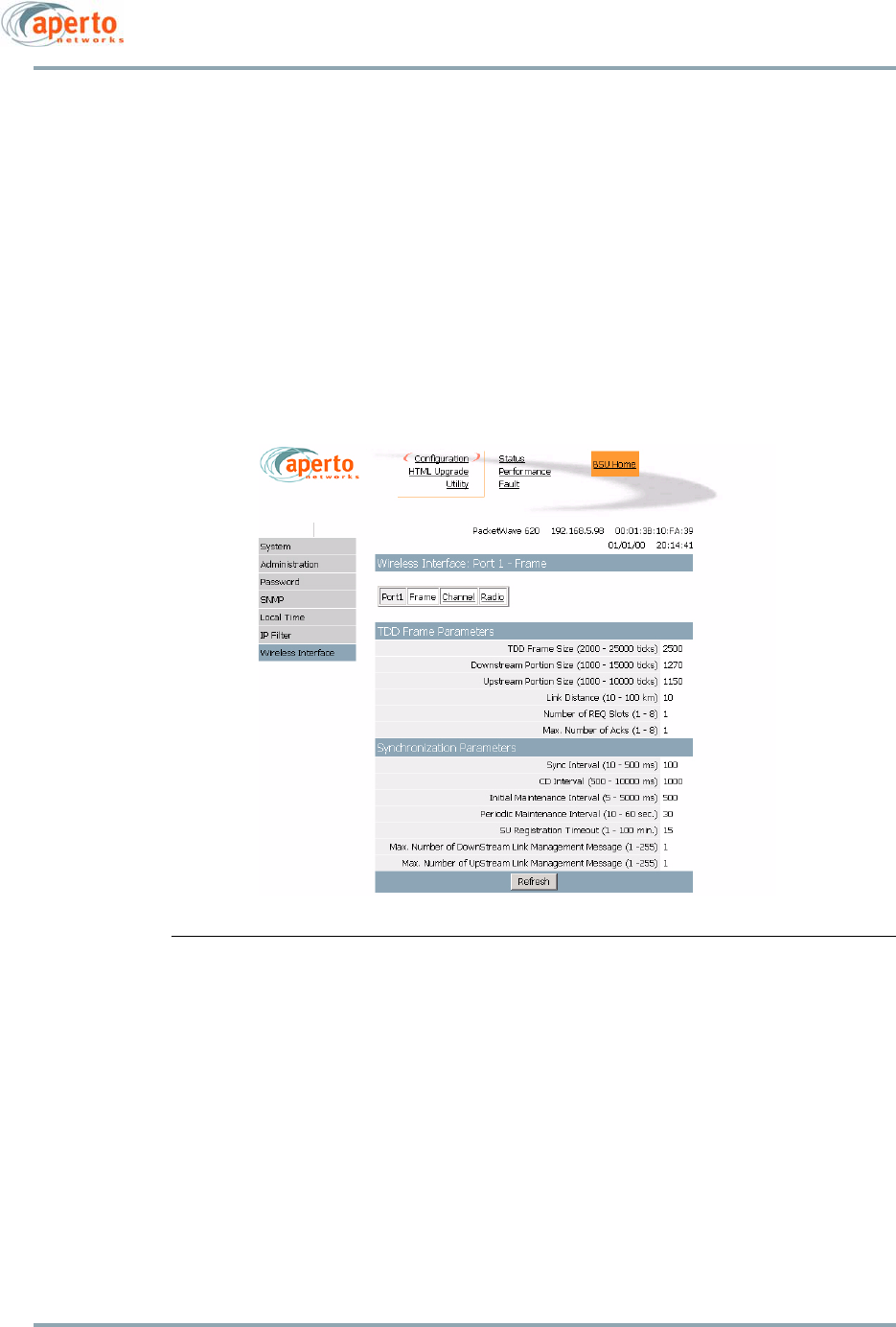

Figure 3-10 Wireless Interface Frame Configuration Page
3–13
070-20000750-01 Rev A
Chapter 3. Base Station Unit Web GUI

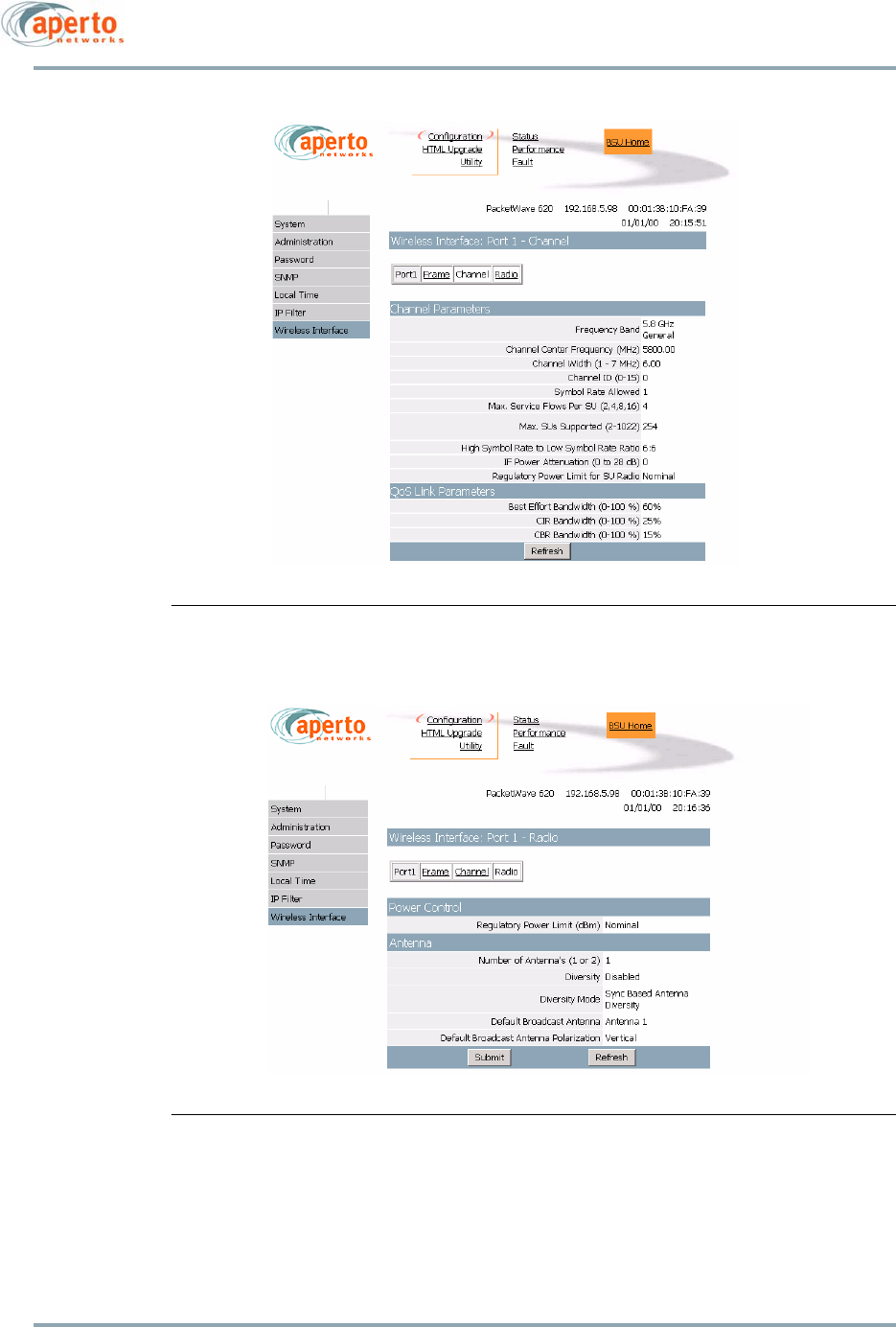

Figure 3-11 Wireless Interface Channel Configuration Page
Figure 3-12 Wireless Interface Radio Configuration Page
Chapter 3. Base Station Unit Web GUI
3–14
070-20000750-01 Rev A
HTML Upgrade
The HTML upgrade page illustrated in Figure 3-13 lets you upgrade the Web GUI by writing
new pages from files to the BSU. For example, you might have pages translated into a lan-
guage other than English which you want to load in place of the English-language pages.
If you have an HTML page to upload, you can type in the file name or browse for it. When
the file name is specified, click on the Load button to load the file into the Base Station
Unit’s Web GUI agent.

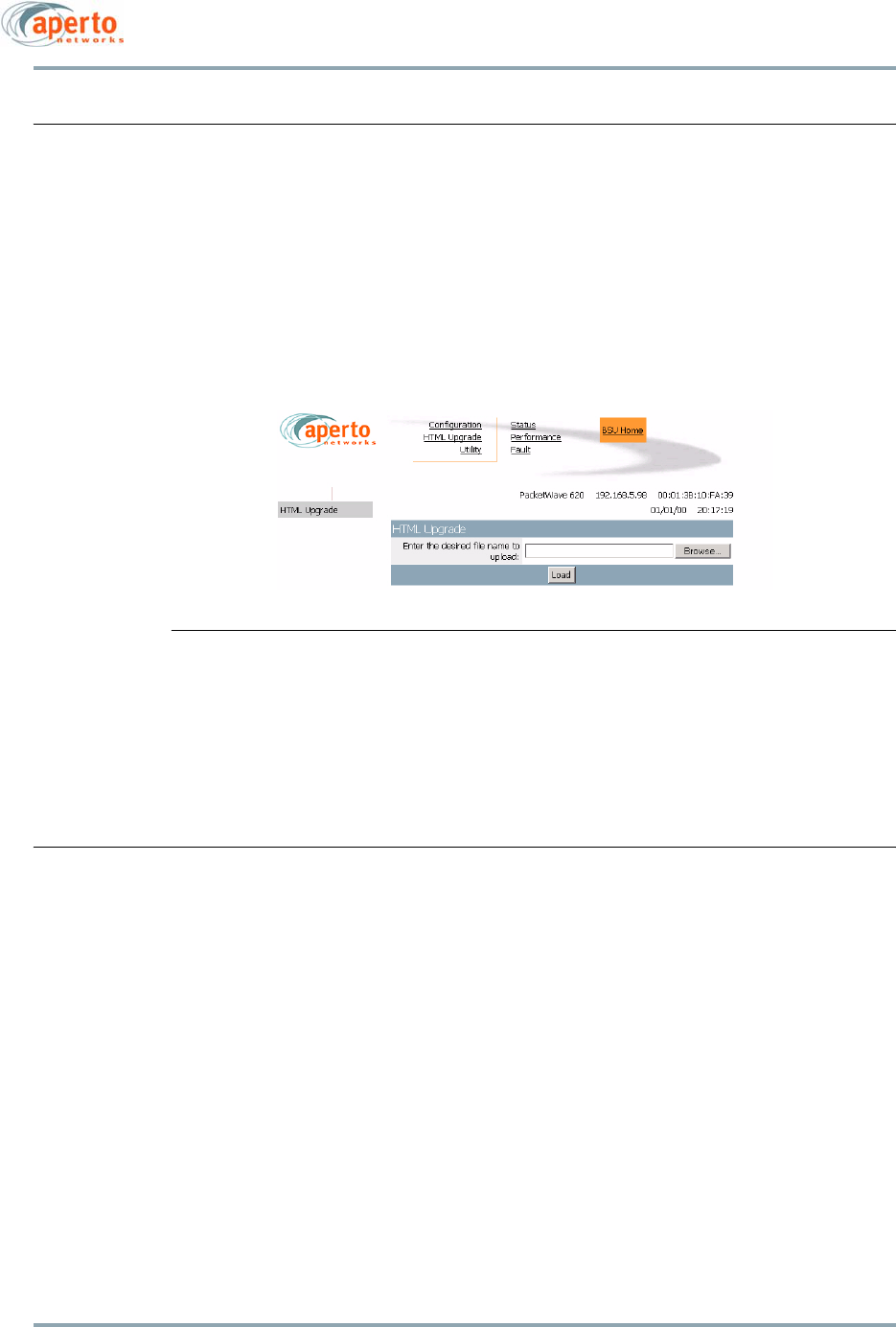

Figure 3-13 HTML Upgrade Page
Utilities
The Utility option on the Main Menu provides access to several commands for controlling
base station equipment.
Device Control
The Device Control page, illustrated in Figure 3-14, allows an operator to:
• Reset the entire BSU.
• Turn a RF port on or off
• Upload configuration changes to the BSU’s permanent memory.
The Web GUI will prompt for confirmation before performing any selected functions.
3–15
070-20000750-01 Rev A
Chapter 3. Base Station Unit Web GUI

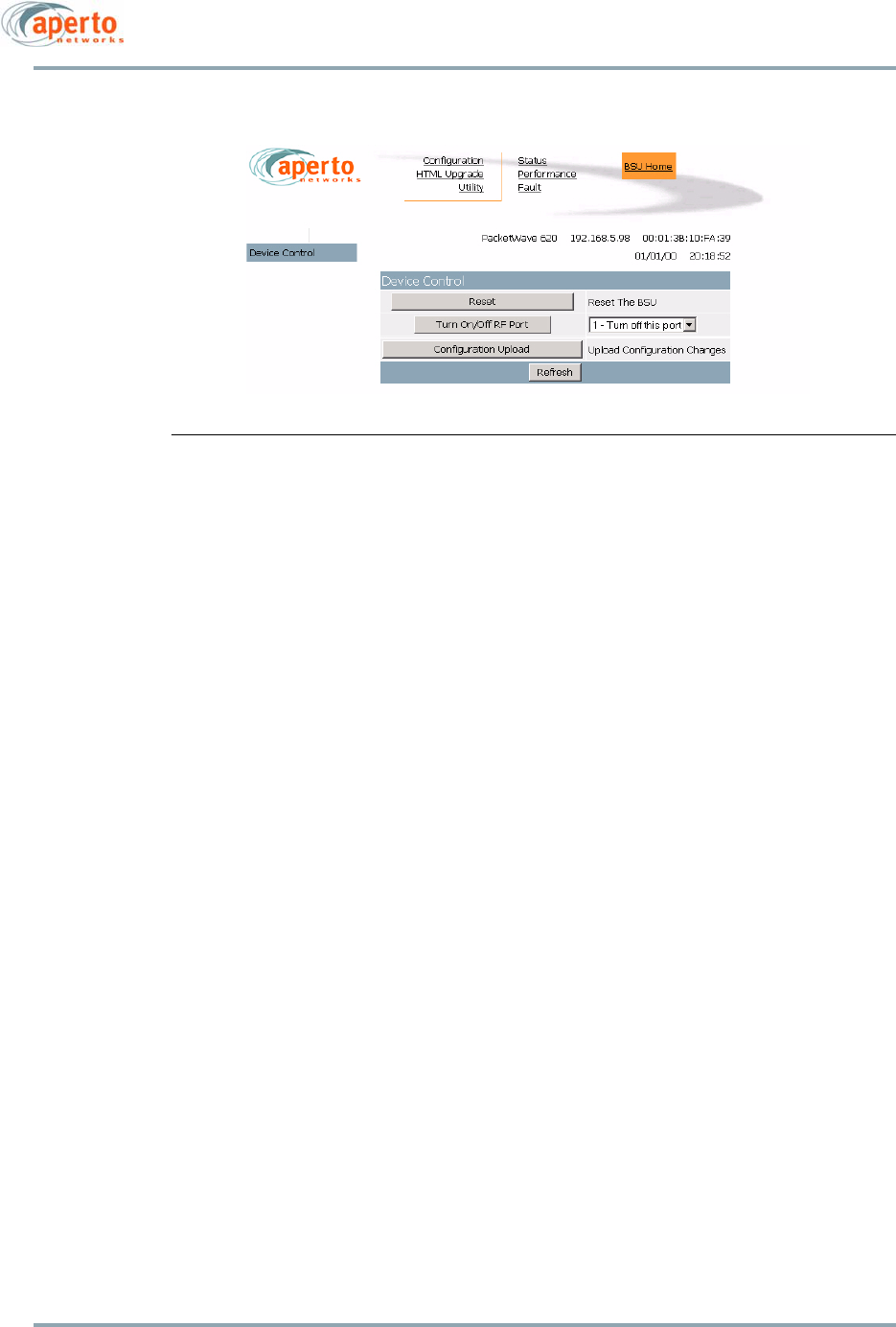

Figure 3-14 Device Control Page
Chapter 3. Base Station Unit Web GUI
3–16
070-20000750-01 Rev A
Status Pages
The BSU Web GUI includes the status pages shown in Figure 3-15
through
Figure 3-17.
These provide a snapshot of the current status of the Base Station Unit and its connected
Subscriber Unit.
NOTE: The data base used to generate these pages is updated in real time. How-
ever, the pages do not update dynamically; you must click on the Refresh button
to see later status.
No configuration or other operation can be initiated from these pages.

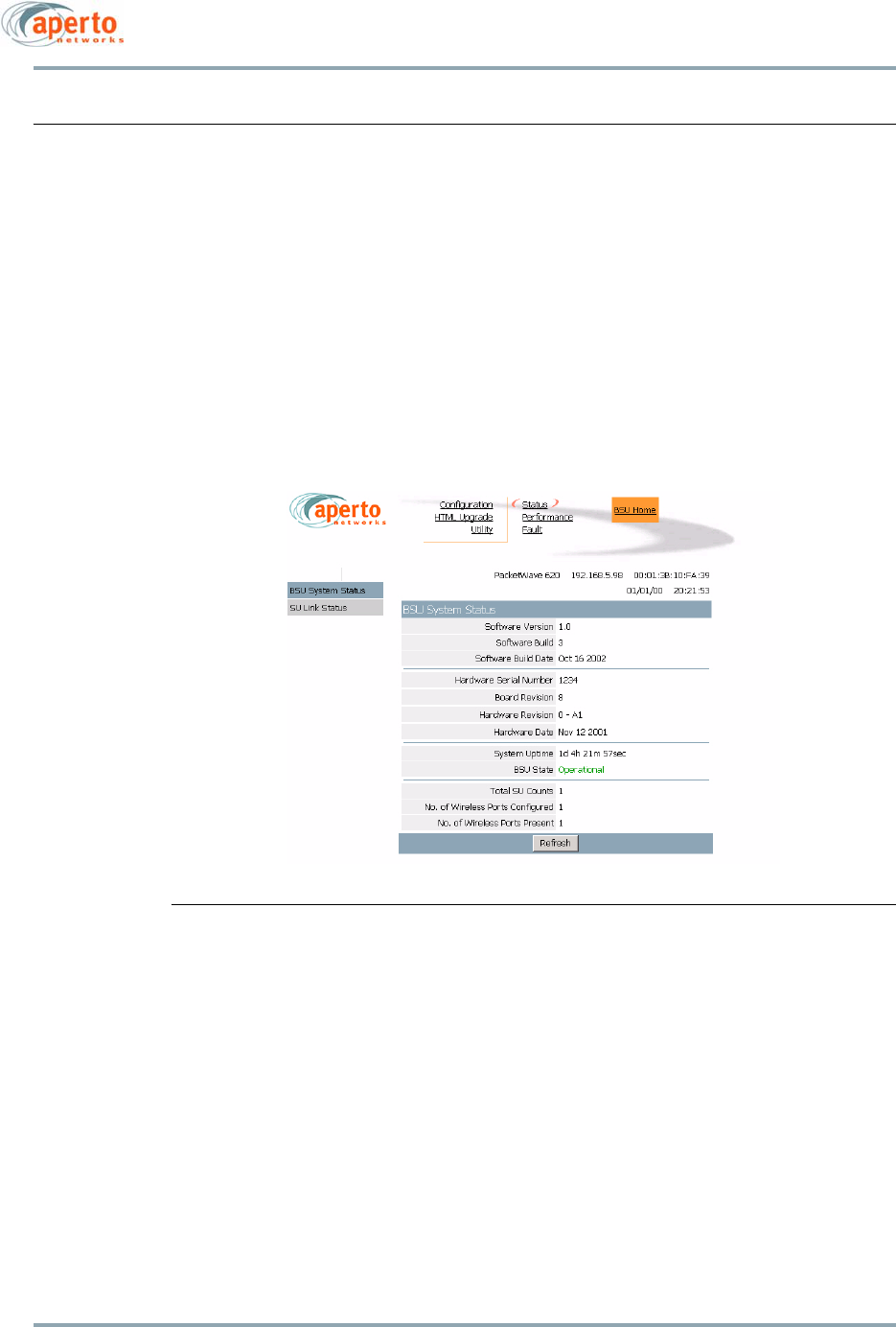

Figure 3-15 System Status Page
3–17
070-20000750-01 Rev A
Chapter 3. Base Station Unit Web GUI

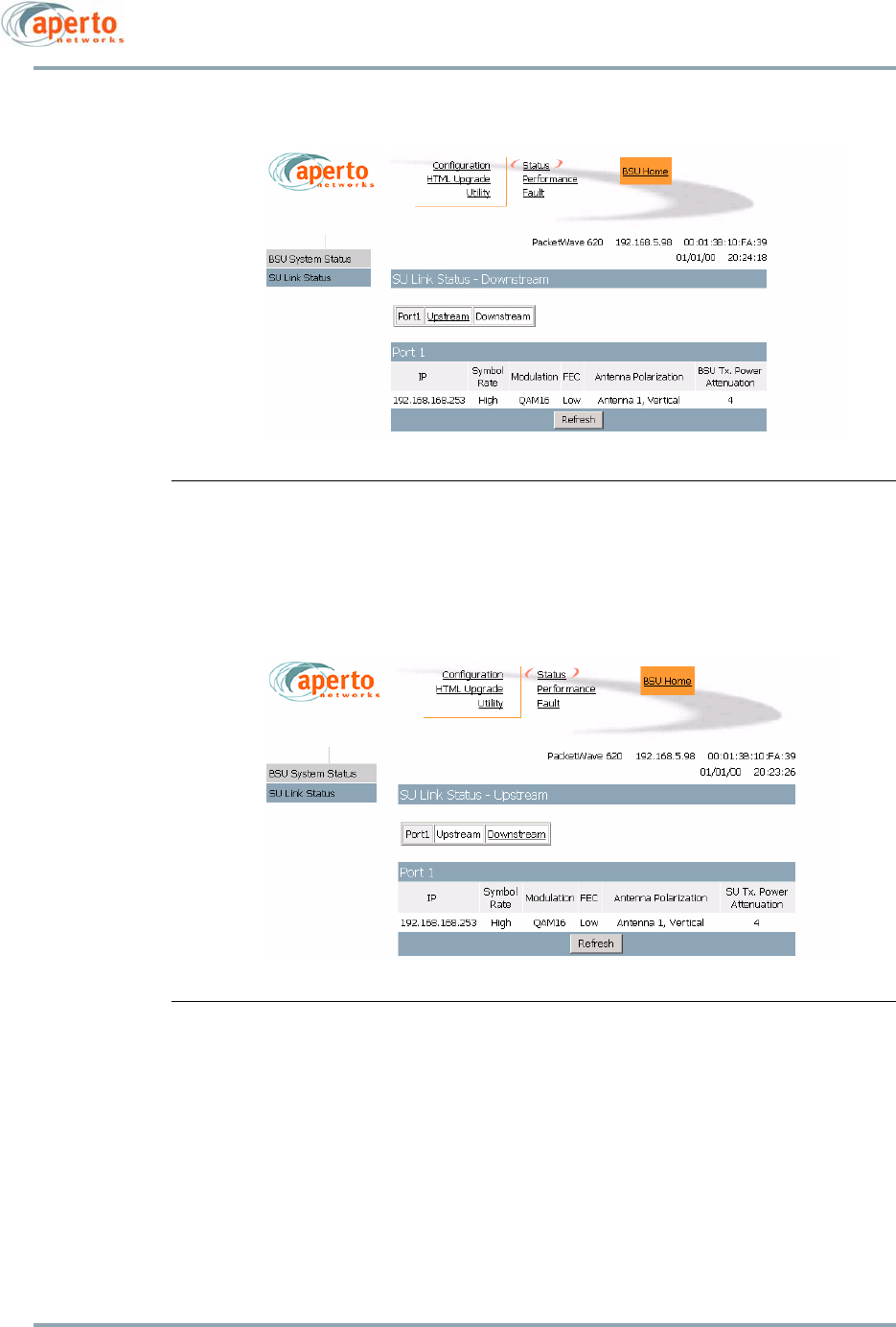

Figure 3-16 SU Link Downstream Page
Figure 3-17 SU Link Upstream Status Page
Chapter 3. Base Station Unit Web GUI
3–18
070-20000750-01 Rev A
Performance Pages
The BSU Web GUI provides wireless channel performance and bandwidth allocation infor-
mation on the pages illustrated in Figure 3-18
through
Figure 3-23.
As shown in Figure 3-18, transmitted byte counts are presented graphically. In Figure 3-19,
the page shows Best Effort, CIR, and CBR bandwidth allocation in text and graphics. Only
Best Effort is supported for software version 1.0.
These data base used to generate these displays is updated in real time, and the
pages are automatically updated every 30 seconds.
RF Modem Statistics such as burst error rate and FEC error counts are listed in Figure 3-20.
Flow statistics are listed in text format in Figure 3-21. By clicking on the flow id, a more
detailed information for that flow will be displayed as shown in Figure 3-22.
In Figure 3-23, transmitted and received byte counts for all subscribers in all sectors (wire-
less ports) are listed in a text format.
NOTE: The data base used to generate this page is updated in real time. How-
ever, the pages do not update dynamically; you must click on the Refresh button
to see later status.

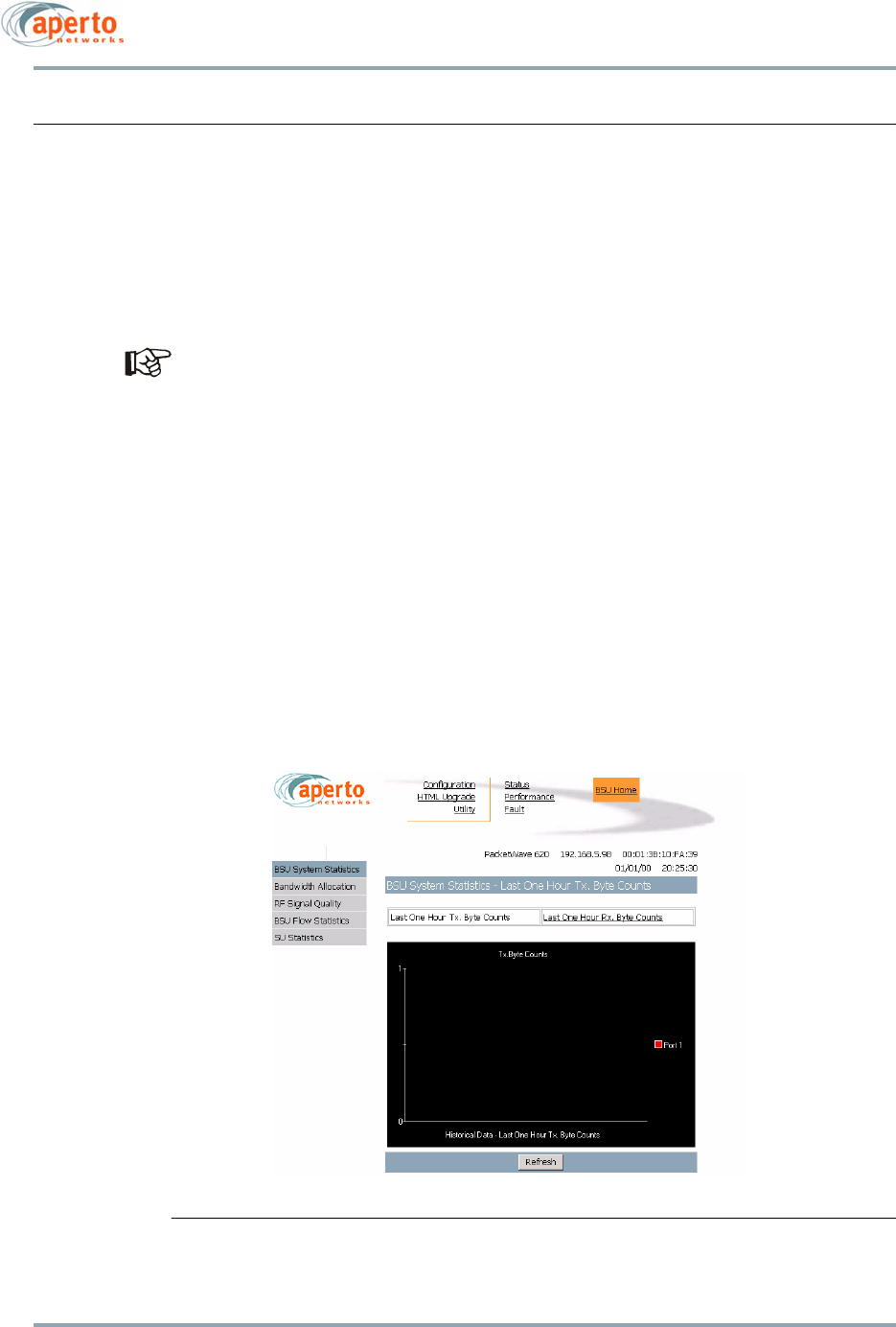

Figure 3-18 BSU System Statistics Page (Transmit)
3–19
070-20000750-01 Rev A
Chapter 3. Base Station Unit Web GUI

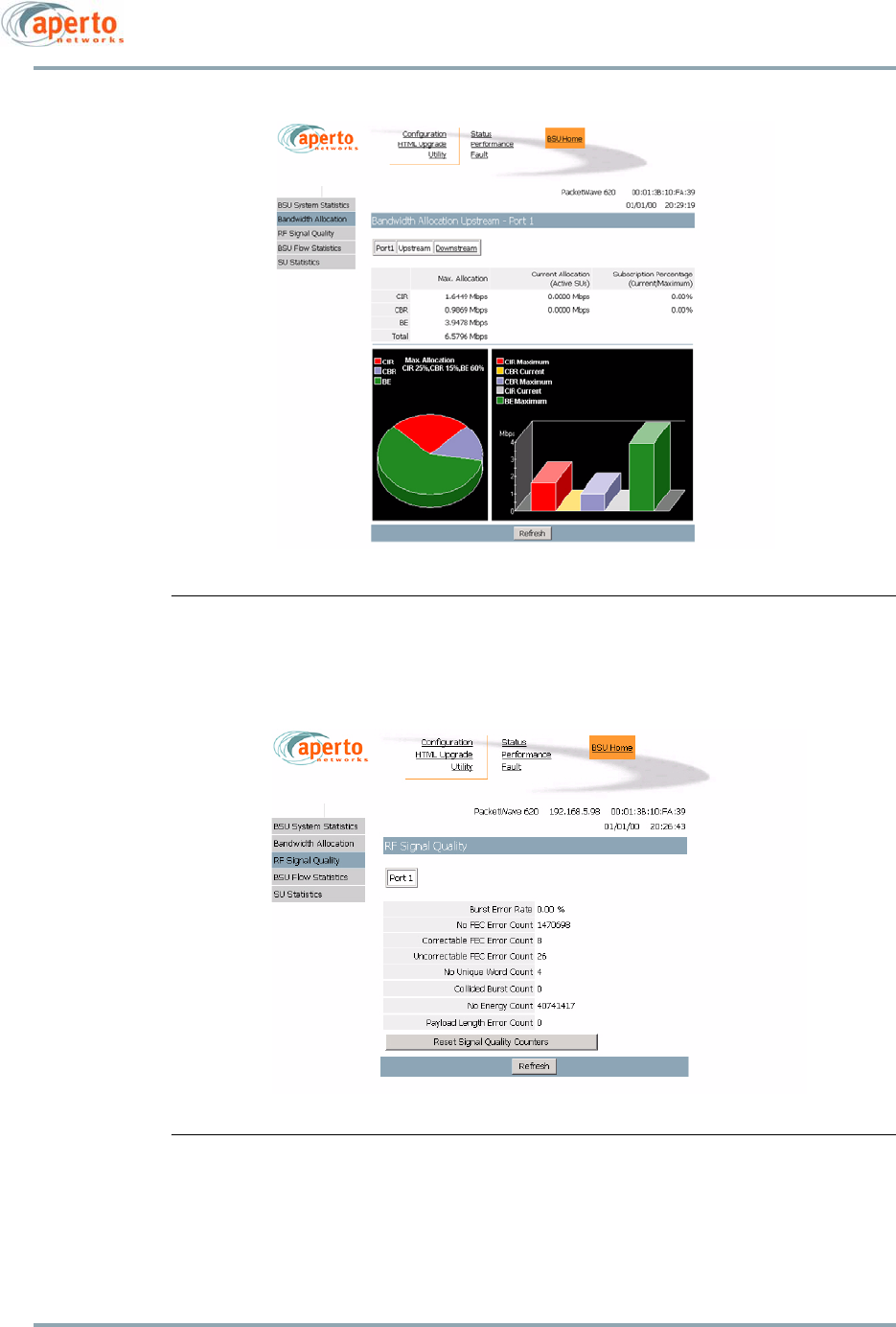

Figure 3-19 BSU WSS Bandwidth Allocation Page (Port 1 Upstream)
Figure 3-20 RF Signal Quality Page
Chapter 3. Base Station Unit Web GUI
3–20
070-20000750-01 Rev A

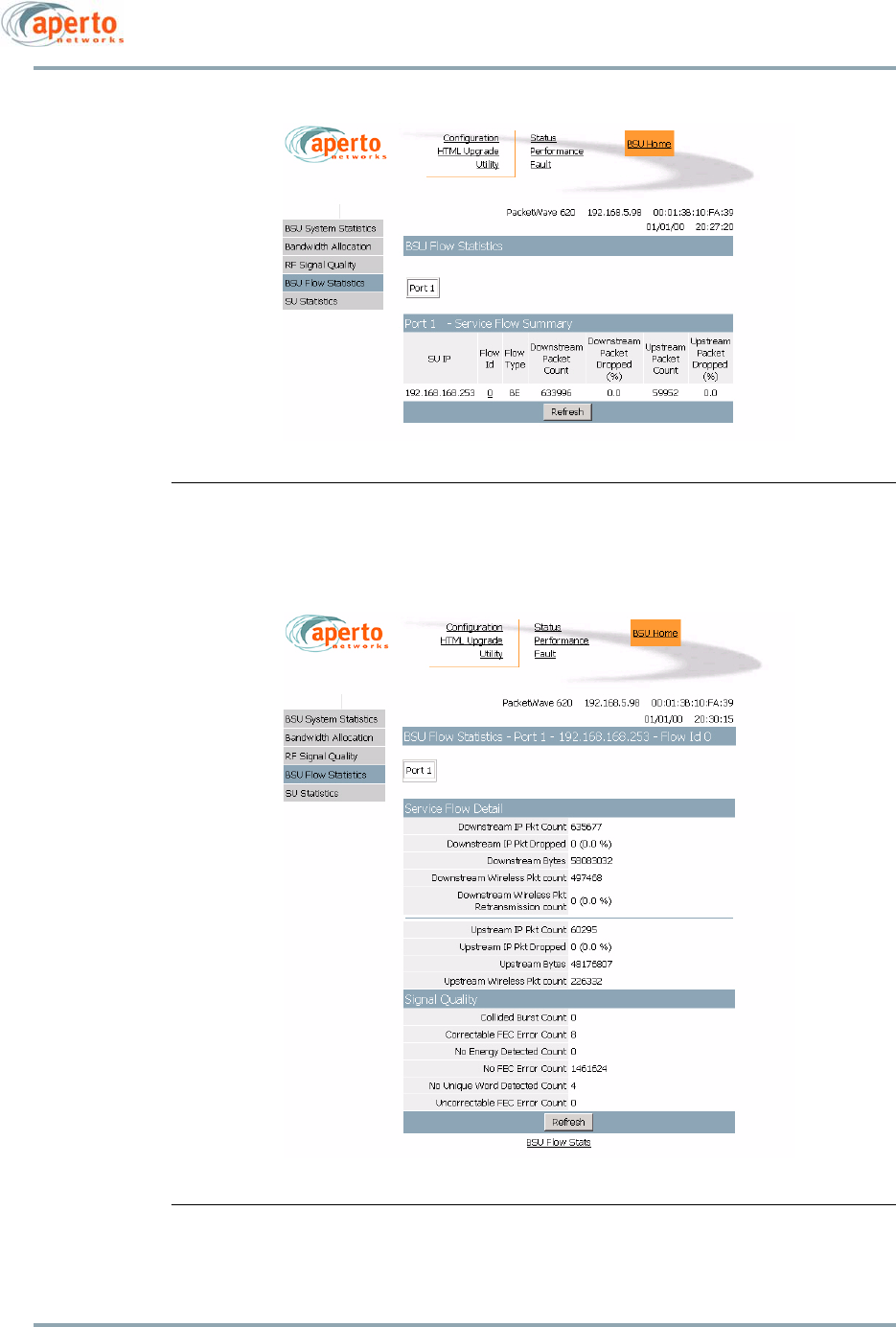

Figure 3-21 BSU Flow Statistics Page
Figure 3-22 BSU Flow Statistics by Flow ID
3–21
070-20000750-01 Rev A
Chapter 3. Base Station Unit Web GUI

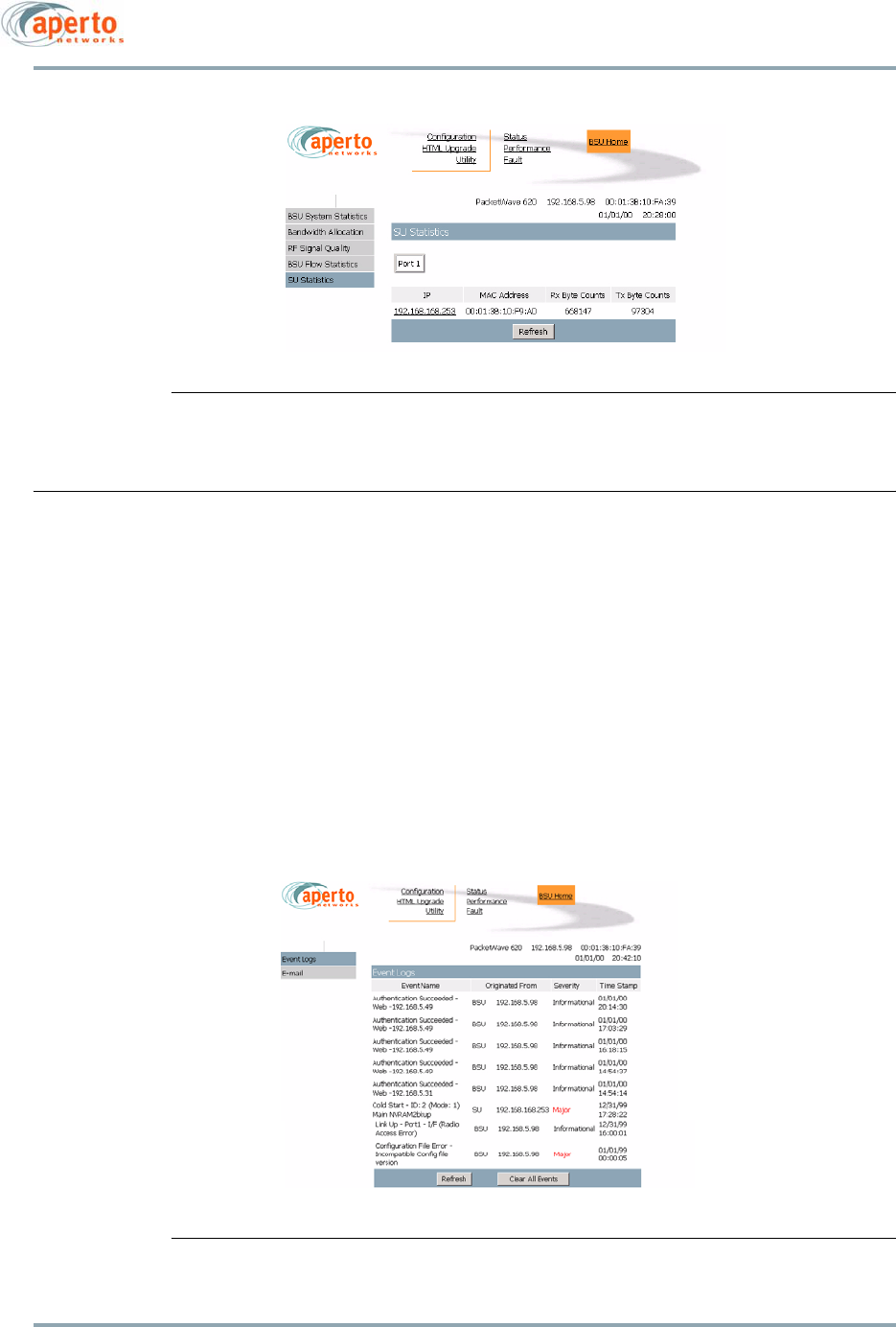

Figure 3-23 Subscriber Unit Statistics Page
Fault Reporting Pages
The BSU fault reporting functions include an event log and E-mail configuration, as shown
in Figure 3-24 and Figure 3-25.
Event Log
The event log page, shown in Figure 3-24, includes all logable events reported by the Base
Station Unit and its connected Subscriber Units.
NOTE: The data base used to generate the log is updated in real time. However,
the pages do not update dynamically; you must click on the Refresh button to
see later status.
You can empty the log by clicking on the Clear All Events button.

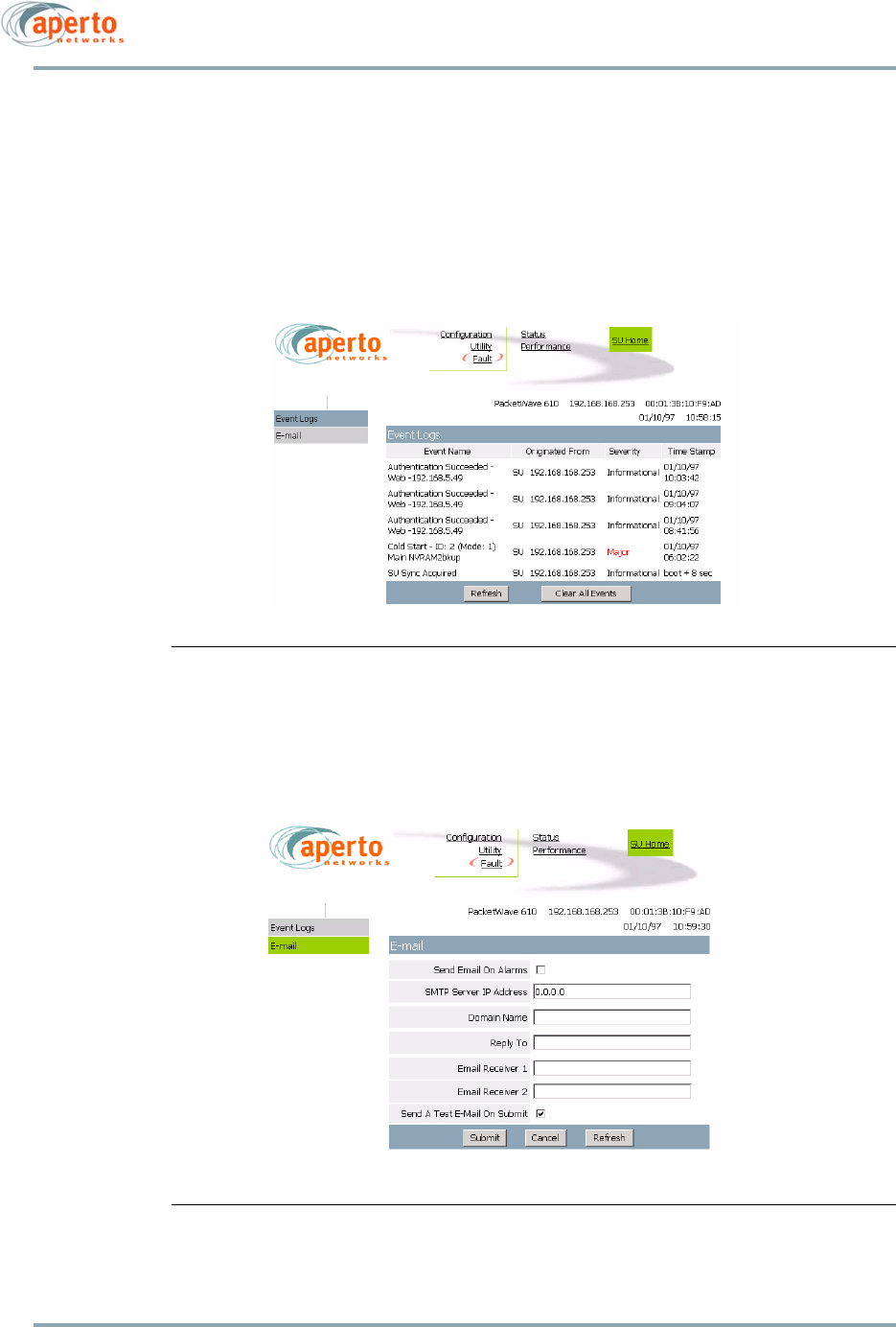

Figure 3-24 BSU Event Log Page
Chapter 3. Base Station Unit Web GUI
3–22
070-20000750-01 Rev A
E-mail Configuration
As shown in Figure 3-25, the E-mail Configuration page allows the viewing and altering of
E-mail event reporting parameters:
• The address of the SMTP server (may be configured here, or in the BSU configura-
tion).
• The BSU’s E-mail domain name.
• Reply-to and receiver E-mail addresses.
• A test E-mail may be sent.
• Event reporting via E-mail may be turned on and off as desired.
Click on the Submit button to activate any changes made on this page.
Figure 3-25 BSU E-mail Configuration Page
4–1
070-20000750-01 Rev A
4
Subscriber Unit Web GUI
The PacketWave 610 Subscriber Unit includes a Java-based graphical user interface (GUI)
which runs on a standard Web browser (Netscape 4.74 or Internet Explorer 5.0 recom-
mended). Functions which can be performed using the Web GUI include:
• Viewing network connectivity.
• Monitoring status and performance.
• Reviewing configuration.
• Making basic configuration changes.
• Uploading configuration changes to permanent memory.
•Resetting Indoor Units.
ISP and Subscriber Logon Levels
The PacketWave SU Web GUI features different logon levels for ISPs and subscribers, each
protected by a different user-set password. The Debug logon is reserved for Aperto Net-
works’ use. The ISP logon level provides access to all areas of SU configuration, status
reporting, performance monitoring, and operating commands. The Subscriber logon level
is limited to:
• The site connectivity view of the SU home page.
• Subscriber password configuration.
• The configuration upload utility.
•System status.
Chapter 4. Subscriber Unit Web GUI
4–2
070-20000750-01 Rev A
Accessing the Web Interface
To access the Web GUI:
1. On a computer with IP access to the Indoor Unit (via either the LAN or wireless inter-
face), open Netscape 4.74 or Internet Explorer 5.0.
NOTE: Other browsers could show some anomalies.
Enter the URL, http://<
Indoor Unit
IP address>/. The logon page will appear, as shown in
Figure 4-1.
Figure 4-1 SU Web GUI Logon Screen
2. Select the ISP or Subscriber user name. Debug logon is reserved.
3. Enter the correct password (case-sensitive).
NOTE: The default passwords are isp and subscriber. For security, these pass-
words should be changed via the Web GUI.
4. Click on the Logon button or press Enter key.
5. If the browser prompts that it needs to load a plug-in, allow it to do so.
6. Wait for the Web interface home page to open, as shown in Figure 4-2 for isp logon.
If you logon as subscriber, some of the screen items will not be shown.
4–3
070-20000750-01 Rev A
Chapter 4. Subscriber Unit Web GUI

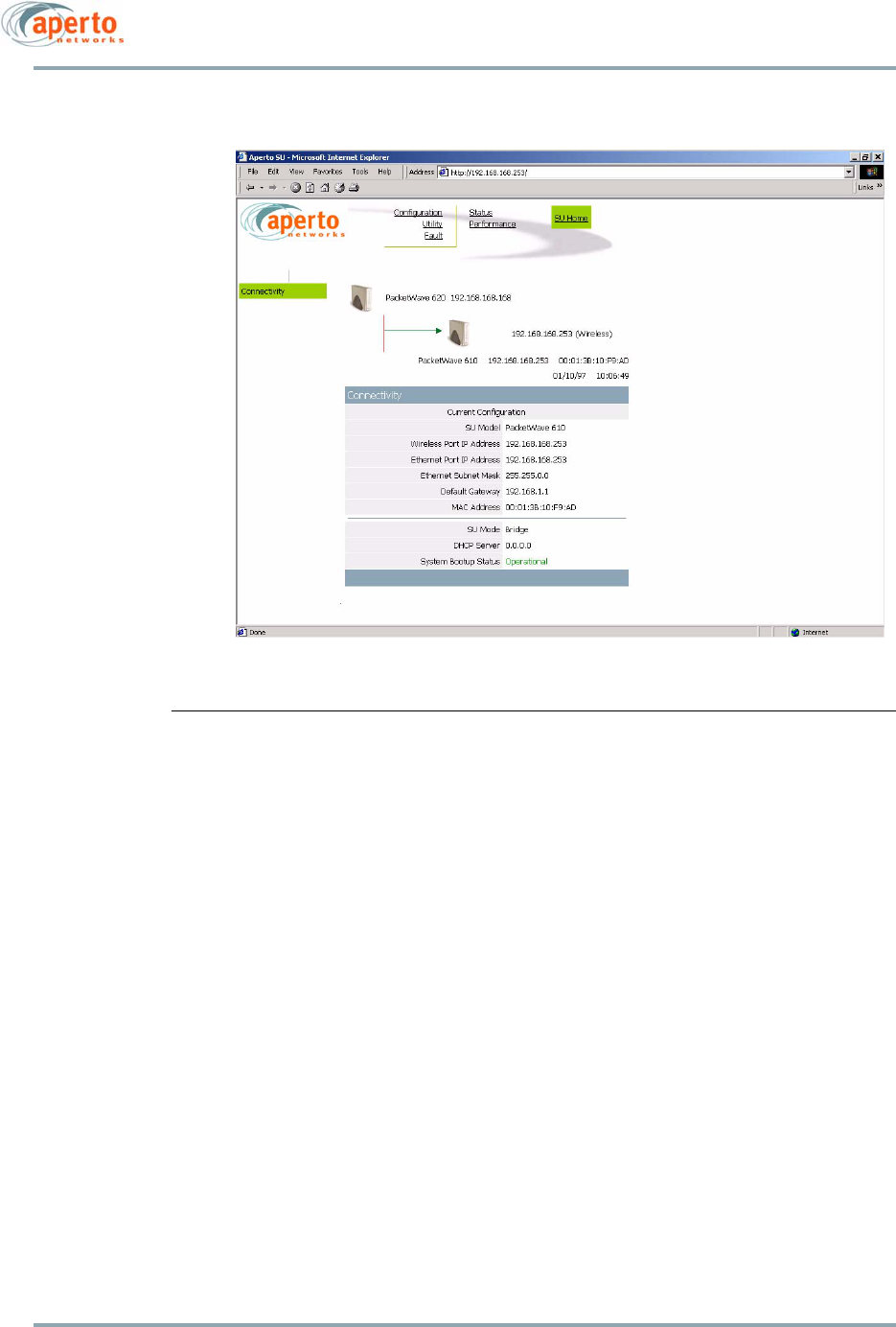

Figure 4-2 Web GUI Home Page (ISP logon)
Chapter 4. Subscriber Unit Web GUI
4–4
070-20000750-01 Rev A

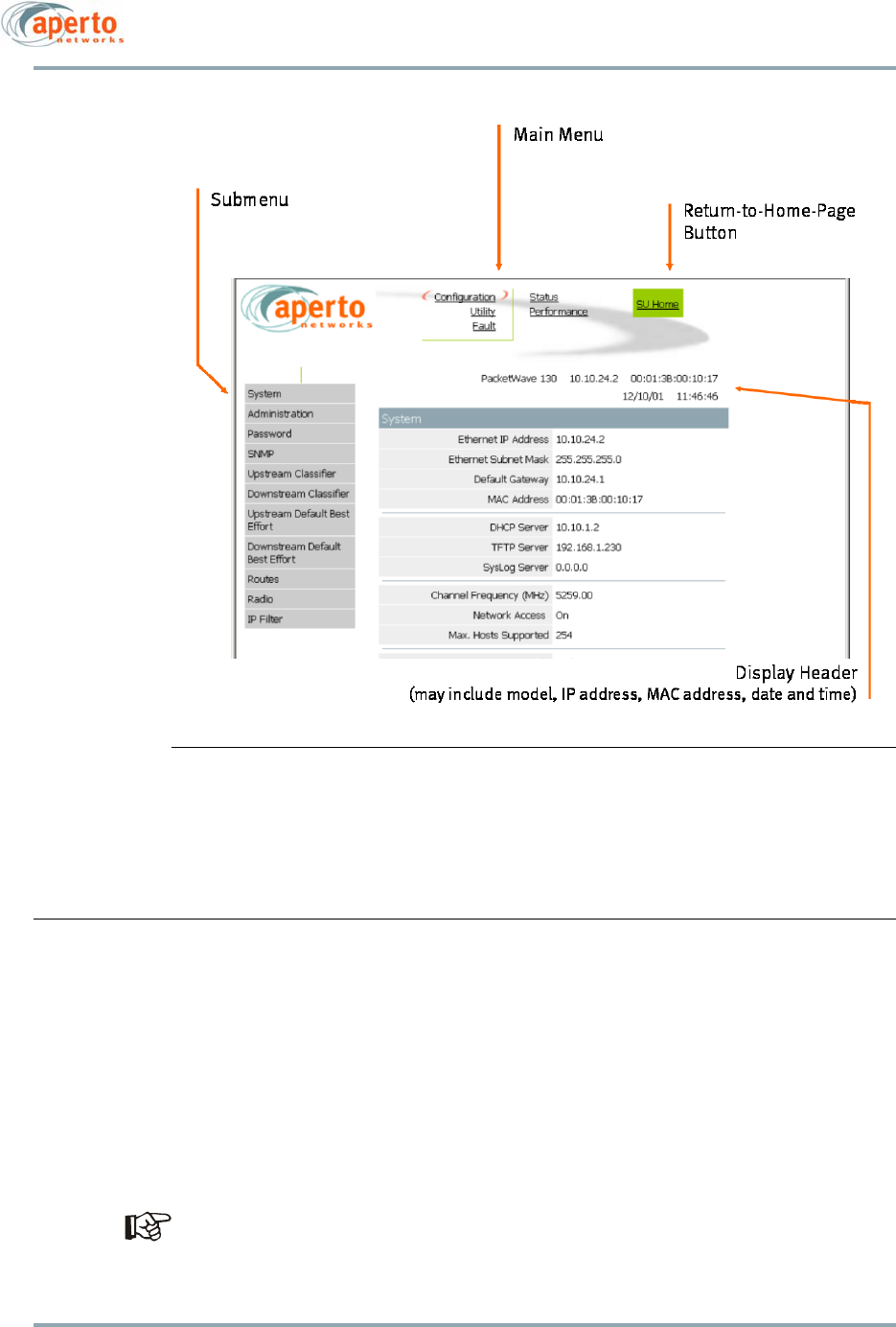

Figure 4-3 Basic Elements of Web GUI
Features of the Web Interface
The Web interface pages share the basic elements identified in Figure 4-3.
Home Page: Connectivity View
As shown in Figure 4-2, the home page provides a graphical representation of base sta-
tion-to-subscriber connectivity. The arrow pointing to the Indoor Unit icon indicates wire-
less channel status: green if good or red if down. Additional configuration and status
information related to basic SU connectivity is presented in a table below the graphics.
Status indications on the connectivity view are updated dynamically every 30 seconds.
4–5
070-20000750-01 Rev A
Chapter 4. Subscriber Unit Web GUI
Main Menu and Submenu
The Main Menu lists the various categories of functions available via the Web GUI. The ISP
logon level provides the five Main Menu categories shown in Figure 4-3. For the Subscriber
logon level, the Main Menu lists Configuration, Utility, and Status categories only. To
select an item from the Main Menu, click on it. Orange crescents will bracket the menu
item to show that it has been selected (see the Configuration item in Figure 4-3).
The Submenu is context-sensitive, changing as different Main Menu items are selected.
The Submenu lists the pages available under the selected Main Menu category. Click on
the appropriately-labeled box in the Submenu to display the desired page. Figure 4-3
shows the page displayed when the System option is selected in the Submenu.
Submitting and Uploading Changes
Pages on which configuration changes can be entered include a Submit button at the bot-
tom. Any change entered on the page does not take effect until the Submit button is
clicked.
Clicking Submit affects only the current operating configuration of the SU. The SU’s con-
figuration file located on the TFTP server is not altered; therefore, the configuration
change will be lost if the SU is reset or re-powered (after which the SU reverts to the con-
figuration specified in its configuration file).
To update the SU’s configuration file on the TFTP server with changes made via the Web
GUI, use the Configuration Upload button on the Device Control Utility page. Clicking the
Configuration Upload button will cause all configuration changes currently in effect to be
written into the SU’s permanent memory.
Cancel and Refresh Buttons
Some pages include Cancel and/or Refresh buttons at the bottom.
•Clicking on the Cancel button cancels any changes made on the page; altered fields
will return to their original contents.
•Clicking on the Refresh button refreshes all fields with configuration parameters
currently stored on the Subscriber Unit.
Hyperlinks
Some Web GUI pages include hyperlinks to related pages. For example, the Classifier Con-
figuration pages includes hyperlinks to pages for corresponding Service Flows. Hyperlinks
are indicated in the method defined in your browser configuration.
Chapter 4. Subscriber Unit Web GUI
4–6
070-20000750-01 Rev A
Overview of SU Web GUI Functions
Table 4-A summarizes the functions available for each of the Main Menu and Submenu
selections.
Table 4-A Summary of the SU Web GUI
Main Menu Submenu Functions
Configuration System Shows general SU information and status. Read-only.
Administration Specifies contact, location, and system name.
Password * Specifies ISP or Subscriber password for Web GUI, CLI,
and FTP.
SNMP Configures SNMP management of SU.
Up/Downstream
Default Best Effort
Shows configuration of upstream or downstream default
best effort service flow (ID=0). Read-only.
Radio Shows allowed transmit power. Read-only.
IP Filter List of all defined IP filters for wireless or Ethernet port.
Hyperlinks to contents of individual filters. Read-only.
Utility Device Control * Several commands: Reset SU; Upload Configuration. (At
Subscriber level, only Upload Configuration is available.)
Fault Event logs List of logged SU events. Read-only.
E-mail Configuration of e-mail alert reporting.
Status SU System Status * SU software and hardware information, plus operational
status. Read-only.
SU Link Status Transmit and receive details for wireless link. Read-only.
Performance SU System Statistics Basic Transmit and Receive counts. Read-only.
SU Filter Statistics Counts of packets passed and blocked for wireless or
Ethernet port. Read-only.
SU Flow Statistics List of service flows supported by the SU; hyperlink to
service flow details. Read-only.
* Available when logged on at Subscriber level.
4–7
070-20000750-01 Rev A
Chapter 4. Subscriber Unit Web GUI
Configuration Pages
The Web GUI displays SU configuration in numerous individual pages, as indicated by the
Configuration Submenu. In addition, many configuration parameters can be changed via
the Configuration pages.
System Configuration
As shown in Figure 4-4, the system configuration page provides an overview of the
Subscriber Unit’s network and operating parameters.
These parameters are read-only.
This page is available only at the ISP logon level.

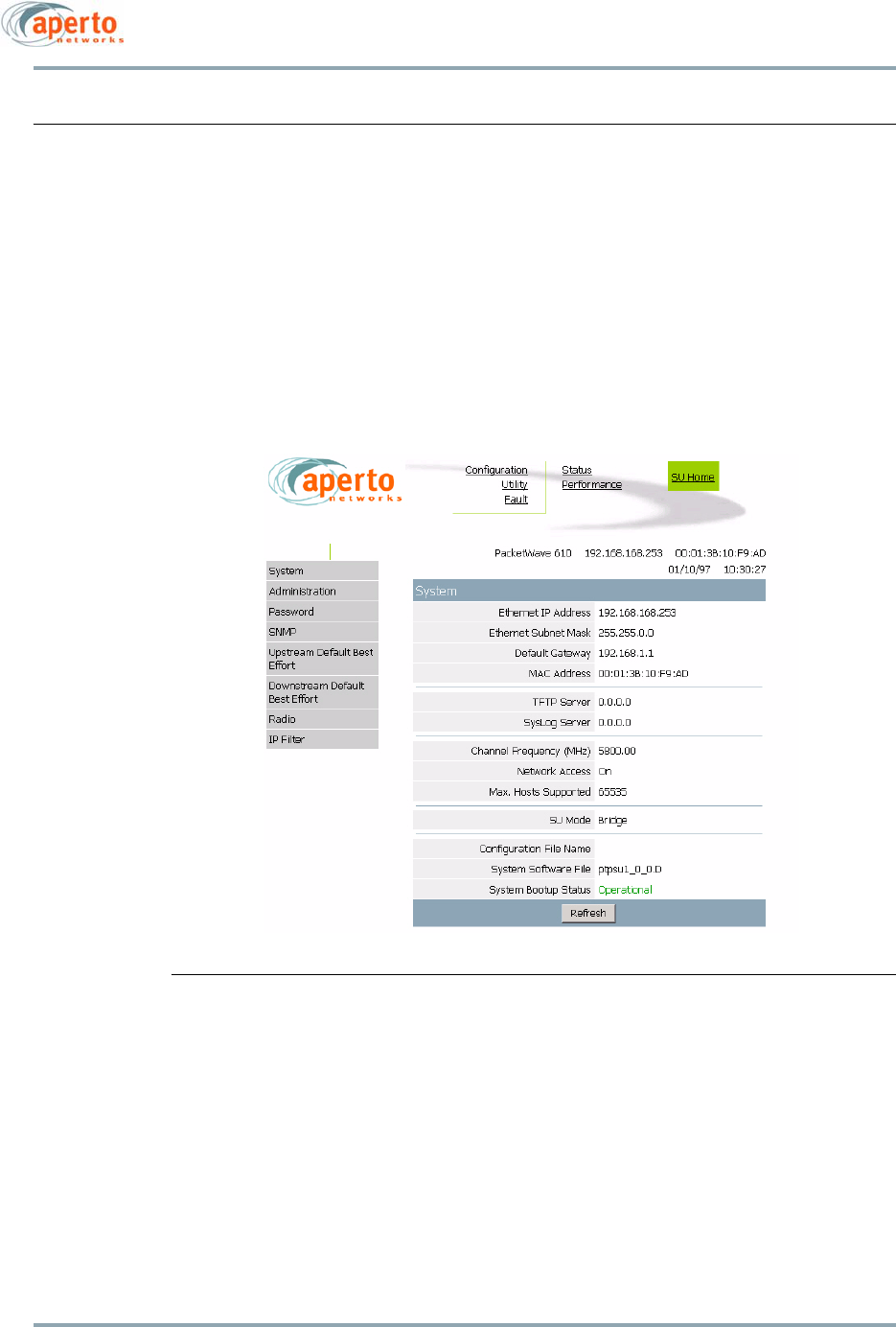

Figure 4-4 System Configuration Page
Administration Configuration
The Administration Configuration page, shown in Figure 4-5, allows system name, location
and contact information to be specified for the subscriber site. Any text entry is accept-
able, subject to length limitations for each field.
Chapter 4. Subscriber Unit Web GUI
4–8
070-20000750-01 Rev A
This page is available only at the ISP logon level.

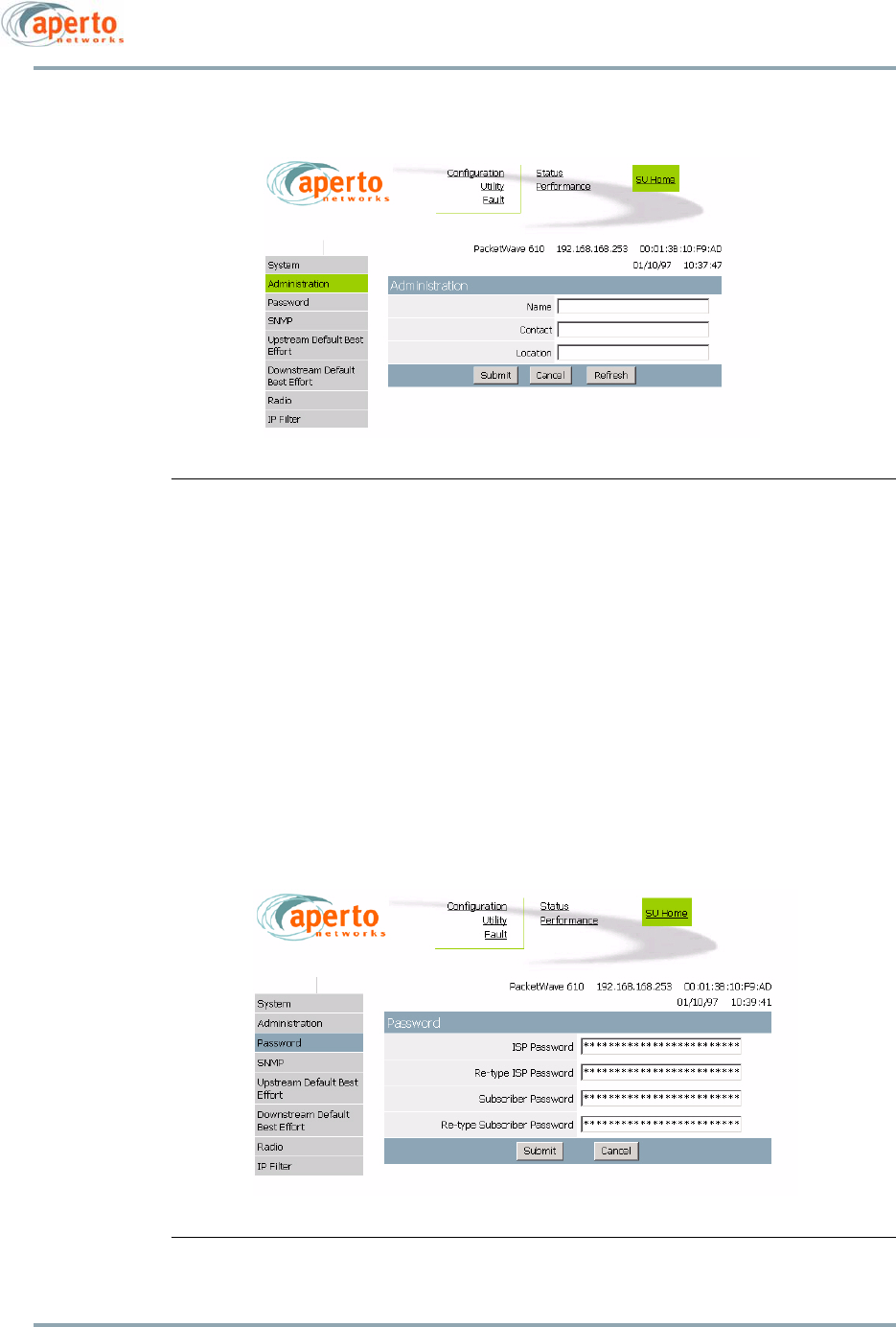

Figure 4-5 Administration Configuration Page
Password Configuration
Passwords for the ISP and Subscriber logon levels are specified on the Password Config-
uration page, shown in Figure 4-6. Passwords which can be defined depend on the current
logon level; if logon is at the Subscriber level, only the Subscriber password fields will be
displayed. The passwords are used for the Web GUI, CLI, and FTP.
The password must be entered exactly the same (including case) in the two password
fields to be accepted. After specifying the desired password, click Submit. The Web GUI
will prompt that password storage is temporary, and that the Upload Configuration func-
tion (page 4-13) is required for making the password permanent.
Figure 4-6 Password Configuration Page
4–9
070-20000750-01 Rev A
Chapter 4. Subscriber Unit Web GUI
SNMP Configuration
As shown in Figure 4-7, the SNMP configuration page allows the viewing and altering of
SNMP parameters for one or two SNMP managers:
• Whether traps will be generated.
• What SNMP manager(s) will be recognized, what access rights they will have, and
the read and write community names.
Click on the Submit button to activate any changes made on this page.
NOTE: This page does not support deletion of SNMP managers.
This page is available only at the ISP logon level.
Figure 4-7 SNMP Configuration Page
Default Best Effort Configuration
All Subscriber Units have a default Best Effort service flow. Performance parameters of the
default upstream and downstream service flows are configurable using the Advanced
Installation Manager. Configuration pages for default Best Effort service flows are shown
in Figure 4-8 and Figure 4-9. All fields are read-only.
These pages are available only at the ISP logon level.
Chapter 4. Subscriber Unit Web GUI
4–10
070-20000750-01 Rev A

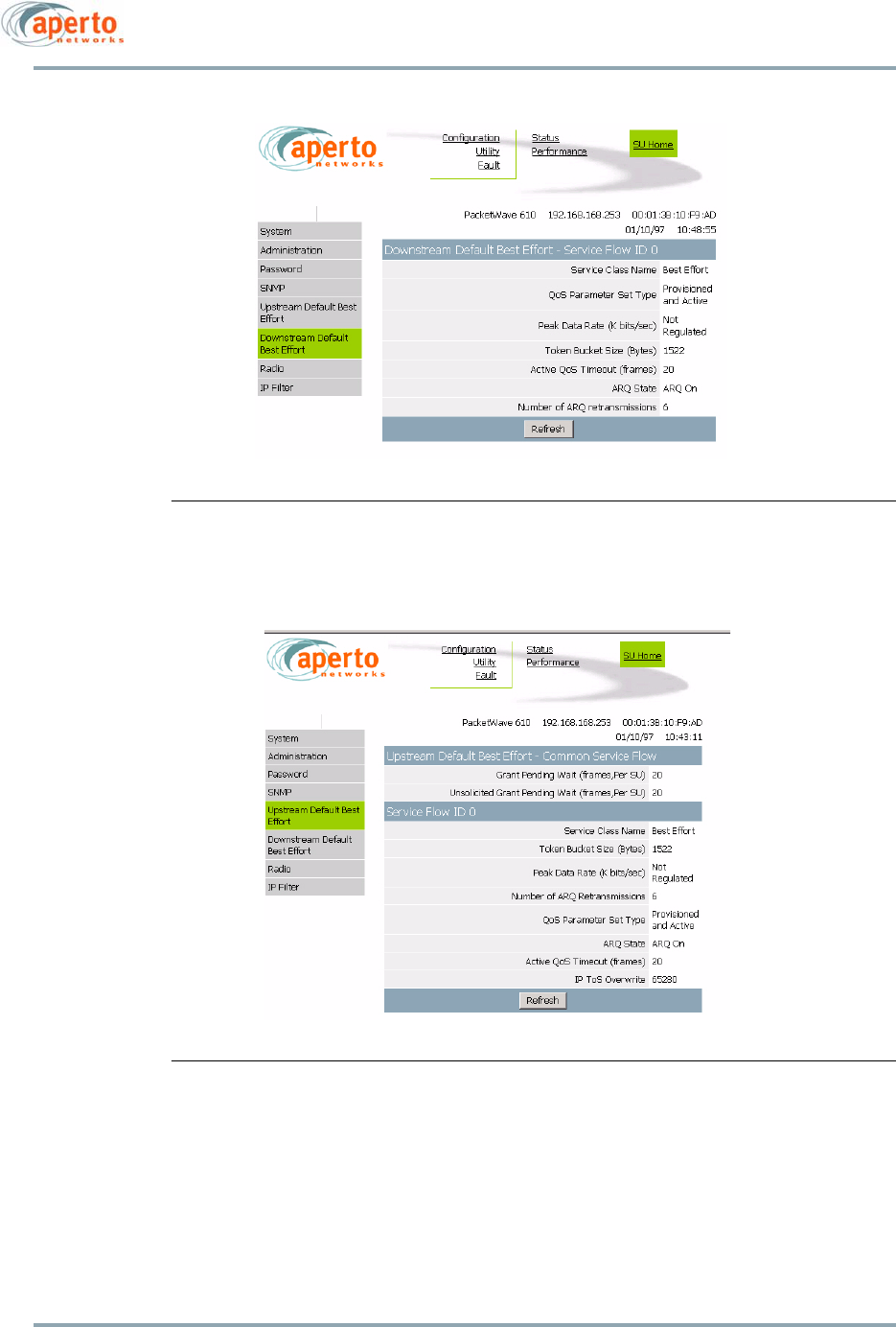

Figure 4-8 Downstream Default Best Effort Configuration Page
Figure 4-9 Upstream Default Best Effort Configuration Page
4–11
070-20000750-01 Rev A
Chapter 4. Subscriber Unit Web GUI
Radio Configuration
The Radio Configuration page, shown in Figure 4-10, shows the maximum transmit power
allowed in the selected frequency band.
This page is available only at the ISP logon level.

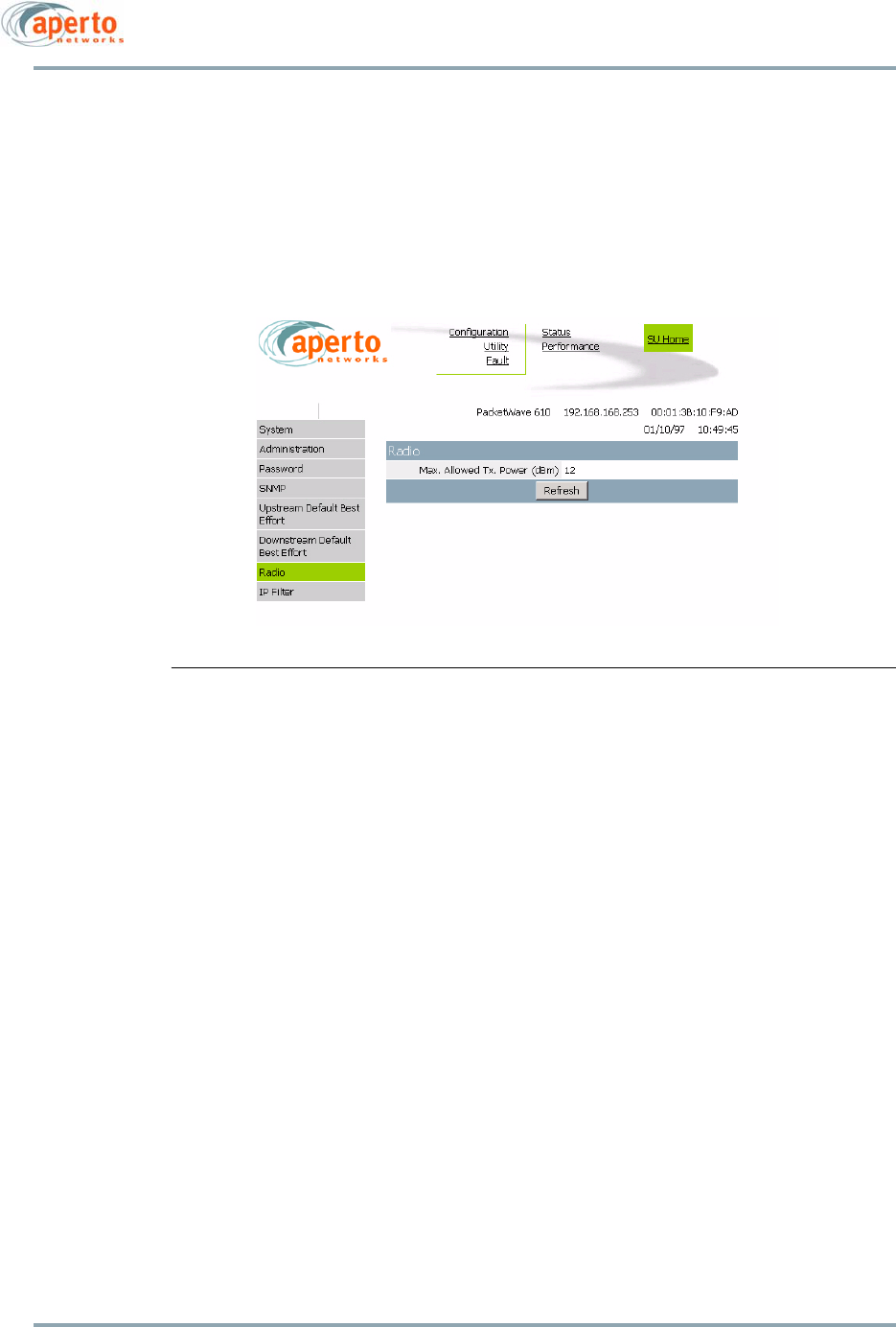

Figure 4-10 Radio Configuration Page
IP Filter Configuration
IP Filter Configuration pages show any IP filters configured for the Subscriber Unit’s wire-
less and Ethernet interfaces. IP Filter List pages list all filters configured for a particular
interface, as shown in Figure 4-11. Hyperlinks at the top of the page allow either the Ether-
net or the wireless interface filters to be listed.
Each filter listed has an identifier number which also functions as a hyperlink to an IP Filter
Contents page. The IP Filter Contents page identifies the Layer 2 or Layer 3 parameters
used in this particular filter.
All IP Filter Configuration parameters are read-only.
Chapter 4. Subscriber Unit Web GUI
4–12
070-20000750-01 Rev A

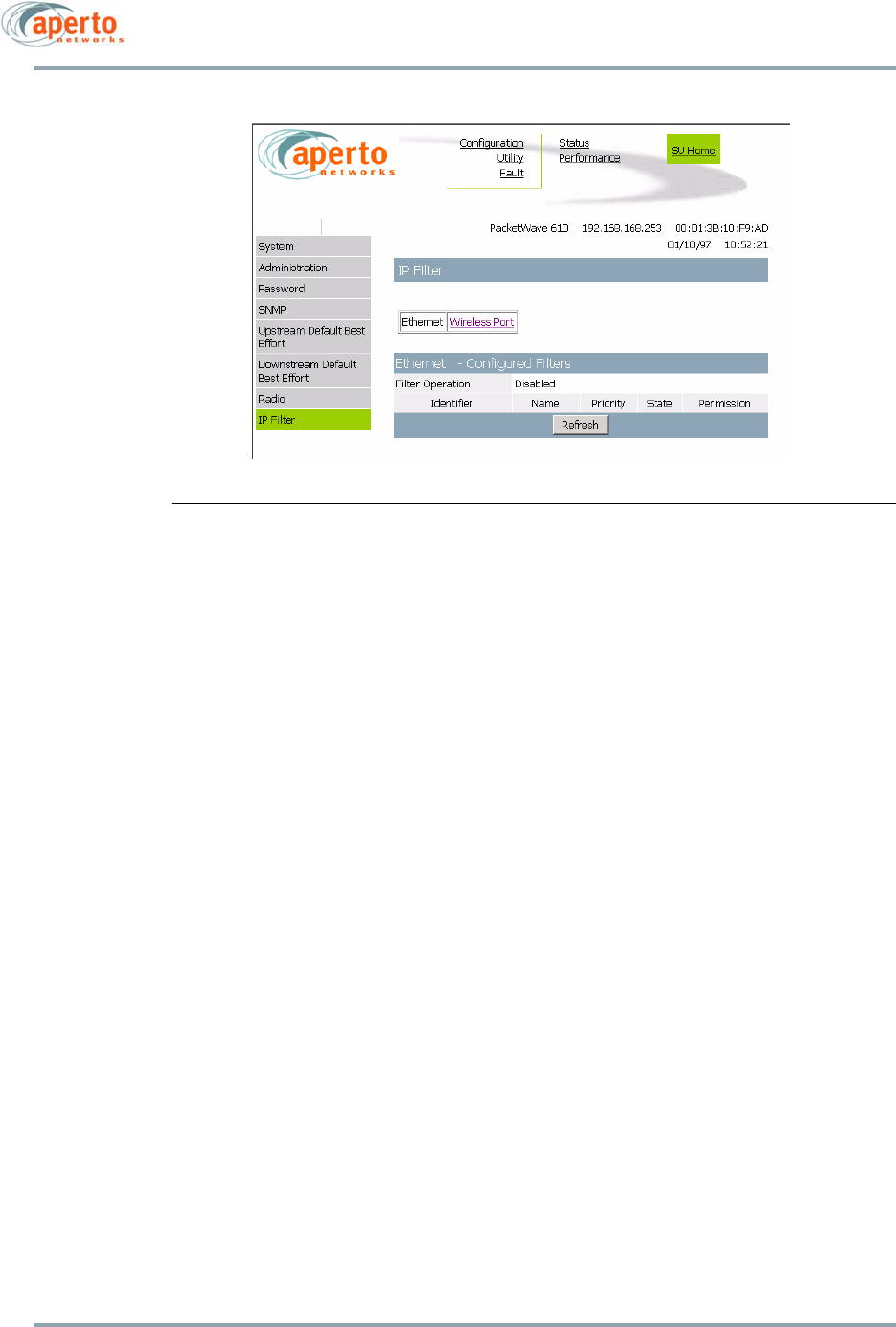

Figure 4-11 IP Filter List Page (Ethernet)
4–13
070-20000750-01 Rev A
Chapter 4. Subscriber Unit Web GUI
Device Control Utility
The Device Control page, illustrated in Figure 4-12, provides access to two important func-
tions:
• Resetting the Indoor Unit.
• Uploading configuration changes entered via the Web interface to the Subscriber
Unit’s permanent memory, making the changes part of the Subscriber Unit’s per-
manent configuration.
The interface will prompt for confirmation before performing a selected function.
The full Device Control page is available only at ISP logon level. At the Subscriber logon
level, only the Upload Configuration function is available.

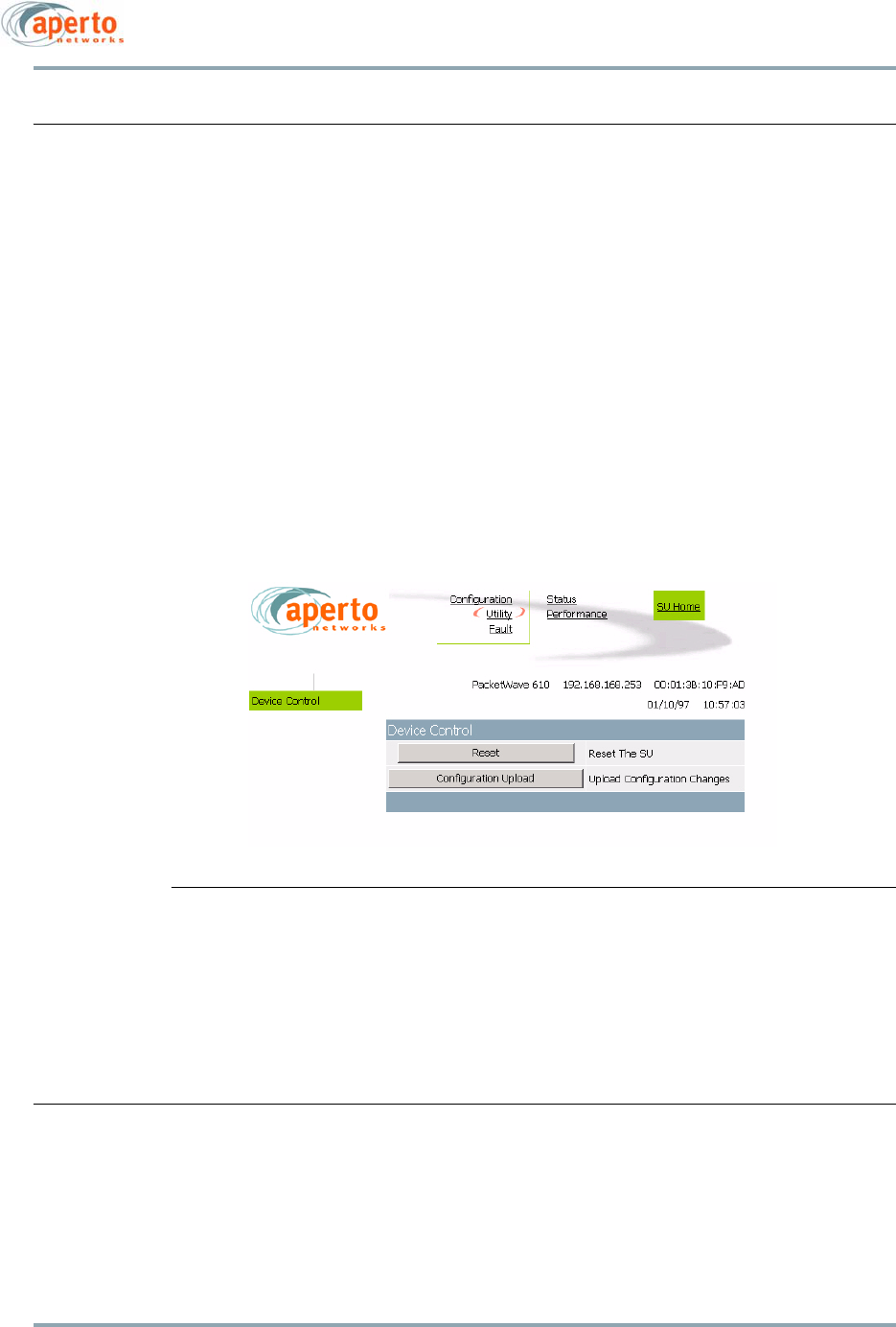

Figure 4-12 Device Control Page
Fault Reporting Pages
The subscriber fault reporting functions include an event log and E-mail configuration, as
shown in Figure 4-13 and Figure 4-14. These functions are available only at the ISP logon
level.
Chapter 4. Subscriber Unit Web GUI
4–14
070-20000750-01 Rev A
Event Log Page
The Event Log page, shown in Figure 4-13, includes all logable events reported by the
Indoor Unit. You can empty the log by clicking on the Clear All Events button.
NOTE: The data base used to generate the log is updated in real time. However,
the pages do not update dynamically; you must click on the Refresh button to
see later status.
Figure 4-13 Event Log Page
Figure 4-14 E-mail Page
4–15
070-20000750-01 Rev A
Chapter 4. Subscriber Unit Web GUI
E-mail Configuration Page
The E-mail Configuration page, shown in Figure 4-14, allows the viewing and altering of E-
mail event reporting parameters:
• Whether event reporting via E-mail is enabled or disabled.
• The address of the SMTP server.
• The E-mail domain name.
• Reply-to and receiver E-mail addresses.
• Whether a test E-mail will be sent when the Submit button is clicked on.
Click on the Submit button to activate any changes made on this page.
Status Pages
There are two status pages:
• The System Status page, shown in Figure 4-15, identifies the Indoor Unit, its soft-
ware and hardware, and its current operational status.
• The Link Status page, shown in Figure 4-16, provides information about the wire-
less link between the subscriber equipment and the base station.
System Status is available at both ISP and subscriber levels; Link Status is available at
the ISP level only.
Performance Pages
Performance pages, available at the ISP level only, include:
• The System Statistics page (Figure 4-17) shows counts of packets and bytes trans-
mitted and received on the wireless link.
•The RF Signal Quality page (Figure 4-18) shows RF signal performance statistics
such as burst error rate and FEC error counts.
• The Filter Statistics page (Figure 4-19) shows counts of passed and blocked pack-
ets; hyperlinks allow selection of Ethernet or wireless interface statistics.
• The Flow Statistics pages (Figure 4-20 and Figure 4-21). The Service Flow Summary
page provides upstream/downstream packet counts and upstream dropped packet
percentage for all defined service flows. Each Service Flow ID serves as a hyperlink
to a Service Flow Details page, which provides detailed flow statistics about the
particular service flow. A hyperlink at the bottom of the Service Flow Details page
leads back to the Service Flow Summary page.
Chapter 4. Subscriber Unit Web GUI
4–16
070-20000750-01 Rev A

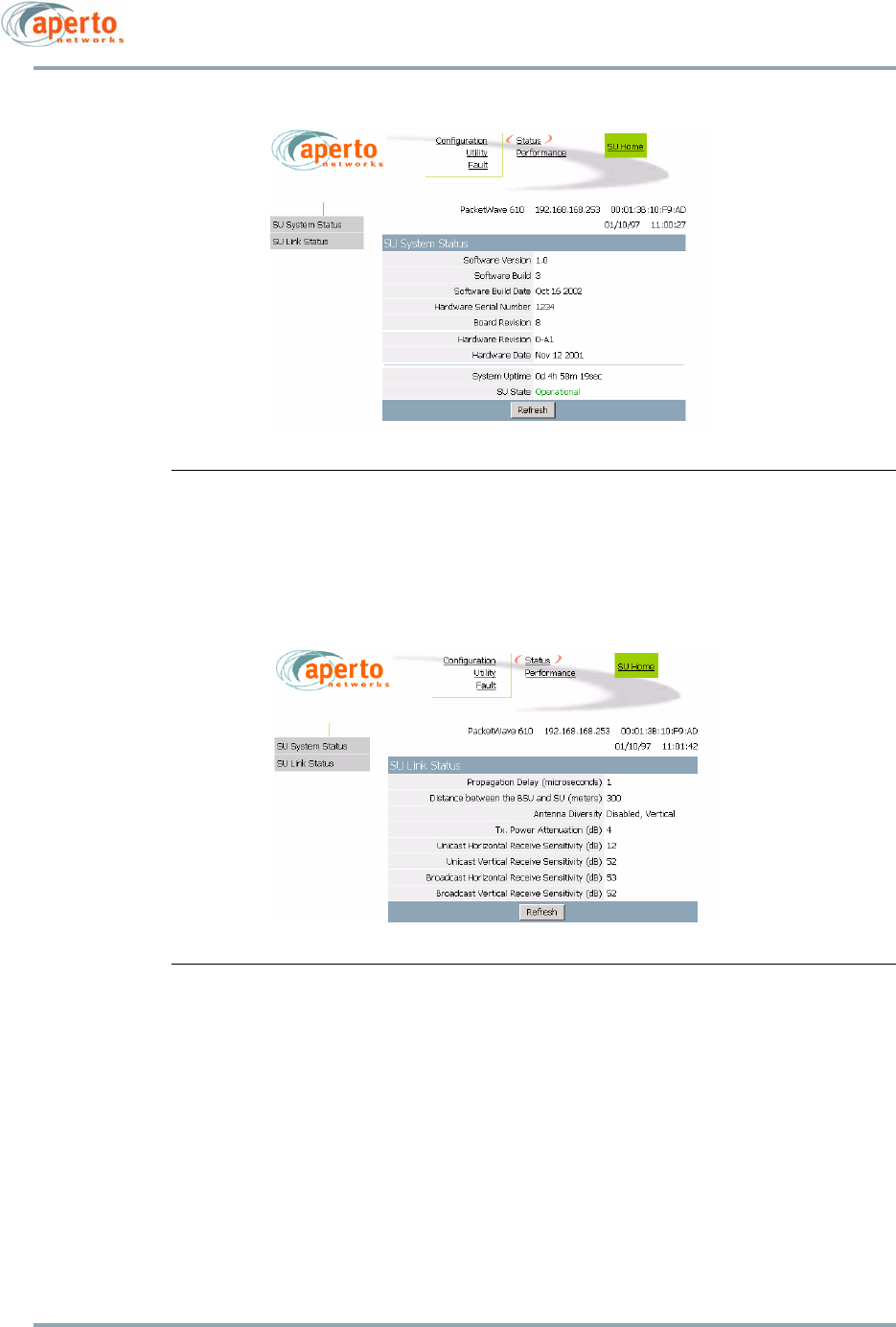

Figure 4-15 System Status Page
Figure 4-16 Link Status Page
4–17
070-20000750-01 Rev A
Chapter 4. Subscriber Unit Web GUI

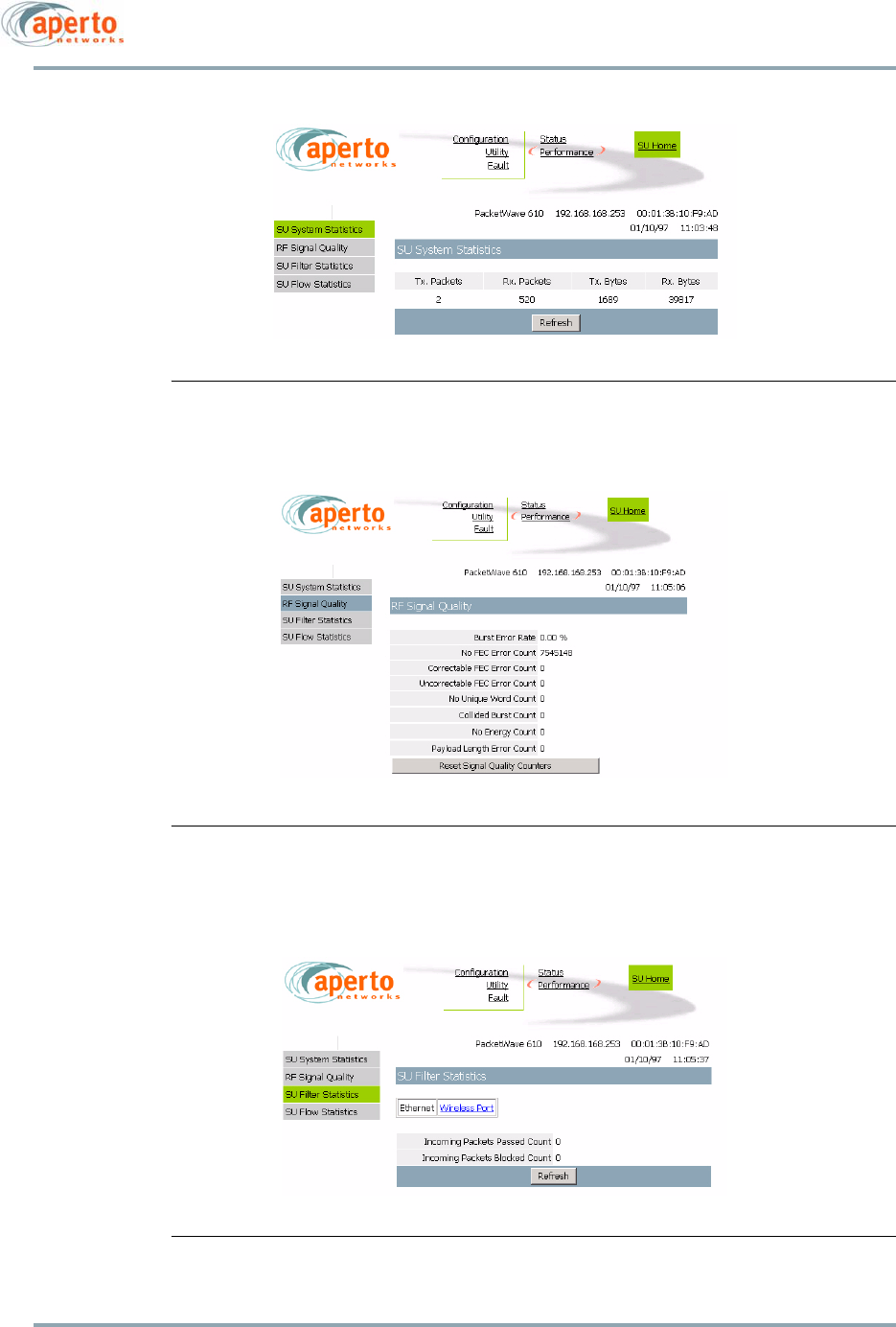

Figure 4-17 System Statistics Page
Figure 4-18 RF Signal Quality Page
Figure 4-19 Filter Statistics Page
Chapter 4. Subscriber Unit Web GUI
4–18
070-20000750-01 Rev A

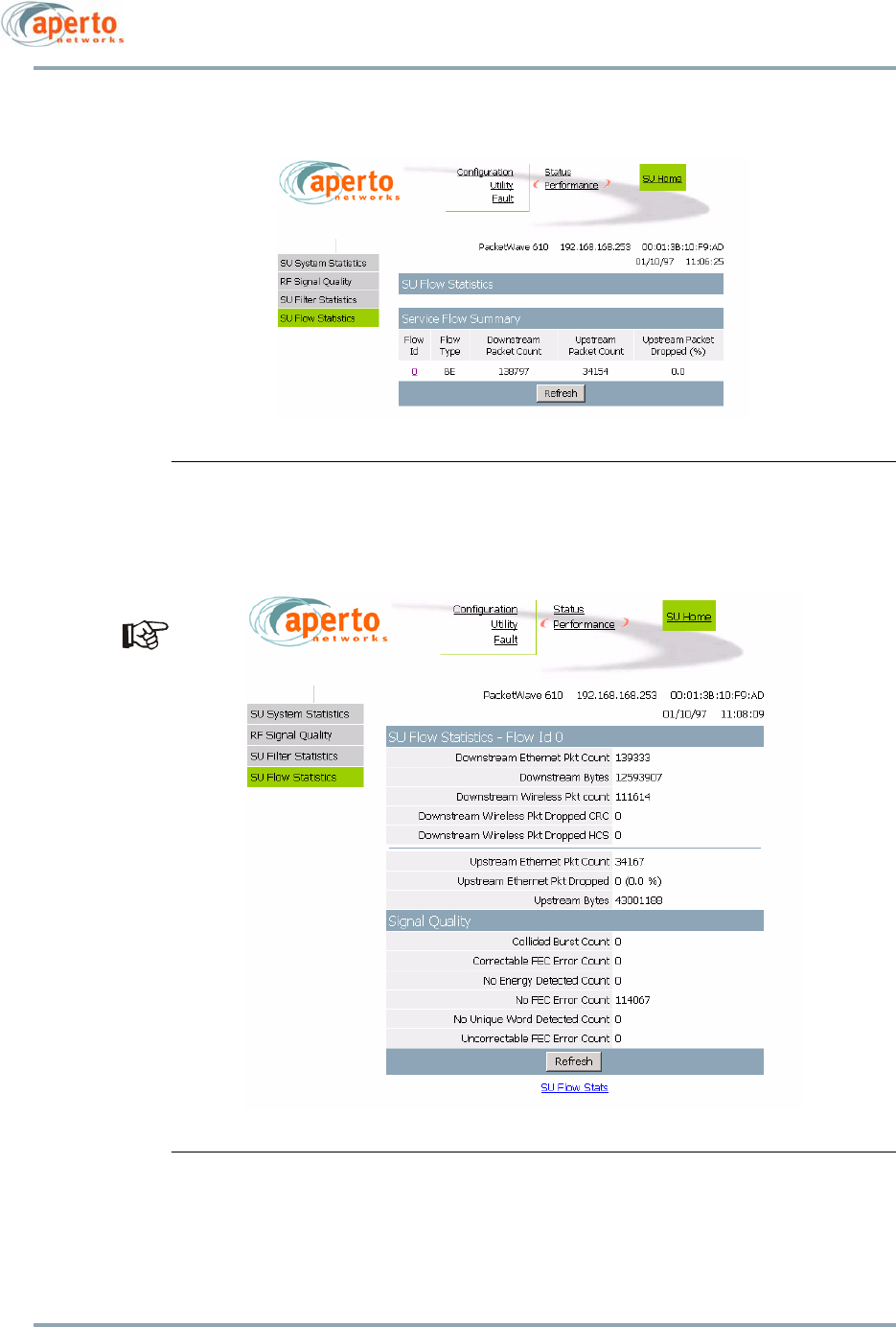

Figure 4-20 Service Flow Summary Page
Figure 4-21 Service Flow Details Page
5–1
070-20000750-01 RevA
5
Antennas
PacketWave products support a variety of antennas for both Point-to-Point and Point-to-
Multipoint solutions
• The Point-to-Point products use highly directional antennas to establish a single
link.
• The Point-to-Multipoint products used sector antennas ranging from 60 to 120
degrees.
This chapter describes the specifications for the various antennas.
Point-to-Point Antennas
The standard PacketWave Point-to-Point product (Model Number PP600-58-01) uses an
integrated radio/antenna. The long range option has an N connector and supports the
various options listed in Table 5-A.
Table 5-A Point-to-Point Antennas
Antenna Description Gain dBi Az, El deg, deg
Standard Panel Patch Antenna 17 17, 17
PPA5800-22 1 ft Parabolic Dish 22 12, 12
PPA5800-24 Flat Panel 24 9, 9
PPA5800-26 1.5 ft Parabolic Dish 26 7, 8
PPA5800-28 2 ft Parabolic Dish 28 6.2, 6.2
Chapter 5. Antennas
5–2
070-20000330-01 Rev B
Point-to-Multipoint Antennas
These sector antennas are connected to PacketWave Base Station Unit radios. These units
provide flexibility to support a wide range of coverage requirements.
Table 5-B Point-to-Multipoint Antennas
Model Description Gain dBi El deg
PWA5800-120 120 degree sector 14 8
PWA5800-90 90 degree sector 16 8
PWA5800-60 60 degree sector 17 8
A–1
070-20000750-01 Rev A
Appendix
A
Specifications
Bridge (Indoor Unit) Specifications
Interfaces
10/100Base-T Ethernet — RJ-45 connector
Radio — F connector
Radio Control — shielded RJ-45 connector
Power Requirement — 100 to 240 V ac, 47 to 63 Hz
Power Consumption — 30 Watts for Indoor and Outdoor Unit
Networking and Protocols
Bridging
Appendix A. Specifications
A–2
070-20000750-01 Rev A
Management
Embedded WaveCenter agent supporting SNMP and web browser
SNMP MIB (RFC 1157), MIB II (RFC 1213), Aperto Enterprise MIBs
Software updates via TFTP
Advanced Installation Manager Utility
Facilitates configuration and antenna alignment process
Diagnostic Manager Utility
Provides diagnostic functions for troubleshooting subscriber equipment
LED Indicators
Power
Wireless — Transmit, Receive, Status
LAN — Link, Transmit, Receive
Environmental
Operating Temperature — 32 to 104 °F (0 to 40 °C)
Humidity — 10 to 90%, noncondensing
Dimensions and Weight
W x H x D — 1.5 x 6.6 x 9.1 inches (3.8 x 16.8 x 23.1 cm)
Weight — 2.2 lbs (1.0 kg)
Regulatory Approvals
FCC Class B
CE, ETSI
Radio/Antenna (Outdoor Unit) Specifications
RF
Data Rates — from 64 kbps with burst mode up to 20 Mbps in a 6 MHz channel
Modulation — QPSK,16 QAM
Cables and Connectors
Radio Signal — Quad shield RG-6 coaxial cable; Male F-type connector
Radio Control — Shielded Cat 5 cable (outdoor rated); Male RJ45 connector
Cable Lengths — Up to 50 m (165 ft); 100 m (330 ft) with proper type of cable
A–3
070-20000750-01 Rev A
Appendix A. Specifications
Mounting
Clamping bracket for pole with diameter of 1.5 inch (3.8 cm) or 2 inches (5.1 cm)
Adjustable elevation
Environmental
Operating Temperature — -22 to 140 °F (-30 to 60 °C)
Storage Temperature — -40 to 257 °F (-40 to 125 °C)
Humidity — 0 to 100%
5.8 GHz Outdoor Unit
Frequency Range — 5725 to 5875 MHz; Maximum EIRP* 33 dBm
Dimensions: W x H x D — 8.1 x 8.1 x 1.9 inches (20.6 x 20.6 x 4.8 cm)
3 dB Beamwidth — Azimuth 17°; Elevation 17°
Polarization — Horizontal and vertical
* The maximum EIRP varies depending on country regulations.
Contact Aperto Networks sales for more information.
Appendix A. Specifications
A–4
070-20000750-01 Rev A
B–1
070-20000750-01 Rev A
Appendix
B
Event Reporting
The PacketWave Base Station Units and Subscriber Units can be configured to report
events by several means:
• E-mail event messages.
•SNMP traps.
• Logging to a Syslog server.
• Event log presented on request via the Web GUI.
Reportable events are identified in Table B-A.
Appendix B. Event Reporting
B–2
070-20000750-01 Rev A
Table B-A Reported Events
Fault Event Description
Cold Start BSU, WSS, or subscriber Indoor Unit has performed a full hardware boot.
Warm Start BSU, WSS, or subscriber Indoor Unit has performed a software reboot.
Authentication Suc-
ceeded/Failure
User name or password login succeeded/failed
Port N Link Up/Down WSS port (number N) has gone up/down.
BSU Up/Down BSU has started/ceased normal operation.
SU Sync Acquired BSU has acquired wireless channel synchronization with a specific
Subscriber Unit.
SU Up/Down Subscriber Unit has started/ceased communication with the BSU.
DHCP Failed A failure has occurred in the retrieval of required data from the DHCP
server.
Power Supply Failed
Radio Synth not Locked Radio synthesizer out of locked; could be the result of bad connection to
the radio or bad radio.
Radio Synth not Locked
Cleared
Radio is back to locked
Fan Alarm Fan stops
Fan Alarm Cleared Fan back to operational
Temperature too Low/High
Temperature Normal
Current Image Corrupted Software stored on BSU is corrupted
SU Failed Registration SU failed to complete registration process with the BSU
Config File Error Configuration file has error
C–1
070-20000750-01 Rev A
Appendix
C
Command Line Interface (CLI)
Each Base Station Unit and Subscriber Unit includes a simple command line interface
(CLI) accessible via Telnet
Accessing and Using the CLI
To access and use the Base Station Unit’s and Subscriber Unit’s command line interface:
1. Telnet to the unit’s IP address.
2. At the Login: prompt, enter ISP. (There is also a Debug logon level, which is re-
served for Aperto use. The Subscriber logon level applies to Subscriber Units only.)
NOTE: All CLI entries, including logon level and password, are case-sensitive.
3. At the Password: prompt, enter the correct password for the specified logon level.
The CLI uses the same passwords as the Web interface. The default password is
isp (case-sensitive). Passwords can be changed via the Web GUI.
4. When the CLI# prompt appears, you are in the CLI.
a. For a list of commands, type ? (the ? will not appear on the screen; pressing
[Enter] is not necessary). The CLI will respond with a list of the available com-
mands groups.
b. To display information about the use of a specific commands, including com-
mand parameters, enter the command and press space bar followed by ?.
5. If there is no activity on a connection for 30 minutes, the CLI will disconnect.
6. When you are finished with the CLI, disconnect from the RS-232 Craft Port, or end
the Telnet session by entering the killTelnet command or simply closing the Telnet
application.
Appendix C.
C–2
070-20000750-01 Rev A
Error Messages
Error messages which may be returned by the Base Station Unit CLI include the following:
•Error: Bad Command — command has been entered incorrectly.
•Error: Invalid Parameter — command has been entered incorrectly.
•Passwords are not the same — when setting a password, two password entries do
not match.
Table C-A Base Station Unit CLI Commands
Command Function
killTelnet Terminate all current Telnet sessions connected at port 5000.
reboot Reboots the Base Station Unit.
D–1
070-20000750-01 Rev A
Appendix
D
RF Signal Quality
Parameters Description
Burst Error Rate Cumulative burst errors (uncorrectable FEC errors + No Unique Word
errors) as a percentage of total bursts received. At BSU, a value of
1% in a sector is normal. Higher number may caused by problems
such as interference and can degrade performance.
Correctable FEC Error Count Number of bursts with errors that are corrected by FEC (Forward
Error Correction). This is a normal part of system operation.
Uncorrectable FEC Error Count Number of bursts with errors that can not be corrected by FEC,
resulting in such bursts being dropped by the system. If this number
is high, the link is likely to be impaired by either low SNR (link is too
long), multipath, fading, or interference.
No Unique Word Count Number of burst with no unique word (an identifier in the preamble
of each burst). Mainly caused by external interference and thus it
reflects the quality of the channel.
At BSU, a high number of No UW Count will degrade performance of
the sector. It can also be cuased by packet collision during Conten-
tion Request but such occurences are rare.
At SU, No UW Count can also caused by the SU beig too close to the
BSU, resulting in overdriving of the SU radio. This can be confirmed
if Installation Manager reports signal level higher than -40dBm. In
such case, the SU antenna should be pointed up toward the sky.
Signal level between -45 to -83 dBm is preferred.
No Energy Count Caused by a scheduled packet failed to arrive or arrived with power
level below threshold.
At BSU, this count will keep increasing as part of normal system
operation.
At SU, a low count number may result from fading and can be
ignored if the performance is normal. However, a high count num-
ber indicates very low signal level. Installation Manager should be
used to point the antenna again to make ensure proper power level.
Appendix D. RF Signal Quality
D–2
070-20000750-01 Rev A
