Apogee K1661013 Kanex Multi-Sync Bluetooth Aluminum Keyboard User Manual
Apogee Inc. Kanex Multi-Sync Bluetooth Aluminum Keyboard
Apogee >
User Manual
Model No.: K166-1013, K166-1013-FR, K166-1013-GR, K166-1013-SP, K166-1013-
SW, K166-1013-P1, K166-1013-P2/ Lexking Model No.:BT-7308
Kanex Multi-Sync Bluetooth Aluminum Keyboard
User’s Manual
Congratulations and thanks you choosing the Kanex Multi-Sync Aluminum Bluetooth Keyboard as your means of
communication among Apple iOS Smartphone, iPad series, and most of Android OS deviced or Mac OSX, Window
OS device. This keyboard is designed by Kanex. Before you starting use this device, please detail READ this user’s
manual.
Contents:
1.Package and Encloses
2.OS compatible
3.Prodcut function description
4.Operating
5.Troubleshooting
6. Product Guarantee
7.Radio frequency Warning
Package and Encloses
1. Keyboard Unit*1
2.AAA Alkaline battery*2
3.User’s manual*1
OS Compatible:
The Keyboard is main support Mac OS and iOS device as following;
1.iOS : iPhone Series, iPad Mini, iPad Series of iOS 5/6/7/8/9.x
2.Mac OS X : Mac OS 10.6 above
It also can support most different OS device as following, except first column keys.
1..Android : Compatible Android 4.0/5.0/6.x devices with HID Bluetooth
2.Window OS : XP / 2000 / 7 / 8 / 10
(Easily to link Notebook and external dongle embedded with Personal Computer)

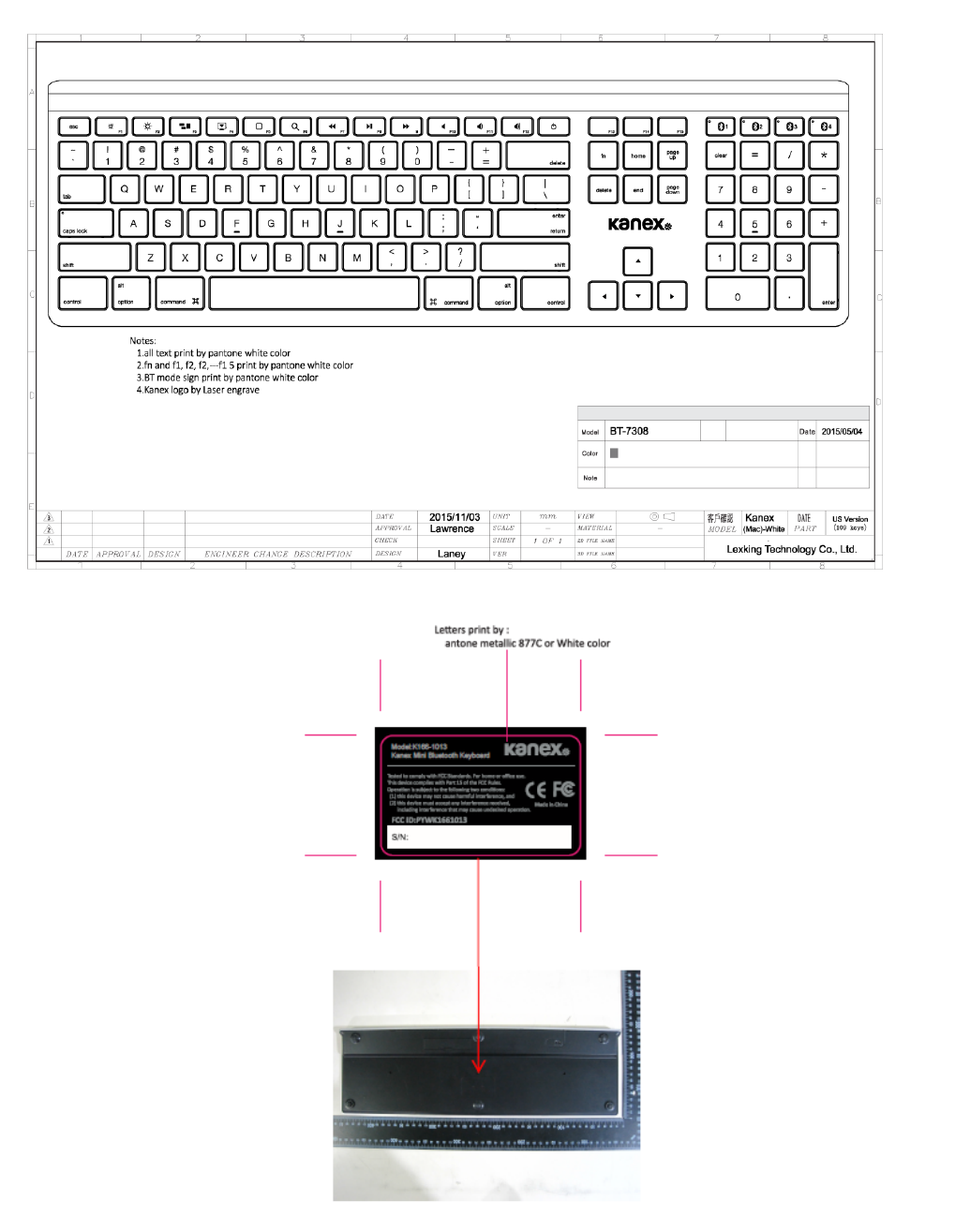

Product profile and function descriptions
(Mac version )
Hotkey functions;
1.4-Bluetooth mode setting keys
BT1, BT2, BT3, BT4 4 keys located at upper-right area which they are for setting connect with 4 devices each.
Also they have a white color LED against each keys.
a. Short press the BT mode key that the key will be setting to in this against mode to connect devices. Then the
LED will be blink a time.
b. When long press the BT mode keys with 3 seconds, its mode function will become pairing mode for waiting
connect device, once it finished to connect the devices, the LED will blink 15 seconds then off.
2.Others normal keys;
You can follow first column keys function to operate its function of BT-7308 well under Mac OS.
LED signal description (from right to left)
LED1, LED2, LED3, LED4all white color
When you short press the BT mode key that the key will be setting to in this against mode to connect devices. Then
the LED will be blink a time.
When you long press the BT mode keys with 3 seconds, its mode function will become at pairing mode for waiting
connect device, once it finished to connect the devices, the LED will blink 15 seconds then light off.
You can swap the BT1 to BT4 key with each devices as you connect mode.
Battery low status:
During the typing time, each BT mode key LED have continually blink, it represent its battery is a low power
situation, you have to change new battery immediately.
Calslock
Inside the capslock key, it have a white color LED for indication upper-case letters status when it be light on status.
One/Off power switch
On/Off slider switch which locate in back side of Keyboard unit, when the slider switch have turn on, the power will
be lighted on. When you turn off the slider switch, the power will be lighted off.
(** suggest you turn off the battery power for saving batter power consumption, if you don’t use keyboard for long
time)
How to Operating:
Before you starting use this keyboard, please detail READ below operating information;
(Notice:Please use enclose AAA alkaline battery or another new battery you have for keep full power before you first
time use BT-7308 keyboard unit)
Connect to Bluetooth host devices;
1.Take out BT-7308 keyboard unit from package box
2.Open PE bag of keyboard then load the AAA alkaline battery.
3.Slider On/Off swith button to “on” status, it is mean power on status for waiting pairing with Apple iDevice or some
other OS device with Bluetooth function.
4.Open your iDevice Bluetooth searching mode.
5.Then short press BT-7308 keyboard BT1 or any BT mode keys as you wanted(e.g. BT2, BT3, BT4), the LED will
have a blink meaning keyboard have ready for this against mode for next pairing process.
You continuously to long press this BT mode keys, the keyboard unit will become in pairing model, the LED will blink
for waiting connect. you will find “Kanex Aluminum Bluetooth Keyboard” string onto your iDevice screen shown in.
you can select the string name icon then press “Enter” key, your iDevice will automatically connect with this
keyboard as well.
If you want to connect another iDevice with BT-7308 keyboard unit, you can following above item 5 to do repairing
again.
(you can press “fn”+”C” key for keep factory reset status for clean BT-7308 keyboard each BT mode connect setting)
Troubleshooting
Q1 : You can’t pairing this keyboard
1.As power saving design concern, if you didn’t touch each BT mode key over pass 30 minutes after you doing the
pairing process, please turn off the power switch then re-open again then you can follow pairing process again.
2.if the keyboard have any power transfer issue, you can try to turn off power switch then turn on it again, then you
can re-pairing keyboard again between your iDevice and BT Keyboard unit.
3.Please make sure does battery power is fully enough forkeyboard working, may you can check each BT mode key
LED if glitter status during the typing process, If so, please recharge new battery immediately.
Q2 : Keyboard have connect with iDevice successfully but it is still not working:
1.Please make sure does battery power is fully enough for working with keyboard, you can check each BT mode key
LED if glitter status during the typing process, If so, please recharge new battery immediately.
2.Make sure does the BT Keyboard is working on metal surface, if so, please move out keyboard unit from the metal
surface for operated in avoiding the metal surface conflict the BT keyboard wireless signal.
3.If you still can smoothly troubleshooting the problem, please reach customer service people or customer service
as a contact email or return the new keyboard to your purchased shop by keep original package.
Product Guarantee:
1 year guarantee during normal used.
Abnormal use are not including guarantee.
Federal Communications Commission (FCC) Statement
Notice :
The user shall be cautioned that changes / modifications not approved by the responsible party could void the user’s
authority to operate the equipment.
The changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is
permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure
requirements and void user’s authority to operate the device.
