Manual
English 1
Apple Pencil
Apple Pencil uses Bluetooth® technology
to connect to iPad Pro.
Pair and charge Apple Pencil
Pair and charge Apple Pencil with
iPadPro:
1 Lay iPad Pro on a at surface.
2 Pull the top o the end of Apple Pencil
to expose the Lightning connector.
3 Plug the end of Apple Pencil into the
Lightning connector on iPad Pro.
If Apple Pencil isn’t paired with iPad Pro
yet, this brings up onscreen instructions
so you can complete the pairing process.
This also charges Apple Pencil.
To pair Apple Pencil with a dierent
iPad Pro, repeat the process above.
Check the battery status of Apple Pencil:
You can check the battery status of
Apple Pencil on the iPad Pro it’s paired
with.
m Swipe down from the top edge of the
screen to open Notication Center, then
tap Widgets.
Turn o Bluetooth:
m Swipe up from the bottom edge of
any screen to open Control Center,
then tap .
Note: This turns o Bluetooth on
Apple Pencil as well as on your iPad Pro.
Unpair Apple Pencil and iPadPro:
m On the paired iPad Pro, go to Settings >
Bluetooth, tap next to Apple Pencil,
then tap Forget This Device.
Note: You can pair iPad Pro with only one
Apple Pencil at a time, and pair Apple
Pencil with only one iPad Pro at a time.
Charge Apple Pencil with the Apple
Pencil Adapter:
1 Connect Apple Pencil to the recessed
end of the Apple Pencil Adapter, then
connect the Lightning to USB cable to
the at end of the Apple Pencil Adapter.
Apple Pencil
Adapter
Cable
2 English
2 Connect the Lightning to USB Cable to
an Apple USB Power Adapter, then plug
the adapter into a power outlet.
Start drawing
Open the Notes app on iPad Pro to start
drawing with Apple Pencil. Draw with
Apple Pencil on iPad Pro as if you’re
drawing with a pencil on paper.
Don’t use Apple Pencil on any surface
other than iPad Pro.
Keep the tip of Apple Pencil clean, as
dirt and other small particles may cause
excessive wear to the tip or damage the
screen of iPad Pro.
Replace the tip of Apple Pencil
With use, the tip of Apple Pencil will wear
down, and you’ll need to replace it.
Important: To avoid damaging the
iPad Pro screen, replace the tip of
Apple Pencil when it’s worn down.
Remove a tip:
m Turn the tip of Apple Pencil
counterclockwise to unscrew it.
Attach a tip:
m Screw a tip in by turning it clockwise
until it’s rmly in place.
Safety and handling
Apple Pencil may present a choking
hazard or cause other injury to small
children. Keep Apple Pencil away from
small children.
Handle Apple Pencil with care. Apple
Pencil contains sensitive electronic
components, including a battery, and can
be damaged or cause injury if dropped,
burned, bent, crushed, or if it comes in
contact with liquid. Don’t use a damaged
Apple Pencil.
Battery
Don’t attempt to replace the Apple Pencil
battery yourself—you may damage the
battery, which could cause overheating
and injury.
Lightning cable and connector
Avoid prolonged skin contact with the
connector when the Lightning to USB
Cable is plugged into a power source
because it may cause discomfort or
injury. For example, while Apple Pencil is
charging using the Apple Pencil Adapter,
the Lightning to USB cable, and a power
adapter plugged into a power source,
don’t sit or sleep on them or place them
under a blanket, pillow, or your body.
Take special care if you have a physical
condition that aects your ability to
detect heat against the body.
Medical device interference
Apple Pencil contains components
and radios that emit electromagnetic
elds. These electromagnetic elds may
interfere with pacemakers, debrillators,
or other medical devices. Maintain a
English 3
safe distance of separation between
your medical device and Apple Pencil.
Consult your physician and medical
device manufacturer for information
specic to your medical device. Stop using
Apple Pencil if you suspect it is interfering
with your pacemaker, debrillator, or any
other medical device.
Cleaning
To clean the outside of Apple Pencil, use
a lint-free cloth. Don’t get moisture in any
openings or use aerosol sprays, solvents,
or abrasives.
Ergonomics
When using Apple Pencil, it’s important to
nd a comfortable posture, change your
position often, and take frequent breaks.
For information about ergonomics, health,
and safety, visit the Ergonomics website at
www.apple.com/about/ergonomics.
Support
For support and troubleshooting
information, user discussion boards, and
the latest Apple software downloads, go
to www.apple.com/support.
4
FCC Compliance Statement
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
Note: This equipment has been tested and found
to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment to an outlet on a circuit
dierent from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV
technician for help.
Important: Changes or modications to this product
not authorized by Apple could void the electromagnetic
compatibility (EMC) and wireless compliance and negate
your authority to operate the product. This product
has demonstrated EMC compliance under conditions
that included the use of compliant peripheral devices
and shielded cables between system components. It is
important that you use compliant peripheral devices
and shielded cables between system components to
reduce the possibility of causing interference to radios,
televisions, and other electronic devices. This product
was tested for EMC compliance under conditions that
included the use of Apple peripheral devices.
Responsible party (contact for FCC matters only):
Apple Inc.
Corporate Compliance
1 Innite Loop, MS 91-1EMC
Cupertino, CA 95014
Canadian Compliance Statement
This device complies with Industry Canada license-
exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not
cause interference, and (2) this device must accept any
interference, including interference that may cause
undesired operation of the device.
Cet appareil est conforme aux normes CNR exemptes
de licence d’Industrie Canada. Le fonctionnement est
soumis aux deux conditions suivantes : (1) cet appareil
ne doit pas provoquer d’interférences et (2) cet appareil
doit accepter toute interférence, y compris celles
susceptibles de provoquer un fonctionnement non
souhaité de l’appareil.
Bluetooth Industry Canada Statement
This Class B device meets all requirements of the
Canadian interference-causing equipment regulations.
Cet appareil numérique de la Class B respecte toutes
les exigences du Règlement sur le matériel brouilleur
du Canada.
Industry Canada Statement
CAN ICES-3 (B)NMB-3(B)
EU Compliance Statement
Apple Inc. hereby declares that this wireless device is in
compliance with the essential requirements and other
relevant provisions of the R&TTE Directive.
A copy of the EU Declaration of Conformity is available
at www.apple.com/euro/compliance.
Apple’s EU representative is Apple Distribution
International, Hollyhill Industrial Estate, Cork, Ireland.

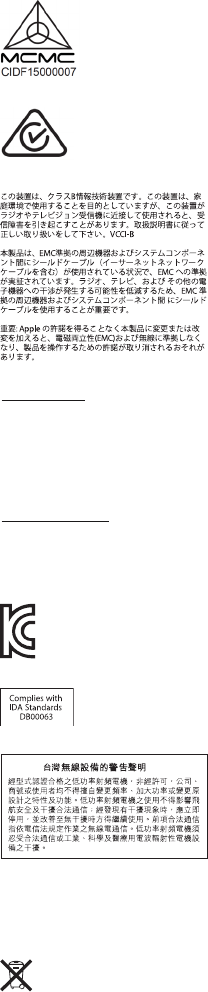

Russia, Kazakhstan, Belarus
Regulatory Compliance
Information
5
Malaysia
Australia/New Zealand
Japan VCCI Class B Statement
Korea Warning Statements
대한민국 규정 및 준수
미래창조과학부고시에 따른 고지사항
해당 무선설비는 운용 중 전파혼신 가능성이 있으므로,
인명안전과 관련된 서비스에 사용할 수 없습니다.
B급 기기(가정용 방송통신기자재)
이 기기는 가정용(B급) 전자파적합기기로서 주로
가정에서 사용하는 것을 목적으로 하며,
모든 지역에서 사용할 수 있습니다.
Lightning 케이블 및 커넥터
불편이나 부상을 유발할 수 있으므로 Lightning
케이블을 전원에 연결된 상태로 장시간 피부에 닿지
않도록 하십시오. Lightning 커넥터 위에 앉거나 누워
잠들지 않도록 하십시오.
Korea KCC Statements
제조년월: 별도표기
명칭(모델명) : Apple Pencil (A1603)
인증번호 :
인증자상호: 애플코리아 유한회사
제조자/제조국:Apple Inc. /중국
KCC-REI-APL-A1603
Singapore Wireless Certication
Taiwan Wireless Statement
Disposal and Recycling Information
When this product reaches its end of life, please dispose
of it according to your local environmental laws and
guidelines.
For information about Apple’s recycling program, visit
www.apple.com/recycling.
European Union—Disposal Information
The symbol above means that according to local laws
and regulations your product and/or its battery shall
be disposed of separately from household waste. When
this product reaches its end of life, take it to a collection
point designated by local authorities. The separate
collection and recycling of your product and/or its
battery at the time of disposal will help conserve natural
6
resources and ensure that it is recycled in a manner that
protects human health and the environment.
Union Européenne—informations sur l’élimination
Le symbole ci-dessus signie que, conformément aux
lois et réglementations locales, vous devez jeter votre
produit et/ou sa batterie séparément des ordures
ménagères. Lorsque ce produit arrive en n de vie,
apportez-le à un point de collecte désigné par les
autorités locales. La collecte séparée et le recyclage de
votre produit et/ou de sa batterie lors de sa mise au
rebut aideront à préserver les ressources naturelles et à
s’assurer qu’il est recyclé de manière à protéger la santé
humaine et l’environnement.
Europäische Union—Informationen zur Entsorgung
Das oben aufgeführte Symbol weist darauf hin, dass
dieses Produkt und/oder die damit verwendete Batterie
den geltenden gesetzlichen Vorschriften entsprechend
und vom Hausmüll getrennt entsorgt werden muss.
Geben Sie dieses Produkt zur Entsorgung bei einer
oziellen Sammelstelle ab. Durch getrenntes Sammeln
und Recycling werden die Rohstoreserven geschont
und es ist sichergestellt, dass beim Recycling des
Produkts und/oder der Batterie alle Bestimmungen
zum Schutz von Gesundheit und Umwelt eingehalten
werden.
Unione Europea—informazioni per lo smaltimento
Il simbolo qui sopra signica che, in base alle leggi
e alle normative locali, il prodotto e/o la sua batteria
dovrebbero essere riciclati separatamente dai riuti
domestici. Quando il prodotto diventa inutilizzabile,
portalo nel punto di raccolta stabilito dalle autorità
locali. La raccolta separata e il riciclaggio del prodotto
e/o della sua batteria al momento dello smaltimento
aiutano a conservare le risorse naturali e assicurano che
il riciclaggio avvenga nel rispetto della salute umana
e dell’ambiente.
Per i consumatori italiani: quando si acquista un nuovo
prodotto Apple, è possibile restituire un prodotto
elettronico simile presso il punto vendita senza costi
aggiuntivi. Nel caso in cui si tratti di dispositivi mobili e
piccoli accessori, è possibile restituirli al punto vendita in
qualsiasi momento. Per maggiori informazioni, consulta
la pagina www.apple.com/it/recycling.
Europeiska unionen—Information om kassering
Symbolen ovan betyder att produkten och/eller dess
batteri enligt lokala lagar och bestämmelser inte får
kastas tillsammans med hushållsavfallet. När produkten
har tjänat ut måste den tas till en återvinningsstation
som utsetts av lokala myndigheter. Genom att låta den
uttjänta produkten och/eller dess batteri tas om hand
för återvinning hjälper du till att spara naturresurser och
skydda hälsa och miljö.
Türkiye
Türkiye Cumhuriyeti: AEEE Yönetmeliğine Uygundur.
Apple Teknoloji ve Satış Limited Şirketi
Büyükdere Caddesi, Levent 199, Kat 22 ve 23, Şişli,
Mecidiyeköy, 34394 İstanbul, Türkiye.
Brasil—Informações sobre descarte e reciclagem
O símbolo acima indica que este produto e/ou sua
bateria não devem ser descartadas no lixo doméstico.
Quando decidir descartar este produto e/ou sua
bateria, faça-o de acordo com as leis e diretrizes
ambientais locais. Para informações sobre o programa
de reciclagem da Apple, pontos de coleta e telefone de
informações, visite www.apple.com/br/environment.
Información sobre eliminación de residuos y reciclaje
El símbolo indica que este producto y/o su batería no
debe desecharse con los residuos domésticos. Cuando
decida desechar este producto y/o su batería, hágalo
de conformidad con las leyes y directrices ambientales
locales.
Para obtener información sobre el programa de
reciclaje de Apple, puntos de recolección para reciclaje,
sustancias restringidas y otras iniciativas ambientales,
visite http://www.apple. com/la/environment.
Battery Disposal Information
Dispose of batteries according to your local
environmental laws and guidelines.
The lithium-ion battery in your Apple Pencil should be
serviced or recycled by Apple or an authorized service
provider, and disposed of separately from household
waste. For information about Apple lithium-ion batteries,
go to www.apple.com/batteries.
Australia: More information is available on the web at:
www.apple.com/au/recycling/batteries
7

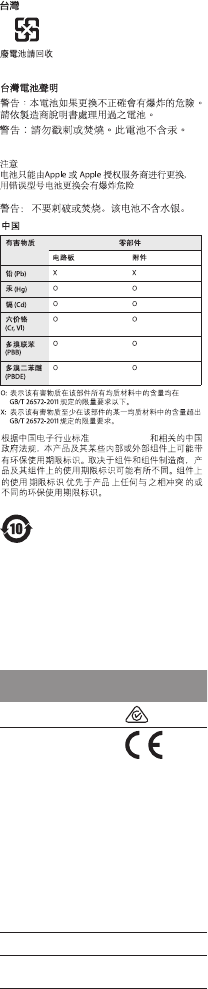

Taiwan Battery Statement
China Battery Statement
SJ/T 11364-2014
Apple and the Environment
Apple Inc. recognizes its responsibility to minimize the
environmental impacts of its operations and products.
More information is available on the web at
www.apple.com/environment.
ApplePencil Regulatory Certication
for Model Number A1603
Country Certication
Number
Australia/New Zealand
Austria, Belgium,
Bulgaria, Croatia,
Cyprus, Czech
Republic, Denmark,
Estonia, Finland,
France, Germany,
Greece, Hungary,
Iceland, Ireland, Italy,
Latvia, Liechtenstein,
Lithuania,
Luxembourg, Malta,
Netherlands, Norway,
Poland, Portugal,
Romania, Slovakia,
Slovenia, Spain,
Sweden, Switzerland,
United Kingdom
Canada IC: 579C-A1603
United States (including
Puerto Rico)
FCC ID: BCGA1603
A copy of the European Declaration of Conformity
is available at: www.apple.com/euro/compliance
© 2015 Apple Inc. All rights reserved.
Apple, the Apple logo, and iPad are trademarks of Apple,
registered in the U.S. and other countries. Apple Pencil
and Lightning are trademarks of Apple Inc.
The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc. and any use of
such marks by Apple is under license.
Printed in XXXX.
034-00830-A
