Enterprise Deployment Guide

iPhone and iPod touch

Enterprise Deployment

Guide

Apple Inc.

This manual may not be copied, in whole or in part,

without the written consent of Apple.

The Apple logo is a trademark of Apple Inc., registered

in the U.S. and other countries. Use of the “keyboard”

Apple logo (Option-Shift-K) for commercial purposes

without the prior written consent of Apple may

constitute trademark infringement and unfair

competition in violation of federal and state laws.

Every effort has been made to ensure that the

information in this manual is accurate. Apple is not

responsible for printing or clerical errors.

Apple

1 Infinite Loop

Cupertino, CA 95014-2084

408-996-1010

www.apple.com

Apple, the Apple logo, iPod, iTunes, Leopard, Mac,

Macintosh, the Mac logo, Mac OS, Safari, Tiger, and

QuickTime are trademarks of Apple Inc., registered in

the U.S. and other countries.

iPhone is a trademark of Apple Inc.

Other company and product names mentioned herein

are trademarks of their respective companies. Mention

of third-party products is for informational purposes

only and constitutes neither an endorsement nor a

recommendation. Apple assumes no responsibility with

regard to the performance or use of these products.

Simultaneously published in the United States and

Canada.

019-1333/2008-07

Contents

Preface 5 iPhone in the Enterprise

System Requirements

Microsoft Exchange ActiveSync

VPN

Network Security

Certificates

Email accounts

Additional Resources

Chapter 1 10 Deploying iPhone and iPod touch

Activating Devices

Preparing Access to Network Services and Enterprise Data

Determining Device Passcode Policies

Configuring Devices

Other Resources

Chapter 2 16 Creating and Deploying Configuration Profiles

About iPhone Configuration Utility

Creating Configuration Profiles

Editing Configuration Profiles

Preparing Configuration Profiles for Deployment

Installing Configuration Profiles

Removing and Updating Configuration Profiles

Chapter 3 29 Manually Configuring Devices

VPN Settings

Wi-Fi Settings

Exchange Settings

Installing Identities and Root Certificates

Additional Mail Accounts

Other Resources

Chapter 4 38 Deploying iTunes

Installing iTunes

Contents

Setting iTunes Restrictions

Chapter 5 42 Deploying iPhone Applications

Signing Applications

Creating the Distribution Provisioning Profile

Installing Provisioning Profiles using iTunes

Installing Provisioning Profiles using iPhone Configuration Utility for Mac OS X

Installing Applications using iTunes

Installing Applications using iPhone Configuration Utility for Mac OS X

Using Enterprise Applications

Other Resources

Appendix A 46 Cisco VPN Server Configuration

Authentication Methods

Authentication Groups

Certificates

IPSec Settings

Other Supported Features

Appendix B 49 Configuration Profile Format

Root Level

Payload Content

Passcode Policy Payload

Email Payload

APN Payload

Exchange Payload

VPN Payload

Wi-Fi Payload

Proxy settings

Preface

iPhone in the Enterprise

Learn how to integrate iPhone and iPod touch with your

enterprise systems.

This guide is for system administrators. It provides information about deploying and

supporting iPhone and iPod touch in enterprise environments.

System Requirements

Read this section for an overview of the system requirements and the various

components available for integrating iPhone and iPod touch with your enterprise

systems.

iPhone and iPod touch

iPhone and iPod touch devices you use with your enterprise network must be updated

with iPhone software 2.0 or later.

iTunes

iTunes 7.7 or later is required in order to set up a device. This version is also required in

order to install software updates for iPhone or iPod touch, install applications, as well as

to sync music, video, or other data with a Mac or PC.

To use iTunes, you need a Mac or PC that has a USB 2.0 port and meets the following

specifications.

Mac OS X computers

Mac OS X v10.4.10 Tiger or later

1 GHz processor or faster

256 MB of RAM

QuickTime 7.1.6 or later

6 Preface

iPhone in the Enterprise

Windows computers

Windows XP Service Pack 2 or Windows Vista

500 MHz Pentium processor or faster

256 MB of RAM

QuickTime 7.1.6 or later

Some features of iTunes, such as use of the iTunes Store, have additional requirements.

See the documentation included with the iTunes installer for more information.

iPhone Configuration Utility

iPhone Configuration Utility lets you create configuration profiles for your devices.

The Mac OS X version of the utility also lets you manage profiles, install applications,

and view console logs from connected devices. This version requires:

Mac OS X v10.5 Leopard

The web-based version of the utility requires:

Microsoft Windows Vista (32-bit only), or Microsoft Windows XP with .NET Framework

Version 2.0, or Mac OS X v10.5 Leopard

Microsoft Internet Explorer 7, or Firefox 2, or Safari 3

Microsoft Exchange ActiveSync

iPhone and iPod touch support the following versions of Microsoft Exchange:

Exchange ActiveSync for Exchange Server (EAS) 2003 Service Pack 2

Exchange ActiveSync for Exchange Server (EAS) 2007 Service Pack 1

Supported Exchange ActiveSync Policies

The following Exchange policies are supported:

Enforce password on device

Minimum password length

Require both numbers and letters

Inactivity time in minutes

For a description of each policy, refer to your Exchange ActiveSync documentation.

Preface

iPhone in the Enterprise

Remote Wipe

You can remotely wipe the contents of an iPhone or iPod touch. Doing so quickly

removes all data and configuration information from the device, then the device is

securely erased and restored to original, factory settings. It can take approximately one

hour for each 8 GB of device capacity for the process to finish.

With Exchange Server 2007, you can initiate a remote wipe using the Exchange

Management Console, Outlook Web Access, or the Exchange ActiveSync Mobile

Administration Web Tool.

With Exchange Server 2003, you can initiate a remote wipe using the Exchange

ActiveSync Mobile Administration Web Tool.

Users can also wipe a device in their possession by choosing Erase All Content and

Settings from the Settings menu.

Important:

Because wiping the device can take a long time, connect the device to its

power supply. If the device turns off due to low power, the wiping process resumes

when the device is connected to power.

Microsoft Direct Push

The Exchange server delivers email, contacts and calendar events to iPhone

automatically if a cellular data connection is available. With iPod touch, or when iPhone

doesn’t have a cellular data signal, information isn’t automatically pushed to the device;

it’s retrieved when you try to view the data or when you choose Settings > Fetch New

Data.

Microsoft Exchange Autodiscovery

The Autodiscovery service of Exchange Server 2007 is supported. When you’re

manually configuring an iPhone and iPod touch, the Autodiscovery service uses your

email address and password to automatically determine the correct Exchange server

information.

Microsoft Exchange Global Address List

iPhone and iPod touch retrieve contact information from your company’s Exchange

server corporate directory. You can access the directory when searching in Contacts,

and it is automatically accessed for completing email addresses as you enter them.

8 Preface

iPhone in the Enterprise

Exchange ActiveSync Features Not Supported

Not all Exchange features are supported, including, for example:

Folder management

Opening links in email to documents stored on Sharepoint servers

Task synchronization

Setting an “out of office” autoreply message

Creating meeting invitations

Flagging messages for follow-up

VPN

iPhone and iPod touch work with VPN servers that support the following protocols and

authentication methods:

L2TP/IPSec with user authentication by MS-CHAPV2 Password, RSA SecurID and

CryptoCard, and machine authentication by shared secret.

PPTP with user authentication by MS-CHAPV2 Password, RSA SecurID, and

CryptoCard.

Cisco IPSec with user authentication by Password, RSA SecurID, or CryptoCard, and

machine authentication by shared secret and certificates. See Appendix A for

recommendations for configuring Cisco VPN servers.

Network Security

iPhone and iPod touchiPod touch support the following 802.11i wireless networking

security standards as defined by the Wi-Fi Alliance:

WEP

ÂWPA Personal

ÂWPA Enterprise

ÂWPA2 Personal

ÂWPA2 Enterprise

Additionally, iPhone and iPod touch support the following 802.1X authentication

methods for WPA Enterprise and WPA2 Enterprise networks:

ÂEAP-TLS

ÂEAP -TTLS

ÂEAP-FAST

ÂPEAP v0, PEAP v1

ÂLEAP

Preface iPhone in the Enterprise 9

Certificates

iPhone and iPod touch can use certificates in the following raw formats:

ÂPKCS1 (.cer, .crt, .der)

ÂPKSC12 (.p12, .pfx)

Email accounts

iPhone and iPod touch support industry-standard IMAP4- and POP3-enabled mail

solutions on a range of server platforms including Windows, UNIX, Linux, and

Mac OS X.

Additional Resources

In addition to this guide, the following publications and websites provide information

about iPhone and iPod touch:

ÂiPhone User Guide, available for download at www.apple.com/support/iphone

ÂiPhone Guided Tour at www.apple.com/iphone/gettingstarted

ÂiPod touch Guided Tour at www.apple.com/ipodtouch/guidedtour

ÂiPhone webpage at www.apple.com/iphone

ÂiPod touch webpage at www.apple.com/ipodtouch

ÂiPhone in Enterprise webpage at www.apple.com/iphone/enterprise

ÂiPhone Support webpage at www.apple.com/support/iphone

ÂiPod touch Support webpage at www.apple.com/support/ipodtouch

ÂiTunes webpage at www.apple.com/itunes

ÂExchange Product Overview at http://technet.microsoft.com/en-us/library/

bb124558.aspx

ÂExchange 2003 Technical Documentation Library at http://technet.microsoft.com/

en-us/library/bb123872(EXCHG.65).aspx

ÂWi-Fi for Enterprise webpage at www.wi-fi.org/enterprise.php

1Deploying iPhone and iPod touch

This chapter provides an overview of how to deploy iPhone

and iPod touch in your enterprise.

iPhone and iPod touch are designed to easily integrate with your enterprise systems

including Microsoft Exchange 2003 and 2007, 802.1X-based secure wireless networks,

and Cisco IPSec virtual private networks. As with any enterprise solution, good

planning and an understanding of your deployment options make deployment easier

and more efficient for you and your users.

When planning your deployment of iPhone and iPod touch consider the following:

ÂHow will your company’s iPhones be activated for wireless cellular service?

ÂWhich enterprise network services, applications and data will your users need to

access?

ÂWhat policies do you want to set on the devices to protect sensitive company data?

ÂDo you want to manually configure devices individually, or use a streamlined process

for configuring a large fleet?

The specifics of your enterprise environment, IT policies, wireless carrier, and your

computing and communication requirements affect how you tailor your deployment

strategy.

Activating Devices

Each iPhone must be activated with your wireless carrier before it can be used to make

and receive calls, send text messages or connect to the cellular data network. Contact

your carrier for voice and data tariffs and activation instructions for consumer and

business customers.

You or your user will need to install a SIM card in the iPhone. After the SIM card is

installed, iPhone must be connected to a computer with iTunes to complete the

activation process. If the SIM card is already active, iPhone will be unlocked and ready

for immediate use; otherwise, iTunes will walk you through the process of activating a

new line of service.

Chapter 1 Deploying iPhone and iPod touch 11

Although there is no cellular service or SIM card for iPod touch, it must also be

connected to a computer with iTunes for unlocking.

Because iTunes is required to complete the activation process for both iPhone and

iPod touch, you must decide whether you want to install iTunes on each user’s Mac or

PC, or whether you’ll complete activation for each device with your own iTunes

installation.

After activation, iTunes isn’t required to use the device with your enterprise systems,

but it is necessary to synchronize music, video and web browser bookmarks with a

computer. It is also required for downloading and installing software updates for

devices and installing your enterprise applications. For more information, see

Chapter 4.

Preparing Access to Network Services and Enterprise Data

iPhone 2.0 software enables secure push email, push contacts and push calendar with

your existing Microsoft Exchange Server 2003 or 2007 solution, as well as Global

Address Lookup, Remote Wipe and device passcode policy enforcement. It also allows

users to securely connect to company resources via WPA Enterprise and WPA2

Enterprise wireless networks using 802.1X wireless authentication and/or via VPN using

PPTP, LT2P over IPSec, or Cisco IPSec protocols.

If your company doesn’t use Microsoft Exchange, your users can still use iPhone or

iPod touch to wirelessly sync email with most standard POP or IMAP-based servers and

services. And they can use iTunes to sync calendar events and contacts from Mac OS X

iCal and Address Book or Microsoft Outlook on a Windows PC.

As you determine which network services you want users to access, here are some

things you should know:

Microsoft Exchange

iPhone communicates directly with your Microsoft Exchange Server via Microsoft

Exchange ActiveSync (EAS). Exchange ActiveSync maintains a connection between the

Exchange Server and iPhone so that when a new email message or meeting invitation

arrives iPhone is instantly updated. iPod touch doesn’t have a cellular connection, so it

receives push notifications only when it is active and connected to a Wi-Fi network.

If your company currently supports Exchange ActiveSync on Exchange Server 2003 or

Exchange Server 2007, you already have the necessary services in place, no additional

configuration is required.

If you have an Exchange Server but your company is new to Exchange ActiveSync,

review the following:

12 Chapter 1 Deploying iPhone and iPod touch

Network Configuration

ÂMake sure port 443 is open on the firewall. If your company uses Outlook Web

Access, port 443 is most likely already open.

ÂVerify that a server certificate is installed on the Exchange frontend server and enable

Require Basic SSL for the Exchange ActiveSync virtual directory.

ÂOn the Microsoft Internet Security and Acceleration (ISA) Server, verify that a server

certificate is installed and update the public DNS to properly resolve incoming

connections.

ÂMake sure the DNS for your network returns a single, externally-routable address to

the Exchange ActiveSync server for both intranet and Internet clients. This is required

so the device can use the same IP address for communicating with the server when

both types of connections are active.

ÂOn the ISA Server, create a web listener as well as an Exchange web client access

publishing rule. This is a necessary step in enabling Exchange ActiveSync. See

Microsoft’s documentation for details.

ÂFor all firewalls and network appliances, set the idle session timeout to 30 minutes.

Refer to Microsoft Exchange documentation for alternative heartbeat and timeout

intervals.

Exchange Account Setup

ÂEnable Exchange ActiveSync for specific users or groups using the Active Directory

service. These are enabled by default for all mobile devices at the organizational level

in Exchange Server 2003 and Exchange Server 2007. For Exchange Server 2007, see

Recipient Configuration in the Exchange Management Console.

ÂConfigure mobile features, policies, and device security settings using the Exchange

System Manager. For Exchange Server 2007, this is done in the Exchange

Management Console.

ÂDownload and install the Microsoft Exchange ActiveSync Mobile Administration Web

Tool, which is necessary to initiate a remote wipe. For Exchange Server 2007, remote

wipe can also be initiated using Outlook Web Access.

WPA/WPA2 Enterprise Wi-Fi Networks

Support for WPA Enterprise and WPA2 Enterprise ensures that corporate wireless

networks are securely accessed on iPhone and iPod touch. WPA/WPA2 Enterprise uses

128-bit encryption, a proven block-based encryption method that provides a high level

of assurance that corporate data remains protected.

With support for 802.1X authentication, iPhone and iPod touch can be integrated into a

broad range of RADIUS server environments. 802.1X wireless authentication methods

are supported and include EAP-TLS, EAP-TTLS, EAP-FAST, PEAPv0, PEAPv1 and LEAP.

Chapter 1 Deploying iPhone and iPod touch 13

WPA/WPA2 Enterprise Network Configuration

ÂVerify network appliances for compatibility and select an authentication type (EAP

type) supported by iPhone and iPod touch. Make sure that 802.1X is enabled on the

authentication server, and if necessary, install a server certificate and assign network

access permissions to users and groups.

ÂConfigure wireless access points for 802.1X authentication and enter the

corresponding RADIUS server information.

ÂTest your 802.1X deployment with a Mac or a PC to make sure RADIUS authentication

is properly configured.

ÂIf you plan to use certificate-based authentication, make sure you have your public

key infrastructure configured to support device and user-based certificates with the

corresponding key distribution process.

ÂVerify certificate format and authentication server compatibility. iPhone and

iPod touch support PKCS1 (.cer, .crt, .der) and PKCS12 (.p12, .pfx).

Virtual Private Networks

Secure access to private networks is supported on iPhone and iPod touch using Cisco

IPSec, L2TP over IPSec, and PPTP virtual private network protocols. If your organization

supports one of these protocols, no additional network configuration or third-party

applications are required to use your devices with your VPN infrastructure.

Cisco IPSec deployments can take advantage of certificate-based authentication via

industry-standard x.509 digital certificates (PKCS1, PKCS12). For two-factor token-based

authentication, iPhone and iPod touch support RSA SecurID and CryptoCard. Users

enter their PIN and token-generated, one-time password directly on their device when

establishing a VPN connection.

iPhone and iPod touch also support shared secret authentication for Cisco IPSec and

L2TP/IPSec deployments and MS-CHAPv2 for basic username and password

authentication.

VPN Setup Guidelines

ÂiPhone integrates with most existing VPN networks, so minimal configuration should

be necessary to enable iPhone access to your network. The best way to prepare for

deployment is to check if your company’s existing VPN protocols and authentication

methods are supported by iPhone.

ÂEnsure compatibility with standards by your VPN concentrators. It’s also a good idea

to review the authentication path to your RADIUS or authentication server to make

sure standards supported by iPhone are enabled within your implementation.

ÂCheck with your solutions providers to confirm that your software and equipment

are up-to-date with the latest security patches and firmware.

14 Chapter 1 Deploying iPhone and iPod touch

IMAP Email

If you don’t use Microsoft Exchange, you can still implement a secure, standards-based

email solution using any email server that supports IMAP and is configured to require

user authentication and SSL. These servers can be located within a DMZ subnetwork,

behind a corporate firewall, or both.

With SSL, iPhone and iPod touch support 128-bit encryption and X.509 root certificates

issued by the major certificate authorities. They also support strong authentication

methods including industry-standard MD5 Challenge-Response and NTLMv2.

IMAP Network Setup Guidelines

ÂFor additional security protection, install a digital certificate on the server from a

trusted certificate authority (CA). Installing a certificate from a CA is an important

step in ensuring that your proxy server is a trusted entity within your corporate

infrastructure.

ÂTo allow iPhone and iPod touch devices to retrieve email from your server, open port

993 in the firewall and make sure that the proxy server is set to IMAP over SSL.

ÂTo allow devices to send email, port 587, 465, or 25 must be open. Port 587 is used

first and is the best choice.

Enterprise Applications

If you are planning to deploy enterprise iPhone and iPod touch applications, you install

the applications on your devices using iPhone Configuration Utility for Mac OS X or

iTunes for Mac and Windows. Once you deploy an application to user’s devices,

updating those applications will be easier if each user has iTunes installed on their Mac

or PC.

Determining Device Passcode Policies

Once you decide which network services and data your users will access, you should

determine which device passcode policies you want to implement.

Requiring passcodes to be set on your devices is recommended for companies whose

networks, systems, or applications don’t require a password or an authentication token.

If you’re using certificate-based authentication for an 802.1X network or Cisco IPSec

VPN, or your enterprise application saves your login credentials, you should require

users to set a device passcode with a short timeout period so a lost or stolen device

cannot be used without knowing the device passcode.

Policies can be set on iPhone and iPod touch in one of two ways. If the device is

configured to access a Microsoft Exchange account, the Exchange ActiveSync policies

are wirelessly pushed to the device. This allows you to enforce and update the policies

without any action by the user. For information about EAS policies, see “Supported

Exchange ActiveSync Policies” on page 6.

Chapter 1 Deploying iPhone and iPod touch 15

If you don’t use Microsoft Exchange, you can set similar policies on your devices by

creating configuration profiles. You distribute the profiles via email or a web site that is

accessible using the device. If you want to change a policy, you must post or send an

updated profile to users for them to install. For information about the device passcode

policies, see “Passcode Settings” on page 22.

Configuring Devices

Next, you need to decide how you’ll configure each iPhone and iPod touch. In large

part, this is influenced by how many devices you plan on deploying and managing

over time. If the number is relatively small, you may find that it is simpler for you or

your users to manually configure each device. This involves using the device to enter

the settings for each mail account, Wi-Fi settings, and VPN configuration information.

See Chapter 3 for details about manual configuration.

If you plan on deploying a large number of devices, or you have a large collection of

email settings, network settings, and certificates to install, then you may want to

configure the devices by creating and distributing configuration profiles. Configuration

profiles quickly load settings and authorization information onto a device. Additionally,

some VPN and Wi-FI settings can only be set using a configuration profile, and if you’re

not using Microsoft Exchange, you’ll need to use a configuration profile to set device

passcode policies.

Whether or not you’re configuring devices manually or using configuration profiles,

you also need to decide if you’ll configure the devices or if you will delegate this task to

your users. Which you choose depends on your user’s locations, company policy

regarding users’ ability to manage their own IT equipment, and the complexity of the

device configuration you intend to deploy. Configuration profiles work well for a large

enterprise, for remote employees, or for users that are unable to set up their own

devices.

if you want users to activate device themselves or if they need to install or update

enterprise applications, iTunes must be installed on each user’s Mac or PC. iTunes is also

required for software updates to iPhone and iPod touch, so keep that in mind if you

decide to not distribute iTunes to your users. For information about deploying iTunes,

see Chapter 4.

Other Resources

Additional helpful information and resources about iPhone and iPod touch in the

enterprise is available at www.apple.com/iphone/enterprise.

2Creating and Deploying

Configuration Profiles

Configuration profiles define how iPhone and iPod touch

work with your enterprise systems.

Configuration profiles are XML files that, when installed, provide information that

iPhone and iPod touch can use to connect to and communicate with your enterprise

systems. They contain VPN configuration information, device security policies,

Exchange settings, mail settings, and certificates.

You distribute configuration profiles by email or using a webpage. When users open

the email attachment or download the profile using Safari on their device, they are

prompted to begin the installation process.

If you prefer not to create and distribute configuration profiles, you can configure

iPhone or iPod touch devices manually. See Chapter 3 for information about manual

configurations.

About iPhone Configuration Utility

You use iPhone Configuration Utility to create configuration profiles. There are two

versions of iPhone Configuration Utility—one is a Mac OS X application and the other

is a web-based version for Mac OS X or Windows.

iPhone Configuration Utility for Mac OS X

iPhone Configuration Utility for Mac OS X is installed in the /Applications/Utilities/

folder, when you run the iPhone Configuration Utility installer.

Chapter 2 Creating and Deploying Configuration Profiles 17

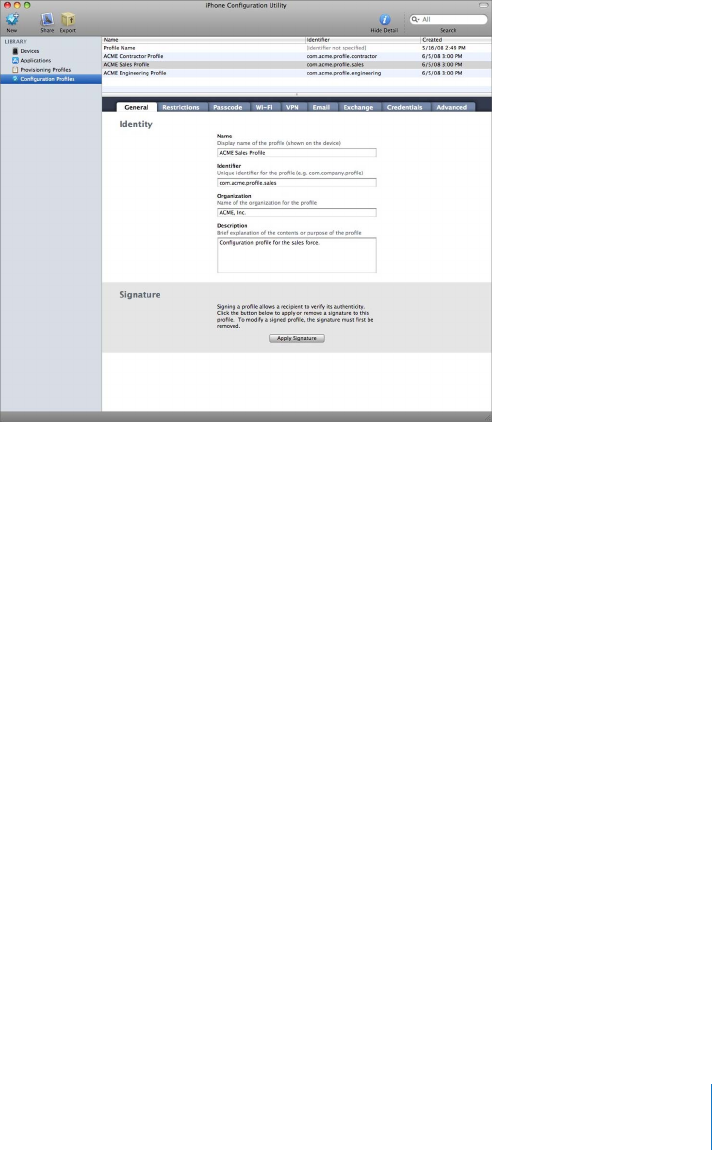

When you open iPhone Configuration Utility, a window similar to the one shown below

appears.

The content of the main section of the window changes as you select items in the

sidebar.

The sidebar displays the Library, which contains the following categories:

ÂDevices shows a list of iPhone and iPod touch devices that have been connected to

your computer.

ÂProvisioning Profiles lists profiles that permit the use of the device for iPhone OS

development, as authorized by Apple Developer Connection. For information,

see Chapter 5.

ÂConfiguration Profiles lists the configuration profiles you have previously created, and

lets you edit the information you entered, or create a new configuration that you can

send to a user for installation on a device.

ÂApplications lists your applications that are available to install on devices attached to

your computer.

The sidebar also displays Connected Devices, which shows information about the iPhone

or iPod touch currently connected to your computer’s USB port. Information about a

connected device is automatically added to the Devices list so you can view it again

without having to reconnect the device.

When a device is connected, you can also view console logs and any available crash

logs. These are the same device logs that are available for viewing within the Xcode

development environment on Mac OS X.

18 Chapter 2 Creating and Deploying Configuration Profiles

iPhone Configuration Utility for the Web

The web-based version of iPhone Configuration Utility lets you create configuration

profiles for your devices. Follow the instructions below for the platform you’re using.

Installing on Mac OS X

To install the utility on Mac OS X v10.5 Leopard, open the iPhone Web Config Installer

and follow the onscreen instructions. When the installer finishes, the utility is ready for

use. See “Accessing iPhone Configuration Utility for Web” on page 18.

Installing on Windows XP and Windows Vista

To install the utility on Windows, do the following:

1For Windows XP, download and run the Microsoft .NET Framework Version 2.0

Redistributable Package (x86) installer from www.microsoft.com/downloads.

2Run iPhoneConfigWebUtilSetup.exe.

3To configure the ability to email profiles to users directly from the utility, edit the file

install drive:Program Files\Apple\iPhone Configuration Web

Utility\config\environments\production.rb so that the parameters in the

ActionMailer::Base.smtp_settings method are appropriate for your network.

To confirm that the utility is running, open the Services control panel and make sure

that the iPhone Configuration Utility Web service is running.

Accessing iPhone Configuration Utility for Web

To access the utility, follow the steps below.

1Open a web browser and go to: http://localhost:3000

If you installed the utility on another computer, substitute its name or address for

localhost in the address above. For information about supported web browsers,

see “iPhone Configuration Utility” on page 6.

2Log in with the user name admin and the password admin.

Chapter 2 Creating and Deploying Configuration Profiles 19

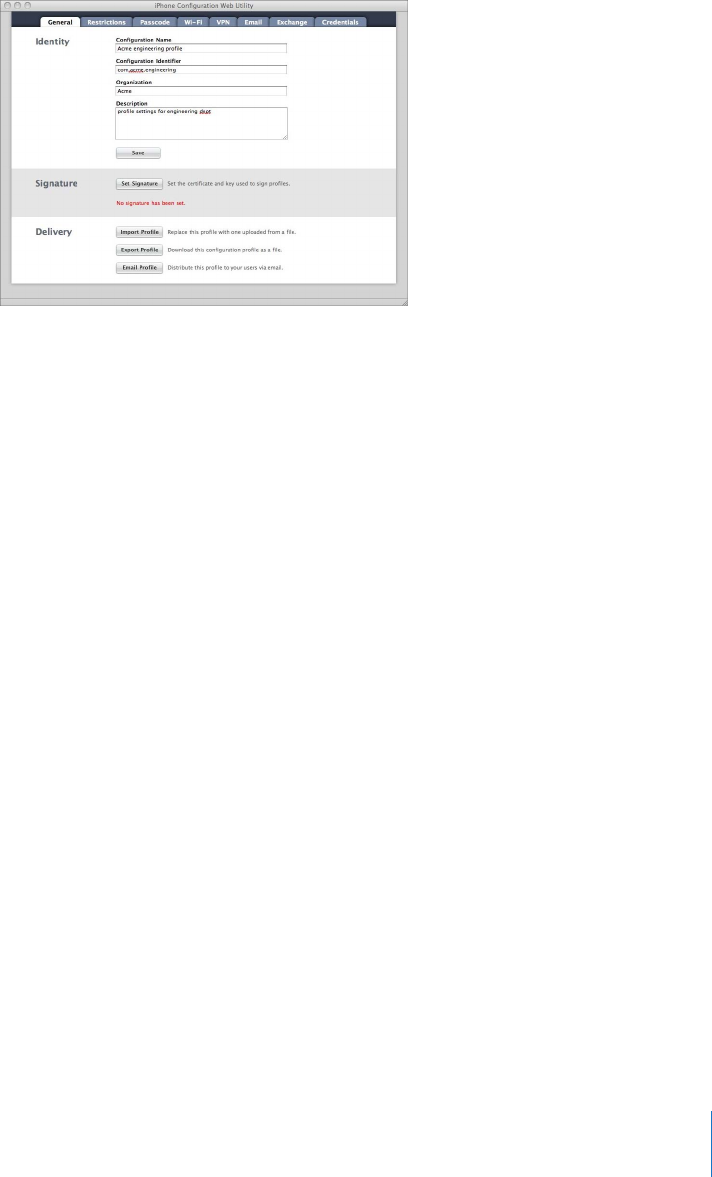

A screen similar to the one shown here will appear.

For information about using the utility, see “Creating Configuration Profiles,” below.

Changing the User name and Password for iPhone Configuration Utility Web

To change the user name and password for accessing the utility, edit the following file:

Âinstallpath/Apple/iPhone Configuration Web Utility/config/authentication.rb

The default installation location is:

ÂMac OS X: /usr/local/iPhoneConfigService/

ÂWindows: \Program Files\Apple\iPhone Configuration Web Utility

Changing the Web Server Port Number for iPhone Configuration Utility Web

By default, the utility listens for HTTP connections on port 3000. To change the port

number, find the text :port => 3000 in the file listed below and change 3000 to a port

that isn’t already in use.

ÂMac OS X: installpath/vendor/rails/railties/lib/commands/servers/mongrel.rb

ÂWindows: installpath\vendor\rails\railties\lib\commands\webrick.rb

The default installation location is:

ÂMac OS X: /usr/local/iPhoneConfigService/

ÂWindows: \Program Files\Apple\iPhone Configuration Web Utility

After changing the port number, stop and restart the utility. See the instructions below.

Starting or Restarting iPhone Configuration Utility Web

The utility is automatically started by the installer on Windows, or when it’s needed by

Mac OS X, but if you experience problems or change the mail settings, port number,

or user name and password settings, you should stop and restart the utility. Follow the

steps below:

20 Chapter 2 Creating and Deploying Configuration Profiles

To restart the utility on Windows

1Go to Control Panel > Administrative Tools > Services.

2Select Apple iPhone Configuration Web Utility.

3Select Restart from the Action menu.

To restart the utility on Mac OS X

1Open Terminal.

2Enter sudo -s and authenticate with an administrator password.

3Enter launchctl unload /System/Library/LaunchDaemons/com.apple.iPhone

ConfigService.plist

4Enter launchctl load /System/Library/LaunchDaemons/com.apple.iPhone

ConfigService.plist

Creating Configuration Profiles

To create a new configuration profile, click the New Profile button in the toolbar of

iPhone Configuration Utility for Mac OS X or iPhone Configuration Utility for the Web.

You edit the profile using the panes in the bottom portion of the main window.

Although you can create a single configuration profile that contains all of the necessary

information, consider creating separate profiles for certificates and settings. so you can

update and distribute each type of information separately. This also allows users to

retain the certificates they’ve already installed when installing a new profile that

contains VPN or account settings.

To add information to a configuration profile, select the appropriate pane, click the

Configure button, and then fill in the information you see onscreen, as described

below. Required fields are marked with a red arrow.

For some settings, such as W-Fi settings, you can click the Add (+) button to add

additional configurations. To remove a configuration, click the Delete (–) button in the

configuration details window.

Chapter 2 Creating and Deploying Configuration Profiles 21

General Settings

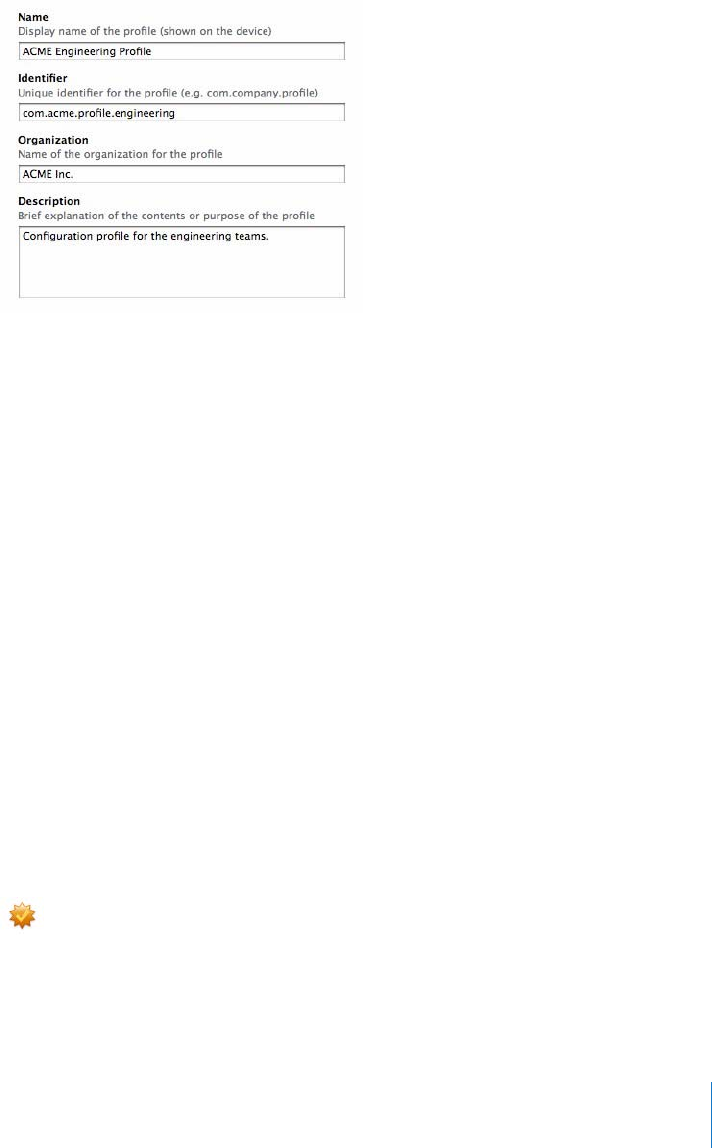

This is where you provide the name and identifier of this profile.

A configuration name is required. The name you specify appears in the profiles list and

is displayed on the device after the configuration profile is installed. Although the

name doesn’t have to be unique, you should use a descriptive name that identifies the

profile.

The configuration identifier must uniquely identify this profile and must use the format

com.companyname.identifier, where identifier describes the profile. For example:

com.mycompany.homeoffice.

The identifier is important because, when a profile is installed, the Configuration

Identifier value is compared with profiles that are already on the device. If the

Configuration Identifier value is unique, information in the profile is added to the

device. If the identifier matches a profile already installed, information in the profile

replaces the settings already on the device.

Profiles can be verified by signing them, but signed profiles aren’t required. If you don’t

sign a profile, its status is shown as Unsigned when viewed on the device.

If you choose to sign a profile, and the signature can be verified by a certificate on the

device, its status is Verified. If the certificate necessary to verify the signature isn’t on

the device, or if the chain of trust cannot be linked to a root CA that is on the device,

then the profile’s status is Not Verified. Signed profiles are indicated with a checkmark:

22 Chapter 2 Creating and Deploying Configuration Profiles

To sign a profile, click Apply Signature in the Signature section of the General pane.

In the Configuration Signing window that appears, add the digital certificates necessary

to authenticate your signature. (Certificates in raw formats 1 and 12 are supported.)

Then select your private key file and click Sign. The certificate you select here isn’t

added to the device, and is only used to verify your signature. For information about

how to add certificates to the device, see “Credentials Settings” on page 25.

Once you sign a profile, you cannot modify it until you remove the signature.

Click Remove Signature in the General Pane to do so.

Passcode Settings

Use this pane to set device policies if you aren’t using Exchange passcode policies.

You can specify whether a passcode is required in order to use the device, as well as

specify characteristics of the passcode and how often it must be changed. When the

configuration profile is loaded, the user is immediately required to enter a passcode

that meets the policies you select or the profile will not be installed.

If you’re using both device policies and Exchange passcode policies, the two sets of

policies are merged and the strictest of the settings is enforced. See “Microsoft

Exchange ActiveSync” on page 6 for information about Exchange policies.

The following policies are available:

ÂRequire passcode on device: Requires users to enter a passcode before using the

device. Otherwise, anyone who has the device can access all of its functions and

data.

ÂAllow simple value: Permits users to use repetitive characters in their passcodes.

For example, this would allow the passcodes to “3333” or “A4A4.”

ÂRequire alphanumeric value: Requires that the passcode consist of both letters and

numbers.

ÂMinimum passcode length: Specifies the smallest number of characters a passcode

can contain.

ÂMinimum number of complex characters: The number of non-alphanumeric characters

(such as $, &, and !) that the passcode must contain.

ÂMaximum number of failed attempts: By default, after six failed passcode attempts,

the device imposes a time delay before a passcode can be entered again. The time

delay increases with each failed attempt. After the eleventh failed attempt, the

device is locked and must be reauthorized using iTunes. The value you select

determines how many failed passcode attempts can be made before the device is

locked and requires reauthorization. The passcode time delays always begin after the

sixth attempt, so if you set this value to 6 or lower, no time delays are imposed and

the device locks when the attempt value is exceeded. You cannot specify a value

greater than 11—the device always locks if the user fails to enter the correct

passcode 11 times in succession.

Chapter 2 Creating and Deploying Configuration Profiles 23

ÂMaximum passcode age (in days): Requires users to change their passcode at the

interval you specify.

ÂPasscode lock (in minutes): If the device isn’t used for this period of time, it

automatically locks. Entering the passcode unlocks it.

Wi-Fi Settings

Use this pane to set how the device connects to your wireless network. You can add

multiple network configurations by clicking the Add (+) button.

These settings must be specified, and must match the requirements of your network,

in order for the user to initiate a connection.

ÂService Set Identifier: Enter the SSID of the wireless network to connect to.

ÂHidden Network: Specifies whether the network is broadcasting its identity.

ÂSecurity Type: Select an authentication method for the network. The following

choices are available for both Personal and Enterprise networks.

ÂNone: The network doesn’t use authentication.

ÂWEP: The network uses WEP authentication only.

ÂWPA/WPA 2: The network uses WPA authentication only.

ÂAny: The device uses either WEP or WPA authentication when connecting to the

network, but won’t connect to non-authenticated networks.

Enterprise Settings

In this section of the Wi-Fi pane, you specify settings for connecting to enterprise

networks. This section of the pane appears only if you choose an Enterprise setting in

the Security Type pop-up menu.

In the Protocols tab, you specify which EAP methods to use for authentication and

configure the EAP-FAST Protected Access Credential settings.

In the Authentication tab, you specify sign-in settings such as user name and

authentication protocols. If you’ve installed an identity certificate using the Credentials

tab, you can choose it using the Identity Certificate pop-up menu.

In the Trust tab, you specify which certificates should be regarded as trusted for the

purpose of validating the authentication server for the Wi-Fi connection. The Trusted

Certificates list displays certificates that have been added using the Credentials tab, and

lets you select which certificates should be regarded as trusted. Add the names of the

authentication servers to be trusted to the Trusted Server Certificates Names list. You

can specify a particular server, such as server.mycompany.com or a partial name such as

*.mycompany.com.

The Allow Trust Exceptions options lets users decide to trust a server when the chain of

trust can’t be established. To avoid these prompts, and to permit connections only to

trusted services, turn off this option and embed all necessary certificates in a profile.

24 Chapter 2 Creating and Deploying Configuration Profiles

VPN Settings

Use this pane to enter the VPN settings for connecting to your network. You can add

multiple sets of VPN connections by clicking the Add (+) button.

For information about supported VPN protocols and authentication methods, see

“VPN” on page 8.

Email Settings

Use this pane to configure POP or IMAP mail accounts for the user. These accounts will

be added to the device, and as with Exchange accounts, users need to manually enter

information you omit from the profile, such as their account password, when the profile

is installed.

Users can modify some of the mail settings you provide in a profile, such as the

account name, password, and alternative SMTP servers. If you omit any of this

information from the profile, the users are asked to enter it when they access the

account.

Important: The mail account and all of its data are deleted when the user deletes the

profile.

You can add multiple mail accounts by clicking the Add (+) button.

Exchange Settings

Use this pane to enter the user’s settings for your Exchange server. You can create a

profile for a specific user by specifying the user name, host name, and email address, or

you can provide just the host name—the users are prompted to fill in the other values

when they install the profile.

If you specify the user name, host name, and SSL setting in the profile, the user can’t

change these settings on the device.

You can configure only one Exchange account per device. When a profile containing an

Exchange configuration is installed, all of the contacts and calendar data on the device

that was previously synced using iTunes is erased and replaced with data from the

Exchange account. Other email accounts, including any Exchange IMAP accounts, aren’t

affected when you add an Exchange account.

By default, Exchange syncs contacts, calendar, and email. The user can change these

settings on the device, including how many days worth of data to sync, in Settings >

Accounts. When a device is configured to sync calendars or contacts with Exchange,

iTunes no longer syncs the data with a desktop computer.

If you select the Use SSL option, be sure to add the certificates necessary to

authenticate the connection using the Credentials pane.

Chapter 2 Creating and Deploying Configuration Profiles 25

Credentials Settings

Use this pane to add certificates to the device. Certificates in raw formats PKCS1

(.cer, .der, .crt) and PKCS12 (.p12, .pfx) are supported.

When installing an identity certificate on the device, make sure that the file contains a

certificate and not just a private key. If you install only a private key without the

necessary certificate, the identity won’t be valid. If you install an identity certificate

without a private key, the user is asked to enter the private key every time the

certificate is used by the device.

Additionally, make sure that the certificate authority that issued the server’s certificate

is trusted on the device. You don’t need to add root certificates that are included on

the device by Apple. To view a list of the preinstalled system roots, see the Apple

Support article at http://support.apple.com/kb/HT2185.

Instead of installing certificates with a profile, you can let users use Safari to download

the certificates directly to their device from a webpage. Or, you can email certificates to

users. See “Installing Identities and Root Certificates” on page 36 for more information.

To add multiple credentials, click the Add (+) button.

Advanced Settings

The Advanced pane lets you change the device’s Access Point Name (APN) settings.

The APN settings define how the device connects to the carrier’s network. Change

these settings only when specifically directed to do so by a carrier network expert. If

these settings are incorrect, the device can’t access data using the cellular network.

To undo an inadvertent change to these settings, delete the profile from the device.

Apple recommends that you define APN settings in a configuration profile separate

from other enterprise settings.

Editing Configuration Profiles

With iPhone Configuration Utility for Mac OS X, select a profile in the Configurations

list, and then use the settings panes to make changes. You can also import a profile by

choosing File > Add to Library and then selecting a .mobileconfig file. If the settings

panes aren’t visible, click the Show Editor button in the toolbar.

With the web-based version of iPhone Configuration Utility, click Import Profile to load

the profile that you want to edit.

If a profile is signed, you must click Remove Signature in the General pane before you

can edit it.

26 Chapter 2 Creating and Deploying Configuration Profiles

The Configuration Identifier field in the General pane is used by the device to

determine whether a profile is new, or an update to an existing profile. If you want the

updated profile to replace one that users have already installed, don’t change the

Configuration Identifier.

Preparing Configuration Profiles for Deployment

After you’ve created a profile, decide whether you want to distribute it to users by

email, or by posting it to a website. When users use their device to open an email

message or download the profile from the web, they are prompted to start the

installation process. See “Installing Configuration Profiles” on page 27 for information.

Some of the information contained in a profile is obfuscated to prevent casual

snooping, but the profile isn’t encrypted. Make sure the file is accessible only by

authorized users.

Distributing Configuration Profiles by Email

To send a profile by email, click the email button. If you’re using the Mac OS X version

of iPhone Configuration Utility, a new Mail message opens with the profile added as an

uncompressed attachment. If you’re using the web-based version, the profile is emailed

to the address you specify.

Distributing Configuration Profiles on the Web

To post a profile for downloading using Safari on iPhone or iPod touch, click the Export

button. This creates a .mobileconfig file in the location you specify, ready for posting to

your site.

Don’t compress the .mobileconfig file, or the device won’t recognize the profile.

Additionally, you must configure your web server so that .mobileconfig files are

transmitted as application/x-apple-aspen-config files.

Mac OS X Server

If your web server is Mac OS X Server v10.5.3 Leopard or later, it is already configured

for correctly transmitting .mobileconfig files.

For Mac OS X Server versions prior to v10.5.3, add the following MIME type to the MIME

Types settings using Server Admin:

application/x-apple-aspen-config mobileconfig

This ensures that all .mobileconfig files, regardless of where they are stored on your

web server, are correctly sent to clients.

Alternatively, add the MIME type to httpd.conf or one of its subconfiguration files,

provided that your Apache configuration allows directory overrides:

AddType application/x-apple-aspen-config mobileconfig

Chapter 2 Creating and Deploying Configuration Profiles 27

IIS Web Server

If your web server is IIS, add the MIME type in the Properties page of the server using

IIS Manager. The extension is mobileconfig and the file type is application/x-apple-

aspen-config.

Alternatively, you can add this information to specific sites using the HTTP Headers

section of a website’s properties panel.

Installing Configuration Profiles

Provide your users with the URL where they can download the profiles onto their

devices, or send the profiles to an email account your users can access using the device

before it is set up with your enterprise-specific information.

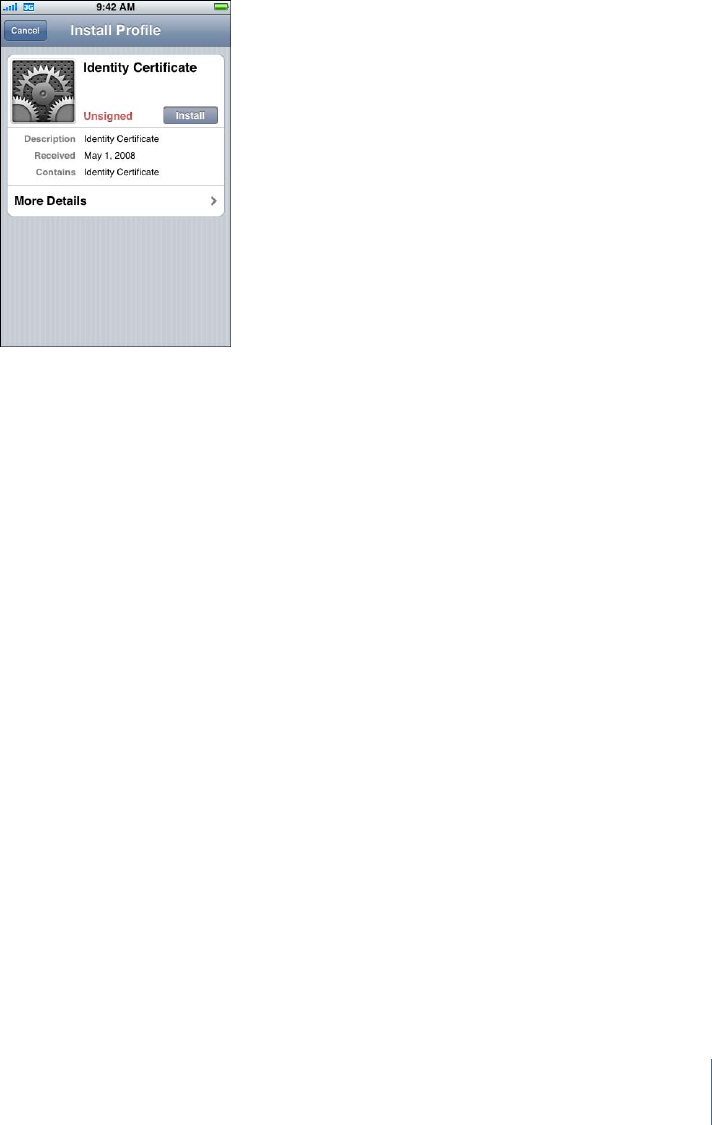

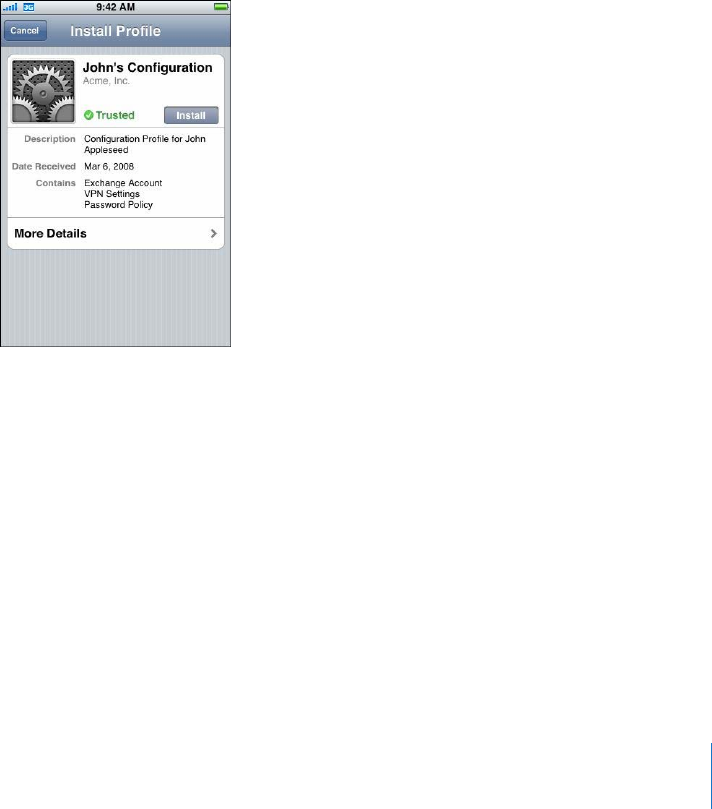

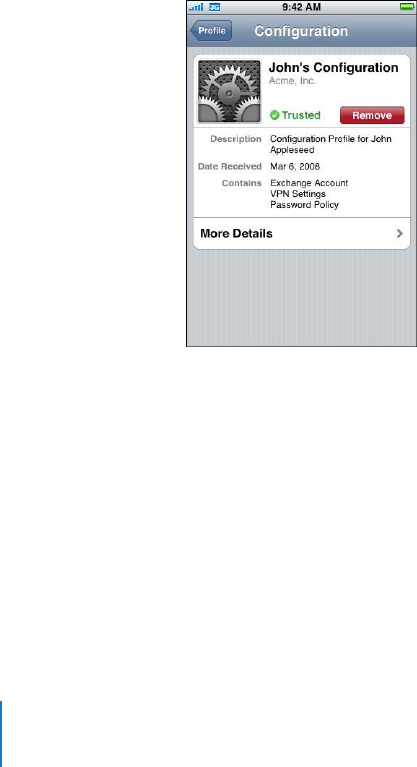

In either case, the device recognizes the profile and installation begins when the user

taps Install.

During installation, users are asked to enter any necessary information, such as their

Exchange account password, and other information as required by the settings you

specified.

The device also retrieves the Exchange ActiveSync policies from the server, and

refreshes the policies, if they’ve changed, with every subsequent connection. If the

device or Exchange ActiveSync policies enforce a passcode setting, the user must enter

a passcode that complies with the policy in order to complete the installation.

Additionally, the user is asked to enter any passwords necessary to use certificates

included in the profile.

28 Chapter 2 Creating and Deploying Configuration Profiles

If the installation isn’t completed successfully, perhaps because the Exchange server

was unreachable or the user cancelled the process, none of the information entered by

the user is retained.

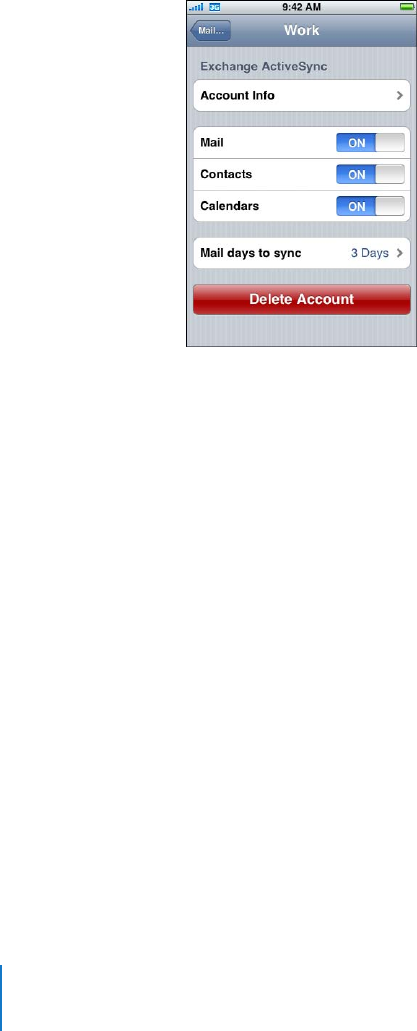

Users may want to change how many days worth of data is synced to the device.

The default is three days. This can be changed by going to Settings > Mail, Contacts,

Calendars > Exchange account name.

Removing and Updating Configuration Profiles

Settings enforced by a configuration profile cannot be changed on the device.

To change a setting, you must install an updated profile.

To remove an Exchange account that was installed by a profile, delete the profile.

Important: Removing a configuration profile removes policies and all of the Exchange

account’s data stored on the device, as well as VPN settings, certificates, and other

information associated with the profile.

Configuration profile updates aren’t pushed to users. To distribute a new configuration

profile, you must email it to your users or have them download the new version from a

website. As long as the configuration identifier in the profile matches, the new profile

replaces the profile on the device and adds, updates, or removes information and

settings as specified by the new profile.

3Manually Configuring Devices

This chapter describes how to configure iPhone and

iPod touch manually.

If you don’t provide automatic configuration profiles, users can configure their devices

manually. Some settings, such as passcode policies, can only be set by using a

configuration profile.

VPN Settings

To change VPN settings, go to Settings > General > Network > VPN.

When you configure VPN settings, the device asks you to enter information based on

responses it receives from your VPN server. For example, you’ll be asked for a RSA

SecurID token if the server requires one.

You cannot configure a certificate-based VPN connection unless the appropriate

certificates are installed on the device. See “Installing Identities and Root Certificates”

on page 36 for more information.

30 Chapter 3 Manually Configuring Devices

Cisco IPSec Settings

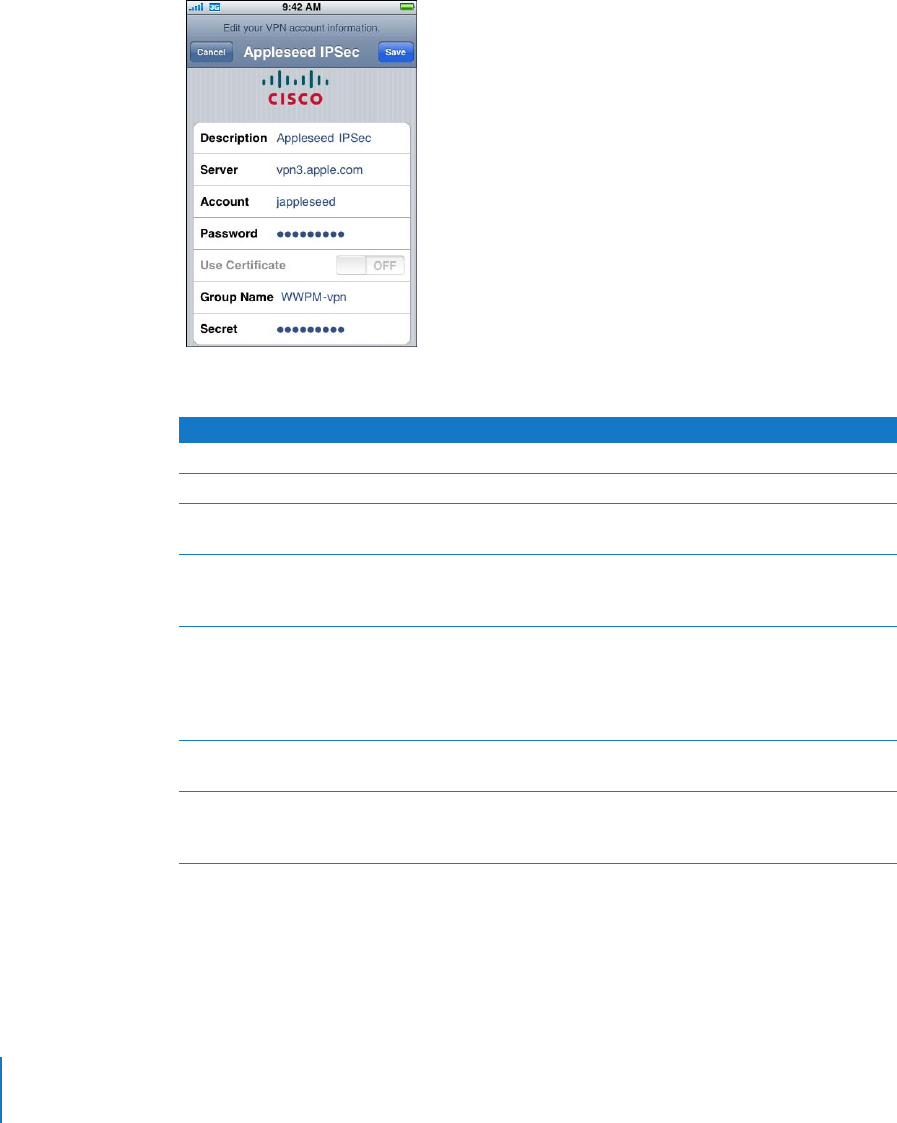

When you manually configure the device for Cisco IPSec VPN, a screen similar to

following appears:

Use this chart to identify the settings and information you enter:

Field Description

Description A descriptive title that identifies this group of settings.

Server The DNS name or IP address of the VPN server to connect to.

Account The user name of the user’s VPN login account. Don’t enter the

group name in this field.

Password The passphrase of the user’s VPN login account. Leave blank for

RSA SecurID and CryptoCard authentication, or if you want the user

to enter their password manually with every connection attempt.

Use Certificate This will be available only if you’ve installed a .p12 or .pfx identity

that contains a certificate provisioned for remote access and the

private key for the certificate. When Use Certificate is on, the Group

Name and Shared Secret fields are replaced with an Identify field

that lets you pick from a list of installed VPN-compatible identities.

Group Name The name of the group that the user belongs to as defined on the

VPN server.

Secret The group’s shared secret. This is the same for every member of the

user’s assigned group. It’s not the user’s password and must be

specified to initiate a connection.

Chapter 3 Manually Configuring Devices 31

PPTP Settings

When you manually configure the device for PPTP VPN, a screen similar to the

following appears:

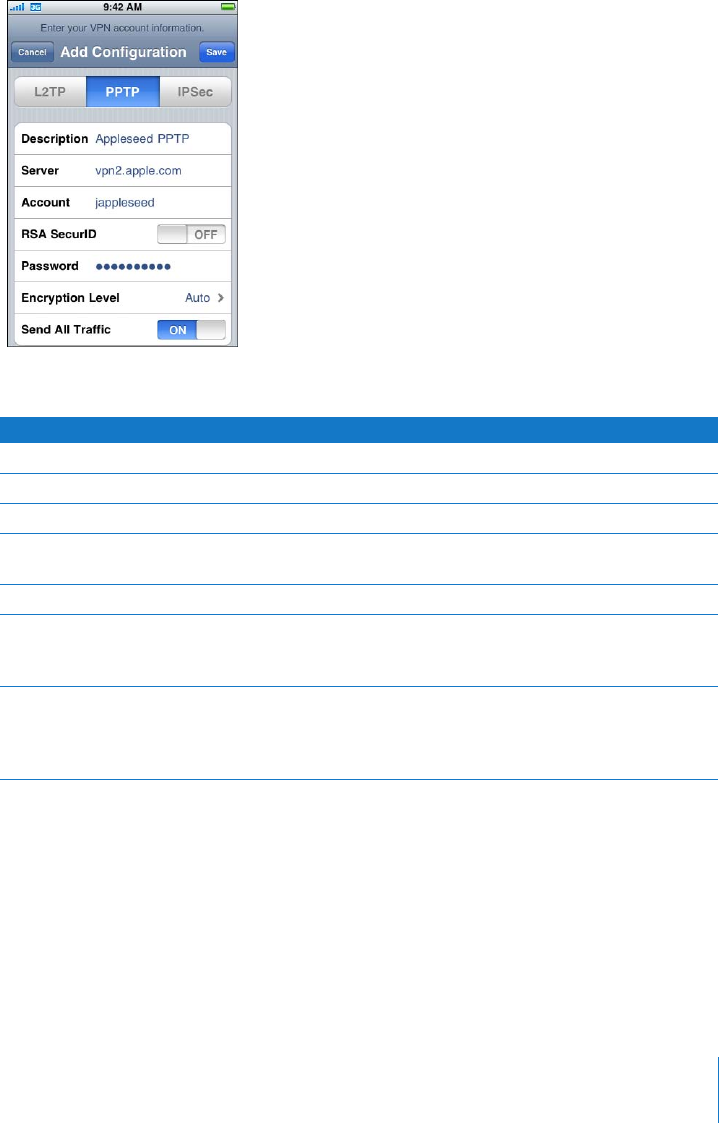

Use this chart to identify the settings and information you enter:

Field Description

Description A descriptive title that identifies this group of settings.

Server The DNS name or IP address of the VPN server to connect to.

Account The user name of the user’s VPN login account.

RSA SecurID If you’re using an RSA SecurID token, turn on this option, so the

Password field is hidden.

Password The passphrase of the user’s VPN login account.

Encryption Level Auto is the default, which selects the highest encryption level that

is available, starting with 128-bit, then 40-bit, then None. Maximum

is 128-bit only. None turns off encryption.

Send All Traffic Defaults to On. Sends all network traffic over the VPN link. Turn off

to enable split-tunneling, which routes only traffic destined for

servers inside the VPN through the server. Other traffic is routed

directly to the Internet.

32 Chapter 3 Manually Configuring Devices

L2TP Settings

When you manually configure the device for L2TP VPN, a screen similar to the following

appears:

Use this chart to identify the settings and information you enter:

Field Description

Description A descriptive title that identifies this group of settings.

Server The DNS name or IP address of the VPN server to connect to.

Account The user name of the user’s VPN login account.

Password The passphrase of the user’s VPN login account.

Secret The shared secret (pre-shared key) for the L2TP account. This is the

same for all LT2P users.

Send All Traffic Defaults to On. Sends all network traffic over the VPN link. Turn off

to enable split-tunneling, which routes only traffic destined for

servers inside the VPN through the server. Other traffic is routed

directly to the Internet.

Chapter 3 Manually Configuring Devices 33

Wi-Fi Settings

To change Wi-Fi settings, go to Settings > General > Network > Wi-Fi. If the network

you’re adding is within range, select it from the list of available networks. Otherwise,

tap Other.

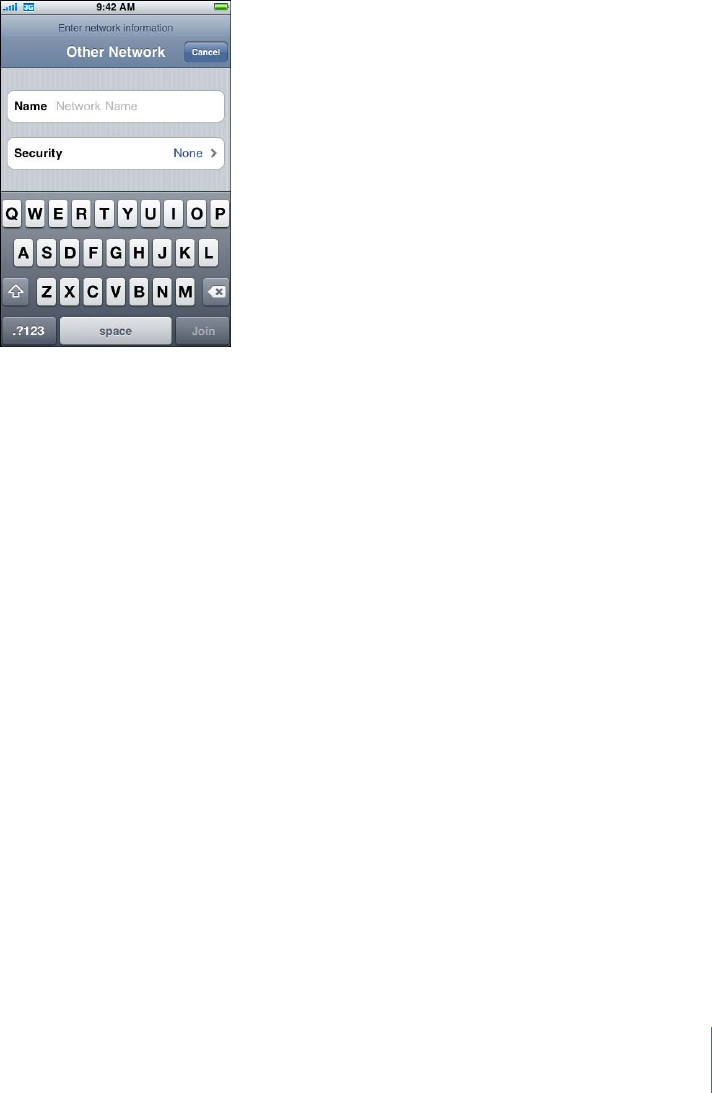

Make sure that your network infrastructure uses authentication and encryption

supported by iPhone and iPod touch. For specifications, see “Network Security” on

page 8. For information about installing PKCS1 and PKCS12 certificates for

authentication, see “Installing Identities and Root Certificates” on page 36.

34 Chapter 3 Manually Configuring Devices

Exchange Settings

You can configure only one Exchange account per device. To add an Exchange account,

go to Settings > Mail, Contacts, Calendars, and then tap Add Account. On the Add

Account screen, tap Microsoft Exchange.

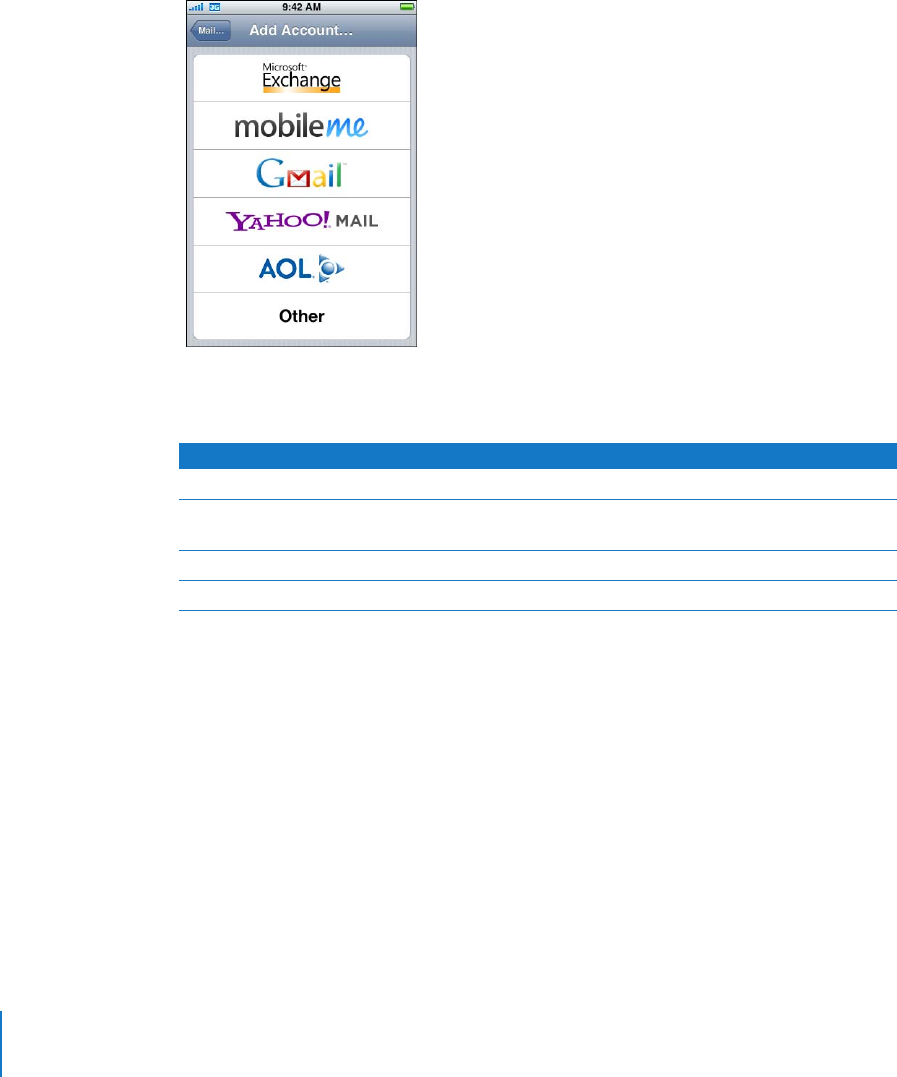

When you manually configure the device for Exchange, use this chart to identify the

settings and information you enter:

Field Description

Email The user’s complete email address.

Username The user name of the user’s Exchange account. Enter it in the

format domain\username.

Password The passphrase of the user’s Exchange account.

Description A descriptive title that identifies this group of settings.

Chapter 3 Manually Configuring Devices 35

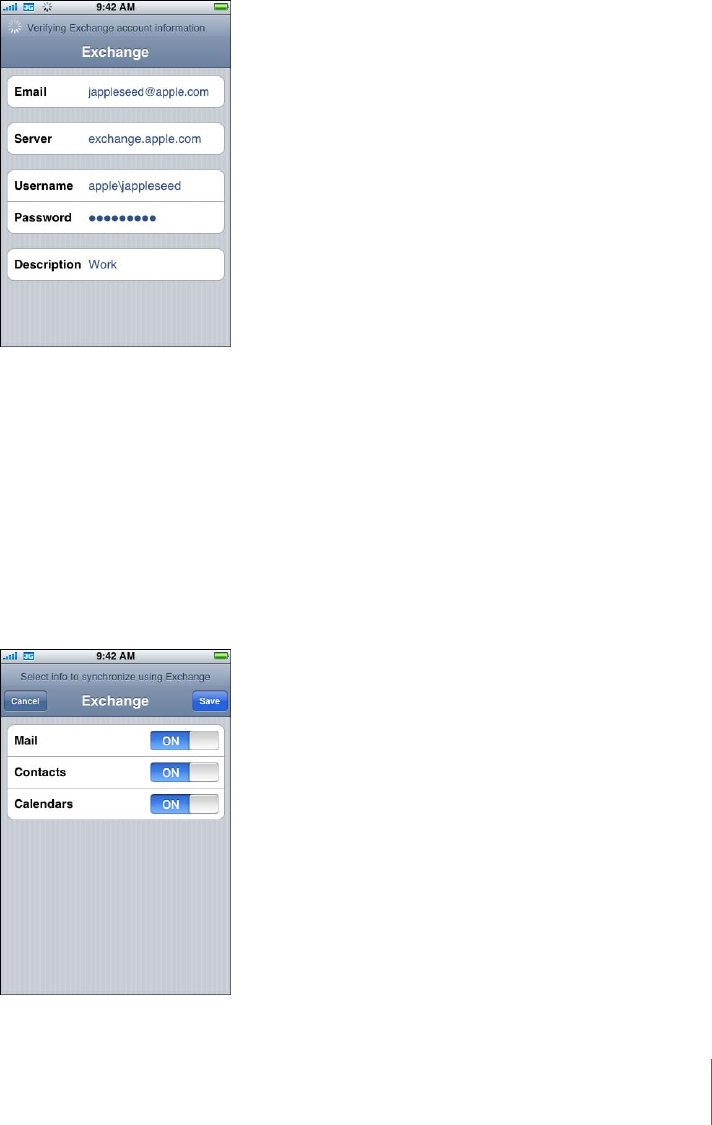

iPhone and iPod touch support Microsoft’s Autodiscovery service, which uses your user

name and password to determine the address of the front-end Exchange server. If the

server’s address can’t be determined, you’ll be asked to enter it.

After the Exchange account is successfully configured, the server’s passcode policies are

enforced. If the user’s current passcode doesn’t comply with the Exchange ActiveSync

policies, the user is prompted to change or set their passcode. The device won’t

communicate with the Exchange server until the user sets a compliant passcode.

Next, the device offers to immediately sync with the Exchange server. If you choose not

to sync at this time, you can turn on calendar and contact syncing later in Settings >

Mail, Contacts, and Calendars. By default, Exchange ActiveSync pushes new data to

your device as it arrives on the server. If you prefer to fetch new data on a schedule or

to only pull new data manually, use Settings > Fetch New Data to change the settings.

36 Chapter 3 Manually Configuring Devices

Important: When you configure a device to sync with Exchange, all existing calendar

and contact information on the device is overwritten. Additionally, iTunes no longer

sync contacts and calendars with your desktop computer. You can still sync your device

wirelessly with MobileMe services.

To change how many day’s worth of data is synced to your device, go to Settings >

Mail, Contacts, and Calendars. The default setting is three days.

Installing Identities and Root Certificates

If you don’t distribute certificates using profiles, your users can install them manually by

using the device to download them from a website, or by opening an attachment in an

email message. The device recognizes certificates with the following MIME types and

file extensions:

Âapplication/x-pkcs12, .p12, .pfx

Âapplication/x-x509-ca-cert, .cer, .crt, .der

Identities consist of a x.509 certificate and a private key that is used to identify the

users to a service. iPhone and iPod touch supports importing P12 files that contain

exactly one identity. When the identify is installed, the user is prompted for the

passphrase that protects it.

Root certificates are self-signed anchors for X.509 certificate chain evaluations.

These are used by all x.509 certificate chain evaluations made by Safari, Mail, VPN,

and other applications.

You don’t need to add root certificates that are included on the device by Apple.

To view a list of the preinstalled system roots, see the Apple Support article at

http://support.apple.com/kb/HT2185.

Chapter 3 Manually Configuring Devices 37

When a certificate is downloaded to the device, the Install Profile screen appears.

The description indicates the type of certificate: identity or certificate authority (root).

To install the certificate, tap Install.

To view or remove a certificate that has been installed, go to Settings > General >

Profile. If you remove a certificate that is required for accessing an account or network,

your device cannot connect to those services.

Additional Mail Accounts

Although you can configure only one Exchange account, you can add multiple POP

and IMAP accounts. This can be used, for example, to access mail on a Lotus Notes or

Novell Groupwise mail server. Go to Settings > Accounts > Mail, Contacts, and

Calendars. Then tap Other. For more about adding an IMAP account, see the

iPhone User Guide or iPod touch User Guide.

Other Resources

Apple has several video tutorials, viewable in a standard web browser, that show your

users how to set up and use the features of iPhone and iPod touch:

ÂiPhone Guided Tour at www.apple.com/iphone/gettingstarted

ÂiPod touch Guided Tour at www.apple.com/ipodtouch/guidedtour

ÂiPhone Support webpage at www.apple.com/support/iphone

ÂiPod touch Support webpage at www.apple.com/support/ipodtouch

There is also a user guide for each device, in PDF, that provides additional tips and

usage details:

ÂiPhone User Guide: http://manuals.info.apple.com/en/iPhone_User_Guide.pdf

ÂiPod touch User Guide: http://manuals.info.apple.com/en/iPod_touch_User_Guide.pdf

4Deploying iTunes

You use iTunes to sync music and video, install applications,

and more.

This chapter describes how to deploy iTunes and enterprise applications, and defines

the settings and restrictions you can specify.

Installing iTunes

iTunes uses standard Macintosh and Windows installers. The latest version of iTunes is

available for downloading at www.apple.com/itunes. For more about iTunes system

requirements, see “iTunes” on page 5.

Installing iTunes on Windows Computers

When you install iTunes on Windows computers, by default you also install the latest

version of QuickTime, Bonjour, and Apple Software Update. You can omit these

components by passing parameters to the iTunes installer, or by pushing only the

components you want to install to your user’s computers.

Installing on Windows using iTunesSetup.exe

If you to use the regular iTunes installation process but omit some components,

you can pass properties to iTunesSetup.exe using the command line.

Property Meaning

NO_AMDS=1 Don’t install Apple Mobile Device Services. This component is

required for iTunes to sync and manage mobile devices.

NO_ASUW=1 Don’t install Apple Software Update for Windows. This application

alerts users to new versions of Apple software.

NO_BONJOUR=1 Don’t install Bonjour. Bonjour provides zero-configuration network

discovery of printers, shared iTunes libraries, and other services.

NO_QUICKTIME=1 Don’t install QuickTime. This component is required to use iTunes.

Don’t omit QuickTime unless you are sure the client computer

already has the latest version installed.

Chapter 4 Deploying iTunes 39

Silently Installing on Windows

To push iTunes to client computers, extract the individual .msi files from

iTunesSetup.exe.

To Extract .msi files from iTunesSetup.exe:

1Run iTunesSetup.exe.

2Open %temp% and find a folder named IXPnnn.TMP, where %temp% is your temporary

directory (typically bootdrive:\documents and Settings\user\Local Settings\temp\) and

nnn is a 3-digit random number.

3Copy the .msi files from the folder to another location.

4Quit the installer opened by iTunesSetup.exe.

Then use Group Policy Object Editor, in the Microsoft Management Console, to add the

.msi files to a Computer Configuration policy. Make sure that add the configuration to

the Computer Configuration policy, not the User Configuration policy.

Important: iTunes requires QuickTime, and Apple Mobile Device Services (AMDS) is

necessary to use an iPod touch or iPhone with iTunes.

Installing iTunes on Macintosh Computers

Mac computers come with iTunes installed. The latest version of iTunes, which includes

QuickTime, is available at www.apple.com/itunes. To push iTunes to Mac clients, you

can use Workgroup Manager, an administrative tool included with Mac OS X Server.

Setting iTunes Restrictions

You can restrict your users from using certain iTunes features. This is sometimes

referred to as parental controls. The following features can be restricted:

ÂAutomatic and user-initiated checking for new versions of iTunes and device

software updates.

ÂDisplaying the iTunes MiniStore while browsing or playing media

ÂAutomatically sync when devices are connected

ÂRetrieve album artwork

ÂUse Visualizer plug-ins

ÂEnter a URL of streaming media

ÂAutomatically discover Apple TV systems

ÂRegister new devices with Apple

ÂSubscribe to podcasts

ÂPlay Internet radio

ÂAccess the iTunes Store

ÂShare music with local network computers

40 Chapter 4 Deploying iTunes

ÂPlay iTunes media content that is marked as explicit

ÂPlay movies

ÂPlay TV shows

ÂPlay games

Setting iTunes Restrictions for Mac OS X

On Mac OS X, you control access by using keys in a plist file. On Mac OS X the key

values shown above can be specified for each user by editing ~/Library/Preferences/

com.apple.iTunes.plist using Workgroup Manager, an administrative tool included with

Mac OS X Server.

For instructions, see the Apple Support article at http://docs.info.apple.com/

article.html?artnum=303099.

Setting iTunes Restrictions for Windows

On Windows, you control access by setting registry values inside one of the following

registry keys:

On Windows XP and 32-bit Windows Vista:

Â HKEY_LOCAL_MACHINE\Software\Apple Computer, Inc.\iTunes\[SID]\Parental

Controls\

Â HKEY_CURRENT_USER\Software\Apple Computer, Inc.\iTunes\Parental Controls

On 64-bit Windows Vista:

Â HKEY_LOCAL_MACHINE\Software\Wow6432Node\Apple Computer,

Inc.\iTunes\[SID]\Parental Controls\

Â HKEY_CURRENT_USER\Software\Wow6432Node\Apple Computer,

Inc.\iTunes\Parental Controls

For instructions, see the Apple Support article at http://docs.info.apple.com/

article.html?artnum=303026.

Chapter 4 Deploying iTunes 41

Updating iTunes and iPhone Software Manually

If you turn off automated and user-initiated software update checking in iTunes, you’ll

need to distribute software updates to users for manual installation.

To update iTunes, see the installation and deployment steps described earlier in this

document. It’s the same process you followed for distributing iTunes to your users.

To update iPhone software, follow these steps:

1On a computer that doesn’t have iTunes software updating turned off, use iTunes to

download the iPhone software update. To do so, select an attached device in iTunes,

then click the Summary tab, and then click the Check for Update button.

2After downloading, copy the updater file (.ipsw) found in the following location:

ÂOn Mac OS X: ~/Library/iTunes/iPod Software Updates/

ÂOn Windows: bootdrive:\Documents and Settings\user\Application Data\

Apple Computer\iTunes\iPod Software Updates\

3Distribute the .ipsw file to your users, or place it on a network drive where they can

access it.

4Tell your users to back up their device before applying the update. During manual

updates, iTunes doesn’t automatically back up the device before installation. To create a

new backup, right-click (Windows) or Control-click (Mac) the device in the iTunes

sidebar. Then choose Back Up from the contextual menu that appears.

5Your users install the update by connecting their device to iTunes, then selecting the

Summary tab for their device. Next, they hold down the Option (Mac) or Shift

(Windows) key and click the Check for Update button.

6A file selector dialog appears. Users should select the .ipsw file and then click Open to

begin the update process.

5Deploying iPhone Applications

You can distribute iPhone and iPod touch applications to

your users.

If you want to install iPhone OS applications that you’ve developed, you distribute the

application to your users, who install the applications using iTunes.

Applications from the online App Store work on iPhone and iPod touch without any

additional steps. If you develop an application that you want to distribute yourself,

it must be digitally signed with a certificate issued by Apple. You must also provide

your users with a distribution provisioning profile that allows their device to use the

application.

The process for deploying your own applications is:

ÂRegister for enterprise development with Apple.

ÂSign your applications using your certificate.

ÂCreate an enterprise distribution provisioning profile that authorizes devices to use

applications you’ve signed.

ÂDeploy the application and the enterprise distribution provisioning profile to your

users’ computers.

ÂInstruct users to install the application and profile using iTunes.

See below for more about each of these steps.

To develop and deploy custom applications for iPhone and iPod touch, you need to

Once you complete the registration process, you’ll receive instructions for enabling

your applications to work on devices.

Chapter 5 Deploying iPhone Applications 43

Signing Applications

Applications you distribute to users must be signed with your distribution certificate.

For instructions about obtaining and using a certificate, see the iPhone Developer

Center at http://developer.apple.com/iphone.

Creating the Distribution Provisioning Profile

Distribution provisioning profiles allow you to create applications that your users can

use on their iPhone or iPod touch. You create an enterprise distribution provisioning

profile for a specific application, or multiple applications, by specifying the AppID that

is authorized by the profile. If a user has an application, but doesn’t have a profile that

authorizes its use, the user isn’t able to use the application.

The designated Team Agent for your enterprise can create distribution provisioning

profiles at the Enterprise Program Portal at http://developer.apple.com/iphone. See the

website for instructions.

Once you create the enterprise distribution provisioning profile, download the

.mobileprovision file, and then securely distribute it and your application.

Installing Provisioning Profiles using iTunes

The user’s installed copy of iTunes automatically installs provisioning profiles that are

located in the following folders:

Mac OS X

Â~/Library/MobileDevice/Provisioning Profiles/

Â/Library/MobileDevice/Provisioning Profiles/

Âthe path specified by the ProvisioningProfilesPath key in ~/Library/Preferences/

com.apple.itunes

Windows XP

Âbootdrive:\Documents and Settings\username\Application Data\Apple Computer\

MobileDevice\Provisioning Profiles

Âbootdrive:\Documents and Settings\All Users\Application Data\Apple Computer\

MobileDevice\Provisioning Profiles

Âthe path specified in the HKCU or HKLM by the ProvisioningProfilesPath registery key

SOFTWARE\Apple Computer, Inc\iTunes

44 Chapter 5 Deploying iPhone Applications

Windows Vista

Âbootdrive:\Users\username\AppData\Roaming\Apple Computer\MobileDevice\

Provisioning Profiles

Âbootdrive:\ProgramData\Apple Computer\MobileDevice\Provisioning Profiles

Âthe path specified in the HKCU or HKLM by the ProvisioningProfilesPath registery key

SOFTWARE\Apple Computer, Inc\iTunes

iTunes automatically installs provisioning profiles found in the locations above onto

devices it syncs with. Once installed, the provisioning profiles can be viewed on the

device in Settings > General > Profiles.

You can also distribute the .mobileprovision file to your users and have them drag it to

the iTunes application icon. iTunes will copy the file to the correct location as defined

above.

Installing Provisioning Profiles using iPhone Configuration

Utility for Mac OS X

You can use iPhone Configuration Utility for Mac OS X to install provisioning profiles on

connected devices. Follow these steps:

1In iPhone Configuration Utility, choose File > Open and then select the provisioning

profile that you want to install.

The profile is added to iPhone Configuration Utility and can be viewed by selecting the

Provisioning Profiles category in the Library.

2Select a device from the Connected Devices list.

3Select the Provisions tab.

4Select the provisioning profile from the list, and then click its Install button.

Installing Applications using iTunes

Your users use iTunes to install applications on their devices. Securely distribute the

application to your users and then have them follow these steps:

1In iTunes, choose File > Add to Library and select the application (.app) you provided.

2Connect a device to the computer, and then select it in the Devices list in iTunes.

3Click the Applications tab, then select the application in the list.

4Click Apply to install the application and all distribution provisioning profiles that are

located in the designated folders discussed in “Installing Provisioning Profiles using

iTunes” on page 43.

Chapter 5 Deploying iPhone Applications 45

Installing Applications using iPhone Configuration Utility for

Mac OS X

You can use iPhone Configuration Utility for Mac OS X to install applications on

connected devices. Follow these steps:

1In iPhone Configuration Utility, choose File > Open and then select the application that

you want to install.

The application is added to iPhone Configuration Utility and can be viewed by

selecting the Applications category in the Library.

2Select a device from the Connected Devices list.

3Select the Applications tab.

4Select the application from the list, then click its Install button.

Using Enterprise Applications

When a user runs an application that isn’t signed by Apple, the device looks for a

distribution provisioning profile that authorizes its use. If a profile isn’t found, the

application won’t open.

Other Resources

For more information about creating applications and provisioning profiles, see:

ÂiPhone Developer Center at http://developer.apple.com/iphone

Appendix

ACisco VPN Server Configuration

Use these guidelines to configure your Cisco VPN server for

use with iPhone and iPod touch.

Authentication Methods

iPhone support the following authentication methods:

ÂPre-shared key IPsec authentication with user authentication via xauth.

ÂClient and server certificates for IPsec authentication with optional user

authentication via xauth.

ÂHybrid authentication where the server provides a certificate and the client provides

a pre-shared key for IPsec authentication. User authentication is required via xauth.

ÂUser authentication is provided via xauth and includes the following authentication

methods:

ÂUser name with password

ÂRSA SecurID

ÂCryptoCard

Authentication Groups

The Cisco Unity protocol uses authentication groups to group users together based on

a common set of authentication and other parameters. You should create an

authentication group for iPhone and iPod touch users. For pre-shared key and hybrid

authentication, the group name must be configured on the device with the group’s

shared secret (pre-shared key) as the group password.

When using certificate authentication, no shared secret is used and the user’s group is

determined based on fields in the certificate. The Cisco server settings can be used to

map fields in a certificate to user groups.

Appendix A Cisco VPN Server Configuration 47

Certificates

When setting up and installing certificates, make sure of the following:

ÂThe server identity certificate must contain the server’s DNS name and/or IP address

in the subject alternate name (SubjectAltName) field. The device uses this

information to verify that the certificate belongs to the server. You can specify the

SubjectAltName using wildcard characters for per-segment matching, such as

vpn.*.mycompany.com, for more flexibility. The DNS name can be put in the common

name field, if no SubjectAltName is specified.

ÂThe certificate of the CA that signed the server’s certificate should be installed on the

device. If it isn’t a root certificate, install the remainder of the trust chain so that the

certificate is trusted.

ÂIf client certificates are used, make sure that the trusted CA certificate that signed the

client’s certificate is installed on the VPN server.

ÂThe certificates and certificate authorities must be valid (not expired, for example.).

ÂSending of certificate chains by the server isn’t supported and should be turned off.

ÂWhen using certificate-based authentication, make sure that the server is set up to

identify the user’s group based on fields in the client certificate. See “Authentication

Groups” on page 46.

IPSec Settings

Use the following IPSec settings:

ÂMode: Tunnel Mode

ÂIKE Exchange Modes: Aggressive Mode for pre-shared key and hybrid authentication,

Main Mode for certificate authentication.

ÂEncryption Algorithms: 3DES, AES-128, AES-256

ÂAuthentication Algorithms: HMAC-MD5, HMAC-SHA1

ÂDiffie Hellman Groups: Group 2 is required for pre-shared key and hybrid.

authentication. For certificate authentication, use Group 2 with 3DES and AES-128.

Use Group 2 or 5 with AES-256.

ÂPFS (Perfect Forward Secrecy): For IKE phase 2, if PFS is used the Diffie Hellman group

must be the same as was used for IKE phase 1.

ÂMode Configuration: Must be enabled.

ÂDead Peer Detection: Recommended.

ÂStandard NAT Transversal: Supported and can be enabled if desired. (IPSec over TCP

isn’t supported).

ÂLoad Balancing: Supported and can be enabled if desired.

ÂRe-keying of Phase 1: Not currently supported. Recommend that re-keying times on

the server be set to approximately one hour.

48 Appendix A Cisco VPN Server Configuration

Other Supported Features

iPhone and iPod touch support the following:

ÂApplication Version: The client software version is sent to the server, allowing the

server to accept or reject connections based on the device’s software version.

ÂBanner: The banner, if configured on the server, is displayed on the device and the

user must accept it or disconnect.

ÂSplit Tunnel: Split tunneling is supported.

ÂSplit DNS: Split DNS is supported.

ÂDefault Domain: Default domain is supported.

Appendix

BConfiguration Profile Format

This appendix specifies the format of mobileconfig files for

those who want to create their own tools.

This document assumes that you’re familiar with the Apple XML DTD and the general

property list format. A general description of the Apple plist format is available at

www.apple.com/DTDs/PropertyList-1.0.dtd.

This document uses the terms payload and profile. A profile is the whole file which

configures certain (single or multiple) settings on iPhone or iPod touch. A payload is an

individual component of the profile file.

Root Level

At the root level, the configuration file is a dictionary with the following key/value

pairs:

Key Value

PayloadVersion Number, mandatory. The version of the whole configuration

profile file. This version number designates the format of the

whole profile, not the individual payloads.

PayloadUUID String, mandatory. This is usually a synthetically generated

unique identifier string. The exact content of this string is

irrelevant; however, it must be globally unique.

PayloadType String, mandatory. Currently, only “Configuration” is a valid value

for this key.

PayloadOrganization String, optional. This value describes the issuing organization of

the profile, as displayed to the user.

PayloadIdentifier String, mandatory. This value is by convention a dot-delimited

string uniquely describing the profile, such as

“com.myCorp.iPhone.mailSettings” or

“edu.myCollege.students.vpn”. This is the string by which profiles

are differentiated—if a profile

is installed which matches the identifier of another profile,

it overrides it (instead of being added).

50 Appendix B Configuration Profile Format

Payload Content

The PayloadContent array is an array of dictionaries, where each dictionary describes an

individual payload of the profile. Each functional profile has at least one or more entries

in this array. Each dictionary in this array has a few common properties, regardless of

the payload type. Others are specialized and unique to each payload type.

PayloadDisplayName String, mandatory. This value determines a very short string to

be displayed to the user describing the profile, such as “VPN

Settings”. It does not have to be unique.

PayloadDescription String, optional. This value determines what descriptive, free-

form text will be shown to the user on the Detail screen for the

entire profile. This string should clearly identify the profile so the

user can decide whether to install it.

PayloadContent Array, optional. This value is the actual content of the profile. If it

is omitted, the whole profile has no functional meaning.

Key Value

PayloadVersion Number, mandatory. The version of the individual payload.

Each profile can consist of payloads with different version numbers.

For instance, the VPN version number can be incremented at a

point in the future while the Mail version number would not.

PayloadUUID String, mandatory. This is usually a synthetically generated unique

identifier string. The exact content of this string is irrelevant;

however, it must be globally unique.

PayloadType String, mandatory. This key/value pair determines the type of the

individual payload within the profile,.

PayloadOrganization String, optional. This value describes the issuing organization of the

profile, as it will be shown to the user. It can be, but doesn’t have to

be, the same as the root level PayloadOrganization.

PayloadIdentifier String, mandatory. This value is by convention a dot-delimited

string uniquely describing the payload. It is usually the root

PayloadIdentifier with an appended subidentifier, describing the

particular payload.

PayloadDisplayName String, mandatory. This value is a very short string displayed to the

user which describes the profile, such as “VPN Settings”. It does not

have to be unique.

PayloadDescription String, optional. This value determines what descriptive, free-form

text is displayed on the Detail screen for this particular payload.

Appendix B Configuration Profile Format 51

Passcode Policy Payload

The Passcode Policy payload is designated by the

com.apple.mobiledevice.passwordpolicy PayloadType value. The presence of this

payload type prompts iPhone to present the user with an alphanumeric passcode entry

mechanism, which allows the entry of arbitrarily long and complex passcodes.

In addition to the settings common to all payloads, this payload defines the following:

Key Value

allowSimple Boolean, optional. Default YES. Determines whether a simple

passcode is allowed. A simple passcode is defined as containing

repeated characters, or increasing/decreasing characters (such

as 123 or CBA). Setting this value to “NO” is synonymous to

setting minComplexChars to “1”.

forcePIN Boolean, optional. Default NO. Determines whether the user is

forced to set a PIN. Simply setting this value (and not others)

forces the user to enter a passcode, without imposing a length

or quality.

maxFailedAttempts Number, optional. Default 11. Allowed range [2...11]. Specifies the

number of allowed failed attempts to enter the passcode at the

iPhone lock screen. Once this number is exceeded, the device is

locked and must be connected to its designated iTunes in order

to be unlocked.

maxInactivity Number, optional. Default Infinity. Specifies the number of days

for which the device can be idle (without being unlocked by the

user) before it is locked by the system. Once this limit is reached,

the device is locked and the passcode must be entered.

maxPINAgeInDays Number, optional. Default Infinity. Specifies the number of days

for which the passcode can remain unchanged. After this

number of days, the user is forced to change the passcode

before the device is unlocked.

minComplexChars Number, optional. Default 0. Specifies the minimum number of

complex characters that a passcode must contain. A “complex”

character is a character other than a number or a letter, such as

&%$#.

minLength Number, optional. Default 0. Specifies the minimum overall

length of the passcode. This parameter is independent of the

also optional minComplexChars argument.

requireAlphanumeric Boolean, optional. Default NO. Specifies whether the user must

enter alphabetic characters (“abcd”), or if numbers are sufficient.

52 Appendix B Configuration Profile Format

Email Payload

The email payload is designated by the com.apple.mail.managed PayloadType value.

This payload creates an email account on the device. In addition to the settings

common to all payloads, this payload defines the following:

Key Value

EmailAccountDescription String, optional. A user-visible description of the email account,

shown in the Mail and Settings applications.

EmailAccountName String, optional. The full user name for the account. This is the

user name in sent messages, etc.

EmailAccountType String, mandatory. Allowed values are EmailTypePOP and

EmailTypeIMAP. Defines the protocol to be used for that

account.

EmailAddress String, mandatory. Designates the full email address for the

account. If not present in the payload, the device prompts for

this string during profile installation.

IncomingMailServerAuthentication String, mandatory. Designates the authentication scheme for

incoming mail. Allowed values are EmailAuthPassword and

EmailAuthNone.

IncomingMailServerHostName String, mandatory. Designates the incoming mail server host

name (or IP address).

IncomingMailServerPortNumber Number, optional. Designates the incoming mail server port

number. If no port number is specified, the default port for a

given protocol is used.

IncomingMailServerUseSSL Boolean, optional. Default Yes. Designates whether the incoming

mail server uses SSL for authentication.

IncomingMailServerUsername String, mandatory. Designates the user name for the email

account, usually the same as the email address up to the @

character. If not present in the payload, and the account is set

up to require authentication for incoming email, the device will

prompt for this string during profile installation.

OutgoingMailServerAuthentication String, mandatory. Designates the authentication scheme for

outgoing mail. Allowed values are EmailAuthPassword and

EmailAuthNone.

OutgoingMailServerHostName String, mandatory. Designates the outgoing mail server host

name (or IP address).

OutgoingMailServerPortNumber Number, optional. Designates the outgoing mail server port

number. If no port number is specified, ports 25, 587 and 465

are used, in this order.

OutgoingMailServerUseSSL Boolean, optional. Default Yes. Designates whether the outgoing

mail server uses SSL for authentication.

OutgoingMailServerUsername String, mandatory. Designates the user name for the email

account, usually the same as the email address up to the @

character. If not present in the payload, and the account is set

up to require authentication for outgoing email, the device

prompts for this string during profile installation.

Appendix B Configuration Profile Format 53

APN Payload

The APN (Access Point Name) payload is designated by the com.apple.apn.managed

PayloadType value. In addition to the settings common to all payloads, this payload

defines the following:

Exchange Payload

The Exchange payload is designated by the com.apple.eas.account PayloadType value.

This payload creates a Microsoft Exchange account on the device. In addition to the

settings common to all payloads, this payload defines the following:

Key Value

DefaultsData Dictionary, mandatory. This dictionary contains two key/value

pairs.

DefaultsDomainName String, mandatory. The only allowed value is

com.apple.managedCarrier.

apns Array, mandatory. This array contains an arbitrary number of

dictionaries, each describing an APN configuration, with the

key/value pairs below.

apn String, mandatory. This string specifies the Access Point Name.

username String, mandatory. This string specifies the user name for this

APN. If it is missing, the device prompts for it during profile

installation.

password Data, optional. This data represents the password for the user for

this APN. For obfuscation purposes, it is encoded. If it is missing

from the payload, the device prompts for it during profile

installation.

Key Value

EmailAddress String, mandatory. If not present in the payload, the device

prompts for this string during profile installation. Specifies the

full email address for the account.

Host String, mandatory. Specifies the Exchange server host name

(or IP address).

SSL Boolean, optional. Default YES. Specifies whether the Exchange

server uses SSL for authentication.

UserName String, mandatory. This string specifies the user name for this

Exchange account. If missing, the devices prompts for it during

profile installation.

54 Appendix B Configuration Profile Format

VPN Payload

The VPN payload is designated by the com.apple.vpn.managed PayloadType value.

In addition to the settings common to all payload types, the VPN payload defines the

following keys.

There are two possible dictionaries present at the top level, under the keys “PPP” and

“IPSec”. The keys inside these two dictionaries are described below, along with the

VPNType value under which the keys are used.

PPP Dictionary Keys

The following elements are for VPN payloads of type PPP.

Key Value

UserDefinedName String. Description of the VPN connection displayed on the

device.

OverridePrimary Boolean. Specifies whether to send all traffic through the VPN

interface. If true, all network traffic is sent over VPN.

VPNType String. Determines the settings available in the payload for this

type of VPN connection. It can have three possible

values: “L2TP”, “PPTP”, or “IPSec”, representing L2TP, PPTP and

Cisco IPSec respectively.

Key Value

AuthName String. The VPN account user name. Used for L2TP and PPTP.

AuthPassword String, optional. Only visible if TokenCard is false. Used for L2TP

and PPTP.

TokenCard Boolean. Whether to use a token card such as an RSA SecurID

card for connecting. Used for L2TP.

CommRemoteAddress String. IP address or host name of VPN server. Used for L2TP and

PPTP.

AuthEAPPlugins Array. Only present if RSA SecurID is being used, in which case

it has one entry, a string with value “EAP-RSA”. Used for L2TP

and PPTP.

AuthProtocol Array. Only present if RSA SecurID is being used, in which case it

has one entry, a string with value “EAP”. Used for L2TP and PPTP.

CCPMPPE40Enabled Boolean. See discussion under CCPEnabled. Used for PPTP.

CCPMPPE128Enabled Boolean. See discussion under CCPEnabled. Used for PPTP.

CCPEnabled Boolean. Enables encryption on the connection. If this key and

CCPMPPE40Enabled are true, represents automatic encryption

level; if this key and CCPMPPE128Enabled are true, represents

maximum encryption level. If no encryption is used, then none

of the CCP keys are true. Used for PPTP.

Appendix B Configuration Profile Format 55

IPSec Dictionary Keys

The following elements are for VPN payloads of type IPSec

Wi-Fi Payload

The Wi-Fi payload is designated by the com.apple.wifi.managed PayloadType value.

This describes version 0 of the PayloadVersion value. In addition to the settings

common to all payload types, the payload defines the following keys.

Key Value

RemoteAddress String. IP address or host name of the VPN server. Used for Cisco

IPSec.

AuthenticationMethod String. Either “SharedSecret” or “Certificate”. Used for L2TP and

Cisco IPSec.

XAuthName String. User name for VPN account. Used for Cisco IPSec.

XAuthEnabled Integer. 1 if XAUTH is ON, 0 if it is OFF. Used for Cisco IPSec.

LocalIdentifier String. Present only if AuthenticationMethod = SharedSecret.

The name of the group to use. If Hybrid Authentication is used,

the string must end with “[hybrid]”. Used for Cisco IPSec.

LocalIdentifierType String. Present only if AuthenticationMethod = SharedSecret.

The value is “KeyID”. Used for L2TP and Cisco IPSec.

SharedSecret Data. The shared secret for this VPN account. Only present if

AuthenticationMethod = SharedSecret. Used for L2TP and Cisco

IPSec.

PayloadCertificateUUID String. The UUID of the certificate to use for the account

credentials. Only present if AuthenticationMethod = Certificate.

Used for Cisco IPSec.

PromptForVPNPIN Boolean. Whether to prompt for a PIN when connecting. Used

for Cisco IPSec.

Key Value

SSID_STR String. SSID of the Wi-Fi network to be used. This key name is

declared as APPLE80211KEY_SSID_STR in <Apple80211/

Apple80211API.h>.

HIDDEN_NETWORK Boolean. Besides SSID, the device uses information such as

broadcast type and encryption type to differentiate a network.

By default, it is assumed that all configured networks are open

or broadcast. To specify a hidden network, you need to include a

boolean for the key “HIDDEN_NETWORK” or

APPLE80211KEY_HIDDEN_NETWORK.

56 Appendix B Configuration Profile Format

For 802.1X enterprise networks, the EAP Client Configuration Dictionary must be

provided.

EAPClientConfiguration Dictionary

In addition to the standard encryption types, it is also possible to specify an enterprise

profile for a given network via the “EAPClientConfiguration” key. This key is declared as

kEAPOLControlEAPClientConfiguration in <EAP8021X/EAPOLControlTypes.h>.

If present, its value is a dictionary with the following keys.

EncryptionType String. The possible values for “EncryptionType” are “WEP”, “WPA”,

or “Any”. “WPA” corresponds to WPA and WPA2 and applies to

both encryption types. Make sure that these values exactly

match the capabilities of the network access point. If you’re

unsure about the encryption type, or would prefer that it applies

to all encryption types, use the value “Any”.

Password String, optional. The absence of a password doesn’t prevent the

network from being added to the list of known networks. The

user is eventually prompted to provide the password when

connecting to that network.

Key Value

UserName String, optional. Unless you know the exact user name, this

property won’t appear in an imported configuration. Users can

enter this information when they authenticate.

AcceptEAPTypes Array of integer values. These EAP types are accepted.:

13 = TLS

17 = LEAP

21 = TTLS

25 = PEAP

43 = EAP-FAST

TLSTrustedCertificates Array of data values, optional. This is the list of certificates to be

trusted for this authentication. Each data element contains the

.cer form of the corresponding certificate.

This key lets you craft the list of certificates that are expected for

the given network, and avoids asking the user to dynamically

set trust on a certificate.

Dynamic trust (the certificate dialogue) is disabled if this

property is specified, unless TLSAllowTrustExceptions is also

specified with the value true (see below).

Appendix B Configuration Profile Format 57

EAP-Fast Support

The EAP-FAST module uses the following properties in the EAPClientConfiguration

dictionary.

Thes keys are hierarchical in nature: if EAPFASTUsePAC is false, the other two properties

aren’t consulted. Similarly, if EAPFASTProvisionPAC is false,

EAPFASTProvisionPACAnonymously isn’t consulted.

If EAPFASTUsePAC is false, authentication proceeds much like PEAP or TTLS: the server

proves its identity using a certificate each time.

TLSTrustedServerCommonNames Array of string values, optional. This is the list of server certificate

common names that will be accepted. If a server presents a

certificate that is not in this list, it will not be trusted.

Used alone or in combination with TLSTrustedCertificates, the

property allows someone to carefully craft which certificates to

trust for the given network, and avoid dynamically trusted

certificates

Dynamic trust (the certificate dialogue) is disabled if this

property is specified, unless TLSAllowTrustExceptions is also

specified with the value true (see below).

TLSAllowTrustExceptions Boolean, optional. Allows/disallows a dynamic trust decision by

the user. The dynamic trust is the certificate dialogue that

appears when a certificate isn’t trusted. If this is false, the

authentication fails if the certificate isn’t already trusted. See

TLSTrustedCertificates and TLSTrustedServerCommonNames

above.

The default value of this property is true unless either

TLSTrustedCertificates or TLSTrustedServerCommonNames is

supplied, in which case the default value is false.

TTLSInnerAuthentication String, optional. This is the inner authentication used by the

TTLS module. The default value is “MSCHAPv2”.

Possible values are “PAP”, “CHAP”, “MSCHAP”, and “MSCHAPv2”.

OuterIdentity String, optional. This key is only relevant to TTLS, PEAP, and EAP-

FAST.

This allows the user to hide his/her identity. The user’s actual

name appears only inside the encrypted tunnel. For example, it

could be set to “anonymous” or “anon”, or

“anon@mycompany.net”.

It can increase security because an attacker can’t see the

authenticating user’s name in the clear.

Key Value

EAPFASTUsePAC Boolean, optional.

EAPFASTProvisionPAC Boolean, optional.

EAPFASTProvisionPACAnonymously Boolean, optional.

58 Appendix B Configuration Profile Format

If EAPFASTUsePAC is true, then an existing PAC is used, if it is present. The only way to

get a PAC on the device currently is to allow PAC provisioning. So, you need to enable

EAPFASTProvisionPAC, and if desired, also EAPFASTProvisionPACAnonymously.

EAPFASTProvisionPACAnonymously has a security weakness: it doesn’t authenticate

the server using a certificate; it relies on the shared secret of the user’s password.

Certificates

As with VPN configurations, it’s possible to associate a certificate identity configuration

with a Wi-Fi configuration. This is useful when defining credentials for a secure

enterprise network. To associate an identity, specify its payload UUID via the

“PayloadCertificateUUID” key.

Proxy settings

Proxy settings are in a separate dictionary at the top level.

Key Value

PayloadCertificateUUID String. UUID of the certificate payload to use for the identity

credential.

Key Value

PropNetProxiesHTTPEnable Integer. 1 = Proxy enabled.

PropNetProxiesHTTPProxy String. Proxy server address.

PropNetProxiesHTTPPort Integer. Proxy port number.

HTTPProxyUsername String, optional. User name.

HTTPProxyPassword String, optional. User’s password.

PropNetProxiesProxyAutoConfigEn

able

Integer. 1 = Auto proxy enabled.

PropNetProxiesProxyAutoConfigUR

LString

String. URL that points to a PAC file where the configuration

information is stored.

Apple Ipod And Touch Users Manual IPhone Touh Enterprise Deployment Guide

iPod and iPod Touch to the manual 0e4e155e-635b-47b8-9c2e-952be15dc5b3

Navigation menu

Versions of this User Manual:

Views

Navigation
