C
185
Use international keyboards
International keyboards let you type text in many dierent languages, including Asian
languages and languages written from right to left. For a list of supported keyboards, go to
www.apple.com/iphone/, choose your iPhone, click Tech Specs, then scroll to Languages.
Manage keyboards. Go to Settings > General > Keyboard > Keyboards.
•Add a keyboard: Tap Add New Keyboard, then choose a keyboard from the list. Repeat to add
more keyboards.
•Remove a keyboard: Tap Edit, tap next to the keyboard you want to remove, tap Delete,
then tap Done.
•Edit your keyboard list: Tap Edit, drag next to a keyboard to a new place in the list, then
tap Done.
To enter text in a dierent language, switch keyboards.
Switch keyboards while typing. Touch and hold the Globe key to show all your enabled
keyboards. To choose a keyboard, slide your nger to the name of the keyboard, then release. The
Globe key appears only if you enable more than one keyboard.
You can also just tap . When you tap , the name of the newly activated keyboard appears
briey. Continue tapping to access other enabled keyboards.
Many keyboards provide letters, numbers, and symbols that aren’t visible on the keyboard.
Enter accented letters or other characters. Touch and hold the related letter, number, or symbol,
then slide to choose a variant. For example:
•On a Thai keyboard: Choose native numbers by touching and holding the related
Arabic number.
•On a Chinese, Japanese, or Arabic keyboard: Suggested characters or candidates appear at the
top of the keyboard. Tap a candidate to enter it, or swipe left to see more candidates.
Use the extended suggested candidate list. Tap the up arrow on the right to view the full
candidate list.
•Scroll the list: Swipe up or down.
•Return to the short list: Tap the down arrow.
When using certain Chinese or Japanese keyboards, you can create a shortcut for word and input
pairs. The shortcut is added to your personal dictionary. When you type a shortcut while using a
supported keyboard, the paired word or input is substituted for the shortcut.
Turn shortcuts on or o. Go to Settings > General > Keyboard > Shortcuts. Shortcuts are
available for:
•Simplied Chinese: Pinyin
•Traditional Chinese: Pinyin and Zhuyin
International keyboards
Apple Confidential
Appendix
Draft
![](/img.php?id=2695448&img=bg2.png)
Appendix C International keyboards 186
•Japanese: Romaji and 50 Key
Reset your personal dictionary. Go to Settings > General > Reset > Reset Keyboard Dictionary.
All custom words and shortcuts are deleted, and the keyboard dictionary returns to its
default state.
Special input methods
You can use keyboards to enter some languages in dierent ways. A few examples are Chinese
Cangjie and Wubihua, Japanese Kana, and Facemarks. You can also use your nger or a stylus to
write Chinese characters on the screen.
Build Chinese characters from the component Cangjie keys. As you type, suggested
characters appear. Tap a character to choose it, or continue typing up to ve components to see
more options.
Build Chinese Wubihua (stroke) characters. Use the keypad to build Chinese characters using
up to ve strokes, in the correct writing sequence: horizontal, vertical, left falling, right falling, and
hook. For example, the Chinese character 圈 (circle) should begin with the vertical stroke 丨.
•As you type, suggested Chinese characters appear (the most commonly used characters
appear rst). Tap a character to choose it.
•If you’re not sure of the correct stroke, enter an asterisk (*). To see more character options, type
another stroke, or scroll through the character list.
•Tap the match key (匹配) to show only characters that match exactly what you typed.

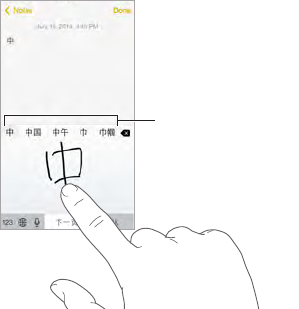

Write Chinese characters. Write Chinese characters directly on the screen with your nger
when Simplied or Traditional Chinese handwriting input is turned on. As you write character
strokes, iPhone recognizes them and shows matching characters in a list, with the closest match
at the top. When you choose a character, its likely follow-on characters appear in the list as
additional choices.
Matching characters
Matching characters
You can type some complex characters, such as 鱲 (part of the name for the Hong Kong
International Airport), by writing two or more component characters in sequence. Tap the
character to replace the characters you typed. Roman characters are also recognized.
Type Japanese kana. Use the Kana keypad to select syllables. For more syllable options, drag the
list to the left or tap the arrow key.
Type Japanese romaji. Use the Romaji keyboard to type syllables. Alternative choices appear
along the top of the keyboard; tap one to type it. For more syllable options, tap the arrow key
and select another syllable or word from the window.
Apple Confidential
Draft
![](/img.php?id=2695448&img=bg3.png)
Appendix C International keyboards 187
Type facemarks or emoticons. Use the Japanese Kana keyboard and tap the key. Or you can:
•Use the Japanese Romaji keyboard (QWERTY-Japanese layout): Tap , then tap the key.
•Use the Chinese (Simplied or Traditional) Pinyin or (Traditional) Zhuyin keyboard: Tap , then
tap the key.
Apple Confidential
Draft
![](/img.php?id=2695448&img=bg4.png)
D
188
About CarPlay
CarPlay puts key iPhone apps—the ones you want to use while driving—on your car’s built-in
display. With CarPlay, you can get turn-by-turn directions, make phone calls, exchange text
messages, listen to music, and more. CarPlay is available on select automobiles and after-market
navigation systems, and works with iPhone 6, iPhone 6 Plus, iPhone 5s, iPhone 5c, and iPhone 5.
Note: CarPlay is available only in certain areas. Siri must be enabled on your iPhone. Go to
Settings > General > Siri.
WARNING: For important information about avoiding distractions that could lead to dangerous
situations, see Important safety information on page 193.
You operate CarPlay using your car’s built-in controls—a touchscreen, a rotary knob controller, or
both. To learn how to operate your display, see the user guide that came with your car.
Or just use Siri voice control to tell CarPlay what you want. In fact, Siri often steps in automatically
to help you, depending on the app you’re using.
Get started
Use an Apple approved Lightning to USB Cable to connect iPhone to your car’s USB port. It may
be labeled with the CarPlay logo, the words CarPlay, or an image of a smartphone. If your car
supports wireless CarPlay, press and hold the voice control button on your steering column to
start the CarPlay setup.
Depending on your car, the CarPlay Home screen may appear automatically. If not, select the
CarPlay logo on your car’s display.
Home
button
Home
button
Return to a call, or to
turn-by-turn directions.
Return to a call, or to
turn-by-turn directions.
View current
audio source.
View current
audio source.
CarPlay
Apple Confidential
Appendix
Draft
Appendix D CarPlay 189
Speak to Siri. Press and hold the voice control button on the steering wheel, or touch and hold
the Home button on the CarPlay Home screen, until Siri beeps. Then make your request.
Open an app. Tap the app on the touchscreen. Or twist the rotary knob to select the app, then
press down on the knob.
Return to the CarPlay Home screen. Tap the Home button on the touchscreen. Or press the
“back” button near the rotary knob until you get back to the Home screen.
Return to your car’s Home screen. Tap the gray icon with your car’s logo if it appears, or press
the physical Home button on your radio if your car has one.
View additional apps. If you have more than eight apps, some apps may appear on another
page of the Home screen. Swipe left on the touchscreen, or twist the rotary knob.
Return to a phone call or to turn-by-turn directions. (Touchscreen only) Tap the icon in the
upper-left corner of the touchscreen.
Scroll quickly through a list. Slide or tap the letters along the list at the right side of the
touchscreen. Or twist or spin the rotary knob.
View and control the current audio source. Tap Now Playing to see the current audio app.
Maps
Get turn-by-turn directions, trac conditions, and estimated travel time. CarPlay generates likely
destinations using addresses from your email, text messages, contacts, and calendars—as well as
places you frequent. You can also search for a location, or use locations you bookmarked.
You can use other apps even when getting directions. CarPlay lets you know when it’s time to
make a turn.
Display likely destinations. Tap Destinations.
Use Siri. Say, for example, “Get directions to the nearest coee shop.”
Phone
CarPlay uses the contacts on your iPhone to help you make calls. Use Show Contacts to bring up
your favorites, recent calls, list of contacts, keypad, and voicemail.
Use Siri. Say something like:
•“Call Emily”
•“Return my last call”
•“What voicemails have I gotten?”
Messages
When you open Messages, Siri steps in automatically to read your incoming text messages or let
you dictate a new one. Let Siri help you send, hear, and reply to text messages.
Use Siri. Say something like:
•“Read my text messages”
•“Text my wife”
•“Tell Emily I’m in trac and I’ll be 15 minutes late to the meeting”
Apple Confidential
Draft
Appendix D CarPlay 190
Music
Use Music to access the music on your iPhone—including songs, artists, albums, and playlists. Or
tune in to Radio. CarPlay also lets you use other audio apps that you download to your iPhone
for podcasts, music, and radio. Use the Now Playing screen to control playback, or use the
controls on your car’s steering wheel.
Use Siri. Say something like:
•“Play some music”
•“Let’s hear that Mellow playlist”
Podcasts
Use the Podcasts app to listen to podcasts on your iPhone.
Use Siri. Say something like:
•“Play the Serial podcast”
•“Skip ahead 45 seconds”
Other apps
CarPlay works with select third-party audio apps. Compatible apps show up automatically on the
CarPlay Home screen.
Apple Confidential
Draft
E
191
HomeKit basics
With HomeKit, you can use iPhone to control any of the “Works with Apple HomeKit” accessories
that you have in your home, such as lights, locks, thermostats, smart plugs and more.
HomeKit allows you to create commands or scenes to control home settings. For example,
you can create a scene to turn o the lights, lock the doors, close the garage door and set the
thermostat to the desired temperature, all with one command. HomeKit also provides an easy,
secure way to control HomeKit-enabled accessories using Siri.
HomeKit is organized around three types of locations: Homes, Rooms, and Zones. Each Home
contains rooms, such as “bedroom,” and rooms can be grouped into zones, such as “upstairs.”
Additionally, homes users who are allowed to control the HomeKit accessories.
Setting up a Home and Users
Dening a Home allows HomeKit-enabled apps and accessories from dierent manufacturers to
work together. It’s the rst thing you should do when getting started with HomeKit.
Dene a home. Use the app that works with your HomeKit-enabled accessory to dene a home.
The process will vary depending on the app and accessory, but generally you will pair the
accessory with iPhone by entering the accessory’s HomeKit setup code in the accessory’s app. If
this is your rst accessory, a Home will be created for you.
Adding a second home. As described above, use a HomeKit-enabled app to dene an
additional home.
Give them control. To let someone else control your accessories using their iOS device, go to
Settings > Home, then tap Invite People. They’ll need an iCloud account to join your home.
Control your home away from home. If you have an Apple TV (3rd generation or later) with
software version 7.0 or later, remote access allows you to securely control your home when you’re
away. Go to Settings > Home and turn on Allow Remote Access. Make sure you’re signed in with
the same Apple ID on both iPhone and Apple TV.
Dene rooms, zones and scenes. Use your HomeKit-enabled apps to assign accessories to
rooms, and rooms to zones. Many apps also allow you to dene scenes. Once these items are
dened, you can control with Siri, as described below.
Reset your home data. To delete all of your home data from iPhone and iCloud, go to Settings >
Privacy > HomeKit, then tap Reset HomeKit Conguration.
Control HomeKit accessories using Siri
You can use Siri to control the HomeKit-enabled accessories you have congured. Here are some
of the things you might be able to say to Siri, depending on the capabilities of your accessories:
•“Turn o the lights” or “Turn on the lights”
•“Dim the lights” or “Set brightness to 55%”
•“Turn on the coee maker”
HomeKit
Apple Confidential
Appendix
Draft
Appendix E HomeKit 192
•“Set the temperature to 68 degrees”
If you’ve set up rooms, zones, scenes, or homes you can say things like:
•“Turn down the kitchen lights”
•“Turn on the printer in the oce”
•“Turn o the upstairs lights”
•“Set my reading scene”
•“Set the temperature in the Chicago house to 72 degrees”
Apple Confidential
Draft
![](/img.php?id=2695448&img=bg9.png)
F
193
Important safety information
WARNING: Failure to follow these safety instructions could result in re, electric shock,
injury, or damage to iPhone or other property. Read all the safety information below before
using iPhone.
Handling Handle iPhone with care. It is made of metal, glass, and plastic and has sensitive
electronic components inside. iPhone can be damaged if dropped, burned, punctured, or
crushed, or if it comes in contact with liquid. Don’t use a damaged iPhone, such as one with a
cracked screen, as it may cause injury. If you’re concerned about scratching the surface of iPhone,
consider using a case or cover.
Repairing Don’t open iPhone and don’t attempt to repair iPhone yourself. Disassembling iPhone
may damage it or may cause injury to you. If iPhone is damaged, malfunctions, or comes in
contact with liquid, contact Apple or an Apple Authorized Service Provider. You can nd more
information about getting service at www.apple.com/support/iphone/service/faq/.
Battery Don’t attempt to replace the iPhone battery yourself—you may damage the battery,
which could cause overheating and injury. The lithium-ion battery in iPhone should be replaced
by Apple or an authorized service provider, and must be recycled or disposed of separately
from household waste. Don’t incinerate the battery. For information about battery service and
recycling, see www.apple.com/batteries/service-and-recycling/.
Distraction Using iPhone in some circumstances can distract you and may cause a dangerous
situation (for example, avoid using headphones while riding a bicycle and avoid texting while
driving a car). Observe rules that prohibit or restrict the use of mobile phones or headphones.
Navigation Maps, directions, Flyover, and location-based apps depend on data services.
These data services are subject to change and may not be available in all areas, resulting in
maps, directions, Flyover, or location-based information that may be unavailable, inaccurate, or
incomplete. Some Maps features require Location Services. Compare the information provided
on iPhone to your surroundings and defer to posted signs to resolve any discrepancies. Do not
use these services while performing activities that require your full attention. Always comply
with posted signs and the laws and regulations in the areas where you are using iPhone and
always use common sense.
Charging Charge iPhone with the included USB cable and power adapter, or with other third-
party “Made for iPhone” cables and power adapters that are compatible with USB 2.0 or later,
or power adapters compliant with applicable country regulations and with one or more of the
following standards: EN 301489-34, IEC 62684, YD/T 1591-2009, CNS 15285, ITU L.1000, or another
applicable mobile phone power adapter interoperability standard.
Safety, handling, and support
Apple Confidential
Appendix
Draft
![](/img.php?id=2695448&img=bga.png)
Appendix F Safety, handling, and support 194
Using damaged cables or chargers, or charging when moisture is present, can cause re, electric
shock, injury, or damage to iPhone or other property. When you use the Apple USB Power
Adapter to charge iPhone, make sure the USB cable is fully inserted into the power adapter
before you plug the adapter into a power outlet.
Lightning cable and connector Avoid prolonged skin contact with the connector when the
Lightning to USB Cable is plugged into a power source because it may cause discomfort or
injury. Sleeping or sitting on the Lightning connector should be avoided.
Prolonged heat exposure iPhone and its power adapter comply with applicable surface
temperature standards and limits. However, even within these limits, sustained contact with
warm surfaces for long periods of time may cause discomfort or injury. Use common sense
to avoid situations where your skin is in contact with a device or its power adapter when it’s
operating or plugged into a power source for long periods of time. For example, don’t sleep on a
device or power adapter, or place them under a blanket, pillow, or your body, when it’s plugged
into a power source. It’s important to keep iPhone and its power adapter in a well-ventilated
area when in use or charging. Take special care if you have a physical condition that aects your
ability to detect heat against the body.
Hearing loss Listening to sound at high volumes may damage your hearing. Background noise,
as well as continued exposure to high volume levels, can make sounds seem quieter than they
actually are. Turn on audio playback and check the volume before inserting anything in your ear.
For more information about hearing loss, see www.apple.com/sound/. For information about
how to set a maximum volume limit on iPhone, see Music settings on page 78.
To avoid hearing damage, use only compatible receivers, earbuds, headphones, speakerphones,
or earpieces with iPhone. The headsets sold with iPhone 4s or later in China (identiable by
dark insulating rings on the plug) are designed to comply with Chinese standards and are only
compatible with iPhone 4s or later, iPad 2 or later, and iPod touch 5th generation.
WARNING: To prevent possible hearing damage, do not listen at high volume levels for
long periods.
Radio frequency exposure iPhone uses radio signals to connect to wireless networks. For
information about radio frequency (RF) energy resulting from radio signals and steps you can
take to minimize exposure, go to Settings > General > About > Legal > RF Exposure or visit
www.apple.com/legal/rfexposure/.
Radio frequency interference Observe signs and notices that prohibit or restrict the use
of mobile phones (for example, in healthcare facilities or blasting areas). Although iPhone is
designed, tested, and manufactured to comply with regulations governing radio frequency
emissions, such emissions from iPhone can negatively aect the operation of other electronic
equipment, causing them to malfunction. Turn o iPhone or use Airplane Mode to turn o the
iPhone wireless transmitters when use is prohibited, such as while traveling in aircraft, or when
asked to do so by authorities.
Medical device interference iPhone contains components and radios that emit electromagnetic
elds. iPhone also contains magnets and the included headphones also have magnets in the
earbuds. These electromagnetic elds and magnets may interfere with pacemakers, debrillators,
or other medical devices. Maintain a safe distance of separation between your medical device
and iPhone and the earbuds. Consult your physician and medical device manufacturer for
information specic to your medical device. If you suspect iPhone is interfering with your
pacemaker, debrillator, or any other medical device, stop using iPhone.
Apple Confidential
Draft
Appendix F Safety, handling, and support 195
Not a medical device iPhone and the Health app are not designed or intended for use in the
diagnosis of disease or other conditions, or in the cure, mitigation, treatment, or prevention
of disease.
Medical conditions If you have any medical condition that you believe could be aected by
iPhone (for example, seizures, blackouts, eyestrain, or headaches), consult with your physician
prior to using iPhone.
Explosive atmospheres Charging or using iPhone in any area with a potentially explosive
atmosphere, such as areas where the air contains high levels of ammable chemicals,
vapors, or particles (such as grain, dust, or metal powders), may be hazardous. Obey all signs
and instructions.
Repetitive motion When you perform repetitive activities such as typing or playing games on
iPhone, you may experience discomfort in your hands, arms, wrists, shoulders, neck, or other
parts of your body. If you experience discomfort, stop using iPhone and consult a physician.
High-consequence activities This device is not intended for use where the failure of the device
could lead to death, personal injury, or severe environmental damage.
Choking hazard Some iPhone accessories may present a choking hazard to small children. Keep
these accessories away from small children.
Important handling information
Cleaning Clean iPhone immediately if it comes in contact with anything that may cause stains—
such as dirt, ink, makeup, or lotions. To clean:
•Disconnect all cables and turn iPhone o (press and hold the Sleep/Wake button, then slide
the onscreen slider).
•Use a soft, lint-free cloth.
•Avoid getting moisture in openings.
•Don’t use cleaning products or compressed air.
The front or back cover of iPhone may be made of glass with a ngerprint-resistant oleophobic
(oil repellant) coating. This coating wears over time with normal usage. Cleaning products and
abrasive materials will further diminish the coating, and may scratch the glass.
Using connectors, ports, and buttons Never force a connector into a port or apply excessive
pressure to a button, because this may cause damage that is not covered under the warranty. If
the connector and port don’t join with reasonable ease, they probably don’t match. Check for
obstructions and make sure that the connector matches the port and that you have positioned
the connector correctly in relation to the port.
Lightning to USB Cable Discoloration of the Lightning connector after regular use is normal.
Dirt, debris, and exposure to moisture may cause discoloration. If your Lightning cable or
connector become warm during use or iPhone won’t charge or sync, disconnect it from your
computer or power adapter and clean the Lightning connector with a soft, dry, lint-free cloth. Do
not use liquids or cleaning products when cleaning the Lightning connector.
Apple Confidential
Draft
Appendix F Safety, handling, and support 196
Certain usage patterns can contribute to the fraying or breaking of cables. The Lightning to USB
Cable, like any other metal wire or cable, is subject to becoming weak or brittle if repeatedly bent
in the same spot. Aim for gentle curves instead of angles in the cable. Regularly inspect the cable
and connector for any kinks, breaks, bends, or other damage. Should you nd any such damage,
discontinue use of the Lightning to USB Cable.
Operating temperature iPhone is designed to work in ambient temperatures between 32° and
95° F (0° and 35° C) and stored in temperatures between -4° and 113° F (-20° and 45° C). iPhone
can be damaged and battery life shortened if stored or operated outside of these temperature
ranges. Avoid exposing iPhone to dramatic changes in temperature or humidity. When you’re
using iPhone or charging the battery, it is normal for iPhone to get warm.
If the interior temperature of iPhone exceeds normal operating temperatures (for example, in a
hot car or in direct sunlight for extended periods of time), you may experience the following as it
attempts to regulate its temperature:
•iPhone stops charging.
•The screen dims.
•A temperature warning screen appears.
•Some apps may close.
Important: You may not be able to use iPhone while the temperature warning screen is
displayed. If iPhone can’t regulate its internal temperature, it goes into deep sleep mode until
it cools. Move iPhone to a cooler location out of direct sunlight and wait a few minutes before
trying to use iPhone again.
For more information, see support.apple.com/kb/HT2101.
iPhone Support site
Comprehensive support information is available online at www.apple.com/support/iphone/.
To contact Apple for personalized support (not available in all areas), see
www.apple.com/support/contact/.
Restart or reset iPhone
If something isn’t working right, try restarting iPhone, forcing an app to quit, or resetting iPhone.
Restart iPhone. Hold down the Sleep/Wake button until the slider appears. Slide your nger
across the slider to turn o iPhone. To turn iPhone back on, hold down the Sleep/Wake button
until the Apple logo appears.
Force an app to quit. From the Home screen, double-click the Home button and swipe upwards
on the app screen.
If you can’t turn o iPhone or if the problem continues, you may need to reset iPhone. Do this
only if you’re unable to restart iPhone.
Reset iPhone. Hold down the Sleep/Wake button and the Home button at the same time for at
least ten seconds, until the Apple logo appears.
You can reset the network settings, keyboard dictionary, home screen layout, and location and
privacy settings. You can also erase all of your content and settings.
Apple Confidential
Draft
Appendix F Safety, handling, and support 197
Reset iPhone settings
Reset iPhone settings. Go to Settings > General > Reset, then choose an option:
•Reset All Settings: All your preferences and settings are reset.
•Erase All Content and Settings: Your information and settings are removed. iPhone cannot be
used until it’s set up again.
•Reset Network Settings: When you reset network settings, previously used networks and VPN
settings that weren’t installed by a conguration prole are removed. (To remove VPN settings
installed by a conguration prole, go to Settings > General > Prole, select the prole, then
tap Remove. This also removes other settings or accounts provided by the prole.) Wi-Fi is
turned o and then back on, disconnecting you from any network you’re on. The Wi-Fi and
“Ask to Join Networks” settings remain turned on.
•Reset Keyboard Dictionary: You add words to the keyboard dictionary by rejecting words
iPhone suggests as you type. Resetting the keyboard dictionary erases all words you’ve added.
•Reset Home Screen Layout: Returns the built-in apps to their original layout on the
Home screen.
•Reset Location & Privacy: Resets the location services and privacy settings to their defaults.
Get information about your iPhone
See information about iPhone. Go to Settings > General > About. The items you can view
include:
•Name
•Network addresses
•Number of songs, videos, photos, and apps
•Capacity and available storage space
•iOS version
•Carrier
•Model number
•Serial number
•Wi-Fi and Bluetooth addresses
•IMEI (International Mobile Equipment Identity)
•ICCID (Integrated Circuit Card Identier, or Smart Card) for GSM networks
•MEID (Mobile Equipment Identier) for CDMA networks
•Modem rmware
•Legal (including legal notices and license, warranty and RF exposure information)
To copy the serial number and other identiers, touch and hold the identier until Copy appears.
To help Apple improve products and services, iPhone sends diagnostic and usage data. This data
doesn’t personally identify you, but may include location information.
View or turn o diagnostic information. Go to Settings > Privacy > Diagnostics & Usage.
Usage information
View cellular usage. Go to Settings > Cellular. See Cellular settings on page 199.
Apple Confidential
• Regulatory marks on Settings > General > Regulatory
Draft
Appendix F Safety, handling, and support 198
View other usage information. Go to Settings > General > Usage to:
•See Battery Usage, including the elapsed time since iPhone has been charged and usage by
app
•Display battery level as a percentage
•View overall storage availability and storage used per app
•View and manage iCloud storage
Disabled iPhone
If iPhone is disabled because you forgot your passcode or entered an incorrect passcode too
many times, you can restore iPhone from an iTunes or iCloud backup and reset the passcode. For
more information, see Restore iPhone on page 199.
If you get a message in iTunes that your iPhone is locked and you must enter a passcode, see
support.apple.com/kb/HT1212.
Back up iPhone
You can use iCloud or iTunes to automatically back up iPhone. If you choose to back up using
iCloud, you can’t also use iTunes to automatically back up to your computer, but you can use
iTunes to manually back up to your computer. iCloud backs up to iPhone daily over Wi-Fi, when
it’s connected to a power source and is locked. The date and time of the last backup is listed at
the bottom of the Backup screen.
iCloud backs up your:
•Purchased music, movies, TV shows, apps, and books
•Photos and videos taken with iPhone (if you use iCloud Photo Library, your photos and videos
are already stored in iCloud, so they won’t also be part of an iCloud backup)
•iPhone settings
•App data
•Home screen, folders, and app layout
•Messages (iMessage, SMS, and MMS)
•Ringtones
Note: Purchased content is not backed up in all areas.
Turn on iCloud backups. Go to Settings > iCloud, then sign in with your Apple ID and password
if required. Go to Backup, then turn on iCloud Backup. To turn on backups in iTunes on your
computer, go to File > Devices > Back Up.
Back up immediately. Go to Settings > iCloud > Backup, then tap Back Up Now.
Encrypt your backup. iCloud backups are encrypted automatically so that your data is protected
from unauthorized access both while it’s transmitted to your devices and when it’s stored in
iCloud. If you’re using iTunes for your backup, select “Encrypt iPhone backup” in the iTunes
Summary pane.
Manage your backups. Go to Settings > iCloud. You can manage which apps are backed up
to iCloud by tapping them on or o. Go to Settings > iCloud > Storage > Manage Storage to
remove existing backups and manage iCloud Drive or Documents & Data. In iTunes, remove
backups in iTunes Preferences.
Apple Confidential
Draft
Appendix F Safety, handling, and support 199
View the devices being backed up. Go to Settings > iCloud > Storage > Manage Storage.
Stop iCloud backups. Go to Settings > iCloud > Backup, then turn o iCloud Backup.
Music not purchased in iTunes isn’t backed up in iCloud. Use iTunes to back up and restore that
content. See Sync with iTunes on page 22.
Important: Backups for music, movies, or TV show purchases are not available in all countries.
Previous purchases may not be restored if they are no longer in the iTunes Store, App Store, or
iBooks Store.
Purchased content, iCloud Photo Sharing, and My Photo Stream content don’t count against your
5 GB of free iCloud storage.
For more information about backing up iPhone, see support.apple.com/kb/HT5262.
Update and restore iPhone software
About update and restore
You can update iPhone software in Settings, or by using iTunes. You can also erase or restore
iPhone, and then use iCloud or iTunes to restore from a backup.
Update iPhone
You can update software in iPhone Settings or by using iTunes.
Update wirelessly on iPhone. Go to Settings > General > Software Update. iPhone checks for
available software updates.
Update software in iTunes. iTunes checks for available software updates each time you sync
iPhone using iTunes. See Sync with iTunes on page 22.
For more information about updating iPhone software, see support.apple.com/kb/HT4623.
Restore iPhone
You can use iCloud or iTunes to restore iPhone from a backup.
Restore from an iCloud backup. Reset iPhone to erase all content and settings, then choose
Restore from a Backup and sign in to iCloud in Setup Assistant. See Restart or reset iPhone on
page 196.
Restore from an iTunes backup. Connect iPhone to the computer you normally sync with, select
iPhone in the iTunes window, then click Restore in the Summary pane.
When the iPhone software is restored, you can either set it up as a new iPhone, or restore your
music, videos, app data, and other content from a backup.
For more information about restoring iPhone software, see support.apple.com/kb/HT1414.
Cellular settings
Use Cellular settings to turn cellular data and roaming on or o, set which apps and services use
cellular data, see call time and cellular data usage, and set other cellular options.
If iPhone is connected to the Internet via the cellular data network, the LTE, 4G, 3G, E, or GPRS
icon appears in the status bar.
Apple Confidential
Draft
Appendix F Safety, handling, and support 200
LTE, 4G, and 3G service on GSM cellular networks support simultaneous voice and data
communications. For all other cellular connections, you can’t use Internet services while you’re
talking on the phone unless iPhone also has a Wi-Fi connection to the Internet. Depending on
your network connection, you may not be able to receive calls while iPhone transfers data over
the cellular network—when downloading a webpage, for example.
•GSM networks: On an EDGE or GPRS connection, incoming calls may go directly to voicemail
during data transfers. For incoming calls that you answer, data transfers are paused.
•CDMA networks: On EV-DO connections, data transfers are paused when you answer incoming
calls. On 1xRTT connections, incoming calls may go directly to voicemail during data transfers.
For incoming calls that you answer, data transfers are paused.
Data transfer resumes when you end the call.
If Cellular Data is o, all data services use only Wi-Fi—including email, web browsing, push
notications, and other services. If Cellular Data is on, carrier charges may apply. For example,
using certain features and services that transfer data, such as Siri and Messages, could result in
charges to your data plan.
Turn Cellular Data on or o. Go to Settings > Cellular, then tap Cellular Data. The following
options may also be available:
•Turn Voice Roaming on or o (CDMA): Turn Voice Roaming o to avoid charges from using other
carrier’s networks. When your carrier’s network isn’t available, iPhone won’t have cellular (data
or voice) service.
•Turn Data Roaming on or o: Data Roaming permits Internet access over a cellular data
network when you’re in an area not covered by your carrier’s network. When you’re traveling,
you can turn o Data Roaming to avoid roaming charges. See Phone settings on page 59.
•Enable or disable 4G/LTE (varies by carrier): Using 4G or LTE loads Internet data faster in some
cases, but may decrease battery performance. If you’re making a lot of phone calls, you may
want to turn 4G/LTE o to extend battery life. This option is not available in all areas. On
iPhone 6 and iPhone 6 Plus, there are options for turning o 4G/LTE, selecting Voice & Data
(VoLTE), or Data Only.
•Voice & Data (some carriers): Choose LTE to load data faster. Choose slower speeds to increase
battery life.
•Set up Personal Hotspot: Personal Hotspot shares the Internet connection on iPhone with your
computer and other iOS devices. See Personal Hotspot on page 42.
Set whether cellular data is used for apps and services. Go to Settings > Cellular, then turn
cellular data on or o for any app that can use cellular data. If a setting is o, iPhone uses only
Wi-Fi for that service. The iTunes setting includes both iTunes Match and automatic downloads
from the iTunes Store and the App Store.
Sell or give away iPhone
Before you sell or give away your iPhone, be sure to erase all content and your personal
information. If you’ve enabled Find My iPhone (see Find My iPhone on page 47), Activation Lock
is on. You need to turn o Activation Lock before the new owner can activate iPhone under his
or her own account.
Erase iPhone and remove Activation Lock. Go to Settings > General > Reset > Erase All Content
and Settings.
See support.apple.com/kb/HT5661.
Apple Confidential
Draft
![](/img.php?id=2695448&img=bg11.png)
Appendix F Safety, handling, and support 201
Learn more, service, and support
Refer to the following resources to get more iPhone-related safety, software, and
service information.
To learn about Do this
Using iPhone safely See Important safety information on page 193.
iPhone service and support, tips, forums, and Apple
software downloads
Go to www.apple.com/support/iphone/.
Service and support from your carrier Contact your carrier or go to your carrier’s website.
The latest information about iPhone Go to www.apple.com/iphone/.
Managing your Apple ID account Go to appleid.apple.com.
Using iCloud Go to help.apple.com/icloud/.
Using iTunes Open iTunes, then choose Help > iTunes Help. For
an online iTunes tutorial (may not be available in all
areas), go to www.apple.com/support/itunes/.
Using other Apple iOS apps Go to www.apple.com/support/ios/.
Finding your iPhone serial number, IMEI, ICCID, or
MEID
You can nd your iPhone serial number, International
Mobile Equipment Identity (IMEI), ICCD, or Mobile
Equipment Identier (MEID) on the iPhone packaging.
Or, on iPhone, choose Settings > General > About. For
more information, go to support.apple.com/kb/ht4061.
Obtaining warranty service First follow the advice in this guide. Then go to
www.apple.com/support/iphone/.
Viewing iPhone regulatory information On iPhone, go to Settings > General > Regulatory.
Screen repair Go to www.apple.com/support/iphone/repair/.
Battery service Go to
www.apple.com/batteries/service-and-recycling/.
Using iPhone in an enterprise environment Go to www.apple.com/iphone/business/.
FCC compliance statement
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment o and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
Apple Confidential
Draft
Appendix F Safety, handling, and support 202
•Connect the equipment to an outlet on a circuit dierent from that to which the receiver
is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Important: Changes or modications to this product not authorized by Apple could void
the electromagnetic compatibility (EMC) and wireless compliance and negate your authority
to operate the product. This product has demonstrated EMC compliance under conditions
that included the use of compliant peripheral devices and shielded cables between system
components. It is important that you use compliant peripheral devices and shielded cables
between system components to reduce the possibility of causing interference to radios,
televisions, and other electronic devices.
Canadian regulatory statement
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired operation of
the device.
Operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful
interference to co-channel mobile satellite systems.
Users are advised that high-power radars are allocated as primary users (i.e., priority users) of the
bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or
damage to LE-LAN devices.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1)
l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre
le fonctionnement.
La bande 5 150-5 250 MHz est réservés uniquement pour une utilisation à l’intérieur an de
réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les
mêmes canaux.
Les utilisateurs êtes avisés que les utilisateurs de radars de haute puissance sont désignés
utilisateurs principaux (c.-à-d., qu’ils ont la priorité) pour les bandes 5 250-5 350 MHz et 5 650-5
850 MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs
LAN-EL.
CAN ICES-3 (B)/NMB-3(B)
Disposal and recycling information
Apple Recycling Program (available in some areas): For free recycling of your old mobile phone,
a prepaid shipping label, and instructions, see www.apple.com/recycling/.
iPhone disposal and recycling: You must dispose of iPhone properly according to local laws and
regulations. Because iPhone contains electronic components and a battery, iPhone must be
disposed of separately from household waste. When iPhone reaches its end of life, contact local
authorities to learn about disposal and recycling options, or simply drop it o at your local Apple
retail store or return it to Apple. The battery will be removed and recycled in an environmentally
friendly manner. For more information, see www.apple.com/recycling/.
Apple Confidential
Draft
![](/img.php?id=2695448&img=bg13.png)
Appendix F Safety, handling, and support 203
Battery replacement: The lithium-ion battery in iPhone should be replaced by Apple
or an authorized service provider, and must be recycled or disposed of separately from
household waste. For more information about battery service and recycling, go to
www.apple.com/batteries/service-and-recycling/.
Dispose of batteries according to your local environmental laws and guidelines.
California Battery Charger Energy Eciency
Türkiye
Türkiye Cumhuriyeti: AEEE Yönetmeliğine Uygundur.
Taiwan Battery Statement
China Battery Statement
European Union—Disposal Information
The symbol above means that according to local laws and regulations your product and/or its
battery shall be disposed of separately from household waste. When this product reaches its
end of life, take it to a collection point designated by local authorities. The separate collection
and recycling of your product and/or its battery at the time of disposal will help conserve
natural resources and ensure that it is recycled in a manner that protects human health and
the environment.
Union Européenne—informations sur l’élimination: Le symbole ci-dessus signie que,
conformément aux lois et réglementations locales, vous devez jeter votre produit et/
ou sa batterie séparément des ordures ménagères. Lorsque ce produit arrive en n de vie,
apportez-le à un point de collecte désigné par les autorités locales. La collecte séparée et le
recyclage de votre produit et/ou de sa batterie lors de sa mise au rebut aideront à préserver les
ressources naturelles et à s’assurer qu’il est recyclé de manière à protéger la santé humaine et
l’environnement.
Apple Confidential
Draft
![](/img.php?id=2695448&img=bg14.png)
Appendix F Safety, handling, and support 204
Europäische Union—Informationen zur Entsorgung: Das oben aufgeführte Symbol weist darauf
hin, dass dieses Produkt und/oder die damit verwendete Batterie den geltenden gesetzlichen
Vorschriften entsprechend und vom Hausmüll getrennt entsorgt werden muss. Geben Sie dieses
Produkt zur Entsorgung bei einer oziellen Sammelstelle ab. Durch getrenntes Sammeln und
Recycling werden die Rohstoreserven geschont und es ist sichergestellt, dass beim Recycling
des Produkts und/oder der Batterie alle Bestimmungen zum Schutz von Gesundheit und Umwelt
eingehalten werden.
Unione Europea—informazioni per lo smaltimento: Il simbolo qui sopra signica che, in base
alle leggi e alle normative locali, il prodotto e/o la sua batteria dovrebbero essere riciclati
separatamente dai riuti domestici. Quando il prodotto diventa inutilizzabile, portalo nel punto
di raccolta stabilito dalle autorità locali. La raccolta separata e il riciclaggio del prodotto e/o della
sua batteria al momento dello smaltimento aiutano a conservare le risorse naturali e assicurano
che il riciclaggio avvenga nel rispetto della salute umana e dell’ambiente.
Europeiska unionen—information om kassering: Symbolen ovan betyder att produkten
och/eller dess batteri enligt lokala lagar och bestämmelser inte får kastas tillsammans med
hushållsavfallet. När produkten har tjänat ut måste den tas till en återvinningsstation som utsetts
av lokala myndigheter. Genom att låta den uttjänta produkten och/eller dess batteri tas om hand
för återvinning hjälper du till att spara naturresurser och skydda hälsa och miljö.
Brasil—Informações sobre descarte e reciclagem
O símbolo indica que este produto e/ou sua bateria não devem ser descartadas no lixo
doméstico. Quando decidir descartar este produto e/ou sua bateria, faça-o de acordo com
as leis e diretrizes ambientais locais. Para informações sobre substâncias de uso restrito,
o programa de reciclagem da Apple, pontos de coleta e telefone de informações, visite
www.apple.com/br/environment/.
Información sobre eliminación de residuos y reciclaje
El símbolo indica que este producto y/o su batería no debe desecharse con los residuos
domésticos. Cuando decida desechar este producto y/o su batería, hágalo de conformidad
con las leyes y directrices ambientales locales. Para obtener información sobre el programa de
reciclaje de Apple, puntos de recolección para reciclaje, sustancias restringidas y otras iniciativas
ambientales, visite www.apple.com/la/environment/.
Apple and the environment
At Apple, we recognize our responsibility to minimize the environmental impacts of our
operations and products. For more information, go to www.apple.com/environment/.
Apple Confidential
Draft
KApple Inc.
© 2015 Apple Inc. All rights reserved.
Apple, the Apple logo, AirDrop, AirPlay, AirPort, Apple TV,
FaceTime, Finder, GarageBand, Guided Access, iBooks,
iCloud Keychain, iMessage, iPad, iPhone, iPod, iPod touch,
iSight, iTunes, iTunes Pass, iTunes U, Keychain, Keynote,
Lightning, Mac, the Made for iPhone logo, Numbers, OS X,
Pages, Passbook, the Podcast logo, Safari, Siri, Spotlight, and
the Works with iPhone logo are trademarks of Apple Inc.,
registered in the U.S. and other countries.
AirPrint, Apple CarPlay, Apple Music, Apple Pay, Apple Watch,
EarPods, Flyover, Hando, Multi-Touch, and Touch ID are
trademarks of Apple Inc.
Apple Store, Genius, iCloud, iTunes Extras, iTunes Match,
iTunes Plus, and iTunes Store are service marks of Apple Inc.,
registered in the U.S. and other countries.
Apple
1 Innite Loop
Cupertino, CA 95014-2084
408-996-1010
www.apple.com
App Store and iBooks Store are service marks of Apple Inc.
Beats 1 is a service mark of Beats Electronics, LLC.
IOS is a trademark or registered trademark of Cisco in the U.S.
and other countries and is used under license.
The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc. and any use of such
marks by Apple Inc. is under license.
Other company and product names mentioned herein may be
trademarks of their respective companies.
Every eort has been made to ensure that the information in
this manual is accurate. Apple is not responsible for printing or
clerical errors.
Some apps are not available in all areas. App availability is
subject to change.
019-00180/2015-09
Apple Confidential
Draft
