Rev. A
Power Mac G5
AirPort Extreme Card
Replacement Instructions
Follow the instructions in this sheet carefully. Failure to follow these instructions could
damage your equipment and void its warranty.
Note:
Online instructions are available at http://www.info.apple.com/installparts/.
Tools Required
No tools are required for this procedure.
Opening the Computer
1. Shut down the computer.
Warning:
Always shut down the computer before opening it to avoid damaging its
internal components or the components you are installing. Do not open the computer
or attempt to install items inside it while it is on.
2. Wait 5 to 10 minutes to allow the computer’s internal components to cool.
Warning:
After you shut down the system, the internal components can be very hot.
You must let the computer cool down before continuing.
3. Unplug all external cables from the computer except the power cord.
4. Touch the metal PCI access covers on the back of the computer to discharge any
static electricity from your body.
(Figure 1)
Important:
Always discharge static before you touch any parts or install any
components inside the computer. To avoid generating static electricity, do not walk
around the room until you have finished working and closed the computer.
Power Mac G5 AirPort Extreme Card -
2
Figure 1
5. Unplug the power cord.
6. Hold the side access panel and lift the latch on the back of the computer.
(Figure 2)
Warning
: The edges of the access panel and the enclosure can be sharp. Be very
careful when handling them.
7. Remove the access panel and place it on a flat surface covered by a soft, clean cloth.
Figure 2
Power Mac G5 AirPort Extreme Card -
3

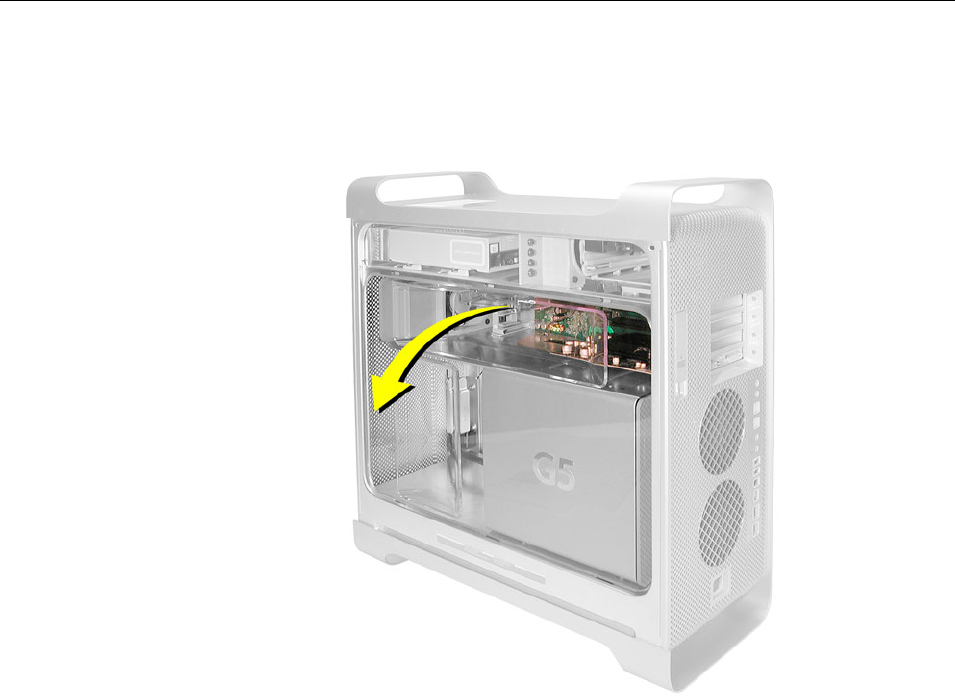

8. Remove the air deflector and place it on a soft, clean cloth.
(Figure 3)
Figure 3
Important:
Always remember to replace the air deflector after you have finished working
inside your computer. The Power Mac G5 computer will not function properly if the air
deflector is not replaced.
Power Mac G5 AirPort Extreme Card -
4
Removing the Installed AirPort Extreme Card

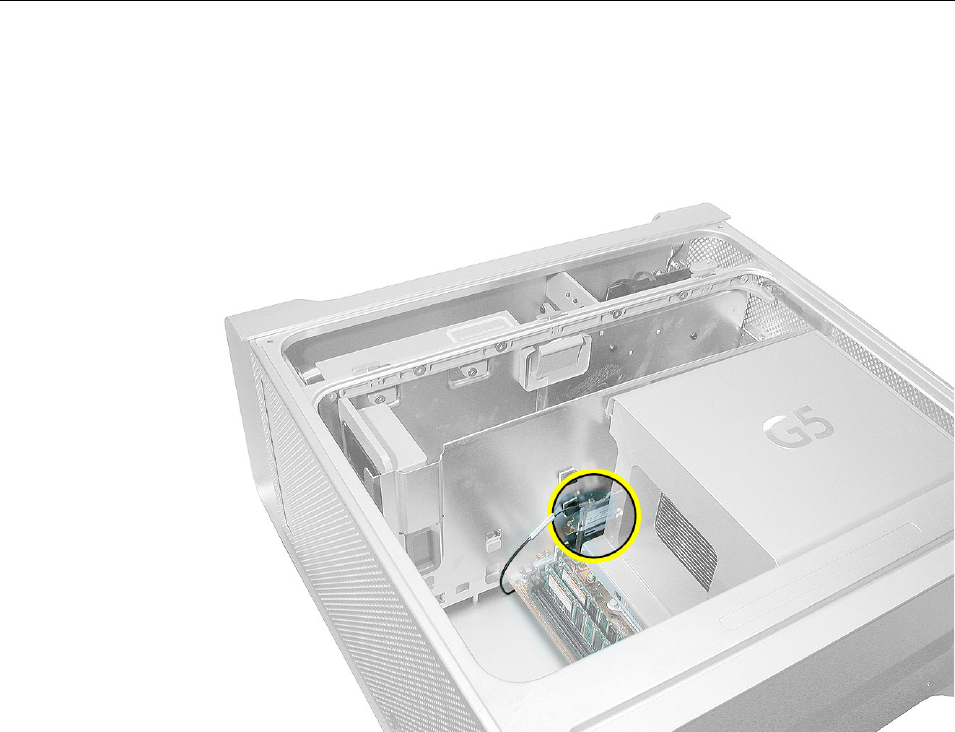

1. Locate the AirPort Extreme Card inside the computer.
(Figure 4)
Figure 4
2. Carefully lay the computer on its side so that the open side faces up.
Power Mac G5 AirPort Extreme Card -
5
3. Disconnect the antenna cable from the end of the installed AirPort Extreme Card.
(Figure 5)
4. Pull the card straight back out of the enclosure.
Figure 5
Power Mac G5 AirPort Extreme Card -
6
Installing the Replacement AirPort Extreme Card
Important:
Only the AirPort Extreme Card may be installed in the Power Mac G5. Older
AirPort Cards do not work in this computer.

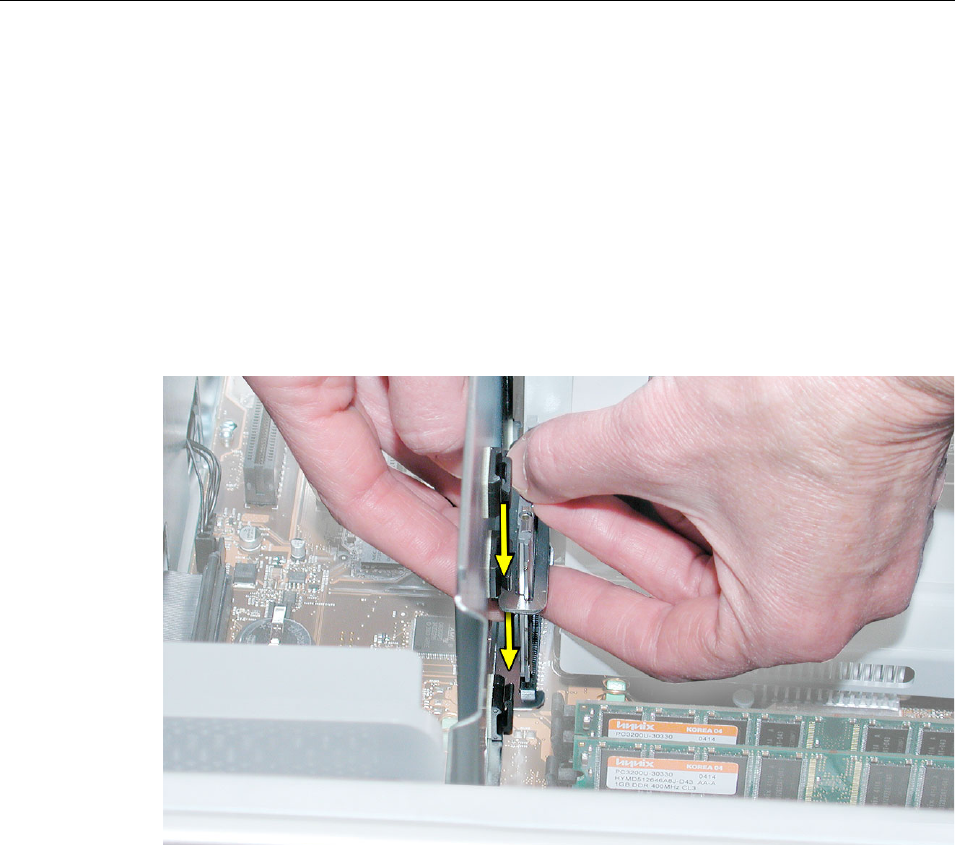

1. Placing a hand on each side of the card, guide the card down into the logic board
connector, making sure to align the front edge of the card’s connector with the front of
the logic board connector.
(Figure 6)
2. Reconnect the antenna cable to the card.
Figure 6
Power Mac G5 AirPort Extreme Card -
7
Closing the Computer
1. Replace the air deflector by inserting the three tabs on the bottom edge of the
deflector into the three slots in the bottom frame of the enclosure. Then swing the
deflector up flush against the top frame.
Important:
Make sure you re-install the air deflector before replacing the access
panel. If the air deflector is not installed, the computer will not function properly.
2. Replace the access panel.
Note:
Make sure the latch is in the up position before replacing the access panel. If
the latch is down, the access panel will not seat correctly in the enclosure.
3. Push the latch down to close and secure the access panel.
Warning:
Never turn on the computer unless all of its internal and external parts are
in place and it is closed. Operating the computer when it is open or missing parts can
damage it or cause injury.
