Aputure Imaging WRADEC1 Wireless Remote Adapter User Manual

Aputure Imaging Industries Co., Ltd Wireless Remote Adapter

User manual

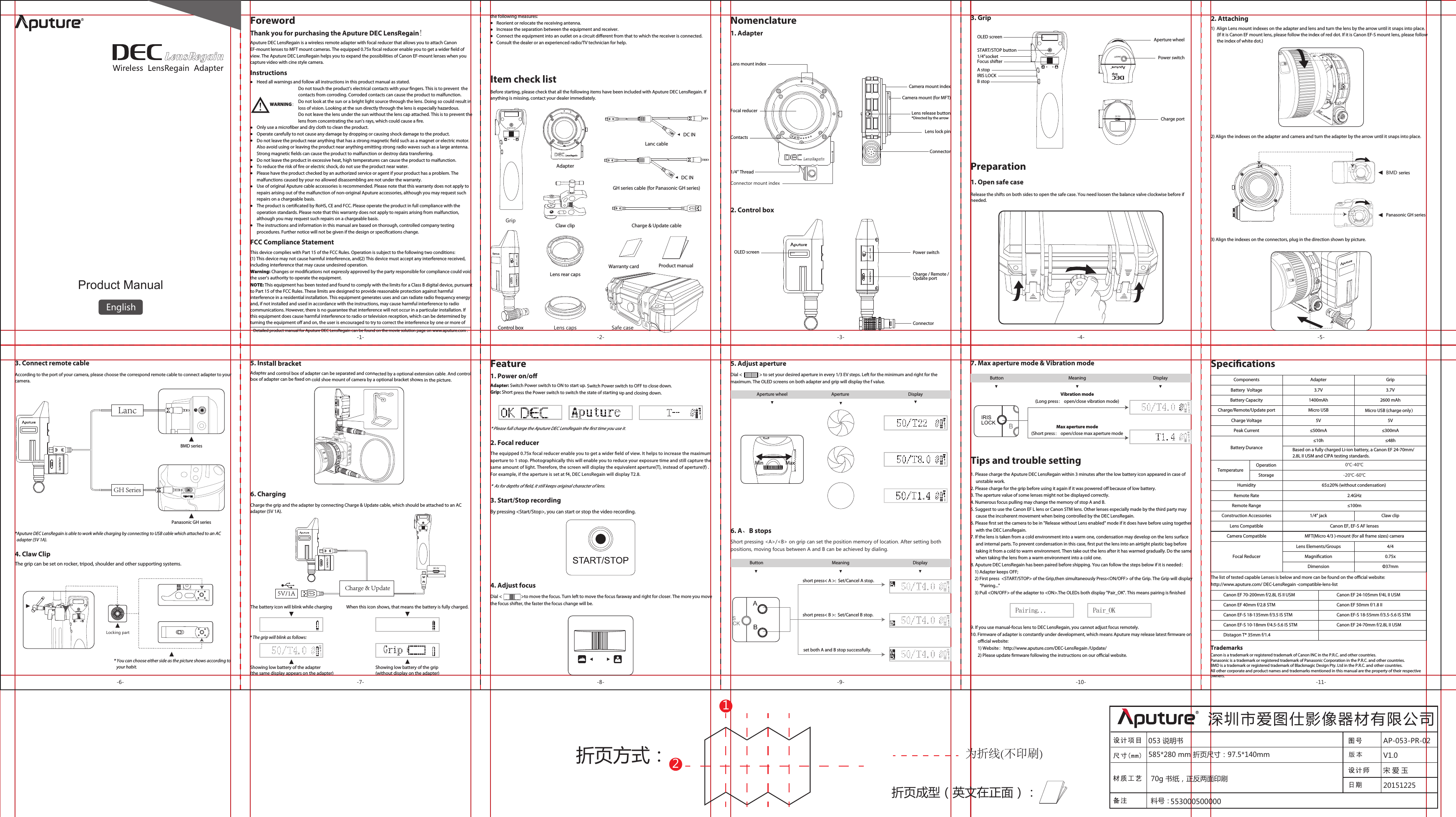

Product ManualEnglishInstructionsNomenclatureAdapterGripClaw clipLens capsLens rear capsCharge & Update cableLanc cableGH series cable (for Panasonic GH series)Warranty card Product manualSafe caseThank you for purchasing the Aputure DEC LensRegain!Aputure DEC LensRegain is a wireless remote adapter with focal reducer that allows you to attach Canon EF-mount lenses to MFT mount cameras. The equipped 0.75x focal reducer enable you to get a wider eld of view. The Aputure DEC LensRegain helps you to expand the possibilities of Canon EF-mount lenses when you capture video with cine style camera. FCC Compliance Statement Detailed product manual for Aputure DEC LensRegain can be found on the movie solution page on www.aputure.com .Item check listBefore starting, please check that all the following items have been included with Aputure DEC LensRegain. If anything is missing, contact your dealer immediately.Power switchCharge / Remote / Update portLens lock pinContactsOLED screenCamera mount indexLens mount indexThe battery icon will blink while charging When this icon shows, that means the battery is fully charged.By pressing <Start/Stop>, you can start or stop the video recording.Tips and trouble setting7. Max aperture mode & Vibration modeDC INDC INDial < >to move the focus. Turn left to move the focus faraway and right for closer. The more you move the focus shifter, the faster the focus change will be.* The grip will blink as follows: 1. Please charge the Aputure DEC LensRegain within 3 minutes after the low battery icon appeared in case of unstable work.2. Please charge for the grip before using it again if it was powered o because of low battery.3. The aperture value of some lenses might not be displayed correctly.4. Numerous focus pulling may change the memory of stop A and B.5. Suggest to use the Canon EF L lens or Canon STM lens. Other lenses especially made by the third party may cause the incoherent movement when being controlled by the DEC LensRegain.6. Please rst set the camera to be in "Release without Lens enabled" mode if it does have before using together with the DEC LensRegain. 7. If the lens is taken from a cold environment into a warm one, condensation may develop on the lens surface and internal parts. To prevent condensation in this case, rst put the lens into an airtight plastic bag before taking it from a cold to warm environment. Then take out the lens after it has warmed gradually. Do the same when taking the lens from a warm environment into a cold one.8. Aputure DEC LensRegain has been paired before shipping. You can follow the steps below if it is needed： 1) Adapter keeps OFF; 2) First press <START/STOP> of the Grip,then simultaneously Press<ON/OFF> of the Grip. The Grip will display "Pairing..." 3) Pull <ON/OFF> of the adapter to <ON>.The OLEDs both display "Pair_OK". This means pairing is nished9. If you use manual-focus lens to DEC LensRegain, you cannot adjust focus remotely.10. Firmware of adapter is constantly under development, which means Aputure may release latest rmware on ocial website: 1) Website：http://www.aputure.com/DEC-LensRegain /Update/ 2) Please update rmware following the instructions on our ocial website.Pairing... Pair_OKShowing low battery of the adapter (the same display appears on the adapter)Showing low battery of the grip (without display on the adapter)Foreword1. AdapterRelease the shifts on both sides to open the safe case. You need loosen the balance valve clockwise before if needed.2. Attaching-1- -2- -3- -4- -5--6- -7- -8- -9- -10- -11-折页方式：折页成型（英文在正面）：12为折线(不印刷)053 说明书 AP-053-PR-0220151225宋 爱 玉版 本 V1.0深圳市爱图仕影像器材有限公司585*280 mm 折页尺寸：97.5*140mm70g 书纸，正反两面印刷料号：553000500000The list of tested capable Lenses is below and more can be found on the ocial website: http://www.aputure.com/ DEC-LensRegain -compatible-lens-listCanon EF 70-200mm f/2.8L IS II USMCanon EF 40mm f/2.8 STMCanon EF-S 18-135mm f/3.5 IS STMCanon EF-S 10-18mm f/4.5-5.6 IS STMDistagon T* 35mm f/1.4Canon EF 24-105mm f/4L II USMCanon EF 50mm f/1.8 IICanon EF-S 18-55mm f/3.5-5.6 IS STMCanon EF 24-70mm f/2.8L II USM3. Start/Stop recording4. Adjust focus5. Adjust apertureAdapter: Switch Power switch to ON to start up. Switch Power switch to OFF to close down.Grip: Short press the Power switch to switch the state of starting up and closing down.Feature1. Power on/o2. Focal reducer* As for depths of eld, it still keeps original character of lens.* Please full charge the Aputure DEC LensRegain the rst time you use it.BMD seriesPanasonic GH seriesMax aperture mode(Short press： open/close max aperture modeVibration mode(Long press： open/close vibration mode)6. A、B stopsDial < > to set your desired aperture in every 1/3 EV steps. Left for the minimum and right for the maximum. The OLED screens on both adapter and grip will display the f value.short press< A >: Set/Cancel A stop.short press< B >: Set/Cancel B stop.Short pressing <A>/<B> on grip can set the position memory of location. After setting both positions, moving focus between A and B can be achieved by dialing.MaxMin3. Connect remote cableAccording to the port of your camera, please choose the correspond remote cable to connect adapter to your camera.Control box2. Control boxCamera mount (for MFT) Connector1/4” ThreadConnector mount indexConnectorFocal reducer Lens release button*Directed by the arrow3. GripOLED screenA stopB stopIRIS LOCKSTART/STOP buttonFocus shifter1/4”socket Charge portAperture wheelPower switchPreparation1. Open safe case1) Align Lens mount indexes on the adapter and lens and turn the lens by the arrow until it snaps into place. (If it is Canon EF mount lens, please follow the index of red dot. If it is Canon EF-S mount lens, please follow the index of white dot.)2) Align the indexes on the adapter and camera and turn the adapter by the arrow until it snaps into place.3) Align the indexes on the connectors, plug in the direction shown by picture.*Aputure DEC LensRegain is able to work while charging by connecting to USB cable which attached to an AC adapter (5V 1A).The grip can be set on rocker, tripod, shoulder and other supporting systems.4. Claw Clip* You can choose either side as the picture shows according to your habit.Locking partPanasonic GH seriesLancGH SeriesBMD series5. Install bracketAdapter and control box of adapter can be separated and connected by a optional extension cable. And control box of adapter can be xed on cold shoe mount of camera by a optional bracket shown in the picture.Charge the grip and the adapter by connecting Charge & Update cable, which should be attached to an AC adapter (5V 1A).6. Charging5V/1A Charge & UpdateThe equipped 0.75x focal reducer enable you to get a wider eld of view. It helps to increase the maximum aperture to 1 stop. Photographically this will enable you to reduce your exposure time and still capture the same amount of light. Therefore, the screen will display the equivalent aperture(T), instead of aperture(f) . For example, if the aperture is set at f4, DEC LensRegain will display T2.8. Aperture wheel Aperture Display Button Meaning Displayset both A and B stop successfully. Button Meaning DisplaySpecicationsBattery Durance1400mAh5V≤500mA≤10hBased on a fully charged Li-ion battery, a Canon EF 24-70mm/2.8L II USM and CIPA testing standards.65±20% (without condensation) 2.4GHz≤100m2600 mAhMicro USB5V3.7V 3.7V≤300mA≤48h0℃-40℃-20℃-60℃Lens Elements/Groups 4/40.75xΦ37mmFocal Reducer MagnicationDimensionComponentsBattery CapacityCharge/Remote/Update portCharge VoltageBattery VoltagePeak CurrentTemperatureOperationStorageHumidityRemote RateRemote RangeConstruction AccessoriesLens CompatibleAdapter1/4” jackCanon EF, EF-S AF lensesGripClaw clipMicro USB (charge only）Camera Compatible MFT(Micro 4/3 )-mount (for all frame sizes) cameraHeed all warnings and follow all instructions in this product manual as stated. Do not touch the product’s electrical contacts with your ngers. This is to prevent the contacts from corroding. Corroded contacts can cause the product to malfunction. Do not look at the sun or a bright light source through the lens. Doing so could result in loss of vision. Looking at the sun directly through the lens is especially hazardous. Do not leave the lens under the sun without the lens cap attached. This is to prevent the lens from concentrating the sun’s rays, which could cause a re.Only use a microber and dry cloth to clean the product.Operate carefully to not cause any damage by dropping or causing shock damage to the product.Do not leave the product near anything that has a strong magnetic eld such as a magnet or electric motor. Also avoid using or leaving the product near anything emitting strong radio waves such as a large antenna. Strong magnetic elds can cause the product to malfunction or destroy data transferring.Do not leave the product in excessive heat, high temperatures can cause the product to malfunction.To reduce the risk of re or electric shock, do not use the product near water.Please have the product checked by an authorized service or agent if your product has a problem. The malfunctions caused by your no allowed disassembling are not under the warranty.Use of original Aputure cable accessories is recommended. Please note that this warranty does not apply to repairs arising out of the malfunction of non-original Aputure accessories, although you may request such repairs on a chargeable basis.The product is certicated by RoHS, CE and FCC. Please operate the product in full compliance with the operation standards. Please note that this warranty does not apply to repairs arising from malfunction, although you may request such repairs on a chargeable basis.The instructions and information in this manual are based on thorough, controlled company testing procedures. Further notice will not be given if the design or specications change.WARNING：This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and(2) This device must accept any interference received, including interference that may cause undesired operation.Warning: Changes or modications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined byturning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.TrademarksCanon is a trademark or registered trademark of Canon INC in the P.R.C. and other countries.Panasonic is a trademark or registered trademark of Panasonic Corporation in the P.R.C. and other countries.BMD is a trademark or registered trademark of Blackmagic Design Pty. Ltd in the P.R.C. and other countries.All other corporate and product names and trademarks mentioned in this manual are the property of their respective owners.

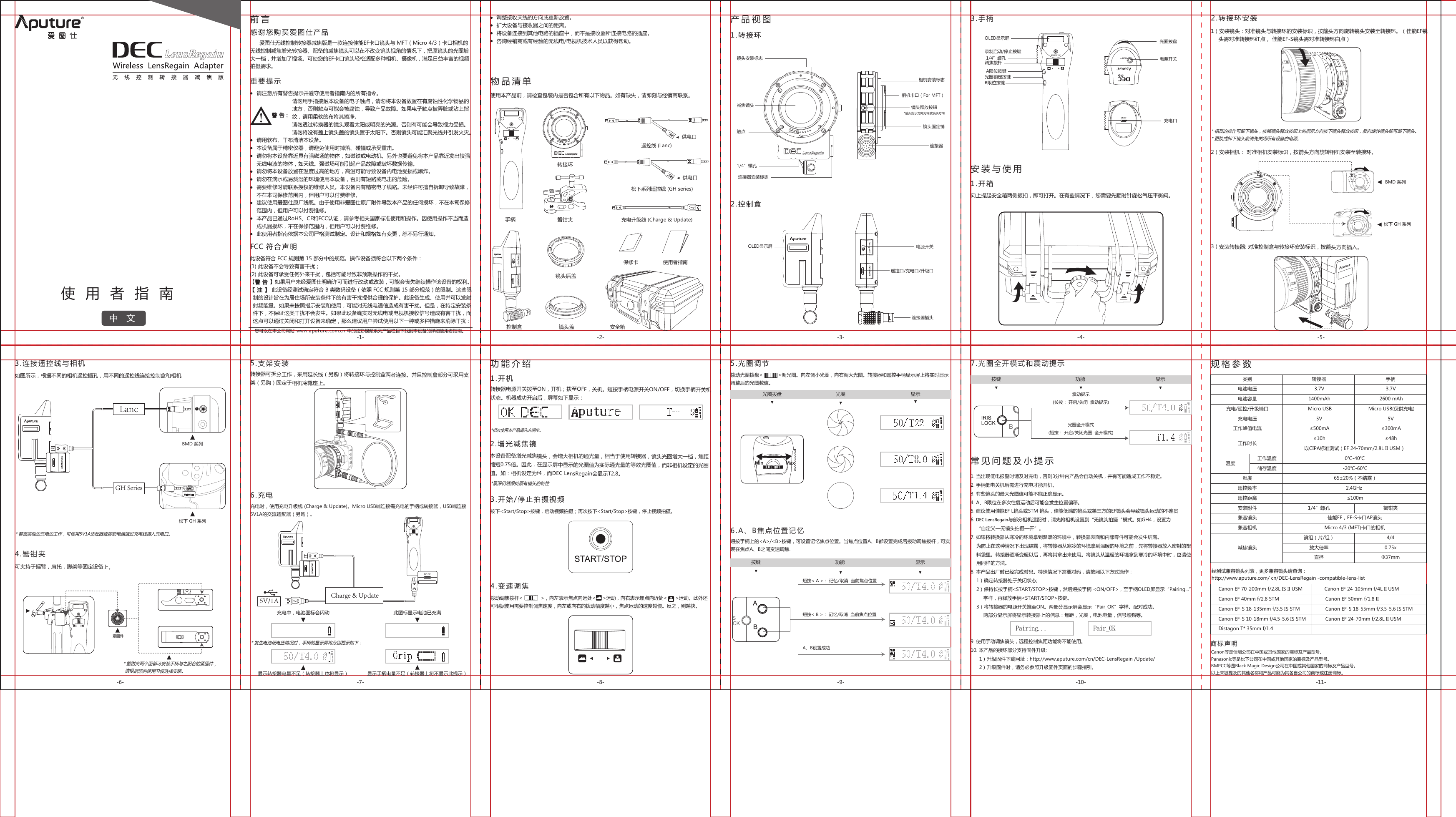

2.转接环安装产品视图物品清单安装与使用向上提起安全箱两侧扳扣，即可打开。在有些情况下，您需要先顺时针旋松气压平衡阀。1.开箱4.变速调焦3.开始/停止拍摄视频按下<Start/Stop>按键，启动视频拍摄；再次按下<Start/Stop>按键，停止视频拍摄。常见问题及小提示类别电池容量充电/遥控/升级端口充电电压工作时长温度 工作温度储存温度湿度遥控频率遥控距离安装附件兼容镜头兼容相机转接器1400mAh5V≤500mA≤10h以CIPA标准测试（EF 24-70mm/2.8L II USM）65±20%（不结露）2.4GHz≤100m1/4”螺孔佳能EF，EF-S卡口AF镜头Micro 4/3 (MFT)卡口的相机经测试兼容镜头列表，更多兼容镜头请查询：http://www.aputure.com/ cn/DEC-LensRegain -compatible-lens-listCanon EF 70-200mm f/2.8L IS II USMCanon EF 40mm f/2.8 STMCanon EF-S 18-135mm f/3.5 IS STMCanon EF-S 10-18mm f/4.5-5.6 IS STMDistagon T* 35mm f/1.4Canon EF 24-105mm f/4L II USMCanon EF 50mm f/1.8 IICanon EF-S 18-55mm f/3.5-5.6 IS STMCanon EF 24-70mm f/2.8L II USM手柄2600 mAhMicro USB(仅供充电)Micro USB5V电池电压 3.7V 3.7V≤300mA≤48h蟹钳夹0℃-40℃-20℃-60℃1.转接环2.控制盒3.手柄使 用 者 指 南中文Canon等是佳能公司在中国或其他国家的商标及产品型号。Panasonic等是松下公司在中国或其他国家的商标及产品型号。BMPCC等是Black Magic Design公司在中国或其他国家的商标及产品型号。以上未被提及的其他名称和产品可能为其各自公司的商标或注册商标。商标声明1）安装镜头：对准镜头与转接环的安装标识，按箭头方向旋转镜头安装至转接环。（佳能EF镜 头需对准转接环红点， 佳能EF-S镜头需对准转接环白点）2）安装相机： 对准相机安装标识，按箭头方向旋转相机安装至转接环。拨动调焦拨杆< >，向左表示焦点向远处< >运动，向右表示焦点向近处< >运动。此外还可根据使用需要控制调焦速度，向左或向右的拨动幅度越小，焦点运动的速度越慢。反之，则越快。1. 当出现低电报警时请及时充电，否则3分钟内产品会自动关机，并有可能造成工作不稳定。2. 手柄低电关机后需进行充电才能开机。3. 有些镜头的最大光圈值可能不能正确显示。4. A、B限位在多次往复运动后可能会发生位置偏移。5. 建议使用佳能EF L镜头或STM 镜头，佳能低端的镜头或第三方的EF镜头会导致镜头运动的不连贯6. DEC LensRegain与部分相机适配时，请先将相机设置到“无镜头拍摄“模式。如GH4，设置为 “自定义—无镜头拍摄—开”。7. 如果将转换器从寒冷的环境拿到温暖的环境中，转换器表面和内部零件可能会发生结露。 为防止在这种情况下出现结露，将转接器从寒冷的环境拿到温暖的环境之前，先将转接器放入密封的塑 料袋里。转接器逐渐变暖以后，再将其拿出来使用。将镜头从温暖的环境拿到寒冷的环境中时，也请使 用同样的方法。8. 本产品出厂时已经完成对码。特殊情况下需要对码，请按照以下方式操作： 1）确定转接器处于关闭状态; 2）保持长按手柄<START/STOP>按键，然后短按手柄 <ON/OFF>，至手柄OLED屏显示“Pairing...” 字样，再释放手柄<START/STOP>按键。 3）将转接器的电源开关推至ON。两部分显示屏会显示“Pair_OK”字样。配对成功。 两部分显示屏将显示转接器上的信息：焦距，光圈，电池电量，信号场强等。9. 使用手动调焦镜头，远程控制焦距功能将不能使用。10. 本产品的接环部分支持固件升级: 1）升级固件下载网址：http://www.aputure.com/cn/DEC-LensRegain /Update/ 2）升级固件时，请务必参照升级固件页面的步骤指引。规格参数工作峰值电流* 相反的操作可卸下镜头，按照镜头释放按钮上的指示方向按下镜头释放按钮，反向旋转镜头即可卸下镜头。Pairing... Pair_OK 爱图仕无线控制转接器减焦版是一款连接佳能EF卡口镜头与 MFT（Micro 4/3）卡口相机的无线控制减焦增光转接器。配备的减焦镜头可以在不改变镜头视角的情况下，把原镜头的光圈增大一档，并增加了视场。可使您的EF卡口镜头轻松适配多种相机、摄像机，满足日益丰富的视频拍摄需求。前言感谢您购买爱图仕产品重要提示FCC 符合声明您可以在本公司网站 中的炫彩视频系列产品栏目下找到本设备的详细使用者指南。www. a puture.com.cn OLED显示屏 A限位按键B限位按键光圈锁定按键录制启动/停止按键调焦拨杆 1/4”螺孔充电口光圈拨盘电源开关-1- -2- -3- -4- -5--10- -11--6- -7- -8- -9-相机卡口（For MFT）镜头释放按钮*箭头指示方向为释放镜头方向镜头固定销 连接器相机安装标志触点1/4”螺孔镜头安装标志减焦镜头 连接器安装标志安全箱 使用本产品前，请检查包装内是否包含所有以下物品。如有缺失，请即刻与经销商联系。控制盒充电升级线 (Charge & Update)遥控线 (Lanc)松下系列遥控线 (GH series)保修卡 使用者指南 供电口 供电口转接环手柄镜头盖蟹钳夹镜头后盖光圈全开模式(短按： 开启/关闭光圈 全开模式)3）安装转接器: 对准控制盒与转接环安装标识，按箭头方向插入。5.支架安装转接器可拆分工作，采用延长线（另购）将转接环与控制盒两者连接。并且控制盒部分可采用支架（另购）固定于相机冷靴座上。 转接器电源开关拨至ON，开机；拨至OFF，关机。短按手柄电源开关ON/OFF，切换手柄开关机状态。机器成功开启后，屏幕如下显示：可夹持于摇臂，肩托，脚架等固定设备上。4.蟹钳夹* 蟹钳夹两个面都可安装手柄与之配合的紧固件， 请根据您的使用习惯选择安装。松下 GH 系列BMD 系列3.连接遥控线与相机如图所示，根据不同的相机遥控插孔，用不同的遥控线连接控制盒和相机* 若需实现边充电边工作，可使用5V1A适配器或移动电源通过充电线接入充电口。功能介绍1.开机本设备配备增光减焦镜头，会增大相机的通光量，相当于使用转接器，镜头光圈增大一档，焦距缩短0.75倍。因此，在显示屏中显示的光圈值为实际通光量的等效光圈值，而非相机设定的光圈值。如：相机设定为f4，而DEC LensRegain会显示T2.8。2.增光减焦镜5V/1A充电时，使用充电升级线 (Charge & Update)。Micro USB端连接需充电的手柄或转接器，USB端连接5V1A的交流适配器（另购）。6.充电充电中，电池图标会闪动 此图标显示电池已充满* 发生电池低电压情况时，手柄的显示屏将分别提示如下：显示手柄电量不足（转接器上将不显示此提示）显示转接器电量不足（转接器上也将显示）Charge & Update*景深仍然保持原有镜头的特性7.光圈全开模式和震动提示镜组（片/组） 4/40.75xΦ37mm减焦镜头 放大倍率直径*初次使用本产品请先充满电。震动提示(长按： 开启/关闭 震动提示)OLED显示屏 电源开关遥控口/充电口/升级口 连接器插头 按键 功能 显示5.光圈调节拨动光圈拨盘< >调光圈。向左调小光圈，向右调大光圈。转接器和遥控手柄显示屏上将实时显示调整后的光圈数值。6.A、B焦点位置记忆 按键 功能 显示光圈拨盘 光圈 显示短按< A >： 记忆/取消 当前焦点位置短按< B >： 记忆/取消 当前焦点位置A、B设置成功短按手柄上的<A>/<B>按键，可设置记忆焦点位置。当焦点位置A、B都设置完成后拨动调焦拨杆，可实现在焦点A、B之间变速调焦.MaxMin 紧固件松下 GH 系列BMD 系列LancGH Series* 更换或卸下镜头前请先关闭所有设备的电源。请注意所有警告提示并遵守使用者指南内的所有指令。 请勿用手指接触本设备的电子触点，请勿将本设备放置在有腐蚀性化学物品的 地方，否则触点可能会被腐蚀，导致产品故障。如果电子触点被弄脏或沾上指 纹，请用柔软的布将其擦净。 请勿透过转换器的镜头观看太阳或明亮的光源。否则有可能会导致视力受损。 请勿将没有盖上镜头盖的镜头置于太阳下。否则镜头可能汇聚光线并引发火灾。请用软布、干布清洁本设备。本设备属于精密仪器，请避免使用时掉落、碰撞或承受重击。请勿将本设备靠近具有强磁场的物体，如磁铁或电动机。另外也要避免将本产品靠近发出较强无线电波的物体，如天线。强磁场可能引起产品故障或破坏数据传输。请勿将本设备放置在温度过高的地方，高温可能导致设备内电池受损或爆炸。请勿在滴水或易溅湿的环境使用本设备，否则有短路或电击的危险。需要维修时请联系授权的维修人员。本设备内有精密电子线路。未经许可擅自拆卸导致故障，不在本司保修范围内，但用户可以付费维修。建议使用爱图仕原厂线缆。由于使用非爱图仕原厂附件导致本产品的任何损坏，不在本司保修范围内，但用户可以付费维修。本产品已通过RoHS、CE和FCC认证，请参考相关国家标准使用和操作。因使用操作不当而造成机器损坏，不在保修范围内，但用户可以付费维修。此使用者指南依据本公司严格测试制定。设计和规格如有变更，恕不另行通知。警告:此设备符合 FCC 规则第 15 部分中的规范。操作设备须符合以下两个条件：(1) 此设备不会导致有害干扰；(2) 此设备可承受任何外来干扰，包括可能导致非预期操作的干扰。【警告】如果用户未经爱图仕明确许可而进行改动或改装，可能会丧失继续操作该设备的权利。【注】此设备经测试确定符合 B 类数码设备（依照 FCC 规则第 15 部分规范）的限制。这些限 制的设计旨在为居住场所安装条件下的有害干扰提供合理的保护。此设备生成、使用并可以发射 射频能量。如果未按照指示安装和使用，可能对无线电通信造成有害干扰。但是，在特定安装条 件下，不保证这类干扰不会发生。如果此设备确实对无线电或电视机接收信号造成有害干扰，而 这点可以通过关闭和打开设备来确定，那么建议用户尝试使用以下一种或多种措施来消除干扰： 调整接收天线的方向或重新放置。 扩大设备与接收器之间的距离。 将设备连接到其他电路的插座中，而不是接收器所连接电路的插座。 咨询经销商或有经验的无线电/电视机技术人员以获得帮助。
