OWNERS AND SERVICE MANUAL

INNOVATIVE CONCEPTS IN ENTERTAINMENT INC.

10123 MAIN STREET, CLARENCE, NY 14031

SERVICE: 1-716-759-0360

FAX: 1-716-759-0884

E-MAIL: service@icegame.com

WEBSITE: www.icegame.com

2

3

GAME FEATURES

The new MINI CRANE by I.C.E. was designed

with the operator in mind. Reliability, low main-

tenance, available custom cabinetry, and all

metal exterior construction are some of the most

important design features to be added to the

newest member of our crane family.

To keep things easy for the operator, all of our

best features have been carried over from our

other designs. Things such as an all-metal exte-

rior, powdered epoxy paint, tempered glass win-

dows, and full-featured programming are stan-

dards you’ve come to expect from I.C.E. prod-

ucts.

The MINI CRANE uses state of the art electron-

ics with a new drive circuit for all motors. In our

new design, even direct short circuits can’t dam-

age the motor or coil drivers. The protection is

built into the drivers themselves! Another advan-

tage is that the new board incorporates modular

driver circuits so the same main board can be

used on multiple products.

This crane has been made to give you a crane

that is competitive with other smaller cranes of

its size, but it has been engineered to leave the

competition behind. Every aspect of small crane

design has been scrutinized and improved to

bring it up to the standards necessary to com-

pete in today’s market.

We hope you thoroughly enjoy your ownership

experience with your new MINI CRANE. If you

have any questions or comments, please con-

tact our service department at: (716) 759-0360.

GAME PLAY

As coins are inserted into the MINI CRANE a

coin in sound will be heard. When sufficient

coins have been inserted, the game sound

starts, the claw clicks closed and re-opens,

which signals the start of the game. The crane

will position its self in the middle of the “play

field” and remain there, with the cranes sound

theme playing until the player is ready.

When the player has moved the joystick or

pressed the buttons, to move the crane, the

timer on the right display will begin to count

down. The player will position the crane above

the prize and they are attempting to win and

press the drop button to lower the claw.

If the nudging option is on, then the player will

have the ability to keep “nudging” the claw down

each time the button is pressed to hone in on

the chosen prize. If the nudging option is off,

then the player will have only one chance to

drop the claw.

When the claw is fully dropped it will close and

retract to its upper most position. The crane will

then automatically position its self over the prize

chute at the rear of the cabinet. The claw will

open, releasing the prize (if grabbed) into the

prize chamber. The player can now remove the

prize from the chamber through the prize door

located in the front, lower left corner of the

game. The game is now in its home position

and is ready for the next player in line.

INTRODUCTION

4

SAFETY PRECAUTIONS

IMPORTANT: FAILURE TO FOLLOW THESE DIREC-

TIONS CLOSELY COULD CAUSE SERIOUS DAMAGE

TO YOUR GAME.

WARNING: WHEN INSTALLING THIS GAME, A 3

PRONG GROUNDED RECEPTACLE MUST BE USED.

FAILURE TO DO SO COULD RESULT IN SERIOUS

INJURY

TO YOURSELF OR OTHERS. FAILURE TO USE

A GROUNDED RECEPTACLE COULD ALSO CAUSE

IMPROPER GAME OPERATION, OR DAMAGE TO

THE ELECTRONICS.

DO NOT DEFEAT OR REMOVE THE GROUNDING

PRONG ON THE POWER CORD FOR THE SAME

REASONS

AS GIVEN ABOVE. USING AN IMPROPERLY

GROUNDED GAME COULD VOID YOUR WAR-

RANTY.

GAME SET-UP

BEFORE PLUGGING THE GAME IN, OR TURNING IT

ON, BE SURE THE GAME HAS BEEN SET TO THE

PROPER VOLTAGE. YOUR GAME SHOULD COME

PRE-SET FROM THE FACTORY CORRECT VOLT-

AGE, HOWEVER IT IS A GOOD IDEA TO CHECK THE

A.C. WALL RECEPTACLE VOLTAGE BEFORE PLUG-

GING THE GAME IN.

ASSEMBLY INSTRUCTIONS

1. Carefully un-box the game from its packaging.

2. Using the supplied keys, unlock the front door of the

cabinet.

3. Cut all tie wraps holding the wagon assembly and

crane in place.

4. Plug the game into a three prong grounded recepta-

cle. NOTE: The appliance must be positioned such

that the plug is accessible during use.

5. The game is now ready for start up.

TESTING

After the initial setup, it is time to test your game for

proper operation.

1. Locate the game in its permanent location.

2. Be sure the game has been properly plugged into a

3 prong grounded outlet, and that the receptacle is

in good working order.

3. If using an extension cord, be sure it is a 3 prong

grounded type of at least 16Ga.

4. Verify that the game is set up for the proper voltage,

and turn the power to the game on.

5. The game will run through a test mode at every

startup. See test mode explanation in the program-

ming section for details.

6. Insert coins/bills into the machine at least ten times

into the coin mech/bill acceptor to assure proper

operation

7. Check the credit and prize counters for proper

8. operation.

9. Check game volume during busy time at location to

set it at the proper level.

CLEANING

Regular cleaning of this game will keep it looking new,

and greatly enhance its appeal.

Clean the windows of your MINI CRANE with a standard

window cleaner such as Windex®

Clean the cabinet sides with a good cleaner such as

“Fantastic” or “409” and a soft rag. A mild soapy solution

can be used. You may use a furniture polish when fin-

ished to protect the game and make it look more attrac-

tive,

NOTE: DO NOT USE ALCOHOL, THINNERS OF ANY KIND,

OR PINBALL PLAY FIELD CLEANERS ON ANY OF THE

CABINET SURFACES ESPECIALLY THE DECALS.

IF YOU HAVE ANY QUESTIONS OR COMMENTS REGARD-

ING INSTALLATION OR PROPER FUNCTION OF YOUR

GAME, PLEASE CALL OUR SERVICE DEPARTMENT AT 1-

716-759-0360.

SET-UP / TESTING / MAINTENANCE

5

ENTERING THE

PROGRAMMING MODE

To enter the programming mode, open the

front door and press the button marked PROG.

Located on the main board housing inside the

front door and the crane will move to the front

center of the game.

Once you are in the programming mode move

the joystick forward and backward or use the

forward button to move through the modes. To

change the value of the mode move the joy-

stick left and right or use the right button. Once

all options have been set, press the drop but-

ton and the game will return to regular game

plat with the new settings.

MODE EXPLANATIONS

MODE "0" GAME TYPE

There are 5 game types:

"0" Left, Right, Forward, Backward, Nudge

This mode is for a control panel that commonly

has a joystick and allows the player to lower

the claw each time the drop button is pressed.

This allows the player to hone in on the prize

they are attempting to win. NOTE: The crane

will position it self according to the operator

presets, options 10 and 11, at coin up if option

17 is set to “0” (off). The crane will position it

self according to the operator presets, options

10 and 11, at the end of the game option 17 is

set to “1” (on).

"1" Left, Right, Forward, Backward, Drop -

This mode is for a control panel that commonly

has a joystick and the claw drops fully when

the button is pressed. NOTE: The crane will

position it self according to the operator pre-

sets, options 10 and 11, at coin up if option 17

is set to “0” (off). The crane will position it self

according to the operator presets, options 100

and 11, at the end of the game option 17 is

set to “1” (on).

PROGRAMMING

MODE "1" GAME MODE

There are two game modes:

Normal play – This is the standard type of

play where a player has inserted enough

coins to create 1 credit and then plays the

game. Whether the player wins a prize or

not, the game is over.

Play till win – In this mode the player has

inserted enough coins to create 1 credit and

will be able to play the game until they win a

prize.

MODE "2" TIME

This option allows the operator to set the game

play length. Options are from 10 seconds to 60

seconds in 5 second intervals.

MODE "3" COIN

This option allows the operator to set the

number of coins needed to create 1 credit. A

setting of “0” will put the game into free play.

MODE "4" BILL

This option allows the operator to set the

number of coins each bill is worth. A setting of

“0” turns this option off.

6

MODE "5" COUNTER TYPE

Setting this option to “0” will have the game

count credits on the mechanical and software

counters. Setting this option to “1” will have the

game count coins.

MODE "6" ATTRACT

This option allows the operator to set the num-

ber of minutes between attract modes. Avail-

able settings are from 1 minute to 30 minutes

in 1 minute intervals.

MODE "7" ATTRACT TYPE

This option allows the operator to choose what

type of attract mode they want.

“1” will have an attract mode with movement

only.

“2” will have an attract mode with both audio

and movement.

MODE "8" MANUAL

STRENGTH

This allows the operator to set the strength of

the claw for manual percentaging. Available

claw strengths are 50-99 with 99 = 100% claw

strength.

NOTE: When in this mode the claw

will open and close with the strength set in this

mode. The operator will be able to feel each

strength setting to determine which best suits

their needs. When the correct strength setting

is determined the operator can just move to

the next option, and the manual strength op-

tion is set.

MODE "9" AUTO

STRENGTH

This option allows the operator to set the claw

strength for the auto percentaging mode.

Available claw strengths are 50-99 with 99 =

100% claw strength. NOTE: When in auto per-

centaging mode the claw will, at bottoming,

close with 100% strength and will then be

backed off to the number set in this mode. i.e.

With this mode set to 75, the claw will at bot-

toming close with 100% strength then back off

to 75. NOTE: The claw will open and close al-

lowing the operator to feel each strength set-

ting to determine which best suits their needs.

When the correct setting is determined the op-

erator can just move to the next option, and

the auto strength option is set.

MODE "10" RIGHT TIME

This option allows the operator to adjust the

time the right motor drive will stay on, for cen-

tering purposes at game start up. Available

settings are 0-40 intervals of ¼ sec. EXAM-

PLE: If this option is set at five, then the right

drive motor will stay on for (5*¼ sec = 1¼ sec.)

1¼ sec. This option is used to correctly center

the crane at coin up with different coin speeds

and crane sizes. The operator can also use

this option along with option 17 to adjust the

position of the crane head when the game is

over.

MODE "11" FORWARD

TIME

This option allows the operator to adjust the

time the forward motor drive will stay on, for

centering purposes at game start up. Available

settings are 0-40 intervals of ¼ sec. EXAM-

PLE: If this option is set at five, then the for-

ward drive motor will stay on for (5*¼ sec = 1¼

sec.) 1¼ sec.

PROGRAMMING

7

This option is used to correctly center the

crane at coin up with different coin speeds and

crane sizes. The operator can also use this

option along with option 17 to adjust the posi-

tion of the crane head when the game is over.

MODE "12" PLUSH COST

The operator will use this option to detail the

cost of an average piece of plush used in their

crane, in terms of the lowest denominator coin

used to coin up the game. EXAMPLE: If the

average cost of a piece of plush is $1.50 and

the lowest denominator coin used to coin up

the game is $0.25 then the number entered for

this option will be 6 ($1.50 / $0.25 = 6). The

available plush costs for this option are 1-20.

MODE "13" PAYOUT

The Operator will input the desired payout for

the auto percentaging mode. The available

percentages for this option are 20% - 50%.

MODE "14" TICKETS TO

PLAY

This option is used only if you have a ticket

dispenser. In this option the operator has the

ability to set the number of tickets that a player

will be awarded just for playing the game. The

available range is 0-99 tickets.

MODE "15" TICKETS IF

LOSE

This option is used only if you have a ticket

dispenser. In this option the operator has the

ability to set the number of tickets that a player

will be awarded when a piece of plush is not

won. The available range is 0-99 tickets.

MODE "16" FACTORY

DEFAULT

A setting of “0” for this option will keep the lat-

est operator settings. A setting of “1” for this

option will restore all options to factory de-

faults.

MODE "17" CENTERING

ON / OFF

This option allows the operator to position the

crane any where on the play field. If option 17

is set to “0” (Off) the crane head will position

its self at the beginning of the game according

to the operator pre sets in options 10 and 11. If

option 17 is set to “1” (On) the crane head will

position its self at the end of the game accord-

ing to the operator pre sets in options 10 and

11.

MODE "18" SNAP ON / OFF

This option allows the operator to turn off and

on the snap of the claws at the start of the

game. If option 18 is set to “0” (Off) the claws

will not snap together at the start of a game. If

option 18 is set to “1” (On) the claws will snap

together at the start of a game.

PROGRAMMING

8

MODE "19" CREDIT

DISCOUNTING

This mode allows the operator to give a free

game for multiple CONSECUTIVE credits. In

other words, if for example you set a "2" for

this option, for every 2 credits IN A ROW that

are inserted a free game will be given. The

range for this option is 0-5. Setting a "0" turns

this option OFF.

MODE "20" UP / DOWN

MOTOR TEST

When the operator moves the joystick left and

right the claw will raise and lower respectively.

The display will change from:

0-1 if the up switch is made

0-2 if the down switch is made

0-3 if both switches are made

MODE "21" LEFT/RIGHT

MOTOR TEST

When the joystick is moved left and right the

wagon assembly will move to the left and right.

The right display will change from:

0-1 if the left home switch is made

MODE "22" FRONT/BACK

MOTOR TEST

When the joystick is moved left and right the

wagon assembly will move to the forward and

backwards. The right display will change from:

0-1 if the back home switch is made

Entering the Accounting Mode

To enter the accounting mode, open the front

door and press the button marked ACCOUNT.

Located on the main board housing inside the

front door. The left displays will flash between

“cr” (credits) then the number of credits 1 -

9999. If the operator presses the drop button

the displays will flash “pl”(plush), then the

number of plush that has passed through the

sensor. These numbers can never be reset

and WILL NOT match the numbers on the me-

chanical counters from the counters. It is ad-

visable that the owner, note this difference so

that they will be able to track actual software

coins/credits and plush out vs. mechanical

counters for a counting purposes.

Test Mode Explanation

Every time that the game is powered up, of the

door is closed, the game will run through a test

mode to check the following items.

 HOME BACK SWITCH

 FRONT/BACK MOTOR

 PRIZE SENSOR

 HOME LEFT SWITCH

 LEFT/RIGHT MOTOR

 OUT OF RANGE

 UP SWITCH

 CREDIT/COIN DISCONNECT

 E² (MEMORY)

 DOWN SWITCH

 CLAW CLOSE, CLAW OPEN

If any of the above items are malfunctioning,

the game will light the 4 decimal points on the

podium displays. This will alert the operator

that there has been a problem. The operator

needs only unlock and open the front door and

the error codes will be displayed one at a time

on the left display. To move to the next error

code the operator needs to press the drop but-

ton. Repairs should be made to those areas in

which errors have been logged. When all

codes have been seen

PROGRAMMING

9

and the door is closed the game will reset error

codes, run through a test mode to check for

proper operation and if all is well, game play

can start, if the 4 decimals will once again light

up, the operator will need to check the error

codes again. The play can continue to the best

of the machines abilities, with problems, until

the errors are corrected. At no time should the

game be inoperable unless a key component

is damaged.

Error code 10/11 will alert the operator that the

game has paid out 8 too many or 8 too little

pieces pf plush then in auto percentaging. If

this error is logged the game will automatically

revert to MANUAL settings until one of the fol-

lowing options is changed. (COST OF PLUSH,

AUTO % MIN., % PAYOUT, OR GAME

COST)

This is why it is imperative that the manual set-

ting be setup before auto percentaging is

used.

NOTE: Changing one of these options will re-

set error code 10/11 and the game will begin

auto percentaging with the new settings.

NOTE: Some items on the list can not be de-

tected by the game and require that the opera-

tor watches for these actions to be performed

during the

Error Codes

1 E² (Memory)

2 Prize Sensor

3 Up Sensor

4 Down Sensor

5 Left/Right Sensor

6 Front/Back Sensor

7 Left/Right Motor

8 Front/Back Motor

9 Counter Disconnect

10 Out Of Range (High)

11 Out Of Range (Low)

10

PROGRAMMING

MODE DESCRIPTION MIN / MAX / DEF MEANING

(Credit Display) (Timer Display)

BASIC PROGRAMMING

0 Game Type 0, 4, 0 0—Left, Right, Forward, Backward, Nudge

1—Left, Right, Forward, Backward, Drop

1 Game Mode 0, 1, 0 0—Normal Play

1—Play till you win

2 Time 10, 60, 20 10—60 Seconds (Inc. every 5 seconds)

3 Coin 0, 9, 2 0—Free Play

1—9 Coins required for a single credit

4 Bill 0, 9, 4 0—Off

1—9 Number of coins each bill is worth

5 Counter Type 0, 1, 0 0—Credit counter

1—Coin counter

6 Attract 1, 30, 20 1—30 Minutes between attract modes

7 Attract Type 1, 2, 2 1—Motion only

2—Audio and motion

8 Manual Strength 60, 99, 75 40—99 Claw strength Inc. by 1 (99= MAX)

ADVANCED PROGRAMMING

9 Auto Skill Leveling Strength 0, 99, 0 0—Auto off

60—99 Claw strength in auto (99 = MAX)

10 Right Time 0, 9, 5 0—40 Number of 1/4 sec. time intervals right

11 Forward Time 0, 40, 5 0—40 Number of 1/4 sec. time intervals forward

12 Plush Cost 1, 20, 4 Coins per piece of plush

13 Payout 20, 50, 33 20—50 Desired payout percentage

14 Tickets to Play 0, 99, 0 0—99 tickets to be paid just to play game

15 Tickets if Lose 0, 99, 0 0—99 tickets to be paid if you do not win plush

16 Factory Default 0, 1, 0 0—Normal

1—Restore factory defaults upon next startup

17 Center On / Off 0, 1, 0 0—Center option off

1—Center option on

18 Snap On / Off 0, 1, 1 0—Snap option off

1—Snap option on

19 Credit Discounting 0, 5, 0 # of Consecutive credits inserted for 1 free game

20 Up / Down Motor Test DIAG. Right display changes:

0–1 Up switch is made

0 – 2 Down switch is made

0 – 3 Both switches are made

21 Left / Right Motor Test DIAG. Right display changes:

0 – 1 Left switch is made

22 Front / Back Motor Test DIAG. Right display changes:

0 – 1 Back switch is made

0 – 2 Front switch is made

11

OVERVIEW

Although our crane offers the option of being

able to be set up for MANUAL or AUTOMATIC

PERCENTAGING modes, many operators

prefer to use the MANUAL percentaging mode

for a number of reasons.

NOTE: THE FOLLOWING INFORMATION IS

NOT APPLICABLE TO CANDY CRANES.

CANDY CRANES ARE GENERALLY SET UP

AS PAY 'TILL YOU WIN AND ARE NOR-

MALLY SET UP FOR THE SHOVEL OR

SCOOP TO GRAB AS STRONGLY AS

POSSIBLE.

When Manually percentaging your cranes, ALL

of the following factors may affect your payout:

 Claw open position

 Claw closed position

 Claw Slider positioning

 Claw shape

 Claw Strength

 Size and Texture of the Plush

 Packing of the Plush

 Type of Customer

Basic EXPERIENCE and EXPERIMENTA-

TION will determine the best set-up for you.

Our cranes offer all of the popular adjustment

options, so you can easily set your crane up to

work just as any other cranes you may have

previously used.

The above mentioned factors are described in

greater detail below. We will review all of these

in detail, so you will know better how to set up

your game.

NOTE: IF YOU ALREADY KNOW HOW ALL

OF THE ABOVE MENTIONED FACTORS

AFFECT YOUR EARNINGS, YOU MAY

PROCEED TO THE SETUP SECTION.

CLAW OPEN POSITION

The CLAW OPEN POSITION is determined by

how you set the adjustable washer that is

located under the solenoid plunger. This

should be adjusted so that the claw will go

around one plush prize, but will not go around

more than one. This is important so you can

limit the payout and more accurately keep

track of your prize count (if you have a prize

sensor). It is especially important to adjust the

claw open position if you use small or beanie

type prizes. If the claw opening is too large,

you could pick up multiple prizes at once very

easily.

This open position can be easily changed by

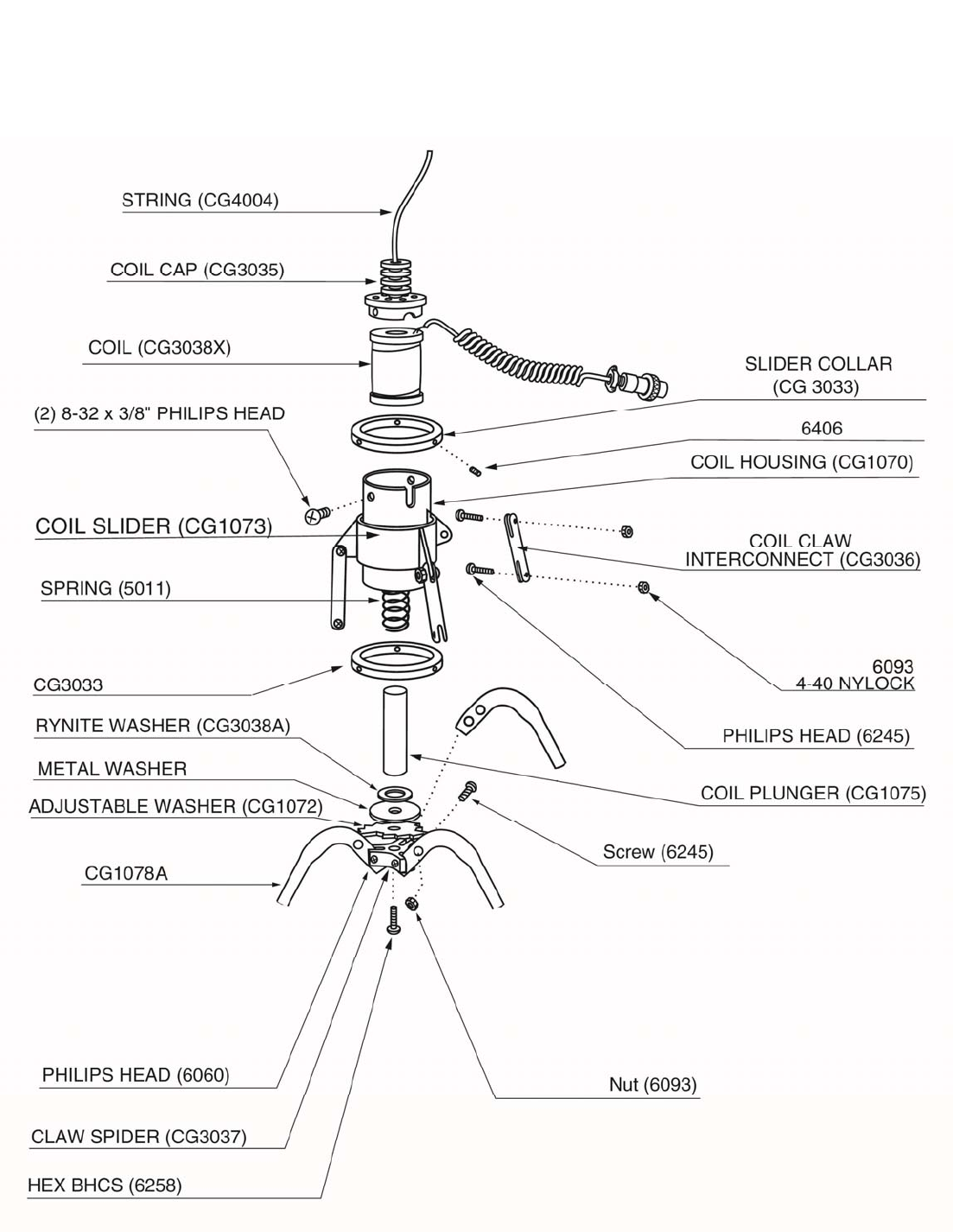

ROTATING the "Saw Blade" shaped cam

washer located just under the solenoid

plunger. Loosen the Allen head bolt under the

claw assembly, rotate the washer until the

claw open position what you want, then re-

tighten the Allen bolt.

CLAW CLOSED POSITION

The CLAW CLOSED POSITION is important

for determining the OVERALL grab or

"appearance" of grab of the claw. Normally,

the claw closed position is set so that when the

solenoid in engaged, the claw appears to close

fully. For the most part, the prizes are big

enough that the tips of the claw can be set up

to be slightly apart when the solenoid is ener-

gized. Normally you do not want the tips to

bang together as they can lock into each other

if they overlap too far, then even when the so-

lenoid releases, the claw tips are stuck to-

gether. For this reason we generally recom-

mend that you keep about a "dime" sized

space between the claws when they are

closed. Of course you can also adjust this

opening size to anything you

would like.

To adjust the claw closed position, loosen the

bottom collar on the solenoid housing, and

raise

MANUAL SETUP / PERCENTAGING

12

or lower the position of the collar to adjust the

closed position of the claws. Push the solenoid

plunger in by hand to verify the claw position

and re-tighten the collar.

CLAW SLIDER POSITIONING

The job of the CLAW SLIDER is to determine

the ACTUAL grab of the claw. This actual grab

however, will change based on where the claw

contacts the plush. This change is what actu-

ally makes the game exciting to the customers

and allows for more challenging game play.

The slider will move up and allow the claw to

open whenever there is lateral (side to side)

pressure exerted on the claw tips. When the

pressure is removed the claw instantly returns

to the closed position.

Since the lateral (side to side) pressure

against the claw tips is what allows the slider

to function, the shape of the claw will influence

how easily the slider will work. (For more on

claw shape, read the claw shape section of the

manual).

The claw slider is adjusted by the position of

the upper collar on the solenoid body. If you

set the collar against the slider, it will not func-

tion at all. This effectively locks the slider out.

This is "usually" what is done for the auto-

percentaging mode.

If the collar is adjusted for a larger gap, the

claw will open further. The bigger the gap, the

more the claw grab is actually limited.

You may wish to adjust the slider so that a

grab of an arm, leg or hand will not work, but a

grab of the body will.

You may wish to set the slider so that even a

body grab won't work, but a grab across the

body and shoulder will.

NOTE: THIS ADJUSTMENT HAS THE MOST

IMPACT ON YOUR PERCENTAGING.

ALLOWING THE SLIDER MORE OR LESS

MOVEMENT WILL CHANGE YOUR OVER-

ALL PAYOUT PERCENTAGE.

Play around with the upper collar positioning to

get an idea of how this adjustment works.

CLAW SHAPE

CLAW SHAPE will determine how easily the

plush is grabbed. A rounder shape will "cradle"

the plush more making it easier to pick up

plush. You will want to use this shape (see

illustration) if you have large or heavy plush

and are having a difficult time dispensing

enough product.

On the other hand, if the game consistently

pays out too much, you may wish to change

the shape of the claw if none of your other ad-

justments will percentage the game properly.

You will want to bend the claws into more of a

"HEART" shape. (See illustration) This will al-

low the plush to slide more easily through the

claws.

CLAW STRENGTH

CLAW STRENGTH can also be used to fine

tune your payout percentages. By increasing

claw strength from lowest power (40) to (99)

highest you can adjust the strength of the sole-

noid. You will normally want to keep your claw

strength between 80-99 unless you are using

very light prizes.

SIZE AND TEXTURE OF PLUSH

The size and texture of plush will had a dra-

matic impact on how your game pays out.

Under normal circumstances, the closer you

can keep the prizes to having the same gen-

eral size and weight, the easier it will be to get

consistent payouts. While it is sometimes nec-

essary to mix

MANUAL SETUP / PERCENTAGING

13

different size prizes, please be aware that this

will affect your payout to some extent.

The biggest issue with plush size will be ad-

justing the slider to compensate for the differ-

ent sizes.

Texture of the plush can affect payouts as

well. Vinyl toys will stick and grab the claws

differently than fur covered toys that will slide

through more easily.

PACKING OF THE PLUSH

How you "pack" the plush will have a big im-

pact on how your game pays out. Some peo-

ple prefer to tightly pack the plush to keep the

payout lower. This works fine until a few prizes

are won and then it becomes much easier to

win. We suggest a loose pack as it is much

easier to be consistent with, and much easier

to percentage.

TYPE OF CUSTOMER

Lastly, don't forget the type of customer at your

location will be a determining factor. You may

need to make adjustments just for this.

SETTING UP YOUR MACHINE

MANUALLY

PLEASE READ THIS SECTION CAREFULLY

TO GET THE BEST POSSIBLE RESULTS

FROM YOUR MACHINE

In this section we will give you an example of

how you might like to set your machine up.

As you become more familiar with this ma-

chine, you may be able to eliminate some

steps.

CALCULATIONS

The best way to set up your crane manually is

to test it in house over a number of games.

We suggest testing in 100 game increments to

get the best idea of an accurate payout. Once

you become familiar with your crane and your

prizes, you may not need to test as extensively

in house. Of course, you could bypass this en-

tire step, but you might get undesirable results

in the field.

Use the following example to figure out your

PAYOUT using the following example.

Let's say your game costs 50 cents to play,

you want to pay out 33 percent, and your plush

cost is $2.50.

First, if you play 100 games at 50 cents you

need to figure out what is 33 percent of 100

games at 50 cents.

Calculate 100 X .50 (50 cents). This equals

$50.00.

Next Calculate $50.00 X .33 which is 33 per-

cent. Your result will be $16.50.

Next, divide the $16.50 by the value of your

plush which in this case is $2.50. The answer

is 6.6 This would mean that for each 100

games you play, you would want to pay out

approximately 6.6 prizes.

Let's do the same calculations again with dif-

ferent beginning values…

Let's say your game costs 25 cents to play,

you want to pay out 20 percent, and your plush

cost is $1.50

First, if you play 100 games at 25 cents you

need to figure out what is 20 percent of 100

games at 25 cents.

MANUAL SETUP / PERCENTAGING

14

Calculate 100 X .25 (25 cents). This equals

$25.00.

Next Calculate $25.00 X .20 which is 20 per-

cent. Your result will be $5.00

Next, divide the $5.00 by the value of your

plush which in this case is $1.50. The answer

is 3.3 This would mean that for each 100

games you play, you would want to pay out

approximately 3.3 prizes.

INITIAL ADJUSTMENT

Set your game up as follows before testing:

Claw Open Position - Leave stock from the

factory unless the open position is too small to

go around the plush prizes.

Claw Closed Position - Leave an opening

about the size of a dime when claws are

closed. This will prevent the claw tips from

overlapping which could cause the claw tips to

stick together.

Claw Slider Position - The initial setting of the

slider should be set so that if the claw tips grab

onto an arm or leg of the plush the claws will

slip off. This only applies when the tips grab

onto the plush from the side.

NOTE: WHEN THE CLAW TIPS ARE UNDER

THE PRIZE THE SLIDER WILL HAVE VERY

LITTLE EFFECT UNLESS THE CLAW

SHAPE HAS BEEN CHANGES NOTICEA-

BLY.

Loosen the top collar or cap located on top of

the slider and raise or lower to allow greater or

lesser effect from the slider.

Claw Shape - do not change at this time.

Claw Strength - Set the initial strength value

to "70"

FINAL ADJUSTMENT

After playing 100 games check to see what

your payout is at. Use the adjustments to

change the percentages. Since there are so

many different ways and preferences by the

customers to raise or lower payouts, please

feel free to experiment with different ways. The

information at the beginning of this section de-

tails all of the possible adjustments and their

affects on the game.

Retry until you are comfortable that you have a

good initial set-up for the street.

You will find that various locations will payout

differently just because of the types of players

that frequent the locations.

You will also find that the plush can have a big

impact on the payout percentages.

HINTS FOR CONSISTENT PAYOUTS

1. Find an adjustment method that works

good and stick with it for all of your ICE

cranes.

2. Try to keep the plush size and type as con-

sistent as possible within the machine.

3. Try to write down settings for certain types

of plush.

EXAMPLE: When you put in the "Valentines

Day or Christmas" mix, write down those set-

tings so you can set your crane up the same

way the next time you put that particular mix

into the machine. Also, if you have a lot of lo-

cations, you can just tell your route man how

to set up the cranes for that particular type of

plush.

MANUAL SETUP / PERCENTAGING

15

Problem Probable Cause Solution

The decimals on the 4 displays are lit up. This is in fact not a problem but a way of letting

the operator know that there was a problem dur-

ing the startup mode.

Open the front door and the error

codes are shown on the displays.

To advance through the error

codes, press the fire button.

No game power. On-Off switch on the game is turned off?

Blown AC power fuse?

Game not plugged in or cord is damaged?

Bad transformer?

Transformer harness not connected?

Bad power module?

Turn Power on.

Replace with proper fuse.

Check power cord.

Check for proper voltages

Check harness.

Replace power module.

Game will not take money or give

credits correctly.

Bad coin switch?

Coin discounting set wrong?

Coin per credit setting incorrect?

Bad Coin mechanism?

Loose or damaged harnessing?

Bad main PCB circuit board?

Check w/ Ohm meter and replace.

Check programmable setting.

Check programmable setting.

Adjust or replace.

Check w/ Ohm meter and repair.

Repair or replace main board.

Displays do not work. Bad 12v fuse?

Bad display PCB circuit board?

Bad main PCB circuit board?

Loose or damaged display harnessing?

Replace with proper fuse.

Repair or replace PCB circuit

board.

Repair or replace PCB circuit

board.

Check w/Ohm meter and repair.

Crane or wagon doesn’t move. Bad motor?

Loose or damaged harnessing?

Bad switch on button or joystick?

Bad harnessing to buttons or joystick?

Blown fuse to motors on main PCB circuit board.

Broken drive belt?

Replace motor.

Check w/Ohm meter and repair.

Replace switch.

Check w/Ohm meter and repair.

Replace with proper fuse.

Replace broken belt.

Crane keeps trying to move in the

home position.

Bad limit switches?

Limit switch not aligned with actuator?

Replace Switches.

Align switch and actuator.

Claw will not close. Blown fuse to claw on main PCB circuit board?

Bad coil?

Loose or damaged harnessing?

Claw has mechanically jammed?

Replace with proper fuse.

Replace coil.

Check w/Ohm meter and repair.

Find jam and repair.

Claw stays closed. Bad drive transistor on main PCB circuit board?

Claw has mechanically locked?

Replace transistor.

Find jam and repair.

Auto precentaging is not functioning. Programming is not correctly set?

Bad prize sensor?

Loose or damaged sensor harness?

Set option 9 and 16.

Replace prize sensor.

Check w/Ohm meter and repair.

Claw goes down and then up but

doesn’t close.

Down switch is bad?

Loose or damaged harness to down switch?

Replace down switch.

Check w/Ohm meter and replace.

Claw comes up and about 15 sec-

onds passes before crane moves to

the home position.

Up switch is bad?

Loose or damaged harness to the up switch?

Replace up switch.

Check w/Ohm meter and replace.

Crane or wagon wheels slip. Missing or damaged o-ring drive belts?

Loose set screws in wheels?

Loose set screws in drive coupler?

Rails need to be scuffed?

Replace o-ring belts.

Tighten set screws.

Tighten set screws.

Scuff top of rails with sandpaper.

16

QUICK TROUBLESHOOTING

A self-test will be performed each time the front door is “closed” or the game is powered up.

If the Wagon does not move smoothly through a full travel from left to right, check to see that the

wheel spacing is correct. If the spacing is correct then check the 2 cabinet rails for burrs that may

cause the wheels to bind. Also check for broken or loose drive belts.

If the Wagon does not move smoothly through a full travel from front to back, check to see that the rod

bushings are straight and not binding. Check for excessively loose drive belts or one of them broken.

If the front door is having trouble closing fully, check to see that the front door harness is routed properly.

Also be sure the prize door is fully shut. If it is partially open it will not allow the front door to open

or close properly.

If the door will not lock properly or locks with difficulty, check to see if the lock rotates smoothly. Next

check that the lock rods are not binding on the lock cam or the lock rod guides. Next check that all

friction points have been lubricated with molly grease. Finally if need be, file the lock rod guides such

that the door closes and locks smoothly but be careful not to file out too much, for this may cause the

door not to pull tightly to the cabinet as it was intended to do.

If the decimals light up on the displays after a self-test, an error has been locked. To advance through

the error codes press the drop button when in error detection mode.

If, at the beginning of the self-test mode, the claw does not drop, one or more of the following may apply.

The prize sensor is not working, or blocked. The string or string lever is mechanically binding.

The up or down switch is sticking or misaligned from its actuator.

If claw stays closed it is likely that the diode has blown and the transistor controlling the claw has also

blown. Shut off the game immediately and have a new diode, in coil assembly, and transistor, on

main board, installed.

If claw is jerky while being lowered, it is likely that the string has mechanically bound on the spool. To

fix the string binding enter programming mode and go to CLAW UP/DOWN MODE. By moving the

joystick to the left and right you are able to raise and lower the claw mechanism. Move the crane over

the prize chute and lower the claw mechanism all the way until it starts to wind up backwards. Reverse

the motor direction to raise the claw mechanism and properly rewind the string on the spool.

Exit the programming mode and the string should be free of mechanical binding.

If the claw stays open First check for bad fuses on the main board, next check that there are no wires

dislodged from the connectors in the harness between the wagon and the crane, the harness between

the wagon and the main board, the crane assembly and the wagon assembly. If the problem still exists

and no fuses are blown or wires dislodged it is likely that the transistor controlling the voltage to

the claw has blown on the main board. Replace main board and have the other main board repaired

by electronics.

If the crane/wagon in the home position still tries to move left or back, check to see that the actuators

are both present. Check to see that the sensors are present. Next check to see that the sensors and

the actuators are both aligned. Then check to see that the sensor wires are not dislodged from the

connectors. Finally replace the sensor; it is likely to be bad.

17

D

C

B

A

4321

D

C

B

A

4321

DATE 2/26/10

DRAWN BY TBUCZYNSKYJ

FILENAME CS & GG1700RMBX.VSD

PAGE 1 OF 21

REVISED 10/27/11

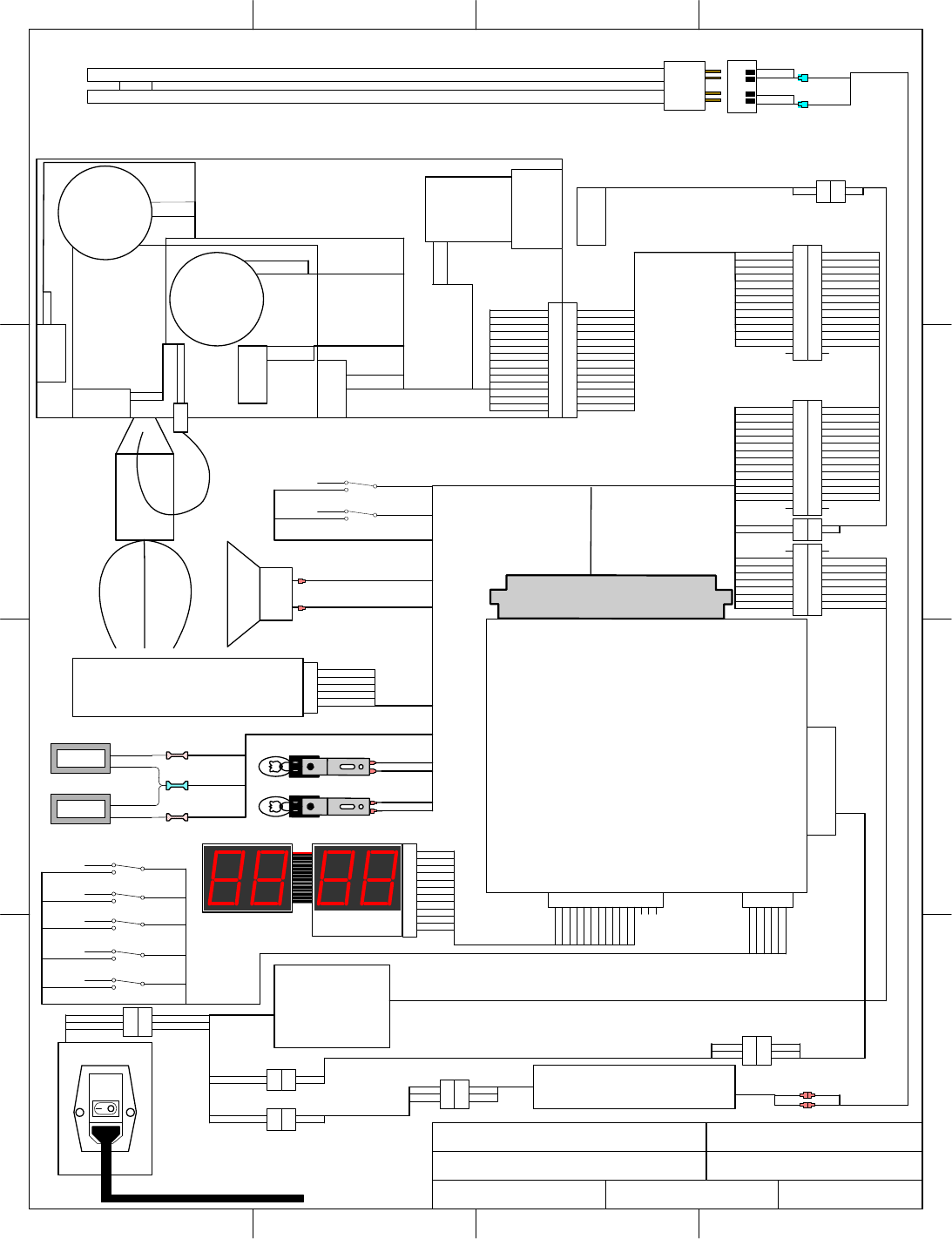

TITLE System Schematic

PART NO. CS & GG1700RMBX

CX1135CSX

MAIN PCB BOX ASY.

POWER MODULE

CS2007X

CG2002X

transformer

CS8449X - BALLAST

PP250X

RED

RED

YELLOW

YELLOW

8312 – 40W PL-L

UP

DOWN

RIGHT

LEFT

BUTTON

black/white

black/white

black/white

black/white

black/white

JOYSTICK SWITCHES

white/black

white/brown

white/orange

white/red

white/yellow

CS2064X

CS2064X

BC2032X

CS2767LX

CS2767LX

CS2754LX

MS2764X - FAN

ASY

MS2764X

CS2051X

YELLOW

RED

CS2051X

CLAW UP

DOWN

MOTOR

DOWN

SW

UP SW

BACK

SW

LEFT

RIGHT

MOTOR

FRONT

BACK

MOTOR

PRIZE

black

red

0000

COIN

red

black

0000

orange

black

orange

black

tan/black

brown/white

red/black

red/gray

brown/gray

CS2039X - PRIZE SENSOR

CS2750HX

CS2750HX

CS2750HX

CS2750HX

MS2764X

COIN SWITCHES

white/black

white/black

black/yellow

black/yellow

HOME

SW

CS2750HX

CS2750HX

CS2052AX

CS2752MX

CS2056X

CS2012X

orange

red

black

black

yellow

green

blue

blue/white

green

green/white

violet

white

red

orange

CS1055X

Wagon Asy.

Violet

black/white

FWD

SW

4

AMP

1

2

3

1

2

3

BROWN

GREEN/YELLOW

BLUE

BLACK

GREEN

WHITE

1

2

1

2

1

2

1

2

BLACK

WHITE

BLACK

WHITE

BLACK

WHITE

BLACK

WHITE

1

2

3

1

2

3

BLACK

GREEN

WHITE

BLACK

GREEN

WHITE

YELLOW YELLOW

RED RED

1

2

3

1

2

3

BLACK

GREEN

WHITE

BLACK

GREEN

WHITE

CS2064X

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

1

2

3

4

5

6

1

2

3

4

5

6

7

8

9

10

11

12

brown

red/black

orange/black

yellow

green

light blue

ORANGE

gray

white

black/white

tan

BLACK

brown

red/black

orange/black

yellow

green

light blue

ORANGE

gray

white

black/white

tan

BLACK

black/white

white/black

white/brown

white/orange

white/red

white/yellow

1

2

3

4

5

6

7

8

9

ORANGE x2

BLUE x2

YELLOW x2

BLUE/BLACK x2

RED x2

YELLOW/BLACK x2

ORANGE/BLACK x2

RED/BLACK x2

1

2

3

4

5

6

7

8

9

1

2

1

2

1

2

3

4

5

6

KEY

orange

black

green/black

KEY

FP2007

SPEAKER

ORANGE x2

BLUE x2

YELLOW x2

BLUE/BLACK x2

RED x2

YELLOW/BLACK x2

ORANGE/BLACK x2

RED/BLACK x2

pink

black

pink

black

1

2

1

2

pink

black

pink

black

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

CS2056X

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

CS2051X

CG2002X

CG2002X

BROWN

RED

red

tan

green

GRAY

black

light blue

ORANGE

YELLOW

white

GREEN

BLUE

VIOLET

BROWN

RED

red

tan

green

BROWN

black

light blue

ORANGE

YELLOW

white

GREEN

BLUE

BLUE

red

white

green

tan

black

YELLOW

BLUE

ORANGE

GREEN

BROWN

RED

* BROWN

* BLUE

light blue

black (flex)

red (flex)

orange (flex)

yellow (flex)

green (flex)

violet (flex)

white (flex)

black (flex)

red (flex)

orange (flex)

yellow (flex)

green (flex)

violet (flex)

white (flex)

black (flex)

red (flex)

orange (flex)

yellow (flex)

green (flex)

violet (flex)

white (flex)

black (flex)

red (flex)

orange (flex)

yellow (flex)

green (flex)

violet (flex)

white (flex)

green/yellow

violet

black (existing)

black (flex)

red (flex)

orange (flex)

blue

blue/white

green

green/white

yellow (flex)

green (flex)

violet (flex)

white (flex)

black + black/white

green/yellow * 2

CS2053X

CS2053X

CS2053X

CS2053X

CS2053X

18

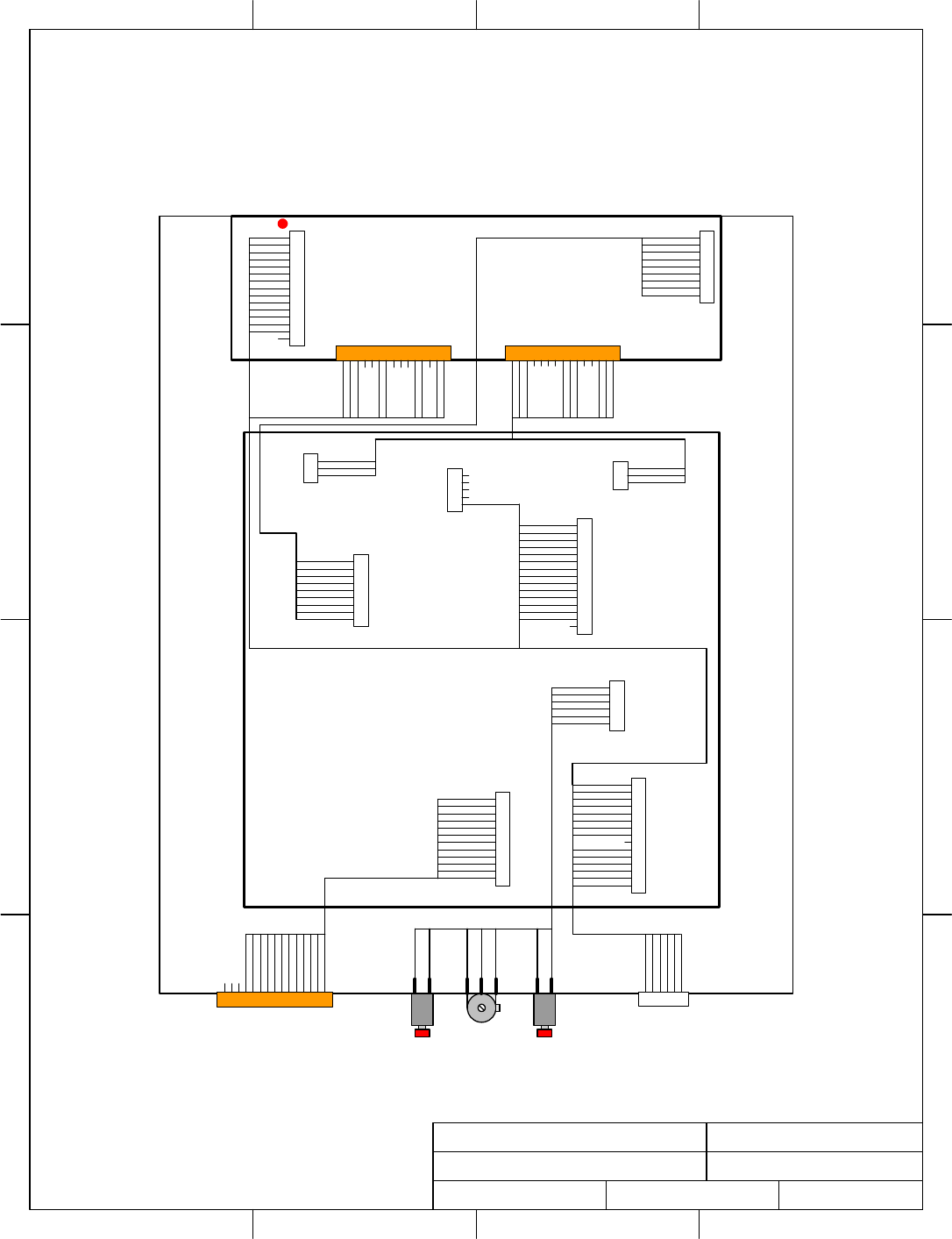

D

C

B

A

4321

D

C

B

A

black

black/blue

white/gray

black

red/white

red/black

DATE 2/26/10

DRAWN BY TBUCZYNSKYJ

FILENAME CS & GG1700RMBX.VSD

PAGE 2 OF 21

REVISED 10/27/11

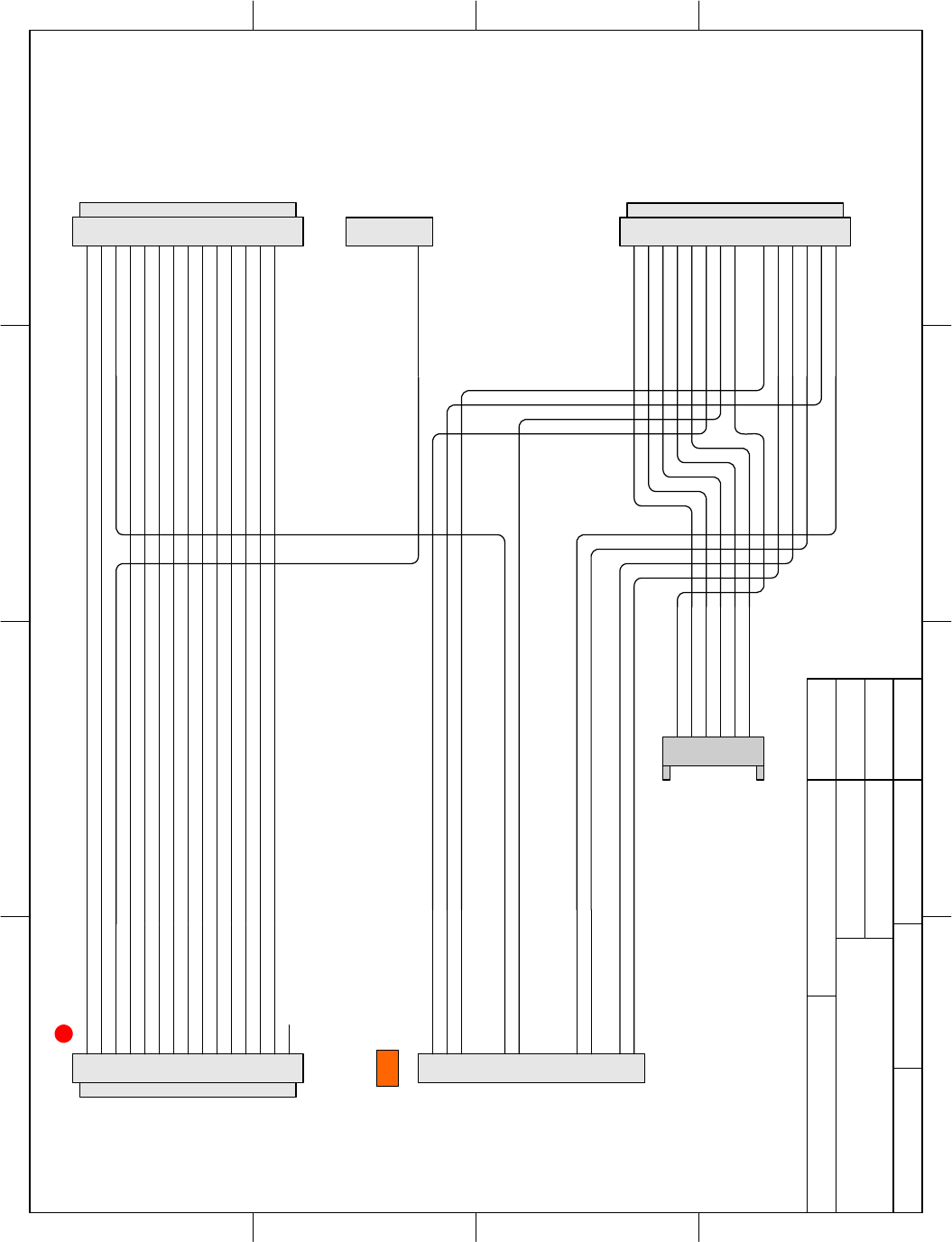

TITLE RMB SCHEMATIC

PART NO. CX1135CSX

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

1

2

3

4

5

6

1

2

3

4

5

6

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

1

2

3

4

5

6

7

8

9

10

11

12

1

2

3

4

5

6

7

8

9

1

2

3

4

5

6

7

8

9

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

1

2

31

2

3

4

5

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

1

2

3

black

black/blue

white/gray

black

red/white

red/black

white/gray

black

red/white

red/black

black

black

black/blue

Ground

Program

Account

Ground

Audio Top

Audio Pot

P2

CG2059X

CG2059X

brown/white

red

tan

orange

green/black

black

black

KEY

black x2

Prize Counter

+5 VDC

Coin Counter

Power

Prize Sense

Ground

L/R Home Ground

KEY

Ground

brown/white

red

tan

Prize Counter

+5 VDC

Coin Counter

P8

P4 orange

green/black

black x2

Power

Prize Sense

Ground

CS2761LX

PI1

PI2

P6

brown

red/black

orange/black

yellow

green

light blue

ORANGE

gray

white

black/white

tan

BLACK

Seg a

Seg b

Seg c

Seg d

Seg e

Seg f

+12 VDC

Seg h

Seg g

Sel 1

Sel 2

ground

brown

red/black

orange/black

yellow

green

light blue

ORANGE

gray

white

black/white

tan

BLACK

CS2762LX

CS2762LX

CS2761LX

white/black

white/brown

white/orange

white/red

white/yellow

violet/brown

black/white

black/white

violet/orange

red/gray

brown/gray

orange

violet/red

black

P9 Joy Up

Joy Dn

Joy Rt

Joy Lt

Joy Btn

Coin 1

ground

ground

ground

DBV

Speaker +

Speaker -

+12 VDC

Coin 2

ground

black/white

white/black

white/brown

white/orange

white/red

white/yellow

CS2769MX

red/whiteCrane FWD Switch

PX4

BROWN

RED

pink

brown

green

GRAY

black

blue

ORANGE

YELLOW

white

GREEN

BLUE

VIOLET

Motor Up

Motor Down

HOME L/R

Claw Up

Claw Down

Claw -

Ground

Ground

Motor Right

Motor Back

HOME F/B

Motor Left

Motor Forward

Claw +

P1

CS2769MX

CS2769MX

CS2769MX

CS2769MX

KEY

ORANGE

BLUE

YELLOW

BLUE/BLACK

RED

YELLOW/BLACK

ORANGE/BLACK

RED/BLACK

KEY

16.5+

10.5+

36.0+

10.5-

13.2+

36.0-

16.5-

13.2-

KEY

ORANGE

BLUE

YELLOW

BLUE/BLACK

RED

YELLOW/BLACK

ORANGE/BLACK

RED/BLACK

P10

P10

CX2068X

CX2068X

P1

BROWN

RED

red/white

brown

green

GRAY

black

blue

ORANGE

YELLOW

white

GREEN

BLUE

VIOLET

Motor Up

Motor Down

HOME L/R

Claw Up

Claw Down

Claw -

Ground

Ground

Motor Right

Motor Back

HOME F/B

Motor Left

Motor Forward

Claw +

CS2034X

CX2031X

Coin 1

Coin 2

DBV

Coin 6

ground

KEY

ground

+12 VDC

Speaker -

Speaker +

violet/brown

violet/red

violet/orange

pink

black/white

black

orange

brown/gray

red/gray

ACCT PROGRAM

VOL ADJUST

19

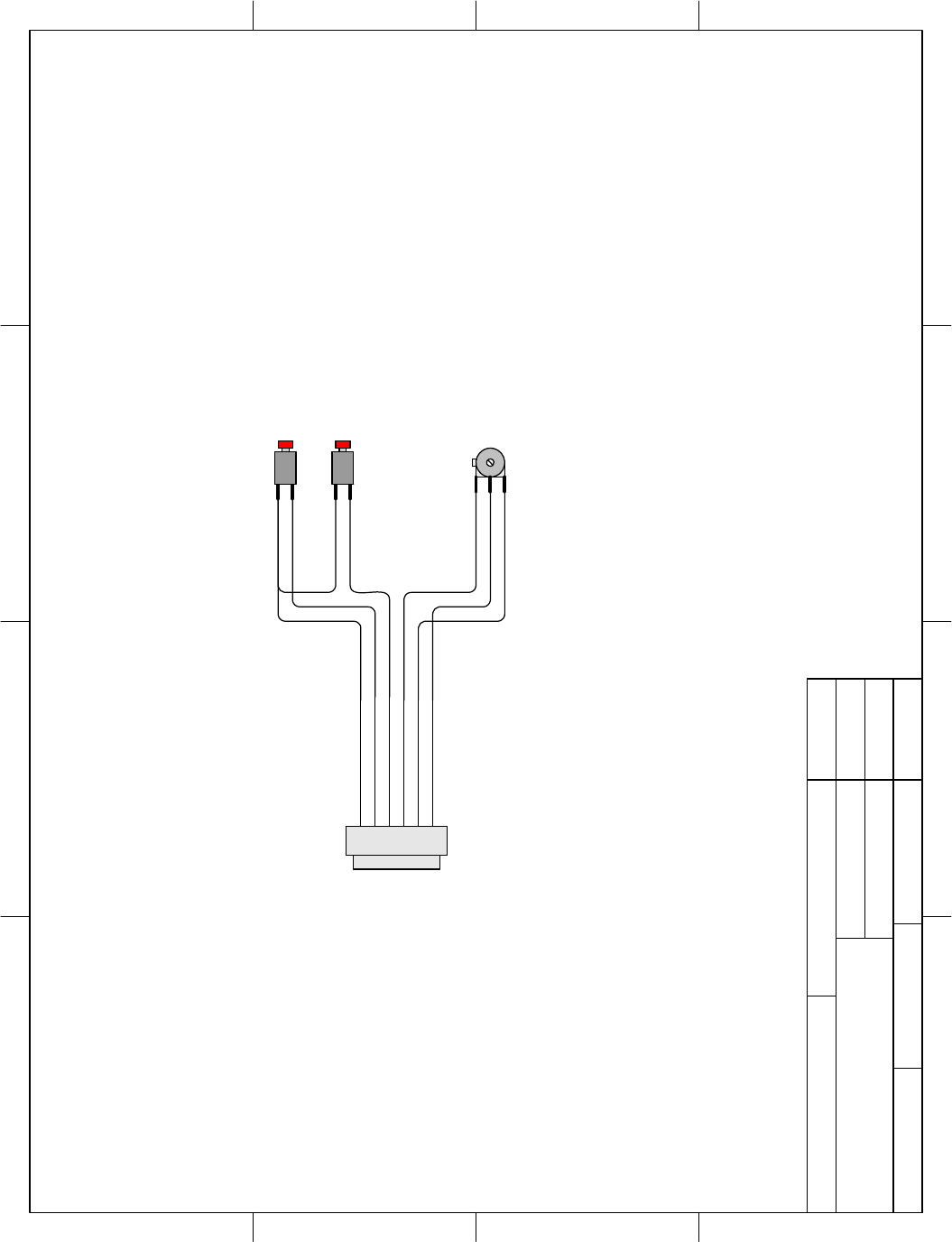

D

C

B

A

4321

D

C

B

A

4321

Ground

Program

Account

Ground

Audio Top

Audio Pot

1

2

3

4

5

66 PIN PLUG #E02173

SOLID PIN #E02100S

black

black/blue

white/gray

black

red/white

red/black

14"

14"

#CG2059AX-REMOTE

HARNESS

black

black/blue

black

white/gray

black

red/black

red/white

#E02289

#E02289

PROGRAM SWITCH

ACCOUNT SWITCH

VOLUME ADJUST

#E02365

(CS/GG1700RMBX PART

OF CX1135CSX)

HARNESSING TO

SUB ASY

SUB ASY TO

PUT ON ZIP TIES

#CG2059X-REMOTE ASY

14"

12"

11"

13"

CG/P2

2"

TO:

MAIN PCB

DATE 2/26/10

DESCRIPTION

CG2059X - REMOTE ASY

CG2059AX - REMOTE

HARNESS

FILENAME CS &

GG1700RMBX.VSD

PAGE 3 OF 21

REVISED 10/27/11

TITLE CG & GG1700RMBX

PART NO. CG2059X & CG2059AX REQUIRED

SIGNATURES

ENGINEER

MANAGER

VENDOR

DRAWN BY TBUCZYNSKYJ

20

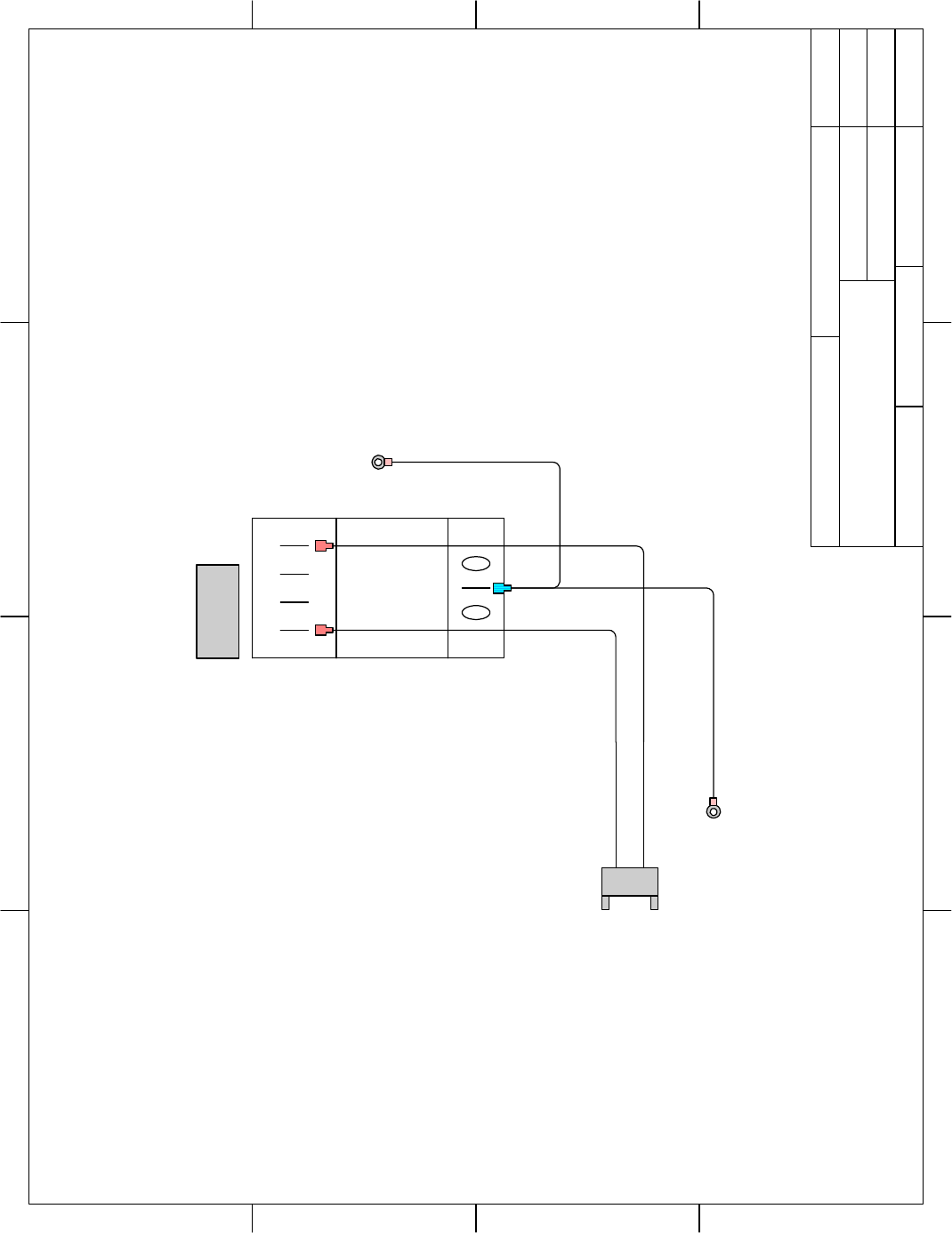

D

C

B

A

4321

D

C

B

A

4321

A B C D

#E00651

.187

#E00651

.187

#E00638

.187

3 PIN CAP #E02288

FEMALE #E02102

1

2

3

#E20217

#E20217 GREEN/YELLOW

BROWN

BLUE

GREEN/YELLOW

BROWN

BLUE

12 "

12 "

25"

4 "

To Bracket

To Transformer

PELSOSSXO

#E00038 - FUSE MDQ-4 4AMP SLO-BLO

#E02892 - POWER MODULE CORCOM PELS0SSX0

#CC3007 - WORKBOX (SINGLE)

#RC1001 - BRACKET (POWER MODULE)

CS2055X - HARNESS

POWER MOD

CS

TIME DELAY

FUSE #7077 DECAL - TIME DELAY FUSE

SEE CS2707X

220 V - 2 AMP FUSE E02062

DATE 2/26/10

DESCRIPTION CS2007X - POWER MOD ASY

CS2055X HARNESS

FILENAME CS &

GG1700RMBX.VSD

PAGE 4 OF 21

REVISED 10/27/11

TITLE CG & GG1700RMBX

PART NO. CS2007X & CS2055X REQUIRED

SIGNATURES

ENGINEER

MANAGER

VENDOR

DRAWN BY TBUCZYNSKYJ

21

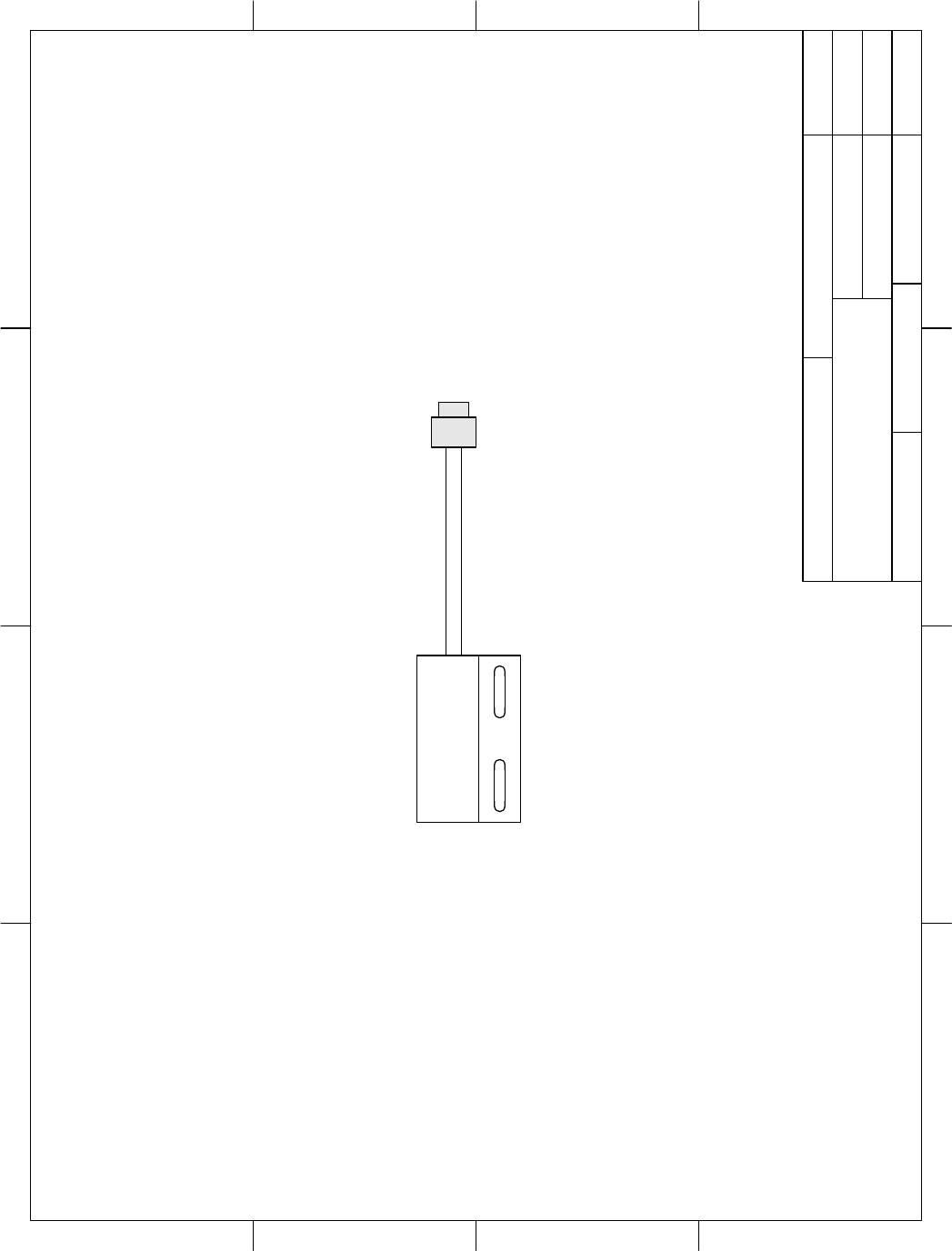

D

C

B

A

4321

D

C

B

A

4321

1

2

2 PIN PLUG #2103

SOLID PIN #2100S

black

black

#CG2012 - SENSOR

(HAMLIN 59145-010)

FULL LENGTH CS

TO:

CS2056X

SUB ASY DATE 2/26/10

DESCRIPTION SENSOR ASY.

FILENAME CS &

GG1700RMBX.VSD

PAGE 5 OF 21

REVISED 10/27/11

TITLE CG & GG1700RMBX

PART NO. CS2012X REQUIRED

SIGNATURES

ENGINEER

MANAGER

VENDOR

DRAWN BY TBUCZYNSKYJ

22

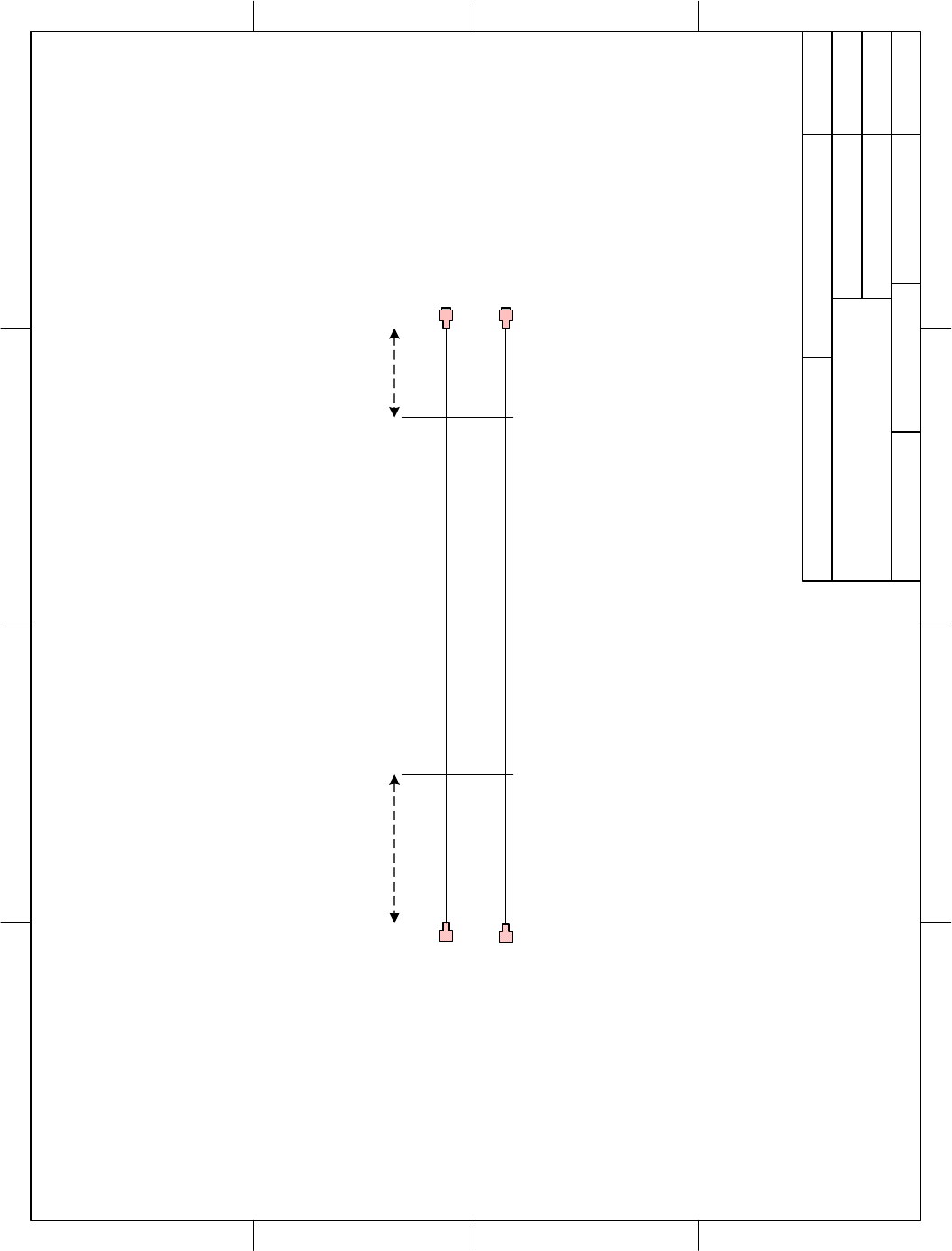

D

C

B

A

4321

D

C

B

A

4321

#E00653T

.250 M#E00654

.250

M

To PLL Socket

RED (600V)

YELLOW (600V)

To Ballast

55 "

55 "

* Twist together at 55"

ZIP TIE @ 3" FROM FAST ON ZIP TIE @ 3" FROM

FAST ON

#E00653T

.250

#E00654

.250

DATE 2/26/10

DESCRIPTION BALLAST EXTENTION

HARNESS

FILENAME CS &

GG1700RMBX.VSD

PAGE 6 OF 21

REVISED 10/27/11

TITLE CG & GG1700RMBX

PART NO. CS2051X REQUIRED

SIGNATURES

ENGINEER

MANAGER

VENDOR

DRAWN BY TBUCZYNSKYJ

600V (18AWG)

RED - E08447

YELLOW - E08446

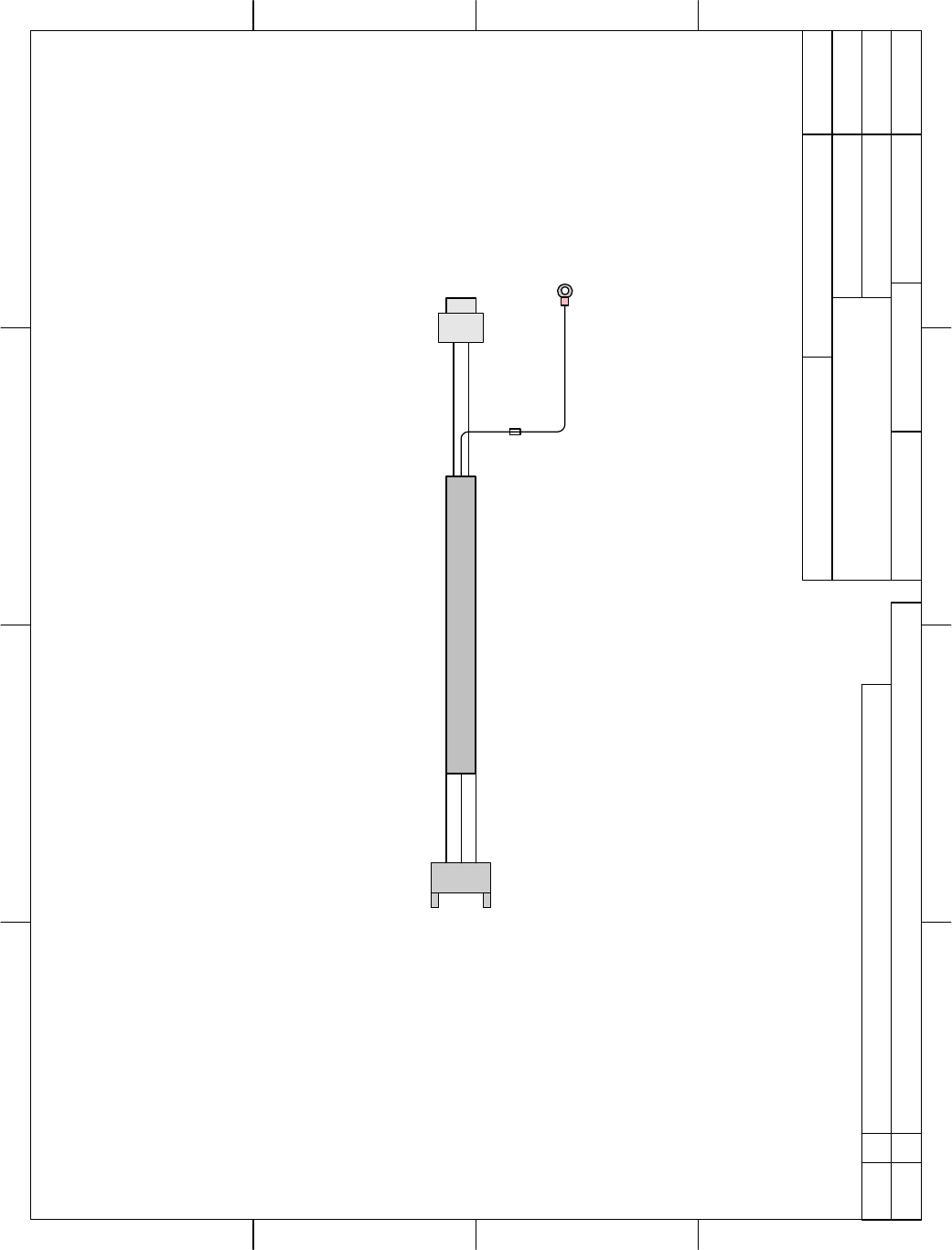

23

D

C

B

A

4321

D

C

B

A

4321

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

15 PIN PLUG #E02144

SPLIT PIN #E02100

15 PIN CAP #E02367

FEMALE PIN #E02102

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

#E00652

CRANE FWD SW

CRANE BACK SW

CLAW DOWN SW

CLAW UP SW

COMMON

FRONT/BACK MOTOR +

FRONT/BACK MOTOR -

LEFT/RIGHT MOTOR +

LEFT/RIGHT MOTOR -

UP/DOWN MOTOR +

UP/DOWN MOTOR -

SOLENOID - (PIN 1)

SOLENOID + (PIN 2)

COMMON

EARTH GROUND

CRANE FWD SW

CRANE BACK SW

CLAW DOWN SW

CLAW UP SW

COMMON

FRONT/BACK MOTOR +

FRONT/BACK MOTOR -

LEFT/RIGHT MOTOR +

LEFT/RIGHT MOTOR -

UP/DOWN MOTOR +

UP/DOWN MOTOR -

SOLENOID - (PIN 1)

SOLENOID + (PIN 2)

COMMON

green/yellow

black (flex)

red (flex)

orange (flex)

yellow (flex)

green (flex)

violet (flex)

white (flex)

black (flex)

red (flex)

orange (flex)

yellow (flex)

green (flex)

violet (flex)

white (flex)

green/yellow

black (flex)

red (flex)

orange (flex)

yellow (flex)

green (flex)

violet (flex)

white (flex)

black (flex)

red (flex)

orange (flex)

yellow (flex)

green (flex)

violet (flex)

white (flex)

31 "

36 "

TRACK

FLEX

END RIGID

END

To Frame

LENGTH OF

TRACKING

@ 39 PIECES -

CS3008A

A-7 ON PIN MACHINE A-7 ON PIN MACHINE

FLEX WIRES

CUT WIRES @ 32"

THEN, LIGHT TWIST TO 31"

MICROTRACK

END LINK MALE

SINGLE PIECE

CS3008C

MICROTRACK

END LINK FEMALE

DOUBLE PIECE

CS3008B

CS3008B - FEMALE

CS3008C - MALE

RIGID

END

FLEX

END

DATE 2/26/10

DESCRIPTION MAIN TO WAGON UPPER

HARNESS

FILENAME CS &

GG1700RMBX.VSD

PAGE 7 OF 21

REVISED 10/27/11

TITLE CG & GG1700RMBX

PART NO. CS2052AX REQUIRED

SIGNATURES

ENGINEER

MANAGER

VENDOR

DRAWN BY TBUCZYNSKYJ

24

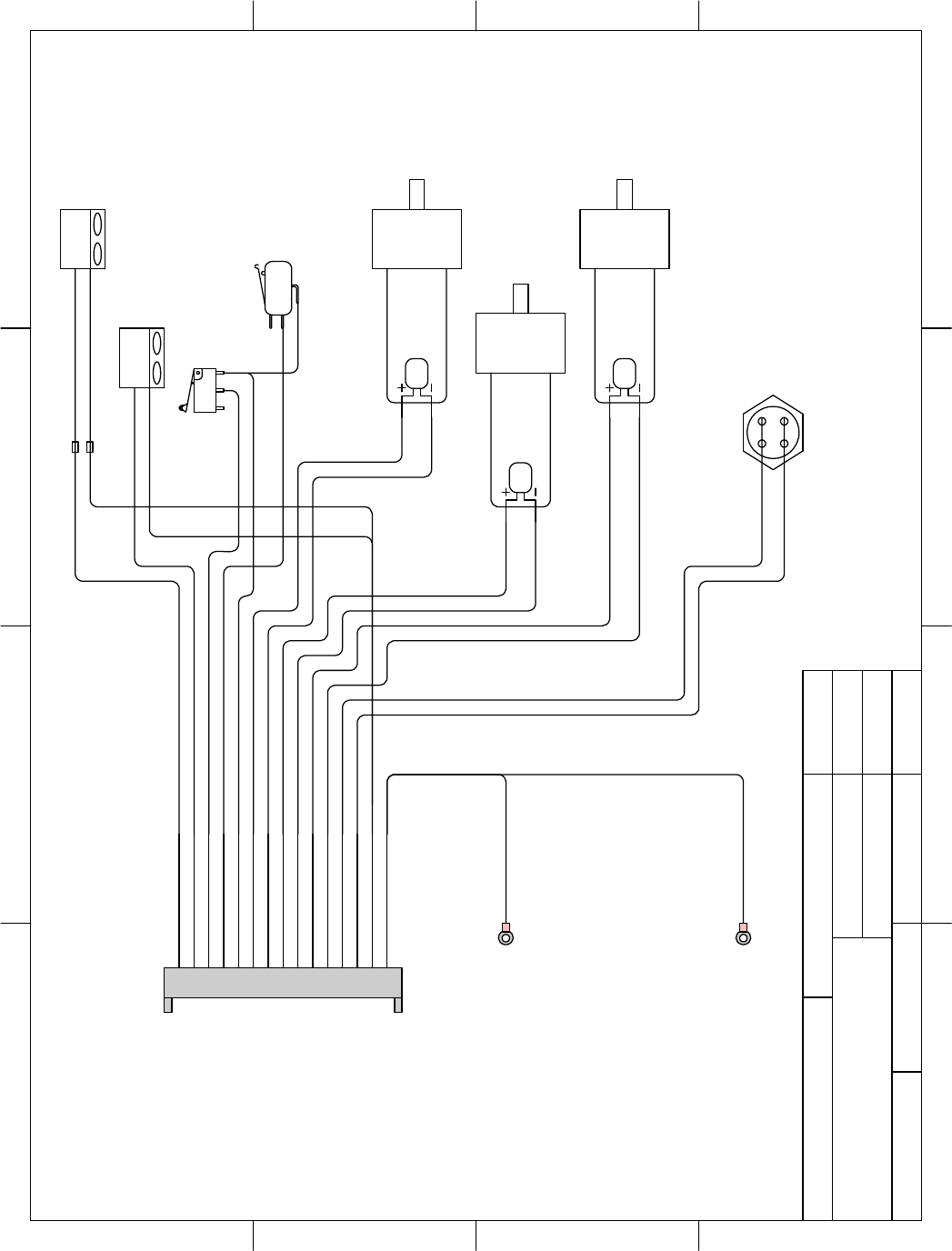

D

C

B

A

4321

D

C

B

A

4321

15 PIN CAP #E02367

FEMALE PIN #E02102

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

CRANE FWD SW

CRANE BACK SW

CLAW DOWN SW

CLAW UP SW

COMMON

FRONT/BACK MOTOR +

FRONT/BACK MOTOR -

LEFT/RIGHT MOTOR +

LEFT/RIGHT MOTOR -

UP/DOWN MOTOR +

UP/DOWN MOTOR -

SOLENOID - (PIN 1)

SOLENOID + (PIN 2)

COMMON

EARTH GROUND

violet

black (existing)

black (flex)

red (flex)

orange (flex)

blue

blue/white

green

green/white

yellow (flex)

green (flex)

violet (flex)

white (flex)

black (existing) + black/white

green/yellow * 2

1

2

4

3

CRANE

FWD SW

CRANE

BACK SW

FRONT/BACK MOTOR

LEFT/RIGHT MOTOR

UP/DOWN MOTOR

#E20217

#E20217

#2513

#2513 black

black

violet

black/white

black

black

green/yellow

green/yellow

violet (flex)

white (flex)

yellow (flex)

green (flex)

blue

blue/white

green

green/white

black (flex)

orange (flex)

red (flex)

orange

4-1/2 "

34-1/2 "

34 "

35-1/2 "

34-1/2 "

7 "

36 "

10-1/2 "

35-1/2 "

37-1/2 "

To 15 - pin

Bracket

To Crane Wagon

37 "

#2959 - CAP. (274-002)

VANCO CBC4PX

#CS2008

#CS2008

#CS2008

#CS2008 - MOTOR GLOBE

415A-541

#CS2008 - MOTOR GLOBE

415A-541

#CS2008 - MOTOR GLOBE

415A-541

#E08452 - SWITCH (SPDT)

V3L-1123-D8 MICR

#8422 - MICROSWITCH

UM50E10F01

#CG2012 - SENSOR

(HAMLIN 59145-010)

#CG2012 - SENSOR

(HAMLIN 59145-010)

#8005

#8005

#8005

GOES TO SUB ASY

TO:

CS2752AX

DATE 2/26/10

DESCRIPTION WAGON/CRANE HARNESS

(Part of CS1055X Wagon Asy.)

FILENAME CS &

GG1700RMBX.VSD

PAGE 8 OF 21

REVISED 10/27/11

TITLE CG & GG1700RMBX

PART NO. CS2053X REQUIRED

SIGNATURES

ENGINEER

MANAGER

VENDOR

DRAWN BY TBUCZYNSKYJ

25

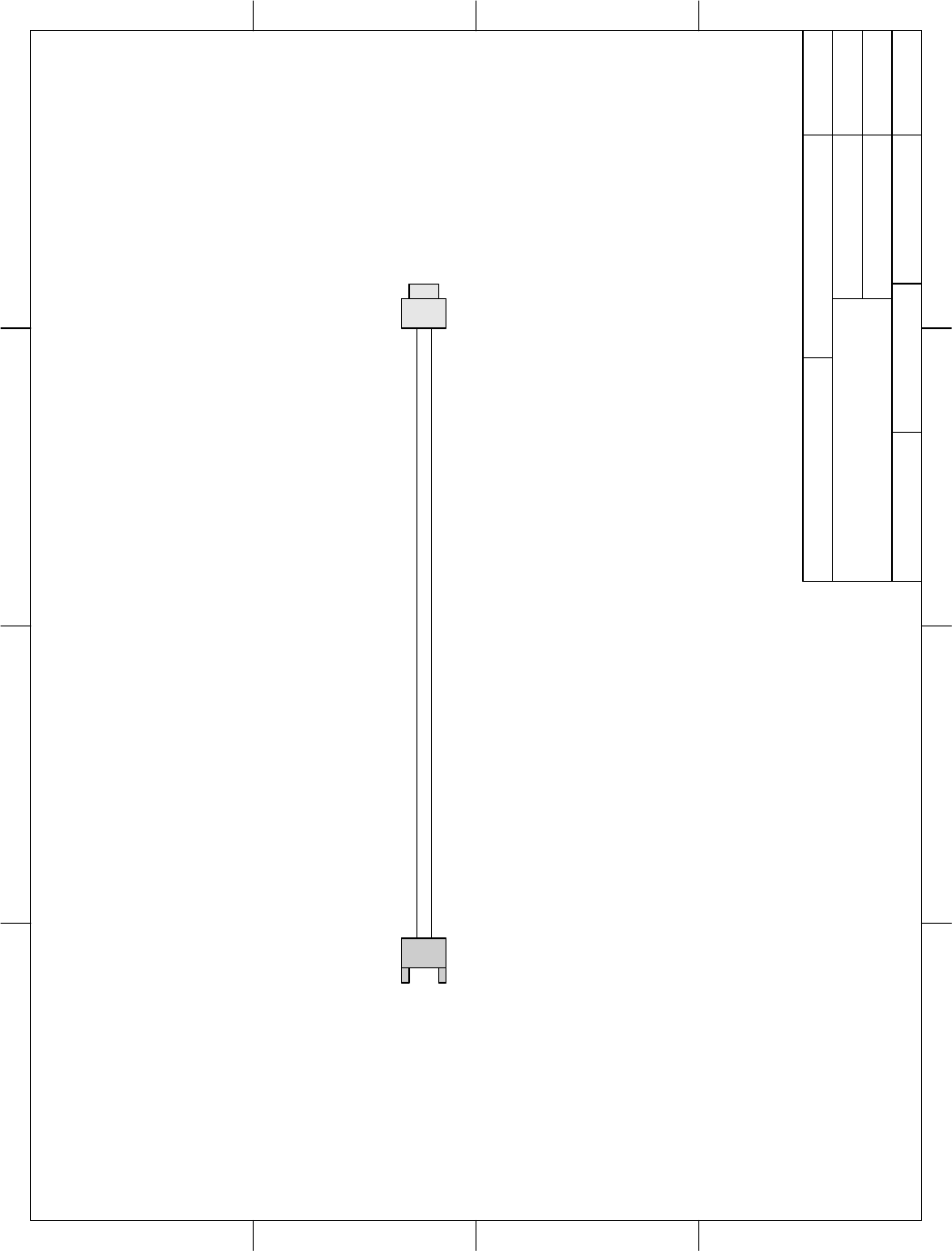

D

C

B

A

4321

D

C

B

A

4321

1

2

2 PIN PLUG #E02103

SOLID PIN #E02100S

2 PIN CAP #E02181

FEMALE PIN #E02102

1

2

pink

black

pink

black

66 "

TO:

CS2012X

TO:

CS2750HX

CS

DATE 2/26/10

DESCRIPTION SENSOR EXTENTION

HARNESS

FILENAME CS &

GG1700RMBX.VSD

PAGE 9 OF 21

REVISED 10/27/11

TITLE CG & GG1700RMBX

PART NO. CS2056X REQUIRED

SIGNATURES

ENGINEER

MANAGER

VENDOR

DRAWN BY TBUCZYNSKYJ

26

D

C

B

A

4321

D

C

B

A

4321

3 PIN CAP #E02288

FEMALE #E02102

1

2

3

#E08173 - CABLE 3 COND SVT

BLACK

GREEN

WHITE

E02513

#E20217

GREEN/YELLOW

8 "

TO:

#1 BALLAST

AND

#2 FAN - MS2764X

TO:

TRANSFORMER #CG2002X

1

2

2 PIN PLUG #E02103

SOLID PIN #E02100S

BLACK

WHITE

10 "

PER GAME WHEN USED IN CS/GG1700RMBX (#1 & #2)2QTY

PER GAME WHEN USED IN CS1000X (SEE #1)1QTY

DATE 2/26/10

DESCRIPTION BALLAST POWER EXTENTION

FILENAME CS &

GG1700RMBX.VSD

PAGE 10 OF 21

REVISED 10/27/11

TITLE CG & GG1700RMBX

PART NO. CS2064X REQUIRED

SIGNATURES

ENGINEER

MANAGER

VENDOR

DRAWN BY TBUCZYNSKYJ

CS

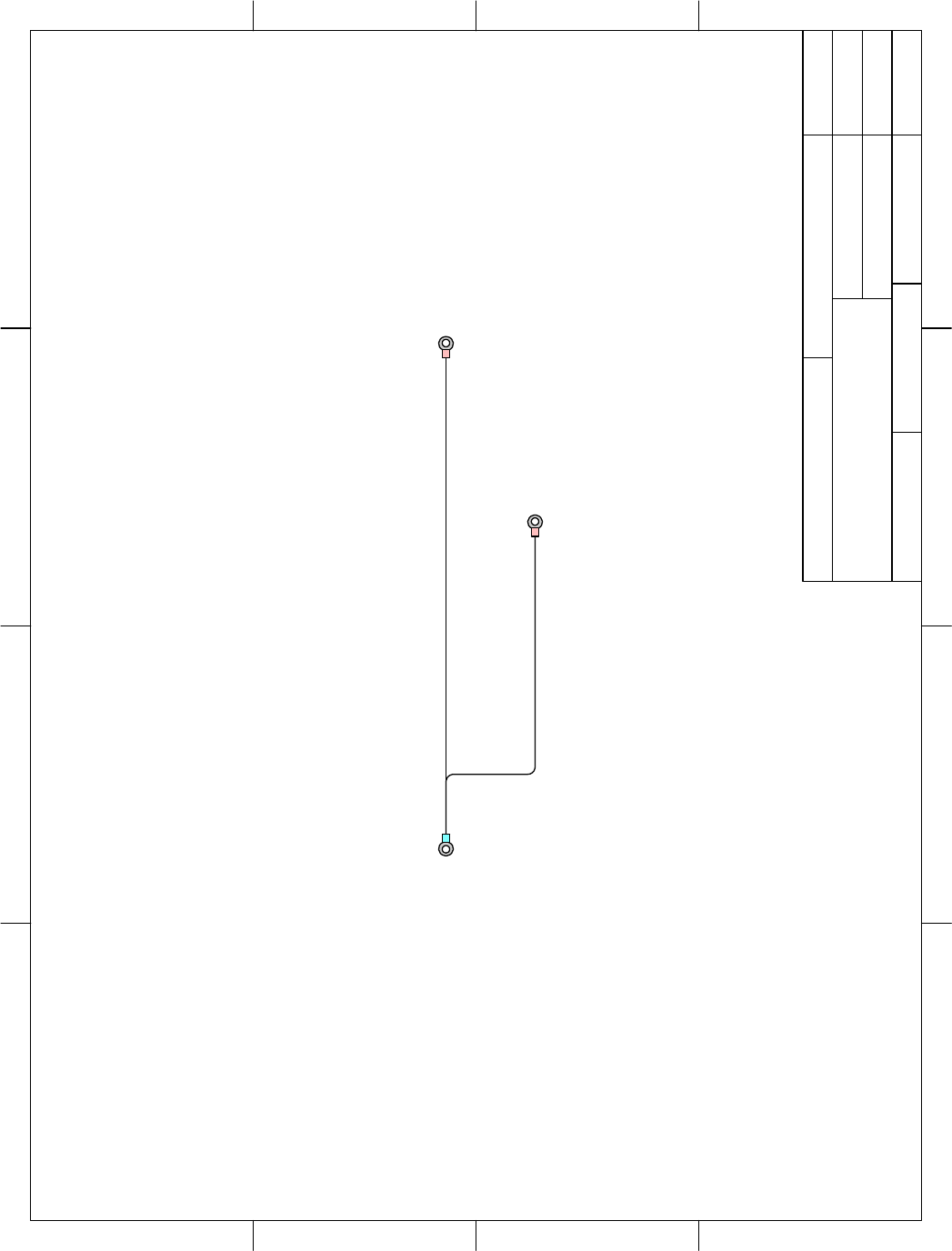

27

D

C

B

A

4321

D

C

B

A

4321

#E20217#E08068

#E20217

GREEN/YELLOW

GREEN/YELLOW

GREEN/YELLOW

14 "

39 "

To Transformer

To Cash Box

To Frame

DATE 2/26/10

DESCRIPTION FRAME GROUND HARNESS

FILENAME CS &

GG1700RMBX.VSD

PAGE 11 OF 21

REVISED 10/27/11

TITLE CG & GG1700RMBX

PART NO. CS2065X REQUIRED

SIGNATURES

ENGINEER

MANAGER

VENDOR

DRAWN BY TBUCZYNSKYJ

28

D

C

B

A

4321

D

C

B

A

4321

A BLUE/BLACK 10.5- 1 BLUE/BLACK 10.5-

B BLUE 10.5+ 2 BLUE 10.5+

C RED/BLACK 13.2- 3 RED/BLACK 13.2-

D RED 13.2+ 4 RED 13.2+

E ORANGE/BLACK 16.5- 5 ORANGE/BLACK 16.5-

F YELLOW/BLACK 36.0- 6 YELLOW/BLACK 36.0-

H YELLOW 36.0+ 7 YELLOW 36.0+

J ORANGE 16.5+ 8 ORANGE 16.5+

K red/black COUNTERS 9 brown/white PRIZE COUNTER

L DUMMY PIN 10 tan/black COIN COUNTER

M DUMMY PIN 11 DUMMY PIN

N green/black OPTO 12 orange OPTO

PDUMMY PIN 13black GROUND

R black GROUND 14 DUMMY PIN

S black/yellow COIN 15 DUMMY PIN

T DUMMY PIN 16 DUMMY PIN

U DUMMY PIN 17 DUMMY PIN

V black/white GROUND 18 pink SENSOR

W DUMMY PIN 19 DUMMY PIN

Xorange LAMP 20black GROUND

Y red/gray SPEAKER + 21 brown/gray SPEAKER -

Z RED MOTOR DOWN 22 red HOME L/R

a GREY CLAW- 23 ORANGE MOTOR RIGHT

b white HOME F/B 24 GREEN MOTOR LEFT

c VIOLET CLAW+ 25 black GROUND

d BLUE MOTOR FWD 26 light blue GROUND

e YELLOW MOTOR BACK 27 green CLAW DOWN

f tan CLAW UP 28 BROWN MOTOR UP

DECALS:

#7179 (x1) THIS SIDE UP

#DN7072 (x1) COMPONENT SIDE (1-28)

DECAL:

#DN7071 (x1) SOLDER SIDE (A-f)

DATE 2/26/10

DESCRIPTION CARD EDGE HARNESS

FILENAME CS &

GG1700RMBX.VSD

PAGE 12 OF 21

REVISED 10/27/11

TITLE CG & GG1700RMBX

PART NO. CS2750HX PIN OUT REQUIRED

SIGNATURES

ENGINEER

MANAGER

VENDOR

DRAWN BY TBUCZYNSKYJ

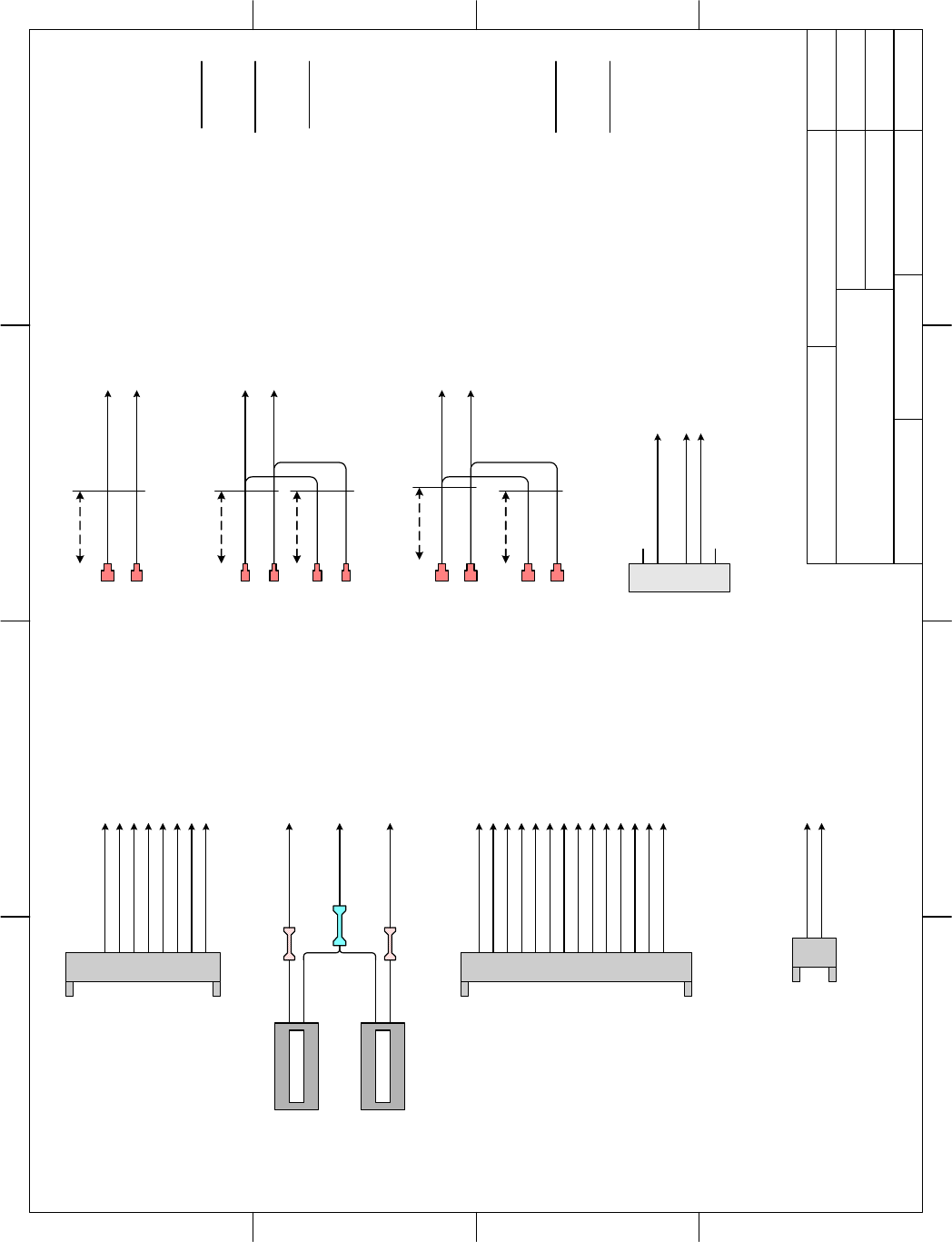

29

D

C

B

A

4321

D

C

B

A

4321

9 PIN CAP #E02551

14 AWG Female #E02013

1

2

3

4

5

6

7

8

9

16.5+

10.5+

36.0+

10.5-

13.2+

36.0-

16.5-

13.2-

ORANGE*2

BLUE*2

YELLOW*2

BLUE/BLACK*2

RED*2

YELLOW/BLACK*2

ORANGE/BLACK*2

RED/BLACK*2

8 + J

2 + B

7 + H

1 + A

4 + D

6 + F

5 + E

3 + C

14"

0000000000

black

red

5V COUNTER

#HD20224

0000000000

red

black

5V COUNTER

#HD20224

#2558

#2558

tan/black

red/black

brown/white

Prize Counter

Coin Counter

9

K

10

36"

#2815

15 PIN CAP #E02367

FEMALE PIN #E02102

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

BROWN

RED

red

tan

green

GRAY

black

light blue

ORANGE

YELLOW

white

GREEN

BLUE

VIOLET

Motor Up

Motor Down

Home L/R

Claw Up

Claw Down

Claw -

Ground

Ground

Motor Right

Motor Bk

Home F/B

Motor Lt

Motor Fd

Claw +

14"

28

Z

22

f

27

a

25

26

23

e

b

24

d

c

TO:

SENSOR EXTENSION

CS2056X 2 PIN CAP #E02181

FEMALE PIN #E02102

1

2

pink

black 18

R

12

13

N

1

2

3

4

5

6

6 PIN AMP HOUSING #E02944

CONTACT PIN #E02201

KEY(E02239)

orange

black

green/black

KEY(E02239)

To Opto

.250

#E00653T

.187 #E00651

Speaker

red/gray

brown/gray

Y

21

.110 #E00650

.110 #E00650

.110 #E00650

.110 #E00650

.250

#E00653T

.250

#E00653T

orange

black

orange

black

.250

#E00653T

.250

#E00653T

X

20

black/yellow S

V

white/black

black/yellow

white/black

20"

36"

38"

98"

98"

24"

98"

TO:

TRANSFORMER

TO:

CS2752MX

3"

2"

2"

2"

E02636

CARD EDGE CONNECTOR

EO2637

PINS

E02635

DUMMY PINS

DECALS

DN7071

SOLDER SIDE

DN7072

COMPONENT

SIDE

2"

DATE 2/26/10

DESCRIPTION CARD EDGE HARNESS

FILENAME CS &

GG1700RMBX.VSD

PAGE 13 OF 21

REVISED 10/27/11

TITLE CG & GG1700RMBX

PART NO. CS2750HX HARNESS REQUIRED

SIGNATURES

ENGINEER

MANAGER

VENDOR

DRAWN BY TBUCZYNSKYJ

30

D

C

B

A

4321

D

C

B

A

4321

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15 15 PIN PLUG #E02144

SPLIT PIN #E02100

PIN 12 & 13 #E08260

Crane Fwd Sw

Crane Back Sw

Claw Dwn Sw

Claw Up Sw

Gnd

Front/Back Motor +

Front/Back Motor -

Left/Right Motor +

Left/Right Motor -

Up/Down Motor +

Up/Down Motor -

Solenoid -

Solenoid +

Gnd

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

15 PIN PLUG #E02144

SPLIT PIN #E02100

PIN 6 & 14 # E08260

MotUp

MotDn

HomeL/R

ClawUp

ClawDn

Claw -

Gnd

Gnd

MotRight

MotBack

HomeF/B

MotLeft

MotFwd

Claw +

36V

red

white

green

tan

black

YELLOW

BLUE

ORANGE

GREEN

BROWN

RED

* BROWN

* BLUE

light blue

BROWN

RED

red

tan

green

* BROWN

black

light blue

ORANGE

YELLOW

white

GREEN

BLUE

* BLUE

#E02997 - 2 CONDUCTOR CABLE

93 "

To Card

Edge - CS2750HX

To Wagon/Crane

Harness - CS2052AX CS ORANGE GENERIC #E07020

DECAL x 1

DATE 2/26/10

DESCRIPTION MAIN/WAGON LOWER

HARNESS

FILENAME CS &

GG1700RMBX.VSD

PAGE 14 OF 21

REVISED 10/27/11

TITLE CG & GG1700RMBX

PART NO. CS2752MX REQUIRED

SIGNATURES

ENGINEER

MANAGER

VENDOR

DRAWN BY TBUCZYNSKYJ

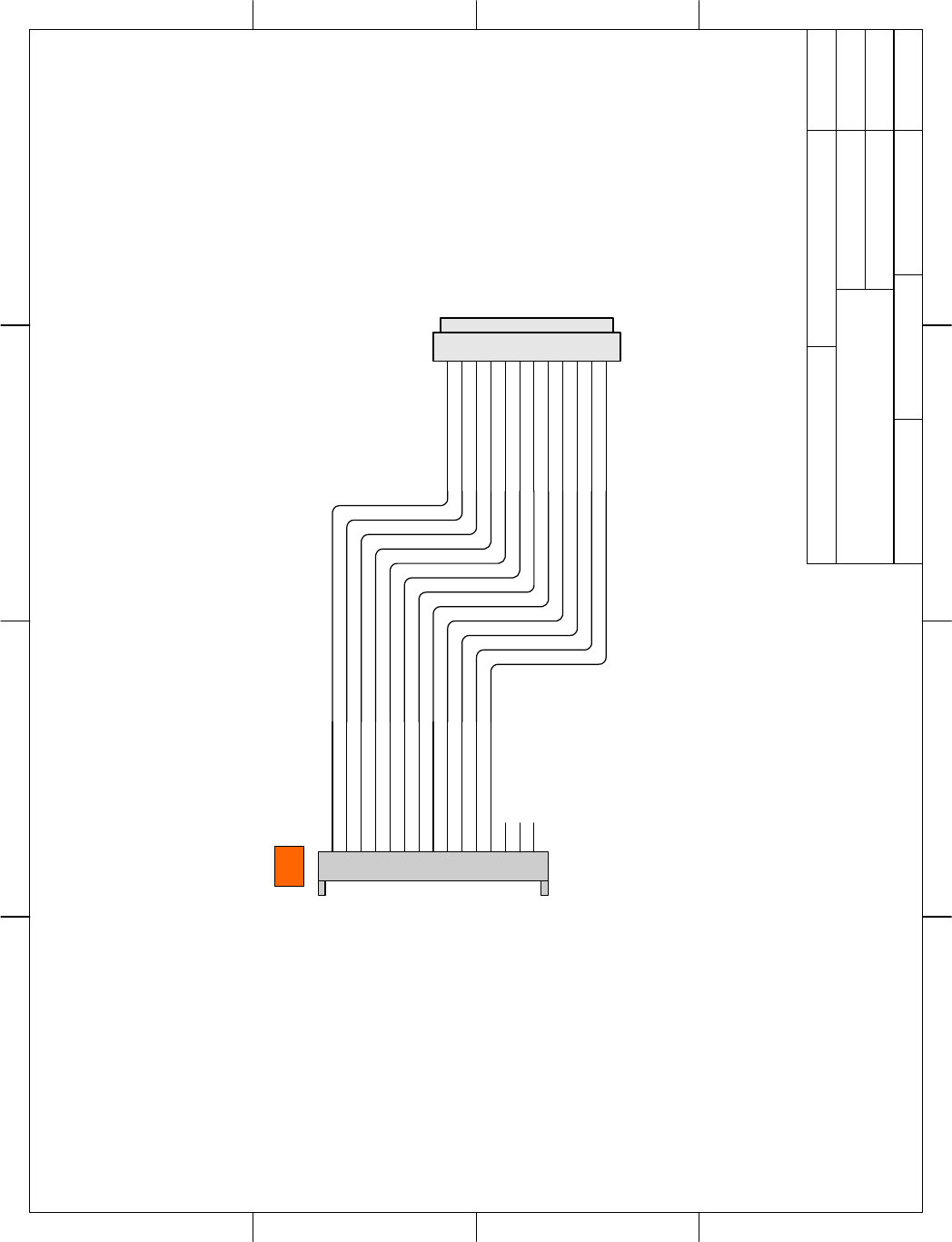

31

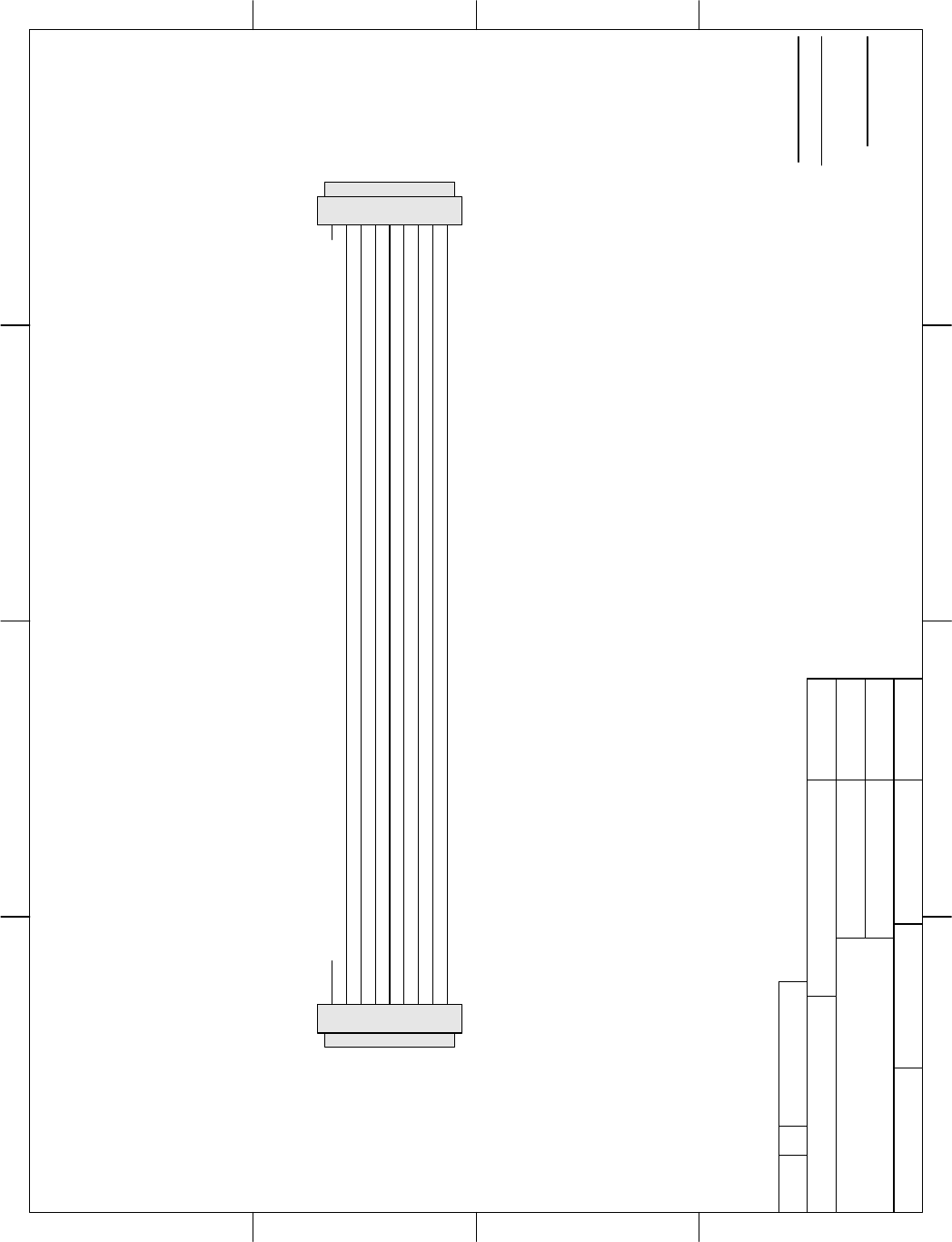

D

C

B

A

4321

D

C

B

A

4321

brown

red/black

orange/black

yellow

green

light blue

ORANGE

gray

white

black/white

tan

BLACK

Seg a

Seg b

Seg c

Seg d

Seg e

Seg f

+12v

Seg h

Seg g

Sel 1

Sel 2

ground

DISPLAY - P6

TO DISPLAY

PCB - P1

brown

red/black

orange/black

yellow

green

light blue

ORANGE

gray

white

black/white

tan

BLACK

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

15 PIN PLUG #E02144

SPLIT PIN #E02100

112"

1

2

3

4

5

6

7

8

9

10

11

12

12 PIN PLUG #E02106

SPLIT PIN #E02100

CS ORANGE GENERIC #E07020

DECAL x 1

P6 P1

DATE 2/26/10

DESCRIPTION DISPLAY HARNESS

FILENAME CS &

GG1700RMBX.VSD

PAGE 15 OF 21

REVISED 10/27/11

TITLE CG & GG1700RMBX

PART NO. CS2754LX REQUIRED

SIGNATURES

ENGINEER

MANAGER

VENDOR

DRAWN BY TBUCZYNSKYJ

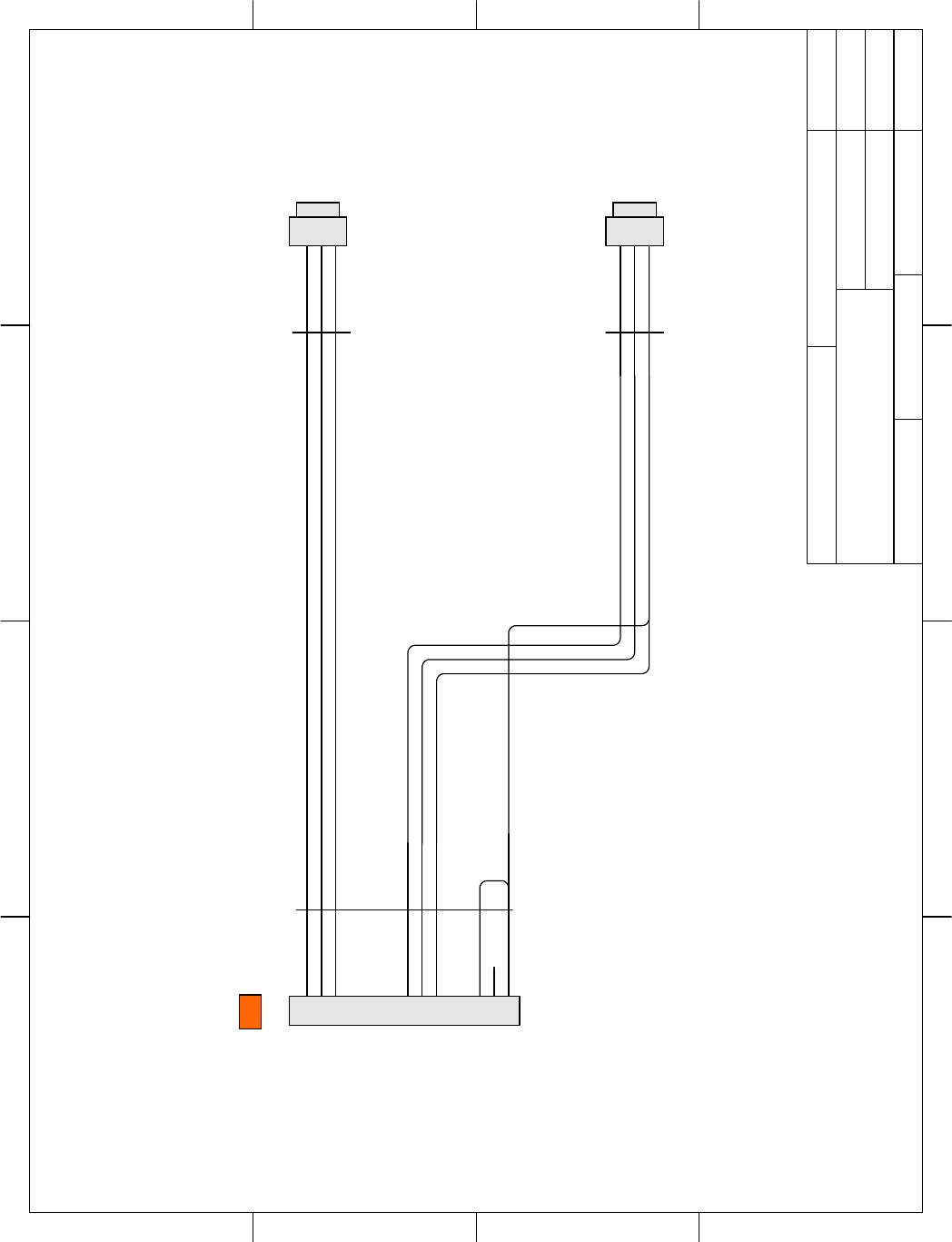

32

D

C

B

A

4321

D

C

B

A

4321

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

15 PIN AMP HOUSING #E08308

CONTACT PIN #E02201

PCntr

+5v

CCntr

+12uV

RBlink

Door Sw

Gnd

Power

Prize

Ground

Transmit

Receive

L/R HOME Ground

KEY

Ground

1

2

3

3 PIN PLUG #E02206

SOLID PIN #E02100S

PCntr

+5v

CCntr

1

2

3

3 PIN PLUG #E02206

SOLID PIN #E02100S

Power

Prize

Ground

brown/white

red

tan

orange

green/black

black

black

KEY E02239

black*2

brown/white

red

tan

orange

green/black

black *2

PI 1 P8

P4

10"

10"

6"

To Main Board

To Main Board

To CX2031X

Crane Adapter

Board

CS

#7020 - Decal Orange Generic (x1)

Goes to SUB ASSY

(CX1135CSX)

DATE 2/26/10

DESCRIPTION METER/OPTO INTERCONNECT

HARNESS

FILENAME CS &

GG1700RMBX.VSD

PAGE 16 OF 21

REVISED 10/27/11

TITLE CG & GG1700RMBX

PART NO. CS2761LX REQUIRED

SIGNATURES

ENGINEER

MANAGER

VENDOR

DRAWN BY TBUCZYNSKYJ

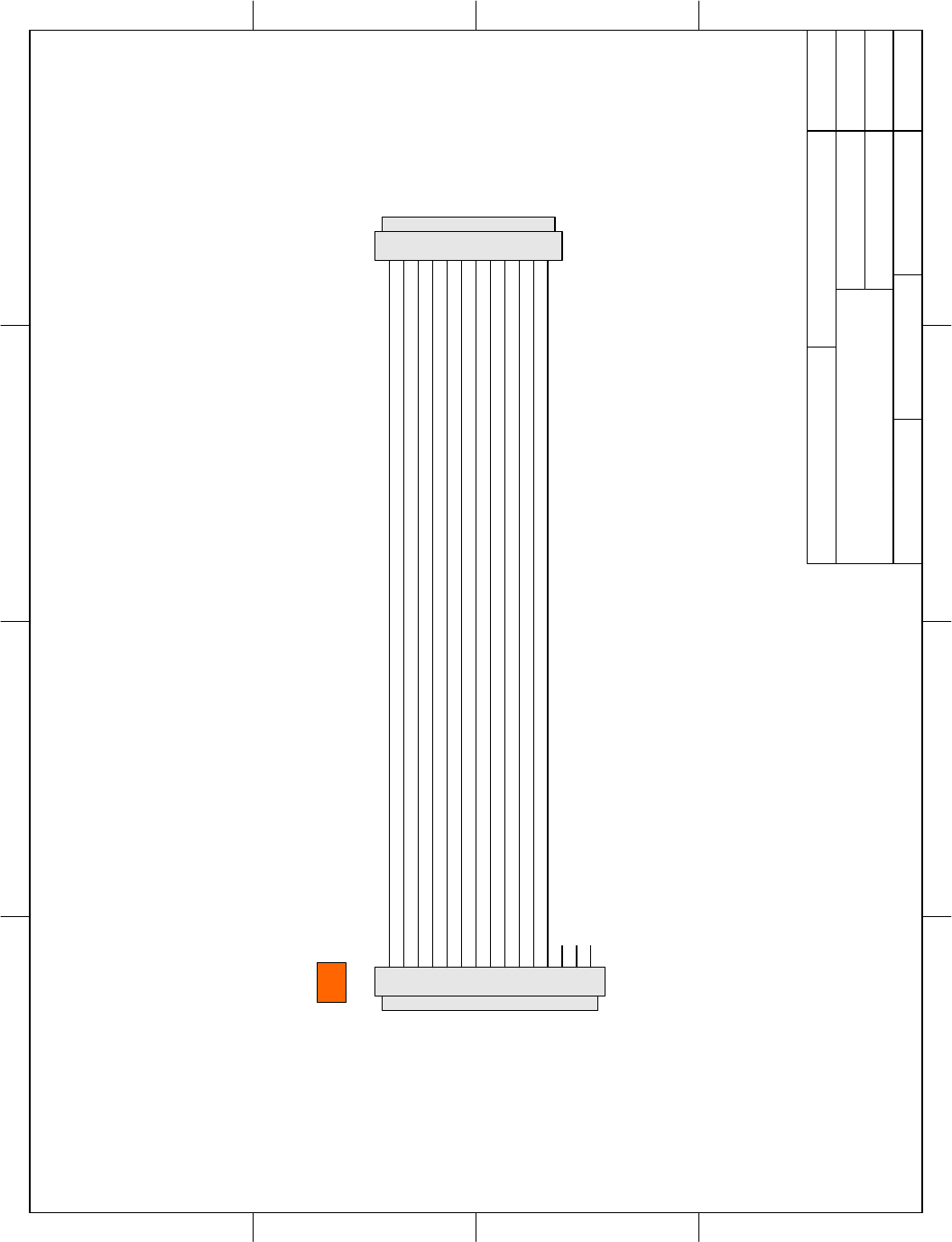

33

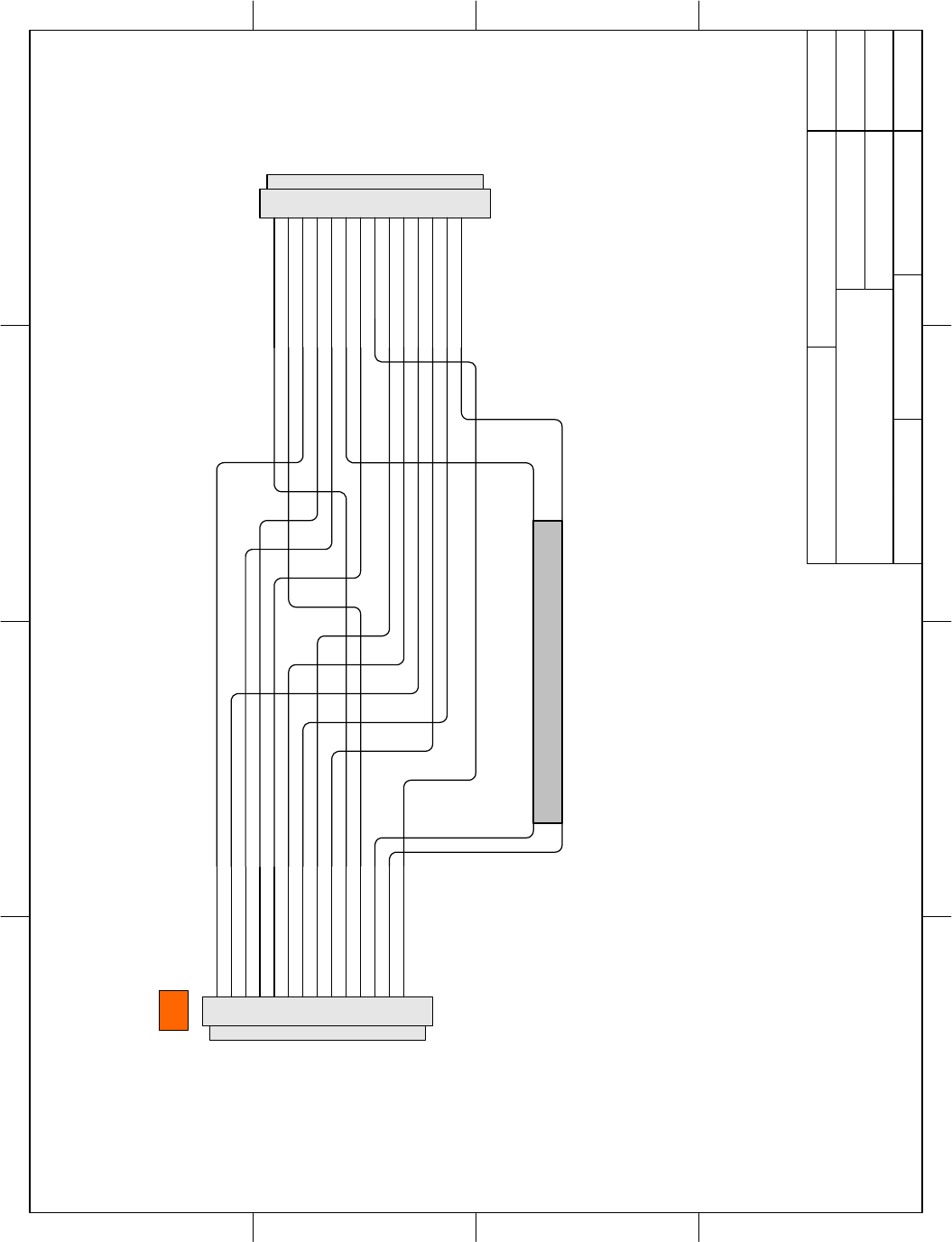

1

2

3

4

5

6

7

8

9

10

11

12

12 PIN PLUG #E02106

SPLIT PIN #E02100

15 PIN CAP #E02367

FEMALE PIN #E02102

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

brown

red/black

orange/black

yellow

green

light blue

ORANGE

gray

white

black/white

tan

BLACK

Seg a

Seg b

Seg c

Seg d

Seg e

Seg f

+12v

Seg h

Seg g

Sel 1

Sel 2

ground

Seg a

Seg b

Seg c

Seg d

Seg e

Seg f

+12v

Seg h

Seg g

Sel 1

Sel 2

ground

brown

red/black

orange/black

yellow

green

light blue

ORANGE

gray

white

black/white

tan

BLACK

12"

P6

D

C

B

A

4321

D

C

B

A

4321

CS ORANGE GENERIC #E07020

DECAL x 1

Goes to SUB ASSY

(CX1135CSX)

DATE 2/26/10

DESCRIPTION DISPLAY ADAPTER HARNESS

FILENAME CS &

GG1700RMBX.VSD

PAGE 17 OF 21

REVISED 10/27/11

TITLE CG & GG1700RMBX

PART NO. CS2762LX REQUIRED

SIGNATURES

ENGINEER

MANAGER

VENDOR

DRAWN BY TBUCZYNSKYJ

34

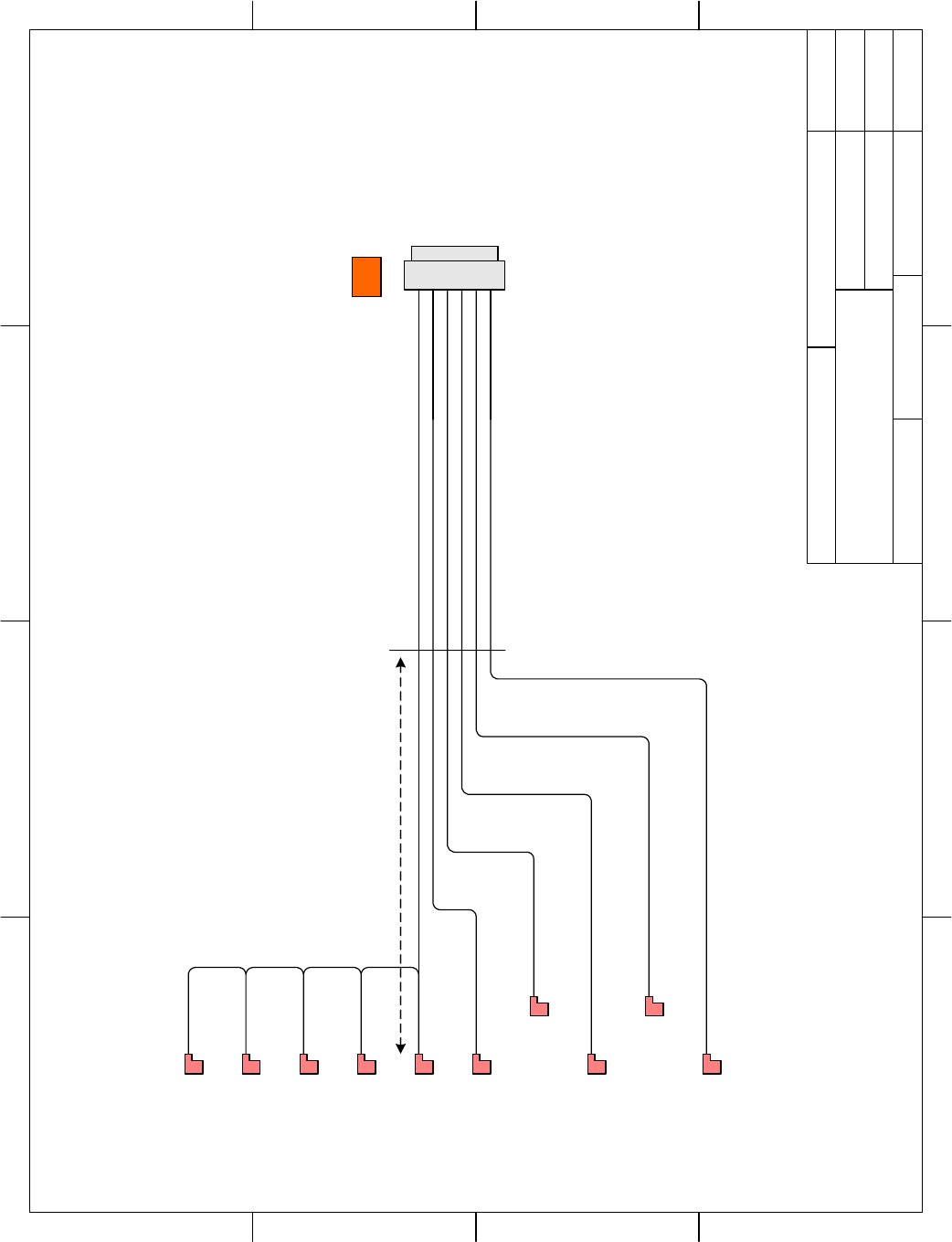

D

C

B

A

4321

D

C

B

A

4321

1

2

3

4

5

6

E08647 – MINI M&L PLUG 6 PIN

E02911- MINI PIN FEMALE

black/white

white/black

white/brown

white/orange

white/red

white/yellow

ground

up

down

right

left

button

.250 FLAG

#E00648

.250 FLAG

#E00648

.250 FLAG

#E00648

.250 FLAG

#E00648

.250 FLAG

#E00648

5"

4"

4"

4"

.250 FLAG

#E00648

.250 FLAG

#E00648

.250 FLAG

#E00648

.250 FLAG

#E00648

JOYSTICK

GROUND

UP

DOWN

RIGHT

LEFT

BUTTON .250 FLAG

#E00648

black/white *2

black/white *2

black/white *2

black/white *2

black/white

white/black

white/brown

white/orange

white/red

white/yellow

105-½"

106-½"

106-½"

106"

109" 105-½"

ZIP TIE 12" BACK FROM BLACK/WHITE x2 CS

ORANGE GENERIC #E07020

DECAL x 1

TO:

CS2761LX

DATE 2/26/10

DESCRIPTION JOYSTICK HARNESS

FILENAME CS &

GG1700RMBX.VSD

PAGE 18 OF 21

REVISED 10/27/11

TITLE CG & GG1700RMBX

PART NO. CS2767MX REQUIRED

SIGNATURES

ENGINEER

MANAGER

VENDOR

DRAWN BY TBUCZYNSKYJ

35

D

C

B

A

4321

D

C

B

A

4321

BROWN

RED

red/white

brown

green

GRAY

black

blue

ORANGE

YELLOW

white

GREEN

BLUE

VIOLET

Motor Up

Motor Down

Home L/R

Claw Up

Claw Down

Claw -

Ground

Ground

Motor Right

Motor Bk

Home F/B

Motor Lt

Motor Fd

Claw +

Motor Up

Motor Down

Home L/R

Claw Up

Claw Down

Claw -

Ground

Ground

Motor Right

Motor Bk

Home F/B

Motor Lt

Motor Fd

Claw +

BROWN

RED

pink

brown

green

GRAY

black

blue

ORANGE

YELLOW

white

GREEN

BLUE

VIOLET

P1

Crane Fwd Sw

14 " red/white

PX4 To Main Board

P1

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

15 PIN PLUG #E02144

SPLIT PIN #E02100

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

15 PIN PLUG #E02144

SPLIT PIN #E02100

1

2

3

4

5

5 PIN AMP HOUSING #E02419

CONTACT PIN #E02201

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

15 PIN AMP HOUSING #E08308

CONTACT PIN #E02201

Coin1

Coin2

DBV

Coin4

Coin5

Coin6

Ground

Lockout

KEY

Power

Gnd

+12V

Speaker -

Speaker +

violet/brown

violet/red

violet/orange

pink

black/white

black

orange

brown/gray

red/gray 1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

15 PIN PLUG #E02144

SPLIT PIN #E02100

JoyUp

JoyDn

JoyRt

JoyLt

JoyBtn

Coin1

Gnd

Gnd

Gnd

DBV

Speaker +

Speaker -

+12 V

Coin2

Gnd

white/black

white/brown

white/orange

white/red

white/yellow

violet/brown

black/white

black/white

violet/orange

red/gray

brown/gray

orange

violet/red

black

P9

23"

MINI M&L 6 PIN CAP #E08646

MALE PIN #E02569

1

2

3

4

5

6

black/white

white/black

white/brown

white/orange

white/red

white/yellow

6"

23"

23"

23"

23"

23"

23"

6"

6"

6"

6"

6"

PI 2

To CX2031X Crane Adapter Board

12"

To CS2767MX

To Main Board

To CX2031X Crane Adapter Board

CS #7020 - Decal Orange Generic (x1)

DECAL x1 #7900 RED DOT

12"

12" 14"

12"

12"

12"

12"

12"

12"

12"

12"

12"

12"

12"

12"

12"

12"

12"

12"

12"

12"

12"

12"

12"

12"

12"

12"

12"

DATE 2/26/10

DESCRIPTION CARRIAGE/JOYSTICK

INTERCONNECT HARNESS

FILENAME CS &

GG1700RMBX.VSD

PAGE 19 OF 21

REVISED 10/27/11

TITLE CG & GG1700RMBX

PART NO. CS2769MX REQUIRED

SIGNATURES

ENGINEER

MANAGER

VENDOR

DRAWN BY TBUCZYNSKYJ

36

D

C

B

A

4321

D

C

B

A

4321

WHEN USED IN

CS1700RMBX

GG1700RMBX

IT IS PART

OF CX1135CSX

GOES TO SUB ASY

KEY

16.5+

10.5+

36.0+

10.5-

13.2+

36.0-

16.5-

13.2-

KEY #E02549

ORANGE

BLUE

YELLOW

BLUE/BLACK

RED

YELLOW/BLACK

ORANGE/BLACK

RED/BLACK

16.5+

10.5+

36.0+

10.5-

13.2+

36.0-

16.5-

13.2-

ORANGE

BLUE

YELLOW

BLUE/BLACK

RED

YELLOW/BLACK

ORANGE/BLACK

RED/BLACK

P10P10

10"

9 PIN PLUG #E02292

SPLIT PIN #E02100

1

2

3

4

5

6

7

8

9

9 PIN PLUG #E02292

SPLIT PIN #E02100

1

2

3

4

5

6

7

8

9

PER GAME1QTY

CX

DATE 2/26/10

DESCRIPTION POWER INTERCONNECT

FILENAME CS &

GG1700RMBX.VSD

PAGE 20 OF 21

REVISED 10/27/11

TITLE CG & GG1700RMBX

PART NO. CX2068X REQUIRED

SIGNATURES

ENGINEER

MANAGER

VENDOR

DRAWN BY TBUCZYNSKYJ

37

D

C

B

A

4321

D

C

B

A

4321

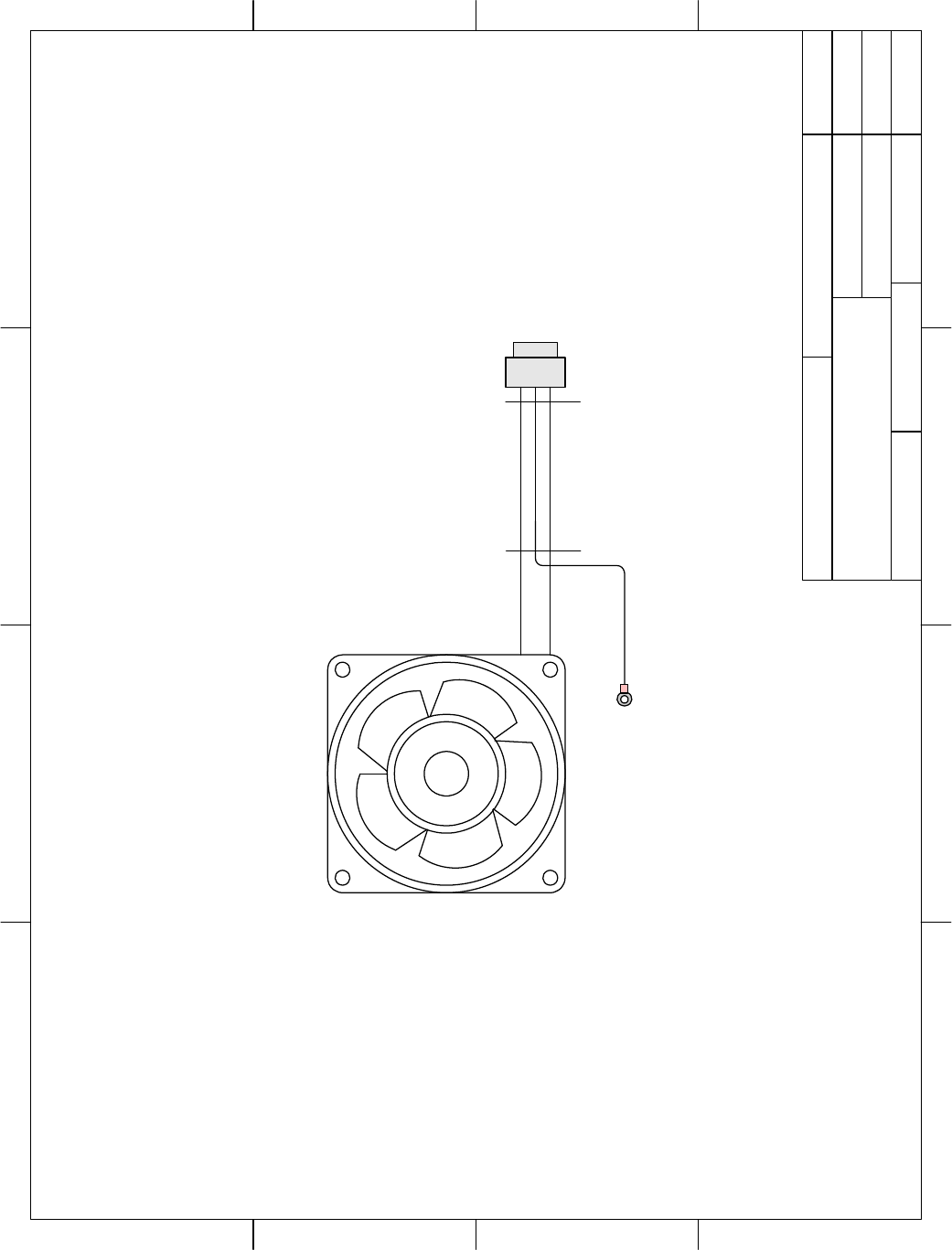

1

2

3

3 PIN PLUG #2206

SOLID PIN #2100S

PIN 2 #E08260

#E20217

#2764 – 110V AC FAN

black

GREEN/YELLOW

black

12"

13"

MS

TO:

CS2064X WHEN USED IN

CS/GG1700RMBX

GOES TO FLOOR

GREEN/YELLOW

(600V)

LEAVE @ FULL LENGTH

DATE 2/26/10

DESCRIPTION SMALL AC FAN ASY

FILENAME CS &

GG1700RMBX.VSD

PAGE 21 OF 21

REVISED 10/27/11

TITLE CG & GG1700RMBX

PART NO. MS2764X REQUIRED

SIGNATURES

ENGINEER

MANAGER

VENDOR

DRAWN BY TBUCZYNSKYJ

38

39

40

MECHANICAL PARTS

655 Square Drive Screw, Black 3/4"

655S Square Drive Screw, Silver 5/8"

4006 Foam Weather-stripping

5006 Cash Box

5011 Solenoid Spring

6356 Hex Spacer, Aluminum 2-56 x 3/8"

6364 Plastic Glides

6365 Mirror Clip

BC1018NP Podium

CG1078AX Claw

CG2014 4 way Joystick w/Push Button

CG3036 Claw/Coil Interconnects

CG5014 "T" Lock, 90 deg. swing

CG5015 "T" lock - Lock Barrel

CH1052 Rare Earth Magnet

CS1006NP Door Assembly

CS1034 Clip Holder

CS1035 Clip Spacer

CS1036 Adjusting Clip

CS1037 Switch Trigger

CS1050 Drive Pulley, Motor

CS1058 Wagon Drive Shaft

CS1066 Spring

CS3008A IGUS Micro Track 42 Link Section

CS3008B IGUS Mounting Link w/modified end

CS3008C IGUS Mounting Link

CS3008D IGUS Quick Connect Mounting Link

CS3013 Coin Slide

CS3025 Prize Sensor Mirror

CS3026 Rear Mirror

CS3027 Door Glass

CS3028 Side Glass

CS3030 Guide Pulley, Shaft

CS3031 O-ring Retainer

CS3032 String Spool

CS3040 Guide Pulley, Idler

CS3041 Drive Pulley, Idler

CS3042 String Guide

CS4001 O-Ring, Large Urethane

CS4003 O-Ring, Small Urethane

CS4004 String

FP1004 Foot Mounting Plate

FP2007 4" Speaker

ELECTRONIC / ELECTRICAL

8312 PLL Fluorescent Light Bulb, 40 watt

8422 Sub-miniature Micro Switch

E08452 Micro Switch, Standard Size - Basic

BC2032X Display P.C. Board Assembly

BW2017 Bulb Retainer Clip

BW2018 Light Bulb Retainer

CS2008 Globe Motor DC 24 volt

CG2012 Hamlin Reed Switch

CS2002X Transformer

CS1700RMBX Removable Main Board assembly

CS2039X Prize Sensor Opto P.C. Board

CS2050X Door Harness

CS2052AX Harness Assembly, Upper

CS2053X Wagon / Crane Harness

CS2054X Display Harness

CS8449X Fluorescent Light Ballast, Work Horse 3

PP250X Light Bulb Socket, PLL

41

Part# Description # Per Game Trim Size

CS7300 Cabinet Side Left 1 29.5" x 23.5"

CS7301 Cabinet Side Right 1 29.5" x 23.5"

CS7302 Side Marquee 2 9.4375" x 22.625"

CS7303 Front Door Lower 1 11.0" x 20.375"

CS7304 Front Door Left Strip 1 2.5" x 17.4375"

CS7305 Front Door Right Strip 1 3.875" x 13.625"

CS7306 Prize Door 1 6.375" x 7.875"

CS7308 Mirror 1 24.375" x 16.875"

CS7312 Control Panel 1 5" x 14"

CS7327 Front Marquee 1 8.125" x 14.875"

CS7007 ICE logo 1 4.25" x 2.875"

CS7040 Remove 4 screws decal

1

3.5625" x 5.75"

42

WARRANTY POLICY

I.C.E. Inc warrants all components in new machines to be free of defects in materials and workmanship for

the period listed below:

■ 180 days on Main PCB’s, Computers & Motors

■ 1 year on all LCD monitor panels

■ 90 days on all other electronic and mechanical components

■ 30 days on all I.C.E. repairs and parts purchases

I.C.E. Inc shall not be obligated to furnish a warranty request under the following conditions:

■ Equipment or parts have failed through normal wear and tear

■ Equipment has been subjected to unwarranted stress, abuse or neglect

■ Equipment has been damaged as a result of arbitrary repair/modification

Products will only be covered under warranty by obtaining an I.C.E. authorized RMA #. To obtain an RMA

# please provide I.C.E. tech support with the game serial # or original I.C.E. invoice # and a detailed de-

scription of the failure or fault symptoms.

I.C.E. Inc will assume no liability whatsoever for costs associated with labor or travel time to replace defec-

tive parts. All defective warranty covered components will be replaced with new or factory refurbished

components equal to OEM specifications.

I.C.E. Inc will cover domestic UPS ground, or comparable shipping costs during the warranty period. Inter-

national or expedited shipments are available for an additional charge. To obtain credit defective parts

must be returned to I.C.E. Inc, at the customer’s expense, within 30 days. After 30 days a 15% re-stocking

fee will apply to all returns.

ICE distributors are independent, privately owned and operated. In their judgment, they may sell parts

and/or accessories other than those manufactured by I.C.E. Inc. We cannot be responsible for the quality,

suitability or safety of any non-I.C.E. part or modification (including labor) that is performed by such a dis-

tributor.

Innovative Concepts in Entertainment

10123 Main St.

Clarence, NY 14031

Phone #: (716) - 759 – 0360

Fax #: (716) – 759 – 0884

www.icegame.com
