BEFORE USING THE PRODUCT,

BE SURE TO READ THE FOLLOWING:

To maintain safety:

To ensure the safe operation of this product, be sure to read the following before usage.

The following instructions are intended for the users, operators and the personnel in charge of the

operation of the product. After carefully reading and sufficiently understanding the warning

displays and cautions, handle the product appropriately. Be sure to keep this manual close to the

product or in a convenient place for future reference.

Herein, explanations which require special attention are enclosed with dual lines. Depending on

the potentially hazardous degrees, the terms of DANGER, WARNING, CAUTION, etc. are used.

Be sure to understand the contents of the displays before reading the text.

Indicates that mishandling the

product by disregarding this

pictograph will cause severe

injury or death.

Indicates that mishandling the

product by disregarding this

warning will cause a potentially

hazardous situation which can

result in death or serious injury.

Indicates that mishandling the

product by disregarding this

caution will cause a slight

hazardous situation which can

result in personal injury and/or

material damage.

For the safe usage of the product, the following pictographs are used:

Indicates "HANDLE WITH CARE." In order to protect the human body and

equipment, this display is attached to places where the Owner's Manual, Serviceman

Manual and/or Service Manual should be referred to.

Indicates a "Protective Earth Terminal." Before operating the equipment, be sure to

connect it to the Ground.

(The step may be omitted for products in which a power cord with earth is used.)

❍Perform work in accordance with the instructions herein stated.

Instructions for work are explained by paying attention to the aspect of accident prevention.

Failing to perform work as per the instructions can cause accidents. In the case where only

those who have technical expertise should perform the work to avoid hazardous situation, the

instructions herein state that the site maintenance personnel should perform such work.

❍Be sure to turn off the power before working on the machine.

To prevent an electric shock, be sure to turn off the power before carrying out any work that

requires direct contact with the interior of the product. If the work is to be performed in the

power-on status, the Instruction Manual herein always states to that effect.

❍Be sure to ground the Earth Terminal.

(This is not required in the case where a power cord with earth is used.)

This product is equipped with the Earth Terminal. When installing the product, connect the

Earth Terminal to the "accurately grounded indoor earth terminal" by using an earth wire.

Unless the product is grounded appropriately, the user can be subject to an electric shock.

After performing repair, etc. for the control equipment, ensure that the Earth Wire is firmly

connected to the control equipment.

❍Ensure that the Power Supply used is equipped with an Earth Leakage Breaker.

This product does not incorporate the Earth Leakage Breaker. Using a power supply which is

not equipped with the Earth Leakage Breaker can cause a fire when earth leakage occurs.

❍Be sure to use fuses which meet the specified rating.

(Only for the machines which use fuses.)

Using fuses exceeding the specified rating can cause a fire and an electric shock.

❍Specification changes (removal of equipment, conversion and addition) not

designated by SEGA are not allowed.

The parts of the product include warning labels for safety, covers for personal protection, etc.

It is very hazardous to operate the product by removing parts and/or modifying the circuits.

Should doors, lids and protective parts be damaged or lost, refrain from operating the product,

and contact where the product was purchased from or the office herein stated.

SEGA shall not be held responsible for any accidents, compensation for damage to a third

party, resulting from the specifications not designated by SEGA.

❍Ensure that the product meets the requirements of appropriate Electrical

Specifications.

Before installing the product, check for Electrical Specifications. SEGA products have a

nameplate on which Electrical Specifications are described. Ensure that the product is

compatible with the power supply voltage and frequency requirements of the location. Using

any Electrical Specifications different from the designated Specifications can cause a fire and

an electric shock.

❍Install and operate the product in places where appropriate lighting is

available, allowing warning labels to be clearly read.

To ensure safety for the customers, labels and printed instructions describing potentially

hazardous situations are applied to places where accidents can be caused. Ensure that where

the product is operated has sufficient lighting allowing the warnings to be read. If any label is

peeled off, apply it again immediately. Please place an order with where the product was

purchased from or the office herein stated.

❍When handling the monitor, be very careful.

(Applies only to the product with a monitor.)

Some of the monitor (TV) parts are subject to high tension voltage. Even after turning off the

power, some portions are still subject to high tension voltage sometimes. Monitor repair and

replacement should be performed only by those technical personnel who have knowledge of

electricity and technical expertise.

❍Be sure to adjust the monitor/projector properly.

(Applies only to the product with a monitor/projector.)

Do not operate the product leaving on-screen flickering or blurring as it is. Using the product

with the monitor/projector not properly adjusted may cause dizziness or a headache to an

operator, a player, or the customers.

❍When transporting or reselling this product, be sure to attach this manual to

the product.

In the case where commercially available monitors and printers are used in this product, only

the contents relating to this product are explained herein. Some commercially available

equipment has functions and reactions not stated in this manual. Read this manual together

with the specific Instruction Manual of such equipment.

* Descriptions herein contained may be subject to improvement changes without notice.

* The contents described herein are fully prepared with due care. However, should any

question arise or errors be found, please contact SEGA.

INSPECTIONS IMMEDIATELY AFTER TRANSPORTING THE PRODUCT TO THE LOCATION

Normally, at the time of shipment, SEGA products are in a status allowing for usage immediately

after transporting to the location. Nevertheless, an irregular situation may occur during

transportation. Before turning on the power, check the following points to ensure that the product

has been transported in a satisfactory status.

❐Are there any dented portions or defects (cuts, etc.) on the external surfaces of the cabinet?

❐Are Casters and Adjusters damaged?

❐Do the power supply voltage and frequency requirements meet with those of the location?

❐Are all wiring connectors correctly and securely connected? Unless connected in the correct

way, connector connections can not be made accurately. Do not insert connectors forcibly.

❐Do power cords have cuts and dents?

❐Do the fuses used meet specified ratings? Is the Circuit Protector in an energized status?

❐Are all accessories available?

❐Can all Doors and Lids be opened with the Accessory Keys? Can Doors and Lids be firmly

closed?

TABLE OF CONTENTS

BEFORE USING THE PRODUCT, BE SURE TO READ THE FOLLOWING:

TABLE OF CONTENTS .......................................................................................i

INTRODUCTION ................................................................................................iii

1 HANDLING PRECAUTIONS ......................................................................1

2 PRECAUTIONS REGARDING INSTALLATION LOCATION ....................2

2-1 LIMITATIONS OF USAGE ...........................................................................................2

2-2 OPERATION AREA .....................................................................................................3

3 PRECAUTIONS REGARDING PRODUCT OPERATION ..........................3

3-1 BEFORE OPERATION ................................................................................................3

3-2 DURING OPERATION (PAYING ATTENTION TO CUSTOMERS) ............................4

3-3 PRECAUTIONS WHEN MOVING THE AMCHINE......................................................4

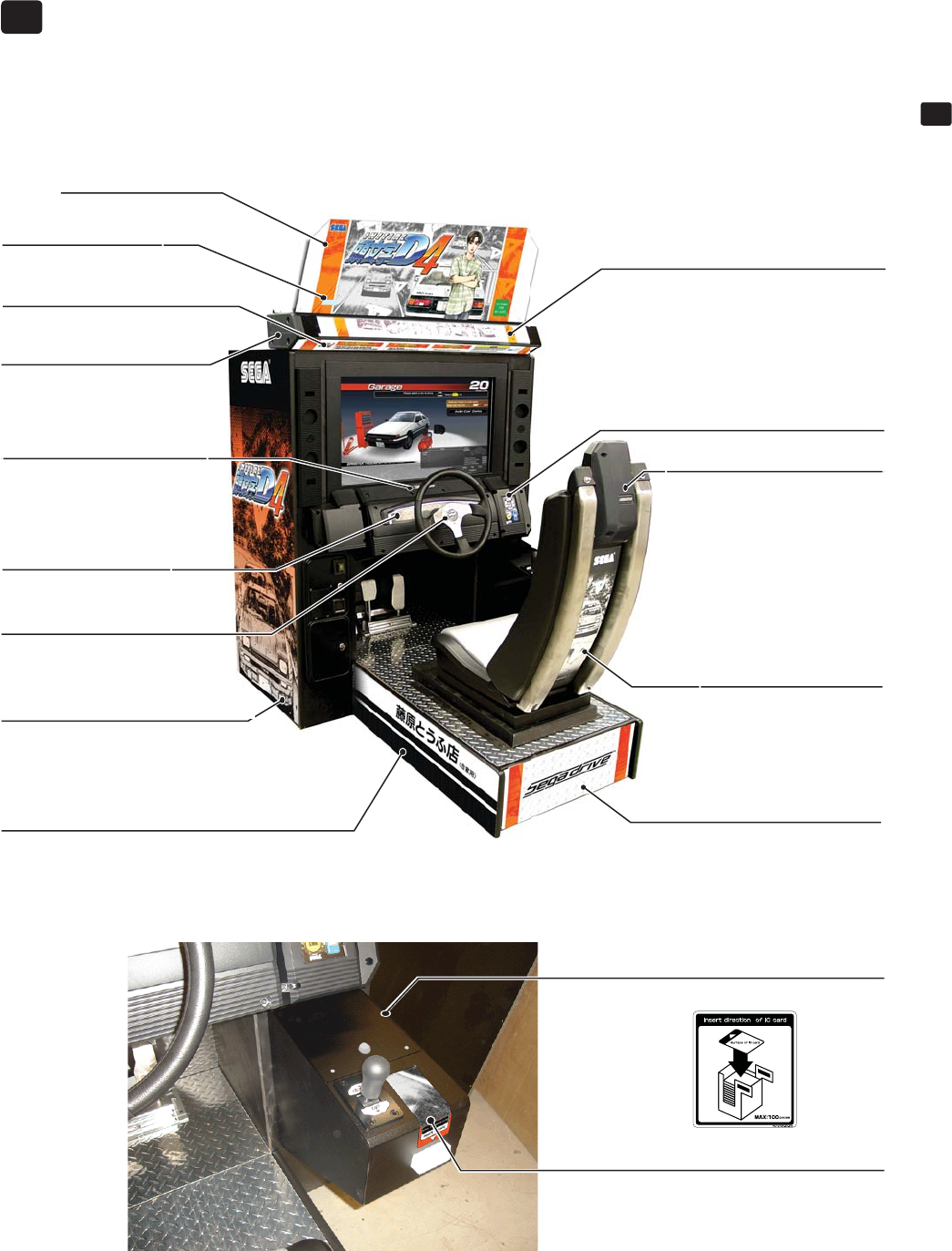

4 PART DESCRIPTION .................................................................................5

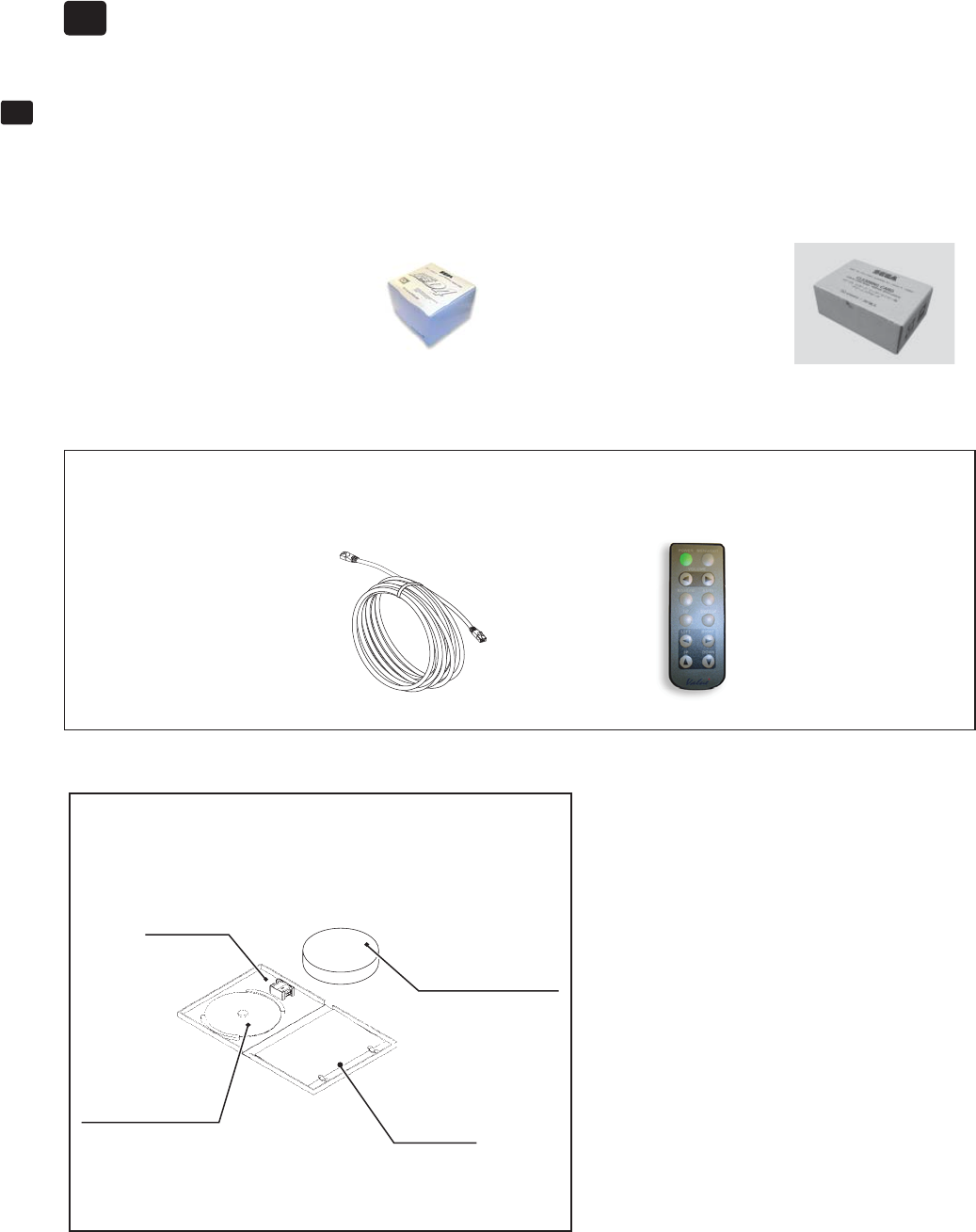

5 ACCESSORIES ..........................................................................................6

6 ASSEMBLY AND INSTALLATION .............................................................7

6-1 INSTALLING THE CABINET .......................................................................................8

6-1-1 ATTACHING THE POP ......................................................................................8

6-1-2 SECURING IN PLACE .......................................................................................8

6-1-3 REFILLING THE CARDS ...................................................................................9

6-1-4 CONNECTING NETWORK CABLES ...............................................................11

6-2 TURNING ON THE POWER

.....................................................................................12

6-3 INSTALLATION SETTINGS.......................................................................................16

7 CARD READER/WRITER .......................................................................17

7-1 SETTING DEDICATED CARDS ................................................................................17

7-2 CLEANING .................................................................................................................18

7-3 CLEARING CARD JAMS ...........................................................................................22

7-4 EXCHANGING THE CARD R/W UNIT .....................................................................23

7-5 INITIAL D LICENSE RESTORATION PROCEDURE ...............................................24

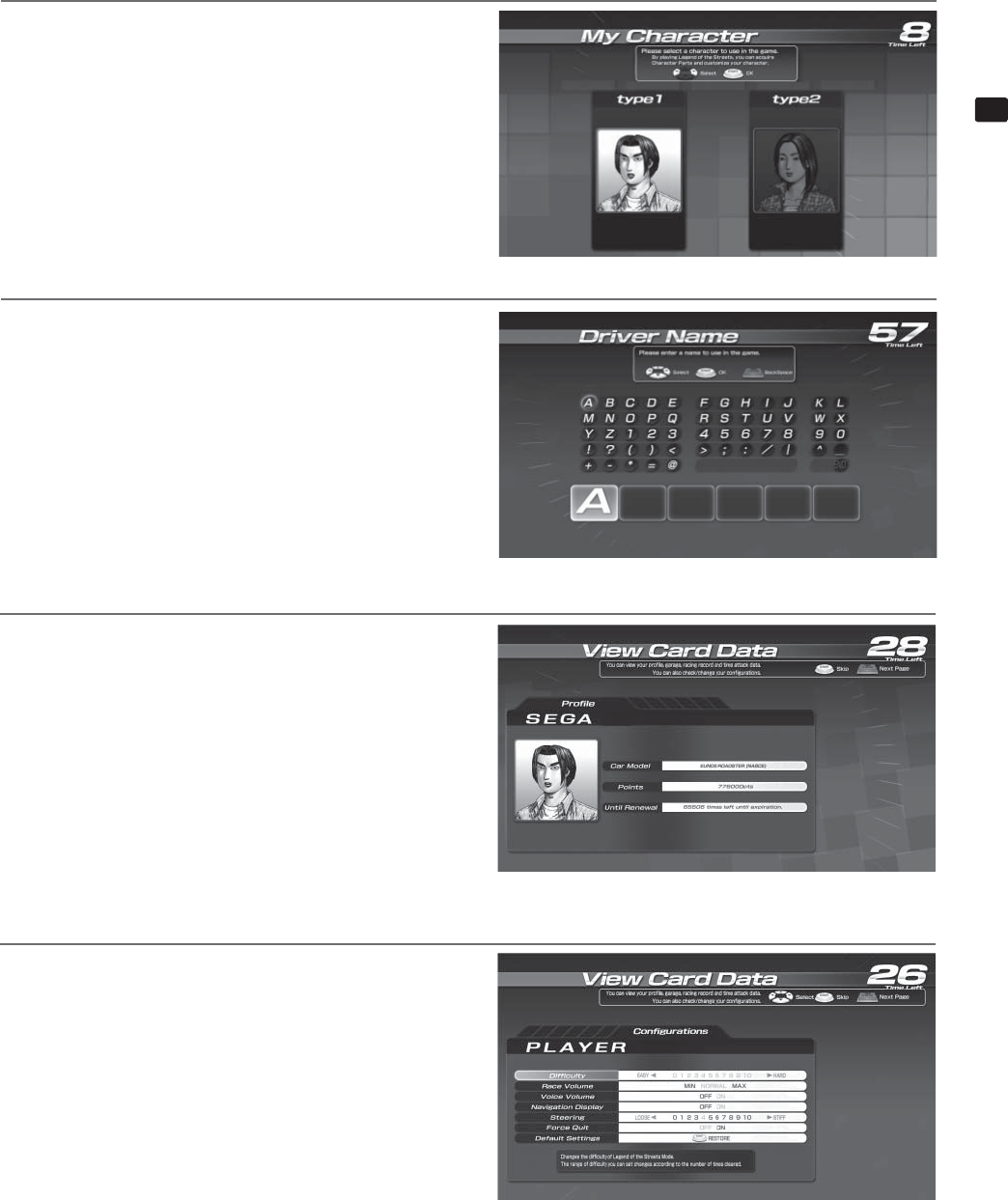

8 GAME DESCRIPTION .............................................................................25

8-1 GAME OVERVIEW ....................................................................................................25

8-2 GAME FLOW .............................................................................................................26

8-3 MODE OVER VIEW ...................................................................................................30

8-4 INITIAL D LICENSE ...................................................................................................32

TABLE OF CONTENTS

9 CONTROL PANEL ..................................................................................35

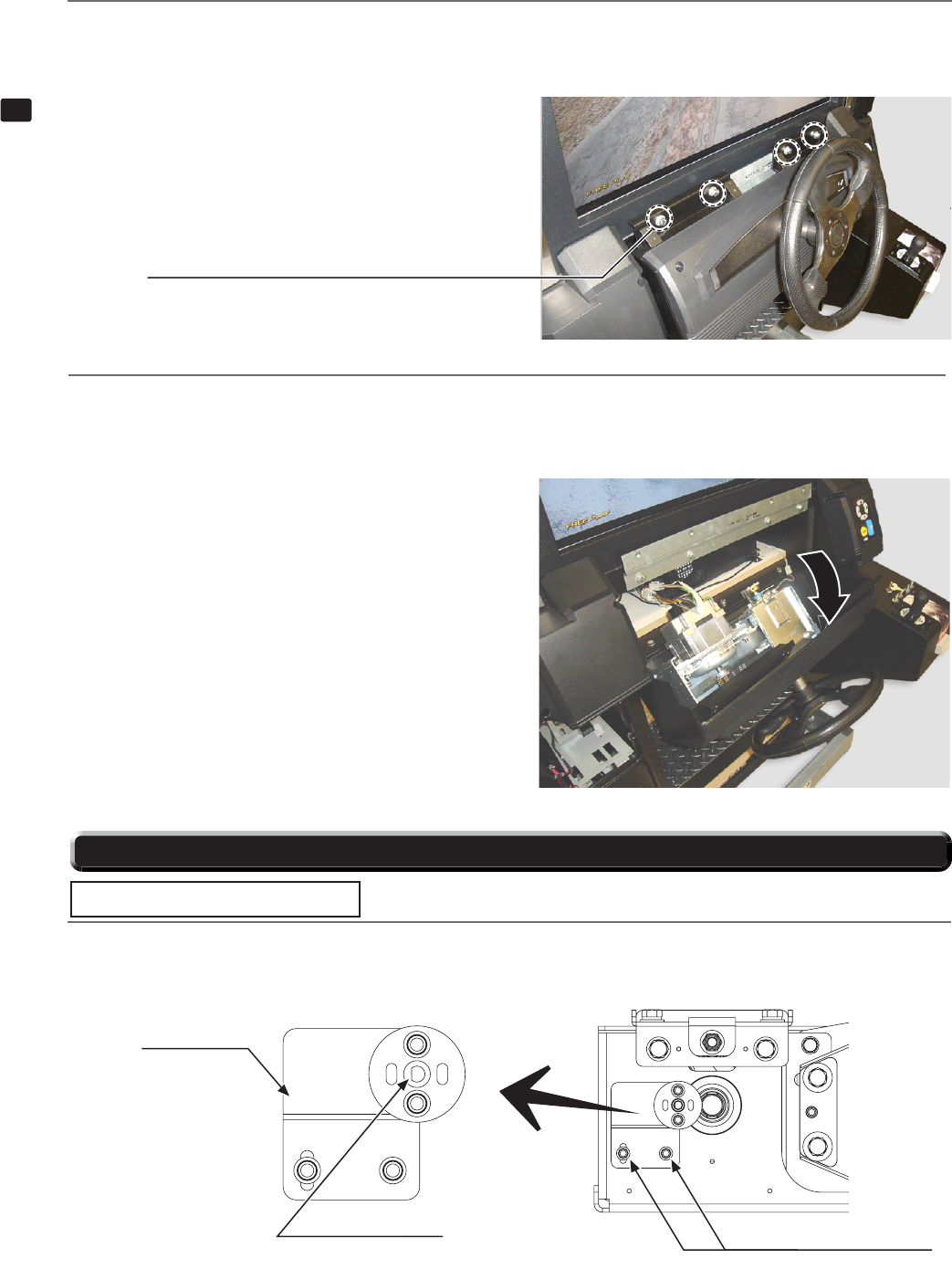

9-1 OPENING THE CONTROL PANEL ...........................................................................35

9-2 ADJUSTING/REPLACING THE VOLUME.................................................................36

9-3 GREASING ................................................................................................................38

9-4 STOPPER RUBBER REPLACEMENT ......................................................................38

9-5 REPLACING THE INPUT SWITCH BOARD .............................................................39

10 SHIFT LEVER ...........................................................................................41

10-1 REMOVING THE SHIFT LEVER .............................................................................41

10-2 GREASING ..............................................................................................................42

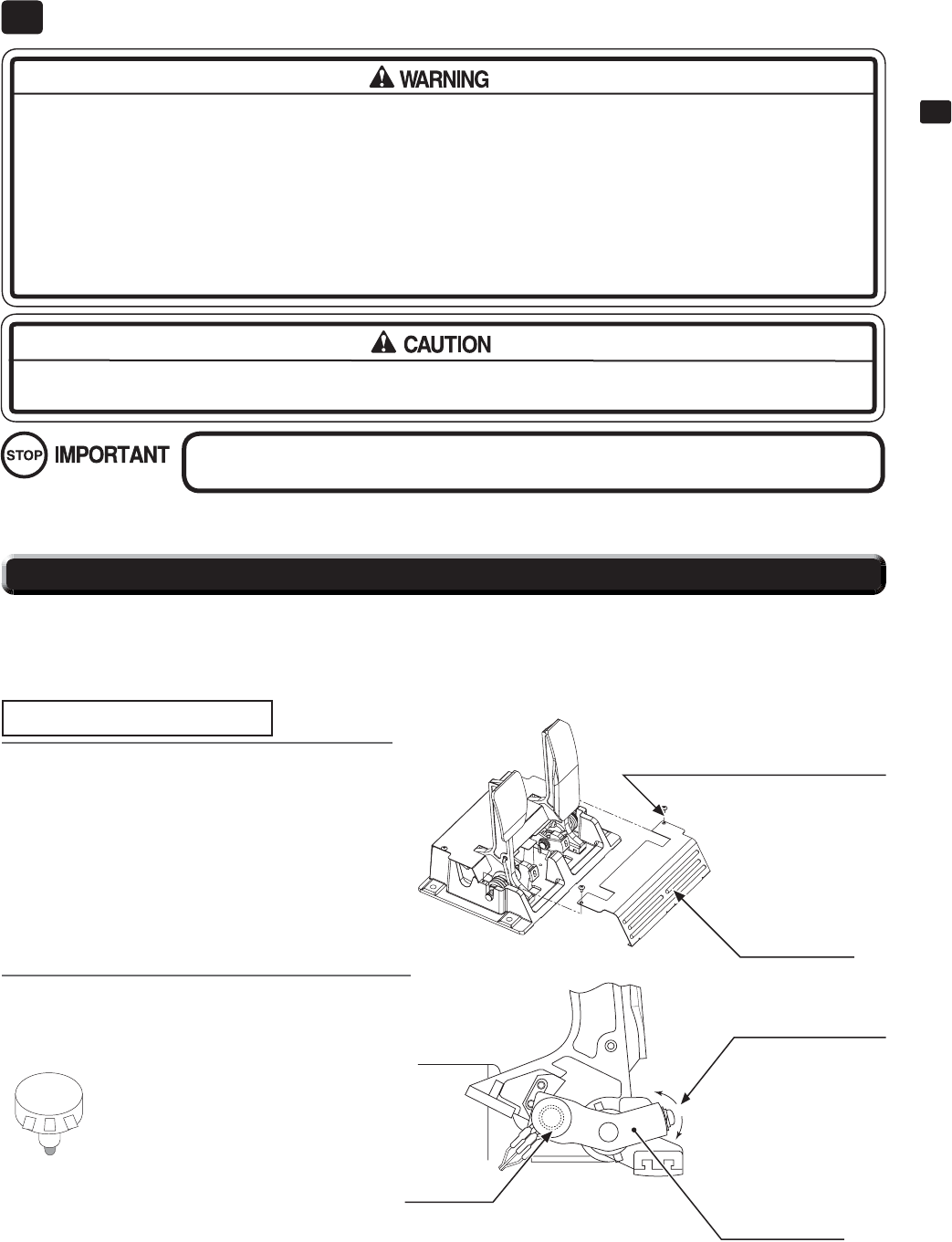

11 ACCELERATOR & BRAKE .....................................................................43

11-1 ADJUSTING/REPLACING THE VOLUME...............................................................43

11-2 GREASING ..............................................................................................................44

12 TEST MODE .............................................................................................45

12-1 SWITCH UNIT..........................................................................................................45

12-2 SYSTEM TEST MODE ............................................................................................45

12-3 GAME TEST MODE.................................................................................................45

13 MONITOR (LCD DISPLAY) ......................................................................59

13-1 SAFETY PRECAUTIONS WHEN HANDLING THE MONITOR ..............................59

13-2 CLEANING THE SCREEN SURFACE ....................................................................59

13-3 ADJUSTMENT METHOD ........................................................................................59

14 FLUORESCENT LIGHT REPLACEMENT ..............................................61

15 PERIODIC INSPECTION .........................................................................63

16 TROUBLESHOOTING .............................................................................65

16-1 NETWORK MESSAGE ............................................................................................67

16-2 IC CARD MESSAGE................................................................................................68

16-3 ERROR CODES FOR LINDGERGH .......................................................................73

17 GAME BOARD ........................................................................................77

17-1 REMOVING THE GAME BOARD ............................................................................77

17-2 COMPOSITION OF GAME BOARD ........................................................................78

18 DESIGN-RELATED PARTS .....................................................................79

19 PARTS LIST .............................................................................................80

20 WIRE COLOR CODE TABLE...................................................................88

CABINET WIRING DIAGRAM (1/2, 2/2)

iii

INTRODUCTION

This manual is intended to provide detailed descriptions together with all the necessary information covering the

general operation of electronic assemblies, electro-mechanicals, servicing control, spare parts, etc. for the product,

“INITIAL D 4.”

This manual is intended for the owners, personnel and managers in charge of operation of the product.

Operate the product after carefully reading and sufﬁ ciently understanding the instructions.

In the unlikely event that the product does not function correctly, DO NOT allow anyone other than a technician

to touch the internal system. Turn off the power to the machine, making sure to unplug the electrical cord from the

outlet, and contact the ofﬁ ce listed below or the point-of-purchase for this product.

Use of this product is unlikely to cause physical injuries or damage to property. However, points that require special

attention are indicated by bold text, the word "IMPORTANT" and the symbol below.

Sega Amusements U.S.A., Inc.

800 Arthur Avenue, Elk Grove Village, IL 60007-5215, U.S.A.

TEL: 1-847-364-9787

TOLL FREE: 1-888-877-2669

FAX: 1-847-427-1065

Indicates important information that, if ignored, may result in the mishandling of

the product and cause faulty operation or damage to the product.

Dimensions: Assembled: 44.25" (W) x 63" (D) x 77" (H)

Boxed: 46" (W) x 60" (D) x 71" (H)

Weight: Assembled = 634 lbs, Boxed = 700 lbs.

Power, maximum current: 420 W, 3.5 A (AC 120 V, 60 Hz Area)

Monitor: 32" LCD HD Monitor (16:9)

SPECIFICATIONS

NOTE: The contents herein described are subject to change without notice.

INTRODUCTION

Parts replacement, maintenance inspections and troubleshooting should be carried out by site maintenance personnel

or other qualiﬁ ed professionals. This manual includes directions for potentially dangerous procedures which should

only be carried out by professionals with the appropriate specialized knowledge.

The site maintenance personnel or other qualiﬁ ed professionals mentioned in this manual are deﬁ ned as follows:

Site maintenance personnel:

Individuals with experience in maintaining amusement equipment, vending machines, etc., working under the super-

vision of the owner/operator of this product to maintain machines within amusement facilities or similar premises by

carrying out everyday procedures such as assembly, maintenance inspections, and replacement of units/expendable

parts.

Activities to be carried out by site maintenance personnel:

Amusement equipment/vending machine assembly, maintenance inspection and replacement of units/expendable

parts.

Other qualiﬁ ed professionals:

Persons employed by amusement equipment manufacturers, or involved in design, production, testing or mainte-

nance of amusement equipment. The individual should have either graduated from technical school or hold similar

qualiﬁ cations in electrical/electronics/mechanical engineering.

Activities to be carried out by other qualiﬁ ed professionals:

Amusement equipment/vending machine assembly, repair/adjustment of electrical/electronic/mechanical parts.

Procedures not described in this manual or marked as ‘to be carried out by site

maintenance personnel or other qualiﬁ ed professionals’ should not be carried

out by personnel without the necessary skill or technology. Work carried out by

unqualiﬁ ed persons may cause serious accidents, including electrocution.

Deﬁ nition of 'Site Maintenance Personnel or Other Qualiﬁ ed Individuals'

HANDLING PRECAUTIONS

HANDLING PRECAUTIONS1

When installing or inspecting the machine, be very careful of the following points and pay attention to ensure that the player can enjoy the game safely.

Non-compliance with the following points or inappropriate handling running counter to the cautionary matters herein stated can cause personal injury

or damage to the machine.

● Before performing work, be sure to turn the power off. Performing the work without turning the power off can

cause an electric shock or short circuit. In the case work should be performed in the status of power on, this

manual always states to that effect.

● To avoid an electric shock or short circuit, do not plug in or unplug quickly.

● To avoid an electric shock, do not plug in or unplug with a wet hand.

● Do not expose power cords or earth wires on the surface, (ﬂ oor, passage, etc.). If exposed, the power cords

and earth wires are susceptible to damage. Damaged cords and wires can cause an electric shock or short

circuit.

● To avoid causing a ﬁ re or an electric shock, do not put things on or damage the power cords.

● When or after installing the product, do not unnecessarily pull the power cord. If damaged, the power cord

can cause a ﬁ re or an electric shock.

● In case the power cord is damaged, ask for a replacement through where the product was purchased from

or the ofﬁ ce herein stated. Using the cord as is damaged can cause ﬁ re, an electric shock or leakage.

● Be sure to perform grounding appropriately. Inappropriate grounding can cause an electric shock.

● Be sure to use fuses meeting the speciﬁ ed rating. Using fuses exceeding the speciﬁ ed rating can cause a ﬁ re

or an electric shock.

● Be sure that connections such as IC BD are made properly. Insufﬁ cient insertion can cause an electric shock.

● Speciﬁ cation changes, removal of equipment, conversion and/or addition, not designated by SEGA are not

permitted.

- Failure to observe this may cause a ﬁ re or an electric shock. Non-compliance with this instruction can

have a bad inﬂ uence upon physical conditions of the players or the onlookers, or result in injury during

play.

- SEGA shall not be held responsible for damage, compensation for damage to a third party, caused by

speciﬁ cation changes not designated by SEGA.

● If work or parts replacement not indicated in this manual is carried out, an accident may occur. If it is nec-

essary to carry out work not indicated in this manual, be sure to have it done by the ofﬁ ce indicated in this

manual or by the point of purchase. Also, please inquire regarding details of the work involved.

● Be sure to perform periodic maintenance inspections herein stated.

● For the IC board circuit inspections, only the logic tester is allowed. The use of a multiple-purpose tester is not per-

mitted, so be careful in this regard.

● Static electricity from your body may damage some electronics devices on the IC board. Before handling the IC

board, touch a grounded metallic surface so that the static electricity can be discharged.

● Some parts are not designed and manufactured speciﬁ cally for this game machine. The manufacturers may

discontinue, or change the speciﬁ cations of such general-purpose parts. If this is the case, SEGA cannot repair or

replace a failed game machine whether or not a warranty period has expired.

CONCERNING THE STICKER DISPLAY

This SEGA product has stickers attached describing the product

manufacture No. (Serial No.) and Electrical Speciﬁ cations. It also has

a Sticker describing where to contact for repair and for purchasing

parts.

When inquiring about or asking for repairs, mention the Serial No.

and Name of Machine indicated on the Sticker. The Serial Number

indicates the product register. Identical machines could have different

parts depending on the date of production. Also, improvements and

modiﬁ cations might have been made after the publication of this

manual. In order to ensure you order the correct parts, mention the

Serial No. when contacting the applicable places.

CONCERNING WARNING DISPLAYS

This SEGA product has warning displays on stickers, labels and/or

printed instructions adhered/attached to or incorporated in the places

where a potentially hazardous situation could arise. The warning

displays are intended for accident prevention for customers and for

avoiding hazardous situations relating to maintenance and servicing

work. Some portions of the cabinet contain high voltage and may

cause accidents if touched. When performing maintenance, be very

careful of the warning displays. It is especially important that any

complex repair and replacement work not mentioned herein should

be performed by those technical personnel who have knowledge of

electricity and technical expertise.

In order to prevent accidents, caution any customer ignoring the warn-

ings to cease and desist immediately.

PRECAUTIONS REGARDING INSTALLATION LOCATION

● This product is an indoor game machine. Do not install it outside. Even indoors, avoid installing in places men-

tioned below so as not to cause a ﬁ re, electric shock, injury and/or malfunction.

- Places subject to rain or water leakage, or places subject to high humidity in the proximity of an indoor swim-

ming pool and/or shower, etc.

- Places subject to direct sunlight, or places subject to high temperatures in the proximity of heating units, etc.

- Places ﬁ lled with inﬂ ammable gas or vicinity of highly inﬂ ammable/volatile chemicals or hazardous matter.

- Dusty places. Sloped surfaces. Places subject to any type of violent impact.

- Vicinity of anti-disaster facilities such as ﬁ re exits and ﬁ re extinguishers.

- Areas where the temperature exceeds the applicable temperature (ambient temperature) range of 5 to 30

degrees centigrade.

2-1 LIMITATIONS OF USAGE

● Be sure to check the Electrical Speciﬁ cations. Ensure that this product is compatible with the location's power sup-

ply, voltage, and frequency requirements. A plate describing Electrical Speciﬁ cations is attached to the product.

Non-compliance with the Electrical Speciﬁ cations can cause a ﬁ re and electric shock.

● This product requires a breaker and earth mechanism as part of the location facilities. Using the product without

these can cause a ﬁ re and electric shock.

● Ensure that the indoor wiring for the power supply is rated at 15 A or higher (AC single phase 100 V ~ 120 V area).

Non-compliance with the Electrical Speciﬁ cations can cause a ﬁ re and electric shock.

● Be sure to use an independent power supply equipped with an earth leakage breaker. Using a power supply

without an earth leakage breaker can cause an outbreak of ﬁ re if a power surge occurs.

● Putting many loads on one electrical outlet can cause generation of heat and a ﬁ re resulting from overload.

● When using an extension cord, ensure that the cord is rated at 15 A or higher (AC 100 V ~ 120 V area). Using a

cord rated lower than the speciﬁ ed rating can cause a ﬁ re and electric shock.

BACK SIDE

PRECAUTIONS REGARDING PRODUCT OPERATION

2-2 OPERATION AREA

● For safe operation and management of this product, allow at least 70 cm of space between cabinets when al-

locating ﬂ oor space and space for people to move through.

● Be sure to provide sufﬁ cient space speciﬁ ed in this manual. Do not allow objects to block the ventilation ports. It

can cause generation of heat and a ﬁ re.

● SEGA shall not be held responsible for damage, compensation for damage to a third party, resulting from the

failure to observe this instruction.

● If the machine does not ﬁ t through the entryway to the installation location, do not disassemble it without ﬁ rst con-

sulting the instructions. If the machine still does not ﬁ t through the entryway after following the procedures in this

manual, contact your retailer or the ofﬁ ce listed in this manual.

For transporting the machine into the location's building, the minimum necessary dimensions

of the opening (of doors, etc.) are 52” (W) and 71” (H).

For safe operation of this product, comply with the following warnings.

PRECAUTIONS REGARDING PRODUCT OPERATION

3-1 BEFORE OPERATION

● To ensure maximum safety for the players and the customers, ensure that where the product is operated has suf-

ﬁ cient lighting to allow any warnings to be read. Operation under insufﬁ cient lighting can cause bodily contact

with each other, hitting accident, and/or trouble between customers.

● Be sure to perform appropriate adjustment of the monitor (LCD). For operation of this machine, do not leave moni-

tor's ﬂ ickering or deviation as is. Failure to observe this can have a bad inﬂ uence upon the players' or the custom-

ers' physical conditions.

● It is suggested to ensure a space allowing the players who feel sick while playing the game to take a rest.

● Check if all of the adjusters are in contact with the surface. If they are not, the Cabinet can move and cause an

accident.

● Do not put any heavy item on this product. Placing any heavy item on the product can cause a falling down ac-

cident or parts damage.

● Do not climb on the product. Climbing on the product can cause falling down accidents. To check the top por-

tion of the product, use a step ladder.

● To avoid electric shock, check to see if door & cover parts are damaged or omitted.

● To avoid electric shock, short circuit and/or parts damage, do not put the following items on or in the periphery of

the product. Flower vases, ﬂ owerpots, cups, water tanks, cosmetics, and receptacles/containers/vessels contain-

ing chemicals and water.

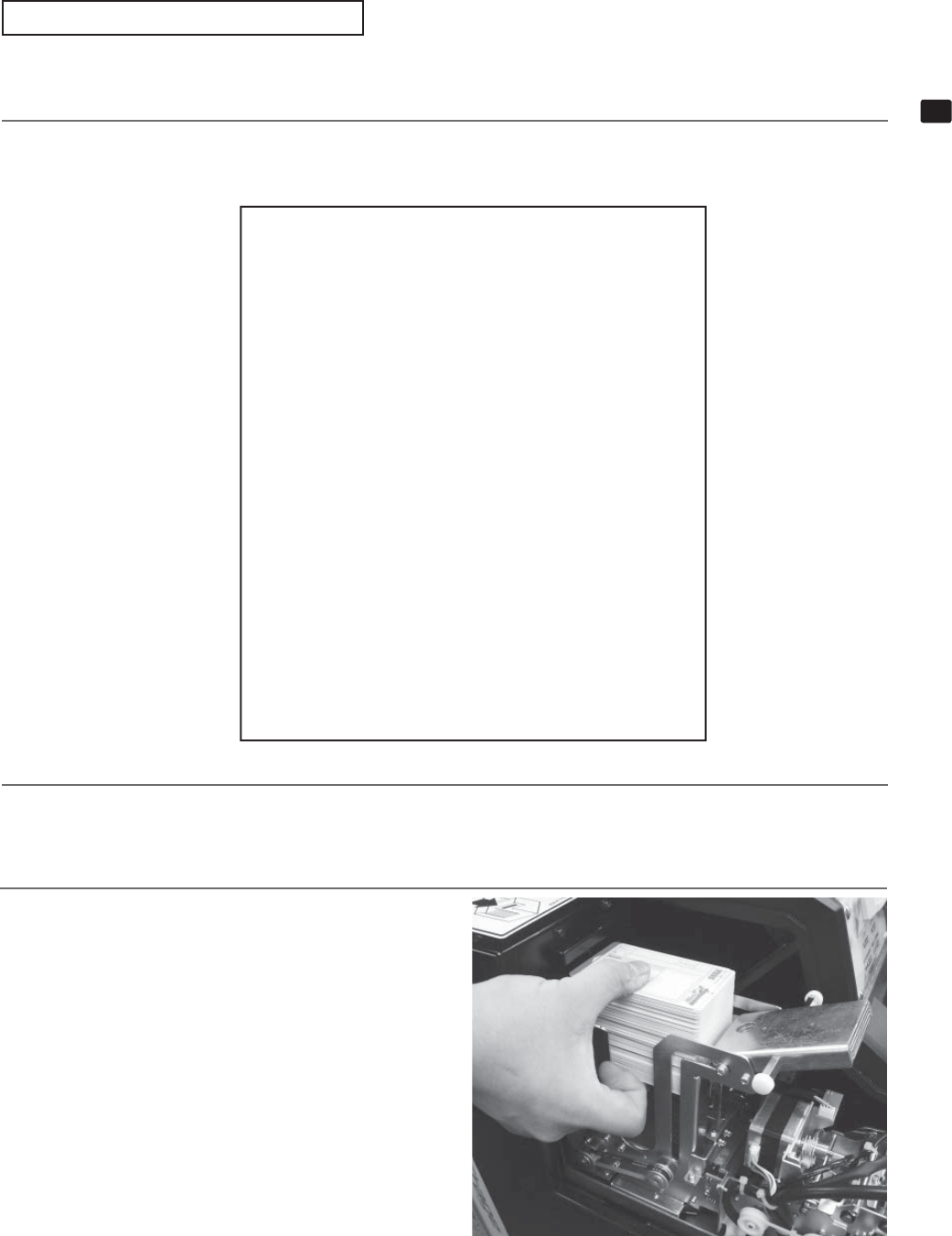

[Inspecting Initial D cards]

Reﬁ ll cards before beginning operations. Paying out all cards will cause an error. Refer to “7-1

Setting Dedicated Cards” before operating. You can reﬁ ll the cards even when power to the

machine is on.

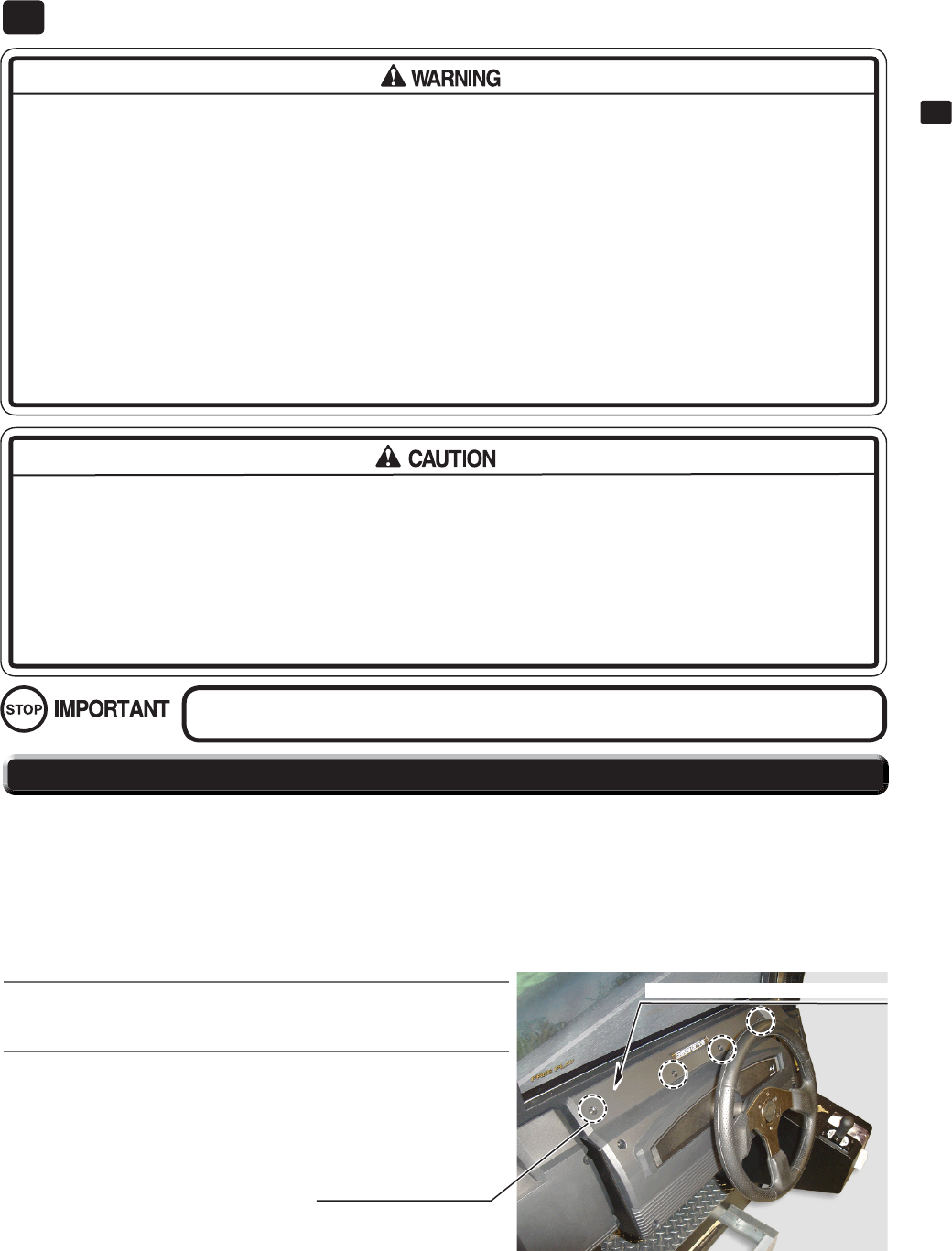

● During daily cleaning, be sure to check the surface of the steering wheel, gear shifter, and other parts that the

player touches with his hands for damage, cracks, or loose screws. If a player uses the machine while it is dam-

aged, cracked, or has a loose screw, the player may become injured.

● During daily cleaning, be sure to check the seat for any abnormality, wetness, etc. Failure to do this may result in

deliberate tampering or negligence being left undetected.

● To avoid injury, be sure to provide sufﬁ cient space by considering the potentially crowded situation at the instal-

lation location. Insufﬁ cient installation space can cause making bodily contact with each other, hitting accidents,

and/or trouble between customers.

PRECAUTIONS REGARDING PRODUCT OPERATION

To avoid injury and trouble, be sure to constantly give careful attention to the behavior and manner of the visitors and players.

3-2 DURING OPERATION (PAYING ATTENTION TO CUSTOMERS)

● For safety reasons, do not allow any of the following people to play the game.

- Those who need assistance such as the use of an apparatus when walking.

- Those who have high blood pressure or a heart problem.

- Those who have experienced muscle convulsion or loss of consciousness when playing video games, etc.

- Those who have neck or spinal cord problems. Those who are intoxicated. Pregnant women.

- Persons susceptible to motion sickness. Persons who disregard the product's warning displays.

● Even players who have never been adversely affected by light stimulus might experience dizziness or head-

ache depending on their physical condition when playing the game. Especially, small children can be subject

to those conditions. Caution guardians of small children to keep watch on their children during play.

● Instruct those who feel sick during play to have a medical examination. To avoid injury from falls and electric

shocks due to spilled drinks, instruct the player not to place heavy items or drinks on the product.

● To avoid electric shocks and short circuits, do not allow customers to put hands and ﬁ ngers or extraneous matter

in the openings of the product or small openings in or around the doors. To avoid falls and resulting injury, im-

mediately stop the customer from leaning against or climbing on the product, etc. To avoid electric shock and

short circuit, do not allow customers to unplug the power plug without a justiﬁ able reason.

● This product is intended for 1 Player only. Playing the game by 2 or more Players riding on the seat together

can cause falling down and collision accidents by striking head, hand, or elbow. Persons other than the player

should not be allowed to touch the controls during play. They may brush against or collide with the controls or

the player, possibly resulting in accidents.

● Customers should be warned not to place children on their laps while they play the game. Doing so may cause

the child to become trapped between the player and the control panel and/or cause the machine to tip over.

Immediately stop such violent acts as hitting and kicking the product. Such violent acts can cause parts damage

or falling down, resulting in injury due to fragments and falling down.

PRECAUTIONS TO BE HEEDED BEFORE STARTING THE OPERATION (CARD SYSTEM)

● The product is capable of rewriting the printing on cards. However, be aware that it may not always do so com-

pletely, and that in some cases the card may not be completely erased. Even where sufﬁ cient maintenance is

performed, printing may be performed incorrectly under such conditions where there are scratches on the card,

bends in the card, or the sudden insertion of a foreign objects into the card reader. This does not affect the data

recorded on the card.

● The product will automatically stop play if it determines that cheating has occurred. The following are considered

acts of cheating. Since the actions listed here may cause incorrect functioning or damage to parts, be sure to

caution players against taking them.

- Use of cards other than dedicated cards. Use of folded, bent, dirty, broken, damaged, or deformed cards. Use

of cards with adhered seals or extraneous matter on them. Insertion of two cards together. Incorrect insertion of

cards. When a card is extracted quickly. Removal of cards in contradiction to on-screen instructions

When moving the machine, be sure to unplug the power plug. Moving the machine with the plug as is inserted can

damage the power cord and cause ﬁ re and electric shock hazards. Take care not to tread on or otherwise harm

the power cord while moving the machine.

3-3 PRECAUTIONS WHEN MOVING THE MACHINE

PART DESCRIPTIONS

PART DESCRIPTION4

POP

LCD DISPLAY

CONTROL PANEL

ACCELERATOR AND BRAKE

CASHBOX DOOR

CARD READER/WRITER

SHIFT LEVER

BILLBOARD PANEL

SEAT ASSY

COIN DOOR

ACCESSORIES

Conﬁ rm that the accessories listed in the table below are present when setting up the product.

Accessories marked "Spare" in the note column are consumable items but included as spares.

Initial D cards (Initial D driver’s licenses) and Cleaning KIT are include when you purchase ID4 32”

STD with IC card RW unit.

To purchase cards and Cleaning KIT for future, refer below parts number and name then ask your

local Distributor.

5 TABLE 01

OWNER’S MANUAL

539-30-300 (1)

This manual

NETWORK (LAN) CABLE (10 F)

600-7269-0300 (1)

ACCESSORIES

CLEANING KIT LUECO

(30SHT)

601-11949 (1)

1 set 30 sheet package

NOTE: When you order the DVD-ROM disc only,

specify the part number 610-0727-0030 (DVD SOFT TFF EXP).

NOTE: We already installed game software in MAIN PCB.

(KEY CHIP also on MAIN PCB) You do not need install

DVD software to MAIN PCB. DVD drive, and DVD harness

(Power cable and USB MINI cable) are sold separately. (Only

you need when software update...etc) The DVD DRIVE and

DVD harness that come with SEGA’s “The House of the Dead

4” are compatible with this product.

5 TABLE 02

XKT-1604-D-EX2: DVD-ROM KIT TFF EXP

DVD SOFTWARE KIT (1)

CUSHION SPONGE

601-11137 (1)

Protective material

KEY CHIP (1)

DVD-ROM DISC (1) DISC CASE

REMOTE CONTROLLER FOR

32”LCD MONITOR (1)

CARD PACKAGE INID4 ENG

601-11926-01(Box of 100 Initial D cards)

ASSEMBLY AND INSTALLATION

ASSEMBLY AND INSTALLATION6

● The work described below should be carried out by the site maintenance personnel or other qualiﬁ ed profession-

al. If there are no personnel available with the necessary knowledge or skills, send a job request to the contact

listed in this document.

● Be sure to install this product as indicated in this document. Improper installation may cause damage to the prod-

uct, or accidents resulting in death or injury.

● Ensure that connectors are properly connected. Improper connections can cause electric shock.

● Be careful not to damage the wires. Damaged wires may cause electric shock or short circuit or present a risk of

ﬁ re.

● Provide sufﬁ cient space so that assembling can be performed. Performing work in places with narrow space or

low ceiling may cause an accident and assembly work to be difﬁ cult.

● To perform work safely and avoid serious accident such as the cabinet falling down, do not perform work in

places where step-like grade differences, a ditch, or slope exist.

● Do not leave power cords, ground wires, or network cables exposed in areas of heavy foot trafﬁ c. Doing so may

cause them to become damaged, possibly resulting in electric shock and/or short circuits. Make all efforts to

place cables away from aisles. Be sure to attach a protective cover when placing cables in an aisle.

To perform work safely and securely, be sure to prepare a step which is in a secure and stable condition. Perform-

ing work without using the step can cause violent falling down accidents.

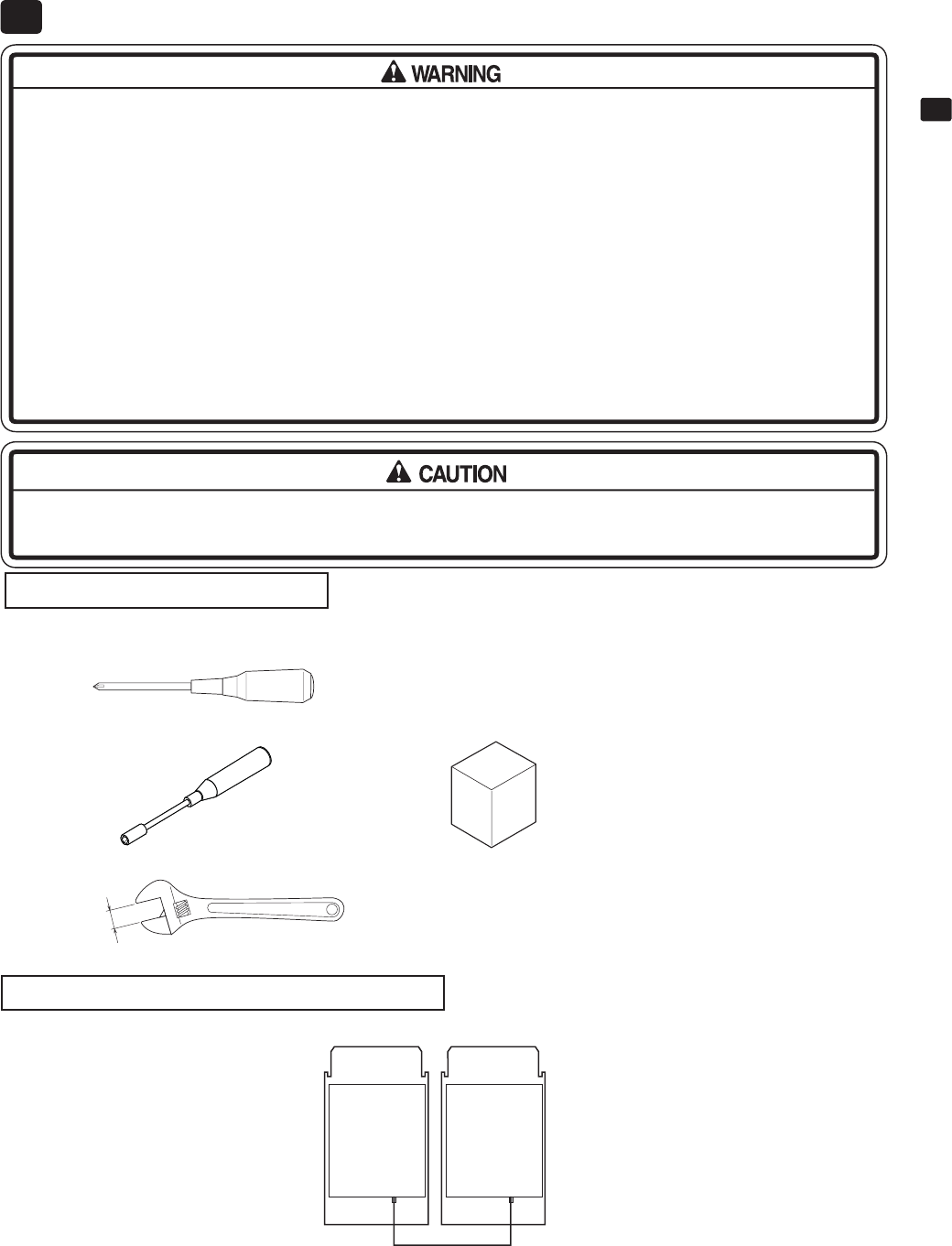

Tools necessary for work

- Philips screwdrivers - Key

- Hexagonal screwdriver (for M4 hexagon bolts and nuts) - Step

- Spanner with measuring distance of 24 mm (0.945”) to opposite side

24mm

(0.945")

Network Cable Connection Overview

6 FIG. 01

NOTE: ONLY 2 CABINETS LINKS!!!

ASSEMBLY AND INSTALLATION

6Use three screws to fasten the POP to the cabinet. Use a step when carrying out this procedure.

6-1-1 ATTACHING THE POP

6-1-1 FIG. 01

6-1 INSTALLING THE CABINET

6-1-2 SECURING IN PLACE

Be sure to ground the adjusters, and secure the product ﬁ rmly to the installation location. If the cabinet moves

either during assembly work or during operation after the completion of assembly, a serious accident may occur.

Move the product to the installation site. See Chapter 2 for examples of installation.

Ensure that you leave enough aisle space for the player to sit in the seat. Additionally, leave at least 200 mm of

space on the side of the cabinet with the exhaust vent (the rear surface of the cabinet) for ventilation.

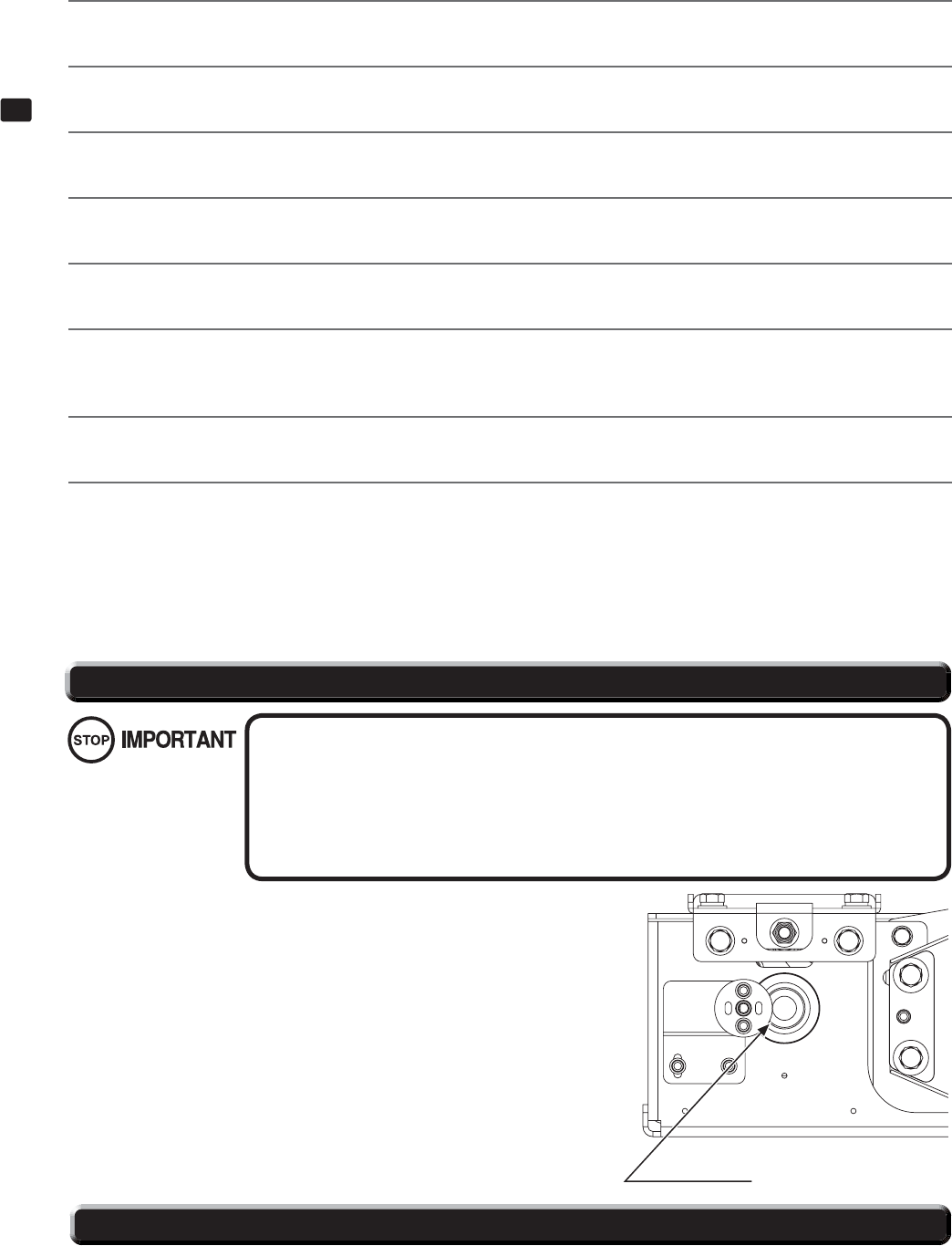

Use a wrench to set adjuster heights so that the unit will stay level.

After setting, turn adjuster nuts upwards to tighten them and secure adjuster heights.

6-1-2 FIG. 02

ADJUSTER CASTER

About 5 mm

Tighten nut

upwards.

ADJUSTER

8-32 x1/2" Phillips Truss head

POP

Black (7)

ASSEMBLY AND INSTALLATION

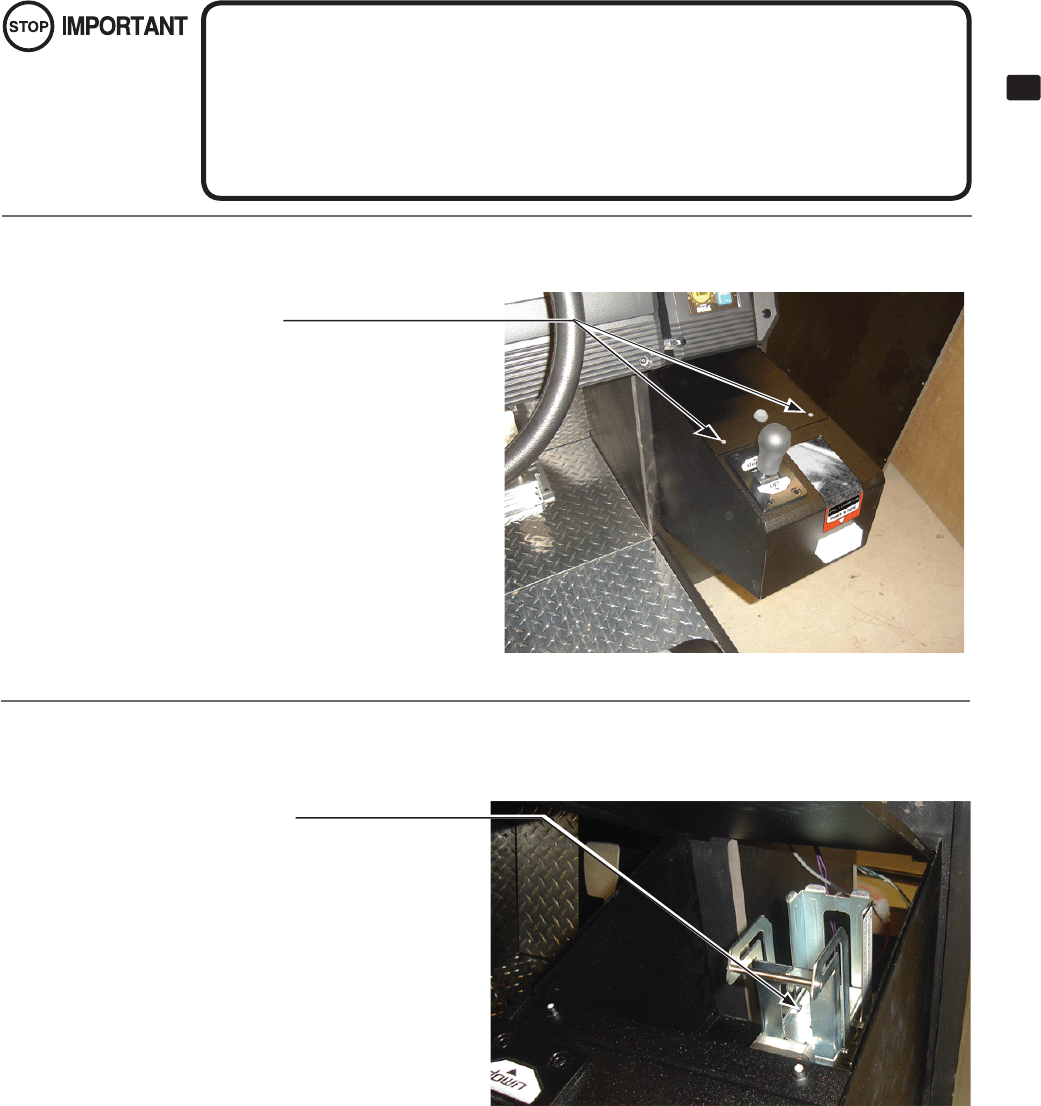

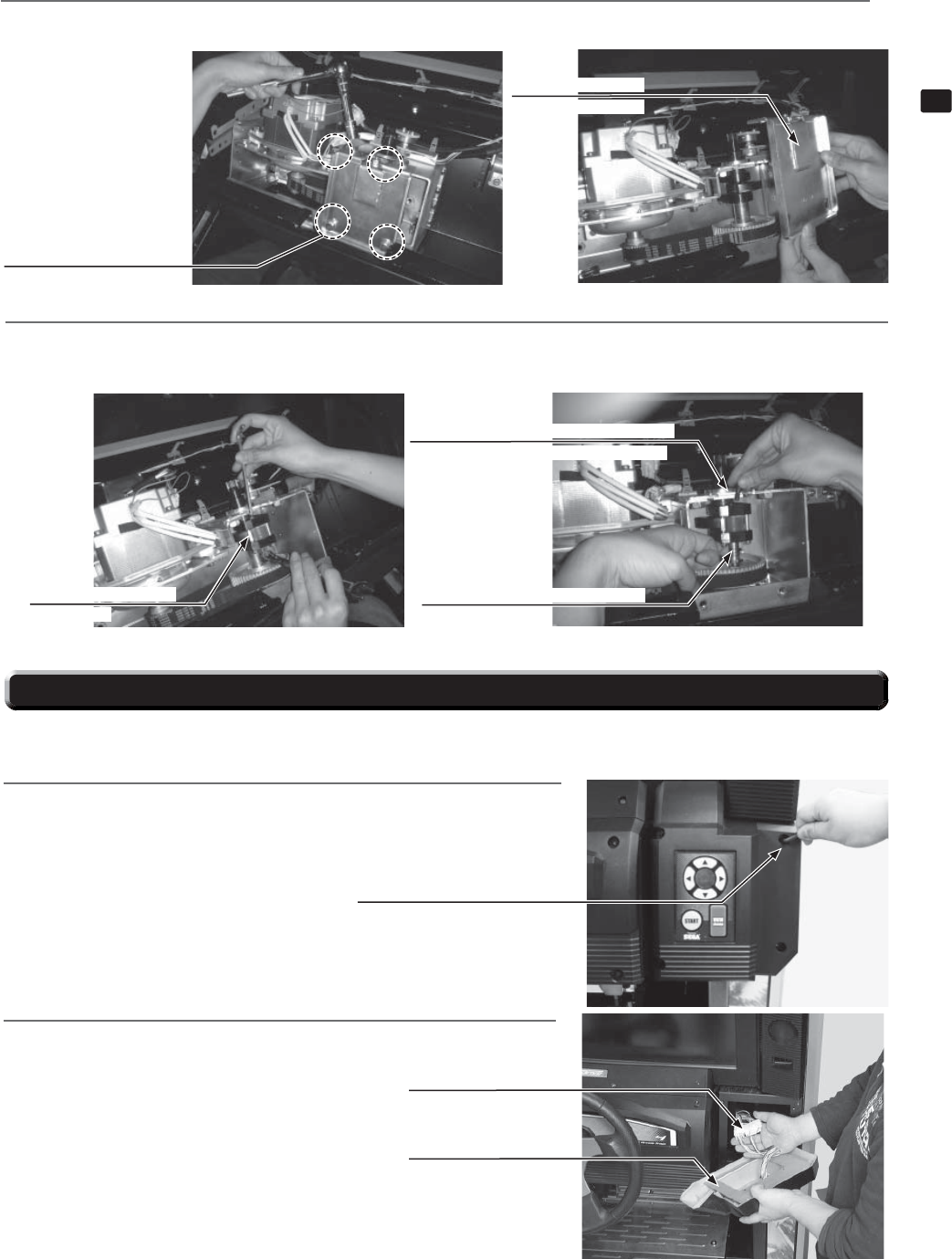

Remove the screws. Use the key to unlock the Card door and remove it.

6-1-3 REFILLING THE CARDS

6-1-3 FIG. 01

● Be sure to use the product’s dedicated cards. Using any other cards may cause the

product to malfunction or become damaged.

● Be sure to adhere to the assigned procedures, orientation, and quantities when loading

the cards. Loading the cards incorrectly may cause damage to the product or malfunc-

tions.

● Be sure to load only new cards, straight out of the box. Do not load warped, deformed,

or used cards.

Truss Head screws (2), black

8-32 x 1/2" Phillips

Lift the dispenser retainer as shown in the diagram.

RETAINER

6-1-3 FIG. 02

ASSEMBLY AND INSTALLATION

Place the retainer over the reﬁ lled cards.

6-1-3 FIG. 05

Carry out steps 1 in reverse order and replace and lock the cover, then ﬁ x it in place with truss screws.

Reﬁ ll the Initial D4 IC cards. Place the cards in the orientation shown in the diagram, loosen them, and load 100

cards. Do not load more than 101 cards, as this may result in damage to the product or malfunctions.

6-1-3 FIG. 03

6-1-3 FIG. 04

Ensure that the cards are

loaded in the proper orientation.

RETAINER

ASSEMBLY AND INSTALLATION

6-1-4 CONNECTING NETWORK CABLES

Use LAN cable in cash box to connect 2 games. Open the back door of cabinet. True LAN cable as bottom slit

of cabinet.

6-1-4 FIG. 01

6-1-5 FIG. 02

Connect LAN cable connectors to the both LAN connectors (One near by USB MINI connectors) on both Left

and Right cabinet of MAIN PCB. After that close back door of both cabinet.

SLIT FOR LAN CABLE

LAN cable connector

PASS LAN CABLE Like this...

Connect to the

other Main PCB

on other cabinet.

ASSEMBLY AND INSTALLATION

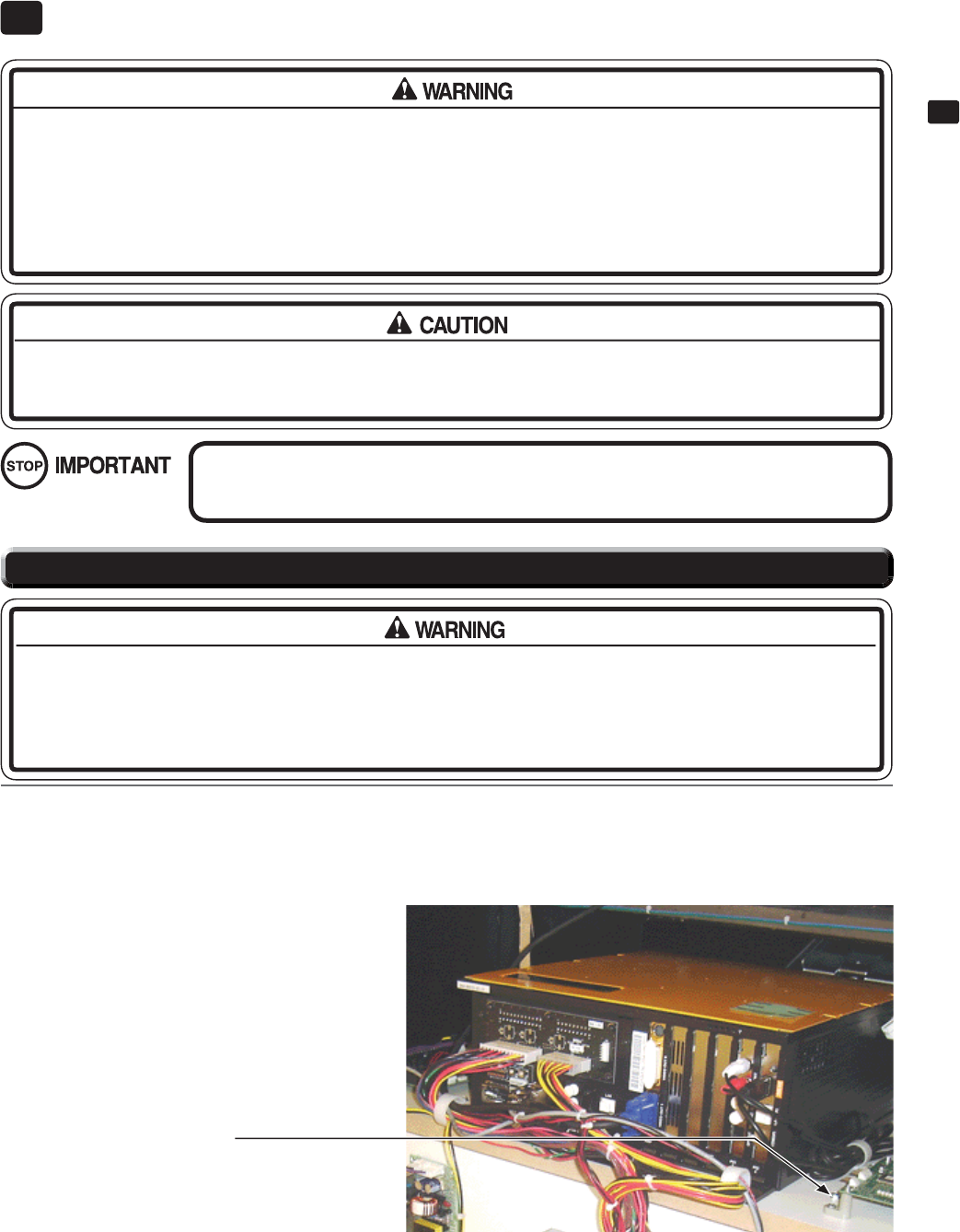

6-2 TURNING ON THE POWER

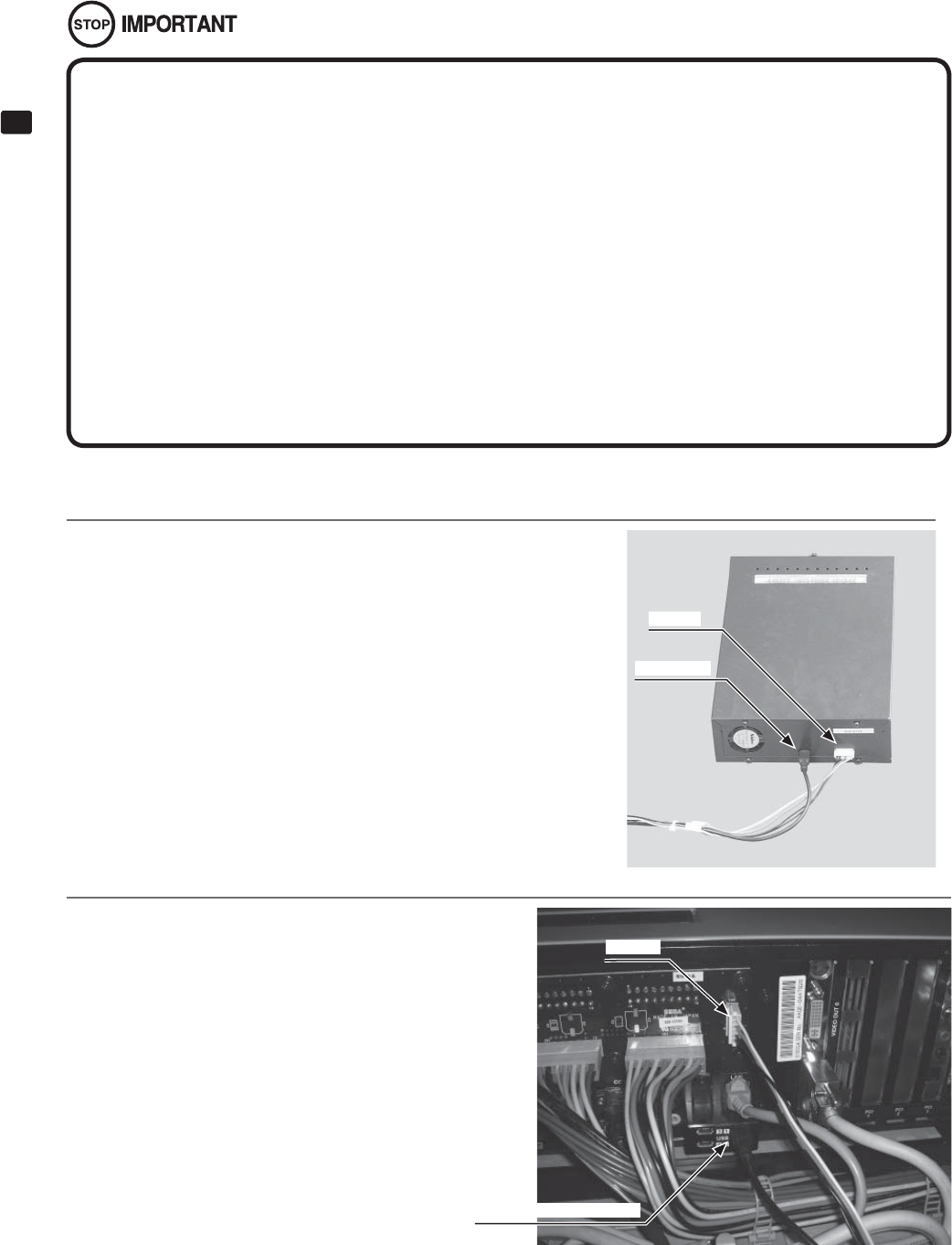

● When connecting the DVD wire connector, check the orientation carefully and connect securely. The connec-

tor must be connected in the proper direction. If it is connected in the wrong direction or indiscriminately at an

incline so that a load is applied, the connector or its terminal pins could break, causing a short circuit or ﬁ re.

● Be careful not to damage the DVD wire by getting it caught between objects, etc. Doing so may cause a short

circuit or ﬁ re.

● The following explanation assumes that the product has been assembled properly as explained above. If there is

an error or if the product operates in a manner other than as indicated below, cut off the power supply immedi-

ately. Failure to do so may result in a ﬁ re or electrical shock.

● If you look directly at the laser beam in the DVD DRIVE, you could suffer vision impairment. Do not look inside the

DVD DRIVE.

● Do not use or store the DVD DRIVE or DVD wire in any of the following locations, as this may result in serious dam-

age.

[Do not use or store in these locations]

- Anywhere which may vibrate or shock the equipment

- In direct sunlight

- In damp or dusty places

- In places with a sharp change in temperature

- Close to anything that gives off heat (a heater, etc.)

- Close to anything with a strong magnetic ﬁ eld (magnets, monitor, speakers, radio, etc.)

- Anywhere that is likely to get wet (kitchen, etc.)

- Anywhere with a slope or incline

- Anywhere with corrosive gas in the air (chlorine, hydrogen sulﬁ de, ammonia, sulfur dioxide, etc.)

- Anywhere with strong static electricity

[Do not use in these locations]

- Close to anything that is highly retentive of heat (carpet, sponge, cardboard, etc.)

- Anywhere that blocks the DVD DRIVE air vent.

YOU DO NOT NEED DVD DRIVE BECAUSE ID4 GAME IS INSTALLED GAME SOFTWARE ALREADY

AT MANUAFACTURE. PLEASE REFER BELOW SECTION WHEN YOU NEED FOR MAINTENANCE OR

FUTURE UPDATE.

ASSEMBLY AND INSTALLATION

● The DVD DRIVE is a delicate piece of equipment. Avoid the following.

- Dropping or shaking it violently.

- Getting water or other liquids on it, or placing small items on top of it.

- Placing large or heavy items on top of it.

- Drinking or smoking close to the DVD DRIVE.

● Do not turn off the power to the DVD DRIVE when its access lamp is on or ﬂ ashing, as this could cause damage to

the device.

● Do not allow any foreign materials, such as liquids, metals or smoke inside the DVD DRIVE.

● Use a soft, dry cloth to wipe off any dirt or marks on the DVD DRIVE.

- If you need to use a cleaning agent, always use a “neutral” agent diluted in water.

- Never use products or cleaning agents containing benzene, alcohol, thinners, etc.

● Do not touch the lens inside the DVD DRIVE. Doing so may prevent it from reading accurately.

● The chip components on IC boards can be damaged by electrostatic discharge from the human body. Before

handling an IC board, always neutralize any static charge in the body by touching a grounded metal surface.

● Some parts are not designed and manufactured speciﬁ cally for the kit. The manufacturers may discontinue, or

change the speciﬁ cations of such general-purpose parts. If this is the case, SEGA cannot repair or replace a failed

kit whether or not a warranty period has expired.

Handling the DVD-ROM Disc

● Do not use a DVD-ROM with a damaged front. This may cause a malfunction.

● Insert the DVD-ROM into the DVD DRIVE with the label facing upwards.

● Do not get ﬁ ngerprints or dust particles on the disc. Contaminated discs may lower audio and video quality, and

may result in read malfunctions.

● When cleaning the disc, do not use volatile chemicals (benzene, thinner, etc.), cleaning sprays, or antistatic

agents.

● Do not use a cracked, warped, or damaged disc. Do not attach papers or seals onto the disc to avoid scratching

it. Do not use a disc with signs of peeled seals, tape, etc. If such a disc is placed in the DVD-ROM DRIVE, malfunc-

tions, such as the inability to remove the disc from the drive, may result.

● When cleaning a heavily contaminated disc, use a clean cloth that has been soaked in water and squeezed.

After wiping, remove any remaining moisture with a clean, dry cloth.

With both hands:

Put your thumbs and foreﬁ ngers on

4 opposite sides of the disc.

With one hand:

Insert your foreﬁ nger into the center hole,

while placing your thumb and middle

ﬁ nger on opposite sides of the disc.

How to Hold a Disc

When handling a disc, be careful not to contaminate it with your ﬁ ngerprints.

ASSEMBLY AND INSTALLATION

● The software is not installed on the game board (LINDBERGH) when the power supply is engaged, so the “Error 22”

message is not a malfunction. However, if there is another error display, or if there is no video output at all, there

might have been an error in product assembly, wiring connections might be faulty, or the LINDBERGH might not

be functioning properly.

● After the power supply is engaged, wait for “Error 22” message to be displayed. If the product is indiscriminately

operated in any way beforehand, there could be unexpected problems or malfunctions, as well as damage to

parts.

● Once “Error 22” is displayed, set the DVD-ROM in the DVD DRIVE and re-engage the power supply. Installation

takes place.

● After the power supply is engaged, the DVD DRIVE tray will not come out for about 30 seconds even if you press

the switch. This is due to DVD DRIVE initialization.

● The DVD DRIVE tray can come out or return only while the power supply is engaged. The tray cannot be opened

or closed while the power is off.

● Even after the software has been installed, store the DVD software kit, DVD DRIVE and DVD wire in a secure loca-

tion.

● If for any reason installation cannot be completed, an error is displayed. Refer to the LINDBERGH service manual

and take corrective action.

Install the software in the LINDBERGH cabinet.

For safety and to prevent erroneous operation, connect the DVD drive and the LINDBERGH before connecting the power cord.

Have the DVD drive, DVD wire, and DVD software kit ready.

Connect the DVD wire to the connector on the rear of the DVD

drive. Connect the 2 connectors on the side with the DVD tag.

Conﬁ rm that the main switch of the AC unit is set to OFF.

6-2 FIG. 01

USB MINI B

NH6 Pin

Open back door. Connect the DVD wire to the

LINDBERG. Connect the NH6 pin to the connec-

tors on the side with the “LINDBERGH” tag. You

can connect the USB MINI A connector to any open

port, but port 1 will be used for purposes of this

document. Then turn main power switch on.

6-2 FIG. 07

NH6 PIN

USB MINI A CONNECTOR

ASSEMBLY AND INSTALLATION

Press the DVD DRIVE switch. The tray goes back into the drive. Turn the power back on. First turn the main

switch off, wait for at least 10 seconds, and then turn it on again.

Software is installed automatically from the DVD to the LINDBERGH. In some cases, it may take about 10

minutes to install software to the LINDBERGH.

When installation is complete, the game will startup automatically. Conﬁ rm that the game starts. Press the DVD

DRIVE switch so that the tray comes out. Remove the DVD.

Press the DVD DRIVE switch so that the tray goes back into the unit. If the power is cut off, the tray will not

move.

Set the main switch to OFF. Remove the DVD wire from the DVD DRIVE.

The LINDBERGH startup screen will appear on the monitor. Wait for at least 1 minute. The product will read an

error. Conﬁ rm that it is “Error 22.”If this is correct, proceed to the next step. Refer to the this manual and take

appropriate action if the product is not in “Error 22”.

Take out 1 urea (resin-head) screw and remove the

DVD DRIVE case lid.

6-2 FIG. 08

Press the DVD DRIVE switch and the DVD DRIVE

tray will come out. Set the DVD from the DVD kit

into the tray. Always have the labeled side facing

upward.

6-2 FIG. 09

CASE LID

ASSEMBLY AND INSTALLATION

6-3 INSTALLATION SETTINGS

When installing 2 or more cabinets, carry out the settings for cabinet seat number and in-store

competition during the game test mode. By setting different numbers but identical alphabet set-

tings you can have competitions between cabinets. You cannot have competitions between

cabinets with different alphabetic settings.

Set, adjust, and conﬁ rm the following settings in test mode. Refer to the LINDBERG service manual for information on system test mode, and the

Initial D4 service manual for information on game test mode.

In system test mode, set COIN ASSIGNMENTS as follows.

COIN ASSIGNMENTS

- COIN CHUTE TYPE: COMMON

- SERVICE TYPE: COMMON

● Check whether or not the speakers are functioning correctly using SPEAKER TEST in system test mode. The speakers on this product are in

the following conﬁ guration. Set RIGHT SPEAKER and LEFT SPEAKER to “ON” and check that they output sound.

SPEAKER SETTING

RIGHT SPEAKER USED

LEFT SPEAKER USED

REAR RIGHT SPEAKER UNUSED

REAR LEFT SPEAKER UNUSED

CENTER SPEAKER UNUSED

WOOFER SPEAKER UNUSED

● Check whether or not the speakers are connected and functioning correctly using INPUT TEST in the game test mode.

● Check whether or not the speakers are connected and functioning correctly using OUTPUT TEST in the game test mode.

● Adjust STEEERING, GAS, and BRAKE in INPUT ASSIGNMENTS in game test mode.

● Seat numbers are assigned using SEAT NUMBER in the GAME ASSIGNMENTS section of game test mode. You can have the in-store com-

petitions by connecting cabinets together and assigning them different seat numbers. The seat numbers are “SINGLE”, “1”, and “2”.

To conduct in-store competitions, set one cabinet to “1” and the other one to “2”. Set this ﬁ eld to “SINGLE” when installing only one cabinet,

or if you do not want to conduct in-store competitions.

● Carry out a card check in IC CARD R/W & PRINTER TEST in game test mode, and check that the card read/write function is performing cor-

rectly. The check will print a test card, and you can also use ERASE PRINT in the same test mode to erase the printed characters. Although in

some cases the printed characters may not be completely erased, this will not harm IC card’s functionality.

● Check that the network is functioning correctly in NETWORK TEST in games test mode.

● Adjust the following settings to suit the operating environment.

- Volume adjustment

- Store closing time

- Time setting

Contact the point of purchase for this product if you are unable to adjust the volume using the procedures described in this document.

CARD READER/WRITER

7-1 SETTING DEDICATED CARDS

When the product has run out of cards, a message will appear on screen. Carry out the following procedure to reﬁ ll the cards.

Remove the truss screws then open IC card reader door.

Lift the dispenser retainer as shown in the diagram.

CARD READER/WRITER7

● Be sure to use dedicated cards available for this product. Use of ones other than such

dedicated cards may cause a malfunction or failure of the machine.

● Be sure to set the speciﬁ ed number of card in the speciﬁ ed orientation by using the

speciﬁ ed procedure. Wrong setting of the cards may cause the machine to fail.

● Set virgin cards taken out from a container that was unpacked immediately before use.

Do not include a corrugated, bent, or used card in the card deck.

● You can reﬁ ll the cards while the product is operating. Take care not to touch anything

other than the loading area.

7-1 FIG. 01

RETAINER

Reﬁ ll the Initial D 4 IC cards. Place the cards in the orientation shown in the diagram, loosen them, and load

100 cards. Do not load more than 101 cards, as this may result in damage to the product or malfunction.

7-1 FIG. 02 7-1 FIG. 03

Ensure that the cards are

loaded in the correct orientation.

Replace the retainer over the reﬁ lled cards. Carry out steps 1 in reverse order and replace and lock the cover,

then ﬁ x it in place with the truss screws.

7-1 FIG. 04

CARD READER/WRITER

7-2 CLEANING

Always use the designated Cleaning Card. Using anything other than the designated card

may cause faulty operation and/or unit failure.

The product counts the number of times the game is played and the number of new cards issued. When either the play count or the number of new

cards issued exceeds 200, a cleaning reminder is displayed the next time the power is turned off and on again.

The above numbers will be cleared after cleaning takes place.

The cleaning process varies depending on whether the play count or the number of new cards issued has been reached.

When the Play Count Exceeds 200

When the play count exceeds 200, the screen in the dia-

gram below appears the next time the power is turned

off and on. Insert a cleaning card to IC card RW entry.

NOTE: Cleaning cards can be used up to 3 times. However, do not use a

cleaning card if there is no longer alcohol on the surface, if the

card feels dried out, if there is a large amount of dirt on the sur-

face, or if the fabric has become fuzzy.

7-2 FIG. 01

When the Number of New Cards Issued Exceeds 200

7-2 FIG. 02

When the number of new cards issued exceeds 200, the screen below appears the next time the power is turned

off and on.

Following the instructions on the screen, remove the cards from the stocker, insert a cleaning card into the stock-

er, and press the Start and TEST Buttons simultane-

ously.

7-2 FIG. 03

NOTE: Be sure to use a new cleaning card when cleaning the stocker roll-

ers.

Caution!

Do not press the Start and TEST Buttons before inserting the cleaning

card. Doing so may soil the cards inside and/or cause the reader/writer to

break down.

CLEANING CARD

CARD READER/WRITER

Carry out the following procedure once every 10 days to clean the Stock Rollers. Further, check whether or not the rollers are dirty when reﬁ lling the

cards, and clean them if they are dirty.

NOTE: Be sure to use a new cleaning card when cleaning the stocker rollers.

Cleaning the Stocker Rollers

Enter GAME TEST MODE and select “IC CARD R/W & PRINTER TEST”. Do not select or execute CLEAN

STOCKER at this time.

Carry out steps 1 through 3 in “7-1 Setting Dedicated Cards” and remove the cover and raise the retainer.

7-2 FIG. 04

IC CARD R/W & PRINTER TEST

RESET UNIT

CHECK CARD

CHECK PRINTER

CHECK STOCKER

CLEAN ROLLER

CLEAN STOCKER

ERASE PRINT

->EXIT

UNIT STATUS : ---

UNIT RESULT : ---

SENSOR(PT1) :OFF

SENSOR(PT3) :OFF

SENSOR(PT4) :OFF

SENSOR(PT5) :OFF

SENSOR(PT6) :OFF

SENSOR(DISPENSER) :OFF

SENSOR(SHUTTER1) :OFF

SENSOR(SHUTTER2) :OFF

SELECT WITH SERVICE BUTTON

AND

PRESS TEST BUTTON

Remove all of the Initial D cards.

7-2 FIG. 05

CARD READER/WRITER

Insert a new cleaning card. Place the retainer on top of the cleaning card.

7-2 FIG. 06 7-2 FIG. 07

CLEANING CARD

Select CLEAN STOCKER and press the test button. Roller cleaning will commence. During cleaning “CLEAN-

ING STOCKER ROLLER” will display in the UNIT STATUS area, and change to “DONE” when complete.

7-2 FIG. 08

IC CARD R/W & PRINTER TEST

RESET UNIT

CHECK CARD

CHECK PRINTER

CHECK STOCKER

CLEAN ROLLER

->CLEAN STOCKER

ERASE PRINT

EXIT

UNIT STATUS : CLEANING STOCKER ROLLER

UNIT RESULT : ---

SENSOR(PT1) :OFF

SENSOR(PT3) :OFF

SENSOR(PT4) :OFF

SENSOR(PT5) :OFF

SENSOR(PT6) :OFF

SENSOR(DISPENSER) :OFF

SENSOR(SHUTTER1) :OFF

SENSOR(SHUTTER2) :OFF

SELECT WITH SERVICE BUTTON

AND

PRESS TEST BUTTON

(Display during cleaning)

NOTE: Display changes to

“DONE” when complete.

CARD READER/WRITER

Lift the retainer, and remove the cleaning card.

Check that the rollers are no longer dirty.

NOTE: If the rollers are still dirty, use a new clean-

ing card and repeat steps 4 through 6 to

repeat the cleaning process.

7-2 FIG. 09

ROLLER

Check that the rollers are dry, and then replace the

Initial D cards.

7-2 FIG. 10

Repeat steps 1 through 3 in “7-1 Setting Dedicated Cards” in reverse order and attach the cover.

This product counts the number of times the game is played. When the number of plays exceeds 200, a notice appears on screen the next time the

product is turned on, requesting that a cleaning card be inserted into the card R/W. Follow the on-screen instructions to clean the heads. Cleaning the

heads resets the number of plays recorded above.

NOTE: You can use the same cleaning card up to 3 times. However, do not use the card if the alcohol on its surface has evaporated, there is no mois-

ture present, there is a lot of dirt on the cleaning card surface, or if the card has become extremely worn.

Head Cleaning

CARD READER/WRITER

If a trouble such as card jamming occurs on the card reader/writer, you are notiﬁ ed of the trouble on the screen. You cannot proceed to a play unless

you resolve the trouble at this time. First identify the trouble before you begin to take action. (Refer to the Service Manual)

Remove the truss screws. Use the key to unlock the cover and remove it.

7-3 CLEARING CARD JAMS

When attempting to perform this operation without powering down so that game play can be restored, exercise

extreme caution. Machine parts may move unexpectedly when the power is ON. This may result in ﬁ ngers being

caught or severed and other injuries.

Pulling on the green shaft attached to the card R/W unlocks the

hatch lock. Remove the hatch while pulling the green shaft.

7-3 FIG. 01

Turn the knobs to remove the stuck card.

7-3 FIG. 02

KNOB

7-3 FIG. 03

Remove the stuck card.

Close the hatch while pulling the green shaft. With the

hatch closed, let go of the green shaft. Check that the

hatch is ﬁ rmly in place. Carry out steps 1 in reverse order

and attach and lock the cover, then ﬁ x it in place with the

truss screw.

CARD READER/WRITER

7-4 EXCHANGING THE CARD R/W UNIT

Remove the truss screws. Use the key to unlock the cover and remove it. Then open back door to remove 6 Nuts

to take off hole card reader & Shift box from cabinet.

Remove the 2 screws. Pull out the card R/W unit.

Since the unit is still wired, take extra care as you

remove the 2 connectors.

7-4 FIG. 02

After you remove the 2 ﬂ at head screws and the cap, you can exchange the card R/W unit.

7-4 FIG. 03 7-4 FIG. 04

Carry out steps 1 and 2 in reverse order and attach the replacement card R/W unit.

PHILLIPS SCREW (2)

FLAT HEAD SCREW (2), black

M2.6x12

CARD R/W UNIT

CAP

NUTS (6)

7-4 FIG. 01

CARD READER/WRITER

7-5 INITIAL D LICENSE RESTORATION PROCEDURE

Select IC CARD RESTORATION from the GAME TEST MODE screen in Test Mode.

Under SELECT ACCESS CODE, select the card to restore.

The ACCESS CODE is printed on the back of the card.

The ACCESS CODE is displayed on the screen when a problem occurs after ejecting an “Expired” Initial D

License that has reached its limit. Two different types of ACCESS CODE may be displayed as follows:

(1) If the renewal process for a new Initial D License is halted by a freeze or other problem, the ACCESS

CODE for the “Expired” Initial D License is displayed.

(2) If a problem occurs or the data write process is interrupted while creating the new Initial D License, the AC-

CESS CODE for the new Initial D License is displayed.

Select RESTORE. STATUS will display “INSERT THE CARD REQUIRES RESTORING”. Insert the card

with the ACCESS CODE you selected in step 2 as shown in the diagram.

If the product fails to renew an Initial D License or an error occurs during the renewal process, you can attempt to restore the license. Refer to the

Service Manual and follow the on-screen instructions when restoring a license through the game screen.

Restoring in Test Mode

If restoration is successful, the restored state of the Initial D License depends on which type of ACCESS CODE

was displayed in step 2.

(1) “Expired” Initial D License

The following screen appears the next time the game is played, enabling the player to renew the license

again.

7-5 FIG. 01

NOTE: If restoration is not successful, repeat the process beginning with step 2.

(2) New Initial D License

The renewal process is complete. The new Initial D License may now be used to play the game as nor

mal.

GAME DESCRIPTION

GAME DESCRIPTION8

8-1 GAME OVERVIEW

Initial D License (IC Card)

The game is a car racing game with three different game

modes: “Legend of the Streets”, “Time Attack” and “In-

store Battle”. The card system allows players to store

information such as the cars, wins/loss records and car

tune-up status on an Initial D License (IC card).

NOTE: Credits (money) are required to purchase a Li-

cense.

Purchasing an Initial D License when you start the game

creates your car. Each Initial D License can store data for

3 cars.

The Initial D License stores your name, Character (por-

trait), cars (up to 3), customizations, rivals defeated, Time

Attack records, and battle results.

Your name, Character (photo-style portrait), areas cleared,

and Key are printed on the face of your Initial D License.

NOTE: The Key is necessary when recording results on

the Net-Rankings.

8-1 FIG. 01

8-1 FIG. 02

Car Selections

TOYOTA

TRUENO GT-APEX [AE86]

LEVIN GT-APEX [AE86]

LEVIN SR [AE85]

MR2 G-Limited [SW20]

ALTEZZA RS200 [SXE10]

NISSAN

SKYLINE GT-R V·spec II [BNR32]

SKYLINE GT-R V·spec II Nur [BNR34]

SILVIA K's [S13]

SILVIA Q's [S14]

SILVIA spec-R [S15]

180SX TYPE II [RPS13]

HONDA

CIVIC SiR·II [EG6]

CIVIC TYPE R [EK9]

INTEGRA TYPE R [DC2]

S2000 [AP1]

MAZDA

RX-7 Type R [FD3S]

RX-7

III [FC3S]

RX-8 Type S [SE3P]

ROADSTER [NA6CE]

SUBARU

IMPREZA WRX type R STi Version V [GC8]

IMPREZA WRX STI [GDBF]

MITSUBISHI

LANCER GSR Evolution III [CE9A]

LANCER RS EVOLUTION IV [CN9A]

LANCER Evolution IX GSR [CT9A]

SUZUKI

CAPPUCCINO [EA11R]

INITIAL D

SILEIGHTY

∞

GAME DESCRIPTION

Race Course

Race Screen

8-1 FIG. 03

Class Area Course Time of day, weather

Easy Lake Akina Circular Course/3 laps, Clockwise & Counterclockwise Day/Night, Clear/Rain

Normal Myogi One Way, Uphill/Downhill Day/Night, Clear/Rain

Hard Akagi One Way, Uphill/Downhill Day/Night, Clear/Rain

Hard Akina One Way, Uphill/Downhill Day/Night, Clear/Rain

Hard Irohazaka One Way, Downhill/Reverse Day/Night, Clear/Rain

Expert Tsukuba One Way, Outbound/Inbound Day/Night, Clear/Rain

8-2 GAME FLOW

Advertise (Stand-by), Movie Screens

Insert coins until you have enough credits. The game will then start automatically.

8-2 FIG. 01 8-2 FIG. 02

Card Entry Screen

If you already have an Initial D License, insert it.

If you don’t have an Initial D License, you may play

without one (your data will not be saved). You may

also purchase an Initial D License.

8-2 FIG. 03

GAME DESCRIPTION

My Character Selection Screen

If you’re purchasing an Initial D License, you must

ﬁ rst select a Character. As you play the game, you

will collect Character Parts that you can use to

customize your selected Character.

8-2 FIG. 04

8-2 FIG. 05

Name Entry Screen

If you’re purchasing an Initial D License, enter

your name (driver’s name) at the player name input

screen.

NOTE: Your name can be up to 6 characters long,

Card Data Check Screen

You can check the recorded data on this screen.

NOTE: After your ﬁ rst play, you can view your

battle results, Time Attack records, and

other data.

8-2 FIG. 06

Conﬁ gurations

When a card is inserted, a number of options may

be set.

Press the View Change Button at the Card Data

Check Screen to go to the Conﬁ guration Screen.

Use the Up and Down Buttons on the Conﬁ guration

Screen to choose menu items and the Left and Right

Buttons to change settings.

8-2 FIG. 07

GAME DESCRIPTION

Difﬁ culty: Change the difﬁ culty level of “Legend of the Streets” mode. Different

difﬁ culty levels become available as you clear more races.

Race Volume: Adjust the sound volume during races.

Voice Volume: Turn rivals’ voices during races on and off.

Navigation Display: Turn the in-race navigation screen display on and off.

Steering: Set steering wheel stiffness.

Force Quit:

Turn the Force Quit function on and off. This function allows you to forcibly

end a race by pressing the Start and View Change Buttons at the same time.

NOTE: Only possible in “ Legend of the Streets” and “ Time Attack” modes.

Default Settings: Return all settings on the page to their default values.

Car Selection Screen when playing without an Initial

D License, adding a new car, or adding additional car

data

Select your car’s maker, model, body color, and

transmission.

Press Up and Down to make your selection and press the

Start Button to conﬁ rm.

8-2 FIG. 08

Garage Screen

When playing with an Initial D License, you can have up to 3 cars by choosing “Add Car Data” and inserting

the required number of credits.

NOTE: Credits (money) are required for “ Add Car Data”.

8-2 FIG. 09 8-2 FIG. 10

Mode Select Screen

Choose from 3 different modes of play.

Legend of the Streets: Engage in a Battle (race) against rival characters from Initial D.

Time Attack: Race alone and try to beat the best time.

In-store Battle: Play a Battle against other game machines in-store.

8-2 FIG. 11

GAME DESCRIPTION

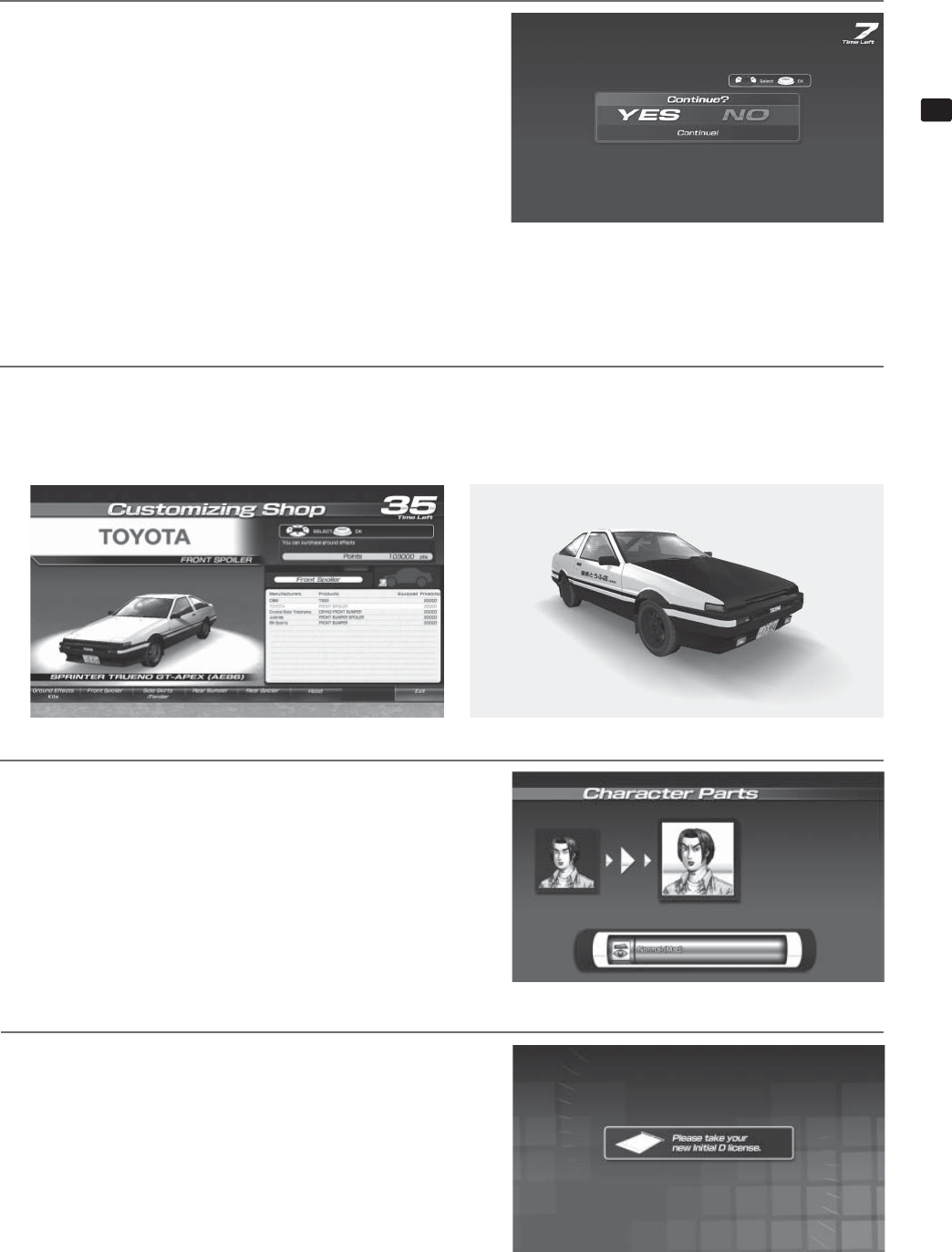

Continue Screen

The Continue Screen appears after 1 Battle (race) in

“Legend of the Streets” and “Time Attack” modes, and

after the match (or at the end of the alternate mode if no

opponent is found) in “In-store Battle” mode.

Choose YES and insert the required number of coins to

continue playing in the selected mode.

8-2 FIG. 12

NOTES:

- If the Consecutive Wins setting for “ In-store Battle” mode (found under IN-SHOP VS LIMIT OF WIN on the GAME ASSIGNMENTS screen) is set to

“ 3” or “ 5,” you earn a Consecutive Win point bonus after defeating 3 or 5 opponents in a row and the game ends without the option of continuing. If

the Consecutive Wins setting is set to

“ INFINITY,” you can continue the game as long as you can ﬁ nd new opponents and beat them.

- The game ends without the option of continuing in all modes 20 minutes before the store closing time set under CLOSE SETTING, or if the CON-

TINUE setting on the GAME ASSIGNMENTS screen is set to “ OFF.”

Customizing Shop

When you play “Legend of the Streets,” “Time Attack,” or “In-store Battle” mode using an Initial D License,

points are added to your card based on your race results. Once every few plays, the Customizing shop appears,

allowing you to use your points to customize your cars.

8-2 FIG. 13 Shop Screen 8-2 FIG. 14

My Character Screen

When you play “Legend of the Streets,” “Time Attack,”

or “In-store Battle” mode using an Initial D License, once

every few plays the Character Parts Screen appears and

you get a Character Part.

8-2 FIG. 15 My Character Screen

Game Over

In “Legend of the Streets,” “Time Attack,” and “In-store

Battle” modes, the game is over at the end of the mode.

If you’re playing with an Initial D License,

don’t forget to take it with you when you go.

8-2 FIG. 16

GAME DESCRIPTION

8-3 MODE OVERVIEW

8-3-1 Legend of the Streets

Game Content & Rules

Battle head-to-head against rival characters on 6 different courses. Each checkpoint you pass adds time to the overall

time limit. The ﬁ rst one across the ﬁ nish line with the allotted time wins. If you run out of time or cross the ﬁ nish line

second, you lose.

Beat all 23 initially selectable rival characters and Secret Rival I will appear. Beat Secret Rival I and Secret Rival II will

appear for the Final Race. Beat Secret Rival II and a third hidden character, Secret Rival III, will appear for a Special

Race.

Finish the Special Race to view the game ending.

Select Rivals

For Easy, Normal, Hard, and Expert Courses, select rival characters to race against. Before and after each Battle, you can

view a “Rival Cut Scene” starring the selected rival character(s).

8-3-1 FIG. 01 8-3-1 FIG. 02

Easy Lake Akina Iggy / Tak / Two Guys from Tokyo

Normal Myogi Kenji / Shingo / Maya & Simone / Zack

Hard Akagi Kent / Kyle / K.T. / Ry

Hard Akina Cole / Kylie / Aki / Ry / Tak

Hard Irohazaka Hawk / Kyle / Kai

Expert Tsukuba Dice / Smiley / Toshiya Joshima / Kozo Hoshino

Rival Characters

GAME DESCRIPTION

8-3-2 Time Attack

Game Content & Rules

This is a race against time. The goal is to cross the ﬁ nish line as quickly as you can.

Route, Time of Day and Weather can be selected for each of the 6 courses.

Each checkpoint you pass adds time to the overall time limit.

If you’re using an Initial D License, points are added to it.

Internet Rankings

8-3-2 FIG. 01

8-3-2 FIG. 02

Passwords are stored on your Initial D License for you to view again later.

You can see a list of passwords for Time Attack courses you’ve previously raced on the “View Card Data” screen, which

appears after you insert your Initial D License.

When you set a new personal best in Time Attack mode using an Initial D License, an Internet Rankings password is dis-

played on the screen.

Visit the Initial D Internet Rankings webpage (http://initiald.sega.com) and enter this password on to add your best time

to the Internet Rakings.

8-3-3 In-store Battle

Game Content & Rules

Engage in battle against other game machines in the same store.

Whoever passes each checkpoint ﬁ rst gets time added to their overall time limit.

The ﬁ rst player to cross the ﬁ nish line or the player in ﬁ rst place when time is up wins.

If no opponents can be found, the game switches modes and you will play in “Legend of the Streets” or “Time Attack”

modes while waiting for an opponent.

GAME DESCRIPTION

8-4 INITIAL D LICENSE

8-4-1 Limit on Card Use

You can play up to 150 times using the same Initial D License. After that, you must create a new license through the “Initial

D License Renewal” process. When you renew, the data from your old license will be transferred to your new one. You

keep all the points you’ve collected. You cannot play using data on an expired Initial D License until you renew the

license.

NOTE: Credits (money) are required to renew a license.

8-4-1 FIG. 01

Initial D License Renewal Instructions Screen 8-4-1 FIG. 02

Initial D License Renewal Screen

INITIAL D License

A new Initial D License is issued, allowing you to play using the new license.

You will no longer be able to play using the previous (old) license.

8-4-1 FIG. 03

Initial D License (old) 8-4-1 FIG. 04

Initial D License (new)

GAME DESCRIPTION

8-4-2 Recovery Procedures When an Initial D License Renewal Fails

If an error occurs during renewal, follow the procedures listed below the corresponding error message to restore.

Should you be unable to restore even after following these steps, try restoring using the IC CARD RESTORATION op-

tion in GAME TEST mode.

Failed to eject the old Initial D License

The following message is displayed.

Failed to eject old Initial D license.

Please press the Start and View Change buttons.

If you cannot eject your license, please call an attendant. /403 or 404

Press the Start and View Change Buttons. If the license is successfully ejected, the renewal process will continue.

If the old Initial D License is not ejected after performing the above operation, hold down the Up and Start buttons and

press the TEST Button.

The following message will be displayed:

Please remove the stuck Initial D license.

The removed license is expired. Please give it to the customer.

When ﬁ nished, please close the lid and press the Start button.

Remove the stuck (old) Initial D License and make sure the lid is fully closed, then press the Start Button. The renewal

process will continue.

The removed (old) Initial D License is expired. Return it to the customer.

The new license is stuck

The following message is displayed:

Stocker failed to dispense new Initial D license.

Please call an attendant for assistance. /403

Hold down the Up and Start buttons and press the TEST Button.

The following message will be displayed:

Please remove the stuck Initial D license.

When ﬁ nished, please close the lid and press the Start button.

Remove the stuck (new) license and make sure the lid is fully closed, then press the Start Button.

The following message will be displayed.

Please insert the removed Initial D license.

Insert the removed (new) license into the insertion slot.

The license renewal process will continue. When the process is complete, the player will be able to play the game.

GAME DESCRIPTION

An error occurs when inserting the new license

One of the following error messages is displayed.

● The inserted card is stuck

An error occurred when authenticating an Initial D license.

The card is stuck. /403

If the cabinet fails in ejecting the card automatically, the normal stuck card error message is displayed and the restoration

process is aborted. (See Chapter 3.)

● A problem occurs with the shutter when inserting a card

If your license is in the slot, please remove it and press the start button. / 404

Displayed when the card gets stuck in the shutter, etc.

Remove the card and press the Start Button to retry the renewal process.

● The inserted license is not a new license

An error occurred when authenticating an Initial D license.

This is not a new card. /407

Check the license and insert it again.

If the license fails to renew after 3 tries, the screen switches to the normal authentication failure error message and the

restoration process is aborted. (See Chapter 3.)

● A read error occurs

An error occurred when authenticating an Initial D license. /401 or 406 or 408 or 409 or 413

The license is ejected. Re-insert it and try the renewal process again.

If the license fails to renew after 3 tries, the screen switches to the normal read error message and the restoration process

is aborted. (See Chapter 3.)

● A data write error occurs

An error occurred when renewing an Initial D license.

Please redo by pressing the Start and View Change buttons. /402 or 405

Press the Start and View Change Buttons to try writing to the card again.

If the license fails to renew after 3 tries, the screen switches to the normal read error message and the restoration process

is aborted. (See Chapter 3.)

CONTROL PANEL

CONTROL PANEL9

● In order to prevent an electric shock and short circuit, be sure to turn power off before performing work by touch-

ing the interior parts of the product.

● Be careful not to damage the wires. Damaged wires may cause electric shock or short circuit.

● Do not touch undesignated places. Touching places not designated can cause electric shock or short circuit.

● This work should be performed by the Location's Maintenance Man or Serviceman. Performing work by non-tech-

nical personnel can cause electric shock hazard.

● Do not perform work other than those speciﬁ ed in this Manual in order to prevent accidents during performing

work and operation after performing work. If performing work other than those stated in this manual is required for

repair, contact the ofﬁ ces herein stated in this manual.

● Be very careful when soldering. Handling a soldering iron carelessly may result in a ﬁ re or a burn.

● Be extremely careful when heating the heat-shrinkable tube. Failure to do so may result in a ﬁ re or burns.

● The motor parts will be very hot after shutting down the game. After shutdown, wait a few moments for the motor

parts to cool before you begin working on the unit.

● Exercise extreme caution when handling the internal parts of the Control Panel. Watch out for damage, warping

and loss. The loss of just one piece may result in damage to or lead to faulty operation of the entire unit.

● Be careful that your ﬁ ngers do not get caught when opening and closing the control panel, adjusting the VR

bracket, or performing other maintenance tasks.

● When securing the plastic-made parts, do not excessively fasten screws and nuts. Failure to observe this may

damage the parts and cause injury due to fragments resulting from damage.

● Do not touch the steering wheel when switching on the unit. The steering wheel undergoes automatic initialization

after the unit is switched on.

Be sure to perform volume's move value setting in the INPUT ASSIGNMENTS in the Game Test

Mode after replacing or adjusting the Volume.

Switch off the unit.

Using a tamperproof wrench, remove the four screws that

secure the control panel upper cover, and then detach the

cover.

If the steering wheel is not functioning correctly, or if adjusting the volume has no effect in test mode, the volume may

not be engaged correctly or it may be defective. Follow the steps below to adjust the gear engagement or replace the

volume. In this unit, as long as the volume’s maximum range of motion is not exceeded when the steering wheel is

turned to the extreme left or right, the volume should not fail. Make sure that the steering wheel is centered (that is to

say, positioned to drive directly forward), and install the volume so that its axis is aligned in the direction indicated by

the diagram, with the gears engaged appropriately (see 9-2 FIG 01). To adjust or replace the volume, open the control

panel according to the steps below. For this task, you will require a tamperproof wrench (for M4 screws).

9-1 OPENING THE CONTROL PANEL

9-1 FIG. 01

TAMPERPROOF SCREW (4), black

8-32 x 1/2" Torx TT-25

CONTROL PANEL UPPER COVER

CONTROL PANEL

Remove all four hexagonal bolts that secure the control panel. Do this carefully, as the control panel will open

when the bolts are removed.

9-1 FIG. 03

Slowly open the control panel, making sure it is fully supported as you do so. Be careful that your hands or

feet do not get caught between the panel and game unit. Also, do not support the steering wheel portion of the

panel, as this may deform or damage the wheel.

9-1 FIG. 02

HEX BOLT (4)

Adjustment Procedure

Loosen the two screws that secure the VR bracket, and adjust the gear and the angle of engagement by moving

the VR bracket.

9-2 FIG. 01

9-2 ADJUSTING/REPLACING THE VOLUME

VR BRACKET

SCREW (2)

M4x10, w/ﬂ at & spring washers

D-CUT FLAT EDGE

CONTROL PANEL

Center the steering wheel, and engage the gear while making sure that the D-cut ﬂ at edge of the volume axis is

aligned in the direction indicated (see 9-2 FIG. 01).

Tighten the two screws and secure the VR base. Turn the steering wheel and check that the gears move smooth-

ly. Close and secure the control panel.

Switch on the unit. Be careful not to touch the steering wheel when doing so. After the unit is switched on, the

steering wheel undergoes automatic initialization.

Conﬁ gure the volume values on the INPUT ASSIGNMENTS screen in Game Test Mode.

It is recommended that the steering wheel volume be set to 80H±8H when the steering wheel is centered. Con-

ﬁ rm that when the steering wheel is turned to the left the numbers decrease, and when it is turned to the right the

numbers increase.

Replacement Procedure

When replacing the volume, you will also need to prepare three lengths of heat-shrinkable tubing (Part No.: 310-5029-F20), as well as use the wires

that are already soldered onto the volume. For this task, you will need a Phillips-head screwdriver (for M4 screws), a 2 mm hexagon wrench, an 11 to

12 mm adjustable wrench, wire cutter, knife, wire stripper, soldering iron, and work dryer.

Detach the connector.

9-2 FIG. 02

Detach the connector.

WHITE 3P

Remove the two screws that secure the VR bracket and lift out the

volume with the bracket.

Loosen the screws on the gear holder, and detach the gear holder.

9-2 FIG. 04

SCREW (2)

M4x10, w/ﬂ at & spring washers

VR BRACKET

220-5484

(Same as

220-5753)

FLAT WASHER

SPRING WASHER

GEAR HOLDER

NUT

HEXAGON SOCKET SCREW (2)

M4x8

9-2 FIG. 03

321

WIRE COLOR

OF POT.

3 = PINK

2 = GREEN

1 = BROWN

CONTROL PANEL

Remove the nuts that secure the VR bracket, and detach the volume from the VR bracket (see 9-2 FIG. 04).

Using wire cutters or a knife, remove the heat-shrinkable tubing that covers the soldered parts. Melt the solder

with a soldering gun, and detach the volume from the wires.

Cover each wire separately with the heat-shrinkable tubing. Solder the wires to each of the new volume’s termi-

nals. Carefully check the wiring schematic when connecting the wires to the volume.

Cover the soldered parts with heat shrinkable tubing, and use the dryer to apply heat until the tubing adheres to

the soldered parts. Reattach the VR bracket and gear holder to the volume.

While the steering wheel is centered, engage the volume axis with the gear, making sure that the D-cut ﬂ at side

is aligned as indicated in the diagram. Then secure the VR bracket with two screws (see 9-2 FIG 01).

Turn the steering wheel and check that the gear moves smoothly. Reattach the connector. Close the control

panel and secure it.

Switch on the unit. Be careful not to touch the steering wheel when doing so. After the unit is switched on, the

steering wheel undergoes automatic initialization.

Conﬁ gure the volume values on the INPUT ASSIGNMENTS screen in Game Test Mode.

It is recommended that the steering wheel volume be set to 80H±8H when the steering wheel is centered. Con-

ﬁ rm that when the steering wheel is turned to the left the numbers decrease, and when it is turned to the right the

numbers increase (see Service Manual).

Once every three months, apply grease to the parts indicated. Use Grease Mate-brand spray

grease (Part No.: 090-0066).

9-3 FIG. 01

9-3 GREASING

● Use only the speciﬁ ed grease. Using any other kind of grease can result in damage to

parts.

● Do not apply grease to locations other than as speciﬁ ed. Doing so may create a risk of

operational problems and deterioration of parts.

● The period for greasing speciﬁ ed herein is a standard. Apply greasing to the speciﬁ ed

portions as occasion arises.

Apply grease.

9-4 STOPPER RUBBER REPLACEMENT

Refer to the section “9-1 Opening the Control Panel”, and open the control panel.

CONTROL PANEL

9-4 FIG. 03

STOPPER RUBBER S

TFF-2508

Remove the 4 bolts, then remove stopper holder (TFF-2511).

9-4 FIG. 01

HEXAGON BOLT (4)

M8x40, w/ﬂ at washer

Remove stopper bolt S (TFF-2507) and the hexagonal socket screw, then replace stopper rubber S (TFF-2508)

with the stopper rubber S (TFF-2508-01) that is included in this kit. Reverse the process to ﬁ nish the procedure.

9-4 FIG. 04

STOPPER BOLT S

TFF-2507

HEXAGON SOCKET SCREW (1), black

M6x12, w/spring washer

9-4 FIG. 02

STOPPER HOLDER

TFF-2511

If the start button, view change button, or the up/down/left/right directional buttons are not working correctly, it is possible that the switch board is

malfunctioning. Follow the steps below to replace the input switch board.

Switch off the unit. Use a tamperproof wrench to remove the four

tamperproof screws and lift off the input switch cover. The wires

should still be connected.

9-5 FIG. 01

9-5 FIG. 02

9-5 REPLACING THE INPUT SWITCH BOARD

Disconnect the two connectors, and remove the input switch cover.

Detach connectors.

INPUT SWITCH COVER

TAMPERPROOF SCREW (4), black

M4x10

CONTROL PANEL

Detach connector.

9-5 FIG. 03

Remove the four screws and lift the input switch base.

9-5 FIG. 04

9-5 FIG. 05

SCREW (4)

M4x10, w/ﬂ at & spring washers

INPUT SWITCH BASE

Remove the input switch rubber and board.

9-5 FIG. 06

INPUT SWITCH RUBBER

TFF-1502

INPUT SWITCH BOARD

838-14707

Detach connector.

SHIFT LEVER

If the shift lever switch input does not function correctly on the INPUT TEST screen, the switch may need to be replaced. Also, grease should be ap-

plied to the sliding parts of the mechanism once every three months. To carry out this maintenance, you must ﬁ rst remove the shift lever unit.

For this task, you will need a tamperproof wrench (for M5 screws), a socket driver (for M4, M5 screws), and a Phillips-head screwdriver (for M4

screws).

Switch off the unit.

Use the tamperproof wrench to remove the four screws, and then lift up the shift lever.

10-1 FIG. 01

SHIFT LEVER

● When working with the product, be sure to turn the power off. Working with the power on may cause an electric

shock or short circuit.

● Be careful not to damage the wires. Damaged wires may cause an electric shock, short circuit or present a risk of

ﬁ re.

10-1 REMOVING THE SHIFT LEVER

Detach the connector and remove the shift lever.

10-1 FIG. 02

To reattach the unit, reverse the steps described above. The unit must be installed in the correct direction. Be

sure to check the UP/DOWN indicator and align the unit correctly (see 10-1 FIG. 01).

After reattaching the unit, use the INPUT TEST screen in Game Test Mode to check that it is operating normally

(see Service Manual).

Detach the connector.

TAMPERPROOF SCREW (4)

Torx (TT-15) 10-32 x 3/4"

SHIFT LEVER

Once every three months, apply grease to the indicated parts. We recommend Grease Mate-brand spray grease. (Part No.: 090-0066).

10-2 FIG. 01

Using a socket driver (for M5 screws), remove the two stopper shafts and two ﬂ at washers. Remove the two

screws.

Unscrew the hexagonal nut and remove the shifter base R, spring washer, bearings, crimped spring washer, and

spacer. Remove the two rubber stoppers.

Remove the lever shaft, bearings, crimped spring washer, and spacer, and detach the shift lever.

Remove the two tapping screws, and detach the knock base.

Remove the boss. Apply grease to the spring parts on both sides of the boss.

10-2 GREASING

SHIFT LEVER

BOSS

STOPPER SHAFT (2)

SCREW (2)

M4x25, w/ﬂ at & spring washers

HEXAGON NUT

SPRING WASHER

BEARING

CRIMPED SPRING WASHER

SPACER

SHIFTER BASE R

RUBBER STOPPERS (2)

SHIFTER BASE L

KNOCK BASE CRIMPED SPRING WASHER

BEARING

BOSS

SPACER

LEVER SHAFT

FLAT WASHER

ACCELERATOR & BRAKE

If the accelerator or brake pedals are not functioning correctly, you may need to adjust the positioning of the volume or replace it with a new one. In

addition, you should apply grease to the gear contacts and spring parts once every three months.

ACCELERATOR & BRAKE

● When working with the product, be sure to turn the power off. Working with the power on may cause an electric

shock or short circuit. However, the unit must be switched on when using test mode. Do not touch any part of the

unit except those areas indicated. Be careful not to damage the wires. Damaged wires may cause an electric

shock, short circuit or present a risk of ﬁ re.

● This work should be performed by site maintenance personnel or other skilled professionals. Work performed by

non-technical personnel can cause a severe accident such as an electric shock.

● To prevent accidents while working or while operating the product after it has been installed, be sure not to con-

duct any procedures other than those given in this manual. There are cases in which procedures not covered

in this manual require special tools and skills. If a procedure not given in this manual is required, request service

from the ofﬁ ce given in this manual or from the point of purchase.

Do not touch the steering wheel when switching the unit on. The steering wheel undergoes automatic initialization

immediately after the unit is switched on.

Be sure to perform volume's move value setting in the Input Test in the Game Test Mode after

replacing or adjusting the Volume.

When the accelerator pedal is not being pressed, the accelerator volume should have a value of 30H or less. When the pedal is being pressed, the value

should be C0H or greater. When the brake pedal is not being pressed, the value should be 35H or less. When the pedal is being pressed, it should be

D0H or more. You can view these values in test mode. Note that the unit must be switched on to use test mode. Do not touch any part of the unit except

those areas indicated when the unit is switch on, as there is a danger of electrical shock or short-circuit. For this task, you will need a Phillips-head

screwdriver (for M4, M5 screws).

Adjusting Procedure

On the accelerator and brake pedal unit,

remove the two truss screws and lift off the

front cover.

11-1 FIG. 01

11-1 ADJUSTING/REPLACING THE VOLUME

TRUSS SCREW (2), chrome

M4x8

FRONT COVER

Loosen the single screw that secures the

potentiobase, and move the base to adjust the

volume values.

11-1 FIG. 02

SCREW (1)

M5x12, w/ﬂ at &

spring washers

POTENTIOBASE

VOLUME

220-5484

220-5753

321

WIRE COLOR

OF POT.

(BRAKE)

3 = PINK

2 = BLACK

1 = BROWN

WIRE COLOR

OF POT.

(ACCELERATOR)

3 = PINK

2 = BLUE

1 = BROWN

ACCELERATOR & BRAKE

Replacing the Volume

Switch off the unit. Remove the two screws and lift off the potentio cover. Detach the connector from the vol-

ume to be replaced.

11-1 FIG. 03

Remove the single screw that secures the potentiobase (see 11-1 FIG. 02). Without detaching the volume, re-

move the potentiobase (see 11-1 FIG. 03).

Remove the base and gear from the volume, and replace it. After replacement, conﬁ gure the volume as de-

scribed above in “Adjusting Procedure” (see Service Manual).

When you have ﬁ nished, check that the values change smoothly in response to pedal input.

Secure the potentiobase. Conﬁ gure the volume values on the INPUT ASSIGNMENTS screen in Game Test

Mode. Check that the values change smoothly in response to pedal input.

Once every three months, you should apply grease to the gear contacts and spring parts. Use Grease Mate-brand spray grease (Part No.: 090-0066).

11-2 FIG. 01

11-2 GREASING

Use only the speciﬁ ed grease. Using any other kind of grease can result in damage to parts.

POTENTIOBASE

TRUSS SCREW (2), chrome

M4x8

POTENTIO COVER

POTENTIOBASE

TEST MODE

TEST MODE12

12-1 SWITCH UNIT

Open the coin chute door, and the switch unit shown will appear.

12-1 FIG. 01

TEST BUTTON: Used in TEST Mode.

Use this to select items and move to the next screen during TEST Mode.

SERVICE BUTTON: Gives credits without registering on the coin meter.

Use this to move the cursor during TEST Mode.

SOUND VOLUME SWITCH: Adjusts the sound volume of the speakers.

Be sure to move the seat to the rear position before opening the coin chute door.

12-3 GAME TEST MODE

● When changing the game conﬁ guration, changes will not take effect until the Game

Test Mode properly after conﬁ guration changes. Be sure to exit the Game Test Mode

properly after conﬁ guration changes.

● Do not conﬁ gure the game in ways not described in this text. It is possible that the

game will not function properly.

In the SYSTEM TEST MODE, LINDBERGH board functioning can be checked, the monitor adjusted, and the coin setting performed. Refer to LIND-

BERGH service manual for the details.

Note that the settings of the following items need to be performed in accordance with the instruction given.

COIN ASSIGNMENTS - COIN CHUTE TYPE: COMMON

- SERVICE TYPE: COMMON

NETWORK SETTING - DHCP: ENABLE

● Refer to BOOKKEEPING in GAME TEST MODE for data on this product.

● Adjust the sound to the optimum volume, taking into consideration the environmental

requirements of the installation location.

● Removing the coin meter circuitry renders the game inoperable.

● Read the LINDBERGH Service Manual included with this product for details on SYSTEM

TEST MODE. Be sure, however, to use the product settings outlined in this manual.

12-2 SYSTEM TEST MODE

TEST BUTTON SOUND VOLUME SWITCH

SERVICE BUTTON

TEST MODE

Select GAME TEST MODE from the System Test Menu Screen as follows.

12-3-1 GAME TEST MODE Menu

INPUT TEST: Test each input

OUTPUT TEST: Test each output

FORCE FEEDBACK: Set the STEERING resistance

INPUT ASSIGNMENTS: Adjust input settings

GAME ASSIGINMENTS: Adjust game settings

PASSWORD CONFIRMATION:

Password entry screen

IC CARD R/W & PRINTER TEST:

Test card reader/writer functions (data reading/writing,

stocking and printing cards)

IC CARD RESTORATION: IC card restoration mode

NETWORK TEST: Test the network

CLOSE SETTING: Adjust store closing settings

BOOKKEEPING: View game backup data

BACKUP DATA CLEAR: Clear game backup data

EXIT: Go back to the System Test Menu

Use SERVICE Button to move the cursor to

the desired test item. Press the TEST Button to

enter the selected item.

After the test is complete, move the cursor to

EXIT and press the TEST Button to return to

the System Test Menu Screen.

Select INPUT TEST to display the following screen and check the status of input devices.

This test should be used periodically to check that each input device is functioning correctly.

12-3-2 INPUT TEST

Test the STEERING, GAS and BRAKE controls to

ensure that they are functioning properly and that the

parameters change smoothly as each input device is

operated.

Display N, UP and DOWN using the GEAR POSI-

TION. N should display there is no control input. Verify

that both UP and DOWN display in sync with the posi-

tion of the gear shifter.

Other controls are working properly if the OFF display

changes to ON when operating the corresponding input

device.

Press the SERVICE and TEST Buttons simultaneously

to return to the Game Test Menu Screen.

12-3-2 FIG. 01

INPUT TEST

STEERING **H

GAS **H

BRAKE **H

GEAR POSITION N

UP BUTTON OFF

DOWN BUTTON OFF

RIGHT BUTTON OFF

LEFT BUTTON OFF

START BUTTON OFF

VIEW CHANGE BUTTON OFF

TEST OFF

SERVICE OFF

PRESS TEST AND SERVICE BUTTON

EXIT

12-3-1 FIG. 01

GAME TEST MODE

INPUT TEST

OUTPUT TEST

FORCE FEEDBACK

INPUT ASSIGNMENTS

GAME ASSIGNMENTS

PASSWORD CONFIRMATION

IC CARD R/W & PRINTER TEST

IC CARD RESTORATION

NETWORK TEST

CLOSE SETTING

BOOKKEEPING

BACKUP DATA CLEAR

―> EXIT

SELECT WITH SERVICE BUTTON

AND

PRESS TEST BUTTON

TEST MODE

TESTABLE INPUT DEVICES

Steering wheel, pedals (GAS, BRAKE), gear position, Start Button, View Change Button, Directional Buttons (UP,

DOWN, RIGHT, LEFT), SERVICE Button, TEST Button.

12-3-2 FIG. 02

TEST SERVICE

GEAR POSITION

STEERING

GASBRAKE

UP, DOWN,

RIGHT, LEFT

VIEW CHANGE

START

Select OUTPUT TEST to display the following screen and check the status of each lamp.

This test should be used periodically to check that the lamps are functioning correctly.

12-3-3 OUTPUT TEST

12-3-3 FIG. 01

OUTPUT TEST

START BUTTON OFF

VIEW CHANGE BUTTON OFF

UP BUTTON OFF

DOWN BUTTON OFF

RIGHT BUTTON OFF

LEFT BUTTON OFF

―> EXIT

SELECT WITH SERVICE BUTTON

AND

PRESS TEST BUTTON

Move the cursor with the SERVICE Button, and use the TEST Button to illuminate the lamp indicated by the cursor.

START BUTTON: Lights up the button.

VIEW CHANGE BUTTON: Lights up the button.

UP BUTTON: Lights up the button.

DOWN BUTTON: Lights up the button.

RIGHT BUTTON: Lights up the button.

LEFT BUTTON: Lights up the button.

Move the cursor to EXIT and press the TEST button to return to the Game Test Menu Screen.

TEST MODE

12-3-4 FORCE FEEDBACK

● FORCE:

Set the STEERING resistance. The ** indicates the

current resistance setting.

The smaller the value, the weaker the resistance; the

larger the value, the stronger the resistance.

(Minimum value is 0; the maximum value is 10. The

default setting is 4.)

Move the cursor to UP or DOWN and press the TEST

Button to change the value.

● FORCE TEST:

Veriﬁ es the STEERING motor is working properly.

Toggle between OFF and ON by aligning to CENTER

and pressing the TEST Button.

The STEERING will rotate and stop in the center posi-

tion. Pressing the SERVICE Button moves the cursor

to the next menu item and CENTER changes to OFF.

Control of the STEERING is then released.

When the RIGHT menu item is ON, the STEERING

rotates to the right as far as possible and then stops.

Press the SERVICE Button again to turn it OFF and

release control of the STEERING.

When the LEFT menu item is ON, the STEERING ro-

tates to the left as far as possible and then stops. Press

the SERVICE Button again to turn it OFF and release

control of the STEERING.

Move the cursor to EXIT and press the TEST Button to

return to the Game Test Menu Screen.

12-3-4 FIG. 01

● When you select “FORCE FEEDBACK”, a connection test runs and the STEERING rotates.

● When the connection check completes, a screen below is displayed, and you may adjust the STEERING resis-

tance.

FORCE FEEDBACK

(MIN 0 : MAX 10 : DEFAULT 4)

FORCE =

DOWN

FORCE TEST (FORCE = **)

CENTER OFF

RIGHT OFF

LEFT OFF

―> EXIT

SELECT WITH SERVICE BUTTON

AND

PRESS TEST BUTTON

Select INPUT ASSIGNMENTS to display the following screen.

12-3-5 INPUT ASSIGNMENTS

**H displays one of 256 different values for each input

control from 00H to FFH.

[0.1.2.3.4.5.6.7.8.9.A.B.C.D.E.F]

STEERING:

Adjust the centering of the STEERING control.

GAS PEDAL, BRAKE PEDAL:

Adjust the GAS and BRAKE pedals.

Move the cursor to EXIT and press the TEST Button

to return to the Game Test Menu Screen.

12-3-5 FIG. 01

INPUT ASSIGNMENTS

STEERING **H

GAS PEDAL **H

BRAKE PEDAL **H

―> EXIT

SELECT WITH SERVICE BUTTON

AND

PRESS TEST BUTTON

TEST MODE

STEER ADJUSTMENTS

Make adjustments to STEERING. Press the TEST Button to display the following screen.

Center the STEERING. When the “0” displayed is not

exactly aligned with the “^” mark above CENTER, use

the cursor to select RIGHT or LEFT and move the “0”

until it is displayed directly above the “^” mark.

Move the cursor to RIGHT and press the TEST Button

to move the “0” to the right. Each time you press the

TEST Button, “0” moves slightly to the right.

Move the cursor to LEFT and press the TEST Button to

move the “0” to the left. Each time you press the TEST

Button, “0” moves slightly to the left.

Move the cursor to EXIT and press the TEST Button to

return to the INPUT ASSIGNMENTS Screen.

12-3-5 FIG. 02

STEER ADJUSTMENTS

(MIN -40 : MAX 40 )

STEERING = ***

CENTER

RIGHT

LEFT

―> EXIT

SELECT WITH SERVICE BUTTON

AND

PRESS TEST BUTTON

GAS ADJUSTMENTS

Make adjustments to GAS.

Press the TEST Button to display the following screen.

12-3-5 FIG. 03

Set the MAX position by stepping on the GAS pedal.

The “MAX” display moves to the right depending on

how hard the pedal is pressed.

Entering GAS ADJUSTMENTS without having the

GAS pedal pressed down automatically sets the MIN

position.

NOTE: If you enter GAS ADJUSTMENTS with the

GAS pedal pressed down, set the MIN position

by releasing the GAS pedal. The “ MIN” dis-

play moves to the left depending on how much

the pedal is released.

Move the cursor to RESET and press the TEST But-

ton to reset MAX and MIN.

Move the cursor to EXIT and press the TEST Button

to return to the INPUT ASSIGNMENTS Screen.

GAS ADJUSTMENTS

(MIN **H : MAX ** H)

GAS = **H

MAX

MIN

RESET

―> EXIT

FIRST, STEP ON THE GAS PEDAL FULLY, AND RELEASE IT

SELECT WITH SERVICE BUTTON

AND

PRESS TEST BUTTON

TEST MODE

BRAKE ADJUSTMENTS

Make adjustments to BRAKE.

Press the TEST Button to display the following screen.

Set the MAX position by stepping on the BRAKE pedal.

The “MAX” display moves to the right depending on

how hard the pedal is pressed.

Entering BRAKE ADJUSTMENTS without having the

BRAKE pedal pressed down automatically sets the MIN

position.

NOTE: If you enter BRAKE ADJUSTMENTS with the

BRAKE pedal pressed down, set the MIN posi-

tion by releasing the BRAKE pedal. The “ MIN”

display moves to the left depending on how

much the pedal is released.

Move the cursor to RESET and press the TEST Button

to reset MAX and MIN.

Move the cursor to EXIT and press the TEST Button to

return to the INPUT ASSIGNMENTS Screen.

12-3-5 FIG. 04

BRAKE ADJUSTMENTS

(MIN **H : MAX ** H)

BRAKE = **H

MAX

MIN

RESET

―> EXIT

FIRST, STEP ON THE BRAKE PEDAL FULLY, AND RELEASE IT

SELECT WITH SERVICE BUTTON

AND

PRESS TEST BUTTON

Select GAME ASSIGNMENTS to display the following screen.

12-3-6 GAME ASSIGNMENTS

12-3-6 FIG.01

GAME ASSIGNMENTS

ADVERTISE SOUND ON

GAME DIFFICULTY NORMAL

DEFAULT VIEW DRIVER

SEAT NUMBER 1P

CARD R/W USE ON

CONTINUE ON

IN-STORE VS LIMIT OF WIN 3 TIMES

―> EXIT

SELECT WITH SERVICE BUTTON

AND

PRESS TEST BUTTON

● ADVERTISE SOUND:

Turn sound on the Advertise Screen on and off.

ON: Sound is played on the Advertise Screen.

OFF: Sound is not played on the Advertise Screen (ex-

cept when inserting coins).

● GAME DIFFICULTY:

Set the level of difﬁ culty for the game. You may select

one of 5 different levels of difﬁ culty: VERY EASY,

EASY, NORMAL, HARD, and EXPERT. This setting

does not affect the speed of rivals in “Legend of the

Streets” mode.

● DEFAULT VIEW:

Set the view perspective at the start of races. You may

select one of the following 2 settings: DRIVER view or

REAR view.

● SEAT NUMBER:

This setting assigns a seat number to the cabinet for use

in “In-store Battle”. You may select one of the follow-

ing settings: SINGLE, 1P, or 2P.

When setting up cabinets for In-store battles, assign

each cabinet the number “1P” or “2P” (make sure they

are not assigned the same number).

Set to SINGLE if you do not need to set the cabinet up

for In-store battles.

TEST MODE

● CARD R/W USE:

Set the operating mode of the card reader/writer. Normally this should be set to ON.

● CONTINUE:

Enable/Disable Continue function.

ON: Enables Continue for “Legend of the Streets”, “Time Attack” and “In-store Battle” games.

OFF: Disable Continue.

IN-SHOP VS LIMIT OF WIN is automatically set to 1 and cannot be selected.

● IN-STORE VS LIMIT OF WIN:

Set the maximum number of consecutive wins for In-store battles.

1, 3, 5: The game automatically ends after the set number of consecutive wins.

INFINITY: Players can continue playing without inserting credits as long as they keep winning.

Move the cursor to EXIT and press the TEST Button to return to the Game Test Menu Screen.

Select PASSWARD CONFIRMATION to display the following screen.

12-3-7 PASSWORD CONFIRMATION

When you receive a password notice from SEGA or a

sales agent, enter the password here to update product

specs.

Use the SERVICE Button to move the cursor to INPUT

PASSWORD and press the TEST Button to enable

password entry.

Press the SERVICE Button to select characters to input

(A - Z, 3 - 9). Passwords are 8 characters in length.

After entering the password, use the SERVICE Button

to move the cursor to CONFIRM and press the TEST

Button. If the password is correct, the screen displays

“RESULT: PASSWORD APPLIED” and you can up-

date the software.

12-3-7 FIG. 01

PASSWORD CONFIRMATION

INPUT PASSWORD: ********

CONFIRM

―> EXIT

RESULT: ---

SELECT WITH SERVICE BUTTON

AND

PRESS TEST BUTTON

TEST MODE

● Screen display

RESET UNIT: Reset the reader/writer

CHECK CARD: Check a card

CHECK PRINTER: Check the card printer

CHECK STOCKER: Check the card stocker

CLEAN ROLLER: Clean the card delivery roller

CLEAN STOCKER: Clean the card stocker roller

ERASE PRINT: Erase the printing created with the

CHECK PRINTER

UNIT STATUS: ---:

Check reader/writer operations

UNIT RESULT: ---:

The results of reader/writer operations

● RESET UNIT

Choose this option to reset (reinitialize) the reader/writ-

er unit. UNIT STATUS will display “INITIALIZING,”

followed by “DONE,” indicating the reset is complete.

12-3-8 IC CARD R/W & PRINTER TEST

Select IC CARD R/W & PRINTER TEST to display the following screen.

12-3-8 FIG. 01

● Be sure to test the operation of the card reader/writer regularly.

● Previous printing may remain on the surface of the card after printing new text or images.

This does not affect the data stored on the card.

● CHECK CARD

Choose this option and UNIT STATUS will display “INSERT THE CARD REQUIRES CHECKING”. Insert the card

you wish to check. UNIT RESULT will display one of the following depending on the results of the check.

NEW CARD: The card is new

DEADLINE CARD: The card is expired

NORMAL: The card is normal and has no problems

INTERRUPTED CARD: The card was interrupted while writing

UNKNOWN CARD: The card status is unknown

DELETE CARD: The card is used up

BROKEN CARD: The card is broken

UNKNOWN ID: The ID is unknown

UNKNOWN VERSION: The version is unknown

When the check is complete, UNIT STATUS displays “EJECTED. REMOVE THE CARD”. Remove the card.

● CHECK PRINTER

Choose this option and UNIT STATUS will display “INSERT THE DISPOSABLE CARD”.

Insert a card. UNIT STATUS will display “MAKING IMAGE (WAIT MOMENTS ...)” and the printer will begin print-

ing to the card. Printing is complete when UNIT STATUS displays “EJECTED. REMOVE THE CARD”.

Remove the card and check the printing.

NOTE: This only tests the printer. It does not affect card data.

● CHECK STOCKER

Choose this option and UNIT STATUS will display “DRAWING OUT2”. The stocker will dispense a card.

If the card exits properly through the dispenser slot, UNIT STATUS will display “EJECTED. REMOVE THE CARD

AND PLACE BACK INTO STOCK”.

NOTE: This tests the stocker. It does not affect card data. If the card is new, return it to the stocker.

IC CARD R/W & PRINTER TEST

RESET UNIT

CHECK CARD

CHECK PRINTER

CHECK STOCKER

CLEAN ROLLER

CLEAN STOCKER

ERASE PRINT

―> EXIT

UNIT STATUS : ---

UNIT RESULT : ---

SENSOR(PT1) : OFF

SENSOR(PT3) : OFF

SENSOR(PT4) : OFF

SENSOR(PT5) : OFF

SENSOR(PT6) : OFF

SENSOR(DISPENSER) : OFF

SENSOR(SHUTTER1) : OFF

SENSOR(SHUTTER2) : OFF

SELECT WITH SERVICE BUTTON

AND

PRESS TEST BUTTON

TEST MODE

● CLEAN ROLLER

Clean each type of roller used to deliver cards.

Choose this option and UNIT STATUS will display “CLEANING UNIT ROLLER”.

Insert a cleaning card to clean each type of roller.

When the operation is complete, the cleaning card is ejected. Remove the card to ﬁ nish the cleaning.

● CLEAN STOCKER

Clean the stocker’s card dispenser rollers.

Empty the stocker before cleaning. Place a cleaning card in the stocker and close the lid.

Choose this option and UNIT STATUS will display “CLEANING STOCKER ROLLER”. The roller cleaning will then

begin. Cleaning is complete when UNIT STATUS displays “DONE”.

Remove the cleaning card from the stocker and replace the card stock.

● ERASE PRINT

Choose this option and UNIT STATUS will display “INSERT CARD”.

Insert a printed card. UNIT STATUS will display “ERASING...” and the print erase process will begin. Erasing is com-

plete when UNIT STATUS displays “EJECTED. REMOVE THE CARD”. Remove the card.

NOTE: This only tests the print erase function. It does not affect card data.

If an error occurs during a check, UNIT RESULT may display one of the following messages.

CARD JAM: The card is stuck

SHUTTER ERROR: Shutter error

PRINTER ERROR: Printer error

UNIT ERROR: Unit error

UNKNOWN ERROR: Unknown error

READ ERROR: Read error

CARD EMPTY: There are no cards in the stocker

SENSOR (***) indicates the status of the sensors.

It displays the status of the card sensors on the card reader/writer and printer.

Select IC CARD RESTORATION to attempt to restore IC card data using backup data saved on the cabinet.

The cabinet will save up to 10 data ﬁ les that were not properly transferred to IC cards due to accidental power out-

ages during play, card write failures, or card data transfer failures.

NOTES:

- Each new ﬁ le beyond the 10th will overwrite the oldest existing ﬁ le.

- IC card restoration is only possible if backup data is saved on the cabinet. It is not possible to restore IC cards

containing data that was damaged while playing on other cabinets.

12-3-9 IC CARD RESTORATION

Restoring IC cards after renewal failure

An old IC card is ejected as “EXPIRED”, but the game

freezes or the power fails before the new IC card renew-

al process begins.

The old card’s access code is displayed under SELECT

ACCESS CODE (marked with a “*” on the right side).

Insert the card with “EXPIRED” printed on it to restore

the card to its pre-renewal status and start the renewal

process over on the game cabinet.

A problem occurs while creating the new IC card and

the write process is interrupted.

The new IC card’s access code is displayed under SE-

LECT ACCESS CODE. Insert the new IC card and try

to restore it.

IC CARD RESTORATION

SELECT ACCESS CODE : [****-****-****-**** (*/*)]

RESTORE

EXIT

STATUS : ---

RESULT : ---

SELECT WITH SERVICE BUTTON

AND

PRESS TEST BUTTON

TEST MODE

● RESTORE

Use the SERVICE Button to move the cursor to this item and press the TEST Button. STATUS will display “INSERT

THE CARD REQUIRES RESTORING”.

Insert the IC card printed with the access code selected under SELECT ACCESS CODE.

RESULT will display one of the following messages depending on the results:

FINISHED NORMALLY: Restoration was successful.

WRITE ERROR: Failed to write.

READ ERROR: Failed to read.

CARD R/W UNIT NO RESPONSES: The unit is not responding.

DIFFERENT ACCESS CODE: The card inserted does not match the access code.

When the operation is complete STATUS displays “EJECT”. Remove the card.

NOTE: If restoration is successful and RESULT displays “ FINISHED NORMALLY”, the saved play data is cleared

from the cabinet.

● Screen Display

SELECT ACCESS CODE: Select the access code of the card you wish to restore.

RESTORE: Restore the IC card.

STATUS: Displays the restoration status.

RESULT: Displays the results of restoration.

● SELECT ACCESS CODE

Use the SERVICE Button to move the cursor to this item and press the TEST Button to select an access code.

NOTE: “ NO DATA” is displayed if there are no saved data ﬁ les.

12-3-10 NETWORK TEST

Select NETWORK TEST to display the below NETWORK TEST Screen.

12-3-10 FIG. 01

After the NETWORK TEST Screen appears, the test

will begin automatically.

● CURRENT SEAT NUMBER

Displays the current seat number assigned in GAME

ASSIGNMENTS.

● PAIR LINK

Displays the link status with the other cabinet. *****

will display one of the following according to the com-

munication status.

GOOD:

The seat number on the other cabinet is properly as-

signed and the cabinets are communicating normally.

BAD:

The other cabinet’s seat number is set to SINGLE, or

the two cabinets are assigned to the same seat number.

If this message appears even though the seat numbers

are assigned correctly, check the cable connection, etc.

N/A:

Displayed if the CURRENT SEAT NUMBER is set to

SINGLE.

CHECKING... : Check in progress.

Press the TEST Button when the check is ﬁ nished to go

back to the menu screen.

NETWORK TEST

CURRENT SEAT NUMBER 1P

PAIR LINK *****

PRESS TEST BUTTON TO EXIT

TEST MODE

12-3-11 CLOSE SETTING

Select CLOSE SETTING to display the following screen.

The game will be unusable for card play starting 20 minutes before the time you set until 7:00 AM the next morning.

12-3-11 FIG.01

CLOSE SETTING is set to OFF on the above screen.

Move the cursor to SCHEDULE TYPE and press the

TEST Button to change the setting. The time setting

screen will appear for the selected item.

Times can be set in 15 minute increments from 19:00 to

30:45 (6:45 AM).

OFF: Do not set a closing time.

SCHEDULE TYPE EVERY DAY:

Set a daily closing time.

SCHEDULE TYPE WEEK:

Set closing times for each day of the week.

Move the cursor to EXIT and press the TEST Button to

return to the Game Test Menu Screen.

CLOSE SETTING disables card play from 20 minutes prior to the designated time until 7:00

AM. The screen displays store closing information on the Advertise Screen beginning 30 min-

utes prior to the designated time.

Card play is disabled 20 minutes before the designated time even if the current player is on a

winning streak.

CLOSE SETTING

SCHEDULE TYPE OFF

―> EXIT

SELECT WITH SERVICE BUTTON

AND

PRESS TEST BUTTON

SCHEDULE TYPE EVERY DAY

Set the daily store closing time. This time setting will be used everyday.

Move the cursor to “24:00” and press the TEST But-

ton to change it. The time changes each time the but-

ton is pressed.

The hour can be set between 19 and 30, and the min-

utes can be set to 00, 15, 30, or 45.

Move the cursor to EXIT and press the TEST Button

to return to the Game Test Menu Screen.

12-3-11 FIG. 02

CLOSE SETTING

SCHEDULE TYPE EVERY DAY

24: 00

―> EXIT

SELECT WITH SERVICE BUTTON

AND

PRESS TEST BUTTON

TEST MODE

SCHEDULE TYPE WEEK

Set a different store close time for each day of the week.

Set a closing time for each day of the week.

Move the cursor to each item and press the TEST But-

ton to change it. The time changes each time the button

is pressed.

The hour can be set between 19 and 30, and the minutes

can be set to 00, 15, 30, or 45.

SUN: Set the closing time for Sunday.

MON: Set the closing time for Monday.

TUE: Set the closing time for Tuesday.

WED: Set the closing time for Wednesday.

THU: Set the closing time for Thursday.

FRI: Set the closing time for Friday.

SAT: Set the closing time for Saturday.

Move the cursor to EXIT and press the TEST Button to

return to the Game Test Menu Screen. 12-3-11 FIG. 03

CLOSE SETTING

SCHEDULE TYPE WEEK

SUN 24: 00

MON 24: 00

TUE 24: 00

WED 24: 00

THU 24: 00

FRI 24: 00

SAT 24: 00

―> EXIT

SELECT WITH SERVICE BUTTON

AND

PRESS TEST BUTTON

12-3-12 BOOKKEEPING

Select BOOKKEEPING to display the following screens of operating status data.

View the number of credits inserted.

COIN 1:

The number of coins inserted in COIN CHUTE 1

COIN 2:

The number of coins inserted in COIN CHUTE 2

TOTAL COINS:

The total number of coins inserted

COIN CREDITS:

The number of credits purchased with the inserted

coins

SERVICE CREDITS:

The number of credits added by the SERVICE Button

TOTAL CREDITS:

The total number of credits

Press the TEST Button to move to the screen 2/3 of

BOOKKEEPING. 12-3-12 FIG. 01

BOOKKEEPING 1/3

COIN 1 0

COIN 2 0

TOTAL COINS 0

COIN CREDITS 0

SERVICE CREDITS 0

TOTAL CREDITS 0

PRESS TEST BUTTON TO CONTINUE

TEST MODE

View the number of times the game has been played.

NUMBER OF GAMES:

The total number of games played

NUMBER OF KOUDOU:

The number of “Legend of the Streets” plays

NUMBER OF TIME ATTACK:

The number of “Time Attack” plays

NUMBER OF INSHOP VS:

The number of “In-store Battle” plays

NUMBER OF CARD SELL:

The number of cards sold

NUMBER OF CARD PLAY:

The number of games played using cards

NUMBER OF CAR ADDITION:

The number of additional cars purchased using cards

NOTE: If no opponent is found for “ In-store Battle”

mode and the game is ﬁ nished in “ Legend of

the Streets” or “ Time Attack” mode, the game is

counted as an “ In-store Battle” play.

Press the TEST Button to move to screen 3/3 of BOOK-

KEEPING.

12-3-12 FIG. 02

BOOKKEEPING 2/3

View gameplay times.

TOTAL TIME: The total play time

PLAY TIME: The total play time

AVERAGE PLAY TIME: The average play time

LONGEST PLAY TIME: The longest play time

SHORTEST PLAY TIME: The shortest play time

Display the number of plays by time length category.

PLAY TIME HISTOGRAM: List of play times

Press the TEST Button to return to the Game Test Menu

Screen.

12-3-12 FIG. 03

BOOKKEEPING 3/3

TOTAL TIME 0D 0H 0M 0S

PLAY TIME 0D 0H 0M 0S

AVERAGE PLAY TIME 0M 0S

LONGEST PLAY TIME 0M 0S

SHORTEST PLAY TIME 0M 0S

PLAY TIME HISTOGRAM

0M00S ~ 0M59S 0

1M00S ~ 1M59S 0

2M00S ~ 2M29S 0

2M30S ~ 2M59S 0

3M00S ~ 3M29S 0

3M30S ~ 3M59S 0

4M00S ~ 4M29S 0

4M30S ~ 4M59S 0

5M00S ~ 5M29S 0

5M30S ~ 5M59S 0

6M00S ~ 6M29S 0

6M30S ~ 6M59S 0

7M00S ~ 7M29S 0

7M30S ~ 7M59S 0

8M00S ~ 8M29S 0

8M30S ~ 8M59S 0

9M00S ~ 9M29S 0

9M30S ~ 9M59S 0

10M00S~10M29S 0

OVER 10M30S 0

PRESS TEST BUTTON TO EXIT

BOOKKEEPING 2/3

NUMBER OF GAMES 0

FIRST PLAY / CONTINUE

NUMBER OF KOUDOU 0 / 0

NUMBER OF TIME ATTACK 0 / 0

NUMBER OF IN-STORE VS 0 / 0

NUMBER OF CARD SELL 0

NUMBER OF CARD PLAY 0

NUMBER OF CAR ADDITION 0

PRESS TEST BUTTON TO CONTINUE

TEST MODE

12 This screen allows you to clear backup data. Use the

cursor to select YES or NO.

YES: Clear all data in BOOKKEEPING.

NO: Go back to the menu screen without clearing data.

12-3-13 BACKUP DATA CLEAR

Select BACKUP DATA CLEAR to display the following screen.

12-3-13 FIG. 01

Select YES and press the TEST Button to clear all

data in BOOKKEEPING. Clearing data does not affect

other game settings. When the data has been cleared,

the screen displays “COMPLETED”.

Be sure to clean the card reader/writer head after clear-

ing backup data.

Press the TEST Button again to return to the Game

Test Menu Screen.

12-3-13 FIG. 02

BACKUP DATA CLEAR

YES (CLEAR)

―> NO (CANCEL)

SELECT WITH SERVICE BUTTON

AND

PRESS TEST BUTTON

BACKUP DATA CLEAR

―> YES (CLEAR)

COMPLETED

SELECT WITH SERVICE BUTTON

AND

PRESS TEST BUTTON

MONITOR (LCD DISPLAY)

MONITOR (32”LCD DISPLAY, CHILIN, ST-HB32A2X)

Responding to breakdown or abnormality

● If smoke or a strange odor appears, immediately unplug the power cable from the power source. Continuing to use

the product may cause a ﬁ re or an electric shock. Ensure that smoke is no longer emitted, and contact the point of

purchase.

● If nothing displays on the screen, immediately unplug the power cable from the power source. Continuing to use the

product may cause a ﬁ re or an electric shock. Contact the point of purchase and request an inspection.

● If water or a foreign object enters the monitor’s interior, immediately unplug the power cable from the power source.

Continuing to use the product may cause a ﬁ re or an electric shock. Contact the point of purchase and request an

inspection.

● If the monitor is dropped or the cabinet is damaged, immediately unplug the power cable from the power source.

Continuing to use the product may cause a ﬁ re or an electric shock. Contact the point of purchase and request an

inspection.

During operation

● Do not repair, reconstruct, or disassemble the monitor. The monitor’s interior contains high voltage parts. A ﬁ re or an

electric shock could result. For inspections, adjustments, and repair of the monitor’s interior, request work from the

point of purchase.

● Do not insert foreign objects. If metal objects or ﬂ ammable materials such as paper are inserted into the interior

through ventilation openings or other apertures, an electric shock could result.

● In the event of a thunder storm, do not touch the product or the power cable. An electric shock could result.

● Make sure to perform appropriate adjustments. Do not operate the product when the screen is ﬂ ickering, distorted, or

experiencing other abnormalities. Images from an improperly adjusted screen could cause players and other cus-

tomers to experience dizziness, headaches, and other ailments.

13-1 SAFETY PRECAUTIONS WHEN HANDLING THE MONITOR

Clean the screen surface once a week.

13-2 CLEANING THE SCREEN SURFACE

● Use a soft, dry cloth (ﬂ annel-type) to wipe away dirt. Do not use materials such as coarse mesh gauze.

● Alcohol (ethanol) is the recommended solvent for removing dirt. When using a cleaning agent, follow the precau-

tions below.

- Dilute neutral cleaning agents for home use with water. Soak a soft cloth in the solution, and wring it thoroughly

before wiping the screen.

- Do not use abrasive cleaning agents or powders, or cleaning agents containing bleach.

- Do not use alkaline cleaning agents such as glass cleaners, or solvents such as thinners.

● Do not scrub or scratch the screen surface with abrasive materials such as brushes or scrub brushes.

Controls – Adjustment Procedures

This section explains basic control procedures for making adjustments using the remote controller.

13-3 ADJUSTMENT METHOD

All adjustment values are set accurately at the time of shipping from the factory. Do not

readjust these values needlessly or apply adjustments not speciﬁ ed in this manual. The display

may not appear properly if the values are incorrect.

MONITOR (LCD DISPLAY)

Item Default

Power switch Off

Brightness 100

Contrast 50

Color temp. User

Red 255

Green 255

Blue 255

Language English

Auto Config On

Remote Controller Factory Default Setting


(Video mode)

Sound

Function

PC (VGA mode)

OSD

Contrast Adjust the contrast of the screen 0, 100

Brightness Adjust the brightness of the screen 0, 100

Hue Adjust the picture hue of the screen 0, 100

Saturation Adjust the picture saturation og the screen 0, 100

Color-Tone Adjust the picture tone of the screen 6500K, 5400K, 9300K

Scale Select the picture ratio Full, Zoom 1, Zoom 2, Normal

Picture Mode Select the picture display mode Standard, Movie, vivid, user

MAIN MENU SUB-MENU DESCRIPTION SETTING

Volume Adjust the Volume of the audio 0, 100

Bass Adjust the bass of the audio 0, 100

Treble Adjust the treble of the audio 0, 100

Balance Adjust the balance of the audio 0, 100

Set Display ID Set ID number of Display 00, 255 (didn't see it)

Multi-Picture H-Position Adjust the H-Position of PIP 0, 100

V-Position Adjust the V-position of PIP 0, 100

Border Color Adjust the PIP border color Blue, Black

Swap Swap main & PIP signal Select (can't in PC mode)

Contrast Adjust the contrast of screen 0, 100

Brightness Adjust the brightness of the screen 0, 100

H-Position Move the picture left/right on the screen 0, 100

V-Position Move the picture up/down on the screen 0, 100

Clock Adjust the display clock 0, 255

Phase Adjust the display phase 0, 255

Color Mode- Select the color temperature setting sRGB, User,6500K, 5400K,9300K

Red Adjust red color 0, 100

Green Adjust green color 0, 100

Blue Adjust blue color 0, 100

AUTO Auto adjustment Select

Language Language setting (No need, because no other English

language to choose from)

H-Position Adjust the OSD menu H-Position 0, 100\ (can't tell)

V-Position Adust the OSD menu V-Position 0, 100 (can't tell)

Duration Adjust the OSD menu duration 0, 60

Half tone Adjust the OSD menu tone 0, 100

Information Display resolution & F/W check sum Select

Memory Reset to the factory default setting Select

OSD Functions

Power on / off

Volume Up

Input source selection

Picture in picture function on

Menu Left

Menu Up

Menu Right

Menu Down

One level up

OSD control Menu

button

Volume Down

Auto adjustment

PIP picture switch

FLUORESCENT LIGHT REPLACEMENT

● When working with the product, be sure to turn the power off. Working with the power on may cause an electric

shock or short circuit.

● There is danger that hot lamps can cause burns. Exercise due caution when replacing lamps.

● Use lamps of the speciﬁ ed ratings. Using lamps with different ratings may cause ﬁ res or damage.

● Due to wear over time and other causes, insulation degradation and other problems in the lighting units may oc-

cur. These can cause the light units to emit smoke or short circuit. Check for anomalies such as burning odors,

color changes around the sockets, necessity for frequent bulb changes, and slow response or ﬂ ickering in the

ﬂ uorescent lights.

● To safely and reliably perform this work, be sure to use a stable stepladder. Use of an unstable stepladder can

result in a worker falling over or falling down.

● Be careful when handling parts made of plastic. If such parts are damaged, injuries could be caused by frag-

ments, cracks, etc.

Switch off the unit. Remove the Marquee POP then remoce four truss screws to detach the panel side cap L.

Remove 7 screws to remove the Marquee Cabinet Mounting Bracket.

14 FIG. 01

TAMPER PROOF SCREW (4), black

10 x 1" TT-25

> Both Left and Right side.

14 FIG. 02

PANEL SIDE CAP L was removed.

8-32 X 1/2" Tamper Proof, Torx (7)

PANEL SIDE CAP L

FLUORESCENT LIGHT REPLACEMENT

Remove the billboard panel to change the ﬂ uorescent bulb.

14 FIG. 03

14 FIG. 04

BILLBOARD PANEL

FLUORESCENT BULB 30 W, 18"

PERIODIC INSPECTION

The items listed below require periodic checks and maintenance to guarantee the performance of this machine and to ensure safe operation.

ITEMS DESCRIPTION PERIOD REFERENCE

CABINET Check that the stoppers and adjust-

ers are secured Daily 3

CARD R/W Clean stocker section rollers Every 10 days 7-2

Head cleaning See “Note” below

CONTROL PANEL

Volume inspection Monthly 9

Inspect engagement of adjust gears Every 3 months 9-2

Apply grease Every 3 months 9-3

Inspect input switches Monthly 9-4

SHIFT LEVER Apply grease Every 3 months 10

ACCELERATOR &

BRAKE

Volume inspection Monthly 11

Apply grease to gear and spring parts Every 3 months 11-2

MONITOR Clean screen Weekly 13-2

Check adjustments

Monthly, or when moved

13-3

COINCHUTE DOOR

Inspect coin switch Monthly 12

Coin insert test Monthly 12

Clean coin selector Every 3 months 12

SEAT Apply grease to seat rail section Every 3 months Next page

GAME BOARD Conﬁ rm setting Monthly 16

ELECTRONIC/ELEC-

TRICAL PARTS Inspection, Cleaning 1 year

POWER PLUG Inspection, Cleaning 1 year 3

CABINET INTERIOR Cleaning 1 year

CABINET SURFACES Cleaning As appropriate Next page

15 TABLE 01

NOTE: When switching the unit ON/OFF after 200 plays.

PERIODIC INSPECTION

● Be sure to check once a year to see if Power Cords are damaged, the plug is securely inserted, dust is accu-

mulated between the Socket Outlet and the Power Plug, etc. Using the product with dust as is accumulated can

cause ﬁ re and electric shock hazards.

● Never use a water jet, etc. to clean inside and outside the cabinet. If the machine gets wet for any reason, do not

use it until it has completely dried.

● Periodically once a year, request the place of contact herein stated or the Distributor, etc. where the product was

purchased from, as regards the internal cleaning. Using the product with dust as is accumulated in the interior

without cleaning can cause a ﬁ re or accident. Note that cleaning the interior parts can be performed on a pay-

basis.

● There is the danger of accidents involving electrical shorts circuits or ﬁ re caused by factors such as the deteriora-

tion of insulation in electrical and electronic equipment over time. Check that there are no abnormalities such as

odors from burning.

PERIODIC INSPECTION

Cleaning the Cabinet Surfaces

When the cabinet surfaces become dirty, remove stains with a soft cloth soaked in water or diluted (with water) chemical detergent and then wrung

dry. To avoid damaging the ﬁ nish, do not use such solvents such as thinner, benzene, etc. (other than ethyl alcohol) or abrasives (bleaching agent and

chemical dust-cloth).

Some general-purpose household, kitchen, and furniture cleaning products may contain strong solvents that degrade plastic parts, coatings, and print.

Before using any cleaning product, read the product's cautionary notes carefully and test the product ﬁ rst on a small area that is not highly visible.

Remove 6 bolts to remove seat slider. Apply spray grease to the rails once every three months (use NOK KLUBER L60 or GREASE MATE: SEGA

Part No. 090-0066). After greasing, move the seat a few times forward and backward so as to allow the grease to be applied all over uniformly.

Seat (Greasing to Seat Rail Portion)

TROUBLESHOOTING

● If an error message is displayed, have the problem looked at by a store maintenance person or a technician.

Unless the problem is addressed by someone with specialized knowledge or skills, there could be electrical

shock, short circuits or ﬁ re. If there are no store maintenance people or technicians, or moving mechanisms are

involved, cut off the power immediately and contact the ofﬁ ce shown in this manual or the dealer from whom the

product was originally purchased.

● If problems other than those covered in this manual arise, or if no improvements can be noted after measures

given in this manual have been taken, do not take measures indiscriminately. Cut off the power immediately and

contact the ofﬁ ce shown in this manual or the dealer from whom the product was originally purchased. Indiscrim-

inate countermeasures could lead to unforeseeable accidents. They could also result in permanent damages.

● When working with the product, be sure to turn the power off. Working with the power on may cause an electric

shock or short circuit.

● Be careful not to damage the wires. Damaged wires may cause an electric shock, short circuit or present a risk of

ﬁ re.

● After the cause of circuit protector activation has been removed, have the circuit protector re-engaged. If the

unit is used continuously as is, there could be heat generation or ﬁ re, depending on the cause of the activation.

If a problem has occurred, ﬁ rst inspect the connection of the wiring connector.

PROBLEMS CAUSE COUNTERMEASURES

When the main SW is turned

ON, the machine is not activated.

The power is not ON. Firmly insert the plug into the outlet.

(See chapter 6.)

Incorrect power source/voltage. Make sure that the power supply/voltage

are correct.

FL box ﬂ uorescent lamp does

not glow.

Faulty connection of connectors Join connectors securely between cabinet

and FL unit.

Fluorescent lamp and glow lamp

need replacement.

Replace the ﬂ uorescent lamp and the glow

lamp. (See chapter 14.)

Sound is not emitted.

Sound volume adjustment is not

correct.

Adjust the switch unit's sound adjustment

volume.

Faulty connections for various

connectors.

Check the connections for the game board,

amp, speakers and volume connectors.

Malfunctioning board, ampliﬁ er

and speaker. Conduct sound test to conﬁ rm.

Sound comes from the speak-

ers and the ﬂ uorescent lights are

working normally, but the moni-

tor remains blank and no images

appear.

Faulty connection in the video

connectors or monitor power

connector.

Check that the connectors are inserted cor-

rectly in the monitor and game board.

Monitor is broken. Contact the dealer where the unit was pur-

chased.

16 TABLE 01

TROUBLESHOOTING

PROBLEMS CAUSE COUNTERMEASURES

Colors on the monitor screen are

strange.

Faulty connection for the visual

signal connector.

Check the visual signal connector connec-

tion and make sure it is secured properly.

Screen adjustment is not appro-

priate.

Make adjustment appropriately.

(See chapter 13.)

Does not accept input from any

switch or volume. Faulty connector connections.

Check the connection for the I/O board and

cabinet connector.

Check the power for the I/O board.

The steering (servomotor) does

not respond correctly or accu-

rately.

An error occurred during the

power-on check.

Switch the power off and on again, and con-

ﬁ rm that the power-on check is performed

correctly.

Steering volume is not conﬁ gured

correctly. Conﬁ gure the volume in test mode.

Volume not installed correctly/

Adjust gears not engaged cor-

rectly.

Adjust the installation, and conﬁ rm in test

mode (See chapter 9).

Volume is broken. Replace volume (See chapter 9).

A wire has been severed/discon-

nected.

Check that the wires running close to any

moving parts are connected properly. When

replacing wires, route them so that they do

not come into contact with any moving parts.

The steering (servomotor) does

not respond at all.

An error occurred during the

power-on check.

Switch the power off and on again, and con-

ﬁ rm that the power-on check is performed

correctly.

Faulty connection.

Check all the connectors leading from the

game board to the servo driver and from the

servo driver to the servomotor.

The thermal element in the servo

driver has activated.

The thermal element kicks in when the in-

ternal temperature reaches approximately 70

. When the temperature cools sufﬁ ciently,

the unit will automatically start up again.

The servo driver fuse has blown

due to a momentary overloading.

Contact the dealer where the unit was pur-

chased.

The steering (servomotor) is

weak.

The recoil mechanism has come

out of adjustment with use. Reconﬁ gure settings in test mode.

Accelerator and brake inputs do

not work correctly.

Volume is not conﬁ gured cor-

rectly. Conﬁ gure the volume in test mode.

Volume not installed correctly/

Adjust gears not engaged cor-

rectly.

Adjust the installation, and conﬁ rm in test

mode (See chapter 11).

Faulty connection.

Check all the connections inside the ac-

celerator and brake units, and check the con-

nections leading from the game cabinet to

the accelerator and brake.

Volume is broken. Replace volume (See chapter 11).

Pressing the start, view change, or

directional buttons has no effect.

The buttons do not ﬂ ash.

Faulty connection. Check all the connections between the I/O

board, the cabinet, and the switch unit.

Rubber section is torn. Check to see if the rubber section inside the

switch unit is torn.

Switch unit is broken. Contact the dealer where the unit was pur-

chased.

Cannot perform DVD setup. The

display stays at the LINDBERGH

logo and does not advance to the

advertising screen (Error 6).

DVD drive is broken.

Connecting cable is broken.

Check the manual that came with the DVD

drive kit.

DVD disc is broken. Contact the dealer where the unit was pur-

chased.

The display stays at the LIND-

BERGH logo and does not

advance to the advertising screen

(other error).

LINDBERGH conﬁ gured incor-

rectly or malfunctioning.

Referchapter 16-3 “ERROR CODE FOR

LINDBERGH.”

TROUBLESHOOTING

PROBLEMS CAUSE COUNTERMEASURES

The in-store competition racing

function does not work.

Transmission cables are discon-

nected.

Transmission cables are not con-

nected correctly.

Check that the transmission cable connec-

tions are connected inside the cabinet and

between the cabinets. Check the LAN con-

nection LED on the LINDBERGH. Recon-

nect the transmission cables correctly.

Error in the cabinet seat settings

(Error Code 6018).

In test mode, conﬁ rm that the cabinet seat

settings are correctly conﬁ gured.

Transmission cable is broken. Replace transmission cable. Contact the

dealer where the unit was purchased.

Player cannot use IC card.

Incompatible card. In test mode, check the compatibility of the

card.

Error in the card usage settings. In test mode, check the card usage settings.

Data saved to the card is cor-

rupted.

Use card recovery mode and try to restore

the card.

Faulty serial connector. Check the connector in test mode.

Check the connections to the connector.

IC card unit is broken. Contact the dealer where the unit was pur-

chased.

16-1 NETWORK MESSAGES

Startup power on test

This product displays the following messages when it detects an error. Read the error description and follow the

steps indicated. Refer to the LINDBERGH Service Manual for details on error messages displayed with the LIND-

BERGH logo.

● The pair cabinet in the group designated in Game Test Mode cannot be found

Pair-Machine Recognition Error

Cannot conﬁ rm connection to pair-machine.

Resuming operation in single setting mode.

6002

After the error message is displayed, the cabinet will boot as a SINGLE machine.

In-store battles will become available again after booting once the pair cabinet is found.

If the pair still does not link up even after rebooting both cabinets, the cause may be one of the following.

Check the cabinet settings.

- NETWORK SETTING is set to DISABLE on the LINDBERGH System Test Menu, and the SEAT SET-

TING does not function properly.

- Both cabinets are set to the same SEAT NUMBER in GAME TEST MODE.

● The cabinet power supply or LAN cable functions irregularly during startup.

A network error has occurred.

Please call an attendant.

599

Displayed when something irregular happens during startup, such as accidentally unplugging the LAN cable or

a power outage.

Make sure the cabinet is properly plugged in and reboot the cabinet.

TROUBLESHOOTING

Advertise

The following message may be displayed on the Advertise Screen depending on the network status and game set-

tings.

● The cabinet is not set up for In-store battles, or it is set up but the In-store battle network is not functioning

In-store Battle Mode is currently unavailable.

In-store Battle mode

● Problem connecting to the pair cabinet

A network error has occurred.

Returning to Single Player Mode.

6018

Displayed when the above network problem occurs between selecting the mode and ﬁ nishing the race.

After the message is displayed, the game returns to the Mode Select Screen and the player can select “Legend of the

Streets” or “Time Attack” mode to continue the game.

16-2 IC CARD MESSAGES

Advertise

● There are no licenses in the card stocker

Creating or renewing an Initial D license is currently unavailable.

Please call an attendant to restock licenses.

Displayed at all times at the top of the Advertise Screen.

Reﬁ ll the reader/writer stocker with licenses. The message will disappear automatically, and licenses can be issued

and renewed as normal.

● There is no hardware response from the card reader/writer

The card reader/writer is not responding.

Your Initial D license cannot be used at the moment.

Please call an attendant for assistance.

Displayed at all times at the top of the Advertise Screen.

The game can be played without a license (in “Legend of the Streets” and “Time Attack”).

● The card reader/writer is set to unavailable in Test Mode

Your Initial D license cannot be used at the moment.

Displayed at all times at the top of the Advertise Screen.

The game can be played without a license (in “Legend of the Streets” and “Time Attack”).

Error codes are displayed along with these messages when there is a major problem with the data on a license (IC

card) or when a problem occurs with the reader/writer mechanism.

TROUBLESHOOTING

● A license gets trapped in the shutter during insertion

A shutter error has occurred. If your license is in the slot, please remove it and press the Start and \

View Change buttons.

If you cannot remove your license, please call an attendant for assistance.

404

A license is stuck in the shutter of the reader/writer insertion slot.

Remove the license and press the Start and View Change Buttons.

If ejection fails, open the lid of the reader/writer and remove the jammed license.

● A license cannot be read during insertion

The inserted license is damaged (including inappropriate cards)

After reissuing a license, the original license is inserted

Is the license positioned correctly?

Please conﬁ rm that your Initial D license has been inserted correctly.

If inserted correctly, data is damaged.

406 or 409 or 412

Displayed when an Initial D License that cannot be used for normal play is inserted.

After displaying the above message, the cabinet ejects the license and returns to the game (the license insertion screen).

● The game attempts to read license data and the data is damaged

The data on this license is damaged.

Please call an attendant.

Displayed when data on the inserted Initial D License is damaged, but may be restored.

● A license inserted by hand is still in its initial unformatted state

Your Initial D license was not recognized.

Please check your license.

414

Displayed when a brand new license without any data written on it is inserted.

After displaying the above message, the cabinet ejects the license and returns to the game (the license insertion screen).

● A license inserted by hand is expired

This Initial D license can no longer be used.

408

Displayed when an expired license that has already been through the renewed process is inserted.

After displaying the above message, the cabinet ejects the license and returns to the game (the license insertion screen).

● A license gets stuck in the insertion slot or inside the card reader/writer during insertion

Your Initial D license is jammed. Please press the Start and View Change buttons.

If you cannot eject your license, please call an attendant for assistance.

403

A license is stuck inside the reader/writer.

Press the Start and View Change Buttons to attempt to eject the card.

If ejection fails, open the lid of the reader/writer and remove the jammed license.

License insertion and authentication

TROUBLESHOOTING

License access (read and write)

● When accessing a license, no license is found in the reader/writer

When the inserted IC card is not an Initial D License

An error has occurred while accessing license.

Please call an attendant.

400 or 419

Displayed when unable to read or write license data properly because either no license is found in the reader/writer or

the inserted card is not a license (the game is halted).

Check the reader/writer and reboot the cabinet.

● There is no hardware response from the card reader/writer

The card reader/writer is not responding.

Please call an attendant for assistance.

417 or 423

Displayed when a hardware problem occurs in the reader/writer when reading or writing license data (the game is

halted).

The reader/writer may be damaged.

Dispensing cards from the stocker to the reader/writer

● The card becomes physically stuck while being dispensed from the stocker

Failed to issue a new Initial D license.

Please call an attendant for assistance.

403

The license is stuck inside the reader/writer.

Open the lid of the reader/writer and remove the card.

● The stocker dispenses an Initial D License that is facing the wrong way, or dispenses a card that is not an Initial D

License

Failed to issue a new Initial D license.

Please call an attendant for assistance.

419

Displayed when the card is not a valid new Initial D License or the Initial D License is facing the wrong way.

TROUBLESHOOTING

Writing license data

● Could not write to the license (including verify)

Failed to load data from your Initial D license.

Current play data cannot be recorded to your license.

402 or 405

Displayed when a problem occurs while writing to the license.

The license will be ejected as normal, but the data may be damaged.

NOTE: If the data is damaged, it can be restored during any following online play.

● When writing to a license, the license in the card reader/writer is different from the one present when the game started

An error has occurred while writing license.

Please call an attendant.

415

The game is halted.

Remove the license and reboot the cabinet.

● The stocker dispenses a defective license (faulty initialization, etc.)

Failed to issue a new Initial D license.

Please call an attendant for assistance.

407

The game is halted.

Remove the license and reboot the cabinet.

● The stocker dispenses an Initial D License that is facing the wrong way, or dispenses a card that is not an Initial D

License

Failed to issue a new Initial D license.

Please call an attendant for assistance.

419

The game is halted.

The above message is displayed if a card was stocked facing the wrong way, even if it is a valid license.

Check to make sure the stocker is properly ﬁ lled with licenses.

TROUBLESHOOTING

Printing

● A card becomes physically stuck during printing

Your Initial D license is jammed.

Please press the Start and View Change buttons.

If you cannot eject your license, please call an attendant for assistance.

403

A license is stuck inside the reader/writer.

Press the Start and View Change Buttons to attempt to eject the card.

If ejection fails, open the lid of the reader/writer and remove the stuck license.

● An irrecoverable printing error occurs due to heat or hardware issues

A print error has occurred.

Please call an attendant for assistance.

416

The game is halted.

The reader/writer may be damaged.

Ejection

● A license becomes physically stuck during ejection

Your Initial D license is jammed.

Please press the Start and View Change buttons.

If you cannot eject your license,

please call an attendant for assistance.

403

A license is stuck inside the reader/writer.

Press the Start and View Change Buttons to attempt to eject the card.

If ejection fails, open the lid of the reader/writer and remove the stuck license.

● A license gets trapped in the shutter during ejection

A shutter error has occurred.

If your license is in the slot, please remove it and

press the Start and View Change buttons.

If you cannot remove your license, please call an attendant for assistance.

404

A license is stuck in the shutter of the reader/writer insertion slot.

Remove the license and press the Start and View Change Buttons.

If ejection fails, open the lid of the reader/writer and remove the stuck license.

TROUBLESHOOTING

LINDBERGH displays error messages on the screen to indicate various problems.

If an error message is displayed, the game cannot be started. In this case, refer to the following section on

causes and countermeasures.

Error 01

DISPLAY Game Program Not Found.

CAUSE The key chip is not connected.

COUNTERMEASURES Check that the key chip is connected correctly. Check that the keychip is not

inserted the wrong way or that the key chip from a different system is not

inserted.

Error 02

DISPLAY Game Program Not Available.

CAUSE The key chip is not supported.

COUNTERMEASURES Send the LINDBERGH board in for repair with the key chip still in place.

Error 05

DISPLAY Wrong Region.

CAUSE The game is for a foreign region.

COUNTERMEASURES Use a domestic game.

Error 06

DISPLAY I/O Device Not Found.

CAUSE The LINDBERGH board's I/O board cannot be found.

COUNTERMEASURES Send the LINDBERGH board in for repair with the key chip still in place.

Error 07

DISPLAY Graphic Card Not Found.

CAUSE The LINDBERGH board's graphics card cannot be found.

COUNTERMEASURES Send the LINDBERGH board in for repair with the key chip still in place.

Error 08

DISPLAY Sound Card Not Found.

CAUSE The LINDBERGH board's sound card cannot be found.

COUNTERMEASURES Send the LINDBERGH board in for repair with the key chip still in place.

Error 09

DISPLAY System Memory Not Enough.

CAUSE The LINDBERGH board does not have enough memory.

COUNTERMEASURES Send the LINDBERGH board in for repair with the key chip still in place.

Error 10

DISPLAY Unexpected Game Program Failure.

CAUSE The game program crashed due to an unexpected error.

COUNTERMEASURES Turn the power off and then restart.

● If an error code is displayed, have a Location's Maintenance Man or Serviceman resolve it. If someone without specialized

or technical knowledge attempts to rectify the problem, electric shock, short circuits or ﬁ re may result. If there is no store

maintenance person or technician available, turn the power OFF immediately, and contact your retailer or the ofﬁ ce listed in

this manual.

● If problems other than those noted in this manual occur, or the countermeasures suggested result in no improvement, do not

try to rectify the problem by other means. Turn the power OFF immediately, and contact your retailer or the ofﬁ ce listed in this

manual. Careless countermeasures can result in unexpected accidents.

● If error No. 20 is generated, the power must be turned OFF and ON again in order to clear it.

● When requesting replacement or repair of the Game Board or Media Board, put the board in

the special purpose packing box speciﬁ ed in this manual for transportation.

16-3 ERROR CODES FOR LINDBERGH (MAIN PCB)

TROUBLESHOOTING

Error 11

DISPLAY JVS I/O board is not connected to main board.

CAUSE (1) The I/O board is not connected.

(2) Unreliable connection between the main board and the I/O board.

COUNTERMEASURES (1) Connect the I/O board to the main board. Verify that the power cable is

connected to I/O board.

(2) Reconnect or replace the JVS cable that connects the I/O board to the

main board.

Error 12

DISPLAY JVS I/O board does not fulﬁ ll the game spec.

CAUSE The correct I/O board is not connected.

COUNTERMEASURES Use an I/O board that provides the proper input/output for the game.

Error 14

DISPLAY Network ﬁ rmware version does not fulﬁ ll the game spec.

Required version XX.XX.

CAUSE The ﬁ rmware version installed on either the network board or the DIMM

Media board is older than the required version.

COUNTERMEASURES Use a network board or DIMM Media board with ﬁ rmware that meets or

exceeds the required version.

Error 15

DISPLAY Game Program Not Found.

CAUSE The key chip is not connected.

COUNTERMEASURES Check that the key chip is connected correctly. Check that the key chip is

not inserted the wrong way or that the key chip from a different system is not

inserted.

Error 21

DISPLAY Game Program Not Found on Game Disk.

CAUSE There is no program image on the game disk.

COUNTERMEASURES Check that a game disk corresponding to the key chip is inserted into the

drive.

Error 22

DISPLAY Game Program Not Found on Device.

CAUSE There is no game image on the game installer device.

COUNTERMEASURES Perform a reinstall from the game disk.

Error 24

DISPLAY DVD Drive Not Found.

CAUSE The DVD drive cannot be found.

COUNTERMEASURES Connect the DVD drive.

Error 25

DISPLAY Game Disk Not Found.

CAUSE The game disk cannot be found.

COUNTERMEASURES Insert the game disk.

Error 26

DISPLAY Storage Device Not Found.

CAUSE The program installer device cannot be found.

COUNTERMEASURES Send the LINDBERGH board in for repair with the key chip still in place.

Error 27

DISPLAY Storage Device is Not Acceptable.

CAUSE The program installer device does not have enough space.

COUNTERMEASURES Send the LINDBERGH board in for repair with the key chip still in place.

TROUBLESHOOTING

Error 28

DISPLAY This Game Disk is Not Acceptable.

CAUSE The game disk cannot be read correctly.

COUNTERMEASURES Exchange the game disk for a proper game disk. Check that the game disk

is not scratched, damaged or dirty.

Error 29

DISPLAY Cannot Control DVD Drive.

CAUSE The DVD drive cannot be controlled.

COUNTERMEASURES The DVD drive may be damaged.

Error 31

DISPLAY Storage Device Not Enough.

CAUSE The program installer device does not have enough space.

COUNTERMEASURES Send the LINDBERGH board in for repair with the key chip still in place.

Error 32

DISPLAY Installing Game Program Failed.

CAUSE Transfer of the program failed.

COUNTERMEASURES Check that the DVD drive is connected correctly. Check that the game disk

is not scratched, damaged or dirty.

Error 33

DISPLAY Storage Device is Not Acceptable.

CAUSE The program installer device cannot be found.

COUNTERMEASURES Send the LINDBERGH board in for repair with the key chip still in place.

Error 34

DISPLAY Storage Device Not Found.

CAUSE The program installer device cannot be found.

COUNTERMEASURES Send the LINDBERGH board in for repair with the key chip still in place.

Error 35

DISPLAY Storage Device is Not Acceptable.

CAUSE The program installer device does not have enough space.

COUNTERMEASURES Send the LINDBERGH board in for repair with the key chip still in place.

Error 36

DISPLAY Storage Device May be Broken.

CAUSE The program installer device is broken.

COUNTERMEASURES Send the LINDBERGH board in for repair with the key chip still in place.

TROUBLESHOOTING

Error 37

DISPLAY Verifying Game Program Failed.

CAUSE The program image is unveriﬁ ed due to the program image not existing on

the game disk or server.

COUNTERMEASURES Check that the correct game disk is inserted.

Error 41

DISPLAY Server Not Respond.

CAUSE The server is not responding.

COUNTERMEASURES Check the network settings.

Set IP Address and other settings.

Check that the network cable has not been pulled out.

Error 42

DISPLAY Server Mount Failed

CAUSE The server directory is could not be reached.

COUNTERMEASURES Check the network settings. Set IP Address and other settings.

Check that the network cable has not been pulled out.

Error 43

DISPLAY IP Address Not Assigned.

CAUSE An IP Address could not be obtained from the DHCP server.

COUNTERMEASURES Check the network settings. Set IP Address and other settings.

Check that the network cable has not been pulled out.

Error 44

DISPLAY Game Program Not Found on Server.

CAUSE No program image on the network server.

COUNTERMEASURES Check that the game title, place on the network server, and the key chip

correspond to each other.

Caution 51

DISPLAY Wrong Resolution Setting.

CAUSE The game does not support the current resolution settings.

COUNTERMEASURES Change the DIP SW to the correct settings and restart.

Caution 52

DISPLAY Wrong Horizontal/Vertical Setting.

CAUSE The monitor horizontal/vertical settings are incorrect.

COUNTERMEASURES Change the DIP SW to the correct settings and restart.

GAME BOARD

● When working with the product, be sure to turn the power off. Working with the power on may cause an electric

shock or short circuit.

● Be careful not to damage the wires. Damaged wires may cause an electric shock, short circuit or present a risk of

ﬁ re.

● Do not use this product with connectors other than those that were connected and used with the game board at

the time of shipping. Do not carelessly connect wires to connectors that were not used at the time of shipping, as

this may cause overheating, smoke or ﬁ re damage.

In this product, setting changes are made during the test mode. The game board need not be operated. Use the

game board, etc. as is with the same setting made at the time of shipment so as not to cause electric shock and

malfunctioning.

Static electricity from your body may damage some electronics devices on the IC board.

Before handling the IC board, touch a grounded metallic surface so that the static electricity

can be discharged.

17-1 REMOVING THE GAME BOARD

● When returning the game board after making repairs or replacements, make sure that there are no errors in the

connection of connectors. Erroneous connections can lead to electrical shock, short circuits or ﬁ res.

● When connecting a connector, check the direction carefully. Connectors must be connected in only one direc-

tion. If indiscriminate loads are applied in making connections, the connector or its terminal ﬁ xtures could be

damaged, resulting in electrical shock, short circuits or ﬁ res.

Switch off the main unit and open back door. Remove the two screws from base wood then slide it. Remove 4

screws and all connectoers to take MAIN PCB (LINDBERGH) off from base wood.

17-1 FIG. 01

WOOD SCREW (2)

> Holding base wood.

GAME BOARD

17-2 FIG. 01

17-2 FIG. 02

Use this product with the DIP SW settings shown in the ﬁ gure below.

17-2 COMPOSITION OF GAME BOARD

● With the key chip inserted into it, this board serves as a special-purpose game board for

the product.

● Use with the dip switches (DIP SW) on the board at the prescribed settings. If settings do not

match the product, an error message will be displayed. In some cases, the game cannot

be started.

ASSY CASE LBG L 1GB TFF EXP (844-0014D-12)

DIP SW Setting

BOARD NUMBER STICKER DIP SW

KEY CHIP

DESIGN-RELATED PARTS

For the warning display stickers, refer to Section 1.

DESIGN-RELATED PARTS

STICKER SIDE CAP / TFF-0712

> Both side. (2)

SIDE DECAL R ID4 / 539-30-200 (2)

STICKER CTRL PANEL UPPER

TFF-1002-B

CTRL PANEL PLATE ENG

TFF-1001-C

STICKER INPUT SW COVER / TFF-1504

STEERING EMBLEM / TFF-2002-B

COCKPIT BASE L ID4 / 539-30-203

COCKPIT BASE R ID4 / 539-30-202

> OTHER SIDE

INSTRUCTION ID4 / 539-30-210

BILLBOARD PANEL / TFF-0704

POP ID4/ 539-30-100

STICKER TAIL LID ID4 / 539-30-204

LOGO PLATE HEADREST COVER

TFF-1609-B

CARD INSERT STICKER / 539-30-206

> Use for both Left & Right

STICKER UPPER SEAT ENG

539-30-204

DIRECTION OF CARD STICKER / 539-30-206

STICKER JASRAC V TFF

421-11409-16

> Inside of thid door.

PARTS LIST

CABINET PARTS

PARTS LIST

PANEL SIDE CAP L / TFF-0705

PANEL SIDE CAP R / TFF-0706

(the other side)

ASSY ACCEL & BRAKE / TFF-2200

ASSY INPUT SW RUBBER / TFF-1500

SEAT FRAME COVER CAP

TFF-1611 (2)

SEAT FRAME COVER

TFF-1620 (2)

HEADREST BACK COVER

TFF-1609

LOWER SEAT / TFF-1605

UPPER SEAT ENG / TFF-1603-01

CTRL PANEL COVER ENG

TFF-1001-01

CTRL PANEL UPPER COVER BLANK

TFF-1002

CTRL PANEL COVER L

TFF-1003

STEERING WHEEL / TFF-2001

SPCL WSHR M12 / TFF-2003

STEERING CAP / TFF-2002

ASSY UP/DOWN SHIFTER

TFF-2400

IC CARD R/W CAP

TFF-1808

32"LCD MONITOR

CHILIN, ST-HB32A2X)

99-60-712

FRAME ASSY / 99-30-777

IC CARD RW W/WATER GUARD V

610-0791-01

PARTS LIST

INSIDE VIEW OF COIN DOOR & MARQUEE

SW & VOL BD

838-14548-01

BACK OF MONITOR & POWER SWITCH

FAN 110V / 99-60-900

> Near by AC Power cord.

VGA CABLE

STEERING MOTOR

FL LAMP FOR MARQUEE

30W 18"

MAIN POWER SW

MAIN FUSE 10 AMP

COIN COUNTER METER

5VDC

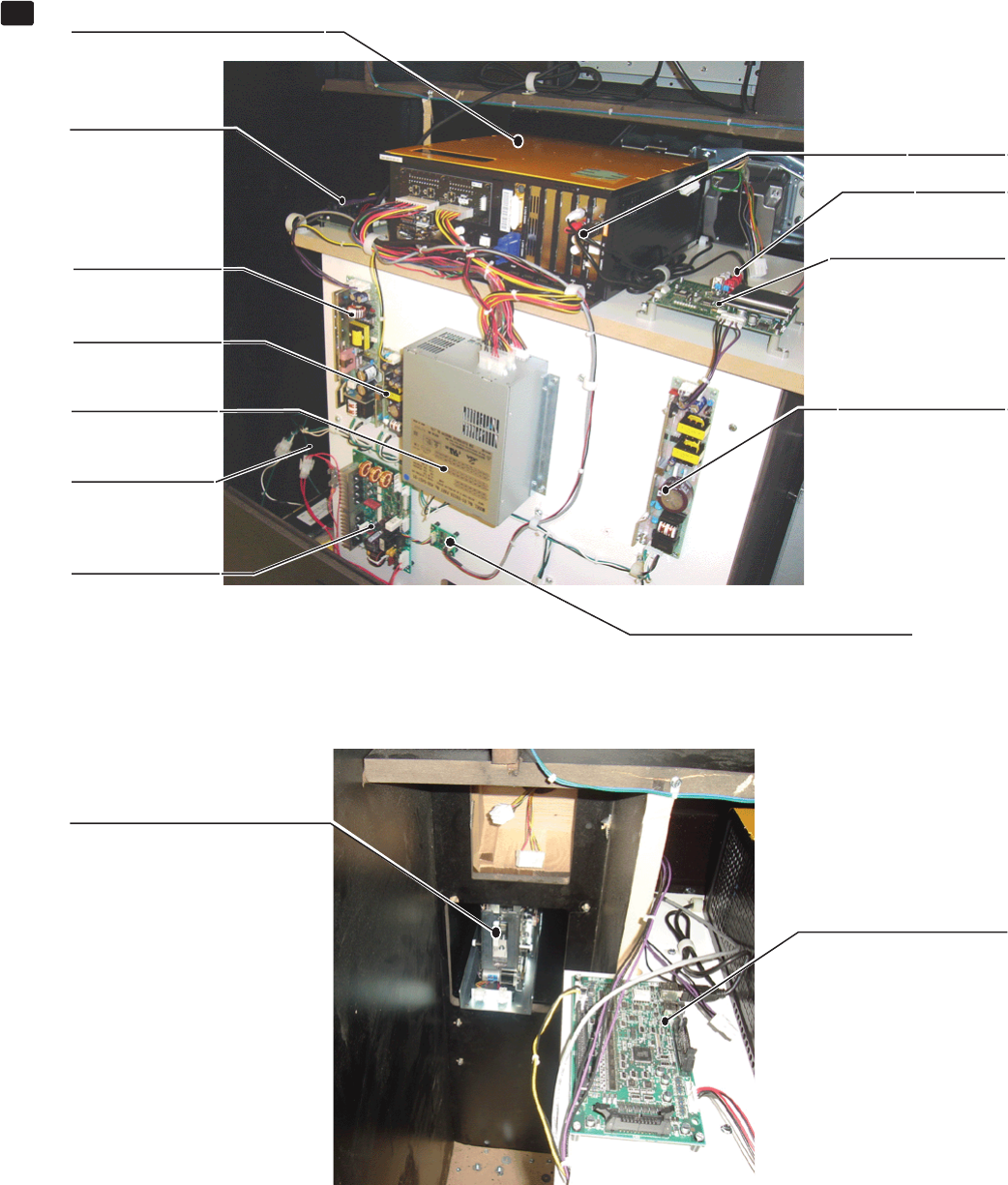

PARTS LIST

MAIN PCB AND OTHERS

SOUND AMP ANALOG IN

838-14515-A0191

ASSY CASE LBG 1GB 7800 USA

844-0001D-92-11

SW REGU ATX/JVS

400-5457-91

CONVERT BD RS232C/RS422

838-14578

I/O CONTROL BD 3

FOR JVS COM

838-14572

SERVO MOTOR

DRIVE BD SER EMI

838-14592-01

JVS CABLE

515-60-682

RCA

515-60-680

TRANSFORMER

120V-100V 8 AMP

99-60-215

POWERSUPPLY DC24V

LCA75S-24

400-5421-07524

24V POWER SUPPLY

100S-24-H

400-5421-10024H

12V POWER SUPPLY

998-0247

I/O CONTROL BD 3

FOR JVS COM

838-14572

IC CARD RW W/WATER GUARD V

610-0791-01

> Back view

PARTS LIST

ASSY SPKR R (TFF-0660)

ITEM NO. PART NO. DESCRIPTION

1 TFF-0661 SPKR BRKT R

2 TFF-0652 SPEAKER COVER

101 130-5265 SPEAKER BOX W/WOOFER

102 280-5275-SR10 CORD CLAMP SR10

103 601-6231-B010 EDGING NEW TYPE (L=10MM)

201 000-F00408-0B M SCR FH BLK M4×8

202 000-P00508-WB M SCR PH W/FS BLK M5×8

ASSY SPKR L (TFF-0650)

ITEM NO. PART NO. DESCRIPTION

1 TFF-0651 SPKR BRKT L

2 TFF-0652 SPEAKER COVER

101 130-5265 SPEAKER BOX W/WOOFER

102 280-5275-SR10 CORD CLAMP SR10

103 601-6231-B010 EDGING NEW TYPE (L=10MM)

201 000-F00408-0B M SCR FH BLK M4×8

202 000-P00508-WB M SCR PH W/FS BLK M5×8

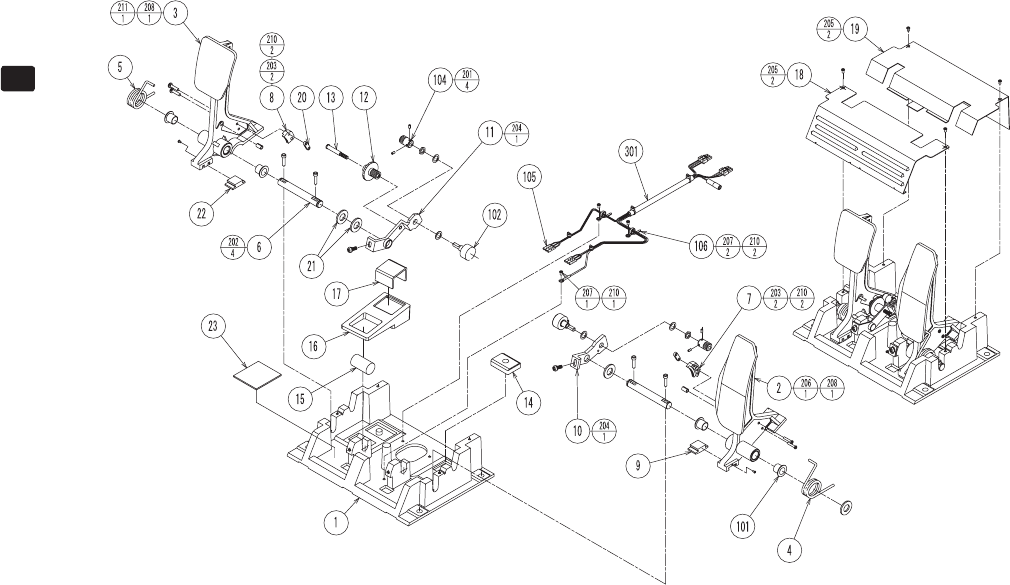

PARTS LIST

ITEM NO. PART NO. DESCRIPTION NOTE

1 SPG-2201 BASE

2 SPG-2202 ACCEL PEDAL

3 TFF-2203 BRAKE PEDAL

4 SPG-2204 ACCEL SPRING

5 TFF-2205 BRAKE SPRING

6 SPG-2206 SHAFT

7 SPG-2207 ACCEL GEAR

8 TFF-2208 BRAKE GEAR

9 SPG-2209 NEUTRAL STOPPER

10 SPG-2210 VR PLATE ACCEL

11 TFF-2211 VR PLATE BRAKE

12 TFF-2212 AMPL GEAR

13 SPG-2213X GEAR SHAFT

14 SPG-2214 STOPPER

15 TFF-2223 BRAKE CUSHION

16 TFF-2222 BRAKE STOPPER

17 TFF-2224 STOPPER ANGLE

18 SPG-2216 COVER

19 AFT-2804 VR COVER AFT

20 SPG-2219 GEAR STAY

21 SPG-2220 WSHR

22 SPG-2221 NEUTRAL STOPPER D

23 TFF-2225 NEUTRAL SPACER B

101 100-5263 BEARING 12(OILES 80F-1212)

102 220-5484 VOL CONT B-5K OHM

102 220-5753 VOL CONT B-5K OHM (TOCOS)

104 601-7944 GEAR 15

105 310-5029-F15 SUMITUBE F F 15MM

106 280-0419 HARNESS LUG

201 028-A00304-P SET SCR HEX SKT CUP P M3X4

202 020-000520-0Z HEX SKT H CAP SCR BLK M5X20

203 000-P00420 M SCR PH M4X20

204 000-P00512-W M SCR PH W/FS M5X12

205 000-T00408-0C M SCR TH CRM M4X8

206 FAS-450005 SPR PIN BLK OZ 6X10

207 000-P00405 M SCR PH M4X5

208 FAS-000001 M SCR TH CRM M3X6

210 060-F00400 FLT WSHR M4

211 FAS-450025 SPR PIN BLK OZ 8X10

301 600-6840-01 WIRE HARN ACCEL&BRAKE YL

ASSY ACCEL&BRAKE (TFF-2200)

PARTS LIST

ITEM NO. PART NO. DESCRIPTION NOTE

1 TFF-1501 INPUT SW COVER

2 TFF-1502 INPUT SW RUBBER CONTACT

3 TFF-1503 INPUT SW BASE

4 TFF-1504 STICKER INPUT SW COVER

101 280-5277 CORD CLAMP 18

102 838-14707 RUBBER SW BD TFF

201 FAS-000097 M SCR PH W/SMALL FS M4×8

301 TFF-60039 WH INPUT SW

ASSY INPUT SW RUBBER (TFF-1500)

PARTS LIST

ITEM NO. PART NO. DESCRIPTION NOTE

1 TFF-2501 MECHA BASE

2 TOF-2502 MECHA BASE LID

3 TFF-2502 HANDLE SHAFT

4 TFF-2503 SPACER COLLAR A

5 TFF-2504 STOPPER BLOCK A

6 TFF-2505 STOPPER BLOCK B

7 TFF-2506 SPACER COLLAR B

8 TFF-2507 STOPPER BOLT S

9 TFF-2508-01 STOPPER RUBBER S

10 TFF-2509 STOPPER BLOCK SHAFT

11 SPG-2505 PULLEY 60 S5M

12 DYN-1270 STOPPER KEY

13 TFF-2511 STOPPER HOLDER

14 TFF-2512 STOPPER RUBBER

15 TFF-2513 STOPPER BOLT

16 TFF-2514 VR BRKT

17 TOF-2515 GEAR HOLDER

18 601-6172 GEAR 48

19 SPG-2504 PULLEY 20 S5M

20 ORA-2503 MOTOR BRKT

21 SPG-2453 KEY 4×4×40

22 ORA-2507 MOTOR SHAFT COLLAR

23 253-5592 MOTOR INSULATOR A

24 253-5593 MOTOR INSULATOR B

25 TFF-2515 SPACER COLLAR C

101 350-5805-01 SERVO MOTOR Y21C-5010S

102 220-5484 VOL CONT B-5K OHM

102 220-5753 VOL CONT B-5K OHM (TOCOS)

103 310-5029-F20 SUMITUBE F F 20MM

104 601-11089 TIMING BELT (150 S5M 520)

105 100-5168 BEARING 20 (NSK 6904ZZ)

106 100-5285 BEARING 20(6804ZZ)

107 280-5275-SR10 CORD CLAMP SR10

201 028-A00408-P SET SCR HEX SKT CUP P M4×8

202 030-000820-S HEX BLT W/S M8×20

203 065-S012S0-Z STP RING BLK OZ S12

204 000-P00410-W M SCR PH W/FS M4×10

205 030-000612-S HEX BLT W/S M6×12

206 060-F00600 FLT WSHR M6

207 030-000840-S HEX BLT W/S M8×40

208 068-852216 FLT WSHR 8.5-22×1.6

209 050-U00800 U NUT M8

210 060-F00800 FLT WSHR M8

211 012-P00412 TAP SCR #2 PH 4×12

212 050-U00400 U NUT M4

213 020-000612-0Z HEX SKT H CAP SCR BLK 0Z M6×12

214 060-S00600 SPR WSHR M6

215 FAS-650021 WAVE WSHR WW-20

301 600-6866-01 WIRE HARN ASSY HANDLE MECHA VR

ASSY HANDLE MECHA (TFF-2500-01)

PARTS LIST

ASSY UP/DOWN SHIFTER (TFF-2400)

ITEM NO. PART NO. DESCRIPTION NOTE

1 TFF-2401 SHIFTER BASE R

2 TFF-2402 SHIFTER BASE L

3 TFF-2403 BOSS

4 TFF-2404 SHIFT LEVER

5 TFF-2405 LEVER SHAFT

6 TFF-2406 STOPPER RUBBER

7 TFF-2407 MAGNET HOLDER

8 TFF-2408 MAGNET

9 TFF-2409 KNOCK SHAFT

10 TFF-2410 CENTERING SPRING

11 TFF-2411 KNOCK BASE

12 TFF-2412 STOPPER SHAFT

13 TFF-2413 DESIGN PLT SHIFT UP

14 TFF-2414 DESIGN PLT SHIFT DOWN

15 TFF-2415 SPACER

101 370-5297 PHOTO INTERRUPTER GP1A75EJ000F

102 100-5301 BEARING 6 (626ZZ)

201 FAS-000142 M SCR PH W/SMALL FS M3×6

202 000-P00420-W M SCR PH W/FS M4×20

203 050-H00400 HEX NUT M4

204 060-S00400 SPR WSHR M4

205 065-E00150 E RING 1.5MM

206 FAS-120037 TAP SCR P-TITE BI H 3×10

207 FAS-650020 WAVE WSHR BWW-626

208 FAS-680030 FLT WSHR 6-13×1

WIRE COLOR CODE TABLE

The DC power wire color for this product is different from previous SEGA titles.

Working from the previous wire colors will create a high risk of ﬁ re.

Note 1: If the right-hand side numeral is not 0, that particular wire has a spiral color code. The left-hand side

character shows the base color and the right-hand side one, the spiral color.

<Example> 51………WHITE/RED

Note 2: The character following the wire color code indicates the size of the wire.

U: AWG16

K: AWG18

L: AWG20

None: AWG22

The color codes for the wires used in the diagrams in the following chapter are as follows.

A PINK

B SKY BLUE

C BROWN

D PURPLE

E LIGHT GREEN

Wires other than those of any of the above 5 single colors will be displayed by 2 alphanumeric characters.

1 RED

2 BLUE

3 YELLOW

4 GREEN

5 WHITE

7 ORANGE

8 BLACK

9 GRAY

If the right-hand side numeral of the code is 0, then the wire will be of a single color shown by the left-hand side

numeral (see the above).

RED WHITE

1 0

1 1

1 2

1 8

1 7

1 6

1 5

1 4

1 3

1 9

2 0

2 1

2 2

2 3

2 4

BROWN ( UL1 00 7 AWG1 6 )

6 0 0 - 7 3 6 0 - 0 6 0 0

+3 . 3V

+5SB

PWR _ OK

+3 . 3V

PS _ON#

+3 . 3V

+1 2V

+3 . 3V

-1 2V

+1 2V

P I NK ( UL1 0 07 AWG1 8 )

RED ( UL1 0 0 7 AWG1 6 )

BLACK ( UL1 00 7 AWG1 6 )

BROWN ( UL1 00 7 AWG1 6 )

GND

BLACK ( UL1 00 7 AWG1 6 )

GND

+5V

GND RED ( UL1 0 07 AWG1 6 )

+5V

YELLOW( UL 10 0 7 AWG1 6 )

BLACK ( UL1 00 7 AWG1 6 )

GND

BLUE (UL1 007 AWG18 )

BLACK ( UL1 0 0 7 AWG1 6 )

BROWN ( UL 10 0 7 AWG1 6 )

YELLOW( UL 10 0 7 AWG1 6 )

GND

+5V

GND

WH I TE

MOLEX

1 0

1 1

1 2

1 8

1 7

1 6

1 5

1 4

1 3

YELLOW( UL 10 0 7 AWG1 6 )

BLACK ( UL1 0 0 7 AWG1 6 )

RED ( UL1 00 7 AWG1 6 )

6 0 0 - 7 3 6 1 - 0 6 0 0

+3 . 3VRS

+1 2V

BLACK ( UL1 0 0 7 AWG1 6 )

YELLOW( UL 10 0 7 AWG1 6 )

RED ( UL1 00 7 AWG1 6 )

YELLOW( UL 10 0 7 AWG1 6 )

RED ( UL1 00 7 AWG1 6 )

YELLOW( UL 10 0 7 AWG1 6 )

GND

RED ( UL1 00 7 AWG1 6 )

+5V

ORANGE ( UL 1 00 7 AWG1 6 )

BLACK ( UL1 0 0 7 AWG1 6 )

WH I TE

MOLEX

GND

1 0

1 1

1 2

1 8

1 7

1 6

1 5

1 4

1 3

1 9

2 0

2 1

2 2

2 3

2 4

WH I TE

+3 . 3V

GND

+5V

GND

PWR _ OK

GND

+5SB

+3 . 3V

GND

-1 2V

+3 . 3V

PS _ON#

GND

+1 2V

GND

+5V

MOLEX

GND

+5V

+1 2V

1 0

1 1

1 2

1 8

1 7

1 6

1 5

1 4

1 3

MODULAR

JACK 8P

+1 2V

+3 . 3VRS

+5V

+5SB

+1 2V

+5V

+1 2V

WH I TE

MOLEX

GND

2 4

2 3

2 2

2 1

1 0

1 1

1 2

1 3

1 4

1 5

1 6

1 7

1 8

1 9

2 0

2 6

2 5

CN2

NH5P

CN6

RA2 6P

WH ( YL )

GND

AVCC

+1 2V

+EXV

+5V

+EXV

+5V

GND

+5V

AVCC

STEER I NG

AGND

A/D 5CH

AVCC

GAS

AVCC

A/D 6CH

AGND

AVCC

BRAKE

AVCC

A/D 7CH

AGND

( NOT USED )

A/D 4CH

AVCC

A/D 8CH

AGND

STRAT

SH I FT3

LEFT

SH I FT2

SH I FT0 ( UP )

ROGHT

GND

CO I N 1

SH I FT 1 ( DOWN )

DOWN

V I EW 0 ( CHANGE )

V I EW 2

V I EW 1

V I EW 3

1P SERV I CE

TEST SW

METER 2

OUT 4

OUT 5

OUT 3

OUT 6

CO I N 2

OUT 1

METER 1

OUT 2

1 2

1 1 8 0

1 0

1 3

2 2

1 5

1 7

1 9

1 4

2 0

2 1

2 3

1 6

2 4

4 1

4 5

4 3

2 6

2 9

2 5

3 1

3 3

2 7

5 1

5 6

5 3

5 0

4 9

5 5

4 6

5 2

5 4

+1 2V

RA60P

CN3

5 7

4 3K

INITIAL D4, 32"LCD STD (1/2)

SEGA AMUSEMENTS U.S.A.,INC.

AWG18 UL1015

AWG16 UL1015

AWG22 UL1007

YELLOW

BLUE

RED

BLACK

ORANGE

GREEN

GRAY

PINK AWG20 UL1007

EARTH WIRE

SKY BLUE

PURPLE

BROWN

LIGHT GREEN

WHITE

80K

50K

MAIN EARTH

LAN CABLE CONNECTOR

(LINK 2 CABINETS)

> CONNECT TO THE

OTHER MAIN PCB.

MAIN POWER

SWITCH

FUSE

10A

(Fast-blow)

AC120V

600-7269-0300

NETWORK (LAN) CABLE (10F)

TRANSFORMER

120VAC IN

100VAC OUT

8AMP

NOISE

FILTER

120VAC

100VAC

FUSE

5 AMP

(Fast-blow)

99-00-017

UNIVERSAL

POWER CORD

8FT

AC 120V IN

AC120V

F.L.ASSY, MARQUEE

(30W, 18”)

+5V

+1 2V

GND

1P SERV I CE

SH I FT0 ( UP )

SH I FT1 ( DOWN )

METER 1

CO I N 1

TEST SW

AC120V

GND

24VDC

80L

VH6P

VH5P

400-5421-07524

SW REGU LCA75S-24

2/2 A2/2 C

99-60-688

VGA MALE TO VGA MALE CABLE 15'

32"LCD

MODEL: ST-HB 32A2X

PART#: 99-60-712

EARTH

120VAC IN

SPEAKER L +

SPEAKER L -

SPEAKER R +

SPEAKER R -

CONNECT TO

SOUND AMP BD

TXD

RXD

RTS

CTS

GND

CONNECT TO

IC CARD RW

UNIT W/LEUCO

2/3

2/2

FOR IC CARD

RW UNIT

FOR SOUND AMP BD

FAN

99-60-900

EARTH

EARTH 99-60-215

998-0247

12V POWER SUPPLY

JVS CABLE 515-60-682

RCA 515-60-680

844-0001D-92-11

ASSY CASE LBG 1GB 7800 USA

WHITE

RED

BLACK

WHITE

BLACK

RED

YELLOW

BLACK

RED

BLACK

BLUE

BLACK

GREEN

BLACK

WHITE

YELLOW

BLACK

RED

BLACK

BLUE

BLACK

GREEN

BLACK

WHITE

E NCOD E R

INITIAL D4, 32"LCD STD (2/2)

SEGA AMUSEMENTS U.S.A.,INC.

AWG18 UL1015

AWG16 UL1015

AWG22 UL1007

YELLOW

BLUE

RED

BLACK

ORANGE

GREEN

GRAY

PINK AWG20 UL1007

EARTH WIRE

SKY BLUE

PURPLE

BROWN

LIGHT GREEN

WHITE

TFF-2500-01

ASSY HANDLE MECH. W/EARTH

1/2

8 3 8 - 1 4 5 1 5 -A0 1 9 1

SOUND AMP ANALOG I N

1/2

WH (YL)

1/2

TFF-0650

ASSY SPKR L

TFF-0660

ASSY SPKR R

1/2

GO TO

MAIN

EARTH

WH(YL)

(OPTION)

MARS DBA

AE2451 U3E (99-70-178)

or AE2451 U5E (99-70-167)

EARTH

80K

50K

120VAC IN

WH(VL)

WH(SM)

WH(SM) WH(YL)

WH(YL) WH(YL)

350-5805

SERVO

MOTOR

Y21C-5010S

100VAC

5K POT. (Steering Wheel)

EARTH

5K POT. (ACCEL)

5K POT. (BRAKE)

610-0791-01

YELLOW

BLACK

RED

BLACK

BLUE

BLACK

GREEN

BLACK

WHITE

YELLOW

BLACK

RED

BLACK

BLUE

BLACK

GREEN

BLACK

WHITE

BLACK

RED

WHITE

BLACK

RED

GO TO

MAIN

EARTH

PART#: 539-30-300

1st PRINTING, SEPTEMBER 2007

SEGA AMUSEMENTS U.S.A., INC.

800 ARTHUR AVENUE

ELK GROVE VILLAGE, IL 60007-5215

PHONE: 888-877-2669

FAX: 847-427-1065

WEB: WWW.SAU.SEGA.COM

Arcade Initial D 4 Manual ID4 Manua USA Front User
