1
3
TABLE OF CONTENTS
Safety and Warnings 3
Setup
Game Play 4
Feature
Meters 5
Programming 5 & 6
Errors 6
Playfield 7
Trouble Shooting
Security Slam Switches 8
Power supply 9
Assembly Diagrams
Cabinet PE1000X 10 - 11
Big Bonus Wheel PE3110X 12 - 14
Skill Coin Chute PE1006X 15 - 16
Ticket Drawer PE3011X 17 - 18
Programming Console PE3011X 19
Coin Drawer PE1009X 20
Playfield Deck PE3130 21-23
Deck PE3076 24 - 25
Cabinet Layout PE1100X 26
Marquee PE3127X 27
Spares 28

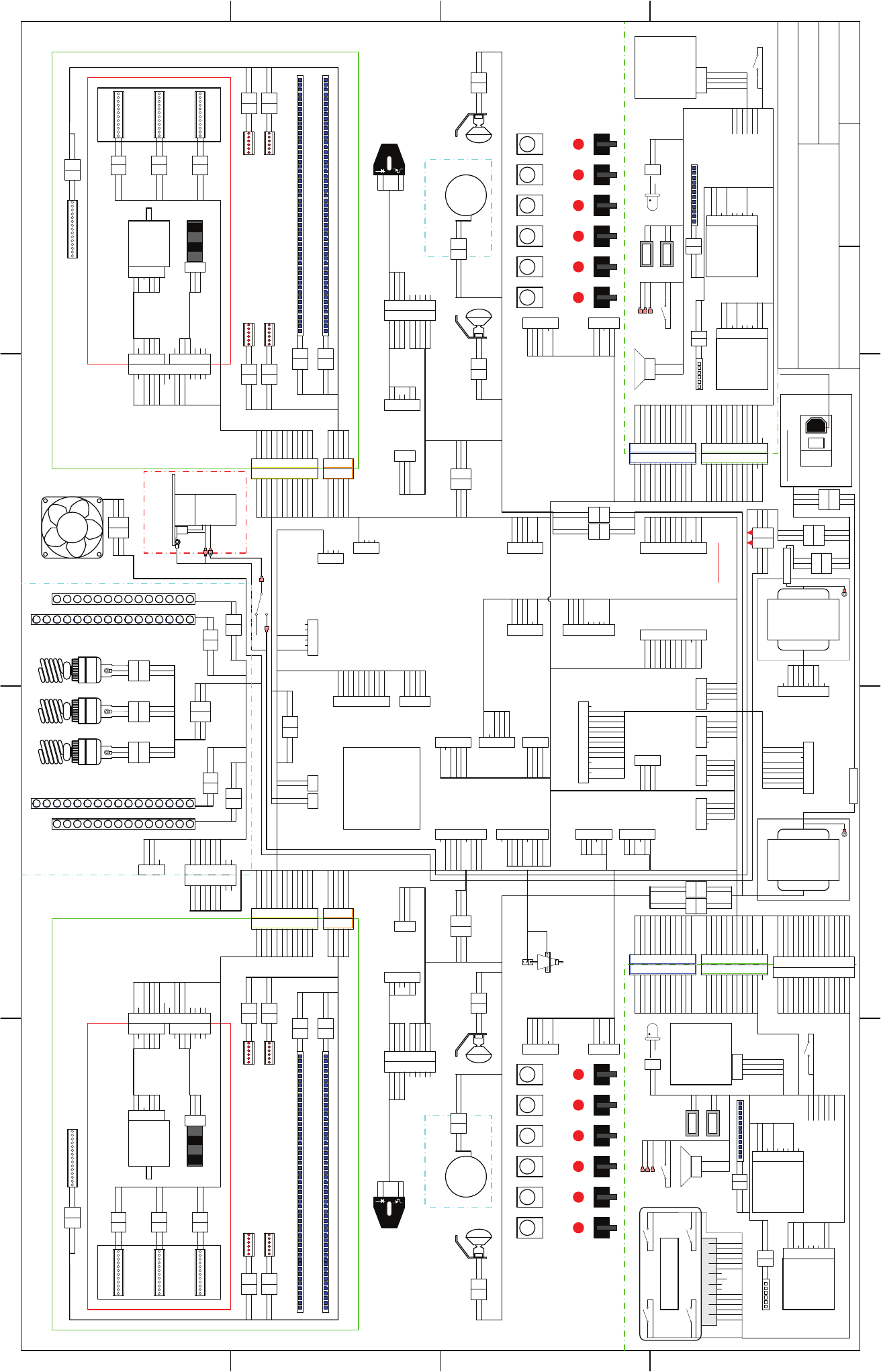

Wiring Diagrams See Insert

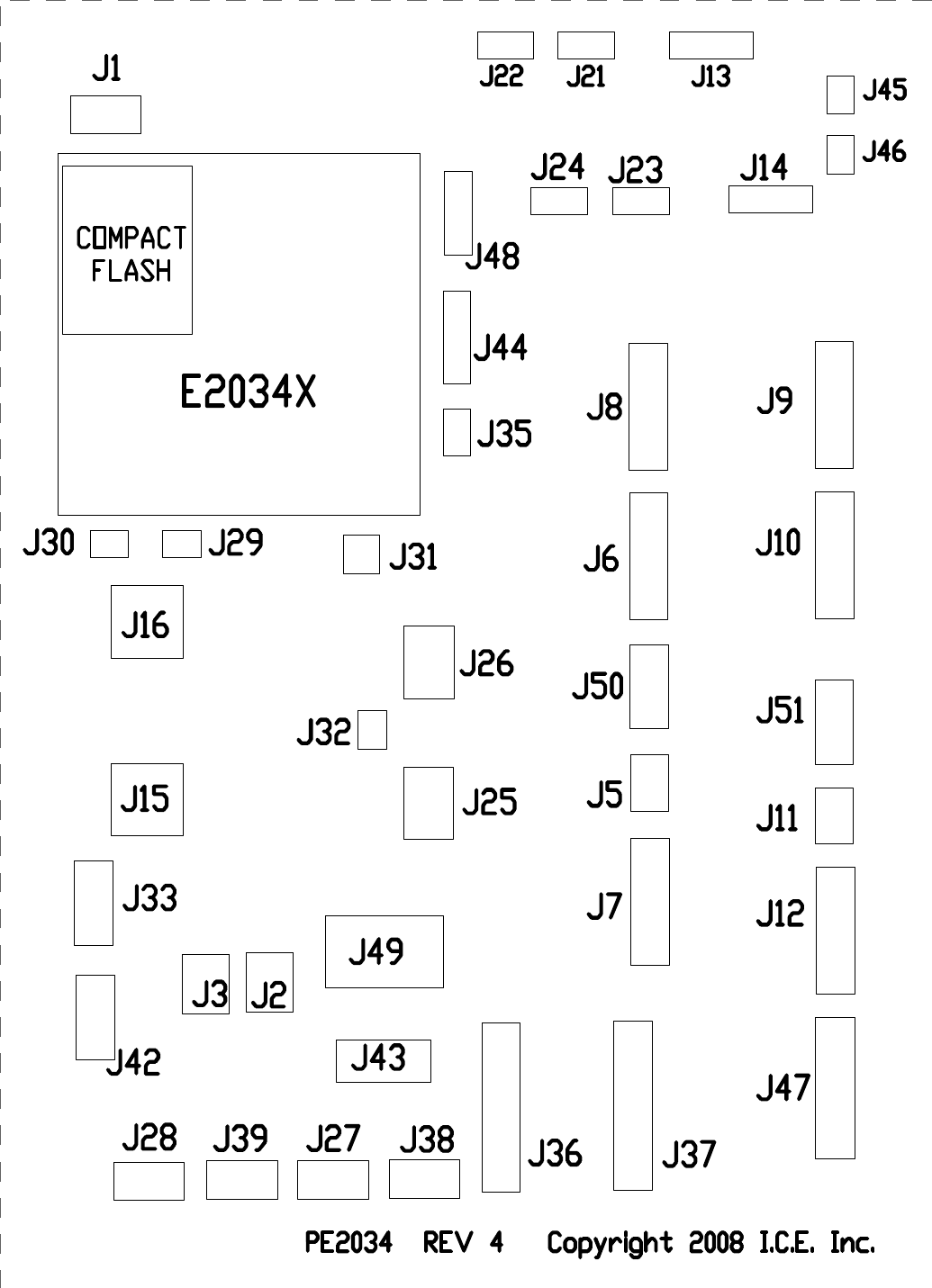

Main Logic Board Connector Layout 50
REVISION F : PLINKO - ICE 12-22-08
4
BEFORE YOU BEGIN
WARNING: WHEN INSTALLING THIS GAME, A GROUNDED A.C. RECEPTACLE MUST BE USED. FAILURE
TO DO SO COULD RESULT IN INJURY TO YOURSELF OR OTHERS. FAILURE TO USE A GROUNDED RE-
CEPTACLE COULD ALSO CAUSE IMPROPER GAME OPERATION, OR DAMAGE TO THE ELECTRONICS.
DO NOT DEFEAT OR REMOVE THE GROUNDING PRONG ON THE POWER CORD FOR THE SAME REA-
SON AS GIVEN ABOVE. USING AN IMPROPERLY GROUNDED GAME COULD VOID YOUR WARRANTY.
HAVE A QUALIFIED ELECTRICIAN CHECK YOUR A.C. RECEPTACLE TO BE SURE THE GROUND IS FUNC-
TIONING PROPERLY. DO NOT WASH YOUR GAME WITH A PRESSURE WASHER.
AVERTISSEMENT: lors de l'installation de ce jeu, la terre AC récipient doit être utilisé. Ne pas le faire pourrait en-
traîner un préjudice à vous ou à d'autres. Le non-recours à la terre récipient pourrait également causer une mau-
vaise opération de jeu, ou les dommages causés à l'électronique. NE PAS détériorer ou de retirer la broche de
terre sur le cordon d'alimentation pour la même raison, comme indiqué ci-dessus. Indûment l'aide d'un jeu de la
terre pourrait annuler votre garantie. Ont un électricien qualifié de vérifier votre récipient AC pour s'assurer que le
sol fonctionne correctement. Ne lavez pas votre jeu avec une laveuse à pression.
INSTALLATION
The game comes ready to play with just a few simple things to keep in mind.
1. Plug the game into the A.C. outlet and turn on power to the game. The switch for the game is located on a
power module on the outside rear of the game.
THIS GAME IS DESIGNED TO DISSIPATE STATIC ELECTRICITY THROUGH THE GROUNDING PLANE OF THE
GAME. IF THE A.C. GROUND DOES NOT WORK, THE GAME COULD DISCHARGE STATIC ELECTRICITY
THROUGH THE GAME CIRCUITRY, WHICH COULD CAUSE DAMAGE.
2. Make sure the game is level after installation. It is necessary to make sure the game is level for safety
concerns.
3. Check that the A.C. voltage rating on the back of the game matches the A.C. voltage of your location.
THE POWER SUPPLY IS NOT VOLTAGE ADJUSTABLE. TO OPERATE THE GAME AT VOLTAGES OTHER THAN
THOSE IT WAS DESIGNED FOR. PLEASE CONTACT OUR SERVICE DEPARTMENT FOR VOLTAGE CONVERSION
INFORMATION.
WARNING
DO NOT remove any of the components on the main board (e.g. compact flash and eproms) while
the game is powered on. This may cause permanent damage to the parts and the main board. Re-
moving any main board component part while powered on will void the warranty.
Ne retirez pas l'un des composants sur la carte principale (par exemple Compact Flash et
EPROMs), tandis que le jeu est sous tension. Cette mai causer des dommages permanents aux
parties et la carte principale. Suppression de tout bord principal élément sous tension alors que an-
nulera la garantie.
NOTE: THIS GAME IS INTENDED FOR INDOOR USE ONLY.
ON THE BACK PANEL OF THE GAME: WARNING: SHOCK HAZARD - DO NOT OPEN. REFER
SERVICING TO SERVICE PERSONNEL.
REMARQUE: CE JEU EST DESTINÉ POUR USAGE À L'INTÉRIEUR SEULEMENT.
SUR LE PANNEAU ARRIÈRE DU JEU: AVERTISSEMENT: RISQUE DE CHOC - NE PAS OU-
VRIR. RÉPARATION À UN PERSONNEL DE SERVICE.
SAFETY AND WARNINGS
5
SETUP - INTRODUCTION
Game play:
The player starts the game by moving the coin chute to skillfully drop their coin to light up the word
“PLINKO”. As the coin falls it is deflected off the pegs just like on the TV show. If the player is able
to light the word “PLINKO”, they are able to spin the big bonus wheel! Players receive tickets for
coins that fall over the edge and in some cases, just for playing!
• Bonus wheel emulates “The Price is Right Big Wheel Spin”.
• Playfield replicates the real “PLINKO!” board as seen on TV.
• Spell PLINKO! by lighting each letter for a chance to win the Big Bonus.
• Move coin chute back and fourth for skillful aiming.
• Win tickets for coins over the edge.
• Win tickets just for playing (Operator configurable).
Features:
• Ability to set pre-lit letters.
• Ability to turn on chasing lights.
• Ability to set mercy tickets and coin over edge.
• Adjustable bonus feature (how much to apply toward the bonus).
• Easy slide pull out ticket door to access.
• Ticket dispensers.
• Coin and ticket meters.
• Operator adjustments.
• Error codes.
• High reliable playfield motor with 1 year warranty.
• Easy to program.
• Self error/fault checking.
• Slam security switch on each station.
• Tilt protection.
• Made in the USA.
.
6
SETUP - ASSEMBLY
METERS AND TICKET DISPENSER LOCATION
The coin and ticket meters are located in lower cabinet drawer of each station. Unlock both locks on
each side and slide the drawers out. There you will find the ticket dispenser and meters.

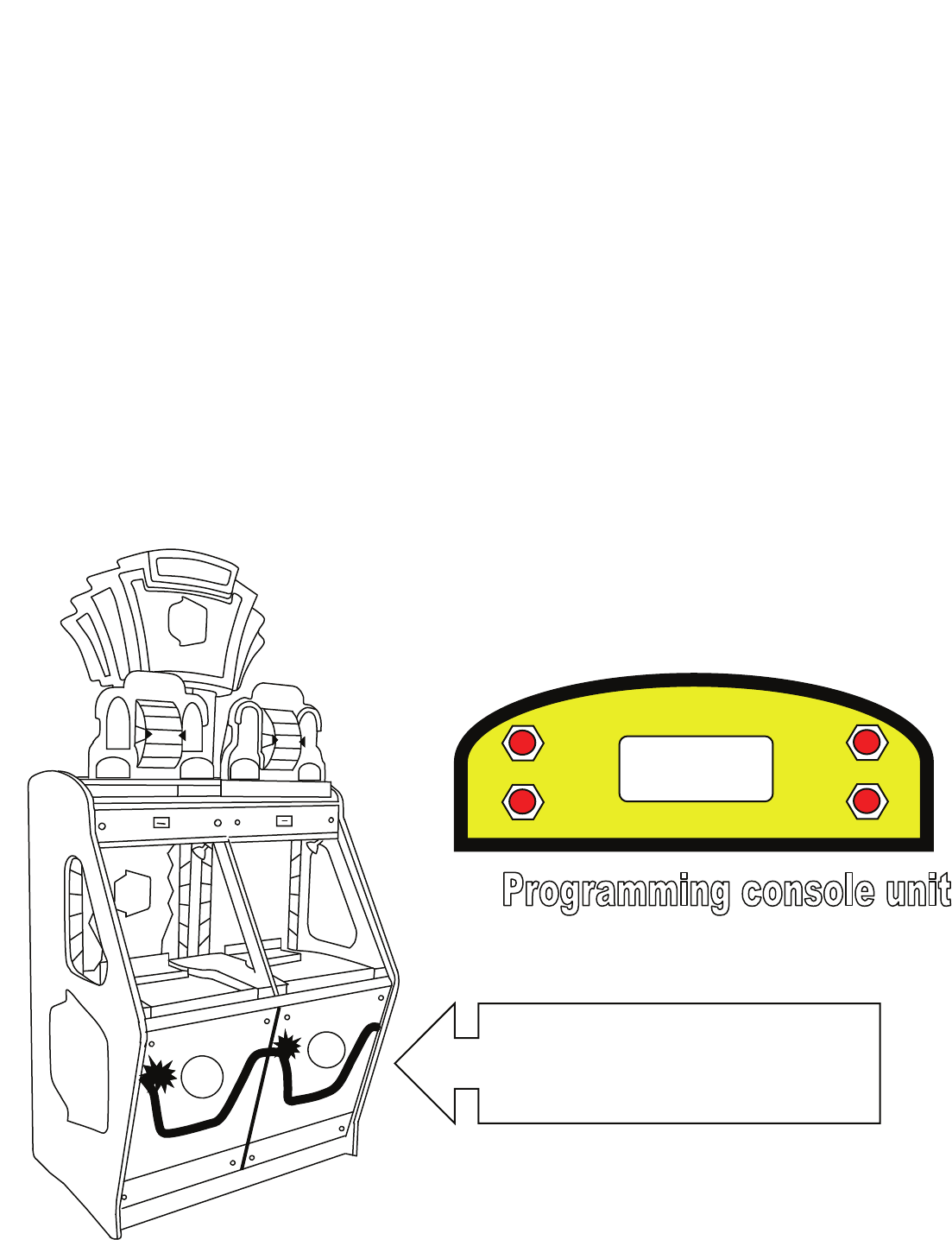

ACCESSING PROGRAMMING CONSOLE
The programming console unit pictured below has four buttons and a digital display screen. This is
located in the left ticket and hopper drawer assembly. Unlock the two locks to slide the left drawer
open. The console is located on the right side of that drawer only. Refer to page 19 for location. If
any errors are encountered on either side they will be displayed on the screen. Refer to error codes
in programming to understand and correct the errors. If no errors have been detected, the current
software version will be displayed on the screen.
PROGRAMMING
Press the “PROGRAM” button to enter programming mode. Press “SELECT UP” and “SELECT
DOWN” to move the cursor to cycle through options. Press “ADVANCE” to change the settings the
cursor is currently on. Press the “PROGRAM” button to exit programming and re-start the game.
Plinko V1.00 1K
PROGRAM
ADVANCE
SELECT UP
SELECT
DOWN
Both cabinet drawers slide open to access the coin
hopper, ticket dispenser, coin and ticket meters but
only the left side has the programming console unit
which programs both stations.
7
PROGRAMMING YOUR PLINKO!
OPTION DESCRIPTION DEFAULT MIN MAX
Volume1 Game and attract Volumes 5 0 7
Volume2 Music Volume only 5 0 7
Cylon If set to 1 red LED must be lit to light letter 0 0 1
JFP (Mercy) Tickets given when coin goes in or just for playing 1 0 2
Over Edge How many Tickets over the Edge 5 0 18
Feature How many tickets to the wheel kitty 4 2 18
Power On Lights How many letters are lit when you turn power on 0 0 3
Attract Time When it will say come on down. 3 0 30
Coin Dispense How many coins to dispense per swipe 1
(This option only in the card swipe version)
Factory reset Reset factory settings 0 0 1
“Wheel kitty” refers to the bonus wheel’s two different bonuses. The mega bonus is the highest
amount of tickets on the wheel and the bonus is all the remaining numbers. This option is divided by
2, one goes to the mega bonus and the other to remaining numbers.
For Example: Assuming your tickets are valued at a cent, setting option “JFP” to 1 (or 1 cent), setting
option “Over Edge” to 5 (or 5 cents) and setting “feature” to 4 (or 4 cents) would equal total payout of
10 cents. Total 10 cents payout on 25 cent play would equal a 40 % payout.
Cylon option defined: The Cylon feature increases the difficulty to achieve the bonus
wheel spin by limiting when the letters can be lit. When the LED moves back and
fourth and a coin enters the chute for that letter, if the red LED is not correctly lit on
that letter, the letter will not light.
ERROR CODES
Error Description
6 L Ticket Err Ticket dispenser empty Fill with tickets
5 R Ticket Err Right ticket dispenser empty\ Fill with tickets
4 Compact Flash Err Cannot read compact flash Replace CF
3 L Wheel Err Cannot find home sensor Check sensor
2 R Wheel Err Cannot find home sensor Check sensor
1 L Switch Board Comm Err Cannot find cylon board Check connection
0 R Switch Board Comm Err Cannot find cylon board Check connection
Errors ...4…_
PROGRAM
ADVANCE
SELECT UP
SELECT
DOWN
Errors will be displayed whenever they are encountered. A dot is shown when no errors are detected. The dot is re-
placed by the error number encountered. Multiple errors can be shown at the same time on the display. A display
of ...45.. means that there is no response from the flash card and the right station is out of tickets.
8

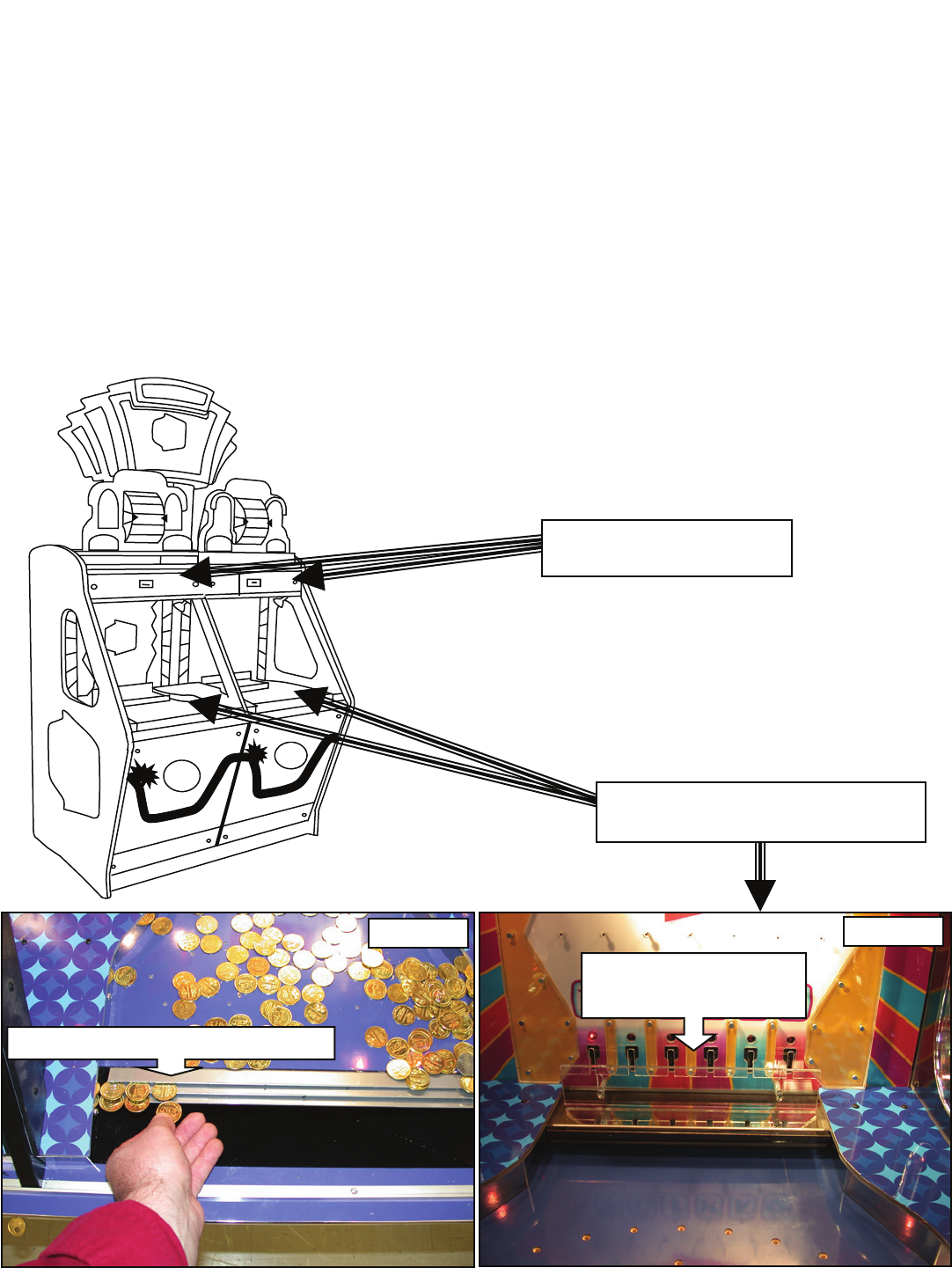

SETUP - PLAYFIELD
It is recommended that you load at least 500 tokens onto the playfield (without any
dropping into the hopper) in each station once you have located the final placement of
this game. Begin by unlocking both locks and removing the coin chute assembly, you
must unplug the coin sensor harness to completely remove the assembly, and put this
aside. Remove the front glass and place aside. Insert coins into the two rows of ris-
ers as shown in figure 1. Make sure the coins are tightly packed from end to end.
With the game powered on, drop handfuls of coins above the Plinko switches but be-
hind the plastic shield. See figure 2. This will allow the coins to naturally build up onto
the playfield simulating many plays by players in a very short amount of time.
Left and Right Coin
Drop hand full of coins here
behind plastic shield.
FIGURE 2
Insert coins as shown across entire game.
FIGURE 1
Remove glass to access playfield
9
TROUBLESHOOTING

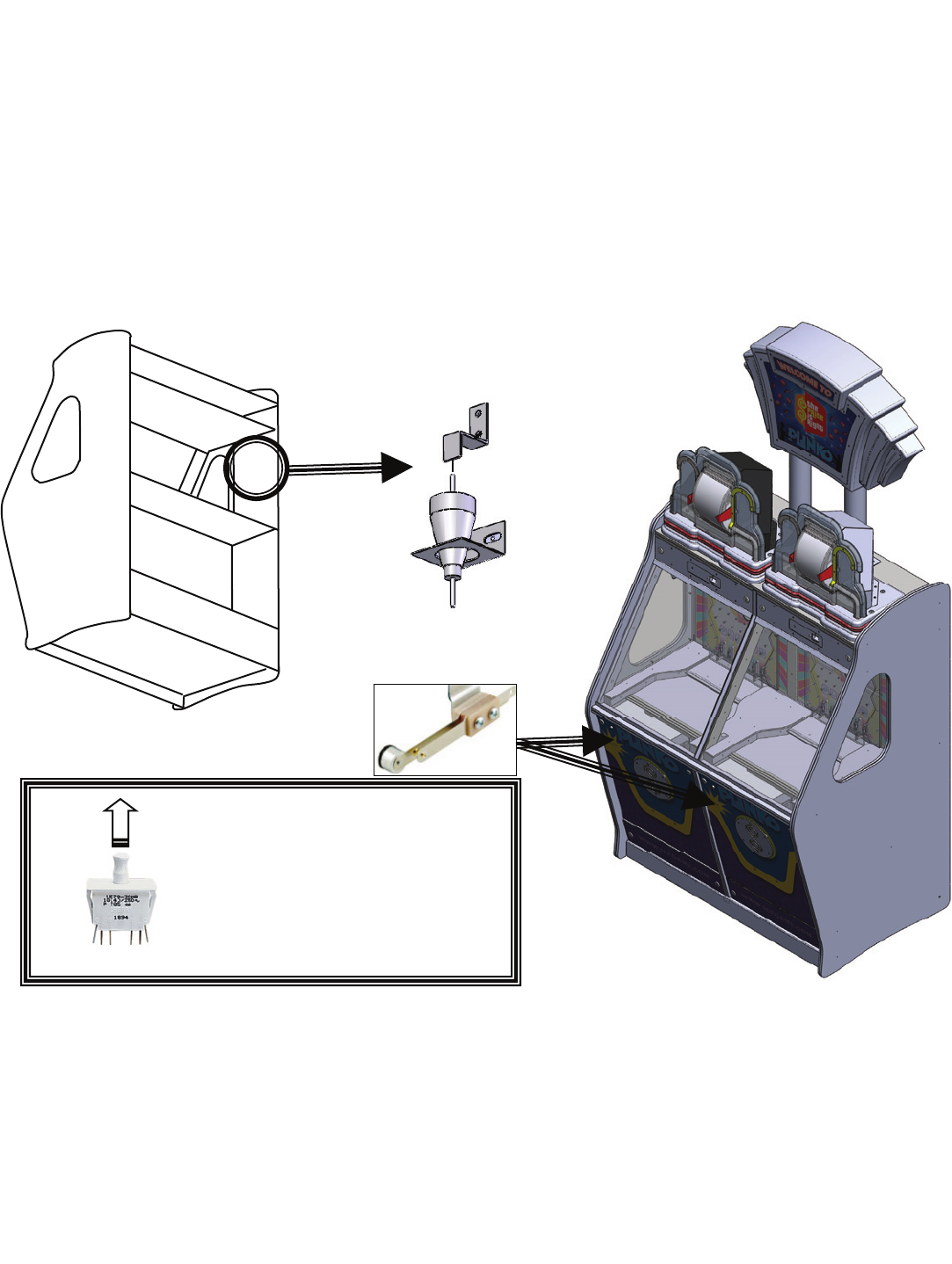

Security Tilt Bob & Slam Switches
This game employs two different security features to prevent players from collecting extra tickets. If
the player slams the ticket drawer in a attempt to force coins to fall of the edge, the game will sound
an alarm and end any current game in progress on that station. If the player rocks the entire cabinet
a tilt Bob will trigger and it will immediately void any game in progress on both stations. The alarm
will sound for a period of time in both occurrences.
The tilt Bob is accessed through the back of the game. The anti slam switches are located in the
ticket access drawers. See diagrams below.
AC Service switch
This game using a AC cutoff switch located in the back. When servicing the game if you remove the
back cabinet panels with the power on, the deck pusher will stop. This is normal. If service is re-
quired with AC applied, pull the AC switch out which will allow power to the deck pushers. There
one for each cabinet side.
*** WARNING *** This ac cut off switch is for your safety as serious injury could result if disabled.
*** ATTENTION *** Cette ac couper commutateur est pour votre sécurité aussi grave peut en
résulter des blessures si handicapés.
Disable safety switch by
pulling out switch.
10
TROUBLESHOOTING
Troubleshooting
CAUTION
This game uses complex electronic components that are very sensitive to static electricity. Observe precau-
tions below before handling these electronics. Failure to do so may void the warranty and damage electronic
assemblies.
Before servicing electronics, turn off AC power to the game. Wait for capacitors to discharge.
DO NOT remove any of the components on the main board (e.g. compact flash and eproms) while the game is
powered on. This may cause permanent damage to the parts and the main board.
Before touching or handling electronic assemblies, discharge static electricity on your body. To discharge this
static, begin by connecting the line cord to a grounded outlet. Don’t turn on the game. Next, touch the safety
ground stud of the power supply chassis.
Store electronic assemblies in an anti-static area. Use anti-static bags to store or transport the game circuit boards.
Don’t remove or connect electronic assemblies when cabinet power is on. Otherwise, you’ll damage electronic as-
semblies and void the game’s warranty.
After you complete maintenance or service, replace ground wires, shields, safety covers and install and tighten
ground and mounting screw.

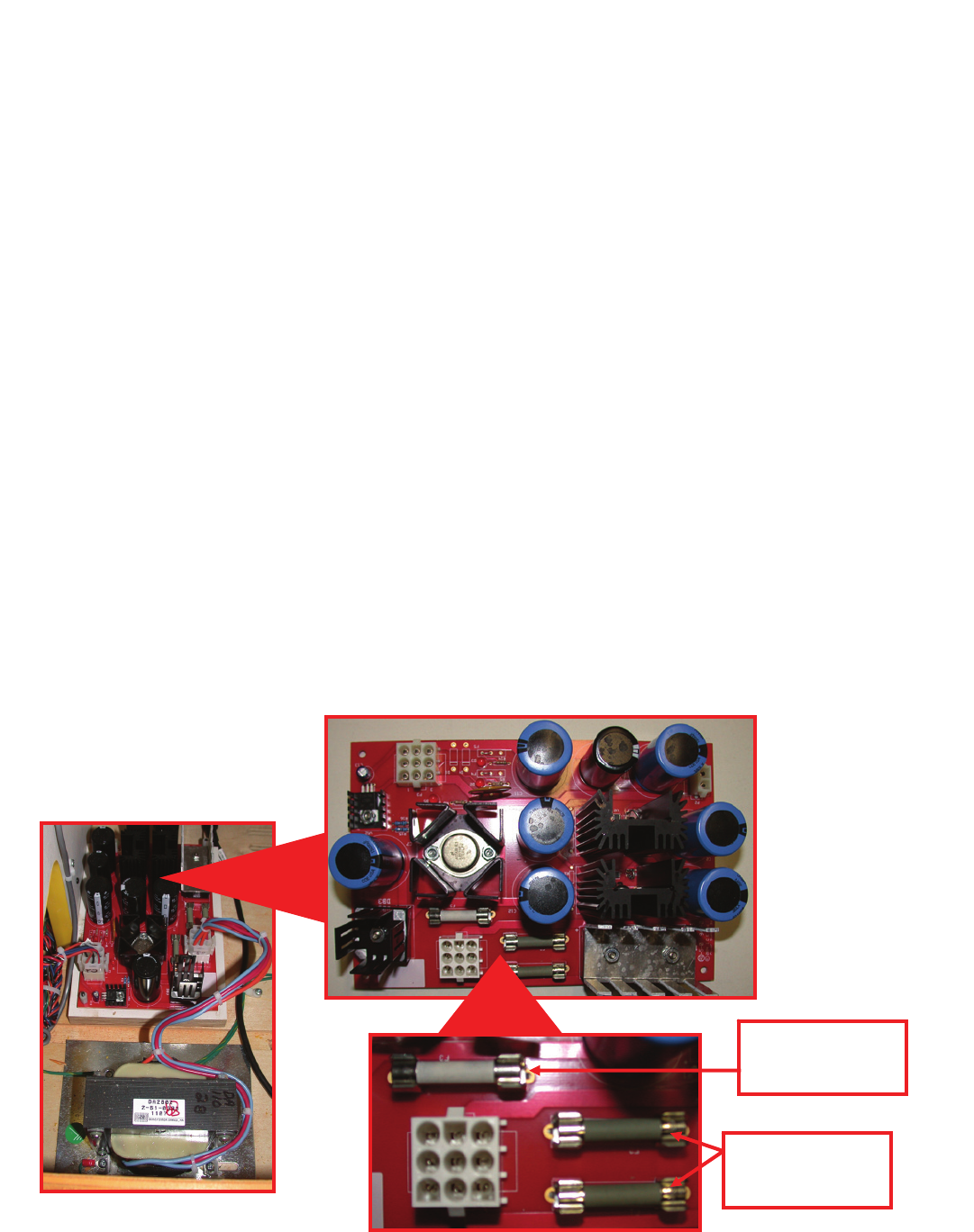

Fuses - Main Power Supply
4 Amp/250V
F3
8 Amp/250V
F1&F2
11

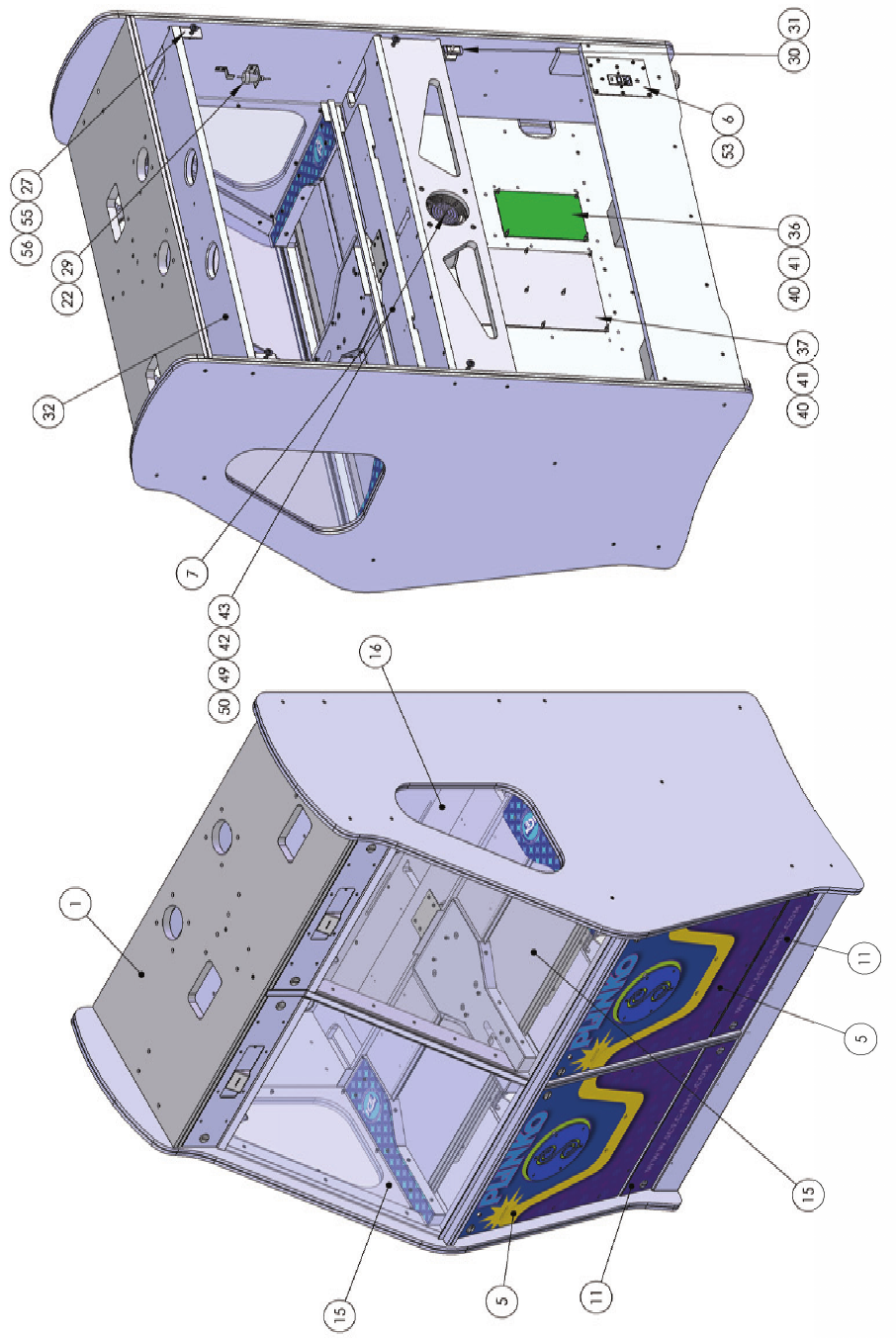

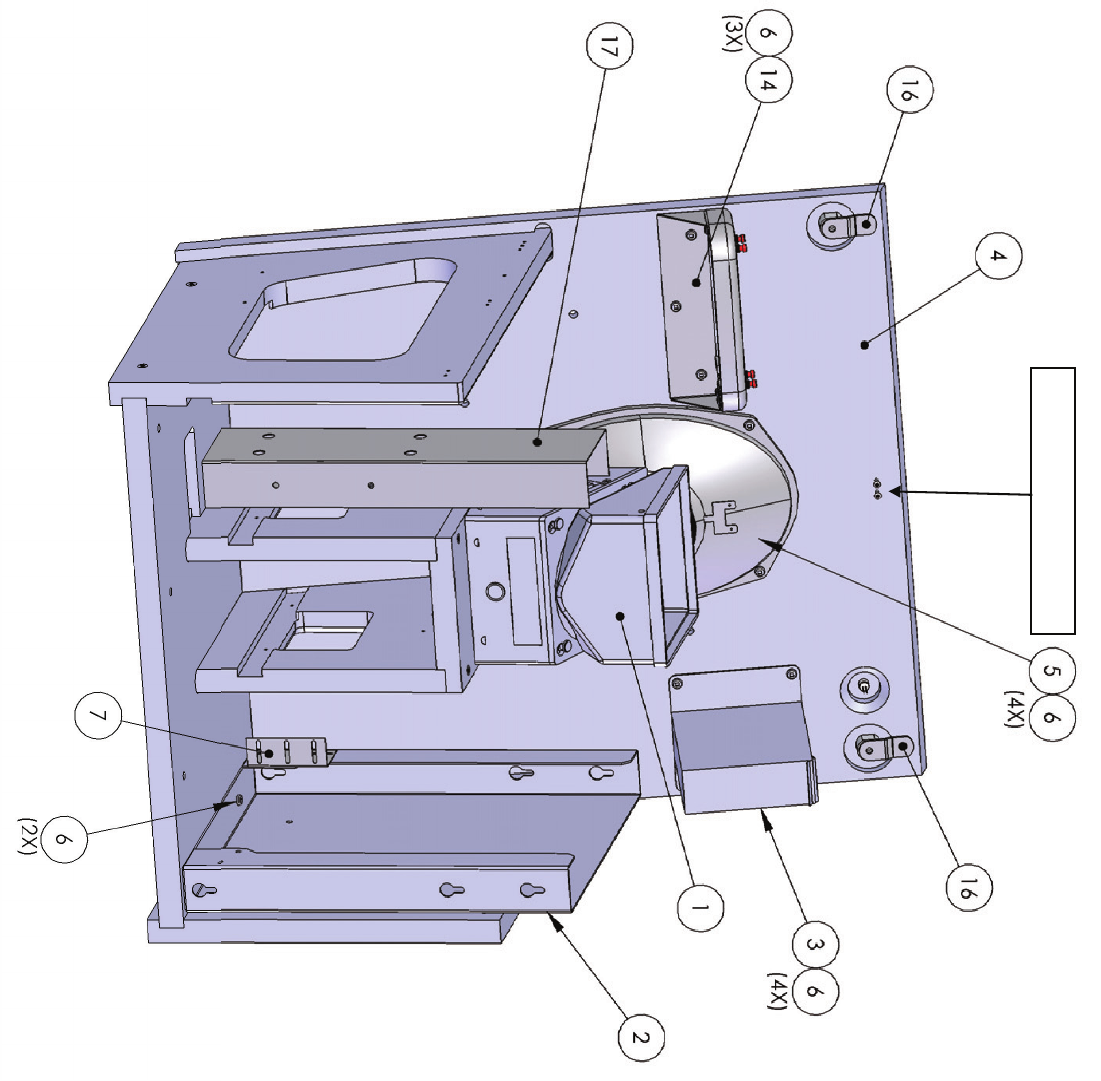

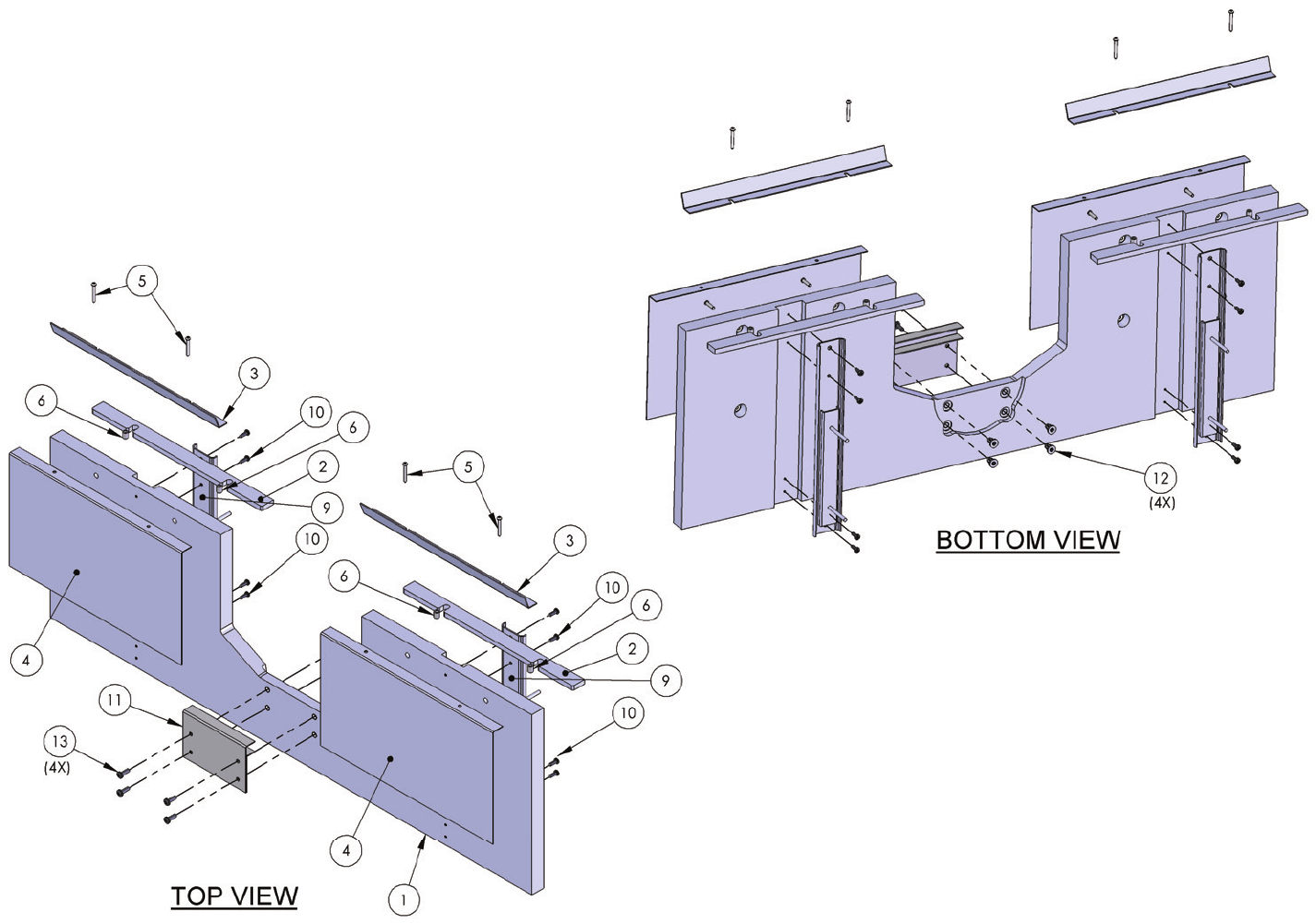

ASSEMBLIES AND DIAGRAMS - PE1000X
12
ASSEMBLIES AND DIAGRAMS
13

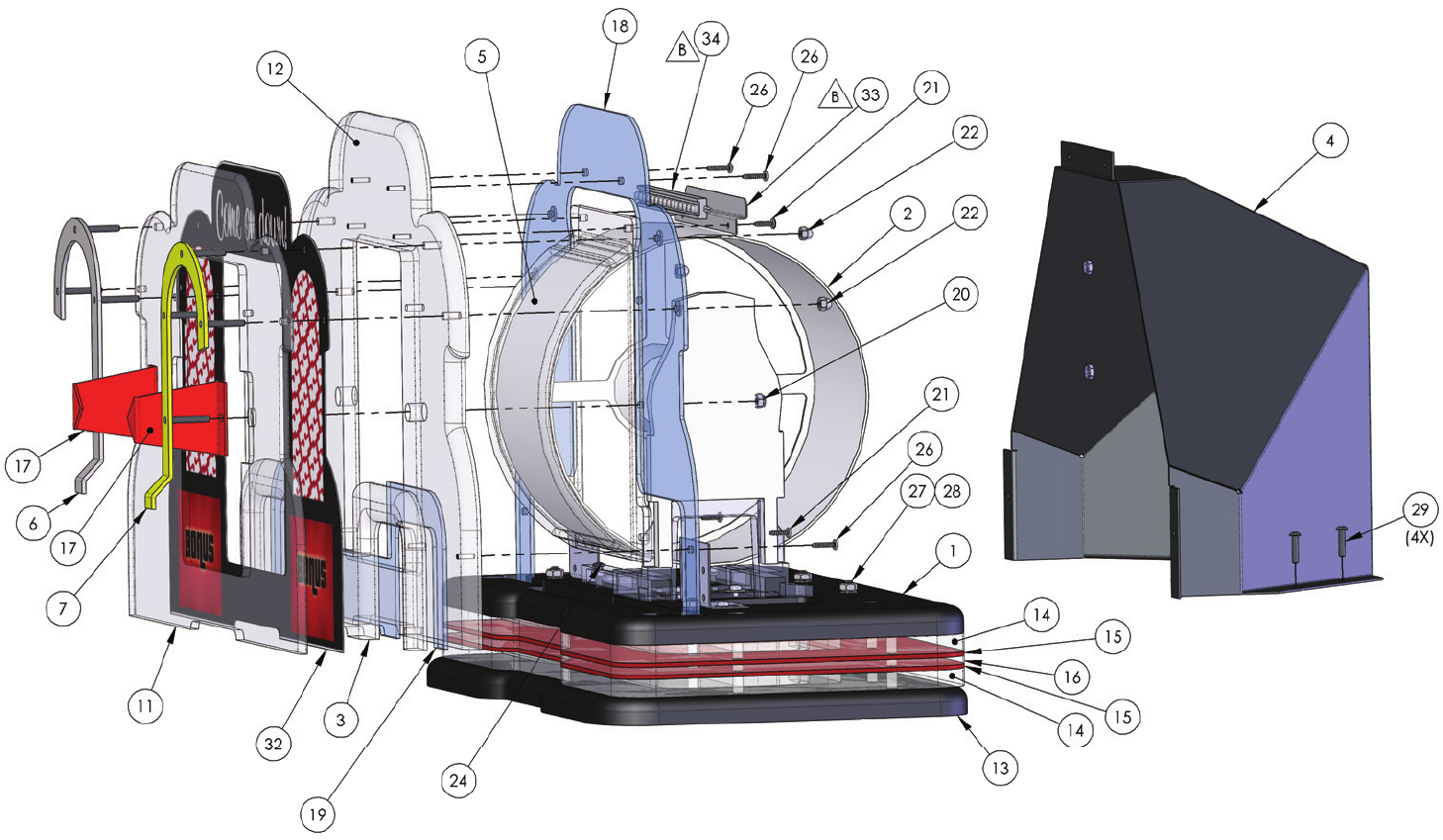

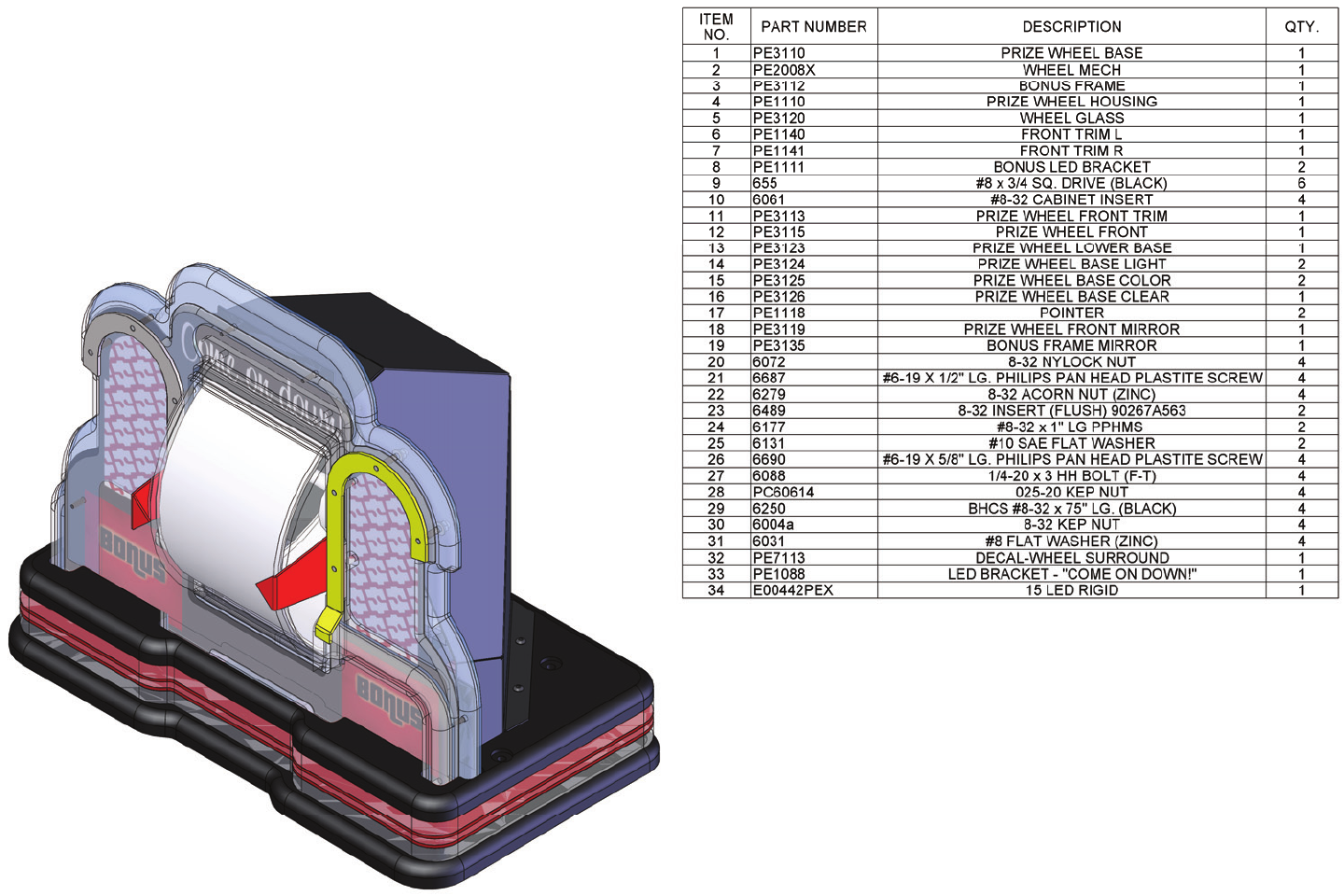

ASSEMBLIES AND DIAGRAMS - PE3110X
14
ASSEMBLIES AND DIAGRAMS - PE3110X

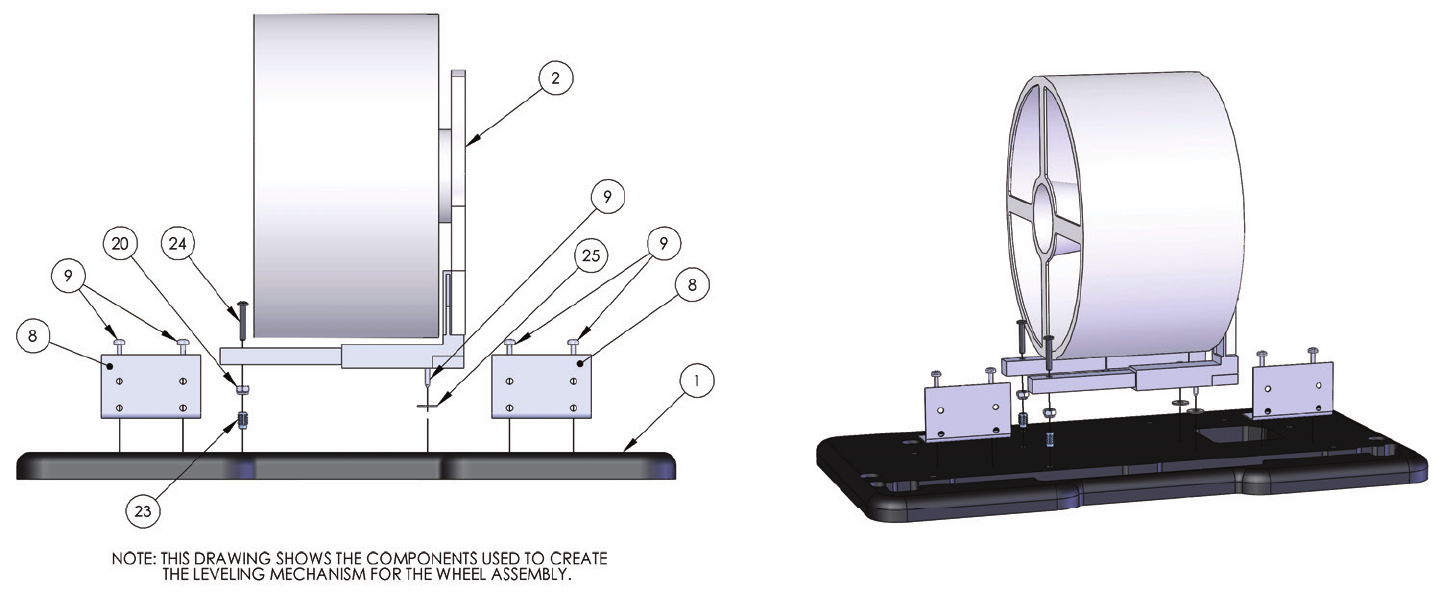

NOTE: Adjust screw 24 to level wheel mech.
15
ASSEMBLIES AND DIAGRAMS - PE3110X
16

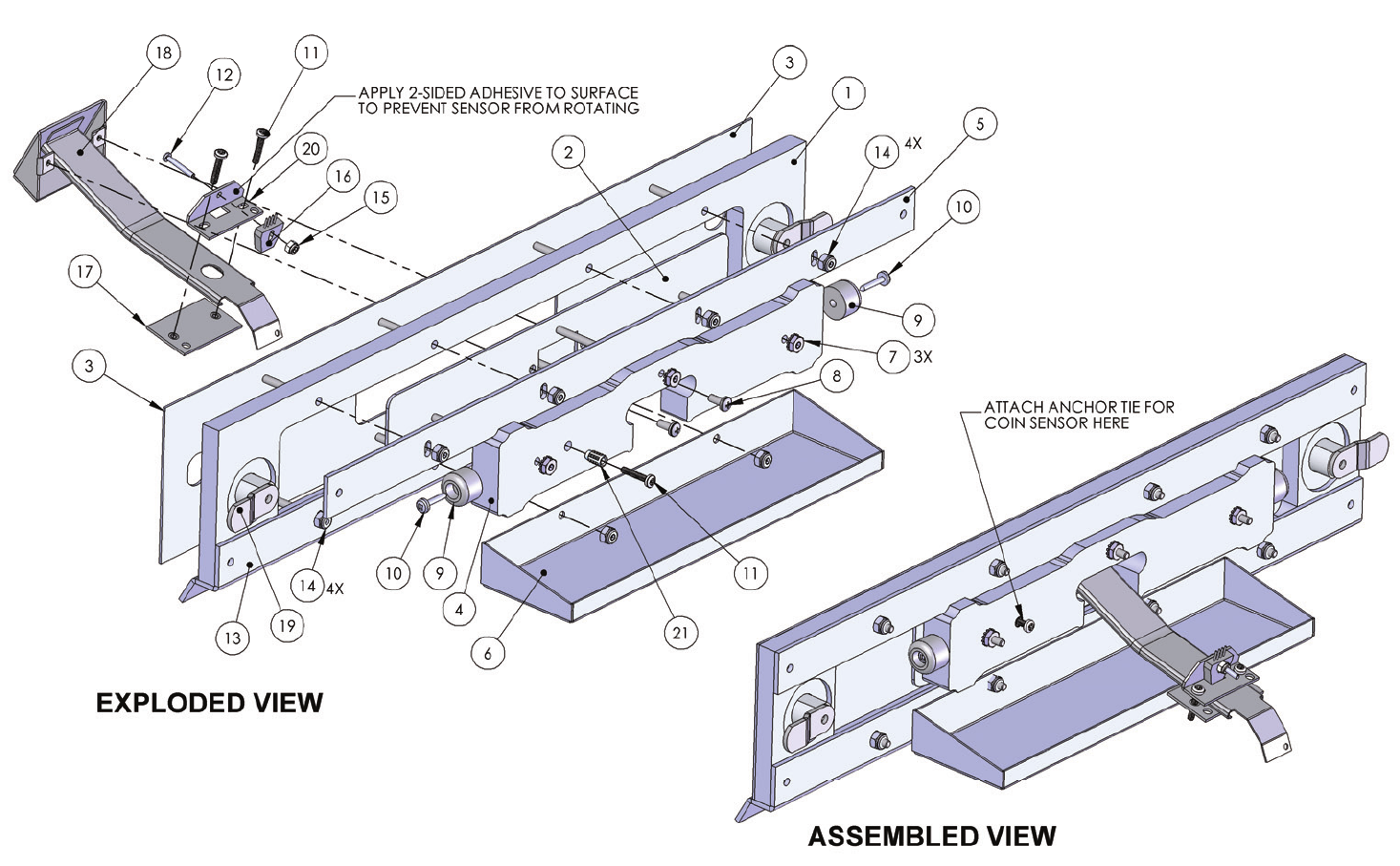

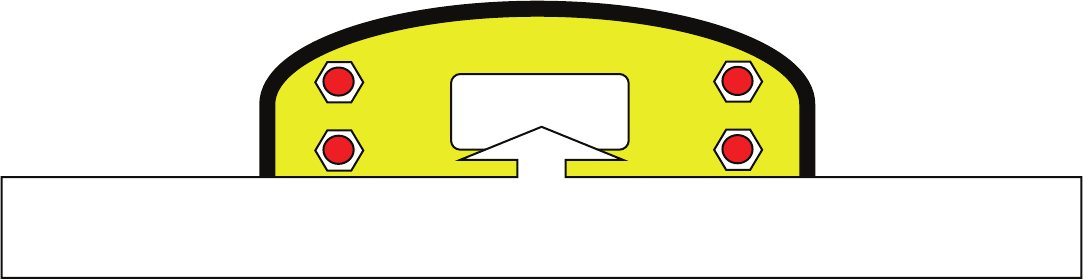

1006X Coin Chute Assembly
17

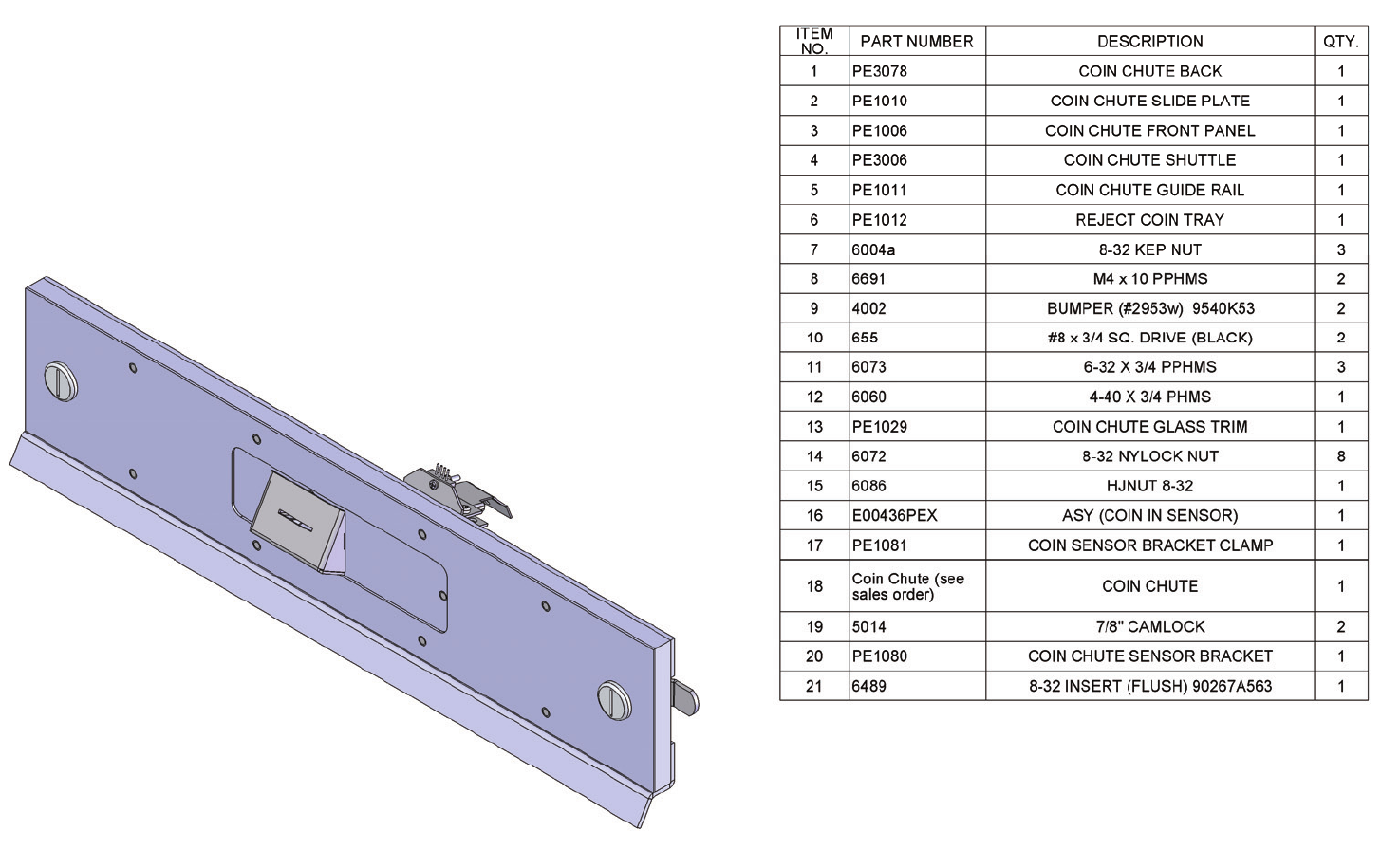

PE1006X Coin Chute Assembly
18

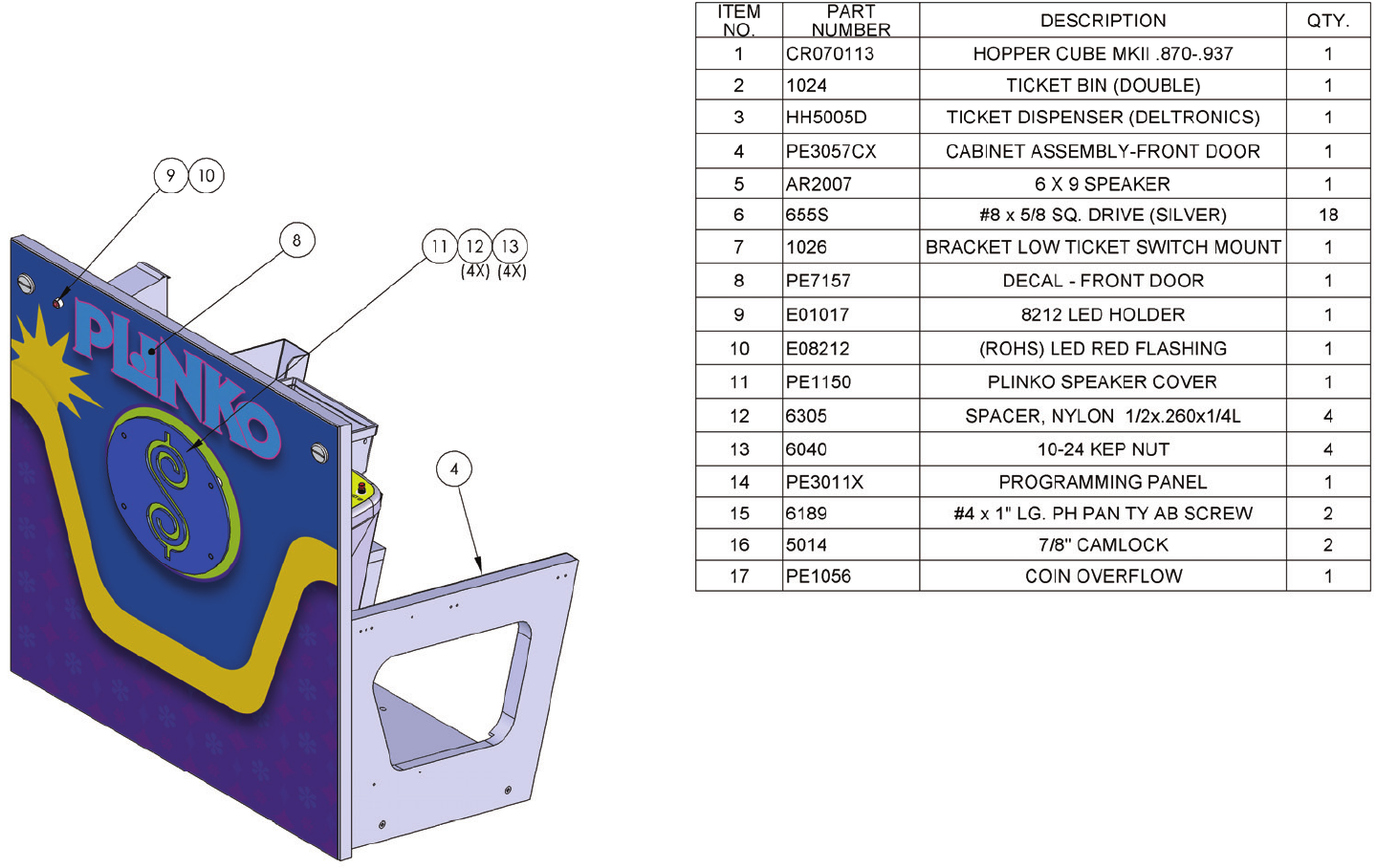

ASSEMBLIES AND DIAGRAMS - PE3057X
19
ASSEMBLIES AND DIAGRAMS - PE3057X
Slam switch location CR1050.
20

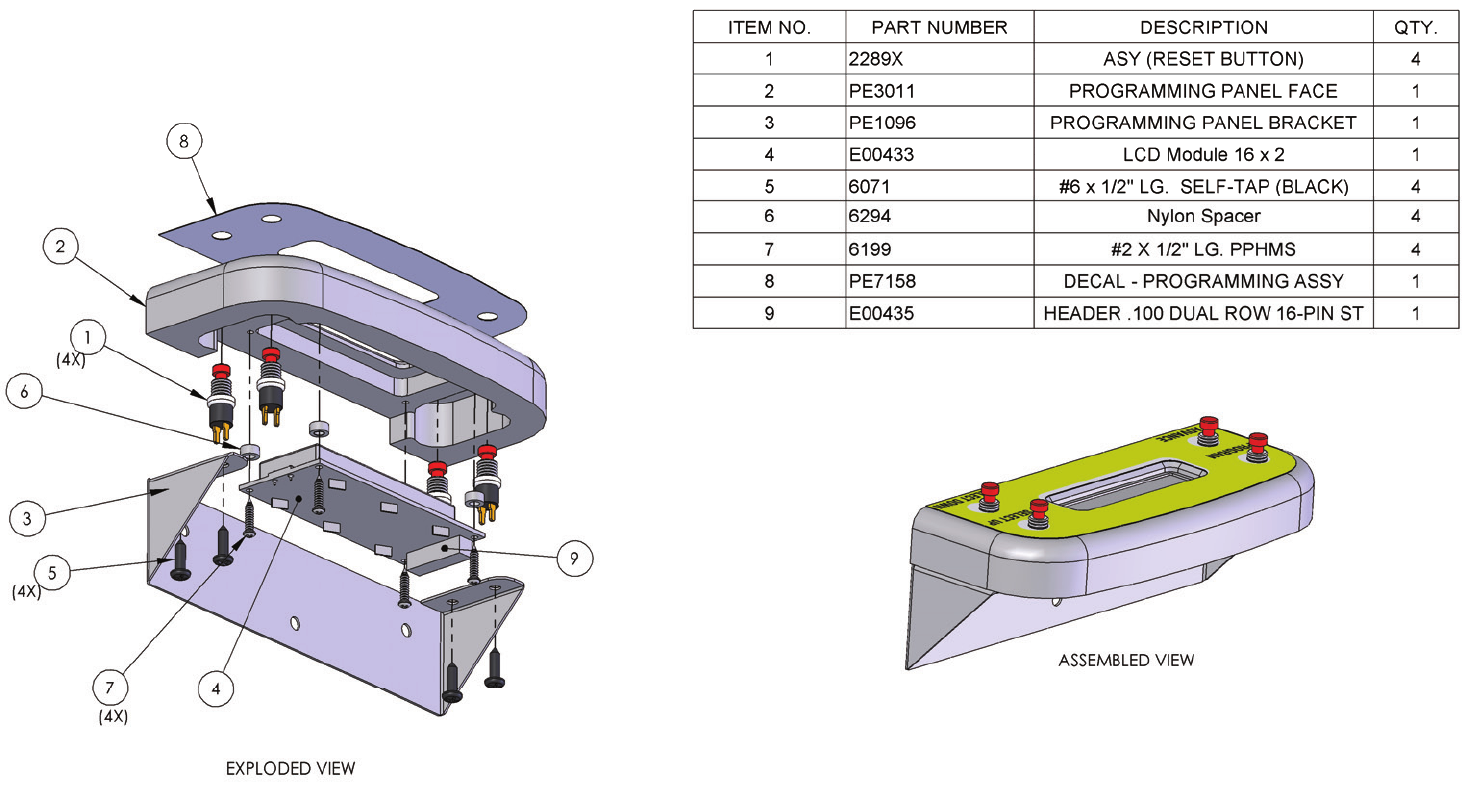

ASSEMBLIES AND DIAGRAMS - PE3011X
21

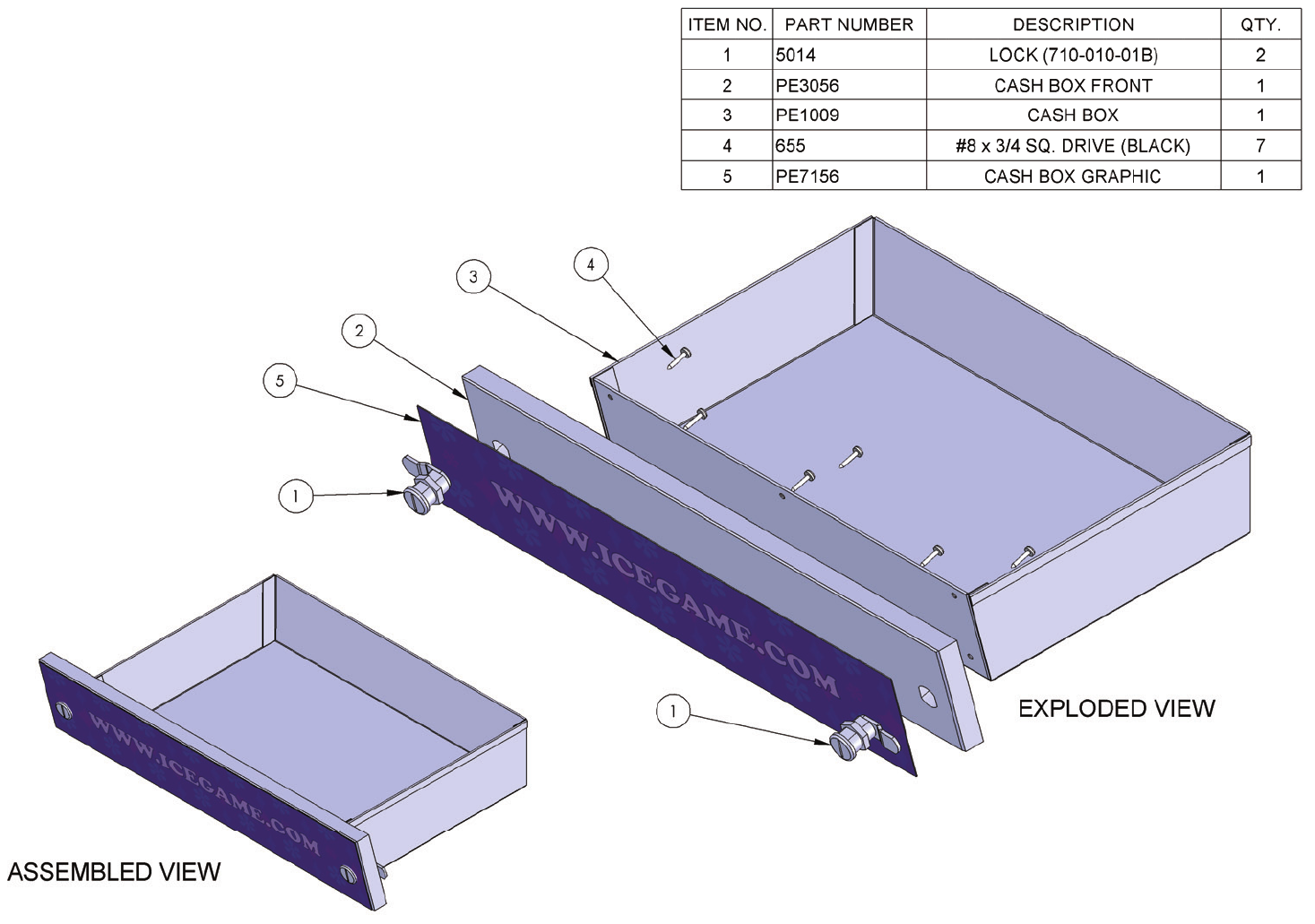

1009X Coin Drawer Assembly
22

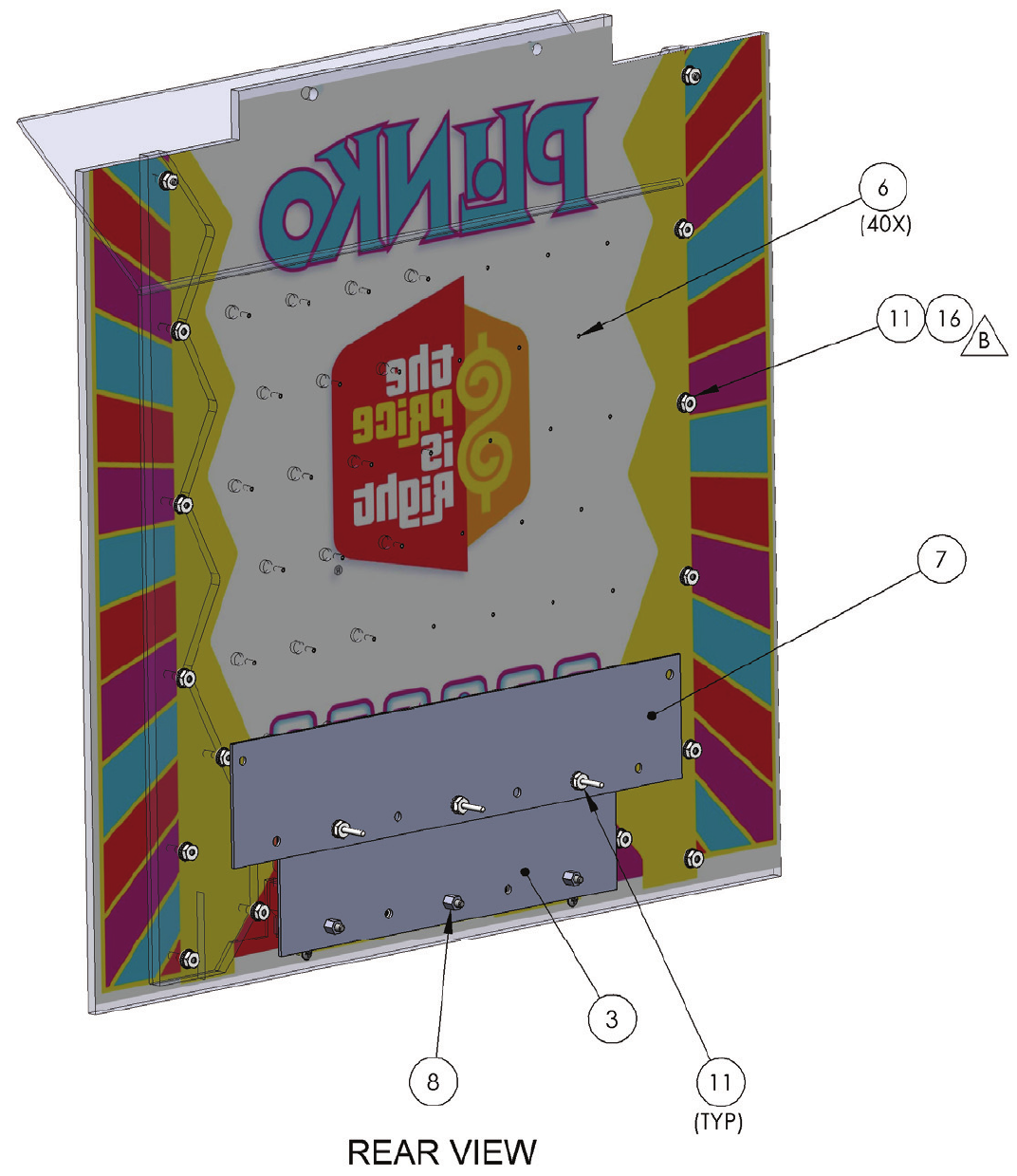

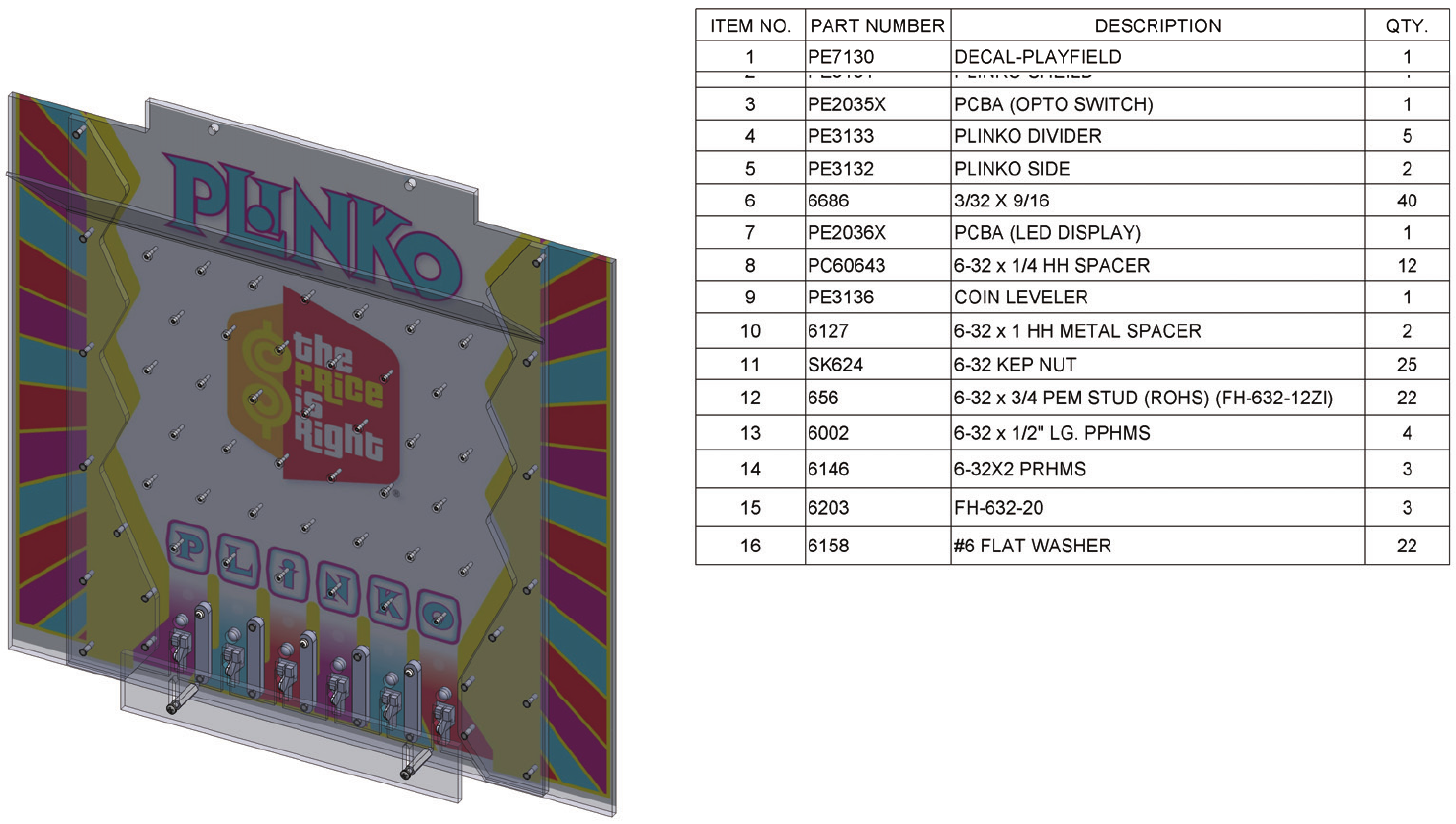

3130X Back Playfield Assembly
23

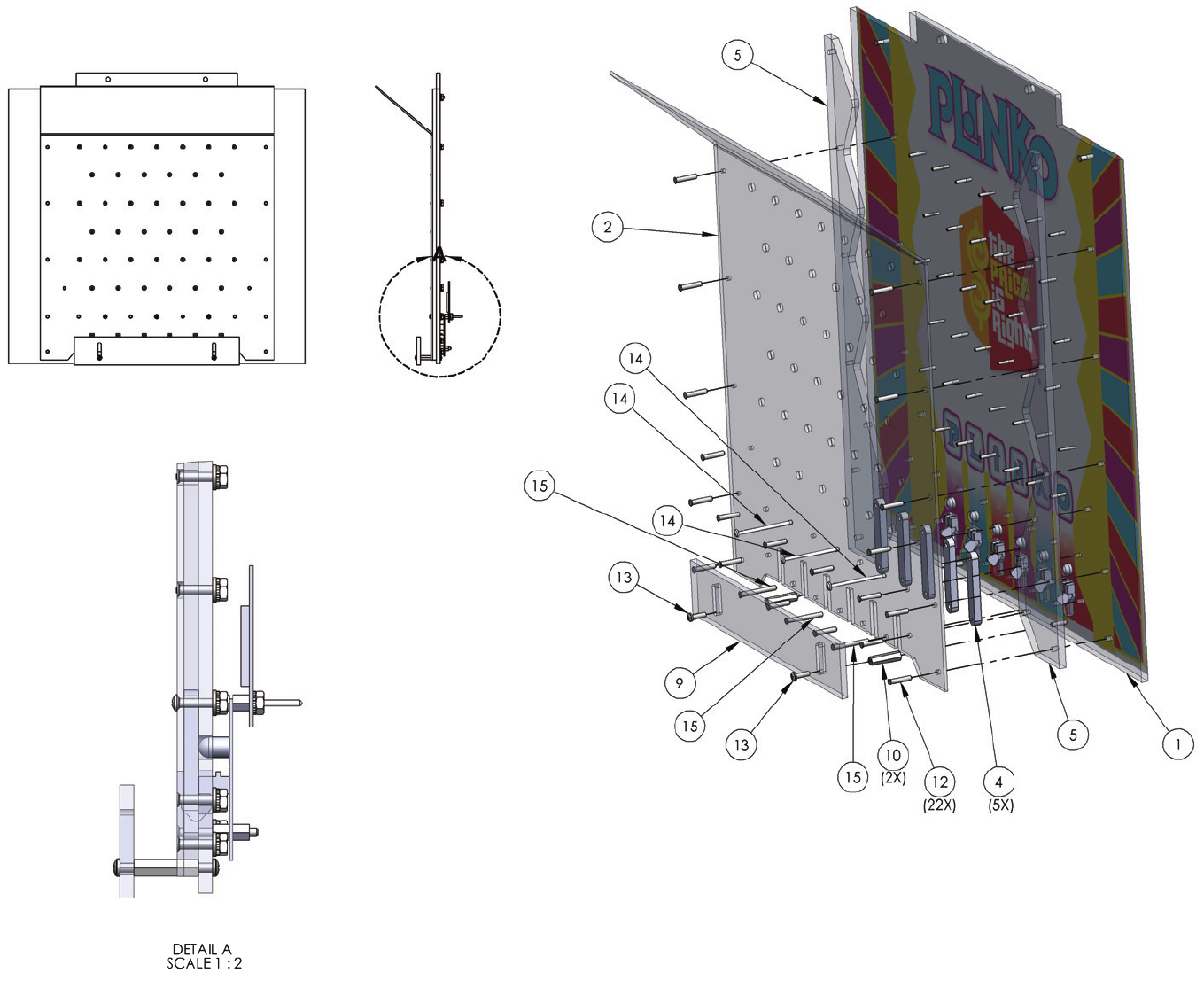

3130X Back Playfield Assembly
24
3130X Back Playfield Assembly
25

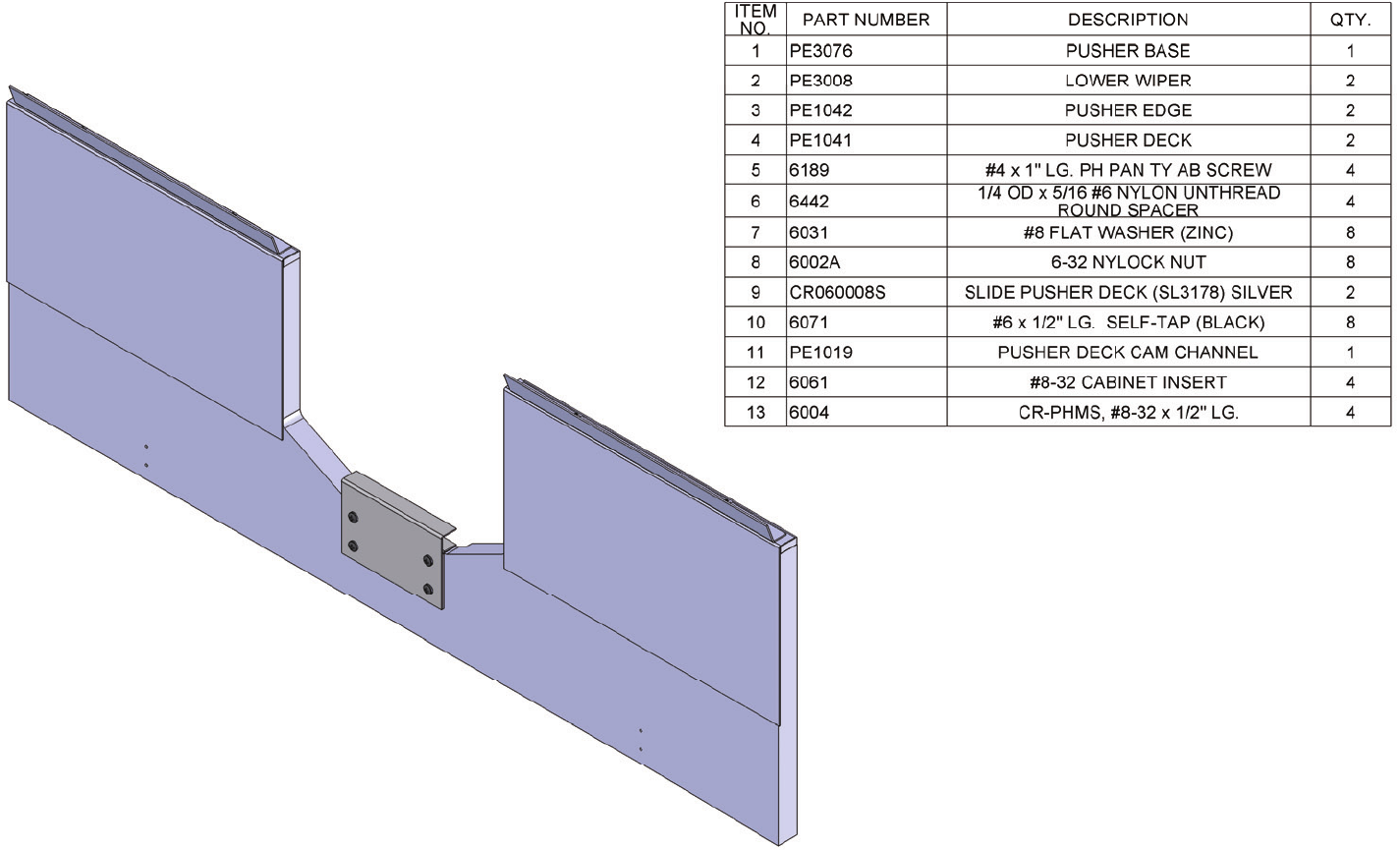

3076X Assembly
26
3076X Assembly
27

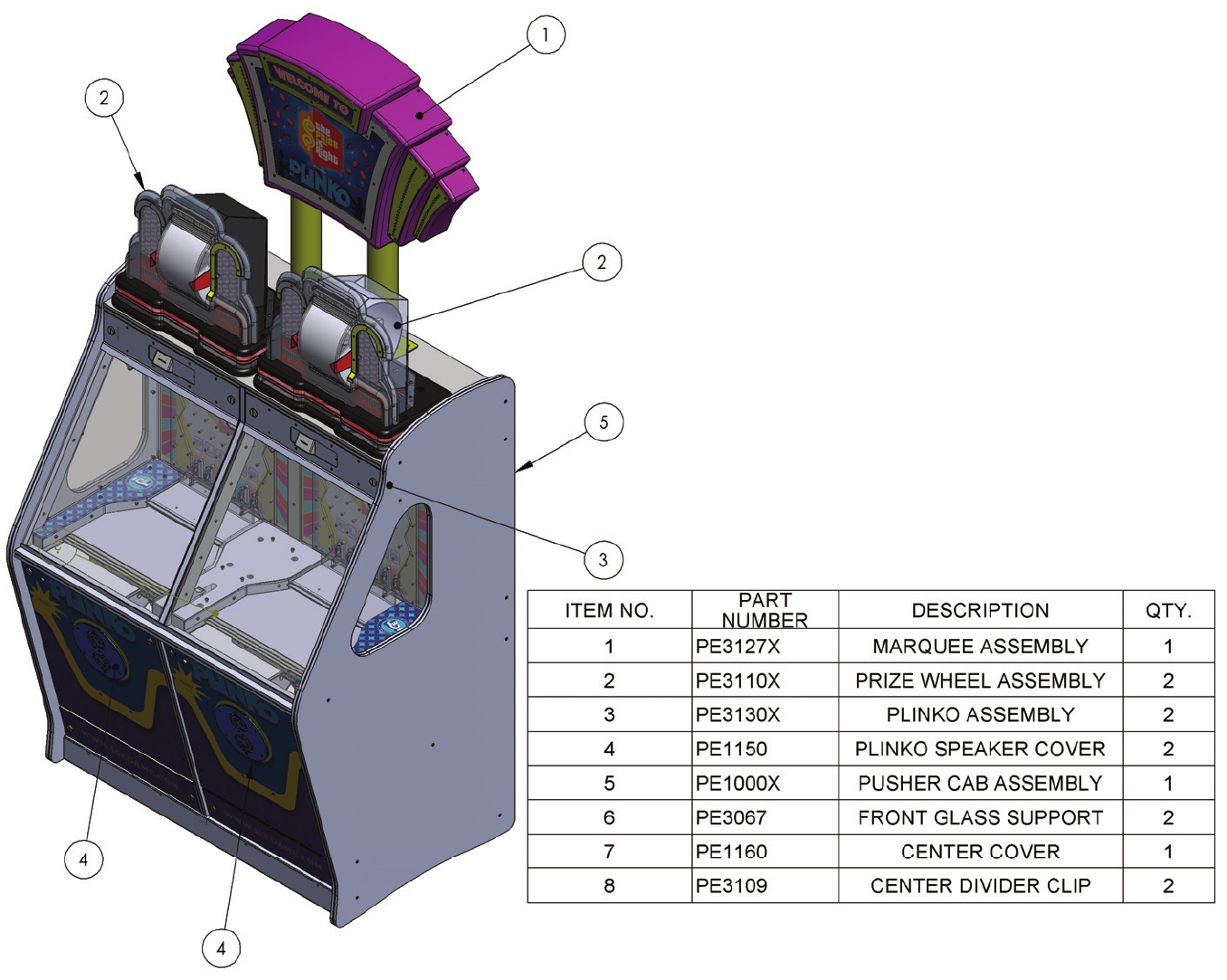

1100X Assembly
28
3127X Assembly
29

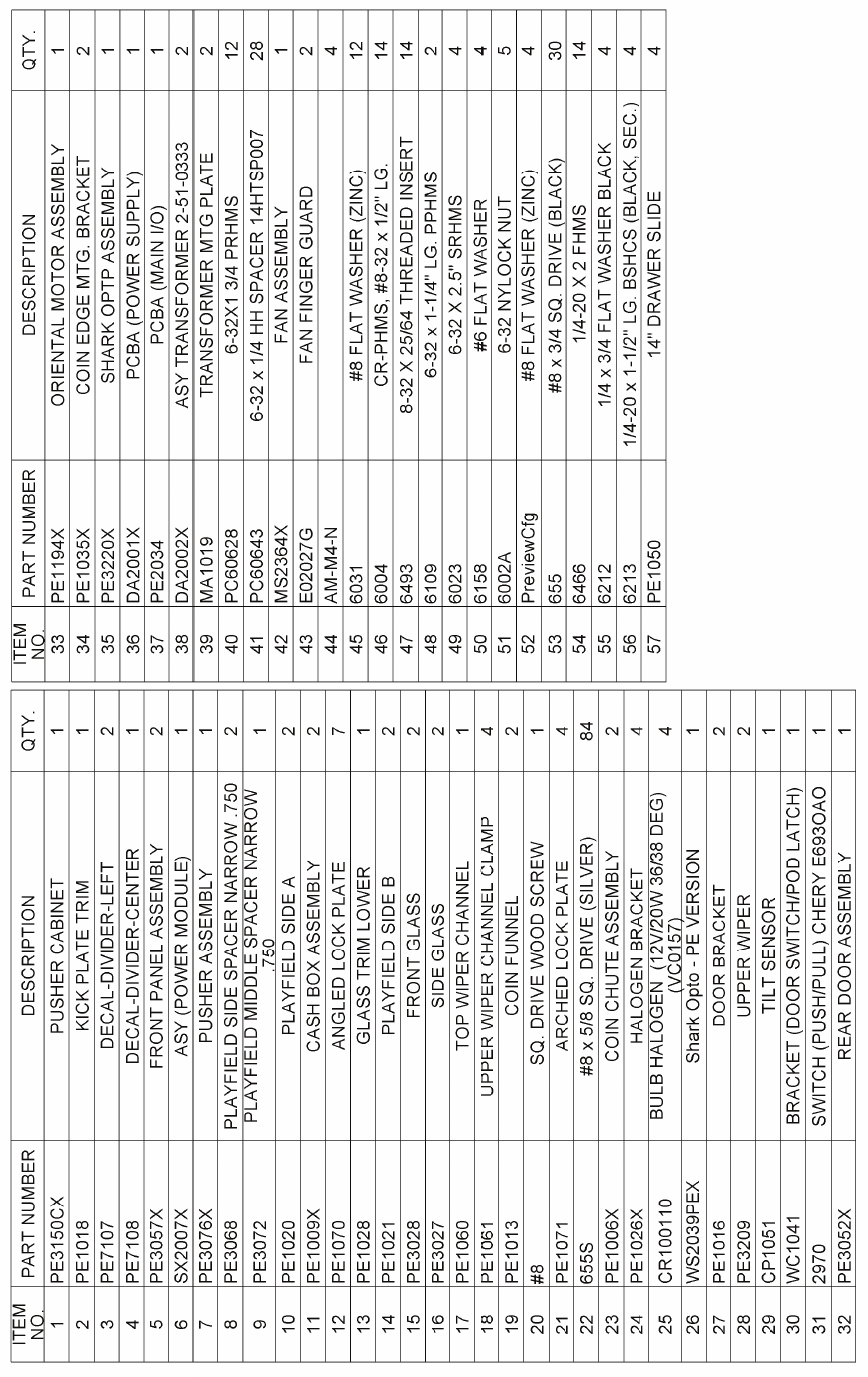

PARTS LISTINGS
Misc. Parts
XBFP9062359 Coin Chute .984
PE1050 Drawer Slide
PE3027 Side glass
PE3028 Front glass
1024 Ticket Bin
1026 Bracket for low ticket switch
PE3127X Marquee 2 player
CR060008S Slide pusher deck
SX2002AX Assembly transformer
Electrical Parts
CG2027 Power cord 9’ 10”
CR100110 12v 20w 36/38 Halogen Bulb
CP1051 Tilt Sensor
DA2001X Main Power Supply
DA2002X Transformer for Main power supply
E02027G Fan Guard
E02970 Cherry push/pull switch
MS2764X Small fan assembly
PE2009A Gearbox
PE2009X Motor Assembly
PE2034X Main I/O
AR2007 Speaker 6x9
CR070113A Hopper Cube MKII .950 to 1”
CR1050 Anti-slam switch
E00211 Low Ticket switch
HH5005 Ticket Dispenser
2289X Reset assembly button
E00433 LCD Module 16x2
E00411PEX Red LED strip
E00414PEX Blue LED strip
PE2008X Bonus Wheel Assembly
PE2035X Opto Switch
PE2036X LED display
PE8520X Socket for Halogen
SX1026-P802 Fan Coverl
SX2007X Power module
E00436PEX Coin in sensor
Graphics and Decals
PE7158 Decal - Programming assembly
PE7157 Decal - Front door
PE7110 Decal - Wheel Reel
PE7113 Decal - Wheel Surround
PE7114 Decal - Wheel surround gold
PE7100 Decal - Cabinet lower side
PE7102 Decal - PC Board
PE7107 Decal - Left Divider
PE7109 Decal - Right Divider
PE7156 Decal - Cash box front drawer
PE7116 Decal - Corner Glass
PE7104 Decal - Instructions ‘Cylon eye’ version
PE7105 Decal - Instructions ‘Standard’ version
30
D
C
B
A
4321
D
C
B
A
4321
DATE 9/15/08
DESCRIPTION PLINKO SYSTEM SCHEMATIC
DRAWN BY NBRANCATO
FILENAME PE1100X SYSTEM
SCHEMATIC.VSD
PAGE 1 OF 2
REVISED 12/19/08
TITLE PE1100X
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
J7
ORANGE/BLACK
RED
BLACK/BLUE
BLACK/WHITE
ORANGE
BLACK
ORANGE/BLACK
BLACK
BLUE
BLACK
ORANGE
BLACK/WHITE
J16
+ 12V
+ 5V
audio ground
ground
+ 12V
ground
+ 12V
ground
+ 15V (audio)
ground
+ 12V
ground
+ 12V
ticket run 1
ticket sense 1
ticket count 1
ground
+ 12V
ticket run 2
ticket sense 2
ticket count 2
ground
L. outer LED
L. inner LED
R. inner LED
R. outer LED
Marquee
LED’s
+ 12V
E2034X
DA2001X POWER SUPPLY PCB
MA1019
DA2002X
FOR 230V
USE
DA2002CEX
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
RED
BLUE
BLACK/BLUE
BLACK/WHITE x2
BLACK x2
ORANGE x2
BLACK
ORANGE/BLACK x2
RED
RED
ORANGE
BLUE
ORANGE
BLUE I
O
POWER ENTRY MODULE
SX2007X
5A MDQ
POWER CORD
CG2027
1
2
3
BLACK
G/Y
WHITE
1
2
3
1
2
3
PE2034X
P3
FOR 230V GAME FUSE:
REPLACE 5 AMP FUSE
WITH A 2.5 AMP
BROWN
G/Y
BLUE
BLACK
G/Y
WHITE
J50
1
2
3
4
5
6
J51
Blue LED top
Blue LED bottom
Bonus LED left
Bonus LED right
+ 12V
1
2
3
4
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
4
5
1
2
3
4
5
6
7
8
9
1
2
1
2
1
2
3
4
5
1
2
3
4
5
6
1
2
3
4
J15
J33
J34
J42
J49
J36 J37
J38
J27
J39
J28
J26
J25
J35
J44
J1
J21
J45
J46
+ 12V count
+ 12V sense
coin sense 1
coin count 1
sense ground
swipe card ground
swipe card input 1
1
2
3
4
5
6
7
8
9
10
11
12
black/white
red
gray/brown
gray/red
gray/orange
gray/yellow
violet/brown
violet/red
violet/orange
violet/yellow
white/green
white/blue
white/violet
white/gray
black
orange
orange/white
white/brown
black/orange
black
black/white
white/red
orange
orange/white
white/brown
black/orange
black
black/white
white/red
ORANGE
violet/white
violet/blue
black/yellow
BLACK
ORANGE
violet/white
violet/blue
black/yellow
BLACK
orange/white
yellow/orange
gray/orange
black/white
orange/black
yellow
gray/yellow
black
1
2
3
4
5
1
2
3
4
5
orange/white
yellow/orange
gray/orange
black/white
orange/black
yellow
gray/yellow
black
1
2
3
4
5
gray/brown
red/white
brown/white
1
2
3
4
gray/brown
red/white
brown/white
orange/black
green/black
white/black
black/white
orange
white
tan
green
black
gray/green
gray/blue
gray/violet
gray
orange
ORANGE
red
yellow/black
yellow/blue
yellow
yellow/red
black/red
black/yellow
black/green
black
white/orange
pink
black
ORANGE
red
yellow/black
yellow/blue
yellow
yellow/red
black/red
black/yellow
black/green
black
white/orange
orange
white
tan
green
black
1
2
3
4
5
6
1
2
3
4
5
6
7
8
9
10
11
12
violet/brown
violet/red
violet/orange
violet/yellow
ORANGE
1
2
3
4
5
6
violet/brown
violet/red
violet/orange
violet/yellow
ORANGE
Blue LED top
Blue LED bottom
Bonus LED left
Bonus LED right
+ 12V
+ 12V
+ 5 V
phase A
phase B
phase C
phase D
wheel LED 1
wheel LED 2
wheel LED 3
ground
wheel home
+ 12V
+ 5 V
phase A
phase B
phase C
phase D
wheel LED 1
wheel LED 2
wheel LED 3
ground
wheel home
+ 12 V
receive
transmit
ground
+ 12V count
+ 12V sense
coin sense 2
coin count 2
sense ground
swipe card ground
swipe card input 2
+ 12 V
clock
data
latch
ground
+ 12 V
clock
data
latch
ground
slam switch 2
slam switch 1
tilt
ground
+ 12 V
hopper run 1
hopper sense
ground
COIN OUT ONLY
+ 12 V
hopper run 1
hopper sense 1
ground
+ 12 V
hopper run 2
hopper sense 2
ground
COIN OUT ONLY
+ 12 V
hopper run 2
hopper sense 2
ground
ground
+ 5 V
contrast
register select
read/write
enable
data bit 4
data bit 5
data bit 6
data bit 7
program
select up
advance
select down
ground
L. speaker +
L. speaker -
R. speaker +
R. speaker -
1
2
3
4
J43
orange/black
green/black
white/black
black/white
+ 12 V
receive
transmit
ground
1
2
orange
violet/green
HH5005
TICKET
DISPENSER
1
2
3
4
LOW TICKET
SWITCH
black
violet/green
violet/blue
BLACK & black
violet/white
ORANGE & orange
COIN
HOPPER
COIN OUT
COIN HOPPER
(SWIPE CARD
OPTION ONLY
– PE1100SKX)
programming panel
#PE3011X
black x 2
white/blue
black x 2
white/green
black
white/gray
black x 2
white/violet
PROGRAM
ADVANCE
SELECT UP
SELECT DOWN
red
black/white
gray/red
gray/brown
gray/yellow
gray/orange
KEY
violet/red
violet/brown
violet/yellow
violet/orange
black/white
red
2
4
6
8
10
12
14
16
1
3
5
7
9
11
13
15
black
gray/brown
black/yellow
orange
black/orange
white/red
black/white
tan/black
ticket meter
+ 12 VDC
coin meter
coin in
ground
inhibit
1
2
3
4
5
6
7
8
9
black/red
black
black/green
service light 1
ground
service light 2
yellow/orange
orange/white
gray/orange
black/white
1
2
3
4
5
6
7
8
9
yellow
orange/black
gray/yellow
black
tan
1
2
TICKET
red
black
0000
COIN
red
black
0000
red
black
1
2
orange x 2
black/white x 2
1
2
red
black
1
2
orange x 2
black/white
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
swipe card option only –
PE1100CSX
swipe card
option only
FLASHING LOW
TICKET LED
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
orange/white
yellow/orange
gray/orange
black/white
ORANGE
red/white
brown/white
gray/brown
violet/blue
BLACK
violet/white
black/yellow
ORANGE
black/orange
white/red
black/white
ORANGE/BLACK
yellow
gray/yellow
black
black/red x 2
black/green x 2
KEY #E02549
black/white
red
gray/brown
gray/red
gray/orange
gray/yellow
violet/brown
violet/red
violet/orange
violet/yellow
white/green
white/blue
white/violet
white/gray
black
orange/white
yellow/orange
gray/orange
black/white
orange & ORANGE
red/white
brown/white
gray/brown
violet/blue
BLACK & black
violet/white
black/yellow x 2
orange x 2
black/orange x 2
white/red
black/white x 2
orange/black x 2
yellow
gray/yellow
black x 2
black/red
black/green
KEY #E02549
black/white x 2
red x 2
gray/brown
gray/red
gray/orange
gray/yellow
violet/brown
violet/red
violet/orange
violet/yellow
white/green
white/blue
white/violet
white/gray
black
red/white
brown/white
1
2
orange
violet/green HH5005
TICKET
DISPENSER
1
2
3
4
LOW TICKET
SWITCH
black
violet/green
violet/blue
BLACK & black
violet/white
ORANGE & orange
COIN
HOPPER
black
gray/brown
black/yellow
orange
black/orange
white/red
black/white
tan/black
ticket meter
+ 12 VDC
coin meter
coin in
ground
inhibit
1
2
3
4
5
6
7
8
9
black/red
black
black/green
service light 1
ground
service light 2
FOR COCKTAIL/SERVICE LIGHT
yellow/orange
orange/white
gray/orange
black/white
1
2
3
4
5
6
7
8
9
yellow
orange/black
gray/yellow
black
tan
1
2
TICKET
red
black
0000
COIN
red
black
0000
red
black
1
2
orange x 2
black/white x 2
1
2
red
black
1
2
orange x 2
black/white
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12 swipe card
option only
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
orange/white
yellow/orange
gray/orange
black/white
ORANGE
red/white
brown/white
gray/brown
violet/blue
BLACK
violet/white
black/yellow
ORANGE
black/orange
white/red
black/white
ORANGE/BLACK
yellow
gray/yellow
black
black/red x 2
black/green x 2
KEY #E02549
orange/white
yellow/orange
gray/orange
black/white
orange & ORANGE
red/white
brown/white
gray/brown
violet/blue
BLACK & black
violet/white
black/yellow x 2
orange x 2
black/orange x 2
white/red
black/white x 2
orange/black x 2
yellow
gray/yellow
black x 2
black/red
black/green
KEY #E02549
red/white
brown/white
LP NI OK
1
2
3
4
5
1
2
3
4
5
6
orange/black
green/black
white/black
black/white
orange
tan
white
green
black
PE2036X
PE2035X
LP NI OK
1
2
3
4
5
1
2
3
4
5
6
orange/black
green/black
white/black
black/white
orange
tan
white
green
black PE2036X
PE2035X
MA1019
SX2002AX
FOR 230V
USE
SX2002ACEX
1
2
1
2
WHITE
WHITE
RED
YELLOW
1
2
1
2
WHITE
WHITE
RED
YELLOW
1
2
3
4
5
6
1
2
3
SKILL ARM
MOTOR
CR9104677
1
2
BLUE
WHITE
1
2
BLACK
YELLOW/BLACK
1
2
3
4
5
6
7
8
9
1
2
3
white/brown
black
orange/white
red
black
green
white
1
2
3
white/brown x 2
black x 2
orange/white x 2
red
black
green
white
white/brown
black/white
orange/white
RED/BLACK
BLACK
white/brown
black
orange/white
1
2
3
4
5
6
7
8
9
red
black
green
white
OPB12506
red
black
green
white
1
2
1
2
WHITE
WHITE
RED
YELLOW
1
2
1
2
WHITE
WHITE
RED
YELLOW
1
2
3
4
5
6
SKILL ARM
MOTOR
CR9104677
1
2
BLUE
WHITE
1
2
BLACK
YELLOW/BLACK
1
2
3
4
5
6
7
8
9
1
2
3
white/brown
black
orange/white
red
black
green
white
1
2
3
white/brown x 2
black x 2
orange/white x 2
red
black
green
white
white/brown
black/white
orange/white
RED/BLACK
BLACK
white/brown
black
orange/white
1
2
3
4
5
6
7
8
9
red
black
green
white
OPB12506
red
black
green
white
1
2
3
ORANGE & orange
orange
yellow/black
yellow/blue
yellow/red
yellow
black/red
black/yellow
black/green
red
white/orange
black
ORANGE
violet/brown
violet/red
violet/orange
violet/yellow
1
2
3
4
5
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
1
2
3
4
5
6
7
8
9
10
11
12
orange/black
orange
yellow/black
yellow/blue
yellow/red
yellow
black/red
black/yellow
black/green
red
white/orange
black
ORANGE
violet/brown
violet/red
violet/orange
violet/yellow
1
2
red
black
1
2
red
black
1
2
1
2
orange
violet/brown
orange
violet/red
LED STRIP #E00411PEX
1
2
LED STRIP #E00411PEX
1
2
1
2
1
2
orange
violet/yellow
orange
violet/yellow
LED STRIP #E00414PEX
LED STRIP #E00414PEX
LED STRIP #E00411PEX
1
2
LED STRIP #E00411PEX
1
2
1
2
1
2
orange
violet/orange
orange
violet/orange
LEFT BONUS WINDOW RIGHT BONUS WINDOW
T
B
1
2
LED STRIP #8992FBX
1
2
LED STRIP #8992FBX
1
2
1
2
orange
black/red
1
2
orange
black/yellow
1
2
orange
black/green
orange/black
yellow/red
yellow
yellow/blue
yellow/black
KEY
red
white/orange
black
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
yellow
blue
green
red
black
1
2
3
pink
brown
violet
1
2
3
4
5
6
1
2
3
4
5
6
7
green
red
yellow
blue
black
pink
brown
violet
LED STRIP #8992FBX
LED STRIP #E00442PEX
1
2
red
black
1
2
orange
violet/orange
PE2008X – WHEEL
MECHANISM ASSEMBLY
PE3110X – PRIZE WHEEL
ASSEMBLY
ORANGE & orange
orange
yellow/black
yellow/blue
yellow/red
yellow
black/red
black/yellow
black/green
red
white/orange
black
ORANGE
violet/brown
violet/red
violet/orange
violet/yellow
1
2
3
4
5
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
1
2
3
4
5
6
7
8
9
10
11
12
orange/black
orange
yellow/black
yellow/blue
yellow/red
yellow
black/red
black/yellow
black/green
red
white/orange
black
ORANGE
violet/brown
violet/red
violet/orange
violet/yellow
1
2
red
black
1
2
red
black
1
2
1
2
orange
violet/brown
orange
violet/red
LED STRIP #E00411PEX
1
2
LED STRIP #E00411PEX
1
2
1
2
1
2
orange
violet/yellow
orange
violet/yellow
LED STRIP #E00414PEX
LED STRIP #E00414PEX
LED STRIP #E00411PEX
1
2
LED STRIP #E00411PEX
1
2
1
2
1
2
orange
violet/orange
orange
violet/orange
LEFT BONUS WINDOWRIGHT BONUS WINDOW
T
B
1
2
LED STRIP #8992FBX
1
2
LED STRIP #8992FBX
1
2
1
2
orange
black/red
1
2
orange
black/yellow
1
2
orange
black/green
orange/black
yellow/red
yellow
yellow/blue
yellow/black
KEY
red
white/orange
black
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
yellow
blue
green
red
black
1
2
3
pink
brown
violet
1
2
3
4
5
6
1
2
3
4
5
6
7
green
red
yellow
blue
black
pink
brown
violet
LED STRIP #8992FBX
LED STRIP #E00442PEX
1
2
1
2
orange
violet/orange
pink
black
TILT BOB - #CP1051
PE2008X – WHEEL
MECHANISM ASSEMBLY
PE3110X – PRIZE WHEEL
ASSEMBLY
PE2009X
MOTOR
230V –
PE2009CEX
PE2009A
GEAR HEAD
230V –
PE2009ACE
1
2
3
BROWN
G/Y
BLUE
1
2
3
BROWN
G/Y
BROWN
1
2
3
BROWN x 2
G/Y x 2
BLUE x 2
1
2
3
1
2
3
BROWN x 2
G/Y x 2
BLUE x 2
1
2
3
BROWN x 2
G/Y x 2
BLUE x 2
1
2
3
BROWN x 2
G/Y x 2
BLUE x 2
BROWN
G/Y
BLUE
BLACK
G/Y
WHITE
1
2
3
E00382
BULB
SH2130X SOCKET
BLACK
G/Y
WHITE
1
2
3
BROWN x 2
G/Y x 2
BLUE x 2
1
2
3
BROWN
G/Y
BLUE
1
2
3
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
L O
L I
R O
R I
orange x 2
gray/green
orange x 2
gray/blue
orange x 2
gray/violet
orange
gray
LED STRIP #E00413PEX
LED STRIP #E00412PEX
LED STRIP #E00413PEX
LED STRIP #E00412PEX
LEFT PLAYER STATION RIGHT PLAYER STATION
PE2051HX
PE2051HX
PE2052HX
PE2052HX
BLACK
G/Y
WHITE
1
2
3
BROWN x 2
G/Y x 2
BLUE x 2
1
2
3
E00382
BULB
E00382
BULB
SH2130X SOCKET
SH2130X SOCKET
1
2
3
BROWN
G/Y
BLUE
1
2
3
BROWN
G/Y
BLUE
1
2
1
2
black/red
black/green
black/red
black/green
orange x 2
gray/green
gray/blue
gray/violet
gray
black/red
black/green
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
ORANGE
gray/green
gray/blue
gray/violet
gray
black/red
black/green
BROWN
BROWN
BLACK
WHITE
PINK
WS2039PEX
PE2064HX PE2064HX
PE2061LX
PE2065MX
PE2082MX
PE2062LX
WS2039PEX
STD HARNESS - #E00436PEX
SEE APPENDIX A FOR COIN
DOOR HARNESS OPTIONS
PE2086MX
PE2054HX
PE2054HX
PE2084MX
PE2083MX
PE2084MX
PE2083MX
red
black
red
black
red
black
red
black
red
black
red
black
red
black
1
2
3
4
orange
black/red
black/green
red
black
red
black
red
black
red
black
AC FAN #MS2364X
red
black
red
black
red
black
red
black
red
black
red
black
red
black
red
black
OP1
P1
PE8520X PE8520XPE8520X PE8520X
OP1
P1
J1
J2
LED STRIP #E00414PEX
LED STRIP #E00418PEX
1
1
FLASHING LOW
TICKET LED
LED STRIP #E00414PEX
LED STRIP #E00418PEX
1
1
2
2
1
2
1
2
1
2
1
2
RED
YELLOW
RED
YELLOW
RED x 2
YELLOW x 2
RED/BLACK
YELLOW/BLACK
1
2
1
2
1
2
1
2
RED
YELLOW
RED
YELLOW
RED x 2
YELLOW x 2
RED/BLACK
YELLOW/BLACK
J2
J1
USED IN THE SKILL ARM
OPTION #PE1100SKX
STD HARNESS - #E00436PEX
SEE APPENDIX A FOR COIN
DOOR HARNESS OPTIONS
USED IN THE SKILL ARM
OPTION #PE1100SKX
SLAM SWITCH #CR1050
AR2007
AR2007
FOR COCKTAIL/SERVICE LIGHT
FOR
COCKTAIL/SERVICE
LIGHT
SLAM SWITCH #CR1050
swipe card option only –
PE1100CSX
MARQUEE
ASSEMBLY -
PE3127X
FUSE
110V - 1A
230V – 630mA
PE1194X MOTOR ASSEMBLY
FOR 230V USE PE1194CEX
FOR 230V GAME : 230V TO
110V STEP DOWN
TRANSFORMER INSERTED
BETWEEN RED TRIANGLES
PE2051HX
E08937 – MOTOR SAFETY SWITCH
COIN OUT
COIN HOPPER
(SWIPE CARD
OPTION ONLY
– PE1100SKX)
FUSE
110V – 1.5A
230V – 1A
D
C
B
A
4321
D
C
B
A
4321
DATE 9/15/08
DESCRIPTION APPENDIX A
COIN DOOR HARNESS OPITIONS DRAWN BY NBRANCATO
FILENAME PE1100X SYSTEM
SCHEMATIC.VSD
PAGE 2 OF 2
REVISED 12/19/08
TITLE PE1100X
1
2
3
4
5
6
7
8
9
red
black
green
white
black/white x 2
orange/white x 2
RED/BLACK
BLACK
OPB12506
red
black
green
white
BLACK/WHITE
black/white
orange/white
black/white
orange/white

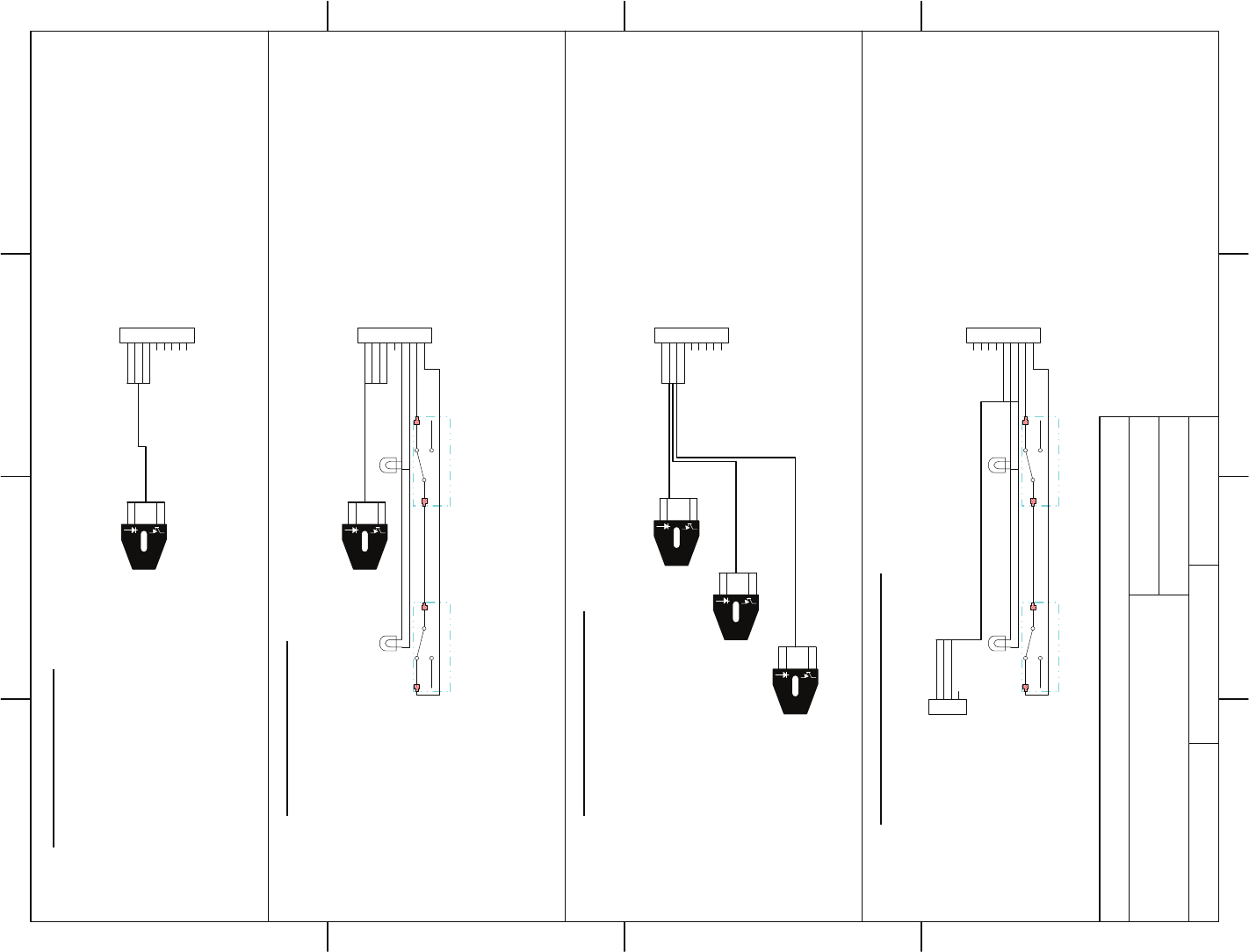

SKILL ARM HARNESS
#E00436PEAX – SKILL ARM / COIN IN SENSOR
STANDARD HARNESS
#E00436PEX – COIN INPUT SENSOR
1
2
3
4
5
6
7
8
9
red
black
green
white
OPB12506
red
black
green
white
1
2
3
4
5
6
7
8
9
red x 3
black x 3
green x 3
white x 3
OPB12506
red
black
green
white
OPB12506
red
black
green
white
OPB12506
red
black
green
white
1
2
3
4
5
6
7
8
9
white
black/white & black
orange/white & red
RED/BLACK
BLACK
BLACK/WHITE
black/white
orange/white
black/white
orange/white
1
2
3
4
red
white
black
TRIPLE ENTRY HARNESS
#E00436PETX – TRIPLE COIN INPUT SENSORS
COIN COMPARATOR HARNESS
#E00436PEIX – SKILL ARM / COIN COMPARATOR
SWITCH #PD2002 SWITCH #PD2002
SWITCH #PD2002 SWITCH #PD2002
PE1100X – 2 PLAYER PLINKO
PE1100SKX – SKILL ARM OPTION
PE1100TEX – TRIPLE ENTRY OPTION
PE1400X – COIN COMPARATOR 2
PLAYER PLINKO GAME
Contacts at SEGA
Machine Sales
Telephone: +44 (0) 208 391 8090
Fax: +44 (0) 208 391 8099
www.sega-amusements.co.uk
SEGA Spares
Telephone: +44 (0) 208 391 8060
Fax: +44 (0) 208 391 8096
www.segatotalsolutions.com
Customer Services
Telephone: +44 (0) 208 391 8065
Fax: +44 (0) 208 391 8096
D
C
B
A
4321
D
C
B
A
4321
DATE 9/15/08
DESCRIPTION PLINKO SYSTEM SCHEMATIC
DRAWN BY NBRANCATO
FILENAME PE1100X SYSTEM
SCHEMATIC.VSD
PAGE 1 OF 2
REVISED 12/19/08
TITLE PE1100X
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
J7
ORANGE/BLACK
RED
BLACK/BLUE
BLACK/WHITE
ORANGE
BLACK
ORANGE/BLACK
BLACK
BLUE
BLACK
ORANGE
BLACK/WHITE
J16
+ 12V
+ 5V
audio ground
ground
+ 12V
ground
+ 12V
ground
+ 15V (audio)
ground
+ 12V
ground
+ 12V
ticket run 1
ticket sense 1
ticket count 1
ground
+ 12V
ticket run 2
ticket sense 2
ticket count 2
ground
L. outer LED
L. inner LED
R. inner LED
R. outer LED
Marquee
LED’s
+ 12V
E2034X
DA2001X POWER SUPPLY PCB
MA1019
DA2002X
FOR 230V
USE
DA2002CEX
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
RED
BLUE
BLACK/BLUE
BLACK/WHITE x2
BLACK x2
ORANGE x2
BLACK
ORANGE/BLACK x2
RED
RED
ORANGE
BLUE
ORANGE
BLUE I
O
POWER ENTRY MODULE
SX2007X
5A MDQ
POWER CORD
CG2027
1
2
3
BLACK
G/Y
WHITE
1
2
3
1
2
3
PE2034X
P3
FOR 230V GAME FUSE:
REPLACE 5 AMP FUSE
WITH A 2.5 AMP
BROWN
G/Y
BLUE
BLACK
G/Y
WHITE
J50
1
2
3
4
5
6
J51
Blue LED top
Blue LED bottom
Bonus LED left
Bonus LED right
+ 12V
1
2
3
4
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
4
5
1
2
3
4
5
6
7
8
9
1
2
1
2
1
2
3
4
5
1
2
3
4
5
6
1
2
3
4
J15
J33
J34
J42
J49
J36 J37
J38
J27
J39
J28
J26
J25
J35
J44
J1
J21
J45
J46
+ 12V count
+ 12V sense
coin sense 1
coin count 1
sense ground
swipe card ground
swipe card input 1
1
2
3
4
5
6
7
8
9
10
11
12
black/white
red
gray/brown
gray/red
gray/orange
gray/yellow
violet/brown
violet/red
violet/orange
violet/yellow
white/green
white/blue
white/violet
white/gray
black
orange
orange/white
white/brown
black/orange
black
black/white
white/red
orange
orange/white
white/brown
black/orange
black
black/white
white/red
ORANGE
violet/white
violet/blue
black/yellow
BLACK
ORANGE
violet/white
violet/blue
black/yellow
BLACK
orange/white
yellow/orange
gray/orange
black/white
orange/black
yellow
gray/yellow
black
1
2
3
4
5
1
2
3
4
5
orange/white
yellow/orange
gray/orange
black/white
orange/black
yellow
gray/yellow
black
1
2
3
4
5
gray/brown
red/white
brown/white
1
2
3
4
gray/brown
red/white
brown/white
orange/black
green/black
white/black
black/white
orange
white
tan
green
black
gray/green
gray/blue
gray/violet
gray
orange
ORANGE
red
yellow/black
yellow/blue
yellow
yellow/red
black/red
black/yellow
black/green
black
white/orange
pink
black
ORANGE
red
yellow/black
yellow/blue
yellow
yellow/red
black/red
black/yellow
black/green
black
white/orange
orange
white
tan
green
black
1
2
3
4
5
6
1
2
3
4
5
6
7
8
9
10
11
12
violet/brown
violet/red
violet/orange
violet/yellow
ORANGE
1
2
3
4
5
6
violet/brown
violet/red
violet/orange
violet/yellow
ORANGE
Blue LED top
Blue LED bottom
Bonus LED left
Bonus LED right
+ 12V
+ 12V
+ 5 V
phase A
phase B
phase C
phase D
wheel LED 1
wheel LED 2
wheel LED 3
ground
wheel home
+ 12V
+ 5 V
phase A
phase B
phase C
phase D
wheel LED 1
wheel LED 2
wheel LED 3
ground
wheel home
+ 12 V
receive
transmit
ground
+ 12V count
+ 12V sense
coin sense 2
coin count 2
sense ground
swipe card ground
swipe card input 2
+ 12 V
clock
data
latch
ground
+ 12 V
clock
data
latch
ground
slam switch 2
slam switch 1
tilt
ground
+ 12 V
hopper run 1
hopper sense
ground
COIN OUT ONLY
+ 12 V
hopper run 1
hopper sense 1
ground
+ 12 V
hopper run 2
hopper sense 2
ground
COIN OUT ONLY
+ 12 V
hopper run 2
hopper sense 2
ground
ground
+ 5 V
contrast
register select
read/write
enable
data bit 4
data bit 5
data bit 6
data bit 7
program
select up
advance
select down
ground
L. speaker +
L. speaker -
R. speaker +
R. speaker -
1
2
3
4
J43
orange/black
green/black
white/black
black/white
+ 12 V
receive
transmit
ground
1
2
orange
violet/green
HH5005
TICKET
DISPENSER
1
2
3
4
LOW TICKET
SWITCH
black
violet/green
violet/blue
BLACK & black
violet/white
ORANGE & orange
COIN
HOPPER
COIN OUT
COIN HOPPER
(SWIPE CARD
OPTION ONLY
– PE1100SKX)
programming panel
#PE3011X
black x 2
white/blue
black x 2
white/green
black
white/gray
black x 2
white/violet
PROGRAM
ADVANCE
SELECT UP
SELECT DOWN
red
black/white
gray/red
gray/brown
gray/yellow
gray/orange
KEY
violet/red
violet/brown
violet/yellow
violet/orange
black/white
red
2
4
6
8
10
12
14
16
1
3
5
7
9
11
13
15
black
gray/brown
black/yellow
orange
black/orange
white/red
black/white
tan/black
ticket meter
+ 12 VDC
coin meter
coin in
ground
inhibit
1
2
3
4
5
6
7
8
9
black/red
black
black/green
service light 1
ground
service light 2
yellow/orange
orange/white
gray/orange
black/white
1
2
3
4
5
6
7
8
9
yellow
orange/black
gray/yellow
black
tan
1
2
TICKET
red
black
0000
COIN
red
black
0000
red
black
1
2
orange x 2
black/white x 2
1
2
red
black
1
2
orange x 2
black/white
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
swipe card option only –
PE1100CSX
swipe card
option only
FLASHING LOW
TICKET LED
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
orange/white
yellow/orange
gray/orange
black/white
ORANGE
red/white
brown/white
gray/brown
violet/blue
BLACK
violet/white
black/yellow
ORANGE
black/orange
white/red
black/white
ORANGE/BLACK
yellow
gray/yellow
black
black/red x 2
black/green x 2
KEY #E02549
black/white
red
gray/brown
gray/red
gray/orange
gray/yellow
violet/brown
violet/red
violet/orange
violet/yellow
white/green
white/blue
white/violet
white/gray
black
orange/white
yellow/orange
gray/orange
black/white
orange & ORANGE
red/white
brown/white
gray/brown
violet/blue
BLACK & black
violet/white
black/yellow x 2
orange x 2
black/orange x 2
white/red
black/white x 2
orange/black x 2
yellow
gray/yellow
black x 2
black/red
black/green
KEY #E02549
black/white x 2
red x 2
gray/brown
gray/red
gray/orange
gray/yellow
violet/brown
violet/red
violet/orange
violet/yellow
white/green
white/blue
white/violet
white/gray
black
red/white
brown/white
1
2
orange
violet/green HH5005
TICKET
DISPENSER
1
2
3
4
LOW TICKET
SWITCH
black
violet/green
violet/blue
BLACK & black
violet/white
ORANGE & orange
COIN
HOPPER
black
gray/brown
black/yellow
orange
black/orange
white/red
black/white
tan/black
ticket meter
+ 12 VDC
coin meter
coin in
ground
inhibit
1
2
3
4
5
6
7
8
9
black/red
black
black/green
service light 1
ground
service light 2
FOR COCKTAIL/SERVICE LIGHT
yellow/orange
orange/white
gray/orange
black/white
1
2
3
4
5
6
7
8
9
yellow
orange/black
gray/yellow
black
tan
1
2
TICKET
red
black
0000
COIN
red
black
0000
red
black
1
2
orange x 2
black/white x 2
1
2
red
black
1
2
orange x 2
black/white
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12 swipe card
option only
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
orange/white
yellow/orange
gray/orange
black/white
ORANGE
red/white
brown/white
gray/brown
violet/blue
BLACK
violet/white
black/yellow
ORANGE
black/orange
white/red
black/white
ORANGE/BLACK
yellow
gray/yellow
black
black/red x 2
black/green x 2
KEY #E02549
orange/white
yellow/orange
gray/orange
black/white
orange & ORANGE
red/white
brown/white
gray/brown
violet/blue
BLACK & black
violet/white
black/yellow x 2
orange x 2
black/orange x 2
white/red
black/white x 2
orange/black x 2
yellow
gray/yellow
black x 2
black/red
black/green
KEY #E02549
red/white
brown/white
LP NI OK
1
2
3
4
5
1
2
3
4
5
6
orange/black
green/black
white/black
black/white
orange
tan
white
green
black
PE2036X
PE2035X
LP NI OK
1
2
3
4
5
1
2
3
4
5
6
orange/black
green/black
white/black
black/white
orange
tan
white
green
black PE2036X
PE2035X
MA1019
SX2002AX
FOR 230V
USE
SX2002ACEX
1
2
1
2
WHITE
WHITE
RED
YELLOW
1
2
1
2
WHITE
WHITE
RED
YELLOW
1
2
3
4
5
6
1
2
3
SKILL ARM
MOTOR
CR9104677
1
2
BLUE
WHITE
1
2
BLACK
YELLOW/BLACK
1
2
3
4
5
6
7
8
9
1
2
3
white/brown
black
orange/white
red
black
green
white
1
2
3
white/brown x 2
black x 2
orange/white x 2
red
black
green
white
white/brown
black/white
orange/white
RED/BLACK
BLACK
white/brown
black
orange/white
1
2
3
4
5
6
7
8
9
red
black
green
white
OPB12506
red
black
green
white
1
2
1
2
WHITE
WHITE
RED
YELLOW
1
2
1
2
WHITE
WHITE
RED
YELLOW
1
2
3
4
5
6
SKILL ARM
MOTOR
CR9104677
1
2
BLUE
WHITE
1
2
BLACK
YELLOW/BLACK
1
2
3
4
5
6
7
8
9
1
2
3
white/brown
black
orange/white
red
black
green
white
1
2
3
white/brown x 2
black x 2
orange/white x 2
red
black
green
white
white/brown
black/white
orange/white
RED/BLACK
BLACK
white/brown
black
orange/white
1
2
3
4
5
6
7
8
9
red
black
green
white
OPB12506
red
black
green
white
1
2
3
ORANGE & orange
orange
yellow/black
yellow/blue
yellow/red
yellow
black/red
black/yellow
black/green
red
white/orange
black
ORANGE
violet/brown
violet/red
violet/orange
violet/yellow
1
2
3
4
5
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
1
2
3
4
5
6
7
8
9
10
11
12
orange/black
orange
yellow/black
yellow/blue
yellow/red
yellow
black/red
black/yellow
black/green
red
white/orange
black
ORANGE
violet/brown
violet/red
violet/orange
violet/yellow
1
2
red
black
1
2
red
black
1
2
1
2
orange
violet/brown
orange
violet/red
LED STRIP #E00411PEX
1
2
LED STRIP #E00411PEX
1
2
1
2
1
2
orange
violet/yellow
orange
violet/yellow
LED STRIP #E00414PEX
LED STRIP #E00414PEX
LED STRIP #E00411PEX
1
2
LED STRIP #E00411PEX
1
2
1
2
1
2
orange
violet/orange
orange
violet/orange
LEFT BONUS WINDOW RIGHT BONUS WINDOW
T
B
1
2
LED STRIP #8992FBX
1
2
LED STRIP #8992FBX
1
2
1
2
orange
black/red
1
2
orange
black/yellow
1
2
orange
black/green
orange/black
yellow/red
yellow
yellow/blue
yellow/black
KEY
red
white/orange
black
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
yellow
blue
green
red
black
1
2
3
pink
brown
violet
1
2
3
4
5
6
1
2
3
4
5
6
7
green
red
yellow
blue
black
pink
brown
violet
LED STRIP #8992FBX
LED STRIP #E00442PEX
1
2
red
black
1
2
orange
violet/orange
PE2008X – WHEEL
MECHANISM ASSEMBLY
PE3110X – PRIZE WHEEL
ASSEMBLY
ORANGE & orange
orange
yellow/black
yellow/blue
yellow/red
yellow
black/red
black/yellow
black/green
red
white/orange
black
ORANGE
violet/brown
violet/red
violet/orange
violet/yellow
1
2
3
4
5
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
1
2
3
4
5
6
7
8
9
10
11
12
orange/black
orange
yellow/black
yellow/blue
yellow/red
yellow
black/red
black/yellow
black/green
red
white/orange
black
ORANGE
violet/brown
violet/red
violet/orange
violet/yellow
1
2
red
black
1
2
red
black
1
2
1
2
orange
violet/brown
orange
violet/red
LED STRIP #E00411PEX
1
2
LED STRIP #E00411PEX
1
2
1
2
1
2
orange
violet/yellow
orange
violet/yellow
LED STRIP #E00414PEX
LED STRIP #E00414PEX
LED STRIP #E00411PEX
1
2
LED STRIP #E00411PEX
1
2
1
2
1
2
orange
violet/orange
orange
violet/orange
LEFT BONUS WINDOWRIGHT BONUS WINDOW
T
B
1
2
LED STRIP #8992FBX
1
2
LED STRIP #8992FBX
1
2
1
2
orange
black/red
1
2
orange
black/yellow
1
2
orange
black/green
orange/black
yellow/red
yellow
yellow/blue
yellow/black
KEY
red
white/orange
black
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
yellow
blue
green
red
black
1
2
3
pink
brown
violet
1
2
3
4
5
6
1
2
3
4
5
6
7
green
red
yellow
blue
black
pink
brown
violet
LED STRIP #8992FBX
LED STRIP #E00442PEX
1
2
1
2
orange
violet/orange
pink
black
TILT BOB - #CP1051
PE2008X – WHEEL
MECHANISM ASSEMBLY
PE3110X – PRIZE WHEEL
ASSEMBLY
PE2009X
MOTOR
230V –
PE2009CEX
PE2009A
GEAR HEAD
230V –
PE2009ACE
1
2
3
BROWN
G/Y
BLUE
1
2
3
BROWN
G/Y
BROWN
1
2
3
BROWN x 2
G/Y x 2
BLUE x 2
1
2
3
1
2
3
BROWN x 2
G/Y x 2
BLUE x 2
1
2
3
BROWN x 2
G/Y x 2
BLUE x 2
1
2
3
BROWN x 2
G/Y x 2
BLUE x 2
BROWN
G/Y
BLUE
BLACK
G/Y
WHITE
1
2
3
E00382
BULB
SH2130X SOCKET
BLACK
G/Y
WHITE
1
2
3
BROWN x 2
G/Y x 2
BLUE x 2
1
2
3
BROWN
G/Y
BLUE
1
2
3
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
L O
L I
R O
R I
orange x 2
gray/green
orange x 2
gray/blue
orange x 2
gray/violet
orange
gray
LED STRIP #E00413PEX
LED STRIP #E00412PEX
LED STRIP #E00413PEX
LED STRIP #E00412PEX
LEFT PLAYER STATION RIGHT PLAYER STATION
PE2051HX
PE2051HX
PE2052HX
PE2052HX
BLACK
G/Y
WHITE
1
2
3
BROWN x 2
G/Y x 2
BLUE x 2
1
2
3
E00382
BULB
E00382
BULB
SH2130X SOCKET
SH2130X SOCKET
1
2
3
BROWN
G/Y
BLUE
1
2
3
BROWN
G/Y
BLUE
1
2
1
2
black/red
black/green
black/red
black/green
orange x 2
gray/green
gray/blue
gray/violet
gray
black/red
black/green
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
ORANGE
gray/green
gray/blue
gray/violet
gray
black/red
black/green
BROWN
BROWN
BLACK
WHITE
PINK
WS2039PEX
PE2064HX PE2064HX
PE2061LX
PE2065MX
PE2082MX
PE2062LX
WS2039PEX
STD HARNESS - #E00436PEX
SEE APPENDIX A FOR COIN
DOOR HARNESS OPTIONS
PE2086MX
PE2054HX
PE2054HX
PE2084MX
PE2083MX
PE2084MX
PE2083MX
red
black
red
black
red
black
red
black
red
black
red
black
red
black
1
2
3
4
orange
black/red
black/green
red
black
red
black
red
black
red
black
AC FAN #MS2364X
red
black
red
black
red
black
red
black
red
black
red
black
red
black
red
black
OP1
P1
PE8520X PE8520XPE8520X PE8520X
OP1
P1
J1
J2
LED STRIP #E00414PEX
LED STRIP #E00418PEX
1
1
FLASHING LOW
TICKET LED
LED STRIP #E00414PEX
LED STRIP #E00418PEX
1
1
2
2
1
2
1
2
1
2
1
2
RED
YELLOW
RED
YELLOW
RED x 2
YELLOW x 2
RED/BLACK
YELLOW/BLACK
1
2
1
2
1
2
1
2
RED
YELLOW
RED
YELLOW
RED x 2
YELLOW x 2
RED/BLACK
YELLOW/BLACK
J2
J1
USED IN THE SKILL ARM
OPTION #PE1100SKX
STD HARNESS - #E00436PEX
SEE APPENDIX A FOR COIN
DOOR HARNESS OPTIONS
USED IN THE SKILL ARM
OPTION #PE1100SKX
SLAM SWITCH #CR1050
AR2007
AR2007
FOR COCKTAIL/SERVICE LIGHT
FOR
COCKTAIL/SERVICE
LIGHT
SLAM SWITCH #CR1050
swipe card option only –
PE1100CSX
MARQUEE
ASSEMBLY -
PE3127X
FUSE
110V - 1A
230V – 630mA
PE1194X MOTOR ASSEMBLY
FOR 230V USE PE1194CEX
FOR 230V GAME : 230V TO
110V STEP DOWN
TRANSFORMER INSERTED
BETWEEN RED TRIANGLES
PE2051HX
E08937 – MOTOR SAFETY SWITCH
COIN OUT
COIN HOPPER
(SWIPE CARD
OPTION ONLY
– PE1100SKX)
FUSE
110V – 1.5A
230V – 1A
D
C
B
A
4321
D
C
B
A
4321
DATE 9/15/08
DESCRIPTION APPENDIX A
COIN DOOR HARNESS OPITIONS DRAWN BY NBRANCATO
FILENAME PE1100X SYSTEM
SCHEMATIC.VSD
PAGE 2 OF 2
REVISED 12/19/08
TITLE PE1100X
1
2
3
4
5
6
7
8
9
red
black
green
white
black/white x 2
orange/white x 2
RED/BLACK
BLACK
OPB12506
red
black
green
white
BLACK/WHITE
black/white
orange/white
black/white
orange/white
SKILL ARM HARNESS
#E00436PEAX – SKILL ARM / COIN IN SENSOR
STANDARD HARNESS
#E00436PEX – COIN INPUT SENSOR
1
2
3
4
5
6
7
8
9
red
black
green
white
OPB12506
red
black
green
white
1
2
3
4
5
6
7
8
9
red x 3
black x 3
green x 3
white x 3
OPB12506
red
black
green
white
OPB12506
red
black
green
white
OPB12506
red
black
green
white
1
2
3
4
5
6
7
8
9
white
black/white & black
orange/white & red
RED/BLACK
BLACK
BLACK/WHITE
black/white
orange/white
black/white
orange/white
1
2
3
4
red
white
black
TRIPLE ENTRY HARNESS
#E00436PETX – TRIPLE COIN INPUT SENSORS
COIN COMPARATOR HARNESS
#E00436PEIX – SKILL ARM / COIN COMPARATOR
SWITCH #PD2002 SWITCH #PD2002
SWITCH #PD2002 SWITCH #PD2002
PE1100X – 2 PLAYER PLINKO
PE1100SKX – SKILL ARM OPTION
PE1100TEX – TRIPLE ENTRY OPTION
PE1400X – COIN COMPARATOR 2
PLAYER PLINKO GAME
