INTRODUCTION

This manual is intended to provide detailed descriptions together with all the necessary information covering the

general operation of electronic assemblies, electro-mechanicals, servicing control, spare parts, etc. for the product,

"SEGA UFO CATCHER".

This manual is intended for the owners, personnel and managers in charge of operation of the product.

Operate the product after carefully reading and sufﬁciently understanding the instructions.

In the unlikely event that the product does not function correctly, DO NOT allow anyone other than a technician

to touch the internal system. Turn off the power to the machine, making sure to unplug the electrical cord from the

outlet, and contact the ofﬁce listed below or the point-of-purchase for this product.

Use of this product is unlikely to cause physical injuries or damage to property. However, points that require special

attention are indicated by thick underlining, the word "IMPORTANT" and the symbol below

Indicates important information that, if ignored, may result in the mishandling of the

product and cause faulty operation or damage to the product.

IMPORTANT

Sega Amusements U.S.A., Inc.

800 Arthur Avenue, Elk Grove Village, IL 60007-5215, U.S.A.

TEL: 1-847-364-9787

TOLL FREE: 1-888-877-2669

FAX: 1-847-427-1065

Installation space: 1,683 mm (66.3 in) [Width] x 875 mm (34.4 in) [Depth]

Height: 1,972 mm (77.6 in)

Weight: 295 kg (650.4 lb)

Power, maximum current: 267 W, 2.4 A (AC 120 V, 60 Hz)

SPECIFICATIONS

INTRODUCTION

Deﬁnition of 'Site Maintenance Personnel or Other Qualiﬁed Individuals'

Procedures not described in this manual or marked as ‘to be carried out by site

maintenance personnel or other qualiﬁed professionals’ should not be carried

out by personnel without the necessary skill or technology. Work carried out by

unqualiﬁed persons may cause serious accidents, including electrocution.

Parts replacement, maintenance inspections and troubleshooting should be carried out by site maintenance personnel

or other qualiﬁed professionals. This manual includes directions for potentially dangerous procedures which should

only be carried out by professionals with the appropriate specialized knowledge.

The site maintenance personnel or other qualiﬁed professionals mentioned in this manual are deﬁned as follows:

Site maintenance personnel:

Individuals with experience in maintaining amusement equipment, vending machines, etc., working under the

supervision of the owner/operator of this product to maintain machines within amusement facilities or similar

premises by carrying out everyday procedures such as assembly, maintenance inspections, and replacement of

units/expendable parts.

Activities to be carried out by site maintenance personnel:

Amusement equipment/vending machine assembly, maintenance inspection and replacement of units/expendable

parts.

Other qualiﬁed professionals:

Persons employed by amusement equipment manufacturers, or involved in design, production, testing or

maintenance of amusement equipment. The individual should have either graduated from technical school or hold

similar qualiﬁcations in electrical/electronics/mechanical engineering.

Activities to be carried out by other qualiﬁed professionals:

Amusement equipment/vending machine assembly, repair/adjustment of electrical/electronic/mechanical parts.

HANDLING PRECAUTIONSAS

HANDLING PRECAUTIONS1

When installing or inspecting the machine, be very careful of the following points and pay attention to ensure that

the player can enjoy the game safely.

Non-compliance with the following points or inappropriate handling running counter to the cautionary matters

herein stated can cause personal injury or damage to the machine.

• Before performing work, be sure to turn the power off and unplug the electrical

cord from the outlet. Performing the work without turning the power off can

cause an electric shock or short circuit. In the case work should be performed

in the status of power on, this manual always states to that effect.

• To avoid an electric shock or short circuit, do not plug in or unplug quickly.

• To avoid an electric shock, do not plug in or unplug with a wet hand.

• Do not expose power cords or earth wires on the surface, (ﬂoor, passage, etc.).

If exposed, the power cords and earth wires are susceptible to damage.

Damaged cords and wires can cause an electric shock or short circuit.

• To avoid causing a ﬁre or an electric shock, do not put things on or damage the

power cords.

• When or after installing the product, do not unnecessarily pull the power cord. If

damaged, the power cord can cause a ﬁre or an electric shock.

• In case the power cord is damaged, ask for a replacement through where the

product was purchased from or the ofﬁce herein stated. Using the cord as is

damaged can cause ﬁre, an electric shock or leakage.

• Be sure to perform grounding appropriately. Inappropriate grounding can cause

an electric shock.

• Be sure to use fuses meeting the speciﬁed rating. Using fuses exceeding the

speciﬁed rating can cause a ﬁre or an electric shock.

• Completely make connector connections for IC BD and others. Insufﬁcient

insertion can cause an electric shock.

• Speciﬁcation changes, removal of equipment, conversion and/or addition, not

designated by SEGA are not permitted.

- Failure to observe this may cause a ﬁre or an electric shock. Non-compliance

with this instruction can have a bad inﬂuence upon physical conditions of the

players or the onlookers, or result in injury during play.

- SEGA shall not be held responsible for damage, compensation for damage to

a third party, caused by speciﬁcation changes not designated by SEGA.

• Be sure to perform periodic maintenance inspections herein stated.

HANDLING PRECAUTIONSAS

• For the IC board circuit inspections, only the logic tester is allowed. The use of a

multiple-purpose tester is not permitted, so be careful in this regard.

• Static electricity from your body may damage some electronics devices on the

IC board. Before handling the IC board, touch a grounded metallic surface so

that the static electricity can be discharged.

• Some parts are the ones designed and manufactured not speciﬁcally for

this game machine. The manufacturers may discontinue, or change the

speciﬁcations of, such general-purpose parts. If this is the case, Sega cannot

repair or replace a failed game machine whether or not a warranty period has

expired.

• This game machine can be installed at a storefront but could tip over due to

sudden strong drafts or building winds. It could also tip over from man-made

loads. If the game machine does fall down, a serious accident could result. To

prevent the machine from falling down, carry out the following procedures and

make every effort to operate the machine safely.

- Never place the product at a site that is inclined or has level differences.

If there are inclines or level differences, make sure the site is level before

placing the machine on it.

- Do not add decorations to the product that will cause its center of gravity to

be elevated. Also, be aware that there are cases in which it is illegal to add

electrical units to the product interior.

- Make sure that the adjusters are always in contact with the ﬂoor.

- Use rope, chain, and/or ﬁxtures for securing furniture to secure the product so

that it will not fall down in an earthquake.

IMPORTANT

HANDLING PRECAUTIONSAS

CONCERNING THE STICKER DISPLAY

This SEGA product has stickers attached describing

the product manufacture No. (Serial No.) and Electrical

Speciﬁcations. When inquiring about or asking for

repairs, mention the Serial No. and Name of Machine

indicated on the Sticker. The Serial Number indicates

the product register. Identical machines could have

different parts depending on the date of production. Also,

improvements and modiﬁcations might have been made

after the publication of this manual. In order to ensure

you order the correct parts, mention the Serial No. when

contacting the applicable places.

CONCERNING WARNING DISPLAYS

FIG. 1

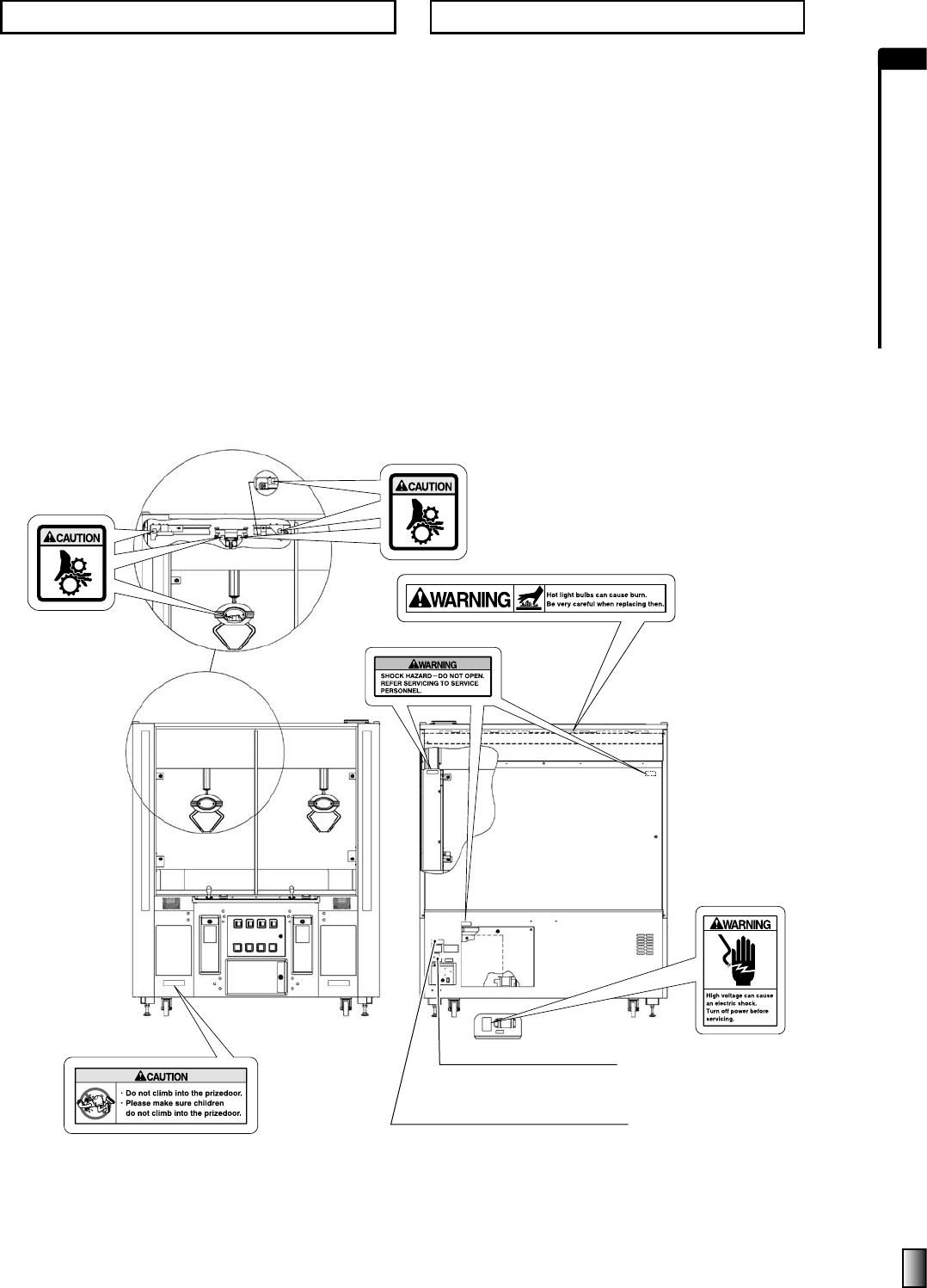

This SEGA product has warning displays on stickers,

labels and/or printed instructions adhered/attached

to or incorporated in the places where a potentially

hazardous situation could arise. The warning displays

are intended for accident prevention for customers

and for avoiding hazardous situations relating to

maintenance and servicing work. Some portions of the

cabinet contain high voltage and may cause accidents

if touched. When performing maintenance, be very

careful of the warning displays. It is especially

important that any complex repair and replacement

work not mentioned herein should be performed by

those technical personnel who have knowledge of

electricity and technical expertise.

In order to prevent accidents, caution any customer

ignoring the warnings to cease and desist immediately.

SERIAL NO. DISPLAY

440-CS0245-EG

440-WS0286-EG

440-WS0027-EG

440-WS0002XEG

Same on 2P side

UL CERTIFICATION DISPLAY

440-CS0316-EG

PRECAUTIONS REGARDING INSTALLATION LOCATION

• Be sure to check the Electrical Speciﬁcations. Ensure that this product

is compatible with the location’s power supply, voltage and frequency

requirements. A plate describing Electrical Speciﬁcations is attached to the

product. Non-compliance with the Electrical Speciﬁcations can cause a ﬁre and

electric shock.

• This product requires a breaker and earth mechanism as part of the location

facilities. Using the product without these can cause a ﬁre and electric shock.

• Ensure that the indoor wiring for the power supply is rated at 7A or higher. Non-

compliance with the Electrical Speciﬁcations can cause a ﬁre and electric shock.

• Be sure to use an independent power supply equipped with an earth leakage

breaker. Using a power supply without an earth leakage breaker can cause an

outbreak of ﬁre if a power surge occurs.

• Putting many loads on one electrical outlet can cause generation of heat and a

ﬁre resulting from overload.

• When using an extension cord, ensure that the cord is rated at 7A or higher.

Using a cord rated lower than the speciﬁed rating can cause a ﬁre and electric

shock.

This product is an indoor game machine. Do not install it outside. Even indoors,

avoid installing in places mentioned below so as not to cause a ﬁre, electric

shock, injury and/or malfunction.

- Places subject to rain or water leakage, or places subject to high humidity in the

proximity of an indoor swimming pool and or shower, etc.

- Places subject to direct sunlight, or places subject to high temperatures in the

proximity of heating units, etc.

- Places ﬁlled with inﬂammable gas or vicinity of highly inﬂammable/volatile

chemicals or hazardous matter.

- Dusty places.

- Sloped surfaces.

- Places subject to any type of violent impact.

- Vicinity of anti-disaster facilities such as ﬁre exits and ﬁre extinguishers.

- The operating (ambient) temperature range is from 5°C to 35°C (5°C to 30°C

with LCD).

2-1 LIMITATIONS OF USAGE

PRECAUTIONS REGARDING INSTALLATION LOCATION

• For the operation of this machine, secure a minimum area of 1.7 m (66.9 in) [W] x

1.6 m (60.0 in) [D]. <Full options assembled: 1.7 m (66.9 in) [W] x 1.8 m (70.9 in) [D]>

• Do not block the ventilation port on the top surface. Heat may build up and

cause a ﬁre.

• SEGA shall not be held responsible for damage or compensation for damage to

a third party, resulting from the failure to observe this instruction.

2-2 OPERATION AREA

In order to transport the machine into a building, the minimum necessary dimensions

of the opening (of doors, etc.) are 0.9 m (35.4 in) [W] and 2 m (78.7 in) [H].

Electricity Consumption:

MAX. 2.4 A (AC 120 V, 60 Hz)

IMPORTANT

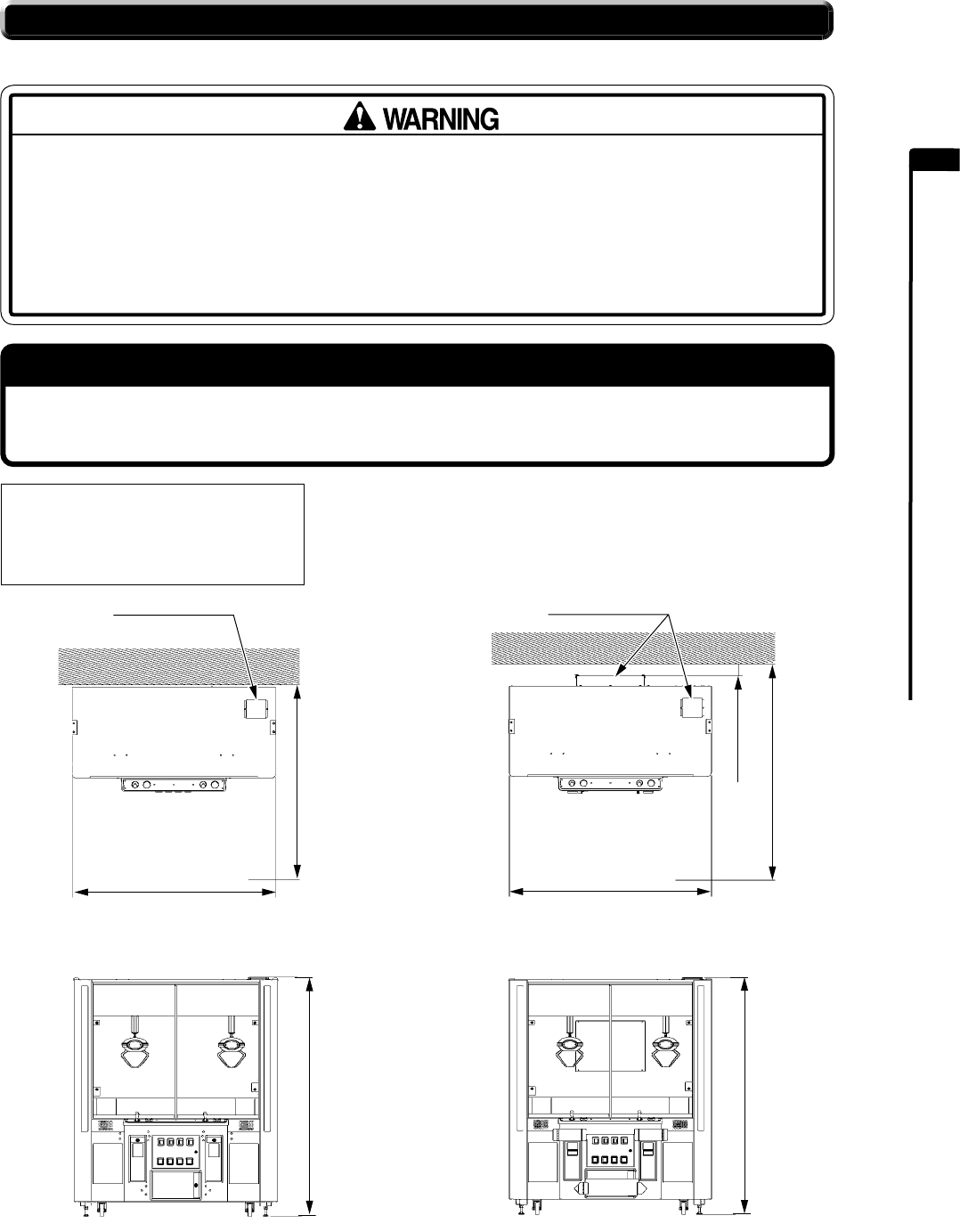

FIG. 2-2b Full Options Cabinet (See Section 21.)FIG. 2-2a Basic Cabinet

1.8m (70.9in)

0.1m (3.9in)

1.7m (66.9in)

2m (78.7in)

Ventilation port

1.7m (66.9in)

2m (78.7in) 1.6m (60.0in)

Ventilation port

PRECAUTIONS REGARDING PRODUCT OPERATION

3-1 BEFORE OPERATION

In order to avoid accidents, check the following before starting the operation:

• Check if all of the adjusters are in contact with the surface. If they are not, the

cabinet can move and cause an accident.

• Do not place items over the ventilation port on the top surface. Heat may build

up and cause a ﬁre.

• Do not put any heavy items on this product. Placing heavy items on the product

can cause accidents or damage to parts.

• Do not climb on the product. Climbing on the product can cause accidents. To

check the top portion of the product, use a stepladder.

• To avoid electric shock, check that none of the door & cover parts are

damaged or missing.

• To avoid electric shock, short circuit and or parts damage, do not put the

following items on or in the periphery of the product. Flower vases, ﬂowerpots,

cups, water tanks, cosmetics, and receptacles/containers/vessels containing

chemicals or water.

To avoid injury and trouble, be sure to pay attention to the behavior of visitors and players.

To avoid injury, be sure to provide sufﬁcient space by considering the crowd

situation at the installation location. Insufﬁcient installation space can cause

customers to bump into each other, causing trouble.

FIG. 3-1

Ensure that all the adjusters

are in contact with the floor.

PRECAUTIONS REGARDING PRODUCT OPERATION

3-2 DURING OPERATION (PAYING ATTENTION TO CUSTOMERS)

To avoid injury and trouble, be sure to pay attention to the behavior of visitors and players.

• To avoid injury from falls and electric shocks due to spilled drinks, instruct the

player not to place heavy items or drinks on the product.

• To avoid electric shocks and short circuits, do not allow customers to put

hands and ﬁngers or extraneous matter in the openings of the product or small

openings in or around the doors.

• To avoid falls and resulting injury, immediately stop the customer from leaning

against or climbing on the product, etc.

• To avoid electric shocks and short circuits, do not allow customers to unplug the

power plug without a justiﬁable reason.

• If hands or ﬁngers are placed deeper than necessary into the prize retrieval

slot or coin return slot, they could get caught, resulting in injury. Caution is

required, especially for small children.

• Immediately stop such violent acts as hitting and kicking the product. Such

violent acts can cause parts damage or cause the cabinet to fall over,

resulting in injury.

PART DESCRIPTIONS

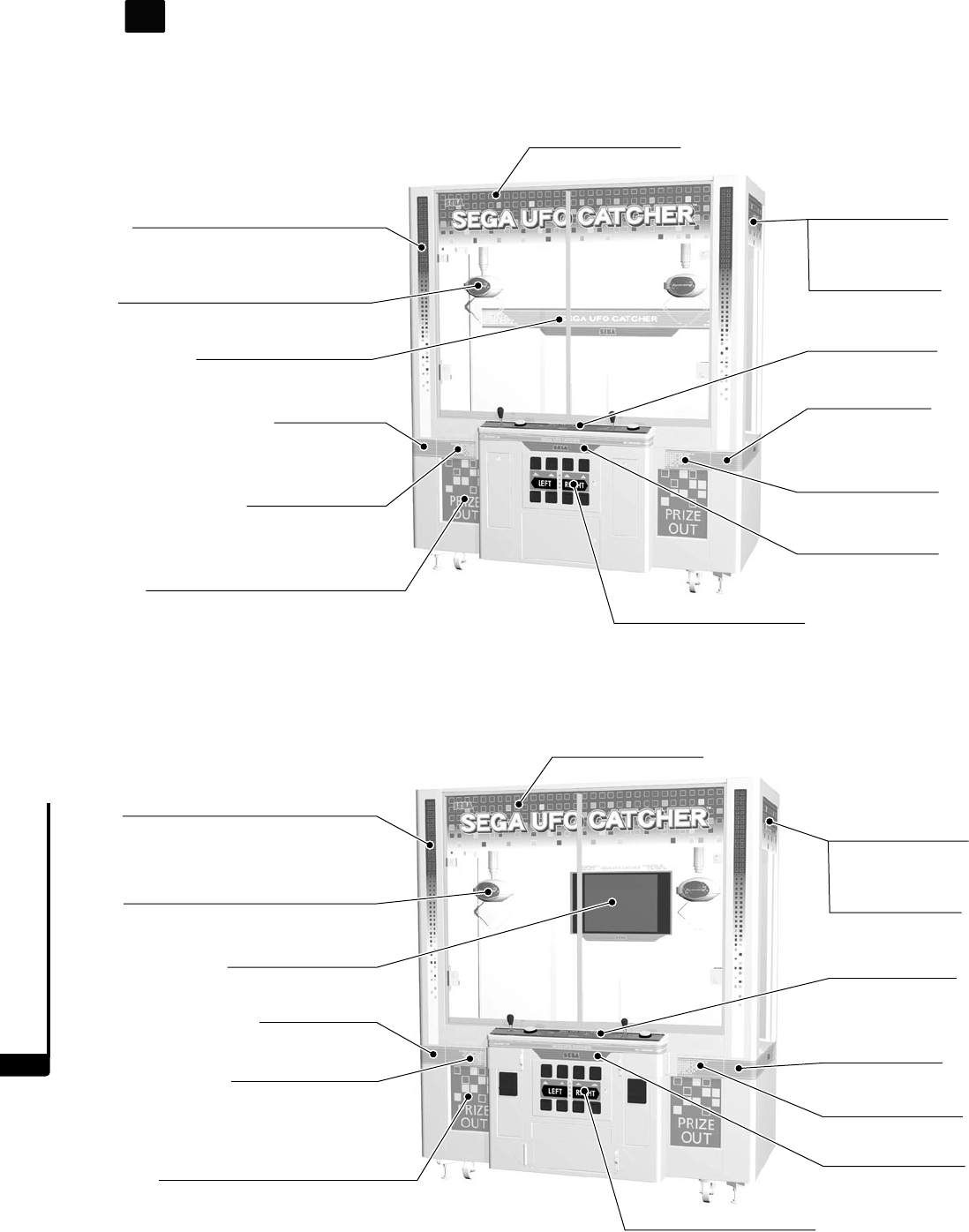

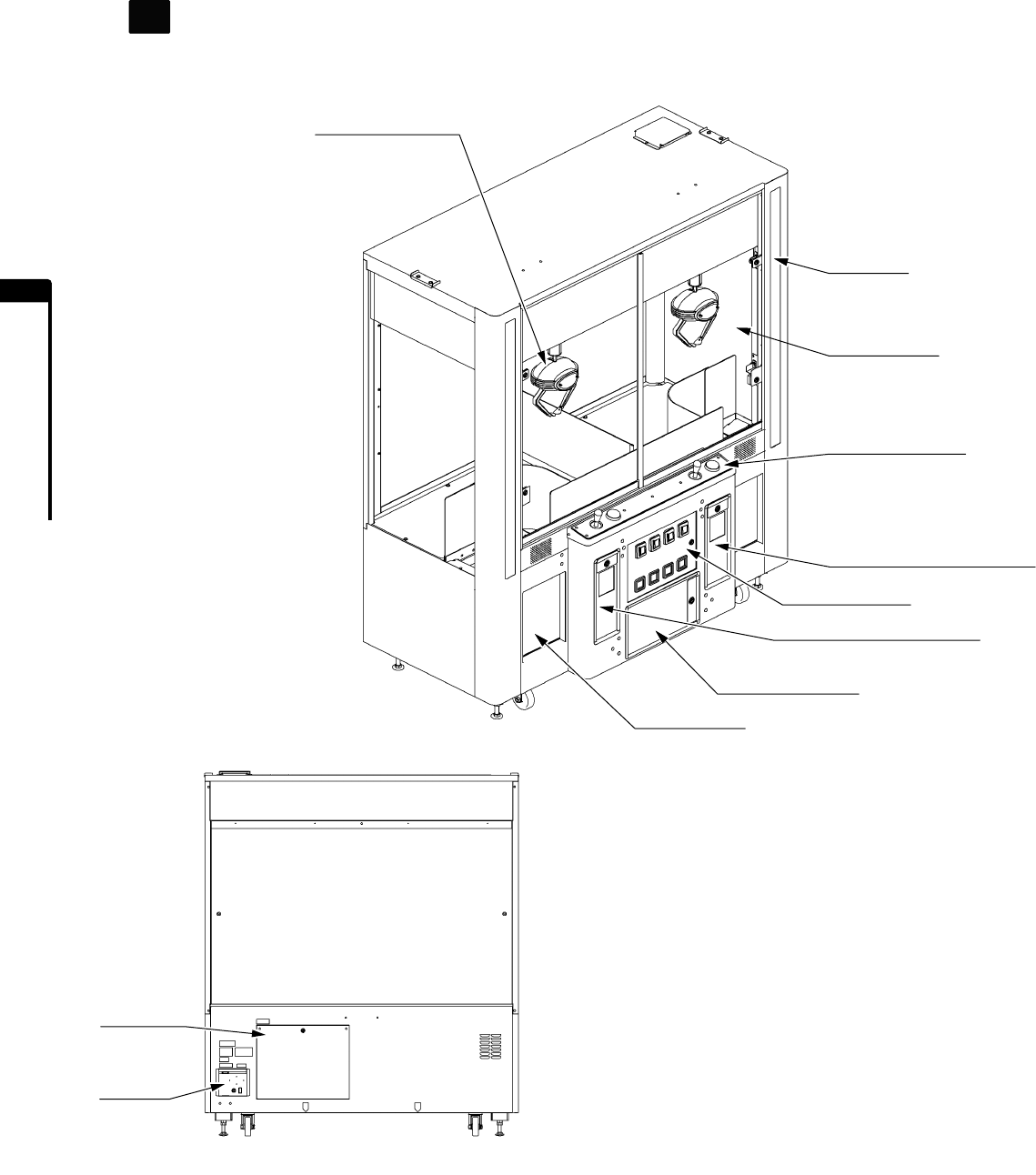

FIG. 4a Overall View

FIG. 4b Rear Panel View

NOTE: For optional items, see Section 21.

CABINET

GLASS DOOR

CONTROL PANEL

LEFT SIDE: 1P

RIGHT SIDE: 2P

SERVICE DOOR

CASH BOX DOOR

PRIZE DOOR

UFO MECHANISM

BACK LID

AC UNIT

BILL VALIDATOR DOOR 2P

BILL VALIDATOR DOOR 1P

ACCESSORIES

Conﬁrm that the accessories listed in the table below are present when setting up the product.

Accessories marked "Spare" in the usage note column are consumable items but included as spares.

TABLE 5 ACCESSORIES

DESCRIPTION: OWNER’S MANUAL

Part No. (Qty.): 420-6953 (1)

Usage notes & Diagram: This manual

Parts not labeled with part numbers are as yet unregistered or cannot be registered. Be sure to handle all

parts with care, as some parts are not available for purchase separately.

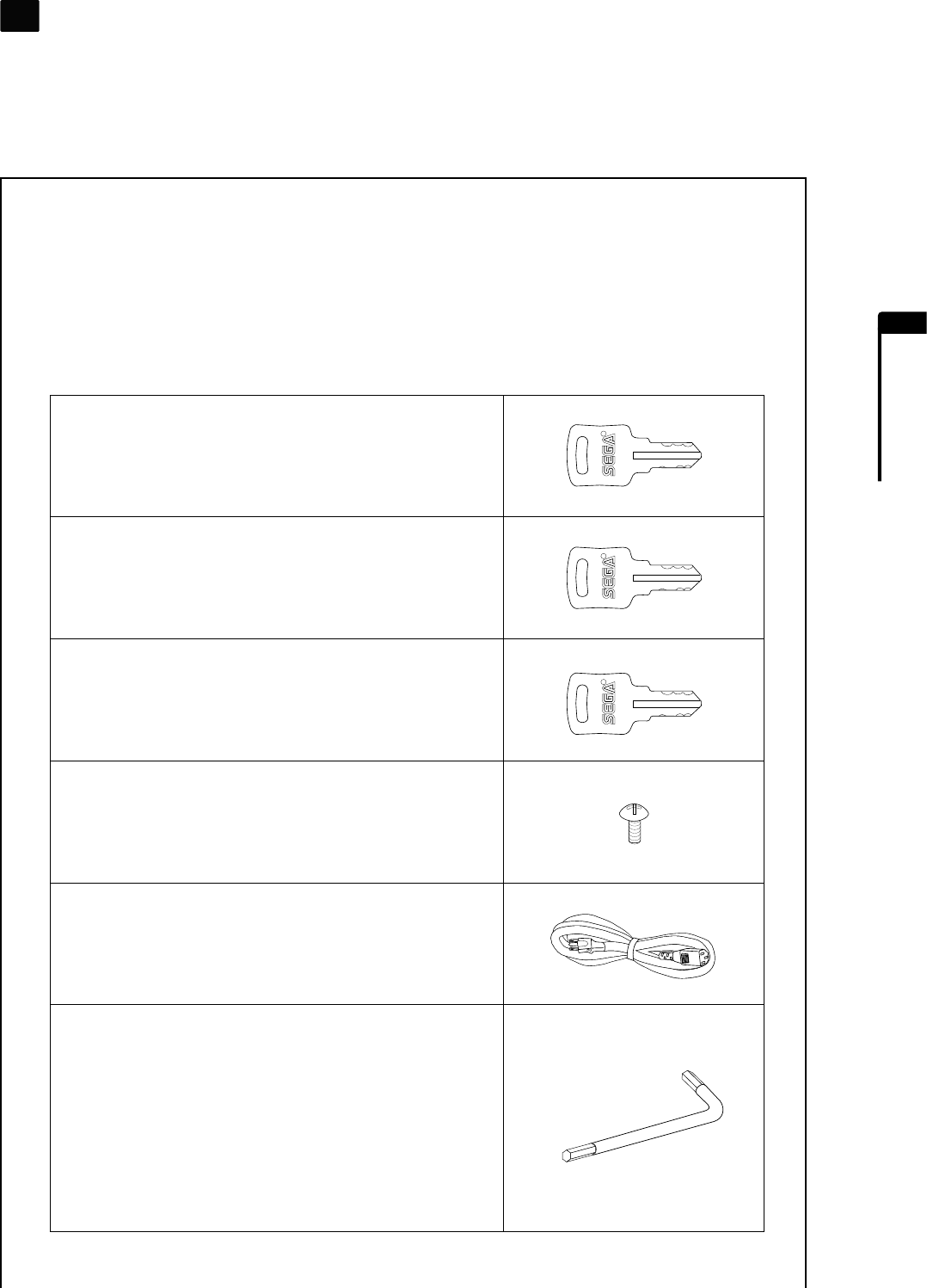

OPERATOR’S KEY

220-5793-2-A002 (4)

For opening/closing the glass door and service door

MASTER KEY

220-5793-2-A001 (2)

For opening/closing the back lid

KEYS (3 TYPES)

(2 of each)

- For cash box door

- For bill validator door 1P (left)

- For bill validator door 2P (right)

TRUSS SCREW (CHROME)

000-T00408-0C (2)

For installation, see Section 6 [2]

POWER CORD

600-7326 (1)

For installation, see Section 6 [6]

TAMPERPROOF WRENCH M4

540-0006-01 (1)

Tool

NOTE: The wrench shown in the ﬁgure is provided as an

accessory tool but a driver type tool, the 540-0018

(DRIVER TAMPER M4), is also available. If you

wish to purchase it, contact the ofﬁce indicated

on these instructions or where the product was

purchased.

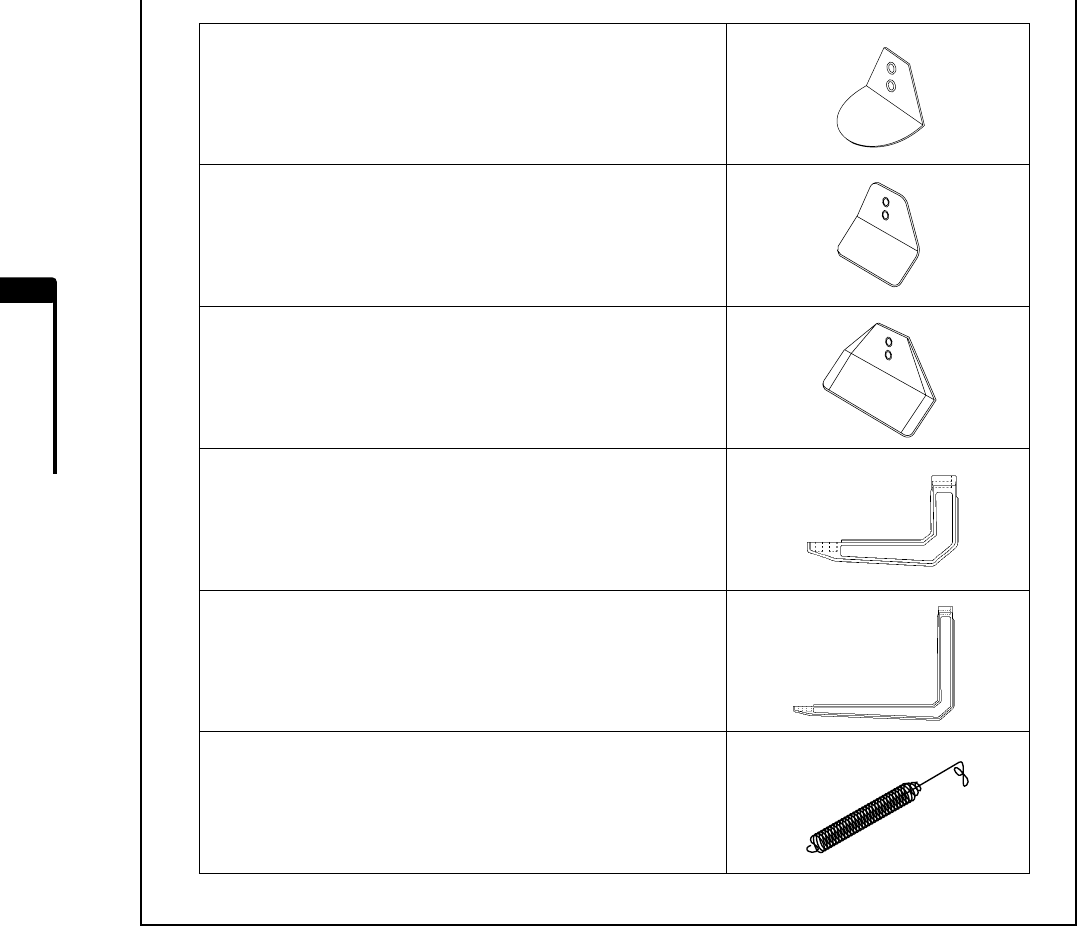

ACCESSORIES

SHOVEL W30

EG-3405Y (4)

For replacement, see Section 12-4

SHOVEL W40

MKW-2120 (4)

For replacement, see Section 12-4

SHOVEL W60

EG-3404 (4)

For replacement, see Section 12-4

ARM S

UCS-3430 (4)

For replacement, see Section 13

ARM L

UCS-3432 (4)

For replacement, see Section 13

SLIDE SPRING

USS-3418 (2)

Spare, see Section 13

INSTALLATION

To install the unit, follow these instructions in this manual carefully. If the unit is not

installed properly, it may cause personal injury or damage to the machine.

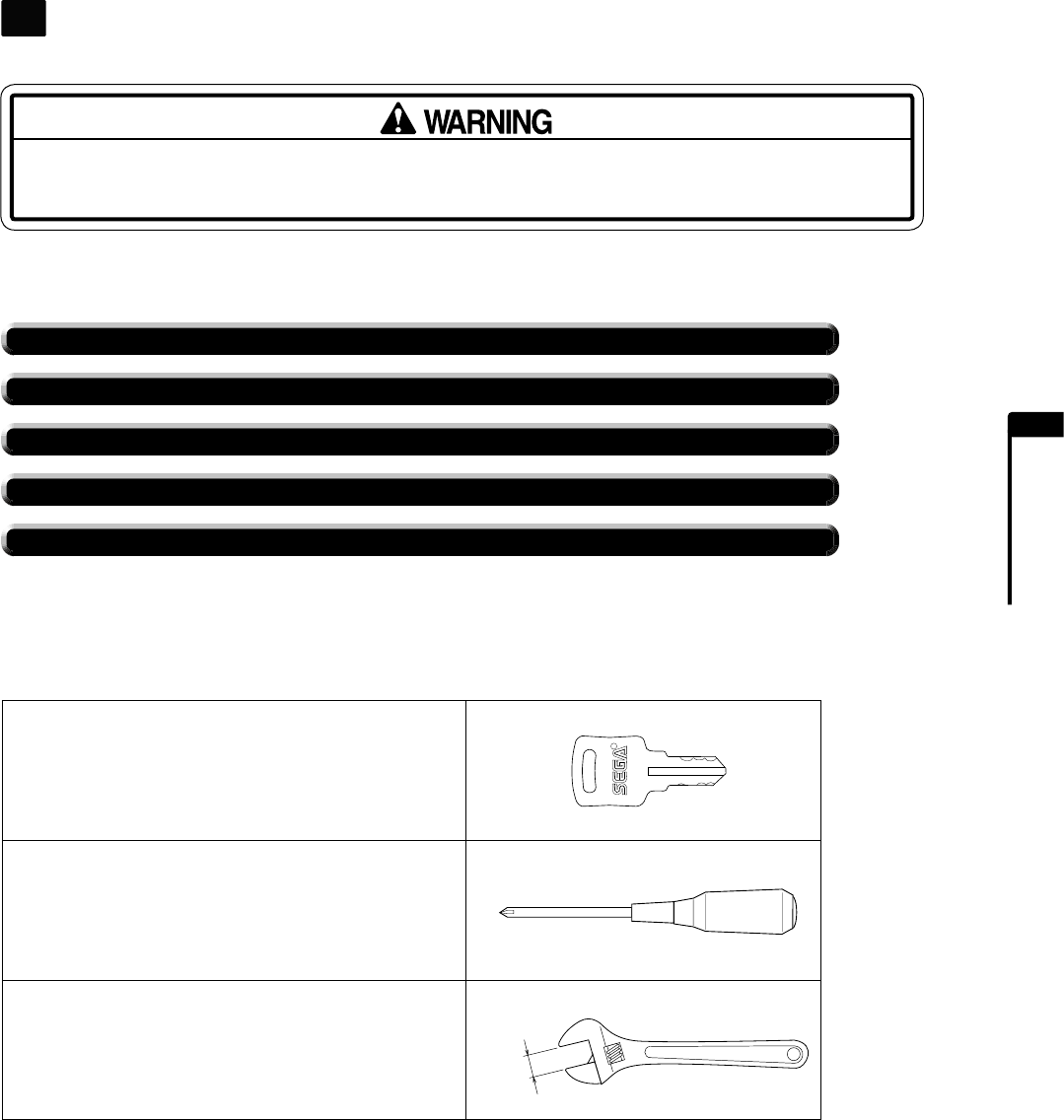

Carry out the following ﬁve steps to assemble and install the product.

For assembly and installation, you need a Philips screwdriver, adjustable wrench (for 24mm hexagonal

bolts) and the operator’s key.

OPERATOR’S KEY

PHILIPS SCREWDRIVER

(For M4 screws)

WRENCH (for M16 HEXAGONAL BOLTS)

6-1 SECURE THE UNIT AT THE INSTALLATION SITE (MANIPULATE THE ADJUSTERS)

6-2 REMOVE SHIPPING BRACKETS

6-3 ATTACH PARTITION

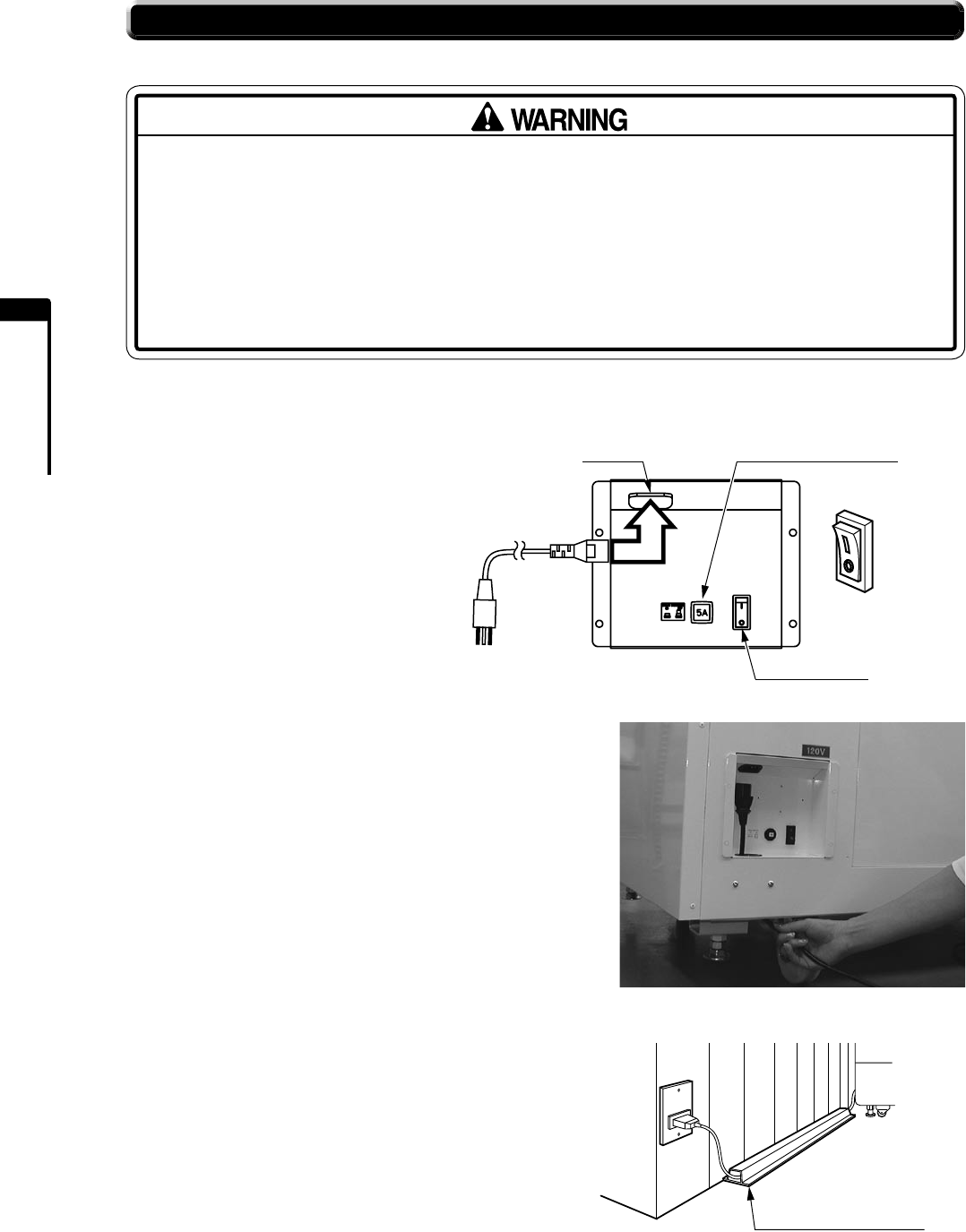

6-4 CONNECT POWER CORD

6-5 ACTIVATE POWER SUPPLY

24 mm

INSTALLATION

Make sure that all the adjusters are in contact with the ﬂoor. Otherwise the cabinet

may move, causing an accident.

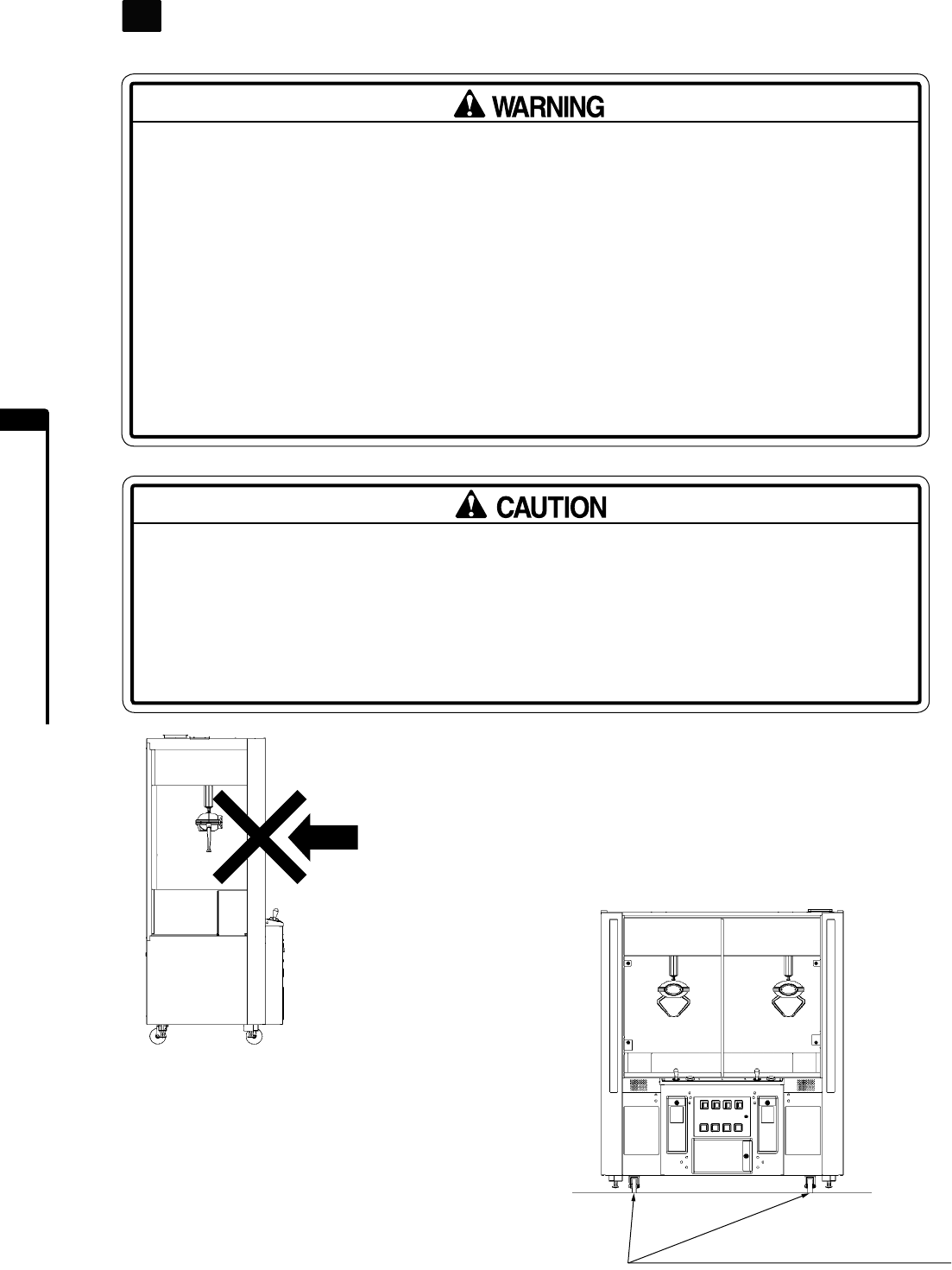

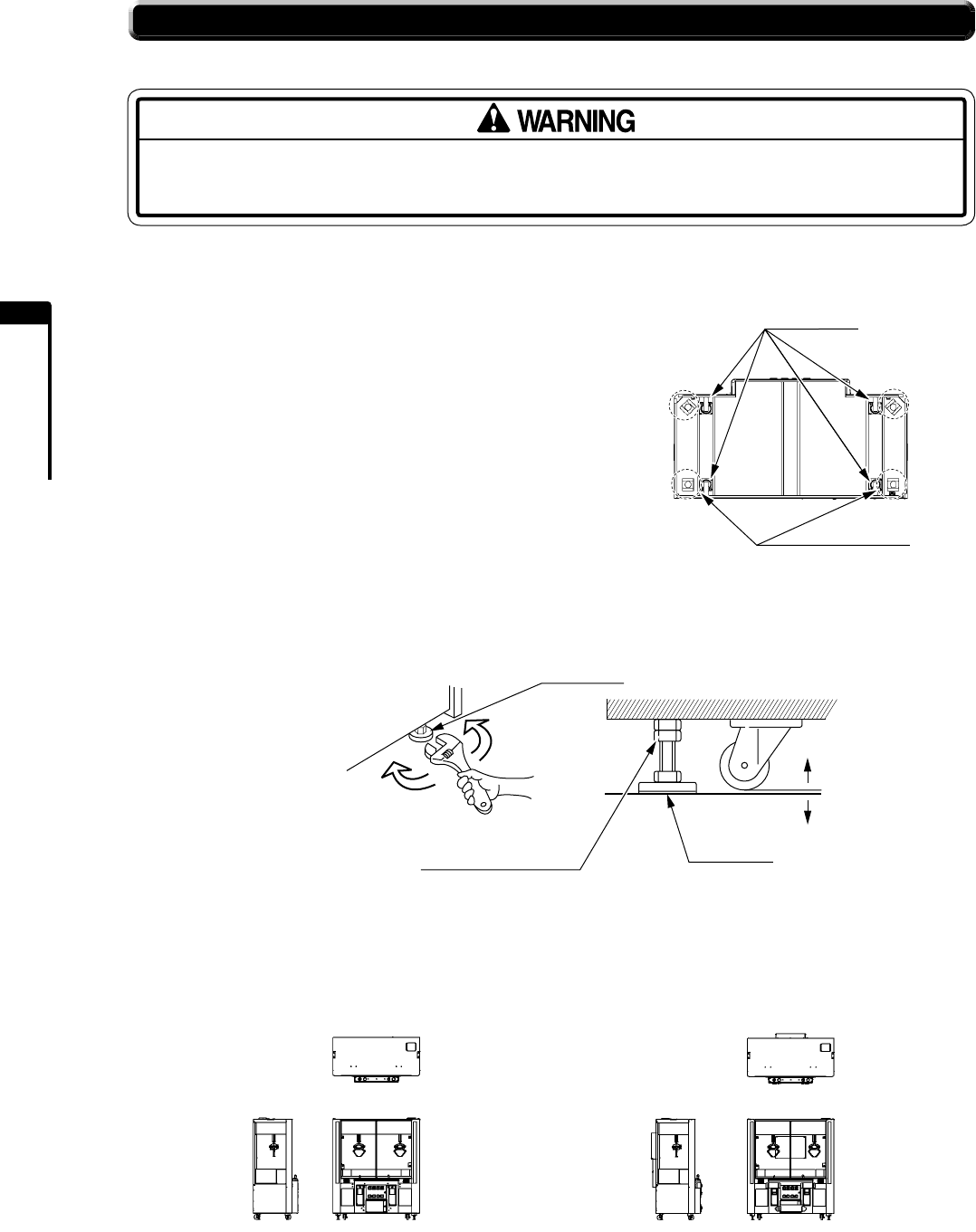

6-1

SECURE THE UNIT AT THE INSTALLATION SITE (MANIPULATE THE ADJUSTERS)

The product comes with 4 casters and 4 adjusters (Figure 6-1a). After the installation site has been determined, have

the adjusters come directly in contact with the ﬂoor, establish a gap of about 5 mm between the casters and the ﬂoor

surface, and adjust the adjusters so that the game machine is level.

1. Move the product to the installation site.

2. Adjust the adjusters so that they come in contact with

the ﬂoor. Use the wrench to adjust the heights of the

adjusters so that the game machine is level.

3. After making adjustments, tighten the adjuster nut

upwards so that the adjuster height is ﬁxed.

FIG. 6-1a Bottom View

FIG. 6-1b Adjuster in contact with ﬂoor

FIG. 6-1c Basic Cabinet FIG. 6-1d Full Options Cabinet

(See Section 21.)

A 1:100 scale view of the unit. Use it as a reference for installation site layout.

ADJUSTER (4)

CASTER (4)

ADJUSTER

Approximately 5mm

ADJUSTER

CASETER

Tighten nut upwards.

INSTALLATION

6-2 REMOVE SHIPPING BRACKETS

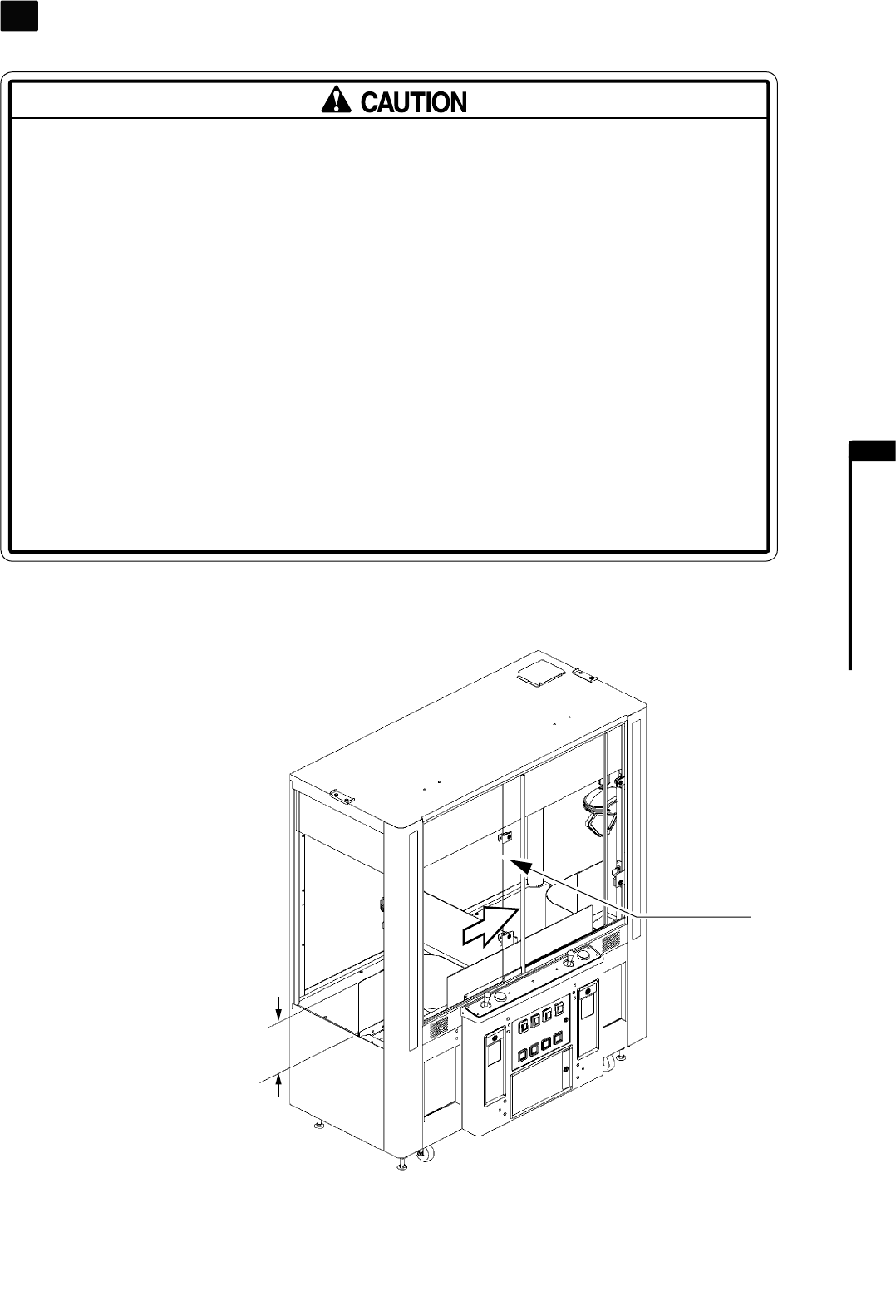

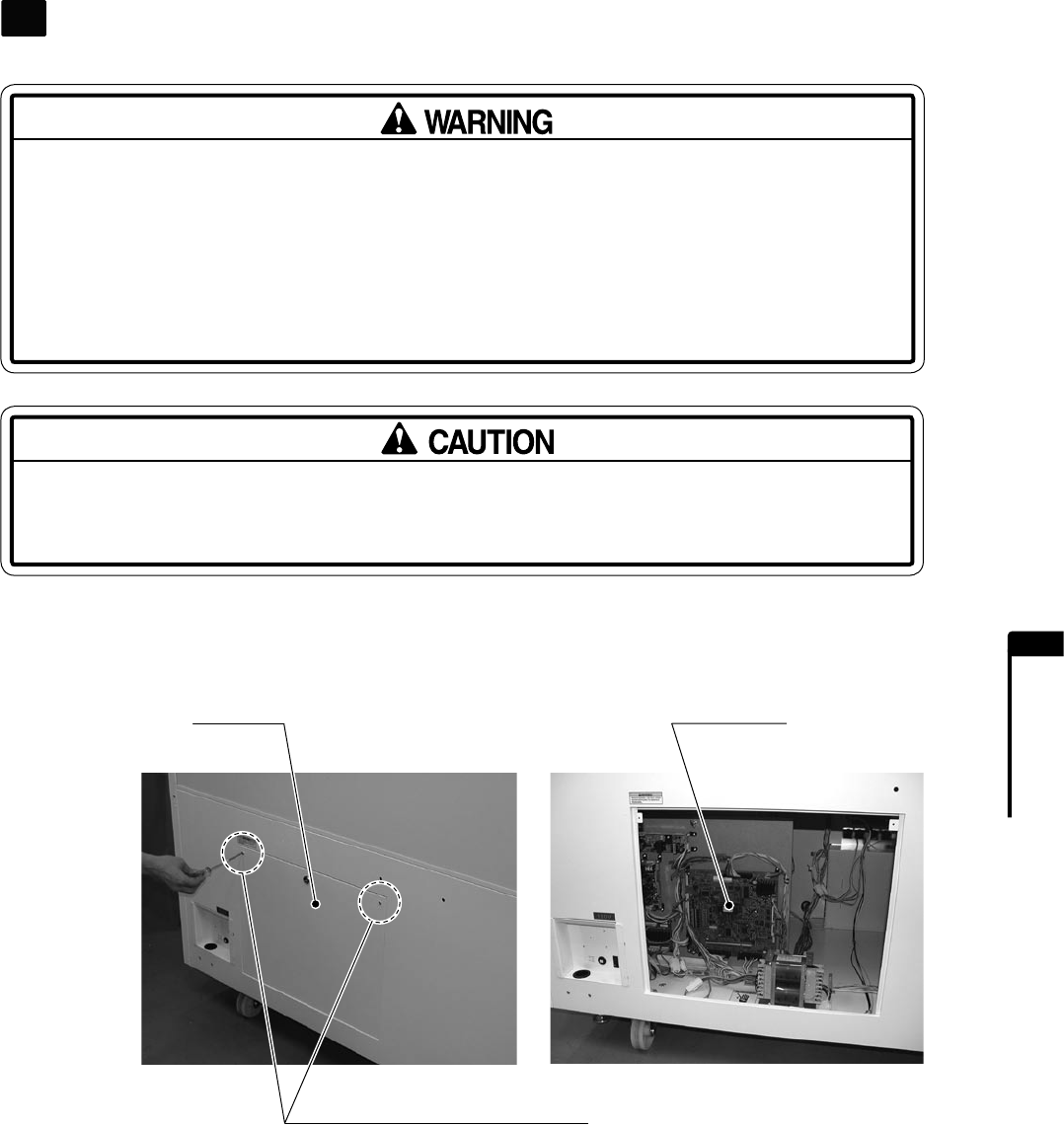

• Hold the parts to be removed ﬁrmly and then remove the screws that hold

them in place. If parts are not held ﬁrmly, they may fall and cause an accident.

• Do not move the UFO mechanism while holding onto parts not described in the

procedures. You may get your ﬁngers, etc., caught and be injured.

• The mechanism is secured in place for shipment so it will not be damaged during

transport. Before activating the power supply, be sure to remove the shipping

brackets used to secure the mechanism. If they are not removed, parts may get

damaged.

• Shipping brackets are required for preventing damage during transport. Be sure to

store them carefully.

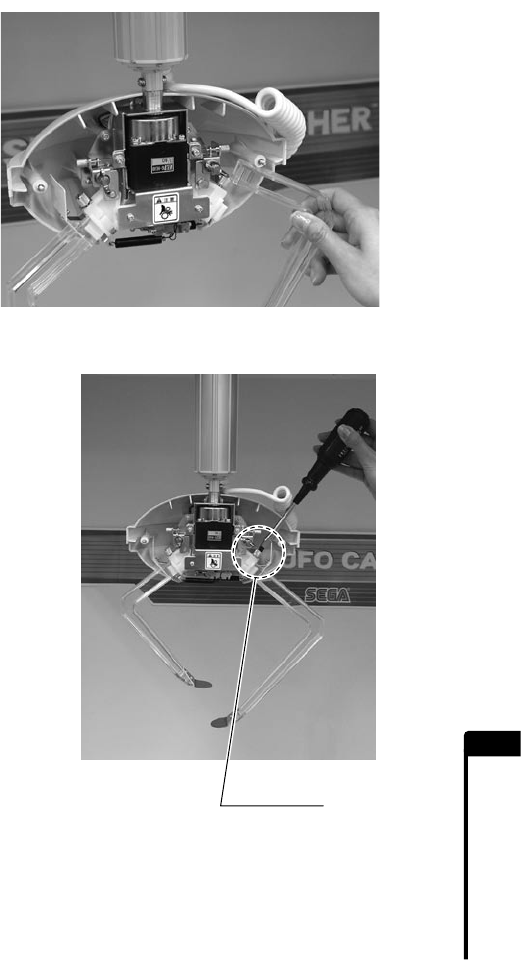

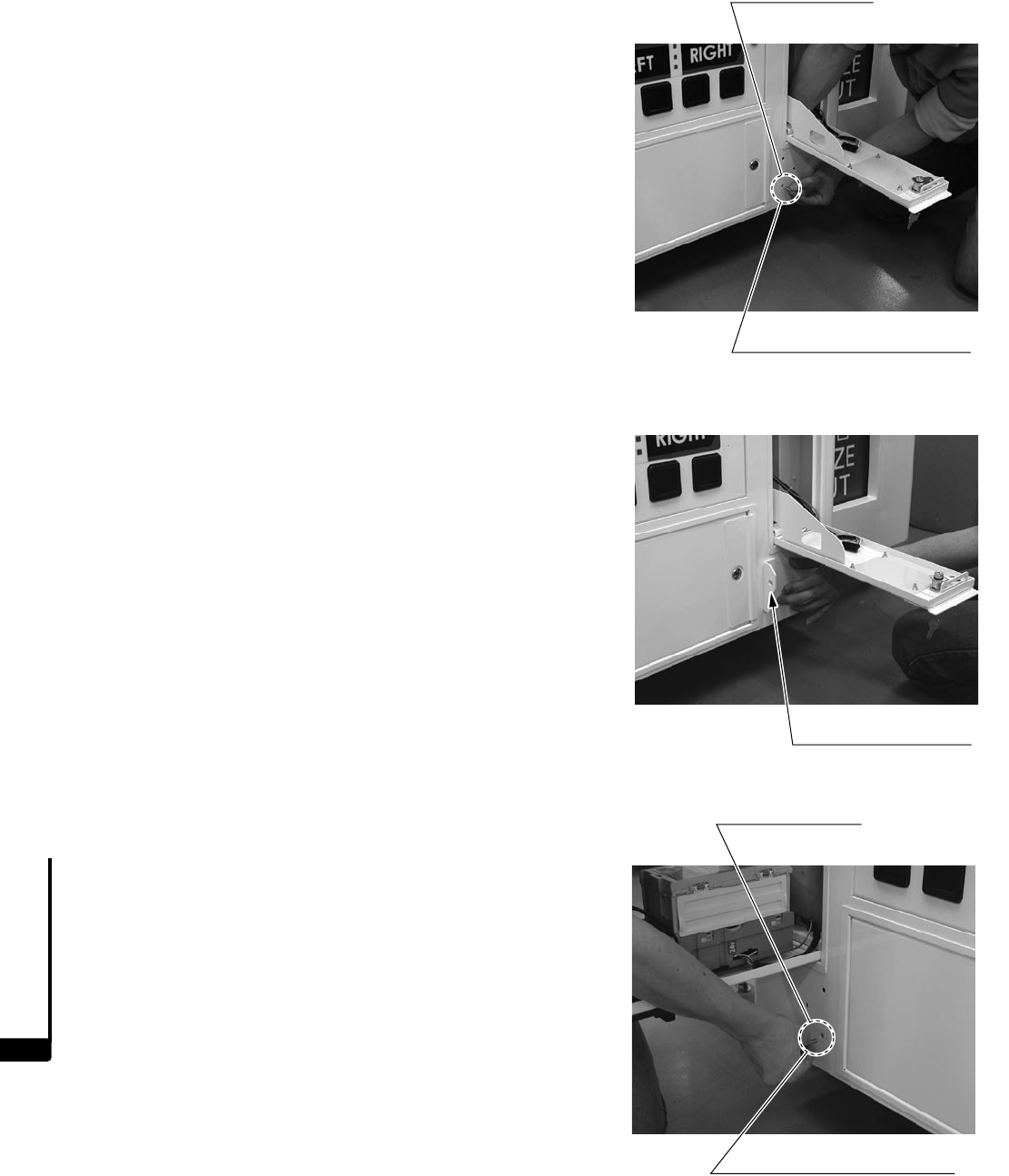

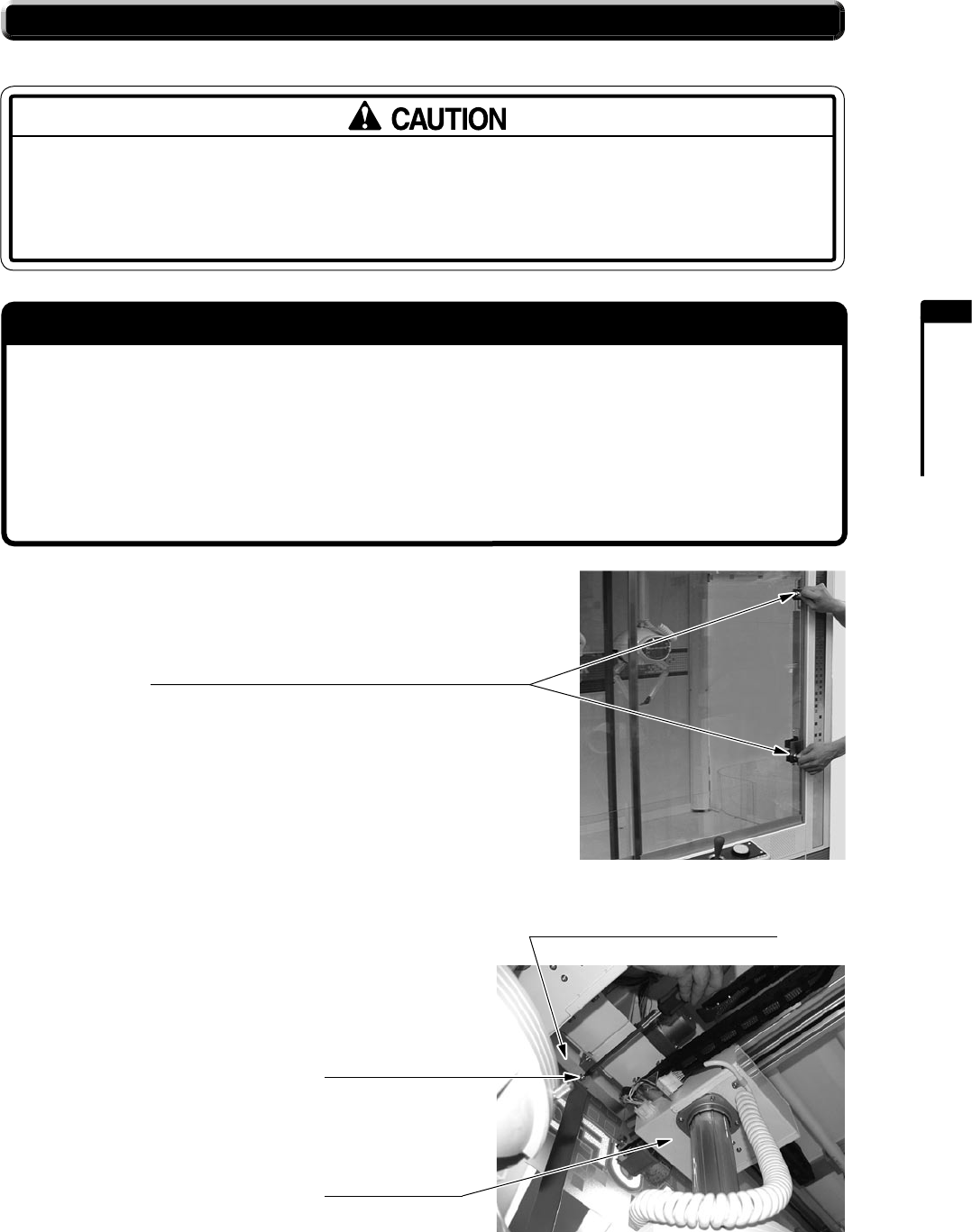

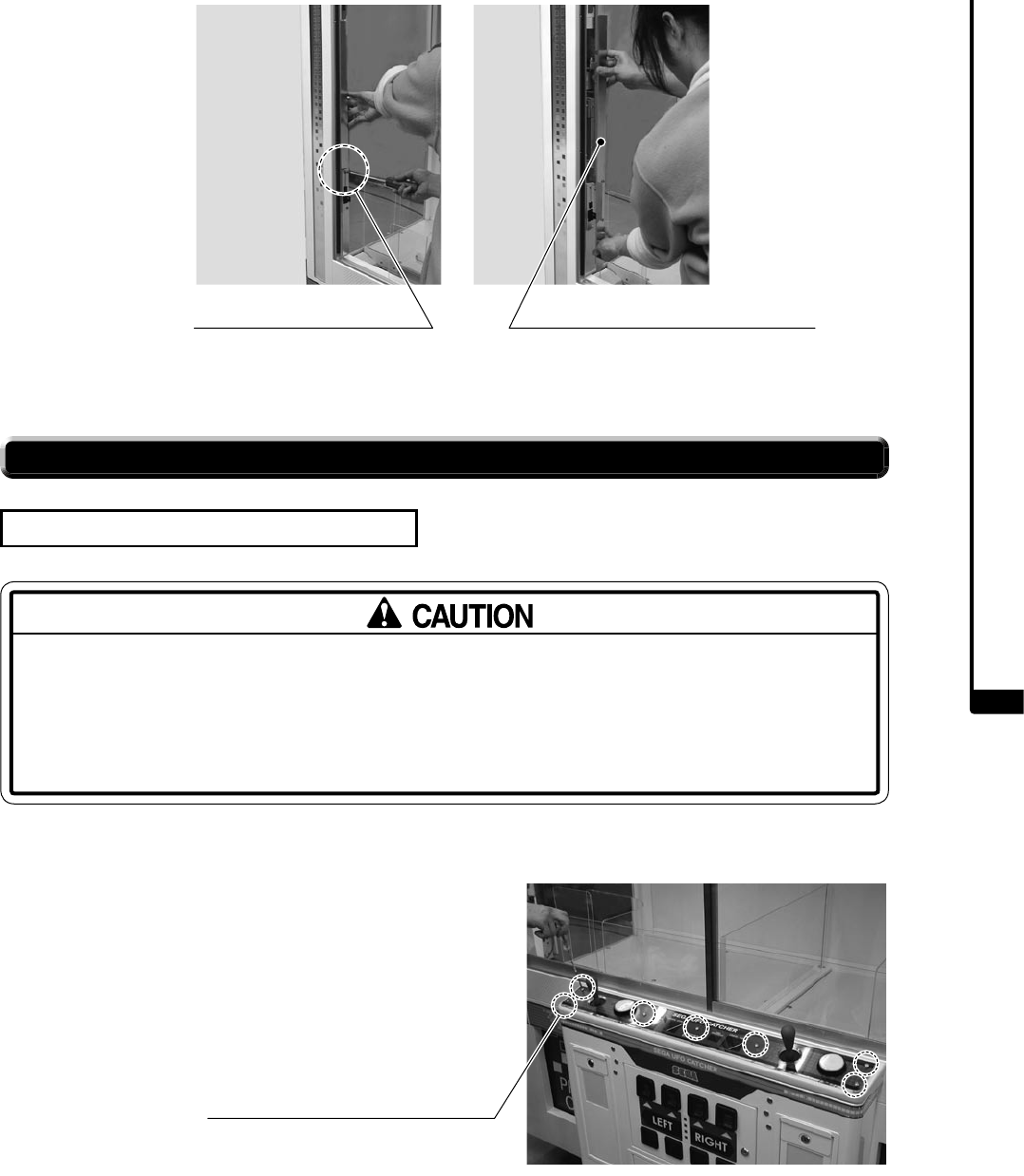

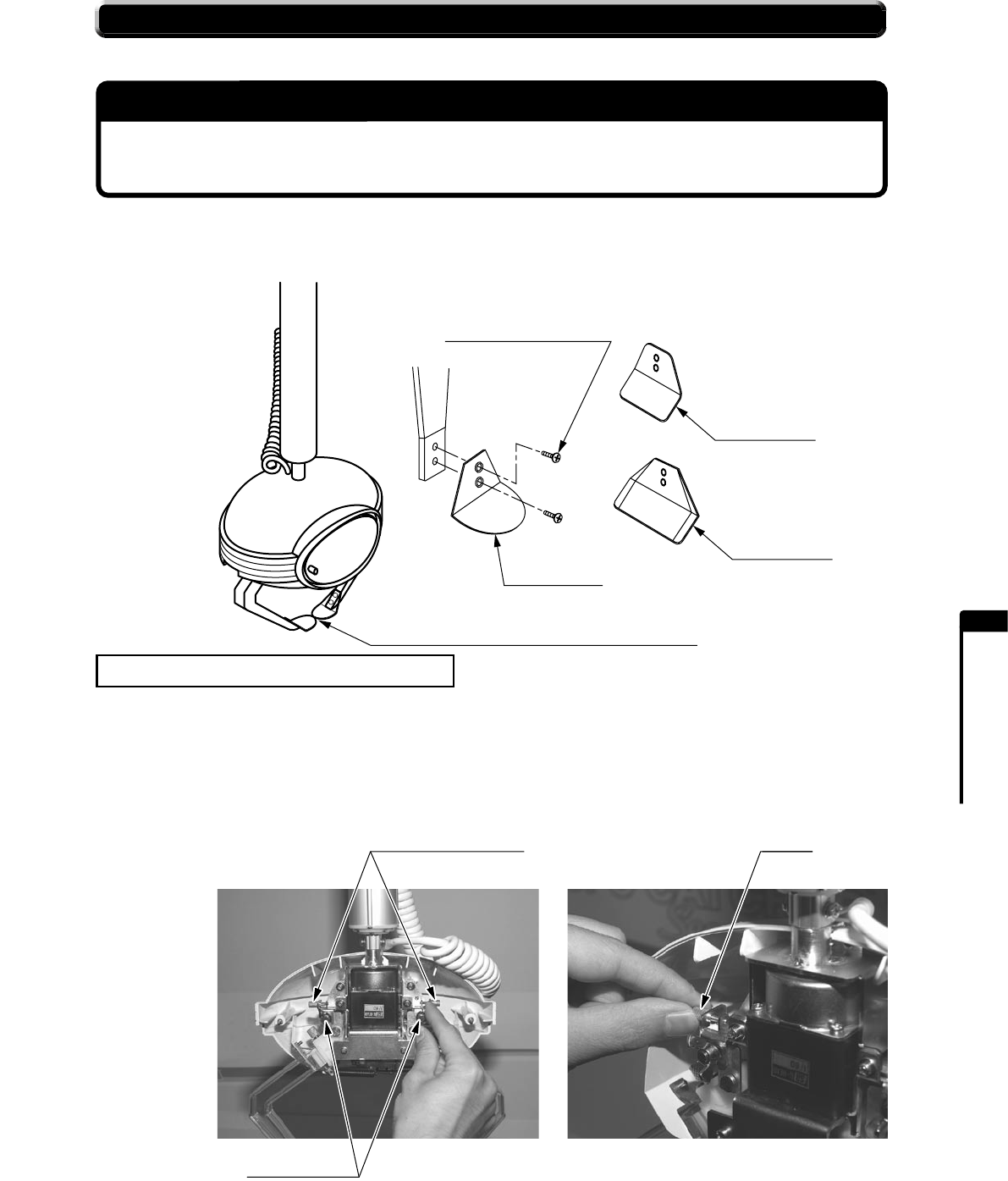

1. Open the glass door with the operator’s key.

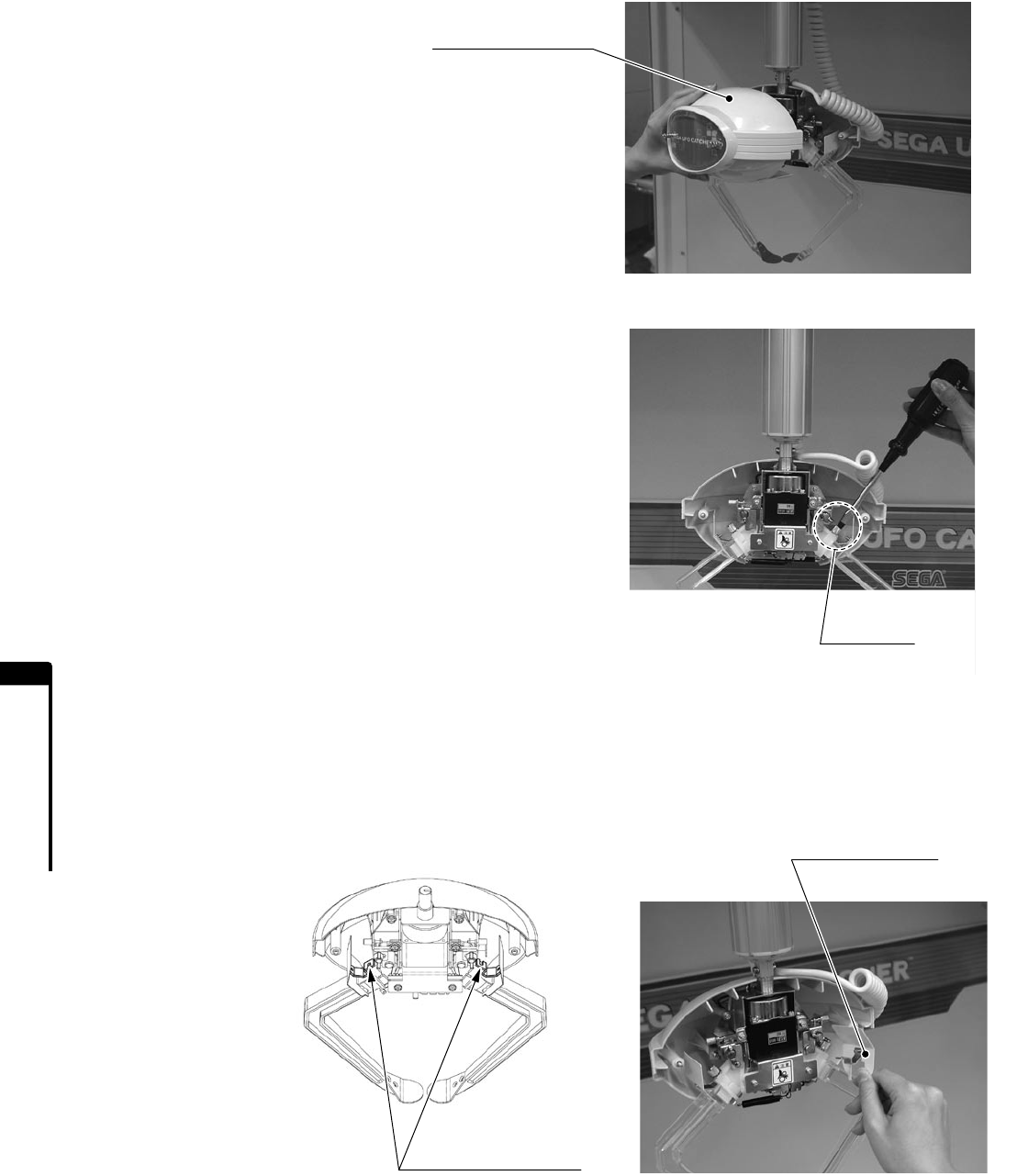

2. Remove the screw in the shipping bracket mechanism.

PHOTO 6-2a

PHOTO 6-2b

IMPORTANT

Unlock and open glass door.

(The opposite side can be opened in similar fashion)

SHIPPING BRACKET MECHANISM

M4 x 8, with flat

& spring washers

Z MECHANISM

SCREW (1)

INSTALLATION

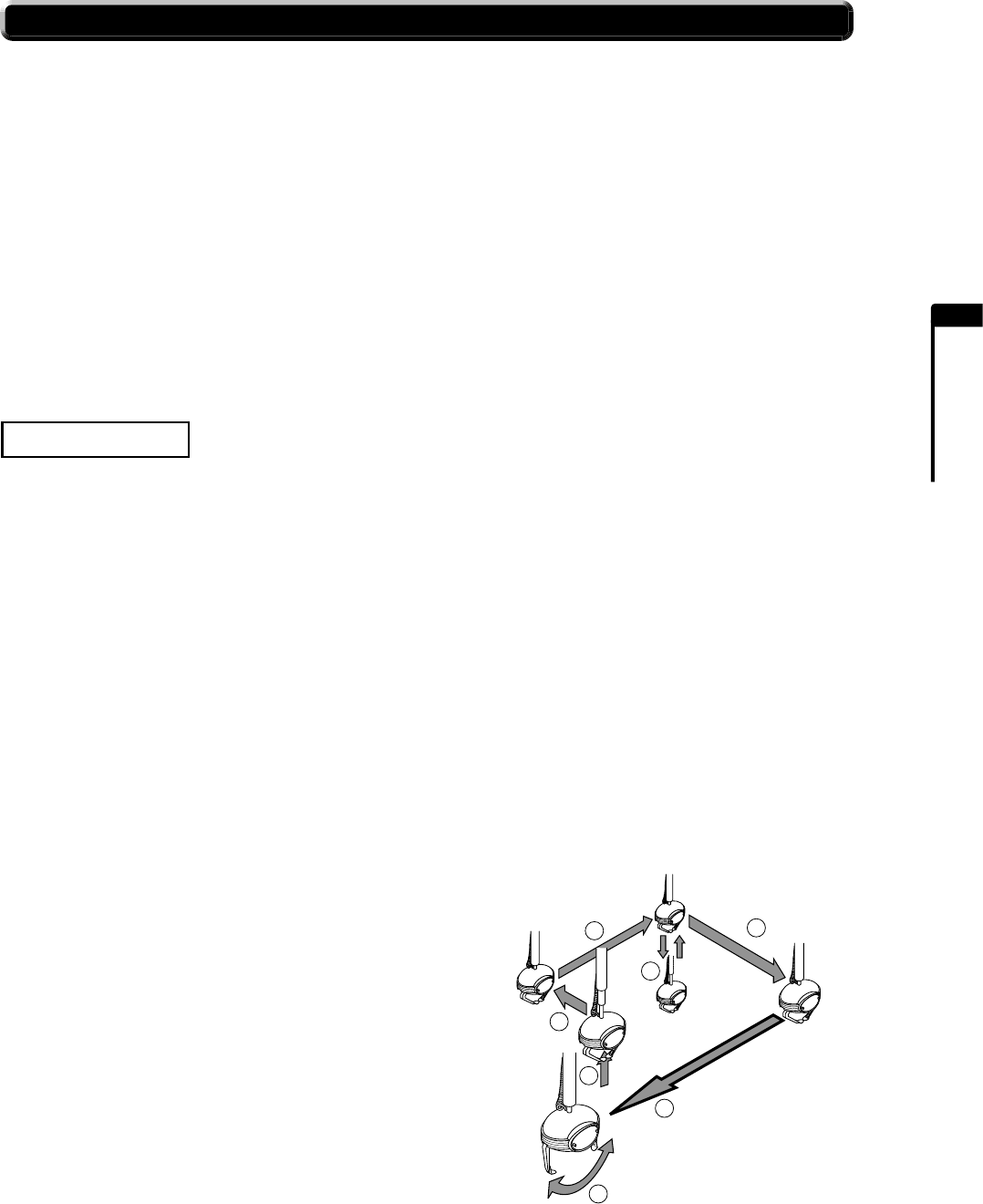

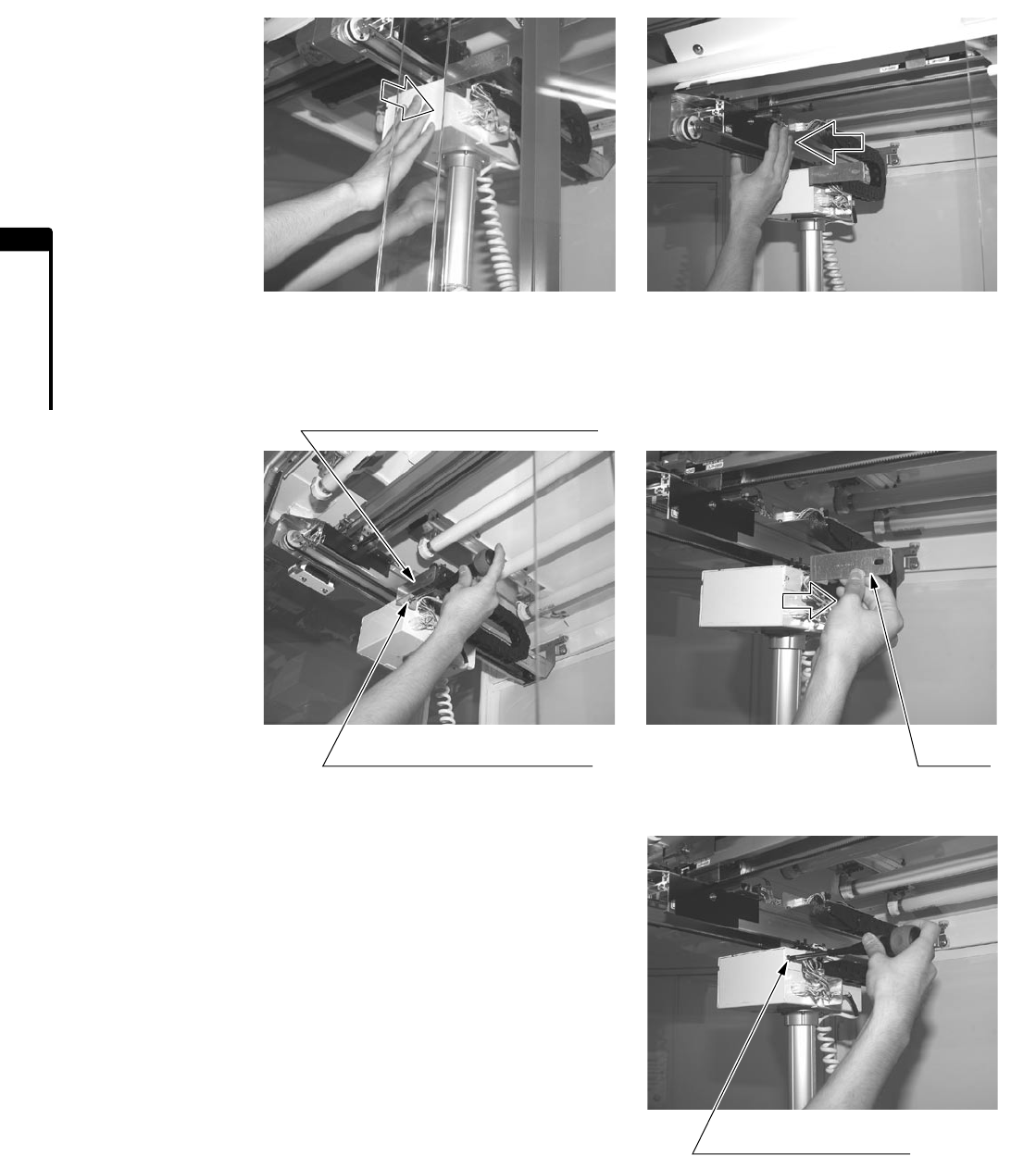

3. Move the UFO mechanism to a location where it will be easy to work. Place hand as shown in the photo and

move the mechanism. Do not move holding other parts as you may get your ﬁngers caught and be injured. Also,

the mechanism itself may become damaged.

4. Remove the screw. Make sure to hold the shipping bracket mechanism so it will not fall down, then remove the

screw.

5. Secure in place with the accessory truss screw.

6. Perform steps 3, 4, and 5 again on the opposite side.

PHOTO 6-2c

PHOTO 6-2d

PHOTO 6-2e

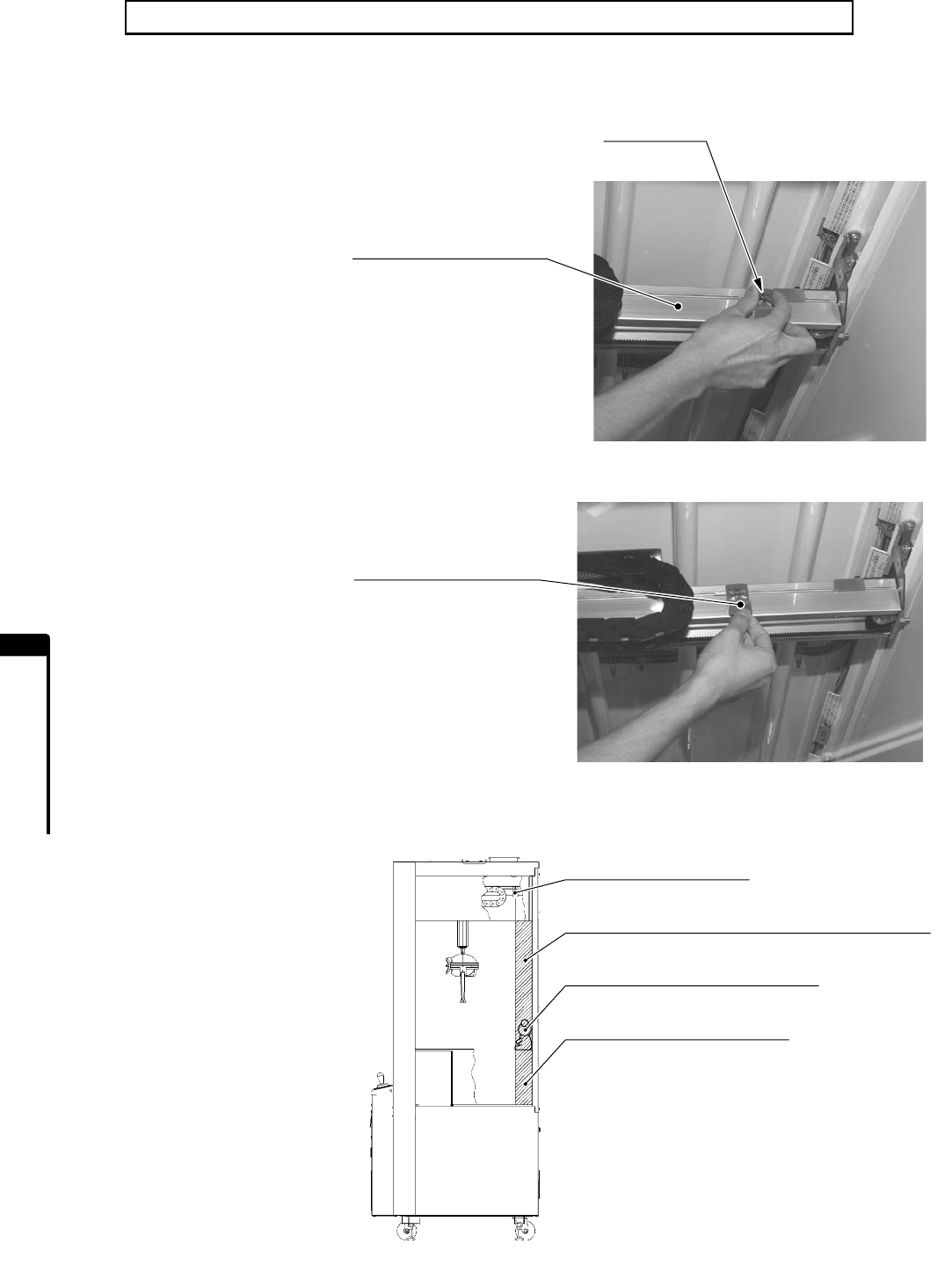

SHIPPING BRACKET MECHANISM

Remove

M4 x 8, with flat & spring washers

SCREW (1)

M4 x 8

TRUSS SCREW (1), chrome

INSTALLATION

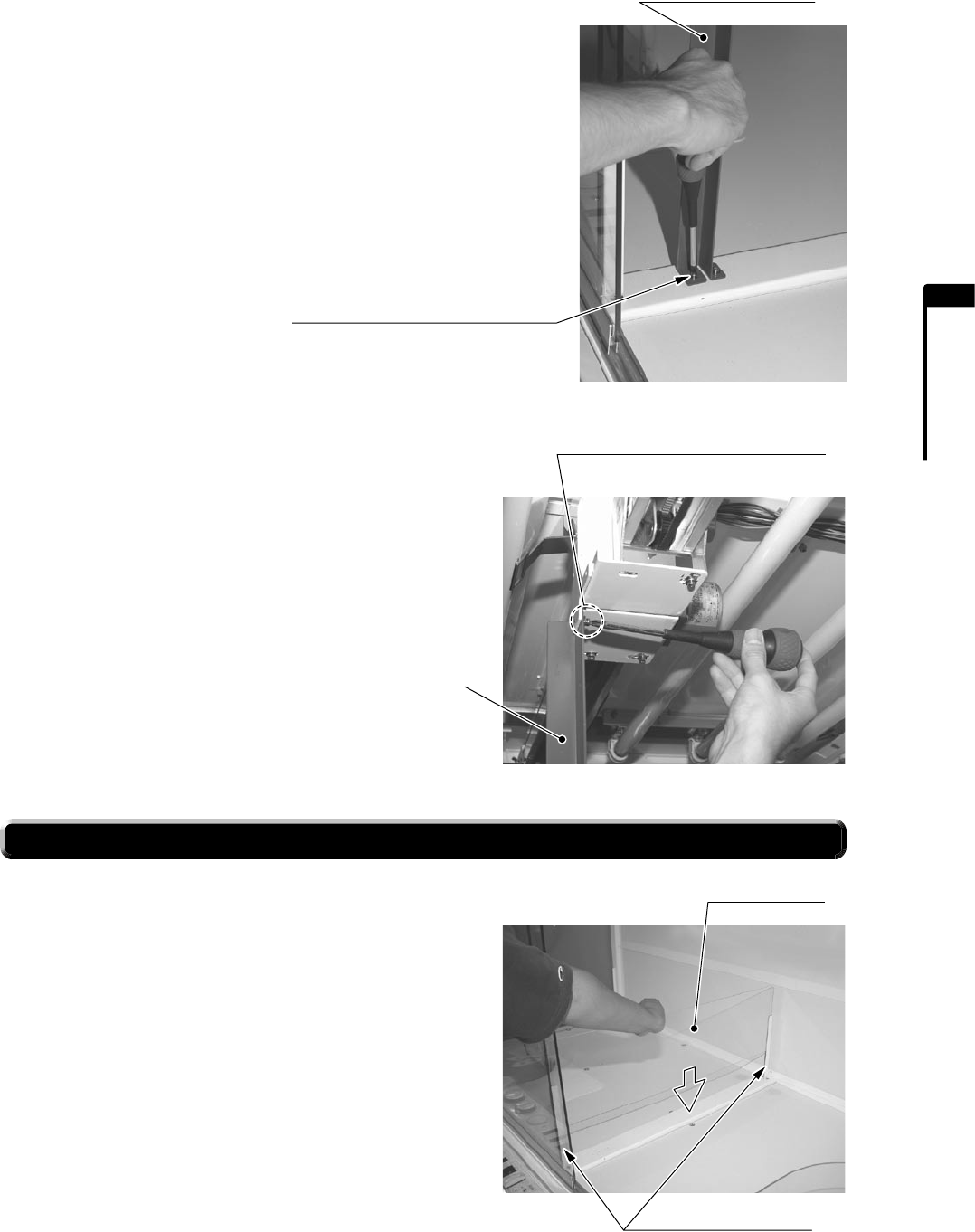

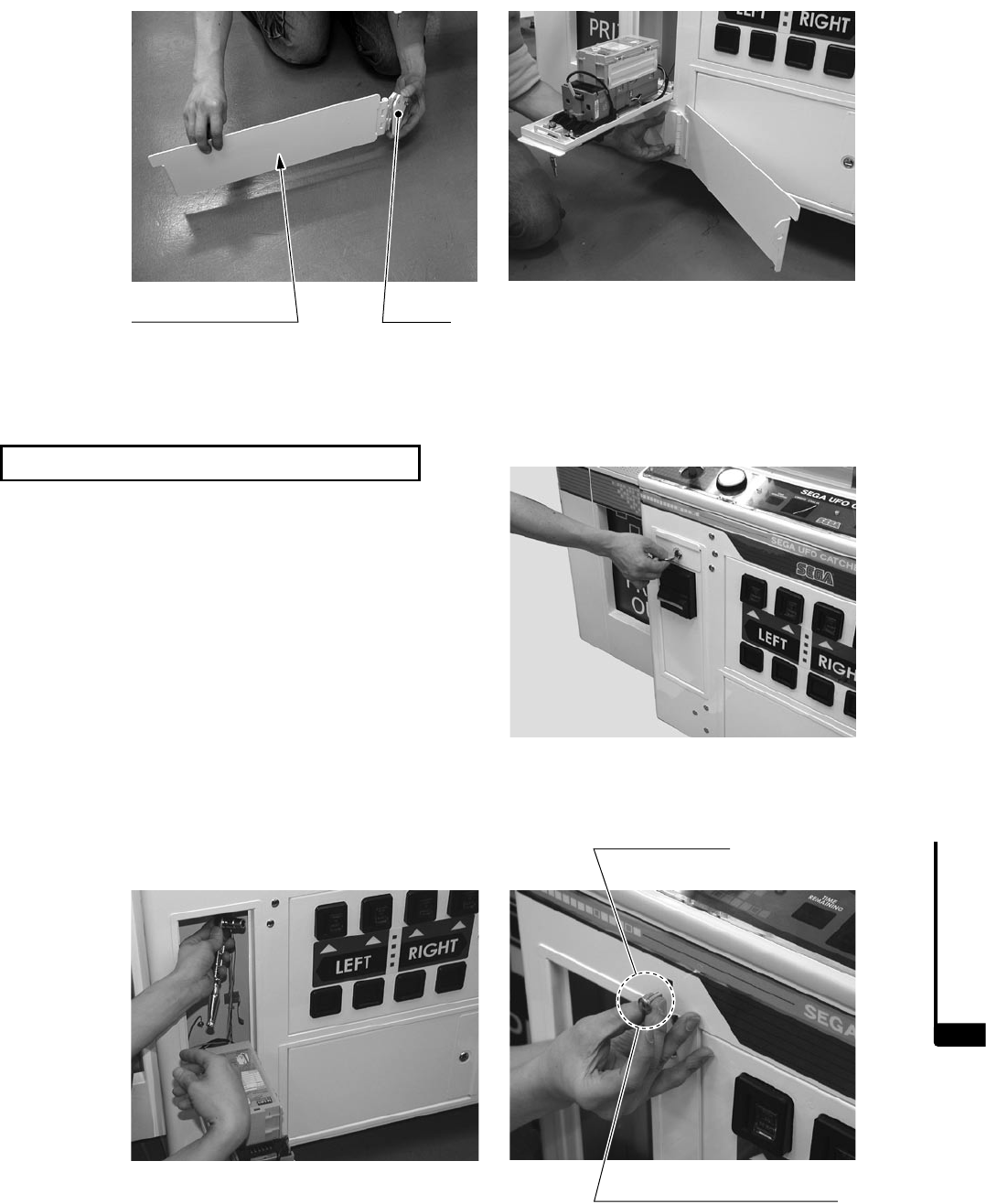

7. Remove the two screws at the bottom of the shipping

center bar.

8. Remove the screw at the top of the shipping center

bar.

Make sure to hold the shipping center bar, then

remove the screw.

6-3 ATTACH PARTITION

When attaching the partition, insert the partition CL into

the partition bracket CL.

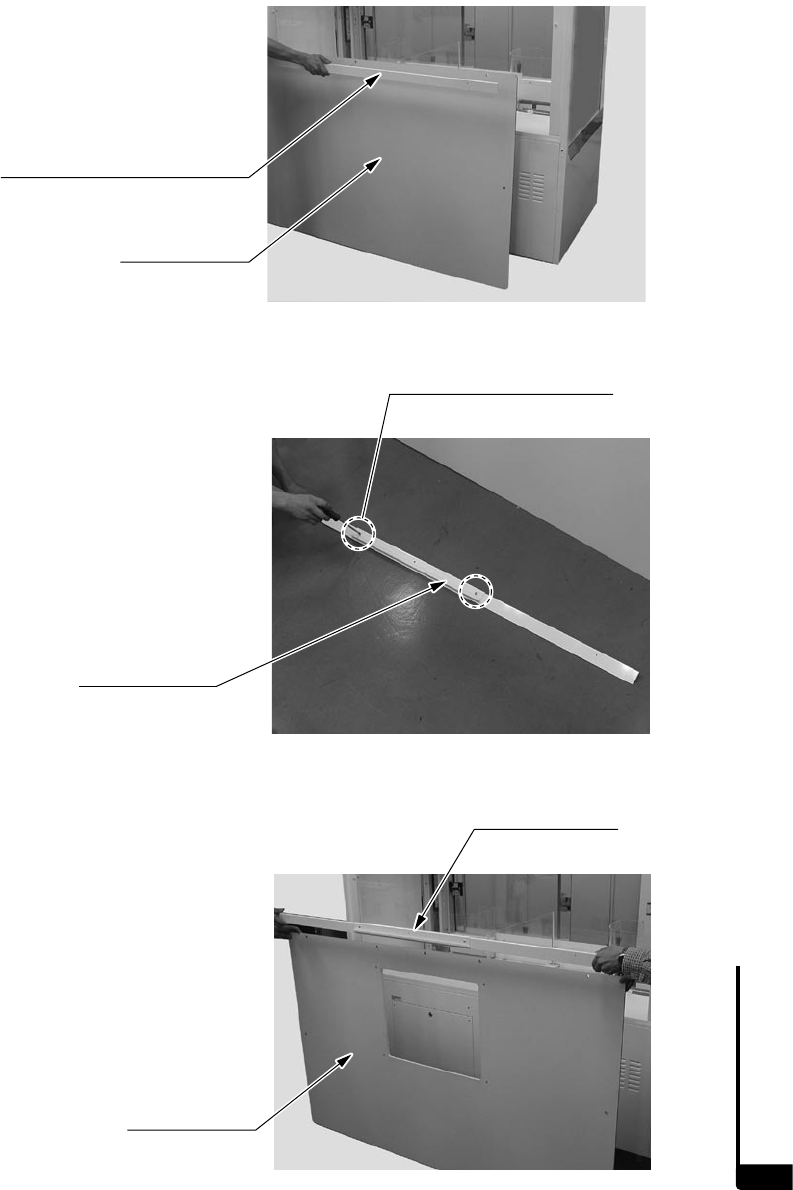

PHOTO 6-2f

PHOTO 6-2g

PHOTO 6-3

SHIPPING CENTER BAR

M4 x 8, with flat & spring washers

SCREW (2)

SCREW (1)

M4 x 8, with flat & spring washers

SHIPPING CENTER BAR

PARTITION CL

PARTION BRACKET CL

INSTALLATION

• Use a power supply equipped with an electric leakage circuit breaker. If you

use a power supply without an electric leakage circuit breaker, a short circuit

may occur and start a ﬁre.

• After laying out the power cord on the ﬂoor, make sure that it is securely

protected from exposure. If the cord is exposed anywhere, it could easily be

damaged if a customer should trip or stumble over it. Such damages could

cause accidents from electrical shocks or short circuits. Either lay out the cord

so it will not interfere with customer trafﬁc, or protect it with a cover.

6-4 CONNECT POWER CORD

1. There is an AC unit on the cabinet rear panel. The AC unit has a main switch and an inlet for connecting the power

cord.

2. Conﬁrm that the main switch is OFF.

3. The power cord is inserted from the bottom of the

cabinet and comes out through a hole in the AC unit.

However, it is not absolutely necessary to pass the

cord through the hole. In some cases, depending on

the environment in which the unit will be used, you

can connect the power cord directly into the inlet.

4. Insert the power cord connector into the inlet securely.

5. Insert the power cord plug into the power outlet

securely.

6. Lay out the power cord. Place a cover over the laid

out power cord so that it will be protected.

FIG. 6-4a AC Unit

PHOTO 6-4

FIG. 6-4b Power Card Layout

CIRCUIT PROTECTOR

MAIN SWITCH

MAIN SWITCH OFF

INLET

To power outlet

POWER CORD COVER

INSTALLATION

6-5 ACTIVATE POWER SUPPLY

On this product, there is a power supply switch on the AC unit on the cabinet rear panel and on the internal switch

unit. (The internal switch unit is inside the service door. Use the operator’s key to open the service door.)

Even when both of these switches are ON, there will be no power unless the glass doors on right and left are closed

securely. Normally, leave one of these switches ON and turn the other power supply switch ON/OFF to use.

When the power supply is activated, the billboard, the internal ﬂuorescent lighting, and the left and right ﬂuorescent

lights all turn on.

Now we will check the operation (initialization) of all motors and sensors in the UFO mechanism of this product.

These operations are also carried out upon completion of the test mode.

When in [Display mode], all of the 7-segment displays (numeric display, hereafter “7-seg display”) read “-”, the

game cannot be played, and coins are returned. Initialization also does not take place. (See Section 12.)

INITIALIZATION

During initialization, the UFO mechanism moves in the following sequence.

If an error is discovered during this series of operations, an error message is displayed and the UFO mechanism

stops. (See Section 19)

1. UFO returns to home position (above the prize drop-out slot).

2. UFO moves toward the back of the cabinet. When it reaches the back limit, the UFO stops.

3. UFO moves sideways toward the center of the cabinet. When it reaches the center limit, the UFO stops.

4. UFO descends. When it reaches the lower limit, the UFO rises. Upon reaching the upper limit, the UFO stops.

5. UFO moves toward the front of the cabinet. When it reaches the front limit, the UFO stops.

6. UFO moves sideways toward the home position. Upon reaching the home position, the UFO stops. During stages

1 to 6 above, the UFO arm remains at the angle it assumed when the power supply was activated.

7. The UFO arm opens and closes.

8. After the arm closes, the catch sensor inside the UFO is initialized. This operation cannot be seen, but an error

message will be displayed if there is an error in the sensor.

FIG. 6-5 Initialization of UFO mechanism on player 1 side (left seat)

When the above initialization procedures are complete,

the customer-standby status is assumed.

In this product, credits are remembered even if the

power has been cut off. However, partial credits attained

for multiple coins and bonus adder counts are deleted.

If credits remain, the game-play status is assumed upon

completion of initialization.

PRECAUTIONS WHEN MOVING

Carefully observe the following when moving the product. Failure to follow these

instructions may result in personal injury during movement and/or damage to the

cabinet.

• Disconnect the power cord plug before moving the product. Be careful not to

damage the power cable during movement.

• To move the product over the ﬂoor, retract the adjusters and have the casters

come in contact with the ﬂoor.

• After the casters are in contact with the ﬂoor, exercise special caution, as the

unit could move by itself if the ﬂoor is inclined.

• To lift the cabinet, always lift it holding the bottom. If you lift the cabinet holding

other areas, parts or attachments could be damaged due to the weight of the

cabinet.

• Do not press on glass components while moving the product. Careless

handling could cause damage to other parts. Fragments may also cause

injury.

• When moving the cabinet over areas with level differences and the cabinet

is projected to tilt due to the incline, attach shipping brackets and secure the

UFO mechanism in place. If the UFO mechanism is not secured in place, parts

could be damaged.

FIG. 7b

FIG. 7a

Move cabinet after casters

are in contact with the floor

Do not press on glass components.

Do not press on glass components

while moving the product.

Otherwise glass may be damaged and

cause injuries. Press on the cabinet's

metal plates.

PRIZE REPLACEMENT

PRIZE REPLACEMENT8

• Observe and follow the conditions listed below for prizes used with this product.

Failure to follow the conditions could lead to product malfunctions and

components may be damaged. The prizes themselves may also be damaged.

• Prizes can be stacked up to a maximum height of 40 cm (15.7 in), and 800 g

(1.8 lb) or less in weight. If this limit is exceeded, there could be product

malfunctions and components may be damaged. The prizes themselves may

also be damaged.

• Exercise special care when handling glass components. Careless handling

could cause damage to the glass. Fragments may also cause injury.

• If the larger arm L has been attached, enlarge the prize drop-out slot for large-

size prizes. Otherwise there could be malfunctions or damage when the arm

makes contact. The prizes themselves may also be damaged.

• Do not place prizes on, or suspend them from, the mechanism rail or moveable

parts. This could cause product malfunctions and components may be

damaged.

• Even if prizes meet the conditions set forth in these instructions, there could be

unexpected faulty operations due to prize materials, shapes, and/or centers of

gravity.

Use the operator’s key to open the glass door, then place prizes in the play ﬁeld.

FIG. 8

Prizes can be stacked up to

a maximum height of 40 cm (15.7 in),

and 800 g (1.8 lb) or less in weight.

GLASS DOOR

PRIZE REPLACEMENT

CHANGING THE PRIZE DROP-OUT SLOT

If arm L has been attached for large-size prizes, enlarge the prize drop-out slot.

(These instructions are for the 2P side drop-out slot.)

1. Loosen the 2 plastic-head screws.

2. Support the bottom of the corner partition and slide it

to widen the drop-out slot. Do not press down on the

top of the corner partition (acrylic) to slide. Excessive

force could damage components.

3. Tighten the 2 plastic-head screws that were loosened.

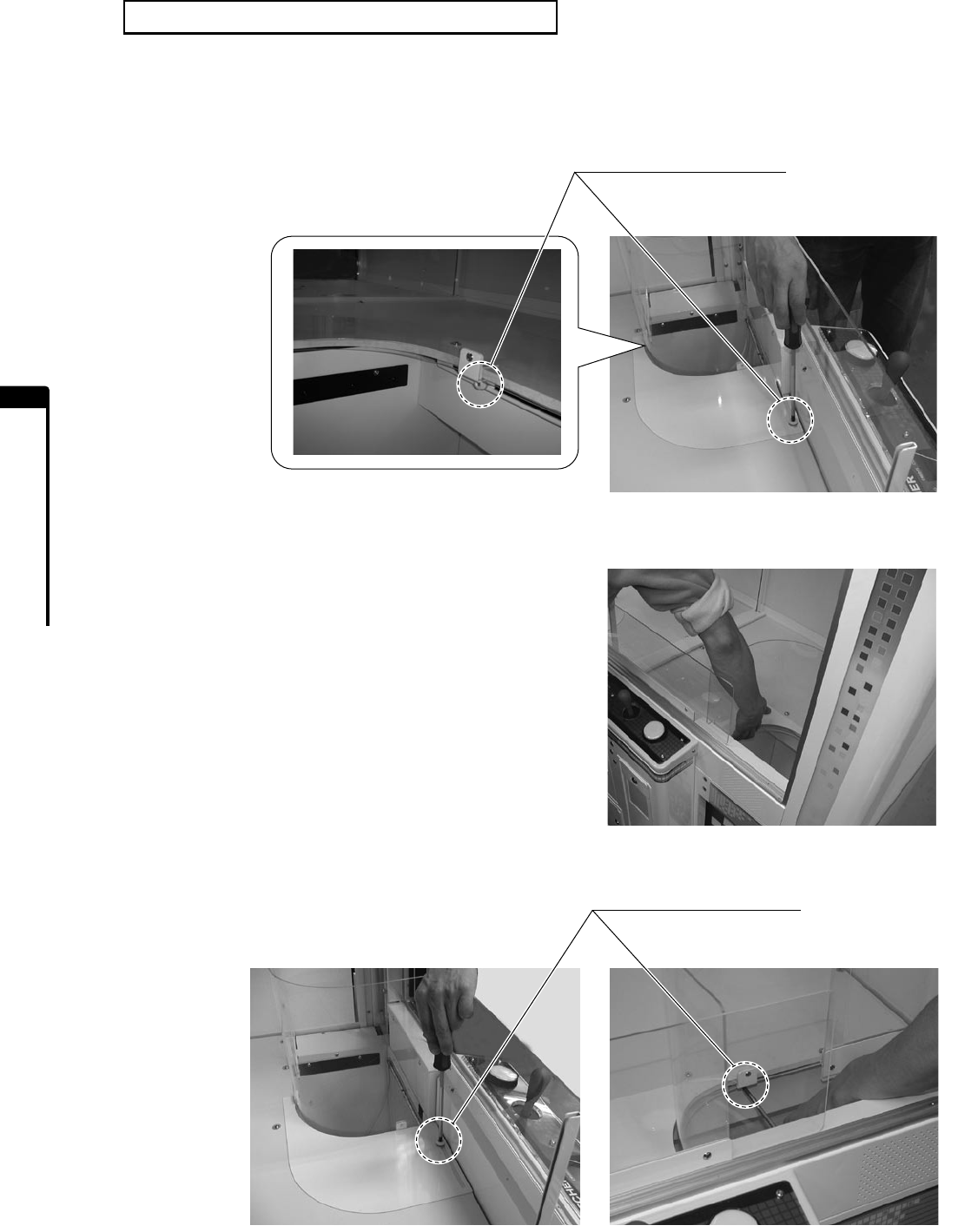

PHOTO 8a

PHOTO 8b

PHOTO 8c

PLASTIC-HEAD SCREW (2)

GAME CONTENT

GAME CONTENT9

The following explanations apply when the product functions normally. If the product behaves in a manner at

variance with the content below, there may be a malfunction of some sort. Try to identify the cause of the problem

immediately and repair it so that the unit can be operated normally.

HOW TO PLAY

In this product, the internal ﬂuorescent lighting (for both billboard and internal lighting), and the left and right

ﬂuorescent lights light up when there is electrical continuity.

During customer-standby status, the UFO mechanism is stationary at the home position (above the prize drop-out

slot).

All the buttons’ lights on the control panel go out and the BGM outputs standby music.

The BGM can also be set for no output.

Play fee and play count are displayed on the 7-seg displays on the control panel.

When in [Display mode], all of the 7-seg displays read “-”, the game cannot be played, and coins (or bills) are

returned. (See Section 12.)

1. When coins are inserted, the time remaining (how

long the UFO mechanism can be operated) and the

number of games remaining are displayed on the

7-seg displays at the seat that is being playing.

2. When 9 credits are exceeded, no more coins are accepted. (The coins are returned.)

For example, if it is set so that 1 coin equals 2 credits and 8 credits have been established, the total becomes 10

credits when the next coin is inserted. At this time, the 7-seg display blinks alternately between “1” and “0” and

no more coins can be accepted.

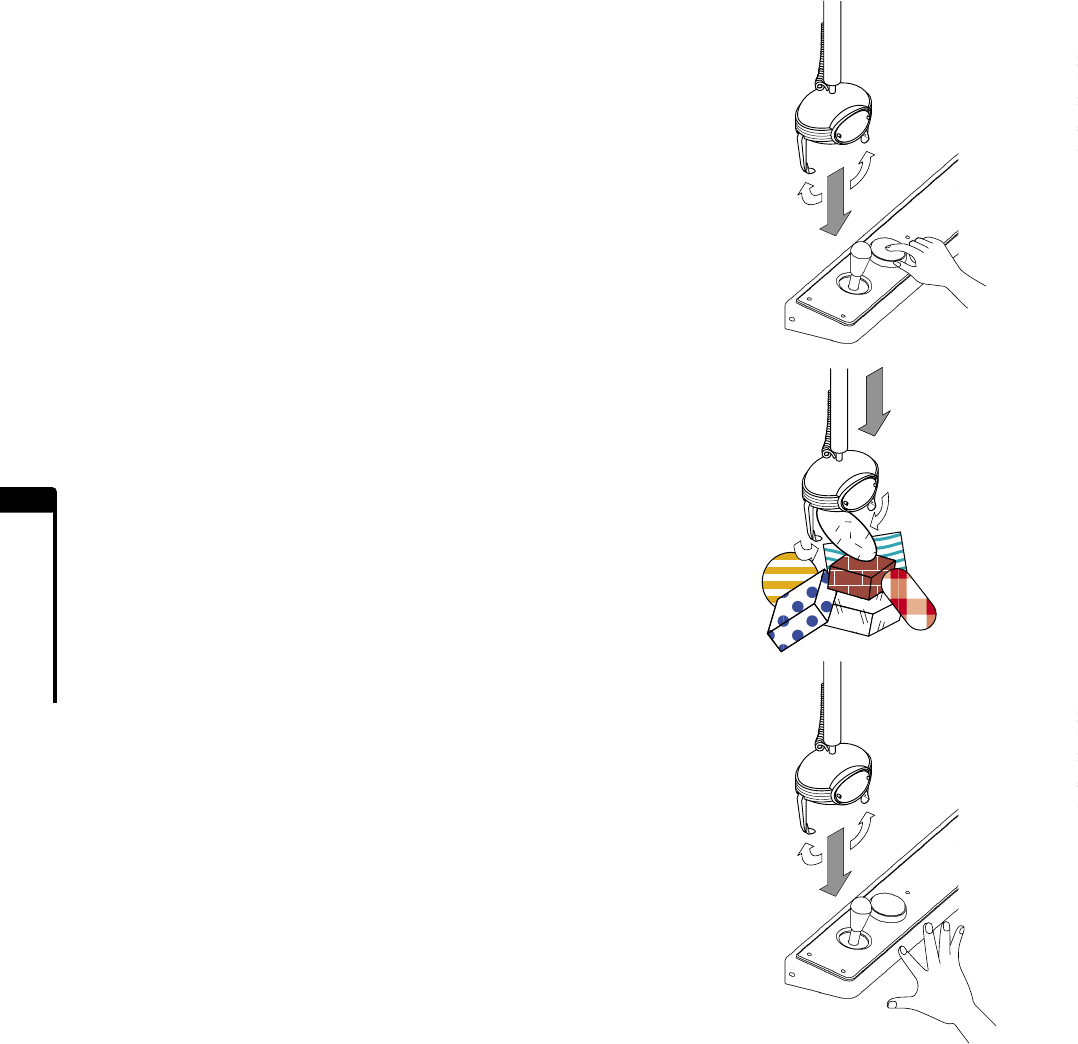

3. When the lever is manipulated, time count begins and the UFO mechanism moves in the direction in which the

lever is manipulated.

4. The arm of the UFO mechanism opens automatically whenever time runs out or the DOWN BUTTON has been

pressed.

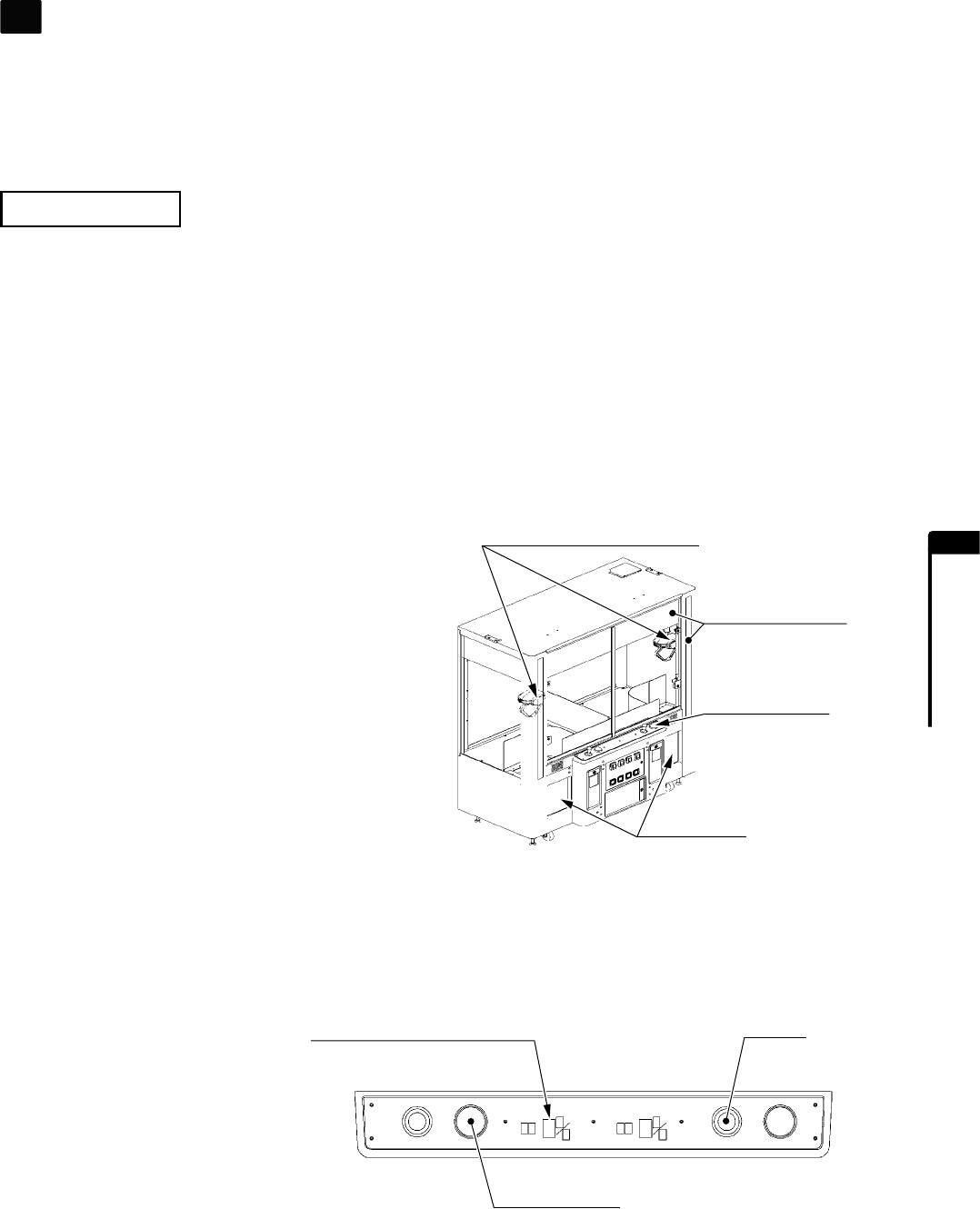

FIG. 9a Customer-standby Status

FIG. 9b Control Panel

PRIZE DOOR

UFO mechanism is stationary

at home position.

CONTROL PANEL

Fluorescent lamps

are lit.

LEVER

7-SEG DISPLAY

CREDIT COUNT DISPLAY

DOWN BUTTON

GAME CONTENT

5. When the arm of the UFO mechanism opens

completely, the UFO mechanism begins to descend.

6. Whenever the UFO mechanism comes in contact

with a prize or other obstacle, or when the wire is

stretched to its full length, the UFO mechanism

stops descending and the arm closes.

7. After the arm has closed, the UFO mechanism

begins to ascend. When it reaches the upper limit

sensor, the UFO mechanism moves back to home

position.

8. When the UFO mechanism reaches the home

position, the arm opens.

9. When a prize passes the sensor, the fanfare rings.

10. When the arm opens and closes, 1 game is complete.

If no credits remain at this time and the 7-seg

display reads 0, the game is over. The BGM

switches back to standby music. If credits remain,

the next game can be played.

11. If the lever is not manipulated for 90 seconds, 1

credit is erased and the UFO mechanism arm opens

and descends at the current position. The arm then

closes and ascends and the UFO mechanism returns

to home position.

FIG. 9c

GAME BOARD

GAME BOARD10

• Before performing work, be sure to turn the power off and unplug the electrical

cord from the outlet. Performing the work without turning the power off can

cause an electric shock or short circuit.

• Be careful not to damage the wires. Damaged wires may cause an electric

shock, short circuit or present a risk of ﬁre.

• Do not expose the Game Board, etc. for any reason. Doing so may cause

electric shock or malfunctioning.

The chip components on IC boards can be damaged by electrostatic discharge

from the human body. Before handling an IC board, always neutralize any static

charge in the body by touching a grounded metal surface.

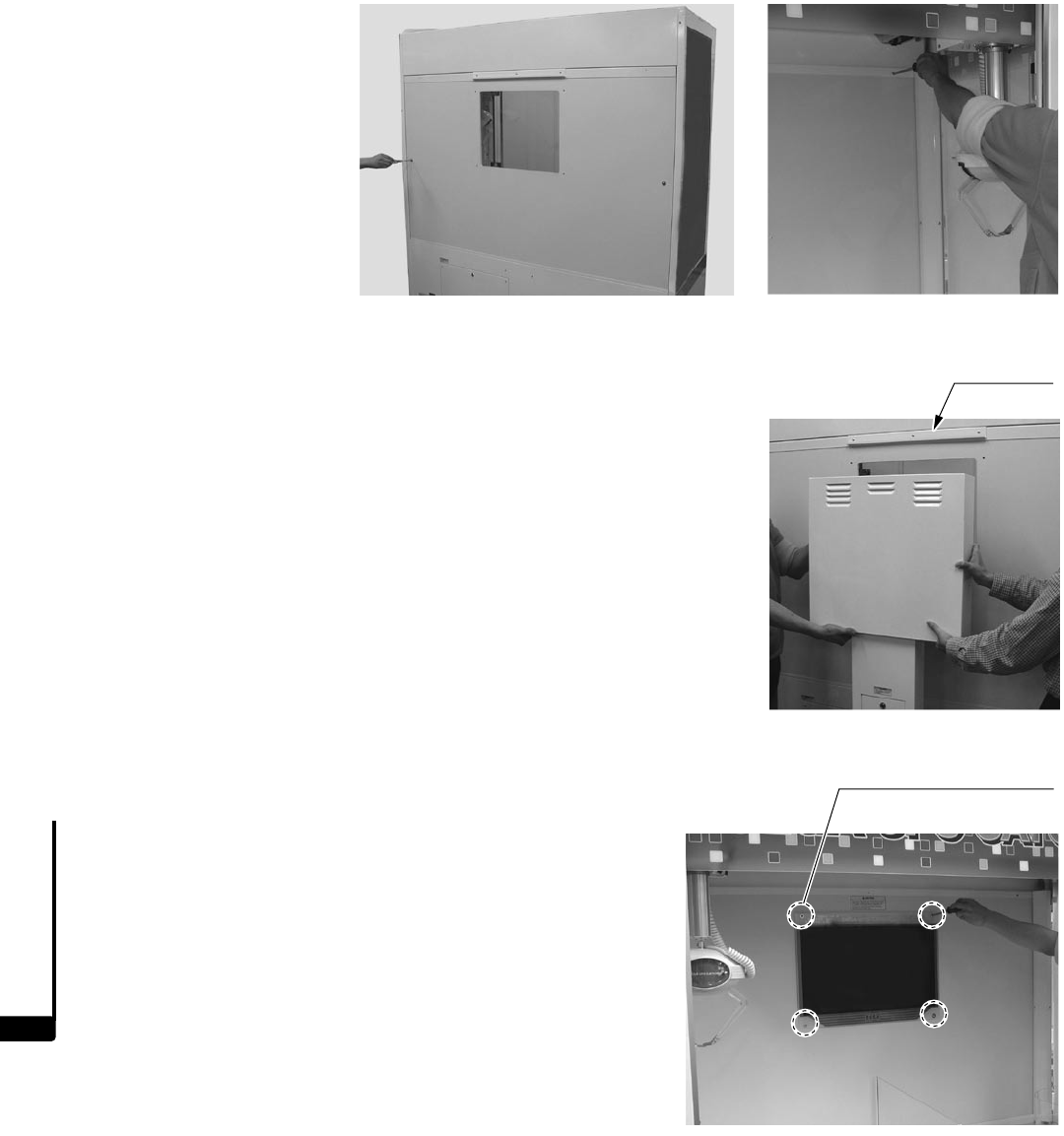

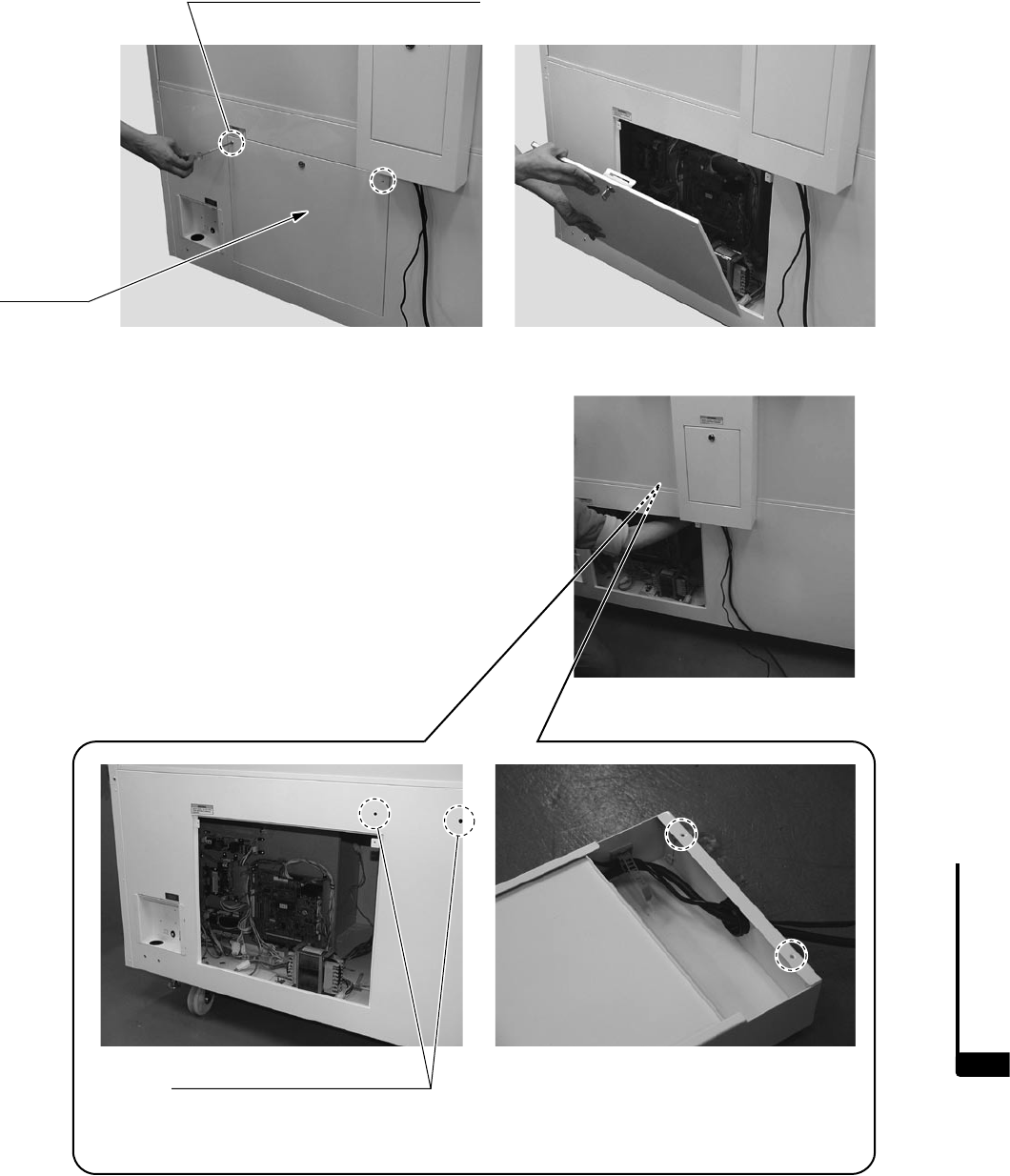

To access the game board, remove the 2 tamperproof screws on the back side of the cabinet, then use the master key

to remove the back lid. The game board is inside.

PHOTO 10

BACK LID GAME BOARD

M4 x 8

TAMPERPROOF SCREW (2), chrome

GAME BOARD

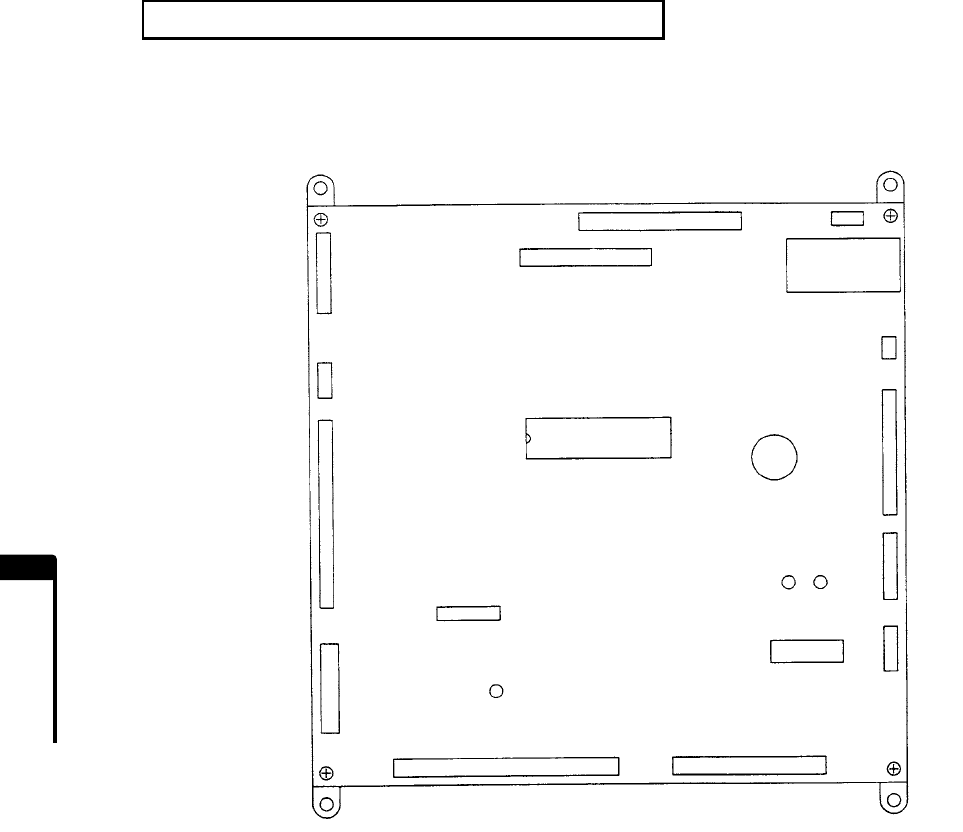

GAME BOARD CONFIGURATION DIAGRAM

The DIP SWs on the game board are not used for game settings but must all be set to OFF.

GAME BD UCU: 834-14606 (R)

[CN1 (JST RA34P)]: Switch, Analog Input

[CN2 (JST RA50P)]: Switch, Sensor Input

[CN3 (JST RA16P)]: Power Supply Input

[CN4 (JST NH25P)]: Lamp, Catch Motor Output

[CN5 (JST NH12P)]: Not used.

[CN7 (JST RA40P)]: Meter, AC Motor Output

[CN8 (JST NH4P)]: Speaker Output

[CN9 (JST NH3P)]: Sound Volume Input

[CN10 (JST NH16P)]: 7-seg Display Output

[CN11 (JST NH10P)]: 7-seg Display Output

[CN12 (JST NH6P)]: Not used.

[CN14 (JST NH8P)]: Not used.

[CN15 (JST NH5P)]: DIPSW BD Signal

CONNECTORS AND INPUT/OUTPUT

FIG. 10

CN7

CN8

NH4P

CN9

NH3P

CN18

NH16P

CN11

NH18P

LED2 LED1

DIPSW

RA34PRA50P

CN1CN2

CN12

NH6P

CN3

RA16P

CN14

NH8P

POWER LED (This is lit when powering on.)

CN4

NH25P

CN15

NH5P

CN5

NH12P

RA40P

HEAT SINK

834-14606(R)

ROM

EXPLANATION OF TEST AND DATA DISPLAY

EXPLANATION OF TEST AND DATA DISPLAY11

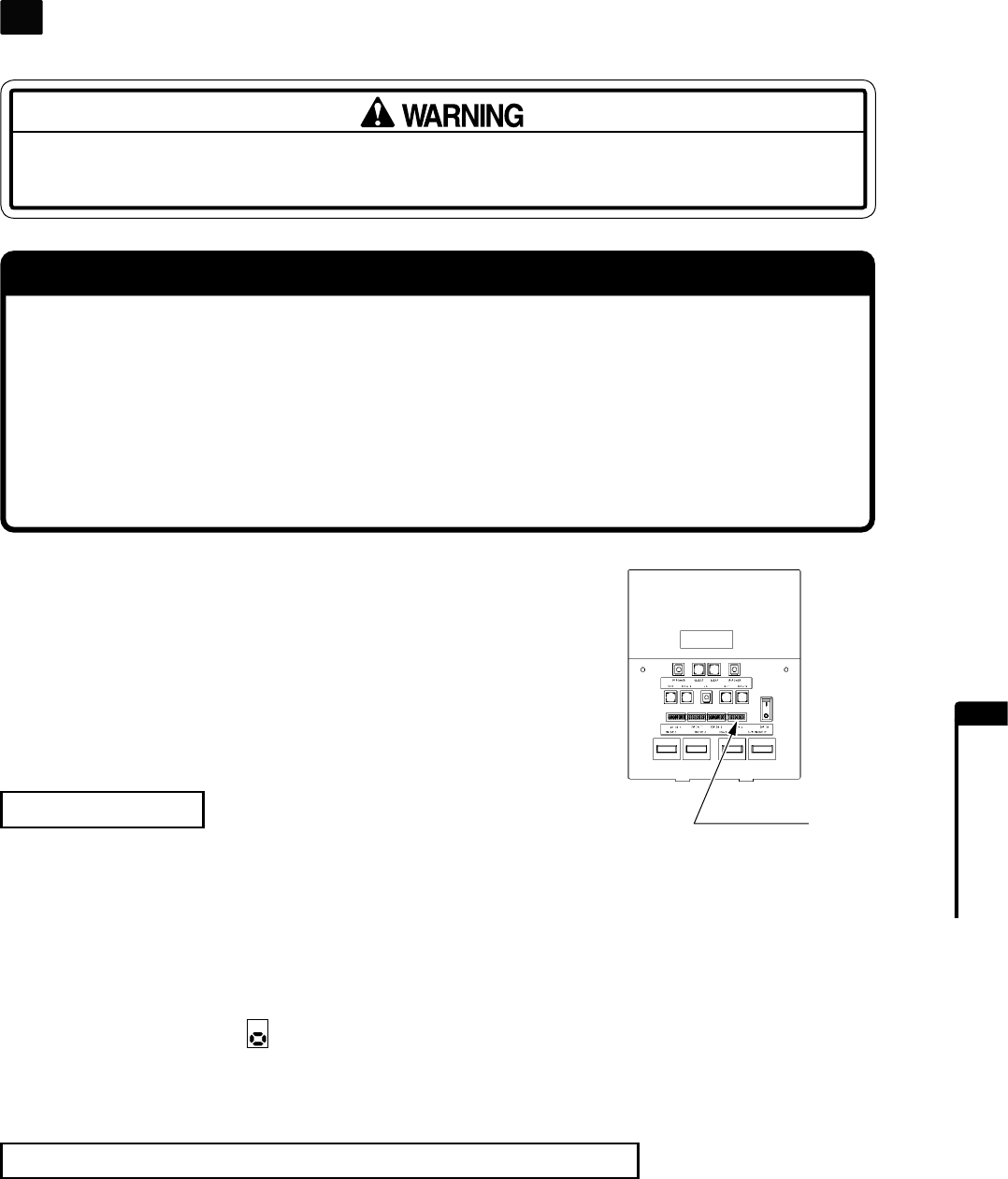

11-1 SWITCH UNIT AND CASH BOX

Do not touch any areas other than those indicated. Touching other areas may

cause accidents from electrical shocks or short circuits.

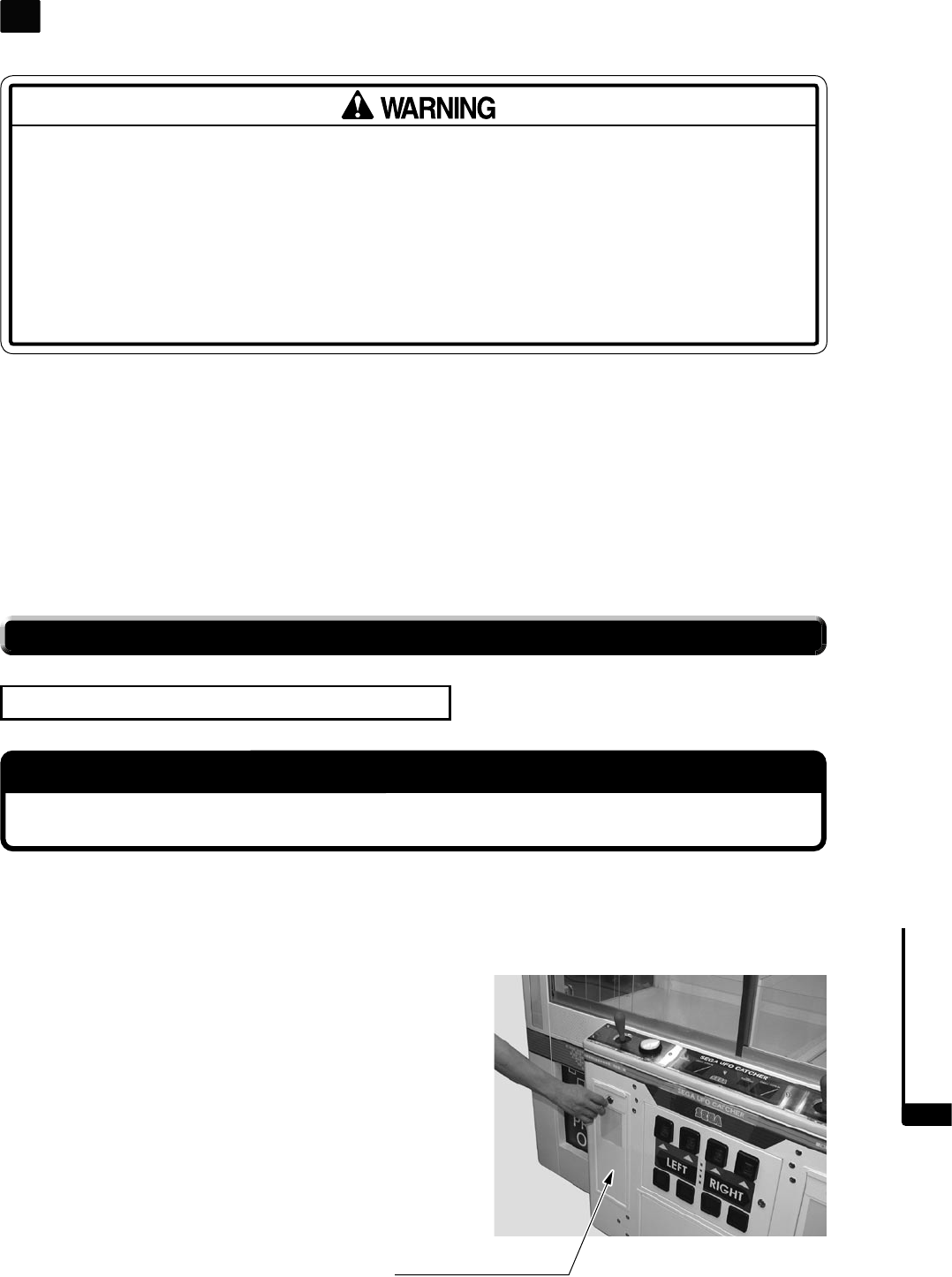

When you open the service door at the bottom of the cabinet front panel, you will ﬁnd a switch unit deep inside.

The functions of each button on the switch unit are as described below.

- VFD Display: Monitor for displaying conditions such as income data.

- 1P Power Knob: Adjusts the strength of the 1P UFO mechanism spring.

Adjustment ranges from 00 (weakest) to 99 (strongest).

- 2P Power Knob: Adjusts the strength of the 2P UFO mechanism spring.

Adjustment ranges from 00 (weakest) to 99 (strongest).

- Select Button: Used when switching VFD display content.

- Clear Button: Used when clearing data displayed on VFD.

- Test Button: Separated for 1P and 2P. Used when entering the test mode and when

completing the test mode.

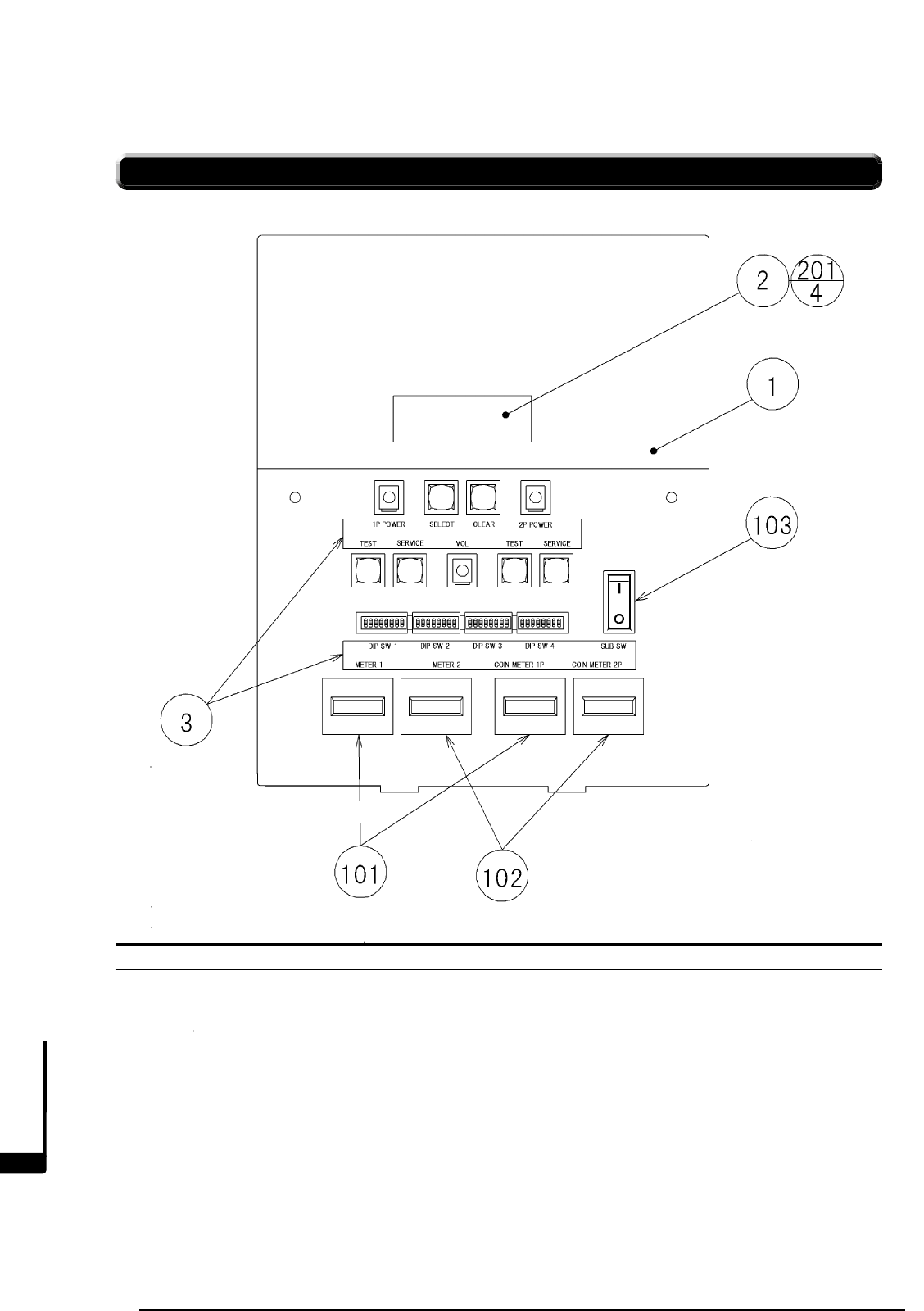

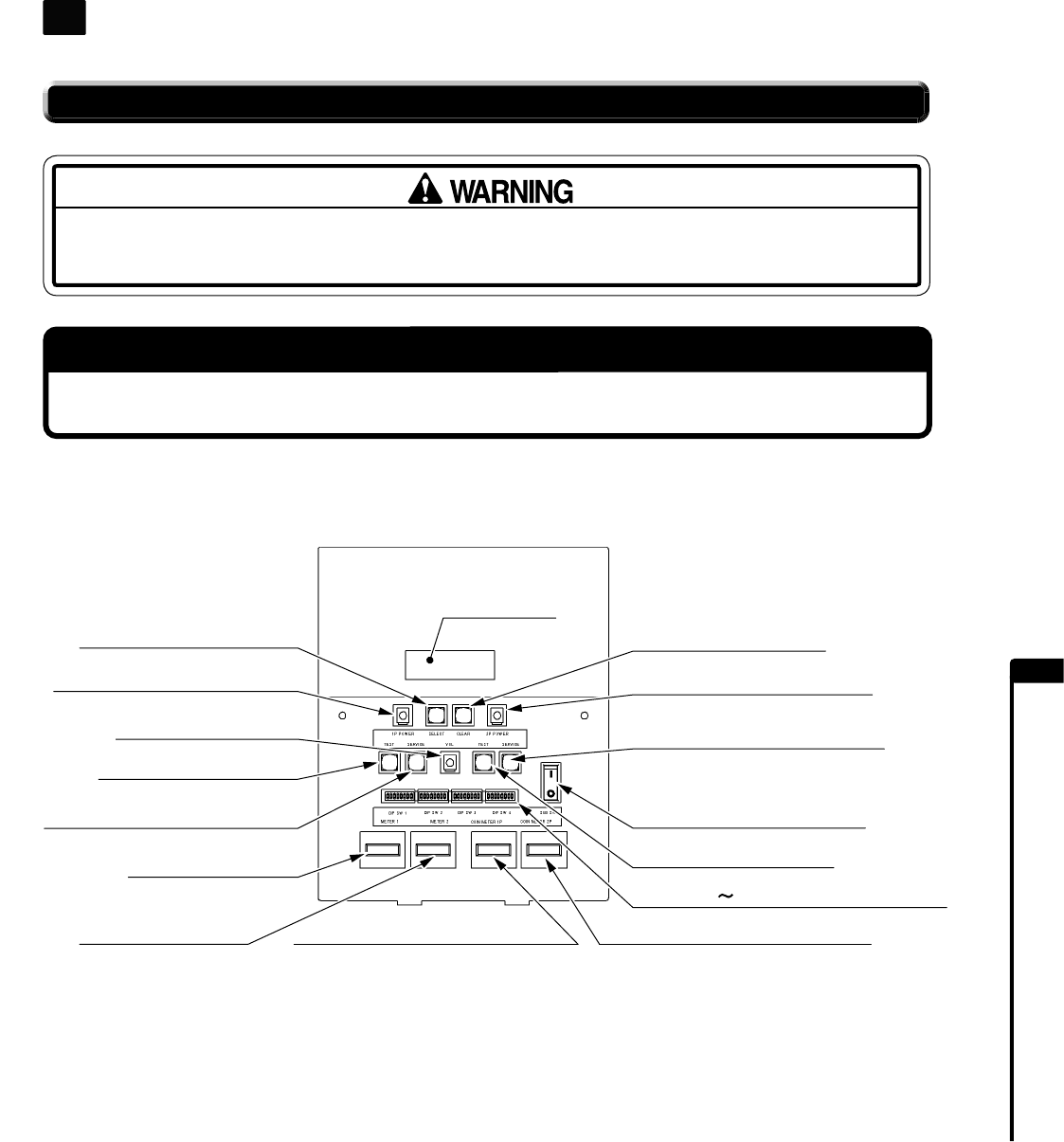

FIG. 11-1

If the coin meter circuit is left detached, games cannot be played.

IMPORTANT

1P POWER KNOB (1P POWER)

1P SERVICE BUTTON (SERVICE)

2P POWER KNOB (2P POWER)

SOUND VOLUME (VOL)

DIP SW 1 DIP SW 4 (See Section 12.)

METER 1 (METER 1)

CLEAR BUTTON (CLEAR)

SELECT BUTTON (SELECT)

2P SERVICE BUTTON (SERVICE)

2P TEST BUTTON (TEST)

1P TEST BUTTON (TEST)

METER 2 (METER 2)

SUB POWER SUPPLY SWITCH

(SUB SW)

COIN METER 1P (COIN METER 1P) COIN METER 2P (COIN METER 2P)

VFD DISPLAY

EXPLANATION OF TEST AND DATA DISPLAY

- Service Button: Separated for 1P and 2P. Used when increasing the number of credits for

service without tabulating the coin meter. If this button is pressed when an error

has occurred, the error sound stops. If it is pressed in test mode, credits are

cleared.

- Sound Volume: Adjusts the game music volume. Set for a suitable volume in consideration of the

surrounding environment.

- Meter: Count content set with DIP SW2 is displayed on meter 1 and meter 2.

- Coin Meter: Separated for 1P and 2P. Counts the number of coins inserted in the coin slot.

- Sub Power Supply Switch: This is a power supply switch. The main switch is located on the AC unit on the

cabinet rear panel. There is power when both switches are ON.

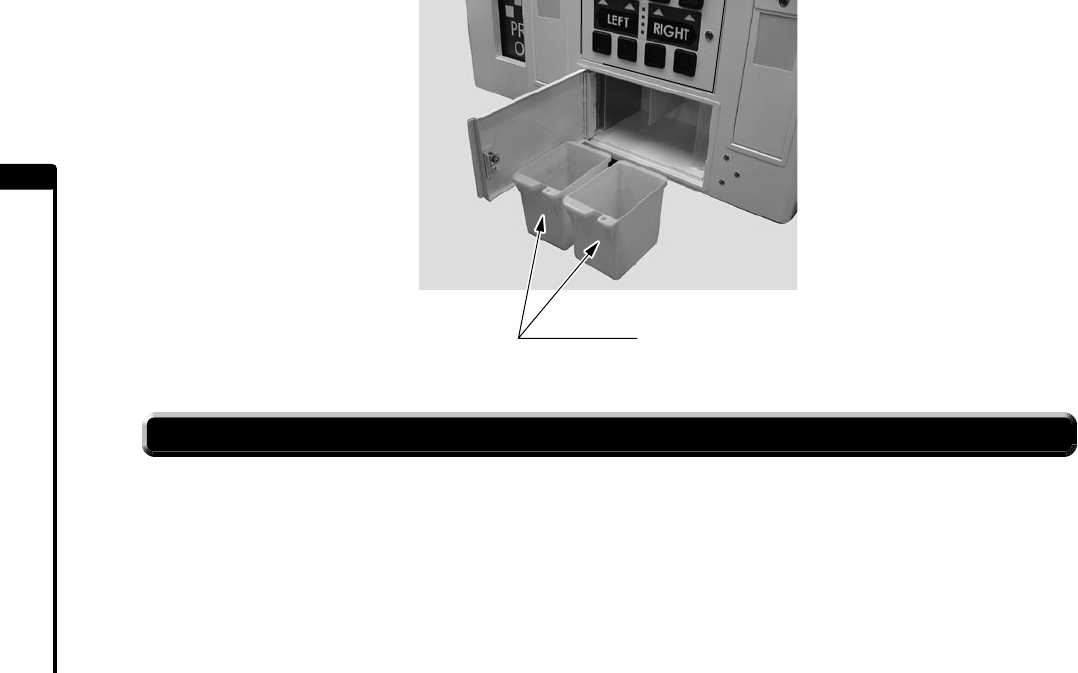

Open the cash box door to ﬁnd the cash box inside.

11-2 VFD DISPLAY CONTENT

Normally, the POWER setting screen is displayed.

When the select button is pressed, the current credit status can be displayed on VFD.

Each time the select button is pressed, the screen changes.

If there are no operations for 60 seconds, the POWER setting screen is restored.

When the select button is kept depressed for 2 seconds or longer, [Current count] and [Total count] can be toggled.

In [Current count], upon switching to [Service count since last clearing], the screen will return to [Income since last

clearing].

In [Total count], upon switching to [Backup clear], the screen will return to [Total income count].

To clear data, enter test mode. Press the clear button when [CLEAR?] is displayed, and the data can be cleared.

In [Current count], it is possible to clear the data but the data cannot be cleared without being in test mode (The clear

screen will not be displayed).

In [Total count], backup data cannot be cleared without both 1P and 2P being in test mode (The clear screen will not

be displayed).

The data backup period lasts for two days after power has been cut off.

PHOTO 11-1

CASH BOX

EXPLANATION OF TEST AND DATA DISPLAY

DISPLAY CONTENT

[Current count]

Total counts since the data had last been cleared are displayed. Examples include today’s income, income after

replacement of prizes, etc. (Data items can be cleared independently)

CURRNT

COUNT

1P: 000000 current

2P: 000000 coin

1P CoinCount

000000 CLEAR?

2P CoinCount

000000 CLEAR?

1P: 000000 current

2P: 000000 prize

1P PrizeCount

000000 CLEAR?

2P PrizeCount

000000 CLEAR?

Current count

Income since last clearing

Displays income count since data had last been cleared. (One unit = 25 cents)

Display during 1P test mode

Display during 2P test mode

Play count since last clearing

Displays prize-out count since data had last been cleared.

Display during 1P test mode

Display during 2P test mode

EXPLANATION OF TEST AND DATA DISPLAY

1P: 000000 current

2P: 000000 credit

1P CreditCount

000000 CLEAR?

2P CreditCount

000000 CLEAR?

1P: 000% current

2P: 000% payout

1P: 000000 current

2P: 000000 service

1P ServiceCount

000000 CLEAR?

2P ServiceCount

000000 CLEAR?

Display during 2P test mode

Service count since last clearing

Displays number of games played using service button since data had last been cleared.

Display during 1P test mode

Display during 2P test mode

Play count since last clearing

Displays play count since data had last been cleared. Since this is the play count,

the display may differ from income depending on the setting.

Display during 1P test mode

Payout rate since last clearing

Displays rate calculated from play count and prize-out count since data had last been cleared.

EXPLANATION OF TEST AND DATA DISPLAY

[Total Count]

Even when data has been cleared in [Current count], data in total count is not erased. This data accumulates unless

the backup data is cleared.

TOTAL

COUNT

1P: 000000 total

2P: 000000 coin

1P: 000000 total

2P: 000000 prize

1P: 000000 total

2P: 000000 credit

1P: 000000 total

2P: 000000 payout

1P: 000000 total

2P: 000000 service

BACKUP DATA

CLEAR?

Total count

Total income count

Displays total income count until backup is cleared.

Total prize-out count

Displays total prize-out count until backup is cleared.

Total play count

Displays total play count until backup is cleared.

Total payout rate

Displays rate calculated from total play count and total prize-out count until backup is cleared.

Total service count

Displays total service count until backup is cleared.

Backup data clear (Display when both 1P and 2P in test mode)

All data can be cleared. ([Current count] and [Credit] are also cleared)

EXPLANATION OF TEST AND DATA DISPLAY

DISPLAY FLOW-CHART

The screen changes each time the select button is pressed.

If no other buttons are pressed and no operations are performed for 60 seconds, the POWER setting screen is

restored.

When the select button is kept depressed for 2 seconds or longer, [Current count] and [Total count] can be toggled.

POWER SETTINGS

Spring strength can be changed within the range of 00 to 99 by turning the power knob.

When the knob is turned to the right, the spring becomes stronger ( low level of difﬁculty ). When it is turned to the

left, the spring becomes weaker ( high level of difﬁculty ).

1P and 2P can be changed independently.

When the knob is turned, the POWER value is shown on the VFD.

To display current POWER without turning the knob, press and hold down on the select button while pressing the

clear button. Current POWER is shown on the VFD.

In the case shown in the ﬁgure above, 1P is set to high level of difﬁculty and 2P is set to low level of difﬁculty.

The power can be changed during operation so there is no need to reactivate the power supply.

Power becomes effective after changes have been made.

FIG. 11-2

1P POWER: 00

2P POWER: 99

CURRENT

COUNT

T O T A L

COUNT

BACKUP DATA

CLEAR?

current

c o i n

1P:000000

CURRENT COUNT TOTAL COUNT

TOTAL INCOME COUNT

TOTAL PRIZE-OUT COUNT

TOTAL PLAY COUNT

TOTAL PLAYONT RATE

TOTAL SERVICE COUNT

BACKEUP DATA CLEAR

INCOME SINCE LAST CLEARING When in test mode, the following

clear screens are displayed.

PRIZE-OUT SINCE LAST CLEARING

PLAY COUNT SINCE LAST CLEARING

PLAYOUT RATE SINCE LAST CLEARING

SERVICE COUNT SINCE LAST CLEARING

2P:000000

000000 CLEAR?

current

p r i z e

1P:000000

2P:000000

current

credit

1P:000000

2P:000000

current

service

1P:000000

2P:000000

current

playout

1P:000%

2P:000%

CoinCount

000000 CLEAR?

1 P

000000 CLEAR?

CoinCount

PrizeCount

2 P

000000 CLEAR?

PrizeCount

1 P

000000 CLEAR?

CreditCount

2 P

000000 CLEAR?

CreditCount

1 P

000000 CLEAR?

ServiceCount

2 P

000000 CLEAR?

ServiceCount

total

c o i n

1P:000000

2P:000000

total

p r i z e

1P:000000

2P:000000

total

credit

1P:000000

2P:000000

total

playout

1P:000000

2P:000000

total

service

1P:000000

2P:000000

EXPLANATION OF TEST AND DATA DISPLAY

11-3 EXPLANATION OF TEST MODE

When the test button is pressed, the mechanism stops operating and test mode is established.

When in test mode, the test mode number is displayed on the 7-seg display.

There are a total of 4 test mode types. Test mode number is changed using the down button and operation is done

using the lever.

To end test mode, press the test button once again.

When initialization completes normally, the credits before test mode are restored and game mode is re-established.

However, partial credits attained for multiple coins are deleted.

Coins are not accepted during test mode. If the service button is pressed during test mode, credits are cleared.

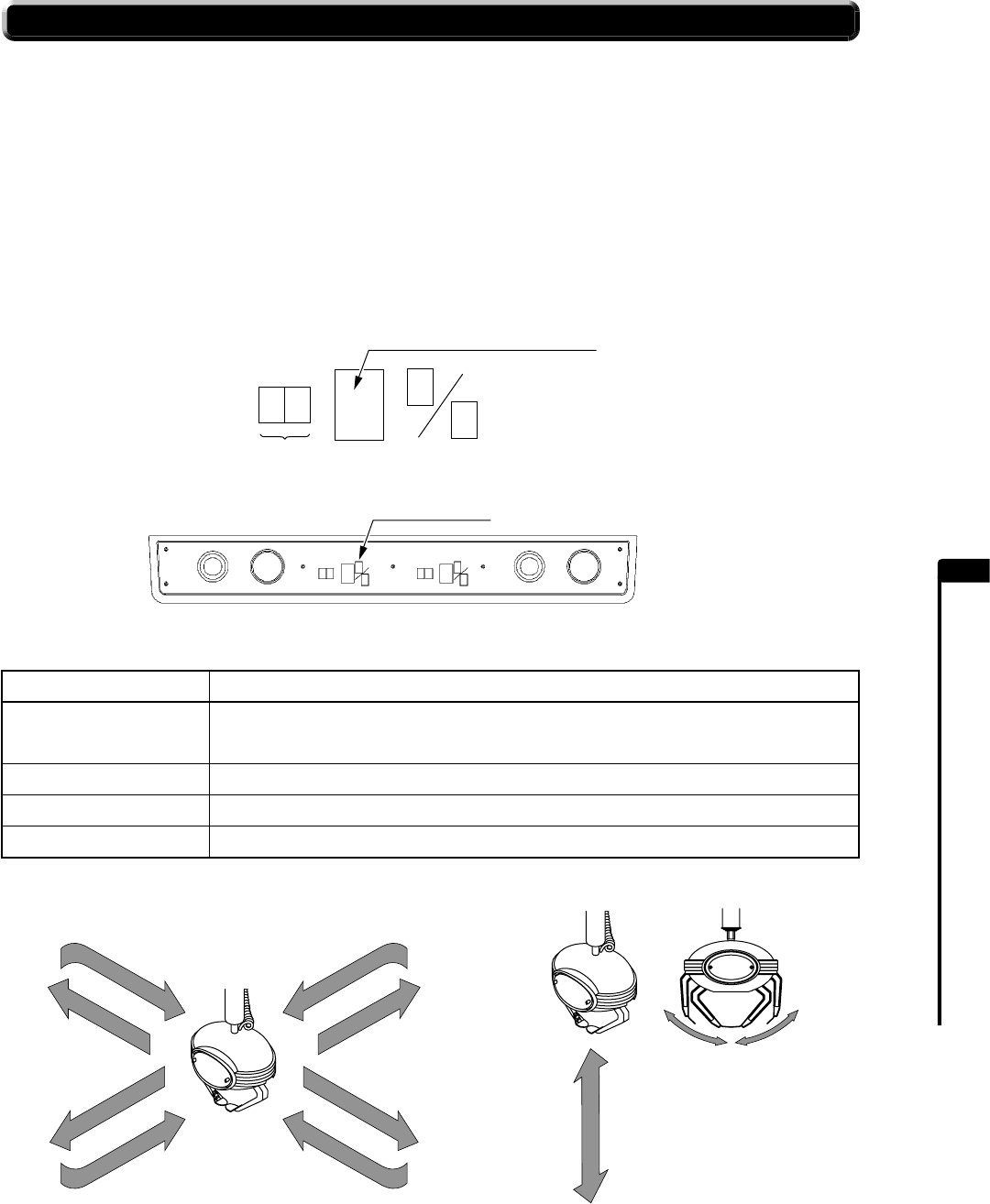

Test Mode Number Operation Content

Test mode 1 UFO mechanism moves forward/backward/left/right as the lever is moved

forward/backward/left/right.

Test mode 2 UFO mechanism moves up/down as the lever is moved forward/backward.

Test mode 3 When the lever is manipulated, the arm opens/closes repeatedly.

Test mode 4 Prize sensor and down switch lamp can be checked.

TABLE 11-3a

FIG. 11-3b FIG. 11-3c

FIG. 11-3a

1 2 3

7-SEG DISPLAY

Sensor status, etc., are displayed in accordance with the test mode

number. (See TABLE 11-3a.)

TEST MODE NUMBER DISPLAY

Moves forward/backward/left/right

Arm opens/closes

Moves up/down

EXPLANATION OF TEST AND DATA DISPLAY

Test Mode Number 7-Seg Display Reads Content

Test mode 1

7-seg 1

7-seg 2

7-seg 3

7-seg 4

Limit sensor LEFT

Limit sensor RIGHT

Limit sensor FWD

Limit sensor BACK

Test mode 2

7-seg 1

7-seg 2

7-seg 3

7-seg 4

Limit sensor UP

Limit sensor DOWN

–––

Test mode 3

7-seg 1

7-seg 2

7-seg 3

7-seg 4

Open sensor

–––

Test mode 4

7-seg 1

7-seg 2

7-seg 3

7-seg 4

(Down switch also lights up in response

to prize sensor)

Prize sensor

–––

TABLE 11-3b

During test mode, the content for the small 7-seg display are as indicated below.

If the limit sensor is entered or operation has just begun, “0” is displayed.

DIP SW SETTINGS

• Make sure the DIP SW that are designated to be OFF are turned OFF. If DIP SW are

set to other than prescribed settings, there will be instances when behavior is not

suited to actual operations.

• Changed settings do not become effective until the power supply has been

reactivated after changing DIP SW.

• The DIP SW on the game board are not used for game settings but must all be set

to OFF.

With this product, settings can be changed to those shown in the

table by changing the DIP SW (DIP Switch) settings on the switch

unit.

DIP SW 1 adjusts coin credit settings; DIP SW 2 sets common game

operations for 1P and 2P; DIP SW 3 and 4 set the game operations

for 1P and 2P, respectively.

IMPORTANT

DIP SW SETTINGS

Turn off the power supply before changing DIP SW. If the power is left on while DIP

SW are changed, electrical shock may occur.

COIN SETTINGS

Coin credit settings (credits awarded per coin) are set using DIP SW 1.

When 9 credits are exceeded, no more coins are accepted and the coins are returned.

However, if 1 coin is worth 2 credits or more, and 8 credits are remaining, 10 credits or more are established (10

credits or more can be established, depending on the setting).

For example, if it is set so that 1 coin equals 2 credits and 8 credits have been established, the total becomes 10

credits when the next coin is inserted. At this time, the 7-seg displays blink alternately between “1” and “0” and no

more coins can be accepted.

When FREE PLAY is selected, “ ” is shown on the 7-seg display and games can be played without engaging the

coin and service switches.

SETTING COMMON GAME OPERATIONS FOR 1P AND 2P

Common game operations for 1P and 2P are set with DIP SW 2.

BGM SOUND

Sounds for when the unit is in customer-standby status or when a game is being played can be set.

BGM1: Two music pieces change each time a game is completed.

BGM2: Game music is played also while in customer-standby status.

BGM3: Two Christmas songs change each time a game is completed.

BGM4: No music is heard during customer-standby status or game play.

FIG. 12

DIP SW 1~4

DIP SW SETTINGS

METER SETTINGS

TOTAL COIN (BILL=4COIN) / TOTAL PRIZE

- METER 1: 1P + 2P total coins are counted.

- METER 2: 1P + 2P total prizes are counted.

TOTAL COIN (25¢) /TOTAL BILL ($1)

- METER 1: 1P + 2P total 25-cent coins are counted.

- METER 2: 1P + 2P total $1-bills are counted.

1P PRIZE/2P PRIZE

- METER 1: 1P prizes are counted.

- METER 2: 2P prizes are counted.

1P BILL ($1) /2P BILL ($1)

- METER 1: 1P $1-bills are counted.

- METER 2: 2P $1-bills are counted.

CRIME PREVENTION MODE

To prevent theft, an alarm sounds whenever the prize sensor activates during customer-standby status.

PRIZE COUNT (during customer-standby)

If the prize sensor activates during customer-standby, there is an option to count it as a prize-out or not. (Prize-out

is counted even while crime prevention mode is operating)

SETTING GAME OPERATIONS FOR 1P AND 2P SEPERATELY

Settings can be changed for game operations on the 1P side using DIP SW 3 and the 2P side using DIP SW 4.

PLAY TIME

Sets the time period during which manipulations can be made during game play.

GAME MODE

NORMAL MODE (1credit for 1game)

1 credit allows for 1 game to be played.

TIMER MODE (Games can be played any number of times during the time period.)

Games can be played any number of times if still within the time period.

DISPLAY MODE

Setting so that games cannot be played (for display, etc.).

In this mode, coins are not accepted and games cannot be played. All of the 7-seg displays read “-” and coins are

returned. Initialization also does not take place.

PRIZE SENSOR

Setting to use the prize sensor. Prize sensor is used when set to [ON]. If the sensor breaks down, set to [OFF].

The sensor will not respond to any action and prizes are not counted when obtained.

Even when set to ON and the sensor is broken, [Crime Prevention Mode] and [Prize Count (during customer-

standby)] will not work.

DIP SW SETTINGS

DIP SW1 COIN SETTINGS

DIP_SW1 1 2 3 4 5 6 7 8

COIN 1P 1 COIN 1 CREDIT OFF OFF OFF OFF

2 COINS 1 CREDIT ON OFF OFF OFF

3 COINS 1 CREDIT OFF ON OFF OFF

4 COINS 1 CREDIT ON ON OFF OFF

5 COINS 1 CREDIT OFF OFF ON OFF

6 COINS 1 CREDIT ON OFF ON OFF

7 COINS 1 CREDIT OFF ON ON OFF

8 COINS 1 CREDIT ON ON ON OFF

9 COINS 1 CREDIT OFF OFF OFF ON

4 COINS 2 CREDITS ON OFF OFF ON

NOT USE

FREE PLAY ON ON ON ON

COIN 2P 1 COIN 1 CREDIT OFF OFF OFF OFF

2 COINS 1 CREDIT ON OFF OFF OFF

3 COINS 1 CREDIT OFF ON OFF OFF

4 COINS 1 CREDIT ON ON OFF OFF

5 COINS 1 CREDIT OFF OFF ON OFF

6 COINS 1 CREDIT ON OFF ON OFF

7 COINS 1 CREDIT OFF ON ON OFF

8 COINS 1 CREDIT ON ON ON OFF

9 COINS 1 CREDIT OFF OFF OFF ON

4 COINS 2 CREDITS ON OFF OFF ON

NOT USE

FREE PLAY ON ON ON ON

DIP SW2 SETTING COMMON GAME OPERATIONS FOR 1P AND 2P

NOTE: Set No. 7 and 8 switches to OFF.

DIP_SW2 1 2 3 4 5 6 7 8

BGM SOUND BGM1 OFF OFF

BGM2 ON OFF

BGM3 (Xmas) OFF ON

OFF ON ON

METER SETTINGS

TOTAL COIN (BILL=4COIN) /TOTAL PRIZE

OFF OFF

TOTAL COIN (25¢) /TOTAL BILL ($1) ON OFF

1P PRIZE/2P PRIZE OFF ON

1P BILL ($1) /2P BILL ($1) ON ON

CRIME PREVENTION ON OFF

MODE OFF ON

PRIZE COUNT OFF OFF

(During customer-standby)

ON ON

DIP SW SETTINGS

DIP SW3 (1P) DIP SW4 (2P) SETTING GAME OPERATIONS FOR 1P AND 2P SEPERATELY

DIP_SW3,4 1 2 3 4 5 6 7 8

PLAY TIME 15s OFF OFF OFF

20s ON OFF OFF

30s OFF ON OFF

40s ON ON OFF

50s OFF OFF ON

60s ON OFF ON

90s OFF ON ON

120s ON ON ON

GAME MODE NORMAL MODE (1 credit for 1 game) OFF

TIMER MODE (Games can be played any

number of times during the time period) ON

DISPLAY MODE NORMAL GAME OFF

NO ACTIVITY (AND NO

INITIALIZATION) ON

PRIZE SENSOR ON OFF

OFF ON

NOTE: Set No. 5and 6 switches to OFF.

ARM MECHANISM

ARM MECHANISM13

• Before performing work, be sure to turn the power off and unplug the electrical

cord from the outlet. Performing the work without turning the power off can

cause an electric shock or short circuit.

• Be careful not to damage the wires. Damaged wires may cause an electric

shock, short circuit or present a risk of ﬁre.

• When securing plastic components, be careful not to tighten screws or nuts

exces

sively. This may cause damage to the components. Fragments may also cause

injury.

• Before starting to manipulate the arm mechanism, cut off the power supply durng

customer-standby status. Otherwise there could be malfunctions or damage.

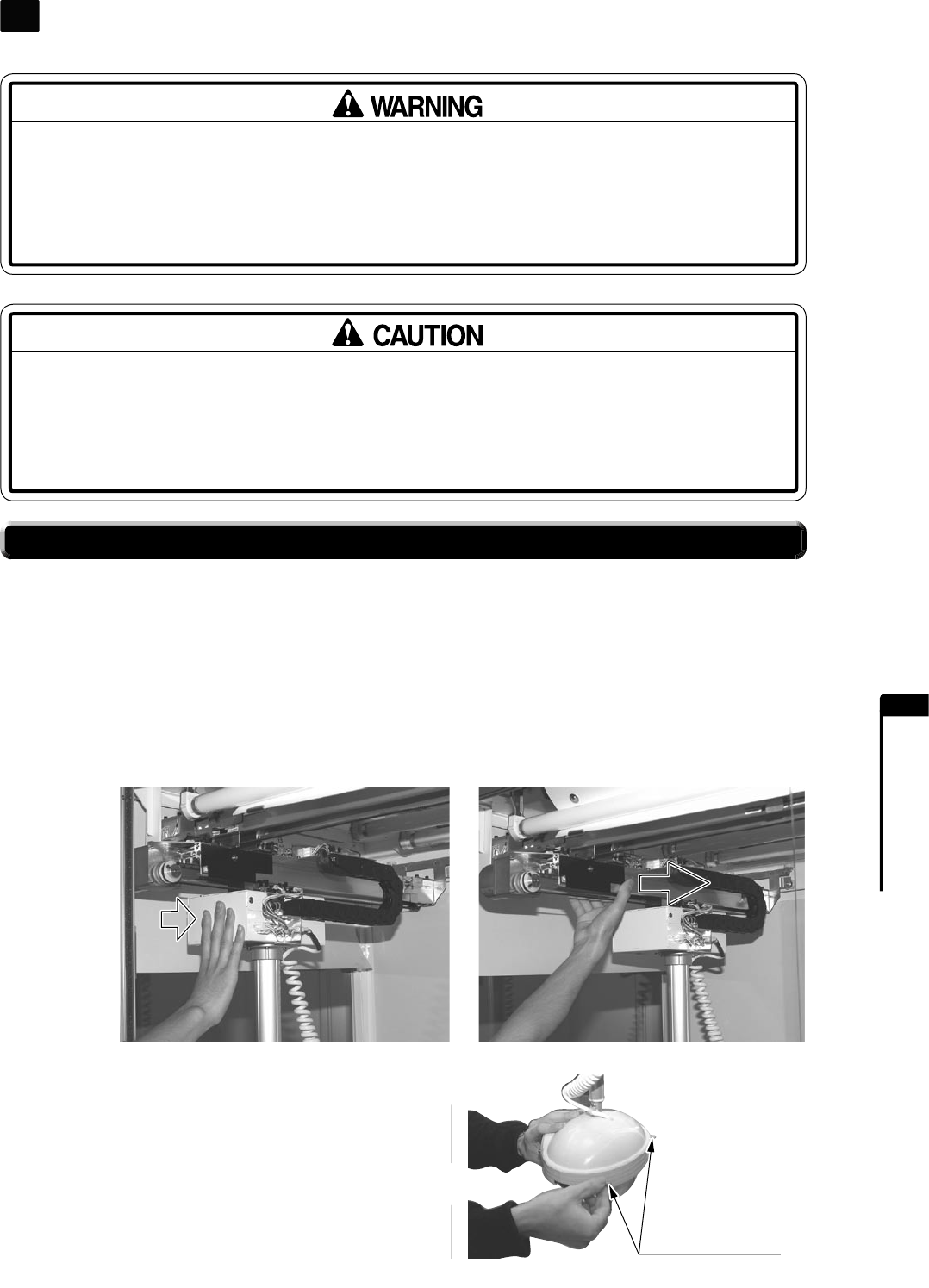

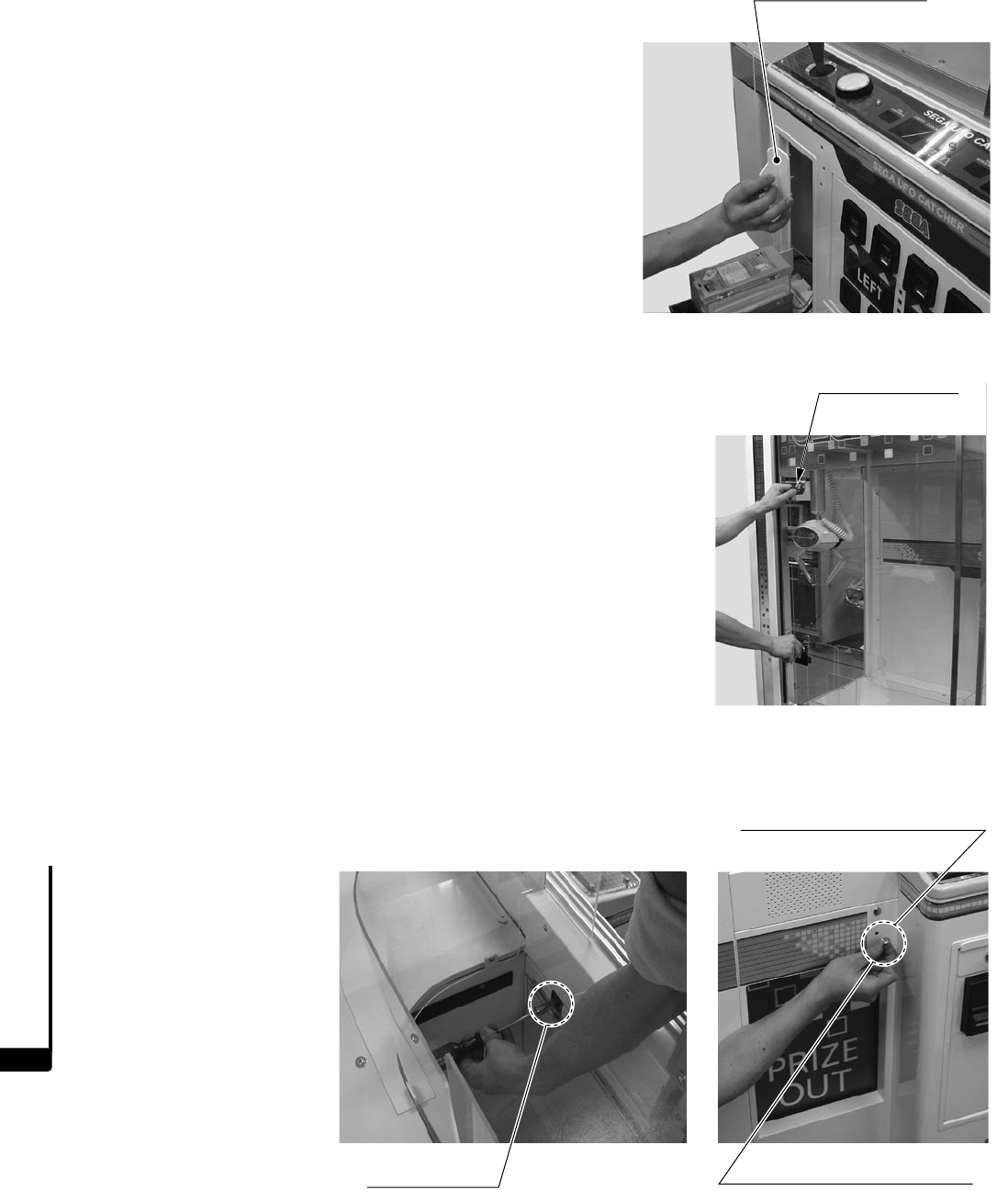

13-1 ARM REPLACEMENT

To replace to arm L, enlarge the prize drop-out slot. (See Section 8)

For the following procedures, an M3 slotted screwdriver is required.

1. Cut off the power supply in customer-standby status.

2. Use the operator’s key to open the glass door.

3. Move the UFO mechanism to a location where it will be easy to work. Place hand as shown in the photo and

move the mechanism. Do not move holding other parts as you may get your ﬁngers caught and be injured. Also,

the mechanism itself may become damaged.

PHOTO 13-1a

4. Loosen the two screw shafts on the back of the UFO

mechanism.

PHOTO 13-1b

SCREW SHAFT (2)

ARM MECHANISM

PHOTO 13-1e

PHOTO 13-1c

PHOTO 13-1d

FIG. 13-1

7. There are U-shaped notches on the mechanism mask. Slide the mechanism mask toward you and then remove it.

NOTE: For arm replacement on the opposite (left) side, slide the mask mechanism away from you and then

remove it. (Notch orientations are different)

5. Remove the UFO front cover

6. Use a slotted screwdriver to loosen the bolts that

holds the arm in place.

UFO FRONT COVER

ARM BOLT

M3 x 6

U-SHAPED NOTCHES

MECHANISM MASK

ARM MECHANISM

PHOTO 13-1f

PHOTO 13-1g

11. The arm on the opposite (left) side can be replaced by following the same procedure.

NOTE: When attaching or removing the mechanism mask as indicated in steps 7 and 9, remember that the slide

direction is different. Slide the mechanism mask away from you to remove it; slide it toward you to attach it.

8. Remove the arm and attach the arm S or L

replacement.

9. Refer to step 7 and reattach the mechanism mask.

Pay special attention to the direction of the U-shaped

notch when attaching.

10. Use a slotted screwdriver to tighten the bolt that

holds the arm in place (which had been loosened).

ARM BOLT

M3 x 6

ARM MECHANISM

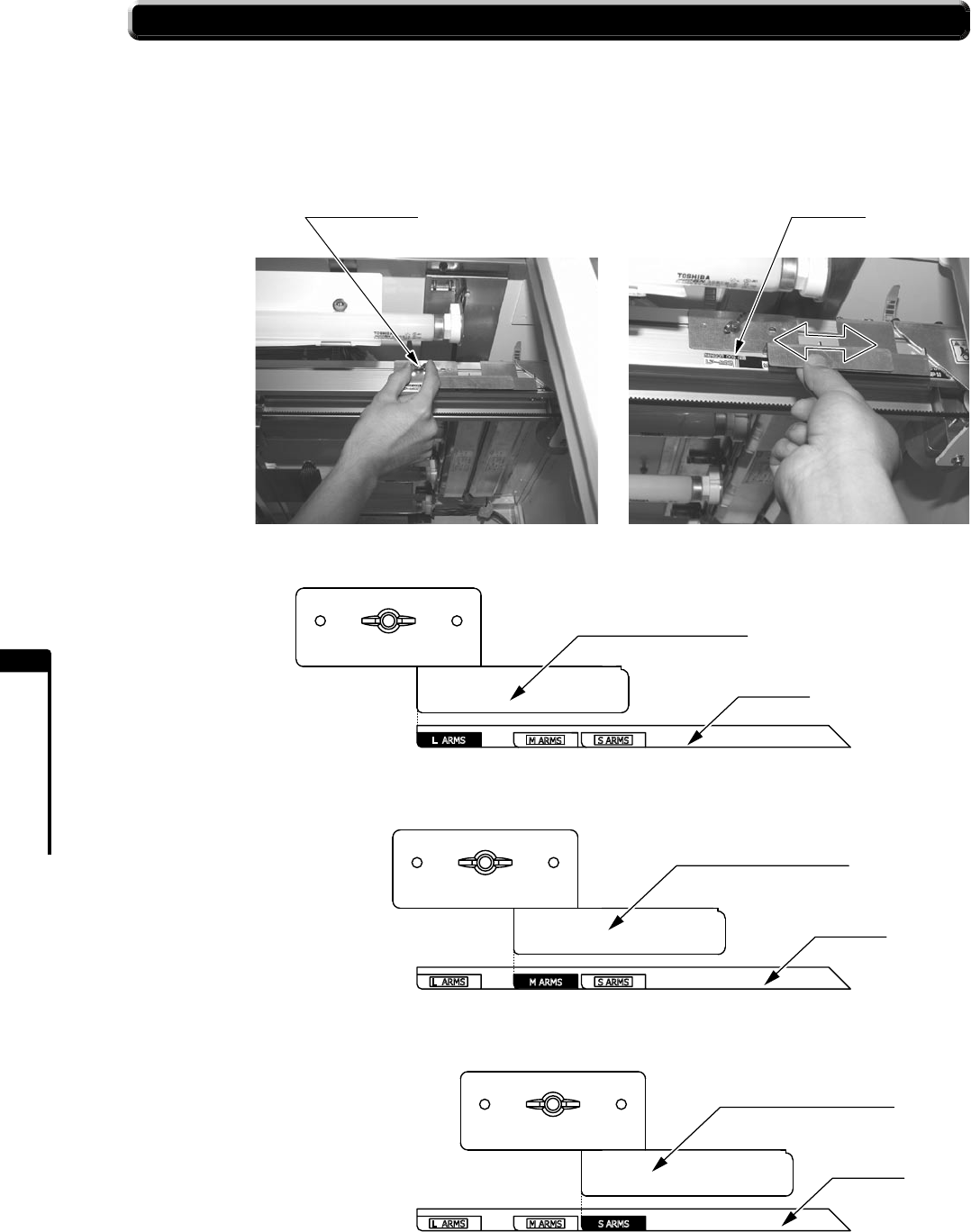

13-2 ADJUSTMENT OF SENSOR BRACKET POSITION

When changing the arm size or to limit the range in which the UFO mechanism can move horizontally, change the

position of the sensor bracket. The UFO mechanism stops where the sensor bracket is located.

The sensor brackets are in a symmetrical spatial relationship with respect to 1P and 2P.

1. Loosen the wing screw and move the sensor bracket HP (Home Position) to the location indicated by the sticker.

PHOTO 13-2a

FIG. 13-2a

WING SCREW STICKER

S ARMS

L ARMS

S ARMS

M ARMS

L ARMS

S ARMS

M ARMS

L ARMS

SENSOR BRACKET HP

When attaching arm L (2P):

When attaching arm M (2P):

When attaching arm S (2P):

STICKER

SENSOR BRACKET HP

STICKER

SENSOR BRACKET HP

STICKER

ARM MECHANISM

PHOTO 13-2b

PHOTO 13-2c

2. Tighten the wing screw.

3. Follow the above procedures to adjust the sensor

bracket limit on the opposite side.

The sensor bracket limit positions and areas where the UFO mechanism cannot be moved to are as shown in the

illustration.

FIG. 13-2b

WING SCREW

Areas where UFO mechanism

cannot be mobved to.

SENSOR BRACKET HP

SENSOR BRACKET LIMIT

ARM MECHANISM

LIMITS ON FORWARD/BACKWARD MOVEMENT OF UFO MECHANISM

To limit the range in which the UFO mechanism can be moved forward/backward, change the position of the sensor

bracket limit. The UFO mechanism stops where the sensor bracket limit is located.

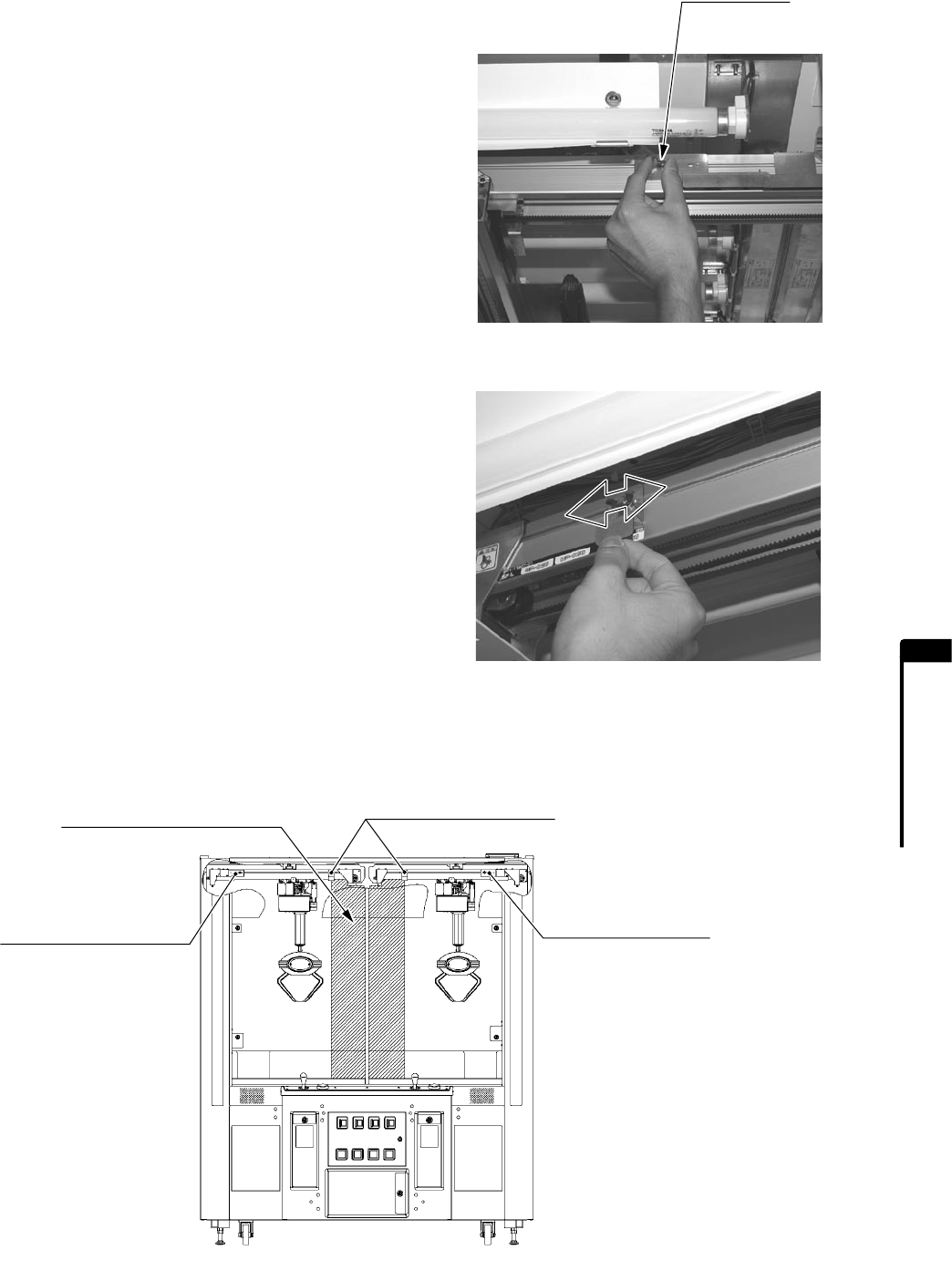

PHOTO 13-2e

PHOTO 13-2f

1. Loosen the wing screw at the rear of the Y-oriented

mechanism.

2. Move the sensor bracket limit to the desired location

and tighten the wing screw.

The sensor bracket limit positions and areas where the UFO mechanism cannot be moved to are as shown in the

illustration.

FIG. 13-2c

Y-ORIENTED MECHANISM

WING SCREW

SENSOR BRACKET LIMIT

Areas where UFO mechanism cannot be moved to.

SHOWCASE SHELF (EXAMPLE)

PRIZE FOR SHOWCASE (EXAMPLE)

ARM MECHANISM

13-3

SPRING STRENGTH ADJUSTMENT AND SPRING REPLACEMENT

Spring strength can be adjusted in three stages according to the position of the shift bracket. At a position close to

the spring, the spring is weak (high level of difﬁculty). The farther the shift bracket is from the spring, the stronger

becomes the spring (low level of difﬁculty). In addition, slight adjustments can be made with the POWER setting.

(See Section 11-2.)

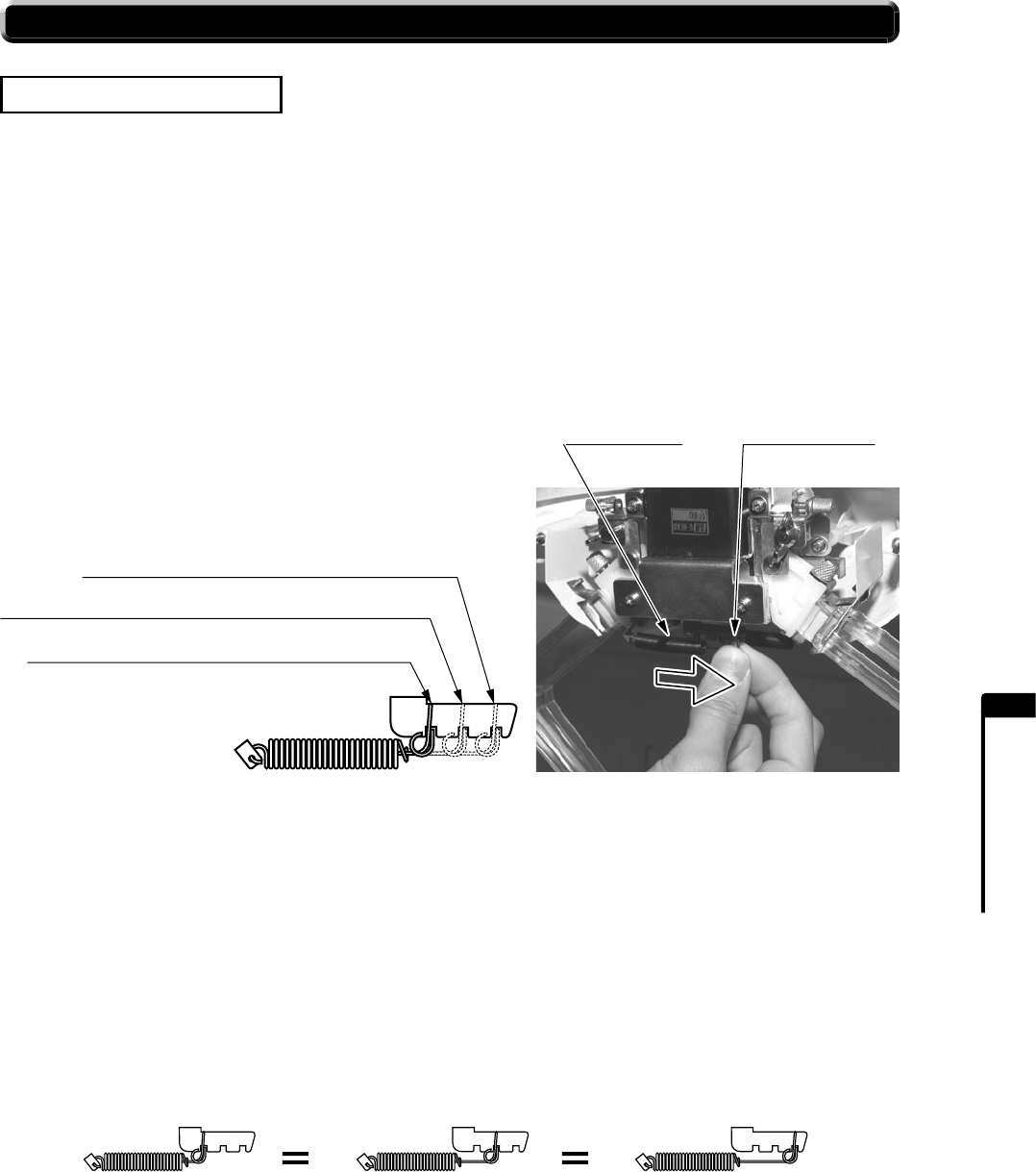

SPRING ADJUSTMENT

FIG. 13-3a PHOTO 13-3a

1. Grasp the knob of the slide spring to loosen the connection with the shift bracket so that the spring can be moved

to the right or left. Move the spring to the desired position.

2. Move the slide spring on the opposite side to the same

position. (Establishes uniform strength on the right

and left.)

When arm size has been replaced, even if the spring position on the shift bracket is the same, the arm gripping force

(level of difﬁculty) will change.

The ﬁgure below shows arms of equivalent gripping force. Use it as a guide for setting level of difﬁculty.

Example) If the spring is at the rightmost position in the shift bracket when arm L is attached, and if the spring is at

the leftmost position in the shift bracket when arm S is attached, arm gripping forces will be approximately equal.

FIG. 13-3b

Positon far from spring (low level of difficulty).

Position near the spring (high level of difficulty).

Intermediate position (intermediate level of difficulty).

SHIFT BRACKETSLIDE SPRING

When arm S is attached. When arm M is attached. When arm L is attached.

ARM MECHANISM

SPRING REPLACEMENT

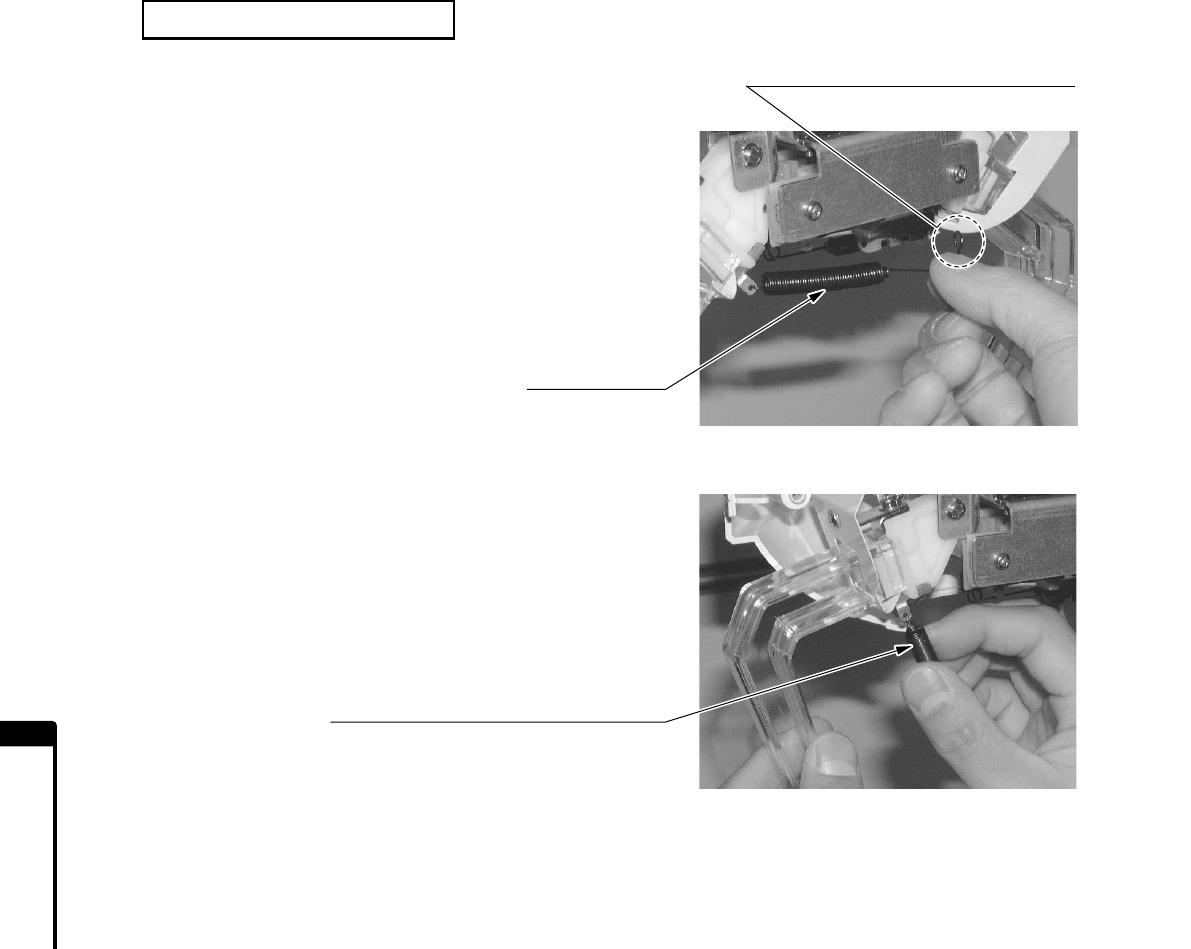

PHOTO 13-3b

PHOTO 13-3c

1. Grasp the slide spring knob and remove the slide

spring from the shift bracket.

2. Remove the slide spring from the spring bracket.

3. Attach a new slide spring.

4. Repeat the above procedure on the opposite side and replace.

Remove slide spring from spring bracket.

SLIDE SPRING

Remove slide spring from shift bracket.

UCS-3418

ARM MECHANISM

13-4 SHOVEL REPLACEMENT AND ADJUSTMENT

After shovels have been replaced, conﬁrm during initialization that the shovels do

not overlap each other when the arm is closed.

IMPORTANT

FIG. 13-4

Select a shovel in accordance to the prizes being used.

Remove the two ﬂat head screws and replace shovel.

1. Loosen the two wing screws.

2. Turn the adjustment screw to adjust the distance between shovels.

3. After adjusting so the shovels do not overlap, tighten the two loosened wing screws.

PHOTO 13-4

SHOVEL OVERLAP ADJUSTMENT

Confirm that shovels do not overlap each other.

SHOVEL W30

EG-3405Y

SHOVEL W60

EG-3404

SHOVEL W40

MKW-2120

FLAT HEAD SCREW (2)

M3 x 5

Adjust.Adjust.ADJUSTMENT SCREW

WING SCREW

SLIDE SPRING

Remove slide spring from shift bracket.

UCS-3418

ARM MECHANISM

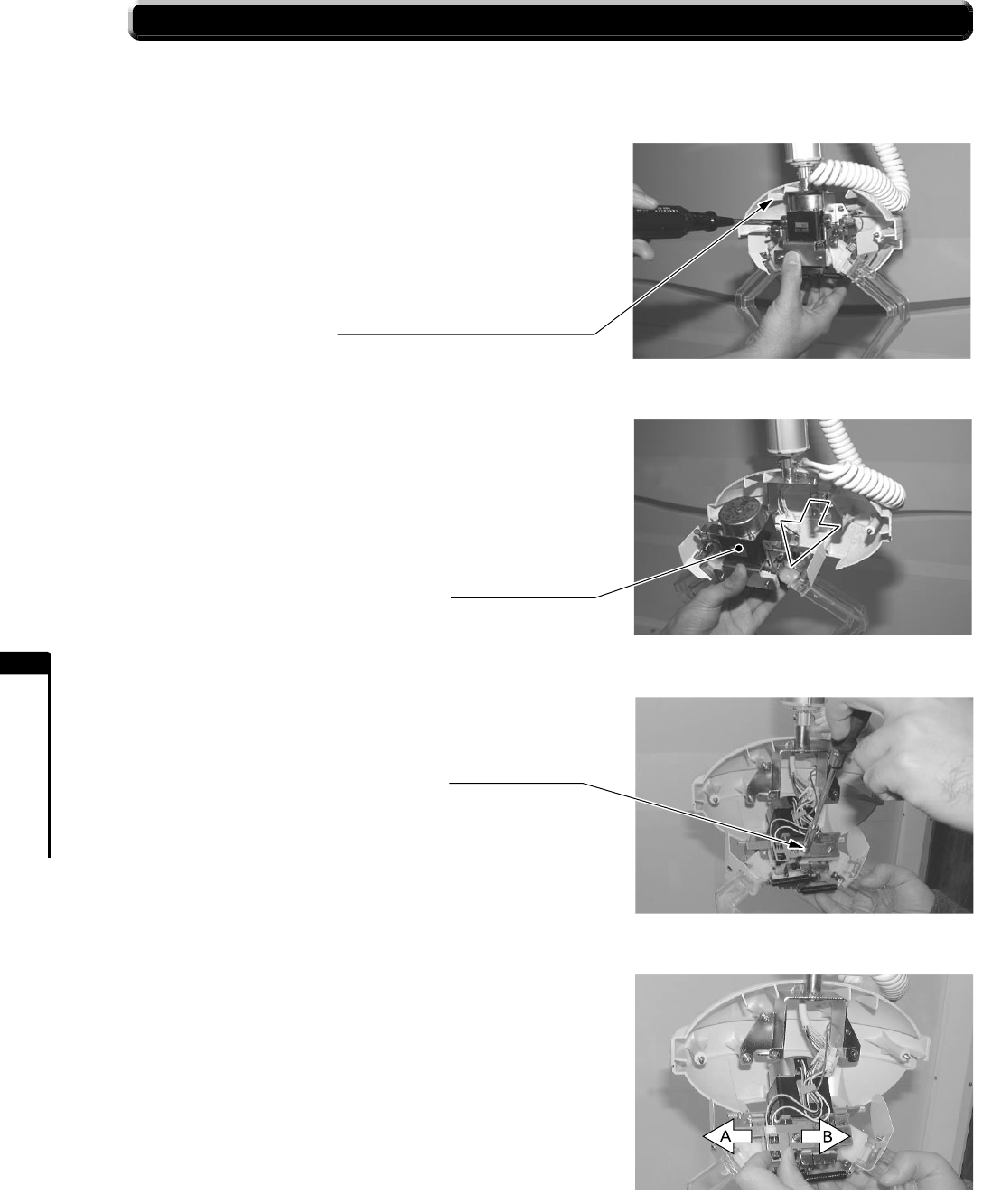

13-5 OPEN ARM ANGLE ADJUSTMENT

In cases such as when the arm comes in contact with the UFO cover, the open arm angle should be adjusted. For the

following procedures, an M3 Philips screwdriver or a screwdriver/spanner for M3 hexagonal nuts is required.

PHOTO 13-5a

PHOTO 13-5b

1. Loosen the two screws. Hold the arm mechanism at

this time so it will not fall.

2. Remove the arm mechanism.

Be especially careful when removing, as there are

connections.

PHOTO 13-5c

3. Loosen the two ﬂange nuts.

5. Tighten the ﬂange nuts and follow the above procedure in reverse order to attach the arm mechanism.

Be sure to conﬁrm at this time that no wiring has been caught.

PHOTO 13-5d

4. Slide the sensor bracket arm laterally to adjust the

open arm angle.

When the arm is slid to side A, the open arm angle

becomes large. When the arm is slid to side B, the

angle becomes small.

M3 x 8, with flat & spring washers

SCREW (2)

ARM MECHANISM

FLANGE NUT (2)

MAINTENANCE OF Z-ORIENTED MECHANISM

MAINTENANCE OF Z-ORIENTED MECHANISM14

• Before performing work, be sure to turn the power off and unplug the electrical

cord from the outlet. Performing the work without turning the power off can

cause an electric shock or short circuit.

• Be careful not to damage the wires. Damaged wires may cause an electric

shock, short circuit or present a risk of ﬁre.

• Use only prescribed grease. Using other types of grease could cause damage to

components.

• Apply grease only to prescribed locations. Otherwise, operations may become

defective and component materials may be altered.

IMPORTANT

An M4 Philips screwdriver is required for the following procedure.

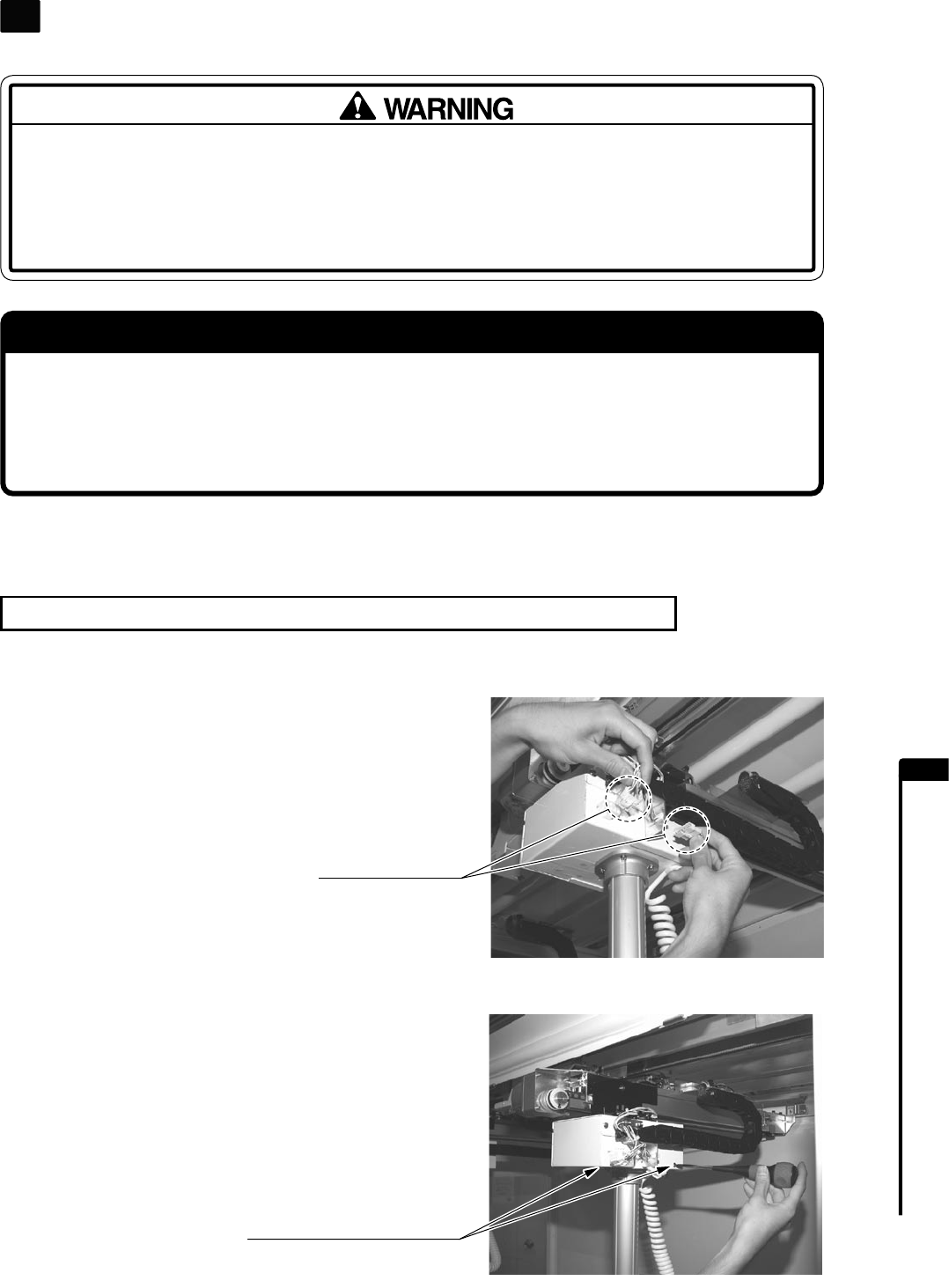

APPLYING GREASE TO INTERIOR OF Z-ORIENTED MECHANISM

Apply grease to the following areas once every three months.

For spray grease, use grease mate (PART No. 090-0066).

PHOTO 14a

1. Remove the two connectors.

PHOTO 14b

2. Remove the two truss screws on the back side.

Remove connector.

TRUSS SCREW (2), chrome

M4 x 8

MAINTENANCE OF Z-ORIENTED MECHANISM

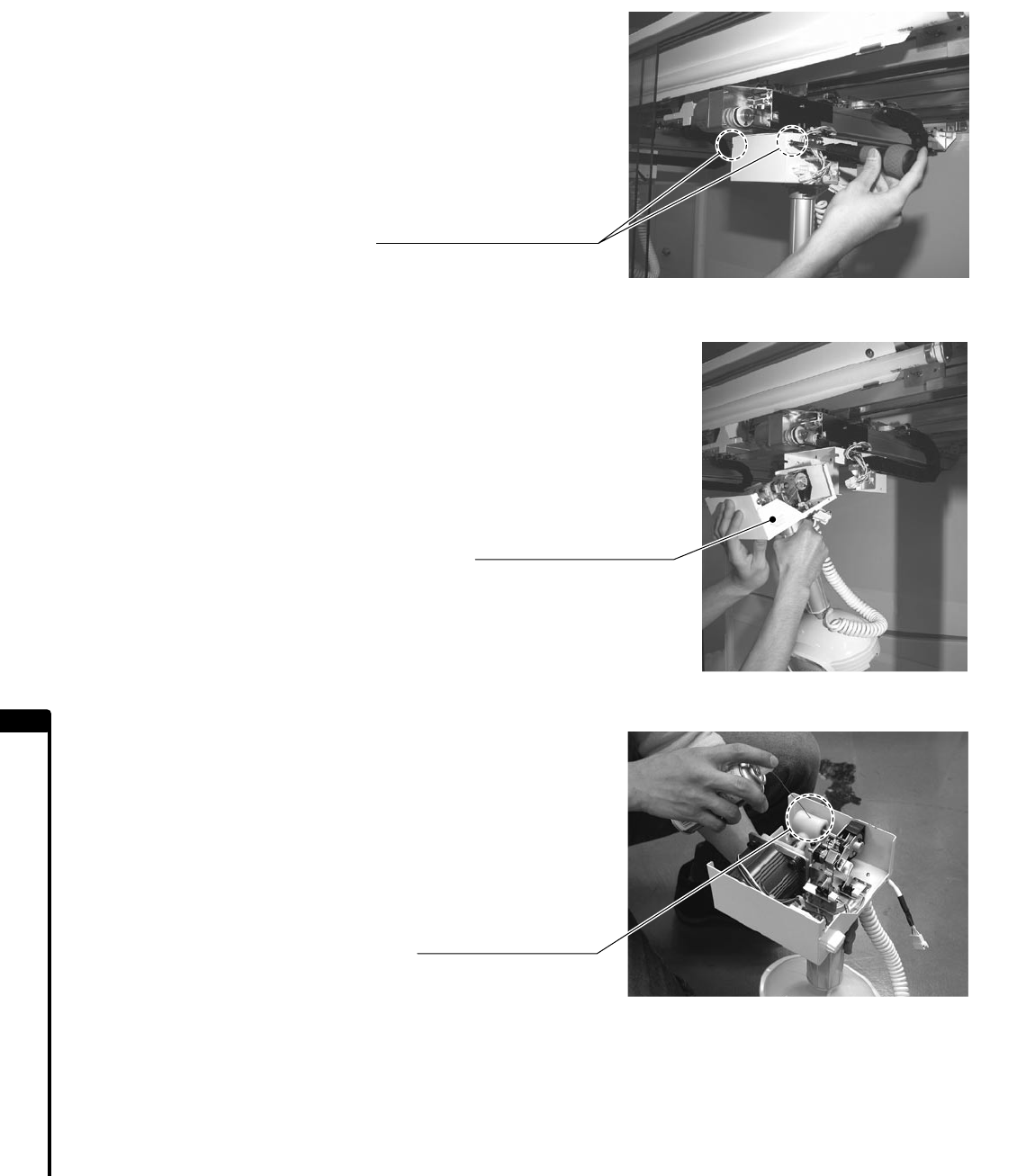

PHOTO 14c

3. Loosen the two truss screws on the front side.

PHOTO 14d

4. Remove the Z-oriented mechanism.

5. Insert spray grease nozzle into the hole for greasing

and apply grease.

6. Carry out the above procedures in reverse order to reattach the mechanism.

Be sure to conﬁrm at this time that no wiring has been caught.

PHOTO 14e

M4 x 8

TRUSS SCREW (2), chrome

Z-ORIENTED MECHANISM

HOLE FOR GREASING

COIN SELECTOR

COIN SELECTOR15

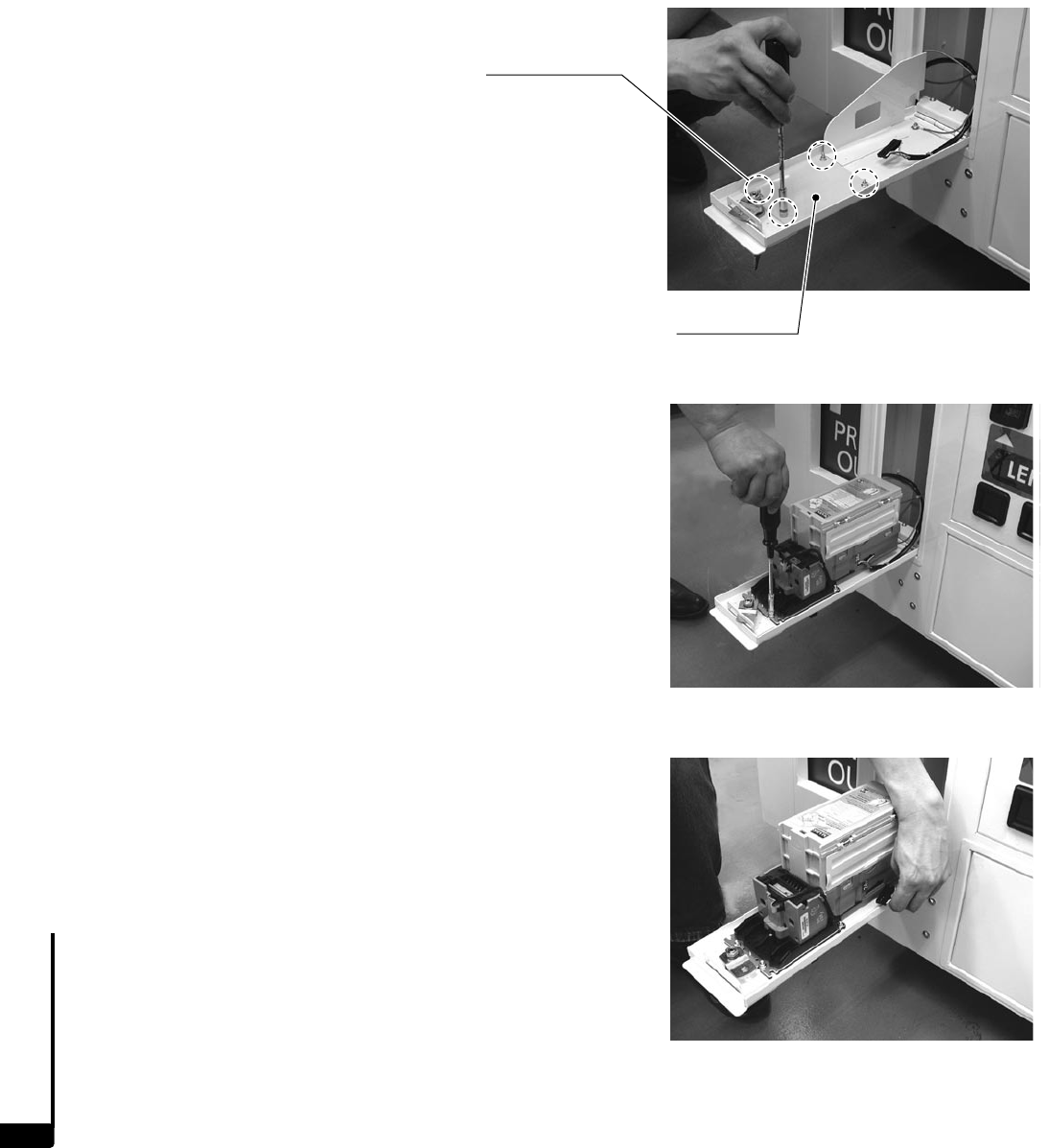

15-1 REMOVING THE COIN SELECTOR

PHOTO 15-1a

1. Turn the power off.

2. Unlock with the operator’s key and open the service

door.

PHOTO 15-1b

3. Loosen the thumbscrew on the back of the coin

selector.

PHOTO 15-1c

4. Push up the stopper that holds the coin selector in

place.

• Before performing work, be sure to turn the power off and unplug the electrical

cord from the outlet. Performing the work without turning the power off can

cause an electric shock or short circuit.

• Be careful not to damage the wires. Damaged wires may cause an electric

shock, short circuit or present a risk of ﬁre.

STOPPER

Loosen thumbscrew.

COIN SELECTOR

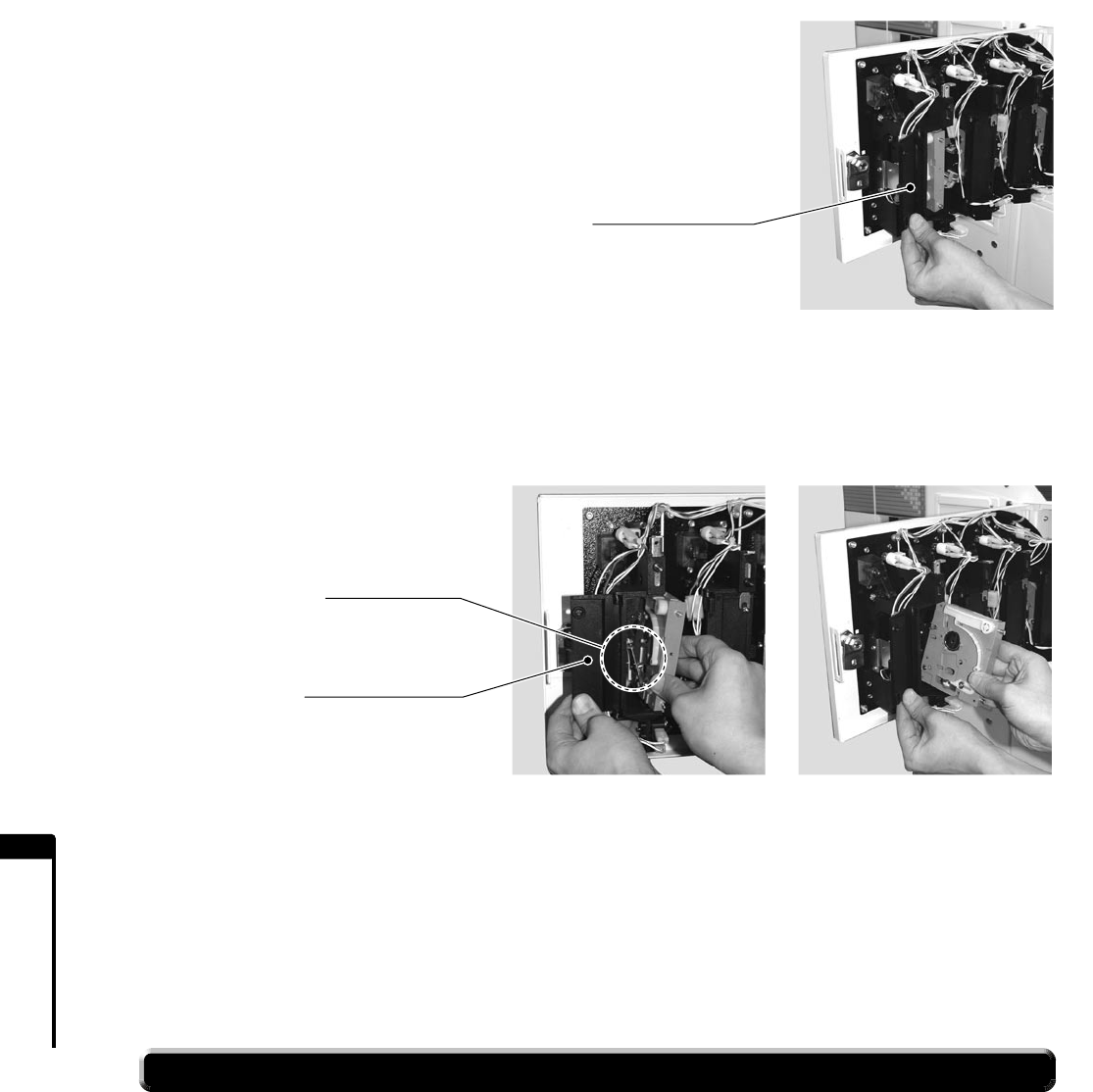

PHOTO 15-1fPHOTO 15-1e

PHOTO 15-1d

5. Open the back hold cover.

6. While paying attention to the lockout lever, slide the coin selector slightly to the right, then remove it by pulling it

forward.

15-2 REMOVING A JAMMED COIN

When the coin return button fails to refund coins, open the service door and open the selector gate. Once the jammed

coin is removed, insert a standard coin to ensure that the selector is working properly.

BACK HOLD COVER

LOCKOUT LEVER

COIN SELECTOR

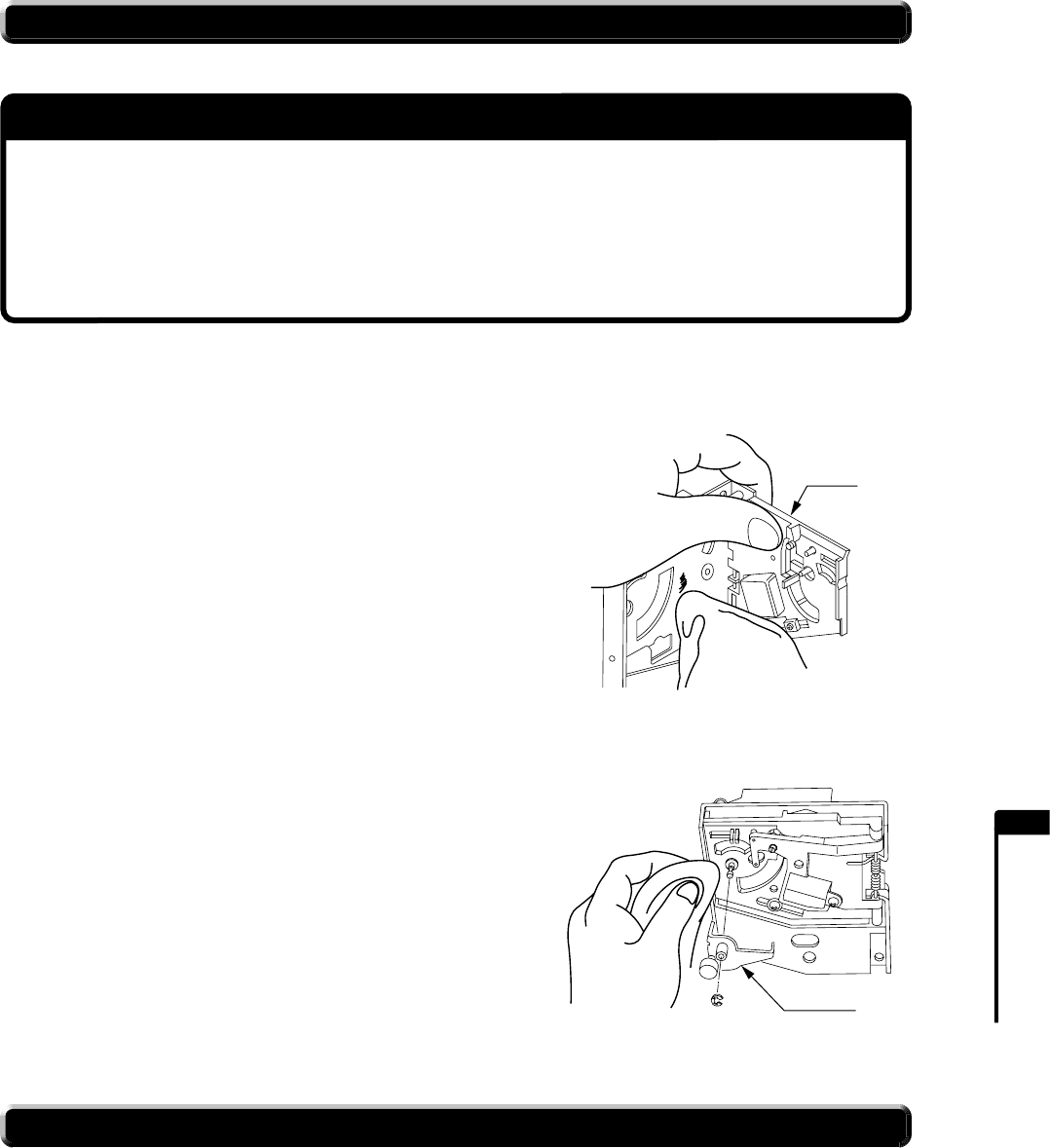

15-3 CLEANING THE COIN SELECTOR

The coin selector should be cleaned once every 3 months. When cleaning, follow the procedures below:

Fig. 15-3a

1. Open the gate and remove dust using a soft brush

(made of wool, etc.).

2. Remove and clean smears by using a soft cloth dipped

in water or diluted chemical detergent and then wrung

dry.

3. Remove the cradle. When detaching the retaining ring

(E ring), be extra careful not to bend the rotational

axis.

4. Use a soft cloth to wipe any dirt/debris off the

rotational axis and bearings.

5. After wiping as described in the previous step, use a

dry cloth, etc. to dry the coin selector completely.

Fig. 15-3b

15-4 COIN INSERTION TEST

Carry out a coin insertion test once per month. At the same time, check the following points:

□ Does the Coin Meter count properly?

□ Do coins drop into the Cashbox correctly?

□ Are coins rejected when inserted while holding down the Reject Button?

IMPORTANT

• Remove and clean smears using a soft cloth dipped in water or diluted chemical

detergent and then wrung dry.

• Never apply machine oil, etc. to the coin selector.

• After cleaning the coin selector, properly insert a standard coin to ensure that the

selector functions correctly.

GATE

CRADLE

REPLACEMENT OF FLUORESCENT LIGHTING, LAMPS, AND FUSES

16-1 FLUORESCENT LIGHTING REPLACEMENT

Replacement of Fluorescent Ceiling Lamps

FIG. 16-1

Remove ﬂuorescent ceiling lamps by pushing them toward the right and replace.

Replacement of Fluorescent Lamps on Sides

The work must only be carried out by personnel with electrical appliance

knowledge. Shocks and other serious accidents may result if the work is carried

out by unqualiﬁed individuals.

• Before performing work, be sure to turn the power off and unplug the electrical

cord from the outlet. Performing the work without turning the power off can

cause an electric shock or short circuit.

• Use lamps of the speciﬁed ratings. Using lamps with different ratings may cause

ﬁres or damage.

• You may get burned by a hot ﬂuorescent lamp or other lamps. Pay full attention

to the lamps when performing the work.

• There is the danger of accidents involving electrical shorts circuits or ﬁre caused

by factors such as the deterioration of insulation in lighting equipment over time.

Check that there are no anomalies such as the following: odors from burning,

socket discoloration, frequent lamp replacements.

FLUORESCENT LAMP (F32T8)

390-6839-32

FLUORESCENT LAMP (F25T8)

390-6839-25

REPLACEMENT OF FLUORESCENT LIGHTING, LAMPS, AND FUSES

1. Turn the power off.

2. Loosen the two screws and remove the switch cover. Hold the switch cover (L) while removing so it will not fall.

16-2 LAMP REPLACEMENT

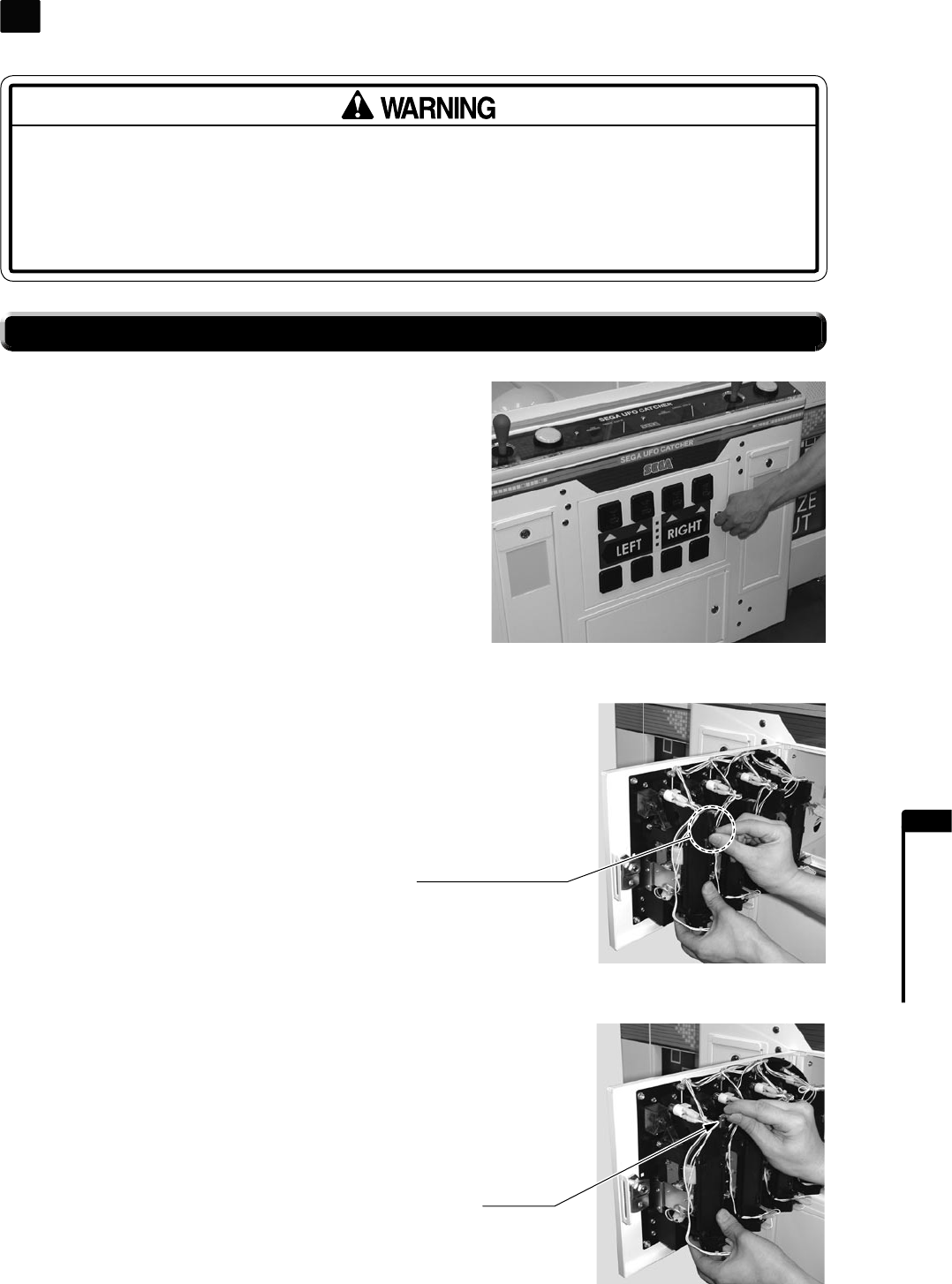

Replacement of Down Button Lamp

The provided tamperproof wrench is required for the following procedures.

1. Turn the power off.

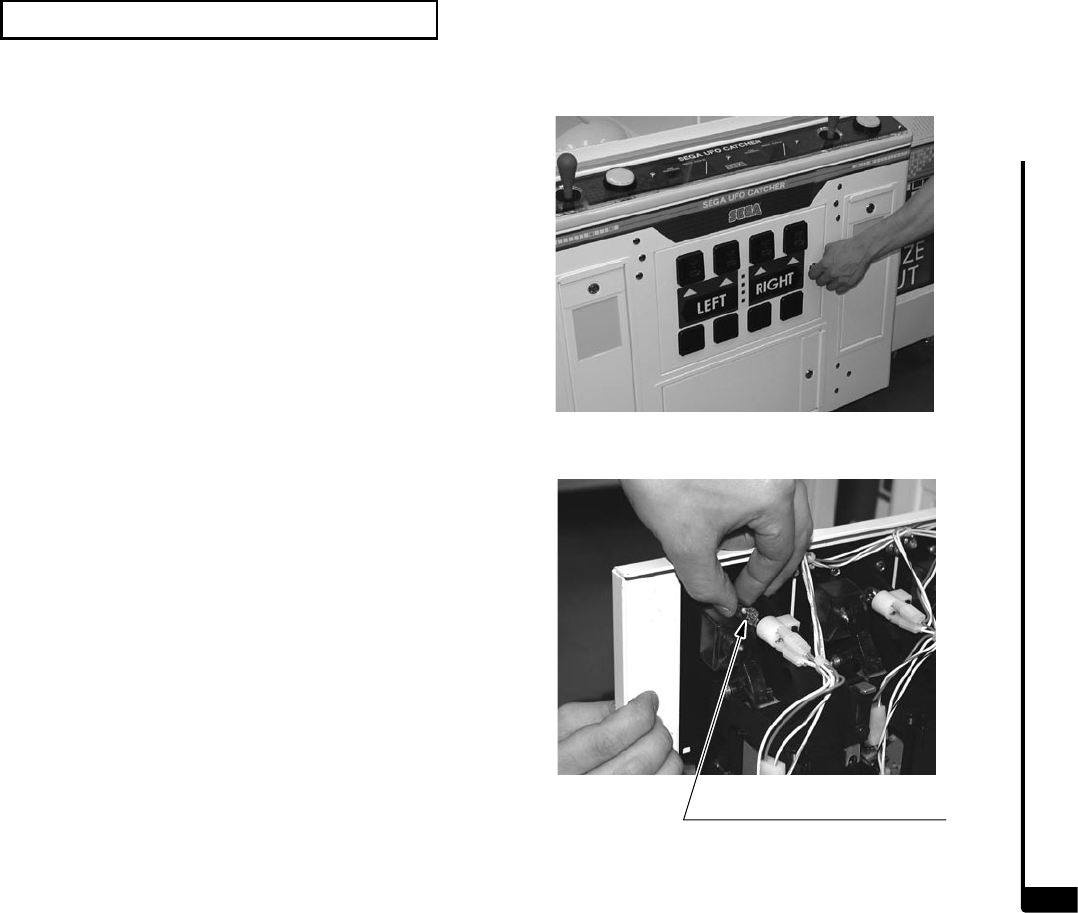

PHOTO 16-2a

2. Remove the 7 tamperproof screws, then remove the

control panel.

• Be careful not to damage the wires. Damaged wires may cause an electric

shock, short circuit or present a risk of ﬁre.

• When ﬁxing the plastic parts, do not fasten the screws and nuts too tightly.

Failure to observe this instruction may damage these parts and as a result the

broken pieces of these parts may cause a person injury.

3. Remove ﬂuorescent lamps by pushing them upward and replace. (See FIG. 16-1.)

SCREW (2)

M4 x 8, with flat & spring washers

SWITCH COVER (L)

[Opposite side: SWITCH COVER (R)]

TAMPERPROOF SCREW (7), chrome

M4 x 16

PHOTO 16-1

REPLACEMENT OF FLUORESCENT LIGHTING, LAMPS, AND FUSES

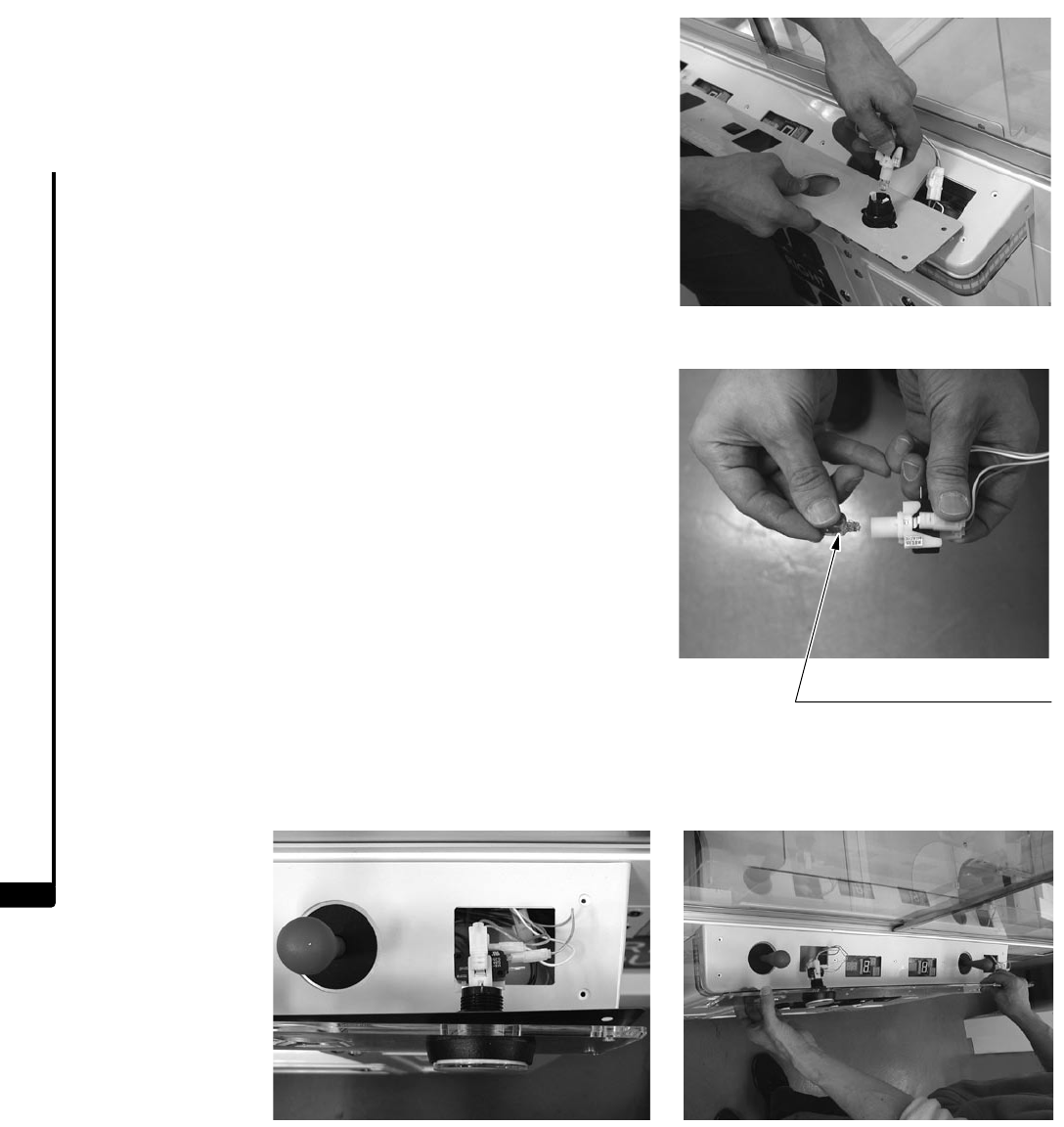

PHOTO 16-2b

3. Hold the switch component between your ﬁngers

and remove it from the button base. Be careful not to

damage wiring connected to the switch.

PHOTO 16-2c

4. There is a lamp at the tip of the switch component.

Pull the lamp out straight without turning it.

5. Attach the connector so that it goes to the right side and return the control panel to its original position.

PHOTO 16-2ePHOTO 16-2d

WEDGE-BASE LAMP 14V, 3.4W

REPLACEMENT OF FLUORESCENT LIGHTING, LAMPS, AND FUSES

Selector Button Lamp Replacement

PHOTO 16-2f

1. Turn the power off.

2. Unlock with the operator’s key and open the service

door.

PHOTO 16-2g

3. Pull the lamp out straight to replace it.

WEDGE-BASE LAMP 12V, 2.2W

REPLACEMENT OF FLUORESCENT LIGHTING, LAMPS, AND FUSES

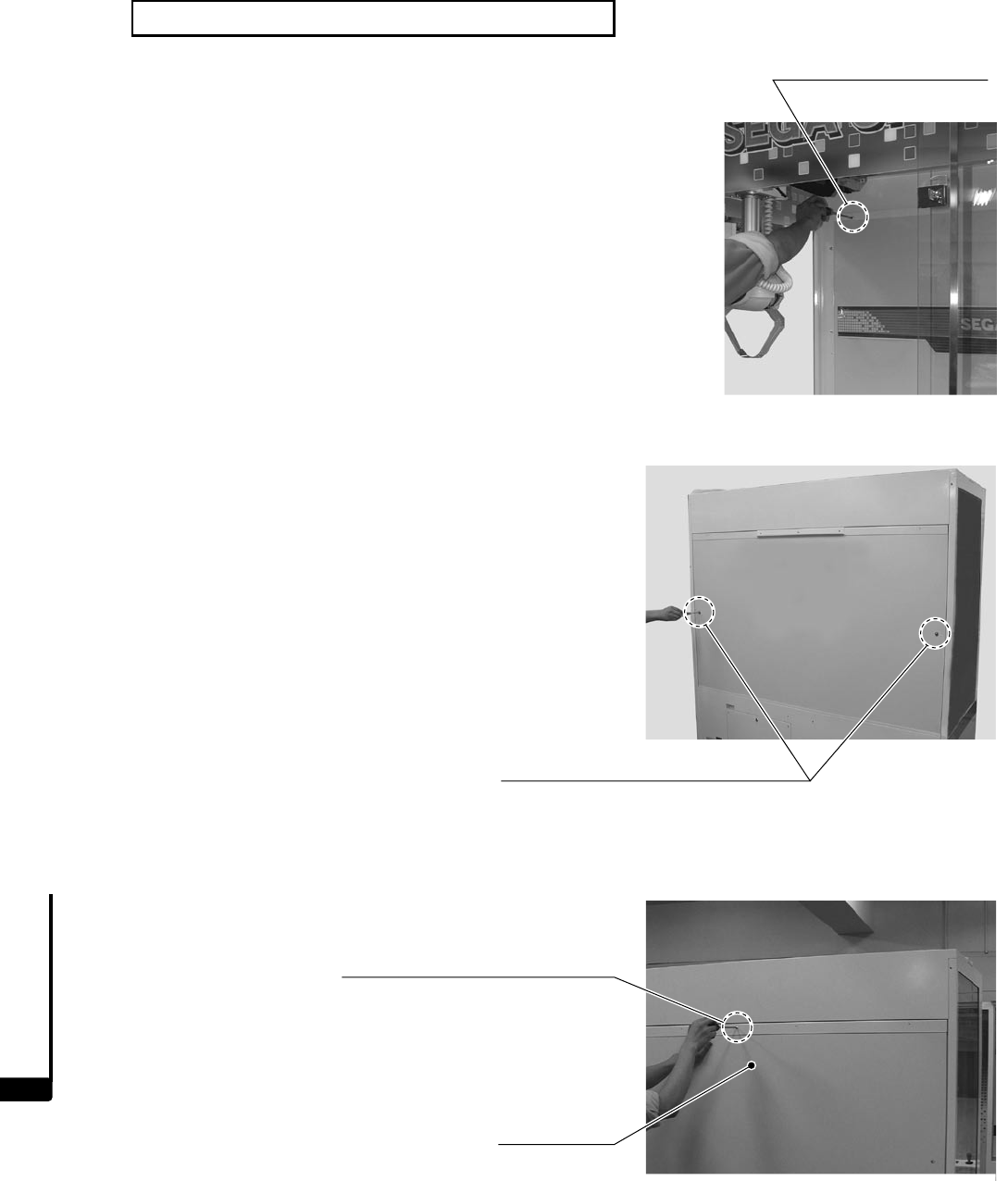

The provided tamperproof wrench is required for the following procedures.

1. Turn the power off.

PHOTO 16-3a

2. Remove the 2 tamperproof screws, unlock with the

master key and open the back lid.

3. The 2 fuses are located at the back of the left side. When replacing them, make sure that the ratings are correct.

16-3 FUSE REPLACEMENT

• The work must only be carried out by personnel with electrical appliance

knowledge. Shocks and other serious accidents may result if the work is carried

out by unqualiﬁed individuals.

• Before performing work, be sure to turn the power off and unplug the electrical

cord from the outlet. Performing the work without turning the power off can

cause an electric shock or short circuit.

• After eliminating the cause of a blown fuse, replace the fuse. Depending on

the cause of the fuse blow, continued use with the blown fuse may cause the

generation of heat and present a risk of ﬁre.

• Be sure to use fuses of the speciﬁed rating. Using fuses exceeding the speciﬁed

rating may cause ﬁre or electric shock.

PHOTO 16-3cPHOTO 16-3b

FUSE (LOWER)

250V, T, 2A

FUSE (UPPER)

250V, T, 5A

TAMPERPROOF SCREW (2), chrome

BACK LID

M4 x 8

PERIODIC INSPECTION

PERIODIC INSPECTION17

The items listed below require periodic check and maintenance to retain the performance of this machine and to

ensure safe business operation.

ITEMS DESCRIPTION PERIOD REFERENCE

CABINET Check that adjustors in contact with

ﬂoor Daily See Section 3

GEAR COMPONENTS Apply Grease 3 months See Section 13

FLUORESCENT LIGHTING Inspection of Lighting Equipment As necessary See Section 16

COIN SELECTOR Coin Insertion Test Monthly See Section 15

Cleaning Tri-monthly See Section 15

GLASS DOOR Cleaning As necessary See below.

CABINET SURFACES Cleaning As necessary See below.

ELECTRICAL/ELECTRONIC COMPONENTS

Inspection As necessary See above.

INTERIOR Cleaning Annually See above.

POWER SUPPLY PLUG Inspection and Cleaning Annually See above.

TABLE 17 PERIODIC INSPECTION TABLE

When the cabinet surfaces become dirty, remove stains with a soft cloth soaked in water or diluted (with water)

chemical detergent and then wrung dry. To avoid damaging the ﬁnish, do not use such solvents as thinner, benzene,

etc. (other than ethyl alcohol) or abrasives (bleaching agent and chemical dust-cloth).

Some general-purpose household, kitchen, and furniture cleaning products may contain strong solvents that degrade

plastic components, coatings, and print. Before using any cleaning product, read the product's cautionary notes

carefully and test the product ﬁrst on a small area that is not highly visible.

Cleaning the Glass Door

The glass door can easily become dirty so be sure to clean it often. Use regular glass cleaners and wipe both glass

surfaces. If you are using a spray glass cleaner, be sure to wipe away cleaner left on surrounding non-glass areas.

• Be sure to check once a year to see whether Power Cords are damaged, the

plug is securely inserted, dust has accumulated between the Socket Outlet and

the Power Plug, etc. Using the product with accumulated dust can cause ﬁre

and electric shock.

• Never use a water jet, etc. to clean inside and outside the cabinet. If the

machine gets wet for any reason, do not use it until it has completely dried.

• Periodically, around once a year, get in touch with the place of contact herein

stated or the Distributor, etc. where the product was purchased from, regarding

internal cleaning. Using the product with accumulated dust in the interior can

cause a ﬁre or accident. Note that professional cleaning will require a fee.

• There is the danger of accidents involving electrical shorts circuits or ﬁre caused

by factors such as the deterioration of insulation in electrical and electronic

equipment over time. Check that there are no anomalies such as odors from

burning.

Cleaning the Cabinet Surfaces

ERROR MESSAGES

ERROR MESSAGES 18

When an error occurs in the mechanism, a number corresponding to the error is displayed on the 7-seg displays on

the side (1P or 2P) that the error has occurred. Press the test switch to enter test mode.

Test the mechanism and conﬁrm the location of the error before exiting test mode.

After initialization, credits attained before the error are restored and the game resumes. (Partial credits attained for

multiple coins are deleted). For details, see [11-3 Explanation of Test Mode].

When an error has occurred, the credits are displayed in 2 digits on the small 7-seg displays.

If an error of unknown cause occurs and cannot be resolved, or if the same error occurs frequently, turn the power

off and contact the ofﬁce indicated on these instructions or where the product was purchased.

No.

7-seg Display

Reads Cause

0 00E BACK limit sensor in the X-direction does not turn ON.

1 01E BACK limit sensor in the X-direction does not turn OFF.

2 02E FWD limit sensor in the X-direction does not turn ON.

3 03E FWD limit sensor in the X-direction does not turn OFF.

Corrective Measure: Errors involving left/right movements. Check the limit sensor and its operation in test

mode 1. (See Section 11)

4 04E BACK limit sensor in the Y-direction does not turn ON.

5 05E BACK limit sensor in the Y-direction does not turn OFF.

6 06E FWD limit sensor in the Y-direction does not turn ON.

7 07E FWD limit sensor in the Y-direction does not turn OFF.

Corrective Measure: Errors involving forward/backward movements. Check the limit sensor and its operation in

test mode 1. (See Section 11)

8 08E UP limit sensor in the Z-direction does not turn ON.

9 09E UP limit sensor in the Z-direction does not turn OFF.

10 10E DOWN limit sensor in the Z-direction does not turn ON.

11 11E DOWN limit sensor in the Z-direction does not turn OFF.

Corrective Measure: Errors involving up/down movements. Check the limit sensor and its operation in test

mode 2. (See Section 11)

12 12E Open sensor does not turn ON.

13 13E Open sensor does not turn OFF.

Corrective Measure: Errors involving open/close movements. Check the open sensor and its operation in test

mode 3. (See Section 11)

14 14E There is no coin meter attached.

Corrective Measure: Errors involving the coin meter. Check the meter, its operation, and wire connections.

15 15E Problem with the prize sensor.

Corrective Measure: Errors involving the prize sensor. Check the prize sensor and its operation in test mode.

(See Section 11)

20 Problem with the X-axis.

Corrective Measure: Errors involving the X-axis. Check the limit sensor and its operation in test mode 1.

21 Problem with the Y-axis.

Corrective Measure: Errors involving the Y-axis. Check the limit sensor and its operation in test mode 1.

If the following errors occur after the power supply has been

activated, there may be a problem with the DIP SW board.

TABLE 18

20 Ed

b20 Ed

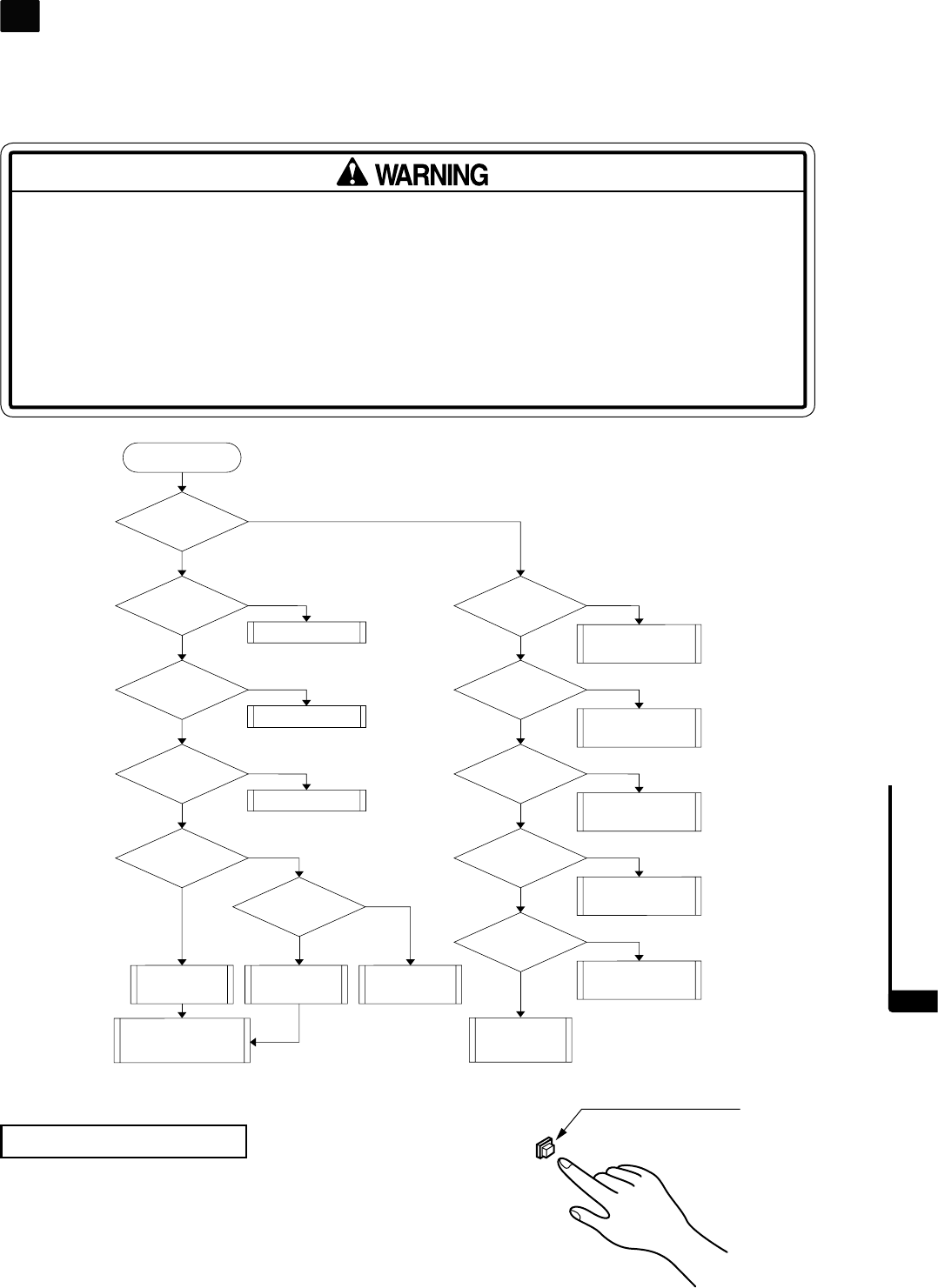

TROUBLESHOOTING

TROUBLESHOOTING19

The items listed below require periodic check and maintenance to retain the performance of this machine and to

ensure safe business operation.

CIRCUIT PROTECTOR

FIG. 19b

The Circuit Protector uses a bimetal to break the circuit.

Due to the heat, the machine cannot be restarted until it

cools. Wait at least 1 minute before restarting. (Press the

button in.)

• In order to prevent electric shock and short circuit, be sure to turn the power off

and unplug the electrical cord from the outlet before working on the machine.

• Be careful not to damage wiring. Damaged wiring may cause electric shock or

short circuit.

• After ﬁxing the problems regarding the Circuit Protector, reinstate the Circuit

Protector. Depending on the cause of the problem, using the Circuit Protector

without addressing the malfunction can generate heat and can present a ﬁre

hazard.

FIG. 19a

CIRCUIT PROTECTOR

YES

OFF

Problem has occurred.

Dose the fluorescent

lighting turn on?

Is the fuse okay?

Is the machine in

display mode?

Is there an error

displayed? Can a game be played?

Is the POWER LED

on the GAME BD lit?

Go to error correction.

Go to fuse replacement.

Check DIP SW.

Are LEDs 1 and 2

on the GAME BD lit?

No power is going

to the GAME BD.

Turn off power supply SW.

There could be defective

wiring or disconnection.

The GAME BD is

operating.

The GAME BD is

not operating

properly.

Are the glass doors

closed?

Are the power supply

switches ON?

Is the circuit

protector ON?

Check the power cord.

AC 120V is not

being supplied.

Either the wiring is

defective or the flourescent

light has burnt out.

Close the glass doors on

the left and right securely.

Turn the power supply

switches in both

locations to ON.

Turn the protector to

ON. (See Fig.6-4a)

Insert cord into

outlet/inlet properly.

Flashing or out.

YES

GOOD

YES

GOOD

YES

DESIGN-RELATED PARTS

DESIGN-RELATED PARTS20

For the Warning Display Stickers, refer to Section1.

FIG. 20a Basic Cabinet

FIG. 20b Full Options Cabinet (See Section 21.)

FL GLASS SHEET

UCU-1032 (The opposite side is the same.)

CTRL PNL SHEET

UCU-2002

DESIGN SHEET UCU

UCU-3401 (The opposite side is the same.)

LCD COVER PLATE

UCU-0021

STICKER LEFT

UCU-1002-B

STICKER FRONT A

UCU-1002-D

STICKER FLAP

UCU-1342 (The opposite side is the same.)

STICKER RIGHT

UCU-1002-C

STICKER FRONT C

UCU-1002-F

STICKER FRONT B

UCU-1002-E

BILLBOARD RIGHT

UCU-0014

(Opposite side)

BILLBOARD LEFT

UCU-0013

BILLBOARD FRONT

UCU-0012

STICKER SERVICE DOOR

UCU-1062

BILLBOARD FRONT

UCU-0012

FL GLASS SHEET

UCU-1032 (The opposite side is the same.)

CTRL PNL SHEET

UCU-2002

DESIGN SHEET UCU

UCU-3401 (The opposite side is the same.)

STICKER BACK BOARD

UCU-0041

STICKER LEFT

UCU-1002-B

STICKER FRONT A

UCU-1002-D

STICKER FLAP

UCU-1342 (The opposite side is the same.)

STICKER RIGHT

UCU-1002-C

STICKER FRONT C

UCU-1002-F

STICKER SERVICE DOOR

UCU-1062

STICKER FRONT B

UCU-1002-E

BILLBOARD RIGHT

UCU-0014

(Opposite side)

BILLBOARD LEFT

UCU-0013

OPTIONAL ITEMS

OPTIONAL ITEMS21

The following optional items are available for the SEGA UFO CATCHER.

- Dollar Bill Validator: 2 sets

- Security Bar

Coin Security Bar: 1 set

Bill Security Bar: 2 sets

- LCD Unit

LCD Case + Cable Cover: 1 set

LCD Monitor: 1 set

Movie Player: 1 set

21-1 DOLLAR BILL VALIDATOR

DOLLAR BILL VALIDATOR INSTALLATION

Be sure to use the “AE2432D5” dollar bill validator made by MEI.

IMPORTANT

Install the dollar bill validators on the 2 bill validator doors on the left and right of the cabinet front panel.

PHOTO 21-1a

1. Turn the power off.

2. Unlock with key and open the bill validator door.

• The work must only be carried out by personnel with electrical appliance

knowledge. Shocks and other serious accidents may result if the work is carried

out by unqualiﬁed individuals.

• Before performing work, be sure to turn the power off and unplug the electrical

cord from the outlet. Performing the work without turning the power off can

cause an electric shock or short circuit.

• Be careful not to damage the wires. Damaged wires may cause an electric

shock, short circuit or present a risk of ﬁre.

BILL VALIDATOR DOOR

FL GLASS SHEET

UCU-1032 (The opposite side is the same.)

CTRL PNL SHEET

UCU-2002

DESIGN SHEET UCU

UCU-3401 (The opposite side is the same.)

LCD COVER PLATE

UCU-0021

STICKER LEFT

UCU-1002-B

STICKER FRONT A

UCU-1002-D

STICKER FLAP

UCU-1342 (The opposite side is the same.)

STICKER RIGHT

UCU-1002-C

STICKER FRONT C

UCU-1002-F

STICKER FRONT B

UCU-1002-E

BILLBOARD RIGHT

UCU-0014

(Opposite side)

BILLBOARD LEFT

UCU-0013

BILLBOARD FRONT

UCU-0012

STICKER SERVICE DOOR

UCU-1062

BILLBOARD FRONT

UCU-0012

FL GLASS SHEET

UCU-1032 (The opposite side is the same.)

CTRL PNL SHEET

UCU-2002

DESIGN SHEET UCU

UCU-3401 (The opposite side is the same.)

STICKER BACK BOARD

UCU-0041

STICKER LEFT

UCU-1002-B

STICKER FRONT A

UCU-1002-D

STICKER FLAP

UCU-1342 (The opposite side is the same.)

STICKER RIGHT

UCU-1002-C

STICKER FRONT C

UCU-1002-F

STICKER SERVICE DOOR

UCU-1062

STICKER FRONT B

UCU-1002-E

BILLBOARD RIGHT

UCU-0014

(Opposite side)

BILLBOARD LEFT

UCU-0013

OPTIONAL ITEMS

PHOTO 21-1b

3. Remove the 4 ﬂange nuts, then remove the blind

plate.

PHOTO 21-1c

4. Attach the dollar bill validator with the 4 ﬂange nuts

that were removed.

PHOTO 21-1d

5. Connect the one connector.

NOTE: The photos show installation on the cabinet left side. Install the bill validator on the right side in the same

manner.

BLIND PLATE

FLANGE NUT (4)

OPTIONAL ITEMS

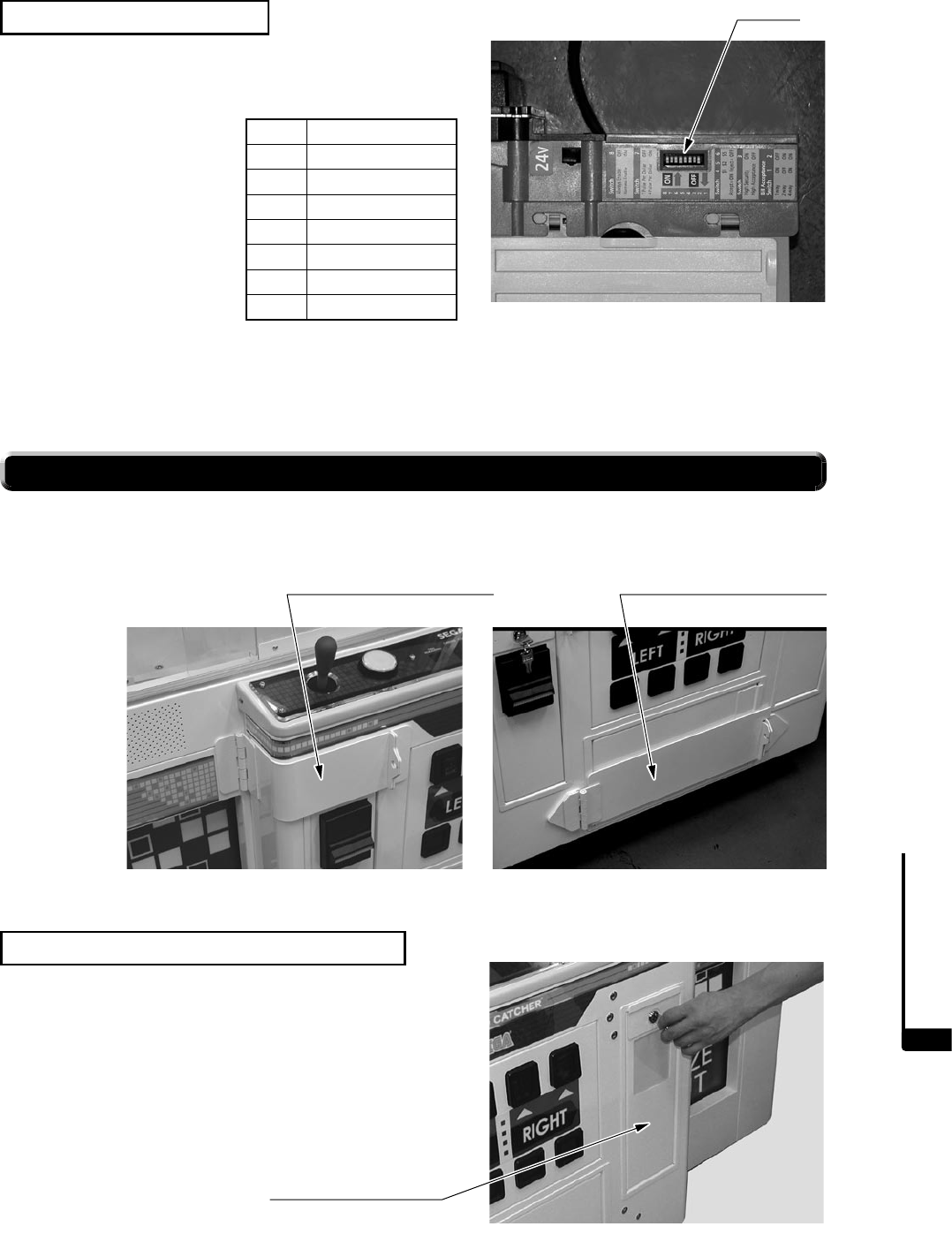

DIP SWITCH SETTINGS

1. Set the DIP SWITCHES for use as illustrated below.

PHOTO 21-1e

NOTE: For details on bill validator handling, inspection, changing settings, etc., refer to the sticker attached or the

[Bill Acceptor (Validator) “Installation Guide”] provided with the bill validator.

1 free

2 free

3 free

4 ON

5 OFF

6 OFF

7 OFF

8 ON

The following types of security bars are available.

- Coin Security Bar: 1 set

- Bill Security Bar: 2 sets

21-2 SECURITY BAR

COIN SECURITY BAR INSTALLATION

PHOTO 21-2b

PHOTO 21-2a

PHOTO 21-2c

1. Turn the power off.

2. Unlock with key and open the right bill validator

door.

DIP SW

BILL SECURITY BAR (2 sets) COIN SECURITY BAR (1 set)

BILL VALIDATOR DOOR

OPTIONAL ITEMS

PHOTO 21-2d

3. Remove the 3 ﬂange nuts on the inside of the bill

validator door, then remove the 3 carriage bolts from

the cabinet front side. Be careful not to drop or lose

the ﬂange nuts.

PHOTO 21-2e

4. Set the coin security hook on the cabinet and secure it

in place with the 3 ﬂange nuts that were removed.

5. Unlock with key and open the left bill validator door.

PHOTO 21-2f

6. Remove the 3 ﬂange nuts on the inside of the bill

validator door, then remove the 3 carriage bolts from

the cabinet front side. Be careful not to drop or lose

the ﬂange nuts.

CARRIGAGE BOLT (3), chrome

M6 x 20

FLANGE NUT (3)

M6 (Inside)

COIN SECURITY HOOK

CARRIGAGE BOLT (3), chrome

M6 x 20

FLANGE NUT (3)

M6 (Inside)

OPTIONAL ITEMS

PHOTO 21-2g

7. Set the spacer in the coin security bar and secure it in place on the cabinet with the 3 ﬂange nuts that were

removed.

8. Close both the left and right service doors.

BILL SECURITY BAR INSTALLATION

PHOTO 21-2i

1. Turn the power off.

2. Unlock with key and open the left bill validator door.

PHOTO 21-2j

3. Remove the 3 ﬂange nuts on the inside of the bill validator door, then remove the 3 carriage bolts from the cabinet

front side. Be careful not to drop or lose the ﬂange nuts.

PHOTO 21-2h

PHOTO 21-2j PHOTO 21-2k

CARRIGAGE BOLT (3), chrome

M6 x 20

FLANGE NUT (3)

M6 (Inside)

SPACER

COIN SECURITY BAR

SPACER

OPTIONAL ITEMS

PHOTO 21-2l

4. Set the bill security hook on the cabinet and secure it

in place with the 3 ﬂange nuts that were removed.

PHOTO 21-2m

5. Unlock the glass door with the operator’s key and

open it.

PHOTO 21-2o

6. Remove the 2 ﬂange nuts inside the cabinet, then remove the 2 carriage bolts from the cabinet front side.

PHOTO 21-2n

BILL SECURITY HOOK

OPERATOR'S KEY

FLANGE NUT (2)

CARRIGAGE BOLT (2), chrome

M6 x 20

FLANGE NUT (2) (Opposite side)

OPTIONAL ITEMS

PHOTO 21-2p

7. Close the left bill validator door.

8. Set the bill security bar on the cabinet and secure it in

place with the 2 ﬂange nuts that were removed.

NOTE: Follow the same procedure to install the bill security bar on the right side. There are no differences in

procedure for the left and right sides.

21-3 LCD UNIT (LCD CASE + CABLE COVER)

LCD UNIT ASSEMBLY

Always use an LCD monitor provided by SEGA.

IMPORTANT

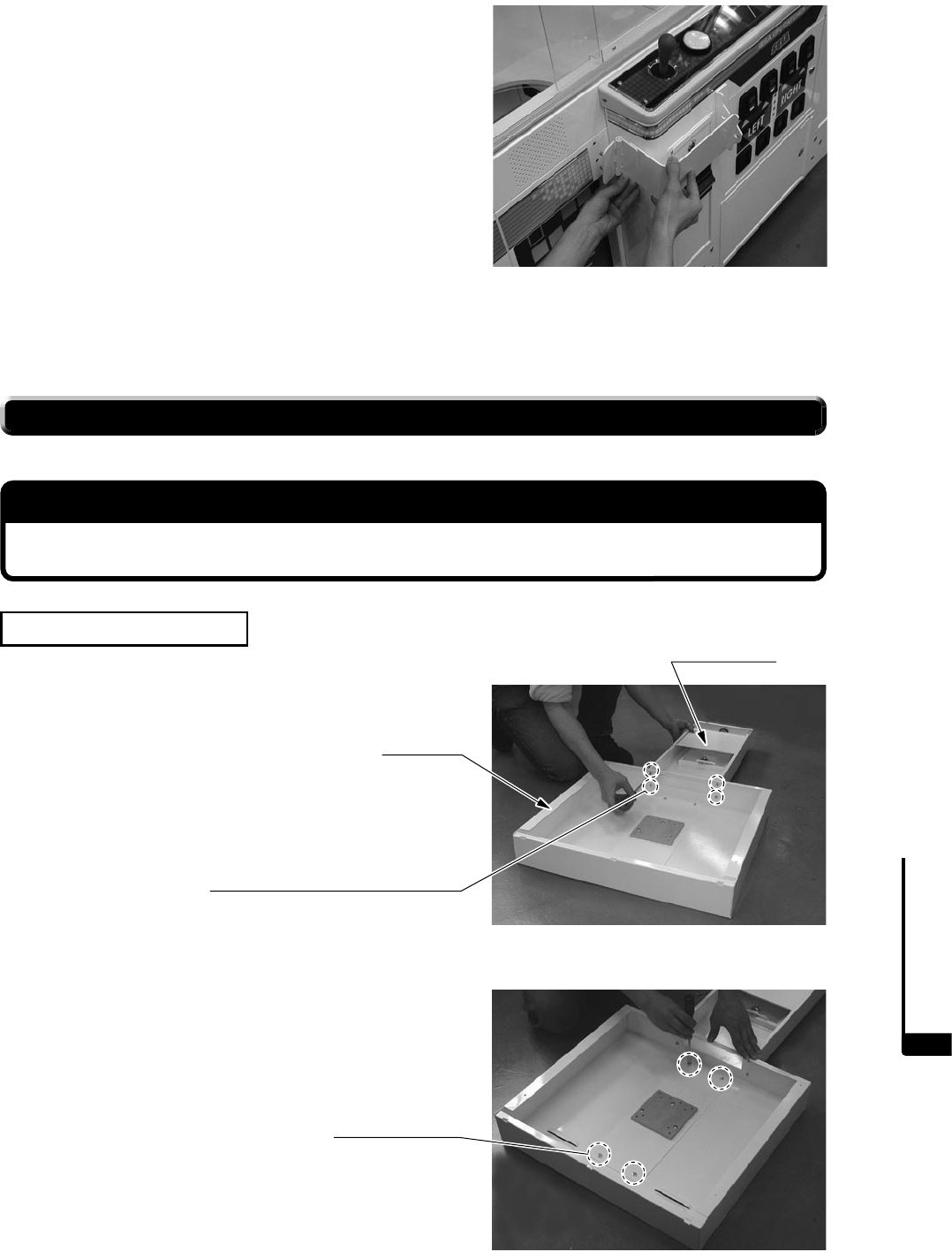

PHOTO 21-3a

1. Assemble the LCD case and cable cover with the 4

screws.

2. Remove the 4 ﬂange nuts, then remove the LCD

bracket

PHOTO 21-3b

SCREW (4)

LCD CASE

CABLE COVER

M4 x 8, with flat & spring washers

FLANGE NUT (4)

OPTIONAL ITEMS

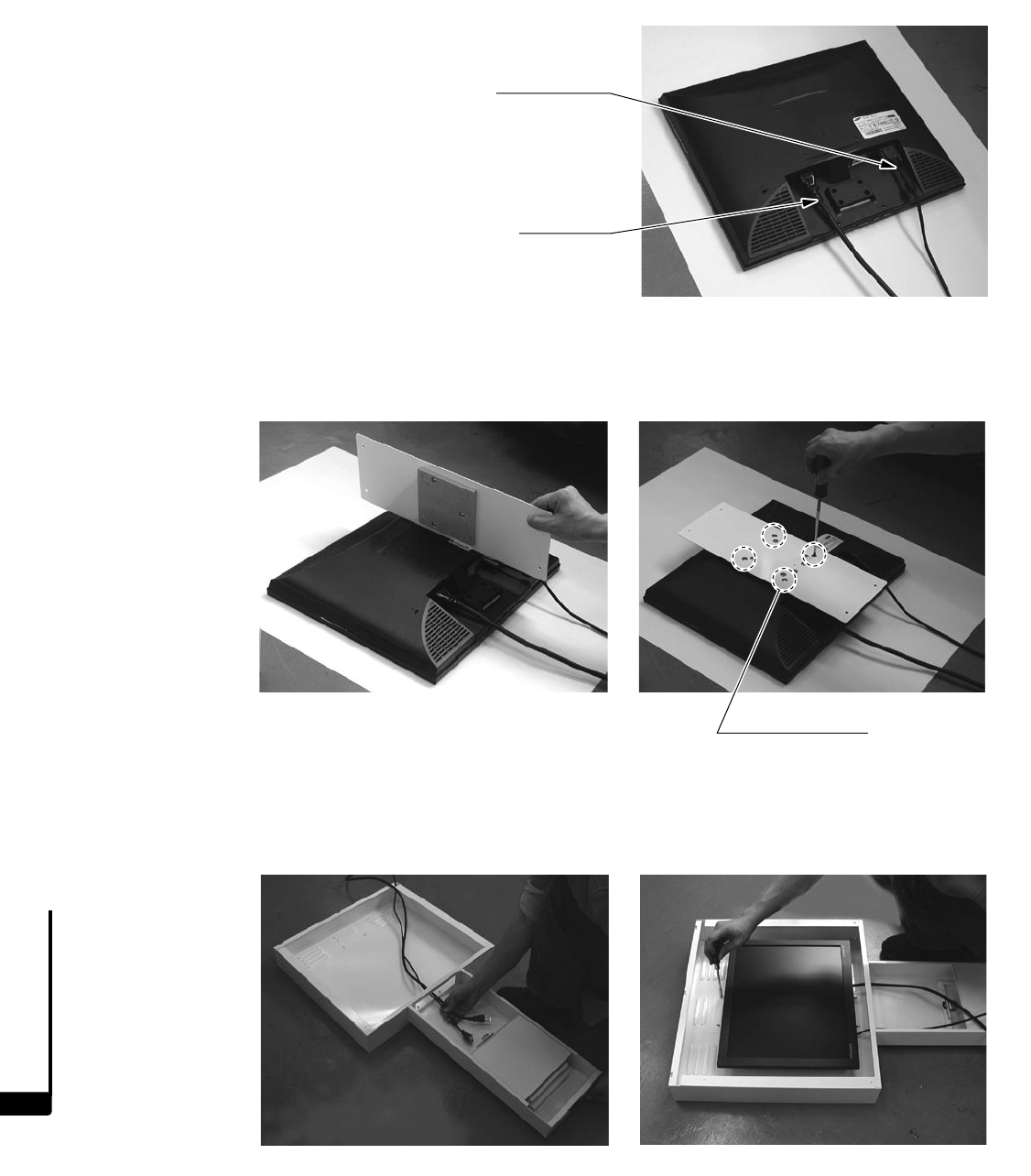

3. Remove the LCD monitor stand, then connect the

RGB cables and the power cable.

PHOTO 21-3c

NOTE: The LCD monitor may differ from the one shown

in the photo.

4. Use the 4 truss screws to attach the LCD bracket to the monitor.

(Attach the LCD bracket so that the wooden area held down by two points is on the upper side.)

PHOTO 21-3ePHOTO 21-3d

5. Return the LCD bracket with monitor attached to the LCD case and secure it in place with the 4 ﬂange nuts

removed in step 2. Be careful not to damage the cables.

PHOTO 21-3gPHOTO 21-3f

RGB CABLE

POWER CABLE

TURSS SCREW (4)

M4 x 15

OPTIONAL ITEMS

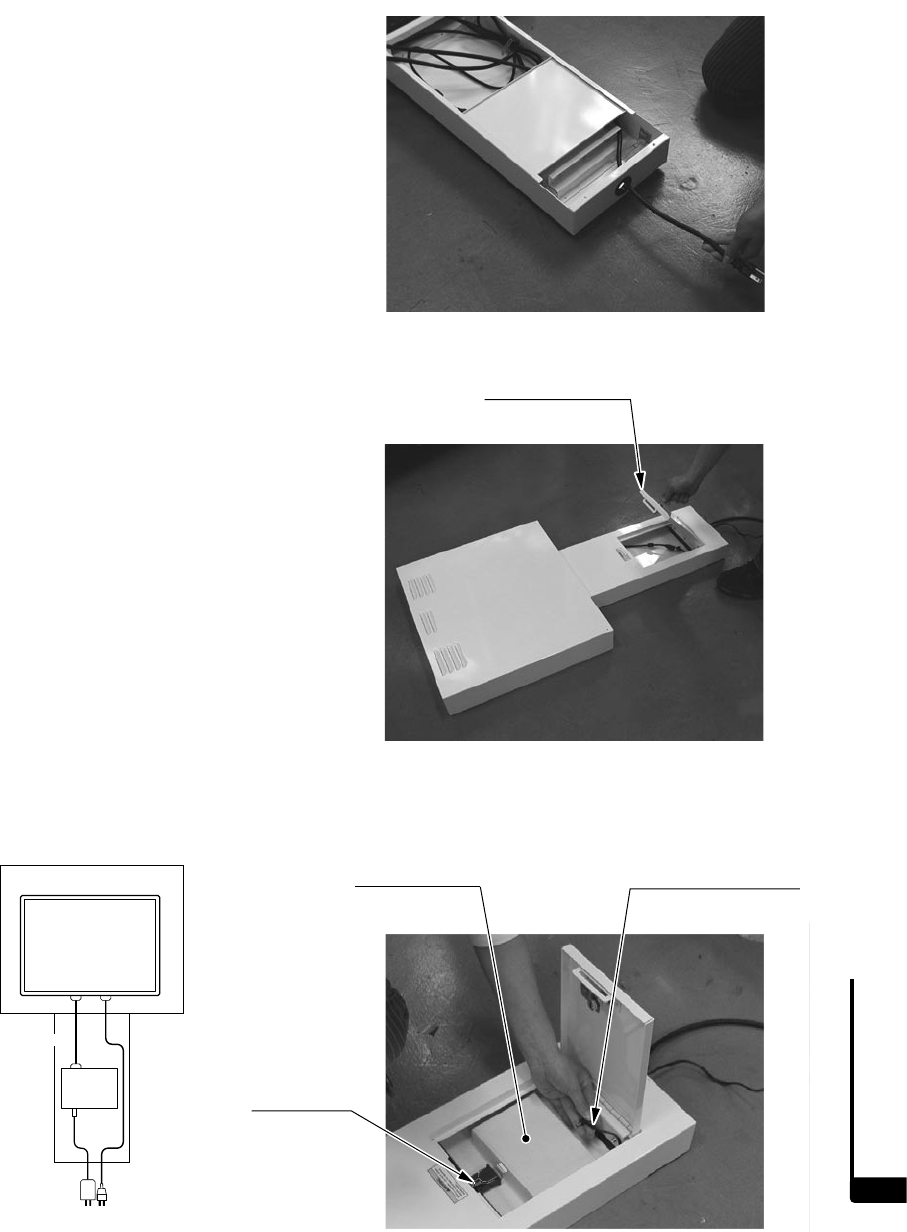

6. Bundle the cables and secure them in place with a

cable tie.

In bundling the cables, leave enough space for

connectors to be connected to each unit.

PHOTO 21-3h

7. Turn the unit over and use the master key to open

LCD unit door.

PHOTO 21-3i

8. Use double-sided tape to secure the movie player to the inside surface of the LCD unit door, then connect the

RGB cables and AC adaptor cable. Connect the RGB cables and AC adaptor cable as shown in the illustration.

PHOTO 21-3jFIG. 21-3a

NOTES:

- Tune the monitor before assembly. After attaching the monitor to the inside panel, the tuning button becomes

hidden, and tuning may become difﬁcult.

- The movie player may differ from the one shown in the photo.

- For details on the handling of the LCD monitor or the movie player, refer to the instruction manual provided

with each unit.

LCD UNIT DOOR

MOVIE PLAYER AC ADAPTOR CABLE

RGB CABLE

LCD

MONITOR

MOVIE PLAYER

RGB IN

AC ADAPTOR CABLE

RGB OUT

POWER IN

AC 120V

RGB CABLE

OPTIONAL ITEMS

INSTALLATION OF LCD UNIT ON CABINET

1. Remove the 2 truss screws from inside the cabinet.

PHOTO 21-3k

2. Remove the 2 tamperproof screws on the left and

right of the cabinet rear panel.

PHOTO 21-3l

3. Remove the 1 tamperproof screw in the center, then

remove backboard B.

Hold backboard B at this time so it will not fall while

working.

PHOTO 21-3m

TRUSS SCREW (2), chrome

M4 x 8

TAMPERPROOF SCREW (2), chrome

M4 x 8

BACKBOARD B

TAMPERPROOF SCREW (1), chrome

M4 x 8

OPTIONAL ITEMS

4. Remove the backboard upper bracket from backboard B.

PHOTO 21-3n

5. Use the 2 provided truss screws to install the LCD

unit hook to the backboard upper bracket.

PHOTO 21-3o

6. Attach the LCD unit hook to backboard A (the side

with no sticker should face the outer side of the

cabinet).

PHOTO 21-3p

TRUSS SCREW (2),chrome

LCD UNIT HOOK

M4 x 8

LCD UNIT HOOK

BACKBOARD A

BACKBOARD UPPER BRACKET

BACKBOARD B

OPTIONAL ITEMS

7. Load backboard A onto the cabinet rear panel, then secure it in place by reversing the steps used to remove the

truss screw in the center and the 2 tamperproof screws on the left and right from backboard B. Hold backboard A

at this time so it will not fall while working.

8. Secure in place with 2 truss screws from inside the cabinet.

PHOTO 21-3rPHOTO 21-3q

9. Suspend the LCD unit on the LCD hooks.

Have 2 people do this job, as the assembled LCD unit

weighs over 15 kg.

PHOTO 21-3s

10. Use the 4 truss screws provided to secure the LCD

cover to the inside of the cabinet. Make sure that the

LCD cover does not fall while working.

PHOTO 21-3t

LCD HOOK

TRUSS SCREW (4)

M4 x 20, flat washer used

OPTIONAL ITEMS

11. Remove the 2 tamperproof screws, unlock with the master key and open the back lid.

PHOTO 21-3vPHOTO 21-3u

12. Secure the LCD unit with 2 screws from the inside

of the cabinet.

PHOTO 21-3w

PHOTO 21-3yPHOTO 21-3x

13. Close the back lid and lock.

BACK LID

TAMPERPROOF SCREW (2), chrome

M4 x 8

SCREW (2)

M4 x 8, with flat & spring washers

PARTS LIST

PARTS LIST22

(3) ASSY SUB CABINET

(UCU-1001)

(6) ASSY SPEAKER

(UCS-1050X)

(7) ASSY SERVICE DOOR

(UCU-1060)

(8) SW UNIT

(UCU-1070)

(9) AC UNIT

(UCU-1080)

(10) ASSY PRIZE SENSOR

(USS-1200)

(11) ASSY FL BASE L

(UCU-1300)

(12) ASSY FL BASE R

(UCU-1310)

(13) SIDE FL UNIT

(UCU-1320)

(14) FLAP UNIT

(UCU-1340)

(20) ASSY X MECHA

(UCU-3050)

(20) ASSY X MECHA

(UCU-3050)

(26) ASSY ARM MECHA

(UCU-3410)

(27) ASSY REAR COVER

(UCS-3450)

(1) TOP ASSY UCU

(UCU-0000)

(2) ASSY CABINET

(UCU-1000)

(15) ASSY GLASS DOOR L

(UCU-1100)

(16) ASSY GLASS DOOR R

(UCU-1110)

(17) ASSY BACK LID

(UCU-1150)

(18) ASSY CTRL PNL PLATE

(UCU-2000)

(19) ASSY X MECHA 1P

(UCU-3000)

(21) ASSY X MECHA 2P

(UCU-3010)

(22) ASSY Y MECHA

(UCU-3100)

(23) ASSY Z MECHA

(UCU-3200)

(24) ASSY PIPE

(UCU-3300)

(25) ASSY UFO MECHA

(UCU-3400)

(28) ASSY MAIN BD

(UCU-4000)

(4) CABINET

(UCU-1002)

(5) ASSY WIRE

(UCU-6001)

PARTS LIST

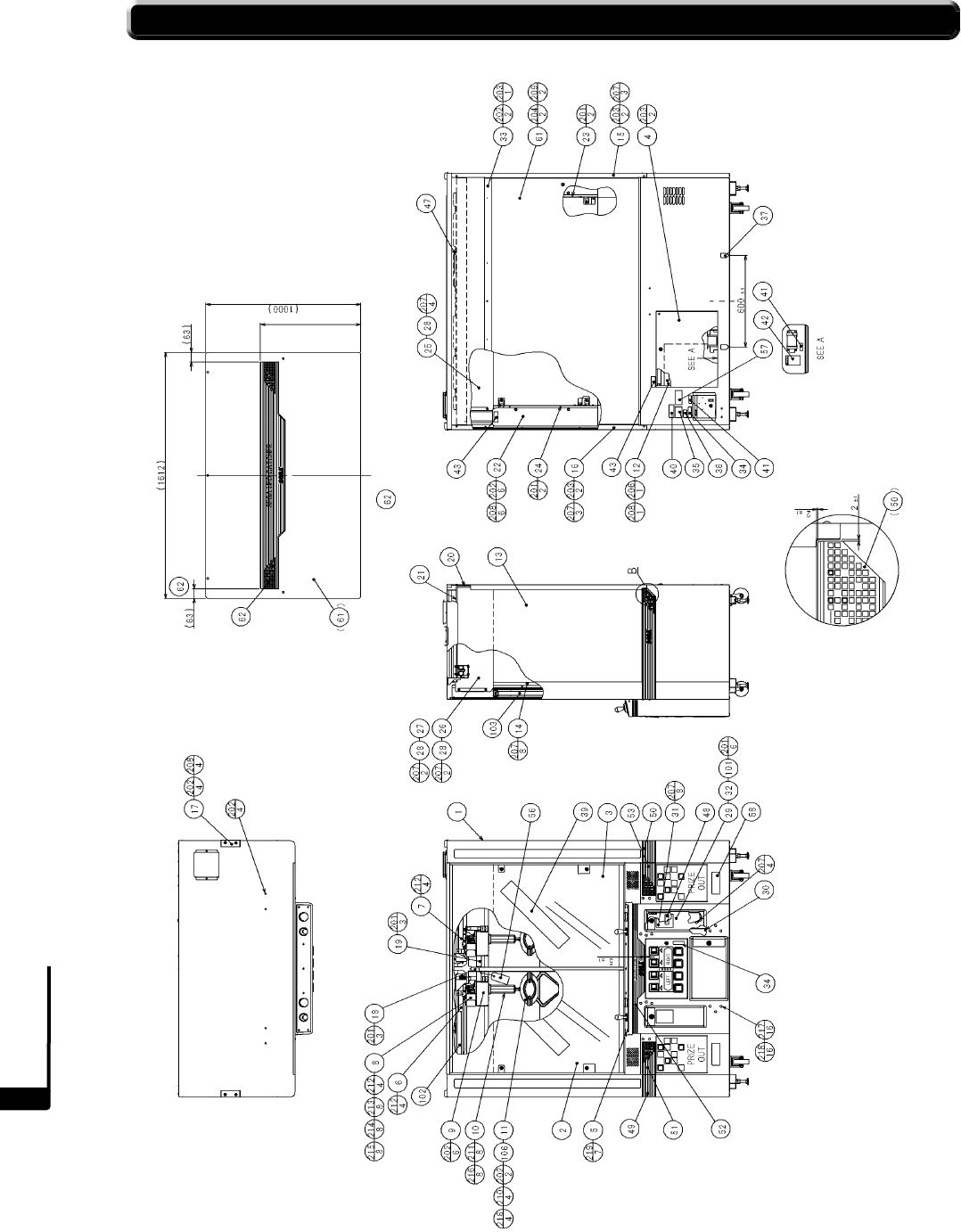

(1) TOP ASSY UCU (UCU-0000)

(D-1/2)

(Earth terminal)

Position for affixing

(Opposite side)

Details of part "B"

(NOT TO SCALE)

Left/right height is

647.5 +/-2 mm

In affixing (62) in the left/right direction, use the center

as a point of reference. The tolerance is +/-2mm.

PARTS LIST

ITEM NO. PART NO. DESCRIPTION NOTE

1 UCU-1000 ASSY CABINET

2 UCU-1100 ASSY GLASS DOOR L

3 UCU-1110 ASSY GLASS DOOR R

4 UCU-1150 ASSY BACK LID

5 UCU-2000 ASSY CTRL PNL PLATE

6 UCU-3000 ASSY X MECHA 1P

7 UCU-3010 ASSY X MECHA 2P

8 UCU-3100 ASSY Y MECHA

9 UCU-3200 ASSY Z MECHA

10 UCU-3300 ASSY PIPE

11 UCU-3400 ASSY UFO MECHA

12 UCU-4000 ASSY MAIN BD

13 UCU-0001 SIDE GLASS

14 UCU-0002 SIDE GLASS SASH A

15 UCU-0003 SIDE GLASS SASH B L

16 UCU-0004 SIDE GLASS SASH B R

17 UCU-0005 SHIPPING BRKT TOP

18 UCU-0006 SHIPPING CENTER BAR

19 UCS-0007 SHIPPING BRKT MECHA

20 UCU-0007 GLASS EDGE GUARD A

21 UCU-0008 GLASS EDGE GUARD B

22 UCU-0009 FL COVER PLATE

23 UCU-0010 SW COVER L

24 UCU-0011 SW COVER R

25 UCU-0012 BILLBOARD FRONT

26 UCU-0013 BILLBOARD LEFT

27 UCU-0014 BILLBOARD RIGHT

28 UCU-0015 BILLBOARD WASHER

29 UCU-0016 BILL VALIDATOR DOOR

30 UCU-0017 BILL DOOR CUSSION

31 UCU-0042 BLIND PLATE

32 DP-1148X LKG TNG

33 UCU-0018 BACK BD UPPER BRKT

37 421-11416 STICKER CAUTION FORK

38 421-8479-01 STICKER INSTR SUNLIGHT ENG

39 421-7974-01 STICKER CAUTION GLASS ENG

41 421-6690-01 STICKER 120V

42 440-WS0002XEG STICKER W POWER OFF ENG

43 440-WS0286-EG STICKER W DO NOT OPEN ENG

47 440-WS0027-EG STICKER W HIGH TEMP WIDE ENG

48 421-12116 STICKER BILL VALIDATOR

49 UCU-1002-B STICKER LEFT

50 UCU-1002-C STICKER RIGHT

51 UCU-1002-D STICKER FRONT A

52 UCU-1002-E STICKER FRONT B

53 UCU-1002-F STICKER FRONT C

54 621-000110-US PACKING SET UCU-0000

57 421-6119-91 STICKER FCC

58 440-CS0316-EG STICKER C PRIZEDOOR ENG

61 UCU-0040 BACK BOARD B

62 UCU-0041 STICKER BACK BOARD

(D-2/2)

101 220-5794 CLY LOCK W/KEYS

102 390-6836-32 FL FO32/841/XP/ECO SYLVANIA

103 390-6836-25 FL FO25/841/XP/ECO SYLVANIA

104 280-5275-SR10 CORD CLAMP SR10

105 601-0460 PLASTIC TIE BELT 100 M/M

106 280-5124-04 NYLON CLAMP NK04

201 000-P00408-W M SCR PH W/FS M4x8

202 000-T00408-0C M SCR TH CRM M4x8

203 008-T00408-0C TMP PRF SCR TH CRM M4x8

204 008-T00412-0C TMP PRF SCR TH CRM M4x12

206 000-P00425-S M SCR PH W/S M4x25

207 050-F00400 FLG NUT M4

208 068-441616-0C FLT WSHR CRM 4.4-16x1.6

209 068-552016-0C FLT WSHR CRM 5.5-20x1.6

210 000-P00406-0C M SCR PH CRM M4x6

211 000-P00410-0C M SCR PH CRM M4x10

212 000-P00410-W M SCR PH W/FS M4x10

213 020-000410-0Z HEX SKT H CAP SCR BLK 0Z M4x10

214 060-F00400 FLT WSHR M4

215 060-S00400 SPR WSHR M4

216 FAS-600004 SPR WSHR CRM M4

217 050-F00600 FLG NUT M6

218 031-000620-0C CRG BLT CRM M6x20

219 008-T00416-0C TMP PRF SCR TH CRM M4x16

301 UCU-60016 WH BILLVALIDATOR

302 UCU-60026 WH EARTH BILL

401 601-6604-70 CARTON BOX 70

403 420-6953 OWNERS MANUAL UCU ENG

404 UCS-3430 ARM S

405 UCS-3432 ARM L

406 EG-3404 SHOVEL W60

407 MKW-2120 SHOVEL W40

408 EG-3405Y SHOVEL W30

409 600-7326 AC CABLE CONNECT TYPE USA 15A

410 220-5793-2-A001 KEY MASTER A001

411 220-5793-2-A002 KEY MASTER A002

413 540-0006-01 WRENCH M4 TMP SCR

414 USS-3418 SLIDE SPRING

415 000-T00408-0C M SCR TH CRM M4x8

PARTS LIST

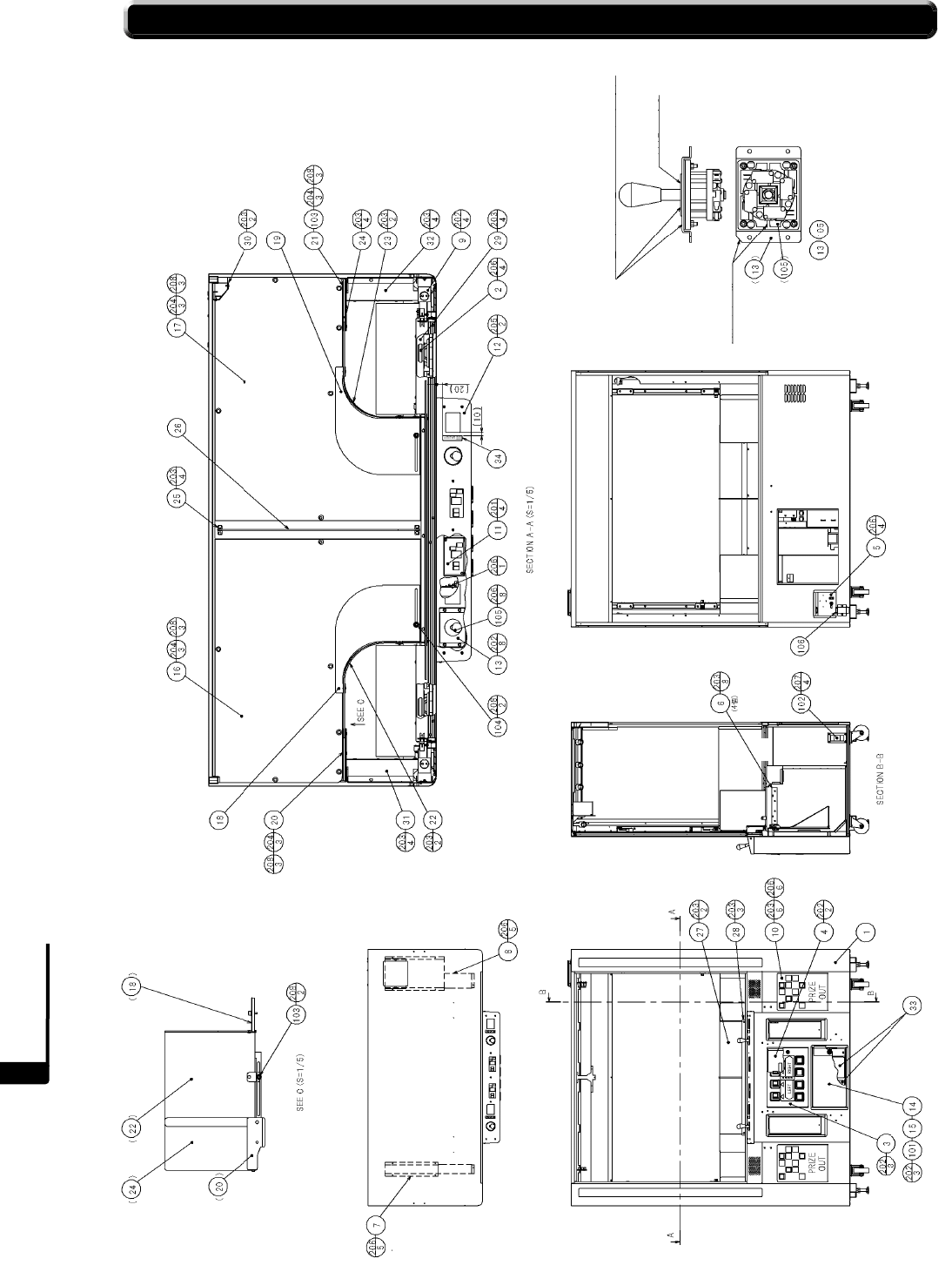

(2) ASSY CABINET (UCU-1000)

(D-1/2)

When assembling (13), be sure to insert (105).

[The (105) disk plate should be above (13)]

(Including opposite side)

(Earth

terminal)

4 pieces

Have the granulated

surface face upward.

Arrange the position of

the convex part to the C

beveling side.

Detailed drawings for installation of

(13) and (105). (NOT TO SCALE)

PARTS LIST

ITEM NO. PART NO. DESCRIPTION NOTE

1 UCU-1001 ASSY SUB CABINET

2 UCS-1050X ASSY SPEAKER

3 UCU-1060 ASSY SERVICE DOOR

4 UCU-1070 SW UNIT

5 UCU-1080 AC UNIT

6 USS-1200 ASSY PRIZE SENSOR

7 UCU-1300 ASSY FL BASE L

8 UCU-1310 ASSY FL BASE R

9 UCU-1320 SIDE FL UNIT

10 UCU-1340 FLAP UNIT

11 839-1276R CREDIT BD US

12 UCU-1003 CTRL PNL COVER

13 UCU-1004 LEVER BRKT

14 UCU-1005 CASH BOX DOOR

15 DP-1148X LKG TNG

16 UCU-1006 FIELD PLATE L

17 UCU-1007 FIELD PLATE R

18 UCU-1008 CHUTE ADJUST PLATE L

19 UCU-1009 CHUTE ADJUST PLATE R

20 UCU-1010 PARTITION HOLDER L

21 UCU-1011 PARTITION HOLDER R

22 UCU-1012 CORNER PARTITION L

23 UCU-1013 CORNER PARTITION R

24 UCU-1014 FIX PARTITION

25 UCU-1015 PARTITION BRKT CL

26 UCU-1016 PARTITION CL

27 UCU-1017 PARTITION FRONT

28 UCU-1018 PARTITION BRKT FRONT

29 UCU-1019 SPEAKER COVER

30 UCU-1020 WIRE COVER

31 UCU-1021 PRIZE SENSOR COVER L

32 UCU-1022 PRIZE SENSOR COVER R

33 253-5366 CASH BOX

34 421-12106-01 STICKER BULB 3.8W14V UL

101 220-5794 CLY LOCK W/KEYS

102 560-5530-V XFMR100-120V100V2A24V5A WB UL

103 601-11480-8 PLAPOINT L=8

104 601-11480-20 PLAPOINT L=20

105 509-6121-01 JOYSTICK 8WAY 50-6070-10(HAPP)

106 280-6581-29 BUSHING NB-29

201 000-P00308-W M SCR PH W/FS M3x8

202 000-P00408-W M SCR PH W/FS M4x8

203 000-T00408-0C M SCR TH CRM M4x8

204 000-T00416-0C M SCR TH CRM M4x16

205 008-T00408-0C TMP PRF SCR TH CRM M4x8

206 050-F00400 FLG NUT M4

207 050-F00500 FLG NUT M5

208 068-441616-0C FLT WSHR CRM 4.4-16x1.6

301 UCU-60013 WH JOY STICK

(D-2/2)

PARTS LIST

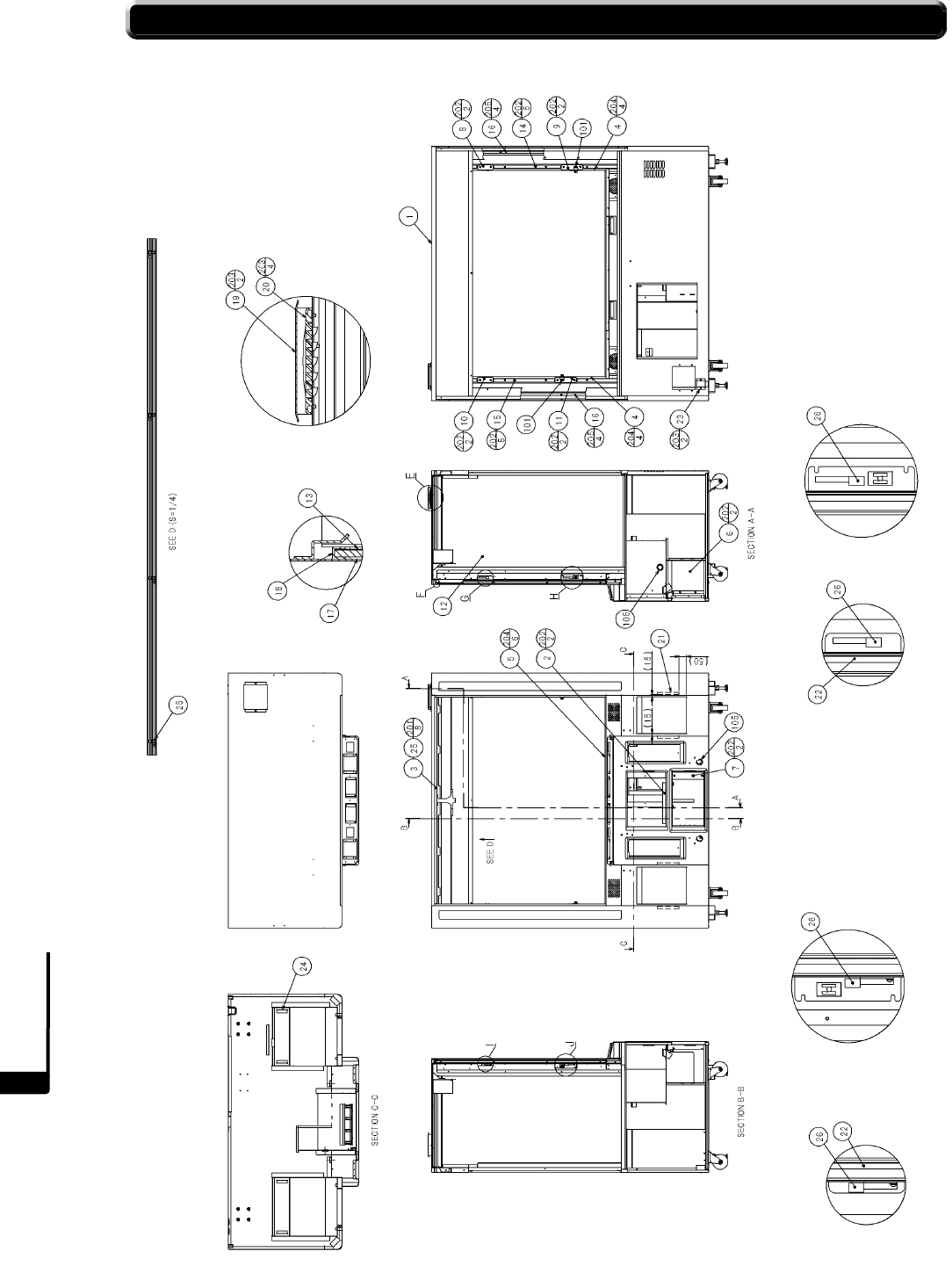

(3) ASSY SUB CABINET (UCU-1001)

(D-1/2)

Details for (25) installation position.

Details of part "E" (S=1/2)

Details of part "F" (S=1/1)

Details of part "G" (S=1/2)Details of part "J" (S=1/2)Details of part "I" (S=1/2) Details of part "H" (S=1/2)

NOTE: (26) is to be affixed in alignment with

the rectangular holes as shown in each

figure. It must be affixed securely by

being pressed adequately.

PARTS LIST

1 UCU-1002 CABINET

2 UCU-1023 COIN CHUTE LOWER

3 UCS-1007 SASH UPPER

4 UCS-1008 SASH SIDE

5 UCU-1024 SASH LOWER

6 UCU-1025 BOX ADJUST WALL L

7 UCU-1026 BOX ADJUST WALL R

8 UCU-1027 HOOK UPPER L

9 UCU-1028 HOOK LOWER L

10 UCU-1029 HOOK UPPER R

11 UCU-1030 HOOK LOWER R

12 UCU-1031 FL GLASS

13 UCU-1032 FL GLASS SHEET

14 UCU-1033 FL GLASS SASH A L

15 UCU-1034 FL GLASS SASH A R

16 UCU-1035 FL GLASS SASH B

17 UCU-0007 GLASS EDGE GUARD A

18 UCU-1036 GLASS EDGE GUARD C

19 UCU-1037 LOOVER COVER

20 253-5460-02 AIR VENT WHITE

21 UCS-1046 FLAP CUSHION T10

22 UCS-1022 DOOR CUSHION

23 UCU-1038 AC UNDER COVER

24 USS-1023 FLAP STOPPER

25 USS-1024 DOOR ADJUSTER

26 UCU-1039 TNG CUSHION

27 UCU-6001 ASSY WIRE

101 509-5753 LINE INTERRUPT SW

102 280-5277 CORD CLAMP 18

103 280-5292 CORD CLAMP 18 PUSH TYPE

104 280-5275-SR10 CORD CLAMP SR10

105 280-6581-29 BUSHING NB-29

201 000-P00312-W M SCR PH W/FS M3x12

202 000-P00408-W M SCR PH W/FS M4x8

203 000-T00408-0C M SCR TH CRM M4x8

204 010-F00308 S-TITE SCR FH M3x8

205 050-F00400 FLG NUT M4

301 UCU-60001 WH AC PRI

302 UCU-60017 WH PRIZE SENSOR

ITEM NO. PART NO. DESCRIPTION NOTE

(D-2/2)

PARTS LIST

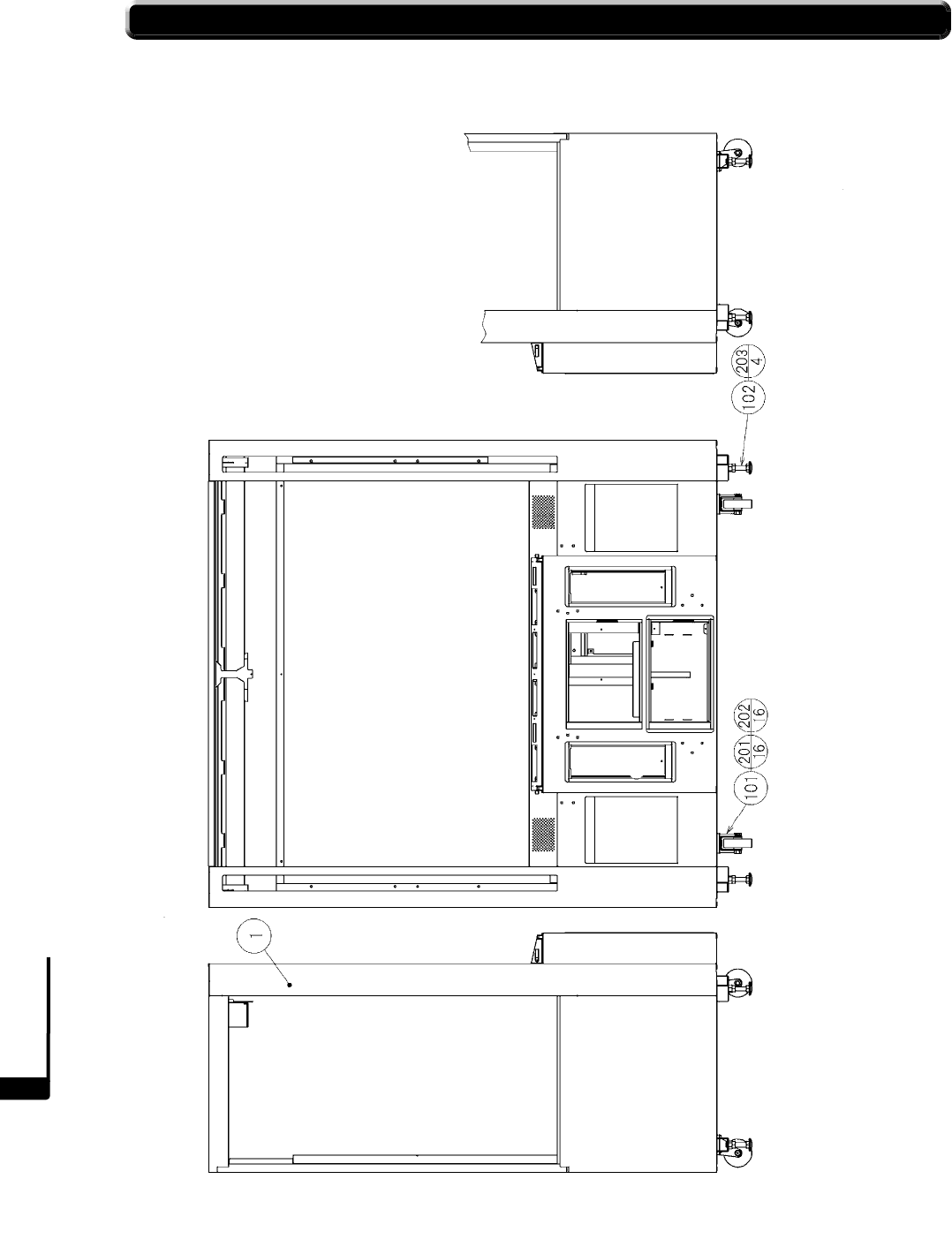

(4) CABINET (UCU-1002)

(D-1/2)

PARTS LIST

1 UCU-1002-A CABINET BLANK

101 601-8714 CASTER FAI100

102 601-5699X LEG ADJUSTER BOLT M16x75

201 030-001020-S HEX BOLT W/S M10x20

202 060-F01000 FLT WSHR M10

203 050-H01600 HEX NUT M16

ITEM NO. PART NO. DESCRIPTION NOTE

(D-2/2)

PARTS LIST

(5) ASSY WIRE (UCU-6001)

101 601-0460 PLASTIC TIE BELT 100 M/M

102 310-5033-15-160 SPIRAL TUBE 15 160CM

301 UCU-60002 WH AC FL

302 UCU-60003 WH AC SEC

303 UCU-60004 WH CABI 1

304 UCU-60007 WH FL EXT

305 UCU-60008 WH CABI 2

306 UCU-60009 WH DIPSW BD

307 UCU-60010 WH SP EXT

308 UCU-60012 WH CREDIT BD

ITEM NO. PART NO. DESCRIPTION NOTE

This is comprised of the following wire harnesses. ASSY drawing is not available.

NOTE: Pay close attention to the surface orientation of

the cross-section (slanted line) area.

PARTS LIST

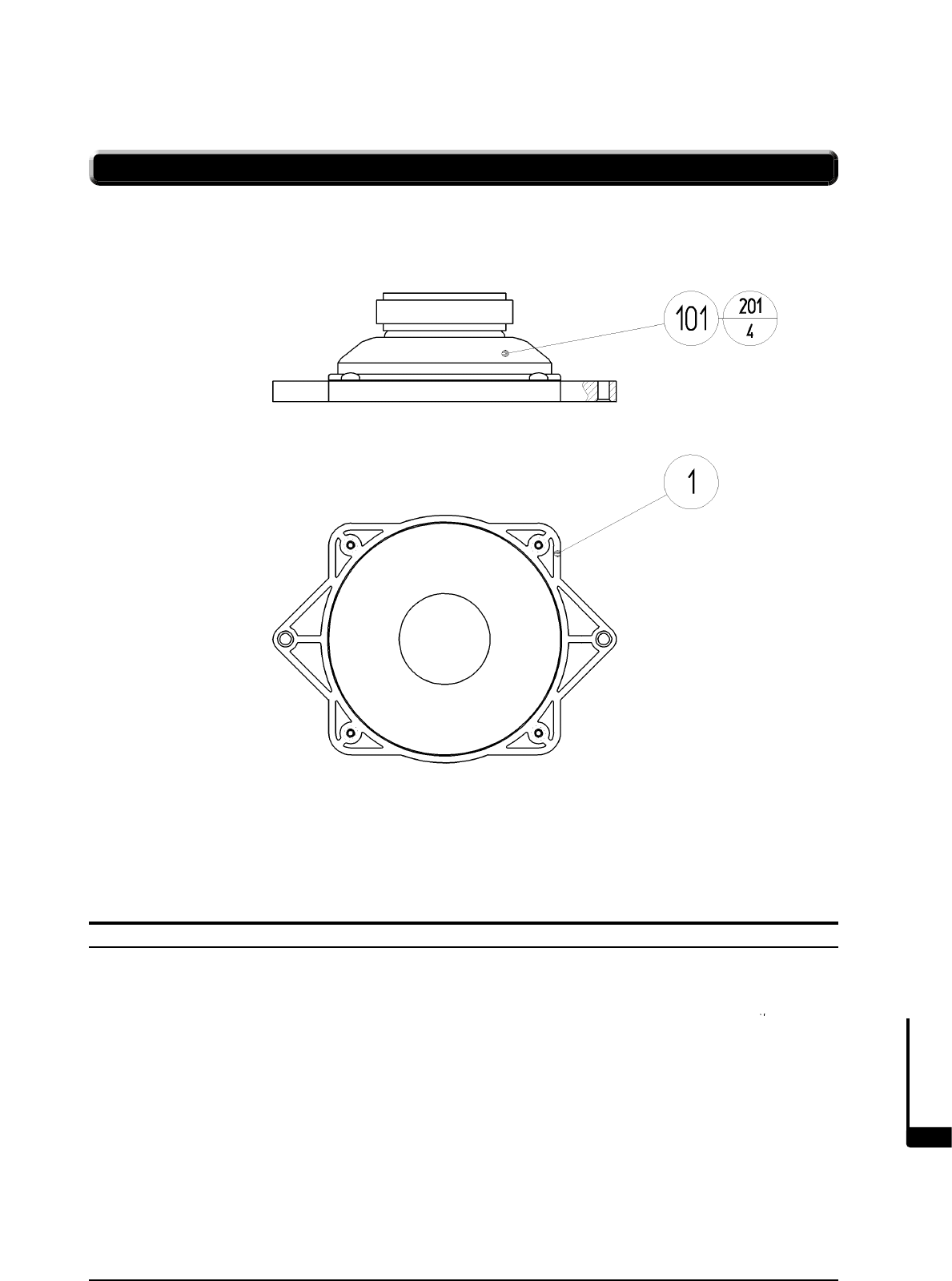

(6) ASSY SPEAKER (UCS-1050X)

1 UAT-1051 SPEAKER BASE

101 130-5034 SPEAKER 8 OHM 10W F 100A59-1

201 012-P00408 TAP SCR #2 PH 4x8

ITEM NO. PART NO. DESCRIPTION NOTE

NOTE: Pay close attention to the surface orientation of

the cross-section (slanted line) area.

PARTS LIST

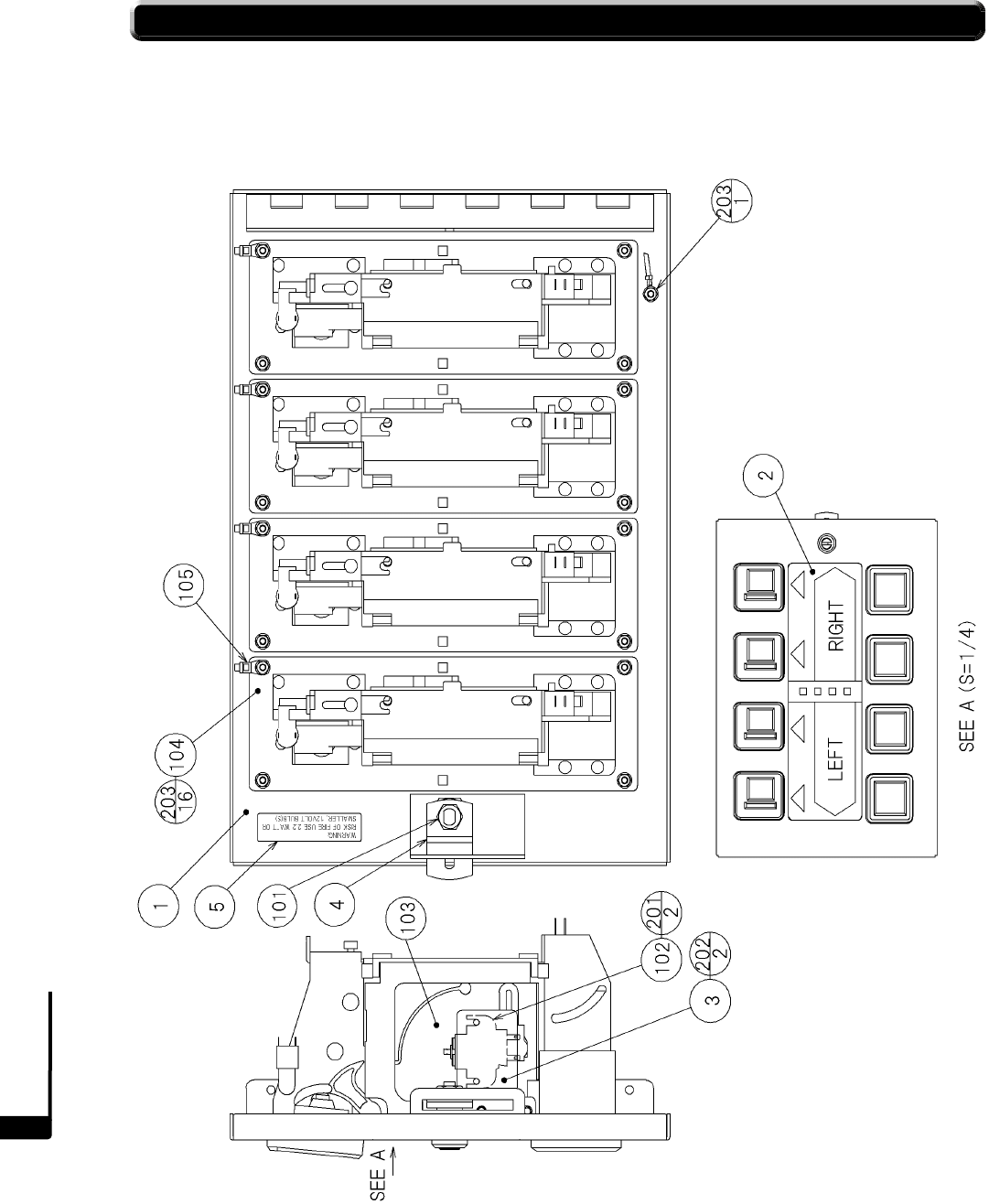

(7) ASSY SERVICE DOOR (UCU-1060)

(D-1/2)

(Earth terminal)

PARTS LIST

1 UCU-1061 SERVICE DOOR

2 UCU-1062 STICKER SERVICE DOOR

3 UCU-1063 LT SOLENOID BRKT FOR LORENZO

4 DP-1148X LKG TNG

5 421-12106-02 STICKER BULB 2.2W12V UL

101 220-5793-1-A002 CLY LOCK MASTER W/O KEY A002

102 124-5088 SOL QL-102 DC12V FOR 220-5310

103 220-5208-05 COIN CHUTE REJ 25 AD-81P

104 220-5786 C.C BRKT A0710 (LORENZO)

105 601-6316-S8 TIE BELT W/CLAMP S8

106 601-0460 PLASTIC TIE BELT 100 M/M

107 280-5275-SR10 CORD CLAMP SR10

201 000-P00308-W M SCR PH W/FS M3x8

202 000-P00408-W M SCR PH W/FS M4x8

203 050-F00400 FLG NUT M4

301 UCS-60031 WH EARTH DOOR

302 UCU-60015 WH SERVICE DOOR

ITEM NO. PART NO. DESCRIPTION NOTE

(D-2/2)

PARTS LIST

(8) SW UNIT (UCU-1070)

1 UCU-1071 SW AND VOL PLATE

2 837-14485R DIPSW BD USS

3 421-12100 STICKER SW UNIT UCU

101 220-5798-01 MAG CNTR 4P MZ674-DC5V-D41 JC

102 220-5798-02 MAG CNTR 6P MZ674-DC5V-D42 JC

103 509-6102-V-B SW ROCKER J8 V-B AJ8202BF

104 601-0460 PLASTIC TIE BELT 100 M/M

201 050-F00300 FLG NUT M3

ITEM NO. PART NO. DESCRIPTION NOTE

(Connector: White) (Connector: Yellow)

NOTE: DIP SW 1 ~ 4 should all be set to OFF.

PARTS LIST

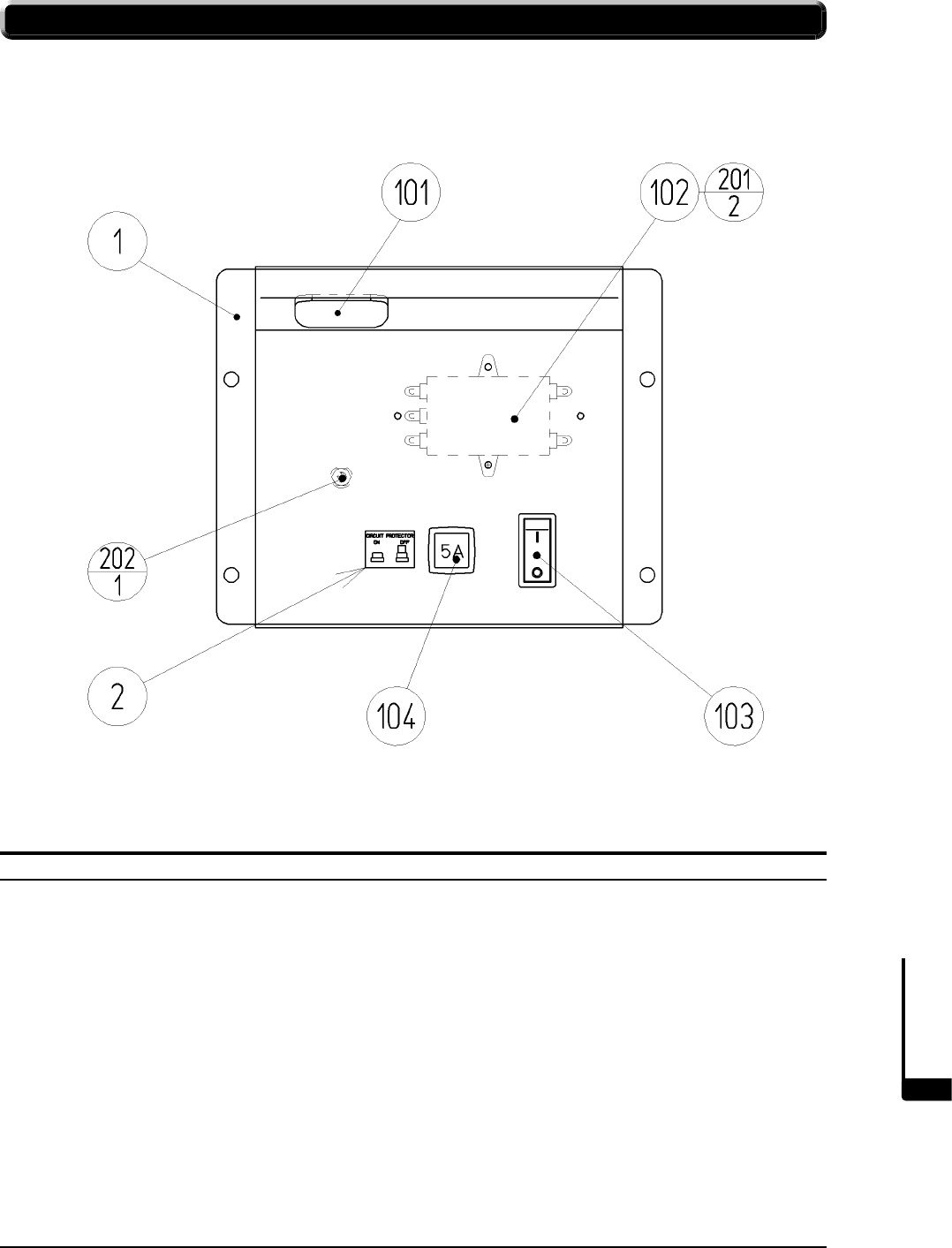

(9) AC UNIT (UCU-1080)

1 UCU-1081 AC BRKT

2 421-7468-01 STICKER C.P W/PIC

101 214-0202 AC INLET PANEL TYPE

102 270-5020 NOISE FILTER AC250V 6A

103 509-6102-V-B SW ROCKER J8 V-B AJ8202BF

104 512-5046-5000 C.P 5000MA CE UL

105 280-5275-SR10 CORD CLAMP SR10

106 601-0460 PLASTIC TIE BELT 100 M/M

201 010-P00308-F S-TITE SCR PH W/F M3x8

202 050-F00400 FLG NUT M4

301 UCS-60035 WH EARTH FILTER L

302 UCU-60021 WH AC UNIT

ITEM NO. PART NO. DESCRIPTION NOTE

(Earth terminal)

PARTS LIST

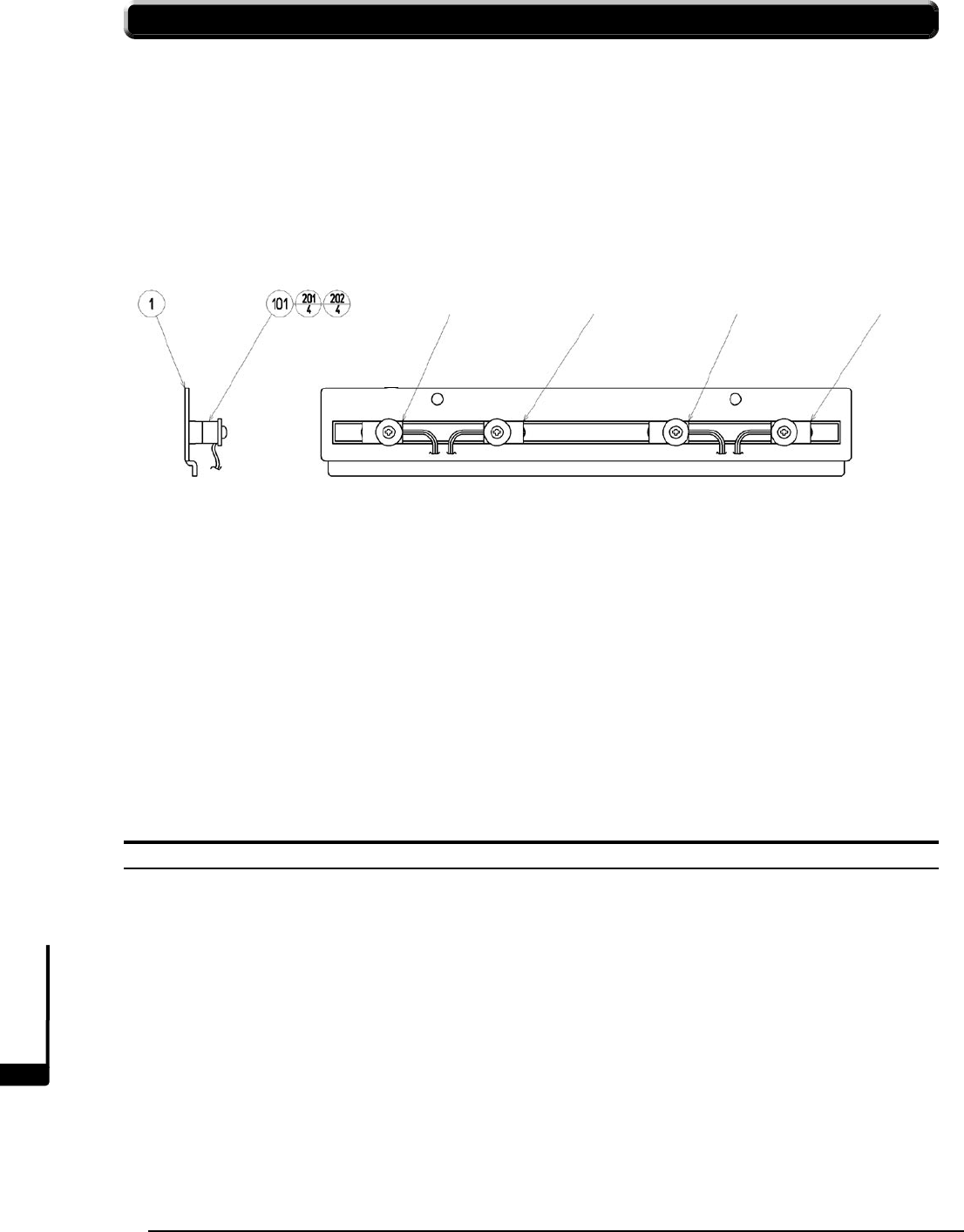

(10) ASSY PRIZE SENSOR (USS-1200)

1 UCS-1202 PRIZE SENSOR PLATE B

101 370-5173-01 PHOTO SENSOR OMT-15DJST-YL

201 012-P00314 TAP SCR #2 PH 3x14

202 FAS-680014 FLT WSHR 3-12X1.6

ITEM NO. PART NO. DESCRIPTION NOTE

Light reception

3P Connector

Light emission

2P Connector

Light reception

3P Connector

Light emission

2P Connector

PARTS LIST

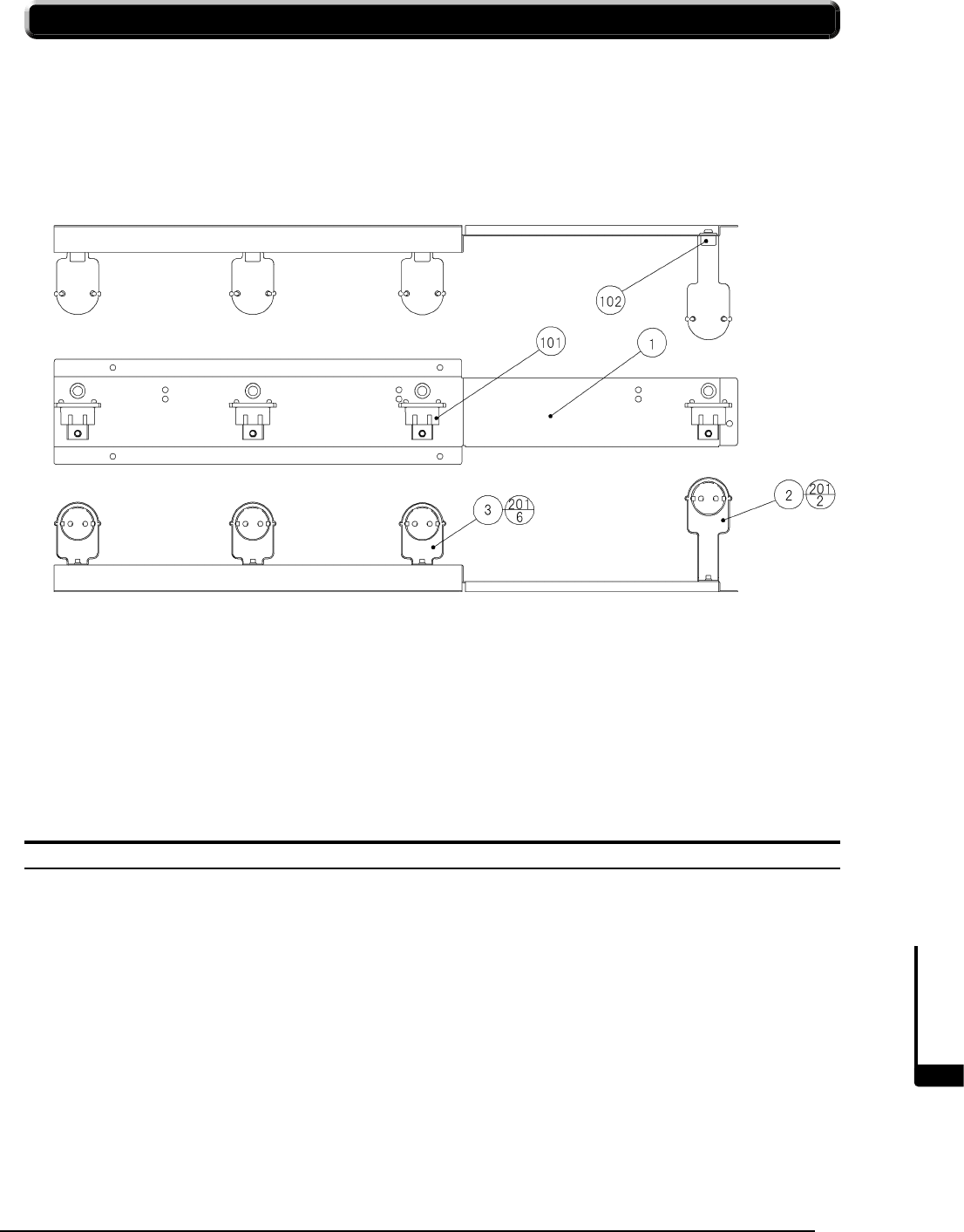

(11) ASSY FL BASE L (UCU-1300)

1 UCU-1301 CEILING FL BASE L

2 UCU-1302 FL HOLDER BRKT A

3 UCU-1303 FL HOLDER BRKT B

101 214-0271 FL SOCKET 26.420.4400.50 BJB

102 280-6581-8 BUSHING NB-8

103 601-0460 PLASTIC TIE BELT 100 M/M

201 000-P00408-W M SCR PH W/FS M4x8

301 UCU-60025 WH FL 3

ITEM NO. PART NO. DESCRIPTION NOTE

PARTS LIST

(12) ASSY FL BASE R (UCU-1310)

1 UCU-1311 CEILING FL BASE R

2 UCU-1302 FL HOLDER BRKT A

3 UCU-1302 FL HOLDER BRKT A

4 421-12109-32T8 STICKER FL RATING 32T8

5 421-12107 STICKER HOT SURFACE UL

101 214-0272 FL SOCKET 26.420.4404.50 BJB

102 390-6828 INVERTER QT2X32 T8/120 ISN-SC

103 601-0460 PLASTIC TIE BELT 100 M/M

104 209-0032-91 CONN CLOSED END

201 000-P00408-W M SCR PH W/FS M4x8

202 000-P00410-W M SCR PH W/FS M4x10

203 068-441616 FLT WSHR 4.4-16x1.6

301 UCU-60023 WH FL 1

302 UCU-60024 WH FL 2

303 UCU-60027 WH FL SOCKET

ITEM NO. PART NO. DESCRIPTION NOTE

PARTS LIST

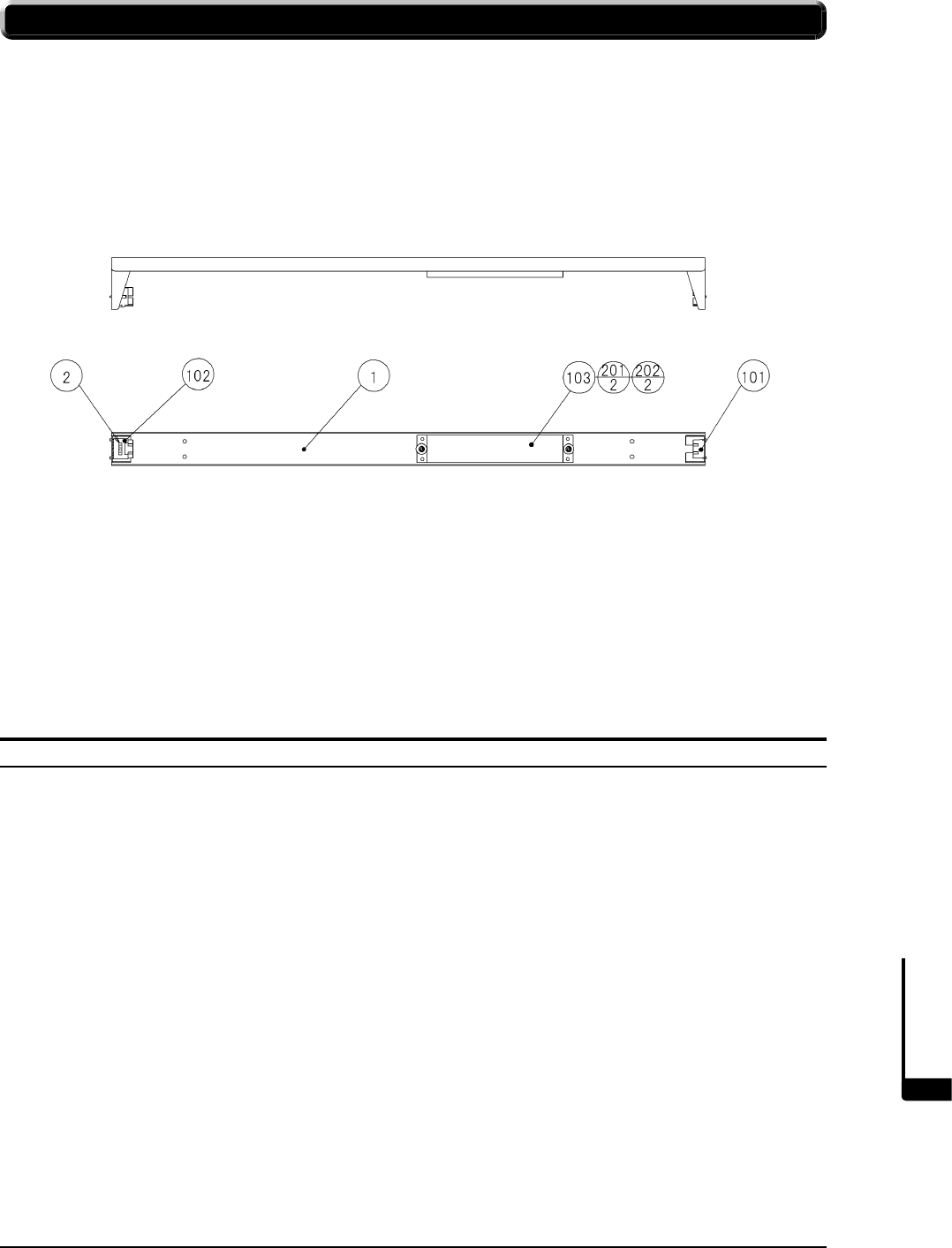

(13) SIDE FL UNIT (UCU-1320)

1 UCU-1321 SIDE FL BASE

2 421-12109-25T8 STICKER FL RATING 25T8

101 214-0271 FL SOCKET 26.420.4400.50 BJB

102 214-0272 FL SOCKET 26.420.4404.50 BJB

103 390-6829 INVERTER QT1X32 T8/120 ISN-SC

104 280-5275-SR10 CORD CLAMP SR10

105 209-0032-91 CONN CLOSED END

106 601-0460 PLASTIC TIE BELT 100 M/M

201 050-F00400 FLG NUT M4

202 068-441616 FLT WSHR 4.4-16x1.6

301 UCU-60022 WH FL SIDE

302 UCU-60027 WH FL SOCKET

ITEM NO. PART NO. DESCRIPTION NOTE

PARTS LIST

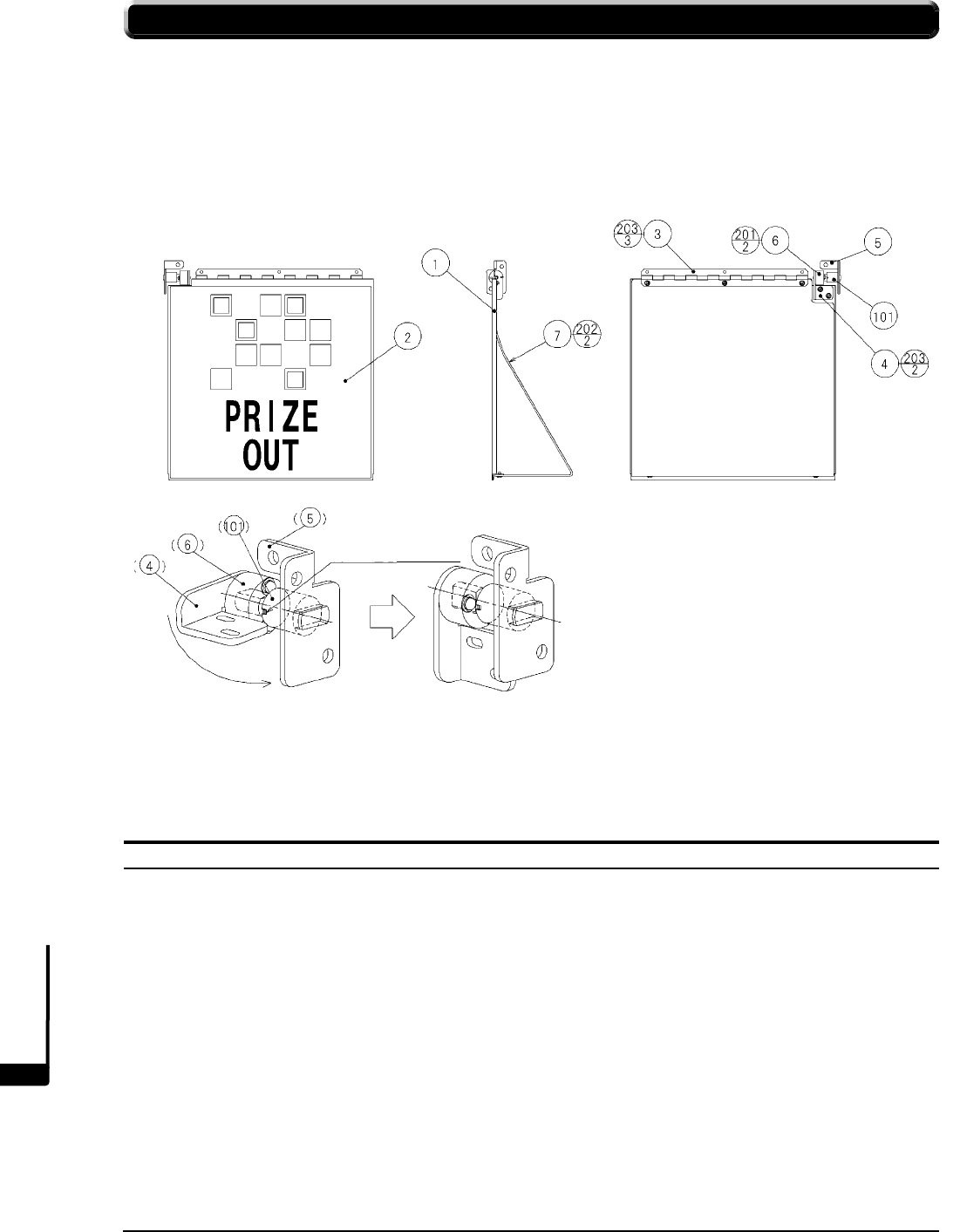

(14) FLAP UNIT (UCU-1340)

1 UCU-1341 FLAP PANEL

2 UCU-1342 STICKER FLAP

3 UCU-1343 FLAP HINGE

4 UCU-1344 DAMPER BRKT A

5 UCU-1345 DAMPER BRKT B

6 UCU-1346 DAMPER SLEEVE

7 UCU-1347 FLAP INNER

101 601-11728 TORQUE DAMPER TD14A1-20K-R

201 000-P00320-W M SCR PH W/FS M3x20

202 000-T00408-0C M SCR TH CRM M4x8

203 050-F00400 FLG NUT M4

ITEM NO. PART NO. DESCRIPTION NOTE

Pay close attention

to the orientation.

Attach (101) in the condition in which

it was delivered, then turn it 90 degrees.

PARTS LIST

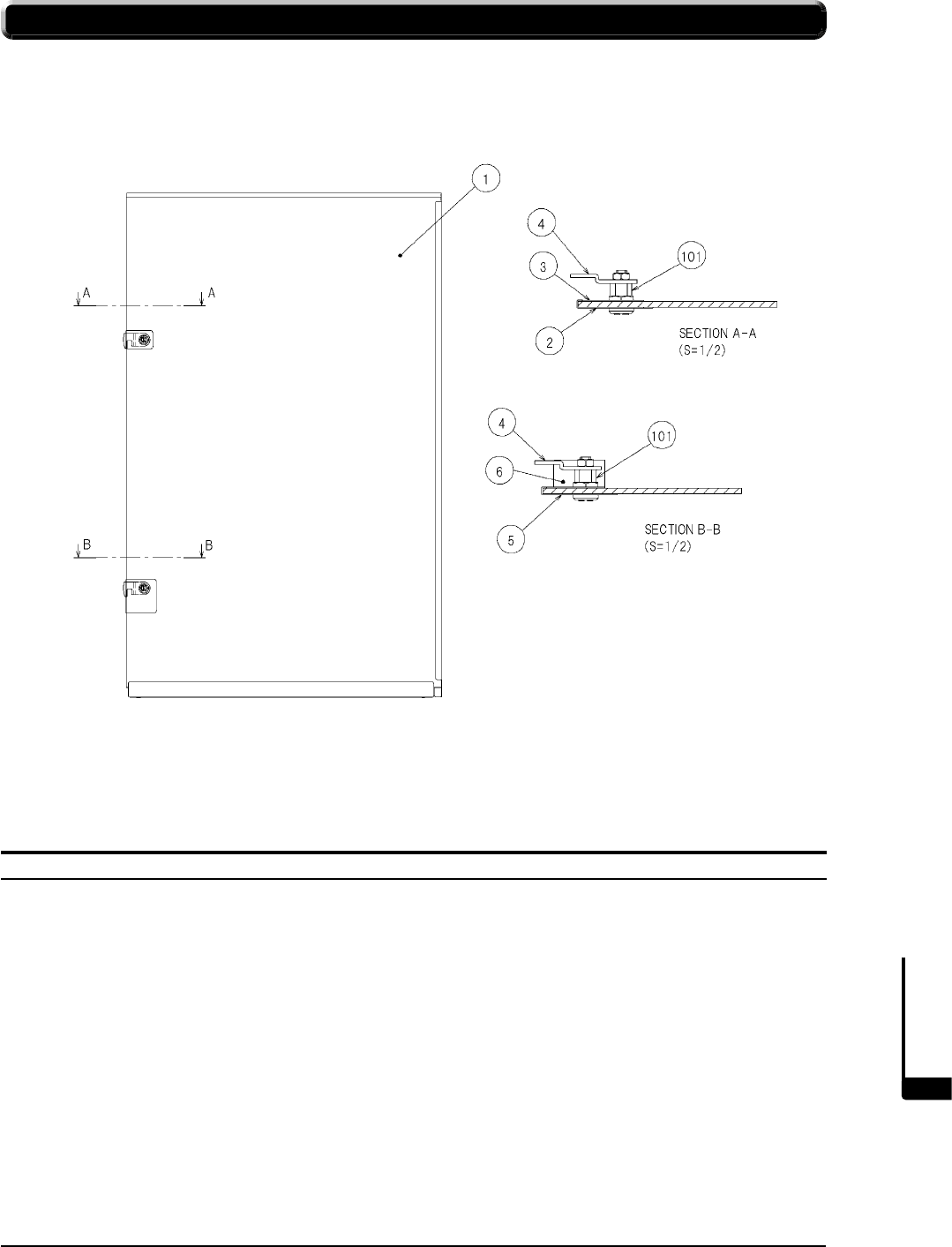

(15) ASSY GLASS DOOR L (UCU-1100)

1 UCU-1101 FRONT GLASS

2 UCS-1102 LOCK BRKT

3 UCS-1103 LOCK PLATE

4 UCM-1101 LOCKING TONGUE

5 UCU-1102 LOCK BRKT LOWER

6 UCU-1103 INTERLOCK PLATE L

101 220-5793-1-A002 CLY LOCK MASTER W/O KEY A002

ITEM NO. PART NO. DESCRIPTION NOTE

PARTS LIST

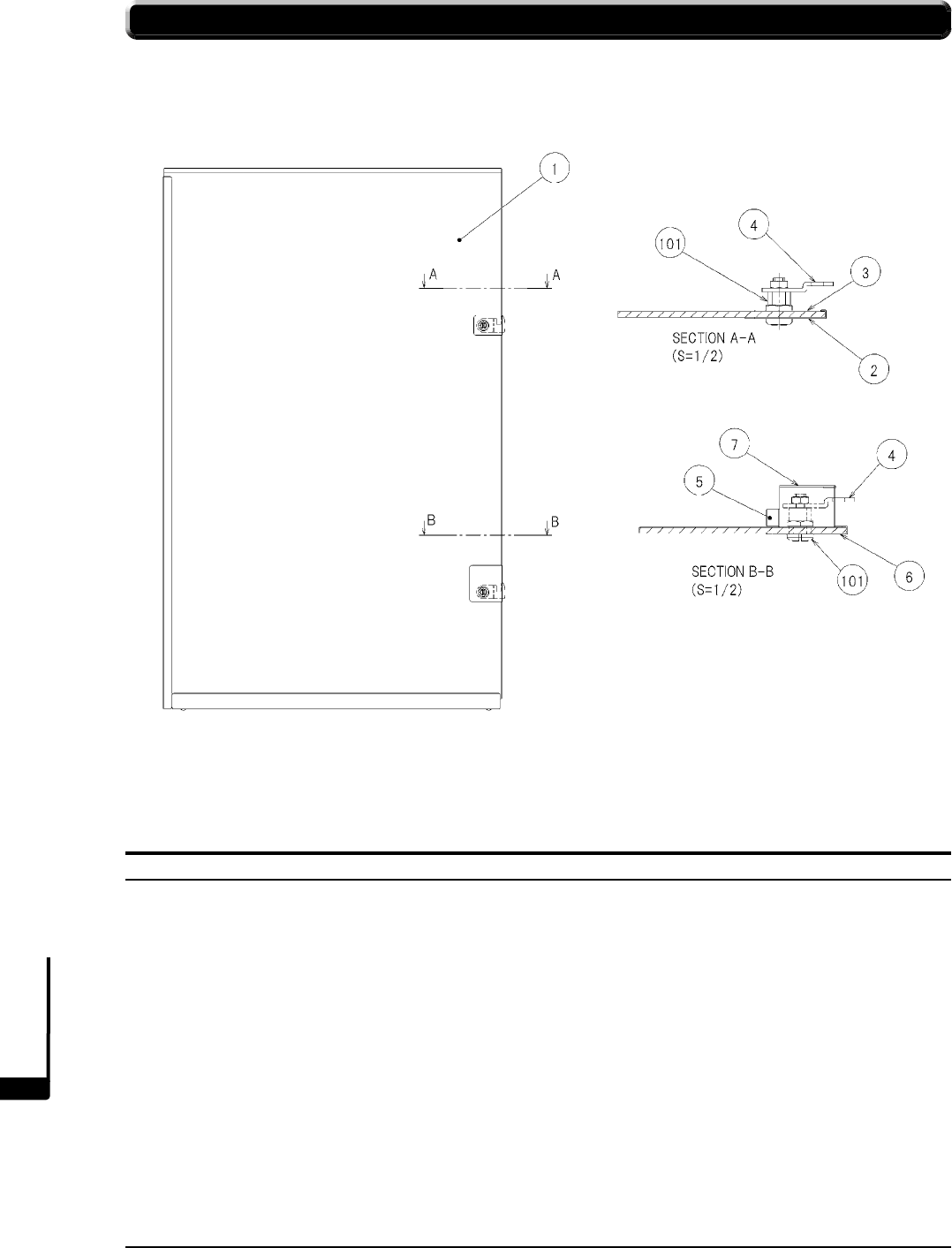

(16) ASSY GLASS DOOR R (UCU-1110)

1 UCU-1101 FRONT GLASS

2 UCS-1102 LOCK BRKT

3 UCS-1103 LOCK PLATE

4 UCM-1101 LOCKING TONGUE

5 UAT-1413 DOOR STOPPER RUBBER

6 UCU-1102 LOCK BRKT LOWER

7 UCU-1104 INTERLOCK PLATE R

101 220-5793-1-A002 CLY LOCK MASTER W/O KEY A002

ITEM NO. PART NO. DESCRIPTION NOTE

PARTS LIST

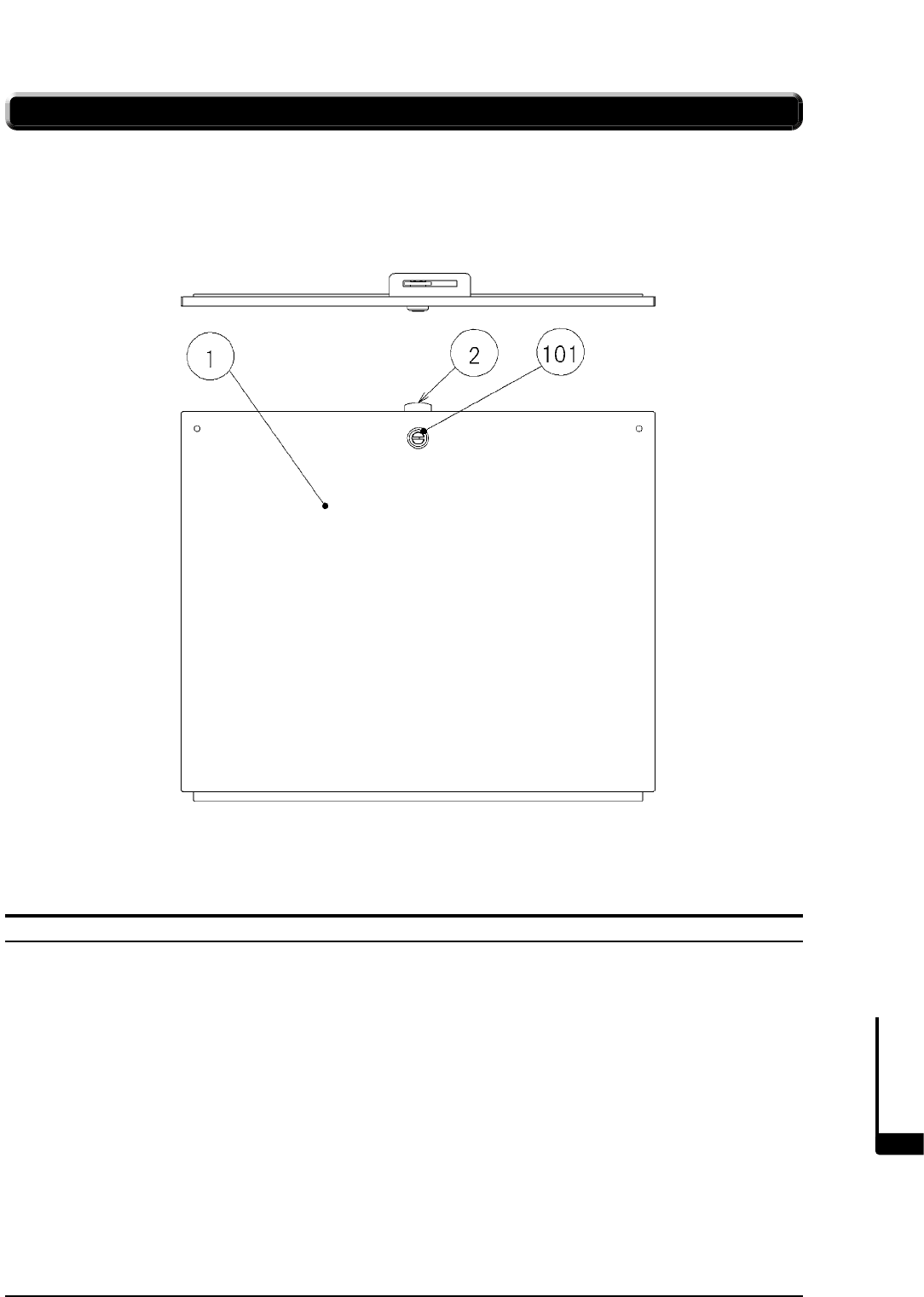

(17) ASSY BACK LID (UCU-1150)

1 UCU-1151 BACK LID

2 DP-1167 TNG LKG

101 220-5793-1-A001 CLY LOCK MASTER W/O KEY A001

ITEM NO. PART NO. DESCRIPTION NOTE

PARTS LIST

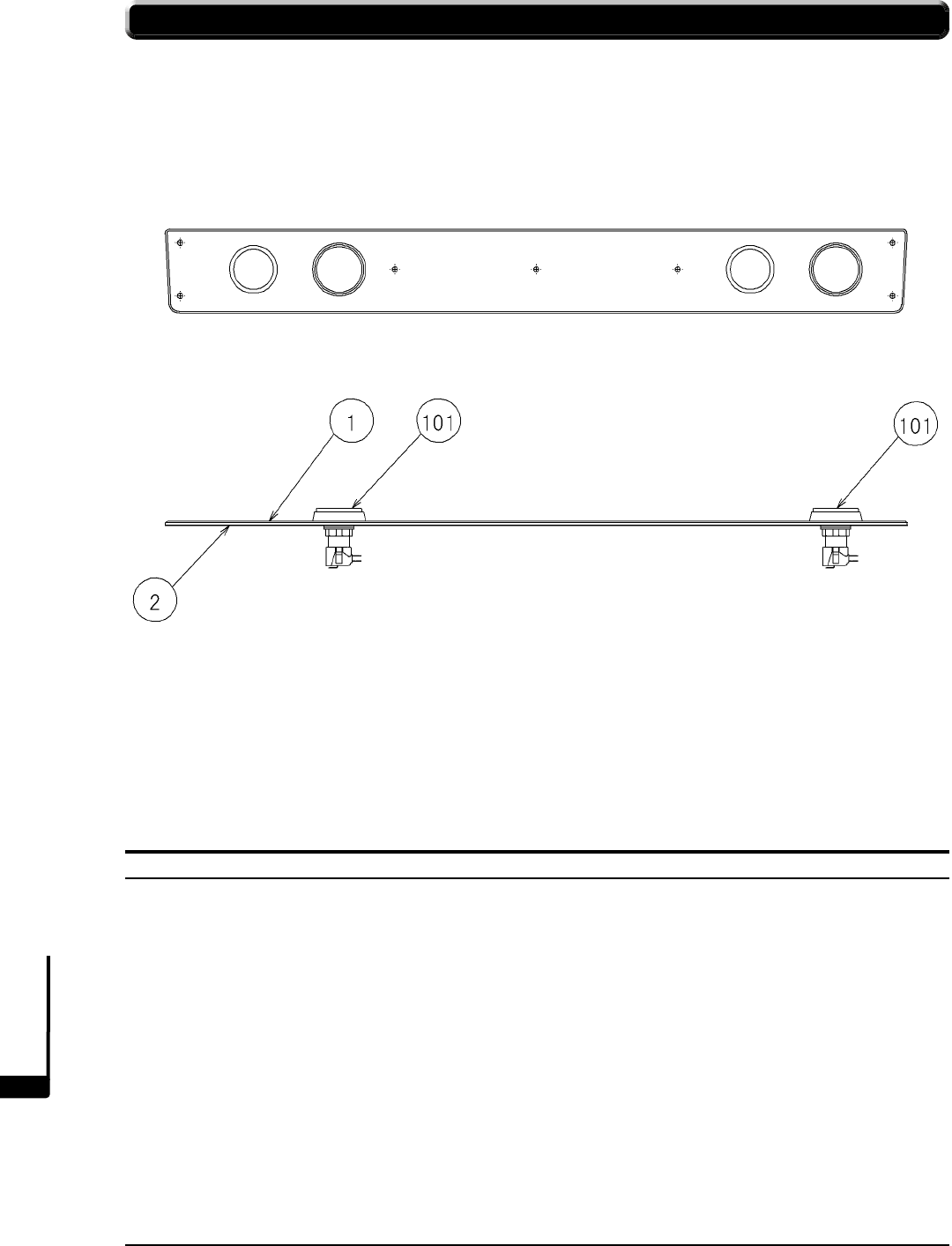

(18) ASSY CTRL PNL PLATE (UCU-2000)

1 UCU-2001 CTRL PNL PLATE

2 UCU-2002 CTRL PNL SHEET

101 509-5406S SW PUSH BUTTON 60M-W(OBSA-60M)

301 UCU-60014 WH CTRL SW

ITEM NO. PART NO. DESCRIPTION NOTE

PARTS LIST

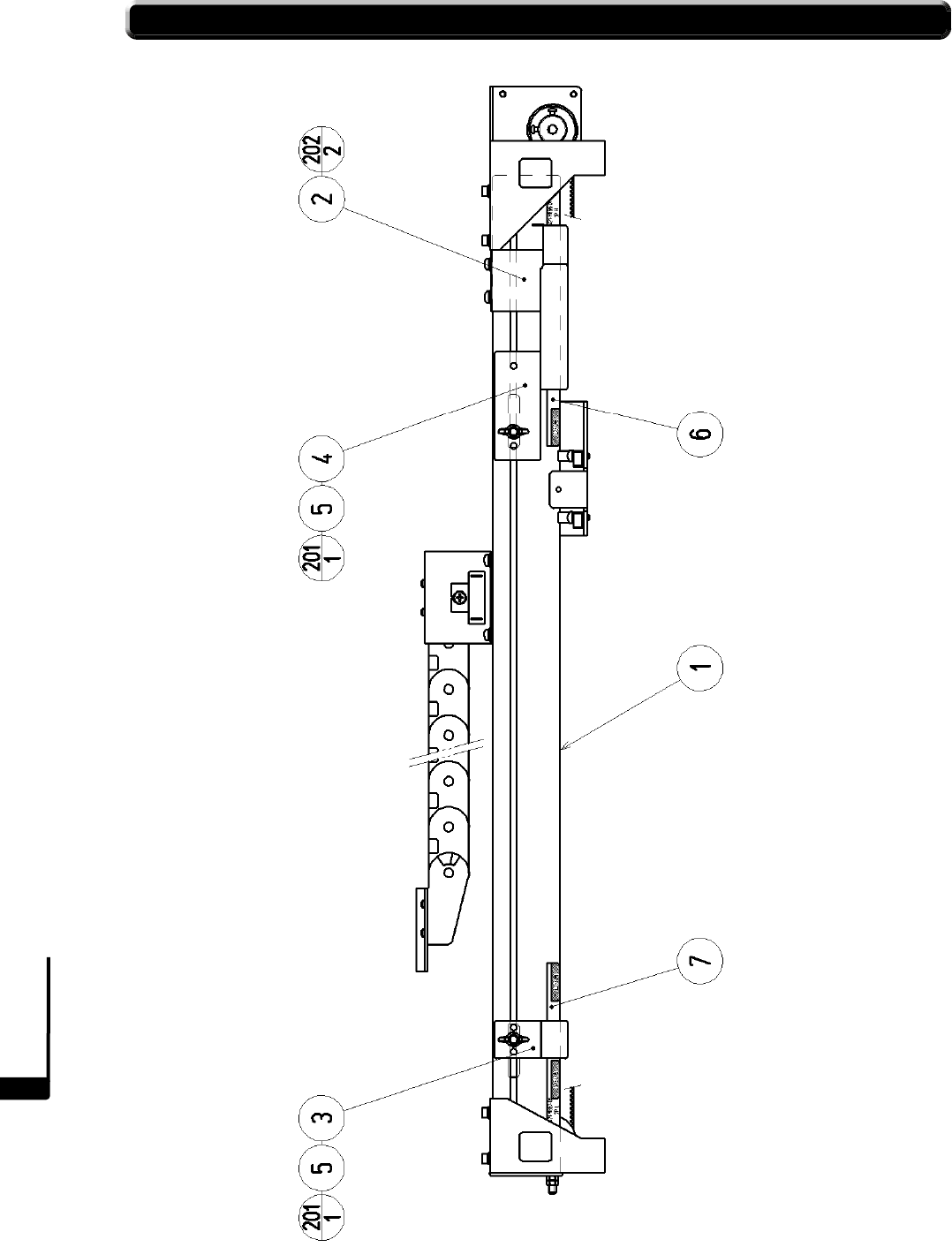

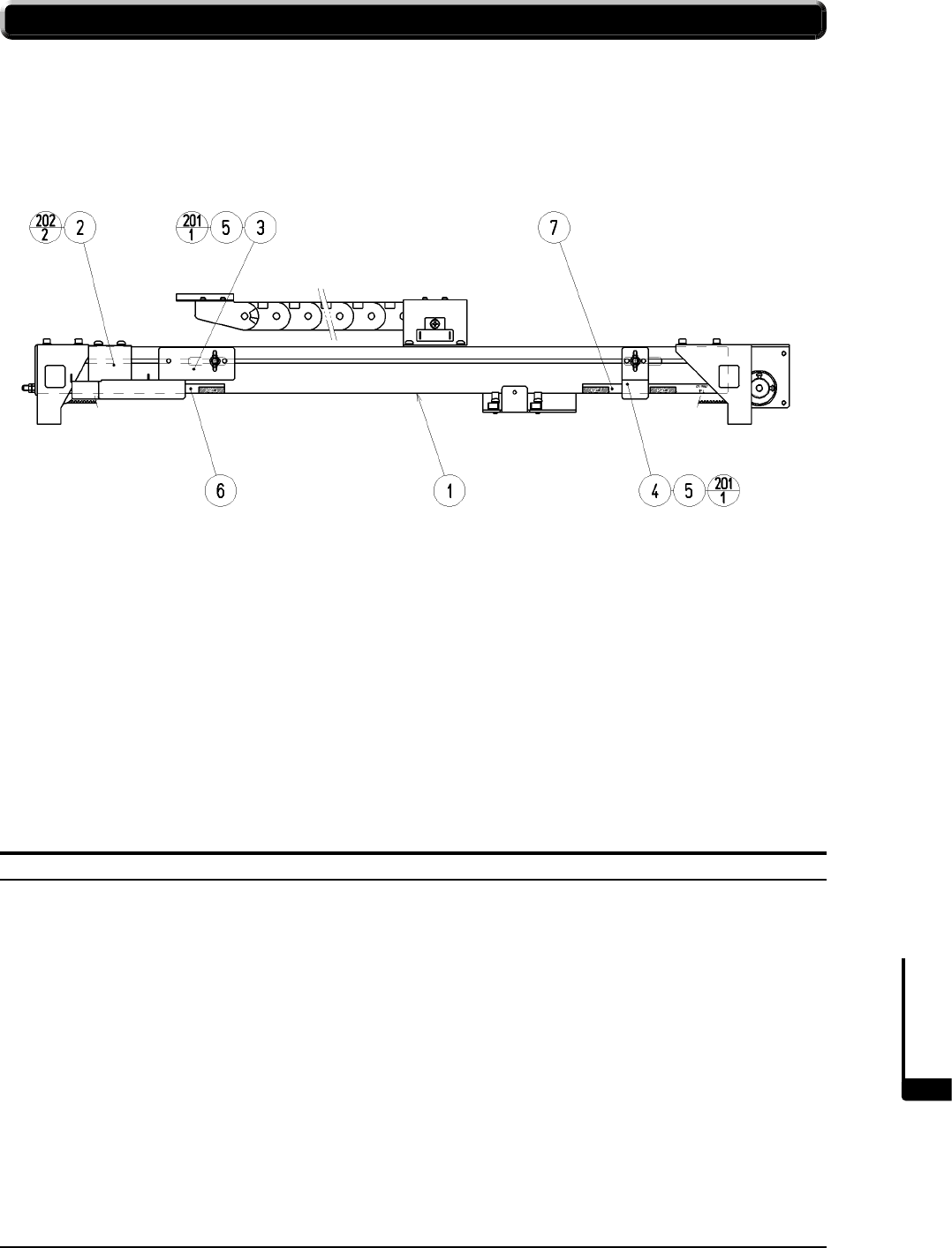

(19) ASSY X MECHA 1P (UCU-3000)

1 UCU-3050 ASSY X MECHA

2 USS-3001X SENSOR DOG HP FIX

3 USS-3002X SENSOR DOG HP 1P

4 USS-3003X SENSOR DOG LIMIT

5 UCS-3014X NUT PLATE S

6 421-11866-02 STICKER DOG POS 1P HOME ENG

7 421-11867-02 STICKER DOG POS 1P LIMIT ENG

201 032-000408-0C WING BLT CRM M4x8

202 000-P00410-W M SCR PH W/FS M4x10

ITEM NO. PART NO. DESCRIPTION NOTE

100

PARTS LIST

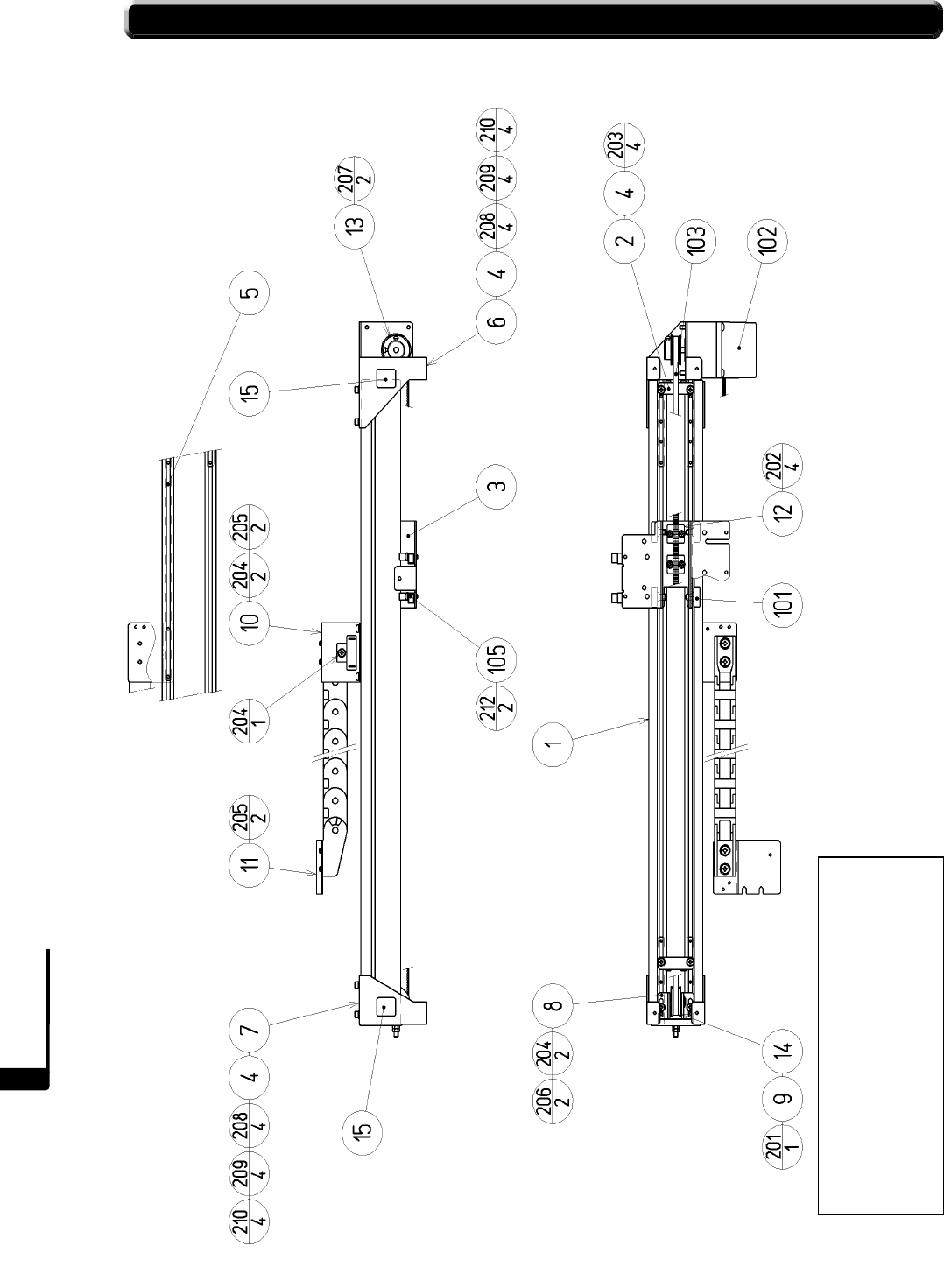

(20) ASSY X MECHA (UCU-3050)

(D-1/2)

(Use the screws

included.)

Belt tension:

Belt unit mass:

Belt width:

Pulley center distance:

Min 16 N (1.6 kgf)

Max 25 N (2.6 kgf)

0.23 g/cm2

6 mm

705 mm NOTE: When securing the harness inside the cable carrier to the metal plate with the tie belt,

do so with the cable carrier (harness) extended.

101

PARTS LIST

1 105-5450-697 MECHA RAIL L=697

2 UCS-3001X STOPPER

3 USS-3051Y CARRIAGE X

4 UCS-3004X NUT PLATE COMMON

5 UCU-3005 NUT PLATE CB X2

6 UCS-3006X MOTOR BRKT X

7 UCS-3007X X MECHA BRKT

8 UCS-3009X PULLEY BRKT

9 UCS-3010 PULLEY SHAFT

10 UCS-3012X CABLEBEAR BRKT X FIX

11 UCS-3013X CABLEBEAR BRKT X MOVE

12 253-5522 BELT HOLDER S3M 06

13 350-5667 PULLEY A (30 S3M 06)

14 350-5668 PULLEY B (30 S3M 06)

15 440-CS0245-EG STICKER C GEAR S ENG

101 100-5272 BEARING 22 (DR-22-B2)

102 350-5669-01 MOTOR AC100V 2W 1/20 W/CONN

103 601-11102 TIMING BELT 500 S3M 06

104 601-0460 PLASTIC TIE BELT 100 M/M

105 370-5251 PHOTO INTERRUPTER KI1301-BB

106 280-5277 CORD CLAMP 18

107 280-5275-SR10 CORD CLAMP SR10

108 601-6231-C040 EDGING NEW TYPE L=40

201 065-E00600 E RING 6MM

202 000-P00308-W M SCR PH W/FS M3x8

203 000-P00408-S M SCR PH W/S M4x8

204 000-P00410-W M SCR PH W/FS M4x10

205 000-P00510-W M SCR PH W/FS M5x10

206 050-H00500 HEX NUT M5

207 028-P00310-P SET SCR PH CUP P M3x10

208 020-000410-0Z HEX SKT H CAP SCR BLK 0Z M4x10

209 060-S00400 SPR WSHR M4

210 060-F00400 FLT WSHR M4

211 000-P00408 M SCR PH M4x8

212 000-P00412-S M SCR PH W/S M4x12

301 UCU-60018 WH CABLE BEAR X

ITEM NO. PART NO. DESCRIPTION NOTE

(D-2/2)

102

PARTS LIST

(21) ASSY X MECHA 2P (UCU-3010)

(D-1/2)

103

PARTS LIST

1 UCU-3050 ASSY X MECHA

2 USS-3001X SENSOR DOG HP FIX

3 USS-3003X SENSOR DOG LIMIT

4 USS-3011X SENSOR DOG HP 2P

5 UCS-3014X NUT PLATE S

6 421-11866-03 STICKER DOG POS 2P HOME ENG

7 421-11867-03 STICKER DOG POS 2P LIMIT ENG

201 032-000408-0C WING BLT CRM M4x8

202 000-P00410-W M SCR PH W/FS M4x10

ITEM NO. PART NO. DESCRIPTION NOTE

(D-2/2)

104

PARTS LIST

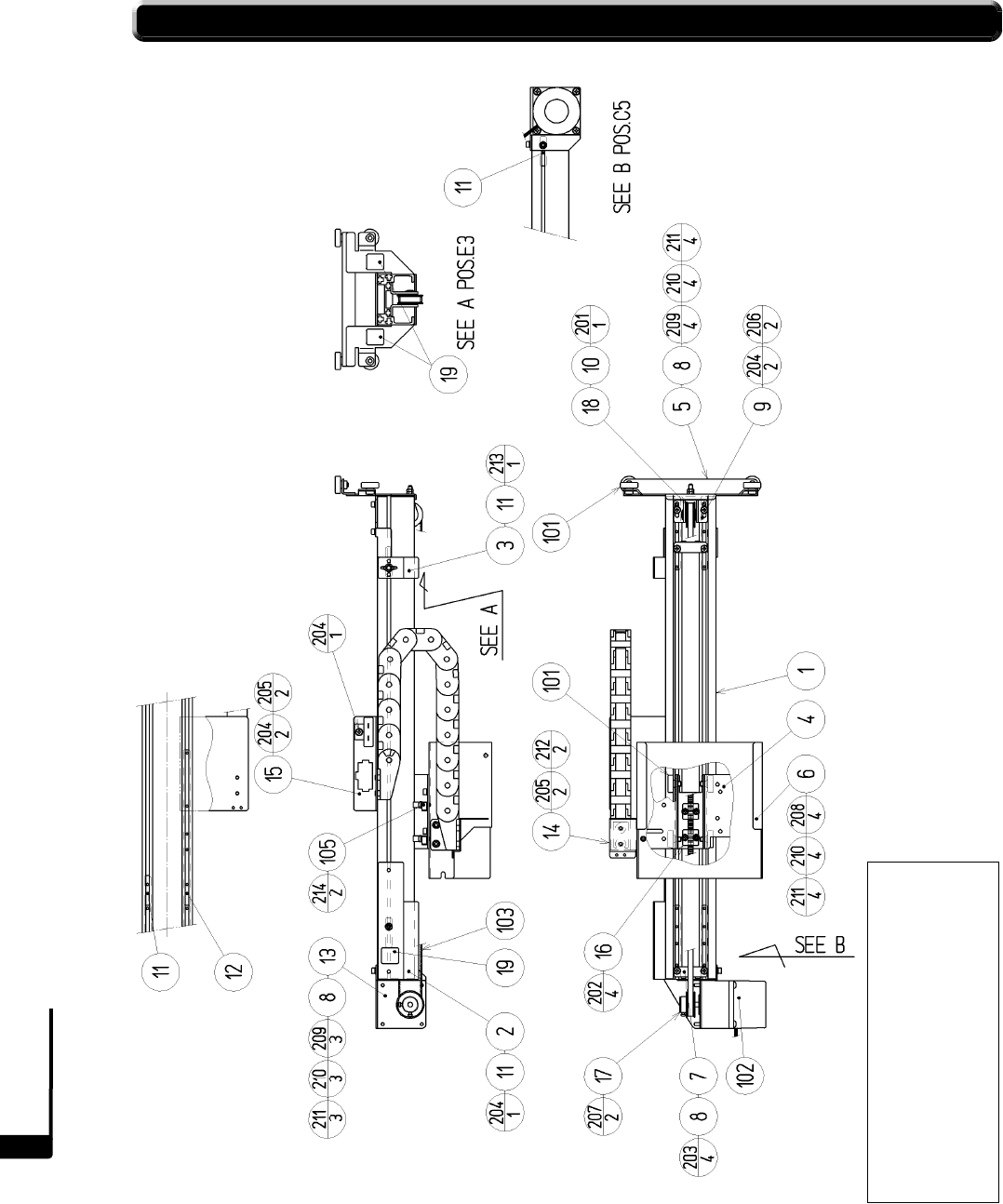

(22) ASSY Y MECHA (UCU-3100)

(D-1/2)

(Use the screws included.)

NOTE: When securing the harness inside the cable carrier to the metal plate with the tie belt,

do so with the cable carrier (harness) extended.

Belt tension:

Belt unit mass:

Belt width:

Pulley center distance:

Min 16 N (1.6 kgf)

Max 25 N (2.6 kgf)

0.23 g/cm2

6 mm

621 mm

105

PARTS LIST

1 105-5450-613 MECHA RAIL L=613

2 USS-3103X SENSOR DOG Y

3 USS-3003X SENSOR DOG LIMIT

4 USS-3052X CARRIAGE Y

5 USS-3101X ROLLER BRKT

6 UCU-3102 Z MECHA COVER

7 UCS-3001X STOPPER

8 UCS-3004X NUT PLATE COMMON

9 UCS-3009X PULLEY BRKT

10 UCS-3010 PULLEY SHAFT

11 UCS-3014X NUT PLATE S

12 UCS-3101X NUT PLATE CB Y

13 UCS-3102X MOTOR BRKT Y

14 UCS-3105X CABLEBEAR BRKT Y MOVE

15 UCM-3104X CABLEBEAR BRKT Y FIX

16 253-5522 BELT HOLDER S3M 06

17 350-5667 PULLEY A (30 S3M 06)

18 350-5668 PULLEY B (30 S3M 06)

19 440-CS0245-EG STICKER C GEAR S ENG

101 100-5272 BEARING 22 (DR-22-B2)

102 350-5669-01 MOTOR AC100V 2W 1/20 W/CONN

103 601-11103 TIMING BELT 444 S3M 06

104 601-0460 PLASTIC TIE BELT 100 M/M

105 370-5251 PHOTO INTERRUPTER KI1301-BB

106 280-5277 CORD CLAMP 18

107 280-5275-SR10 CORD CLAMP SR10

201 065-E00600 E RING 6MM

202 000-P00308-W M SCR PH W/FS M3x8

203 000-P00408-S M SCR PH W/S M4x8

204 000-P00410-W M SCR PH W/FS M4x10

205 000-P00510-W M SCR PH W/FS M5x10

206 050-H00500 HEX NUT M5

207 028-P00310-P SET SCR PH CUP P M3x10

208 020-000408-0Z HEX SKT CAP SCR BLK 0Z M4x8

209 020-000410-0Z HEX SKT H CAP SCR BLK 0Z M4x10

210 060-S00400 SPR WSHR M4

211 060-F00400 FLT WSHR M4

212 050-F00400 FLG NUT M4

213 032-000408-0C WING BLT CRM M4x8

214 000-P00412-S M SCR PH W/S M4x12

301 USS-60017 WH MECHA Y

302 UCU-60019 WH CABLE BEAR Y

ITEM NO. PART NO. DESCRIPTION NOTE

(D-2/2)

106

PARTS LIST

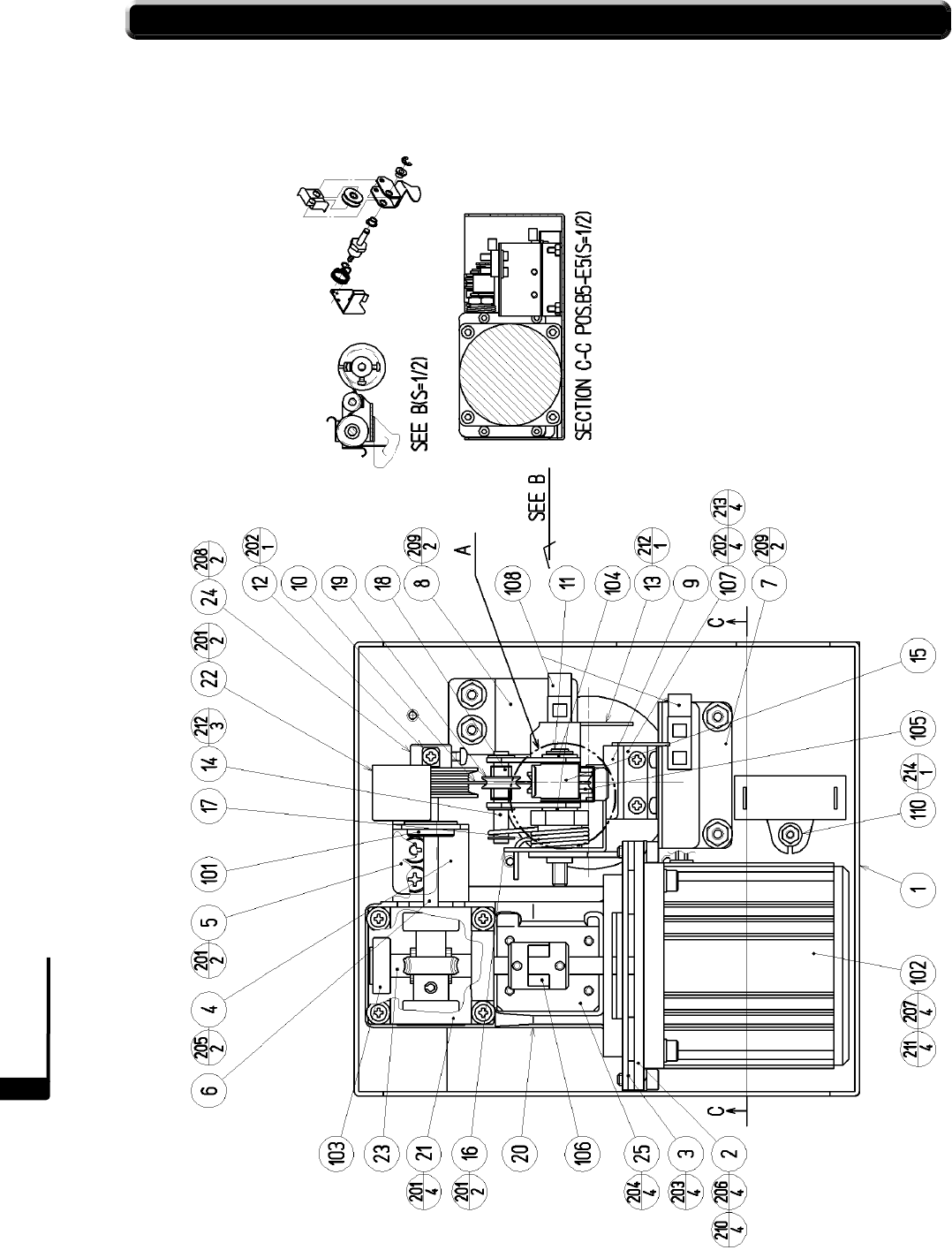

(23) ASSY Z MECHA (UCU-3200)

(D-1/2)

NOTES:

1. Apply grease to the gear components adequately.

(Use 090-0066

or equivalent.)

The amount of grease should be 3 g. (For 090-0066,

spray for about 4 seconds.)

2. Screw components must be coated with thread sealant

(ThreeBond #1401C or equivalent). Make sure that

sealant does not seep out.

3. Confirm that the wire is not twisted anywhere and

that it does not come in contact with the metal plate.

4. Apply grease to the sliding portions (14) and (19).

(Use 090-0066 or equivalent.)

Make sure that grease does not get on the wire.

Details of part "A" (S=1/2)

107

PARTS LIST

1 UCU-3201 Z MECHA BASE

2 UCM-3202 MOTOR BRKT

3 UCM-3203X GEAR BOX BRKT

4 UCM-3204X BEARING BRKT

5 UCM-3205X PULLEY COVER BRKT

6 UCM-3206 WORM WHEEL

7 UCM-3207Y SENSOR BRKT LIFT-UP

8 UCM-3208X SENSOR BRKT LIFT-DOWN

9 UCM-3209Y SENSOR DOG LIFT-UP

10 UCU-3212 LIFT WIRE

11 UCS-3205 MAIN SHAFT

12 UCS-3206X WIRE STOPPER

13 UCS-3207X SENSOR DOG LIFT-DOWN

14 UCS-3208 TENSION SHAFT

15 UCS-3209 WIRE GUIDE

16 UCM-3210X STOPPER BRKT

17 UCS-3215 TORSION SPRING

18 UCR-3210X WIRE GUIDE A

19 UCM-3211 TENSION PULLEY

20 DCR-3601 GEAR BOX

21 DCR-3602 GEAR COVER

22 DCR-3603 DRUM COVER

23 DCR-3605 WORM GEAR A

24 DCR-3607 PULLEY 1A

25 DCR-3613X NUT PLATE

101 100-5444 BEARING 8 (NSK F625ZZ)

102 350-5807 MOTOR AC100V 10W UL

103 100-5301 BEARING 6 (626ZZ)

104 100-5089 BEARING 6PH (80F-0605)

105 100-5398 ROLLER BEARING 22 (DU-22-H6)

106 601-11105 COUPLING 6-6 (NBK L035-S)

107 601-11107 HINGE (TAKIGEN B-1100-1)

108 370-5161 PHOTO INTERRUPTER GP1A71A

109 280-5275-SR10 CORD CLAMP SR10

110 152-0244 CAP M0PC4.5M20 JSU20X455AQA

201 000-P00308-W M SCR PH W/FS M3x8

202 000-P00304 M SCR PH M3x4

203 000-F00408 M SCR FH M4x8

204 FAS-000133 M SCR PH W/FS CRM M3X16

205 012-P00308 TAP SCR #2 PH 3x8

206 020-000410-0Z HEX SKT H CAP SCR BLK 0Z M4x10

207 020-000512-0Z HEX SKT H CAP SCR BLK 0Z M5x12

208 028-C00308-P SET SCR CH CUP P M3x8

209 050-F00400 FLG NUT M4

210 060-S00400 SPR WSHR M4

211 060-S00500 SPR WSHR M5

212 065-E00400 E RING 4MM

213 060-S00300 SPR WSHR M3

214 050-F00300 FLG NUT M3

301 UCU-60020 WH MECHA Z

ITEM NO. PART NO. DESCRIPTION NOTE

(D-2/2)

108

PARTS LIST

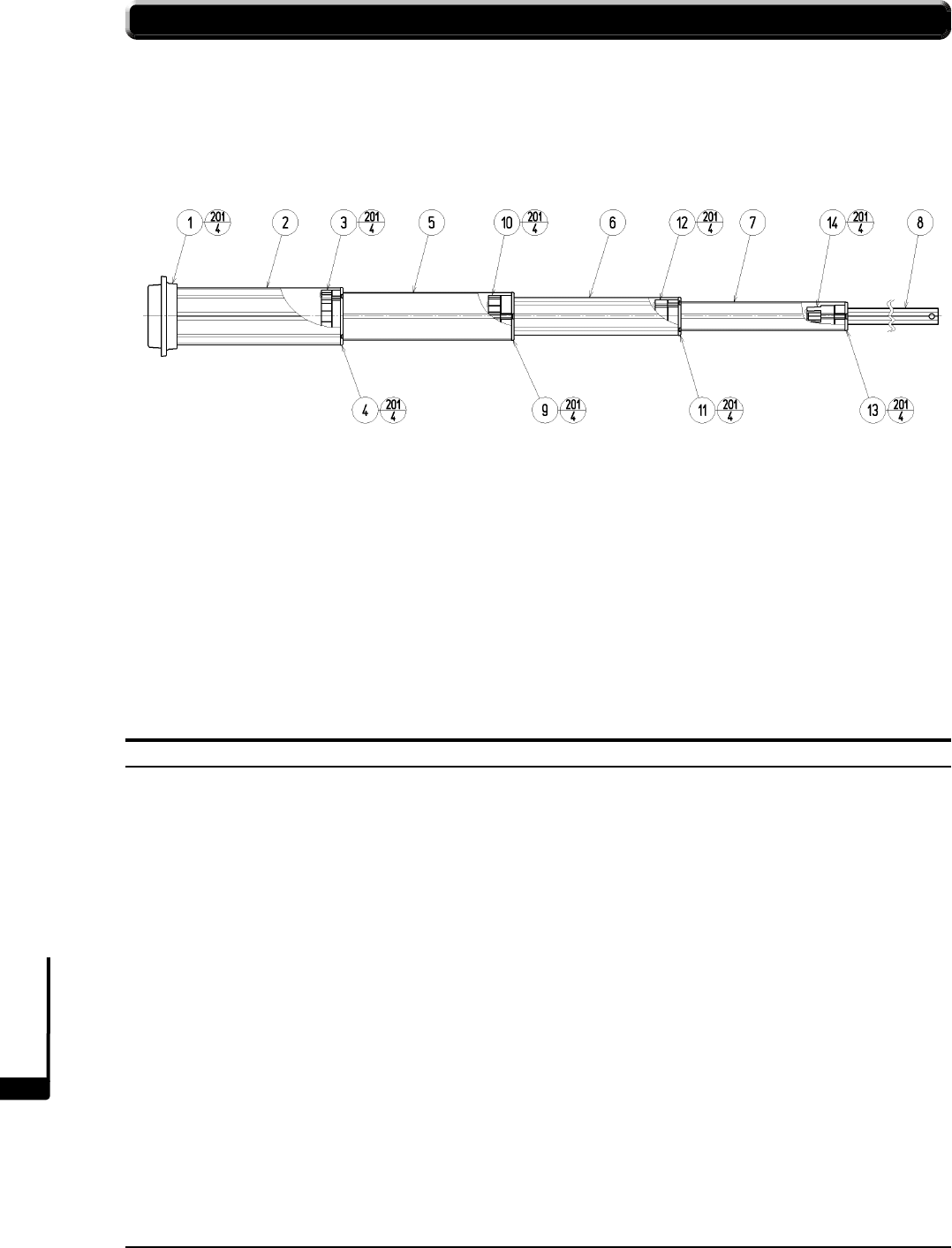

(24) ASSY PIPE (UCU-3300)

1 UCM-3301 FLANGE

2 UCU-3302 PIPE S

3 UCM-3303 STOPPER A UPPER

4 UCM-3304 STOPPER S LOWER

5 UCU-3305 PIPE A

6 UCU-3306 PIPE B

7 UCU-3307 PIPE C

8 UCU-3308 PIPE D

9 UCS-3306 STOPPER A LOWER

10 UCS-3307 STOPPER B UPPER

11 UCS-3308 STOPPER B LOWER

12 UCS-3309 STOPPER C UPPER

13 UCS-3310 STOPPER C LOWER

14 UCS-3311 STOPPER D UPPER

201 FAS-120021 TAP SCR PH #2 CRM 2.6X6

ITEM NO. PART NO. DESCRIPTION NOTE

NOTE: Screw components must be coated with thread sealant (ThreeBond #1401C or equivalent).

Make sure that sealant does not seep out.

109

PARTS LIST

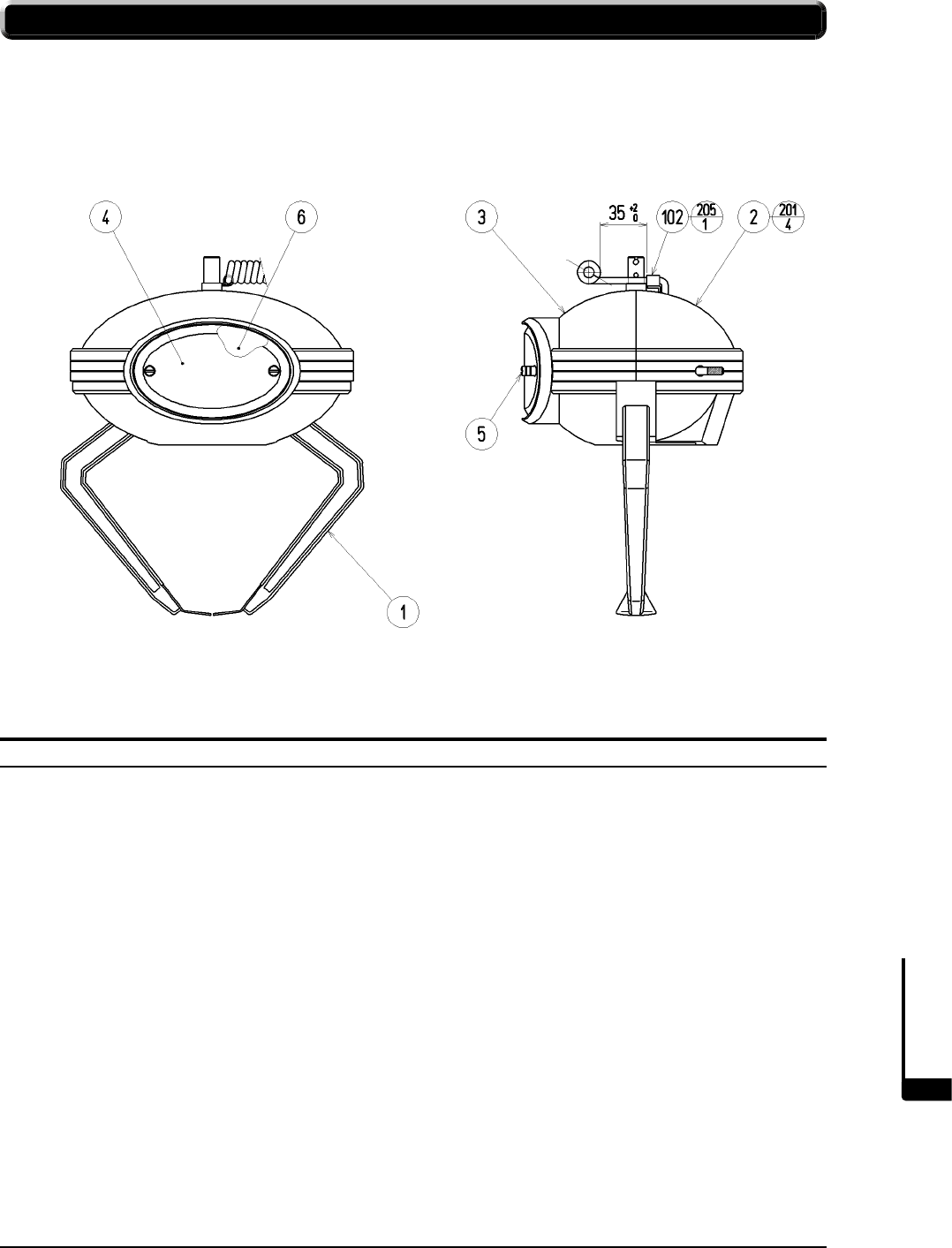

(25) ASSY UFO MECHA (UCU-3400)

1 UCU-3410 ASSY ARM MECHA

2 UCS-3450 ASSY REAR COVER

3 UCS-3401 UFO COVER FRONT

4 UCS-3402 CLEAR PLATE

5 UCS-3403 KNOB BOLT

6 UCU-3401 DESIGN SHEET UCU

101 280-5275-SR10 CORD CLAMP SR10

102 280-5124-03 NYLON CLAMP NK03

201 000-P00308-W M SCR PH W/FS M3x8

202 000-P00408 M SCR PH M4x8

203 060-S00400 SPR WSHR M4

204 060-F00400 FLT WSHR M4

205 000-T00408-0C M SCR TH CRM M4x8

301 UCS-60020 WH CURL CORD

302 UCS-60021 WH ARM

ITEM NO. PART NO. DESCRIPTION NOTE

110

PARTS LIST

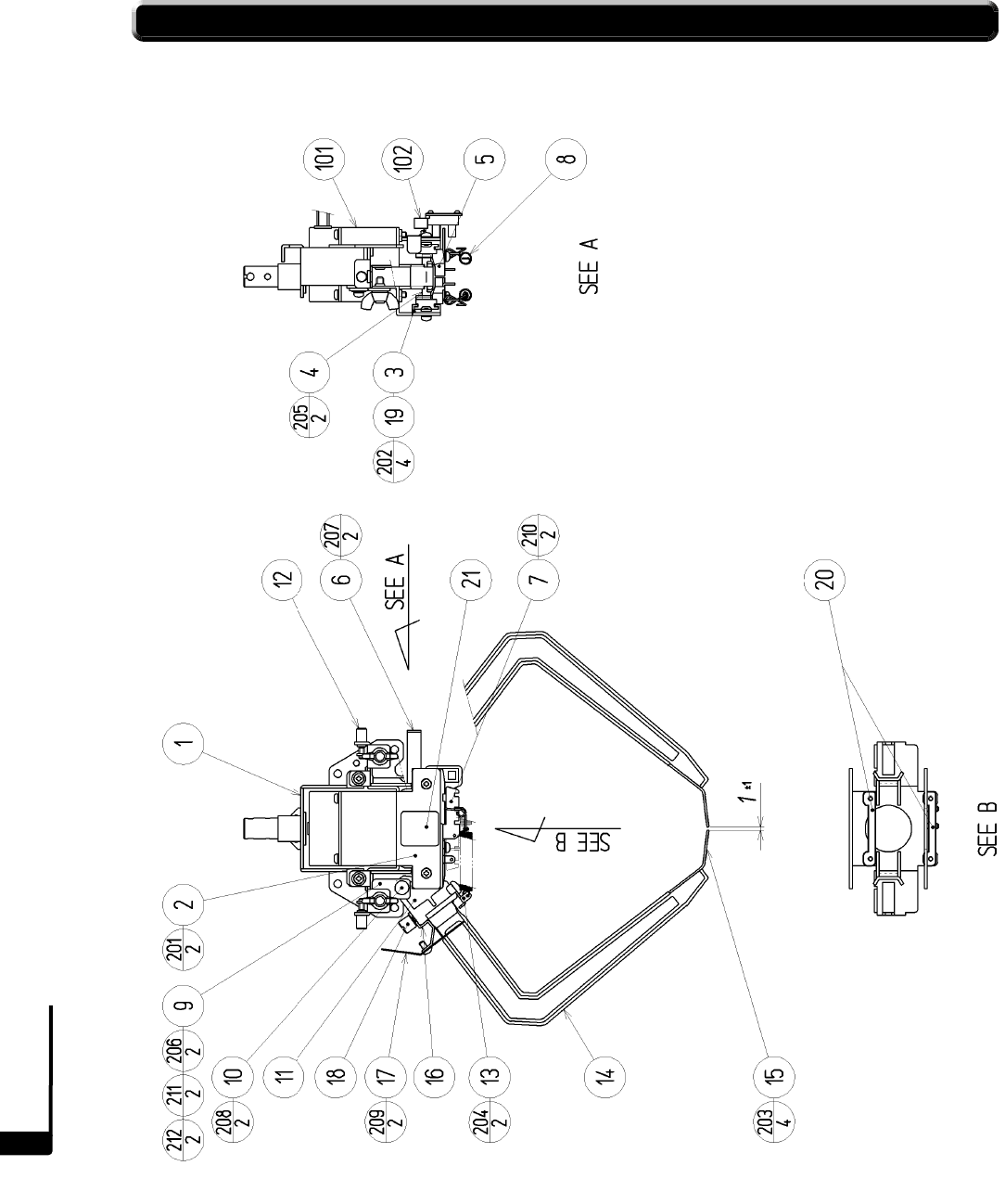

(26) ASSY ARM MECHA (UCU-3410)

(D-1/2)

NOTE: Apply grease to the sliding portion. (Use 090-0066 or equivalent.)

111

PARTS LIST

1 USS-3411 ARM MECHA BRKT UPPER

2 USS-3412X ARM MECHA BRKT LOWER

3 UCS-3413 RAIL GUIDE

4 DPT-3158X PINION GEAR

5 UCS-3414 SLIDER W/RACK

6 UCS-3415X SENSOR BRKT ARM

7 USS-3417 SHIFT BRKT

8 USS-3418 SLIDE SPRING

9 USS-3413X ARM HOLDER

10 UCR-3313 ARM SHAFT

11 DPT-3101 ARM BASE ADJ

12 UCS-3425 ADJUST SCREW

13 UCS-3426X SPRING BRKT

14 UCS-3431 ARM M

15 EG-3405Y SHOVEL W30

16 USS-3414X ARM FIX BRKT

17 USS-3415 MECHA MASK

18 USS-3416X ARM FIX BOLT

19 UCS-3418X NUT PLATE FOR RAIL

20 UCS-3421X NUT PLATE FOR MOTOR

21 440-CS0245-EG STICKER C GEAR S ENG

101 350-5526-01 MOTOR PULSE DC12V

102 370-5161 PHOTO INTERRUPTER GP1A71A

201 000-P00308-W M SCR PH W/FS M3x8

202 000-P00305-S M SCR PH W/S M3x5

203 000-F00305 M SCR FH M3x5

204 012-P00408 TAP SCR #2 PH 4x8

205 028-A00304-P SET SCR HEX SKT CUP P M3x4

206 032-000408-0C WING BLT CRM M4x8

207 050-F00300 FLG NUT M3

208 065-E00300 E RING 3MM

209 FAS-000001 M SCR TH CRM M3X6

210 FAS-000045 M SCR PH W/S BLK M3X6

211 060-S00400 SPR WSHR M4

212 060-F00400 FLT WSHR M4

ITEM NO. PART NO. DESCRIPTION NOTE

(D-2/2)

112

PARTS LIST

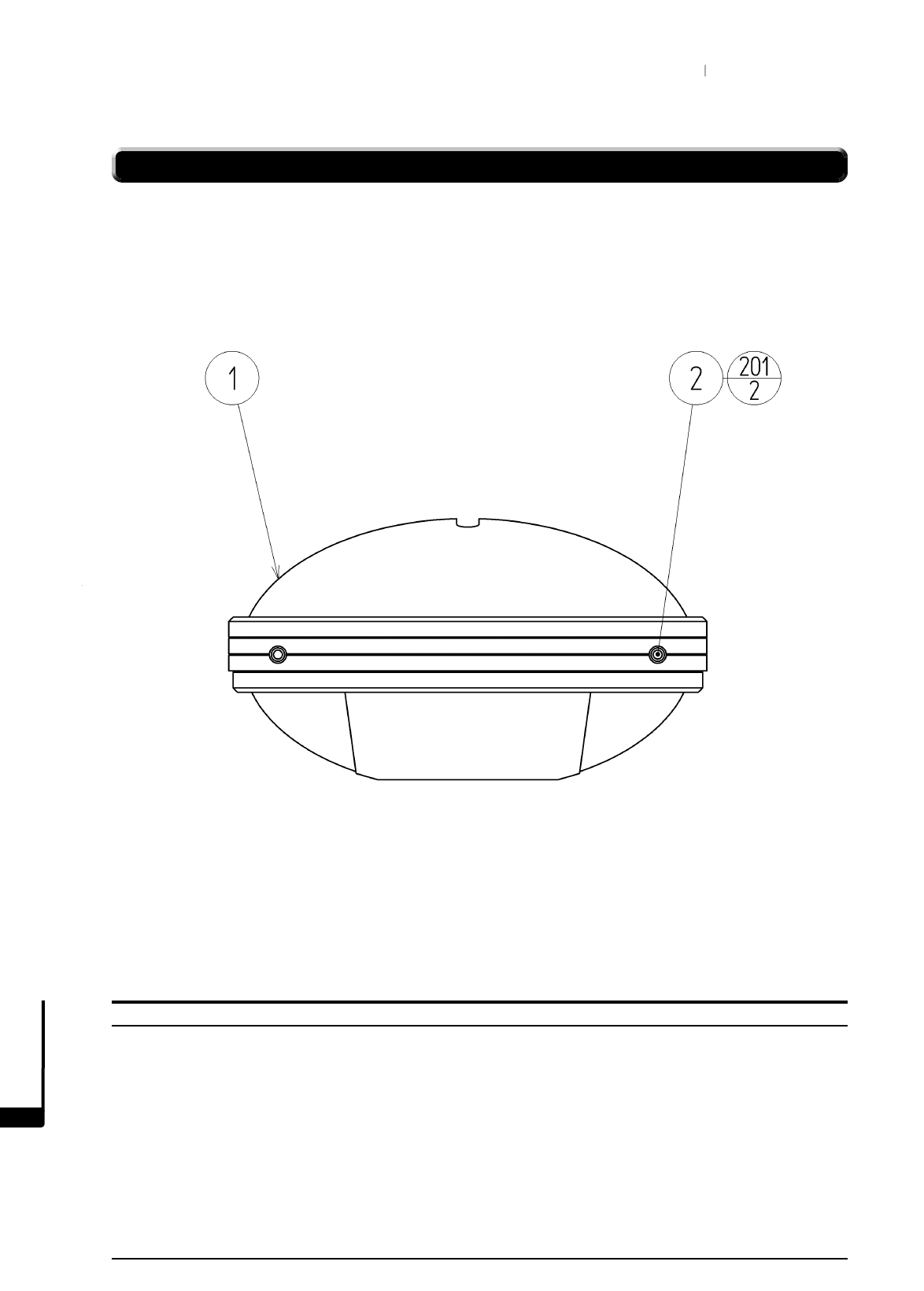

(27) ASSY REAR COVER (UCS-3450)

1 UCS-3451 UFO COVER REAR

2 UCS-3452 SCREW SHAFT

201 065-E00200 E RING 2MM

ITEM NO. PART NO. DESCRIPTION NOTE

113

PARTS LIST

(28) ASSY MAIN BD (UCU-4000)

ITEM NO. PART NO. DESCRIPTION NOTE

1 UCS-4001 WOODEN BASE

2 834-14606R GAME BD UCU

3 105-5496 PL STICKER PLATE UL A

4 440-CS0282-EG

STICKER C FUSE REPLACEMENT ENG

5 421-12108-5000 STICKER FUSE RATING 5A

6 421-12108-2000 STICKER FUSE RATING 2A

101 400-5421-03005Y SW REGU LCA30S-5-Y

102 400-5421-05012 SW REGU LCA50S-12

103 280-6681 L-LOCK LT-320PCG

104 280-0419 HARNESS LUG

105 280-5277 CORD CLAMP 18

106 838-14411R12 SSR BD 12EA

107 514-5093 FUSE HLDR F-64AB COVER

108 514-5138-2000

FUSE SG5013 5X20 2000MA 250V

109 514-5138-5000

FUSE SG5013 5X20 5000MA 250V

110 310-5029-F20 SUMITUBE F F 20MM

201 011-T03516 TAP SCR TH 3.5x16

202 000-P00310-W M SCR PH W/FS M3x10

203 011-T03512 TAP SCR TH 3.5x12

204 011-F00310 TAP SCR FH 3x10

205 011-P00325 TAP SCR PH 3x25

206 011-P00312 TAP SCR PH 3x12

301 USS-60004 WH MAIN BD VOL

302 USS-60005 WH MAIN BD SP

303 USS-60007 WH MAIN BD 4

304 UCU-60005 WH MAIN BD 1

305 UCU-60006 WH MAIN BD 2

306 UCU-60011 WH MAIN BD AC

NOTES:

1. Make sure that there is no parts, wiring, etc. in the slash mark portions.

2. All game board DIP SW should be set to OFF.

Details of part "A" (S=1/2)

114

WIRE COLOR CODE TABLE

WIRE COLOR CODE TABLE23

THE WIRE COLOR CODE is as follow:

A PINK

B SKY BLUE

C BROWN

D PURPLE

E LIGHT GREEN

Wires other than those of any of the above 5 single colors will be displayed by 2 alphanumeric characters.

1 RED

2 BLUE

3 YELLOW

4 GREEN

5 WHITE

7 ORANGE

8 BLACK

9 GRAY

If the right-hand side numeral of the code is 0, then the wire will be of a single color shown by the left-hand side

numeral (see the above).

Note 1: If the right-hand side numeral is not 0, that particular wire has a spiral color code. The left-hand side

character shows the base color and the right-hand side one, the spiral color.

<Example> 51………WHITE/RED

Note 2: The character following the wire color code indicates the size of the wire.

U: AWG16

K: AWG18

L: AWG20

None: AWG22

WHITERED

Arcade Sega Ufo Catcher Manual User

Navigation menu

Versions of this User Manual:

Views

Navigation
