Arcade Virtua Cop 3 Ur Manual VC3 UPRIGHT MANUAL_Iss 0 User

2013-11-28

User Manual: Arcade Virtua Cop 3 Ur Manual

Open the PDF directly: View PDF .
Page Count: 116 [warning: Documents this large are best viewed by clicking the View PDF Link!]

420-6759-02UK REV 0

SERVICE MANUAL

UPRIGHT TYPE

Before using this product, read this SERVICE MANUAL carefully to understand the contents stated herein.

After reading this manual, be sure to keep it available nearby the product or somewhere convenient in order to

be able to refer to it whenever necessary.

Manufactured in the UK by

CONTENTS

1. BEFORE USING THIS PRODUCT........................................................................................................1

1.1. INSPECTIONS IMMEDIATELY AFTER TRANSPORTING THE PRODUCT TO THE LOCATION..2

2. INTRODUCTION TO THIS SERVICE MANUAL ...................................................................................4

3. INSTALLATION AND MAINTENANCE INSTRUCTIONS .....................................................................5

3.1. HANDLING AND INSTALLATION PRECAUTIONS ..........................................................................5

3.2. COIN HANDLING...............................................................................................................................5

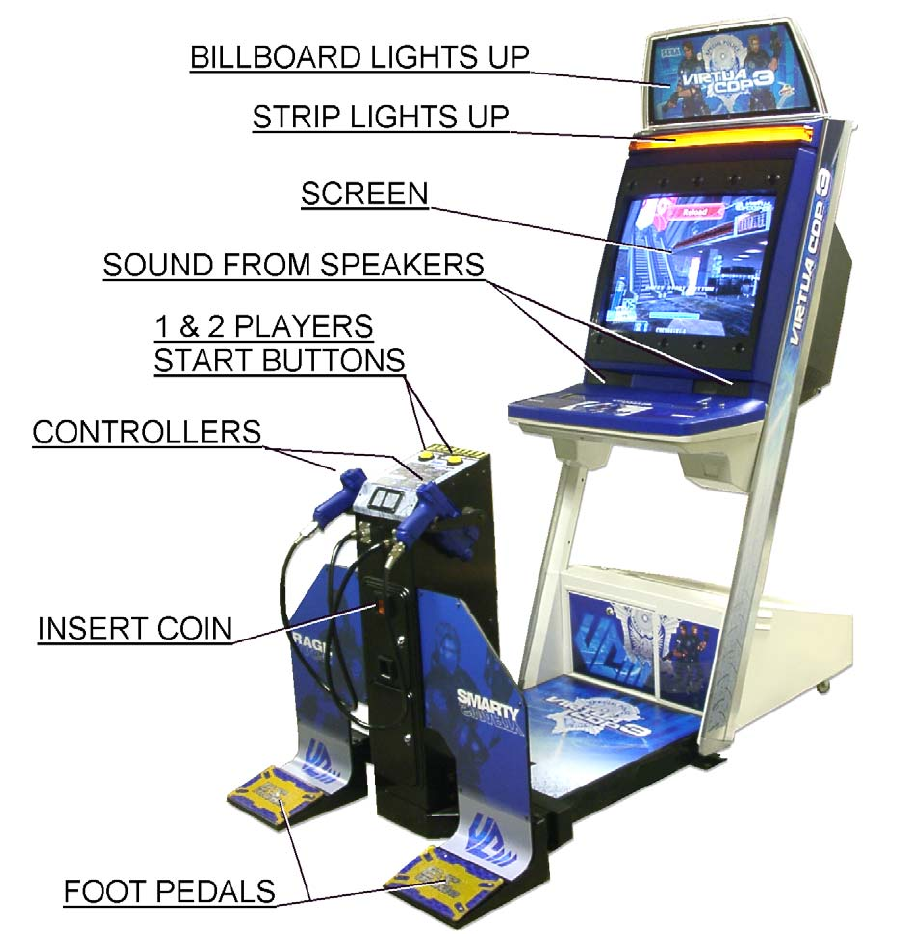

3.3. NAME OF PARTS..............................................................................................................................6

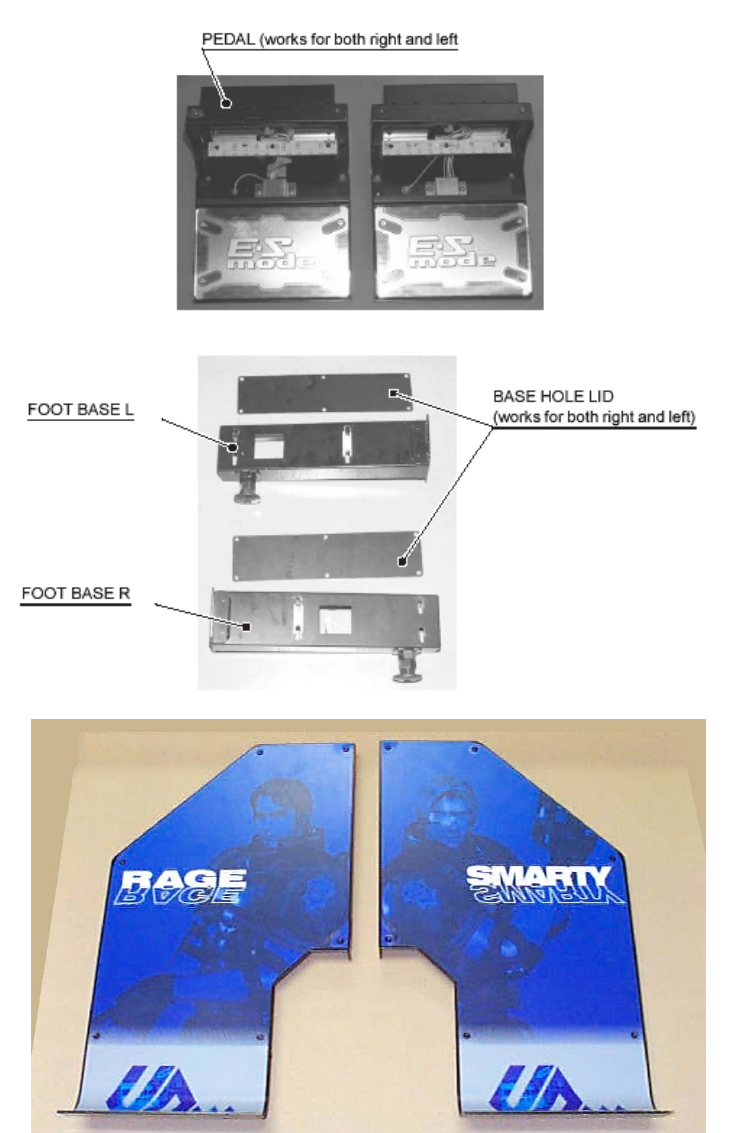

3.4. ACCESSORIES .................................................................................................................................7

3.5. SHIPPING THE GAME BOARD.........................................................................................................8

3.6. SHIPPING THE MEDIA BOARD......................................................................................................10

3.7. SHIPPING THE GD-ROM DRIVE....................................................................................................11

3.8. ASSEMBLY INSTRUCTIONS..........................................................................................................12

3.8.1. INSTALLING THE DISPLAY CARD..........................................................................................13

3.8.2. INSTALLING THE FLOOR .......................................................................................................14

3.8.3. SECURING IN PLACE (LEG ADJUSTER ADJUSTMENT)......................................................18

3.8.4. INSTALLING THE FOOT PEDAL.............................................................................................19

3.8.5. COIN HANDLING INSTALLATION...........................................................................................24

3.8.5.1. WIRING CONNECTIONS..................................................................................................25

3.8.6. CONNECTION TO THE POWER SUPPLY..............................................................................26

3.8.7. ADJACENT CONTROL INTERFERENCE PREVENTION.......................................................27

3.9. ASSEMBLY CHECK.........................................................................................................................28

3.9.1. MEMORY TEST........................................................................................................................28

3.9.2. C.R.T. TEST .............................................................................................................................29

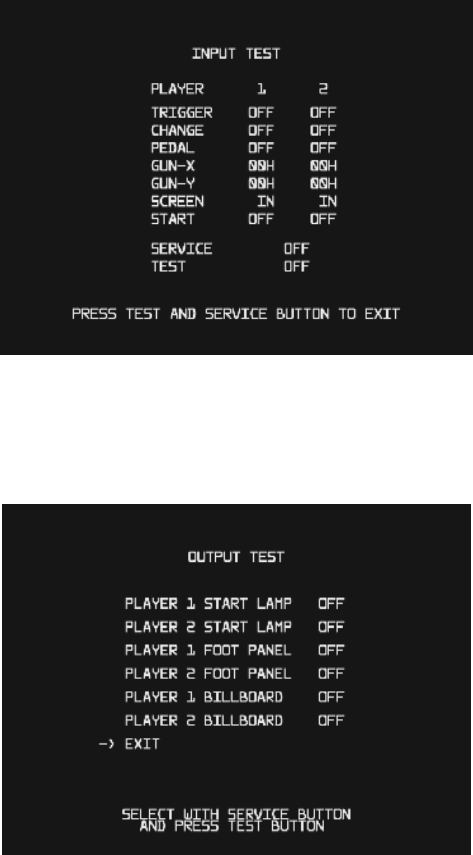

3.9.3. INPUT TEST .............................................................................................................................30

3.9.4. OUTPUT TEST .........................................................................................................................30

3.9.5. GUN ADJUSTMENT.................................................................................................................31

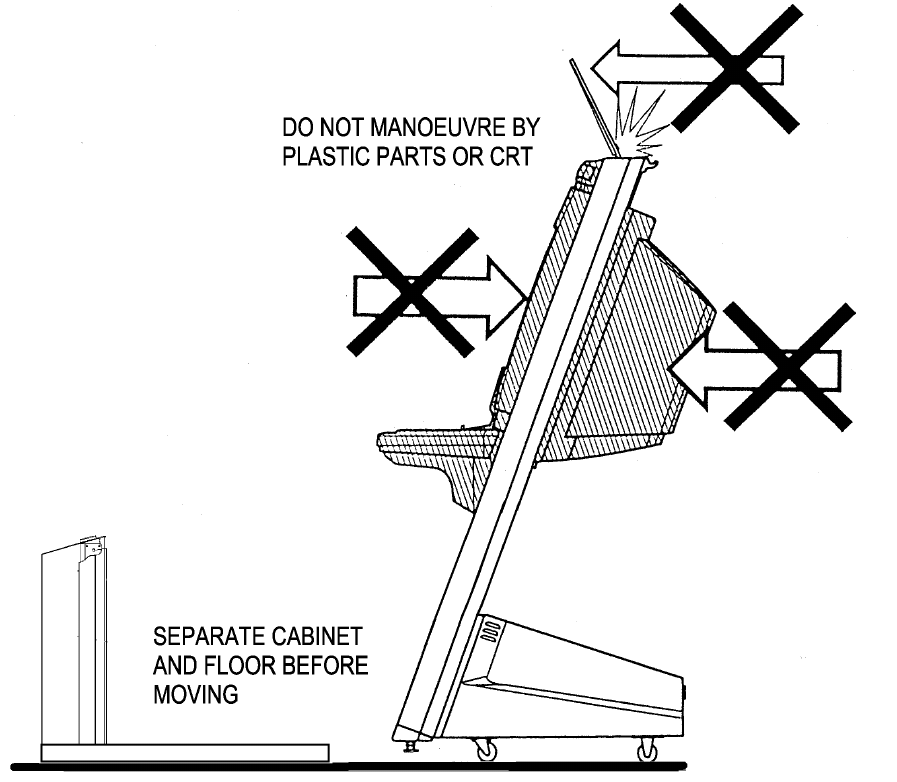

3.10. MOVING THE MACHINE .............................................................................................................32

3.11. CONTROLLER .............................................................................................................................34

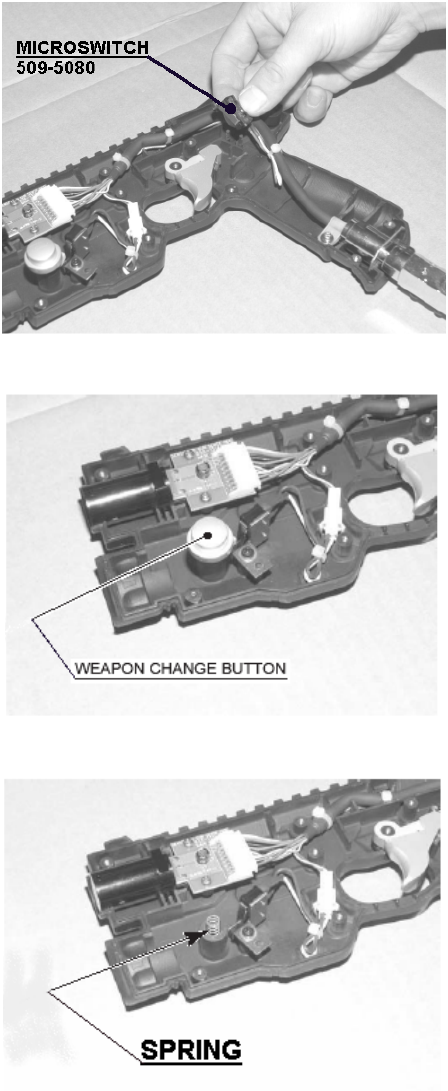

3.11.1.1. REPLACING THE MICROSWITCH..................................................................................34

3.11.1.2. REPLACING THE SENSOR UNIT....................................................................................38

3.12. REPLACEMENT OF LED BOARD...............................................................................................39

3.13. REPLACEMENT OF FLUORESCENT LAMP AND START LAMPS ...........................................40

3.13.1. FLUORESCENT....................................................................................................................40

3.13.2. START LAMP REPLACEMENT............................................................................................41

3.14. GAME BOARD .............................................................................................................................42

3.14.1. REMOVING THE BOARD.....................................................................................................42

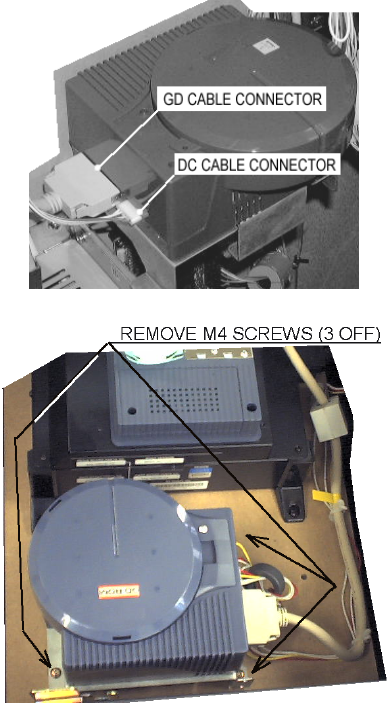

3.14.2. REMOVING THE GD-ROM DRIVE.......................................................................................44

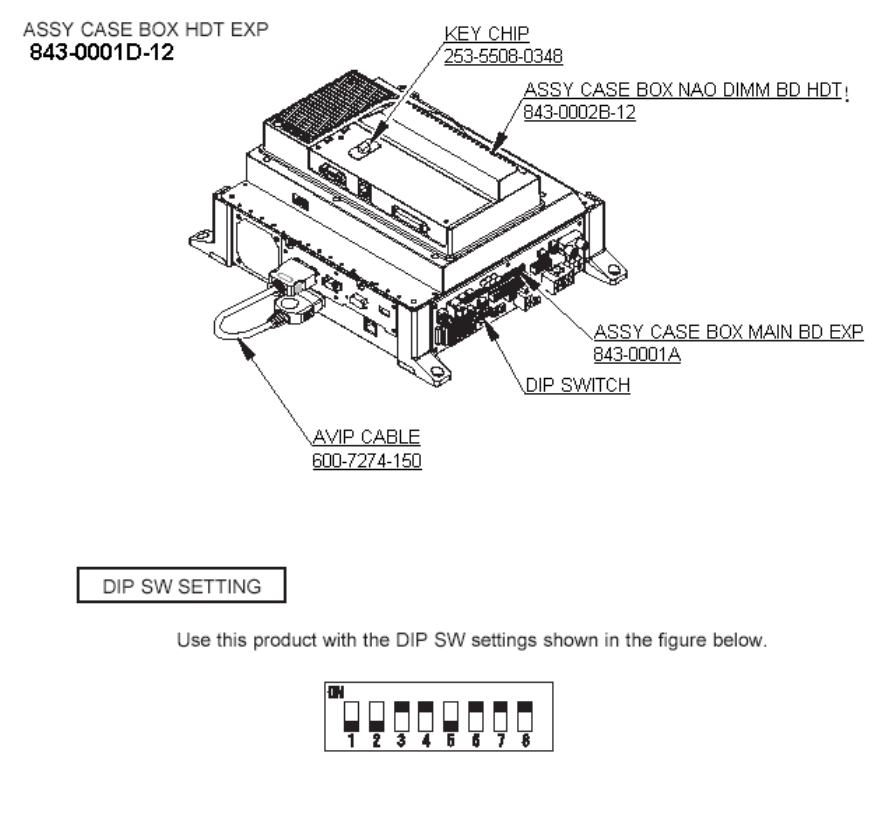

3.15. COMPOSITION OF THE GAME BOARD ....................................................................................45

3.16. TROUBLESHOOTING .................................................................................................................46

3.17. FUSES..........................................................................................................................................47

4. PERIODIC CHECK AND INSPECTION ..............................................................................................48

4.1. CLEANING THE CABINET SURFACES..........................................................................................48

5. HOW TO PLAY....................................................................................................................................49

5.1. GAME CONTENTS..........................................................................................................................50

5.1.1. The Main Characters ................................................................................................................51

5.1.1.1. 1P Character: RAGE .........................................................................................................51

5.1.1.2. 2P Character: SMARTY.....................................................................................................51

5.1.2. Playing Virtua Cop 3..................................................................................................................51

5.1.2.1. Start a New Game .............................................................................................................51

5.1.2.2. Calibrating at the Start of the Game ..................................................................................51

5.1.2.3. Mission Select....................................................................................................................51

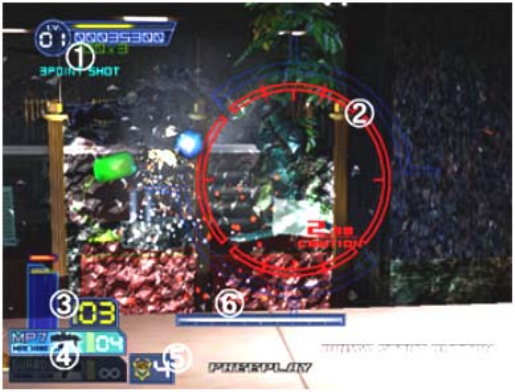

5.1.2.4. Game Screen.....................................................................................................................52

5.1.2.5. ES Gauge ..........................................................................................................................53

5.1.3. Game Over ...............................................................................................................................54

5.1.4. Continue....................................................................................................................................54

6. MAINTENANCE INSTRUCTIONS.......................................................................................................55

6.1. EXPLANATION OF TEST DATA AND DISPLAY ............................................................................55

6.2. INTERNAL SWITCHES AND COIN METERS.................................................................................56

6.3. SYSTEM TEST MODE.....................................................................................................................57

6.3.1. EXPLANATION OF TEST AND DATA DISPLAY .....................................................................57

6.3.2. SYSTEM TEST MENU MODE..................................................................................................58

6.3.3. MEDIA BOARD TEST...............................................................................................................59

6.3.4. SYSTEM INFORMATION .........................................................................................................60

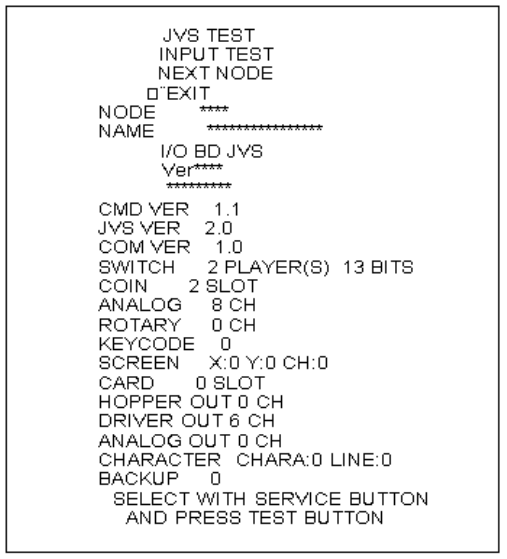

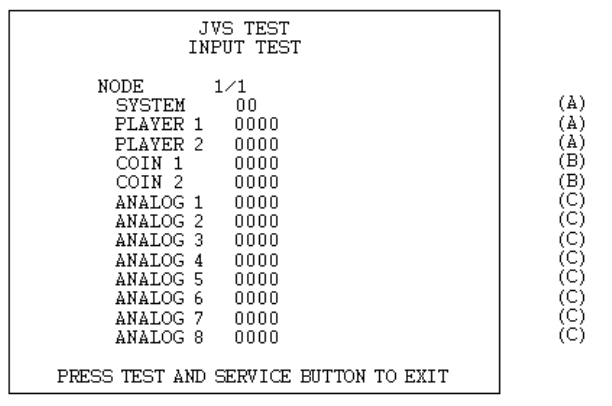

6.3.5. JVS TEST .................................................................................................................................61

6.3.6. INPUT TEST Screen.................................................................................................................62

6.3.7. SOUND TEST...........................................................................................................................63

6.3.8. C.R.T. TEST .............................................................................................................................64

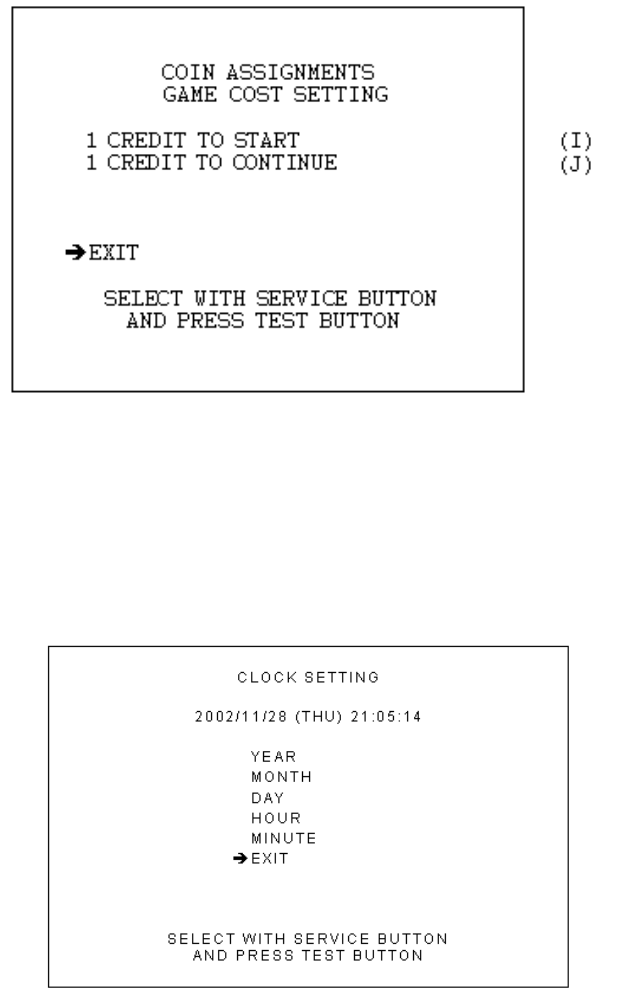

6.3.9. COIN ASSIGNMENTS..............................................................................................................65

6.3.10. CLOCK SETTING .................................................................................................................67

6.3.11. NETWORK SETTING (CORE) .............................................................................................68

6.3.12. NETWORK SETTING (MEDIA) ............................................................................................69

6.4. GAME TEST MODE.........................................................................................................................70

6.4.1. INPUT TEST .............................................................................................................................71

6.4.2. OUTPUT TEST.........................................................................................................................72

6.4.3. GAME ASSIGNMENTS ............................................................................................................73

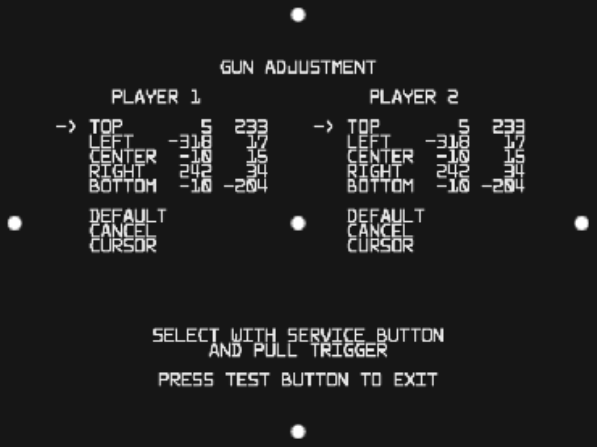

6.4.4. GUN ADJUSTMENT.................................................................................................................74

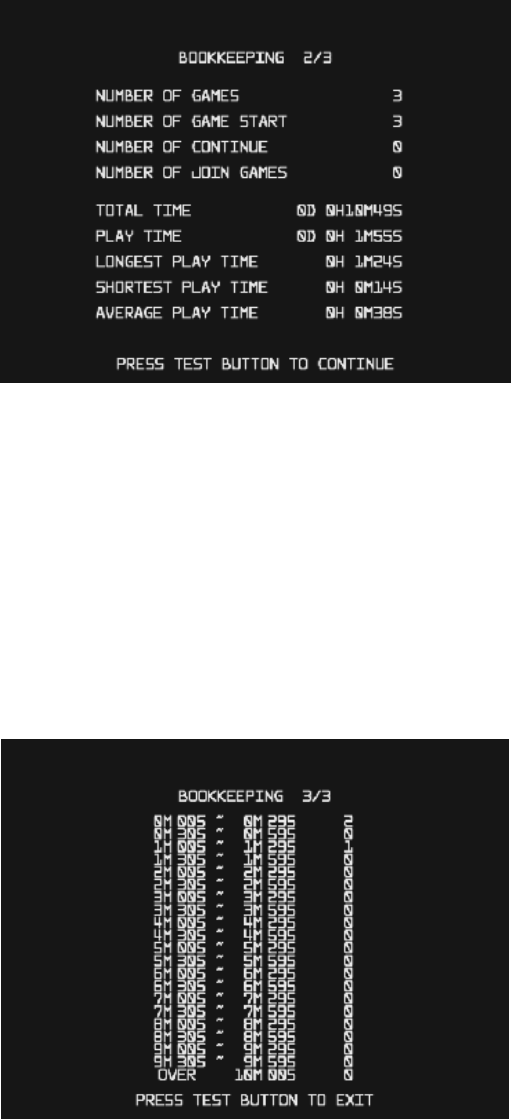

6.4.5. BOOKKEEPING........................................................................................................................75

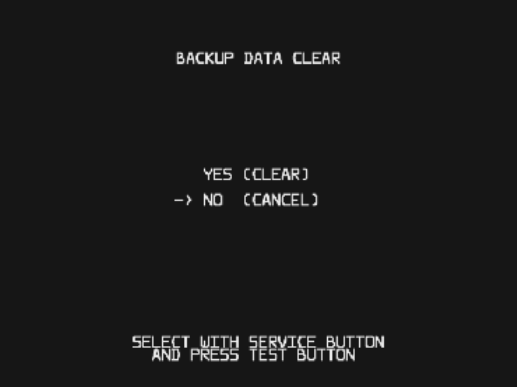

6.4.6. BACKUP DATA CLEAR............................................................................................................77

7. COIN MECH INSTALLATION AND CREDIT BOARD SET UP...........................................................78

7.1. INTRODUCTION..............................................................................................................................78

7.1.1. PRICE OF PLAY SETTINGS UK .............................................................................................80

7.1.2. PRICE OF PLAY SETTINGS EURO ........................................................................................81

7.1.3. PRICE OF PLAY SETTINGS Austria-Czech-Denmark-Norway-Israel-France2 ......................82

8. DESIGN RELATED PARTS.................................................................................................................83

9. PARTS LIST ........................................................................................................................................84

9.1. VCT-10002UK ASSY CABINET VCT U/R .......................................................................................84

9.2. VCT-11002UK ASSY FRAMEWORK VCT U/R ...............................................................................87

9.3. NOA-1200UK ASSY CRT COVER UK.............................................................................................89

9.4. VCT-1200UK ASSY FOOT PEDAL DX............................................................................................90

9.5. VCT-1300 ASSY BILLBOARD .........................................................................................................91

9.6. VCT-1400UK ASSY CONTROL BOX VCT U/R...............................................................................92

9.7. VCT-1500UK ASSY FRONT PANEL VCT U/R FST........................................................................94

9.8. NOB-1710UK ASSY AC UNIT ........................................................................................................95

9.9. NOA-1750UK ASSY SERVICE DOOR ...........................................................................................95

9.10. VCT-2100-01 CONTROL UNIT EXP............................................................................................96

9.11. JPT-2030 SENSOR UNIT ............................................................................................................97

9.12. HDT-4100UK ASSY XMFR ..........................................................................................................98

9.13. CHT-4000UK ASSY ELEC ..........................................................................................................99

9.14. VCT-4800UK ASSY MAIN BD VCT U/R ...................................................................................100

9.15. VCT-5000UK ASSY FLOOR VCT U/R......................................................................................101

9.16. VCT-5100UK ASSY CCT VCT U/R...........................................................................................102

9.17. VCT-5150UK ASSY FENCE L U/R ............................................................................................104

9.18. VCT-5170UK ASSY FENCE R U/R............................................................................................105

9.19. VCT-5200UK ASSY FOOT BASE FRAME L..............................................................................106

9.20. VCT-5300UK ASSY FOOT BASE FRAME R.............................................................................107

9.21. HDT-6001UK ASSY WIRE L HDT U/R ......................................................................................108

9.22. HDT-INST-U ASSY INST KIT U/R .............................................................................................109

9.23. VCT-INST-SUB1-U ASSY SUB1 INST ......................................................................................109

9.24. VCT-INST-SUB2-U ASSY SUB2 INST ......................................................................................109

10. APPENDIX A - ELECTRICAL SCHEMATIC......................................................................................110

10.1. WIRE COLOURS .......................................................................................................................110

10.2. ELECTRICAL SCHEMATIC .......................................................................................................110

1. BEFORE USING THIS PRODUCT

To ensure safe usage be sure to read the following before using the product. The following instructions are intended

for the use of QUALIFIED SERVICE PERSONNEL ONLY.

If any activity is carried out on the product, this should be done only after carefully reading and sufficiently

understanding the instructions.

Only qualified service personnel should carry out maintenance on the product.

Depending on the potential risk, terms such as” WARNING!” “CAUTION” and “IMPORTANT!” are used where an

explanation is given that requires special attention. SEGA is not responsible for injury or damage caused by use in a

manner contrary to the instructions given in this document.

In order to prevent accidents warning stickers and printed instructions are applied in the places where a potentially

hazardous situation relating to the product could arise. Be sure to comply with these warnings.

Indicates that mishandling the product by disregarding this warning will cause a potentially

hazardous situation that can result in death or serious injury.

Indicates that mishandling the product by disregarding this caution will cause a potentially

hazardous situation that can result in personal injury and or material damage.

This is cautionary information that should be complied with when handling the product. Indicates

that mishandling the product by disregarding this will cause a potentially hazardous situation

that may not result in personal injury but could damage the product.

Be sure to turn off the power and disconnect from the mains supply before working on the machine.

Ensure that the correct fuses are fitted to the machine. Details of these are enclosed in the Service Manual.

Ensure that only qualified Service Engineers perform any maintenance work on the machine.

Specification changes, removal of equipment, conversion and/or additions not designated by SEGA are not permitted

and will invalidate this product’s CE conformity.

Warning labels or safety covers for personal protection etc, are component parts of the product. A potential hazard will

be created if the machine is operated while any parts have been removed. Do not operate the product if any doors, lids

or protective covers become damaged or lost. SEGA is not liable in any whatsoever for any injury and/or damage

caused by specification changes not designated by SEGA.

Before installing the product, check for the Electrical Specification Sticker, SEGA products have a sticker on which the

electrical specifications are detailed. Ensure that the product is compatible with the power supply voltage and

frequency requirements of the location in which the machine is to be installed.

Install and operate the machine only in places where appropriate lighting is available, allowing warning stickers to be

clearly read.

To ensure maximum safety for customers and operators, stickers and printed instructions describing potentially

hazardous situations are applied to potentially hazardous locations. Ensure that the product’s operating location has

sufficient lighting to allow any warnings to be read. If any sticker or printed warning is removed or defaced, do not

operate the machine until an identical item has replaced it.

Exercise great care when handling the monitor (applies only to product with monitor). Some of the monitor (TV) parts

are subject to high-tension voltage. Even after turning the power off some components are liable to high-tension

voltage. Only qualified service engineers should perform monitor repair and replacement.

In cases where commercially available monitors and printers are used, only the items relating to this product are

contained in this manual. Some commercially available equipment will have functions and reactions not referred to in

this manual. This manual should be read in conjunction with the specific manufacturer’s manual for such equipment.

Descriptions contained herein may be subject to change without prior notification.

The contents described herein are fully prepared with due care. However, should any question arise or errors be found

please contact SEGA AMUSEMENTS EUROPE LTD.

1.1. INSPECTIONS IMMEDIATELY AFTER TRANSPORTING THE PRODUCT

TO THE LOCATION

· Only QUALIFIED SERVICE PERSONNEL should carry out inspection.

Normally, at the time of shipment, SEGA products are in a state to allowing usage immediately after

transporting to the location. Nevertheless, an irregular situation may arise during transportation preventing

this. Before turning on the power, check the following points to ensure that the product has been transported

safely.

· Are then any dented parts or defects (cuts, etc.) on the external surfaces of the product.?

· Are castors and leg adjusters present and undamaged?

· Do the power supply voltage and frequency requirements meet with the local supply?

· Are all wiring connectors correctly and securely connected? Unless connected in the correct direction,

connector connections cannot be made successfully. Do not insert connectors forcibly.

· Are all IC’s of each IC BD firmly inserted?

· Does the power cord have any cuts or dents?

· Do fuses meet the specified rating?

· Are such units such as monitors, control equipment, IC BD, etc. firmly secured?

· Are all earth wires connected?

· Are all accessories available?

Can all doors and lids be opened with the accessory keys and/or tools?

CONCERNING THE STICKER DISPLAY CONCERNING WARNING STICKERS

SEGA product has stickers describing the product

manufacture number (Serial Number) and

electrical specification. If you require service

assistance you will require the Serial Number.

Identical machines may have different parts fitted

internally. Only by quoting the Serial Number will

the correct parts be identified.

SEGA product has warning displays on

stickers, labels or printed instructions

adhered/attached to or incorporated in the

places where hazardous situations can arise.

The warning displays are intended for the

accident prevention of customers and service

personnel.

(Actual machines may differ slightly from the illustration)

SPECIFICATIONS

Installation Space (cm): 76 (W) x 98 (L) Including Floor and Coin Tower

Height (cm): 210

Weight (kg): Approx. 152

Rated Voltage (VAC): 230

Rated Current (A): 2

Operating Temperature Range 5 - 40°C

Note: Descriptions in this manual are subject to change without prior notice.

2. INTRODUCTION TO THIS SERVICE MANUAL

SEGA ENTERPRISES LTD., supported by its experience in electronic high technology of VLSI’s,

microprocessors etc. and with a wealth of experience, have for more than 30 years been supplying various

innovative and popular games to the world market. This Service Manual is intended to provide detailed

descriptions together with all the necessary information covering the general operation of electronic

assemblies, electro-mechanicals, servicing controls, spare parts, etc. as regards this new SEGA product.

This manual is intended for those who have knowledge of electricity and technical expertise especially in

IC’s, CRT’s, microprocessors etc. Carefully read this manual to acquire sufficient knowledge before

working on the machine. Should there be any malfunction, non-technical personnel should under no

circumstances touch the internal systems. Should such a situation arise contact the nearest branch listed

below, or our head office.

SEGA AMUSEMENTS EUROPE LTD./ SEGA SERVICE CENTRE

Suite 3a

Oaks House

12 - 22 West Street

Epsom

Surrey

United Kingdom

KT18 7RG

Telephone: +44 (0) 1372 731820

Fax: +44 (0) 1372 731849

3. INSTALLATION AND MAINTENANCE INSTRUCTIONS

· Only QUALIFIED SERVICE PERSONNEL should carry out installation and

maintenance.

3.1. HANDLING AND INSTALLATION PRECAUTIONS

When installing or inspecting the machine, be very careful of the following points and pay attention to ensure

that the player can enjoy the game safely.

The game must NOT be installed under the following conditions:

· Outside, the game is designed for indoor use only.

· In areas directly exposed to sunlight, high humidity, dust, excessive heat or extreme cold.

· In locations that would present an obstacle in the case of an emergency i.e. near fire equipment or

emergency exits.

· On unstable surfaces or surfaces subject to vibration.

· Where liquids, other than routine cleaning, may come into contact with the game.

Important:

· Only Qualified Service Personnel should install this machine.

· Be sure to switch the supply power OFF and remove the mains supply plug from the machine before any

work is carried out on the machine.

· Do not attempt to repair the PCB’s (Printed Circuit Boards) yourself. This will void the warranty. The

PCB’s contain static sensitive devices that could be damaged.

· Always return a faulty part to your distributor with adequate packaging and protection.

· When removing the plug from the mains always grasp the plug not the cable.

· Do not use a fuse that does not meet the specified rating.

· Make sure all connections are secure before applying power.

· Ensure that the mains lead is not damaged. If the mains lead is damaged in any

way there could be a danger of electric shock or a fire hazard.

· Ensure that the power supply is fitted with circuit protection. Using the power

supply without circuit protection is a fire hazard.

3.2. COIN HANDLING

Standard Sega machines are fitted with a SR3 coin mechanism, however, as a service to our customers

Sega machines can be supplied with no coin mechanism or door allowing the customer to fit a coin handling

option from the approved list. Fit only the coin handling arrangements detailed below and follow the

instructions provided in section 4. Failure to fit the coin handling options detailed or failure to follow the

installation instructions will render the machine, under the CE marking directive, void.

Approved coin handling options:

· Coin controls SR3

· Generic mechanical

· Mars (MS111B1 and ME115)

· SECI RM4-G20

3.3. NAME OF PARTS

Width (cm) Length (cm) Height (cm)

CABINET 76 98 177

FLOOR 63 90 15

WHEN ASSEMBLED 93.5 184 210

3.4. ACCESSORIES

HDT-INST-U ASSY INST KIT U/R

Item Component Part Qty. Description Component Reference

1 VCT-5000UK 1 ASSY FLOOR VCT U/R

2 VCT-INST-SUB1-U 1 ASSY SUB1 INST

3 VCT-INST-SUB2-U 1 ASSY SUB2 INST

16 PK0323 1 INST KIT PACKING WEDGE

VCT-INST-SUB1-U ASSY SUB1 INST

ITEM PART NO. QTY DESCRIPTION COMPONENT REF.

2 VCT-5100UK 1 ASSY CCT VCT U/R

3 VCT-5150UK 1 ASSY FENCE L U/R

4 VCT-5170UK 1 ASSY FENCE R U/R

6 PK0337 1 INST KIT BOX VCT U/R

VCT-INST-SUB2-U ASSY SUB2 INST

ITEM PART NO. QTY DESCRIPTION COMPONENT REF.

1 VCT-1200UK 2 ASSEMBLY FOOT PEDAL DX

2 VCT-5200UK 1 ASSEMBLY FOOT BASE FRAME L

3 VCT-5300UK 1 ASSEMBLY FOOT BASE FRAME R

5 SAECE-114 1 DECLARATION OF CONFORMITY VCTU

7 CTA-0001 1 JOINT BRKT L

8 CTA-0002 1 JOINT BRKT R

9 VCT-3013UK 1 STICKER CONTROL PANEL CCT Multilingual

15 PK0336 1 BOX PEDAL VCT UPRIGHT

101 540-0006-01 1 WRENCH M4 TMP PRF

102 540-0015-01 1 WRENCH M6 TMP PRF

103 514-5078-5000 1 FUSE 5X20 CERAMIC SB 5000mA

104 OS1019 2 SELF SEAL BAG 9X12.3/4

105 440-CS0186UK 1 STICKER C EPILEPSY MULTI

201 030-000820-SB 2 M8X20 BLT W/S BLK (7)-1,(8)-1

202 068-852216-0B 2 M8 WSHR 22OD FLT BLK (7)-1,(8)-1

203 008-T00412-0B 2 M4X12 TMP PRF TH BLK (BILLBOARD)-2

204 SDW-0001UK 4 BLIND CAP UK (2)-2, (3)-2

301 600-7141-250 1 CABLE JVS TYPE A-B 250CM

402 420-6759-02UK 1 SERVICE MANUAL VCT U/R

403 420-5827 1 SERVICE MANUAL SANWA 31K

404 420-6620UK 1 SERVICE MANUAL GD ROM SYS

405 509-5080 2 SW MICRO TYPE (SS-5GL2)

3.5. SHIPPING THE GAME BOARD

Replacement or repair of the Game Board (Chihiro) for this product should be undertaken at

the appropriate repair centre. Be sure to follow the specifications below when requesting

repairs/sending the board to the repair centre. Not following the specifications may result in

the board not being accepted or in extra charges being made.

· Put the game board in the carton box as is. Do not carry out any disassembly or part

removal other than that specified.

· Follow the procedure and instructions regarding direction below when placing the Game

Board in the carton box.

· When packing the game board with the Media Board attached, do not remove the Key

Chip.

· When packing the game board with the Media Board detached, be sure to include the

AVIP Cable.

· When packing, attach the accessory stickers in the specified places on the Game Board

and carton box.

INSTRUCTIONS

1. Wrap the Chihiro Board in a plastic bag.

2. Place it on top of the bottom surface cushioning material. Turn the Filter Board to face the side with

the three honeycomb buffers. Packing it in the opposite direction may cause damage to the Filter

Board.

3. Insert corrugated cardboard into the space between the lateral honeycomb buffers of the bottom

surface cushioning material and stow the AVIP cable inside.

4. Place the Chihiro Board wrapped in the bottom surface cushioning material into the carton box. Use

the handles on the bottom surface cushioning material.

5. Place the upper surface cushioning material on top of the Chihiro Board. Be sure to align it in the

right direction, as it will not fit otherwise.

6. Close the top of the carton box and seal it tightly with adhesive tape.

3.6. SHIPPING THE MEDIA BOARD

When sending the Media Board for repairs, follow the specifications below and

request repairs or send the Board to your retailer/the repair centre.

Not following the specifications may result in the board not being accepted or in extra

charges being made. Also, mistaken handling can damage or result in loss of parts.

· Be sure to use the special purpose carton box included with this product.

· Do not remove the Key Chip. Send the board with the Key Chip attached.

· Undo the 10 screws holding the Media Board to the Main Board and pack the

Media Board. Do not carry out any disassembly or part removal other than that

specified in this manual.

· Pack the Media Board in the special purpose carton box as shown in the

explanatory diagram.

· The packing material in the carton box has a shock absorbing function. Be sure

to use it when packing. Do not bend or fold the material in a direction other than

that shown on the diagram.

· Do not pack any wires, cables, or screws together with the Board.

· Be sure to attach the special purpose carton box accessory sticker

"843-ããããB."

3.7. SHIPPING THE GD-ROM DRIVE

· When returning the GD-ROM DRIVE for repair or replacement, be sure to

package it in the original card transit box - THERE ARE NO USER-

SERVICEABLE PARTS INSIDE.

· Ensure the GD-ROM Disk is removed and the GD-ROM Drive Lid is replaced on

the unit, with fixing screw, before packaging. Also, remove the GD-ROM Drive

Bracket and store with the four screws for reuse.

· Failure to return the GD-ROM DRIVE in this manner may invalidate the warranty.

3.8. ASSEMBLY INSTRUCTIONS

· Perform the assembly by following the procedure herein stated. Failure to comply

with the instructions, for example, inserting the plug into an outlet at a stage not

mentioned in this manual can cause an electric shock

· Assembling should be performed as per this manual. Since this is a complex

machine, erroneous assembling can cause damage to the machine, or

malfunction to occur.

· Do not attempt to complete this work alone, a minimum of 2 people are required.

· Only QUALIFIED SERVICE PERSONNEL should carry out assembly.

When carrying out the assembly work, follow the procedure in the following sequence:

STEP 1 INSTALLING THE DISPLAY CARD

STEP 2 INSTALLING THE FLOOR

STEP 3 SECURING IN PLACE (LEG ADJUSTMENT)

STEP 4 INSTALLING THE FOOT PEDAL

STEP 5 COIN HANDLING INSTALLATION

STEP 6 CONNECTION TO THE POWER SUPPLY

STEP 7 ASSEMBLY CHECK

Note that the parts contained within the installation kit are required for the assembly work.

The following tools will be required when installing this machine, in addition to the tools provided with the

Installation Kit:

3.8.1. INSTALLING THE DISPLAY CARD

· Only QUALIFIED SERVICE PERSONNEL should carry out this operation.

1. Insert ASSY BILLBOARD to the top part of the cabinet

2. Secure with the two Tamperproof screws.

3.8.2. INSTALLING THE FLOOR

· Ensure all connections are secure - poor connections can cause electric shock or

short circuit.

· Take care not to damage wiring during installation, as this can cause electric

shock or short circuit.

· Please read these instructions carefully and follow them in step by step.

· IMPORTANT: We recommend that two (2) people carry out this operation,

as there are heavy components involved.

Tools Required: No1 Pozidriver, M8 Wrench or Socket.

1. Open the Installation box and remove its entire contents. Once the box is completely empty fold the four

open leaves back into the box (this will help to create a sturdier box as we intend to use it as a makeshift

table).

2. Turn the box upside down. Place the Floor Assembly and the Coin Tower onto the box as shown in figure 1.

Note:

The coin tower shown is for illustration only and will

differ slightly from the actual one used

3. Remove the Cashbox Base Plate by unscrewing the 2 x M4 Pozi Pan screws, located directly inside the

Cashbox Door.

4. Remove the Elbow Joint, which is attached to the free end of the Flexipipe.

5. Insert the Flexipipe into the hole located at the front end of the Floor. (Fig 2)

Note:

The coin tower shown is for illustration only and will

differ slightly from the actual one used

6. Offer the Coin Tower up onto the Floor (Fig 3) ensuring that the Flexipipe continues through the access

hole (Fig 4).

7. Secure the Coin Tower to the Floor using the 6x M8 Hex head bolts and M8 washers (provided) at location

shown in fig 5.

8. Move the Coin Tower and Floor Assembly onto its side (Fig 6) and thread the Flexihose through the ribs on

the underside of the Floor. (Fig 7)

9. Refit the Elbow joint onto the open end of the Flexipipe.

10. Fit the Joint Bracket onto the machine end of the Floor (Fig 8)

11. Offer the Floor to the machine and fit the Flexipipe Elbow Joint into the recess as shown in Fig 9.

12. Push the Floor uptight to the machine and secure it using the 2 x M8 Chrome Shoulder Bolts provided

(Fig 10 & 11).

13. Finally, secure Joint Brkt L and Joint Brkt R to the Floor and Adjustable feet using 2 x M8 Hex HD Bolts

Blk and 2 x M8 Washers Blk (Fig 12).

3.8.3. SECURING IN PLACE (LEG ADJUSTER ADJUSTMENT)

· Make sure all of the leg adjusters are in contact with the floor. If not the machine

may move and cause injury. This operation requires 2 people.

· Only QUALIFIED SERVICE PERSONNEL should carry out this operation.

This machine has four castors and two leg adjusters. When the installation position is decided, unscrew the

leg adjusters so that they raise both front castors 7mm from the floor. Make sure the machine is level.

1. Move the product into the installed position.

2. Slightly lower the 2 Adjusters on the cabinet

and install Joint Bracket L & R by inserting from

the rear, and secure to the floor using M8 hex

head bolts as shown. Now tighten the two M8

shoulder bolts.

3. After lowering the Adjusters fully downward,

tighten both Adjusters’ lock nuts fully upward.

4. The service door can now be refitted.

5. Unscrew the adjusters until they are in contact

the floor, and use a wrench to turn them further

until the front castors are raised approximately

7mm above the floor.

6. Tighten the locknut on the leg adjusters

upwards to lock the legs in position.

3.8.4. INSTALLING THE FOOT PEDAL

1. Attach the pedal and fence to the left and right of the controller cabinet. The foot base and fence have

right and left versions; make sure they are aligned correctly before attaching.

Instructions for attaching the L (left) side are included in this manual. The procedure for attaching the R

(right) side is the same.

2. Attach the foot base to the U-shaped

bracket sticking out from the side of the

controller cabinet by inserting it from the

side.

3. Secure the foot base with the following:

BOLTS (2) M8 x 20, w/spring washer, flat

washer used).

NUTS (2) M8 Flange Nut

4. Set foot base adjuster.

5. Attach the pedal to the foot base using 4 hexagonal bolts. Be sure not to tighten the hexagonal bolts

completely.

6. Pull wire from the pedal to the foot base and connect the connector on the end of the wire to the

connector on the U-shaped bracket. Use the cord clamp in the foot base to secure the wire.

7. Remove the 2 screws and remove the plate sash from the pedal.

8. Insert the fence into the pedal and attach with 4

hexagonal bolts. Use the large flat washers with the

hexagonal bolts used on the cabinet.

(M8 x 20, W/SPRING WASHER, FLAT WASHER).

9. Reattach the plate sash as it was before.

10. Securely tighten the 4 hexagonal bolts on the pedal.

11. Attach the base hole lid to the foot base and

attach 6 screws.

Ensure adequate ventilation is maintained as detailed below:

(Actual machines may differ slightly from the illustration)

3.8.5. COIN HANDLING INSTALLATION

· Only QUALIFIED SERVICE PERSONNEL should carry out this operation.

When fitting the coin mechanism to the door please refer to the specific manufacturers installation

instructions for that coin mechanism. To fit the door to the machine, follow the procedure below.

· Loosen all of the bolts on the frame which secure the clips.

· Turn all clips in towards the door.

· Position the door into the aperture in the machine.

· Turn the clips around so that they will hold the door in the

machine.

· Tighten all of the bolts.

3.8.5.1. WIRING CONNECTIONS.

COIN MECH LOOM INSTALLATION

C220B LM1006IDC

LM1006LAMP-0.1

· Attach the lamp holder to the bracket on the coin return

button.

· Attach one 15-way connector to the C220 coin mech.

· Attach the other 15-way connector to Validator A on the

credit board.

· Attach the 2-way connector to ‘LAMP’ on the VTS board.

GENERIC

MECHANICALS

LM1008

LM1008-LAMP

· Fit the two lamp holders behind the coin return buttons.

· Attach the blue cable and orange cable to one mech’s

microswitch switch.

· Attach the blue/green cable and orange/green cable to the

other mech’s microswitch.

· Attach the 2-way mate and lok plug to the 2-way mate and

lok cap provided.

· Attach one 15-way connector to Validator A and the other

to Validator B on the credit board

MARS MS111B1

MARS ME115

LM1007

LM1008-LAMP

· Fit the lamp holder to the bracket behind the coin return

button.

· Fit one of the 13-way connectors to the coin mech.

· Fit the other 13-way connector to Validator A on the credit

board. Note the 13-way connector is keyed and this key

must coincide with the key on the credit board.

SECI, C120, SR3 OWN LOOM AND

LM1006LAMP-0.1

· Attach the lamp holder to the bracket on the coin return

button.

· Attach the 2- connector to ‘LAMP’ on the VTS board.

· Attach the validator’s own loom to position A on the credit

board

VTS credit board assembly

3.8.6. CONNECTION TO THE POWER SUPPLY

· Be sure that the machine is not connected to the mains supply before attempting

this operation

· Only QUALIFIED SERVICE PERSONNEL should carry out this operation.

1. The AC Unit is located on the right hand side of the base unit, when viewing the screen. It houses the

IEC inlet, mains switch and fuse.

2. Ensure that all of the machine’s wires have been connected in accordance with the preceding sections

and that the mains switch is OFF.

3. Check that the operating voltage of the mains supply matches the machine (section 1.1).

4. Insert the IEC lead into the IEC inlet and the mains plug into a wall socket. If applicable, switch the wall

socket ON.

5. Stand clear of the machine and switch the mains switch ON.

3.8.7. ADJACENT CONTROL INTERFERENCE PREVENTION

· Be sure that the machine is not connected to the mains supply before

attempting this operation.

· Be careful not to damage wiring.

· The Game Board area should be accessed only if necessary.

· Only QUALIFIED SERVICE PERSONNEL should carry out this operation

When games with the same or similar infrared sensing system are installed side by side, interference may

occur causing malfunction or inaccuracy of the sensing system in adjacent games.

A removable wire harness controls the operating frequency of the gun sense system. Removal of this

harness switches from the default frequency to an alternate one.

Where game machines of the same or similar type are installed side by side, remove the jumper harness

(SPY-60010UK) from every other machine in the line.

1. Turn off the power.

2. Open the Control Panel Cover as detailed in section 3.12 of the Service Manual.

3. Locate the Sensor Board and remove SPY-60010UK WIRE HARNESS HIGH FREQUENCY

JUMPER as required.

3.9. ASSEMBLY CHECK

· Only QUALIFIED SERVICE PERSONNEL should carry out this operation.

In the TEST MODE, ensure that the assembly has been made correctly and IC Board is satisfactory (refer

to Section ).

In the test mode, perform the following test:

3.9.1. MEMORY TEST

When "MEDIA BOARD TEST" is selected from the System Test Mode Menu Screen the Game Board

memory is automatically tested. If the display beside each memory reads "GOOD", the Game Board is

functioning correctly.

Also, when "SYSTEM INFORMATION" is selected, Main Board and Media Board data for the Game Board

are displayed. If data is displayed correctly, the Game Board is functioning correctly.

MEDIA BOARD TEST screen

SYSTEM INFORMATION screen

3.9.2. C.R.T. TEST

In the TEST mode menu, selecting

C.R.T. TEST allows the screen (on

which the moniter is tested) to be

displayed. Although the moniter

adjustments have been made at the

time of shipment from the factory,

make judgment as to whether an

adjustment is needed by watching

the test mode screen. If it is

necessary, adjust the moniter by

referring to Monitor manual.

3.9.3. INPUT TEST

Selecting the INPUT TEST on the

game test mode menu screen

causes the screen (on which each

switch is tested) to be displayed.

Press each switch. If the display

beside each switch indicates "ON,"

the switch and wiring connections

are satisfactory.

3.9.4. OUTPUT TEST

Select OUTPUT TEST from the menu in the test mode to cause the screen (on which each lamp

and wiring connections are tested) to appear. Ensure that lamp light up satisfactorily.

3.9.5. GUN ADJUSTMENT

Before starting the operation, play the game by yourself and make sure that the gun readjustment is

not needed and that you can play the game without a problem. Although completed at the factory,

the gun adjustment may be necessary because after the adjustment the product has been

disassembled for packing and shipping.

Perform the above inspections also at the time of monthly inspection.

As for the gun adjustment described in above, confirm weekly that the gun is properly adjusted.

3.10. MOVING THE MACHINE

· When moving the machine, be sure to remove the plug from the power supply.

Moving the machine with the plug inserted can cause the power cord to be

damaged, resulting in a fire or electric shock.

· Separate the floor assembly from the cabinet before moving. Refer to section

3.8.2 for details.

· Retract the leg adjusters fully and ensure the casters make contact with the floor.

During movement pay careful attention so that the casters or leg adjusters do not

damage any other cabling laid on the floor. Such damage could result in a fire or

electric shock.

· Do not push the upper part of the cabinet. Failure to observe this can cause the

cabinet to fall forwards and result in accidents.

· When transporting the machine, be sure to hold the catch portion on the rear of

the cabinet with the castors making contact with the surface as shown below.

Inclining the machine by holding portions other than the catch or moving the

cabinet without retracting the adjusters can damage the cabinet and/or the floor

surface.

· Do not push the Billboard. Failure to observe this may damage the installation

portions and may cause unexpected accidents.

· Only QUALIFIED SERVICE PERSONNEL should carry out this operation.

(Actual machine may differ slightly from illustration)

3.11. CONTROLLER

· Follow these directions carefully to avoid damaging or losing small parts.

In the cases where the gun's operation is not satisfactory or the gun sight deviates from the direction in

which the control unit is pointed, the gun's interior parts may have been damaged. Replace the parts by

disassembling the gun using the following procedure.

Note: be sure to perform sighting check in the test mode when the gun parts are replaced.

3.11.1.1. REPLACING THE MICROSWITCH

To replace the Gun Controller's internal components, first separate the left shell (Cover L) and right shell

(Cover R). The controller's internal components are mounted on the right shell, so work with the gun lying on

its right side. To replace the Weapon Change Button microswitch, first remove the Weapon Change Button

from the right shell.

1. Turn power off.

2. Remove the 10 screws to separate the two shells.

3. With the right shell lying flat, carefully lift the

left shell from the right shell.

SCREW (10), black / M3 x 10, W/small flat &

spring washers

4. Remove the trigger microswitch from the right

shell.

MICROSWITCH / 509-5080

5. Remove the soldering and detach the

microswitch.

6. Remove the Change Button from the right

shell.

7. Remove the spring from the right shell.

8. Remove 1 screw and detach the microswitch

(with SW bracket attached) from the right

shell.

SCREW (1) / M3 x 8, W/flat & spring washers

9. Disconnect the microswitch wire connector.

10. Remove the 2 screws and remove the SW bracket from the microswitch.

SCREW (2) / M2 x 10, W/flat & spring washers

11. Remove the soldering and extract the microswitch.

12. Solder in the new microswitch and reassemble the Gun Controller. Be careful not to tighten the

screws too tightly.

13. Test the trigger (or Weapon Change Button) to make sure that the new microswitch functions

properly.

3.11.1.2. REPLACING THE SENSOR UNIT

1. Follow instructions (1) – (3) of “Replacing the Microswitch” to remove the left shell.

2. Detach the connector and pull out the sensor unit.

SENSOR UNIT / JPT-2030

3.12. REPLACEMENT OF LED BOARD

· Only QUALIFIED SERVICE PERSONNEL should carry out these procedures.

The operation of the ten LED boards located around the CRT can easily be checked by viewing from the

front with the power switched on. Two red points of light from the LEDs should be visible through each of

the ten black lenses: if any of the LEDs are not lit, the corresponding LED board(s) should be replaced as

follows.

1. Turn the power OFF.

2. Remove the Front Panel as described in section 3.13.1,

taking care to disconnect the LED board loom before fully

removing the Front Panel (see right).

3. To access the mounting screws for the malfunctioning LED

board(s), prise open the screw caps with a small flat head

screwdriver as shown.

4. Lay the Front Panel face down on a

soft surface (e.g. a blanket) to

prevent marking. Disconnect the

individual LED board(s) from the

loom and remove the two M3 nuts to

release the LED board.

5. Fit the replacement LED board and

reassemble in reverse order.

6. Adjust the gun calibration in the test

mode when the machine has been

reassembled (Section Error!

Reference source not found.)

3.13. REPLACEMENT OF FLUORESCENT LAMP AND START LAMPS

· Never touch places other than those specified. Touching places other than those

specified can cause electric shock and short circuit. Disconnect the machine from

the supply before attempting the replacement of any lamp.

· When performing work, be sure to turn power off. Working with power on can

cause an electric shock or short circuit.

· Hot fluorescent lamps can cause burns. Be very careful when replacing them.

· Use a secure step to improve access to the upper parts of the cabinet.

· Only QUALIFIED SERVICE PERSONNEL should replace lamps.

3.13.1. FLUORESCENT

1. Power OFF the machine and

remove the IEC lead from the

wall outlet.

2. Unlock the lock on the underside

of the Control Panel Base, and

open the Panel.

3. By using a flat bladed

screwdriver, carefully remove the

four screw caps from the front

panel.

4. Take out the four tamperproof

screws and the two lower

screws, and carefully take off the

Front Panel far enough to

disconnect the LED board loom

(refer to section 3.12). Once this

loom has been disconnected, the

Front Panel can be fully

removed.

5. Remove the four screws and the

Earth Link to allow the Billboard

Holder to be removed.

6. Disconnect the two end caps and

withdraw the Lamp upwards

through the two mounting clips to

remove the Fluorescent lamp.

7. After replacing the lamp,

reassemble in reverse order,

being sure to replace the Earth

Link between the Billboard

Holder and frame, and the LED

board loom.

3.13.2. START LAMP REPLACEMENT

1. Remove the control panel cover as shown by

removing the 5 screws holding it in position.

2. Carefully lift the control panel cover up until it is

possible to disconnect the wire harness plugs

attaching the start switches to the cabinet.

3. Turn the control panel cover over and remove the

micro switch from the start switch as shown

below.

4. Remove and replace the wedge lamp.

5. Reassemble the control panel cover to the gun

cabinet.

Note:

The coin tower shown is for illustration only and will

differ slightly from the actual one used

3.14. GAME BOARD

· Turn off the mains power and remove the power cord before opening the

machine.

· To prevent risk of shock or fire, be careful not to damage any wiring.

· The GAME BOARD should not require any work to be carried out upon it. All

settings and tests can be achieved without access to the GAME BOARD.

· Take anti-static precautions to avoid damaging the electronic parts.

· All work to be carried out by QUALIFIED SERVICE PERSONNEL

The GD-ROM Service Manual supplied with this product instructs you to remove the Key Chip when

shipping the Game Board. However, this product employs a dedicated Game Board, therefore do not

disassemble the Game Board, or remove the Key Chip.

3.14.1. REMOVING THE BOARD

1. Turn off the power.

2. Unlock and remove the Service Door.

3. Disconnect all harnesses linking the

Game Board assembly to the cabinet.

4. Remove the two M4 wing bolts and

carefully withdraw the assembly upwards

and out through the service opening

(see following page).

5. Remove all connectors from the filter board of the Game Board. Also remove the GD cable connector

from the DIMM Board.

6. Remove four screws securing the Game Board to the base.

7. Reassemble in reverse order.

3.14.2. REMOVING THE GD-ROM DRIVE

Take out the ASSY MAIN BD from the cabinet and remove the GD-ROM Drive from the ASSY MAIN BD as

follows:

1. Following the above procedure (steps 1 to 5), take out the ASSY MAIN BD.

2. Remove the GD cable connector and the power cord

connector from the GD-ROM Drive.

2. To remove the GD-ROM Drive, undo the 3 screws

shown.

3. Reassemble in reverse order.

3.15. COMPOSITION OF THE GAME BOARD

3.16. TROUBLESHOOTING

· Only QUALIFIED SERVICE PERSONNEL should carry out these procedures.

If a problem occurs, first check the wiring connections.

PROBLEMS CAUSE COUNTERMEASURES

When the main switch

is turned ON, the

machine is not

activated

The power is not ON. Firmly insert the plug into the outlet.

Incorrect power source/voltage. Make sure that the power supply/voltage

are correct.

AC Unit CIRCUIT PROTECTION

DEVICE (i.e. fuse) was activated due to

an instantaneous overcurrent.

First, remove the cause of overcurrent and

reinstate the circuit protection device to its

original status.

Then identify the cause of the fault on the

item which caused the overcurrent & fix.

The colour image on

the screen is incorrect

Incorrect monitor adjustment. Make appropriate adjustments.

SEE SECTION 6.3.8.

The on-screen image

of the monitor sways

and/or shrinks

The power source and voltage are not

correct.

Make sure that the power supply and

voltage are correct.

Sound is not emitted Sound volume adjustment is not correct. Adjust the volume setting on the VTS

bracket. SEE SECTION 6.2

Malfunctioning BD and Amp.

Perform Sound Test to check it. SEE

SECTION 6.3.7

Connector connection is incorrect Check connector connection from Base to

Speaker

Controller operation is

not satisfactory

Sighting is inaccurate due to

environmental conditions, etc.

Adjust the gun sighting alignment. SEE

SECTION Error! Reference source not

found.

Micro-switch malfunctioning Replace the micro-switch. SEE SECTION

3.11

Sensor BD is malfunctioning Replace the Sensor BD. SEE SECTION

3.11

The fluorescent lamp

does not light up

Fluorescent lamp needs replacement Replace the fluorescent lamp. SEE

SECTION 3.13.1

The connector is disconnected

Check connector connections in the

billboard case.

3.17. FUSES

· Never touch places other than those specified. Touching places other than those

specified can cause electric shock and short circuit. Disconnect the machine from

the supply before attempting the replacement of any fuse.

· Only QUALIFIED SERVICE PERSONNEL should replace FUSES.

· Only replace fuses with ones of the same value and type.

There are a number of fuses used on this machine to protect the user and the machine from damage. Only

replace the fuse once you have removed the cause of its failure. Detailed below is a list of the fuses used,

their location and if relevant PCB reference:

PART NUMBER LOCATION TYPE & DETAILS QTY

514-5078-3150 STEREO AMP REF. F1, F2 5x20mm CERAMIC SB 3.15A 2

514-5078-5000 IEC INLET REF. F1 5x20mm CERAMIC SB 5A 1

838-11856CE-02 CONN. BD. REF. F1 5x20mm CERAMIC SB 6.3A 1

There are also fuses located on the Monitor PCB. Refer to the relevant Monitor manual supplied to

reference these fuses.

4. PERIODIC CHECK AND INSPECTION

The items listed below require periodic check and maintenance to retain the performance of the machine

and ensure safe operation:

· Be sure to check annually to see if the power cords are damaged, the plug is

securely inserted and that there is no dust in the interior of the machine or

between the socket and the power cord. Using the product in an unclean

condition may cause a fire or electric shock.

DESCRIPTION WHAT TO CHECK INTERVAL

CABINET Check Adjusters’ contact with surface Daily

MONITOR Clean CRT face - (Do Not use water jet)

Check settings

Weekly

Monthly

GAME BD Setting check Monthly

CONTROL PANEL Input test Monthly

Speaker, sound Sound test, check volume adjustment Monthly

COIN SELECTOR Coin insertion test

Cleaning

Monthly

Tri-Monthly

POWER SUPPLY CORD Check condition Annually

INTERIOR Clean (Do Not use water jet) Annually

CABINET SURFACE Clean (Do Not use water jet) As required

4.1. CLEANING THE CABINET SURFACES

When the cabinet surfaces are badly soiled, remove stains with a soft cloth dipped in water or chemical

detergent (diluted with water) and squeezed dry - DO NOT USE A WATER JET. To avoid damaging

surface finish, do not use such solvents as thinner, benzene, etc. (other than ethyl alcohol), abrasives or

bleaching agents.

5. HOW TO PLAY

Use this section to confirm the machine is operating correctly; if the machine doesn’t operate as described

there may be a fault.

While power is connected, the billboard is continuously lit and demonstration footage and ranking data are

displayed on the screen. This ‘advertise’ mode will be accompanied by sound from both speakers unless

set otherwise in the TEST mode.

The 1P and 2P start buttons have integral lights that flash when a credit is inserted.

5.1. GAME CONTENTS

Press the appropriate START button to begin play as 1P or 2P. If enough credits for a game are remaining,

the other player’s START button will flash. Press the flashing START button to join a game.

5.1.1. The Main Characters

Virtua Cop 3 has two main characters, RAGE (1P) and SMARTY (2P). JANET appears as an allied

character during the game but cannot be controlled.

5.1.1.1. 1P Character: RAGE

Strong as an ox and just as uncontrollable, this

hothead tends to act before he thinks. That’s made

him something of a headache for the department.

5.1.1.2. 2P Character: SMARTY

Rage’s complete opposite, Smarty is a cautious,

brainy type who never loses his cool. He’s also the

best marksman in the precinct.

5.1.2. Playing Virtua Cop 3

5.1.2.1. Start a New Game

Press the START button to begin a new game. Mission Select follows.

5.1.2.2. Calibrating at the Start of the Game

The availability of calibration at the start of each game may be set in Test Mode. The following applies when

calibration on demand is enabled.

To enter the calibration screen, hold down the foot pedal, aim the gun controller at the screen, and press the

START button when starting the game. Aim the gun at the centre target and pull the trigger. When

calibration is complete, press the START button to exit to Mission Select.

5.1.2.3. Mission Select

Displays the three mission panels, Simple, Normal and Hard. Shoot the desired mission panel to start.

Players are free to start any mission they like.

When a mission has been completed, the game returns to Mission Select. The mission panel for the

completed mission reads “Complete” and cannot be selected. Select a different mission.

5.1.2.4. Game Screen

1. Points/Point Multiplier Meter

Total points earned are indicated by the eight digit number. After 3-point shots, Justice shots, and

other special attacks the name of the attack and points earned are shown beneath the score display.

The more enemies you shoot, the more the gauge above the score display lengthens. When the

gauge is completely filled, your level increases. The current level is shown inside the circle. A higher

level means more points for killing enemies, but you’ll lose a level if you take damage or shoot a

civilian!

2. Lock-On Sight

The Lock-On Sight automatically detects armed enemies and tells you when you’re being attacked.

The Lock-On Sight can lock on multiple enemies simultaneously. When the sight appears, enemies

are attacking. If you don’t fight back, you’re sure to take damage.

3. Bullets Left/Reload

Shows bullets remaining in current gun.

Shoot the gun away from the screen to reload your weapon.

4. Weapon Palette, Weapon Change

The player starts out with a Guardian II (10-round magazine, infinite reloads). Defeat special enemies

and destroy background objects to get special weapons. Acquiring a special weapon will add a

second weapon to the Weapon Palette. Use the Weapon Change button to switch between the

special weapon and the Guardian II. The weapon currently in use is shown on top, above the weapon

in stock. Special weapons can only be reloaded a limited number of times and cannot be reloaded

once ammunition runs out. Get Ammo items to increase the number of times the weapon may be

reloaded.

Special Weapons can be lost in three ways:

l When the reload count hits zero and all ammunition is used up

l When shot and hurt by an enemy

l By shooting a civilian

Knowing when to use which weapon is key.

5. Life

Shows life remaining. Getting shot by an enemy costs one life. Shooting a civilian also costs one life.

When all lives have been used up, the game is over.

5.1.2.5. ES Gauge

This shows the remaining energy in ES Mode. The ES Gauge falls during ES Mode and recovers when you

defeat enemies.

5.1.2.5.1. ES Mode (Exceeding Sense Mode)

Hold down the foot pedal to activate ES Mode.

ES Mode enhances your character’s senses, making time

appear to move slower. In ES Mode you can even see your

enemies’ bullets and shoot them down before they reach

you. Red bullets are especially damaging, so try to get

them before they get you!

ES Mode consumes the ES Gauge. When the ES Gauge

runs out of energy, you will be unable to use ES Mode.

Kill enemies to recover energy for the ES Gauge.

5.1.2.5.2. ES Attack (Exceeding Sense Attack)

ES Attack begins automatically in certain scenes.

ES Attack displays special targeting sights that show points

of particular vulnerability for a limited time. Speed and

accuracy are essential.

Hit all the targeted areas within the time given to clear the

ES Attack. The outcome of an ES Attack affects the rest of

the game’s story.

When targets are shown with energy gauges, shoot until

the energy gauge hits zero to clear the ES Attack.

5.1.3. Game Over

The game ends in one of three ways:

l When all lives have been lost

l When all three missions have been completed

l When the special “Extra Mission”* has been completed

[*]: When both the Simple and Normal missions have been completed successfully (in either order) and the

player defeats the boss of the Hard mission, a special scene is shown and the Extra Mission is unlocked.

5.1.4. Continue

When you run out of lives, “Continue” appears on the screen and a countdown begins. To continue, insert

sufficient coins and press the START button. If enough credits remain to continue, press the flashing

START button.

6. MAINTENANCE INSTRUCTIONS

6.1. EXPLANATION OF TEST DATA AND DISPLAY

Use the switches inside the Control Panel to enter the TEST MODE. This will allow you to carry out post

installation and periodic checks and adjustments. The following section details the function of each of the

tests:

Refer to the service manual supplied with the Monitor for detailed instructions.

ITEM DESCRIPTION INTERVAL

INSTALLATION OF

THE MACHINE

When the machine is installed perform the following checks:

· Check to see that each setting is as per the standard settings

input at the time of shipment.

· In the INPUT TEST mode, check each switch and V.R.

· In the OUTPUT TEST mode, check each of the lamps.

· In the MEMORY TEST mode check all of the IC’s on the IC BD.

Monthly

MEMORY · On the TEST MENU screen choosing the MEMORY TEST

allows self-test to be performed. In this test RAM & ROM are

tested.

Monthly

PERIODIC CHECKS Periodically perform the following

· MEMORY TEST.

· Ascertain each setting.

· In the INPUT TEST mode, test the control devices.

· In the OUTPUT TEST mode, check each of the lamps.

Monthly

CONTROL SYSTEM · In the INPUT TEST mode, check each switch and V.R.

· Adjust or replace each switch and V.R.

Monthly

MONITOR · In the CRT TEST mode, check to ensure the monitor is adjusted

correctly

· Clean screen (switch off machine and remove the plug)

Monthly

Weekly

IC BOARD MEMORY TEST

· In the SOUND TEST mode, check the sound related ROM’s

Monthly

DATA CHECK · Check such data as held in the bookkeeping screens, relating to

number and length of plays

Monthly

EXTERIOR

MAINTENANCE

· Clean surfaces

Monthly

COIN MECHANISM · Check switch operation (if fitted) Monthly

6.2. INTERNAL SWITCHES AND COIN METERS

· Never touch places other than those specified. Touching places not specified can

cause electric shock and short circuits

· Be careful not to damage wiring. Damaged wiring can cause electric shock and

short circuits.

· Adjust to the optimum sound volume considering the environmental requirements

of the installation location.

· If the COIN METER and the game board are electrically disconnected, game play

is not possible.

Open the Coin Chute door to access the VTS PCB. The function of each switch is as follows.

TEST BUTTON

(TEST SW)

Used to enter TEST mode. Also has function during TEST mode. Refer to the

later section detailing TEST mode.

SERVICE BUTTON

(SERVICE SW)

Gives credits without registering on the coin counter. Also used during TEST

mode.

DEMAG Eliminates colour unevenness from the monitor screen.

VOLUME CONTROL Adjusts the volume of the speakers.

6.3. SYSTEM TEST MODE

6.3.1. EXPLANATION OF TEST AND DATA DISPLAY

Perform the tests and data check periodically when installing the machine initially or collecting cash, or when

the machine does not function correctly. Perform checks in accordance with the explanations given in this

section.

The following shows tests and modes that should be utilized as applicable.

This product's basic system consists of the Chihiro game board and the GD-ROM drive. The system

enables you to play several games one after the other just by changing a GD-ROM disc that is to be set on

the GD-ROM drive.

Therefore the product supports, the following 2 test modes:

(1) System test mode for an automatic self-diagnostic test (generally used by every product that contains

the basic system) and a coin assignment (specifically used by this product)

and

(2) Game test mode for testing the input/output control devices and setting the difficulty level (specifically

used by this product).

· Any settings that are changed by users during TEST MODE are saved upon

exiting TEST MODE with the EXIT command in the SYSTEM MENU. If the

unit is powered off prior to exiting, changes to settings will not take effect.

· You may not enter GAME TEST MODE while the unit is reading from or

checking the GD-ROM. If error messages are displayed when exiting TEST

MODE, you should power the unit off and on again.

· In the manual for this product, "Media Board" and "DIMM" are one and the

same.

· Use with the specified settings. If settings other than those specified are

used, inappropriate operations or malfunction may occur.

6.3.2. SYSTEM TEST MENU MODE

System Test Mode can be used to check that the main circuit operations are correct, adjust Monitor colour,

and perform coin/credit settings.

However, this product can only be used with the settings shown below.

SOUND TEST - OUTPUT TYPE: STEREO

COIN ASSIGNMENTS - COIN CHUTE TYPE: COMMON

- SERVICE TYPE: COMMON

NETWORK SETTING (MEDIA) - NETWORK TYPE: NONE

1. Press the TEST Button after powering on the unit to display the following SYSTEM MENU.

2. Press the SERVICE Button to move the cursor to the desired test item.

3. Move the cursor to the desired item and press the TEST Button to display each test

screen.

4. Move the cursor to ENTER GAME TEST and press the TEST Button to enter the

individual test menus for each game. Refer to "9-3 GAME TEST MODE".

5. When testing is complete, move the cursor to EXIT and press the TEST Button. The

game advertisement screen should be displayed.

6.3.3. MEDIA BOARD TEST

Powering off the system during the MEDIA BOARD TEST with a DIMM BOARD

will erase the game programme data. It may be necessary to reload the data.

Always wait for the test to complete before attempting to exit.

MEDIA BOARD TEST is used to check the memory and IC on the MEDIA BOARD connected to the Chihiro.

Test screens and test times may differ depending on the type of MEDIA BOARD connected to the unit.

The following is the MEDIA BOARD TEST screen for a unit with a DIMM BOARD.

1. MEDIA BOARD TEST begins immediately upon entering this test mode.

2. If "GOOD" is displayed to the right of each item, the MEDIA BOARD components are

functioning properly.

3. After the test is complete, move the cursor to EXIT and press the TEST Button to return to the

SYSTEM MENU screen.

6.3.4. SYSTEM INFORMATION

Use SYSTEM INFORMATION to check version and other information for system programmes.

Screens may differ depending on the type of MEDIA BOARD connected to the unit.

The following is the SYSTEM INFORMATION screen for a unit with a DIMM BOARD.

Press the TEST Button to return to the SYSTEM MENU screen.

(A) REGION

The COUNTRY CODE of the MAIN BOARD.

(B) BOOT VERSION, QC FIRM VERSION, SC FIRM VERSION

Version information for the MAIN BOARD system programmes.

Serial number of the MAIN BOARD.

(D) DIMM BOARD + GDROM

Type of MEDIA BOARD. This example shows a DIMM BOARD with a GD-ROM DRIVE

connected.

(E) MEMORY SIZE

Capacity of DIMM memory installed on the DIMM BOARD.

(F) FIRM VERSION

Version information for the DIMM BOARD system programme.

(G) SERIAL NO.

Serial number of the DIMM BOARD.

6.3.5. JVS TEST

JVS TEST is used to verify the specs of the I/O BOARD connected to the Chihiro and to run input tests.

I/O BOARD specs are displayed initially.

Screens may differ depending on the type of I/O BOARD connected to the unit.

(1) Use the SERVICE Button to move the cursor to the desired test item.

(2) Move the cursor to INPUT TEST and press the TEST Button to enter the INPUT TEST

screen for the I/O BOARD currently displayed.

(3) When 2 or more I/O BOARDS are connected, move the cursor to NEXT NODE and

press the TEST Button to enter the test screen for the next I/O BOARD. The lower the

NODE number, the further away the node is from the Chihiro.

(4) Move the cursor to EXIT and press the TEST Button to return to the SYSTEM MENU

screen.

6.3.6. INPUT TEST Screen

(5) On-screen values change according to the input from switches and the volume.

(A) SYSTEM, PLAYER

Values change with input from control panel/other switches.

(B) COIN

Increases with input from the COIN SWITCH. The count is cleared when exiting

TEST MODE.

Displays analog values from "0000" to "FFFF".

(6) Press the SERVICE and TEST Buttons simultaneously to return to the JVS TEST main

screen.

6.3.7. SOUND TEST

Use SOUND TEST to test sound output and to select the stereo/mono/surround setting.

(1) Use the SERVICE Button to move the cursor to the desired test item.

(2) Press the TEST Button to enter the selected item.

(A) OUTPUT TYPE (STEREO, MONO, SURROUND)

Select the sound output from the I/O PANEL audio output interface setting among

STEREO, MONO and SURROUND.

(B) RIGHT/LEFT SPEAKER (ON, OFF)

When set to "ON", the test sends a beep to each audio output interface. Only the

word "SPEAKER" is displayed when the OUTPUT TYPE is set to "MONO", and

when set to "ON", the test sends the same beep to both the left/right audio output

interfaces.

To test surround output, it is necessary to use a separate Audio Amp, and receive

signal from a terminal not in use at the time of shipping.

Note: Not available with this product.

(3) Move the cursor to EXIT and press the TEST Button to return to the SYSTEM MENU

screen.

6.3.8. C.R.T. TEST

Use the C.R.T. TEST to adjust monitor colours and verify screen size.

COLOUR CHECK Screen

(1) Monitor COLOUR CHECK screen is displayed initially.

Each of the colours (red, green and blue) is darkest at the far left and gets progressively

lighter (32 steps) towards the right.

Monitor brightness is set correctly if the white colour bar is black at the left edge and

white at the right edge.

(2) Press the TEST Button to proceed to the next page

SIZE CHECK Screen

(3) Adjust the CHECK GRID so that the entire GRID is displayed on the screen.

(4) Press the TEST Button to return to the SYSTEM MENU screen.

6.3.9. COIN ASSIGNMENTS

Use COIN ASSIGNMENTS to set the credit rate for each coin inserted.

(1) Use the SERVICE Button to move the cursor to the desired test item.

(2) Press the TEST Button to change the setting or to open the detailed settings.

(3) Move the cursor to EXIT and press the TEST Button to return to the SYSTEM MENU

screen.

(A) COIN CHUTE TYPE (COMMON, INDIVIDUAL)

Adjust settings according to the specs of the cabinet COIN CHUTE.

COMMON

This is for cabinets where a single COIN CHUTE is used by multiple players.

Coins inserted by each player are treated as common credits.

Up to 2 COIN CHUTES (#1 and #2) may be used. The (C) COIN TO CREDIT RATE

setting for COIN CHUTE #1 and #2 may be set differently.

INDIVIDUAL

This is for cabinets with individual COIN CHUTES for each player.

Coins inserted by each player are treated as individual player credits.

The (C) COIN TO CREDIT RATE setting is used by all COIN CHUTES.

(B) SERVICE TYPE (COMMON, INDIVIDUAL)

Use this to set the function of each SERVICE Button when there is more than one

SERVICE Button.

COMMON

Pressing any SERVICE Button enters service credits for all players.

INDIVIDUAL

Pressing the SERVICE Button enters service credits only for the corresponding player.

Set the CREDIT RATE for each coin inserted.

The "r COIN(S) COUNT AS £ CREDIT(S)" setting indicates that "Inserting r coins

equals £ credits".

Set this to "FREE PLAY" to allow game play without credits.

When (A) COIN CHUTE TYPE is set to "COMMON", COIN CHUTE #2 settings are

restricted to some extent by the settings for COIN CHUTE #1.

(D) DETAIL SETTING

This mode allows for more detailed credit rate settings than the (C) COIN TO CREDIT

RATE setting.

Changes made in DETAIL SETTING override any (C) COIN TO CREDIT RATE settings.

DETAIL SETTING Screen

(E) COIN CHUTE MULTIPLIER

Use this to set how many coins will be counted for each coin inserted.

The "1 COIN COUNT AS r COIN(S)" setting indicates that "Each coin will be counted as

r coins".

When the (A) COIN CHUTE TYPE is set to "COMMON", the setting may be set

individually for COIN CHUTE #1 and #2.

(F) BONUS ADDER

Use this to set the number of coins calculated with the (E) COIN CHUTE MULTIPLIER

setting that need to be inserted to get 1 bonus coin. When the (A) COIN CHUTE TYPE is

set to "COMMON", the sum of the coins for COIN CHUTE #1 and #2 is used for the

calculation.

The "r COINS GIVE 1 EXTRA COIN" setting indicates that "For every r coins, 1 bonus

coin is given".

Set this to "NO BONUS ADDER" to disable bonus coins entirely.

(G) COIN TO CREDIT

Use this to set how many coins calculated with the (F) BONUS ADDER setting count as 1

credit.

The "r COIN(S) 1 CREDIT" setting indicates that "Every r coins equals 1 credit."

(H) GAME COST SETTING

Use this mode to set the number of credits required to start a game.

Screens may differ depending on the game.

(I) Set the number of credits required to start a game.

(J) Set the number of credits required to continue a game.

6.3.10. CLOCK SETTING

Use the SERVICE Button to move the cursor to the item to be set.

(1) Move the cursor to the desired item and press the TEST Button to increase values.

(2) The max value for YEAR is "2099"; further increases return the value to "2000".

(3) Move the cursor to EXIT and press the TEST Button to return to the SYSTEM MENU

screen.

6.3.11. NETWORK SETTING (CORE)

Use the LAN PORT attached to the Main Board, and carry out the settings necessary for network

communication.

*This game does not support network communication connections. *

THIS OPTION IS FOR POSSIBLE FUTURE GAMES ONLY.

SELECT EXIT AND GO DIRECTLY TO THE NEXT TEST MODE.

(1) Use the SERVICE Button to move the cursor to the desired test item.

(When setting IP ADDRESS, SUBNET MASK, GAME WAY or PRIMARY DNS, use the underline as a

guide.)

(2) Press the TEST Button to change the setting.

(3) Move the cursor to EXIT and press the TEST Button to return to the SYSTEM MENU screen.

(A) REMOTE (C)

This sets up whether a communication setting is automatic or manual.

ENABLE: Sets the communication setting automatically.

DISABLE: Sets the communication setting manually.

(B) IP ADDRESS (C)

This is one of the settings required for communication network. After setting the number, press TEST

Button on SET position to memorize the setting. If you set the REMOTE setting to ENABLE, you

cannot select this.

This is one of the settings required for communication network. After setting the number, press TEST

Button on SET position to memorize the setting. If you set the REMOTE setting to ENABLE, you

cannot select this.

(D) GATE WAY (C)

This is one of the settings required for communication network. After setting the number, press TEST

Button on SET position to memorize the setting. If you set the REMOTE setting to ENABLE, you

cannot select this.

(E) PRIMARY DNS (C)

This is one of the settings required for communication network. After setting the number, press TEST

Button on SET position to memorize the setting. If you set the REMOTE setting to ENABLE, you

cannot select this.

(F) CURRENT

This displays the present setting value during a set-up of each item [(B), (C), (D), (E)]. Pressing TEST

Button on SET position, the settings are memorized and the screen is changed.

6.3.12. NETWORK SETTING (MEDIA)

*This game does not support network communication connections. *

THIS OPTION IS FOR POSSIBLE FUTURE GAMES ONLY.

SELECT EXIT AND GO DIRECTLY TO THE NEXT TEST MODE.

THIS GAME DOES NOT SUPPORT NETWORK COMMUNICATION CONNECTIONS.

Use NETWORK SETTING to establish and test network connections.

This is only displayed when a network enabled MEDIA BOARD is connected to the Chihiro.

In this game only the following error message will be displayed.

6.4. GAME TEST MODE

· When changing the game configuration, changes will not take effect until

the Game Test Mode has been completed. Be sure to exit the Game Test

Mode properly after configuration changes.

· Do not configure the game in ways not described in this text. It is possible

that the game will not function properly.

Select ENTER GAME TEST from the System Menu screen to display the Game Test Menu screen as

follows.

Use the SERVICE Button to move the cursor to the desired test item.

Press the TEST Button to enter the selected item’s test.

Performs tests, adjustments and settings for each of the Game Test Menu screen items below.

INPUT TEST: Tests each input device used in the game.

OUTPUT TEST: Tests each output device used in the game.

GAME ASSIGNMENTS: Adjusts game settings.

GUN SETTING: Performs sight settings for the game's Control Unit (Gun).

BOOKKEEPING: View all recorded game data.

BACKUP DATA CLEAR: Erase all game records.

After selecting an item, read the explanations below regarding operation.

After performing tests and adjustments, return to the Game Test Menu screen, select EXIT and press the

TEST Button.

You will return to the System Menu screen. Move the cursor to EXIT on the System Menu screen and press

the TEST Button to return to the Game Play screen.

6.4.1. INPUT TEST

Select INPUT TEST to display the following screen and check the status of input devices.

This test should be used periodically to check that each input device is functioning correctly.

The items refer to the following input devices.

● TRIGGER: The gun triggers.

● CHANGE: The controller’s weapon change button.

● PEDAL: The foot pedal.

● GUN-X: Ranges between 00 and FF when controller is pointed at screen.

● GUN-Y: Ranges between 00 and FF when controller is pointed at screen.

● SCREEN: Point controller at screen to change from OUT to IN.

● START: The player Start Buttons.

● SERVICE: The SERVICE Button.

● TEST: The TEST Button.

Input is normal if the display to the right of each item changes from OFF to ON when each input device is

operated.

Input is normal if the display to the right of SCREEN changes from OUT to IN and GUN-X and GUN-Y show

values between 00 and FF when the controller is pointed at the screen.

Press the SERVICE and TEST Buttons simultaneously to return to the Game Test Menu screen.

6.4.2. OUTPUT TEST

Select OUTPUT TEST to display the following screen and check the status of each lamp.

This test should be used periodically to check that the lamps are functioning correctly.

Press the SERVICE Button to move the cursor and the TEST Button to select. Displays ON when selected.

Actual screen may differ for depending on cabinet type.

The following is for the STANDARD (Upright) type screen.

Perform the tests as follows.

● PLAYER 1 START LAMP: Lights up the 1P START button.

● PLAYER 2 START LAMP: Lights up the 2P START button.

Move the cursor to EXIT and press the TEST Button to return to the Game Test Menu screen.

6.4.3. GAME ASSIGNMENTS

Select GAME ASSIGNMENTS to display the current game settings and make changes.

Perform the following settings for each item.

● DIFFICULTY: Set the game’s difficulty level. Five settings are available, from VERY EASY

to VERY HARD.

● LIFE: Set the number of lives each player starts the game with. Nine levels are

available.

● COLLISION: Set the size of targets. Five levels, from 1 to 5, are available. The higher the

level, the easier it is to hit targets.

● GUN LOOSENESS: Set gun looseness. Ten levels, from 0 to 9, are available. The higher the

level, the easier it is to hit targets.

● CALIBRATION: Toggle the availability of user calibration at the start of the game. Three

options are available.

1) OFF: Disable calibration.

2) ON (TYPE1): Always calibrate.

3) ON (TYPE2): Allow calibration if command is entered (start game with

controller aimed at screen and pedal held down).

● ADVERTISE SOUND: Turn advertising sound output ON/OFF.

● CABINET TYPE: Set cabinet type.

Set to either DELUXE or STANDARD. Be sure to set according to actual

cabinet type.

Changes to settings are not enabled until Test Mode is exited. After changing settings, be sure to exit Test

Mode.

After changing the settings, select EXIT and press the TEST Button to return to the Game Test Menu

screen.

6.4.4. GUN ADJUSTMENT

Select GUN ADJUSTMENT to display the following screen.

This screen allows you to adjust the gun using the five calibration targets (TOP, LEFT, CENTRE, RIGHT,

BOTTOM). Use each target to calibrate as follows.

Use the standard gun controller, carefully aim at the correct target and pull the trigger to calibrate the value.

Select between the calibration targets with the 1P and 2P START buttons or SERVICE button.

Details for each item are as follows.

● TOP x y: Set the TOP value.

The number on the left (x) is the horizontal component, and the number on the right

(y) is the vertical component. Aim the controller at the TOP target (white circle) and

pull the trigger to set the value. This will not affect horizontal calibration.

● LEFT x y: Set the LEFT value.

The number on the left (x) is the horizontal component, and the number on the right

(y) is the vertical component. Aim the controller at the LEFT target (white circles)

and pull the trigger to set the value. This will not affect vertical calibration.

● CENTRE x y: Set the CENTRE value.

The number on the left (x) is the horizontal component, and the number on the right

(y) is the vertical component. Aim the controller at the CENTRE target and pull the

trigger to set the CENTRE value.

● RIGHT x y: Set the RIGHT value.

The number on the left (x) is the horizontal component, and the number on the right

(y) is the vertical component. Aim the controller at the RIGHT circle and pull the

trigger to set the RIGHT value. This will not affect vertical calibration.

● BOTTOM x y: Set the BOTTOM value.

The number on the left (x) is the horizontal component, and the number on the right

(y) is the vertical component. Aim the controller at the BOTTOM circle and pull the

trigger to set the value. This will not affect horizontal calibration.

● DEFAULT: Restore calibration values to original settings.

● CANCEL: Restore calibration values to previous settings.

● CURSOR:

Select CURSOR and aim the controller at the screen to display a round cursor

(blue for 1P, red for 2P) where the controller hits the screen. Use this cursor to

check calibration.

● OUT OF SCREEN: Displays “OUT OF SCREEN” when the controller is pointed outside the screen.

Values cannot be set when the controller is out of screen.

Changes to settings are not enabled until the Test Mode is exited. After changing settings, be sure to exit

Test Mode.

After changing the settings, select EXIT and press the TEST Button to return to the Game Test Menu

screen.

6.4.5. BOOKKEEPING

Select BOOKKEEPING on the Game Test Menu screen to display the three screens of operating status

data.

Press the TEST Button on the BOOKKEEPING 1/3 and BOOKKEEPING 2/3 screens to move to the second

and third (BOOKKEEPING 3/3) screens. Press the TEST Button in the third screen to return to the Game

Test Menu screen.

The display items for the screen (Page 1 of 3) are as follows.

● COIN CHUTE #1: The number of coins inserted into Coin Slot 1.

● COIN CHUTE #2: The number of coins inserted into Coin Slot 2.

● TOTAL COINS: The total number of coins inserted into the coin slots.

● COIN CREDITS: The number of credits for the coins inserted.

● SERVICE CREDITS: The number of credits input by the SERVICE Button.

● TOTAL CREDITS: Total credits from coins and the SERVICE Button

Press the TEST Button to display the next screen.

The display items for the screen (Page 2 of 3) are as follows.

● NUMBER OF GAMES: The total number of games played by 1P and 2P.

● NUMBER OF GAME STARTS: Number of games started.

● NUMBER OF CONTINUES: Number of times game has been continued.

● NUMBER OF JOIN GAMES: Number of two-player games.

● TOTAL TIME The amount of time the unit has been in operation.

● PLAY TIME: The sum of 1P’s time played and 2P’s time played.

● LONGEST PLAY TIME The longest play time for one game.

● SHORTEST PLAY TIME The shortest play time for one game.

● AVERAGE PLAY TIME: The sum of all play times divided by the total number of games.

Press the TEST Button to display the next screen (Page 3 of 3).

PLAY TIME HISTOGRAM shows the number of plays and the respective play times. This histogram should

be referred to when setting the Game Difficulty.

This displays play times on a scale from 0M00S to 9M59S with 30-second intervals.

All play times over ten minutes are included in the item OVER 10M00S.

Press the TEST Button after viewing. You will return to the Game Test Menu screen.

6.4.6. BACKUP DATA CLEAR

Select BACKUP DETA CLEAR to clear the contents of BOOKKEEPING, ranking data and coin/credit data.

To clear data, use the SERVICE Button to move the cursor to YES (CLEAR) and then press the TEST

Button. When the data has been cleared, the message “COMPLETED” will be displayed.

Press the TEST Button again to return to the Game Test Menu screen.

Move the cursor to NO (CANCEL) and press the TEST Button to return to the Game Test Menu screen

without clearing the data.

Note that this operation does not affect GAME ASSIGNMENTS or GUN ADJUSTMENT settings.

7. COIN MECH INSTALLATION AND CREDIT BOARD SET UP

7.1. INTRODUCTION

Game credits between the Coin Mechanism and the game board for this machine are controlled by a VTS

board. This electronic circuit allows the price of play to be set for a range of different countries. These

functions are set on Dual In Line (DIL) PCB mounted switches.

SW1 is used to set the currency (or coin ratio) and SW3 the price of play. Refer to the Tables on the

following pages for the correct settings for your environment.

The VTS board pictured below is mounted in the Coin Chute Tower.

The VTS board is connected to the coin validator and lamps via a dedicated wiring harness depending upon

the coin validator used:

Wiring Harness Validator

LM1006 Coin Controls (15 way connector)

LM1007 Mars (13 way connector)

LM1008 Mechanical See note 2

N/A NRI See note 1

Notes

1. If NRI mechanisms are to be used, these should be ordered with the highest denomination coin on coin

path #1 and the lowest denomination on coin path #4. The VTS board should be then be set up for either

the UK or Switzerland settings. A minimum connecting lead length of 600mm is required.

2. Mechanical coin mechanisms may be connected in parallel allowing two identical mechanisms to be

fitted.

The VTS Board

Rev 1Updated:- 23/11/01 79

Credit Board Mode Settings Switch 3

Country Setting Switch 3 Setting Coin Validator Programming C120/SR3 Only

SW1 SW2 SW3 SW4 SW5 SW6 COIN1 COIN2 COIN3 COIN4 COIN5 COIN6 COIN7 COIN8 COIN9 COIN10 COIN11 COIN12

UK Coin Controls

C220 Parallel

OFF OFF OFF OFF £1 50p new 20p 10p - 50p old - -

UK Coin Controls

C220 Binary

ON OFF OFF OFF £1 50p new 20p 10p - 50p old - £2

UK Coin Controls

C220 Binary

OFF ON OFF OFF £1 50p new 20p 10p - £2 - 50p

old

UK Coin Controls

SR3 Parallel

ON ON OFF OFF £1 50p new 20p 10p - £2 - 50p

old

- - - -

Euro

Coin Controls

SR3 Parallel

OFF OFF ON OFF £2

€2

£1

€1

50p new

50¢

20p

20¢

10p

10¢

- - - 50p old - - -

UK Mars ME/MS

111 Parallel

ON OFF ON OFF £1 £2 20p 10p 50p new 50p old

UK NRI Parallel OFF ON ON OFF 10p 20p 50p £1 £2 -

Belgium Parallel ON ON ON OFF - 50BFr 20BFr 5BFr

Holland Parallel OFF OFF OFF ON - 5NLG 2.5NLG 1NLG

Austria SR3 Parallel ON OFF OFF ON 20Sch 10Sch 5Sch 1Sch

Spain Coin Controls

C220 Binary

OFF ON OFF ON 500Pta 200Pta 100Pta 50Pta 25Pta 200Pt

old

50Pta

old

25Pta

old

Spain SR3/NRI

Parallel

ON ON OFF ON 500Pta 200Pta 100Pta 50Pta 25Pta - - 200Pta - 50Pta

old

25Pta

old

Spain Coin Controls

C220 Parallel

OFF OFF ON ON 100Pta 50Pta

new

- 25Pta

new

- 50Pta

old

- 25Pta

old

Portugal

Euro

Parallel ON OFF ON ON 200Es

€1

100Es

50¢

50Es - - - - -

TBA OFF TBA Please Note

The credit board automatically sets the validator for parallel and binary

operation through an output on pin 8 of the 17 way pinstrip. For the feature

to work it is necessary for the validator interconnecting cable to include at

wire at this position

ON TBA

Channels OFF Direct Mode

ON 2 channel Mode

Note: These switch settings are under constant review and may change due to world currency updates.

· Set SW 1 according to the option settings found in the relevant Price of Play Settings Table on the following pages.

· For Germany (DM), France (Fr) & Switzerland (SFr), use the appropriate existing setting shown above (from another country) that matches the coin ratios programmed into your coin mech.

· Set SW 3 on the VTS /Excel board as shown in the table above corresponding to the country required.

Rev 1Updated:- 23/11/01 80

7.1.1. PRICE OF PLAY SETTINGS UK

Price Bonus DIL Switch 1

Switch 1 Switch 2 Switch 3 Switch 4 Switch 5

1 10p No Bonus OFF OFF OFF OFF OFF

2 10p 6 = 50p ON OFF OFF OFF OFF

3 20p No Bonus OFF ON OFF OFF OFF

4 20p 3 = 50p 6 = £1 12 =£2 ON ON

OFF OFF OFF

5 30p No Bonus OFF OFF ON OFF OFF

6 30p 1.66 = 50p 4 = £1 8 = £2 ON OFF ON OFF OFF

7 30p 2 = 50p 4 = £1 OFF ON ON OFF OFF

8 30p AMLD * 3 = £1 6 = £2 ON ON ON

OFF OFF

9 40p No Bonus OFF OFF OFF ON OFF

10 40p 1.25 = 50p 3 = £1 6 = £2 ON OFF OFF ON OFF

11 50p No Bonus OFF ON OFF ON OFF

12 50p 3 = £1 6 = £2 ON ON

OFF ON OFF

13 50p 2 = £1 5 = £2 OFF OFF ON ON OFF

14 60p No Bonus ON OFF ON ON OFF

15 60p 2 = £1 4 = £2 OFF ON ON ON OFF

16 80p No Bonus ON ON ON ON OFF

17 80p 1.25 = £1 2 = £1.50 2.5 = £2 OFF OFF OFF OFF ON

18 £1 No Bonus ON OFF OFF OFF ON

19 £1 3 = £2 OFF ON OFF OFF ON

20 £1 2 = £2 5 = £4 ON ON

OFF OFF ON

21 £1.50 No Bonus OFF OFF ON OFF ON

22 £1.50 2 = £2 ON OFF ON OFF ON

23 £2 No Bonus OFF ON ON OFF ON

24 £2 3 = £5

ON ON ON

OFF ON

25 £3 No Bonus OFF OFF OFF ON ON

26 £3 2 = £5

ON OFF OFF ON ON

27 £5 No Bonus OFF ON OFF ON ON

28 £5 3 = £10

ON ON

OFF ON ON

29 £7.50 No Bonus OFF OFF ON ON ON

30 £7.50 2 = £10 ON OFF ON ON ON

31 £10 No Bonus OFF ON ON ON ON

32 Free Play ON ON ON ON ON

7.1.2. PRICE OF PLAY SETTINGS EURO

Price Bonus DIL Switch 1

Switch 1 Switch 2 Switch 3 Switch 4 Switch 5

1 10¢ No Bonus OFF OFF OFF OFF OFF

2 10¢ 6 = 50¢ ON OFF OFF OFF OFF

3 20¢ No Bonus OFF ON OFF OFF OFF

4 20¢ 3 = 50¢ 6 = €1 12 =€2 ON ON

OFF OFF OFF

5 30¢ No Bonus OFF OFF ON OFF OFF

6 30¢ 1.66 = 50¢ 4 = €1 8 = €2 ON OFF ON OFF OFF

7 30¢ 2 = 50¢ 4 = €1 OFF ON ON OFF OFF

8 30¢ AMLD * 3 = €1 6 = €2 ON ON ON

OFF OFF

9 40¢ No Bonus OFF OFF OFF ON OFF

10 40¢ 1.25 = 50¢ 3 = €1 6 = €2 ON OFF OFF ON OFF

11 50¢ No Bonus OFF ON OFF ON OFF

12 50¢ 3 = €1 6 = €2 ON ON

OFF ON OFF

13 50¢ 2 = €1 5 = €2 OFF OFF ON ON OFF

14 60¢ No Bonus ON OFF ON ON OFF

15 60¢ 2 = €1 4 = €2 OFF ON ON ON OFF

16 80¢ No Bonus ON ON ON ON OFF

17 80¢ 1.25 = £1 2 = €1.50 2.5 = €2 OFF OFF OFF OFF ON

18 €1 No Bonus ON OFF OFF OFF ON

19 €1 3 = €2 OFF ON OFF OFF ON

20 €1 2 = €2 5 = €4 ON ON

OFF OFF ON

21 €1.50 No Bonus OFF OFF ON OFF ON

22 €1.50 2 = €2 ON OFF ON OFF ON

23 €2 No Bonus OFF ON ON OFF ON

24 €2 3 = €5

ON ON ON

OFF ON

25 €3 No Bonus OFF OFF OFF ON ON

26 €3 2 = €5

ON OFF OFF ON ON

27 €5 No Bonus OFF ON OFF ON ON

28 €5 3 = €10 ON ON

OFF ON ON

29 €7.50 No Bonus OFF OFF ON ON ON

30 €7.50 2 = €10 ON OFF ON ON ON

31 €10 No Bonus OFF ON ON ON ON

32 Free Play ON ON ON ON ON

7.1.3. PRICE OF PLAY SETTINGS Austria-Czech-Denmark-Norway-Israel-

France2

Price Bonus Switch 1

Switch 1 Switch 2 Switch 3 Switch 4 Switch 5

1 1 No Bonus OFF OFF OFF OFF OFF

2 1 11 = 10

ON OFF OFF OFF OFF

3 1 6 = 5 OFF

ON OFF OFF OFF

4 2 No Bonus ON ON OFF OFF OFF

5 2 6 = 10 OFF OFF

ON OFF OFF

6 2 3 = 5 ON OFF ON OFF OFF

7 3 No Bonus OFF

ON ON OFF OFF

8 3 4 = 10

ON ON ON OFF OFF

9 3 2 = 5 OFF OFF OFF ON OFF

10 4 No Bonus ON OFF OFF ON OFF

11 4 3 = 10 OFF ON OFF ON OFF

12 5 No Bonus ON ON OFF ON OFF

13 5 3 = 10 OFF OFF ON ON

OFF

14 6 No Bonus ON OFF ON ON

OFF

15 6 4 = 20 OFF ON ON ON

OFF

16 8 No Bonus ON ON ON ON OFF

17 10 No Bonus OFF OFF OFF OFF ON

18 10 3 = 20 ON OFF OFF OFF ON

19 20 No Bonus OFF ON OFF OFF ON

20 20 3 = 50 ON ON OFF OFF ON

21 30 No Bonus OFF OFF ON OFF ON

22 30 2 = 50 ON OFF ON OFF ON

23 50 No Bonus OFF ON ON OFF ON

24 50 3 = 100

ON ON ON OFF ON

32 Free Play ON ON ON ON ON

8. DESIGN RELATED PARTS

For the Warning stickers refer to Section 1.

No. PART No. DESCRIPTION

1 VCT-5151-AUK STICKER FENCE FRAME L

2 VCT-5171-AUK STICKER FENCE FRAME R

3 VCT-3001UK BILLBOARD PLATE U/R

4 VCT-3002UK STICKER SIDE COVER L

5 VCT-3003UK STICKER SIDE COVER R

6 VCT-3005UK STICKER CONTROL PANEL NOB

7 VCT-3011UK STICKER SERVICE DOOR

8 VCT-3013UK STICKER CONTROL PANEL CCT

9 VCT-3018UK STICKER CASH DOOR

10 VCT-5002UK FLOOR PLATE ARTWORK

9. PARTS LIST

9.1. VCT-10002UK ASSY CABINET VCT U/R

ITEM PART NO. QTY DESCRIPTION COMPONENT REF.

1 VCT-11002UK 1 ASSY FRAMEWORK VCT U/R

2 NOA-1200UK 1 ASSY CRT COVER UK

3 VCT-1300 1 ASSY BILLBOARD

4 VCT-1400UK 1 ASSY CONTROL BOX HDT U/R COLOUR CHANGE

5 VCT-1500UK 1 ASSY FRONT PANEL HDT U/R FST COLOUR CHANGE

6 CHT-4000UK 1 ASSY ELEC

7 NOA-1750UK 1 ASSY SERVICE DOOR WHITE

8 NOA-1801UK 1 REAR HATCH FIX DOWN AT TOP ASSY (WHITE)

9 NOB-1001UK 1 FRAME COVER UR R

10 NOB-1002UK 1 FRAME COVER UR L

11 NOA-1003 1 ENDCAP R

12 NOA-1004 1 ENDCAP L

13 PTR-1005UK 1 REAR COVER UPPER BLACK

15 280-6617 4 BUSH FOR TV LONG

16 280-5113 4 COLLAR FOR NANAO MONITOR (101)-4

18 VCT-1006UK 4 SCR CAP COLOUR CHANGE

20 NOB-1710UK 1 ASSY AC UNIT WHITE

23 NOA-1009 2 WSHR PLATE (4)-2

24 RTS-1010UK 1 BILLBD HOLDER

25 NOA-1011 1 FL BRKT

27 HDT-4100UK 1 ASSY XFMR

29 NOB-1117UK 1 WATER GUARD CE

37 421-7020UK 2 STICKER CAUTION FORK AT BACK OF BASE BOX

41 LB1102 5 STICKER DANGEROUS VOLTAGE LID,LEFT OF DOOR,CRT,FL,CP

42 LB1104 1 STICKER CAUTION, HOT SURFACE FL COVER

44 VCT-3002UK 1 STICKER SIDE COVER L

45 VCT-3003UK 1 STICKER SIDE COVER R

51 VCT-3011UK 1 STICKER SERVICE DOOR

52 VCT-3018UK 1 STICKER CASH DOOR

101 200-5949 1 ASSY CLR DSPL 29 TYPE 31K UK

102 390-5695-40-CUK 1 FL TRAY 110V 40W (T12)

114 390-5695-40-DUK 1 FL TUBE 40W 600L 1.5"DIA

116 280-A02048-PM 5 ROUTER TWIST D20 SO4.8 PAN LG

117 280-A02000-A 4 ROUTER TWIST D20 ADH

118 280-A01248-PM 12 ROUTER TWIST D12 SO4.8 PAN MED

119 280-A01200-A 3 ROUTER TWIST D12 ADH

120 280-A00900-A 2 ROUTER TWIST D9 ADH

121 OS1230 1.18 FOAM STRIP 2mm X 10mm 2X0.59M TO 8

122 601-0460 10 CABLE TIE 100mm (29)-10

201 008-T00625-0C 14 M6X25 TMP PRF TH CRM (2)-6,(5)-4,(13)-4

202 030-000620-S 4 M6X20 BLT W/S PAS (4)-4

203 000-P00408 2 M4X8 MSCR PAN PAS FL TUBE CLIPS - 2

204 008-T00412-0C 6 M4X12 TMP PRF TH CRM (9,10)-2,(11,12)-1

205 008-T00412-0B 10 M4X12 TMP PRF TH BLK (20)-6,(24)-4

206 050-F00600 4 M6 NUT FLG SER PAS (101)-4

208 008-T00430-0B 2 M4X30 TMP PRF TH BLK TNG STOPPER CP & REAR LID

CONTINUED ON NEXT PAGE

CONTINUED FROM PREVIOUS PAGE

ITEM PART No. QTY DESCRIPTION COMPONENT REF.

209 030-000630-S 4 M6X30 BLT W/S PAS (27)-4

210 068-651616 4 M6 WSHR 16OD FLT PAS (27)-4

211 000-P00408-W 6 M4X8 MSCR PAN W/FS PAS (25)-2,EARTHS-4

214 000-P00416-W 4 M4X16 MSCR PAN W/FS PAS (5)-2,(11)-1,(12)-1

215 068-652516 4 M6 WSHR 25OD FLT PAS (101)-4

216 050-F00400 4 M4 NUT FLG SER PAS (102)-2,EARTHS-2

217 050-F00500 3 M5 NUT FLG SER PAS FRAME EARTHS - 3

218 010-P00408 4 M4X8 S-TITE PAN PAS (6)-4

219 060-F00400 4 M4 WSHR FORM A FLT PAS (6)-4

301 HDT-6001UK 1 ASSY WIRE L HDT U/R

302 NOB-60041UK 1 WIRE HARN AC EXT UK

303 NOA-60025 1 WIRE HARN SPEAKER R

311 600-7159-070 1 WIRE HARN JVS PWR 070CM

319 600-9010-44K 1 WIRE HARN EARTH 100mm M4/M4 BBOARD HOLDER TO FL BASE

320 NOB-60201UK 1 WIRE HARN FL NOB

321 600-9070-45K 1 WIRE HARN EARTH 700mm M4/M5 K BASE LID TO BASE

322 600-9080-45K 1 WIRE HARN EARTH 800mm M4/M5 K BASE TO RH FRAME (BOTTOM)

323 600-9025-56U 1 WIRE HARN EARTH 250mm M5/M6 MON CHASSIS TO RH FRAME TEMP

324 600-9055-45K 1 WIRE HARN EARTH 550mm M4/M5 K BASE TO LH FRAME BOTTOM

9.2. VCT-11002UK ASSY FRAMEWORK VCT U/R

ITEM PART NO. QTY DESCRIPTION COMPONENT REF.

1 VCT-1601UK 1 BASE BOX

2 NOB-1101UK 1 MAIN FRAME UR R

3 NOB-1102UK 1 MAIN FRAME UR L

4 NOA-1111X 1 LOWER BEAM

5 NOA-1112X 1 UPPER BEAM

6 NOA-1113 1 HOOF R

7 NOA-1114 1 HOOF L

11 NOA-1115UK 1 TNG REAR HATCH

102 601-5699X 2 LEG ADJUSTER BOLT M16x75 SEGA

103 601-10461UK 2 CASTOR 50 SWIVEL FRONT

104 601-10462UK 2 CASTOR 50 FIXED REAR

105 220-5575UK 1 LOCK

201 050-F00600 4 M6 NUT FLG SER PAS (2)-2,(3)-2

202 030-000620-S 14 M6X20 BLT W/S PAS (2,3)-3,(4,5)-4

203 068-652016 6 M6 WSHR 20OD FLT PAS (2)-3,(3)-3

204 050-F00500 2 M5 NUT FLG SER PAS (6)-1,(7)-1

205 000-P00408-W 2 M4X8 MSCR PAN W/FS PAS (6)-1,(7)-1

207 050-H01600 2 M16 NUT PAS (102)-2

208 FAS-200004 16 M6X14 SKT CAP BLK (103,4)-8EA

209 060-S00600-0B 16 M6 WSHR SPR BLK (103,4)-8EA

9.3. NOA-1200UK ASSY CRT COVER UK

No. PART NUMBER QTY DESCRIPTION COMPONENT REFERENCE

1 NOA-1201UK 1 CRT COVER

2 NOA-1202 1 SPEAKER BOX

3 RND-0037 0.38 TAPE SPEAKER BOX 2 SIDED (2)-0.19

101 130-5205 2 SPEAKER 40HM 10W 100 W/S

102 000-P00410-W 8 M4X10 MSCR POSI PAN W/FS (101)-8

103 340042 6 RIVET BULBEX 3/16 BF01-0630 (2)-6

301 NOA-60031 1 WIRE HARN SPEAKER L [NOT SHOWN]

302 NOA-60032 1 WIRE HARN SPEAKER R [NOT SHOWN]

9.4. VCT-1200UK ASSY FOOT PEDAL DX

ITEM PART NUMBER QTY DESCRIPTION COMPONENT REF.

1 VCT-1201UK 1 PEDAL BASE DX

2 VCT-1202UK 1 PEDAL

3 VCT-1203UK 1 FOOT PLATE (ARTWORK)

4 VCT-1204 1 COM SPRING

5 VCT-1205UK 1 SPRING COVER

6 VCT-1206UK 1 SHADE PLATE

7 VCT-1207UK 1 SENSOR BRKT

8 VCT-1208UK 1 WIRE COVER

9 VCT-1209 2 STOPPER RUBBER

10 VCT-1210 2 RUBBER CUSHION

11 VCT-1211UK 2 RUBBER CASE

12 VCT-1212UK 2 CUSHION

13 VCT-1213UK 1 PLATE SASH

101 370-5226 1 PHOTO SENSOR OMT-01DAMP NEW

103 280-6622-30030 4 SPACER TUBE

201 FAS-000102 3 M5X6 MSCR TH BLK (2)-3

202 FAS-290034 4 M5X15 LH CAP SCR STN (3)-4

203 000-F00512 2 M5X12 MSCR FH (5)-2

204 000-P00310 10 M3X10 MSCR PAN W/FS (11)-4,(7)-4,(12)-4

205 050-F00400 10 M4 FLG NUT (6)-2,(7)-2,(14)-2,(8)-4

206 000-T00408-0B 2 M4X8 MSCR TH BLK (13)-2

207 000-P00320-W 3 M3X20 MSCR PR W/FS (14)-2

208 050-H00400 1 M4 NUT HEX (1)-1

209 060-F00400 1 M4 FLT WSHR (1)-1

210 060-S00400 1 M4 SPR WSHR (1)-1

211 030-000620 1 M6X20 BLT W/S BLK (1)-4

301 VCT-64002 1 WH FOOT PEDALS

9.5. VCT-1300 ASSY BILLBOARD

No. PART NUMBER QTY DESCRIPTION COMPONENT REFERENCE

1 NOA-1301X 1 BILLBOARD PLATE

2 NOA-1302UK 1 BILLBOARD SHEET

3 VCT-3001UK 1 BILLBOARD PLATE U/R NOT SHOWN

201 008-T00408-OC 3 M4X8 MSCR TMP PRF TH CRM (2)-3

9.6. VCT-1400UK ASSY CONTROL BOX VCT U/R

ITEM PART NUMBER QTY DESCRIPTION COMPONENT REF.

1 SPY-1404UK 1 ADJUST PANEL BRKT

3 NOA-1401 1 CONTROL BOX LOWER

4 VCT-1402UK 1 CONTROL BOX UPPER COLOUR CHANGE

5 CQN-1055X 1 HINGE

6 NOA-1403 1 SHAFT

7 HOT-1520 2 LATCH N

8 HOT-1504 2 LATCH HOLDER

9 NOA-1404 1 TOR SPRING

10 HOT-1505UK 1 LKG TNG (101)-1

12 SPY-1406UK 1 REJECT COVER

14 VCT-3004UK 1 PANEL INSTRUCTION SPACE 5MM FOAMEX (ARTWORK)

15 NOA-1419 2 BRKT INST COVER (14)-2

16 NOA-1420 4 L WASHER (15)-4

17 SPX-1407UK 1 COIN ENTRY COVER

21 NOA-1415 2 LOCK BRKT

22 NOA-1418 2 DUMMY BTN

23 SPX-1403UK 1 CNTRL PANEL PLATE BLANK

24 SPY-1408UK 1 COIN EXIT COVER

25 VCT-3005UK 1 STICKER CONTROL PANEL NOB (23)-1

CONTINUED NEXT PAGE

CONTINUED FROM PREVIOUS PAGE

ITEM PART NUMBER QTY DESCRIPTION COMPONENT REF.

101 220-5575UK 1 LOCK

102 280-A00900-A 3 ROUTER TWIST D9 ADH

201 000-P00410-W 27 M4X10 MSCR PAN W/FS PAS (1,12,22)-2,(8,16,21)-4,(5)-9

202 050-H00600 2 M6 NUT PAS (7)-2

203 060-S00600 2 M6 WSHR SPR PAS (7)-2

204 050-F00300 2 M3 NUT FLG SER PAS (17)-2

205 031-000416-0B 6 M4X16 CRG BLT BLK (23)-6

206 050-F00400 6 M4 NUT FLG SER PAS (23)-6

207 068-441616 2 M4 WSHR 16OD FLT PAS (22)-2

209 065-E00600 2 DIA6 E RING (6)-2

210 000-P00412-W 1 M4X12 MSCR PAN W/FS PAS (24)-1

211 008-T00412-0C 1 M4X12 TMP PRF TH CRM (24)-1

9.7. VCT-1500UK ASSY FRONT PANEL VCT U/R FST

ITEM PART NO. QTY DESCRIPTION COMPONENT REF.

1 VCT-1501UK 1 FRONT PANEL VCT COLOUR CHANGE

2 SPY-1502-02UK 1 MASK NF SPY U/R

3 NOA-1503 1 LIGHT COVER

4 NOA-1504UK 1 PRISM PLATE

5 VCT-1505UK 1 LID GC COLOUR CHANGE

6 VCT-1506UK 2 LID VMS COLOUR CHANGE

7 NOA-1507 1 EMBLEM NAOMI

101 838-13145-02 10 LED BD GUN SENSE HOD

102 JPT-1082 10 IR COVER

103 SPY-1507-AUK 20 HEAD COVER M3 GREY (101)-20

104 SPY-1507-BUK 20 HEAD COVER BASE M3 (101)-20

105 280-A00900-A 2 ROUTER TWIST D9 ADH 2-(2)

201 050-U00300 20 M3 NUT NYLOK PAS (101)-20

202 000-P00410-W 13 M4X10 MSCR PAN W/FS PAS (2)-8,(5)-5

203 012-P03516 4 N6X5/8" S/TAP PAN PAS (4)-4

204 000-P00325 20 M3X25 MSCR PAN PAS (101)-20

205 068-330808-PN 20 M3 WSHR 8OD FLT NYLON (101)-20

301 SPY-61040UK 7 WIRE HARN MASK SHORT

302 SPY-61042UK 2 WIRE HARN MASK LONG

303 SPY-61041UK 1 WIRE HARN IC BD

9.8. NOB-1710UK ASSY AC UNIT

ITEM PART NO. QTY DESCRIPTION COMPONENT REF.

1 NOB-1711UK 1 AC BRKT NEW WHITE

3 LB1096 1 STICKER PROTECTIVE EARTH NEXT TO EARTH STUD ON INSIDE

4 421-6595-5000-T 1 STICKER FUSE 5000mA TYPE T NEXT TO IEC INLET ON OUTSIDE

101 EP1381 1 FILTER IEC & SW 6A ROXBURGH

111 514-5078-5000 1 FUSE 5X20 CERAMIC SB 5000mA

202 050-F00400 2 M4 NUT FLG SER PAS EARTH - 2

204 000-F00316 2 M3X16 MSCR CSK PAS (101)-2

301 NOB-60004UK 1 WIRE HARN AC OUT

303 600-9030-45K 1 WIRE HARN EARTH 300mm M4/M5 K AC BRKT TO XFMR

305 600-9025-44K 1 WIRE HARN EARTH 250mm M4/M4 AC BRKT TO BASE

306 600-9015-4FK 1 WIRE HARN EARTH 150MM

9.9. NOA-1750UK ASSY SERVICE DOOR

ITEM PART NO. QTY DESCRIPTION COMPONENT REF.

1 NOA-1751UK 1 SERVICE DOOR WHITE

2 DP-1167UK 1 TNG LKG UK

101 220-5575UK 1 LOCK

201 008-T00430-0C 1 M4X30 TMP PRF TH CRM DO UP 1/2 WAY SO TNG OPENS

9.10. VCT-2100-01 CONTROL UNIT EXP

Item Component Part Qty Description Component Reference

1 VCT-2101-01 1 COVER L EXP

2 VCT-2102-01 1 COVER R EXP

3 VCT-2103-01 1 HAMMER EXP

4 VCT-2104 1 TRIGGER

5 VCT-2105 1 CHANGE BUTTON

6 VCT-2106 1 SW BRKT

7 VCT-2107 1 COM SPRING

8 JPT-2030 1 SENSOR UNIT

9 125-5124 1 TORSION SPRING

101 280-5124-04 1 NYLON CLAMP NK04

102 310-5029-D20 1 SUMITUBE F D 20MM

103 509-5080 1 SW MICRO TYPE (SS-5GL2)

104 601-0460 1 PLASTIC TIE BELT 100 MM

201 000-P00308-W 2 M SCR PH W/FS M3 x 8 (6)-1, (101)-1

202 FAS-000099 10 M SCR PH W/SMALL FS BLK M3 x10 (1)-10

204 FAS-000101 2 M SCR PH W/FS M2.3 x 10 (103)-2

301 VCT-60011 1 WH CONTROL UNIT

302 VCT-60012 1 WH CHANGE SW

9.11. JPT-2030 SENSOR UNIT

ITEM NO. PART NO. DESCRIPTION NOTE

1 JPT-2031 SENSOR HOLDER

101 838-13144 SENSOR BD GUN SENSE

201 012-P00306 TAP SCR #2 PH 3X6

9.12. HDT-4100UK ASSY XMFR

No. PART NUMBER QTY DESCRIPTION COMPONENT REFERENCE

1 HDT-4101UK 1 XFMR BASE

3 838-11856CE-02 1 CONN BD W/FUSE 6.3A CE

101 560-5422UK 1 XFMR NOB

201 000-P00416-W 4 M4X16 MSCR POSI PAN W/FS (101)-4

202 068-441616 4 M4 WSHR 16OD FLT PAS (101)-4

203 012-P00325 2 N4X1" S/TAP POSI PAN PAS (3)-2 (102)-2

9.13. CHT-4000UK ASSY ELEC

ITEM PART NO. QTY DESCRIPTION COMPONENT REF

1 CTH-4001 1 ELEC BASE

2 NOM-4002 1 BRKT FOR PWR PROTECT UNIT

101 400-5443 1 SW REGU FOR CHIHIRO

103 838-13616 1 AUDIO POWER AMP 2CH

107 280-A02048-PM 4 ROUTER TWIST D20 SO4.8 PAN LG

108 601-6231-B095 9,5 EDGE TRIM NEW TYPE 0.91t (1) BACK EDGE IN MIDDLE

109 EP1317 1 FERRITE CORE ROUND CABLE CLAMP SW REGU OUTLET WIRES

110 280-A01248-PM 2 ROUTER TWIST D12 SO4.8 PAN MED

111 280-A02000-A 1 ROUTER TWIST D20 ADH

112 EP1364 1 FERRITE CORE ROUND CABLE CLAMP SW REGU INLET WIRES

113 610-0674 1 PWR PROTECT UNIT FOR CHIHIRO

201 010-P00408 4 M4X8 S-TITE PAN PAS (101)-4

202 010-P00308 4 M3X8 S-TITE PAN PAS (103)-4

303 HDT-60013UK 1 WIRE HARN SW REGU + CONDENSER

304 NOA-60014 1 WIRE HARN I/O BD PWR

305 NOB-60202UK 1 WIRE HARN AUDIO POWER-IN

306 600-7159-039 1 WIRE HARN JVS PWR 039CM

100

9.14. VCT-4800UK ASSY MAIN BD VCT U/R

ITEM PART NO. QTY DESCRIPTION COMPONENT REF.

1 SPY-4801UK 1 WOODEN BASE MAIN

2 843-0001D-12 1 ASSY CASE BOX COM NAO DIMM EXP

3 610-0617 1 GD-ROM DRIVE UNIT NAOMI SHIP BOX WITH MACHINE

4 105-5435 1 GD DRIVE BRKT STD

5 610-0652-0003 1 GD SOFT VCT

6 253-5508-0354 1 KEY CHIP

7 HDT-60100UK 1 WH POWER GD ROM

101 LB1101 1 STICKER WARNING BATTERY (2)-1

102 280-A01264-WX 5 ROUTER TWIST D12 SO6.4 WOOD X

103 LB1111 1 STICKER PLEASE RECYCLE (2)-1

201 000-P00416-W 7 M4X16 MSCR PAN W/FS PAS (2)-4,(4)-3

202 012-P00410-F 4 N8X3/8" S/TAP FLG PAS (3)-4

301 600-7249UK 1 WIRE HARN NAOMI GD DRIVER DC

307 600-7247-500 1 CABLE SCSI ST-L TYPE2 500MM

101

9.15. VCT-5000UK ASSY FLOOR VCT U/R

No. PART NUMBER QTY DESCRIPTION COMPONENT REFERENCE

1 VCT-5001UK 1 FLOOR BASE

2 VCT-5002UK 1 FLOOR PLATE ARTWORK SELF ADHESIVE ON REVERSE

102

9.16. VCT-5100UK ASSY CCT VCT U/R

ITEM PART NO. QTY DESCRIPTION COMPONENT REF.

1 VCT-5101UK 1 COINCHUTE TOWER

2 VCT-2100-01 2 CONTROL UNIT EXP NOT SHOWN

3 VCT-5102UK 1 CCT COVER

5 VCT-2199UK 2 GUN TETHER DX NOT SHOWN

7 VCT-5103UK 4 GUN HOLDER PLATE

8 SPY-5104UK 2 GUN CUSHION A

9 SPY-5105UK 2 GUN CUSHION B

10 SPY-5110UK 4 CUSHION BAR

12 VTS-STW-U 1 VTS BOARD UPRIGHT TYPE

13 DYN-0010UK 1 DENOMI PLATE

14 NCR-1103UK 1 CCT FLOOR

15 DUT-0302UK 1 COIN PATH PLATE

16 PP1087 1 BOX CASH FOR MINI DOOR

17 105-5216 2 CHAIN BRKT (2)-2

101 509-SPYU-YE 2 SW PB W/LAMP 6V YELLOW OVAL

102 838-13143-09 1 IC BD GUN SENSE SPY U/R

103 837-13551-92 1 I/O CONTROL BD FOR JVS

105 310-5287-29 2 CONN L29 32mm X PG29

106 310-5285-290100 1 FLEX TUBE 29 100CM

107 280-L00709-OS 4 STANDOFF 7OD 4ID 9L (102)-4

CONTINUED ON NEXT PAGE

103

CONTINUED FROM PREVIOUS PAGE

ITEM PART NO. QTY DESCRIPTION COMPONENT REF.

108 280-A02048-PM 3 ROUTER TWIST D20 SO4.8 PAN LG

109 280-L00805-0M 2 STANDOFF 8OD 5ID 4.8L (10)-2

110 310-5287-PG29 2 NUT LOCK PG29 BLACK (105)-1

201 000-T00412-0C 8 M4X12 MSCR TH CRM (7)-4,(8)-4

202 008-T00412-0B 17 M4X12 TMP PRF TH BLK (2)-8,(3)-5,(13)-4

203 000-P00416-W 18 M4X16 MSCR PAN W/FS PAS (9)-12,(12)-4,(14)-2

204 029-B00812-0B 4 M8X12 BLT BH BLK (4)-2,(5)-2

205 060-S00800-0B 4 M8 WSHR SPR BLK (4)-2,(5)-2

207 050-F00300 8 M3 NUT FLG SER PAS (102)-4,(103)-4

208 008-T00408-0C 4 M4X8 MSCR TH CRM (17)-4

210 000-P00408-W 5 M4X8 MSCR PAN W/FS PAS (15)-5

211 030-000820-SB 6 M8X20 BLT W/S BLK (2)-6

212 068-852216-0B 6 M8 WSHR 22OD FLT BLK (2)-6

213 060-F00300 4 M3 WSHR FORM A FLT PAS (18)-4

214 050-U00300 4 M3 NUT NYLOK PAS (18)-4

215 029-B00870-0B 4 M8X70 BLT BH BLK

216 060-S00800-0B 4 M8 WSHR SPR BLK

301 SPY-61052UK 1 WIRE HARN TUBE V0L CTRL

302 SPY-61053UK 1 WIRE HARN VTS SPY (NAO)

303 VCT-64001UK 1 WH I/O CONTROL

304 SPY-61044UK 1 WIRE HARN TUBE IC BD & DEMAG

306 600-6457-10UK 1 WIRE HARN START UK

307 600-6457-36UK 1 WIRE HARN START EX UK

308 SPY-60010UK 1 WIRE HARN HIGH FRQNCY JUMPER

309 600-7141-250 1 CABLE JVS TYPE A-B 250CM

310 RND-600002 2 WH GUN ADAPTOR

311 VCT-64003 1 WH EARTH FOOT PEDALS

104

9.17. VCT-5150UK ASSY FENCE L U/R

ITEM PART NO. QTY DESCRIPTION COMPONENT REF.

1 VCT-5151UK 1 DESIGN PLATE LHS

2 VCT-5151-AUK 1 STICKER DESIGN PLATE LHS

3 VCT-5152UK 1 FENCE FRAME L

201 008-T00416-0B 6 M4X8 TMP PRF TH BLK (1)-6

202 030-000820-SB 4 M8X20 BLT W/S BLK (2)-4

203 068-852216-0B 4 M8 WSHR 22OD FLT BLK (2)-4

105

9.18. VCT-5170UK ASSY FENCE R U/R

ITEM PART NO. QTY DESCRIPTION COMPONENT REF.

1 VCT-5171UK 1 DESIGN PLATE RHS

2 VCT-5171-AUK 1 STICKER DESIGN PLATE RHS

3 VCT-5172UK 1 FENCE FRAME R

201 008-T00416-0B 6 M4X8 TMP PRF TH BLK (1)-6

202 030-000820-SB 4 M8X20 BLT W/S BLK (2)-4

203 068-852216-0B 4 M8 WSHR 22OD FLT BLK (2)-4

106

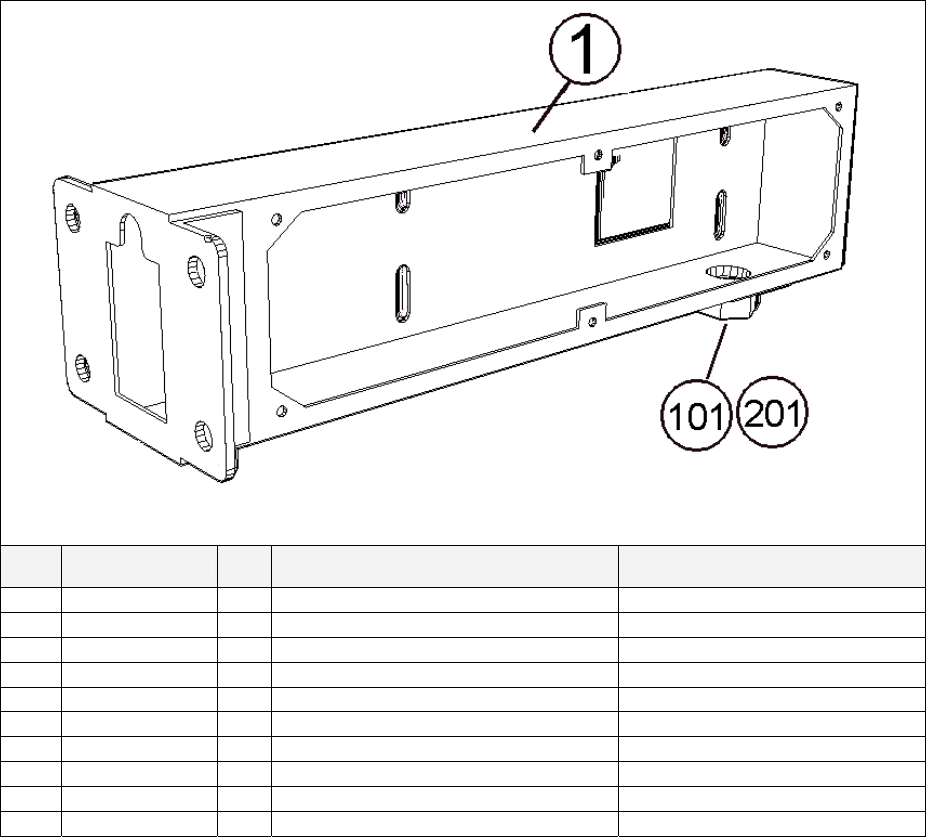

9.19. VCT-5200UK ASSY FOOT BASE FRAME L

ITEM PART NO. QTY DESCRIPTION COMPONENT REF.

1 VCT-5201UK 1 FOOT BASE FRAME L

2 VCT-0003UK 1 BASE HOLE LID NOT SHOWN

101 601-5699X 1 LEG ADJUSTER BOLT M16 X 75 (1)-1

201 050-H01600-0B 1 M16 HEX NUT BLK (1)-1

202 068-651616-0B 4 M6 WSHR 16OD FLT BLK (1)-4

203 030-000616-SB 4 M6X16 BLT W/S BLK (1)-4

204 008-T00416-0B 6 M4X8 TMP PRF TH BLK (2)-6

205 030-000820-SB 2 M8X20 BLT W/S BLK (1)-2

206 050-F00800 2 M8 NUT FLG SER PAS (1)-2

207 068-852216-0B 4 M8 WSHR 22OD FLT BLK (1)-4

107

9.20. VCT-5300UK ASSY FOOT BASE FRAME R

ITEM PART NO. QTY DESCRIPTION COMPONENT REF

1 VCT-5311UK 1 FOOT BASE FRAME R

2 VCT-0003UK 1 BASE HOLE LID

101 601-5699X 1 LEG ADJUSTER BOLT M16 X 75 (1)-1

201 050-H01600-0B 1 M16 HEX NUT BLK (1)-1

202 068-651616-0B 4 M6 WSHR 16OD FLT BLK (1)-4

203 030-000616-SB 4 M6X16 BLT W/S BLK (1)-4

204 008-T00416-0B 6 M4X8 TMP PRF TH BLK (2)-6

205 030-000820-SB 2 M8X20 BLT W/S BLK (1)-2

206 050-F00800 2 M8 NUT FLG SER PAS (1)-2

207 068-852216-0B 4 M8 WSHR 22OD FLT BLK (1)-4

108

9.21. HDT-6001UK ASSY WIRE L HDT U/R

Item Component Part Qty Description Component Reference

101 601-0460 12 CABLE TIE 100mm

102 280-N01610-0B 0.40 SLIT HARN WRAP 16mm DIA 1M BLK

301 600-7009-2500 1 ASSY RGB CA D-SUB 15P 2500MM

302 NOB-60045 1 WIRE HARN SPEAKER L

303 NOB-60046 1 WIRE HARN SPEAKER R

304 SPY-61043UK 1 WIRE HARN IC BD & DEMAG EXT

305 600-7158-0100 1 CA AUDIO RCA TO RCA 2CH 100CM

306 HDT-61051UK 1 WIRE HARN DC SPLY & VOL CNTRL

109

9.22. HDT-INST-U ASSY INST KIT U/R

Item Component Part Qty. Description Component Reference

1 VCT-5000UK 1 ASSY FLOOR VCT U/R

2 VCT-INST-SUB1-U 1 ASSY SUB1 INST

3 VCT-INST-SUB2-U 1 ASSY SUB2 INST

16 PK0323 1 INST KIT PACKING WEDGE

9.23. VCT-INST-SUB1-U ASSY SUB1 INST

ITEM PART NO. QTY DESCRIPTION COMPONENT REF.

2 VCT-5100UK 1 ASSY CCT VCT U/R

3 VCT-5150UK 1 ASSY FENCE L U/R

4 VCT-5170UK 1 ASSY FENCE R U/R

6 PK0337 1 INST KIT BOX VCT U/R

9.24. VCT-INST-SUB2-U ASSY SUB2 INST

ITEM PART NO. QTY DESCRIPTION COMPONENT REF.

1 VCT-1200UK 2 ASSEMBLY FOOT PEDAL DX

2 VCT-5200UK 1 ASSEMBLY FOOT BASE FRAME L

3 VCT-5300UK 1 ASSEMBLY FOOT BASE FRAME R

5 SAECE-114 1 DECLARATION OF CONFORMITY VCTU

7 CTA-0001 1 JOINT BRKT L

8 CTA-0002 1 JOINT BRKT R

9 VCT-3013UK 1 STICKER CONTROL PANEL CCT Multilingual

15 PK0336 1 BOX PEDAL VCT UPRIGHT

101 540-0006-01 1 WRENCH M4 TMP PRF

102 540-0015-01 1 WRENCH M6 TMP PRF

103 514-5078-5000 1 FUSE 5X20 CERAMIC SB 5000mA

104 OS1019 2 SELF SEAL BAG 9X12.3/4

105 440-CS0186UK 1 STICKER C EPILEPSY MULTI

201 030-000820-SB 2 M8X20 BLT W/S BLK (7)-1,(8)-1

202 068-852216-0B 2 M8 WSHR 22OD FLT BLK (7)-1,(8)-1

203 008-T00412-0B 2 M4X12 TMP PRF TH BLK (BILLBOARD)-2

204 SDW-0001UK 4 BLIND CAP UK (2)-2, (3)-2

301 600-7141-250 1 CABLE JVS TYPE A-B 250CM

402 420-6759-02UK 1 SERVICE MANUAL VCT U/R

403 420-5827 1 SERVICE MANUAL SANWA 31K

404 420-6620UK 1 SERVICE MANUAL GD ROM SYS

405 509-5080 2 SW MICRO TYPE (SS-5GL2)

110

10. APPENDIX A - ELECTRICAL SCHEMATIC

10.1. WIRE COLOURS

THE WIRE COLOUR CODE IS AS FOLLOWS:

A PINK

B SKY BLUE

C BROWN

D PURPLE

E LIGHT GREEN

Wires other than those of any of the colours listed above will be displayed by 2 alphanumeric characters:

1 RED

2 BLUE

3 YELLOW

4 GREEN

5 WHITE

7 ORANGE

8 BLACK

9 GREY

If the right hand side numeral of the code is 0, then the wire will be of a single colour shown by the left hand

side numeral (see the list above).

Note 1: If the right hand side alphanumeric is not 0, that particular wire has a spiral colour code. The left

hand side character shows the base colour and the right hand side one, the spiral colour.

[Example] 51------------- WHITE/RED = WHITE wire with RED stripes

Note 2: The character following the wire colour code indicates the size of the wire.

K: AWG18, UL1015

L: AWG20, UL1007

None AWG22, UL1007

10.2. ELECTRICAL SCHEMATIC

The following pages contain the electrical schematic for this machine.

LOCATE A3 SCHEMATIC DRAWING 1 HERE

LOCATE A3 SCHEMATIC DRAWING 2 HERE

SEGA AMUSEMENTS EUROPE LTD./ SEGA SERVICE CENTRE

Suite 3a

Oaks House

12 - 22 West Street

Epsom

Surrey

United Kingdom

KT18 7RG

Telephone: +44 (0) 1372 731820

Fax: +44 (0) 1372 731849

ã SEGA 2002

Arcade Virtua Cop 3 Ur Manual VC3 UPRIGHT MANUAL_Iss 0 User

Navigation menu

Versions of this User Manual:

Views

Navigation
