Arcadyan Technology WN7111A 11N Wireless Module User Manual Product Specifications

Arcadyan Technology Corporation 11N Wireless Module Product Specifications

User Manual

Product Specification
1
Product Specification
WN7111A-FI
IEEE 802.11n USB2.0 Module
v.02
Product Specification
2
Table of Contents
Chapter 1 Introduction ______________________________________________ 4
1.1 Product Features ___________________________________________ 4
1.2 Applications _______________________________________________ 4
Chapter 2 Hardware _______________________________________________ 5
2.1 General Overview ___________________________________________ 5
2.2 Hardware Architecture _______________________________________ 5
2.3 Main Chipset Information _____________________________________ 5
2.4 PCB dimension _____________________________________________ 5
2.5 Pin Definition _______________________________________________ 5
Chapter 3 Software ________________________________________________ 7
3.1 Operating System Supported __________________________________ 7
3.2 Wireless Mode Supported _____________________________________ 7
3.3 Security ___________________________________________________ 7
Chapter 4 Appearance______________________________________________ 8
Chapter 5 Specifications ____________________________________________ 9
FCC Statement _____________________________________________________ 11
References _______________________________________________________ 13
Product Specification
3
Revision History
Edition #
Reason for revision
Issue date
Written by
V 0.1
Initial Document
2011/02/10
Troy Chen
V 0.2
Update Tx power
Add product appearance
Add FCC statement.
2011/04/27
Peter Wang
Product Specification
4
Chapter 1 Introduction
WN7511F is a wireless 1x1 802.11n USB Adapter which enables wireless networking
systems to attain data communication speeds up to 150 megabits-per-second (Mbps),
while remaining backward compatible to the existing installed base of Wi-Fi systems
worldwide. It supports operation to the IEEE 802.11b and IEEE 802.11g ,and draft
IEEE 802.11n standards.
The cost and performance advantages will make it an ideal solution for high
bandwidth enterprise applications, such as wireless video conferencing and large file
transfers. It is compatible with 802.11g standard's mandatory modulation
schemesComplementary Code Keying (CCK), which is used in 802.11b, and
Orthogonal Frequency Division Multiplexing (OFDM), used in 802.11g and draft
802.11n. Using CCK ensures backward-compatibility with the installed Wi-Fi 802.11b
base, while OFDM provides the speed required for today's high-bandwidth
applications.
1.1 Product Features
High speed for wireless LAN connection, RX up at 150 Mbps data rate.
Backward compatible to the existing IEEE 802.11b/g WLAN infrastructure.
Support USB2.0
1.2 Applications
WiFi Module for Funai NetBox
Product Specification
5
Chapter 2 Hardware
2.1 General Overview
USB 2.0 Interface and 802.11 n chipset-on-board design.
1 printed antenna
2.2 Hardware Architecture
BRCM 43234
2.3 Main Chipset Information
The BRCM43234 is a dual-band (2.4GHz and 5GHz) IEEE802.11n compliant MAC/PHY/Radio
complete system-on-a-chip with 2.4GHz and 5GHz interal Pas.

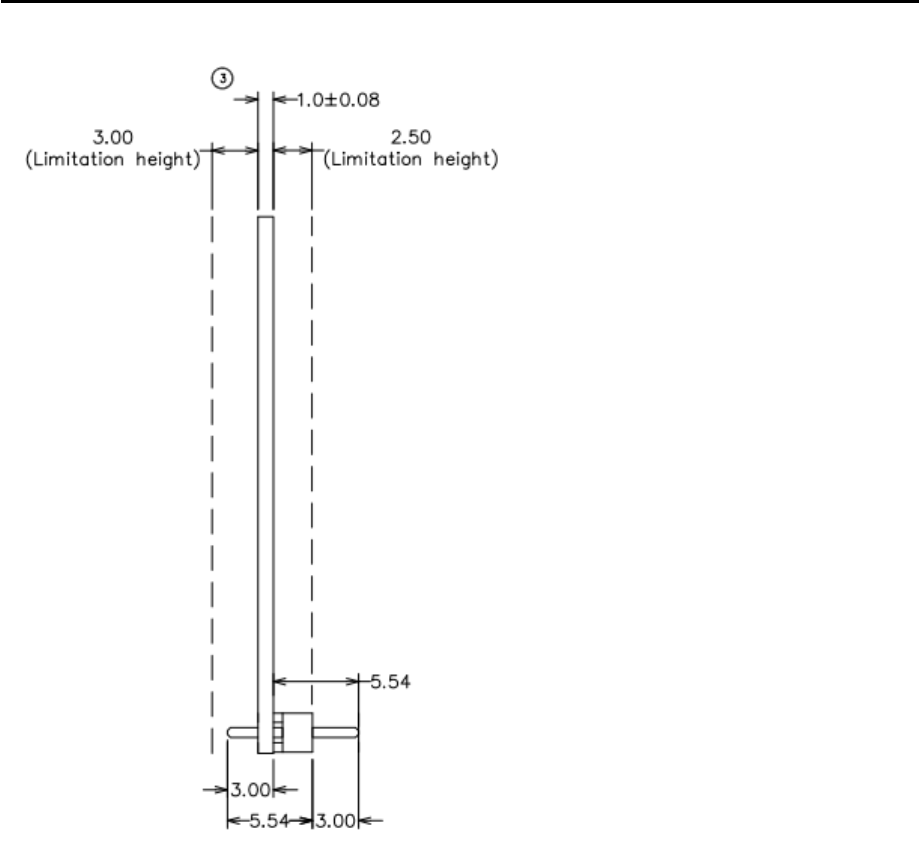

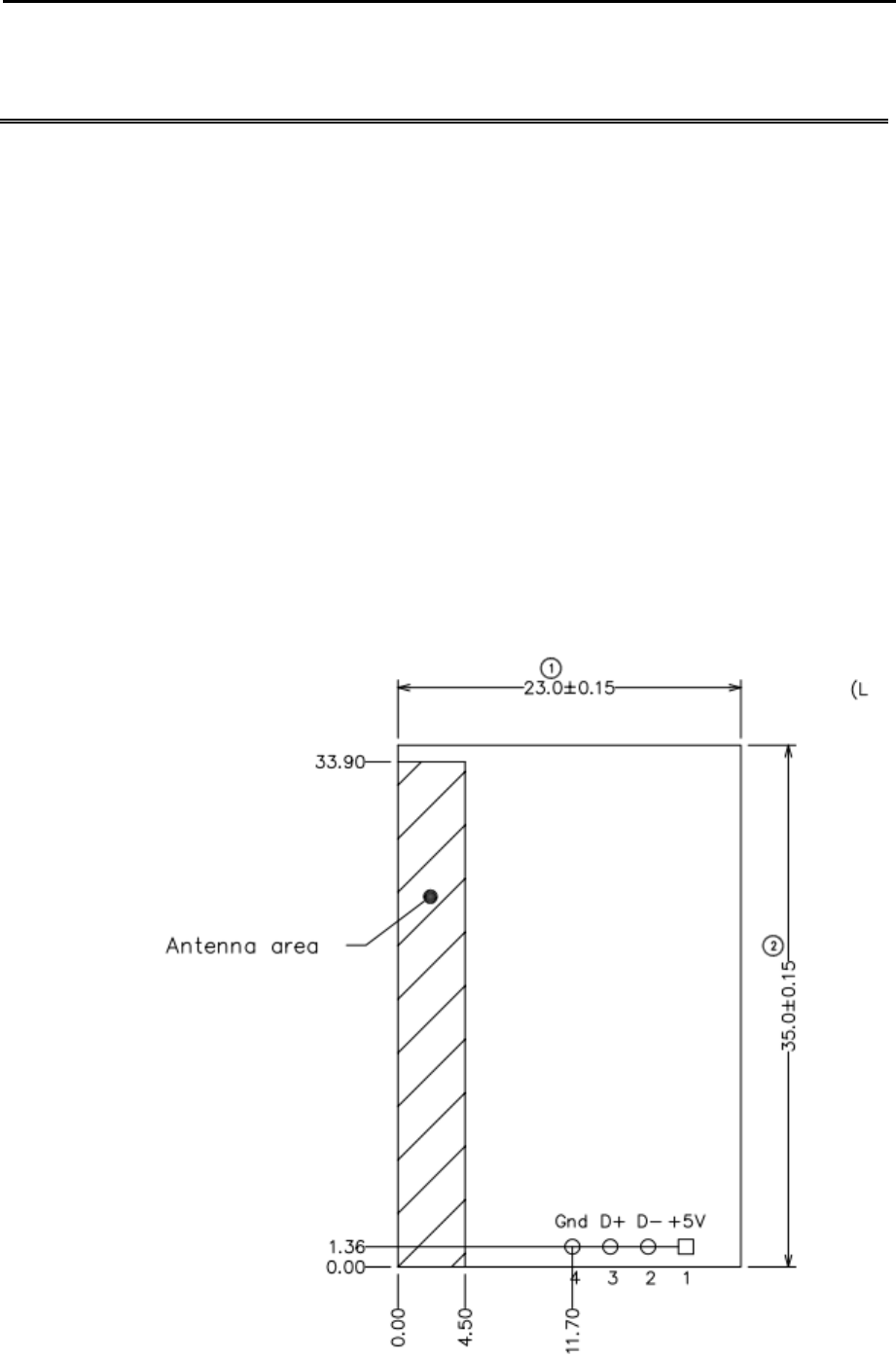

2.4 PCB dimension
23x35mm
2.5 Pin Definition
Product Specification
6
Product Specification
7
Chapter 3 Software
3.1 Operating System Supported
Windows 2000, XP, Vista
Linux OS
3.2 Wireless Mode Supported
AP (Infrastructure) Client mode
3.3 Security
AP (Infrastructure) mode supports
Static WEP that support both 64 and 128 bit keys.
WPA,WPA-PSK, WPA2,WPA2-PSK
Ad-hoc mode supports
None (plaintext)
Static WEP that supports both 64 and 128 bit keys.
Product Specification
8

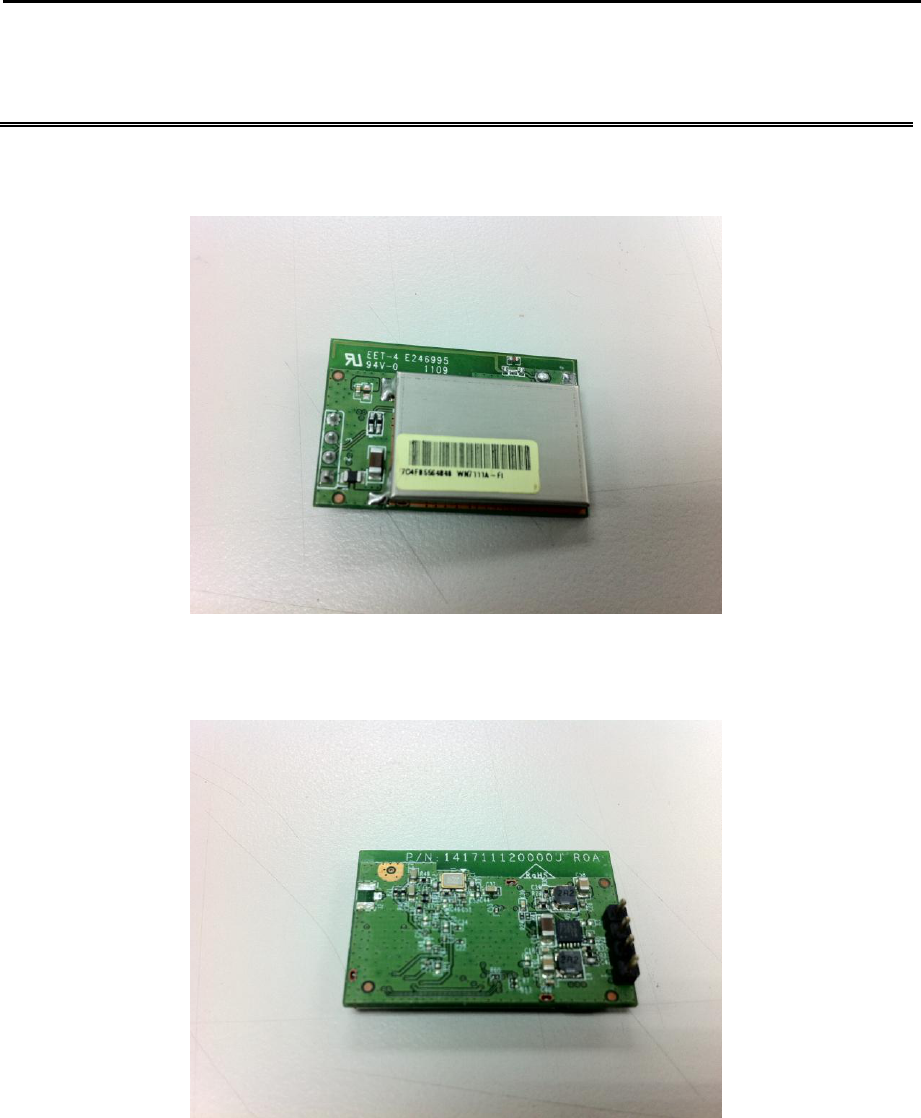

Chapter 4 Appearance
Top side
Bottom side
Product Specification
9
Chapter 5 Specifications
Frequency Band:
802.11n Radio: 2.4 GHz
802.11g Radio: 2.4 GHz
802.11b Radio: 2.4 GHz
USA FCC, 2412~2462MHz (Ch1~Ch11)
Operating Channels: 11 channels (US, Canada)
Transmit Power and Sensitivity:
TX Output Power:(Typical)
16dBm +/- 1.5dBm (2.4GHz, 11Mbps, CCK)
15dBm +/- 1.5dBm (2.4GHz, 54Mbps, OFDM)
15dBm +/- 1.5dBm (2.4GHz, 11n HT20)
13dBm +/- 1.5dBm (2.4GHz, 11n HT40)
Rx Sensitivity:(Typical)
-88 dBm @6 Mbps
-87 dBm @9 Mbps
-84 dBm @12 Mbps
-81dBm @18 Mbps
-79dBm @24 Mbps
-75dBm @36 Mbps
-71dBm @48 Mbps
-70 dBm @54 Mbps
-64 dBm @64-QAM, 20MHz channel spacing
-62 dBm @64-QAM, 40MHz channel spacing
Modulation
DBPSK @1Mbps
DQPSK@2Mbp
CCK@5.5/11Mbps
BPSK@6/9 Mbps
Product Specification
10
QPSK@12/18Mbps
16-QAM@24Mbps
64-QAM@48/54Mpb and above, RX up to 150Mbps
Operating Temperature: 0 ~ 40 oC ambient
Storage Temperature: -10 ~ 70 oC ambient
Humidity: 5 ~ 90% and must be non-condensing
Regulation and certification compliance available:
- FCC
Product Specification
FCC Statement
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
For product available in the USA/Canada market, only channel 1~11 can be operated.
Selection of other channels is not possible.
This device and its antenna(s) must not be co-located or operation in conjunction with
Product Specification
12
any other antenna or transmitter.
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is still responsible for
the FCC compliance requirement of the end product, which integrates this module.
20cm minimum distance has to be able to be maintained between the antenna and
the users for the host this module is integrated into. Under such configuration, the
FCC radiation exposure limits set forth for an population/uncontrolled environment
can be satisfied.
Any changes or modifications not expressly approved by the manufacturer could void
the user's authority to operate this equipment.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep at
least 20cm separation with the antenna while this end product is installed and
operated. The end user has to be informed that the FCC radio-frequency exposure
guidelines for an uncontrolled environment can be satisfied. The end user has to also
be informed that any changes or modifications not expressly approved by the
manufacturer could void the user's authority to operate this equipment. If the size of
the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is
required to be available in the users manual: This device complies with Part 15 of
FCC rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference and (2) this device must accept any interference received,
including interference that may cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains
TX FCC ID: RAXWN7111A ". If the size of the end product is larger than 8x10cm, then
the following FCC part 15.19 statement has to also be available on the label: This
device complies with Part 15 of FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
Product Specification
13
References
BRCM Reference Design Functional Specification
IEEE 802.11b Standard Specification
IEEE 802.11g Standard Specification
IEEE 802.11n draft Standard Specification
The drawings, specifications and the data contain herein are the exclusive property of
Arcadyan Technology Corp. issued in strict confidence and shall not, without the prior written
permission of Arcadyan Technology Corp., be reproduced, copied or used, in parts or as a
whole, for any purpose whatsoever, except the manufacture of articles for Arcadyan
Technology Corp.
Arcadyan makes no warranties with respect to the correctness, accuracy or wholeness of this
specification. The information in this document is subject to change without notice.
Arcadyan reserves the right to make revisions to this document and the product described
herein without obligation to notify any person or entity of any such changes.
