Arcadyan Technology WN7522C 802.11b/g/n Wireless Card User Manual Product Specifications
Arcadyan Technology Corporation 802.11b/g/n Wireless Card Product Specifications
User Manual
User’s Manual
User’s Manual
WN7522C_1-LF-19
IEEE Single Band 802.11n USB2.0 Module
v.01 draft
WN7522C 1 1
User’s Manual
Table of Contents
Chapter 1 Introduction________________________________________________________4
1. Introduction ________________________________________________________4
1.1 Product Features____________________________________________________4
1.2 Applications _______________________________________________________4
Chapter 2 Hardware_______________________________________________________ 5
2.1 General Overview __________________________________________________5
2.2 Hardware Architecture _______________________________________________5
2.3 Main Chipset Information ____________________________________________5
Chapter 3 Software _______________________________________________________ 5
3.1 Operating System Supported __________________________________________6
3.2 Wireless Mode Supported ____________________________________________6
3.3 Security___________________________________________________________ 6
3.4 Configuration ______________________________________________________6
Chapter 4 Appearance _____________________________________________________7
Chapter 5 Specifications ___________________________________________________8
Table 1: Modulation Scheme and Nominal Transmit Power _________________________10
WN7522C 1 2
User’s Manual
Revision History
Edition # Reason for revision Issue date Written by
V 01 ♦ Initial Document Dec 5, 2008 Katherine Hsieh
♦
WN7522C 1 3
User’s Manual
Chapter 1 Introduction
1. Introduction
WN7522C 1 is a single band wireless 802.11n USB module for Blu-ray players and other
multi-media devices. It enables multi-media devices to connect onto 802.11n WLAN network
and attain data communication speeds up to 300 megabits-per-second (Mbps). It is also
backward compatible to the existing installed base 802.11b/g network.
1.1 Product Features
High speed for wireless LAN connection, RX up at 300 Mbps data rate. ♦
♦
♦
♦
♦
♦
Backward compatible to the existing IEEE 802.11/b/g WLAN infrastructure.
On-board high gain antenna
Support USB v2.0
1.2 Applications
Home networking for device sharing.
Wireless multimedia.
WN7522C 1 4
User’s Manual
Chapter 2 Hardware
2.1 General Overview
USB 2.0 Interface and 802.11 n chipset-on-board design. ♦
♦
♦
Antenna: 2 Internal Antenna on board
2.2 Hardware Architecture
Broadcom 43231 single chip USB2.0
2.3 Main Chipset Information
BCM43231: MIMO MAC + Baseband processor and RF with integrated 2.4GHz PA

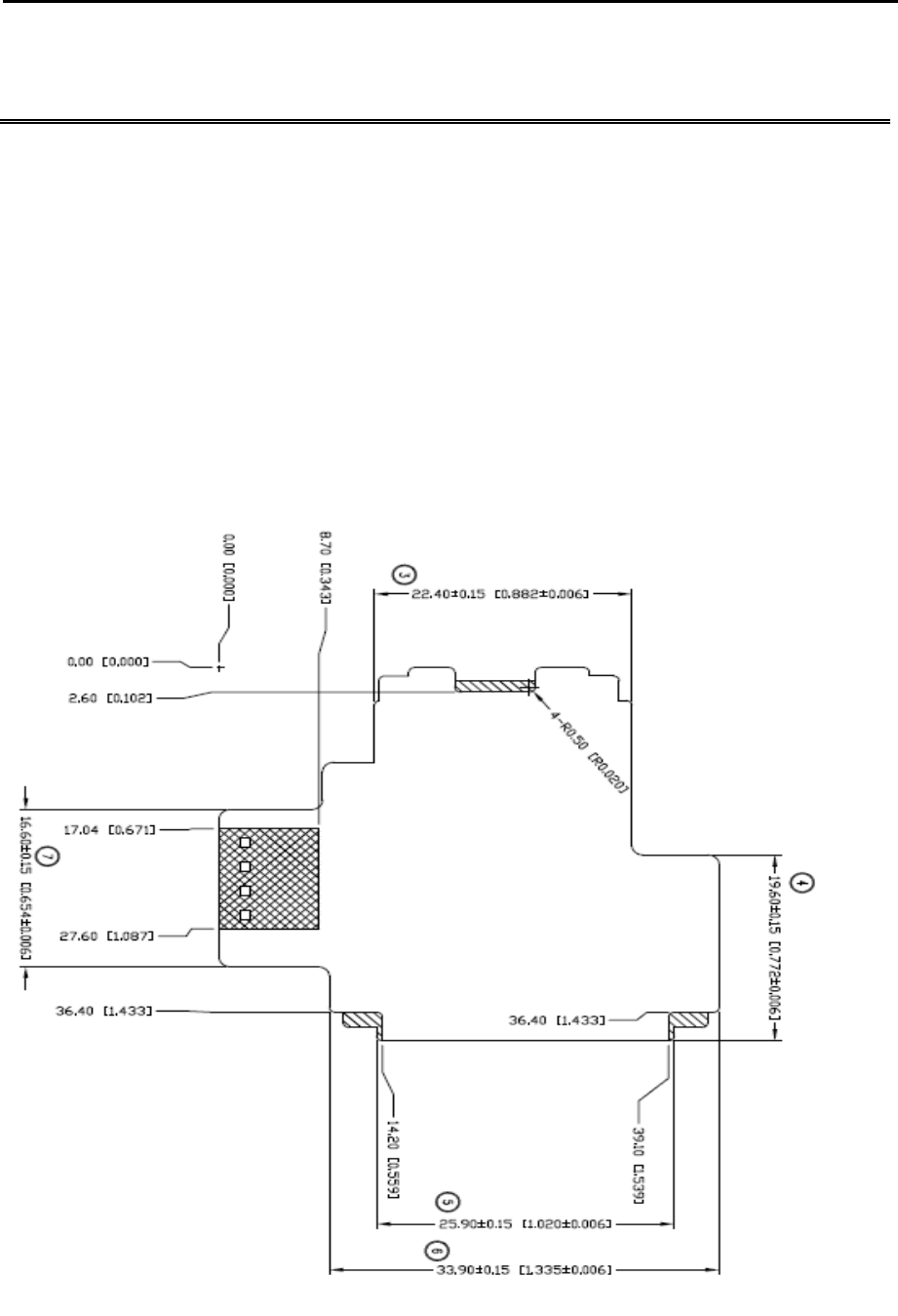

2.4 PCB dimension:
WN7522C 1 5
User’s Manual
Chapter 3 Software
3.1 Operating System Supported
Windows 2000, XP, Vista ♦
♦
♦
♦
Linux Driver
3.2 Wireless Mode Supported
AP (Infrastructure) Client mode
Ad-hoc mode
3.3 Security
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
AP (Infrastructure) mode supports
Static WEP that support both 64 and 128 bit keys.
WPA(TKIP) with PSK
Ad-hoc mode supports
None (plaintext)
Static WEP that supports both 64 and 128 bit keys.
3.4 Configuration
User should be able to select
Mode of operations: AP or ad-hoc mode
Different security modes: none (plaintext), static WEP, WPA(TKIP)/PSK or
802.1X/LEAP as supported by the respective operating mode.
Channel to operate on
User should be able to perform key management on WPA/PSK and static WEP as
supported by the respective operating mode
A Utility to set SSID, WEP key, site survey, profile manager and dynamically view
configuration and receiving signal quality.
Support for transmitting power configurable.
WPS support(Pin code) ♦
♦ WPS Hard Button
WN7522C 1 6
User’s Manual

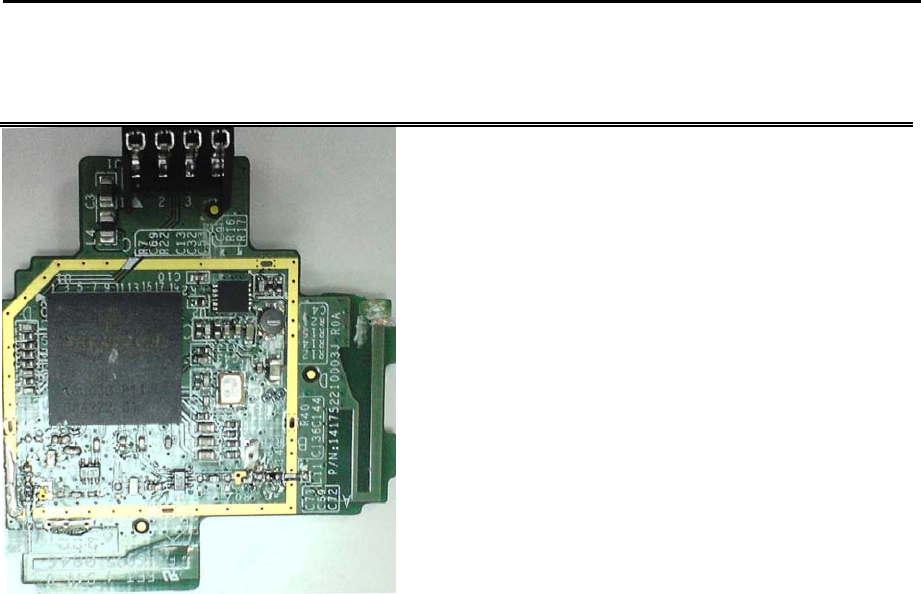

Chapter 4 Appearance
WN7522C 1 7
User’s Manual
Chapter 5 Specifications
Frequency Band:
Draft 802.11n Radio: 2.4 GHz
802.11g Radio: 2.4 GHz
802.11b Radio: 2.4 GHz
♦
♦
♦
♦
USA – FCC 2412~2462MHz (Ch1~Ch11)
Canada – IC 2412~2462MHz (Ch1~Ch11)
Europe – ETSI 2412~2472MHz (Ch1~Ch13)
France 2457~2472MHz (Ch10~Ch13)
Japan – STD-T66/STD-33 2412~2484MHz (Ch1~Ch14)
Operating Channels:
IEEE 802.11b/g/n compliant:
11 channels (US, Canada)
13 channels (ETSI)
4 channels (France)
14 channels (Japan)
Transmit Power and Sensitivity:
TX Output Power:(Typical)
11b 16.5 +/- 1 dBm
11g 16.5 +/- 1 dBm@54Mbps
11n 15.5 +/- 1 dBm
Rx Sensitivity:(Typical)
-84 dBm @11 Mbps
-72 dBm @54 Mbps
-64 dBm @64-QAM, 20MHz channel spacing
-61 dBm @64-QAM, 40MHz channel spacing
Modulation
DBPSK @1Mbps
DQPSK@2Mbp
CCK@5.5/11Mbps
BPSK@6/9 Mbps
WN7522C 1 8
User’s Manual
QPSK@12/18Mbps
16-QAM@24Mbps
64-QAM@48/54Mpb and above
♦
♦
♦
♦
♦
♦
♦
♦
Current consumption(5V DC):
TX: 380mA Max, @MCS7, 40MHz
RX: 350mA Max, @MCS15, 40MHz
Power Saving: < 50mA
Radio OFF mode: < 100mA
Operating Temperature: 0 ~ 40 oC ambient
Storage Temperature: -10 ~ 70 oC ambient
Humidity: 5 ~ 90% and must be non-condensing
Regulation and certification compliance available:
WHQL
ETSI/CE
ESD: EN61000-4-2, which specifies 4kV contact and 8kV air discharge.
WN7522C 1 9
User’s Manual
References
IEEE 802.11b Standard Specification ♦
♦
♦
IEEE 802.11g Standard Specification
IEEE 802.11n draft Standard Specification
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm between
the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
WN7522C 1 10
User’s Manual
2.4GHz operation of this product in the U.S.A. is firmware-limited to channels 1 through 11.
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC
compliance requirement of the end product, which integrates this module.
20cm minimum distance has to be able to be maintained between the antenna and the users for the host
this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth
for an population/uncontrolled environment can be satisfied.
Any changes or modifications not expressly approved by the manufacturer could void the user's
authority to operate this equipment.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep at least 20cm
separation with the antenna while this end product is installed and operated. The end user has to be
informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment can be
satisfied. The end user has to also be informed that any changes or modifications not expressly
approved by the manufacturer could void the user's authority to operate this equipment. If the size of
the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is required to be
available in the users manual: This device complies with Part 15 of FCC rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interference and (2) this device
must accept any interference received, including interference that may cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains TX FCC ID:
RAXWNC7522C ". If the size of the end product is larger than 8x10cm, then the following FCC part
15.19 statement has to also be available on the label: This device complies with Part 15 of FCC rules.
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference and (2) this device must accept any interference received, including interference that may
cause undesired operation.
WN7522C 1 11
User’s Manual
IC Statement
This device complies with RSS-210 of the Industry Canada Rules.
Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause undesired operation
of the device
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numerique de la class B est conforme a la norme NMB-003 du Canada.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with Canada radiation exposure limits set forth for uncontrolled
environments. This equipment should be installed and operated with minimum distance 20cm between
the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
2.4GHz operation of this product in Canada is firmware-limited to channels 1 through 11.
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is still responsible for the IC
compliance requirement of the end product, which integrates this module.
20cm minimum distance has to be able to be maintained between the antenna and the users for the host
this module is integrated into. Under such configuration, the IC RSS-102 radiation exposure limits set
forth for an population/uncontrolled environment can be satisfied.
Any changes or modifications not expressly approved by the manufacturer could void the user's
authority to operate this equipment.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep at least 20cm
separation with the antenna while this end product is installed and operated. The end user has to be
informed that the IC radio-frequency exposure guidelines for an uncontrolled environment can be
satisfied. The end user has to also be informed that any changes or modifications not expressly
approved by the manufacturer could void the user's authority to operate this equipment. IC statement is
WN7522C 1 12
User’s Manual
required to be available in the users manual: This Class B digital apparatus complies with Canadian
ICES-003. Operation is subject to the following two conditions: (1) this device may not cause harmful
interference and (2) this device must accept any interference received, including interference that may
cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains TX IC :
4711A-WN7522C ".
The drawings, specifications and the data contain herein are the exclusive property of Arcadyan
Technology Corp. issued in strict confidence and shall not, without the prior written permission of
Arcadyan Technology Corp., be reproduced, copied or used, in parts or as a whole, for any purpose
whatsoever, except the manufacture of articles for Arcadyan Technology Corp.
Arcadyan makes no warranties with respect to the correctness, accuracy or wholeness of this
specification. The information in this document is subject to change without notice. Arcadyan
reserves the right to make revisions to this document and the product described herein without
obligation to notify any person or entity of any such changes.
WARNING
This document is intended for internal use only. A Non-Disclosure Agreement (NDA)
is required to release this document under any circumstances
WN7522C 1 13
