Arcadyan Technology WN7522CJU 802.11n Single band WLAN module User Manual User MAnual
Arcadyan Technology Corporation 802.11n Single band WLAN module User MAnual
User MAnual
User Manual
WN7522C 1 1
User Manual
WN7522C 1
802.11n Single band WLAN module
V1.0
User Manual
WN7522C 1 2
Table of Contents
Chapter 1 Introduction________________________________________________________ 4
1. Introduction ________________________________________________________ 4
1.1 Product Features____________________________________________________ 4
1.2 Applications _______________________________________________________ 4
Chapter 2 Hardware_______________________________________________________ 5
2.1 General Overview __________________________________________________ 5
2.2 Hardware Architecture _______________________________________________ 5
2.3 Main Chipset Information ____________________________________________ 5
Chapter 3 Software _______________________________________________________ 5
3.1 Operating System Supported __________________________________________ 6
3.2 Wireless Mode Supported ____________________________________________ 6
3.3 Security___________________________________________________________ 6
3.4 Configuration _______________________________________________________
Chapter 4 Appearance _____________________________________________________ 7
Chapter 5 Specifications ___________________________________________________8
Table 1: Modulation Scheme and Nominal Transmit Power _________________________14
User Manual
WN7522C 1 3
Revision History
Edition # Reason for revision Issue date Written by
V 0.1 ♦ Initial Document May 25, 2009 Stephen Fan
V1.0 ♦ New USB connector June 8,2009 Stephen Fan
User Manual
WN7522C 1 4
Chapter 1 Introduction
1. Introduction
WN7522C 1 is a single band wireless 802.11n USB module for Blu-ray players and other
multi-media devices. It enables multi-media devices to connect onto 802.11n WLAN network
and attain data communication speeds up to 300 megabits-per-second (Mbps). It is also
backward compatible to the existing installed base 802.11b/g network.
1.1 Product Features
♦ High speed for wireless LAN connection, RX up at 300 Mbps data rate.
♦ Backward compatible to the existing IEEE 802.11/b/g WLAN infrastructure.
♦ On-board PCB antenna
♦ Support USB v2.0
1.2 Applications
♦ Home networking for device sharing.
♦ Wireless multimedia.
User Manual
WN7522C 1 5
Chapter 2 Hardware
2.1 General Overview
♦ USB 2.0 Interface and 802.11 n chipset-on-board design.
2.2 Hardware Architecture
Broadcom 43231 single chip USB2.0
2.3 Main Chipset Information
♦ BCM43231: MIMO MAC + Baseband processor and RF with integrated 2.4GHz PA
2.4 PCB dimension:
• PCB Dimensions: 68mm x 21.8mm x 1mm (L x W x H)
• PCBA net weight: around 6g
2.5 Host Interface
• USB 2.0 interface (4-pin connector)
2.5 Antenna
• Single band on-board PCB antennas with 2 dBi antenna gain
User Manual
WN7522C 1 6
Chapter 3 Software
3.1 Operating System Supported
♦ Windows 2000, XP, Vista
♦ Linux Driver
3.2 Wireless Mode Supported
♦ AP (Infrastructure) Client mode
3.3 Security
♦ AP (Infrastructure) mode supports
♦ Static WEP that support both 64 and 128 bit keys.
♦ WPA(TKIP) with PSK
♦ Ad-hoc mode supports
♦ None (plaintext)
♦ Static WEP that supports both 64 and 128 bit keys.
User Manual
WN7522C 1 7
Chapter 4 Appearance

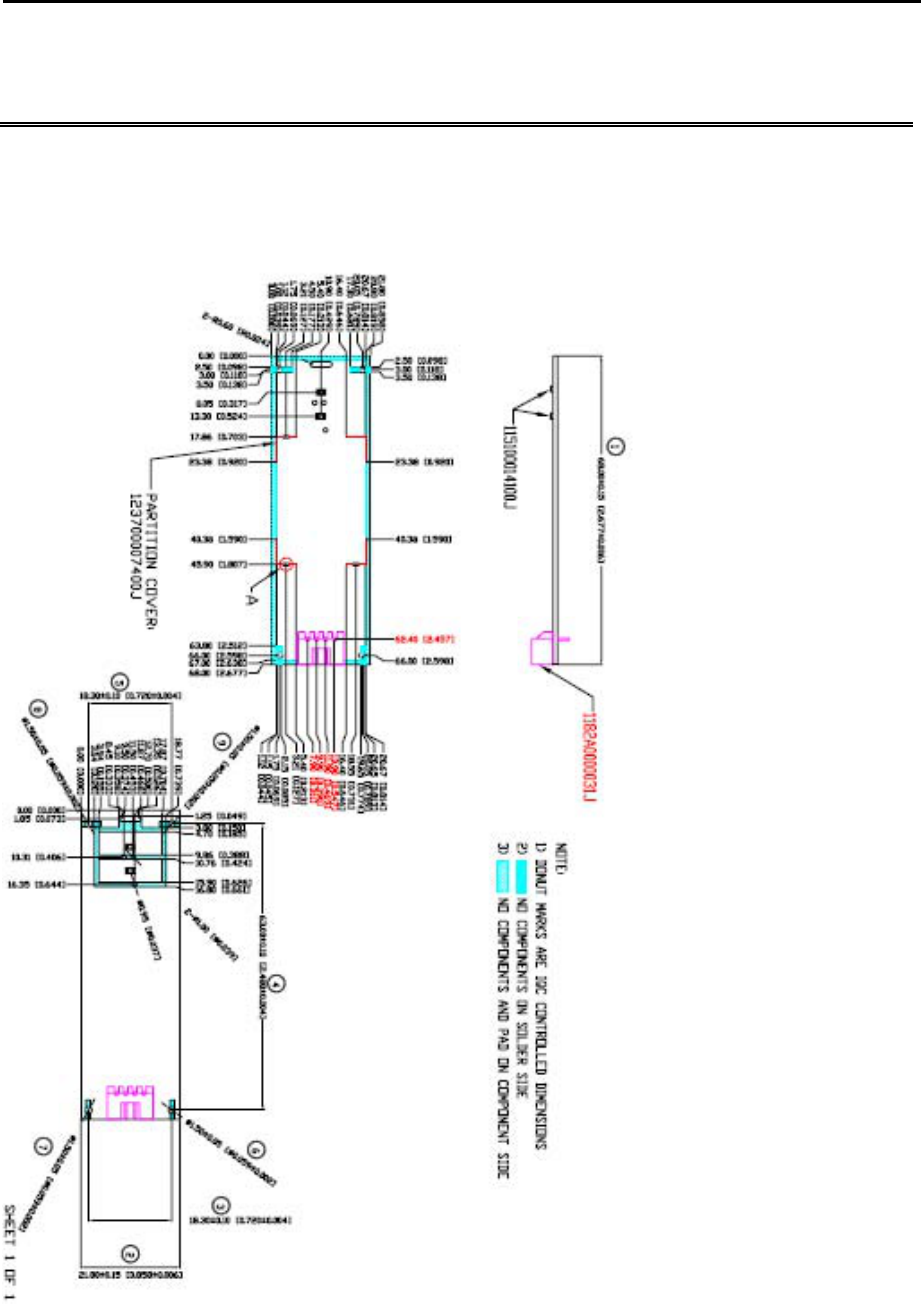

Figure 4-1 below illustrates the mechanic drawing of the module with 4-pin USB connector.
Figure 4-1 Mechanic drawing
User Manual
WN7522C 1 8
Chapter 5 Specifications
♦ Frequency Band:
Draft 802.11n Radio: 2.4 GHz
802.11g Radio: 2.4 GHz
802.11b Radio: 2.4 GHz
USA – FCC 2412~2462MHz (Ch1~Ch11)
Canada – IC 2412~2462MHz (Ch1~Ch11)
Europe – ETSI 2412~2472MHz (Ch1~Ch13)
France 2457~2472MHz (Ch10~Ch13)
Japan – STD-T66/STD-33 2412~2484MHz (Ch1~Ch14)
♦ Operating Channels:
IEEE 802.11b/g/n compliant:
11 channels (US, Canada)
13 channels (ETSI)
4 channels (France)
14 channels (Japan)
♦ Transmit Power and Sensitivity:
TX Output Power:(Typical)
11b 16.5 +/- 1 dBm
11g 16.5 +/- 1 dBm@54Mbps
11n 15.5 +/- 1 dBm
Rx Sensitivity:(Typical)
-84 dBm @11 Mbps
-72 dBm @54 Mbps
-64 dBm @64-QAM, 20MHz channel spacing
-61 dBm @64-QAM, 40MHz channel spacing
♦ Modulation
DBPSK @1Mbps
DQPSK@2Mbp
CCK@5.5/11Mbps
BPSK@6/9 Mbps
User Manual
WN7522C 1 9
QPSK@12/18Mbps
16-QAM@24Mbps
64-QAM@48/54Mpb and above
♦ Current consumption(5V DC):
TX: 380mA Max, @MCS7, 40MHz
RX: 350mA Max, @MCS15, 40MHz
Power Saving: < 50mA
Radio OFF mode: < 100mA
♦ Operating Temperature: 0 ~ 40 oC ambient
♦ Storage Temperature: -10 ~ 70 oC ambient
♦ Humidity: 5 ~ 90% and must be non-condensing
♦ Regulation and certification compliance available:
♦ WHQL
♦ ETSI/CE
♦ ESD: EN61000-4-2, which specifies 4kV contact and 8kV air discharge.
User Manual
WN7522C 1 10
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
2.4GHz operation of this product in the U.S.A. is firmware-limited to channels 1
through 11.
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is still
responsible for the FCC compliance requirement of the end product, which
User Manual
WN7522C 1 11
integrates this module.
20cm minimum distance has to be able to be maintained between the antenna
and the users for the host this module is integrated into. Under such
configuration, the FCC radiation exposure limits set forth for an
population/uncontrolled environment can be satisfied.
Any changes or modifications not expressly approved by the manufacturer
could void the user's authority to operate this equipment.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to
keep at least 20cm separation with the antenna while this end product is
installed and operated. The end user has to be informed that the FCC
radio-frequency exposure guidelines for an uncontrolled environment can be
satisfied. The end user has to also be informed that any changes or
modifications not expressly approved by the manufacturer could void the user's
authority to operate this equipment. If the size of the end product is smaller
than 8x10cm, then additional FCC part 15.19 statement is required to be
available in the users manual: This device complies with Part 15 of FCC rules.
Operation is subject to the following two conditions: (1) this device may not
cause harmful interference and (2) this device must accept any interference
received, including interference that may cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following "
Contains TX FCC ID: RAXWN7522CJU ". If the size of the end product is
larger than 8x10cm, then the following FCC part 15.19 statement has to also
be available on the label: This device complies with Part 15 of FCC rules.
Operation is subject to the following two conditions: (1) this device may not
cause harmful interference and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Industry Canada Statement
This device complies with RSS-210 of the Industry Canada Rules.
User Manual
WN7522C 1 12
Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause
undesired operation of the device
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numerique de la class B est conforme a la norme NMB-003 du Canada.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with Canada radiation exposure limits set forth for
uncontrolled environments. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
2.4GHz operation of this product in Canada is firmware-limited to channels 1 through
11.
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is still
responsible for the IC compliance requirement of the end product, which
integrates this module.
20cm minimum distance has to be able to be maintained between the antenna
and the users for the host this module is integrated into. Under such
configuration, the IC RSS-102 radiation exposure limits set forth for an
population/uncontrolled environment can be satisfied.
Any changes or modifications not expressly approved by the manufacturer
could void the user's authority to operate this equipment.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to
keep at least 20cm separation with the antenna while this end product is
installed and operated. The end user has to be informed that the IC
radio-frequency exposure guidelines for an uncontrolled environment can be
satisfied. The end user has to also be informed that any changes or
User Manual
WN7522C 1 13
modifications not expressly approved by the manufacturer could void the user's
authority to operate this equipment. IC statement is required to be available in
the users manual: This Class B digital apparatus complies with Canadian
ICES-003. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference and (2) this device must accept any
interference received, including interference that may cause undesired
operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following "
Contains TX IC : 4711A-WN7522CJU ".
User Manual
WN7522C 1 14
References
♦ IEEE 802.11b Standard Specification
♦ IEEE 802.11g Standard Specification
♦ IEEE 802.11n draft Standard Specification
The drawings, specifications and the data contain herein are the exclusive property of Arcadyan
Technology Corp. issued in strict confidence and shall not, without the prior written permission of
Arcadyan Technology Corp., be reproduced, copied or used, in parts or as a whole, for any purpose
whatsoever, except the manufacture of articles for Arcadyan Technology Corp.
Arcadyan makes no warranties with respect to the correctness, accuracy or wholeness of this
specification. The information in this document is subject to change without notice. Arcadyan
reserves the right to make revisions to this document and the product described herein without
obligation to notify any person or entity of any such changes.
