USer Manual
Product Specification
WN8522B 1
Product Specification
WN8522B 4
IEEE Dual Band 802.11n USB2.0 module
v.02 draft
Product Specification
WN8522B 2
Table of Contents
Chapter 1 Introduction .......................................................................................................... 4
1. Introduction ................................................................................................................. 4
1.1 Product Features ........................................................................................................ 4
1.2 Applications .............................................................................................................. 4
Chapter 2 Hardware .............................................................................................................. 5
2.1 General Overview ..................................................................................................... 5
2.2 Hardware Architecture .............................................................................................. 5
2.3 Main Chipset Information ......................................................................................... 5
2.4 PCB dimension ............................................................................................................. 5
Chapter 3 Software ............................................................................................................... 6
3.1 Operating System Supported ..................................................................................... 6
3.2 Wireless Mode Supported ......................................................................................... 6
3.3 Security ...................................................................................................................... 6
Chapter 4 Appearance ........................................................................................................... 7
.................................................................................................................................................... 7
Chapter 5 Specifications ....................................................................................................... 8
References ................................................................................................................................ 10
Product Specification
WN8522B 3
Revision History
Edition # Reason for revision Issue date Written by
V 01 Initial Document Dec 22th 2009 Troy Chen
V02 Revise PCB outline March 1, 2010 Troy Chen
Product Specification
WN8522B 4
Chapter 1 Introduction
1. Introduction
WN8522B 4 is a dual band wireless 802.11n USB Adapter which enables wireless
networking systems to attain data communication speeds up to 300 megabits-per-second
(Mbps), while remaining backward compatible to the existing installed base of Wi-Fi systems
worldwide. It supports operation to the IEEE 802.11a/b and IEEE 802.11g ,and draft IEEE
802.11n standards.
WN8522B 4 will enable a next generation of high-data-rate platforms for operation in the 2.4
GHz band that deliver a five-fold speed increase. The cost and performance advantages will
make it an ideal solution for high bandwidth enterprise applications, such as wireless video
conferencing and large file transfers. It is compatible with 802.11g standard's mandatory
modulation schemes—Complementary Code Keying (CCK), which is used in 802.11b, and
Orthogonal Frequency Division Multiplexing (OFDM), used in 802.11g and draft 802.11n.
Using CCK ensures backward-compatibility with the installed Wi-Fi 802.11b base, while
OFDM provides the speed required for today's high-bandwidth applications.
1.1 Product Features
High speed for wireless LAN connection, RX up at 300 Mbps data rate.
Backward compatible to the existing IEEE 802.11a/b/g WLAN infrastructure.
User-friendly utility to configure SSID, security setup and site survey.
Wireless data encryption with 64, 128 encryption for security.
Internal antenna
Support USB v2.0
1.2 Applications
Home networking for device sharing.
Wireless multimedia.
Product Specification
WN8522B 5
Chapter 2 Hardware
2.1 General Overview
USB 2.0 Interface and 802.11 n chipset-on-board design.
Antenna: 2 Internal Antenna on board
2.2 Hardware Architecture
Broadcom 4323 single chip USB2.0
2.3 Main Chipset Information
BCM4323: MIMO MAC + Baseband processor and RF with fully forward compatible with IEEE 802.11n
draft2.0 standard.

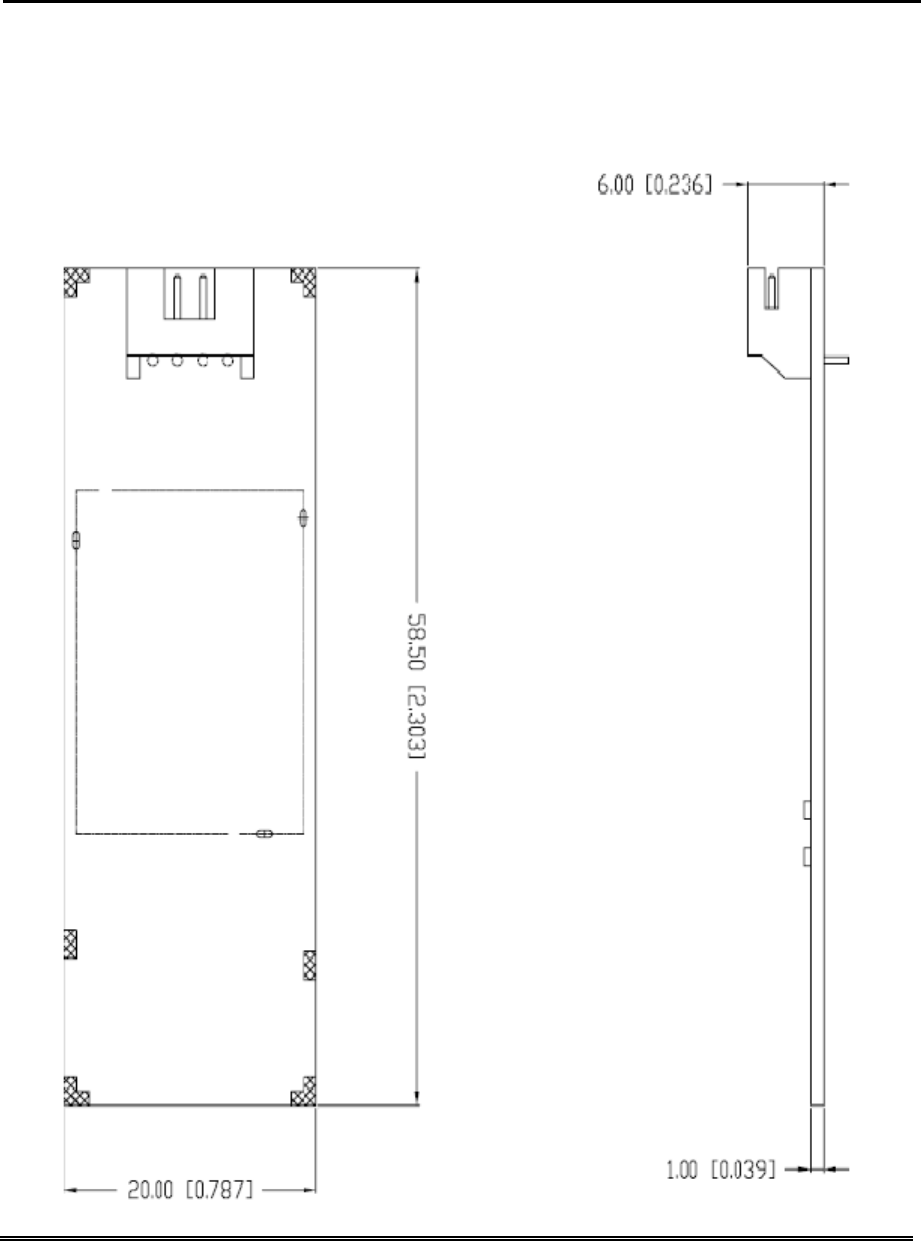

2.4 PCB dimension
PCB dimension : 2.0 cm x 5.8.5 cm
Product Specification
WN8522B 6
Chapter 3 Software
3.1 Operating System Supported
Windows 2000 , Windows XP, Windows Vista
3.2 Wireless Mode Supported
AP (Infrastructure) Client mode
Ad-hoc mode
3.3 Security
AP (Infrastructure) mode supports
Static WEP that support both 64 and 128 bit keys.
WPA(TKIP) with PSK
Ad-hoc mode supports
None (plaintext)
Static WEP that supports both 64 and 128 bit keys.
Product Specification
WN8522B 7
Chapter 4 Appearance
Product Specification
WN8522B 8
Chapter 5 Specifications
Frequency Band:
Draft 802.11n Radio: 2.4 GHz
802.11g Radio: 2.4 GHz
802.11b Radio: 2.4 GHz
USA – FCC 2412~2462MHz (Ch1~Ch11)
Canada – IC 2412~2462MHz (Ch1~Ch11)
Europe – ETSI 2412~2472MHz (Ch1~Ch13)
Japan – STD-T66/STD-33 2412~2484MHz (Ch1~Ch14)
802.11a Radio : 5 GHz
5.150~5.250GHz
5.250~5.350 GHz
5.470~5.725 GHz
5.725~5.850GHz
Operating Channels:
IEEE 802.11b/g/n compliant:
11 channels (US, Canada)
13 channels (ETSI)
14 channels (Japan)
Transmit Power and Sensitivity:
TX Output Power:(Typical)
11b 18.5 +/- 2.5 dBm
11g 15 +/- 2.5 dBm@54Mbps
11n 14.5 +/- 2.5 dBm
Rx Sensitivity:(Typical)
-84 dBm @11 Mbps
-70 dBm @54 Mbps
-64 dBm @64-QAM, 20MHz channel spacing
-61 dBm @64-QAM, 40MHz channel spacing
Modulation
DBPSK @1Mbps
DQPSK@2Mbp
Product Specification
WN8522B 9
CCK@5.5/11Mbps
BPSK@6/9 Mbps
QPSK@12/18Mbps
16-QAM@24Mbps
64-QAM@48/54Mpb and above, RX up to 300Mbps
Current consumption(5V DC):
TX: <500mA , @MCS7, 40MHz
RX: 450mA Max, @MCS15, 40MHz
Power Saving: <ToBeUpdate> mA
Radio OFF mode: 50 mA
Operating Temperature: 0 ~ 40 oC ambient
Storage Temperature: -10 ~ 70 oC ambient
Humidity: 5 ~ 90% and must be non-condensing
Regulation and certification compliance available:
WHQL
ETSI/CE
ESD: EN61000-4-2, which specifies 4kV contact and 8kV air discharge.
Product Specification
WN8522B 10
References
BRCM Reference Design Functional Specification
IEEE 802.11b Standard Specification
IEEE 802.11g Standard Specification
IEEE 802.11n draft Standard Specification
The drawings, specifications and the data contain herein are the exclusive property of Arcadyan
Technology Corp. issued in strict confidence and shall not, without the prior written permission of
Arcadyan Technology Corp., be reproduced, copied or used, in parts or as a whole, for any purpose
whatsoever, except the manufacture of articles for Arcadyan Technology Corp.
Arcadyan makes no warranties with respect to the correctness, accuracy or wholeness of this
specification. The information in this document is subject to change without notice. Arcadyan
reserves the right to make revisions to this document and the product described herein without
obligation to notify any person or entity of any such changes.
WARNING
This document is intended for internal use only. A Non-Disclosure Agreement (NDA)
is required to release this document under any circumstances
Product Specification
WN8522B 11
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
● Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to operate
this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of
other channels is not possible.
This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or
transmitter.
This device is going to be operated in 5.15~5.25GHz frequency range, it is restricted in indoor environment only.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator &
your body.
Product Specification
WN8522B 12
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
● Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to operate
this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of
other channels is not possible.
This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or
transmitter.
This device is going to be operated in 5.15~5.25GHz frequency range, it is restricted in indoor environment only.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator &
your body.
IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is still
responsible for the FCC compliance requirement of the end product, which integrates this module.
20cm minimum distance has to be able to be maintained between the antenna and the users for the
host this module is integrated into. Under such configuration, the FCC radiation exposure limits set
forth for an population/uncontrolled environment can be satisfied.
Any changes or modifications not expressly approved by the manufacturer could void the user's
authority to operate this equipment.
USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user
has to be informed to keep at least 20cm separation with the antenna while this end product is
installed and operated. The end user has to be informed that the FCC radio-frequency exposure
guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed
that any changes or modifications not expressly approved by the manufacturer could void the user's
authority to operate this equipment. If the size of the end product is smaller than 8x10cm, then
additional FCC part 15.19 statement is required to be available in the users manual: This device
complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference and (2) this device must accept any interference received,
including interference that may cause undesired operation.
LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the
following " Contains TX FCC ID: RAX-WN8522B65M ". If the size of the end product is larger than
8x10cm, then the following FCC part 15.19 statement has to also be available on the label: This
device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference and (2) this device must accept any interference
received, including interference that may cause undesired operation.
