Chapter 1 Introduction
1. Introduction
WN8522D is a dual band wireless 802.11n USB Adapter which enables wireless networking
systems to attain data communication speeds up to 300 megabits-per-second (Mbps), while
remaining backward compatible to the existing installed base of Wi-Fi systems worldwide. It
supports operation to the IEEE 802.11a/b and IEEE 802.11g ,and draft IEEE 802.11n
standards.
WN8522B will enable a next generation of high-data-rate platforms for operation in the 2.4
GHz band that deliver a five-fold speed increase. The cost and performance advantages will
make it an ideal solution for high bandwidth enterprise applications, such as wireless video
conferencing and large file transfers. It is compatible with 802.11g standard's mandatory
modulation schemes—Complementary Code Keying (CCK), which is used in 802.11b, and
Orthogonal Frequency Division Multiplexing (OFDM), used in 802.11g and draft 802.11n.
Using CCK ensures backward-compatibility with the installed Wi-Fi 802.11b base, while
OFDM provides the speed required for today's high-bandwidth applications.
1.1 Product Features
♦ High speed for wireless LAN connection, RX up at 300 Mbps data rate.
♦ Backward compatible to the existing IEEE 802.11a/b/g WLAN infrastructure.
♦ User-friendly utility to configure SSID, security setup and site survey.
♦ Wireless data encryption with 64, 128 encryption for security.
♦ Support USB v2.0
1.2 Applications
♦ Home networking for device sharing.
♦ Wireless multimedia.
Product Specification
WN8522D 3 5
Chapter 2 Hardware
2.1 General Overview
♦ USB 2.0 Interface and 802.11 n chipset-on-board design.
♦ Antenna: 2 external Antennas on board
2.2 Hardware Architecture
Broadcom 43236 single chip USB2.0
2.3 Main Chipset Information
♦ BCM43236 is a dual band IEEE 802.11n-compliant MAC/PHY/Radio complete system
on a chip with 2.4Ghz and 5GHz internal PA

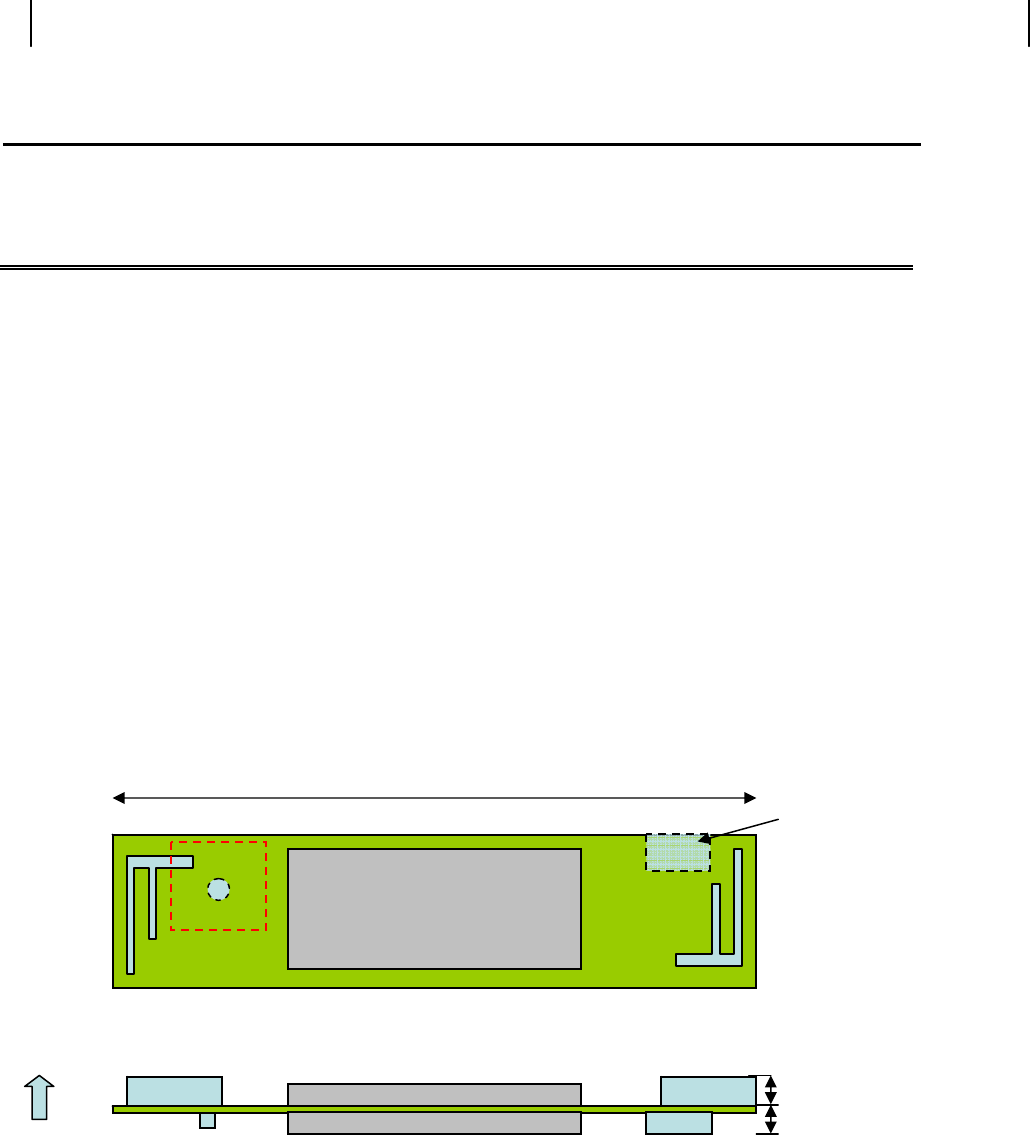

2.4 PCB dimension
PCB dimension : 78.6x20 mm
RF Shield
include Crystal
20 max
Part prohibit area:
10x10
RF connecter
USB
Antenna B
Antenna A
Metal ANT
Metal ANT
Bottom
Top
5 max
TV front
Place right as
much as possible
USB
5 max
Shield can be top or bottom
Product Specification
WN8522D 3 6

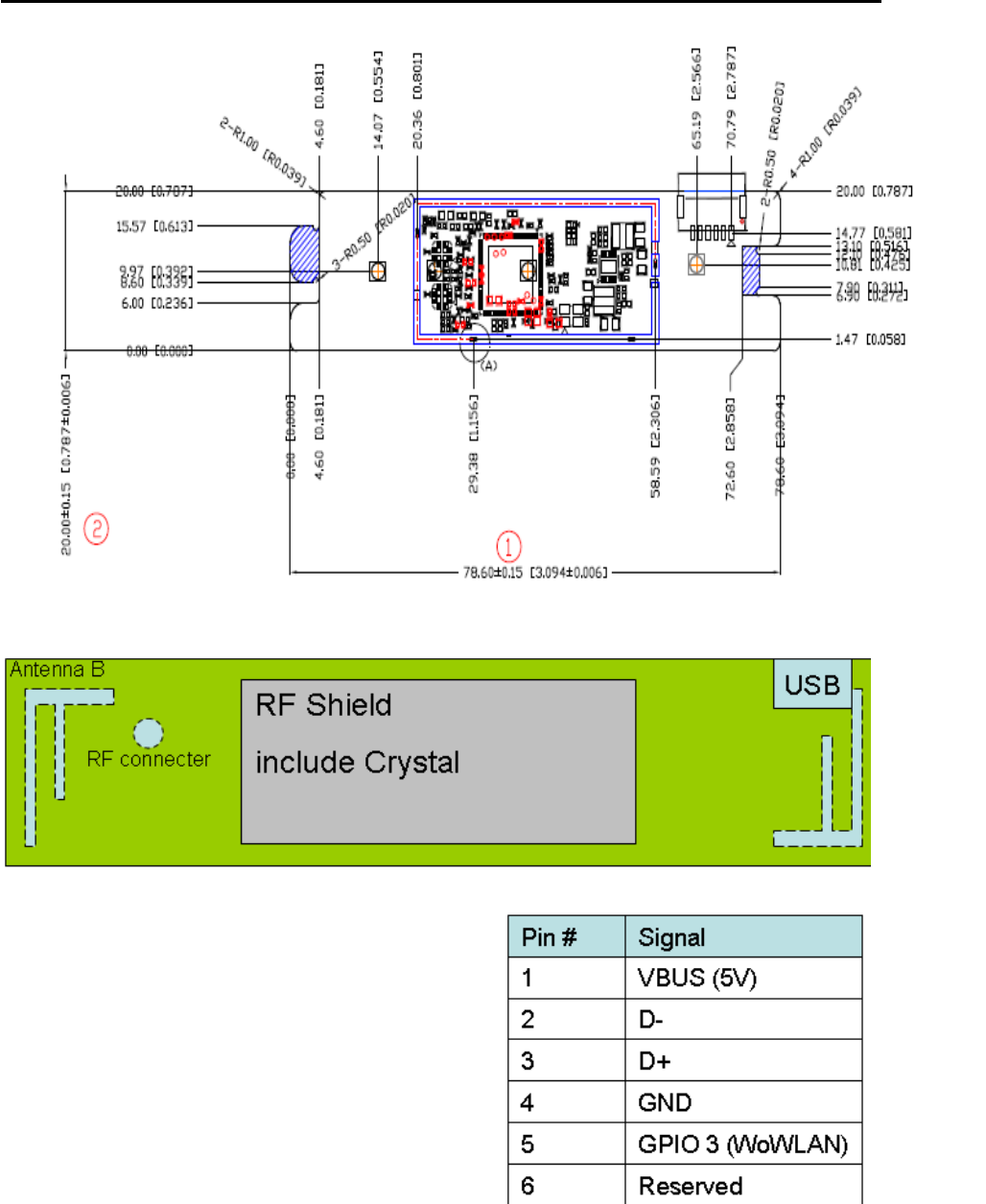

2.5 Pin Assignment
Product Specification
WN8522D 3 7
Chapter 3 Software
3.1 Operating System Supported
♦ Windows 2000, XP, Vista
♦ Linux Driver
3.2 Wireless Mode Supported
♦ AP (Infrastructure) Client mode
3.3 Security
♦ AP (Infrastructure) mode supports
♦ Static WEP that support both 64 and 128 bit keys.
♦ WPA(TKIP) with PSK
♦ Ad-hoc mode supports
♦ None (plaintext)
♦ Static WEP that supports both 64 and 128 bit keys.
Product Specification
WN8522D 3 8
Chapter 4 Appearance
Product Specification
WN8522D 3 9
Chapter 5 Specifications
♦ Frequency Band:
Draft 802.11n Radio: 2.4 GHz
802.11g Radio: 2.4 GHz
802.11b Radio: 2.4 GHz
USA – FCC 2412~2462MHz (Ch1~Ch11)
Canada – IC 2412~2462MHz (Ch1~Ch11)
Europe – ETSI 2412~2472MHz (Ch1~Ch13)
Japan – STD-T66/STD-33 2412~2484MHz (Ch1~Ch14)
802.11a Radio : 5 GHz
5.150~5.250GHz
5.250~5.350 GHz
5.470~5.725 GHz
5.725~5.850GHz
♦ Operating Channels:
IEEE 802.11b/g/n compliant:
11 channels (US, Canada)
13 channels (ETSI)
14 channels (Japan)
♦ Transmit Power and Sensitivity:
TX Output Power:(Typical)
TX Output Power:(Typical) TBD
11b 17 +/- 1.5 dBm
11g 14 +/- 1.5 dBm@54Mbps
11n 13.5 +/- 1.5 dBm
Rx Sensitivity:(Typical)
-68dBm at HT20 m15 2.4GHz
-88dBm at HT20 m0 2.4GHz
-68dBm at HT20 m15 5.0GHz
-88dBm at HT20 m0 5.0GHz
Current consumption(5V DC):
Product Specification
WN8522D 3 10
TX: TBDat 11dBm HT40 CH38 2x2
RX: TBD at 11dBm HT40 CH38 2x2
Power Saving: TBD
Radio OFF mode: TBD
♦ Modulation
DBPSK @1Mbps
DQPSK@2Mbp
CCK@5.5/11Mbps
BPSK@6/9 Mbps
QPSK@12/18Mbps
16-QAM@24Mbps
64-QAM@48/54Mpb and above
♦ Operating Temperature: 0 ~ 60 oC ambient
♦ Storage Temperature: -20 ~ 60 oC ambient
♦ Humidity: under 85% and must be non-condensing
♦ Regulation and certification compliance available:
♦ ETSI/CE
♦ FCC
♦ ESD: EN61000-4-2, which specifies 4kV contact and 8kV air discharge.
Product Specification
WN8522D 3 11
References
♦ BRCM Reference Design Functional Specification
♦ IEEE 802.11b Standard Specification
♦ IEEE 802.11g Standard Specification
♦ IEEE 802.11n draft Standard Specification
