Arcadyan Technology WN8722BTAAC WN8722BTAAC-VO User Manual IEEE 802

Arcadyan Technology Corporation WN8722BTAAC-VO IEEE 802

User Manual

IEEE 802.11a/b/g/n Wireless
Dual-Band Network Adapter
IEEE Dual Band 802.11n USB2.0 module for DTV
Model # S BOM-06005-000
Introduction
The Wireless Dual-band USB Network Adapter is another cutting edge introduction in both 5GHz and 2.4GHz wireless
communication for home networking devices. Designed for both your home and office, this wireless network adapter
provides excellent performance of speed, coverage and security expected by today’s wireless users.
WN8722BTAAC-VO is IEEE 802.11n compliant while maintaining full backwards compatibility with the 802.11a, 802.11b
and 802.11g standards. It utilizes advanced MIMO (Multiple-In, Multiple-Out) technology to deliver incredible speed and
range. The Wireless Dual-band Network Adapter provides an excellent solution for sharing an Internet connection and
files such as video, music, photos, and documents.
Hardware
General Overview
USB 2.0 Interface
3 * antenna connectors
Hardware Architecture
Broadcom 43570 single chip USB2.0
Main Chipset Information
BCM43570: MIMO MAC + Baseband processor and RF with fully forward compatible with IEEE 802.11n draft2.0 standard.

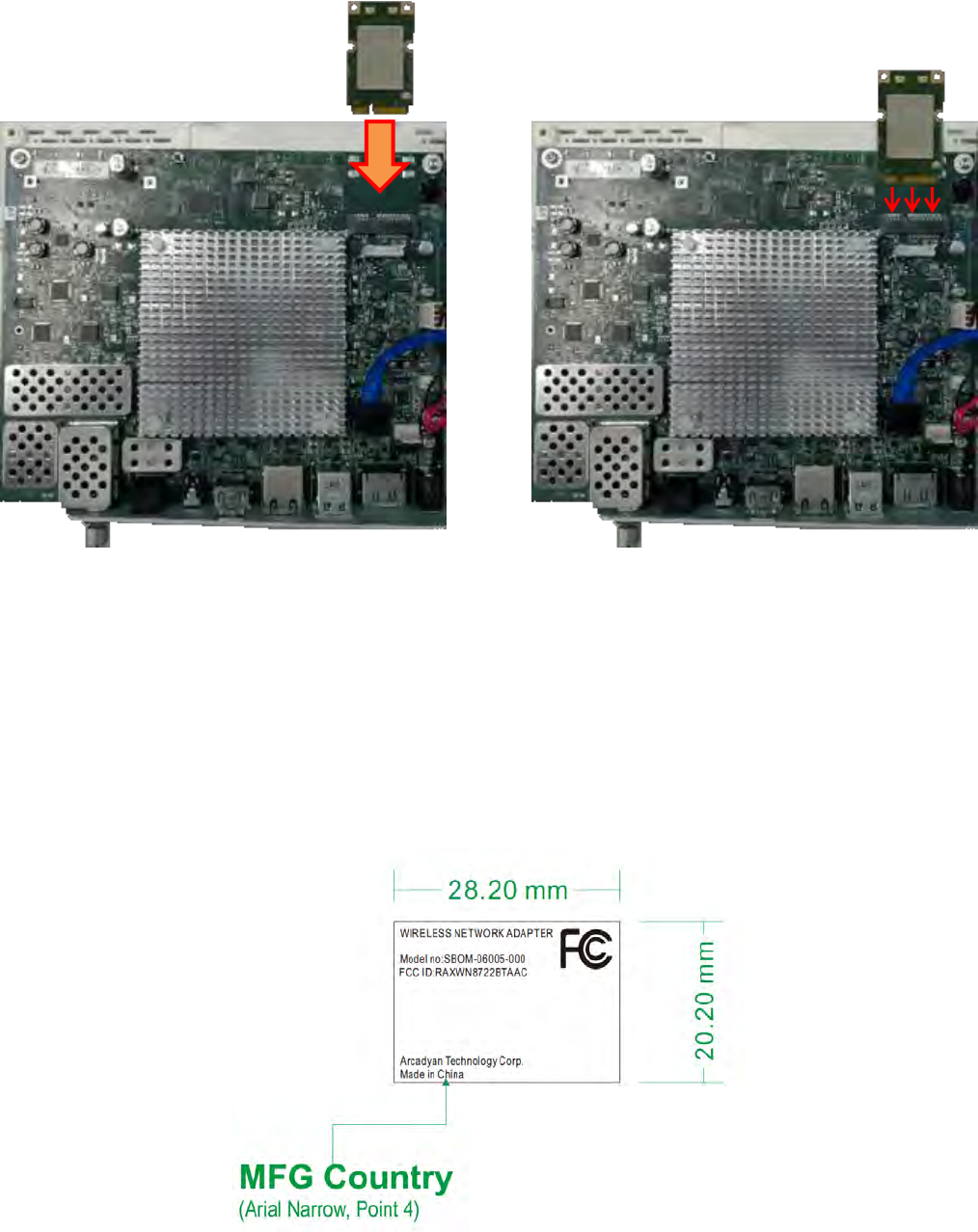

Inserting the USB Network Adapter
ID label
Software
Operating System Supported
Windows 2000, XP, Vista
Wireless Mode Supported
AP (Infrastructure) Client mode
Security
AP (Infrastructure) mode supports
Static WEP that support both 64 and 128 bit keys.
WPA(TKIP) with PSK
Ad-hoc mode supports
None (plaintext)
Static WEP that supports both 64 and 128 bit keys.
Product Specification
Frequency Band:
Draft 802.11n Radio: 2.4 GHz
802.11g Radio: 2.4 GHz
802.11b Radio: 2.4 GHz
USA – FCC: 2412~2462MHz (Ch1~Ch11)
Canada – IC: 2412~2462MHz (Ch1~Ch11)
Europe – ETSI : 2412~2472MHz (Ch1~Ch13)
Japan – STD-T66/STD-33: 2412~2484MHz (Ch1~Ch14)
Operating Channels:
IEEE 802.11b/g/n compliant:
11 channels (US, Canada)
13 channels (ETSI)
14 channels (Japan)
Modulation
DBPSK @1Mbps
DQPSK@2Mbp
CCK@5.5/11Mbps
BPSK@6/9 Mbps
QPSK@12/18Mbps
16-QAM@24Mbps
64-QAM@48/54Mpb and above, RX up to 300Mbps
Current consumption(5V DC):
TX: <480mA Max, @MCS15, 40MHz
RX: <380 mA Max, @MCS15, 40MHz
Radio OFF mode: <60 mA
Operating Temperature: 0 ~ 40 oC ambient
Storage Temperature: -10 ~ 70 oC ambient
Humidity: 5 ~ 90% and must be non-condensing
Regulation and certification compliance available:
WHQL
ETSI/CE
ESD: EN61000-4-2, which specifies 4kV contact and 8kV air discharge.
Antenna list:
Ant.
Brand
P/N
Antenna Type
Connector
Gain (dBi)
5GHz
Bluetooth
1
arcadyan
120800021300J
PCB Antenna
I-PEX
7.65
-
2
arcadyan
120800021400J
PCB Antenna
I-PEX
5.03
-
3
arcadyan
120800021500J
PCB Antenna
I-PEX
-
4.66
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not
possible.
This device and its antenna(s) must not be co-located with any other transmitters except in accordance with FCC multi-
transmitter product procedures. Referring to the multi-transmitter policy, ultiple-transmitter(s) and module(s) can be
operated simultaneously without C2PC.
This device is restricted for indoor use.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
IMPORTANT NOTE:
This module is intended for OEM integrator. The OEM integrator is responsible for the compliance to all the rules that
apply to the product into which this certified RF module is integrated. Additional testing and certification may be
necessary when multiple modules are used.
20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is
integrated into. Under such configuration, the FCC radiation exposure limits set forth for an population/uncontrolled
environment can be satisfied.
Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this
equipment.
USERS MANUAL OF THE END PRODUCT:
In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the
antenna while this end product is installed and operated. The end user has to be informed that the FCC radio-frequency
exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any
changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this
equipment. If the size of the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is required
to be available in the users manual: This device complies with Part 15 of FCC rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference
received, including interference that may cause undesired operation.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the following " Contains TX FCC ID: RAXWN8722BTAAC ". If
the size of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to also be available
on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference and (2) this device must accept any interference received, including
interference that may cause undesired operation.
