User Manual
EN
Table of contents
For more information, please consult the FAQs on www.archos.com.
Make sure to read them before considering any product return. As we
are often updating and improving our products, your device’s software
may have a slightly dierent appearance or modied functionality than
presented in this Quick Start Guide.
Package contents.............................................................................................................
Description of the motion tag.....................................................................................
Assembling..........................................................................................................................
Pairing devices..................................................................................................................
Interface description.......................................................................................................
2
3
4
5
6
2
Package Contents
Check your product box for the following items:
-Motion Tag
-Battery Lithium cell CR 2430 3V
-Quick start guide
-Warranty Legal & Safety notices
The items supplied with your device and available accessories may vary
depending on your region or service provider.
The supplied items are designed only for your device and may not be
compatible with other devices.
Unapproved accessories may cause your device to malfunction.
3
1
4
2
3
EN
1Magnet
Magnet position indicator
Pairing indicator
Pairing button
2
3
4
Description of the Motion Tag
4
Assembling

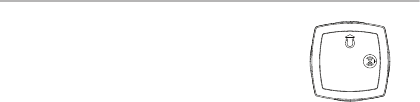

Your Motion Tag functions with a battery Lithium cell CR 24 30.
1. Unscrew the Motion Tag.
2. Insert the battery by keeping the marked side up.
3. Screw back on.
5
28-03-2013
A80b Platinum
DRAWING
Rev
0
last modification:
Confidential
EN
A Bluetooth standard BLE allows to pair your Android
device with your Motion Tag.
1. On your Android device, go to Settings > Wireless &
networks > Bluetooth.
2. Slide the Bluetooth switch to ON.
The Bluetooth icon is displayed in the status bar.
3. On your Motion Tag, hold the pairing button until the
pairing indicator starts blinking. The Motion Tag enters the
pairing mode.
4. Launch the ARCHOS@home app on your Android device
and select the Motion Tag icon.
The Motion Tag is dectected. Select to start the pairing
process. Once paired, you can detect movements.
Pairing
You have 60 seconds to pair the devices.
6
Using the Motion Tag
1. Launch the ARCHOS@Home app.
2. Select the Motion Tag icon.
3. The app interface displays OPEN when the
Motion Tag detects the remoteness of the
magnet. When it detects the magnet close-by,
the app interface displays CLOSED.
7
EN
Warning:
Statement:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference re-ceived,
including interference that may cause undesired operation.
Changes or modifications to this unit not expressly approved by the part
responsible for compliance could void the user's authority to operate the
equipment.
FCC Statements
