USERS MANUAL

SmartLink SCR2000E

Smart Card Reader

Installation Manual

A: Hardware Installation

Connect to an available PS/2 connector of your PC.

Then connect your PS/2 Mouse/Keyboard to the

extension slot at the other side of the connector if

necessary.

Connect to an available 9-Pin com port.

B. Driver Installation in Windows 98 environment.

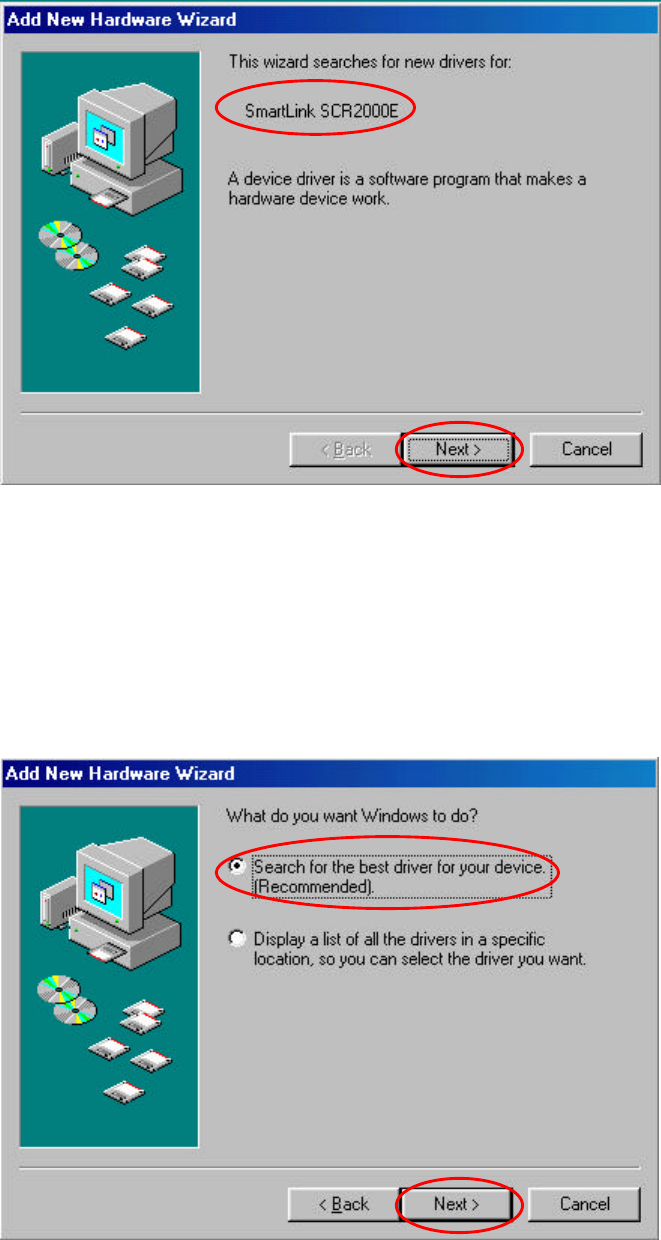

B-1

After connecting SmartLink SCR2000E, power your PC on, windows system

will find the new hardware and will guide you to install the device driver.

(As shown in the picture)

Click “ Next > ” to continue.

B-2

Select “Search for the best driver for your device.” option.

And let Windows system to install the driver for you.

Click “ Next > ” to continue.

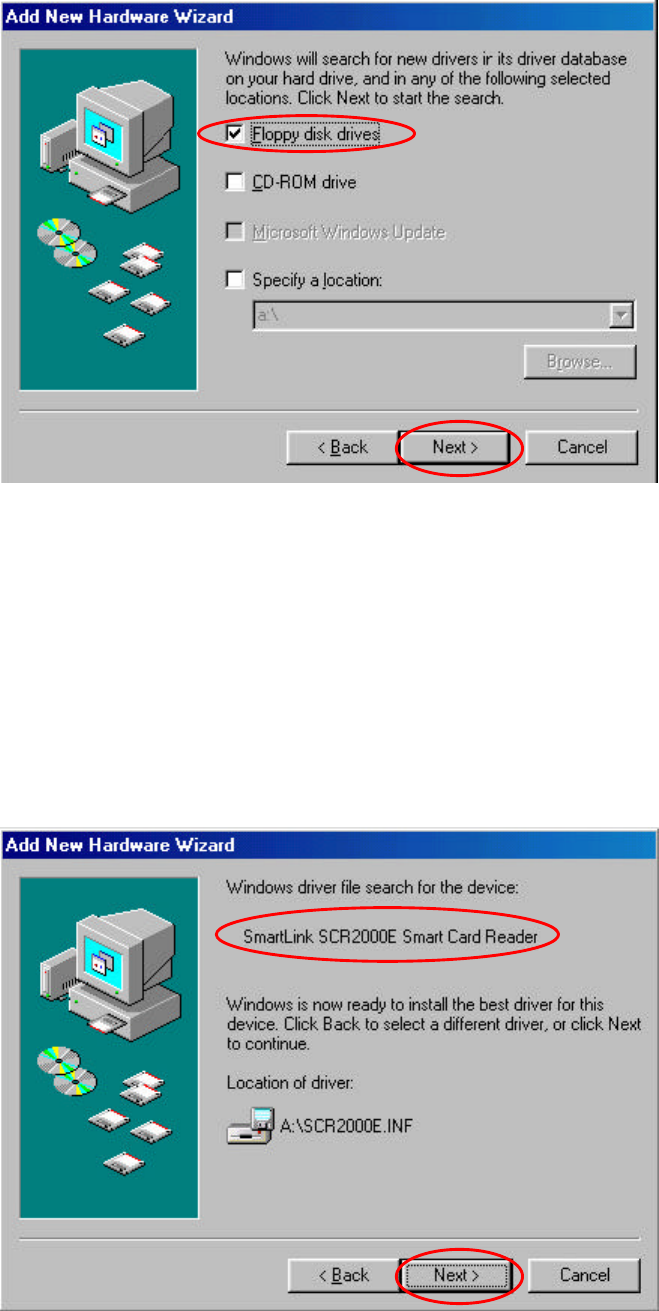

B-3

Select “Floppy disk drives” option.

And insert the installation diskette into an available Floppy disk drive.

Click “Next >” to continue.

B-4

Windows will find the driver for “SmartLink SCR2000E Smart Card Reader”.

Click “ Next > ” to continue.

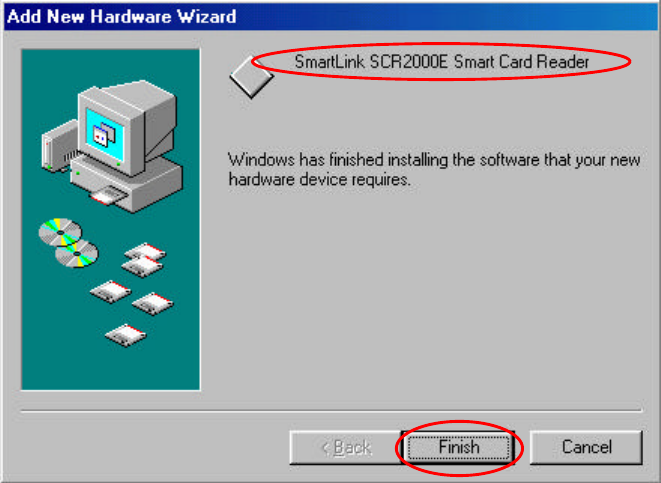

B-5

Windows has finished the installation of the driver.

Click “Finish” to complete.
