Ardi Technology M01C01 Wireless Electronic Tracker(2.4GHz) User Manual
Ardi Technology Corp. Wireless Electronic Tracker(2.4GHz)
User manual
Pick Buster User Manual
Packing description
This product contains:
* Key ring master x 1
* Battery CR2016 x 2 (inside of card slave)
* Card slave x 1
* Protection insert for card slave x 2
* Battery LR44 x 3 (inside of master)

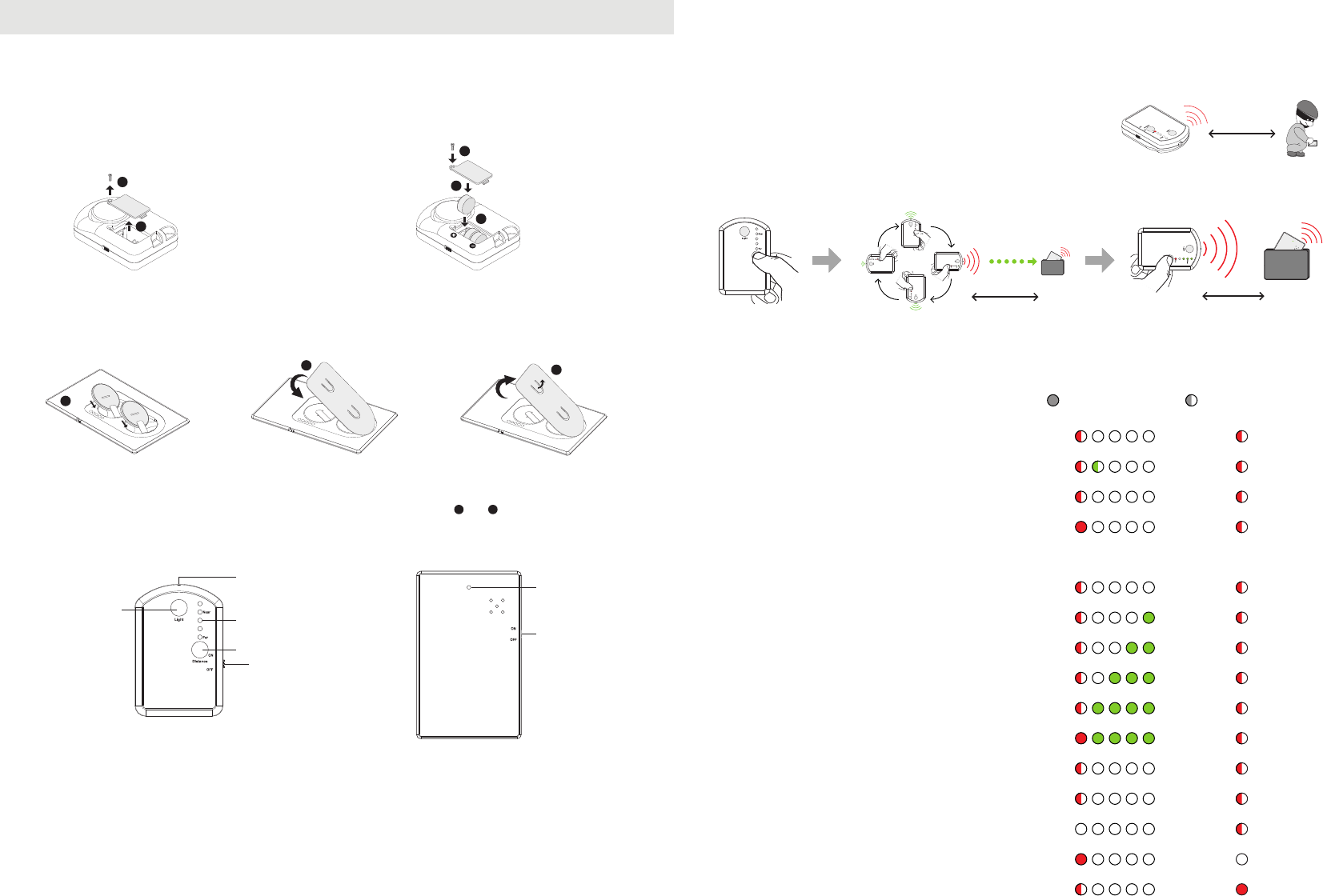

The battery installment and the key description
(1) Master battery installment, as shown in the illustration.
(2) Slave battery installment, as shown in the illustration. (Two protection inserts attached for your future replacement)
(3) Key description for master and slave, as shown in the illustration.
Specifications
Master specification: Key ring type
Size : 63 x 42 x 17.3 (mm)
Frequency : 2.4GHz ISM
Battery
: 303/AG13/LR44 x 3pcs
Button (1)
: Power switch
Button (2)
: Range detect switch
Button (3)
: LED flashlight switch
LED : 5 LEDs status indictor (when activated)
LED Light
: 1 white LED flashlight
Slave specification: Slim card type
Size : 80 x 50 x 2.4 (mm)
Frequency : 2.4GHz ISM
Battery
: CR2016 x 2pcs
Button
: Power switch
LED : 1 LED status indictor (when activated)
1
2
LED indictor for detect
Power switch
1. Remove the screw in back of master battery cover,
and take out battery cover.
2. Make sure the battery's positive (
+
) and negative (
-
) ends
are facing correctly when load it into the unit as shown in
direction (total three batteries), and put battery cover back,
then screw tighten it.
3
4
5
1. Make sure the battery's positive (
+
) and
negative (
-
) ends are facing correctly
when load it into the unit as shown in
direction (total three batteries).
2.Stick the protection insert. 3. When replace new battery, please pull
U-type tab and remove protection insert
and the old battery, then follow the step
and for replacement.
1 2
Operating instructions
(1) In the first time use, Please take out the plastic piece for electronic isolation on the battery slot of master and slave. (one piece on master, two
pieces on slave)
(2) Turn to power "ON" position for master and slave devices at the same time (in around 3 seconds), after master makes "Beep" sound, and slave
device will start to flash LED light synchronal, then the device will be into the stand-by mode and ready to use.
(3) Please put the slave and the master separately, and not separate both of them too far. For example, the slave can be put in the wallet or handbag,
the master can be put in your pocket, or hang in the handbag strap, or attach to the leather belt. Because static electricity will be occurred by
human body, if any happen and cause master device beep sounds randomly, please try to
relocate the master position. (Please refer to Handling Precautions 2, and 3)
(4) If the wallet with card slave attached was stolen and left around 3 to 8m, the master will beep
high-frequency warming sounds (95dB/30cm approximately, battery is in full charged condition),
and into the warning mode. As shown in the illustration. (Please refer to Handling Precautions 2)
(5) To long press on "Distance" key of master device, if master flashes the range detect LED (with 5 lights), under 15 to 20m, 5 LEDs light may show
how far the distance between master and slave. (Please refer to light signal and beep sound description) (Please refer to Handling Precautions 3)
(6) In distance detect mode, if master flashes the range detect LED under 15~20m, the user may use master to survey 360° direction. If ranges detect
LED increase lights in somewhere, then slave device possibly are located the position. As shown in the illustration.
(7) In warming mode or distance detect mode, be ware that when slave device is over 30 to 50m from master device, the detect action will be failed
when over the limitation of detect distance. If slave device is back 30 to 50m, detect function will be able to search and return to alarm mode or
distance detect mode. (Please refer to Handling Precautions 3)
(8) To long press on "Light" key of master device, may enter the flashlight mode.
(9) If static electricity is occurred by human body or irregular work by any artificial influence, please turn off and turn on again (reset) for both master
and slave devices.
under 5~15m
under 30~50m
360°
Master Slave
* User Manual x 1
© 2008 All Right Reserved
White LED
button
Flashlight with high
brightness white LED
LED indictor for detect and
available range(when activated)
Switch button for detect
Power switch
over 3~8m
2
+
-
3
+
-
1Insert
Insert
+
-
PB-101 / 91M-0003-U50G00
The light signal and beep sound description
Master light signal and beep sound Slave light signal and
beep sound
Near
To long press on "Distance" key of master device, and show how far the
distance between master and slave by LED indictor and beep sounds
Distance detect
mode
+BeepBeepBeep
No battery power for operation (Slave)No battery power
mode (Slave)
+BeepBeepBeep
Any irregular work by artificial influence, devices folded or distortion,
please turn off and turn on (reset) for both master and slave devices
Others
Stand-by mode(1) Turn on both master and slave devices, they will start to flash
LED light synchronal
Turn on both master and slave devices, they will start to flash
LED light synchronal
Stand-by mode(2)
+Beep +Beep
Under 30 to 50m with signal appear, but searchable range is over
15 to 20m
+Middle frequency
Beep
+Beep
Under 30 to 50m with signal appear, and searchable range is
under 15 to 20m, and range is long
+Middle frequency
Beep
+Beep
Under 30 to 50m with signal appear, and searchable range is
under 15 to 20m, and range is close
+High frequency
Beep
+Beep
Under 30 to 50m with signal appear, and searchable range is
under 5 to 15m, and range is close with side
+High frequency
Beep
+Beep
Under 30 to 50m with signal appear, and searchable range is
under 3 to 10m, can hear the beep sounds of slave, carefully
+Beep~10seconds
~Beep
Battery power is lower than standard working power (Master)Low battery power
mode (Master)
+Beep~10seconds
~Beep
Battery power is lower than standard working power (Slave)Low battery power
mode (Slave)
+BeepBeepBeep
No battery power for operation (Master)No battery power
mode (Master)
+Alarm sound
Slave is over 3 to 8m between master, start to beep sounds by
alarm mode
Alarm mode
+Low frequency
Beep
+Beep
Under 30 to 50m with signal appear, and searchable range is
under 15 to 20m, but range is long
:The circle symbol indicates light shine :The semicircle symbol indicates light flash
In warming mode or distance detect mode, slave device is over
30 to 50m from master device and detect fail
No signal mode
+BeepBeepBeep +BeepBeepBeep
Far
PB-101 / 91M-0003-U50G00
Suggested Using Method Handling Precautions
(1) Except for battery replacement for slave device, please do not paste protection insert in other place. It may cause protection
insert to lose stickiness, and bad connection with devices.
(2) Because static electricity will be occurred by human body, if any happen and cause master device beep sounds randomly,
please try to relocate the master position. Both of master and slave devices can be put very closely as master in your right
pocket, and slave in your right side wallet or handbag.
(3) The product has to put both of master and slave devices separately. Please do not put both of them in the same handbag
to avoid devices unable to send out warning beep sounds when stolen.
(4) The warning ranges, the searchable detect distance and the farthest receiving distance, may cause unstable radio wave
efficiency according to the terrain environment.
(5) if the beep sounds are not loud enough, it means the battery power is declined. New battery can provide the louder alarm
sound.
(6) The product of card type slave is sophisticated equipment, please keep away from high temperature, heat sources, and do
not fold, damage, and modify. If any damage by user's operation, please contact with your dealer for buying a new one.
(7) The product only assists to provide the warning alarm to remind the user, does not guarantee to prevent steal and rob by
person's behavior. The product does not connect with police department, please contact with police department to protect
personal safety and property if any urgent need. The product will not guarantee any damage of personal safety, property,
material or the information loss, or other related loss by using the product.
(8) By flight safety law, please turn off the power of master and slave devices when take flight.
(9) We reserve the right to change the change the specifications of the hardware and software described in these manuals at
any time and without prior notice. Information in this document is subject to change without notice.
Recycle: The Battery provided in this product should be recycled to protect the local environment. Please contact
with local recycle department for detail.
Warning: Do not put the battery into the fire or heat source, it will be dangerous and maybe an explosion.
FCC Certifications
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this devic mus accept an interference received, including interference that may cause
undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate this equipment.

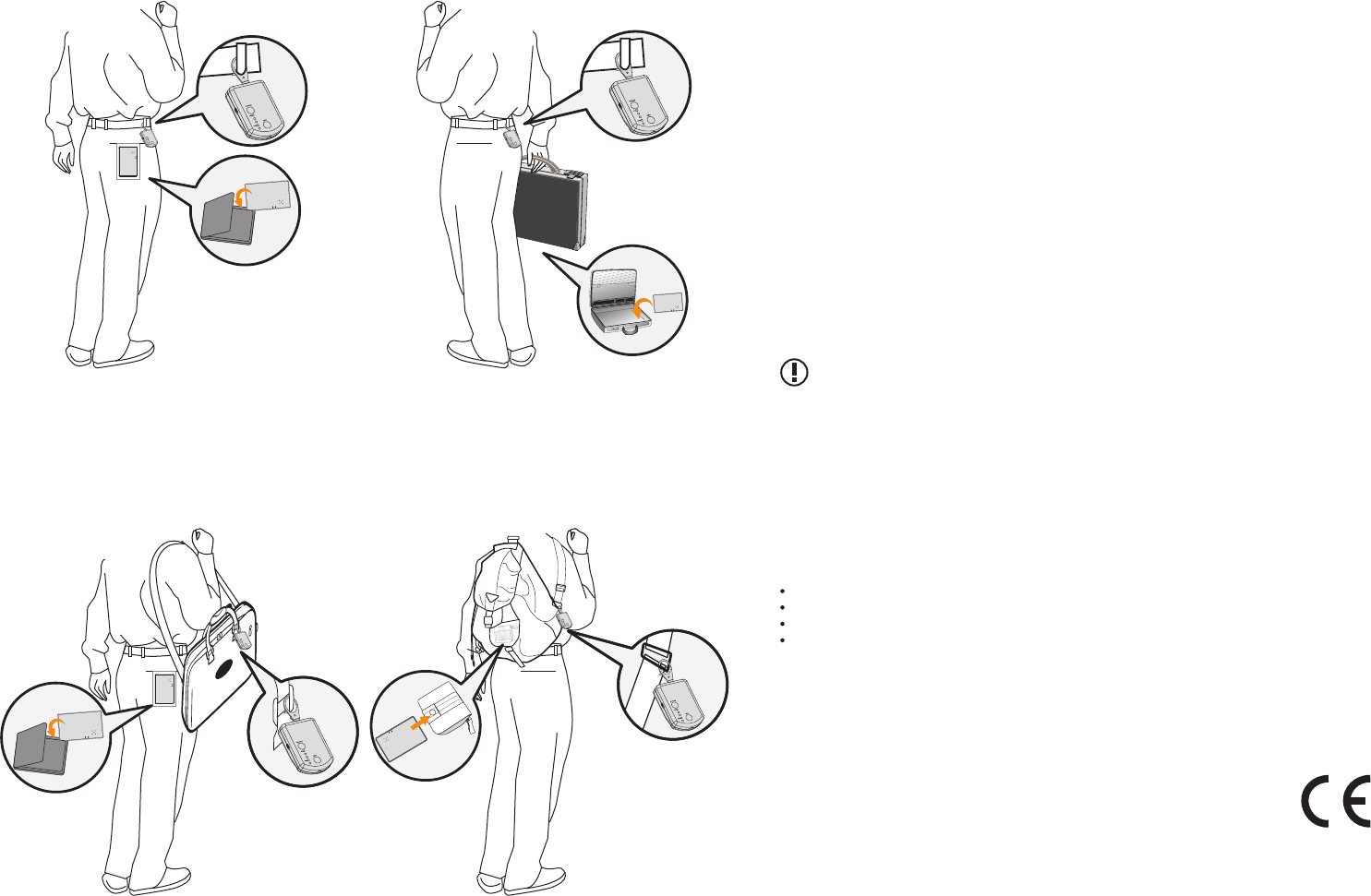

Figure A
Master device can be attached to the leather belt,
and slave device can be put in the wallet, then put
in your pocket.
(A) (B)
Figure B
Master device can be attached to the leather belt,
and slave device can be put in the handbag or
suitcase.
Figure C
Master device can be handed in the handbag strap,
and slave device can be put in the wallet, then put
in your pocket.
(C) (D)
Figure D
Master device can be handed in backpack strap,
and slave device can be put in the wallet, then
put in your backpack.
EU Declaration Conformity
This product is carrying the CE-Mark in accordance with the related European Directives.
