Ardi Technology M05A01 Mini Tracker User Manual Mini Tracker 505 090518
Ardi Technology Corp. Mini Tracker Mini Tracker 505 090518
User manual
Mini Tracker 505 User Manual

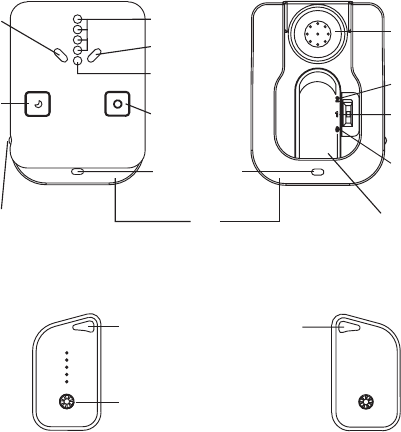

Master
Front Back
Hanging hole for strap
Signal indication
Slave
1
Front Back
Search button
LED light
button
(Mute
distance
melody
button at
search
mode)
Signal
indication
Distance
indication
Right direction
Left
direction
Hanging hole
for strap
LED light
Mode switch
Mute
Power on
(Standby)
Power off
(Sleeping)
Buzzer
Clip Battery cover

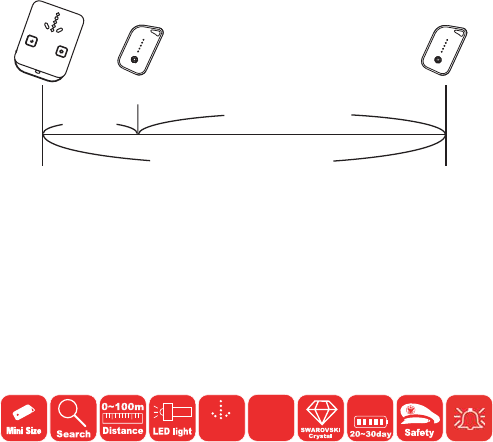

0m 100m
Search
8~16m
Alarm
No
Alarm
Master
Slave Slave
Working Method
Master
Specification
Slave
Size : 19x28x7.5mm
Frequency : 2.4GHz ISM
Battery : LR1130 x 2pcs
2
Size : 39x48x6.8mm
Frequency : 2.4GHz ISM
Battery : LR1130 x 2pcs
Switch : 3 sections
Button : 2 buttons
8~16m
Alarm
Trident
Direction
ZZZZ
Sleeping
Mode
Sleeping
Mode

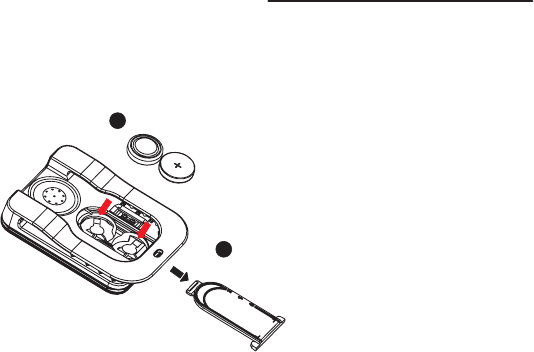

The Battery Installment
Master
1. Press the clip on battery
cover then push backwardly.
2. Put 2pcs batteries into.
***Make sure the installment
direction of positive (+) &
negative (-) of battery are
followed up the drawing
showed on battery cover.
3. Set the battery cover back.
1
2
3
Slave
1
2
3

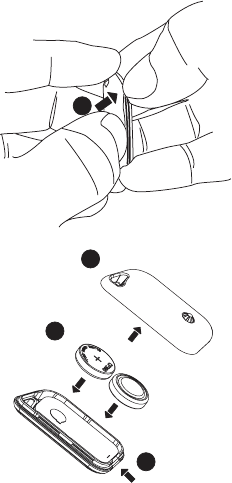

1. Open from the fillister on the
bottom of housing or curve
side by your nail, like open
shell.
2. Put 2pcs batteries into.
*** Make sure the installment
direction of positive (+) &
negative (-) of battery are
followed up the drawing
showed on the inside of
back battery cover.
3. Set back the battery cover.
1
4

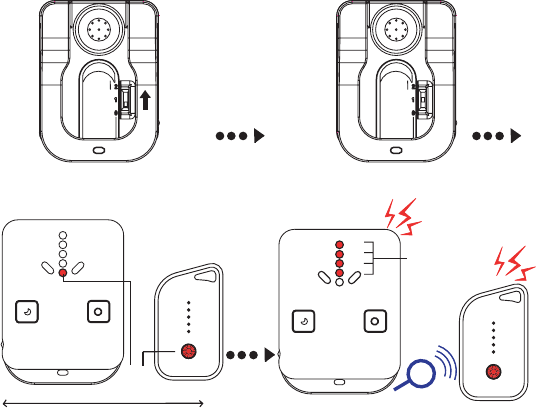

Switch to power on
2.
1.
For the first time use,
please set the battery
into Master according
to above battery
installment .
Getting Started
Plastic
isolation Pull out
3.
Place two devices no more
than 10 cm apart
4.
5
5.
Signal
indication
Signal LED ON for re-linking.
Beep Beep
Distance
indication
6.
Re-link successful!
Master shows the distance
with Slave via LED and
melody (beep).

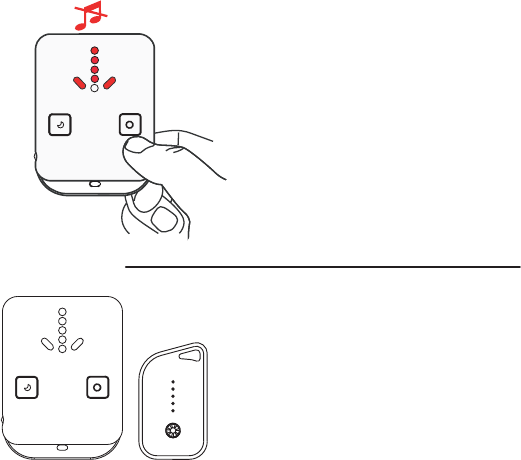

Important
If Master can't link with Slave, it
will beep once every few seconds.
6
Beep

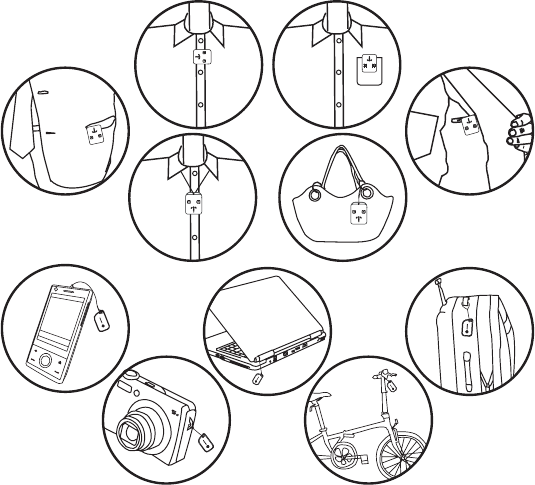

[Suggested setting place]
Master
Slave
7

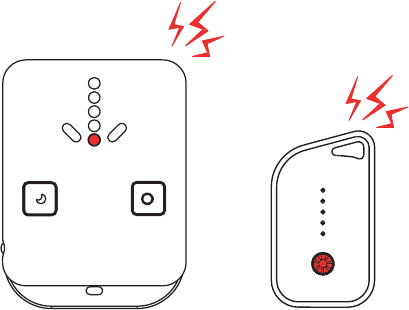

Alarm
Over 8~16 meter.
Come with beep!
Beep
Beep
Stop alarm (beep) if both devices
comes within 8 meter again.
Important
Signal
indication

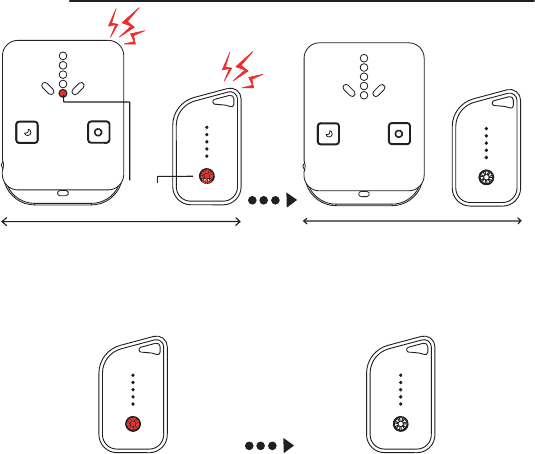

When Slave and Master are over 100 meter or lose signal
Slave flashes half minute
to wait for re-linking
No linking then into sleeping
modeand stop flash
8
Search Beep Beep
Distance
indication

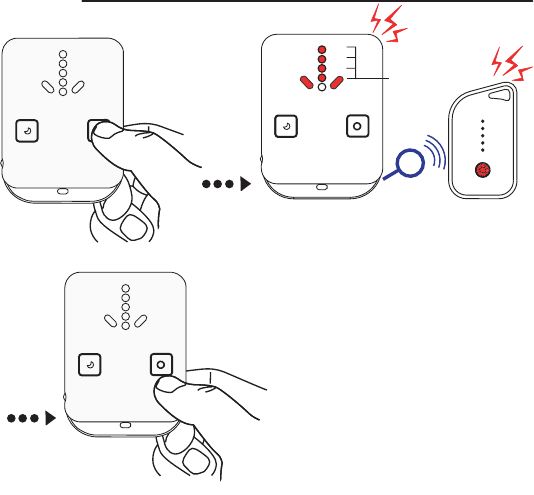

Press Search
button 2~3
seconds
4 Distance indication LED and
Right/Left direction LED lights
up 1 second then release the
Search button.
Start to detect the location
of Slave
Display the intensity of signal
on Master by
1.) LED light: more closer,
more lights.
2.) Search melody: more
closer, more rapid.
9
10

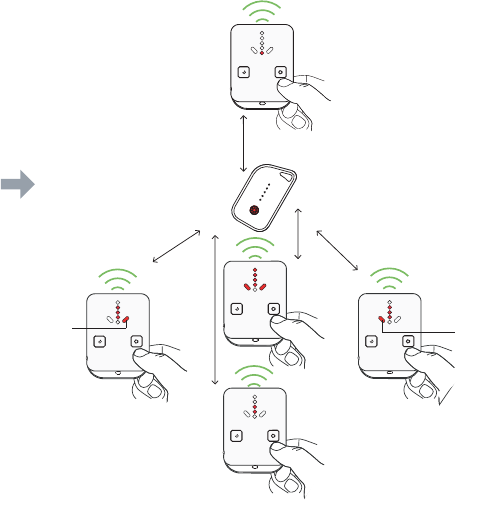

Flash signal LED by
3 seconds
1.) When Slave is on the
back side.
2.) Go to wrong direction
When Slave
in the front of
right side.
Right
direction
indication
When Slave in the
front of left side.
Left
direction
indication
0~100 m
1~2 m
0~100 m
0~100 m
0~100 m
Near
Far
When Slave in the
front side
[Suggestion: Go to original
direction or make a turn.]
Important
a.)

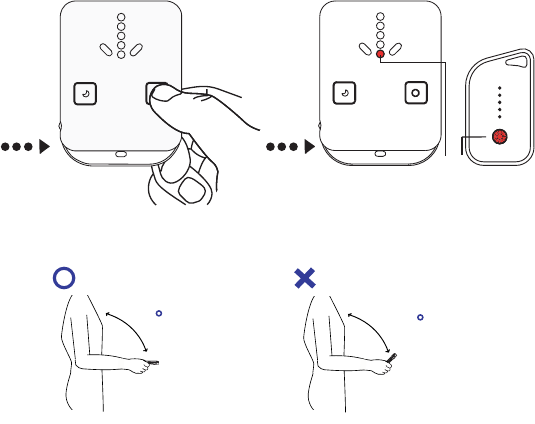

Press Search
button 2~3 seconds
Stop
searching
Signal
indication
Signal LED flashes every
second for re-linking
11
Back to
Standby
mode
90
Keep Master parallel
Correct holding
<90
Keep Master inclined
or vertical
Wrong holding

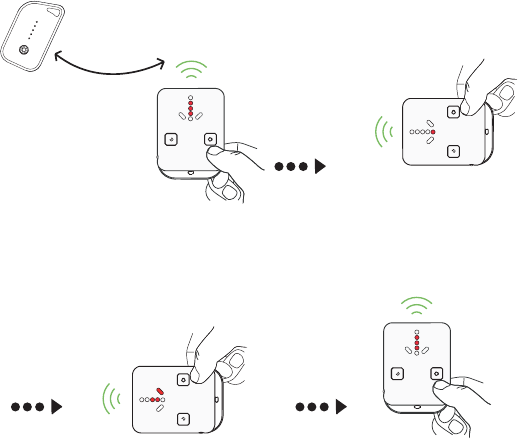

b.) Error indication - whole direction LED goes off but signal LED
lights up 3 seconds then displays new searched distance.
b-1.) Search from correct direction to wrong direction
b-2.) Over pass
North
Original searching
(Right direction)
Go the
wrong
direction
East
Distance LED goes out
all lights suddenly and
only flash Signal LED
with beep sound
3 seconds
later
East
0~100 meter
LED displays new
searched distance
North
Go back to original
search direction or
location
Signal indication LED
Location:
North
[Suggestion]
12

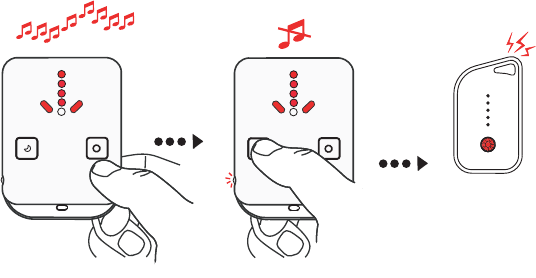

c.) Mute searching melody from Master. Listen beep sound from
Slave to assist short range searching.
Press & hold
the LED light
button
Beep
Stop the
melody and
light up the
torch LED
Listen to the
beep sound
from Slave
13

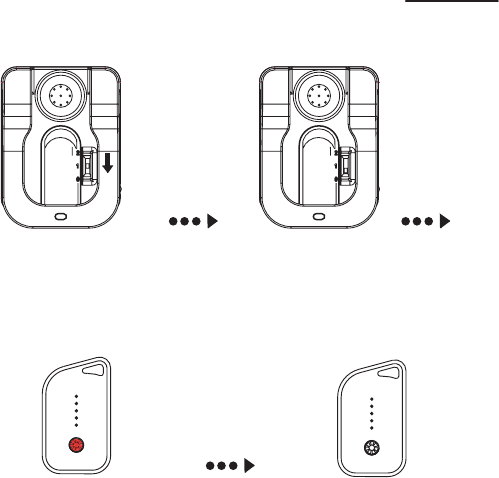

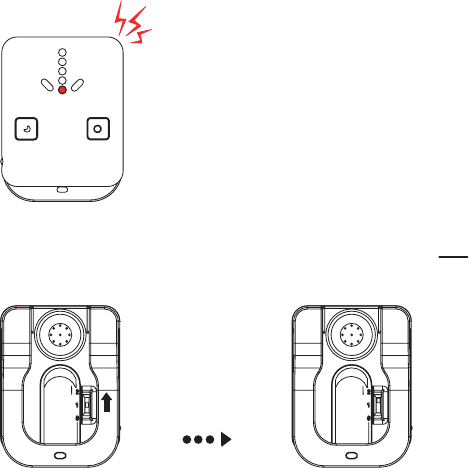

Sleeping (No Need The Guard Service)
Switch the
button to
section 0
Under Standby mode
Stop signal
to Slave
a.) Switch to sleeping mode
Slave flashes half minute
to wait for re-linking
No linking then into
sleeping mode and
stop flash
14

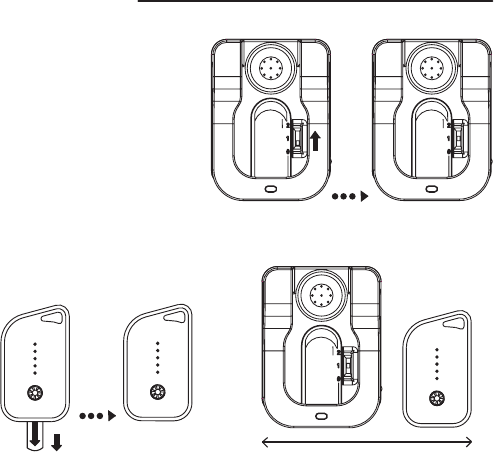

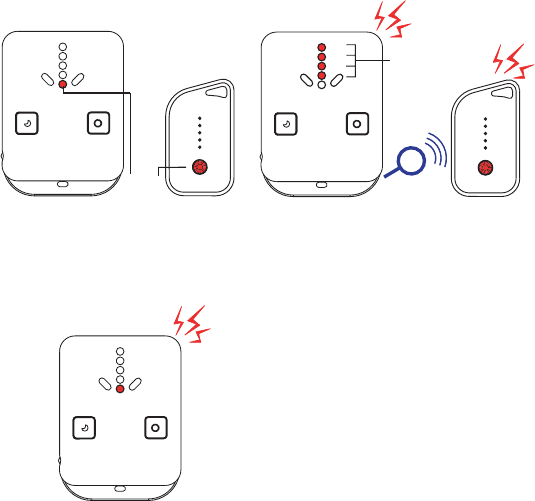

b.) Re-link / Wake up
Switch the button
to section 1
Available for distance within
100 meter
Signal LED ON for re-linking
Beep Beep
Distance
indication
Re-link successful!
Master shows the distance between
Slave via LED and melody (beep)
15
Signal
indication
Important Beep
Can't get signal from Slave.
Signal LED flashes each second
& comes with beep.
(Slave maybe out off working
range 100 meter, or no power.)
16
Mute
(Mute At Search mode, Or No Need The Guard Service)
Switch the button
to section 2
Under Standby mode
a.) Switch to mute mode
Low Battery 1 beep sound every 20 seconds
continuously.
Important
If this kit is under low battery stage,
it may cause abnormal display to
alarm, beeps or non-working to
confuse actual working stage.
Please change new battery as
soon as possible.
17
b.) Press Search button
Only Display the distance
indication LED without
searching melody
Important
Under mute mode, the Alarm
function is disabled.
Care and maintenance
(a) Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can
contain minerals that will corrode electronic circuits. If your device does get wet,
remove the battery, and allow the device to dry completely before replacing it.
(b) Do not use or store the device in dusty, dirty areas. Its moving parts and electronic
components can be damaged.
(c) Do not store the device in hot areas. High temperatures can shorten the life of
electronic devices, damage batteries, and warp or melt certain plastics.
(d) Do not store the device in cold areas. When the device returns to its normal
temperature, moisture can form inside the device and damage electronic circuit boards.
(e) Do not attempt to open the device other than instructed in this guide.
(f) Do not drop, knock, or shake the device. Rough handling can break internal circuit
boards and fine mechanics.
(g) Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device.
(h) Do not paint the device. Paint can clog the moving parts and prevent proper operation.
(i) Do not put Master and Slave at same place in case of this set is unable playing
functions to guard your valued goods.
(j) The working range, alarm range, searching and detection are depends the terrain
environment because of radio wave efficiency.
(k) If the beeps sound are not loud enough, it may means the battery low. Change new
battery for louder alarm sound.
(l) This product only assists to provide the warning alarm for reminding the user. It does
not guarantee to prevent steal or rob by personal safety and property if any urgent
need. This product does not guarantee any damage of personal safety, property,
material or the information loss, or other related loss.
(m) If you want to apply this product during the flight trip, please comply with the flight
safety law according to each country.
(n) We reserve the right in changing the specification of the hardware and software
designs to manuals at any time and without prior notice. Informationin this document
is subject to change without notice.
(o) This product operational temperature is between 0 C ~ +55 C. Storage temperature
is between -10 C~ +60 C.
18
Recycle: The Battery provided in this product should be recycled to protect the local
environment. Please contact with local recycle department for detail.
Warning: Do not put the battery into the fire or heat resource. It will be cause dangerous
or even explosion.
FCC Certifications
Federal Communication Commission Interference Statement
This equipment has been tested and improved to comply with the limits of a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy, if installed and used
not in accordance with the instructions, may cause harmful interference to radio
communications. However,there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1)This device may not cause harmful interference, and (2)this device
must accept an interference received, including interference that may cause undesired
operation.
FCC Caution: Any changes or modifications are not expressly approved by the party
responsible for compliance which could void the user's authority to operate this equipment.
FCC ID Master: WMPM05A01
Slave: WMPS05A01
EU Declaration Conformity
This product is carrying the CE-Mark in accordance with the related European Directives.
19
