Ardi Technology S04A02GP Digital RF Tracker 405 User Manual Exhibit E User Manual
Ardi Technology Corp. Digital RF Tracker 405 Exhibit E User Manual
User manual
Front & Rear View
Specifications
Package Contents
1. Slide out the battery cover.
2. Insert the batteries. Make sure that the
polarity +/- of the battery follow the markings
on the bottom of the battery compartment.

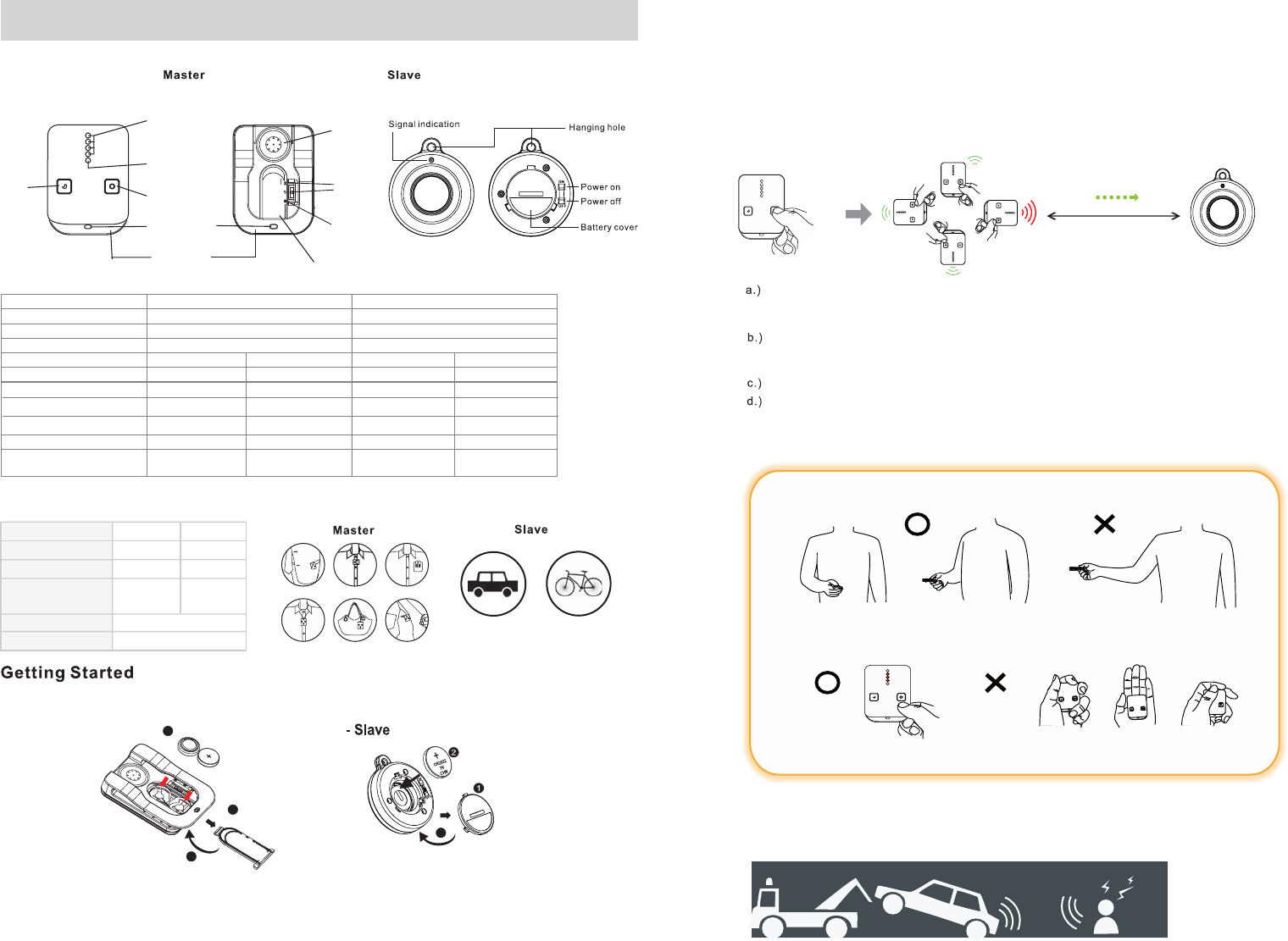

Front Back
Search button
Signal
indication
Distance
indication
Power on
Power off
Buzzer
Battery cover
Mute
button
Hanging hole
for strap
Clip
1
3
3
2
To search the Slave unit, please press the "Search button" on the Master unit once. If the distance between the
Master and the Slave is closer, the more LED lights are lit and the melody on the Master is repider.
Contrarily, if the distance between the Master and the Slave is farther, less LED lights are lit and the melody on
the Master becomes slower. Use the LED and the melody indication as guides to find the Slave unit.
If the distance between the Master and the Slave is out of detectable range and you turn to the wrong
direction making the distance farther, the Master beeps every second to remind you to go back to the
correct direction and detectable distance.
While searching, the Slave makes low beep sounds every second. This can assist you in
finding its position by tracking the sound when the Master and the Slave are already close.
(Suggestion: Press and hold the Mute button on the Master to turn off the melody temporarily.
Once you release the Mute button, the searching melody resumes again.)
Press the "Search button" on the Master unit again to stop searching.
While searching, always place the Master in front of your body and turn around slowly to find the connect
direction by following singnal indicator and distance melody. If you point at the correct direction, the
Master shows more LED lightand plays the melody more rapidly..
Holding Way
*** Do not cover the top side of Master.
Correct
Holding
Wrong
Holding
During Search
Correct
Holding
Wrong
Holding
*** Do not sway Master. Master is always in front the body when take a turn.
Search
Car Finder User Manual 2. Switch the power button of the Master and the Slave to “ON”, it will enter automatically ”Search Mode”, please
press search button to enter ”Standby mode”.
3. Place the Slave on valuable items that you want to locate, such as car, bicycle and others. Take the Master
with you or clip it on your belt clip.
Important: Do not put the Master in the car, it could be damaged by high temperature.
3.Place the battery cover back.
1.For the first time use, please insert the batteries into the Master and the Slave sets according to the battery
installation instruction as follows.
(the distance may be short depends on the
terrain environment )
-Master
Front Back
Model Name
Function
Search Range
Alarm Triggered
Master/Slave Master (M05A)x1 Slave (S04A)x1 Master (M05AM)x1 Slave (S04AS)x1
Battery Type LR44x2 CR2032x1 LR44x2 CR2032x1
Battery Life Time with Standby None None 30 days (24 hrs) 30 days (24 hrs)
Battery Life Time with Sleep 0~90 days 0~90 days Over 90 days Over 90 days
Beep Sound (at 10cm/3.9inch) 95 db 100 db 95 db 100 db
Bulit-in None None Vibration Motor Vibration Sensor
Dimension (L/W/H) 52.8x39x13.2mm
2x1.x0.52inch
Diam 45 x W 12mm
Diam 1.77 x 0.47inch
52.8x39x13.2mm
2x1.x0.52inch
Diam 45 x W 12mm
Diam 1.77 x 0.47inch
None Vibration over one second
405C
Search Search & Alarm with Vibration
405CA
0~500 0~500
Model Name 405C
Master(M05A) 1 set
Slave(S04A) 1 set
Batteries LR44x2
CR2032x1
User manual
Strap
9
2
405CA
1 set
1 set
LR44x2
CR2032x1
Alarm(Only for 405CA)
A sensor is bulit-in to detect the vibration, while someone is trying to move your car, like violation tow, or a thief
is breaking your car window, the Car Finder will alert you in 1 second. The Master unit alarms and vibrates at
this moment.
Suggested Setting place
Search Tip:
Signal indication LEDs flash
every second
Melody is rapider
Melody is slower and diminuendo
Signal indication LEDs flash
every second
Melody is slower and short
beep every second
!
(i) Search, detection, and alarm range can be affected on different.
If the beep sound is not loud enough, the batteries may be low. Change with new batteries for louder alarm sound.
This product only assists in providing a warning alarm to remind the user. It does not guarantee to prevent theft or
robbery of personal property.
batteries
your
batteries sources. It may cause danger or even explosion.
Sleeping
Low battery
Alarm
Diasble Alarm funstion: During at standby
mode, the master and Sllave wuthin 2
meters, power off the Master unit.
Enable Alarm function: Switch the Master
power on.
Mute
Press the Mute botton to mute searching melody from the Master unit. Listen to beep sound from the Slave
unit to assist short range searching.

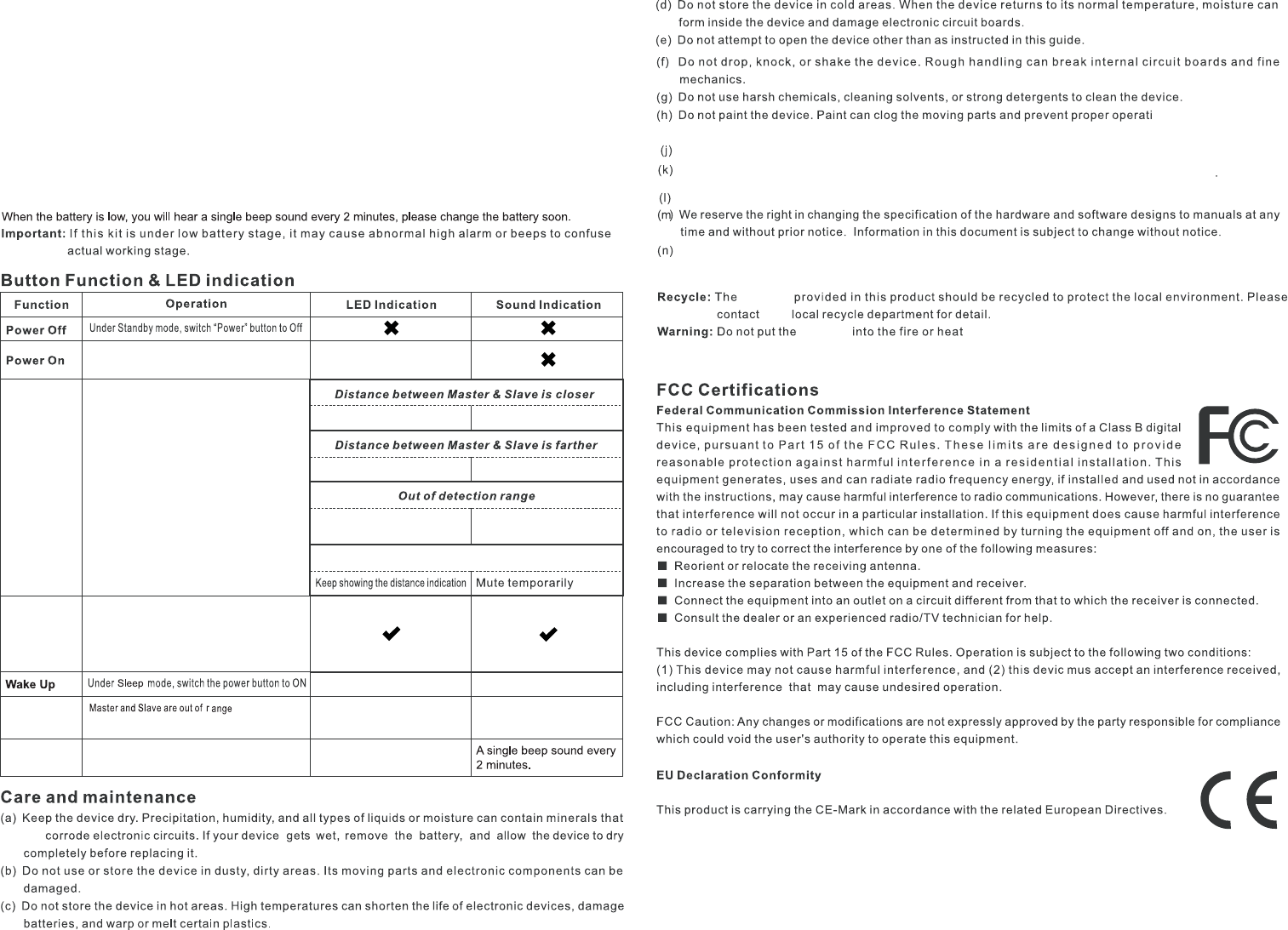

Switch the Power button to ON
More LEDs light up
LEDs light decreasingly
Turn off the search melody of Master(long press the Mute button)
Search
Signal indication LEDs flash
Signal indication LEDs flash
every second
Signal indication LEDs flash
every second
High beeps while re-linking
High beep every second
Low battery
Disconnect
Under standy mode, press the
”Search” button
may
b.) When switching the Master unit power on, the Signal indication LED flashed as searching the
Slave unit. If the Master and Slave units are out of working range, the Signal indication LED
remains light while the Master unit could not find Slave unit.
Switch the power button of the Master unit to OFF, when search function is not needed. Once you need this
kit to resume the standy mode, just turn the power button of the Master to ON.
Important: a.) Please keep the Slave at ON status if you would turn the Master into Sleep mode.
c.) Please trun off the Master and Slave unit if NOT in sue to save battery life.
If you want to use the device on the airplane, please comply with the flight safety law according to each country.
This product operation temperature is between 32ʲ ~140ʲÛ&aÛ&. Storage temperature is between -4ʲ ~185ʲ
Û&aÛ&
