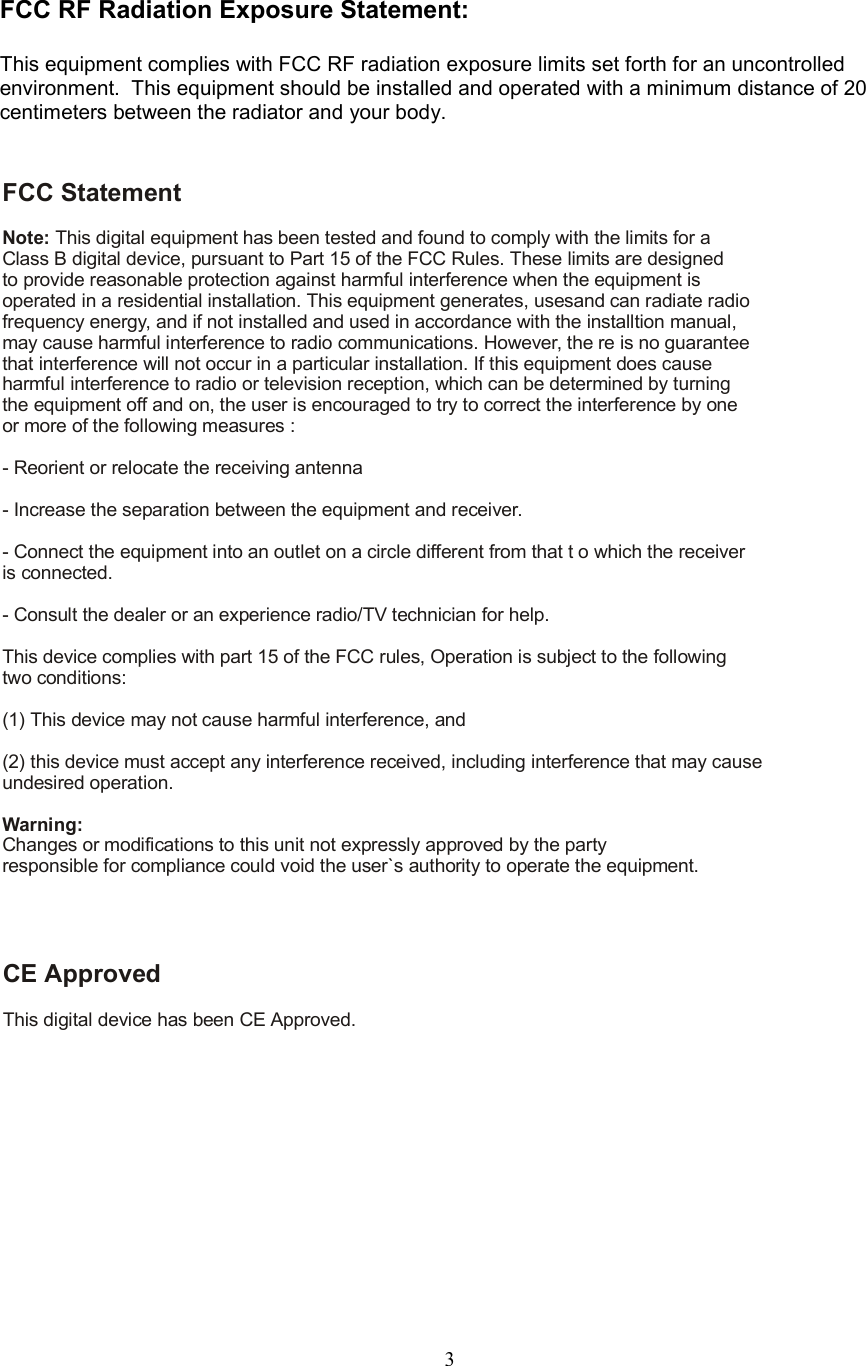

3FCC RF Radiation Exposure Statement:This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolledenvironment. This equipment should be installed and operated with a minimum distance of 20centimeters between the radiator and your body.FCC StatementNote: This digital equipment has been tested and found to comply with the limits for aClass B digital device, pursuant to Part 15 of the FCC Rules. These limits are designedto provide reasonable protection against harmful interference when the equipment isoperated in a residential installation. This equipment generates, usesand can radiate radiofrequency energy, and if not installed and used in accordance with the installtion manual,may cause harmful interference to radio communications. However, the re is no guaranteethat interference will not occur in a particular installation. If this equipment does causeharmful interference to radio or television reception, which can be determined by turningthe equipment off and on, the user is encouraged to try to correct the interference by oneor more of the following measures :- Reorient or relocate the receiving antenna- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circle different from that t o which the receiveris connected.- Consult the dealer or an experience radio/TV technician for help.This device complies with part 15 of the FCC rules, Operation is subject to the followingtwo conditions:(1) This device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may causeundesired operation.Changes or modifications to this unit not expressly approved by the partyresponsible for compliance could void the user`s authority to operate the equipment.Warning:CE ApprovedThis digital device has been CE Approved.

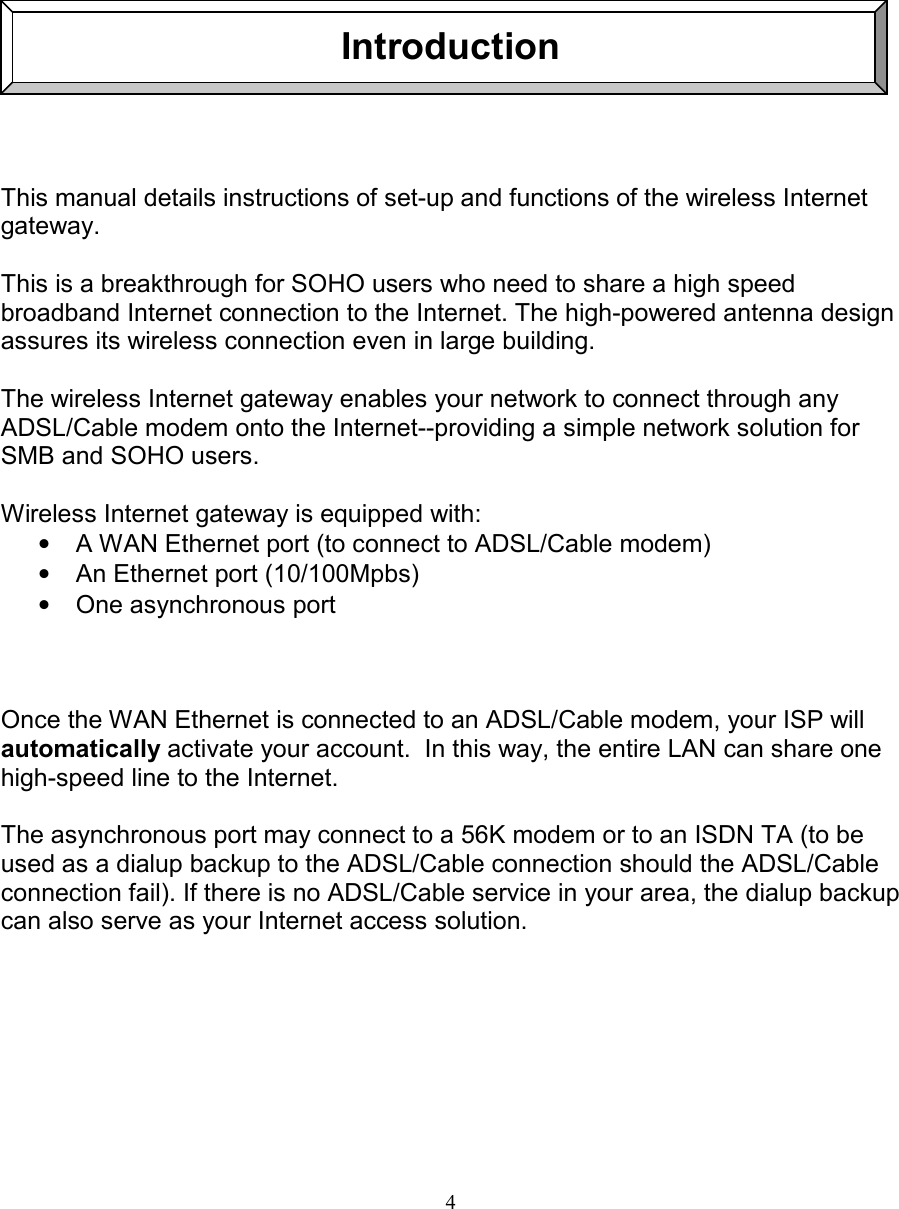

4IntroductionThis manual details instructions of set-up and functions of the wireless Internetgateway.This is a breakthrough for SOHO users who need to share a high speedbroadband Internet connection to the Internet. The high-powered antenna designassures its wireless connection even in large building.The wireless Internet gateway enables your network to connect through anyADSL/Cable modem onto the Internet--providing a simple network solution forSMB and SOHO users.Wireless Internet gateway is equipped with:• A WAN Ethernet port (to connect to ADSL/Cable modem)• An Ethernet port (10/100Mpbs)• One asynchronous portOnce the WAN Ethernet is connected to an ADSL/Cable modem, your ISP willautomatically activate your account. In this way, the entire LAN can share onehigh-speed line to the Internet.The asynchronous port may connect to a 56K modem or to an ISDN TA (to beused as a dialup backup to the ADSL/Cable connection should the ADSL/Cableconnection fail). If there is no ADSL/Cable service in your area, the dialup backupcan also serve as your Internet access solution.

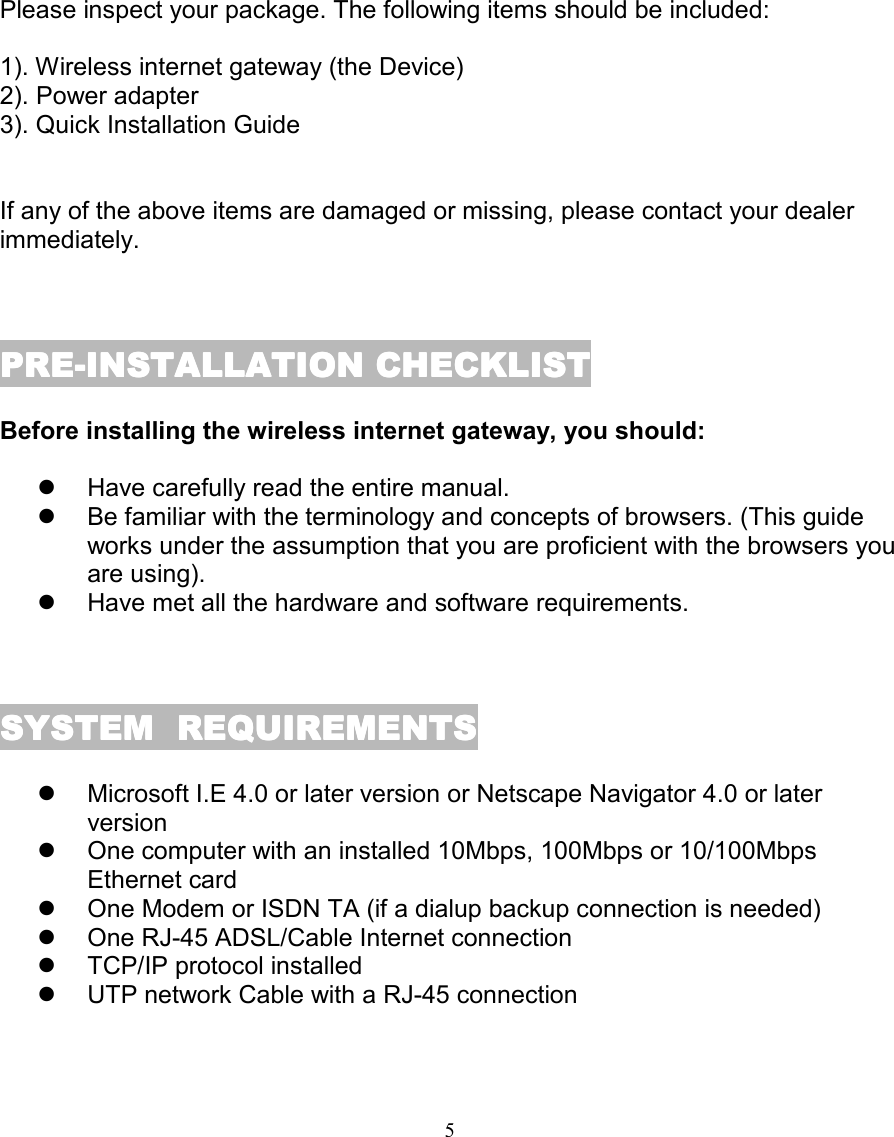

5PACKAGE CONTENTSPACKAGE CONTENTSPACKAGE CONTENTSPACKAGE CONTENTSPlease inspect your package. The following items should be included:1). Wireless internet gateway (the Device)2). Power adapter3). Quick Installation GuideIf any of the above items are damaged or missing, please contact your dealerimmediately.PRE-INSTALLATION CHECKLISTPRE-INSTALLATION CHECKLISTPRE-INSTALLATION CHECKLISTPRE-INSTALLATION CHECKLISTBefore installing the wireless internet gateway, you should:! Have carefully read the entire manual.! Be familiar with the terminology and concepts of browsers. (This guideworks under the assumption that you are proficient with the browsers youare using).! Have met all the hardware and software requirements.SYSTEM REQUIREMENTSSYSTEM REQUIREMENTSSYSTEM REQUIREMENTSSYSTEM REQUIREMENTS! Microsoft I.E 4.0 or later version or Netscape Navigator 4.0 or laterversion! One computer with an installed 10Mbps, 100Mbps or 10/100MbpsEthernet card! One Modem or ISDN TA (if a dialup backup connection is needed)! One RJ-45 ADSL/Cable Internet connection! TCP/IP protocol installed! UTP network Cable with a RJ-45 connection

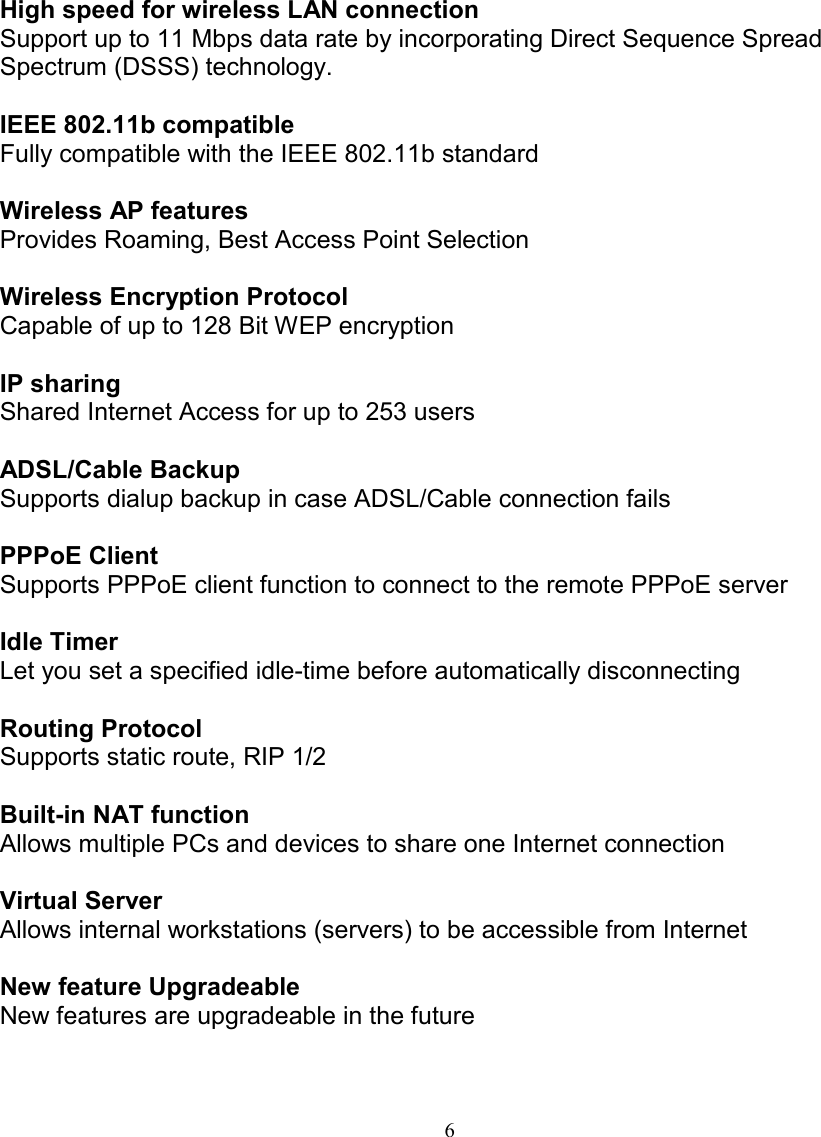

6FEATURES AND BENEFITSFEATURES AND BENEFITSFEATURES AND BENEFITSFEATURES AND BENEFITSHigh speed for wireless LAN connectionSupport up to 11 Mbps data rate by incorporating Direct Sequence SpreadSpectrum (DSSS) technology.IEEE 802.11b compatibleFully compatible with the IEEE 802.11b standardWireless AP featuresProvides Roaming, Best Access Point SelectionWireless Encryption ProtocolCapable of up to 128 Bit WEP encryptionIP sharingShared Internet Access for up to 253 usersADSL/Cable BackupSupports dialup backup in case ADSL/Cable connection failsPPPoE ClientSupports PPPoE client function to connect to the remote PPPoE serverIdle TimerLet you set a specified idle-time before automatically disconnectingRouting ProtocolSupports static route, RIP 1/2Built-in NAT functionAllows multiple PCs and devices to share one Internet connectionVirtual ServerAllows internal workstations (servers) to be accessible from InternetNew feature UpgradeableNew features are upgradeable in the future

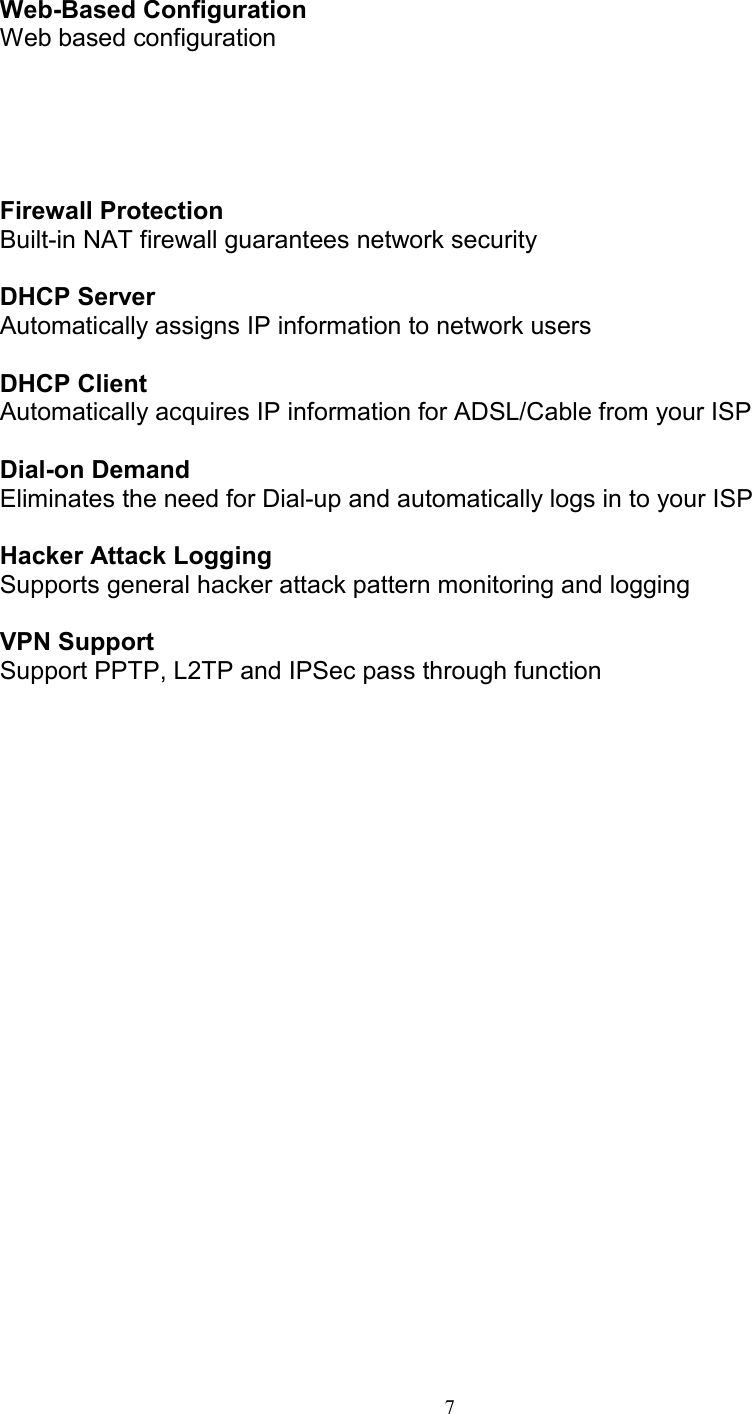

7Web-Based ConfigurationWeb based configurationFirewall ProtectionBuilt-in NAT firewall guarantees network securityDHCP ServerAutomatically assigns IP information to network usersDHCP ClientAutomatically acquires IP information for ADSL/Cable from your ISPDial-on DemandEliminates the need for Dial-up and automatically logs in to your ISPHacker Attack LoggingSupports general hacker attack pattern monitoring and loggingVPN SupportSupport PPTP, L2TP and IPSec pass through function

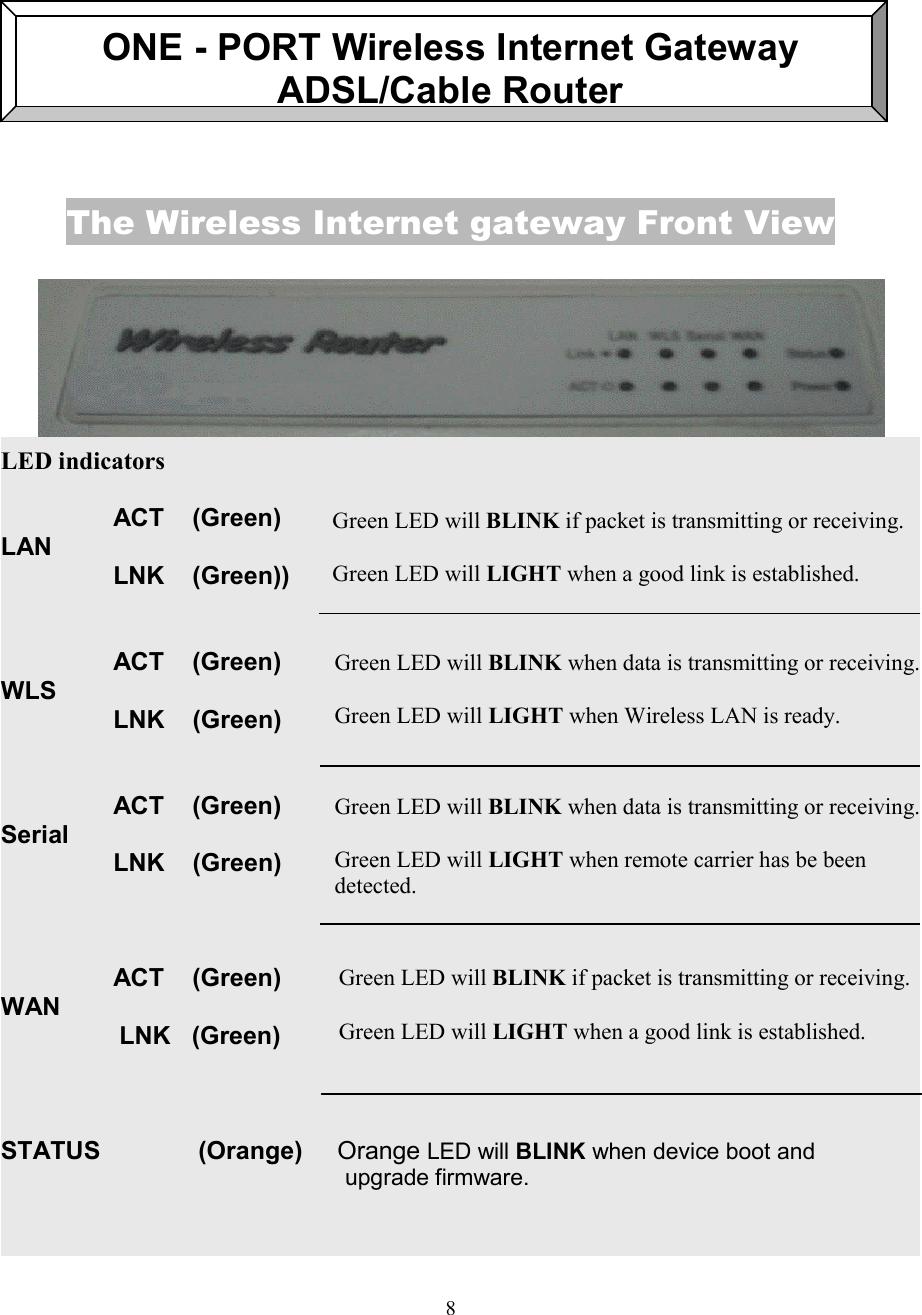

8 ONE - PORT Wireless Internet GatewayADSL/Cable RouterThe Wireless Internet gateway Front ViewLED indicatorsACT (Green)LANLNK (Green))ACT (Green)WLSLNK (Green) ACT (Green)SerialLNK (Green)ACT (Green)WAN LNK (Green)STATUS (Orange) Orange LED will BLINK when device boot and upgrade firmware.Green LED will BLINK when data is transmitting or receiving.Green LED will LIGHT when Wireless LAN is ready.Green LED will BLINK when data is transmitting or receiving.Green LED will LIGHT when remote carrier has be beendetected.Green LED will BLINK if packet is transmitting or receiving.Green LED will LIGHT when a good link is established.Green LED will BLINK if packet is transmitting or receiving.Green LED will LIGHT when a good link is established.

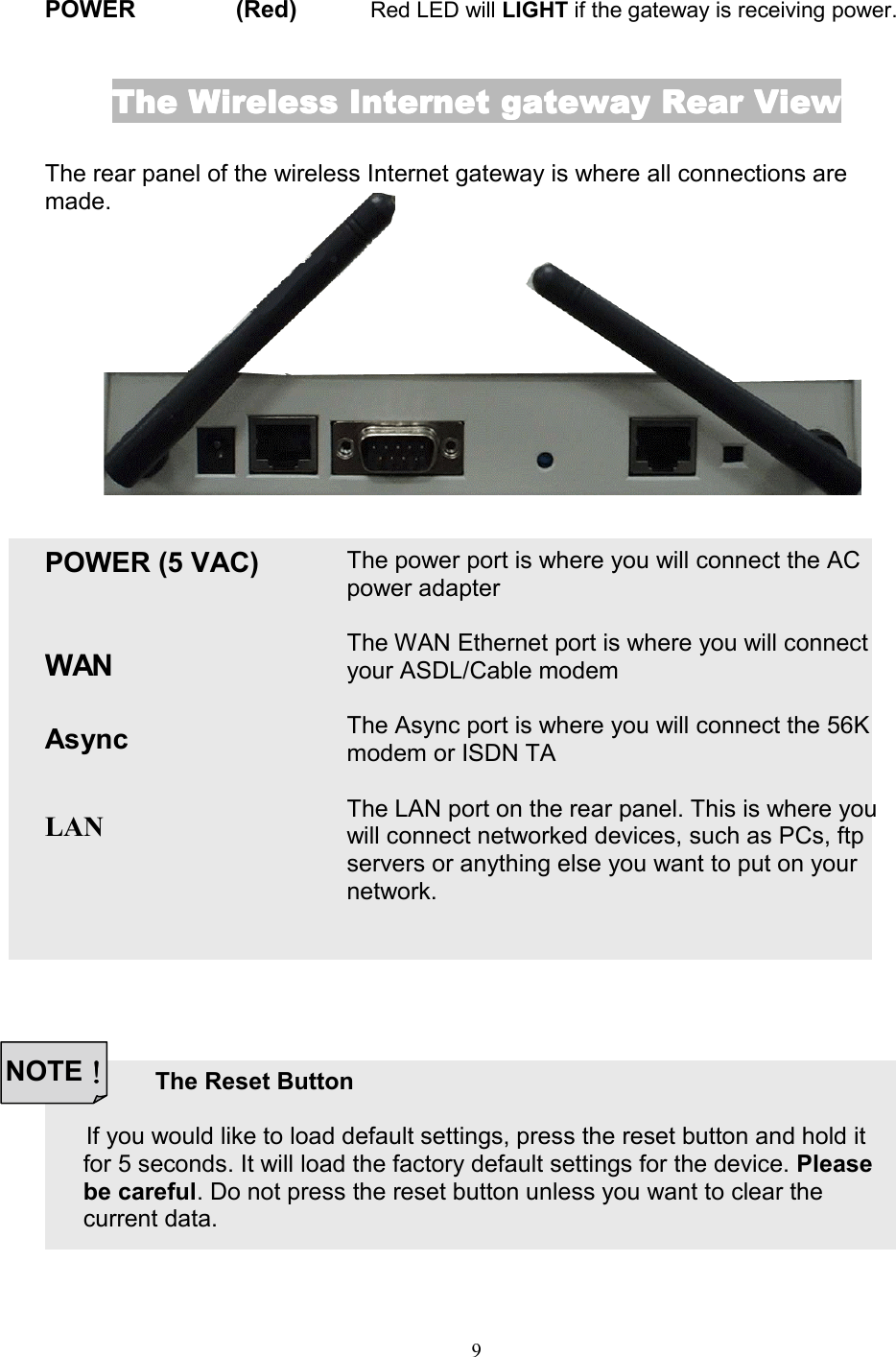

9POWER (Red) Red LED will LIGHT if the gateway is receiving power.The Wireless Internet gateway Rear ViewThe Wireless Internet gateway Rear ViewThe Wireless Internet gateway Rear ViewThe Wireless Internet gateway Rear ViewThe rear panel of the wireless Internet gateway is where all connections aremade.POWER (5 VAC)WANAsyncLANThe power port is where you will connect the ACpower adapterThe WAN Ethernet port is where you will connectyour ASDL/Cable modemThe Async port is where you will connect the 56Kmodem or ISDN TAThe LAN port on the rear panel. This is where youwill connect networked devices, such as PCs, ftpservers or anything else you want to put on yournetwork.The Reset Button If you would like to load default settings, press the reset button and hold itfor 5 seconds. It will load the factory default settings for the device. Pleasebe careful. Do not press the reset button unless you want to clear thecurrent data.NOTE！！！！

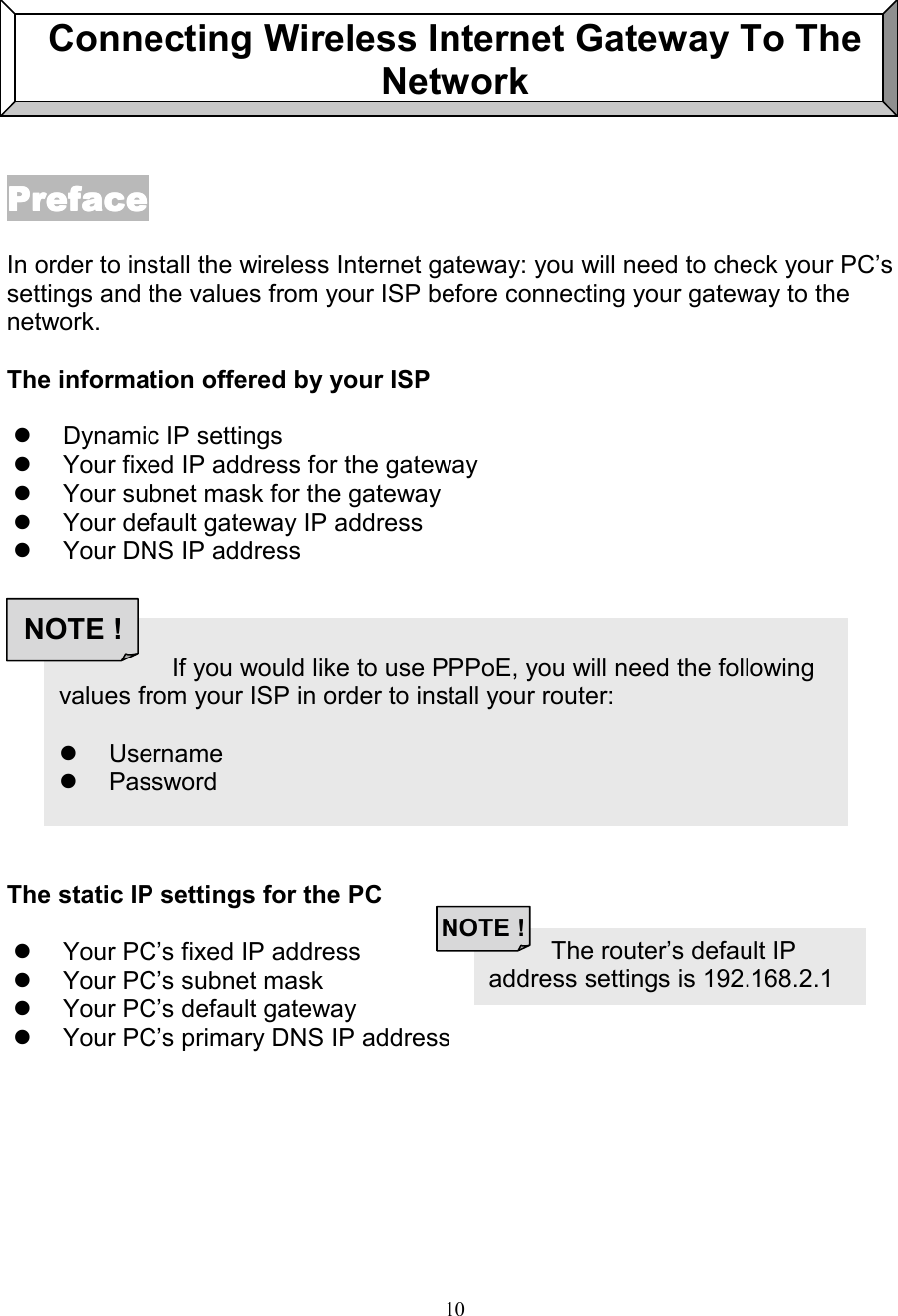

10Connecting Wireless Internet Gateway To TheNetworkPrefacePrefacePrefacePrefaceIn order to install the wireless Internet gateway: you will need to check your PC’ssettings and the values from your ISP before connecting your gateway to thenetwork.The information offered by your ISP! Dynamic IP settings! Your fixed IP address for the gateway! Your subnet mask for the gateway! Your default gateway IP address! Your DNS IP addressThe static IP settings for the PC! Your PC’s fixed IP address! Your PC’s subnet mask! Your PC’s default gateway! Your PC’s primary DNS IP address The router’s default IPaddress settings is 192.168.2.1NOTE ! If you would like to use PPPoE, you will need the followingvalues from your ISP in order to install your router:! Username! PasswordNOTE !

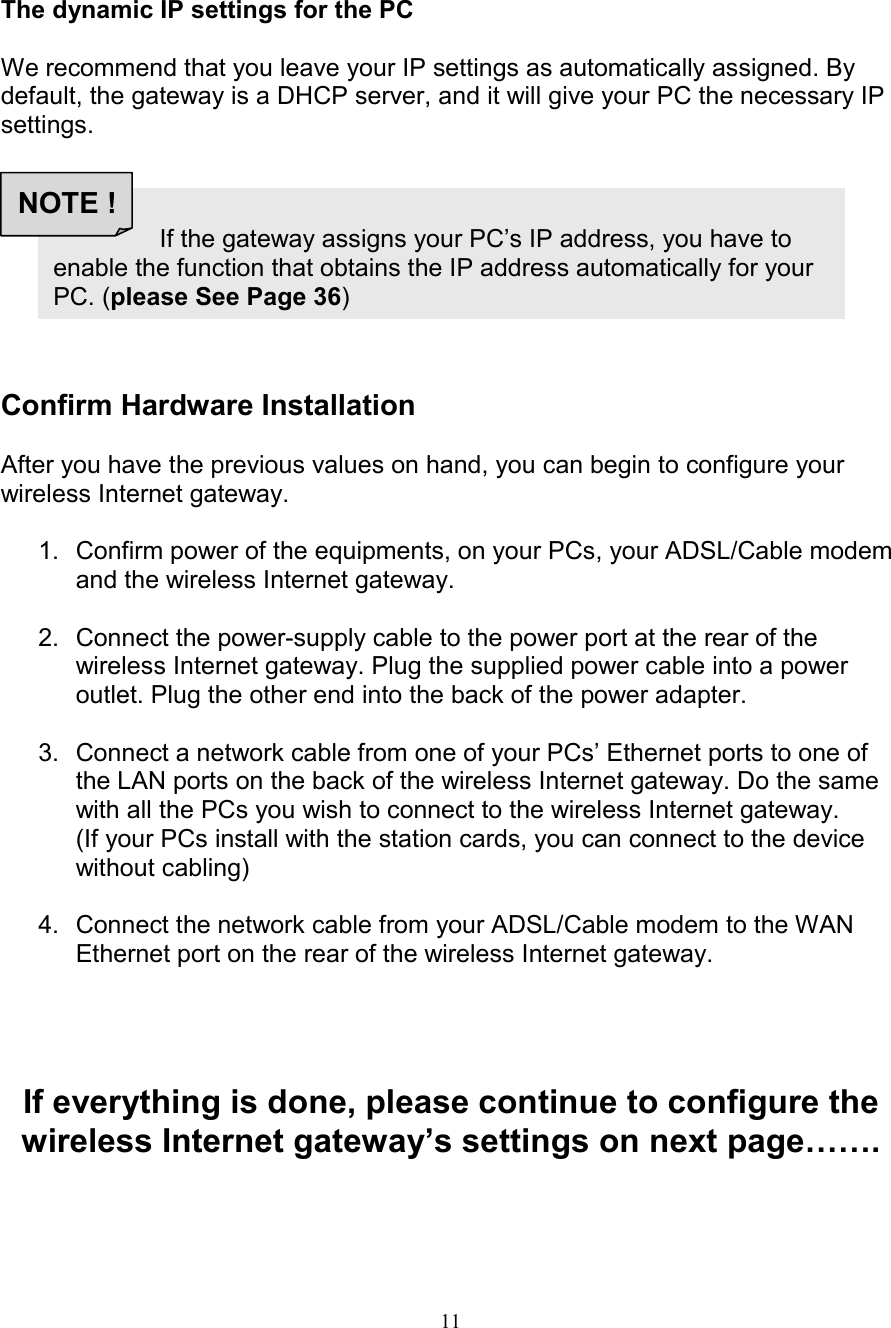

11The dynamic IP settings for the PCWe recommend that you leave your IP settings as automatically assigned. Bydefault, the gateway is a DHCP server, and it will give your PC the necessary IPsettings.Confirm Hardware InstallationAfter you have the previous values on hand, you can begin to configure yourwireless Internet gateway.1. Confirm power of the equipments, on your PCs, your ADSL/Cable modemand the wireless Internet gateway.2. Connect the power-supply cable to the power port at the rear of thewireless Internet gateway. Plug the supplied power cable into a poweroutlet. Plug the other end into the back of the power adapter.3. Connect a network cable from one of your PCs’ Ethernet ports to one ofthe LAN ports on the back of the wireless Internet gateway. Do the samewith all the PCs you wish to connect to the wireless Internet gateway.(If your PCs install with the station cards, you can connect to the devicewithout cabling)4. Connect the network cable from your ADSL/Cable modem to the WANEthernet port on the rear of the wireless Internet gateway.If everything is done, please continue to configure thewireless Internet gateway’s settings on next page……. If the gateway assigns your PC’s IP address, you have toenable the function that obtains the IP address automatically for yourPC. (please See Page 36)NOTE !

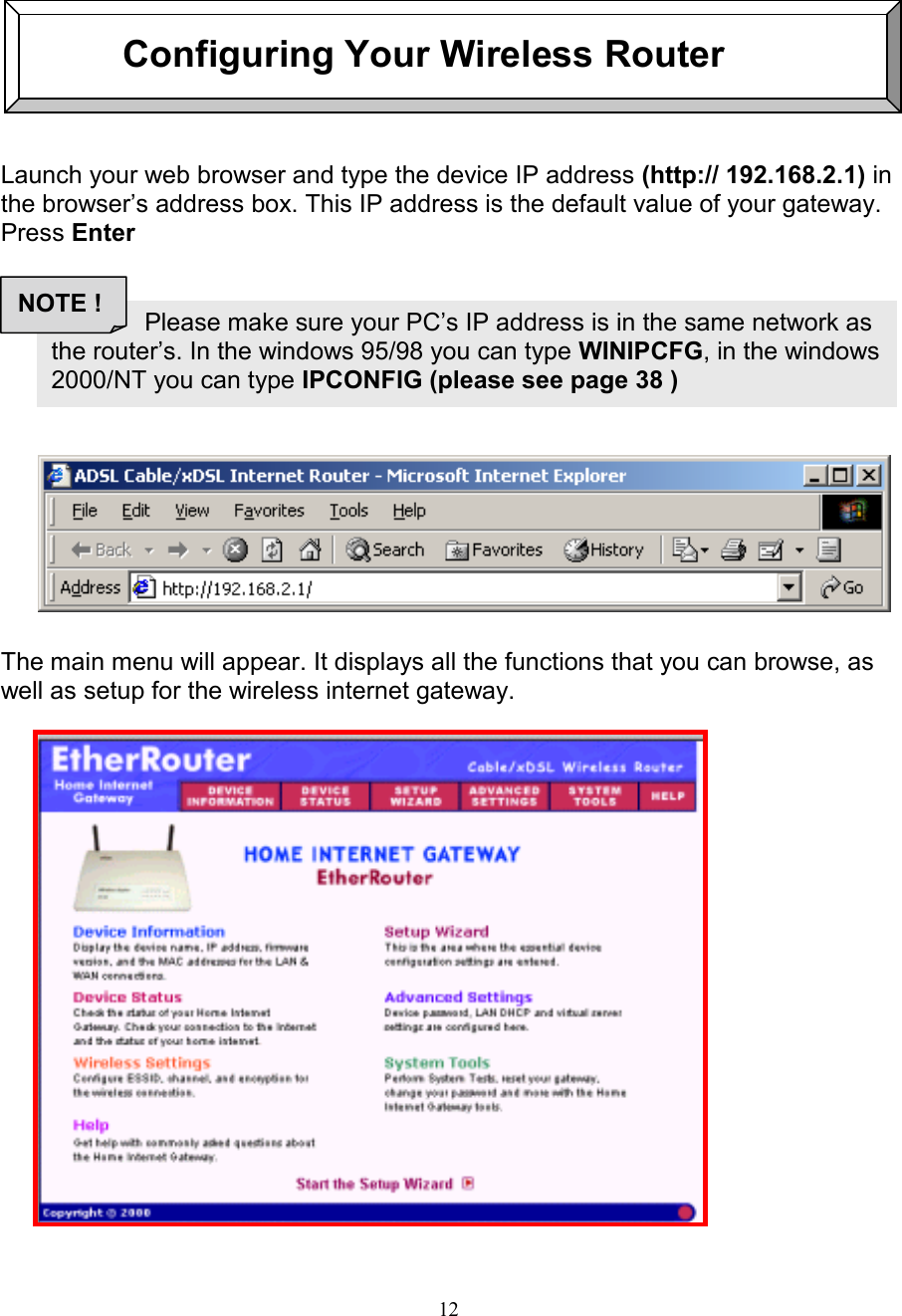

12 Configuring Your Wireless RouterLaunch your web browser and type the device IP address (http:// 192.168.2.1) inthe browser’s address box. This IP address is the default value of your gateway.Press EnterThe main menu will appear. It displays all the functions that you can browse, aswell as setup for the wireless internet gateway. Please make sure your PC’s IP address is in the same network asthe router’s. In the windows 95/98 you can type WINIPCFG, in the windows2000/NT you can type IPCONFIG (please see page 38 )NOTE !

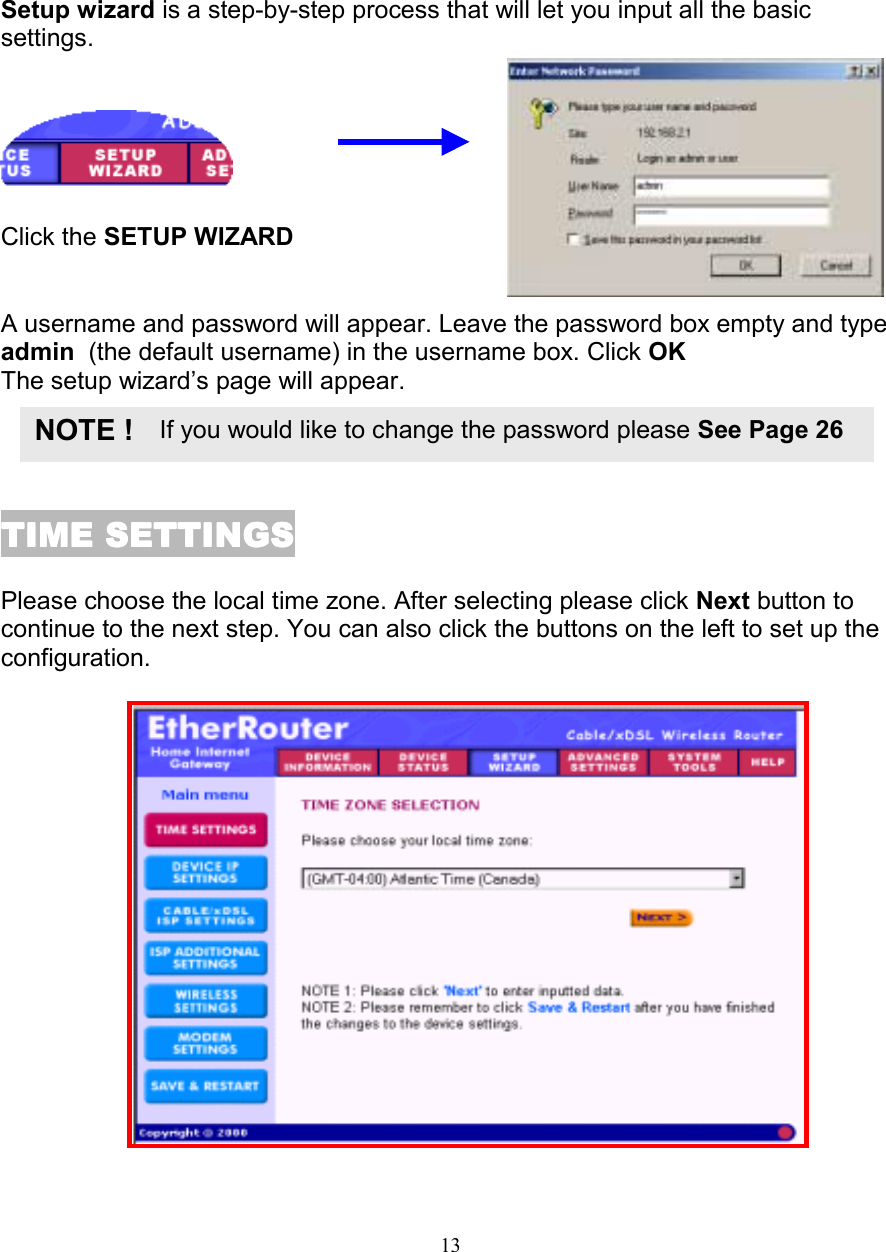

13SETUP WIZARDSETUP WIZARDSETUP WIZARDSETUP WIZARDSetup wizard is a step-by-step process that will let you input all the basicsettings. Click the SETUP WIZARDA username and password will appear. Leave the password box empty and typeadmin (the default username) in the username box. Click OKThe setup wizard’s page will appear.TIME SETTINGSTIME SETTINGSTIME SETTINGSTIME SETTINGSPlease choose the local time zone. After selecting please click Next button tocontinue to the next step. You can also click the buttons on the left to set up theconfiguration. If you would like to change the password please See Page 26NOTE !

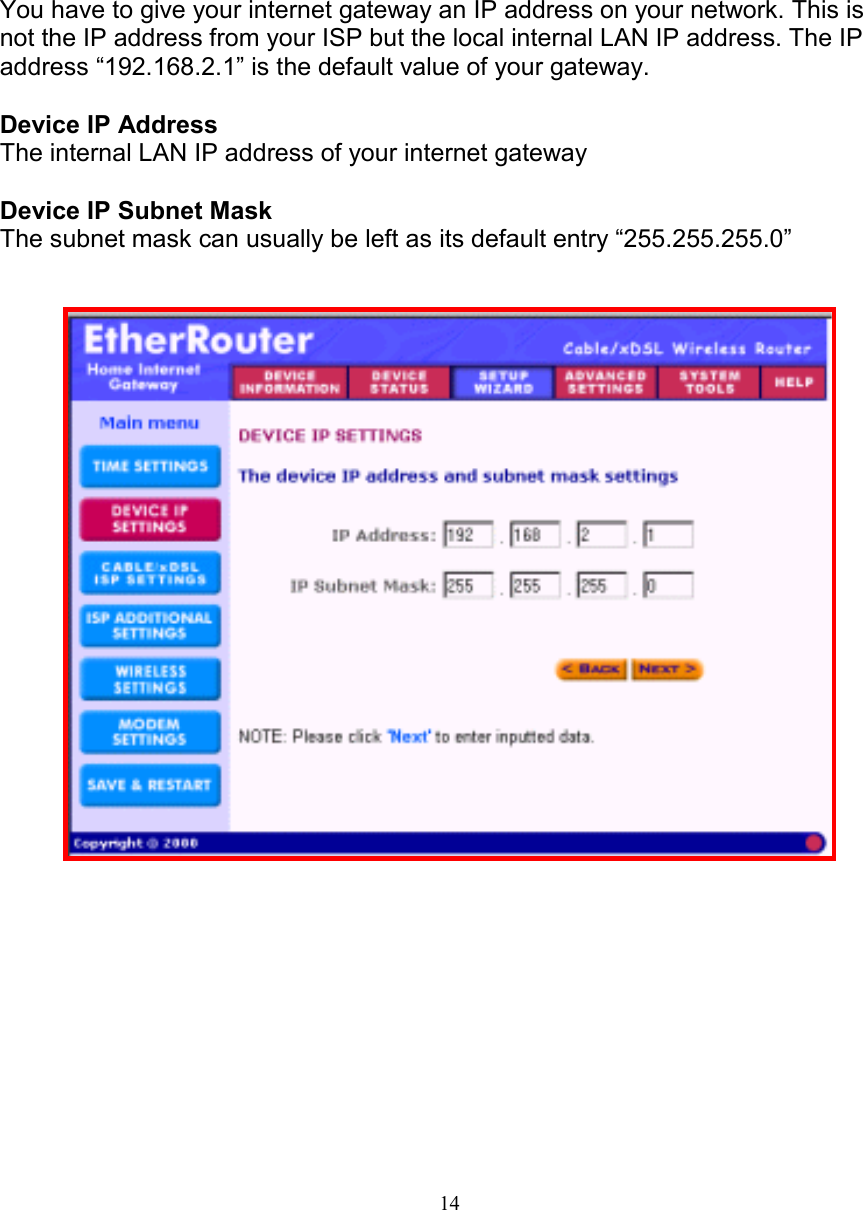

14DEVICE IP SETTINGSDEVICE IP SETTINGSDEVICE IP SETTINGSDEVICE IP SETTINGSYou have to give your internet gateway an IP address on your network. This isnot the IP address from your ISP but the local internal LAN IP address. The IPaddress “192.168.2.1” is the default value of your gateway.Device IP AddressThe internal LAN IP address of your internet gatewayDevice IP Subnet MaskThe subnet mask can usually be left as its default entry “255.255.255.0”

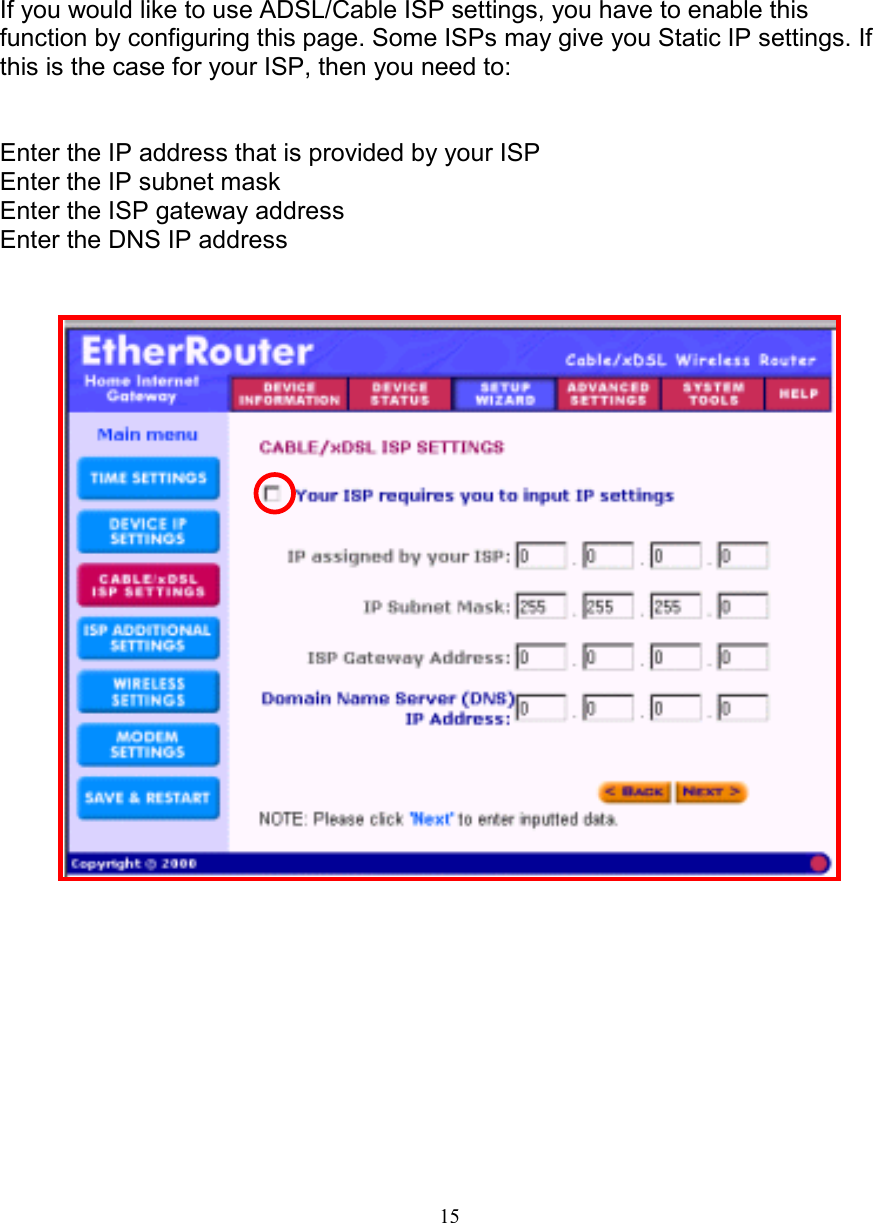

15ADSL/Cable ISP SETTINGSADSL/Cable ISP SETTINGSADSL/Cable ISP SETTINGSADSL/Cable ISP SETTINGSIf you would like to use ADSL/Cable ISP settings, you have to enable thisfunction by configuring this page. Some ISPs may give you Static IP settings. Ifthis is the case for your ISP, then you need to:Enter the IP address that is provided by your ISPEnter the IP subnet maskEnter the ISP gateway addressEnter the DNS IP address

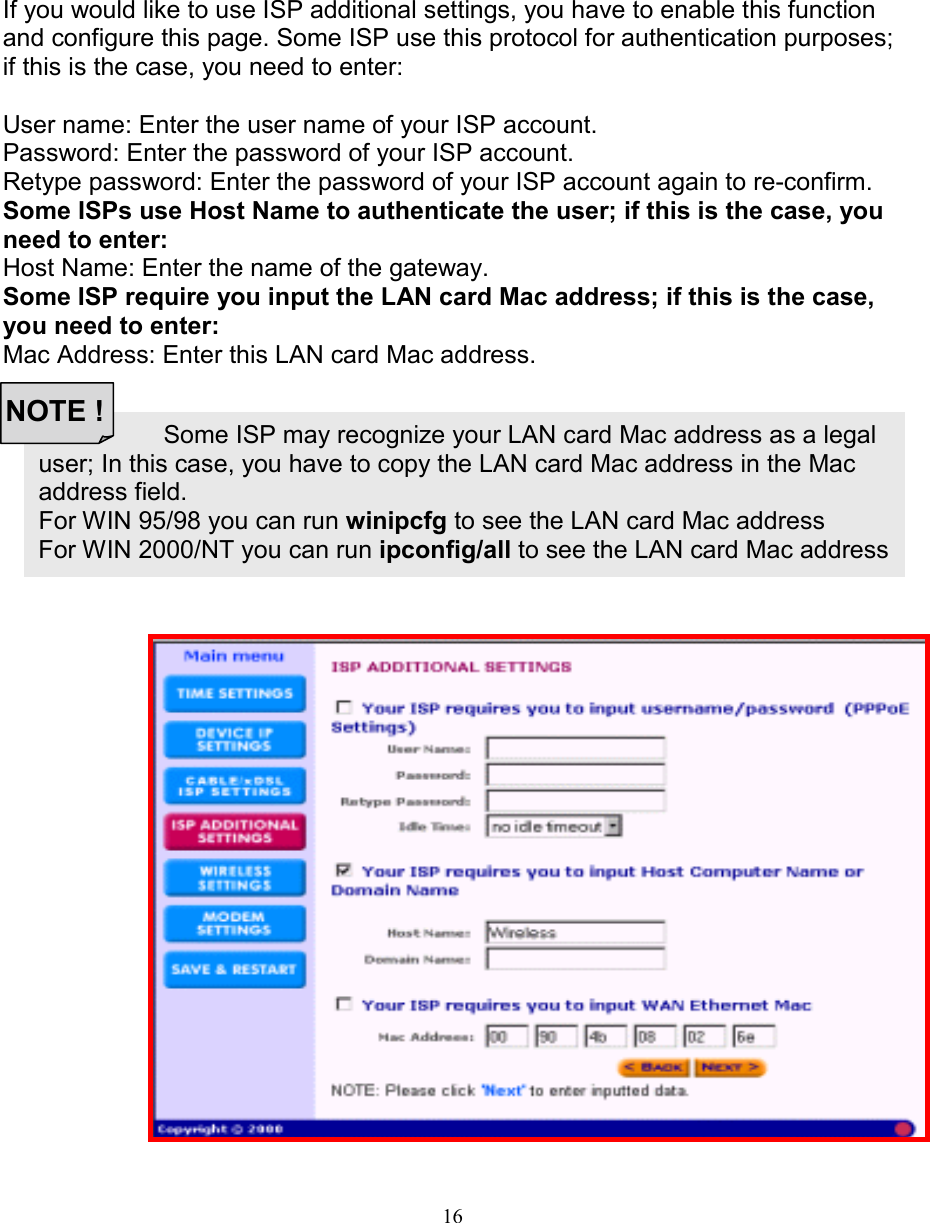

16Some ISP may recognize your LAN card Mac address as a legaluser; In this case, you have to copy the LAN card Mac address in the Macaddress field.For WIN 95/98 you can run winipcfg to see the LAN card Mac addressFor WIN 2000/NT you can run ipconfig/all to see the LAN card Mac addressISP ADDITIONAL SETTINGS (ISP ADDITIONAL SETTINGS (ISP ADDITIONAL SETTINGS (ISP ADDITIONAL SETTINGS (PPPoEPPPoEPPPoEPPPoE SETTINGS) SETTINGS) SETTINGS) SETTINGS)If you would like to use ISP additional settings, you have to enable this functionand configure this page. Some ISP use this protocol for authentication purposes;if this is the case, you need to enter:User name: Enter the user name of your ISP account.Password: Enter the password of your ISP account.Retype password: Enter the password of your ISP account again to re-confirm.Some ISPs use Host Name to authenticate the user; if this is the case, youneed to enter:Host Name: Enter the name of the gateway.Some ISP require you input the LAN card Mac address; if this is the case,you need to enter:Mac Address: Enter this LAN card Mac address.NOTE !

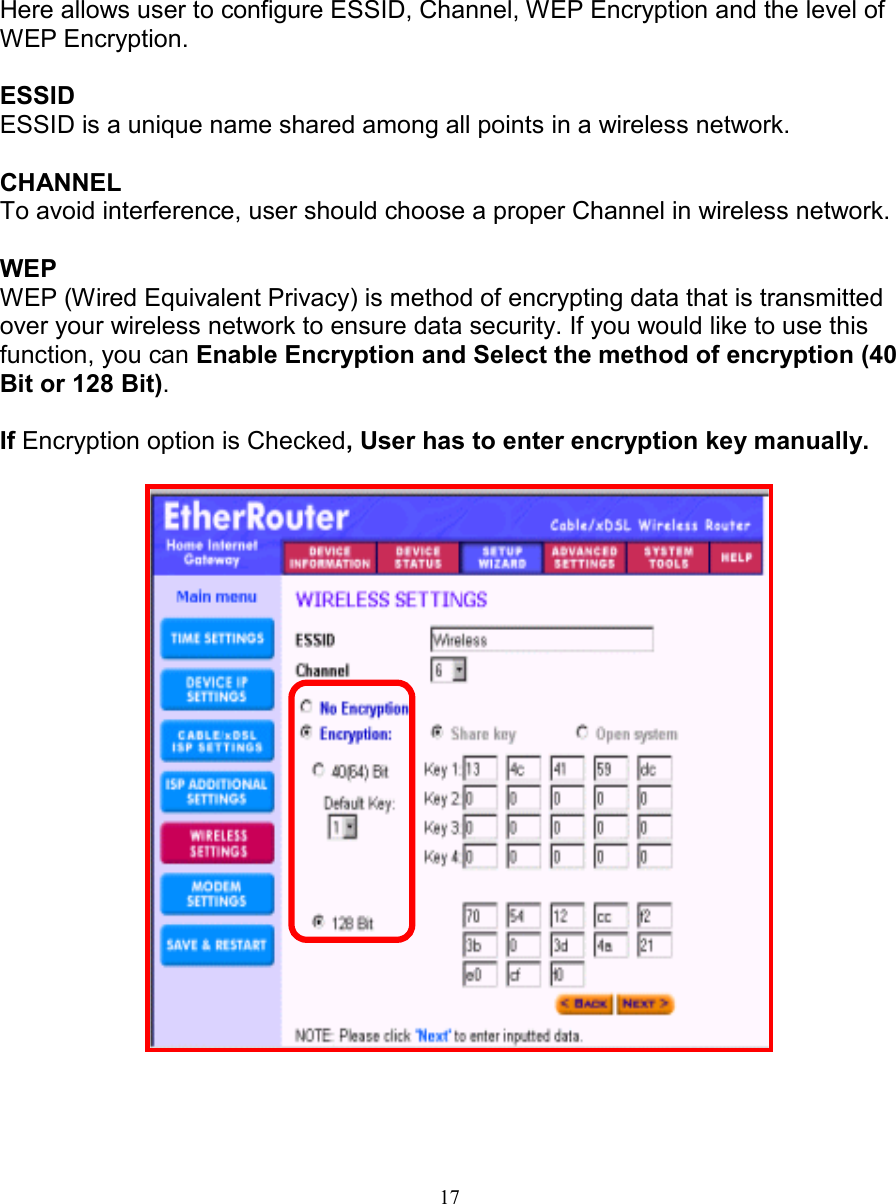

17WIRELESS SETTINGSWIRELESS SETTINGSWIRELESS SETTINGSWIRELESS SETTINGSHere allows user to configure ESSID, Channel, WEP Encryption and the level ofWEP Encryption.ESSIDESSID is a unique name shared among all points in a wireless network.CHANNELTo avoid interference, user should choose a proper Channel in wireless network.WEPWEP (Wired Equivalent Privacy) is method of encrypting data that is transmittedover your wireless network to ensure data security. If you would like to use thisfunction, you can Enable Encryption and Select the method of encryption (40Bit or 128 Bit).If Encryption option is Checked, User has to enter encryption key manually.

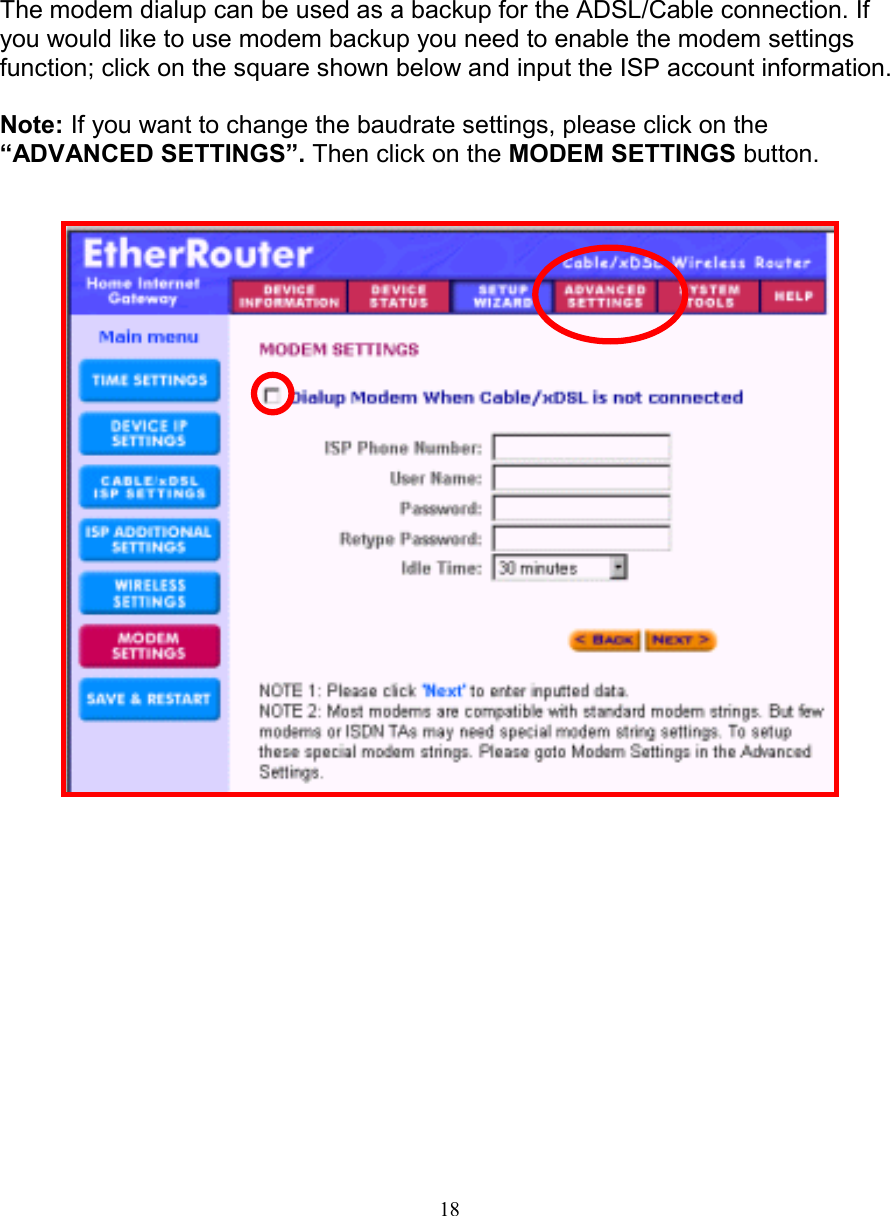

18MODEM SETTINGSMODEM SETTINGSMODEM SETTINGSMODEM SETTINGSThe modem dialup can be used as a backup for the ADSL/Cable connection. Ifyou would like to use modem backup you need to enable the modem settingsfunction; click on the square shown below and input the ISP account information.Note: If you want to change the baudrate settings, please click on the“ADVANCED SETTINGS”. Then click on the MODEM SETTINGS button.

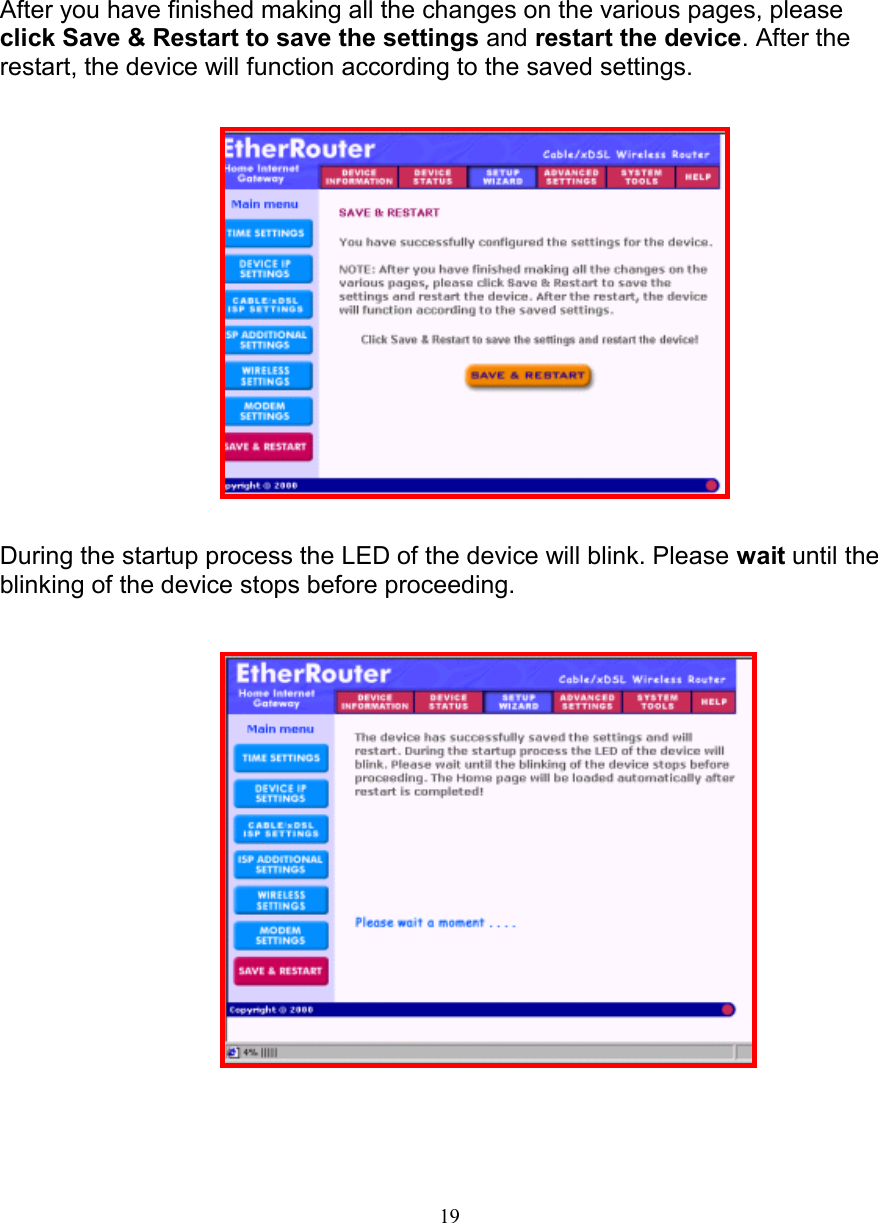

19SAVE & RESTARTSAVE & RESTARTSAVE & RESTARTSAVE & RESTARTAfter you have finished making all the changes on the various pages, pleaseclick Save & Restart to save the settings and restart the device. After therestart, the device will function according to the saved settings.During the startup process the LED of the device will blink. Please wait until theblinking of the device stops before proceeding.

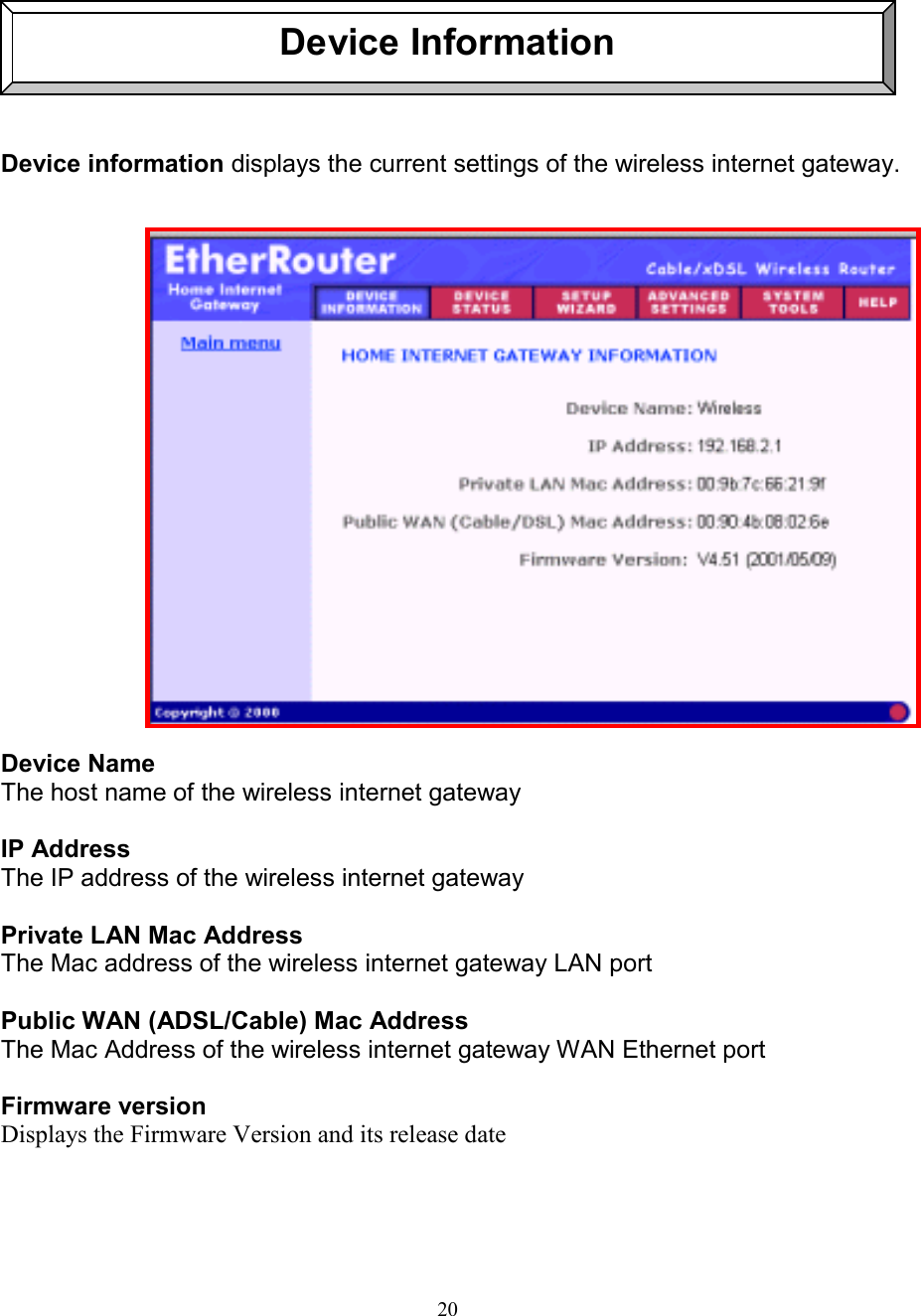

20Device InformationDevice information displays the current settings of the wireless internet gateway.Device NameThe host name of the wireless internet gatewayIP AddressThe IP address of the wireless internet gatewayPrivate LAN Mac AddressThe Mac address of the wireless internet gateway LAN portPublic WAN (ADSL/Cable) Mac AddressThe Mac Address of the wireless internet gateway WAN Ethernet port Firmware versionDisplays the Firmware Version and its release date

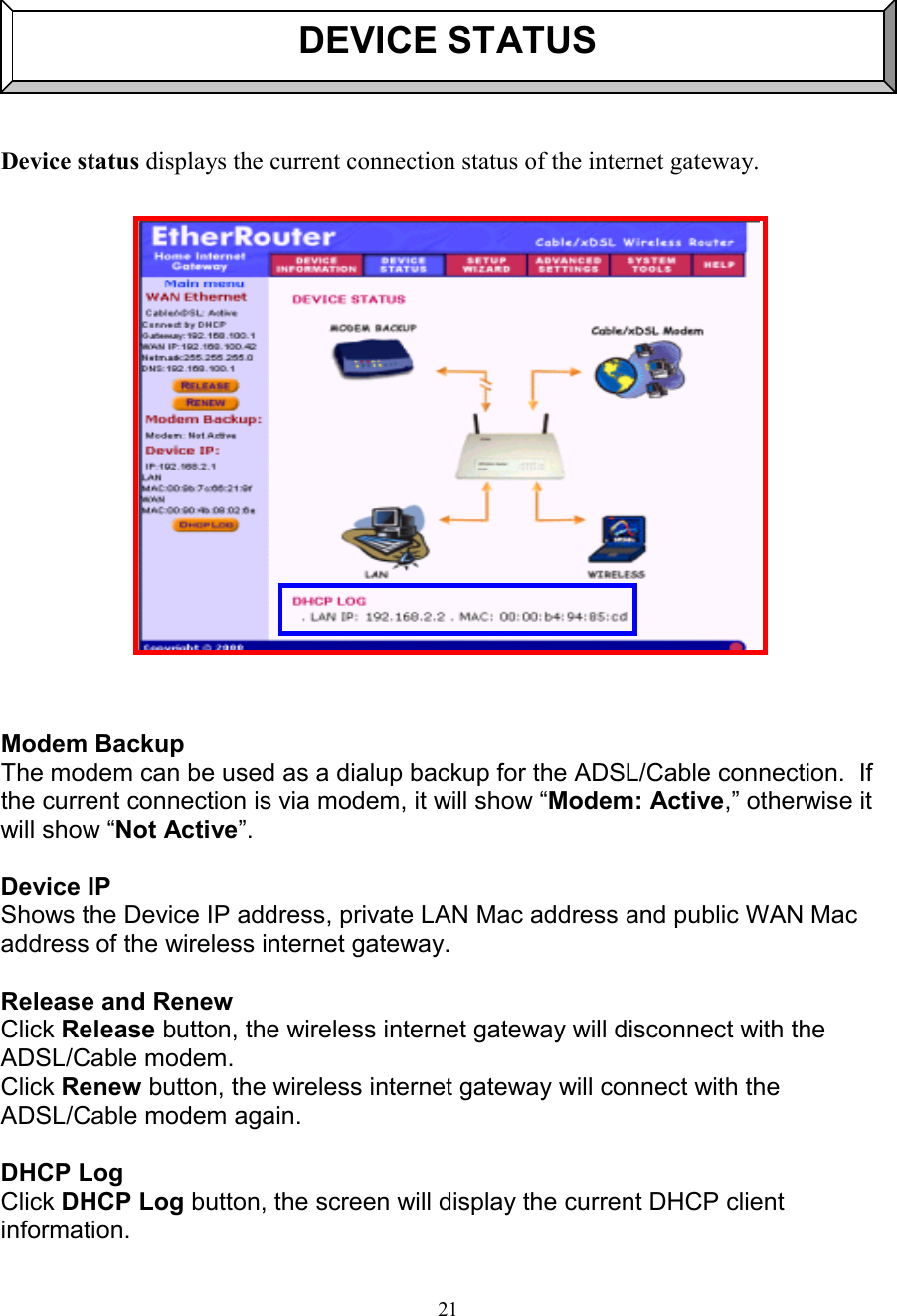

21DEVICE STATUSDevice status displays the current connection status of the internet gateway. Modem BackupThe modem can be used as a dialup backup for the ADSL/Cable connection. Ifthe current connection is via modem, it will show “Modem: Active,” otherwise itwill show “Not Active”.Device IPShows the Device IP address, private LAN Mac address and public WAN Macaddress of the wireless internet gateway.Release and RenewClick Release button, the wireless internet gateway will disconnect with theADSL/Cable modem.Click Renew button, the wireless internet gateway will connect with theADSL/Cable modem again.DHCP LogClick DHCP Log button, the screen will display the current DHCP clientinformation.
22Advanced SettingsAdvanced settings include DHCP server, virtual server and password settings.A username and password dialog will appear. Type“admin” in the user name box, and type the passwordthat you have set for the device (the default is nopassword) Click OK.The Advanced Settings page will appear.DHCP SERVER SETTINGSDHCP SERVER SETTINGSDHCP SERVER SETTINGSDHCP SERVER SETTINGSThe wireless internet gateway’s DHCP server is enabled by default. If you wouldlike to disable the DHCP server, uncheck on the square circled below.IP Address Pool RangeThe IP address pool contains the range of the IP address that will automaticallybe assigned to the clients of your network.Default setting is from 192.168.2.2 to 192.168.2.100IP Address Reservation

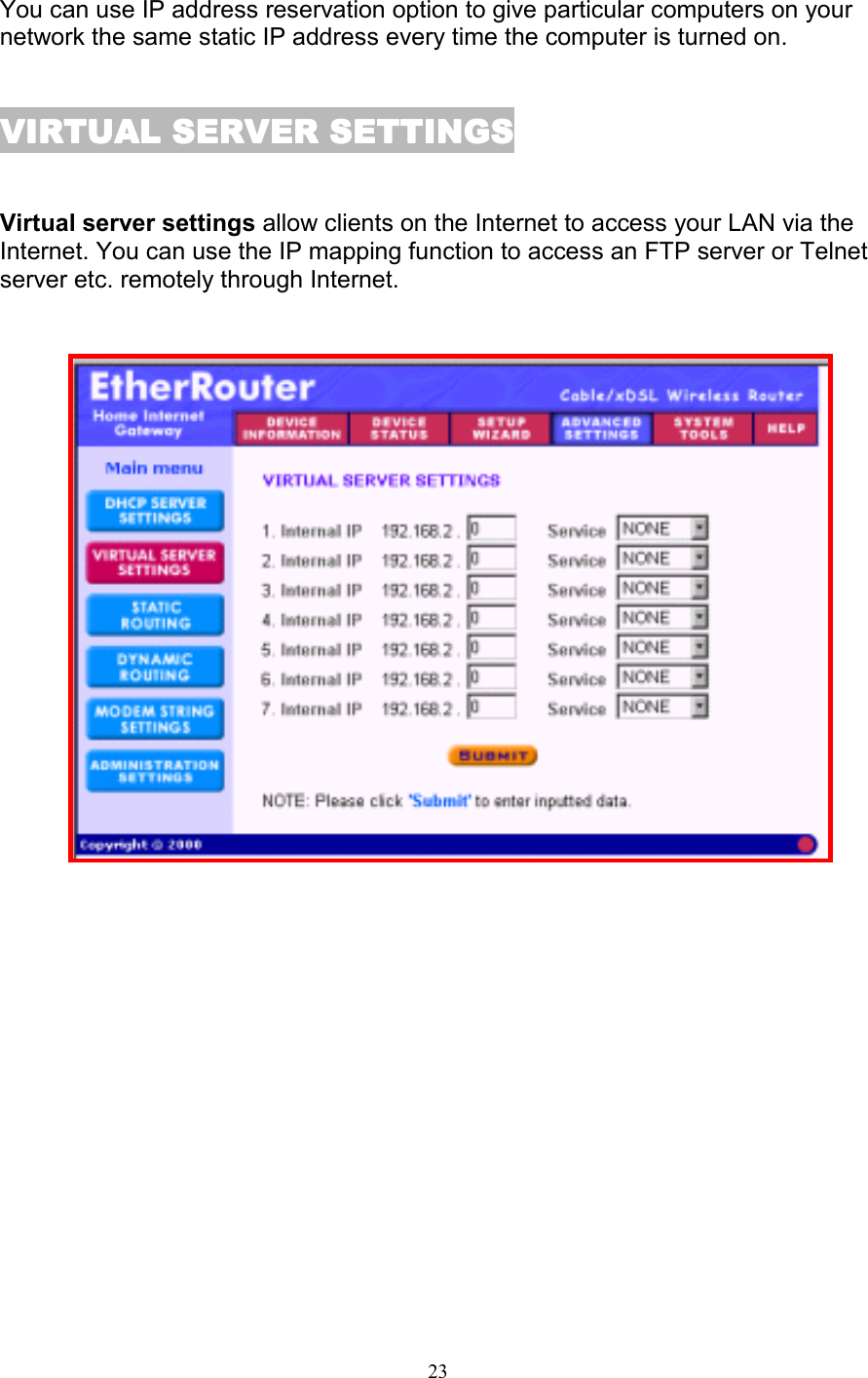

23You can use IP address reservation option to give particular computers on yournetwork the same static IP address every time the computer is turned on.VIRTUAL SERVER SETTINGSVIRTUAL SERVER SETTINGSVIRTUAL SERVER SETTINGSVIRTUAL SERVER SETTINGSVirtual server settings allow clients on the Internet to access your LAN via theInternet. You can use the IP mapping function to access an FTP server or Telnetserver etc. remotely through Internet.

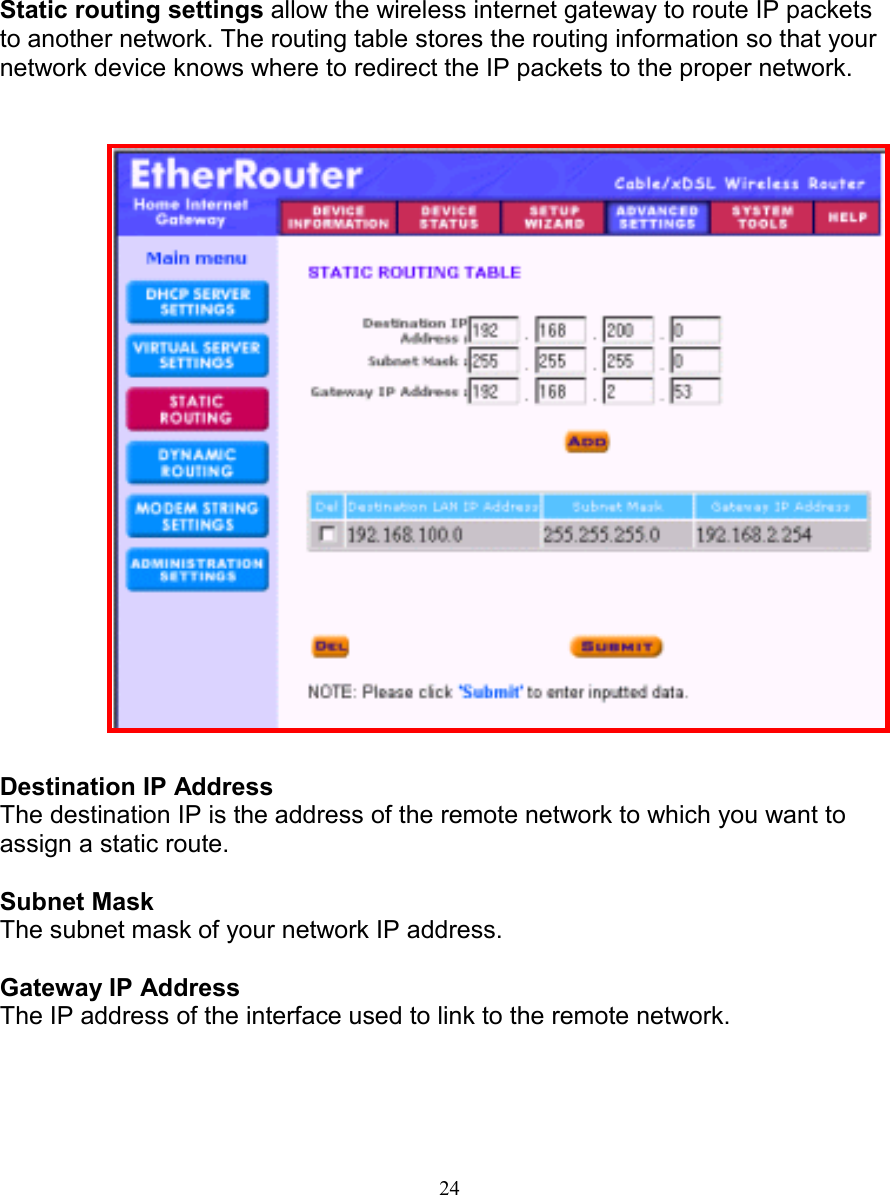

24STATIC ROUTING SETTINGSSTATIC ROUTING SETTINGSSTATIC ROUTING SETTINGSSTATIC ROUTING SETTINGSStatic routing settings allow the wireless internet gateway to route IP packetsto another network. The routing table stores the routing information so that yournetwork device knows where to redirect the IP packets to the proper network.Destination IP AddressThe destination IP is the address of the remote network to which you want toassign a static route.Subnet MaskThe subnet mask of your network IP address.Gateway IP AddressThe IP address of the interface used to link to the remote network.

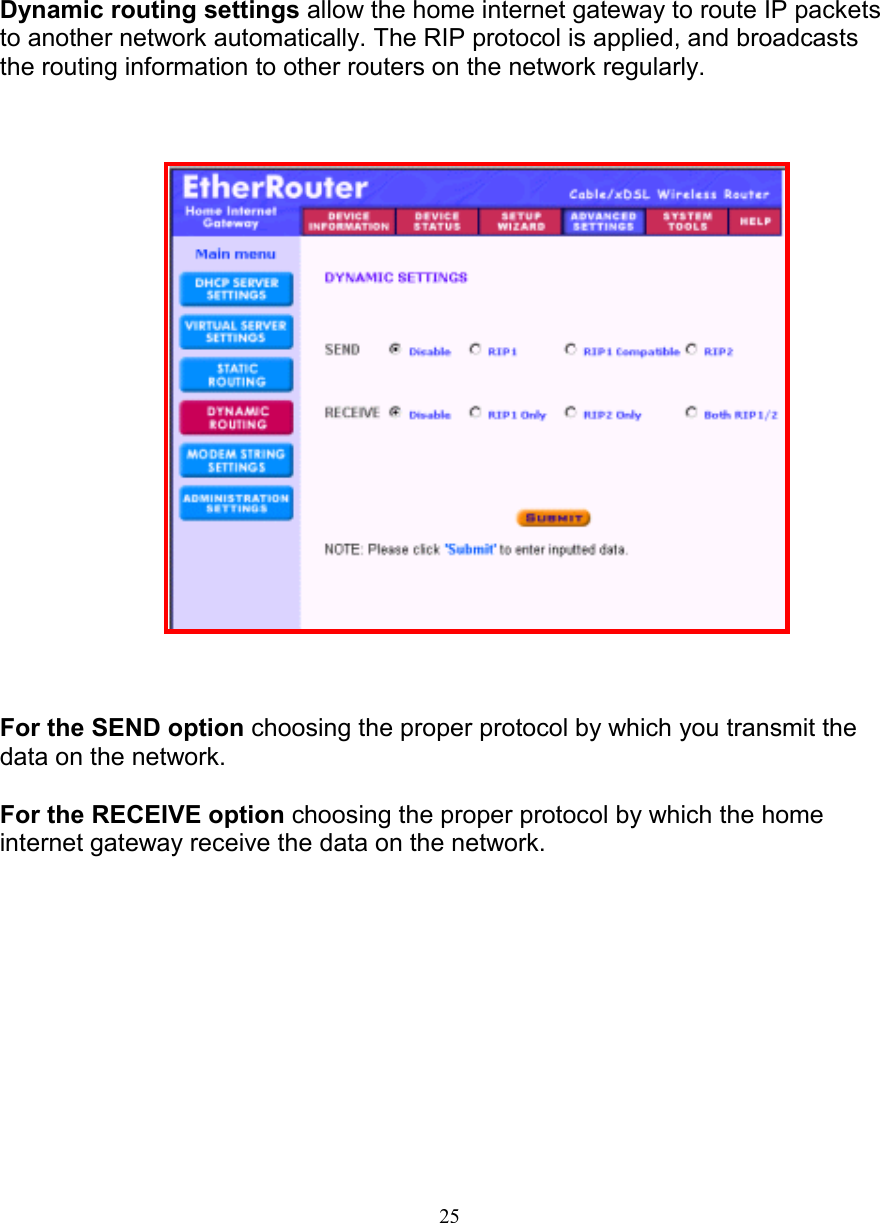

25DYNAMIC ROUTING SETTINGSDYNAMIC ROUTING SETTINGSDYNAMIC ROUTING SETTINGSDYNAMIC ROUTING SETTINGSDynamic routing settings allow the home internet gateway to route IP packetsto another network automatically. The RIP protocol is applied, and broadcaststhe routing information to other routers on the network regularly.For the SEND option choosing the proper protocol by which you transmit thedata on the network.For the RECEIVE option choosing the proper protocol by which the homeinternet gateway receive the data on the network.

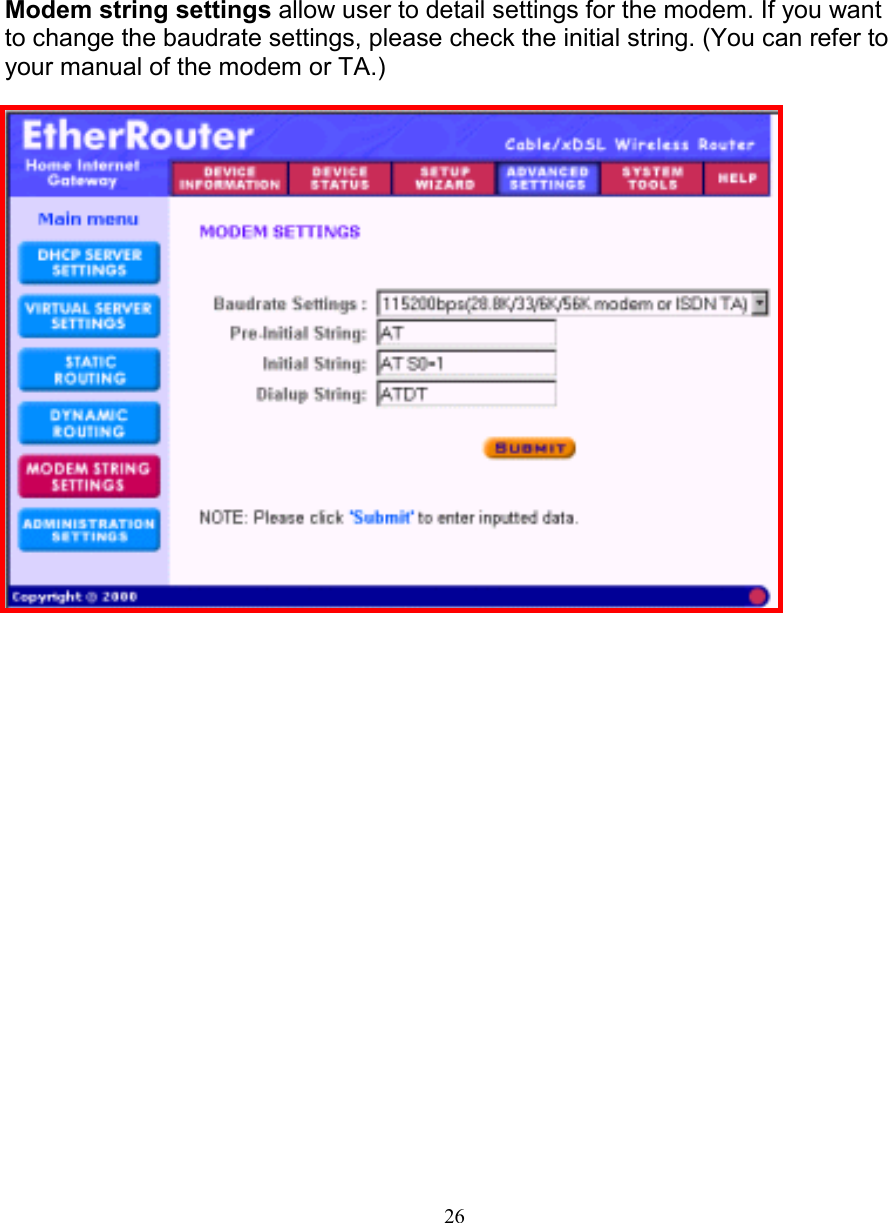

26MODEM STRING SETTINGSMODEM STRING SETTINGSMODEM STRING SETTINGSMODEM STRING SETTINGSModem string settings allow user to detail settings for the modem. If you wantto change the baudrate settings, please check the initial string. (You can refer toyour manual of the modem or TA.)

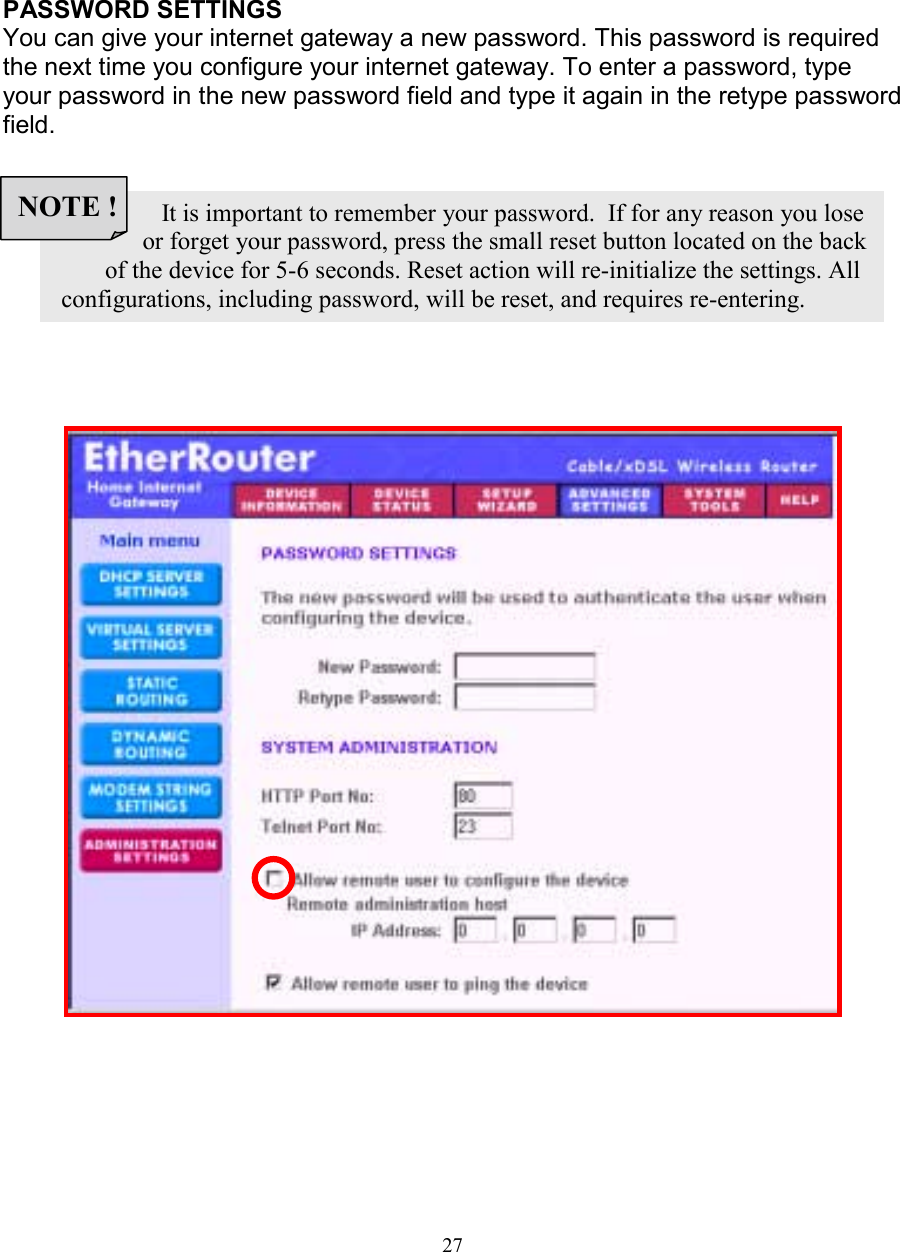

27ADMINISTRATION SETTINGSADMINISTRATION SETTINGSADMINISTRATION SETTINGSADMINISTRATION SETTINGSPASSWORD SETTINGSYou can give your internet gateway a new password. This password is requiredthe next time you configure your internet gateway. To enter a password, typeyour password in the new password field and type it again in the retype passwordfield. It is important to remember your password. If for any reason you lose or forget your password, press the small reset button located on the back of the device for 5-6 seconds. Reset action will re-initialize the settings. All configurations, including password, will be reset, and requires re-entering.NOTE !

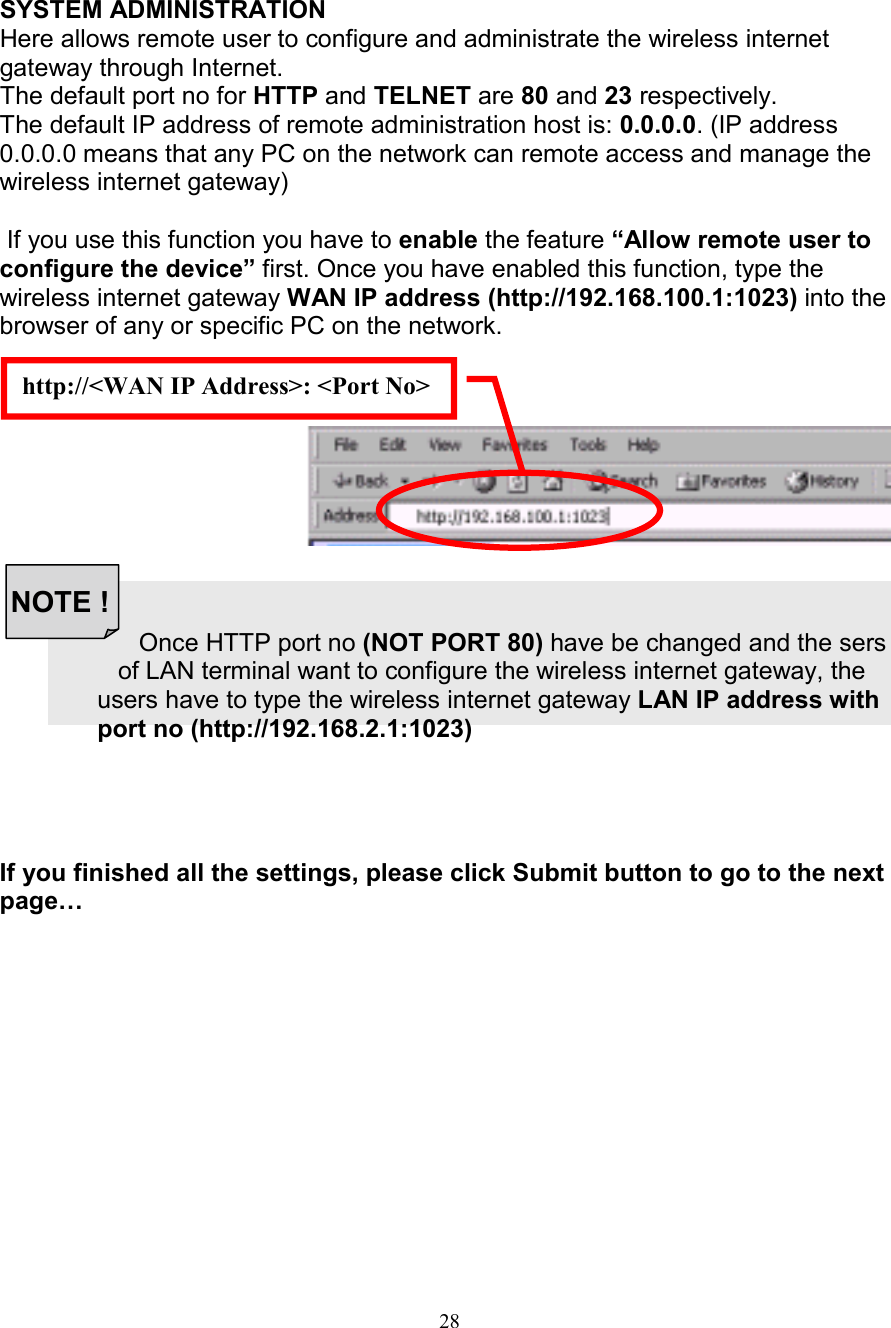

28http://<WAN IP Address>: <Port No>NOTE !SYSTEM ADMINISTRATIONHere allows remote user to configure and administrate the wireless internetgateway through Internet.The default port no for HTTP and TELNET are 80 and 23 respectively.The default IP address of remote administration host is: 0.0.0.0. (IP address0.0.0.0 means that any PC on the network can remote access and manage thewireless internet gateway) If you use this function you have to enable the feature “Allow remote user toconfigure the device” first. Once you have enabled this function, type thewireless internet gateway WAN IP address (http://192.168.100.1:1023) into thebrowser of any or specific PC on the network. Once HTTP port no (NOT PORT 80) have be changed and the sers of LAN terminal want to configure the wireless internet gateway, the users have to type the wireless internet gateway LAN IP address with port no (http://192.168.2.1:1023)If you finished all the settings, please click Submit button to go to the nextpage…

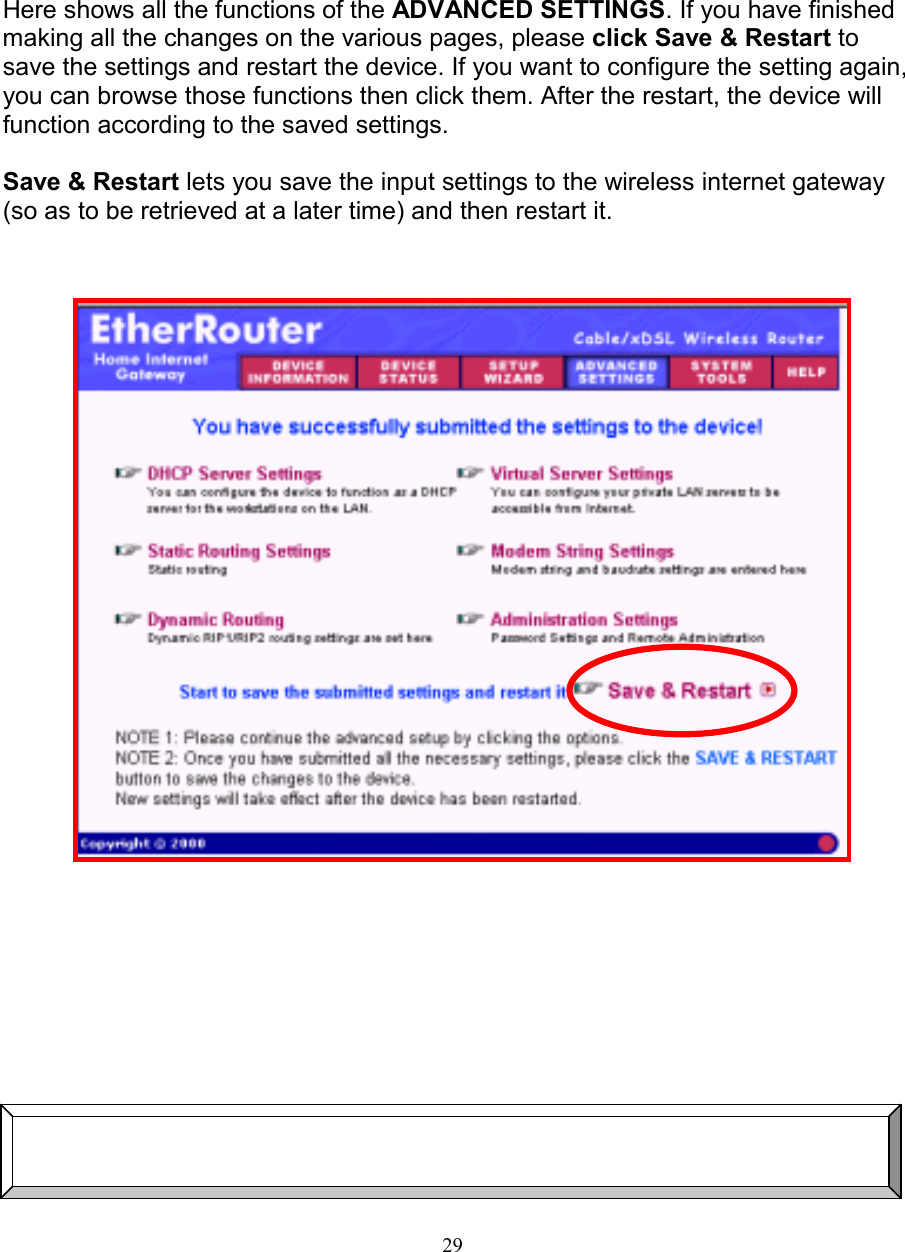

29SAVE & RESTARTSAVE & RESTARTSAVE & RESTARTSAVE & RESTARTHere shows all the functions of the ADVANCED SETTINGS. If you have finishedmaking all the changes on the various pages, please click Save & Restart tosave the settings and restart the device. If you want to configure the setting again,you can browse those functions then click them. After the restart, the device willfunction according to the saved settings.Save & Restart lets you save the input settings to the wireless internet gateway(so as to be retrieved at a later time) and then restart it.

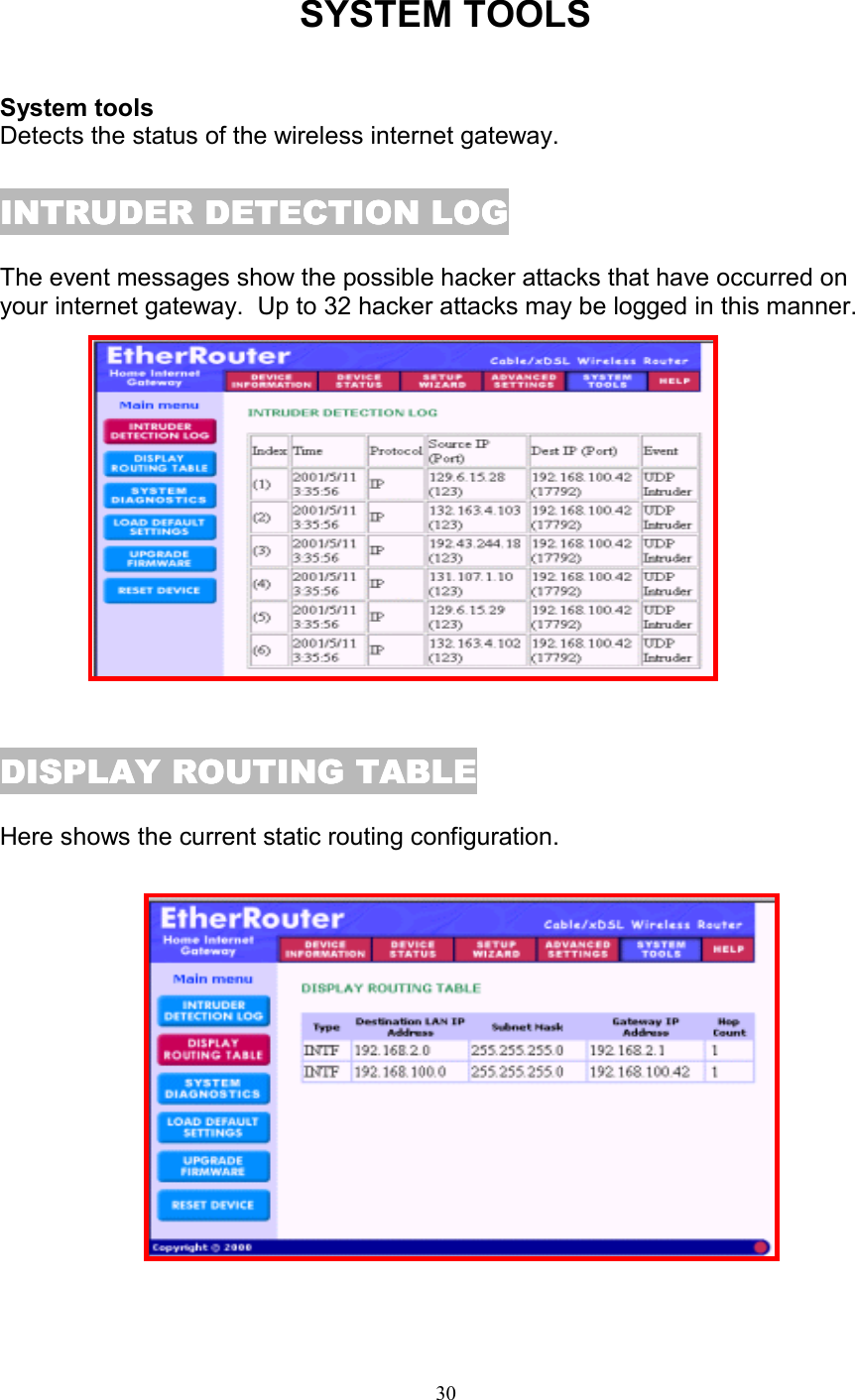

30SYSTEM TOOLSSystem toolsDetects the status of the wireless internet gateway.INTRUDER DETECTION LOGINTRUDER DETECTION LOGINTRUDER DETECTION LOGINTRUDER DETECTION LOGThe event messages show the possible hacker attacks that have occurred onyour internet gateway. Up to 32 hacker attacks may be logged in this manner.DISPLAY ROUTING TABLEDISPLAY ROUTING TABLEDISPLAY ROUTING TABLEDISPLAY ROUTING TABLEHere shows the current static routing configuration.

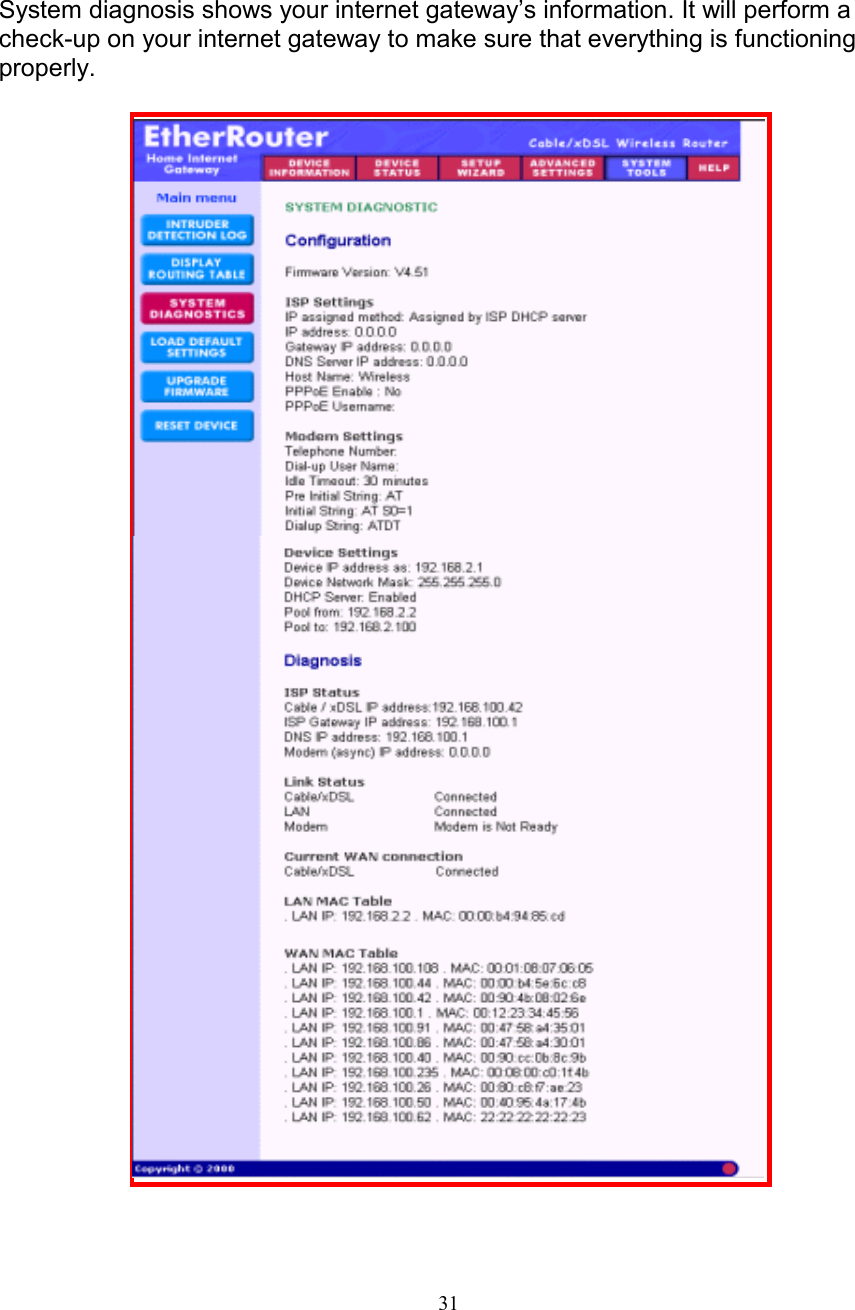

31SYSTEM DIAGNOSTICSYSTEM DIAGNOSTICSYSTEM DIAGNOSTICSYSTEM DIAGNOSTICSystem diagnosis shows your internet gateway’s information. It will perform acheck-up on your internet gateway to make sure that everything is functioningproperly.

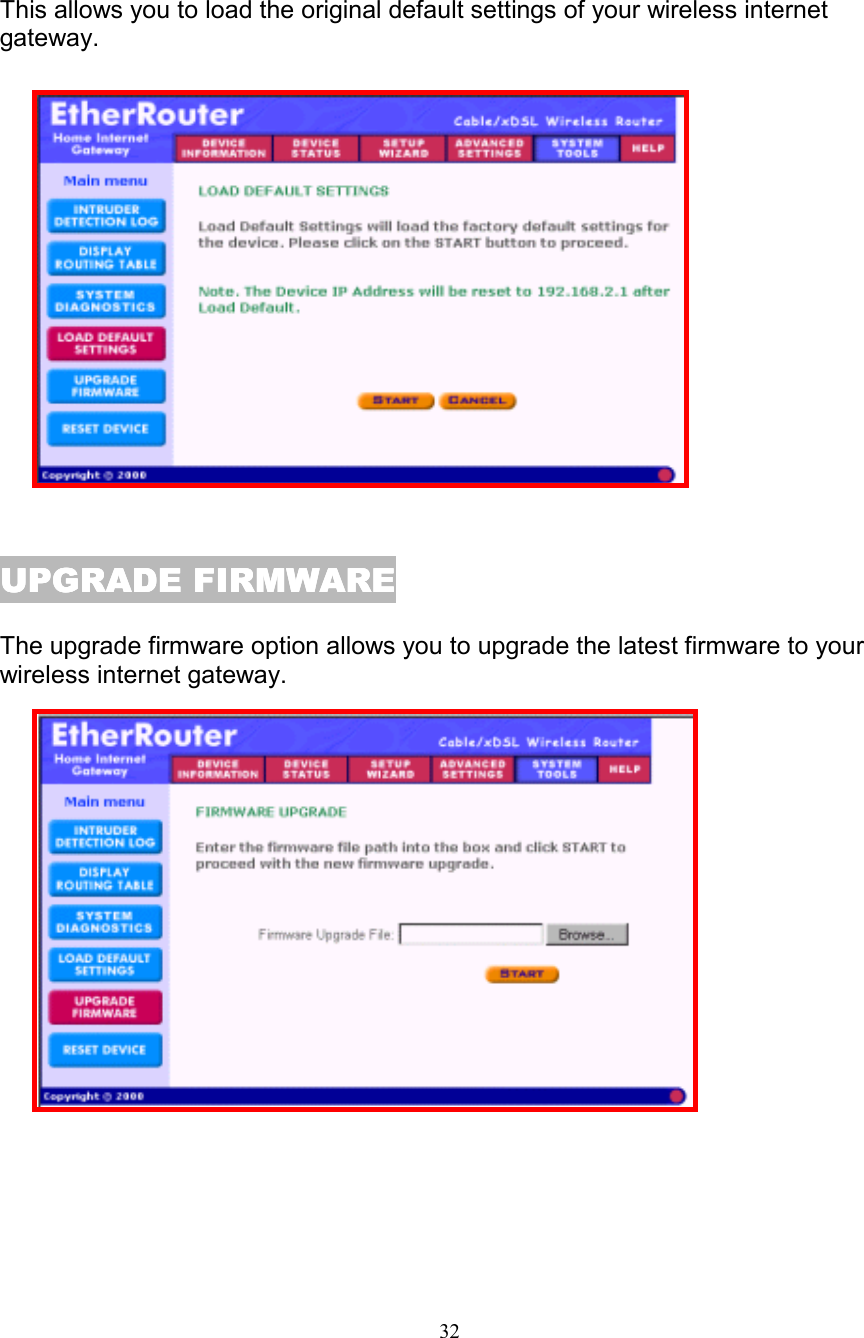

32LOAD DEFAULT SETTINGSLOAD DEFAULT SETTINGSLOAD DEFAULT SETTINGSLOAD DEFAULT SETTINGSThis allows you to load the original default settings of your wireless internetgateway.UPGRADE FIRMWAREUPGRADE FIRMWAREUPGRADE FIRMWAREUPGRADE FIRMWAREThe upgrade firmware option allows you to upgrade the latest firmware to yourwireless internet gateway.

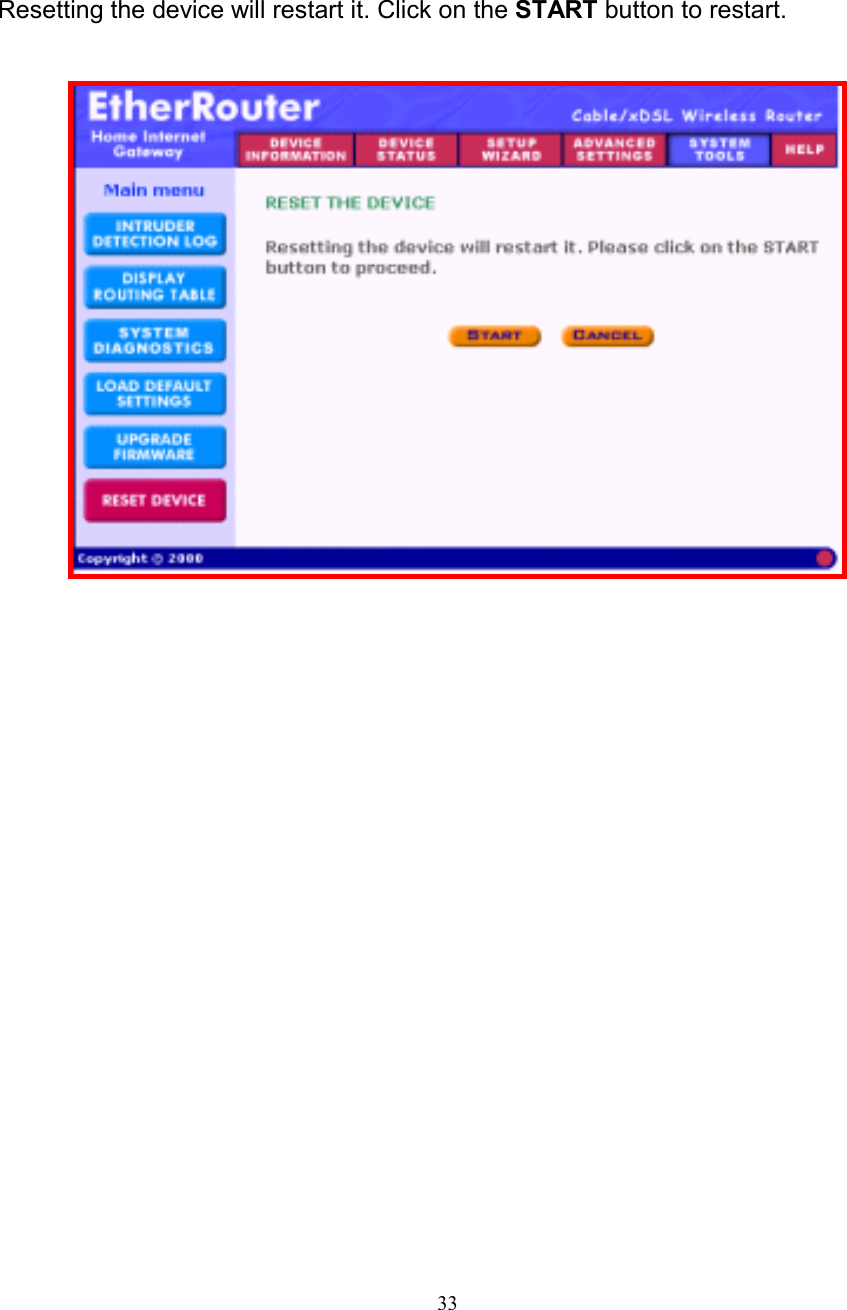

33RESET DEVICERESET DEVICERESET DEVICERESET DEVICEResetting the device will restart it. Click on the START button to restart.

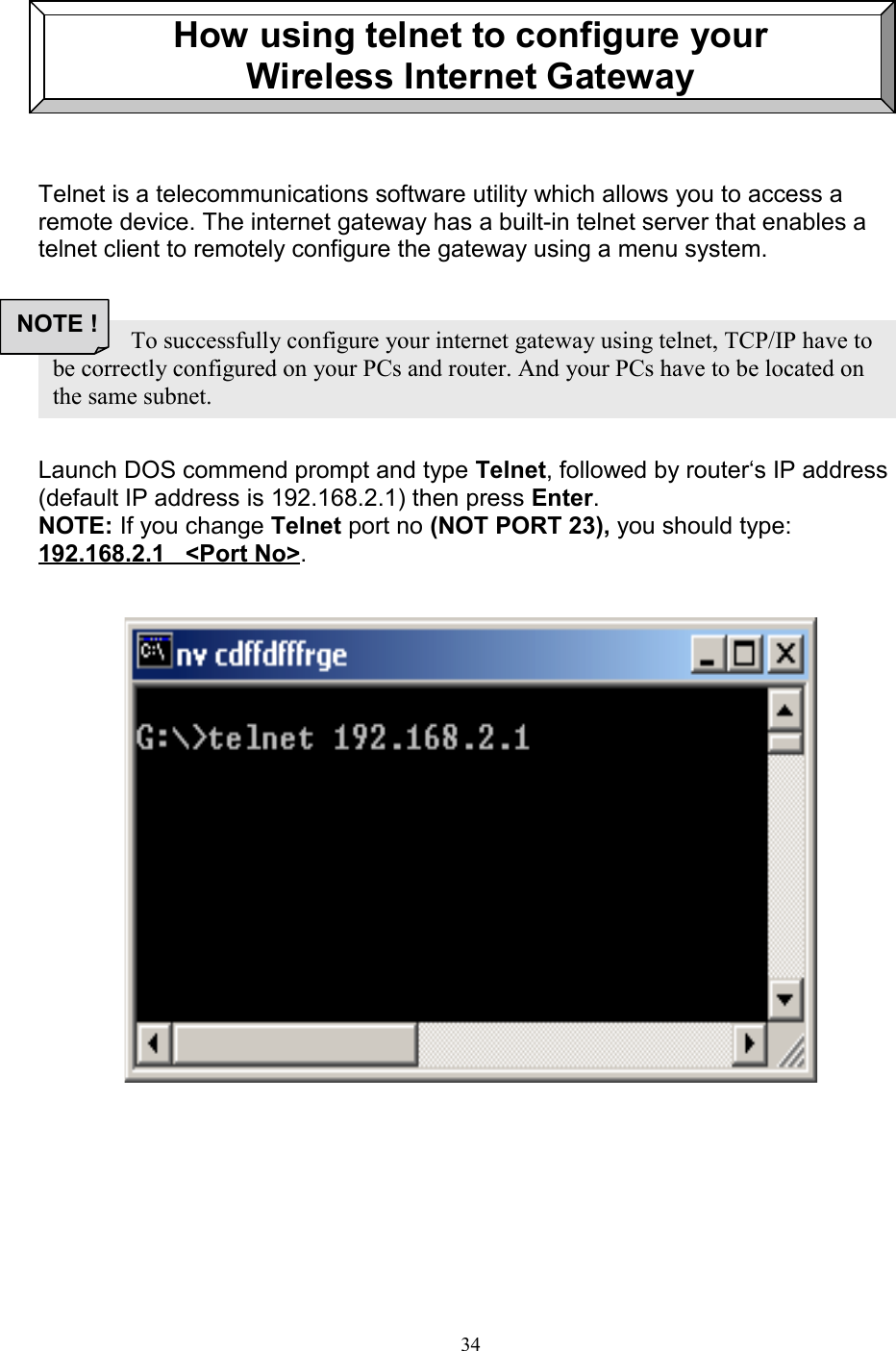

34How using telnet to configure yourWireless Internet GatewayTelnet is a telecommunications software utility which allows you to access aremote device. The internet gateway has a built-in telnet server that enables atelnet client to remotely configure the gateway using a menu system.Launch DOS commend prompt and type Telnet, followed by router‘s IP address(default IP address is 192.168.2.1) then press Enter.NOTE: If you change Telnet port no (NOT PORT 23), you should type:192.168.2.1 <Port No>. To successfully configure your internet gateway using telnet, TCP/IP have tobe correctly configured on your PCs and router. And your PCs have to be located onthe same subnet.NOTE !

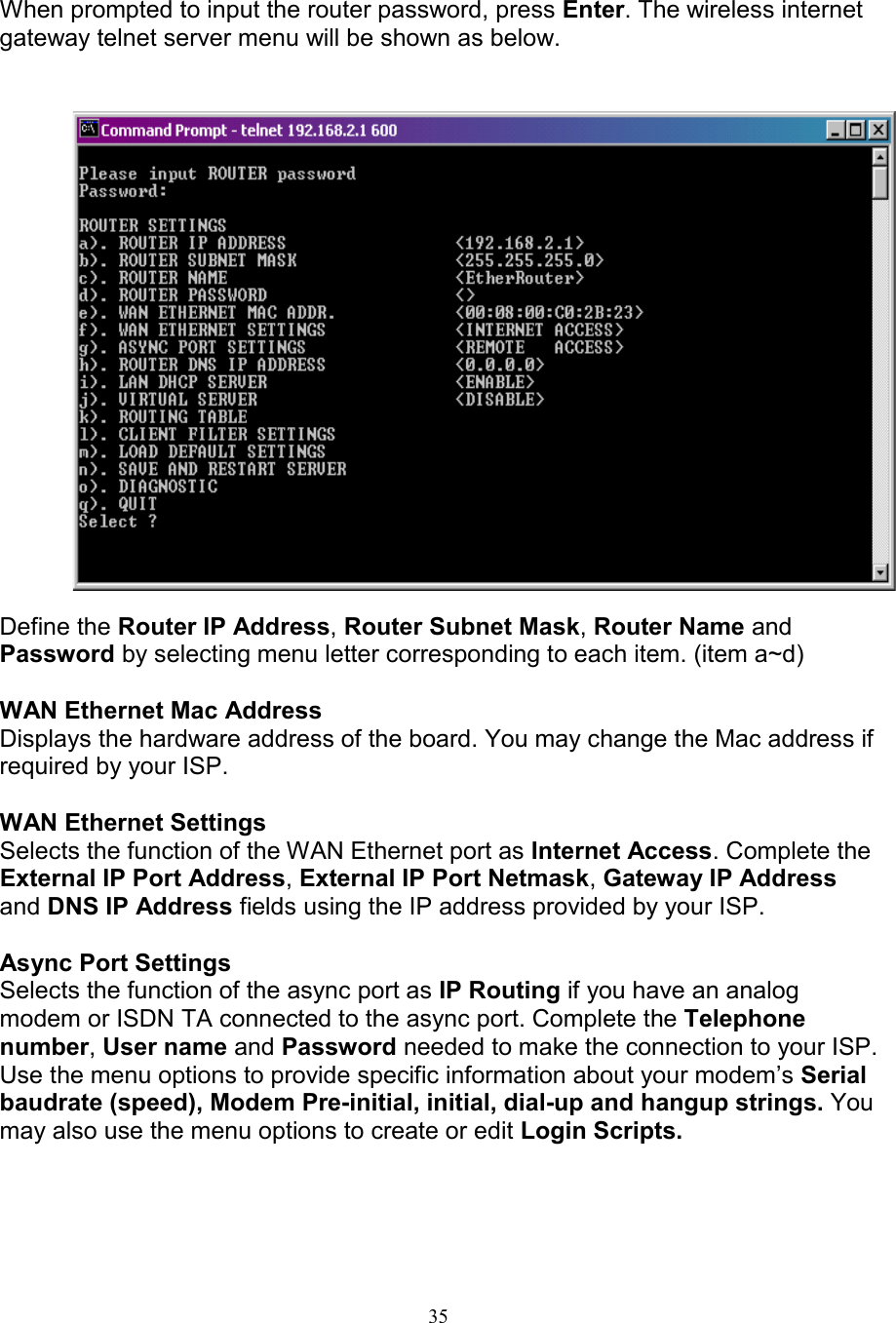

35When prompted to input the router password, press Enter. The wireless internetgateway telnet server menu will be shown as below.Define the Router IP Address, Router Subnet Mask, Router Name andPassword by selecting menu letter corresponding to each item. (item a~d)WAN Ethernet Mac AddressDisplays the hardware address of the board. You may change the Mac address ifrequired by your ISP.WAN Ethernet SettingsSelects the function of the WAN Ethernet port as Internet Access. Complete theExternal IP Port Address, External IP Port Netmask, Gateway IP Addressand DNS IP Address fields using the IP address provided by your ISP.Async Port SettingsSelects the function of the async port as IP Routing if you have an analogmodem or ISDN TA connected to the async port. Complete the Telephonenumber, User name and Password needed to make the connection to your ISP.Use the menu options to provide specific information about your modem’s Serialbaudrate (speed), Modem Pre-initial, initial, dial-up and hangup strings. Youmay also use the menu options to create or edit Login Scripts.
36Router DNS IP AddressEnter the IP address of your ISP system’s DNS as provided by your ISP.LAN DHCP ServerYou can enable or disable the DHCP function on the internet gateway. If youselect enable, you will be prompted to enter the address range from which therouter will issue IP address.Virtual Server (IP Mapping)Define the list of mapped internal and external IP address. For example, you maywant to use IP mapping to access an FTP server on your LAN via the internet.Load default SettingsSets the router back to its original factory settings.Apply and Save ChangesSaves the current configurations into the internet gateway‘s memory.NOTE: you must select Apply and Save Changes before leaving the menu oryour configuration changes will be lost when the gateway is powered off.DiagnosticSelect Diagnostic to perform basic hardware checking and display the gateway’sfirmware version. You may also use this option to assign WAN and LAN Macaddress if required by your ISP.When all options have been configured and after you have selected Apply andSave Changes, select q.) Quit.

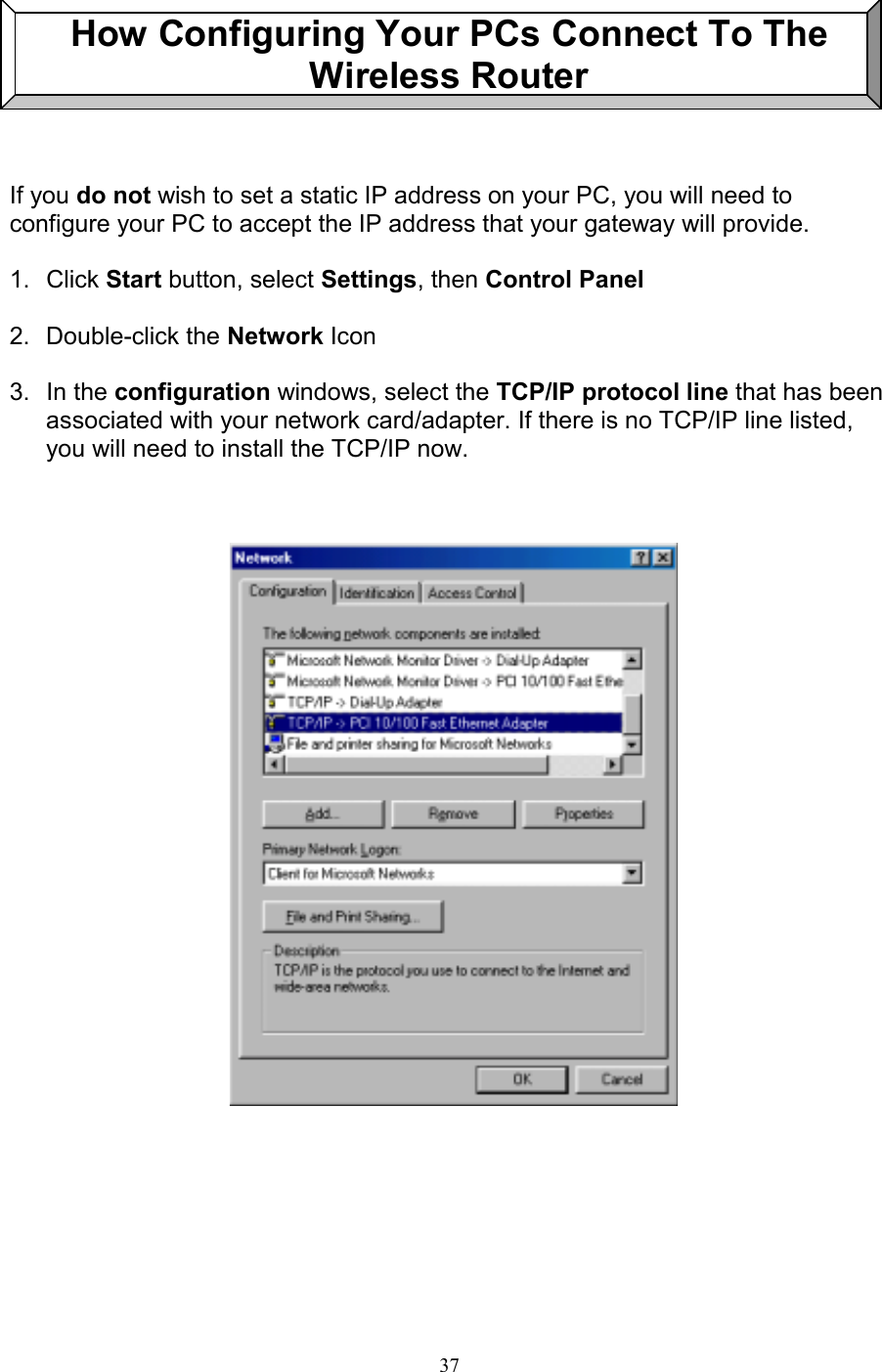

37How Configuring Your PCs Connect To TheWireless RouterIf you do not wish to set a static IP address on your PC, you will need toconfigure your PC to accept the IP address that your gateway will provide.1. Click Start button, select Settings, then Control Panel2. Double-click the Network Icon3. In the configuration windows, select the TCP/IP protocol line that has beenassociated with your network card/adapter. If there is no TCP/IP line listed,you will need to install the TCP/IP now.

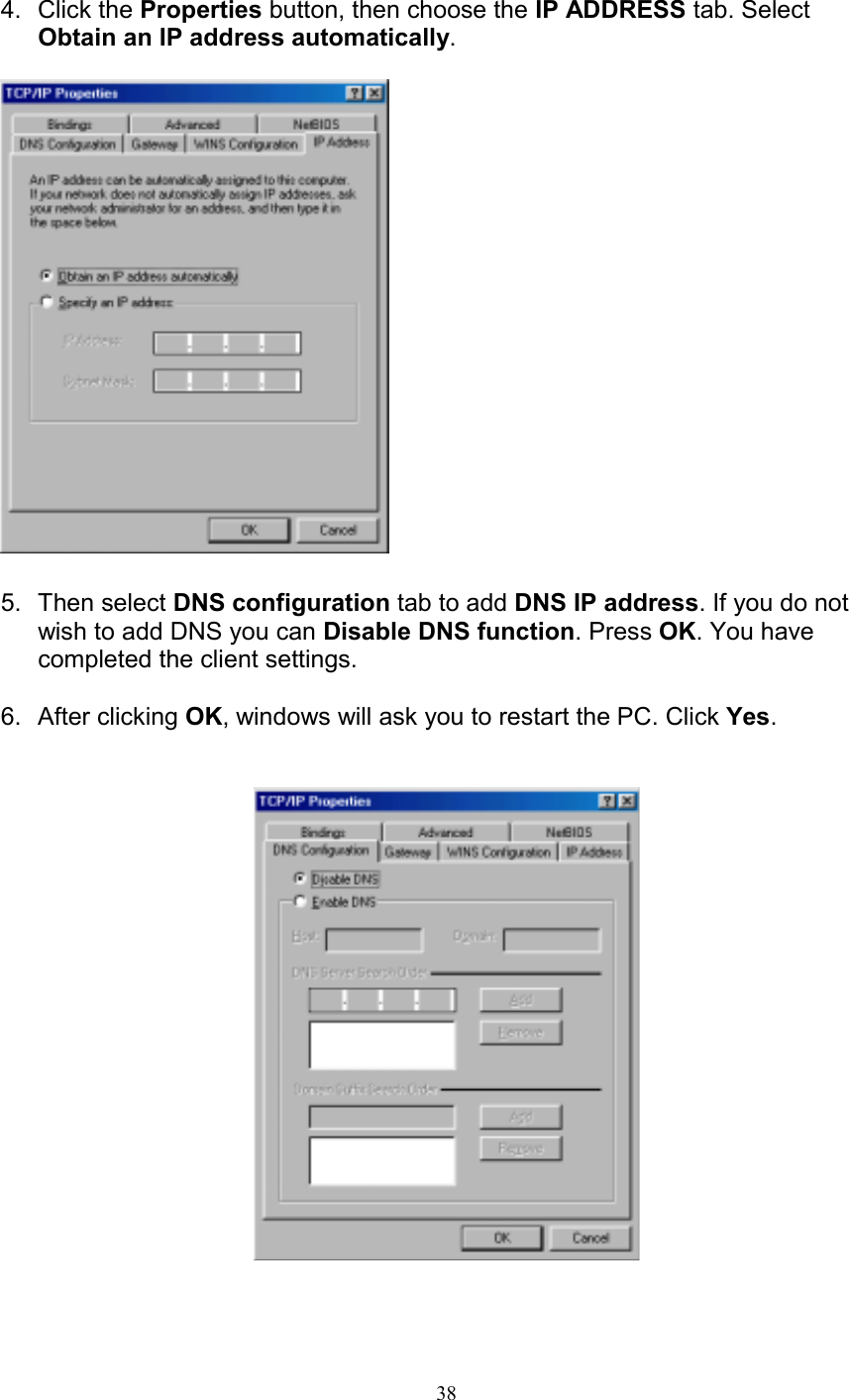

384. Click the Properties button, then choose the IP ADDRESS tab. SelectObtain an IP address automatically.5. Then select DNS configuration tab to add DNS IP address. If you do notwish to add DNS you can Disable DNS function. Press OK. You havecompleted the client settings.6. After clicking OK, windows will ask you to restart the PC. Click Yes.

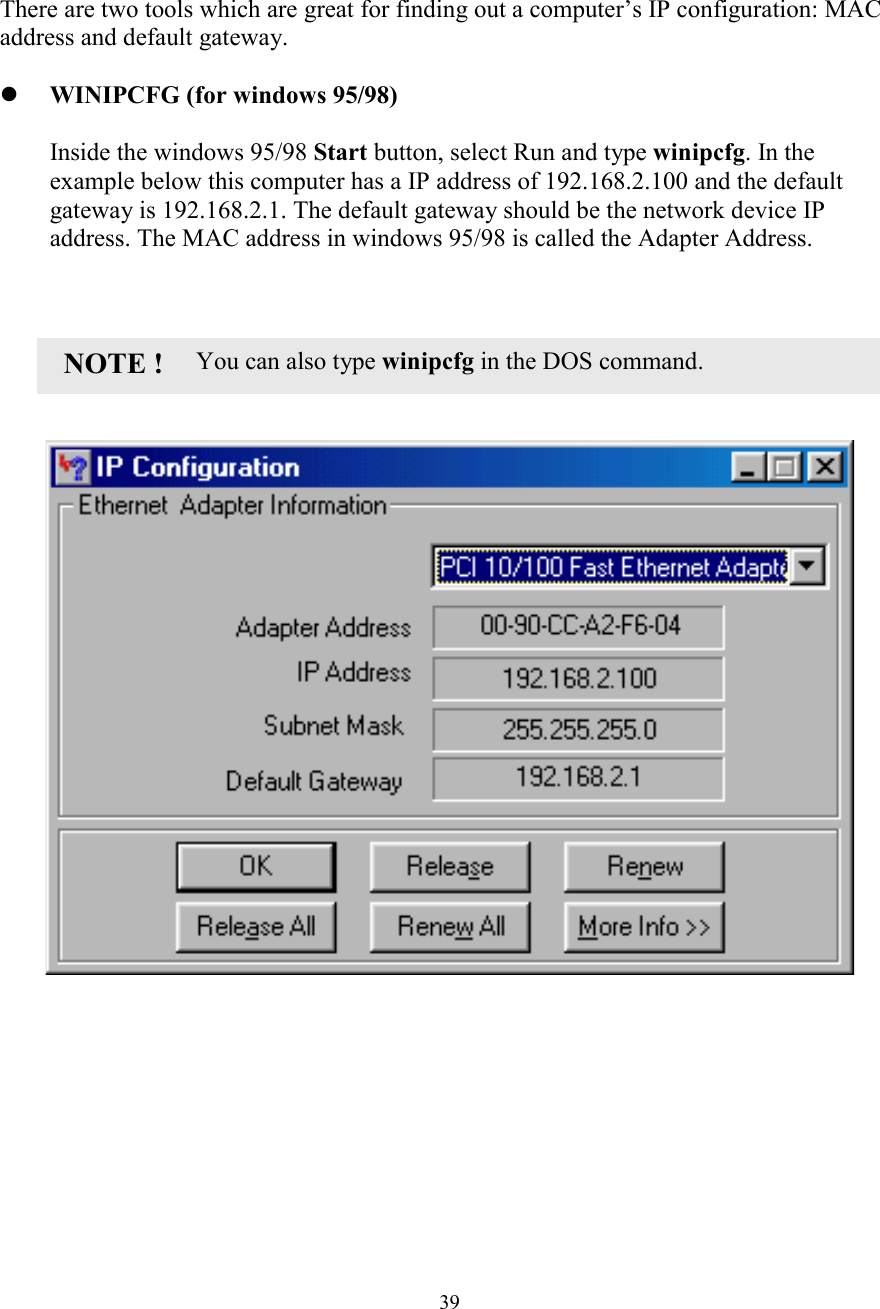

39CONFIRM YOUR PCCONFIRM YOUR PCCONFIRM YOUR PCCONFIRM YOUR PC’’’’s IP CONFIGURATIONs IP CONFIGURATIONs IP CONFIGURATIONs IP CONFIGURATIONThere are two tools which are great for finding out a computer’s IP configuration: MACaddress and default gateway.! WINIPCFG (for windows 95/98)Inside the windows 95/98 Start button, select Run and type winipcfg. In theexample below this computer has a IP address of 192.168.2.100 and the defaultgateway is 192.168.2.1. The default gateway should be the network device IPaddress. The MAC address in windows 95/98 is called the Adapter Address. You can also type winipcfg in the DOS command.NOTE !

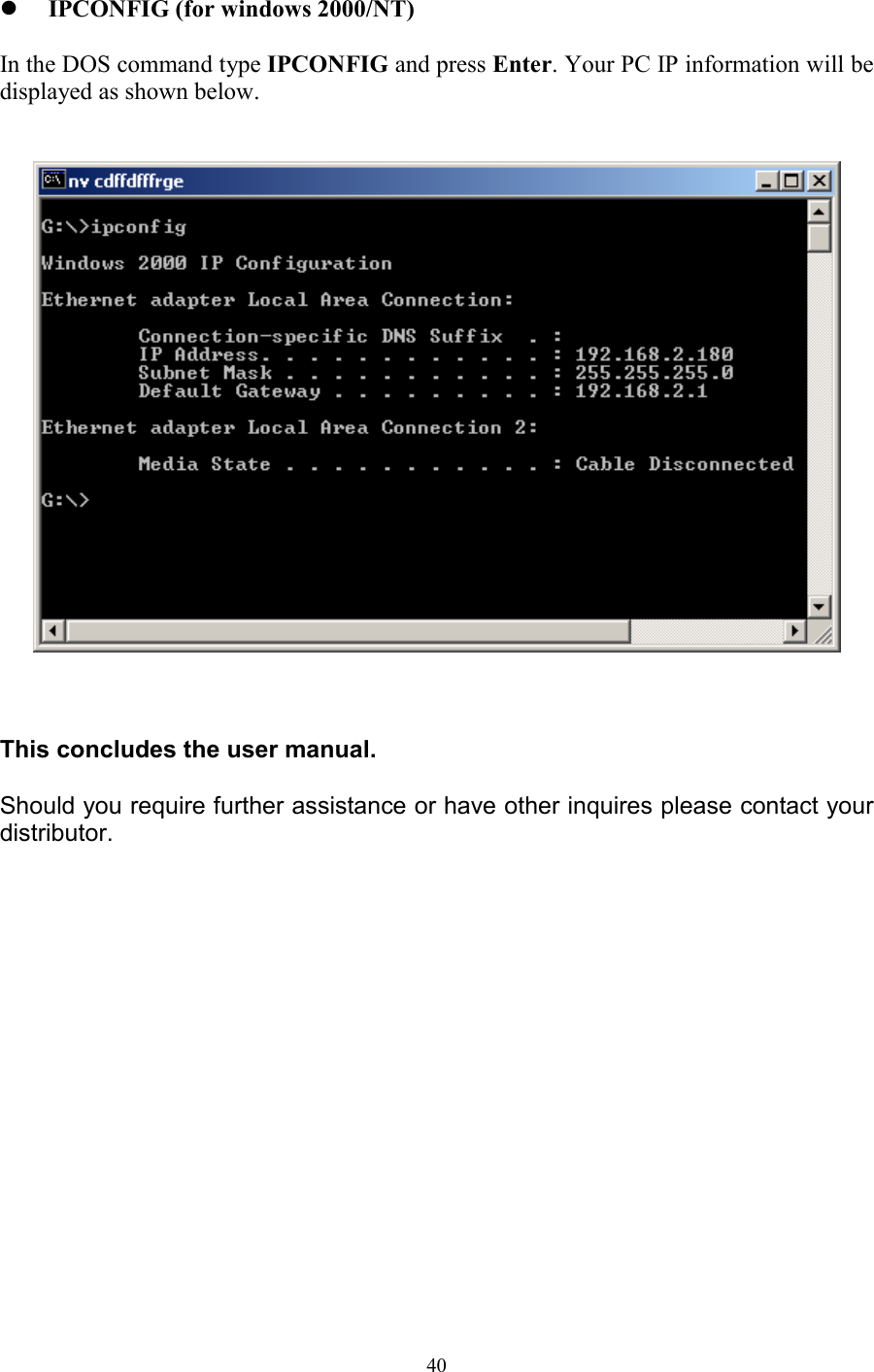

40! IPCONFIG (for windows 2000/NT)In the DOS command type IPCONFIG and press Enter. Your PC IP information will bedisplayed as shown below.This concludes the user manual.Should you require further assistance or have other inquires please contact yourdistributor.
