Thank You for choosing ARIAKON™

1-877-4-ARIAKON

760-268-0735

FAX 760-268-0736

ARIAKON™

2794 LOKER AVE WEST

SUITE 107

CARLSBAD CA 92008

ARIAKON™ All Rights Reserved.

ARIAKON™ , SIM™, SIM-4™, SIM-5™, SIM-5N, SIM-15™,

and TORO™ are trademarks of ARIAKON LLC.

Any use or reproduction of materials, images, names, or logos

found in this manual is strictly prohibited.

On the web

WWW.ARIAKON.COM

ARE YOU A PLAYER?

SIM-5 and SIM-5N

SERIES

.68 CALIBER PAINTBALL MARKER

OWNER’S MANUAL

READ AND UNDERSTAND ALL

INSTRUCTIONS AND

WARNINGS IN THIS MANUAL BEFORE

USING THIS PAINTBALL MARKER.

2004 ARIAKON™ All Rights Reserved

ARIAKON

WARNING

THIS PAINTBALL MARKER IS NOT A TOY. MISUSE WILL

CAUSE SERIOUS INJURY OR DEATH. PROPER EYE

AND HEAD PROTECTION SPECIFICALLY DESIGNED

FOR PAINTBALL USE MUST BE WORN AT ALL TIMES

BY THE USER OR ANY PERSON WITHIN RANGE OF

THIS PAINTBALL MARKER AS WELL AS OTHERS.

THIS PRODUCT IS NOT INTENDED FOR

UNSUPERVISED USE BY ANY MINOR. MINORS MUST

BE UNDER STRICT ADULT SUPERVISON AT ALL TIMES

WHEN USING THIS PRODUCT.

READ AND UNDERSTAND THE COMPLETE OWNER’S

MANUAL BEFORE USE OF THIS PRODUCT.

Page 2

ARIAKON SIM-5, SIM-5N .68 CALIBER PAINTBALL MARKER

This form must be included with your return. You must contact

ARIAKON™ @ 1-877-427-4256 and obtain a Return Merchandise

Authorization Number before sending your marker back. IF YOU

DO NOT HAVE THE RETURN NUMBER WRITTEN ON THE

PACKAGE IT WILL BE REFUSED!!!

CO#___________________________________________________________________

Name__________________________________________________________________

Address________________________________________________________________

_______________________________________________________________________

Phone ( )___________________________________________

Product: ______________________________________________

Description of Prob-

lem:___________________________________________________________________

____

_______________________________________________________________________

_______________________________________________________________________

_______________________________________________________________________

_______________________________________________________________________

Most repairs are completed within 3 to 5 business days. Any costs

associated with parts and/or labor that is not covered by the warranty is

the sole responsibility of the customer. Customers will be contacted

prior to out of warranty repairs. Out of warranty repairs will be charged

at a rate of $15 hour + the cost of parts. Return shipping is not covered

for out of warranty items and will be the responsibility of the customer.

Items must be picked up or shipped out within 30 days of completion of

repairs. If the customer does not pickup merchandise or cover shipping

and handling charges for return of such products, the customer agrees

to relinquish all rights and titles to and waives all claims against

ARIAKON™ for credit related to such products. This form must be filled

out and signed by an Adult over the age of 18.

Signature_____________________________________________________________

ARIAKON SIM-5, SIM-5N .68 CALIBER PAINTBALL MARKER

REQUEST AUTHORIZATION FORM

Page 27

LIMITED 90 DAY WARRANTY

ARIAKON™ products are warranted for 90 Days from the original date of retail purchase. During the

warranty period, any part, because of manufacturing defects or workmanship, that fails to function

properly under normal use shall be repaired or replaced, at ARIAKON'S™ sole discretion, free of charge.

This product must be operated in accordance with the instructions included with the unit.

WHAT IS COVERED

Any parts which are determined to be defective. Labor associated with the warranty repairs.

Transportation charges to consumer for repaired product.

WHAT IS NOT COVERED

Malfunctions or damage resulting from misuse, failure to perform normal maintenance (see pages 9, 16-

23), tampering, unauthorized repairs, modifications, alterations, abuse, neglect, accident, aftermarket parts

and add-ons. Wearable part such as, but not limited to, anodizing, o-rings, cup seal, ball detent, sights,

springs, screws, plastic parts, and plastic finishes. Transportation charges to ARIAKON™ for

defective product. Use of Locktite® or non-approved lubricant on any ARIAKON™ product will void

warranty.

WARRANTY CLAIMS

USA customers: You must contact ARIAKON™ @ 1-877-427-4256 and obtain a Return Merchandise

Authorization Number. The Repair Authorization Form (see page 27), filled out, and a copy of Original

Purchase Receipt must be included with the return. Package the unit carefully using ample padding

material to prevent damage in transit and ship it prepaid and insured. We recommend that you ship your

return product using a method of shipment that supplies proof of delivery to establish liability.

ARIAKON™ is not responsible for items that do not reach us or are lost / damaged in transit.

Please return to:

ARIAKON™

2794 Loker Ave West, Suite #107

Carlsbad CA USA 92008.

RMA#

International Customers: Please return product to your nearest distributor. If you do not know your

distributor, please call 1-877-427-4256 and ask for our International Department for assistance.

IMPLIED WARRANTIES:

WE MAKE NO EXPRESS WARRANTIES EXCEPT THOSE STATED IN THIS SECTION.

ARIAKON™ MAKES NO REPRESENTATIONS OR WARRANTIES, EITHER EXPRESS OR IMPLIED,

OF ANY KIND WITH RESPECT TO PRODUCTS SOLD, INCLUDING BUT NOT LIMITED TO

QUALITY, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. YOU AGREE THAT

THE SOLE AND EXCLUSIVE MAXIMUM LIABILITY, TO ARIAKON™ ARISING FROM ANY

PRODUCT SOLD, SHALL BE THE PRICE OF THE PRODUCT ORDERED. WE RESERVE THE RIGHT

TO MODIFY THIS WARRANTY AT ANY TIME AT OUR SOLE DISCRETION. SOME STATES DO NOT

ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE

LIMITATIONS MAY NOT APPLY TO YOU. TO THE EXTENT ANY PROVISONS OF WARRANTY IS

PROHIBITED BY FEDERAL, STATE, OR MUNICIPAL LAW WHICH CANNOT BE PREEMPTED, SHALL

NOT BE APPLICABLE. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY

ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE AND COUNTRY TO COUNTRY.

LIABILITY STATEMENT:

ARIAKON™ SHALL NOT BE LIABLE, UNDER ANY CIRCUMSTANCE, FOR CONSEQUENTIAL

DAMAGES, INCIDENTAL DAMAGES, OR INCIDENTAL EXPENSES, INCLUDING BUT NOT LIMITED

TO, DAMAGE/LOSS OF PROPERTY, LOSS OF LIFE, PERSONAL INJURY OR ANY OTHER EXPENSE

RESULTING FROM THE USE OF THIS WEAPON, INCLUDING THE INTENTIONAL, RECKLESS,

NEGLIGENT OR ACCIDENTAL DISCHARGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR

LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR

EXCLUSION MAY NOT APPLY TO YOU.

GOVERNING LAW

THE SALE(S) WILL BE GOVERNED BY THE LAWS OF THE STATE OF CALIFORNIA. VENUE AND

JURISDICTION FOR ALL DISPUTES WILL LIE IN SAN DIEGO COUNTY, CALIFORNIA

ARIAKON SIM-5, SIM-5N .68 CALIBER PAINTBALL MARKER

WARRANTY INFORMATION

Page 26

Congratulations on the purchase of your new paintball marker! As a

leader in the paintball industry, we strive to provide one of the best

markers currently in the market. This manual will provide for you the

proper maintenance, instructions, and troubleshooting you will need to

enjoy endless play in the game and not the sidelines. Please take the

time to read and understand the parts, operations, functionality and

safety precautions of this marker before attempting to load or fire.

Warnings and Liability Statement……….……… 4

Be Responsible! Be Safe…………...…………... 4-5

Specifications and Performance……………….. 6

Getting Started…………………………………… 6-7

Unloading your Marker………………………...... 8

Cleaning and Maintenance……………………... 9

Storage and Transporting your marker………... 10

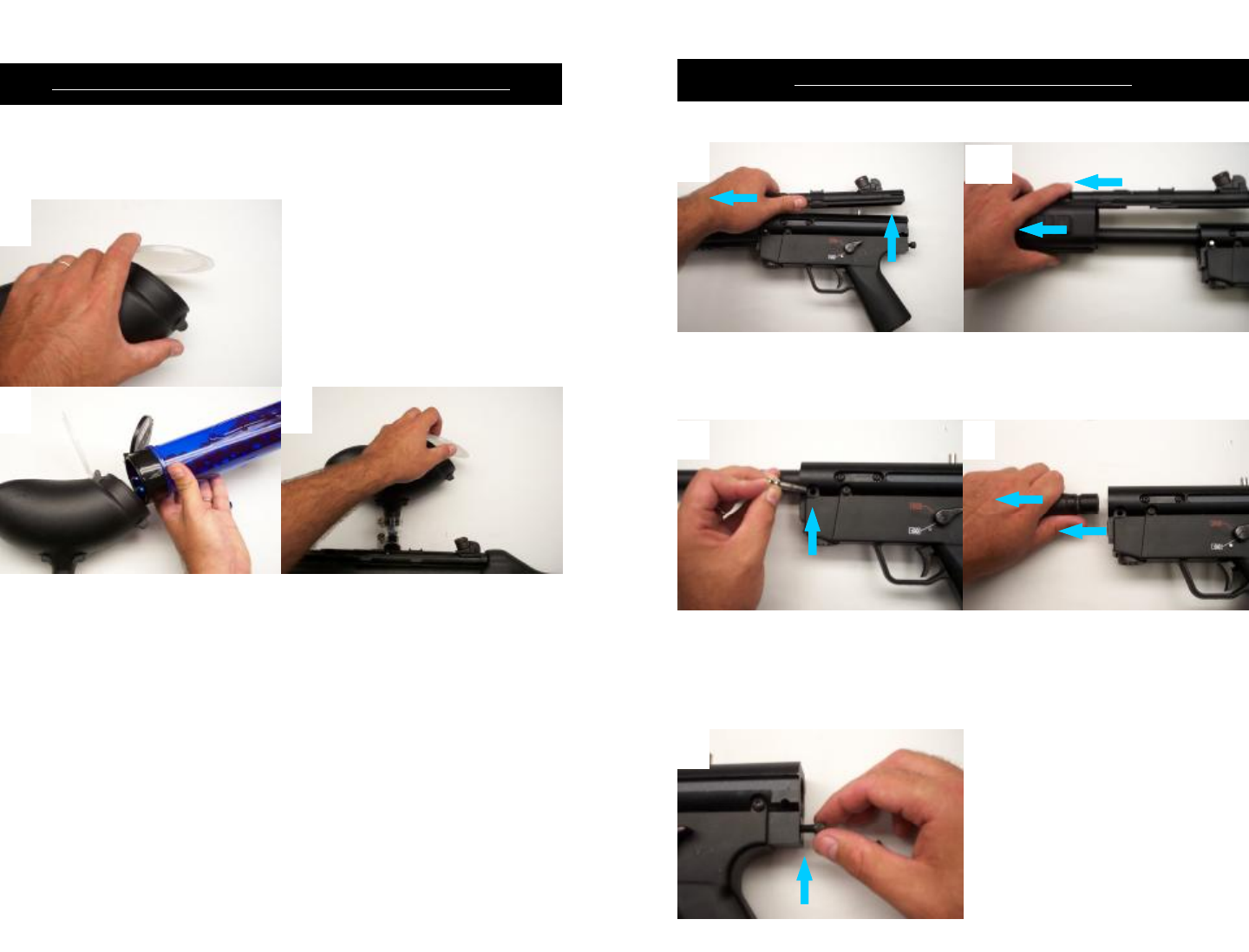

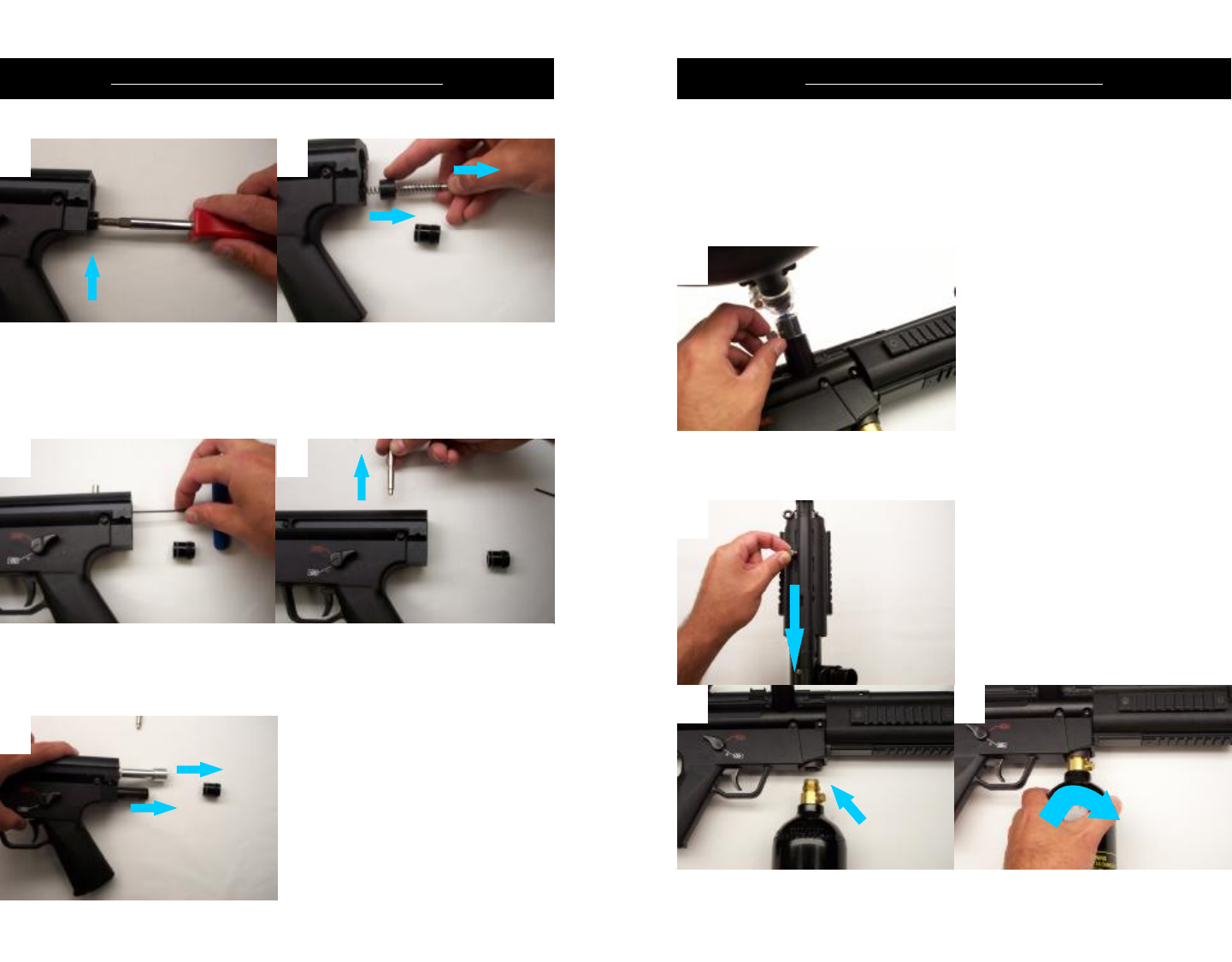

Loading your Marker…………………………….. 11-12

Upgrades…………………………………………. 13

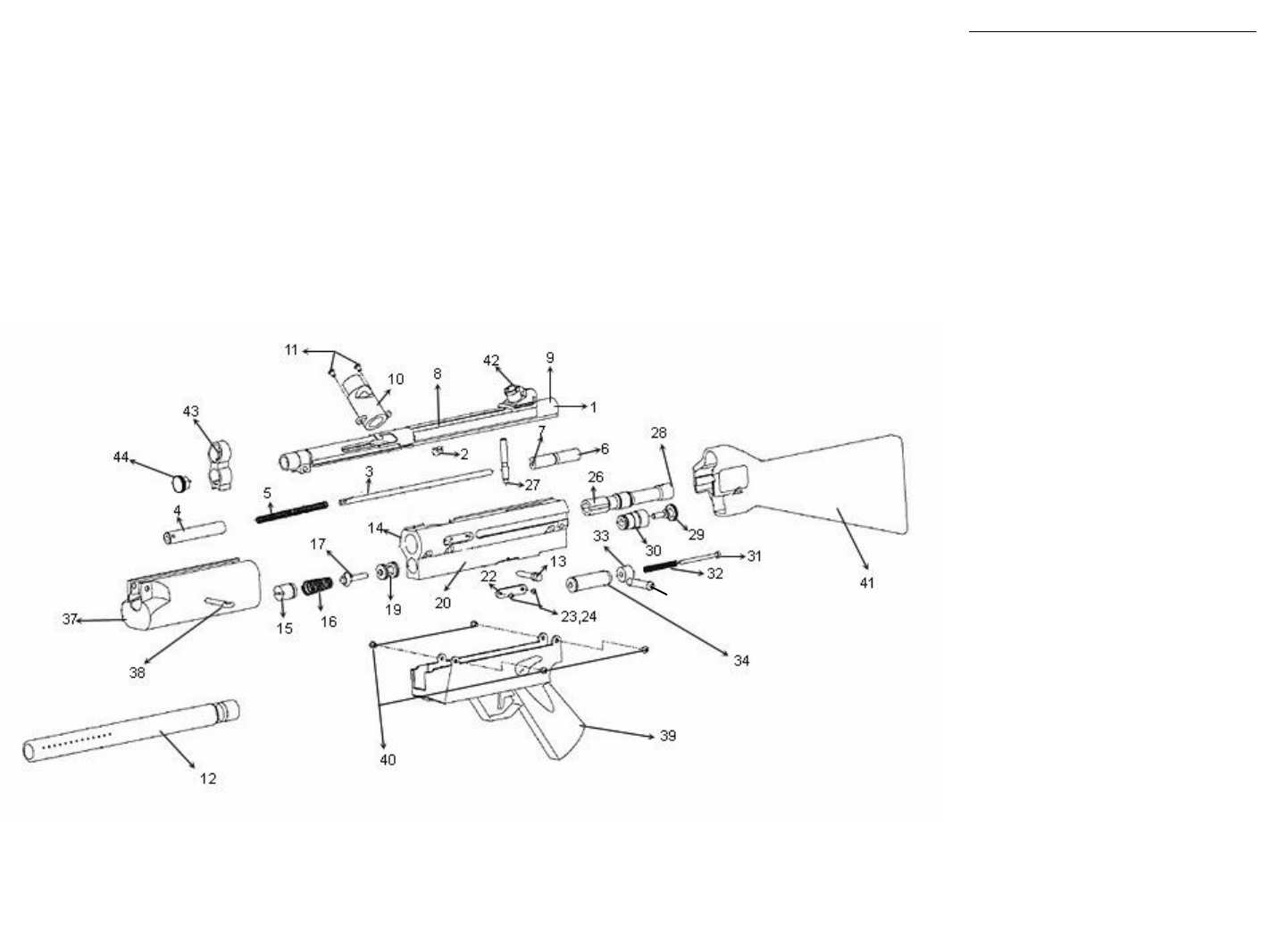

Schematic…………………………………………. 14-15

Disassembly Diagrams………………………….. 16-22

Diagram 1-1 Stock removal……………………. 16

Diagram 1-2 Sight rail removal………………... 16-17

Diagram 1-3 Barrel removal…………………… 17

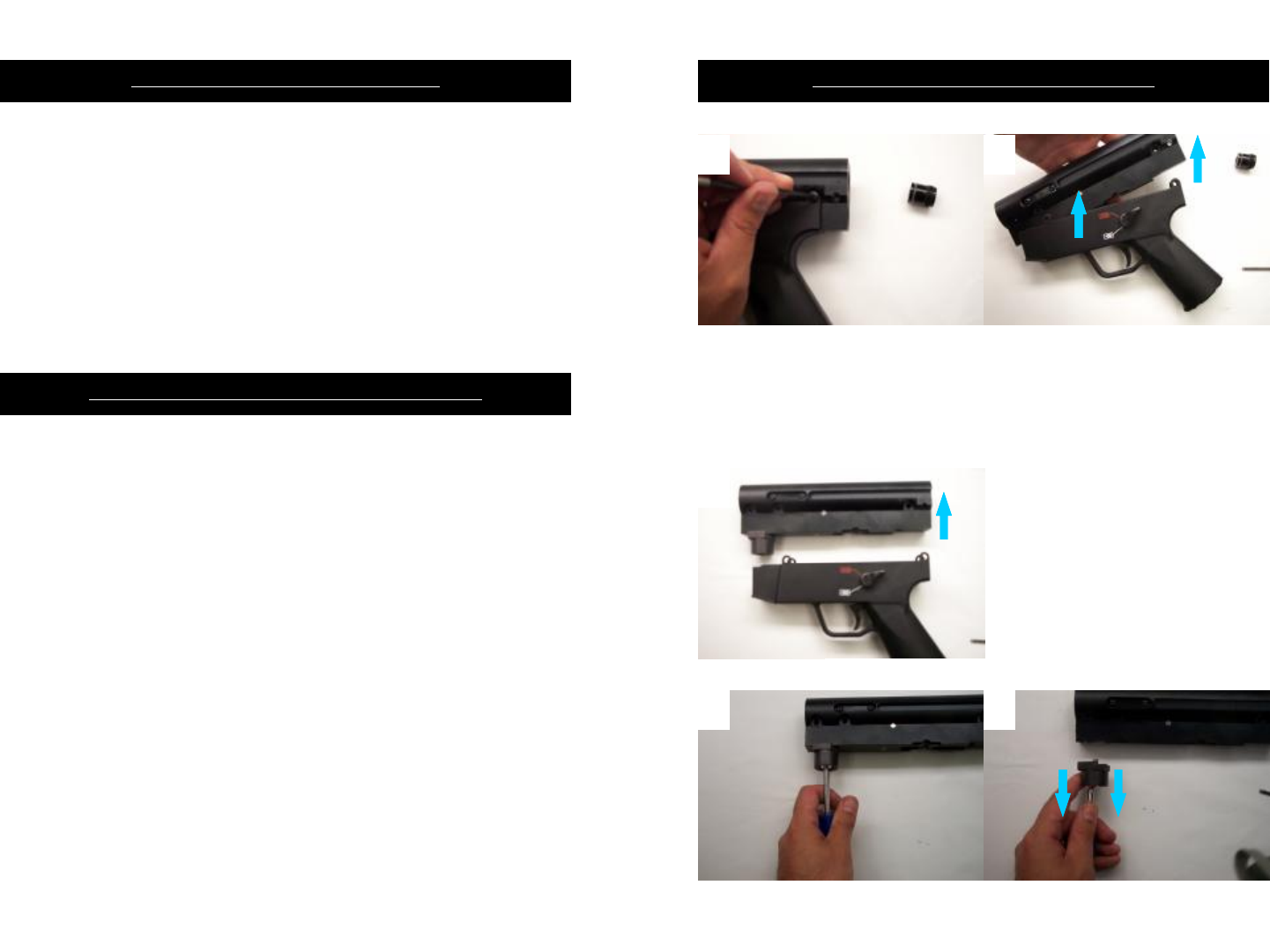

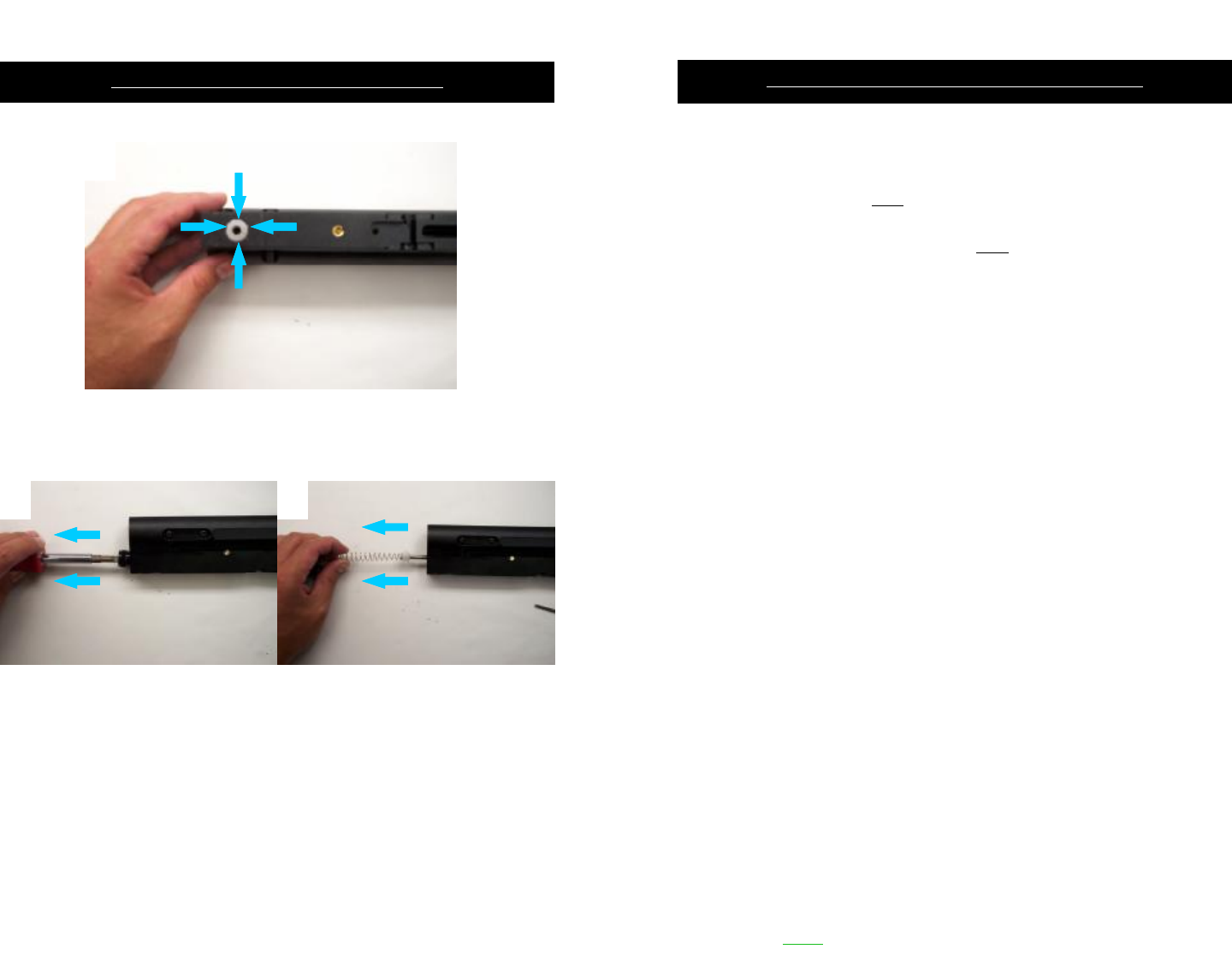

Diagram 1-4 Removing Marker internals…….. 17-18

Diagram 1-5 Removing the Trigger assembly.. 19

Diagram 1-6 Removing the ASA………………. 19-20

Diagram 1-7 Removing the Cup Seal……….... 20

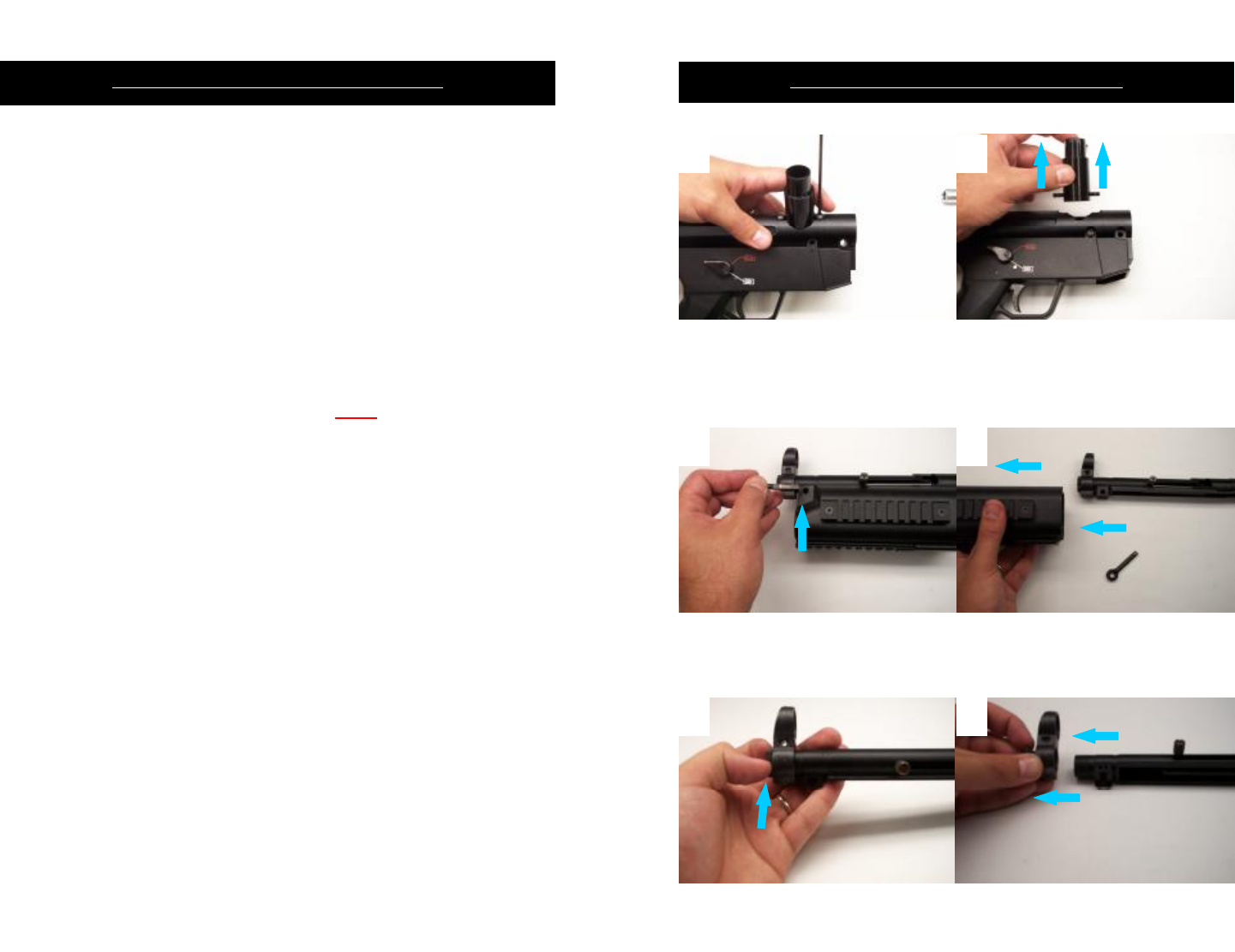

Diagram 1-8 Removing the Feed……………... 21

Diagram 1-9 Removing the Hand Guard……... 21

Diagram 1-10 Removing the Front Sight……..… 21

Diagram 1-11 Removing the Cocking Lever…... 23

Troubleshooting…………………………………. 23-25

Warranty………………………………………….. 26

Repair Authorization Form (RMA)…………….. 27

Page 3

ARIAKON SIM-5, SIM-5N .68 CALIBER PAINTBALL MARKER

TABLE OF CONTENTS

Page 4

ARIAKON SIM-5, SIM-5N .68 CALIBER PAINTBALL MARKER

WARNING AND LIABILITY STATEMENT

This marker is classified as a dangerous weapon and is surrendered by

ARIAKON™ with the express understanding that the purchaser

assumes all liability resulting from unsafe handling, misuse, or any

action that constitutes a violation of any applicable laws or regulations.

ARIAKON™ Assumes no liability for, and shall not be liable for

personal injury, loss of property or life resulting from use of this weapon

under any circumstances, including but not limited to those resulting

from intentional, reckless, negligent, or any other possible

accidental discharges.

All information contained in this manual is subject to change without

notice. ARIAKON™ Reserves the right to make changes and

improvements to products without incurring any obligation to

incorporate such improvements in products previously sold.

The ownership and use of this marker places the total

responsibility of its safe and lawful use upon you. You must

observe the same safety precautions as you would any firearm to

assure the safety not only yourself, but everyone around you.

The user, at all times, must use caution when using this marker.

• Do not pressurize, load, or fire this marker until you have

completely read and understood this manual and are familiar

with its operation and safety procedures.

• Handle this marker as if it were loaded at all times.

• Wear paintball approved goggles and full face mask when you

are firing your marker, or are within range of anyone else firing

their marker. NEVER shoot at someone who is not protected

with gear as described.

• Always leave the marker in ‘SAFE’ mode when not actually in

game play.

• Do not carry this paintball marker in public unless it is stored in a

paintball case or bag.

BE RESPONSIBLE! BE SAFE!

ARIAKON SIM-5, SIM-5N .68 CALIBER PAINTBALL MARKER

TROUBLESHOOTING CONTINUED

Page 25

Firing

Paintballs only shoot a few

feet out of the barrel

Make sure the internal have

been reassembled

correctly.

Clean bolt and striker

making sure they are free of

debris or broken paint

Inspect the bolt (part #26)

and striker (part #34)

o-rings and make sure that

they are well oiled and fit

snuggly.

Replace if necessary

Make sure the bolt

(part #26) has not been

placed upside down.

Paintballs roll out of the

barrel when I point my

marker downward.

Make sure the ball detent

(part #22) is installed

properly, not worn out, and

that the screws (part #24)

are not over tightened.

Replace if necessary

Make sure the paintballs

being used are the proper

size. They should not roll

freely out of the barrel when

it is pointed downward

Make sure you are using

high quality paintballs that

are not old, dirty or are

misshaped.

Clean barrel and breech

area of broken paint and

debris

Make sure ball detent (part

#22) is not worn. Replace if

necessary. Note: Screws

holding ball detent (part

#24) should not be

over-tightened

Breaking paint

ARIAKON SIM-5, SIM-5N .68 CALIBER PAINTBALL MARKER

TROUBLESHOOTING CONTINUED

Page 24

Firing

The marker will

not cock

Make sure the connector pin (part #27)

is properly installed in the bolt and

striker. See diagram 1-4 on

page 18.

Marker does not fire

Make sure air source is inserted

properly.

Make sure marker has been

re-assembled properly

Make sure paintballs are being

allowed into the marker

Make sure the Bolt (part #26) was not

inserted upside down. Both holes on the

bolt must point downward.

Make sure that your marker is not in

‘SAFE ‘ mode.

Marker sputters or

doesn’t re-cock

Check to make sure the

air tank is full

Clean bolt and striker making sure they

are free of debris or

broken paint

Inspect the bolt (part #26) and striker

(part #34) o-rings and make sure that

they are well oiled and fit snuggly.

Replace if necessary

Paintballs Curve

Make sure you are using high quality

paintballs that are not old or dirty

Clean barrel and breech area of broken

paint and debris

More than one paintball

comes out at a time

Make sure the ball detent (part #22) is

installed properly, not worn out, and that

the screws (part #24) are not over

tightened. Replace if necessary

Make sure the paintballs being used are

the proper size. They should not roll

freely out of the barrel when it is pointed

downward

• Always make sure your barrel is properly covered with a barrel

plug or cover whenever you are not actually in game play.

• Only pressurize and load the marker when you intend to

immediately use it. Always unload and remove CO2 cylinder

immediately after use for safe storage.

• Never point the marker at anything you do not intend to shoot.

• Only use paintball markers where it is legal and/or approved.

• Always keep the muzzle pointed down or in a safe direction.

• Use only .68 caliber paintballs. Never load or attempt to fire any

other objects.

• Wear proper attire and avoid exposing any skin when playing

the game of paintball.

• Keep exposed skin away from escaping CO2 gas when

installing or removing the cylinder.

• Never look directly into the barrel while it is attached to the

marker. Accidental discharge into the eyes may cause

permanent injury or death.

• Avoid shooting an opponent at point blank (6 feet or less).

• Never disassemble or perform maintenance to the marker while

it is pressurized with gas.

• Never shoot at wildlife or any other animals.

• Never shoot your marker at personal property of others.

Page 5

ARIAKON SIM-5, SIM-5N .68 CALIBER PAINTBALL MARKER

BE RESPONSIBLE! BE SAFE! CONTINUED

ARIAKON SIM-5, SIM-5N .68 CALIBER PAINTBALL MARKER

Page 6

SPECIFCATIONS

Model…………... SIM-5™

Caliber…………. .68 caliber

Action…………... Semi-automatic

(open bolt blow-back)

Power…………... CO2, Compressed air, or Nitrogen

Barrel length……………………….. 12 inches

Overall Length…………………….. 29 inches

Weight (without tank or hopper)…. 4.14 lbs

PERFORMANCE

Operating a paintball marker below 70°F (21°C) will decrease the

number of effective shots. The same is true for operating above 70°F

(21°C). Many factors affect velocity and accuracy, including brand of

paintball, type of paintball, amount of CO2 in source, lubrication, barrel

condition and temperature.

ARIAKON SIM-5, SIM-5N .68 CALIBER PAINTBALL MARKER

ARIAKON SIM-5, SIM-5N .68 CALIBER PAINTBALL MARKER-

Page 23

Air Leak

Air leaks from where I

screw in the tank

Inspect the valve on your tank to

ensure that it is not damaged

Replace the o-ring on your tank

Check for debris in the ASA

(part #35)

Make sure your marker has been

reassembled properly. Refer to

“Cleaning and Maintenance” and

‘Disassembly’ beginning on

pages 9,16-23

Replace the cup seal

(part #17)

Replace the o-rings on the valve

(part #19)

Replace the valve

(part #19)

Air leaks from

between the

vertical ASA (part #35)

and the body

Make sure the plastic piece (shown

on page 20) is not missing

Air leaks out from the

barrel

Velocity

Velocity is too high

Turn the velocity adjustment screw

(part #29) out/counter-clockwise

until desired velocity is reached

If the velocity spring (part #32) is

new it may need to be broken in;

until you are able to achieve the

desired velocity

Velocity is too low

Turn the velocity adjustment screw

in/clockwise until desired velocity is

reached

Internal parts may be dirty or o-rings

may be damaged. Refer to

“Cleaning and Maintenance” on

page (9)

Check bolt (part #26) to make sure it

is not installed upside down. Both

holes on the bolt must face

downward

ARIAKON SIM-5, SIM-5N .68 CALIBER PAINTBALL MARKER

DISASSEMBLY CONTINUED

Page 22

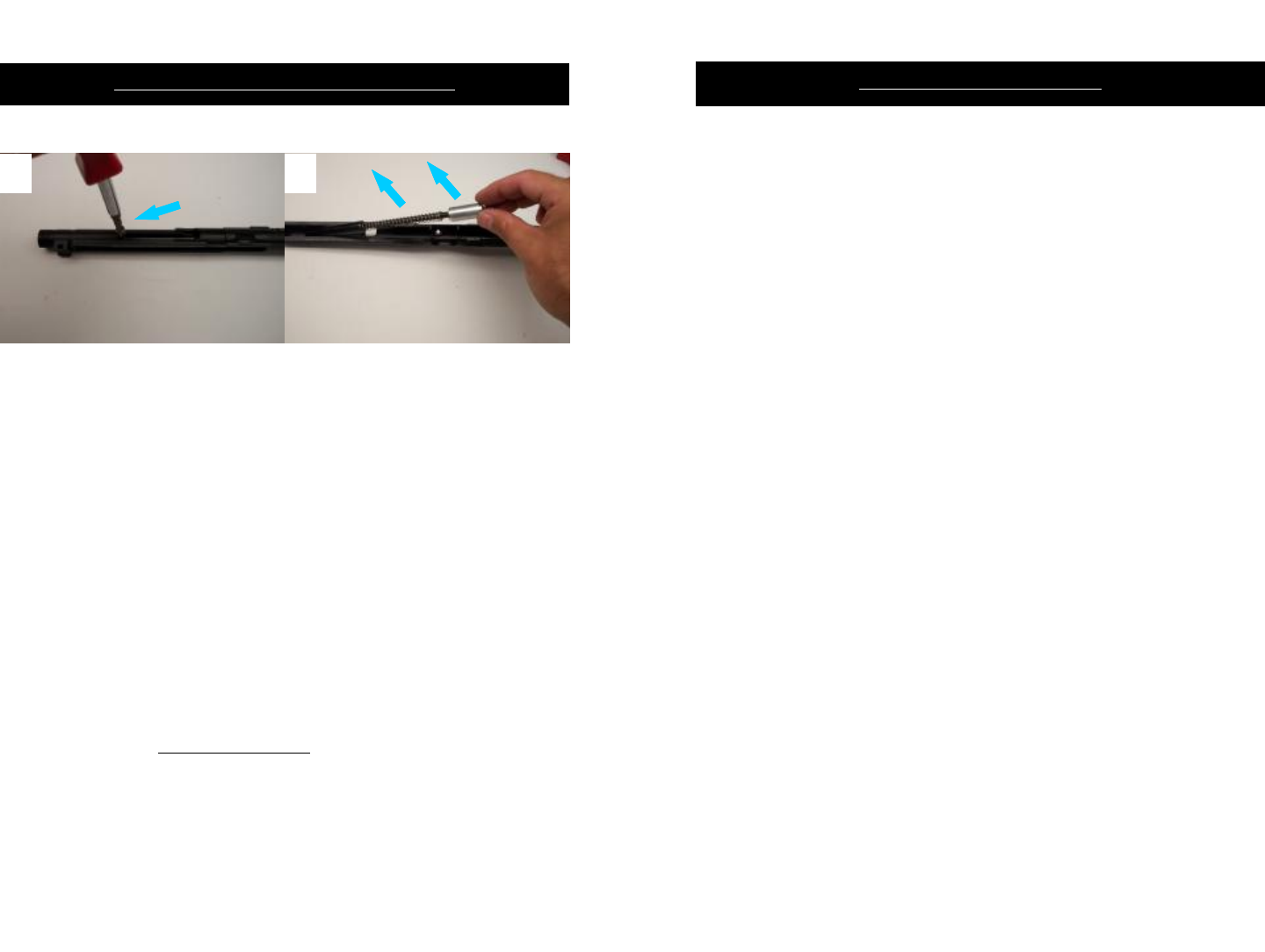

Diagram 1-11 Cocking Lever Disassembly

A B

A— Begin by unscrewing the Cocking Lever Screw with a flat or

‘—’ screwdriver. (part # 2).

** NOTE: TAKE A CLOSE LOOK IN THE SIGHT HOUSING IN

THE ORDER OF THE COCKING LEVER SPRING (part # 5),

THE COCKING ROD (part # 3), AND THE COCKING ROD

GUIDES (parts # 4&6) AND MAKE SURE YOU PLACE THESE

BACK IN THAT SAME ORDER.**

B— Pull them out towards the direction shown.

For re-assembly on any of the previous disassemblies shown

should be done in the exact reverse order of the instructions

provided. For added support we are providing these video clips

on our website at www.ariakon.com for you to download during

anytime of need. Again, Please pay special attention to all the

***asterisks*** noted.

IMPORTANT: Paintball approved eye and face

protection must be worn at all times when handling

this or any other marker. Always make sure that

when not actively firing the marker in a paintball

game that the marker is in ‘SAFE’ mode and the

barrel plug or barrel cover is properly inserted.

1) Ammo Box (Hopper):

Make sure that the feed port is clean to keep the paintballs

feeding properly and to help avoid breaking any paint. Also,

make sure there are no sharp edges or debris in your hopper.

Install the hopper into the feed. Now open the lid on the

hopper and fill with paintballs.

2) Air Source Installation:

First make sure the marker is in ‘SAFE’ mode. Next you need to

cock the marker by pulling the Cocking lever (part# 2) all the way

back until it clicks. To install the air source, insert the tank valve end

into the Air source adapter (part# 34). Twist the tank clockwise into

the marker until you hear and feel the tank ‘engage’, then give the

tank about 1/3 turn more so it does not become loose. Your marker

is ready to fire once you switch it from ‘SAFE’ mode to fire mode.

3) Adjusting the Velocity:

To adjust the velocity, use the velocity adjustment

screw (part # 29) on the rear of the marker directly under

the bolt. Turning the adjustor in or clockwise will increase the

velocity, and adjusting it out or counter-clockwise will lower

the velocity.

ARIAKON SIM-5, SIM-5N .68 CALIBER PAINTBALL MARKER

Page 7

GETTING STARTED

UNLOADING YOUR MARKER

ARIAKON SIM-5, SIM-5N .68 CALIBER PAINTBALL MARKER

Page 8

IMPORTANT: Paintball approved eye and face

protection must be worn at all times when handling

this or any other marker. Always make sure that

when not actively firing the marker in a paintball

game that the marker is in ‘SAFE’ mode and the

barrel plug or barrel cover is properly inserted.

CAUTION: WHEN REMOVING YOUR AIR SOURCE MAKE SURE THE

BRASS OR NICKEL PLATED VALVE IS SECURELY ATTACHED TO THE

CANISTER, ROTATES WITH THE CANISTER, AND DOES NOT UNSCREW

FROM THE CANISTER. THE CANISTER SHOULD UNSCREW FROM THE

PAINTBALL MARKER IN ABOUT THREE OR FOUR FULL TURNS; IF YOU

FINISH THE FOURTH FULL TURN AND THE CANISTER IS NOT UN-

SCREWED FROM THE PAINTBALL MARKER, STOP. TAKE IT TO A

PROFESSIONAL. ANY FILLING, MODIFICATIONS, OR REPAIR TO YOUR

CANISTER SHOULD BE PERFOMED BY A TRAINED PROFESSIONAL.

1) First make sure your marker is set in ‘SAFE’ mode and your

barrel cover, or plug, is properly installed.

2) To unload your marker remove the ammo box completely or

empty it so it is free of paintballs. Then point the marker in a

safe direction, remove the barrel cover, take the marker out of

’SAFE’ mode and fire several times to be sure there are no

paintballs lodged in the chamber, then immediately return the

marker to ‘SAFE’ mode and replace the barrel cover.

3) To remove a charged air source turn the cylinder

approximately ¾ of a turn counterclockwise. This allows the

tank pin valve to close so that no CO2 will enter the marker.

With the barrel plug, or cover, properly installed point the

marker in a safe direction and discharge the

remaining CO2 in the marker by pulling the trigger until the

marker stops firing. (This may take 5-6 shots). Make sure to

return your marker to safe mode when finished

discharging any remaining CO2.

NOTE: If your marker continues to fire after you have turned the tank

then the pin valve has not closed yet and you may need to unscrew the

tank a little further. If you turn the tank ¾ of a turn and it begins to leak

before you pull the trigger then you have turned it too far and you may

have damaged the tank o-ring.

Diagram 1-10 Removing the Front Sight

A— Begin by removing the Front Sight Retaining Lug (part #44)

B— Remove both the Front Sight Retaining Lug and Front Sight

(parts # 43 and 44)

A— Begin by removing the 2 Feed Screws (parts # 11) with a 3mm Hex

tool.

B— Pull the Feed (part # 10) towards the direction shown.

ARIAKON SIM-5, SIM-5N .68 CALIBER PAINTBALL MARKER

DISASSEMBLY CONTINUED

Page 21

Diagram 1-8 Removing the Feed

A B

Diagram 1-9 Removing the Hand Guard

A B

A— Begin by pulling the Front Hand Guard Retaining Pin (part #38) out.

B— Pull the Front Hand Guard (part #37) towards the direction shown.

A B

ARIAKON SIM-5, SIM-5N .68 CALIBER PAINTBALL MARKER

DISASSEMBLY CONTINUED

Page 20

C— DO NOT LOSE THIS PIECE YOUR MARKER WILL LEAK GAS IF

THIS PIECE IS MISSING.

Diagram 1-6 Removing the ASA cont...

C

Diagram 1-7 Removing the Cup seal

A B

A— Begin by unscrewing the Volume Chamber Lug (part # 15) with a

Flat or ‘—’ screwdriver and remove towards direction shown.

B— Pull out both the Cup Seal Return Spring (part # 16) and the Cup

Seal (part # 17)

Normal maintenance and cleaning will reduce the majority of any possible complications

with the performance of your marker. For best results we recommend cleaning your

marker after every use and replacing the o-rings after every other use. Use a damp towel

to wipe off paint, oil and any debris. Do Not use any cleaning solvents such as 409® or

Simple Green®. Use of such products on your marker may cause corrosion and/or

damage the internal parts, and WILL void your warranty. When oiling the cleaned parts

we recommend using any paintball brand paintball gun oil. Use of other lubricants such as

WD-40®, graphite, and oil designed for actual firearms may cause build up and/or damage

the internal parts or seals. Use of such products WILL void your warranty. In order to help

you maintain your marker, We have provided these following 11 steps.

WARNING: Before conducting any maintenance, remove the air source from your

marker (Refer to ‘Unloading Your Marker’). Make sure your marker is in ‘SAFE’ mode and

your barrel has either a cover or plug inserted.

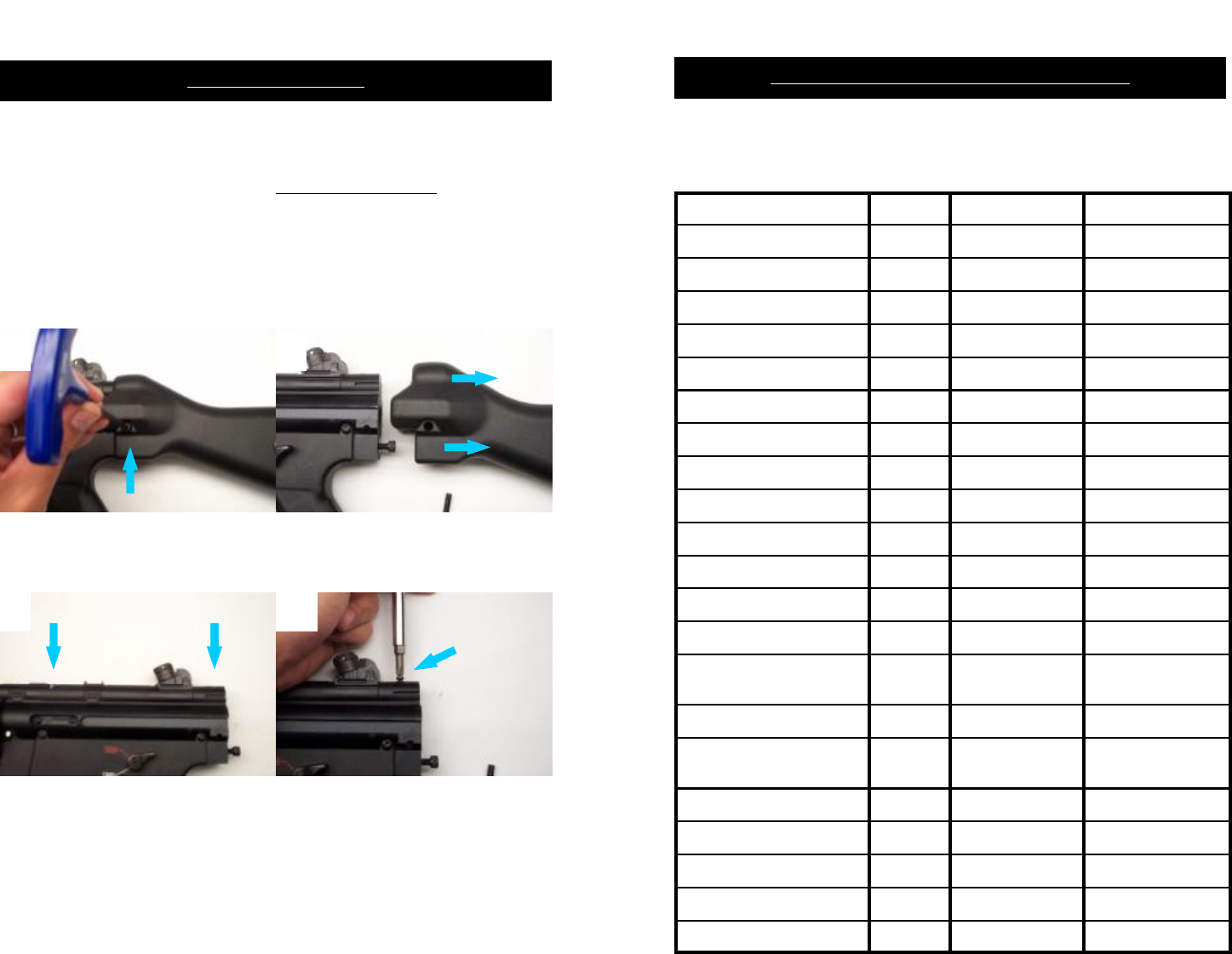

1) Remove the stock by loosening and removing the retaining screw (part #45), then

pulling the stock straight out from the rear of the body.

2) Next unscrew the mid and rear retaining screw (part #’s 8 and 9) then remove the front

hand guard pin (part #38) by pulling outward.

3) Slide the sight rail (part #1) and hand guard (part #37) towards the front of the

barrel while carefully lifting the back end of the sight rail exposing the top portion

of the connector pin (part #27).

4) Remove the velocity adjustment screw (part #29) with a hex wrench by turning it counter

clockwise.

5) Next, remove the velocity lug (part #30) using a flathead screwdriver. Use caution when

removing, parts are under pressure from the velocity spring.

6) Then, remove the guide pin (part #31) , velocity spring (part #32) and striker cushion

(part #33)

7) Next, loosen the connector pin retaining screw (part #28), by turning it counter-clockwise

about two full turns. DO NOT REMOVE THIS SCREW.

8) Remove the connector pin (part #27), bolt (part #26), and striker (part #34). When doing

so, be sure to note which direction each piece fits into the marker for reassembly.

9) Inspect all o-rings making sure they fit snuggly and are not missing, discolored, or

damaged.

10) Clean the removed parts by wiping them with a damp towel. Then oil all moving surfaces

and all o-rings with paintball marker oil.

11) Reinstall the removed parts in the reverse order, making sure that the connector pin

(part #27) is properly positioned so it connects the bolt (part #26) and striker (part #34).

Note: When reinserting the striker you will have to press the trigger in order to allow the

striker to pass the sear ALSO NOTE: The two holes on the bolt MUST POINT

DOWNWARD.

Refer to “Disassembly” beginning on page 13.

ARIAKON SIM-5, SIM-5N .68 CALIBER PAINTBALL MARKER

Page 9

CLEANING AND MAINTENENCE

NOTE: Basic maintenance of your ARIAKON™ marker is your

responsibility. Your marker will provide you with dependable perform-

ance for many games if properly cared for. Not properly maintaining

your marker WILL void your warranty.

NOTE: Proper storage of your ARIAKON™ paintball marker

will help cut down on the maintenance needed when

bringing the marker back out to play.

1) You should store your marker in a dry area. Make sure that the

rear bolt, striker and spring are cleaned and oiled so that they

do not rust (Refer to ‘Cleaning and Maintenance’). Store your

marker with the bolt in the rear position (cocked).

2) When removing your marker from storage you should re-oil all

moving parts and o-rings before any use.

3) Before storing, empty and remove the CO2 tank from the gun

(Refer to ‘Unloading Your Marker’).

Observe all local, state and federal laws concerning the

transportation of paintball markers. For information

concerning any of the laws in your area, contact your local

law enforcement agency.

Never carry your marker uncased when not on a playing field. The

non-playing public and law enforcement personnel cannot distinguish

between a paint marking device or firearm. For your safety and to

protect the image of the sport, always carry your marker in a suitable

case or in the box it was purchased in. DO NOT conceal your marker

under your clothing when transporting.

ARIAKON SIM-5, SIM-5N .68 CALIBER PAINTBALL MARKER

STORING YOUR MARKER

Page 10

TRANSPORTING YOUR MARKER

ARIAKON SIM-5, SIM-5N .68 CALIBER PAINTBALL MARKER

DISASSEMBLY CONTINUED

Page 19

Diagram 1-5 Removing Trigger Assembly

B A

A— Begin by removing the 4 Trigger Assembly Screws (part # 40) with

a 3mm Hex tool.

**NOTE: THERE ARE 2 IN FRONT AND 2 IN THE BACK ON BOTH

SIDE OF THE ASSEMBLY.

B— Pull the Main Body (part # 14) and the Trigger Assembly (part # 39)

apart as shown.

C— Once the Main Body

(part # 14) and the

Trigger Assembly (part # 39) are

apart from one another it will look

as picture C. **NOTE THE

SCREW PLACEMENTS.**

C

Diagram 1-6 Removing the ASA

A B

A— Begin by using a 3/8” socket and remove the ASA Pin (part # 36

Not shown)

B— Completely remove towards the direction shown.

ARIAKON SIM-5, SIM-5N .68 CALIBER PAINTBALL MARKER

DISASSEMBLY CONTINUED

Page 18

B— Unscrew and Remove the Velocity Lug (part # 30) With a Flat or

‘—’ Screw driver

C— Pull out the Spring Guide Pin (part # 31), the Velocity Spring

(part # 32), and the Striker Cushion (part # 33) towards the direction

shown.

Diagram 1-4 Removing Marker Internals Continued...

B C

D E

D— Unscrew the Connector Pin Retaining Screw (part # 28) on the

back end of the bolt (part # 26) 3 turns with a 2mm Hex tool.

**NOTE: DO NOT REMOVE THIS SCREW**

E— Remove Connector Pin (part # 27) towards the direction shown.

F— Tilt upward and shake out both

the bolt and striker (parts # 26 and

34) **NOTE: YOU MAY HAVE TO

PUSH OUT THE STRIKER USING

A SCREWDRIVER OVER THE

TRIGGER ASSEMBLY.**

F

ARIAKON SIM-5, SIM-5N .68 CALIBER PAINTBALL MARKER

LAODING YOUR MARKER

Page 11

These are the basic steps in loading your marker correctly and safely.

Please follow the order of these directions every time you should use

this marker.

STEP 1: Loading your marker with a hopper.

**Make certain that your maker is in the ‘SAFE’ position.**

Start off by placing a elbow on your hopper. Shown on picture ‘A’

STEP 4: Place the tip of the air canister in the ASA or Air Source

Adapter (part# 35) and turn in a Clockwise fashion to screw the canister

in place as shown on picture ’C’. Once you feel the marker engage, turn

the canister clockwise 1/3 more to ensure that it will not become loose.

STEP 2: After the elbow has been

placed on the hopper secure it to

the marker feed (part# 10) Also

shown in picture ‘A’

A

Step 3: Loading your marker with your air source.

Start off by cocking you maker in the ‘LOAD’ or ‘COCKED’ position as

shown on picture ‘A’

Take the cocking lever (part # 2)

and slide back towards the

direction shown till you feel and

hear a ‘CLICK’

B

A

C

ARIAKON SIM-5, SIM-5N .68 CALIBER PAINTBALL MARKER

LAODING YOUR MARKER CONTINUED

Page 12

STEP 5: Loading your marker with Paint Balls.

Start off by opening the back end of your hopper.

**LOOK INSIDE YOUR HOPPER TO ENSURE NO DEBRIS OR

OTHER THINGS ARE INSIDE BEFORE YOU LOAD THE PAINT.**

SETP 6: Load the hopper with

paint balls as shown in picture ‘B’.

** Use of high quality paint balls

are always recommended to

ensure accuracy and less

problems with breaking paint.**

STEP 7: Close the lid as shown in

picture ‘C’

A

B C

ARIAKON SIM-5, SIM-5N .68 CALIBER PAINTBALL MARKER

DISASSEMBLY CONTINUED

Page 17

B

Diagram 1-2 Sight Housing Removal cont...

B and B1— Gently pull the whole Sight Rail (part # 1) while lifting the

back end over the connector pin (part # 27) towards the direction shown.

Diagram 1-3 Barrel Removal

A B

A— Pull the Barrel Retaining Pin (part # 13) out.

B— After pin has been removed pull the barrel towards the direction

shown. **NOTE: BARREL DOES NOT UNSCREW**

Diagram 1-4 Removing Marker Internals

A

A—Begin by unscrewing the Velocity Adjustor Screw (part # 29)

B1

This section will guide through the disassembly of your

marker. Take note that we are also providing step-by-step

instructions on our website at www.ariakon.com Please

visit our site and download the disassembly clips if you are

not able to comprehend the instructions and need an added

visual aide.

Diagram 1-1 Stock Removal

A— loosen stock retaining screw. B— Pull stock towards direction

(part # 45) With a 4mm Hex tool shown.

A B

A and A1— Loosen both mid and rear retaining (parts # 8&9) screw

with a Phillips or ‘+’ screwdriver.

Diagram 1-2 Sight Housing Removal

A A1

ARIAKON SIM-5, SIM-5N .68 CALIBER PAINTBALL MARKER

DISASSEMBLY

Page 16

ARIAKON SIM-5, SIM-5N .68 CALIBER PAINTBALL MARKER

ACESSORIES AND UPGRADES

Page 13

It is now become easier than ever to upgrade your quality marker to a

intimidation machine. Don’t be the one giving your opponents the upper

hand in scare tactics. Dominate the playing field and you opponents

with these add on accessories.

Accessories Quantity Price Total Price

(Quantity x Price)

Laser Sight Kit $79.99

TAC Light Kit $37.99

Deluxe TAC Light Kit $79.99

Remote System $49.99

Barrel Extension $79.99

Vertical R.I.S. Grip $29.99

R.I.S Low Profile Rail

Guards– Black $32.99

R.I.S. Replacement

Panel– Green $4.99 Each

Parts Kit Coming soon

Deluxe Parts Kit Coming soon

SIM-5 PARTS LIST

1. SIGHT RAIL

2. COCKING LEVER

3. COCKING ROD

4. FRONT COCKING ROD GUIDE

5. COCKING LEVER SPRING

6. REAR COCKING ROD GUIDE

7. SPACING WASHER

8. MID RETAINING SCREW

9. REAR RETAINING SCREW

10. FEED

11. FEED RETAINING SCREW (2)

12. BARREL

13. BARREL RETAINING PIN

14. MAIN BODY

15. VOLUME CHAMBER LUG

16. CUP SEAL RETURN SPRING

17. CUP SEAL

18. STANDARD O-RINGS (7– Bolt, Striker,

Velocity Lug, Valve, Volume Chamber

Lug)

19. VALVE

20. VALVE RETAINING PIN (Not Shown)

21. VALVE RETAINING SCREW (Not Shown)

22. BALL DETENT

23. BALL DETENT WASHERS (2)

24. BALL DETENT SCREW (2)

25. PLASTIC AIR SEAL (Not Shown)

26. BOLT

27. CONNECTOR PIN

28. CONNECTOR PIN RETAINING SCREW

29. VELOCITY ADJUSTMENT SCREW

30. VELOCITY LUG

31. SPRING GUIDE PIN

32. VELOCITY SPRING

33. STRIKER CUSHION

34. STRIKER

35. ASA (Not Shown)

36. ASA PIN (Not Shown)

37. FRONT HAND GUARD

38. FRONT HANG GUARD RETAINING PIN

39. TRIGGER ASSEMBLY

40. TRIGGER ASSEMBLY SCREWS (4)

41. STOCK

42. REAR SIGHT

43. FRONT SIGHT

44. FRONT SIGHT RETANING LUG

45. STOCK RETAINING SCREW

45
