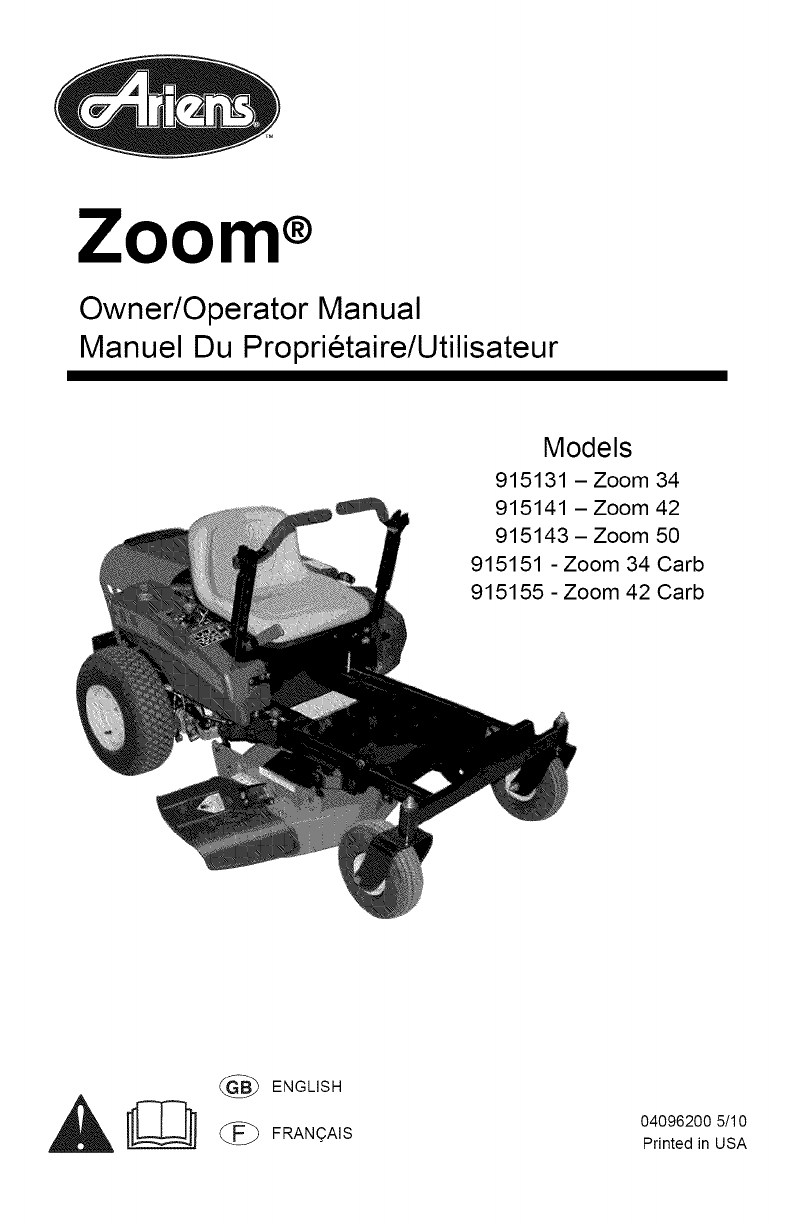

Zoom ®
Owner/Operator Manual
Manuel Du Proprietaire/Utilisateur
Models
915131 - Zoom 34
915141 - Zoom 42
915143- Zoom 50
915151 - Zoom 34 Carb
915155 -Zoom 42 Carb
ENGLISH
,_ _ (_ FRANQAIS 04096200 5/10
Printed in USA

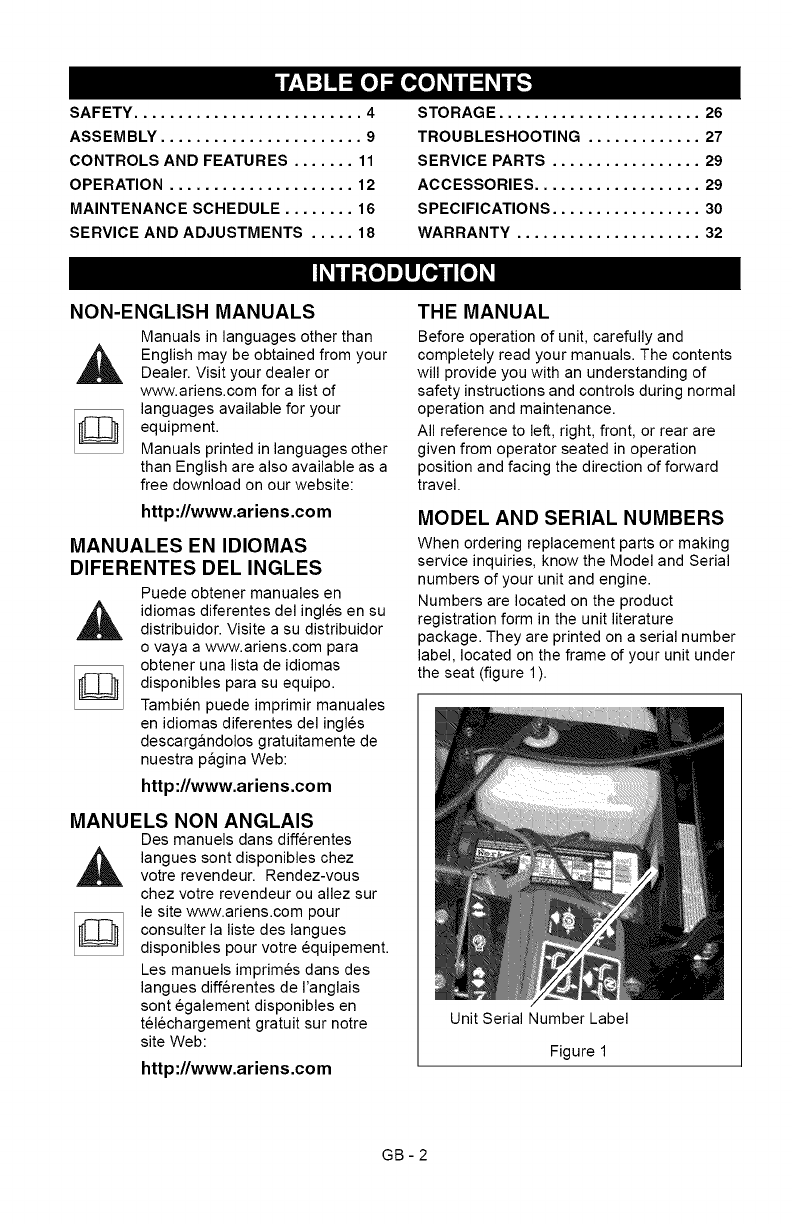

SAFETY .......................... 4

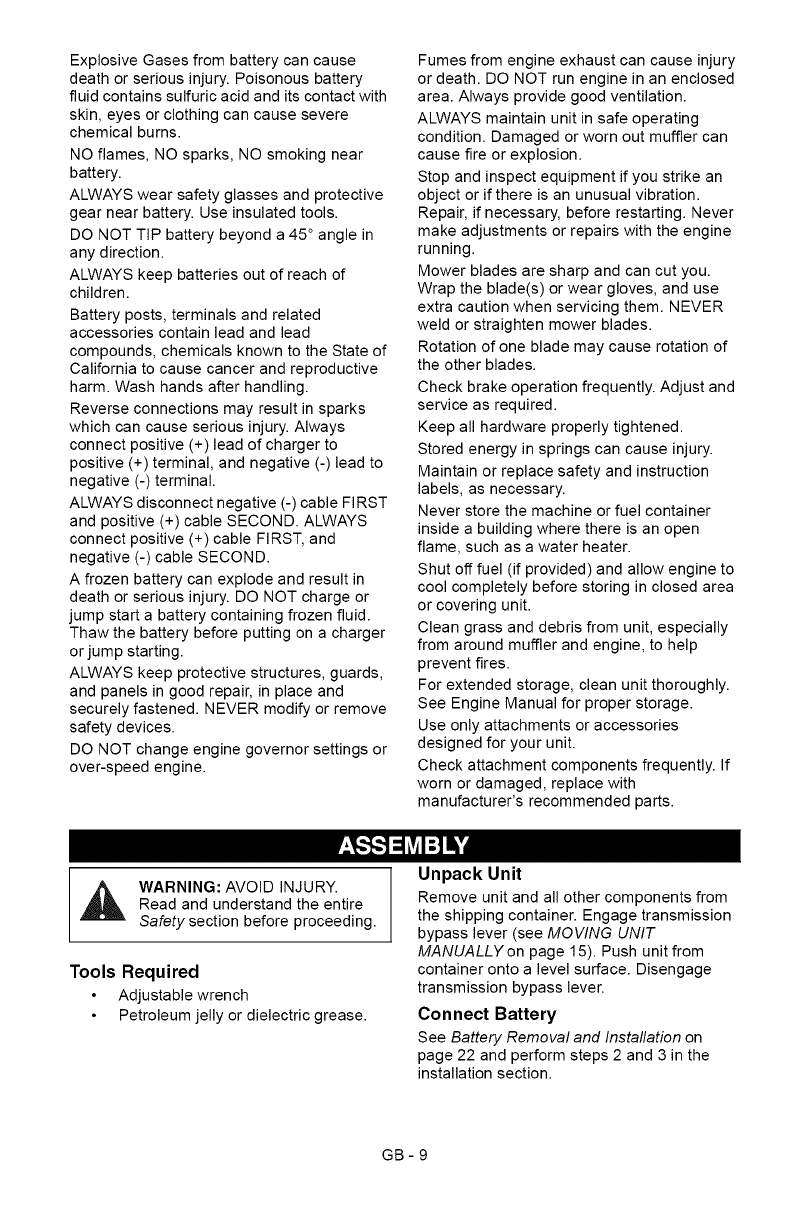

ASSEMBLY ....................... 9
CONTROLS AND FEATURES ....... 11

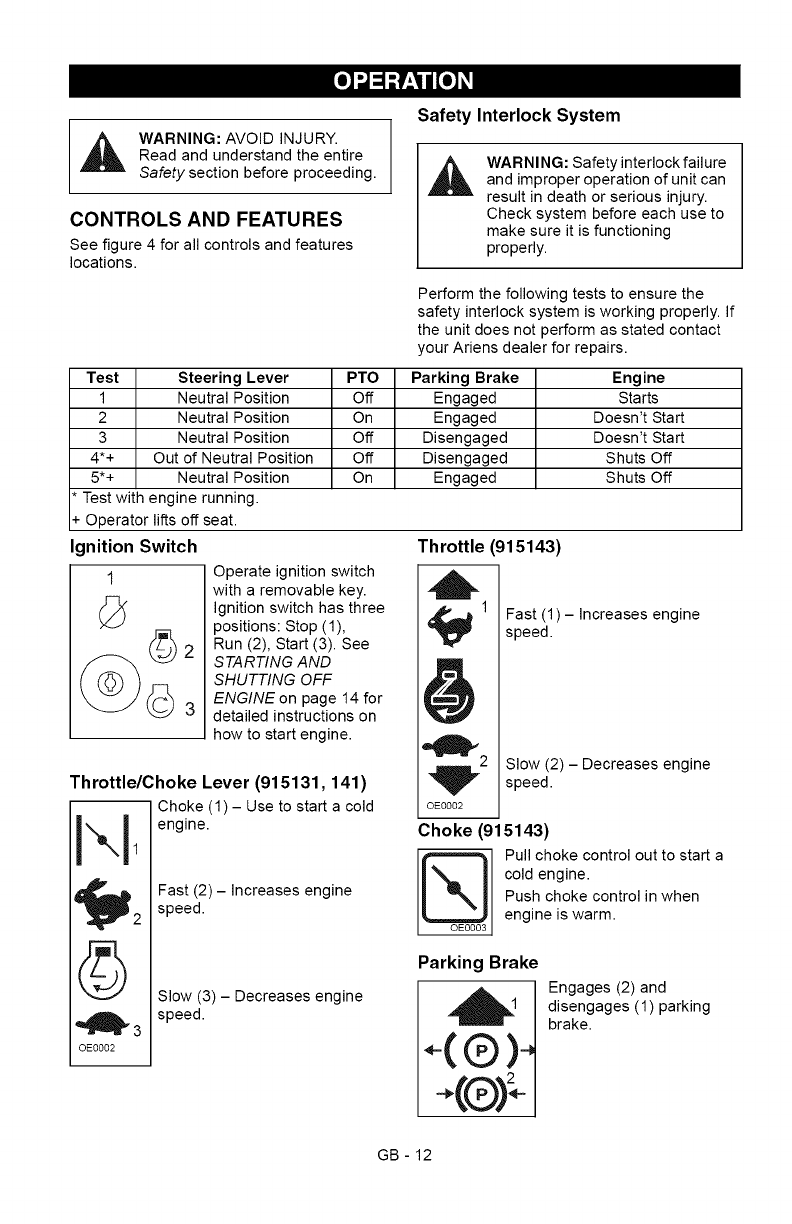

OPERATION ..................... 12

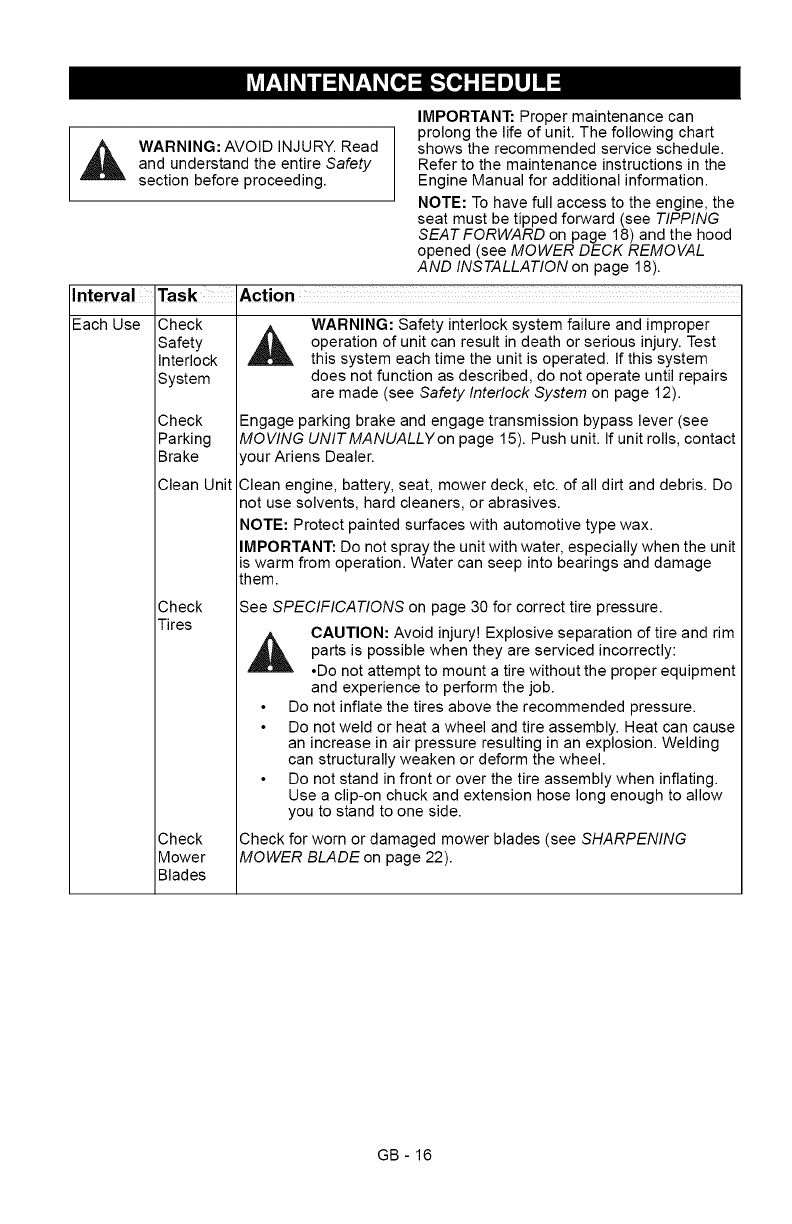

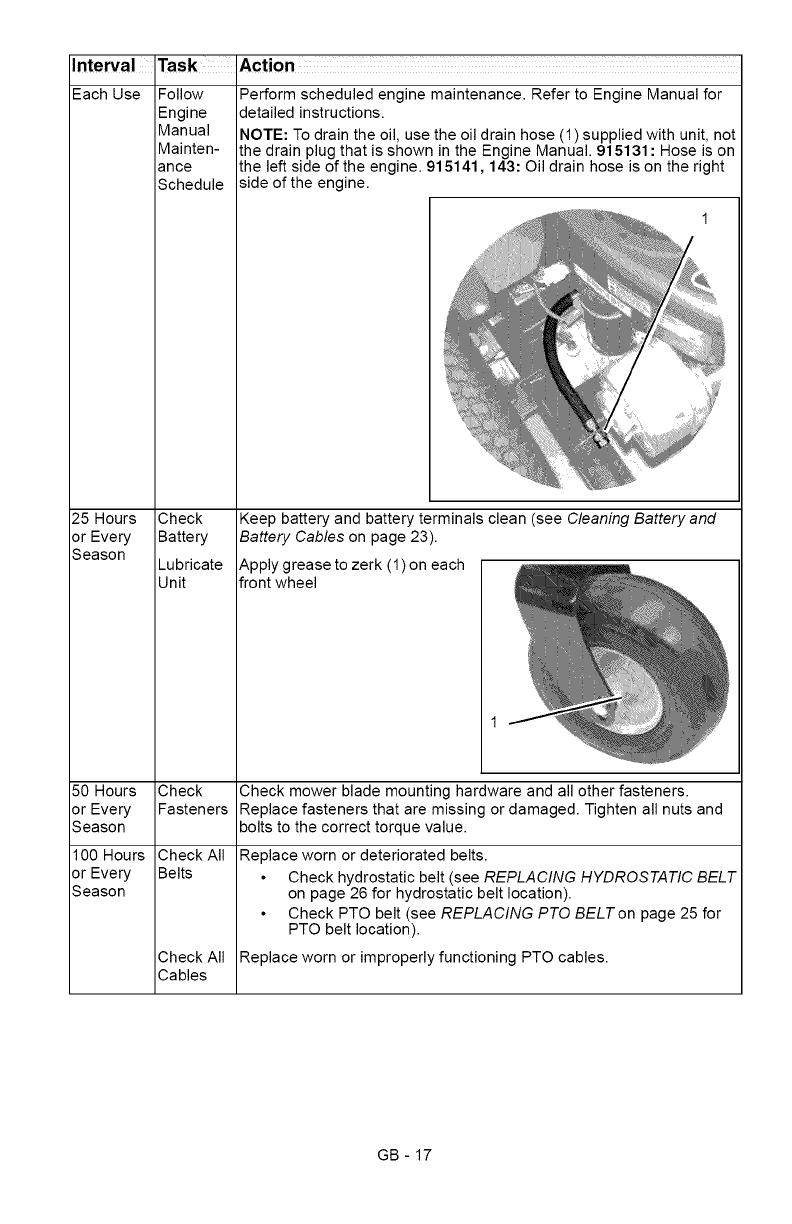

MAINTENANCE SCHEDULE ........ 16

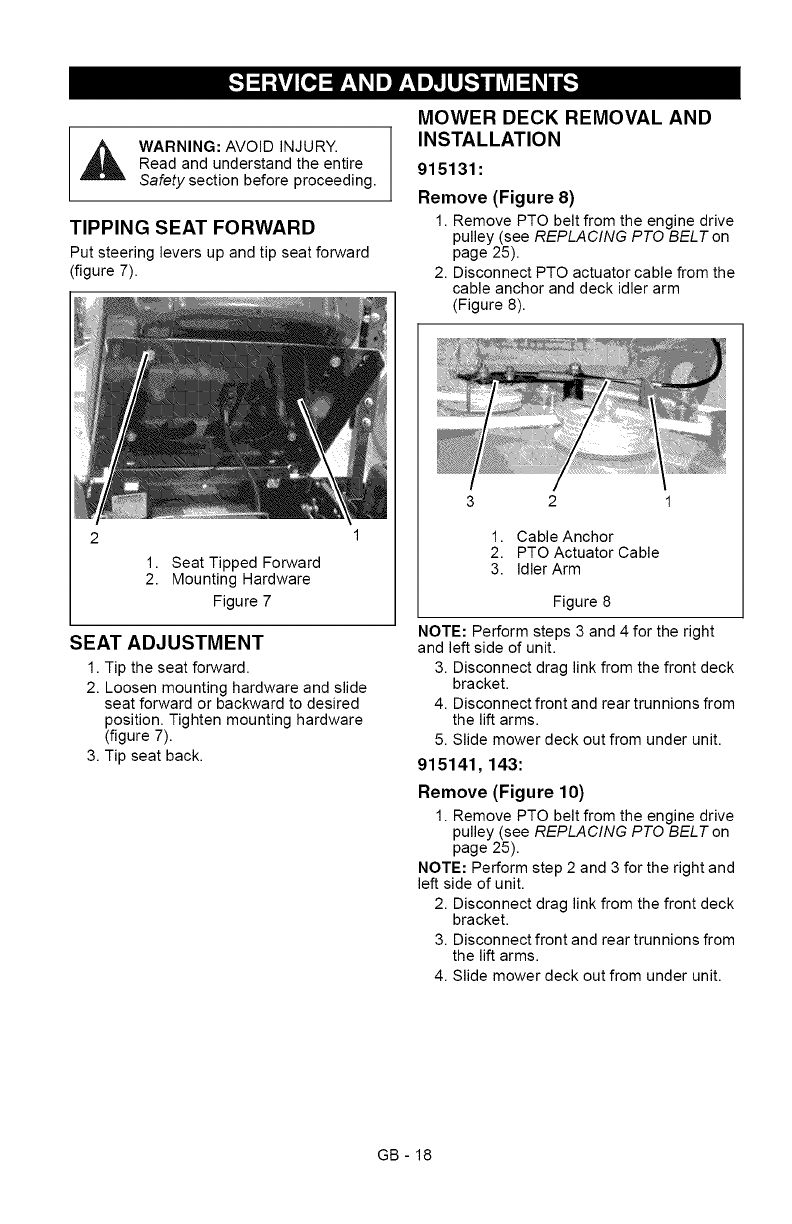

SERVICE AND ADJUSTMENTS ..... 18
STORAGE ....................... 26

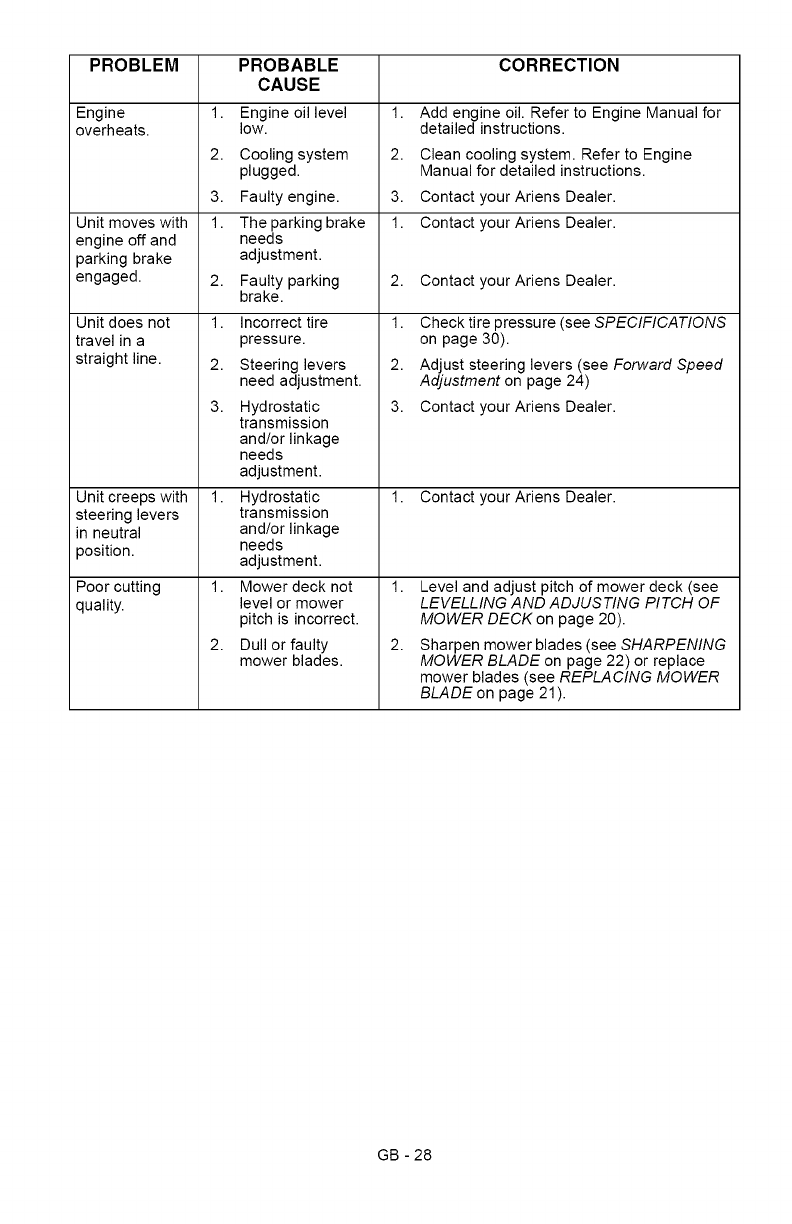

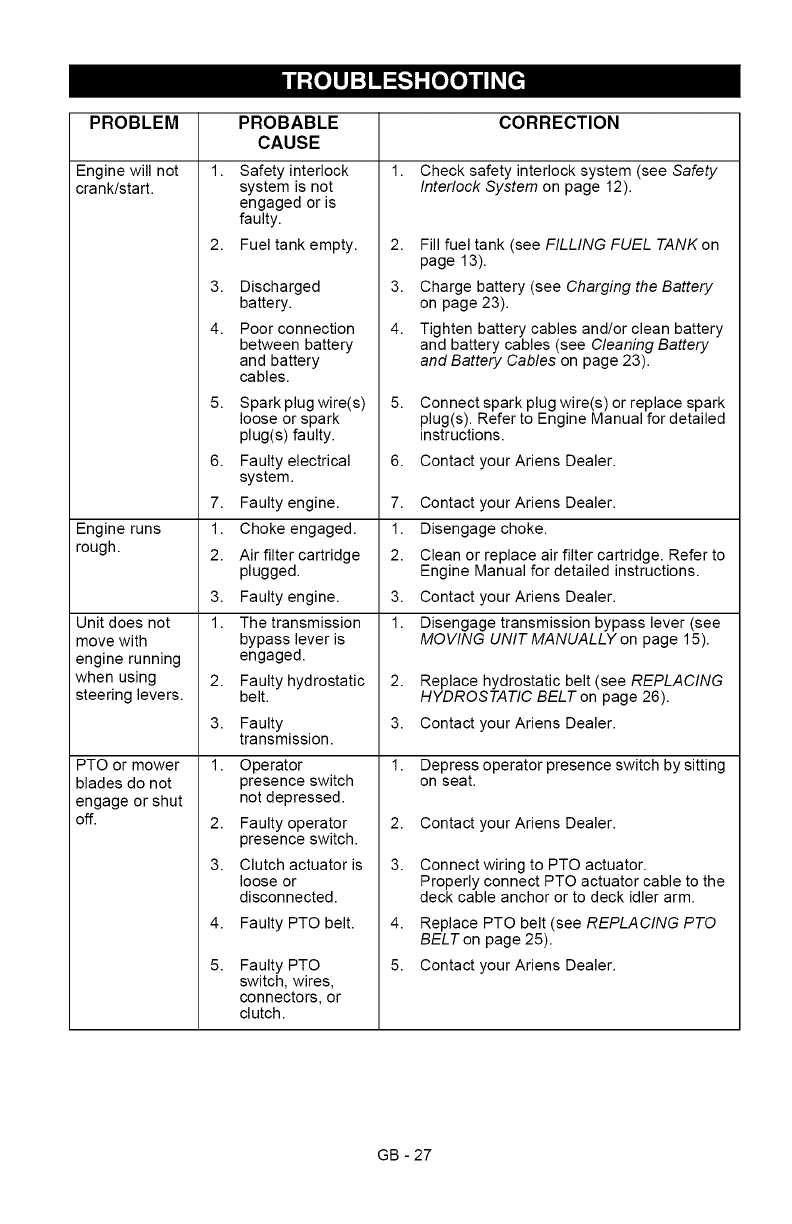

TROUBLESHOOTING ............. 27

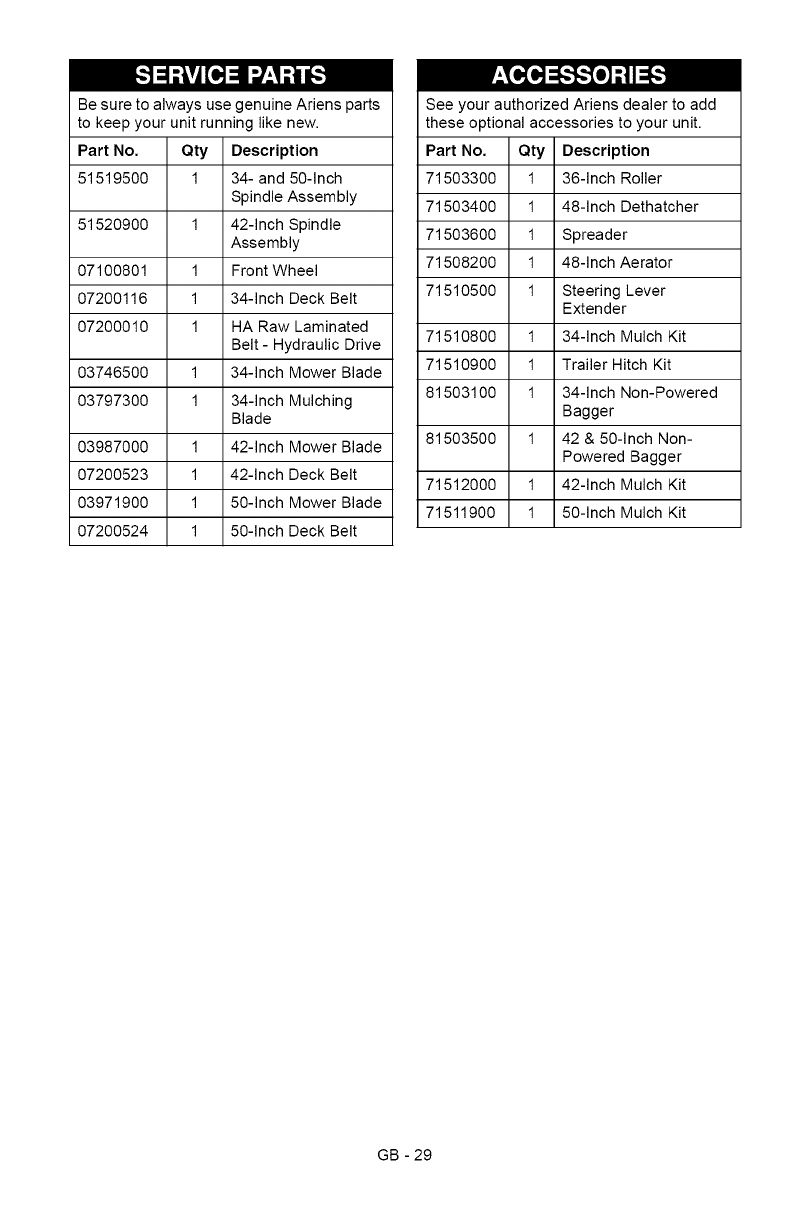

SERVICE PARTS ................. 29
ACCESSORIES ................... 29

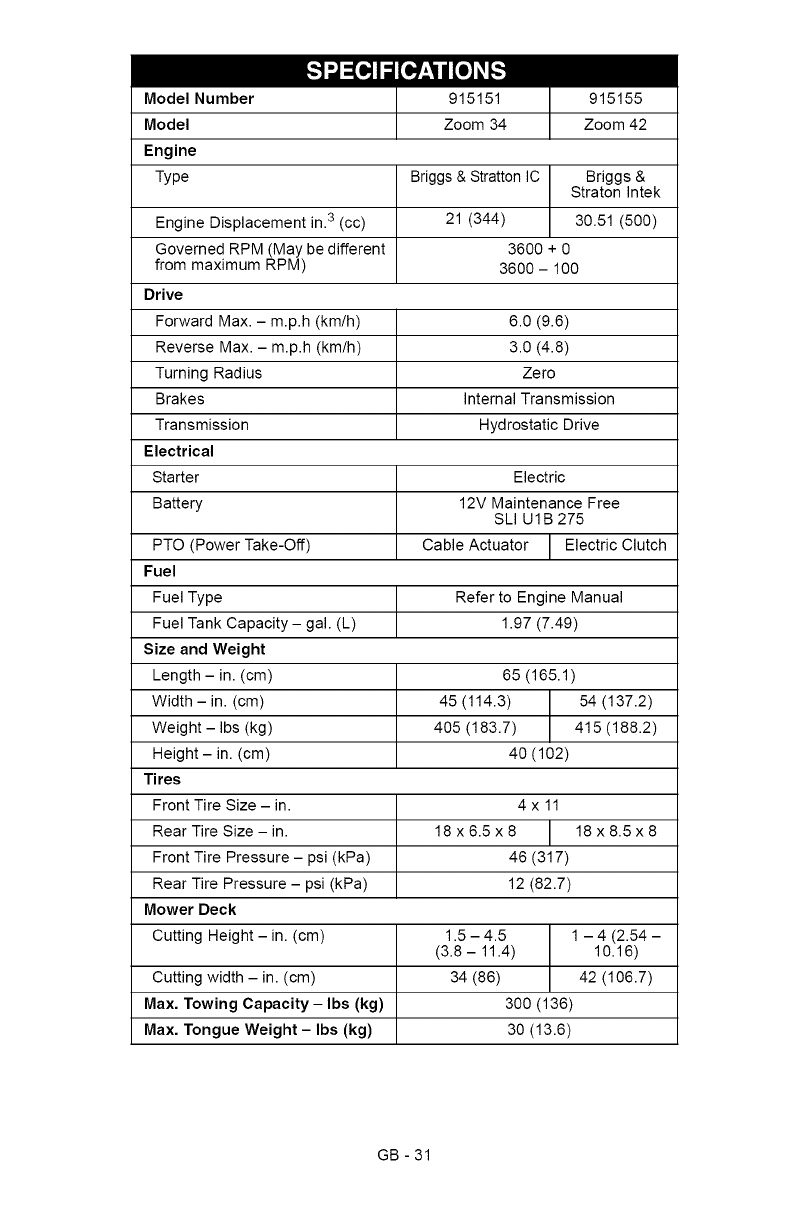

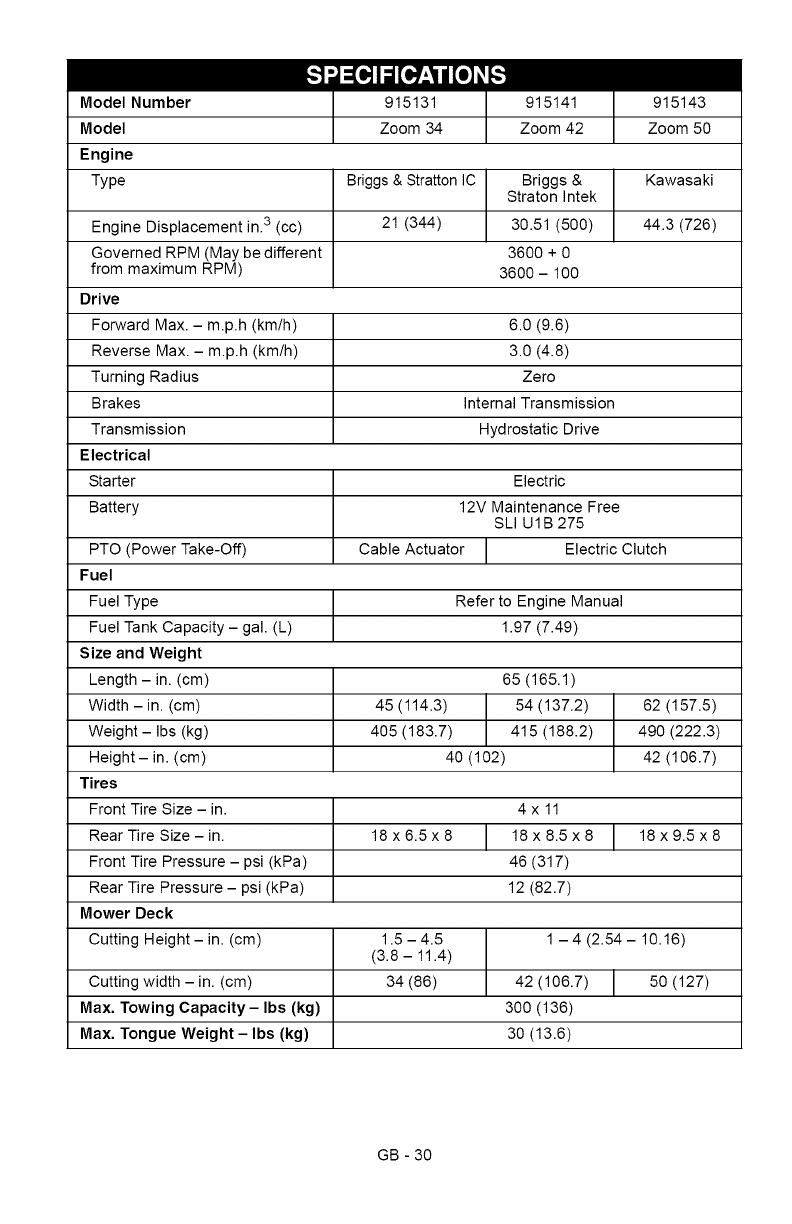

SPECIFICATIONS ................. 30

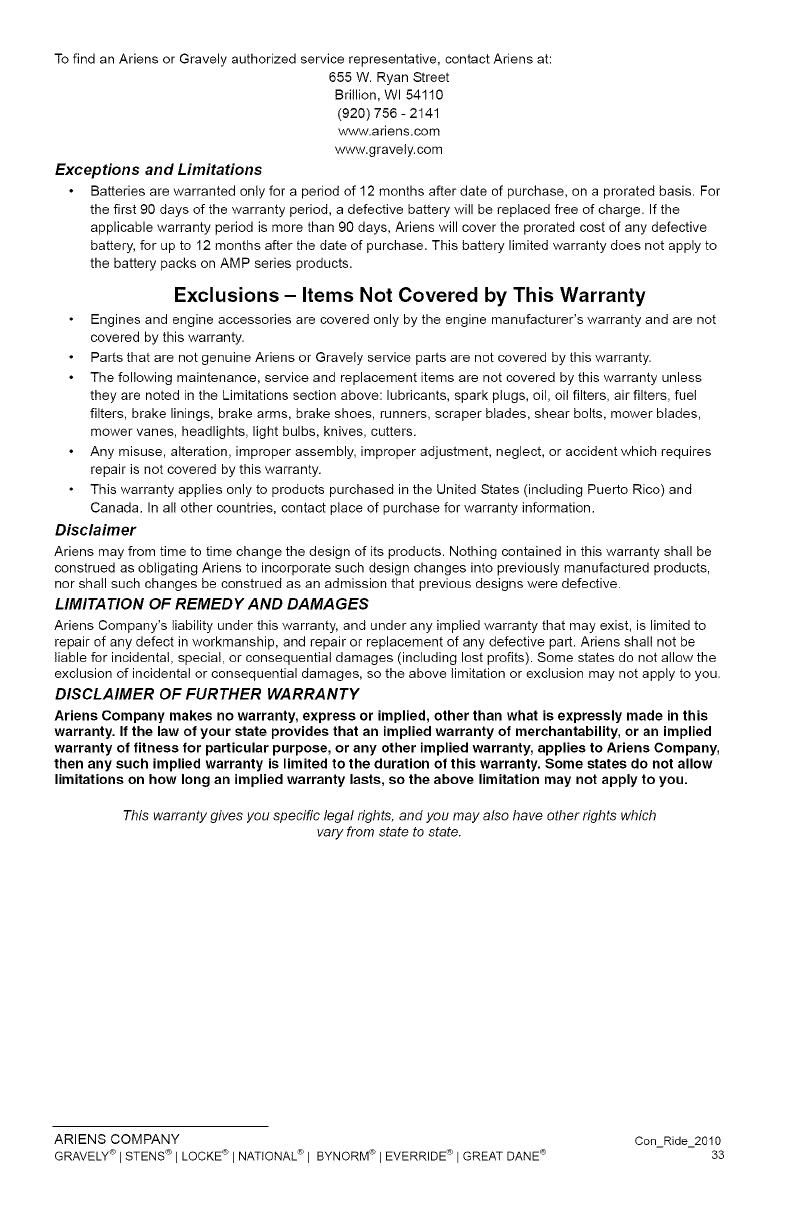

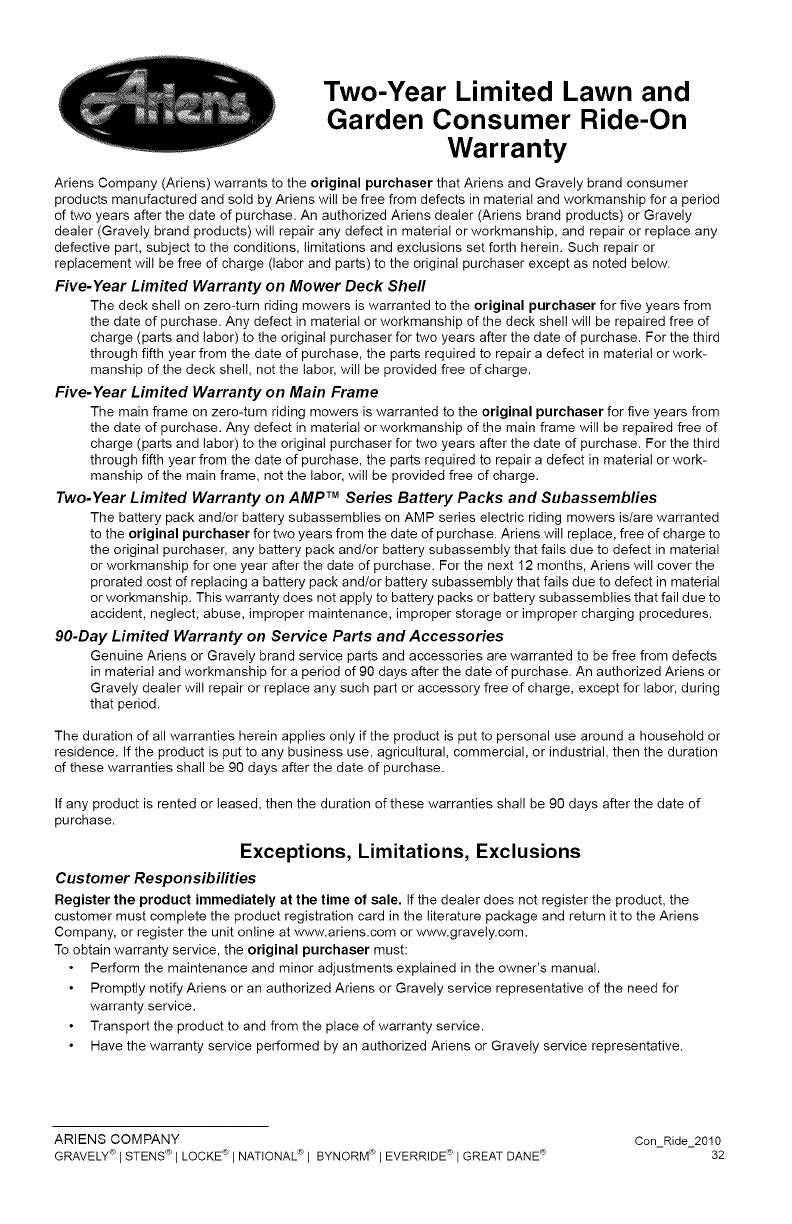

WARRANTY ..................... 32
NON-ENGLISH MANUALS
Manuals in languages other than
,t_ English may be obtained from your
Dealer. Visit your dealer or
www.ariens.com for a list of
-_ languages available for your
equipment.
Manuals printed in languages other
than English are also available as a
free download on our website:
htt p://www.ariens.co m
MANUALES EN IDIOMAS
DIFERENTES DEL INGLES
Puede obtener manuales en
idiomas diferentes del ingles en su
distribuidor. Visite a su distribuidor
o vaya a www.ariens.com para
obtener una lista de idiomas
disponibles para su equipo.
Tambien puede imprimir manuales
en idiomas diferentes del ingles
descargandolos gratuitamente de
nuestra pagina Web:
htt p://www.ariens.co m
MANUELS NON ANGLAIS
Des manuels dans differentes
,_ langues sont disponibles chez
votre revendeur. Rendez-vous
chez votre revendeur ou allez sur
-_ le site www.ariens.com pour
consulter la liste des langues
disponibles pour votre equipement.
Les manuels imprimes dans des
langues differentes de I'anglais
sont egalement disponibles en
telechargement gratuit sur notre
site Web:
htt p://www.ariens.co m
THE MANUAL
Before operation of unit, carefully and
completely read your manuals. The contents
will provide you with an understanding of
safety instructions and controls during normal
operation and maintenance.
All reference to left, right, front, or rear are
given from operator seated in operation
position and facing the direction of forward
travel.
MODEL AND SERIAL NUMBERS
When ordering replacement parts or making
service inquiries, know the Model and Serial
numbers of your unit and engine.
Numbers are located on the product
registration form in the unit literature
package. They are printed on a serial number
label, located on the frame of your unit under
the seat (figure 1).
Unit Serial Number Label
Figure 1
GB-2

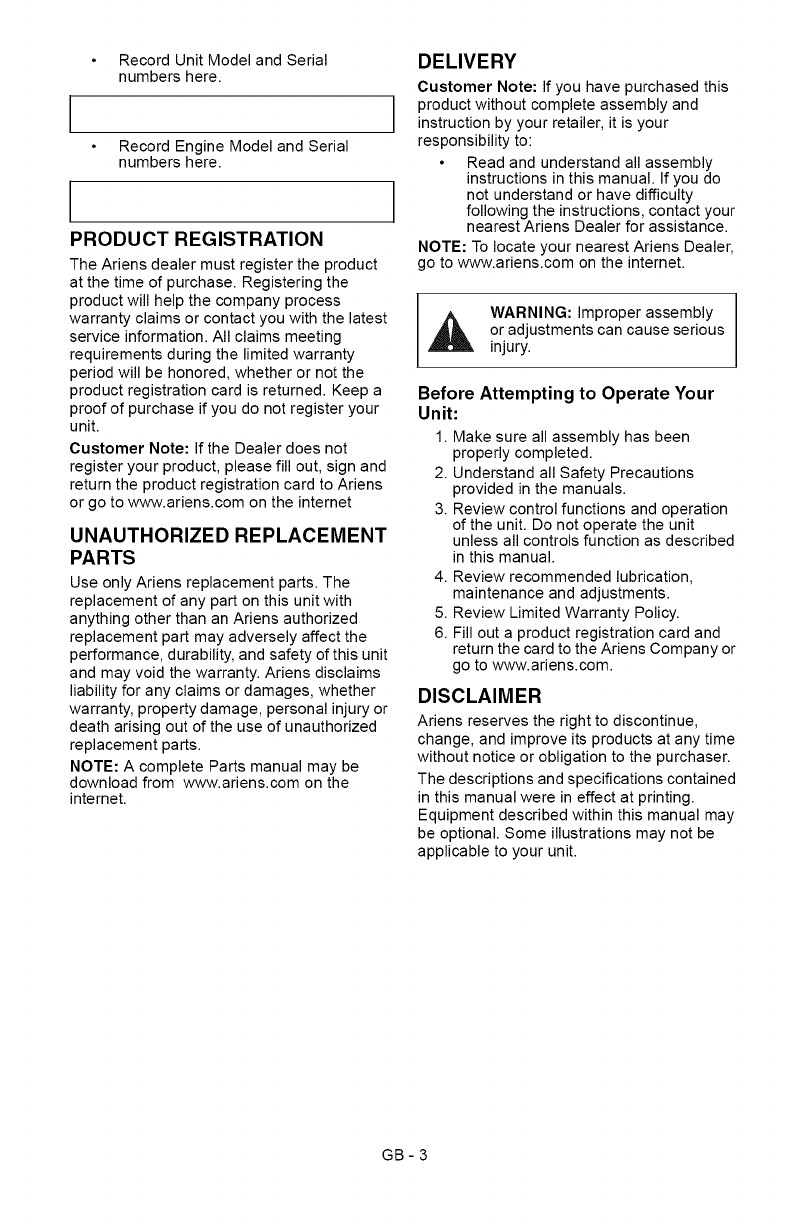

RecordUnitModelandSerial DELIVERY
numbers here.
Record Engine Model and Serial
numbers here.
PRODUCT REGISTRATION
The Ariens dealer must register the product
at the time of purchase. Registering the
product will help the company process
warranty claims or contact you with the latest
service information. All claims meeting
requirements during the limited warranty
period will be honored, whether or not the
product registration card is returned. Keep a
proof of purchase if you do not register your
unit.
Customer Note: If the Dealer does not
register your product, please fill out, sign and
return the product registration card to Ariens
or go to www.ariens.com on the internet
UNAUTHORIZED REPLACEMENT
PARTS
Use only Ariens replacement parts. The
replacement of any part on this unit with
anything other than an Ariens authorized
replacement part may adversely affect the
performance, durability, and safety of this unit
and may void the warranty. Ariens disclaims
liability for any claims or damages, whether
warranty, property damage, personal injury or
death arising out of the use of unauthorized
replacement parts.
NOTE: A complete Parts manual may be
download from www.ariens.com on the
internet.
Customer Note: If you have purchased this
product without complete assembly and
instruction by your retailer, it is your
responsibility to:
Read and understand all assembly
instructions in this manual. If you do
not understand or have difficulty
following the instructions, contact your
nearest Ariens Dealer for assistance.
NOTE: To locate your nearest Ariens Dealer,
go to www.ariens.com on the internet.
WARNING: Improper assembly
or adjustments can cause serious
injury.
Before Attempting to Operate Your
Unit:
1. Make sure all assembly has been
properly completed.
2. Understand all Safety Precautions
provided in the manuals.
3. Review control functions and operation
of the unit. Do not operate the unit
unless all controls function as described
in this manual.
4. Review recommended lubrication,
maintenance and adjustments.
5. Review Limited Warranty Policy.
6. Fill out a product registration card and
return the card to the Ariens Company or
go to www.ariens.com.
DISCLAIMER
Ariens reserves the right to discontinue,
change, and improve its products at any time
without notice or obligation to the purchaser.
The descriptions and specifications contained
in this manual were in effect at printing.
Equipment described within this manual may
be optional. Some illustrations may not be
applicable to your unit.
GB-3
[,.'_-,1_1=11"4
WARNING: This cutting machine
is capable of amputating hands
and feet and throwing objects.
Failure to observe the safety
instructions in the manuals and on
decals could result in serious
injury or death.
Slopes are a major factor related
to loss-of-control and tip-over
accidents. Operation on all slopes
requires extra caution.
Tragic accidents can occur if the
operator is not alert to the
presence of children. Never
assume that children will remain
where you last saw them.
Gasoline is extremely flammable
and the vapors are explosive,
handle with care.
Disengage attachment, stop unit
and engine, remove key, engage
parking brake, and allow moving
parts to stop before leaving
operator's position.

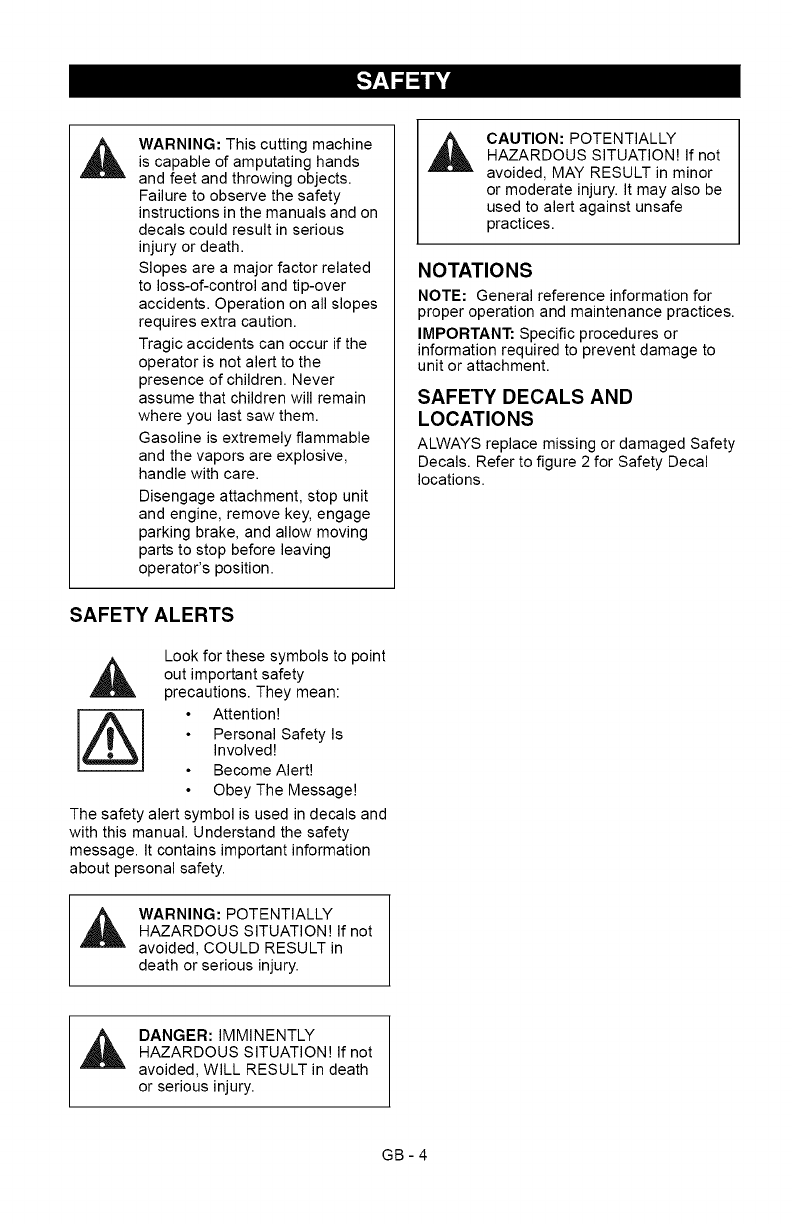

SAFETY ALERTS
ALook for these symbols to point
out important safety
precautions. They mean:
Attention!
Personal Safety Is
Involved!
Become Alert!
Obey The Message!
The safety alert symbol is used in decals and
with this manual. Understand the safety
message. It contains important information
about personal safety.
A WARNING: POTENTIALLY
HAZARDOUS SITUATION! If not
avoided, COULD RESULT in
death or serious injury.
A DANGER: IMMINENTLY
HAZARDOUS SITUATION! If not
avoided, WILL RESULT in death
or serious injury.
CAUTION: POTENTIALLY
HAZARDOUS SITUATION! If not
avoided, MAY RESULT in minor
or moderate injury. It may also be
used to alert against unsafe
practices.
NOTATIONS
NOTE: General reference information for
proper operation and maintenance practices.
IMPORTANT: Specific procedures or
information required to prevent damage to
unit or attachment.
SAFETY DECALS AND
LOCATIONS
ALWAYS replace missing or damaged Safety
Decals. Refer to figure 2 for Safety Decal
locations.
GB-4

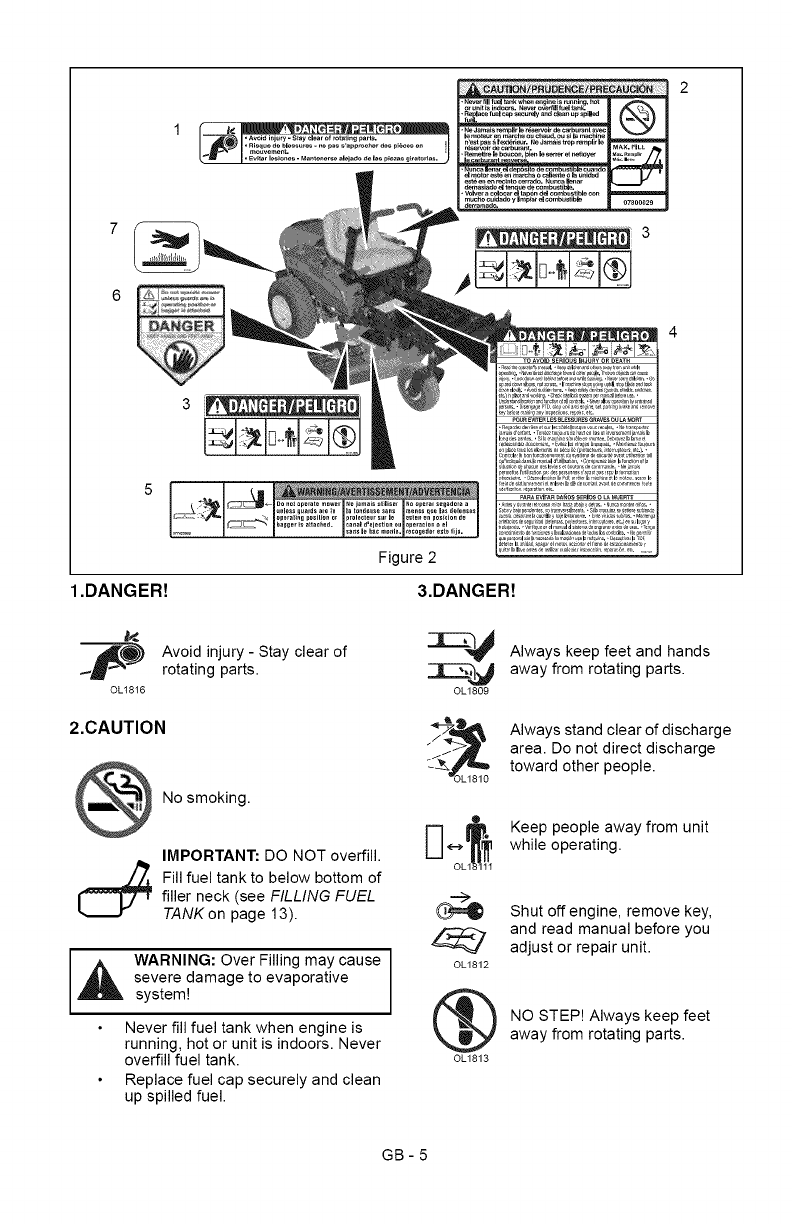

Figure2
1.DANGER! &DANGER!
Avoid injury -Stay clear of
rotating parts.
OL1816
2.CAUTION
No smoking.
IMPORTANT: DO NOT overfill.
i_ Fill fuel tank to below bottom of
filler neck (see FILLING FUEL
TANK on page 13).
,_ WARNING: Over Filling may cause
severe damage to evaporative
system !
Never fill fuel tank when engine is
running, hot or unit is indoors. Never
overfill fuel tank.
Replace fuel cap securely and clean
up spilled fuel.
#
OL1809
Always keep feet and hands
away from rotating parts.
Always stand clear of discharge
area. Do not direct discharge
toward other people.
D:Ltt Keep people away from unit
while operating.
OL1812
Shut off engine, remove key,
and read manual before you
adjust or repair unit.
NO STEP! Always keep feet
away from rotating parts.
OL1813
GB-5

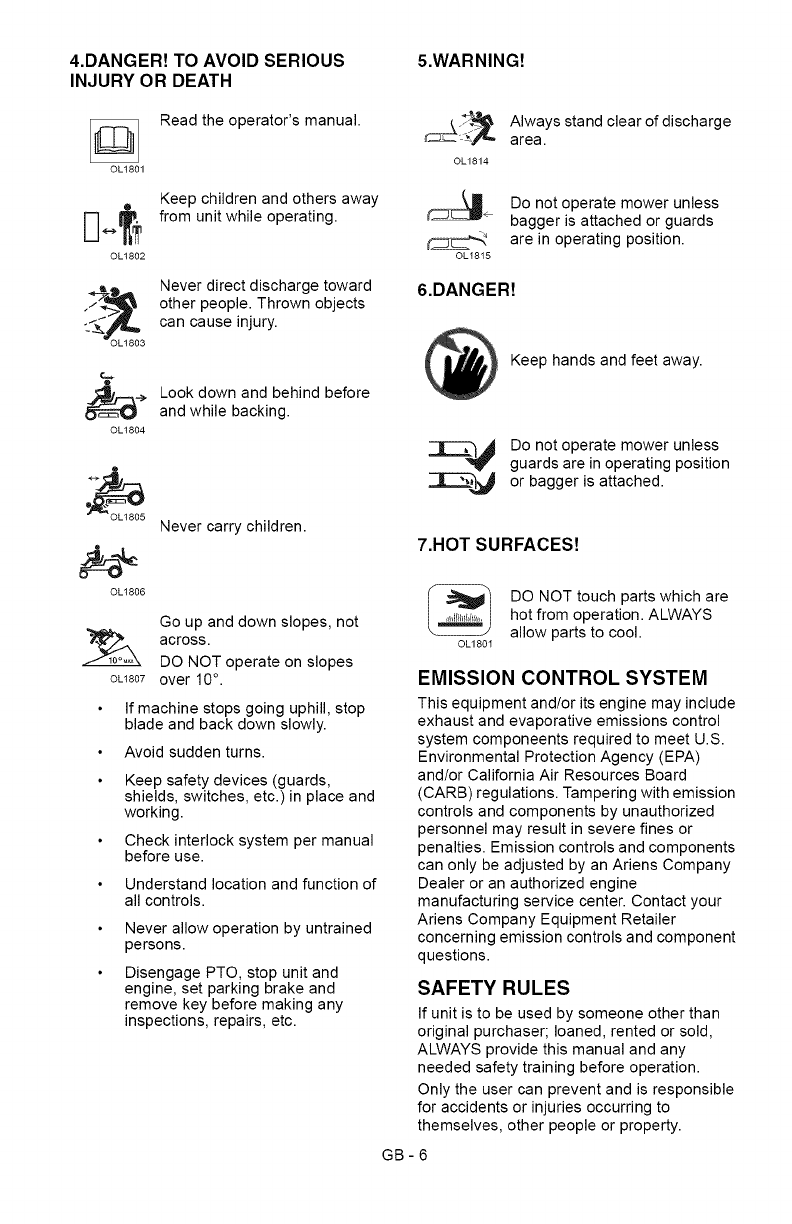

4.DANGER! TO AVOID SERIOUS
INJURY OR DEATH &WARNING!
OLt801
DJ
OL1802
Read the operator's manual.
Keep children and others away
from unit while operating.
OL1814
OLI8t5
Always stand clear of discharge
area.
Do not operate mower unless
bagger is attached or guards
are in operating position.
Never direct discharge toward
J__L"_ other people. Thrown objects
-,--;_r.._ can cause injury.
--%L_3
Look down and behind before
and while backing.
OL1804
OL1806
Never carry children.
OL1807
Go up and down slopes, not
across.
DO NOT operate on slopes
over 10°.
If machine stops going uphill, stop
blade and back down slowly.
Avoid sudden turns.
Keep safety devices (guards,
shields, switches, etc.) in place and
working.
Check interlock system per manual
before use.
Understand location and function of
all controls.
Never allow operation by untrained
persons.
Disengage PTO, stop unit and
engine, set parking brake and
remove key before making any
inspections, repairs, etc.
&DANGER!
Keep hands and feet away.
_ii_._,_ Do not operate mower unless
guards are in operating position
_--_--_,,_ or bagger is attached.
7.HOT SURFACES!
OL180I
DO NOT touch parts which are
hot from operation. ALWAYS
allow parts to cool.
EMISSION CONTROL SYSTEM
This equipment and/or its engine may include
exhaust and evaporative emissions control
system componeents required to meet U.S.
Environmental Protection Agency (EPA)
and!or California Air Resources Board
(CARB) regulations. Tampering with emission
controls and components by unauthorized
personnel may result in severe fines or
penalties. Emission controls and components
can only be adjusted by an Ariens Company
Dealer or an authorized engine
manufacturing service center. Contact your
Ariens Company Equipment Retailer
concerning emission controls and component
questions.
SAFETY RULES
If unit is to be used by someone other than
original purchaser; loaned, rented or sold,
ALWAYS provide this manual and any
needed safety training before operation.
Only the user can prevent and is responsible
for accidents or injuries occurring to
themselves, other people or property.
GB-6

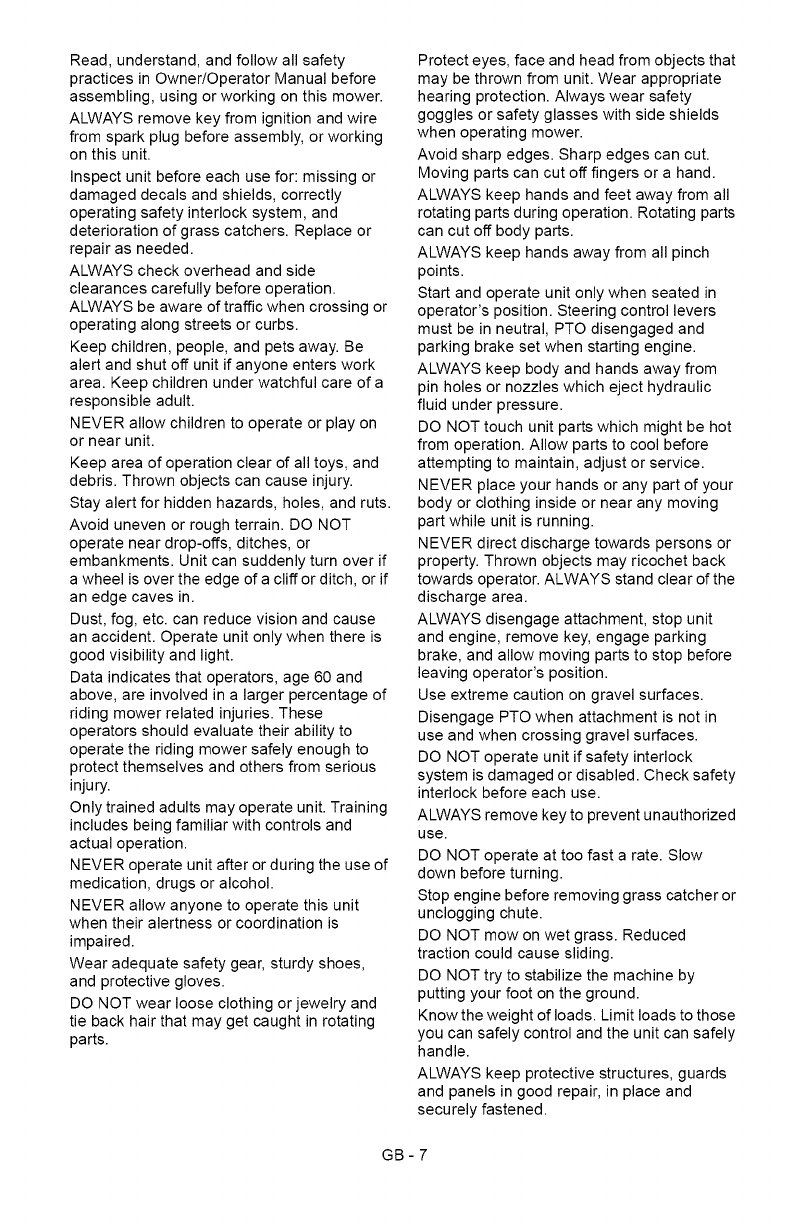

Read,understand,andfollowallsafety
practicesinOwner/OperatorManualbefore
assembling,usingorworkingonthismower.
ALWAYSremovekeyfromignitionandwire
fromsparkplugbeforeassembly,orworking
onthisunit.
Inspectunitbeforeeachusefor:missingor
damageddecalsandshields,correctly
operatingsafetyinterlocksystem,and
deteriorationofgrasscatchers.Replaceor
repairasneeded.
ALWAYScheckoverheadandside
clearancescarefullybeforeoperation.
ALWAYSbeawareoftrafficwhencrossingor
operatingalongstreetsorcurbs.
Keepchildren,people,andpetsaway.Be
alertandshutoffunitifanyoneenterswork
area.Keepchildrenunderwatchfulcareofa
responsibleadult.
NEVERallowchildrentooperateorplayon
ornearunit.
Keepareaofoperationclearofalltoys,and
debris.Thrownobjectscancauseinjury.
Stayalertforhiddenhazards,holes,andruts.
Avoidunevenorroughterrain.DONOT
operateneardrop-offs,ditches,or
embankments.Unitcansuddenlyturnoverif
awheelisovertheedgeofaclifforditch,orif
anedgecavesin.
Dust,fog,etc.canreducevisionandcause
anaccident.Operateunitonlywhenthereis
goodvisibilityandlight.
Dataindicatesthatoperators,age60and
above,areinvolvedinalargerpercentageof
ridingmowerrelatedinjuries.These
operatorsshouldevaluatetheirabilityto
operatetheridingmowersafelyenoughto
protectthemselvesandothersfromserious
injury.
Onlytrainedadultsmayoperateunit.Training
includesbeingfamiliarwithcontrolsand
actualoperation.
NEVERoperateunitafterorduringtheuseof
medication,drugsoralcohol.
NEVERallowanyonetooperatethisunit
whentheiralertnessorcoordinationis
impaired.
Wearadequatesafetygear,sturdyshoes,
andprotectivegloves.
DONOTwearlooseclothingorjewelryand
tiebackhairthatmaygetcaughtinrotating
parts.
Protecteyes,faceandheadfromobjectsthat
maybethrownfromunit.Wearappropriate
hearingprotection.Alwayswearsafety
gogglesorsafetyglasseswithsideshields
whenoperatingmower.
Avoidsharpedges.Sharpedgescancut.
Movingpartscancutofffingersorahand.
ALWAYSkeephandsandfeetawayfromall
rotatingpartsduringoperation.Rotatingparts
cancutoffbodyparts.
ALWAYSkeephandsawayfromallpinch
points.
Startandoperateunitonlywhenseatedin
operator'sposition.Steeringcontrollevers
mustbeinneutral,PTOdisengagedand
parkingbrakesetwhenstartingengine.
ALWAYSkeepbodyandhandsawayfrom
pinholesornozzleswhichejecthydraulic
fluidunderpressure.
DONOTtouchunitpartswhichmightbehot
fromoperation.Allowpartstocoolbefore
attemptingtomaintain,adjustorservice.
NEVERplaceyourhandsoranypartofyour
bodyorclothinginsideornearanymoving
partwhileunitisrunning.
NEVERdirectdischargetowardspersonsor
property.Thrownobjectsmayricochetback
towardsoperator.ALWAYSstandclearofthe
dischargearea.
ALWAYSdisengageattachment,stopunit
andengine,removekey,engageparking
brake,andallowmovingpartstostopbefore
leavingoperator'sposition.
Useextremecautionongravelsurfaces.
DisengagePTOwhenattachmentisnotin
useandwhencrossinggravelsurfaces.
DONOToperateunitifsafetyinterlock
systemisdamagedordisabled.Checksafety
interlockbeforeeachuse.
ALWAYSremovekeytopreventunauthorized
use.
DO NOT operate at too fast a rate. Slow
down before turning.
Stop engine before removing grass catcher or
unclogging chute.
DO NOT mow on wet grass. Reduced
traction could cause sliding.
DO NOT try to stabilize the machine by
putting your foot on the ground.
Know the weight of loads. Limit loads to those
you can safely control and the unit can safely
handle.
ALWAYS keep protective structures, guards
and panels in good repair, in place and
securely fastened.
GB-7

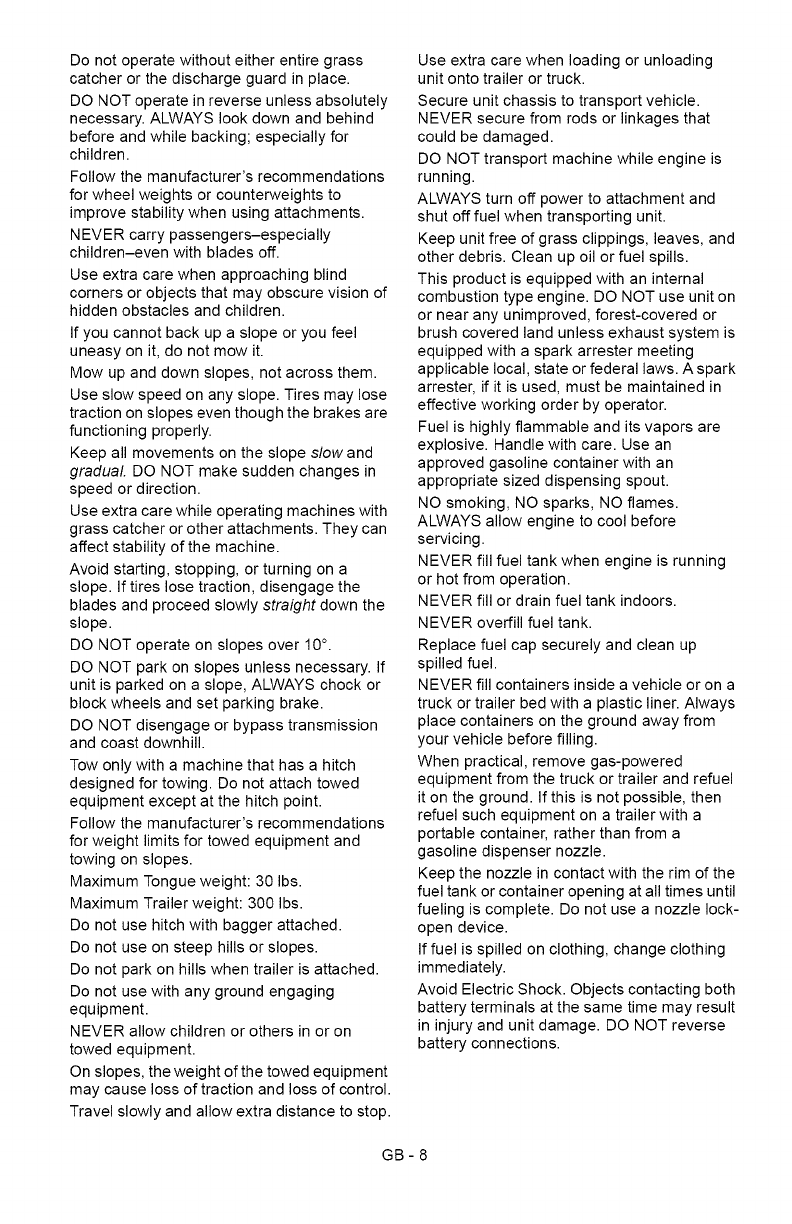

Donotoperatewithouteitherentiregrass
catcherorthedischargeguardinplace.
DONOToperateinreverseunlessabsolutely
necessary.ALWAYSlookdownandbehind
beforeandwhilebacking;especiallyfor
children.
Followthemanufacturer'srecommendations
forwheelweightsorcounterweightsto
improvestabilitywhenusingattachments.
NEVERcarrypassengers-especially
children-evenwithbladesoff.
Useextracarewhenapproachingblind
cornersorobjectsthatmayobscurevisionof
hiddenobstaclesandchildren.
Ifyoucannotbackupaslopeoryoufeel
uneasyonit,donotmowit.
Mowupanddownslopes,notacrossthem.
Useslowspeedonanyslope.Tiresmaylose
tractiononslopeseventhoughthebrakesare
functioningproperly.
Keepallmovementsontheslopeslow and
gradual, DO NOT make sudden changes in
speed or direction.
Use extra care while operating machines with
grass catcher or other attachments. They can
affect stability of the machine.
Avoid starting, stopping, or turning on a
slope. If tires lose traction, disengage the
blades and proceed slowly straight down the
slope.
DO NOT operate on slopes over 10° .
DO NOT park on slopes unless necessary. If
unit is parked on a slope, ALWAYS chock or
block wheels and set parking brake.
DO NOT disengage or bypass transmission
and coast downhill.
Tow only with a machine that has a hitch
designed for towing. Do not attach towed
equipment except at the hitch point.
Follow the manufacturer's recommendations
for weight limits for towed equipment and
towing on slopes.
Maximum Tongue weight: 30 Ibs.
Maximum Trailer weight: 300 Ibs.
Do not use hitch with bagger attached.
Do not use on steep hills or slopes.
Do not park on hills when trailer is attached.
Do not use with any ground engaging
equipment.
NEVER allow children or others in or on
towed equipment.
On slopes, the weight of the towed equipment
may cause loss of traction and loss of control.
Travel slowly and allow extra distance to stop.
Use extra care when loading or unloading
unit onto trailer or truck.
Secure unit chassis to transport vehicle.
NEVER secure from rods or linkages that
could be damaged.
DO NOT transport machine while engine is
running.
ALWAYS turn off power to attachment and
shut off fuel when transporting unit.
Keep unit free of grass clippings, leaves, and
other debris. Clean up oil or fuel spills.
This product is equipped with an internal
combustion type engine. DO NOT use unit on
or near any unimproved, forest-covered or
brush covered land unless exhaust system is
equipped with a spark arrester meeting
applicable local, state or federal laws. A spark
arrester, if it is used, must be maintained in
effective working order by operator.
Fuel is highly flammable and its vapors are
explosive. Handle with care. Use an
approved gasoline container with an
appropriate sized dispensing spout.
NO smoking, NO sparks, NO flames.
ALWAYS allow engine to cool before
servicing.
NEVER fill fuel tank when engine is running
or hot from operation.
NEVER fill or drain fuel tank indoors.
NEVER overfill fuel tank.
Replace fuel cap securely and clean up
spilled fuel.
NEVER fill containers inside a vehicle or on a
truck or trailer bed with a plastic liner. Always
place containers on the ground away from
your vehicle before filling.
When practical, remove gas-powered
equipment from the truck or trailer and refuel
it on the ground. If this is not possible, then
refuel such equipment on a trailer with a
portable container, rather than from a
gasoline dispenser nozzle.
Keep the nozzle in contact with the rim of the
fuel tank or container opening at all times until
fueling is complete. Do not use a nozzle lock-
open device.
If fuel is spilled on clothing, change clothing
immediately.
Avoid Electric Shock. Objects contacting both
battery terminals at the same time may result
in injury and unit damage. DO NOT reverse
battery connections.
GB-8
ExplosiveGasesfrombatterycancause
deathorseriousinjury.Poisonousbattery
fluidcontainssulfuricacidanditscontactwith
skin,eyesorclothingcancausesevere
chemicalburns.
NOflames,NOsparks,NOsmokingnear
battery.
ALWAYSwearsafetyglassesandprotective
gearnearbattery.Useinsulatedtools.
DONOTTIPbatterybeyonda45°anglein
anydirection.
ALWAYSkeepbatteriesoutofreachof
children.
Batteryposts,terminalsandrelated
accessoriescontainleadandlead
compounds,chemicalsknowntotheStateof
Californiatocausecancerandreproductive
harm.Washhandsafterhandling.
Reverseconnectionsmayresultinsparks
whichcancauseseriousinjury.Always
connectpositive(+)leadofchargerto
positive(+)terminal,andnegative(-)leadto
negative(-)terminal.
ALWAYSdisconnectnegative(-)cableFIRST
andpositive(+)cableSECOND.ALWAYS
connectpositive(+)cableFIRST,and
negative(-)cableSECOND.
Afrozenbatterycanexplodeandresultin
deathorseriousinjury.DONOTchargeor
jumpstartabatterycontainingfrozenfluid.
Thawthebatterybeforeputtingonacharger
orjumpstarting.
ALWAYSkeepprotectivestructures,guards,
andpanelsingoodrepair,inplaceand
securelyfastened.NEVERmodifyorremove
safetydevices.
DONOTchangeenginegovernorsettingsor
over-speedengine.
Fumesfromengineexhaustcancauseinjury
ordeath.DONOTrunengineinanenclosed
area.Alwaysprovidegoodventilation.
ALWAYSmaintainunitinsafeoperating
condition.Damagedorwornoutmufflercan
causefireorexplosion.
Stopandinspectequipmentifyoustrikean
objectorifthereisanunusualvibration.
Repair,ifnecessary,beforerestarting.Never
makeadjustmentsorrepairswiththeengine
running.
Mowerbladesaresharpandcancutyou.
Wraptheblade(s)orweargloves,anduse
extracautionwhenservicingthem.NEVER
weldorstraightenmowerblades.
Rotationofoneblademaycauserotationof
theotherblades.
Checkbrakeoperationfrequently.Adjustand
serviceasrequired.
Keepallhardwareproperlytightened.
Storedenergyinspringscancauseinjury.
Maintainorreplacesafetyandinstruction
labels,asnecessary.
Neverstorethemachineorfuelcontainer
insideabuildingwherethereisanopen
flame,suchasawaterheater.
Shutofffuel(ifprovided)andallowengineto
coolcompletelybeforestoringinclosedarea
orcoveringunit.
Cleangrassanddebrisfromunit,especially
fromaroundmufflerandengine,tohelp
preventfires.
Forextendedstorage,cleanunitthoroughly.
SeeEngineManualforproperstorage.
Useonlyattachmentsoraccessories
designedforyourunit.
Checkattachmentcomponentsfrequently.If
wornordamaged,replacewith
manufacturer'srecommendedparts.
_[.,."_"]::1_v_I:)_"d
WARNING: AVOID INJURY.
Read and understand the entire
Safety section before proceeding.
Tools Required
Adjustable wrench
Petroleum jelly or dielectric grease.
Unpack Unit
Remove unit and all other components from
the shipping container. Engage transmission

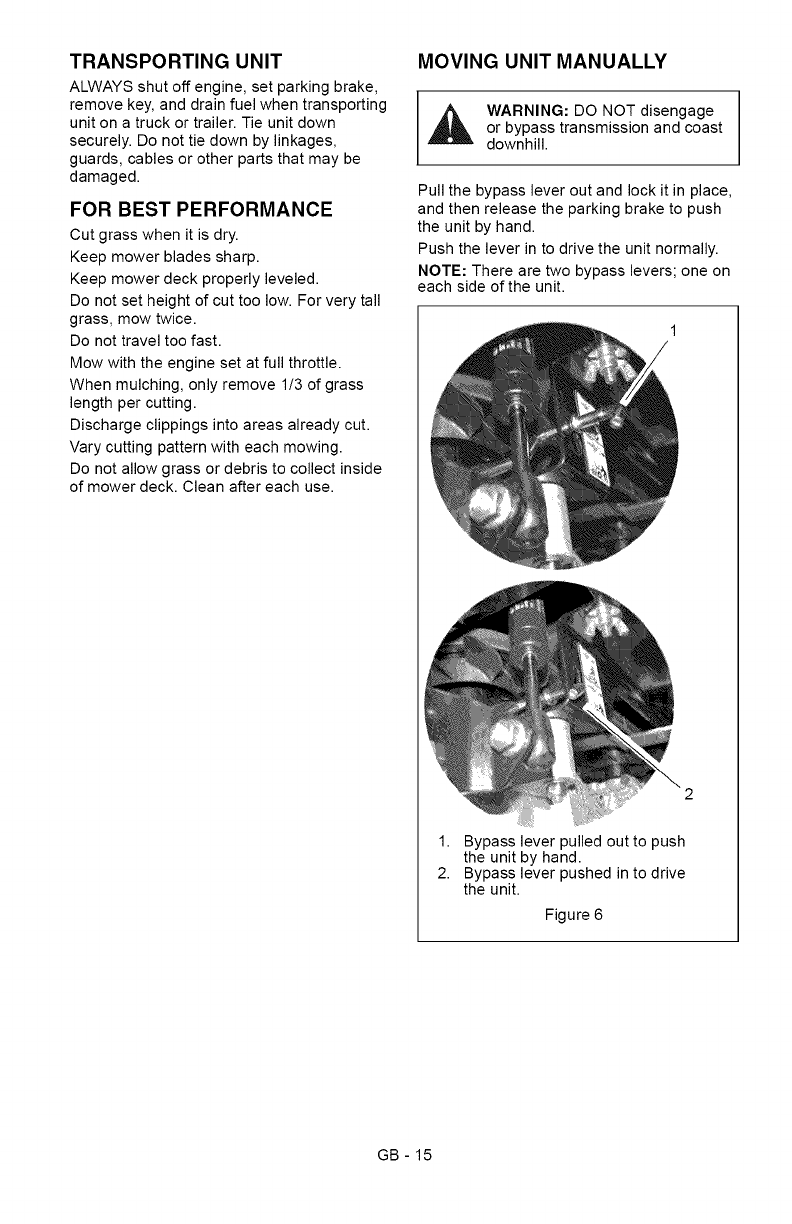

bypass lever (see MOVING UNIT
MANUALLYon page 15). Push unit from
container onto a level surface. Disengage
transmission bypass lever.
Connect Battery
See Battery Removal and Installation on
page 22 and perform steps 2 and 3 in the
installation section.
GB-9

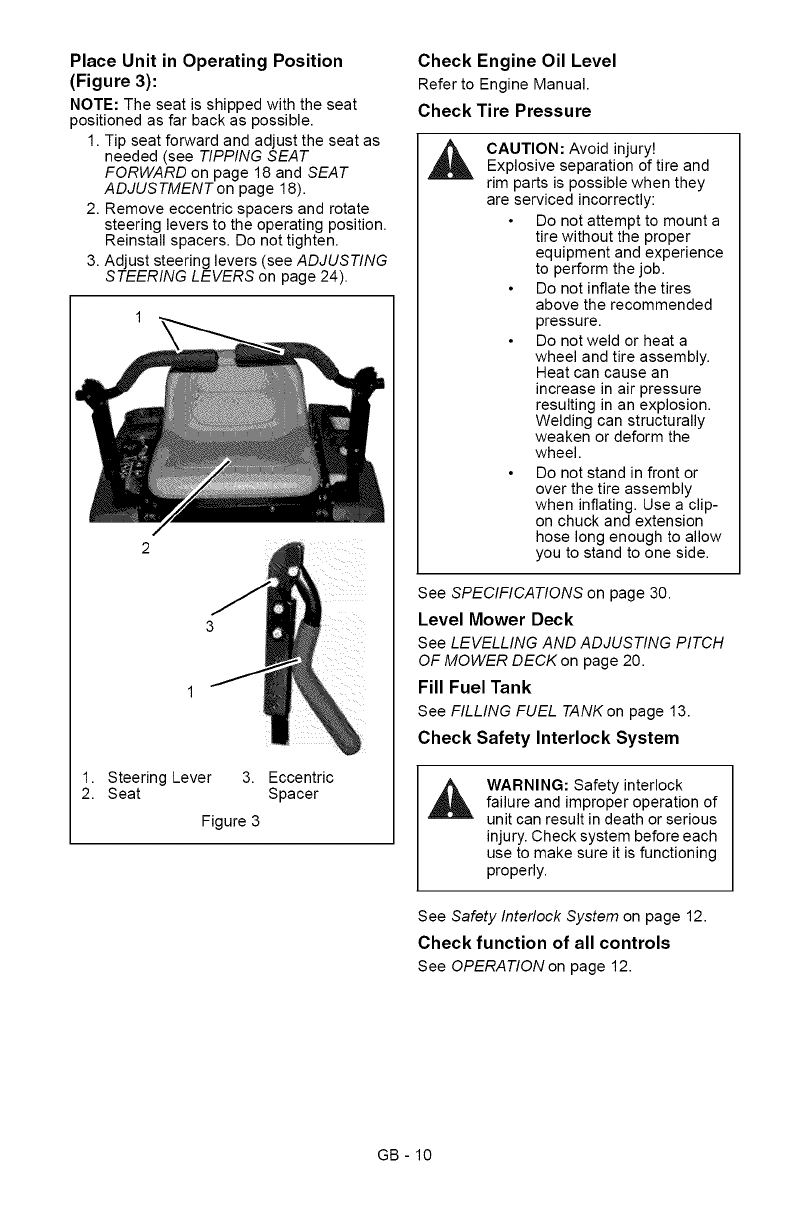

Place Unit in Operating Position
(Figure 3):
NOTE: The seat is shipped with the seat
positioned as far back as possible.
1. Tip seat forward and adjust the seat as
needed (see TIPPING SEAT
FORWARD on page 18 and SEAT
ADJUSTMENT on page 18).
2. Remove eccentric spacers and rotate
steering levers to the operating position.
Reinstall spacers. Do not tighten.
3. Adjust steering levers (see ADJUSTING
STEERING LEVERS on page 24).
1. Steering Lever 3. Eccentric
2. Seat Spacer
Figure 3
Check Engine Oil Level
Refer to Engine Manual.
Check Tire Pressure
AAUTION: Avoid injury!
Explosive separation of tire and
rim parts is possible when they
are serviced incorrectly:
Do not attempt to mount a
tire without the proper
equipment and experience
to perform the job.
Do not inflate the tires
above the recommended
pressure.
Do not weld or heat a
wheel and tire assembly.
Heat can cause an
increase in air pressure
resulting in an explosion.
Welding can structurally
weaken or deform the
wheel.
Do not stand in front or
over the tire assembly
when inflating. Use a clip-
on chuck and extension
hose long enough to allow
you to stand to one side.
See SPECIFICATIONS on page 30.
Level Mower Deck
See LEVELLING AND ADJUSTING PITCH
OF MOWER DECK on page 20.
Fill Fuel Tank
See FILLING FUEL TANK on page 13.
Check Safety Interlock System
AARNING: Safety interlockfailure and improper operation of
unit can result in death or serious
injury. Check system before each
use to make sure it is functioning
properly.
See Safety Interlock System on page 12.
Check function of all controls
See OPERATION on page 12.
GB - 10
[_o]_jij_[o]l_,.']r-'__,In_]I_1_-'_nt_"]
6
4
915131, 915141
11
10
915143
9
13 12
7
5
8

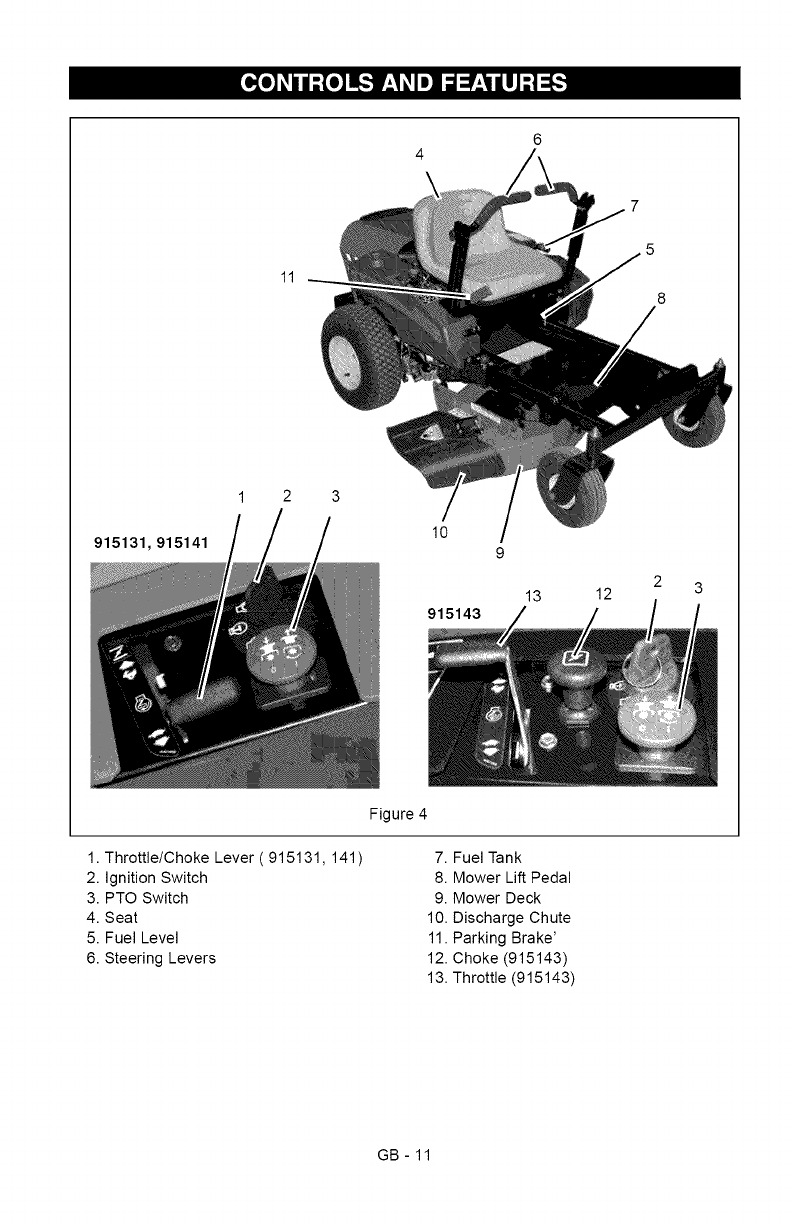

Figure 4
1. Throttle/Choke Lever ( 915131, 141 )
2. Ignition Switch
3. PTO Switch
4. Seat
5. Fuel Level
6. Steering Levers
7. Fuel Tank
8. Mower Lift Pedal
9. Mower Deck
10. Discharge Chute
11. Parking Brake'
12. Choke (915143)
13. Throttle (915143)
GB- 11
,_ WARNING: AVOID INJURY.
Read and understand the entire
Safety section before proceeding.
CONTROLS AND FEATURES
See figure 4 for all controls and features
locations.
Safety Interlock System
WARNING: Safety interlock failure
and improper operation of unit can
result in death or serious injury.
Check system before each use to
make sure it is functioning
properly.
Test Steering Lever PTO
1 Neutral Position Off
2 Neutral Position On
3 Neutral Position Off
4*+ Out of Neutral Position Off
5*+ Neutral Position On
Test with engine running.
+ Operator lifts off seat.
Ignition Switch
1
Perform the following tests to ensure the
safety interlock system is working properly. If
the unit does not perform as stated contact
your Ariens dealer for repairs.
m .
Jlt
m _ +J
_ +<s.+.,--i
-41,-3
OE0002
Operate ignition switch
with a removable key.
Ignition switch has three
positions: Stop (1),
Run (2), Start (3). See
STARTING AND
SHUTTING OFF
ENGINE on page 14 for
detailed instructions on
how to start engine.
Throttle/Choke Lever (915131, 141 )
Choke (1) - Use to start a cold
i\!1 en0ine.
Fast (2) - Increases engine
speed.
Slow (3) - Decreases engine
speed.
Parking Brake
Engaged
Engaged
Disengaged
Disengaged
Engaged
Throttle (915143)
Engine
Starts
Doesn't Start
Doesn't Start
Shuts Off
Shuts Off
Fast (1) - Increases engine
speed.
O
OE0002
Choke (91
Parking Brake
Slow (2) - Decreases engine
speed.
5143)
Pull choke control out to start a
cold engine.
Push choke control in when
engine is warm.
Engages (2) and
disengages (1) parking
brake.
GB - 12

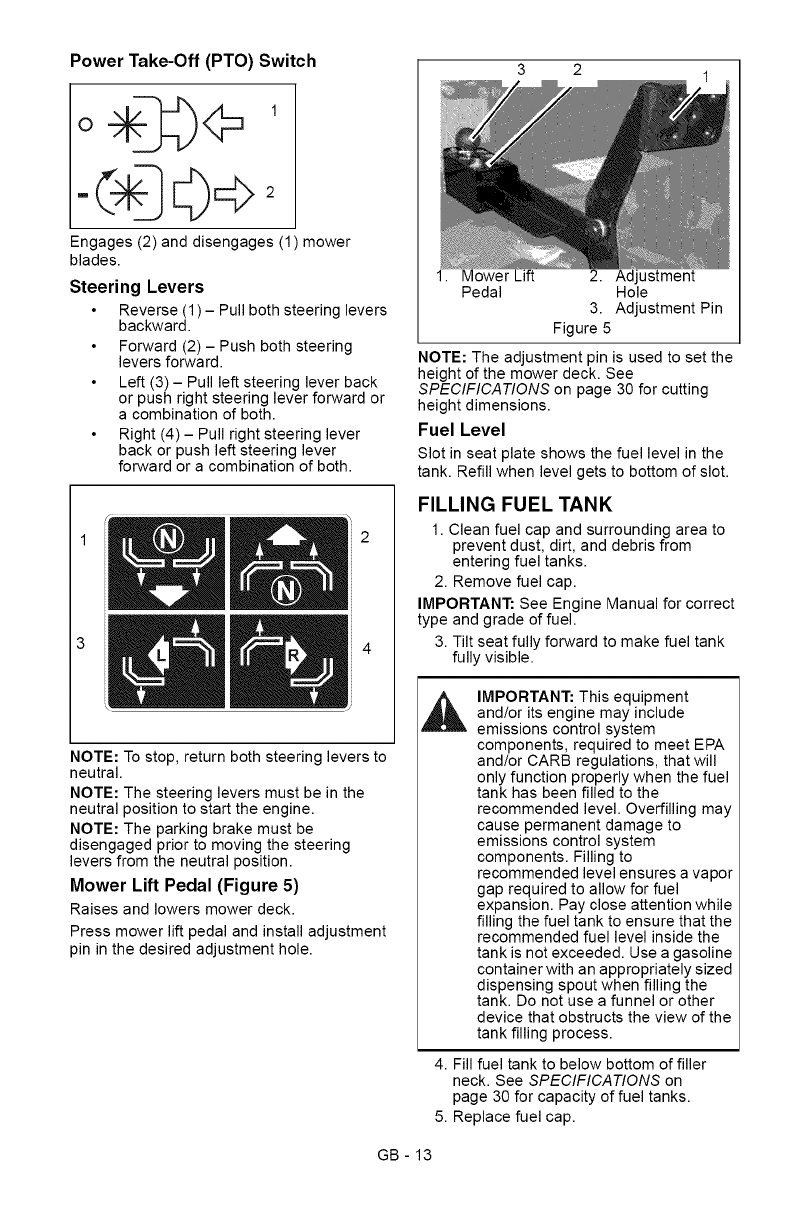

Power Take-Off (PTO) Switch
o 1
Engages (2) and disengages (1) mower
blades.
Steering Levers
Reverse (1)- Pull both steering levers
backward.
Forward (2) - Push both steering
levers forward.
Left (3) - Pull left steering lever back
or push right steering lever forward or
a combination of both.
Right (4) - Pull right steering lever
back or push left steering lever
forward or a combination of both.
NOTE: To stop, return both steering levers to
neutral.
NOTE: The steering levers must be in the
neutral position to start the engine.
NOTE: The parking brake must be
disengaged prior to moving the steering
levers from the neutral position.
Mower Lift Pedal (Figure 5)
Raises and lowers mower deck.
Press mower lift pedal and install adjustment
pin in the desired adjustment hole.
3 2
2. Adjustment
1. Mower Lift
Pedal Hole
3. Adjustment Pin
Figure 5
NOTE: The adjustment pin is used to set the
height of the mower deck. See
SPECIFICATIONS on page 30 for cutting
height dimensions.
Fuel Level
Slot in seat plate shows the fuel level in the
tank. Refill when level gets to bottom of slot.
FILLING FUEL TANK
1. Clean fuel cap and surrounding area to
prevent dust, dirt, and debris from
entering fuel tanks.
2. Remove fuel cap.
IMPORTANT: See Engine Manual for correct
type and grade of fuel.
3. Tilt seat fully forward to make fuel tank
fully visible.
IMPORTANT: This equipment
and/or its engine may include
emissions control system
components, required to meet EPA
and/or CARB regulations, that will
only function properly when the fuel
tank has been filled to the
recommended level. Overfilling may
cause permanent damage to
emissions control system
components. Filling to
recommended level ensures a vapor
gap required to allow for fuel
expansion. Pay close attention while
filling the fuel tank to ensure that the
recommended fuel level inside the
tank is not exceeded. Use a gasoline
container with an appropriately sized
dispensing spout when filling the
tank. Do not use a funnel or other
device that obstructs the view of the
tank filling process.
4. Fill fuel tank to below bottom of filler
neck. See SPECIFICATIONS on
page 30 for capacity of fuel tanks.
5. Replace fuel cap.
GB - 13

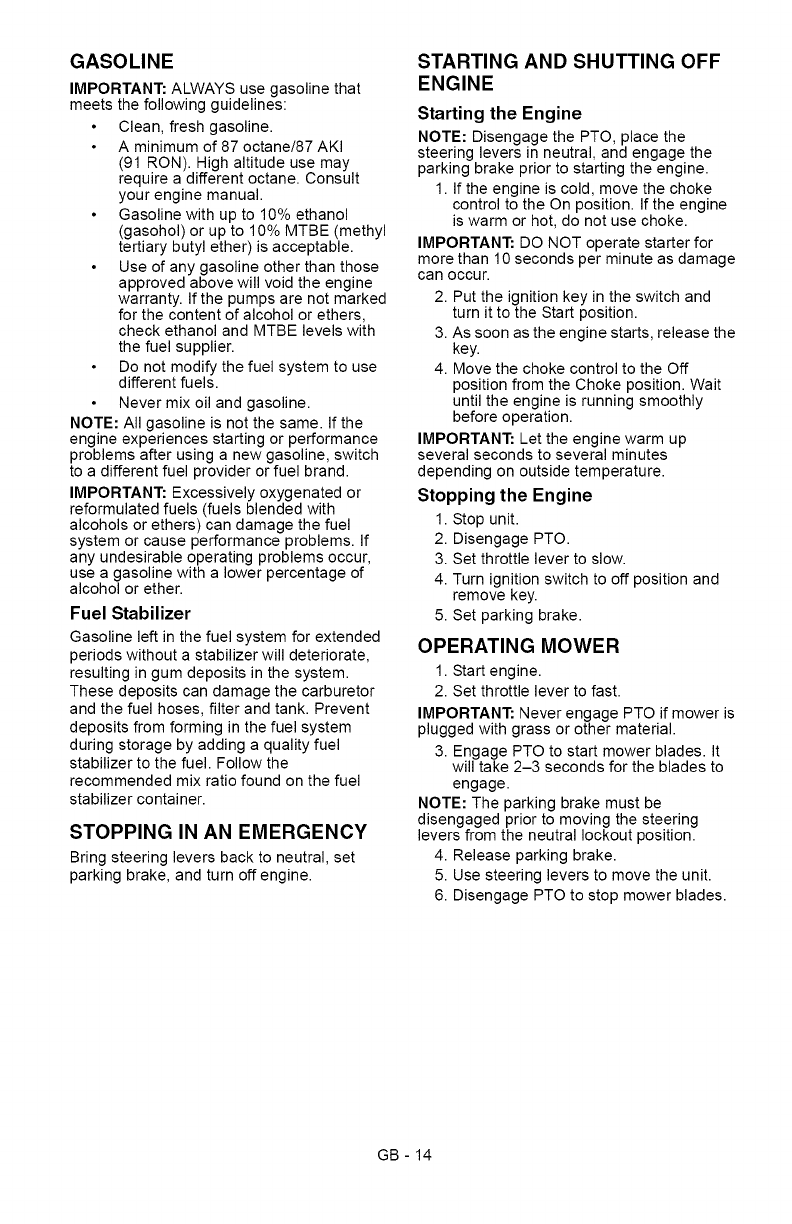

GASOLINE
IMPORTANT: ALWAYS use gasoline that
meets the following guidelines:
Clean, fresh gasoline.
A minimum of 87 octane/87 AKI
(91 RON). High altitude use may
require a different octane. Consult
your engine manual.
Gasoline with up to 10% ethanol
(gasohol) or up to 10% MTBE (methyl
tertiary butyl ether) is acceptable.
Use of any gasoline other than those
approved above will void the engine
warranty. If the pumps are not marked
for the content of alcohol or ethers,
check ethanol and MTBE levels with
the fuel supplier.
Do not modify the fuel system to use
different fuels.
Never mix oil and gasoline.
NOTE: All gasoline is not the same. If the
engine experiences starting or performance
problems after using a new gasoline, switch
to a different fuel provider or fuel brand.
IMPORTANT: Excessively oxygenated or
reformulated fuels (fuels blended with
alcohols or ethers) can damage the fuel
system or cause performance problems. If
any undesirable operating problems occur,
use a gasoline with a lower percentage of
alcohol or ether.
Fuel Stabilizer
Gasoline left in the fuel system for extended
periods without a stabilizer will deteriorate,
resulting in gum deposits in the system.
These deposits can damage the carburetor
and the fuel hoses, filter and tank. Prevent
deposits from forming in the fuel system
during storage by adding a quality fuel
stabilizer to the fuel. Follow the
recommended mix ratio found on the fuel
stabilizer container.
STOPPING IN AN EMERGENCY
Bring steering levers back to neutral, set
parking brake, and turn off engine.
STARTING AND SHUTTING OFF
ENGINE
Starting the Engine
NOTE: Disengage the PTO, place the
steering levers in neutral, and engage the
parking brake prior to starting the engine.
1. If the engine is cold, move the choke
control to the On position. If the engine
is warm or hot, do not use choke.
IMPORTANT: DO NOT operate starter for
more than 10 seconds per minute as damage
can occur.
2. Put the ignition key in the switch and
turn it to the Start position.
3. As soon as the engine starts, release the
key.
4. Move the choke control to the Off
position from the Choke position. Wait
until the engine is running smoothly
before operation.
IMPORTANT: Let the engine warm up
several seconds to several minutes
depending on outside temperature.
Stopping the Engine
1. Stop unit.
2. Disengage PTO.
3. Set throttle lever to slow.
4. Turn ignition switch to off position and
remove key.
5. Set parking brake.
OPERATING MOWER
1. Start engine.
2. Set throttle lever to fast.
IMPORTANT: Never engage PTO if mower is
plugged with grass or other material.
3. Engage PTO to start mower blades. It
will take 2-3 seconds for the blades to
engage.
NOTE: The parking brake must be
disengaged prior to moving the steering
levers from the neutral lockout position.
4. Release parking brake.
5. Use steering levers to move the unit.
6. Disengage PTO to stop mower blades.
GB - 14
TRANSPORTING UNIT
ALWAYS shut off engine, set parking brake,
remove key, and drain fuel when transporting
unit on a truck or trailer. Tie unit down
securely. Do not tie down by linkages,
guards, cables or other parts that may be
damaged.
FOR BEST PERFORMANCE
Cut grass when it is dry.
Keep mower blades sharp.
Keep mower deck properly leveled.
Do not set height of cut too low. For very tall
grass, mow twice.
Do not travel too fast.
Mow with the engine set at full throttle.
When mulching, only remove 1/3 of grass
length per cutting.
Discharge clippings into areas already cut.
Vary cutting pattern with each mowing.
Do not allow grass or debris to collect inside
of mower deck. Clean after each use.
MOVING UNIT MANUALLY
,_ WARNING: DO NOT disengageor bypass transmission and coast
downhill.
Pull the bypass lever out and lock it in place,
and then release the parking brake to push
the unit by hand.
Push the lever in to drive the unit normally.
NOTE: There are two bypass levers; one on
each side of the unit.
1
1. Bypass lever pulled out to push
the unit by hand.
2. Bypass lever pushed in to drive
the unit.
Figure 6
GB- 15
WARNING:AVOIDINJURY.ReadandunderstandtheentireSafety
section before proceeding.
IMPORTANT: Proper maintenance can
prolong the life of unit. The following chart
shows the recommended service schedule.
Refer to the maintenance instructions in the
Engine Manual for additional information.
NOTE: To have full access to the engine, the
seat must be tipped forward (see TIPPING
SEAT FORWARD on page 18) and the hood
opened (see MOWER DECK REMOVAL
AND INSTALLATION on page 18).
nterval .Taski.Action
Each Use Check
Safety
Interlock
System
Check
Parking
Brake
Clean Unit
WARNING: Safety interlock system failure and improper
operation of unit can result in death or serious injury. Test
this system each time the unit is operated. If this system
does not function as described, do not operate until repairs
are made (see Safety Interlock System on page 12).
Engage parking brake and engage transmission bypass lever (see
MOVING UNITMANUALLYon page 15). Push unit. If unit rolls, contact
your Ariens Dealer.
Clean engine, battery, seat, mower deck, etc. of all dirt and debris. Do
not use solvents, hard cleaners, or abrasives.
NOTE: Protect painted surfaces with automotive type wax.
IMPORTANT: Do not spray the unit with water, especially when the unit
is warm from operation. Water can seep into bearings and damage
them.
Check
Tires
Check
Mower
Blades
See SPECIFICATIONS on page 30 for correct tire pressure.
,_ CAUTION: Avoid injury! Explosive separation of tire and rim
parts is possible when they are serviced incorrectly:
•Do not attempt to mount a tire without the proper equipment
and experience to perform the job.
Do not inflate the tires above the recommended pressure.
Do not weld or heat a wheel and tire assembly. Heat can cause
an increase in air pressure resulting in an explosion. Welding
can structurally weaken or deform the wheel.
Do not stand in front or over the tire assembly when inflating.
Use a clip-on chuck and extension hose long enough to allow
you to stand to one side.
Check for worn or damaged mower blades (see SHARPENING
MOWER BLADE on page 22).
GB - 16
nterval .Taski.Action
Each Use Follow
Engine
Manual
Mainten-
ance
Schedule
25 Hours Check
3r Every Battery
Season Lubricate
Unit
Keep battery and battery terminals clean (see Cleaning Battery and
Battery Cables on page 23).
Apply grease to zerk (1) on each
front wheel
50 Hours
or Every
Season
00 Hours
or Every
Season
Check Check mower blade mounting hardware and all other fasteners.
Fasteners Replace fasteners that are missing or damaged. Tighten all nuts and
bolts to the correct torque value.
Check All
Belts Replace worn or deteriorated belts.
Check hydrostatic belt (see REPLACING HYDROSTATIC BELT
on page 26 for hydrostatic belt location).
Check PTO belt (see REPLACING PTO BELTon page 25 for
PTO belt location).
Check All Replace worn or improperly functioning PTO cables.
Cables
GB - 17
_.'_i[o]_r:1_Il_Wll_ll_l|_v_I=I_i__]
WARNING: AVOID INJURY.
Read and understand the entire
Safety section before proceeding.
TIPPING SEAT FORWARD
Put steering levers up and tip seat forward
(figure 7).
1. Seat Tipped Forward
2. Mounting Hardware
Figure 7
SEAT ADJUSTMENT
1. Tip the seat forward.
2. Loosen mounting hardware and slide
seat forward or backward to desired
position. Tighten mounting hardware
(figure 7).
3. Tip seat back.
MOWER DECK REMOVAL AND
INSTALLATION
915131:
Remove (Figure 8)
1. Remove PTO belt from the engine drive
pulley (see REPLACING PTO BELT on
page 25).
2. Disconnect PTO actuator cable from the
cable anchor and deck idler arm
(Figure 8).
1. Cable Anchor
2. PTO Actuator Cable
3. Idler Arm
Figure 8
NOTE: Perform steps 3 and 4 for the right
and left side of unit.
3. Disconnect drag link from the front deck
bracket.
4. Disconnect front and rear trunnions from
the lift arms.
5. Slide mower deck out from under unit.
915141, 143:
Remove (Figure 10)
1. Remove PTO belt from the engine drive
pulley (see REPLACING PTO BELT on
page 25).
NOTE: Perform step 2 and 3 for the right and
left side of unit.
2. Disconnect drag link from the front deck
bracket.
3. Disconnect front and rear trunnions from
the lift arms.
4. Slide mower deck out from under unit.
GB - 18

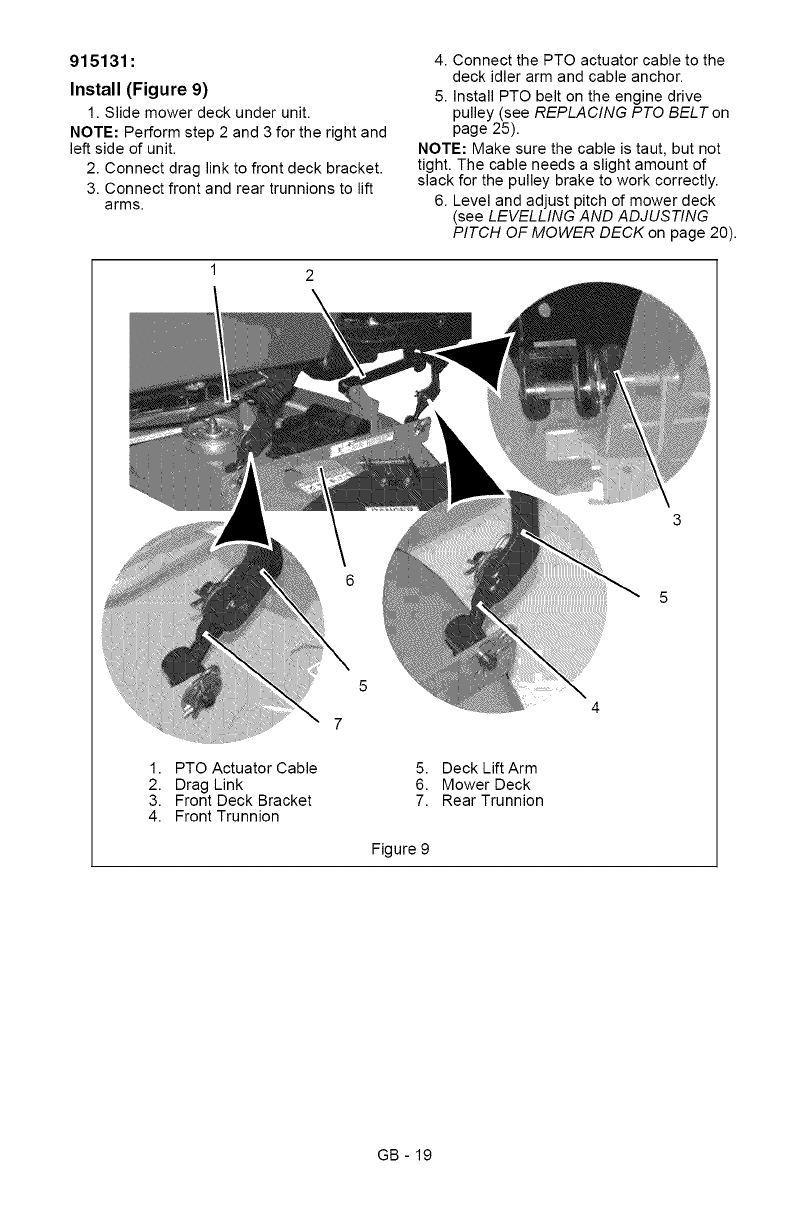

915131:
Install (Figure 9)
1. Slide mower deck under unit.
NOTE: Perform step 2 and 3 for the right and
left side of unit.
2. Connect drag link to front deck bracket.
3. Connect front and rear trunnions to lift
arms.
4. Connect the PTO actuator cable to the
deck idler arm and cable anchor.
5. Install PTO belt on the engine drive
pulley (see REPLACING PTO BELT on
page 25).
NOTE: Make sure the cable is taut, but not
tight. The cable needs a slight amount of
slack for the pulley brake to work correctly.
6. Level and adjust pitch of mower deck
(see LEVELLING AND ADJUSTING
PITCH OF MOWER DECK on page 20).
1 2
1. PTO Actuator Cable
2. Drag Link
3. Front Deck Bracket
4. Front Trunnion
5
7
5. Deck Lift Arm
6. Mower Deck
7. Rear Trunnion
Figure 9
GB - 19

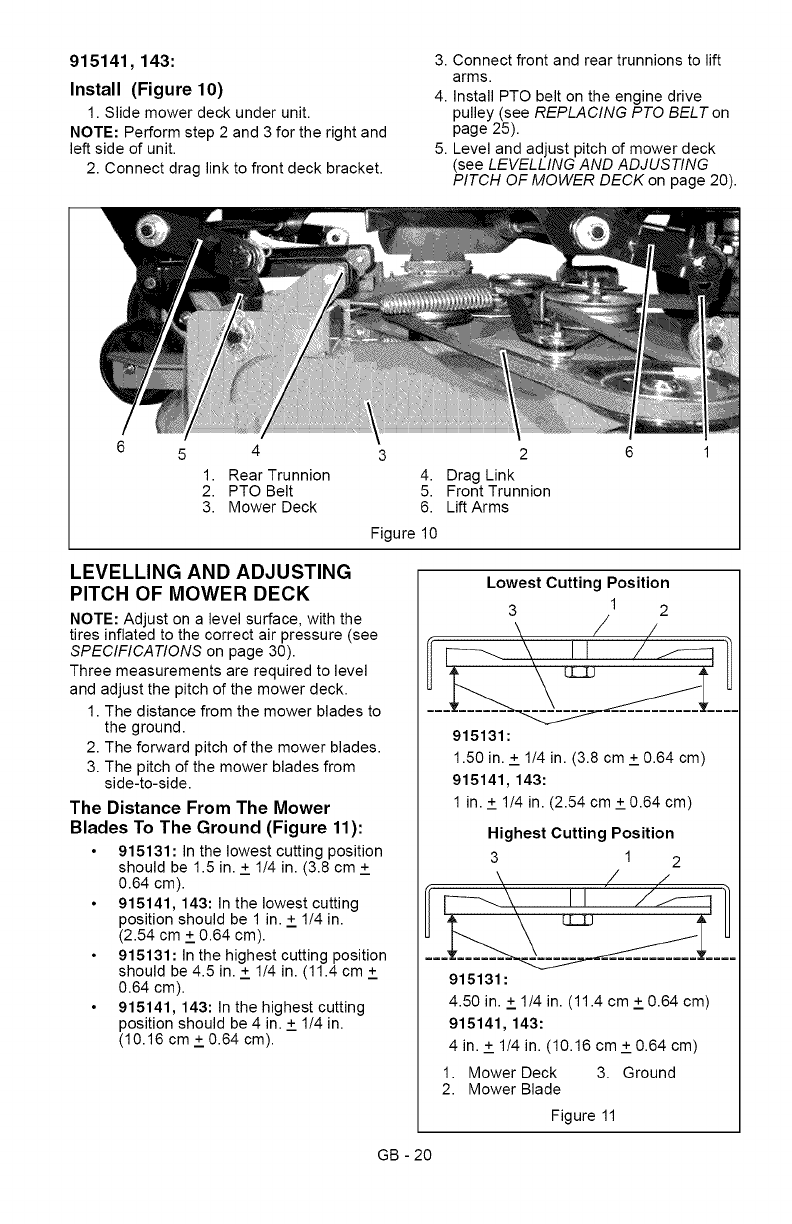

915141, 143:
Install (Figure 10)
1. Slide mower deck under unit.
NOTE: Perform step 2 and 3 for the right and
left side of unit.
2. Connect drag link to front deck bracket.
3. Connect front and rear trunnions to lift
arms.
4. Install PTO belt on the engine drive
pulley (see REPLACING PTO BELT on
page 25).
5. Level and adjust pitch of mower deck
(see LEVELLING AND ADJUSTING
PITCH OF MOWER DECK on page 20).
5 4
1. Rear Trunnion
2. PTO Belt
3. Mower Deck
3
4.
5.
6.
Figure 10
2
Drag Link
Front Trunnion
Lift Arms
LEVELLING AND ADJUSTING
PITCH OF MOWER DECK
NOTE: Adjust on a level surface, with the
tires inflated to the correct air pressure (see
SPECIFICATIONS on page 30).
Three measurements are required to level
and adjust the pitch of the mower deck.
1. The distance from the mower blades to
the ground.
2. The forward pitch of the mower blades.
3. The pitch of the mower blades from
side-to-side.
The Distance From The Mower
Blades To The Ground (Figure 11):
915131: In the lowest cutting position
should be 1.5 in. + 1/4 in. (3.8 cm +
0.64 cm).
915141, 143: In the lowest cutting
position should be 1 in. + 1/4 in.
(2.54 cm + 0.64 cm).
915131: In the highest cutting position
should be 4.5 in. + 1/4 in. (11.4 cm +
0.64 cm).
915141, 143: In the highest cutting
position should be 4 in. + 1/4 in.
(10.16 cm + 0.64 cm).
Lowest Cutting Position
3 1 2
915131:
1.50 in. _+1/4 in. (3.8 cm _+0.64 cm)
915141, 143:
1 in. +_1/4 in. (2.54 cm _+0.64 cm)
Highest Cutting Position
3 1 2
\//
ff !! " />-ql]
915131:
4.50 in. + 1/4 in. (11.4 cm +0.64 cm)
915141, 143:
4 in. _+1/4 in. (10.16 cm _+0.64 cm)
1. Mower Deck 3. Ground
2. Mower Blade
Figure 11
GB - 20

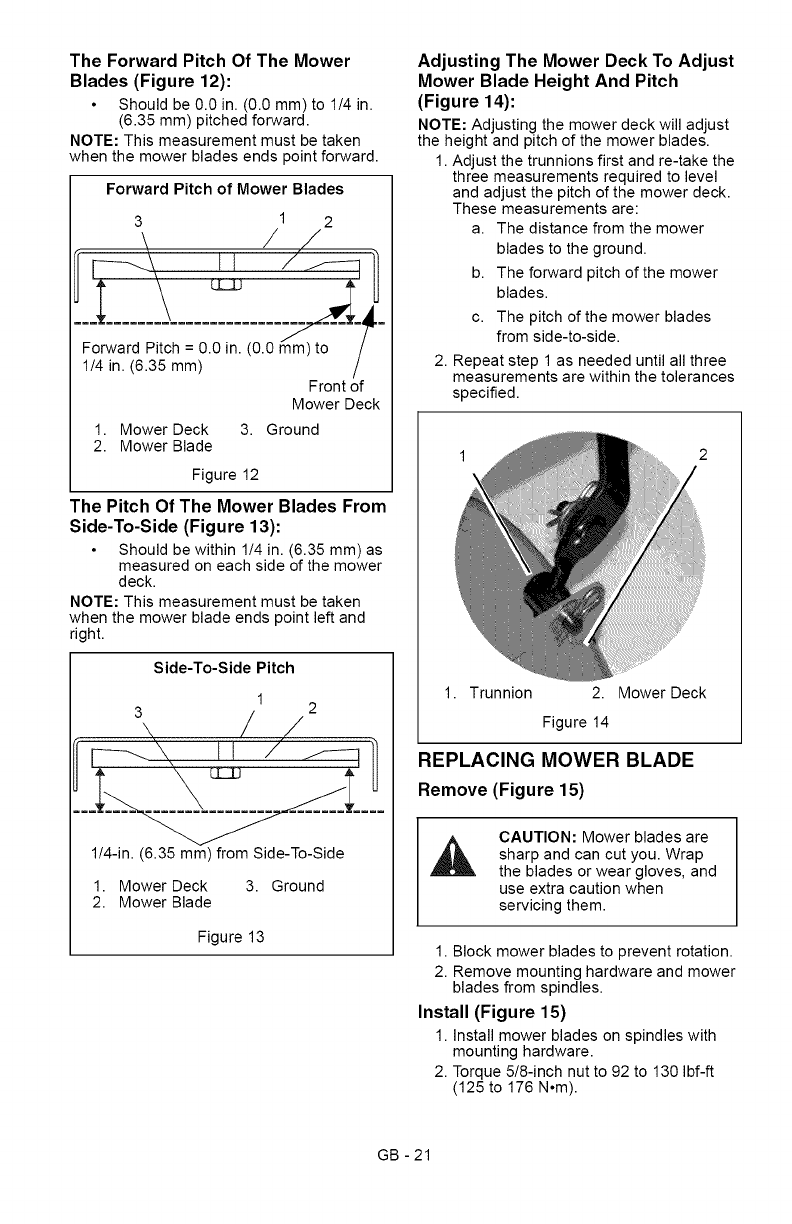

The Forward Pitch Of The Mower
Blades (Figure 12):
Should be 0.0 in. (0.0 mm) to 1/4 in.
(6.35 mm) pitched forward.
NOTE: This measurement must be taken
when the mower blades ends point forward.
Forward Pitch of Mower Blades
3 1 2
=
/
Front of
Mower Deck
1. Mower Deck 3. Ground
2. Mower Blade
Figure 12
The Pitch Of The Mower Blades From
Side-To-Side (Figure 13):
Should be within 1/4 in. (6.35 mm) as
measured on each side of the mower
deck.
NOTE: This measurement must be taken
when the mower blade ends point left and
right.
Side-To-Side Pitch
1
3\ / /2
It /
1/4-in. (6.35 mm) from Side-To-Side
1. Mower Deck 3. Ground
2. Mower Blade
Figure 13
Adjusting The Mower Deck To Adjust
Mower Blade Height And Pitch
(Figure 14):
NOTE: Adjusting the mower deck will adjust
the height and pitch of the mower blades.
1. Adjust the trunnions first and re-take the
three measurements required to level
and adjust the pitch of the mower deck.
These measurements are:
a. The distance from the mower
blades to the ground.
b. The forward pitch of the mower
blades.
c. The pitch of the mower blades
from side-to-side.
2. Repeat step 1 as needed until all three
measurements are within the tolerances
specified.
1. Trunnion 2. Mower Deck
Figure 14
REPLACING MOWER BLADE
Remove (Figure 15)
CAUTION: Mower blades are
sharp and can cut you. Wrap
the blades or wear gloves, and
use extra caution when
servicing them.
1. Block mower blades to prevent rotation.
2. Remove mounting hardware and mower
blades from spindles.
Install (Figure 15)
1. Install mower blades on spindles with
mounting hardware.
2. Torque 5/8-inch nut to 92 to 130 Ibf-ft
(125 to 176 N°m).
GB - 21

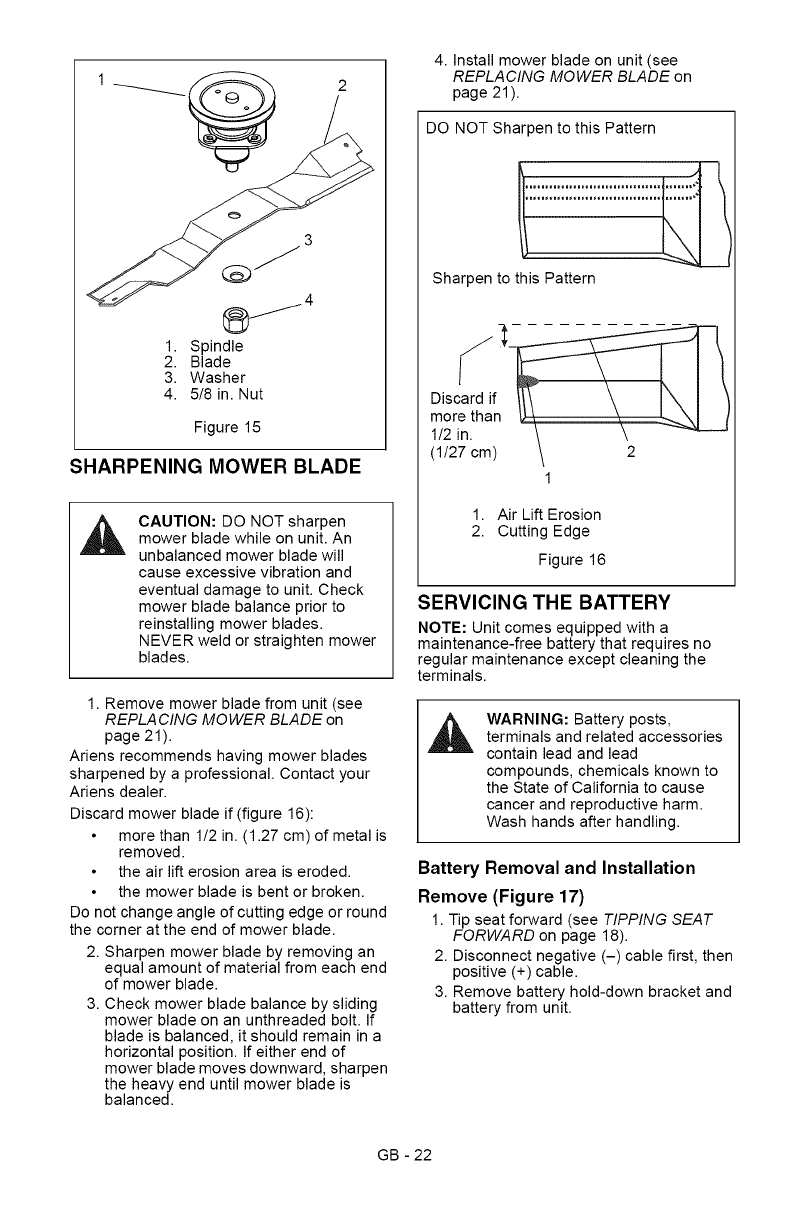

3
j4
1. Spindle
2. Blade
3. Washer
4. 5/8in.Nut
Figure15
SHARPENING MOWER BLADE
CAUTION: DO NOT sharpen
mower blade while on unit. An
unbalanced mower blade will
cause excessive vibration and
eventual damage to unit. Check
mower blade balance prior to
reinstalling mower blades.
NEVER weld or straighten mower
blades.
1. Remove mower blade from unit (see
REPLACING MOWER BLADE on
page 21).
Ariens recommends having mower blades
sharpened by a professional. Contact your
Ariens dealer.
Discard mower blade if (figure 16):
more than 1/2 in. (1.27 cm) of metal is
removed.
the air lift erosion area is eroded.
the mower blade is bent or broken.
Do not change angle of cutting edge or round
the corner at the end of mower blade.
2. Sharpen mower blade by removing an
equal amount of material from each end
of mower blade.
3. Check mower blade balance by sliding
mower blade on an unthreaded bolt. If
blade is balanced, it should remain in a
horizontal position. If either end of
mower blade moves downward, sharpen
the heavy end until mower blade is
balanced.
4. Install mower blade on unit (see
REPLACING MOWER BLADE on
page 21 ).
DO NOT Sharpen to this Pattern
Sharpen to this Pattern
1
1. Air Lift Erosion
2. Cutting Edge
Figure 16
SERVICING THE BATTERY
NOTE: Unit comes equipped with a
maintenance-free battery that requires no
regular maintenance except cleaning the
terminals.
,_ WARNING: Battery posts,
terminals and related accessories
contain lead and lead
compounds, chemicals known to
the State of California to cause
cancer and reproductive harm.
Wash hands after handling.
Battery Removal and Installation
Remove (Figure 17)
1. Tip seat forward (see TIPPING SEAT
FORWARD on page 18).
2. Disconnect negative (-) cable first, then
positive (+) cable.
3. Remove battery hold-down bracket and
battery from unit.
GB - 22

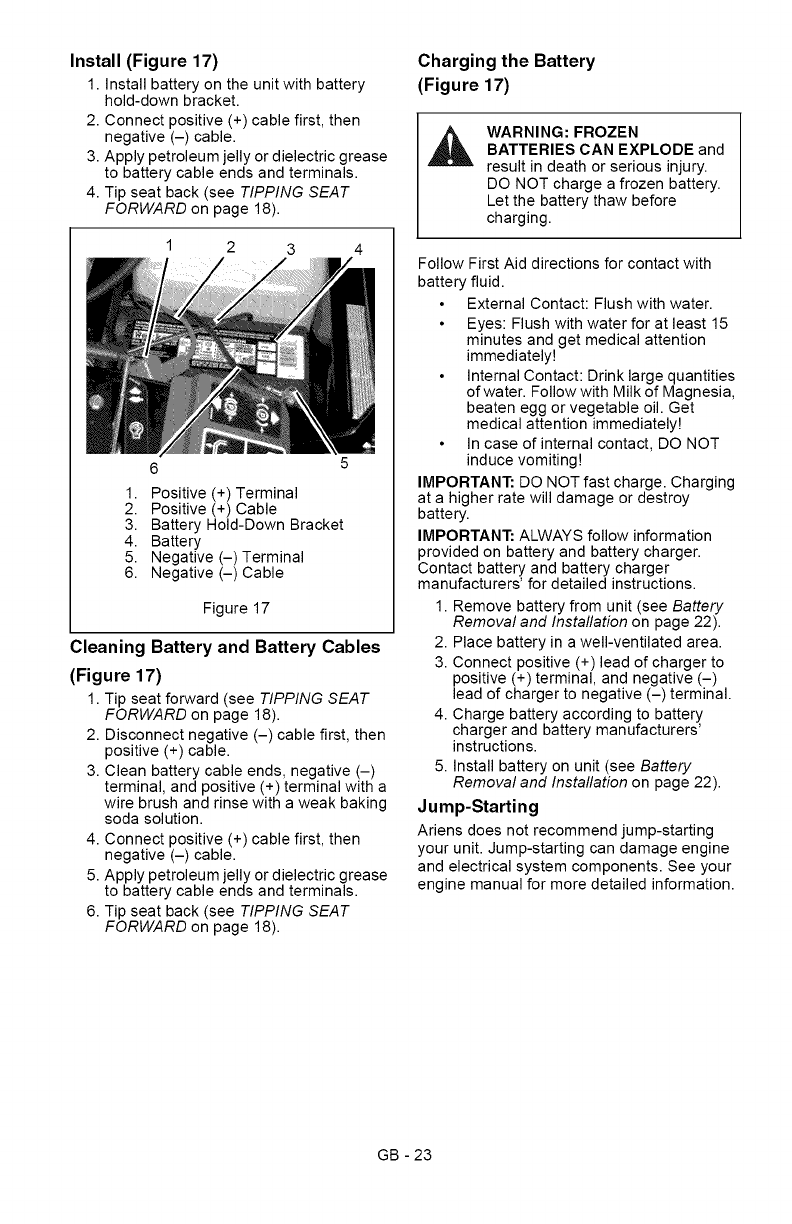

Install (Figure 17)
1. Install battery on the unit with battery
hold-down bracket.
2. Connect positive (+) cable first, then
negative (-) cable.
3. Apply petroleum jelly or dielectric grease
to battery cable ends and terminals.
4. Tip seat back (see TIPPING SEAT
FORWARD on page 18).
1 2 3 4
1. Positive (+) Terminal
2. Positive (+) Cable
3. Battery Hold-Down Bracket
4. Battery
5. Negative (-) Terminal
6. Negative (-) Cable
Figure 17
Cleaning Battery and Battery Cables
(Figure 17)
1. Tip seat forward (see TIPPING SEAT
FORWARD on page 18).
2. Disconnect negative (-) cable first, then
positive (+) cable.
3. Clean battery cable ends, negative (-)
terminal, and positive (+) terminal with a
wire brush and rinse with a weak baking
soda solution.
4. Connect positive (+) cable first, then
negative (-) cable.
5. Apply petroleum jelly or dielectric grease
to battery cable ends and terminals.
6. Tip seat back (see TIPPING SEAT
FORWARD on page 18).
Charging the Battery
(Figure 17)
WARNING: FROZEN
BATTERIES CAN EXPLODE and
result in death or serious injury.
DO NOT charge a frozen battery.
Let the battery thaw before
charging.
Follow First Aid directions for contact with
battery fluid.
External Contact: Flush with water.
Eyes: Flush with water for at least 15
minutes and get medical attention
immediately!
Internal Contact: Drink large quantities
of water. Follow with Milk of Magnesia,
beaten egg or vegetable oil. Get
medical attention immediately!
In case of internal contact, DO NOT
induce vomiting!
IMPORTANT: DO NOT fast charge. Charging
at a higher rate will damage or destroy
battery.
IMPORTANT: ALWAYS follow information
provided on battery and battery charger.
Contact battery and battery charger
manufacturers' for detailed instructions.
1. Remove battery from unit (see Battery
Removal and Installation on page 22).
2. Place battery in a well-ventilated area.
3. Connect positive (+) lead of charger to
positive (+) terminal, and negative (-)
lead of charger to negative (-) terminal.
4. Charge battery according to battery
charger and battery manufacturers'
instructions.
5. Install battery on unit (see Battery
Removal and Installation on page 22).
Jump-Starting
Ariens does not recommend jump-starting
your unit. Jump-starting can damage engine
and electrical system components. See your
engine manual for more detailed information.
GB - 23

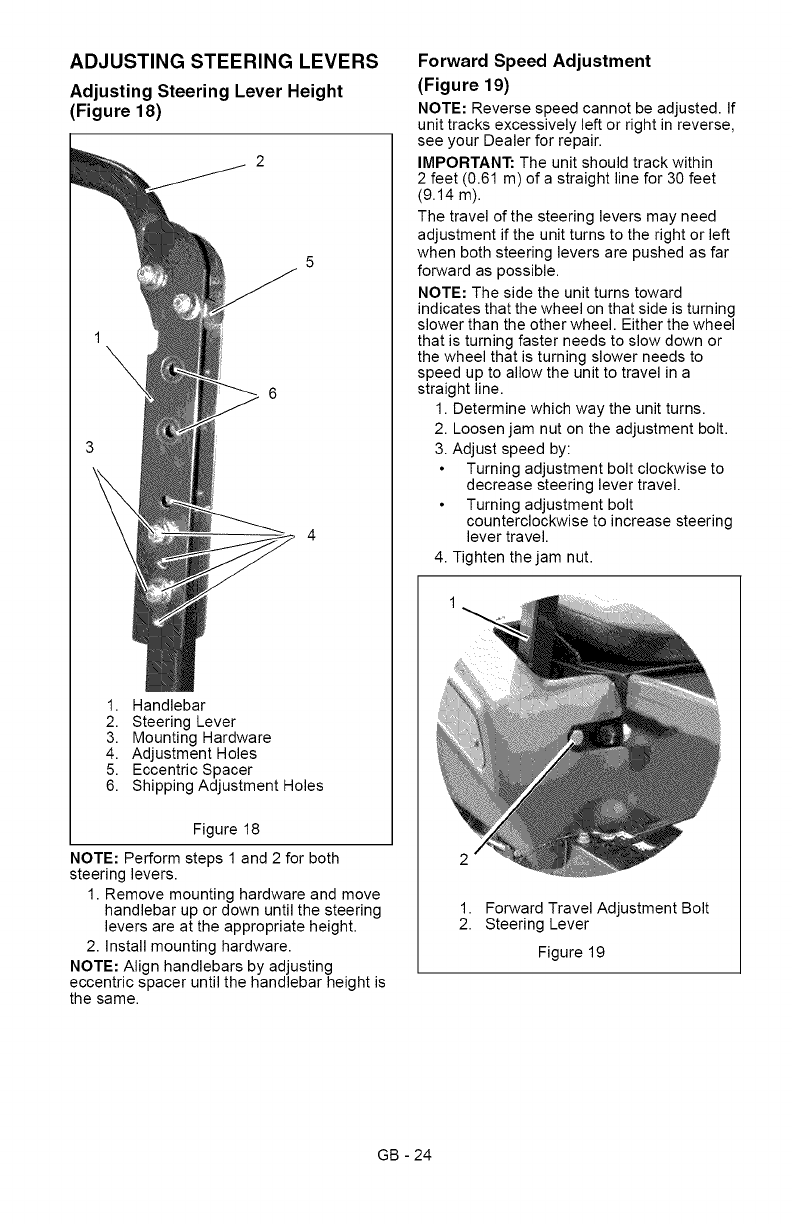

ADJUSTING STEERING LEVERS
Adjusting Steering Lever Height
(Figure 18)
1. Handlebar
2. Steering Lever
3. Mounting Hardware
4. Adjustment Holes
5. Eccentric Spacer
6. Shipping Adjustment Holes
Figure 18
NOTE: Perform steps 1 and 2 for both
steering levers.
1. Remove mounting hardware and move
handlebar up or down until the steering
levers are at the appropriate height.
2. Install mounting hardware.
NOTE: Align handlebars by adjusting
eccentric spacer until the handlebar height is
the same.
Forward Speed Adjustment
(Figure 19)
NOTE: Reverse speed cannot be adjusted. If
unit tracks excessively left or right in reverse,
see your Dealer for repair.
IMPORTANT: The unit should track within
2 feet (0.61 m) of a straight line for 30 feet
(9.14 m).
The travel of the steering levers may need
adjustment if the unit turns to the right or left
when both steering levers are pushed as far
forward as possible.
NOTE: The side the unit turns toward
indicates that the wheel on that side is turning
slower than the other wheel. Either the wheel
that is turning faster needs to slow down or
the wheel that is turning slower needs to
speed up to allow the unit to travel in a
straight line.
1. Determine which way the unit turns.
2. Loosen jam nut on the adjustment bolt.
3. Adjust speed by:
Turning adjustment bolt clockwise to
decrease steering lever travel.
Turning adjustment bolt
counterclockwise to increase steering
lever travel.
4. Tighten the jam nut.
1. Forward Travel Adjustment Bolt
2. Steering Lever
Figure 19
GB - 24

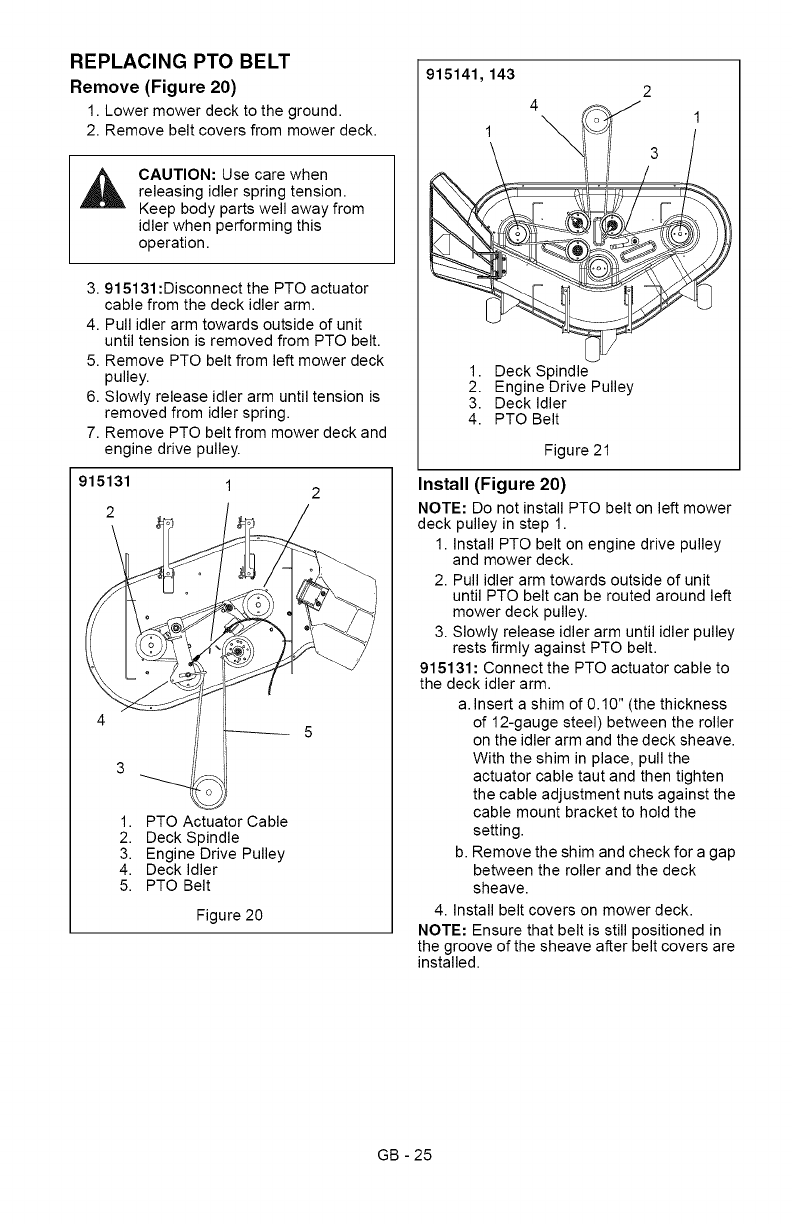

REPLACING PTO BELT
Remove (Figure 20)
1. Lower mower deck to the ground.
2. Remove belt covers from mower deck.
CAUTION: Use care when
releasing idler spring tension.
Keep body parts well away from
idler when performing this
operation.
3.915131 :Disconnect the PTO actuator
cable from the deck idler arm.
4. Pull idler arm towards outside of unit
until tension is removed from PTO belt.
5. Remove PTO belt from left mower deck
pulley.
6. Slowly release idler arm until tension is
removed from idler spring.
7. Remove PTO belt from mower deck and
engine drive pulley.
915131
2
4
3
1. PTO Actuator Cable
2. Deck Spindle
3. Engine Drive Pulley
4. Deck Idler
5. PTO Belt
Figure 20
915141, 143
1
4\
1. Deck Spindle
2. Engine Drive Pulley
3. Deck Idler
4. PTO Belt
Figure 21
Install (Figure 20)
NOTE: Do not install PTO belt on left mower
deck pulley in step 1.
1. Install PTO belt on engine drive pulley
and mower deck.
2. Pull idler arm towards outside of unit
until PTO belt can be routed around left
mower deck pulley.
3. Slowly release idler arm until idler pulley
rests firmly against PTO belt.
915131 : Connect the PTO actuator cable to
the deck idler arm.
a. Insert a shim of 0.10" (the thickness
of 12-gauge steel) between the roller
on the idler arm and the deck sheave.
With the shim in place, pull the
actuator cable taut and then tighten
the cable adjustment nuts against the
cable mount bracket to hold the
setting.
b. Remove the shim and check for a gap
between the roller and the deck
sheave.
4. Install belt covers on mower deck.
NOTE: Ensure that belt is still positioned in
the groove of the sheave after belt covers are
installed.
GB - 25

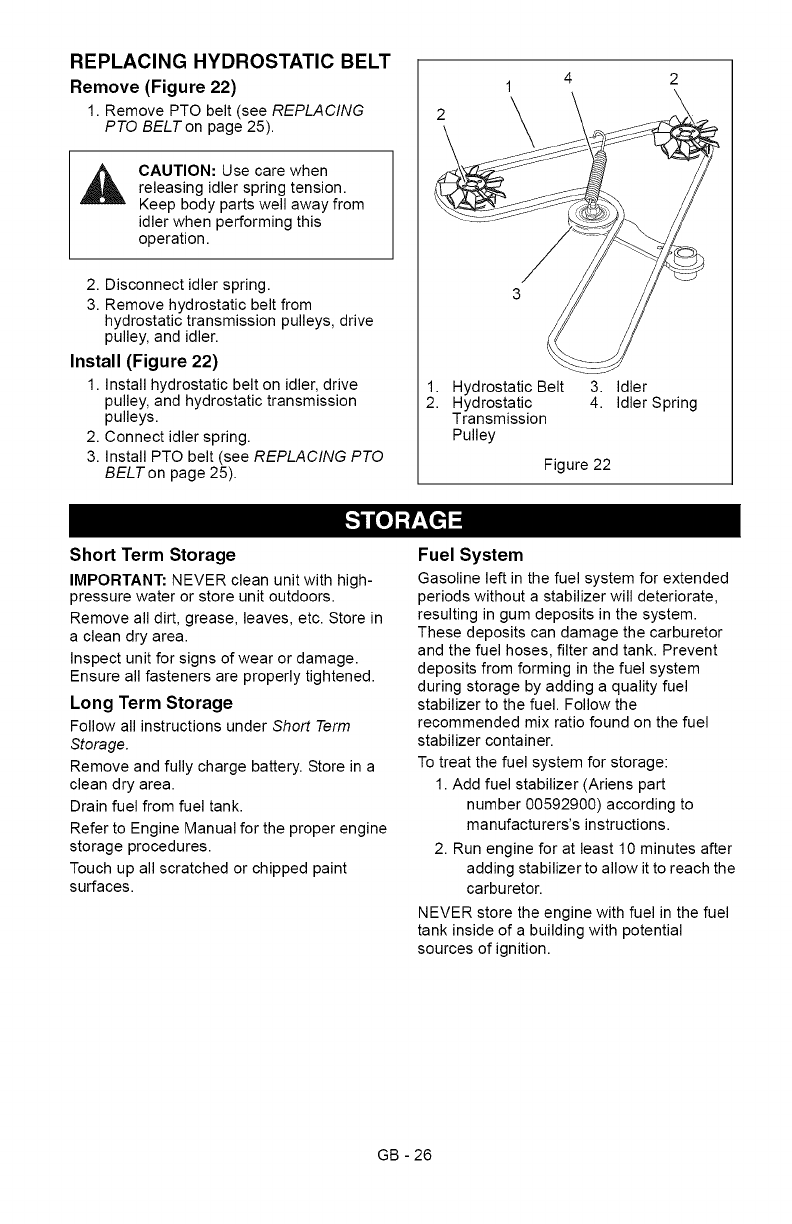

REPLACING HYDROSTATIC BELT
Remove (Figure 22)
1. Remove PTO belt (see REPLACING
PTO BELT on page 25).
CAUTION: Use care when
releasing idler spring tension.
Keep body parts well away from
idler when performing this
operation.
2. Disconnect idler spring.
3. Remove hydrostatic belt from
hydrostatic transmission pulleys, drive
pulley, and idler.
Install (Figure 22)
1. Install hydrostatic belt on idler, drive
pulley, and hydrostatic transmission
pulleys.
2. Connect idler spring.
3. Install PTO belt (see REPLACING PTO
BELTon page 25).
4
1
\
1. Hydrostatic Belt 3. Idler
2. Hydrostatic 4. Idler Spring
Transmission
Pulley
Figure 22
[,,.']i_o_ =1
Short Term Storage
IMPORTANT: NEVER clean unit with high-
pressure water or store unit outdoors.
Remove all dirt, grease, leaves, etc. Store in
a clean dry area.
Inspect unit for signs of wear or damage.
Ensure all fasteners are properly tightened.
Long Term Storage
Follow all instructions under Short Term
Storage,
Remove and fully charge battery. Store in a
clean dry area.
Drain fuel from fuel tank.
Refer to Engine Manual for the proper engine
storage procedures.
Touch up all scratched or chipped paint
surfaces.
Fuel System
Gasoline left in the fuel system for extended
periods without a stabilizer will deteriorate,
resulting in gum deposits in the system.
These deposits can damage the carburetor
and the fuel hoses, filter and tank. Prevent
deposits from forming in the fuel system
during storage by adding a quality fuel
stabilizer to the fuel. Follow the
recommended mix ratio found on the fuel
stabilizer container.
To treat the fuel system for storage:
1. Add fuel stabilizer (Ariens part
number 00592900) according to
manufacturers's instructions.
2. Run engine for at least 10 minutes after
adding stabilizer to allow it to reach the
carbu retor.
NEVER store the engine with fuel in the fuel
tank inside of a building with potential
sources of ignition.
GB - 26
PROBLEM PROBABLE CORRECTION
CAUSE
Enginewill not 1. 1.
crank/start.
Engine runs
rough.
Unit does not
move with
engine running
when using
steering levers.
PTO or mower
blades do not
engage or shut
off.
Safety interlock
system is not
engaged or is
faulty.
Fuel tank empty.
2.
3. Discharged
battery.
4. Poor connection
between battery
and battery
cables.
5. Spark plug wire(s)
loose or spark
plug(s) faulty.
6. Faulty electrical
system.
7. Faulty engine.
1. Choke engaged.
2. Air filter cartridge
plugged.
3. Faulty engine.
1. The transmission
bypass lever is
engaged.
2. Faulty hydrostatic
belt.
3.
1.
Faulty
transmission.
Operator
presence switch
not depressed.
2. Faulty operator
presence switch.
3. Clutch actuator is
loose or
disconnected.
4.
5.
Faulty PTO belt.
Faulty PTO
switch, wires,
connectors, or
clutch.
2.
3.
4.
5.
Check safety interlock system (see Safety
Interlock System on page 12).
Fill fuel tank (see FILLING FUEL TANK on
page 13).
Charge battery (see Charging the Battery
on page 23).
Tighten battery cables and/or clean battery
and battery cables (see Cleaning Battery
and Battery Cables on page 23).
Connect spark plug wire(s) or replace spark
plug(s). Refer to Engine Manual for detailed
instructions.
6. Contact your Ariens Dealer.
7. Contact your Ariens Dealer.
1. Disengage choke.
2. Clean or replace air filter cartridge. Refer to
Engine Manual for detailed instructions.
3. Contact your Ariens Dealer.
1. Disengage transmission bypass lever (see
MOVING UNIT MANUALLY on page 15).
2.
3.
1.
2.
3.
4.
5.
Replace hydrostatic belt (see REPLACING
HYDROSTATIC BELT on page 26).
Contact your Ariens Dealer.
Depress operator presence switch by sitting
on seat.
Contact your Ariens Dealer.
Connect wiring to PTO actuator.
Properly connect PTO actuator cable to the
deck cable anchor or to deck idler arm.
Replace PTO belt (see REPLACING PTO
BELT on page 25).
Contact your Ariens Dealer.
GB - 27
PROBLEM CORRECTION
Engine
overheats.
Unit moves with
engine off and
parking brake
engaged.
Unit does not
travel in a
straight line.
Unit creeps with
steering levers
in neutral
position.
Poor cutting
quality.
PROBABLE
CAUSE
1. Engine oil level
low.
2. Cooling system
plugged.
3. Faulty engine.
1. The parking brake
needs
adjustment.
2. Faulty parking
brake.
1. Incorrect tire
pressure.
2. Steering levers
need adjustment.
3. Hydrostatic
transmission
and/or linkage
needs
adjustment.
1. Hydrostatic
transmission
and/or linkage
needs
adjustment.
1. Mower deck not
level or mower
pitch is incorrect.
2. Dull or faulty
mower blades.
1. Add engine oil. Refer to Engine Manual for
detailed instructions.
2. Clean cooling system. Refer to Engine
Manual for detailed instructions.
3. Contact your Ariens Dealer.
1. Contact your Ariens Dealer.
2.
1.
2.
3.
Contact your Ariens Dealer.
Check tire pressure (see SPECIFICATIONS
on page 30).
Adjust steering levers (see Forward Speed
Adjustment on page 24)
Contact your Ariens Dealer.
1. Contact your Ariens Dealer.
2.
Level and adjust pitch of mower deck (see
LEVELLING AND ADJUSTING PITCH OF
MOWER DECK on page 20).
Sharpen mower blades (see SHARPENING
MOWER BLADE on page 22) or replace
mower blades (see REPLACING MOWER
BLADE on page 21 ).
GB - 28
BesuretoalwaysusegenuineAriensparts
tokeepyourunitrunninglikenew.
Part No. Qty Description
51519500 1 34- and 50-Inch
Spindle Assembly
51520900 1 42-Inch Spindle
Assembly
07100801 1 Front Wheel
07200116 1 34-Inch Deck Belt
07200010 1 HA Raw Laminated
Belt- Hydraulic Drive
03746500 1 34-Inch Mower Blade
03797300 1 34-Inch Mulching
Blade
03987000 1 42-Inch Mower Blade
07200523 1 42-Inch Deck Belt
03971900 1 50-Inch Mower Blade
07200524 1 50-Inch Deck Belt
See your authorized Ariens dealer to add
these optional accessories to your unit.
Part No. Qty Description
71503300 1 36-Inch Roller
71503400 1 48-Inch Dethatcher
71503600 1 Spreader
71508200 1 48-Inch Aerator
71510500 1 Steering Lever
Extender
71510800 1 34-Inch Mulch Kit
71510900 1 Trailer Hitch Kit
81503100 1 34-Inch Non-Powered
Bagger
81503500 1 42 & 50-Inch Non-
Powered Bagger
71512000 1 42-Inch Mulch Kit
71511900 1 50-Inch Mulch Kit
GB - 29
915131 915141 915143
Zoom34 Zoom42 Zoom50
Model Number
Model
Engine
Type Briggs & Stratton IC Briggs & Kawasaki
Straton Intek
Engine Displacement in.3 (cc) 21 (344) 30.51 (500) 44.3 (726)
Governed RPM (May be different 3600 + 0
from maximum RPM) 3600- 100
Drive
Forward Max. -m.p.h (km/h) 6.0 (9.6)
Reverse Max. - m.p.h (km/h) 3.0 (4.8)
Turning Radius Zero
Brakes Internal Transmission
Transmission Hydrostatic Drive
Electrical
Starter Electric
Battery 12V Maintenance Free
SLI U1B 275
PTO (Power Take-Off) Cable Actuator Electric Clutch
Fuel
Fuel Type Refer to Engine Manual
Fuel Tank Capacity - gal. (L) 1.97 (7.49)
Size and Weight
Length - in. (cm) 65 (165.1)
Width -in. (cm) 45 (114.3) 54 (137.2) 62 (157.5)
Weight -Ibs (kg) 405 (183.7) 415 (188.2) 490 (222.3)
Height- in. (cm) 40 (102) 42 (106.7)
Tires
Front Tire Size - in. 4 x 11
Rear Tire Size - in. 18 x 6.5 x 8 18 x 8.5 x 8 18 x 9.5 x 8
Front Tire Pressure - psi (kPa) 46 (317)
Rear Tire Pressure - psi (kPa) 12 (82.7)
Mower Deck
Cutting Height - in. (cm) 1.5 - 4.5 1 - 4 (2.54 - 10.16)
(3.8 - 11.4)
Cutting width - in. (cm) 34 (86) 42 (106.7) 50 (127)
Max. Towing Capacity- Ibs (kg) 300 (136)
Max. Tongue Weight - Ibs (kg) 30 (13.6)
GB - 30
915151 915155
Zoom34 Zoom42
Model Number
Model
Engine
Type Briggs & Stratton IC Briggs &
Straton Intek
Engine Displacement in.3 (cc) 21 (344) 30.51 (500)
Governed RPM (May be different 3600 + 0
from maximum RPM) 3600- 100
Drive
Forward Max. -m.p.h (km/h) 6.0 (9.6)
Reverse Max. -m.p.h (km/h) 3.0 (4.8)
Turning Radius Zero
Brakes Internal Transmission
Transmission Hydrostatic Drive
Electrical
Starter Electric
Battery 12V Maintenance Free
SLI U1B 275
PTO (Power Take-Off) Cable Actuator Electric Clutch
Fuel
Fuel Type Refer to Engine Manual
Fuel Tank Capacity - gal. (L) 1.97 (7.49)
Size and Weight
Length - in. (cm) 65 (165.1)
Width -in. (cm) 45 (114.3) 54 (137.2)
Weight- Ibs (kg) 405 (183.7) 415 (188.2)
Height - in. (cm) 40 (102)
Tires
Front Tire Size -in. 4 x 11
Rear Tire Size - in. 18 x 6.5 x 8 18 x 8.5 x 8
Front Tire Pressure- psi (kPa) 46 (317)
Rear Tire Pressure - psi (kPa) 12 (82.7)
Mower Deck
Cutting Height - in. (cm) 1.5 - 4.5 1 - 4 (2.54 -
(3.8- 11.4) 10.16)
Cutting width -in. (cm) 34 (86) 42 (106.7)
Max. Towing Capacity - Ibs (kg) 300 (136)
Max. Tongue Weight - Ibs (kg) 30 (13.6)
GB - 31
Two-Year Limited Lawn and
Garden Consumer Ride-On
Warranty
Ariens Company (Ariens) warrants to the original purchaser that Ariens and Gravely brand consumer
products manufactured and sold by Ariens will be free from defects in material and workmanship for a period
of two years after the date of purchase. An authorized Ariens dealer (Ariens brand products) or Gravely
dealer (Gravely brand products) will repair any defect in material or workmanship, and repair or replace any
defective part, subject to the conditions, limitations and exclusions set forth herein. Such repair or
replacement will be free of charge (labor and parts) to the original purchaser except as noted below.
Five-Year Limited Warranty on Mower Deck Shell
The deck shell on zero-turn riding mowers is warranted to the original purchaser for five years from
the date of purchase. Any defect in material or workmanship of the deck shell will be repaired free of
charge (parts and labor) to the original purchaser for two years after the date of purchase. For the third
through fifth year from the date of purchase, the parts required to repair a defect in material or work-
manship of the deck shell, not the labor, will be provided free of charge.
Five-Year Limited Warranty on Main Frame
The main frame on zero-turn riding mowers is warranted to the original purchaser for five years from
the date of purchase. Any defect in material or workmanship of the main frame will be repaired free of
charge (parts and labor) to the original purchaser for two years after the date of purchase. For the third
through fifth year from the date of purchase, the parts required to repair a defect in material or work-
manship of the main frame, not the labor, will be provided free of charge.
Two-Year Limited Warranty on AMP TM Series Battery Packs and Subassembfies
The battery pack and/or battery subassemblies on AMP series electric riding mowers is/are warranted
to the original purchaser for two years from the date of purchase. Ariens will replace, free of charge to
the original purchaser, any battery pack and/or battery subassembly that fails due to defect in material
or workmanship for one year after the date of purchase. For the next 12 months, Ariens will cover the
prorated cost of replacing a battery pack and/or battery subassembly that fails due to defect in material
or workmanship. This warranty does not apply to battery packs or battery subassemblies that fail due to
accident, neglect, abuse, improper maintenance, improper storage or improper charging procedures.
90-Day Limited Warranty on Service Parts and Accessories
Genuine Ariens or Gravely brand service parts and accessories are warranted to be free from defects
in material and workmanship for a period of 90 days after the date of purchase. An authorized Ariens or
Gravely dealer will repair or replace any such part or accessory free of charge, except for labor, during
that period.
The duration of all warranties herein applies only if the product is put to personal use around a household or
residence. If the product is put to any business use, agricultural, commercial, or industrial, then the duration
of these warranties shall be 90 days after the date of purchase.
If any product is rented or leased, then the duration of these warranties shall be 90 days after the date of
purchase.
Exceptions, Limitations, Exclusions
Customer Responsibilities
Register the product immediately at the time of sale. If the dealer does not register the product, the
customer must complete the product registration card in the literature package and return it to the Ariens
Company, or register the unit online at www.ariens.com or www.gravely.com.
To obtain warranty service, the original purchaser must:
Perform the maintenance and minor adjustments explained in the owner's manual.
Promptly notify Ariens or an authorized Ariens or Gravely service representative of the need for
warranty service.
Transport the product to and from the place of warranty service.
Have the warranty service performed by an authorized Ariens or Gravely service representative.
ARIENS COMPANY Con Ride 2010
GRAVELY®I STENSC_'I LOCKETS'I NATIONAL®I BYNORM(_'I EVERRIDEC_'I GREAT DANEc_' 32
TofindanAriensorGravelyauthorizedservicerepresentative,contactAriensat:
655W.RyanStreet
Brillion,WI54110
(920)756-2141
www.ariens.com
www.gravely.com
Exceptions and Limitations
Batteries are warranted only for a period of 12 months after date of purchase, on a prorated basis. For
the first 90 days of the warranty period, a defective battery will be replaced free of charge. If the
applicable warranty period is more than 90 days, Ariens will cover the prorated cost of any defective
battery, for up to 12 months after the date of purchase. This battery limited warranty does not apply to
the battery packs on AMP series products.
Exclusions - Items Not Covered by This Warranty
Engines and engine accessories are covered only by the engine manufacturer's warranty and are not
covered by this warranty.
Parts that are not genuine Ariens or Gravely service parts are not covered by this warranty.
The following maintenance, service and replacement items are not covered by this warranty unless
they are noted in the Limitations section above: lubricants, spark plugs, oil, oil filters, air filters, fuel
filters, brake linings, brake arms, brake shoes, runners, scraper blades, shear bolts, mower blades,
mower vanes, headlights, light bulbs, knives, cutters.
Any misuse, alteration, improper assembly, improper adjustment, neglect, or accident which requires
repair is not covered by this warranty.
This warranty applies only to products purchased in the United States (including Puerto Rico) and
Canada. In all other countries, contact place of purchase for warranty information.
Disclaimer
Ariens may from time to time change the design of its products. Nothing contained in this warranty shall be
construed as obligating Ariens to incorporate such design changes into previously manufactured products,
nor shall such changes be construed as an admission that previous designs were defective.
LIMITATION OF REMEDY AND DAMAGES
Ariens Company's liability under this warranty, and under any implied warranty that may exist, is limited to
repair of any defect in workmanship, and repair or replacement of any defective part. Ariens shall not be
liable for incidental, special, or consequential damages (including lost profits). Some states do not allow the
exclusion of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
DISCLAIMER OF FURTHER WARRANTY
Ariens Company makes no warranty, express or implied, other than what is expressly made in this
warranty. If the law of your state provides that an implied warranty of merchantability, or an implied
warranty of fitness for particular purpose, or any other implied warranty, applies to Ariens Company,
then any such implied warranty is limited to the duration of this warranty. Some states do not allow
limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
ARIENS COMPANY Con Ride 2010
GRAVELY®I STENSC_'I LOCKETS'I NATIONAL®I BYNORM<_'I EVERRIDEC_'I GREAT DANEc_' 33
California Evaporative Emission
Control Warranty Statement
YOUR WARRANTY RIGHTS AND OBLIGATIONS
The California Air Resources Board and Ariens Company are pleased to explain the
evaporative emission control system's warranty on your 2010 model year small off-road
equipment. In California, new equipment that use small off-road engines must be designed,
built, and equipped to meet the State's stringent anti-smog standards. Ariens Company must
warrant the evaporative emission control system on your small off-road equipment for the
period listed below provided there has been no abuse, neglect or improper maintenance of
your equipment.
Your evaporative emission control system may include parts such as: fuel tanks, fuel lines, fuel
caps, valves, canisters, filters, vapor hoses, clamps, connectors, and other associated
components.
Manufacturer's Warranty Coverage:
This evaporative emission control system is warranted for two years. If any evaporative
emission-related part on your equipment is defective, the part will be repaired or replaced by
Ariens Company.
Owner's Warranty Responsibilities:
• As the small off-road equipment owner, you are responsible for the performance of the
required maintenance listed in your Owner's Manual. Ariens Company recommends that
you retain all receipts covering maintenance on your small off-road equipment, but Ariens
Company cannot deny warranty solely for the lack of receipts.
• As the small off-road equipment owner, you should however be aware that the Ariens
Company may deny you warranty coverage if your evaporative emission control system
part has failed due to abuse, neglect, or improper maintenance or unapproved
modifications.
• You are responsible for presenting your small off-road equipment to an authorized Ariens
service representative as soon as the problem exists. The warranty repairs should be
completed in a reasonable amount of time, not to exceed 30 days. If you have a question
regarding your warranty coverage, you should contact Ariens Company Technical Service
Center at 1-920-756-2141
Defects Warranty Requirements:
(a) The warranty period begins on the date the small off-road equipment is delivered to an
ultimate purchaser.
(b) General Evaporative Emissions Warranty Coverage. Ariens Company warrants to the
ultimate purchaser and any subsequent owner that the evaporative emission control
system when installed was:
(1) Designed, built, and equipped so as to conform with all applicable regulations; and
(2) Free from defects in materials and workmanship that causes the failure of a warranted
part for a period of two years.
ARIENS COMPANY CARB_2010
GRAVELY® I STENSC_' I LOCKETS-'I NATIONAL® I BYNORM_' I EVERRIDEC_-' I GREAT DANE c_-' 34
(c) The warranty on evaporative emissions-related parts will be interpreted as follows:
(1) Any warranted part that is not scheduled for replacement as required maintenance in
the written instructions must be warranted for the warranty period defined in
subsection (b)(2). If any such part fails during the period of warranty coverage, it must
be repaired or replaced by the Ariens Company. Any such part repaired or replaced
under the warranty must be warranted for a time not less than the remaining warranty
period.
(2) Any warranted part that is scheduled only for regular inspection in the written
instructions must be warranted for the warranty period defined in subsection (b)(2). A
statement in such written instructions to the effect of "repair or replace as necessary"
will not reduce the period of warranty coverage. Any such part repaired or replaced
under warranty must be warranted for a time not less than the remaining warranty
period.
(3) Any warranted part that is scheduled for replacement as required maintenance in the
written instructions must be warranted for the period of time prior to the first
scheduled replacement point for that part. If the part fails prior to the first scheduled
replacement, the part must be repaired or replaced by the Ariens Company. Any such
part repaired or replaced under warranty must be warranted for a time not less than
the remainder of the period prior to the first scheduled replacement point for the part.
(4) Repair or replacement of any warranted part under the warranty provisions of this
article must be performed at no charge to the owner at an authorized Ariens service
representative.
(5) Notwithstanding the provisions of subsection (4) above, warranty services or repairs
must be provided at authorized Ariens service representatives that are franchised to
service the subject small off-road equipment.
(6) The owner must not be charged for diagnostic labor that leads to the determination
that a warranted part is in fact defective, provided that such diagnostic work is
performed at a authorized Ariens service representative.
(7) Throughout the evaporative emission control system's warranty period set out in
subsection (b)(2), the Ariens Company must maintain a supply of warranted parts
sufficient to meet the expected demand for such parts.
(8) Manufacturer approved replacement parts must be used in the performance of any
warranty maintenance or repairs and must be provided without charge to the owner.
Such use will not reduce the warranty obligations of the manufacturer issuing the
warranty.
(9) The use of any add-on or modified parts will be grounds for disallowing a warranty
claim made in accordance with this article. The manufacturer issuing the warranty will
not be liable under this Article to warrant failures of warranted parts caused by the use
of an addon or modified part.
(10)The Ariens Company shall provide any documents that describe the warranty
procedures or policies within five working days of request by the Air Resources
Board.
ARIENS COMPANY CARB_2010
GRAVELY® I STENSC_ I LOCKEC_ I NATIONAL® I BYNORM_ I EVERRIDEC_ I GREAT DANE c_ 35
Ariens Company
655 West Ryan Street
Brillion, WI 54110-1072
920-756-2141
Fax 920-756-2407
www.ariens.com
A WARNING A
The engine exhaust from this product
contains chemicals known to the State
of California to cause cancer, birth
defects or other reproductive harm.

Navigation menu
