Owner/Operator Manual
Models
932102 - 520
932103 - 624
932310 - 624
Sno-Thro
®
03243800D 5/02
Supersedes 03243800,A, B, C
Printed in USA
ENGLISH
FRANÇAIS
ESPAÑOL
Transfer
model &
serial number
label from
product
registration
here.
Coller l’autocollant du
modèle et du numéro de
série dans cet encadré.
Transferir aquí la etiqueta
del modelo y número de
serie del registro del
producto.
2 5/30/02
MODEL CERTIFICATE OF CONFORMITY ISSUED BY THE MANUFACTURER
CERTIFICAT DE CONFORMITÉ DU MODÈLE DÉLIVRÉ PAR LE FABRICANT
MODELL-KONFORMITÄTSBESCHEINIGUNG AUSGESTELLT DURCH DEN HERSTELLER
CERTIFICATO DI COMFORMITÀ DEL MODELLO RILASCIATO DAL PRODUTTORE
CERTIFICADO DE CONFORMIDAD DEL MODELO PROVISTO POR EL FABRICANTE
MODELLSERTIFIKAT FOR OVERENSSTEMMELSE UTSTEDT AV FABRIKANT
TILLVERKARENS MODELLCERTIFIKAT OM ÖVERENSSTÄMMELSE
VALMISTAJAN ANTAMA VAKUUTUS MALLIN MÄÄRÄYSTEN MUKAISUUDESTA
We the undersigned, - Je soussigné, - Mit meiner Unterschrift - Wij de ondergetekenden, - Il
sottoscritto, - El abajo firmante - Undertegnede, - Undertecknaren av detta dokument, - Me,
allekirjoittaneet,
ARIENS COMPANY, certify that the Snow Thrower - certifie que le chasse-neige - bestätigen
daß die Schneefräse, verklaren dat de sneeuwschüiver - certifica che lo spazzavere - certifica
que el quita nieves - attesterer at sneslynger - bevitner at snøfreseren - försäkrar att
snöslungan, vakuutamme, että lumilinko:
conform to the specifications of directive 98/37/EC and EC directive (EMC) 89/336/EEC as
amended by EC directive 92/31/EEC, and 2000/14/EC.
conforme aux spécifications de la directive 98/37/CE et de la directive CE (EMC) 89/336/CE
modifiée par la directive CE 92/31/CE et 2000/14/CE.
entsprechen den Spezifikationen der EU-Richtlinien 98/37/EC und (EMC) 89/336/EEC,
abgeändert durch EU-Richtlinien 92/31/EEC und 2000/14/EC.
conforme alle specifiche contenute nella direttiva 98/37/EC e nella direttiva CE (EMC) 89/336/
EEC, come emendata dalla direttiva 92/31/EEC e dalla 2000/14/EC.
conforme a las especificaciones de la directiva 98/37/EC y directiva EC (EMC) 89/336/EEC
como se enmienda por la directiva EC 92/31/EEC, y 2000/14/EC.
følg spesifikasjonene i direktiv 98/37/EF og EF-direktiv (EMC) 89/336/EØF som er endret av
EF-direktiv 92/31/EØF, og 2000/14/EF.
uppfyller specifikationerna i direktiv 98/37/EC och EC-direktiv (EMC) 89/336/EEC med
ändringar enligt EC-direktiv 92/31/EEC och 2000/14/EC.
vastaa direktiiviä 98/37/EC ja EC direktiiviä (EMC) 89/336/EEC, joissa EC direktiivin 92/31/
EEC ja 2000/14/EC muutokset.
Category:
WALK BEHIND SNOW THROWER
Make and Trade Name:
ARIENS
Model: 932310
Serial # Range: 001900 and up
Ariens Company
655 West Ryan Street
P.O. Box 157
Brillion, Wisconsin 54110-0157
USA
Telephone (920) 756-2141
Facsimile (920) 756-2407
3 5/30/02
Stated Sound Power Levels are established following Annex V “Internal Control of Production”
of directive 2000/14/EC and assessment procedure EN-ISO 3744:1995.
Les déclarations de niveau de puissance acoustique sont établies conformément à l'Article V
« Contrôle interne de la production » de la directive 2000/14/CE et de la procédure
d'examen EN-ISO 3744:1995.
Die angegebenen Geräuschpegel wurden gem. Anhang V „Internal Control of Production“
(Interne Produktionskontrolle) der Richtlinie 2000/14/EC und dem Bewertungsverfahren EN-
ISO 3744:1995 festgelegt.
Il livello della potenza sonora dichiarata viene rilevato in base all'Appendice V del "Controllo
Interno di Produzione" della direttiva 2000/14/CE e della procedura di rilevamento EN-ISO
374:1995
Los niveles de potencia acústica formulados se establecen siguiendo el anexo V "Control
interno de producción" de la directiva 2000/14/EC y el procedimiento de evaluación EN-ISO
3744:1995.
Lydeffektnivåene er fastsatt etter tillegg V om "Intern produksjonskontroll" i direktiv 2000/14/
EC og vurderingsprosedyren EN-ISO 3744:1995."
Fastställda ljudnivåer har etablerats enligt bilaga V, "Internal Control of Production", i direktiv
2000/14/EC och utvärderingsprocedur EN-ISO 3744:1995.
Mainitut äänen painetasot on mitattu direktiiviä 2000/14/EC vastaavasti ("Internal Control of
Production") mittausmenetelmää EN-ISO 3744:1995 käyttäen.
Representative Measured Sound Power Level
Niveau de puissance acoustique représentatif
Repräsentativer gemessener Geräuschpegel
Livello di potenza sonora rappresentativo rilevato
Nivel de potencia acústica representativo medido
Representativt målt lydeffektnivå
Representativ uppmätt ljudnivå
Edustava, mitattu äänen tehotaso
Guaranteed Sound Power Level -
Niveau garanti de puissance acoustique
Garantierter Geräuschpegel
Livello di potenza sonora garantito
Nivel de potencia acústica garantizado
Garantert lydeffektnivå
Garanterad ljudnivå
Taattu äänen tehotaso
100 dB
A
102 dB
A
May, 2002
Date/Datum/Data/
Fecha/Dato/Päiväys
Manager of Product Conformance
Position/Qualité/Functie/Qualifica/
Puesto/Stilling/Titel/Arvo
Signature/Unterschrift/
Handtekening/Firma/
Underskrift/Underskrift
Handlekening/
Underskrift/Allekirjoitus
The engine exhaust from this product
contains chemicals known to the State
of California to cause cancer, birth
defects or other reproductive harm.
WARNING
4
ENGLISH
1. Attachment Clutch Bail
2. Chute Control Lever
(932102)
Chute Crank
(932103, 310)
3. Muffler Guard
4. Chute Deflector
5. Discharge Chute
6. Housing
7. Throttle
8. Spark Plug and Wire
9. Oil Fill and Dipstick
10. Fuel Tank and Cap
11. Primer Bulb
12. Electric Starter (932103)
13. Recoil Start
14. Ignition Switch
15. Choke
16. Scraper Blade
17. Auger
18. Impeller
19. Belt Cover
FRANÇAIS
1. Commande d’embrayage
de l’outil
2. Levier de commande
de la goulotte (932102)
Manivelle de la goulotte
(932103, 310)
3. Garant du silencieux
4. Déflecteur de la goulotte
5. Goulotte d’évacuation
6. Carter
7. Commande des gaz
8. Bougie et fil
9. Tube de remplissage
en huile et jauge
10. Réservoir de carburant et
bouchon
11. Poire d’amorçage
12. Démarreur électrique
(932103)
13. Lanceur à rappel
14. Clé de contact
15. Starter
16. Lame racleuse
17. Rotor
18. Turbine
19. Couvercle de la courroie
ESPAÑOL
1. Asa del embrague
del accesorio
2. Palanca de control
de la tolva (932102)
Manivela de la tolva
(932103, 310)
3. Protector del silenciador
4. Deflector de la tolva
5. Tolva de descarga
6. Alojamiento
7. Acelerador
8. Bujía y cable
9. Llenado de aceite y
varilla medidora
10. Depósito del combustible
y tapón
11. Perilla de cebado
12. Arranque eléctrico
(932103)
13. Arranque de retroceso
14. Llave de encendido
15. Estrangulador
16. Cuchilla raspadora
17. Sinfín
18. Propulsor
19. Cubierta de la correa

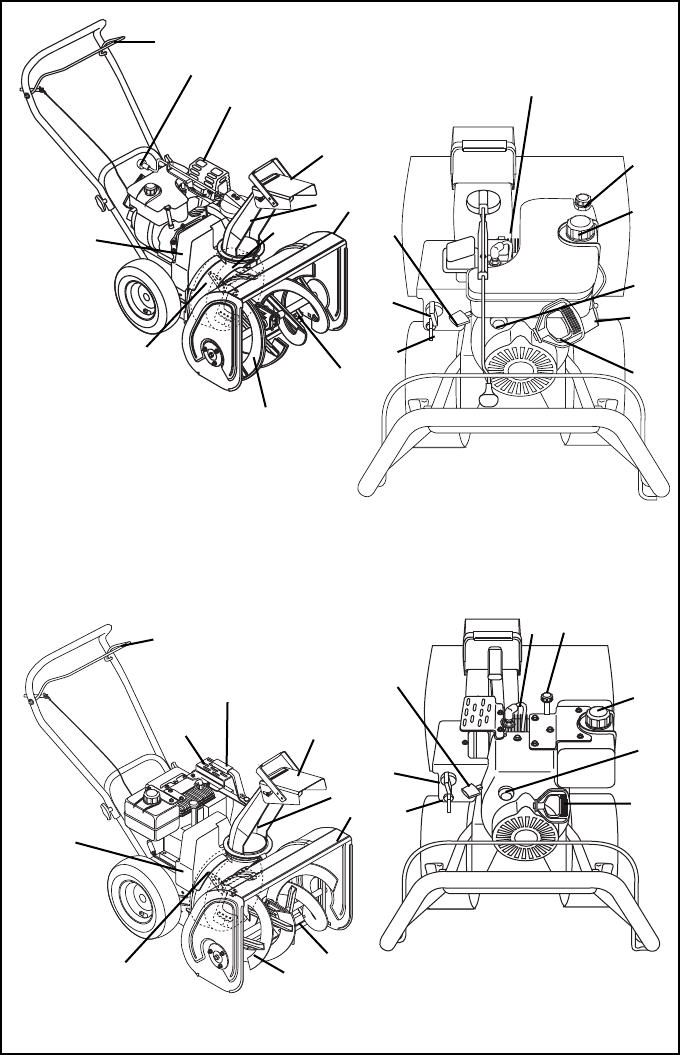

CONTROLS AND FEATURES
5
1
2
4
56
7
89
10
11
13
14
15
16
17
932102
OS2080
OS1911
Figure 1
12
3
4
56
7
8
9
10
12
13
16
17
14
15 11
OS1746
OS2071
932103
932310
18
19
17
18
19
3
GB - 6
Controls and Features . . . . . . . . . . . . . . . . 4
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . 11
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . 13
Maintenance . . . . . . . . . . . . . . . . . . . . . . . 16
Service & Adjustments. . . . . . . . . . . . . . . 18
Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Troubleshooting . . . . . . . . . . . . . . . . . . . . 21
Accessories . . . . . . . . . . . . . . . . . . . . . . . . 22
Service Parts . . . . . . . . . . . . . . . . . . . . . . . 22
Specifications . . . . . . . . . . . . . . . . . . . . . . 23
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . 24
THE MANUAL
Before operation of unit, carefully and
completely read your manuals. The contents
will provide you with an understanding of
safety instructions and controls during normal
operation and maintenance.
All reference to left, right, front, or rear are
given from operator standing in operation
position and facing the direction of forward
travel.
MODEL AND SERIAL NUMBERS
When ordering replacement parts or making
service inquiries, know the Model and Serial
numbers of your unit and engine.
Numbers are located on the product
registration form in the unit literature package.
They are printed on a serial number label,
located on the frame of your unit.
•Record Unit Model and Serial number
here.
•Record Engine Model and Serial number
here.
PRODUCT REGISTRATION
A warranty registration card must be filled out,
signed, and returned at time of purchase. This
card activates the warranty. Claims meeting
requirements during limited warranty period
will be honored.
UNAUTHORIZED REPLACEMENT
PARTS
Use only Ariens replacement parts. The
replacement of any part on this vehicle with
anything other than an Ariens authorized
replacement part may adversely affect the
performance, durability, or safety of this unit
and may void the warranty. Ariens disclaims
liability for any claims or damages, whether
warranty, property damage, personal injury or
death arising out of the use of unauthorized
replacement parts. For a brief list of
replacement parts see
Service Parts
in this
manual. To obtain a complete parts manual,
find your model and serial number. Then go to
www.ariens.com or call 1-800-678-5443.
DISCLAIMER
Ariens reserves the right to discontinue, make
changes to, and add improvements upon its
products at any time without public notice or
obligation.The descriptions and specifications
contained in this manual were in effect at
printing. Equipment described within this
manual may be optional. Some illustrations
may not be applicable to your unit.
TABLE OF CONTENTS
INTRODUCTION

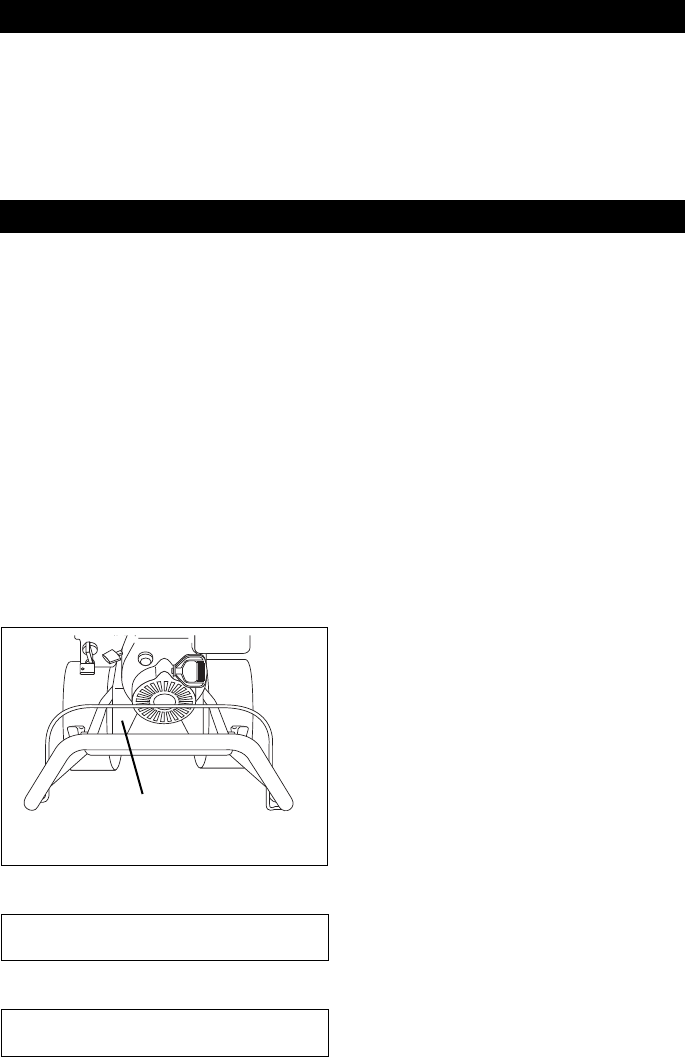

Serial Number Label
OS1801
Figure 2
© Copyright 2001-2002 Ariens Company
GB - 7
DELIVERY
Customer Note:
If you have purchased this
product without complete assembly and
instruction by your retailer, it is your
responsibility to:
1. Read and understand all assembly
instructions in this manual. If you do not
understand or have difficulty following the
instructions, contact your nearest Ariens
Dealer for assistance. Make sure all
assembly has been properly completed.
NOTE:
To locate your nearest Ariens Dealer,
call 1-800-678-5443 or go to www.ariens.com
on the internet.
2. Understand all Safety Precautions
provided in the manuals.
3. Review control functions and operation of
the unit. Do not operate the Sno-Thro
unless all controls function as described
in this manual.
4. Review recommended lubrication,
maintenance and adjustments.
5. Review Limited Warranty Policy.
6. Fill out Original Purchaser Registration
Card and return the card to Ariens
Company.
SAFETY ALERTS
Look for these symbols to point
out important safety precautions.
They mean:
Attention!
Personal Safety Is Involved!
Become Alert!
Obey The Message!
The safety alert symbols above and signal
words below are used on decals and in this
manual.
Read and understand all safety messages.
NOTATIONS
NOTE:
General reference information for
proper operation and maintenance practices.
IMPORTANT:
Specific procedures or
information required to prevent damage to unit
or attachment.
PRACTICES AND LAWS
Practice usual and customary safe working
precautions, for the benefit of yourself and
others. Understand and follow all safety
messages. Be alert to unsafe conditions and
the possibility of minor, moderate, or serious
injury or death. Learn applicable rules and
laws in your area.
REQUIRED OPERATOR TRAINING
Original purchaser of this unit was instructed
by the seller on safe and proper operation. If
unit is to be used by someone other than
original purchaser; loaned, rented or sold,
ALWAYS provide this manual and any needed
safety training before operation.
WARNING:
Improper assembly or
adjustments can cause serious injury.
SAFETY
DANGER:
IMMINENTLY
HAZARDOUS SITUATION! If not
avoided, WILL RESULT in death or
serious injury.
WARNING:
POTENTIALLY
HAZARDOUS SITUATION! If not
avoided, COULD RESULT in death or
serious injury.
CAUTION:
POTENTIALLY
HAZARDOUS SITUATION! If not
avoided, MAY RESULT in minor or
moderate injury. It may also be used
to alert against unsafe practices.
GB - 8

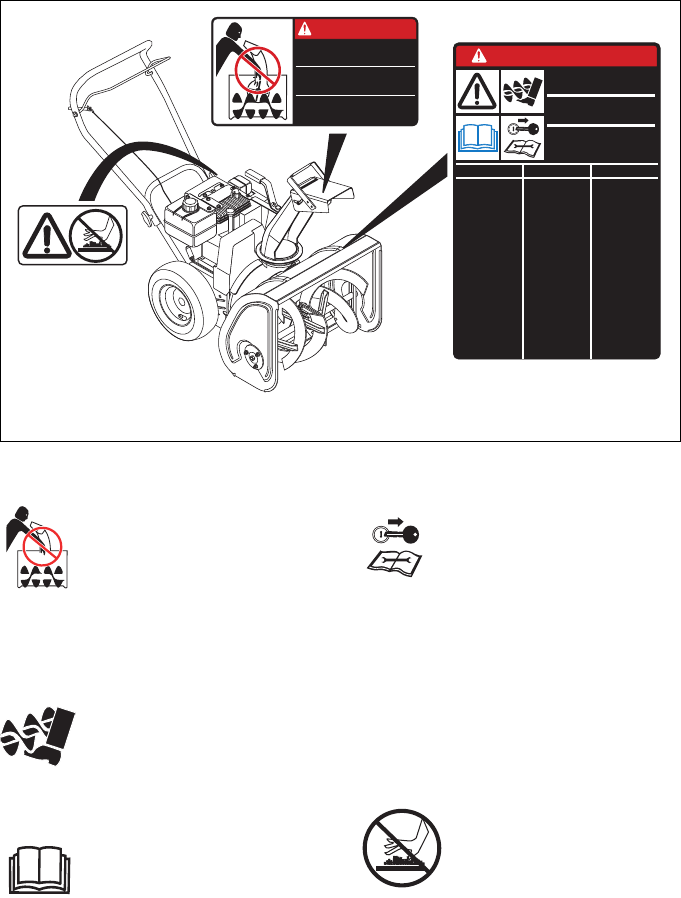

SAFETY DECALS AND
LOCATIONS
ALWAYS replace missing or damaged Safety
Decals. Refer to figure below for Safety Decal
locations.
1. DANGER!
2. DANGER!
SAFETY
3. HOT SURFACES!
DANGER / PELIGRO
ROTATING PARTS
Stop engine & remove ignition key
before clearing.
PIECES EN ROTATION
Arreter le moteur et retirer la clé de
contact avant le débourrage.
PIEZAS GIRATORIAS
Detener el motor y sacar la llave
antes de despejar.
08093900
DANGER / PELIGRO
ROTATING PARTS
Keep clear of auger while engine
is running.
PIECES EN ROTATION
Ne pas s’approcher du rotor
lorsque le moteur est en marche.
PIEZAS GIRATORIAS
Mantenerse alejado del sinfín
mientras que el motor esté en
marcha.
SAFETY
• Lire le manuel du
l’opérateur.
• Seuls les adultes
ayant
recu la formation
appropriée peuvent
utiliser la machine,
jamais les enfants.
• Toujours arrêter le
moteur et retirer la clé de
contact avant de quitter
le siège de l'opérateur.
• Les commandes,
protections et dispositifs
de sécurité doivent
toujours être
correctement entretenus
et en bon
état de
fonctionnement.
• Ne jamais orienter la
goulotte d'évacuation
vers des personnes pour
éviter tout risque de
blessure par des objets
projetés ou vers des
bâtiments pour éviter de
les endommager.
SÉCURITÉ
• Leer el manual del
operador.
• Permitir la operación
sólo por adultos
entrenados, nunca
niños.
• Parar el motor y sacar la
llave de la ignición antes
de dejar el puesto del
operador por cualquier
motivo.
• Mantener todos los
controles, protectores y
dispositivos de
seguridad correctamente
y en buen
funcionamiento.
• Nunca dirigir la descarga
hacia personas que
puedan lesionarse o
propiedad que pueda
dañarse por los objetos
arrojados.
SEGURIDAD
• Read operator's manual.
• Allow operation only by
properly trained adult,
never children.
• Stop engine and remove
ignition key prior to
leaving operator's
position for any reason.
• Keep all controls, guards
and safety devices
properly serviced and
functional.
• Never direct discharge
towards persons or
property that may be
injured or damaged by
thrown objects.
07749800C
OS1813
12
3
Figure 3
ROTATING PARTS
Stop engine and remove ignition
key before clearing.
High speed
impeller rotates below
discharge opening. Wait for all
moving parts to stop before
removing clogs or servicing.
ROTATING PARTS
Keep clear of auger while engine
is running.
Read Operator’s Manual.
•Allow operation only by properly trained
adult, never children.
Stop engine and remove ignition
key prior to leaving operator’s
position for any reason.
•Keep all controls, guards and safety
devices properly serviced and
functional.
•Never direct discharge towards persons
or property that may be injured or
damaged by thrown objects.
DO NOT touch parts which
are hot from operation.
ALWAYS allow parts to cool.
GB - 9
ASSEMBLY SAFETY RULES
Read, understand, and follow all safety
practices in Owner/Operator Manual before
assembling. Failure to follow instructions could
result in personal injury and/or damage to unit.
ALWAYS remove key and/or wire from spark
plug before assembly. Unintentional engine
start up can cause death or serious injury.
OPERATIONAL SAFETY RULES
Walk Around Inspection
Complete a walk around inspection of unit and
work area to understand:
• Work area • Your unit • All safety decals
Work Area
ALWAYS check overhead and side clearances
carefully before operation. ALWAYS be aware
of traffic when operating along streets or
curbs.
Keep children and people away. Keep children
out of work area and under watchful care of a
responsible adult.
NEVER allow children to operate or play on or
near unit. Be alert and shut off unit if children
enter area.
DO NOT allow adults to operate unit without
proper training.
Keep area of operation clear of all toys, pets,
and debris. Thrown objects can cause injury.
Check for weak spots on docks, ramps or
floors. Avoid uneven work areas and rough
terrain. Stay alert for hidden hazards.
Avoid uneven and rough terrain. DO NOT
operate near drop offs, ditches, or
embankments. Unit can suddenly turn over if a
wheel is over the edge of a cliff or ditch, or if
an edge caves in.
Falling snow, fog, etc. can reduce vision and
cause an accident. Operate unit only when
there is good visibility and light.
Personal Safety
Only trained adults may operate unit.
Training includes actual operation.
NEVER operate unit after or during the use of
medication, drugs or alcohol. Safe operation
requires your complete and unimpaired
attention at all times.
NEVER allow anyone to operate this unit when
their alertness or coordination is impaired.
DO NOT operate unit without wearing
adequate winter outer garments. Wear
adequate safety gear, including safety glasses
with side shields, and protective gloves. Wear
proper footwear to improve footing on slippery
surfaces.
DO NOT wear loose clothing or jewelry and tie
back hair that may get caught in rotating parts.
Protect eyes, face and head from objects that
may be thrown from unit. Wear appropriate
hearing protection.
Avoid sharp edges. Sharp edges can cut.
Moving parts can cut off fingers or a hand.
ALWAYS keep hands and feet away from all
rotating parts during operation. Rotating parts
can cut off body parts.
ALWAYS keep hands away from all pinch
points.
DO NOT touch unit parts which might be hot
from operation. Allow parts to cool before
attempting to maintain, adjust or service.
NEVER place your hands or any part of your
body or clothing inside or near any moving
part while unit is running.
Never direct discharge towards persons or
property that may be injured or damaged by
thrown objects. DO NOT use on gravel
surfaces. Stay alert for hidden hazards or
traffic.
DO NOT throw snow any higher than
necessary.
Deflected materials can cause injury and
property damage.
Always stand clear of the discharge area when
operating this unit.
Fumes from engine exhaust can cause injury
or death. DO NOT run engine in an enclosed
area. Always provide good ventilation.
ALWAYS disengage attachment clutch bail,
stop unit and engine, remove key, allow
moving parts to stop before leaving operator’s
position for any reason.
Operation
Read, understand, and follow all instructions in
the manual and on the machine before
starting.
Understand:
•How to operate all controls
•The functions of all controls
•How to STOP in an Emergency
GB - 10
Rotating impeller can cause serious injury. DO
NOT unclog unit while engine is running.
When leaving operator’s position for
any
reason,
ALWAYS disengage auger, stop unit
and engine, remove key and allow moving
parts to stop.
Before starting engine, disengage control(s).
Use only approved extension cords and
receptacles when starting units equipped with
Electric starter. DO NOT connect electric
starter cord to any wiring system that is not a
three-wire grounded system.
ALWAYS allow unit and engine to adjust to
outdoor temperatures before clearing snow.
Always be sure of your footing, especially
when operating in reverse. Walk, never run
during operation.
DO NOT operate at too fast a rate.
Slow down and turn corners slowly.
ALWAYS back up slowly. Always look down
and behind before and while backing.
Disengage attachment drive when traveling
from one work area to another.
Abnormal Vibrations are a warning of trouble.
Striking a foreign object can damage unit.
Immediately stop unit and engine. Remove
key and wait for all moving parts to stop.
Remove wire from spark plug. Inspect unit and
make any necessary repairs before restart.
Before cleaning, removing clogs or making
any inspections, repairs, etc.: disengage
clutch(es), stop unit and engine, remove
key, allow moving parts to stop. Allow hot
parts to cool.
Run unit a few minutes after clearing snow to
prevent freeze-up of attachment.
Disengage attachment when not in use.
Never leave a running unit unattended.
ALWAYS shut off engine before leaving unit.
ALWAYS remove key to prevent unauthorized
use.
Never carry passengers.
Check clutch and brake operation frequently.
Adjust and service as required. Adjust and
service as required. All motion of auger/
impeller must stop quickly when bail is
released.
Hazardous Slopes
DO NOT operate on steep slopes. DO NOT
clear snow across the face of slopes. Keep all
movement on slopes slow and gradual. DO
NOT make sudden changes in speed or
direction.
DO NOT park unit on a slope unless
absolutely necessary. When parking on a
slope always block the wheels.
Transport
ALWAYS shut off engine, remove key and
drain fuel when transporting unit on a truck or
trailer.
Use extra care when loading or unloading unit
onto trailer or truck.
Secure unit chassis to transport vehicle.
NEVER secure from rods or linkages that
could be damaged.
DO NOT transport machine while engine is
running.
Cleaning
Keep unit free of ice or other debris. Clean up
oil or fuel spills.
Spark Arrester
This product is equipped with an internal
combustion type engine. DO NOT use unit on
or near any unimproved, forest-covered or
brush covered land unless exhaust system is
equipped with a spark arrester meeting
applicable local, state or federal laws. A spark
arrester, if it is used, must be maintained in
effective working order by operator.
FUEL SAFETY RULES
Fuel is highly flammable and its vapors are
explosive. Handle with care. Use an approved
fuel container.
NO smoking, NO sparks, NO flames. ALWAYS
allow engine to cool before servicing.
NEVER fill fuel tank when engine is running or
hot from operation.
NEVER fill or drain fuel tank indoors.
Replace fuel cap securely and clean up spilled
fuel.
Never fill containers inside a vehicle or on a
truck or trailer bed with a plastic liner. Always
place containers on the ground away from
your vehicle before filling.
When practical, remove gas-powered
equipment from the truck or trailer and refuel it
on the ground. If this is not possible, then
refuel such equipment on a trailer with a
portable container, rather than from a gasoline
dispenser nozzle.
Keep the nozzle in contact with the rim of the
fuel tank or container opening at all times until
fueling is complete. Do not use a nozzle lock-
open device.
If fuel is spilled on clothing, change clothing
immediately.
GB - 11
MAINTENANCE AND SERVICE
SAFETY RULES
Before cleaning, removing clogs or making
any inspections, repairs, etc.: disengage
clutch(es), stop unit and engine, remove
key, allow moving parts to stop. Allow hot
parts to cool.
Before tipping unit up onto housing, remove
enough fuel so no spills will occur. Ensure unit
is secure and will not tip over during
maintenance.
ALWAYS keep protective structures, guards,
and panels in good repair, in place and
securely fastened. NEVER modify or remove
safety devices.
DO NOT change engine governor settings or
over-speed engine.
Fumes from engine exhaust can cause injury
or death. DO NOT run engine in an enclosed
area. Always provide good ventilation.
ALWAYS maintain unit in safe operating
condition. Damaged or worn out muffler can
cause fire or explosion.
Keep all hardware properly tightened. Check
shear bolts frequently.
Maintain or replace safety and instruction
labels, as necessary.
STORAGE SAFETY RULES
NEVER store with fuel in fuel tank, inside a
building where any ignition sources are
present.
Allow engine to cool completely.
For extended storage, clean unit thoroughly.
See Engine Manual for proper storage.
ACCESSORY AND ATTACHMENT
SAFETY RULES
Use only attachments or accessories
designed for your unit.
Check components frequently. If worn or
damaged, replace with manufacturer’s
recommended parts.
Tools Required
•Pliers
•Open-End Wrenches: 3/8, 7/16, 1/2,
9/16 in and/or Adjustable Wrench
•Tire Gauge
Handlebar
Unfold upper handlebar until it snaps into
position on the lower handlebar.Tighten the
handlebar knobs to secure.
Discharge Chute (932103, 310)
1. Grease discharge chute ring if not already
greased (Figure 4a).
2. Remove mounting hardware and chute
crank support from top of engine.
3. Slide discharge chute over opening on
housing and under the retaining clip.
4. Position chute support bracket over studs.
5. Place the chute crank support on the
studs, over the chute support bracket.
6. Secure chute crank and chute support
brackets to studs with mounting hardware
just removed.
NOTE:
Make sure the discharge chute sits
flush on the discharge chute ring before
tightening hardware.
7. Insert the chute crank through the hole in
chute crank support.
8. Remove the spring clip from the chute
pinion gear, insert chute crank into pinion
and secure with spring clip.
ASSEMBLY
WARNING:
AVOID INJURY. Read
and understand
Assembly
and
Fuel
Safety Rules
before proceeding.
GB - 12
Discharge Chute (932102)
1. Grease discharge chute ring if not already
greased (Figure 4b).
2. Remove mounting hardware from top of
engine.
3. Slide discharge chute over opening on
housing and under the retaining clip.
4. Secure chute support bracket to studs on
top of engine with mounting hardware just
removed.
NOTE:
Be sure the discharge chute sits flush
on the discharge chute ring before tightening.
Check Attachment Clutch Cable
1. Ensure spring is connected into hole in
clutch arm at rear of frame.
2. Ensure clutch cable is routed over the
top
of the lower handlebar.

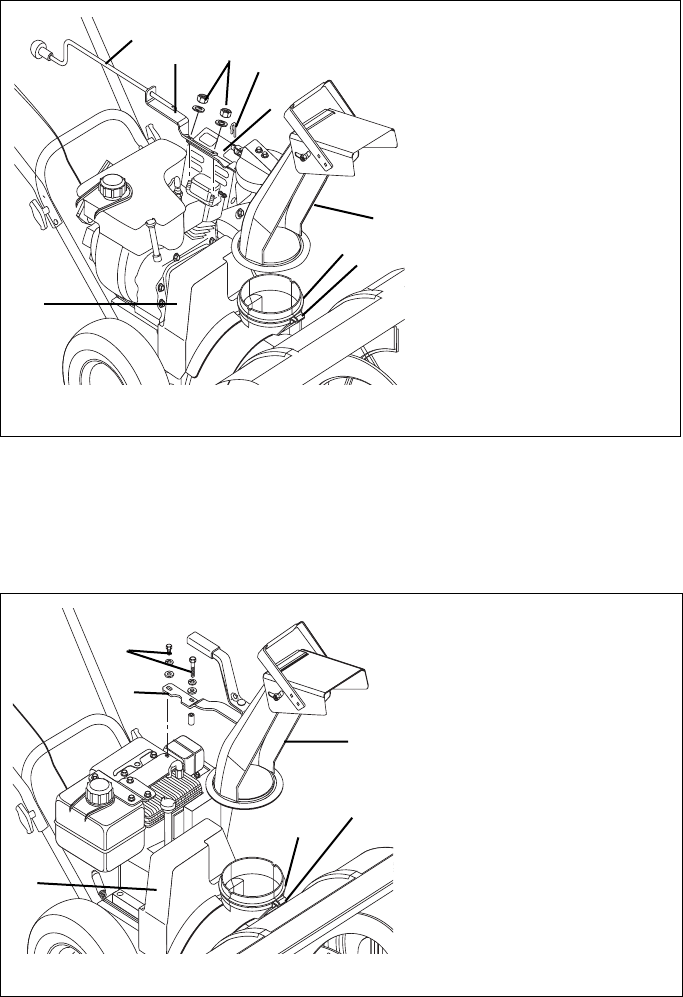

932103, 310
Figure 4a OS2090
1. Mounting Hardware
2. Spring Clip
3. Chute Support Bracket
4. Discharge Chute
5. Discharge Chute Ring
6. Retaining Clip
7. Belt Cover
8. Chute Crank
9. Chute Crank Support
12
3
4
56
7
89
1. Mounting Hardware
2. Discharge Chute
3. Discharge Chute Ring
4. Retaining Clip
5. Belt Cover
6. Chute Support Bracket
1
2
4
3
OS1921
5
932102
6
Figure 4b
GB - 13
3. Ensure Z bend end of clutch cable is
connected to hole in tab on right side of
clutch bail.

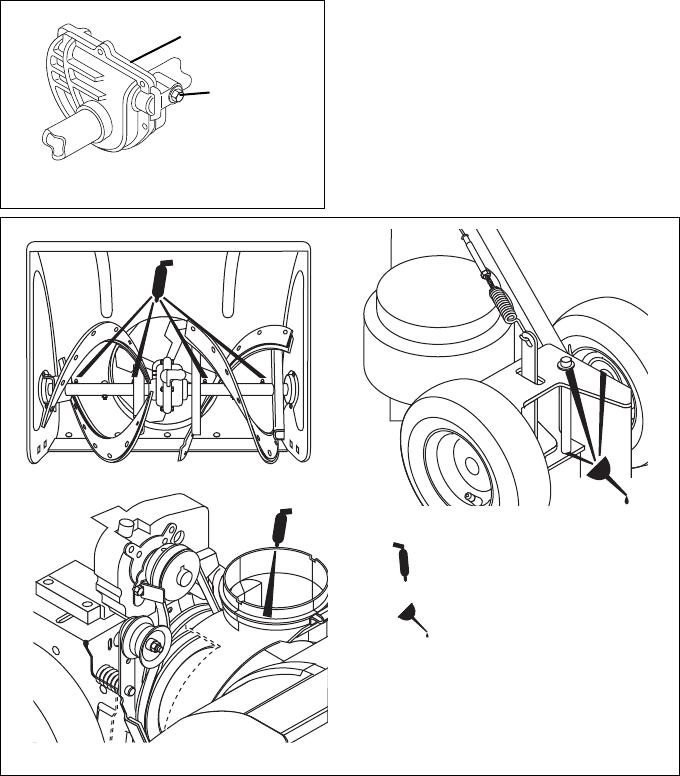

Check Auger Gearcase Oil
Check oil level in auger gearcase (see
Maintenance
Section).
Fill Engine Crankcase
IMPORTANT:
Engines are shipped
without
oil
in crankcase. Refer to Engine Manual for
proper type oil and crankcase capacity.
Fill Engine Fuel Tank
Refer to Engine Manual for proper type and
capacity.
Check Function of All Controls
Ensure unit runs and performs properly. Refer
to
Operation
Section.
Run in Attachment Belt
1. Start unit in a well-ventilated area
according to
Starting and Shut-Off
in
Operation
.
2. Engage attachment clutch lever and run
attachment for about 15 minutes.
3. Stop unit, wait for all moving parts to stop,
and remove spark plug wire.
4. Adjust clutch according to
Attachment
Clutch/Brake Adjustment
in
Service and
Adjustments.
CONTROLS AND FEATURES
See Figure 1 for all Controls and Features.
Discharge Chute Deflector
ALWAYS position discharge chute deflector at
a safe angle before starting engine.
DO NOT throw snow any higher than
necessary.
Push deflector handle forward or down to
throw snow lower. Pull deflector handle up or
to the rear to throw snow higher.
IMPORTANT:
If Chute Deflector does not stay
in set position, adjust as directed in
Service
and Adjustments
, or repair before operation.
Discharge Chute
Discharge chute rotates 220°.
ALWAYS position discharge chute in safe
direction and angle, away from operator and
bystanders, before starting engine.
Chute Crank (932103, 310)
IMPORTANT:
If chute does not stay in set
position, adjust as directed in Service and
Adjustments, or repair before operation.
Rotate the Chute with Discharge Chute Crank
Handle.
IMPORTANT:
DO NOT force frozen chute
controls. Start engine and run for 3-5 minutes
to thaw. If still frozen, take to warm place until
controls are free.

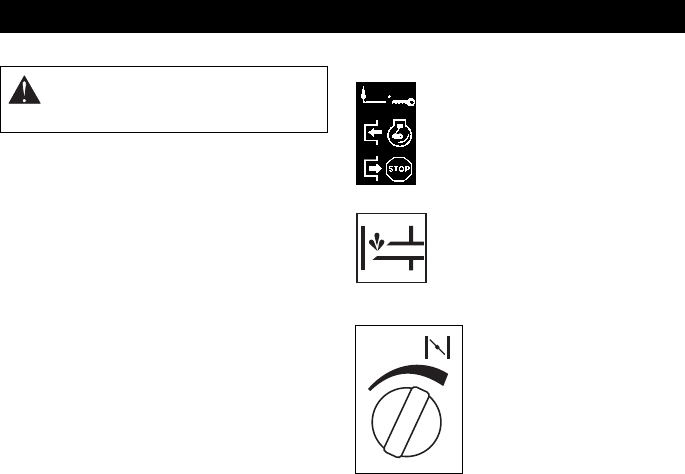

Ignition Switch
Key Switch has two positions:
1. "Stop" - Pulled Out
2. Run - Pushed In
NOTE:
DO NOT twist key after
inserting it.
Primer Bulb
Pushing the Primer Bulb in adds
fuel for easier engine start (see
Starting and Shut Off
).
Choke Control Knob
1. Choke Closed position:
Choke Control chokes off air
to engine for easier start.
2. Choke Open position:
allows for normal operation.
IMPORTANT:
Gradually
open choke after engine
starts.
Scraper Blade
The scraper blade allows the back of the
housing to keep better contact with the surface
being cleared. It also prevents damage to the
housing from normal wear.
IMPORTANT:
DO NOT allow Scraper Blade to
wear too far or Auger/Impeller housing will
become damaged.
OPERATION
WARNING:
AVOID INJURY. Read
and understand
Operational and Fuel
Safety Rules before proceeding.
2
1
OS1321
2
OS1300
1
GB - 14

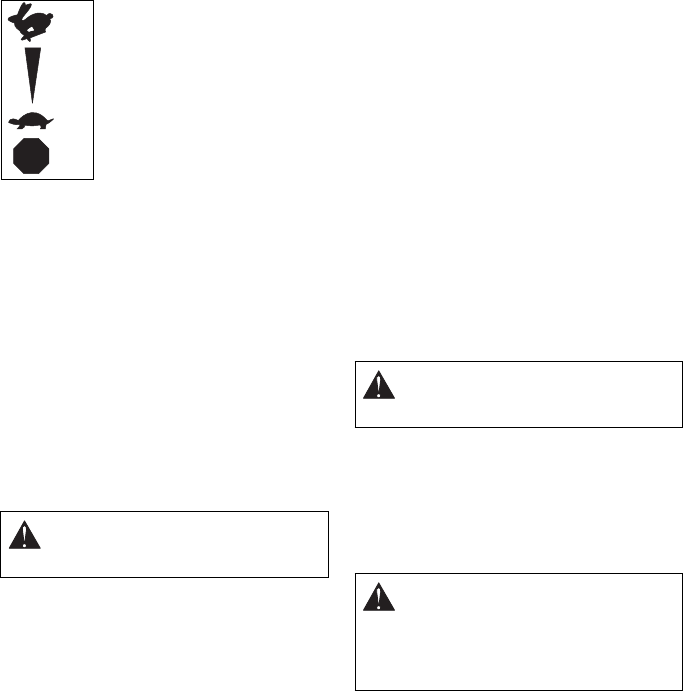

Throttle
The Throttle controls the engine
speed. To increase or decrease
the engine speed, adjust to:
1.Fast (normal or warm starts)
2.Part-Throttle
3.Slow (cold weather starts)
4."Stop" (engine is off)
Recoil Starter Handle
IMPORTANT: DO NOT let handle snap back
against starter.
When pulled, handle will turn engine over.
Auger
The auger propels unit forward while collecting
snow. Forward speeds may vary according to
depth and moisture content.
Attachment Clutch Bail
Squeeze the attachment clutch bail against
the handlebar to engage auger and impeller.
Release bail to disengage and brake auger
and impeller.
FILLING FUEL TANK
To add fuel to fuel tank:
1. ALWAYS place unit in open or well
ventilated area.
2. Stop engine and allow to cool.
3. Clean Fuel Cap and surrounding area to
prevent dirt from entering Fuel Tank.
4. Remove Cap.
IMPORTANT: DO NOT use gasohol or
gasoline containing alcohol. See Engine
Manual for correct type and grade of fuel.
5. Fill fuel tank to within 1/2 in (1.2 cm)
below bottom of filler neck with unleaded
gasoline.
NOTE: Tank capacity for 932103 and 310 is
3.5 quarts (3.3 liters). Tank capacity for
932102 is 2.0 quarts (1.9 liters).
6. Replace Fuel Cap and tighten.
IMPORTANT: ALWAYS clean up any spilled
fuel.
PRE-START
1. Frozen Impeller
IMPORTANT: Before starting engine, check
impeller to be sure it is not frozen.
1. With key in “Stop” position, squeeze
attachment clutch lever to engaged
position.
2. Pull recoil starter handle.
IMPORTANT: If impeller is frozen, (cannot pull
starter handle) move unit to a heated area and
thaw to prevent possible damage.
2. Check Function of Clutch
Auger and impeller must stop quickly when
attachment clutch bail is released.
If clutch does not engage or disengage
properly, adjust or repair before operation (see
Service and Adjustments).
3. Check Engine Fuel & Crankcase Oil
Check and add fuel if required. If oil is not up
to “FULL” mark on dipstick, add recommended
oil.
See Engine Manual for detailed instructions.
STARTING AND SHUT-OFF
IMPORTANT: Allow unit and engine to adjust
to the outdoor temperatures before clearing
snow. Before shut-off, run the attachment a
few minutes to prevent freeze-up.
NOTE: Try out each control without the engine
running to see how it works and what it does.
Manual Start
1. Turn discharge chute straight ahead.
2. Release auger clutch bail.
3. Push Primer Bulb 2 or 3 times for a cold
engine.
NOTE: When temperature is below
-15˚F (-26˚C) additional priming may be
needed.
4. If engine is cold, apply choke. See Engine
Manual for detailed instructions.
NOTE: A warm engine requires less choking
than a cold engine.
WARNING: AVOID INJURY. Read
and understand Fuel Safety Rules in
Safety section before proceeding.
STOP
OL2072
1
2
3
4
WARNING: AVOID INJURY. Read
and understand Fuel Safety Rules in
Safety section before proceeding.
WARNING: FAILURE TO FOLLOW
INSTRUCTIONS could result in
personal injury and or damage to unit.
DO NOT attempt to start your unit at
this time. Read entire Owner/Operator
Manual and the Engine Manual first.
GB - 15
5. Insert key into ignition switch and push
into RUN position. DO NOT twist key after
inserting it.
6. Grasp starter handle and pull rope out
slowly until it pulls harder. Let rope rewind
slowly.
7. Pull rope with a rapid continuous full arm
stroke. Let rope rewind slowly.
NOTE: DO NOT allow starter handle to snap
back against the starter.
8. Repeat steps 6 and 7 until the engine
starts. (If engine does not start, refer to
Troubleshooting.)
9. Adjust choke as needed.
10. Set throttle to Part Throttle or Slow
position for adaptation to outside
temperature. Set throttle to Fast Throttle
position for normal operation.
Electric Start (120V or 240V)
(932103, optional on 932102, 310)
1. Connect extension cord to prongs on
starter.
IMPORTANT: Prevent damage to unit. Know
voltage of your starter and only use matching
outlets.
2. Plug extension cord into:
240V 3-wire, grounded outlet.
120V 3-wire, grounded outlet.
3. Turn discharge chute straight ahead.
4. Make sure that the attachment clutch bail
is fully disengaged.
5. Push Primer Bulb 2 or 3 times for cold
engine.
NOTE: When temperature is below
-15˚F (-26˚C) additional priming may be
needed.
6. Insert key into ignition switch on engine
and push into "Run" position. DO NOT
twist key after it is inserted.
7. If engine is cold, apply choke. A warm
engine requires less choking than a cold
engine. See Engine Manual for detailed
instructions.
8. Set throttle to proper starting position.
9. Press starter button on engine until
engine starts.
IMPORTANT: DO NOT operate starter more
than 15 seconds per minute, as overheating
and damage can occur. (If engine does not
start, refer to Troubleshooting.)
10. Adjust choke as needed.
11. Disconnect power cord from outlet, then
starter.
12. Set throttle to Part Throttle or Slow
position for adaptation to outside
temperature. Set throttle to Fast Throttle
position for normal operation.
Emergency Stop
Immediately release clutch bail to stop unit in
an emergency. Stop Engine, remove Key and
wait for all rotating parts to stop before leaving
operator’s position.
Shut-Off
1. Run Impeller a few minutes after use to
prevent freeze-up of Impeller.
2. Release Attachment Clutch Bail.
3. Move Throttle to the "Stop" Position.
4. Remove key.
SNOW REMOVAL
IMPORTANT: Allow unit and engine to adjust
to the outdoor temperatures before clearing
snow.
1. Select discharge chute and deflector
position and direction.
2. Engage Attachment Clutch bail.
NOTE: The auger propels unit forward. Keep a
firm grip on handlebar when engaging bail.
IMPORTANT: DO NOT overload unit capacity
by attempting to clear snow at too fast a rate.
Tips for Operation
Snow is best removed as soon as possible
after snow fall.
To clear an area, run unit in an overlapping
series of paths. For large areas; start in the
middle and throw snow to each side, so snow
is not cleared more than once.
ALWAYS direct snow away from area to be
cleared and with direction of the wind.
TRAVELING
To travel from one work area to another:
1. Release Attachment Clutch Bail.
2. Set Throttle to Slow position or Part
Throttle position.
3. Press down the handlebars enough to
raise the front of the unit slightly off
surface.
4. Push unit to desired location.
TRANSPORT
ALWAYS shut off engine, remove key and
drain fuel when transporting unit on a truck or
trailer.
Use extra care when loading or unloading unit
onto trailer or truck.
GB - 16
Secure unit chassis to transport vehicle.
NEVER secure from rods or linkages that
could be damaged.
DO NOT transport machine while engine is
running.
SERVICE POSITION
Place unit on a flat level surface. Before tipping
unit up onto housing, remove enough fuel so
no spills will occur. Tip unit forward onto front
of Impeller housing for service. Assure unit is
secure and will not tip over. Strap and clamp
onto bench if needed.
MAINTENANCE SCHEDULE
The chart below shows the recommended
maintenance schedule that should be
performed on a regular basis. More frequent
service may be required.
* After first two hours of operation.
CHECK FASTENERS
Make sure all hardware is tightened properly.
CHECK ATTACHMENT CLUTCH
Auger / impeller must stop within 3 seconds
when attachment clutch bail is released or unit
damage or serious injury may result.
If clutch does not engage or disengage
properly, adjust or repair before operation (see
Service and Adjustments).
CLEAN ENGINE
Refer to Engine Manual for detailed
instructions.
CHECK ENGINE OIL
The engine crankcase oil should be checked
every 5 hours of operation. Oil level MUST be
maintained in safe operating range on dipstick
at all times or engine damage will result (See
Engine Manual).
Park unit on a level surface. Refer to Engine
Manual for detailed instructions.
CHANGE ENGINE OIL
Change oil after first two (2) hours of
operation, thereafter change oil every 25
hours (more often if required). Refer to Engine
Manual for detailed instructions.
NOTE: Sno-Thro has an oil drain cut-out on
the left side of unit frame. Drain engine oil
through this cut-out to prevent spills.
CHECK TIRE PRESSURE
Keep tires at pressure listed on the tire
sidewall.
CHECK AUGER GEARCASE
IMPORTANT: Proper oil level must be
maintained.
Gear cases are filled to the correct level at the
factory. Unless there is evidence of leakage,
no additional lubricant should be required.
Check oil level each season or every 25 hours
of operation.
MAINTENANCE
WARNING: AVOID INJURY. Read
and understand Maintenance and
Service/Fuel Safety Rules before
proceeding.
MAINTENANCE SCHEDULE
Each
Use Every
5 hrs. Every
25 hrs. Yearly
Check
Fasteners •
Check
Attachment
Clutch
•
Clean
Engine •
Check
Engine Oil •
Change
Engine Oil *•
Check Tire
Pressure •
Check Auger
Gearcase ••
General
Lubrication ••
GB - 17
To ensure adequate lubricant level:
1. Remove filler plug (Figure 5). Lubricant
must be at least up to bottom of lubricant
filler hole with unit resting on a level
surface.
2. Add lubricant if required. Allow oil to drain
to level of plug and replace plug.
IMPORTANT: Use only Ariens special gear
lubricant L-2 (Part Number 00008000).
GENERAL LUBRICATION
IMPORTANT: Wipe each fitting clean before
and after lubrication.
IMPORTANT: DO NOT allow grease or oil to
get on belts.
NOTE: Apply Sten Mix Hi-Temp Grease or
equivalent to the lubrication fittings.
Sno-Thro should be lubricated at beginning of
season or every 25 operating hours (Figure 6).
Auger Shaft
To grease auger shaft, remove shear bolt nuts
and shear bolts. Turn auger on shaft while
applying grease at zerk fittings. Replace shear
bolts.
Auger Gearcase
Filler Plug
OS1871
Figure 5
OS1843
Grease
Oil
Figure 6
GB - 18
ATTACHMENT DRIVE BELT
REPLACEMENT
Remove old attachment drive belt:
1. Shut off engine, remove key, disconnect
spark plug wire and allow unit to cool
completely.
2. Remove belt cover (Figure 4a, 4b).
3. If equipped with chute crank, remove
spring clip from chute crank and remove
chute crank.
4. Remove hardware securing chute
support bracket (and chute crank support,
if equipped). Remove discharge chute
(Figure 4a, 4b).
5. Remove attachment drive belt from
engine sheave (it may be necessary to
turn engine sheave using recoil starter
handle) (Figure 7).
6. Support Sno-Thro frame and housing.

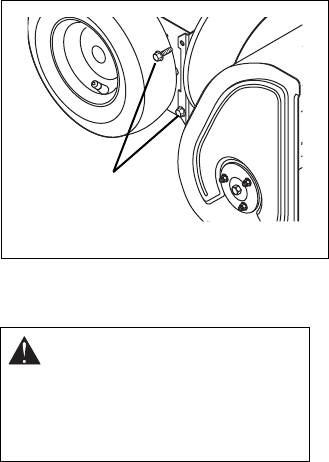

7. Loosen bottom cap screws securing
auger/impeller housing to frame
(Figure 8).
8. Remove top cap screws.
9. Push down on handlebar. Unit will
separate. Rest handlebar on the floor.
10. Remove belt from attachment pulley (hold
brake away from belt).
Install new attachment drive belt:
1. Place new attachment belt onto
attachment pulley.
2. Engage clutch bail to hold brake out of the
way and tip unit back together. Secure
with cap screws.
3. Place belt onto engine sheave.
4. Make sure engine sheave and attachment
pulley align. If alignment is necessary,
loosen attachment pulley set screws,
reposition pulley and tighten set screws.
5. Reposition and secure belt fingers.
IMPORTANT: Make sure belt fingers are
1/16 in to 1/8 in (1.6-3 mm) from belt when
attachment clutch is engaged.
6. Check clutch adjustment. See Attachment
Clutch/Brake.
7. Replace discharge chute (and crank, if
equipped).
8. Replace belt cover.
SERVICE AND ADJUSTMENTS
WARNING: AVOID INJURY. Read
and understand Maintenance and
Service/Fuel Safety Rules before
proceeding.
CAUTION: Always support Sno-Thro
frame and blower housing when
loosening the cap screws holding
them together. Never loosen cap
screws while unit is in service
position.
WARNING: AUGER / IMPELLER
MUST STOP within 3 seconds when
attachment clutch lever is released or
unit damage or serious injury may
result.

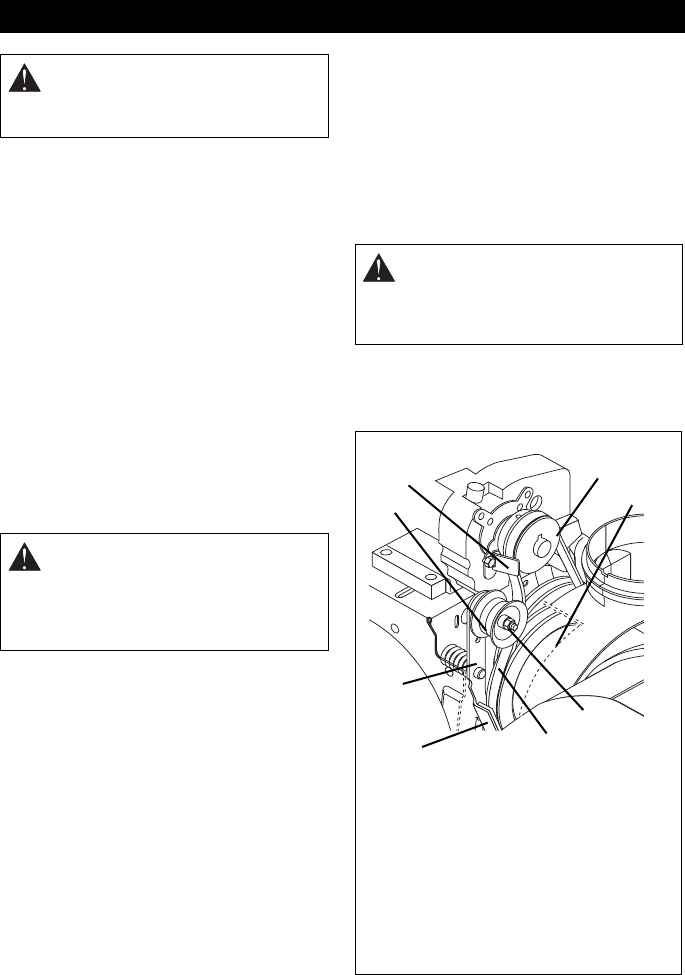

1. Engine Sheave
2. Attachment Pulley
3. Idler Adjustment Nut
4. Attachment Belt
5. Brake Shoe
6. Attachment Brake
7. Idler Pulley
8. Belt Finger
OS1820
1
2
3
4
5
7
6
Figure 7
8
GB - 19

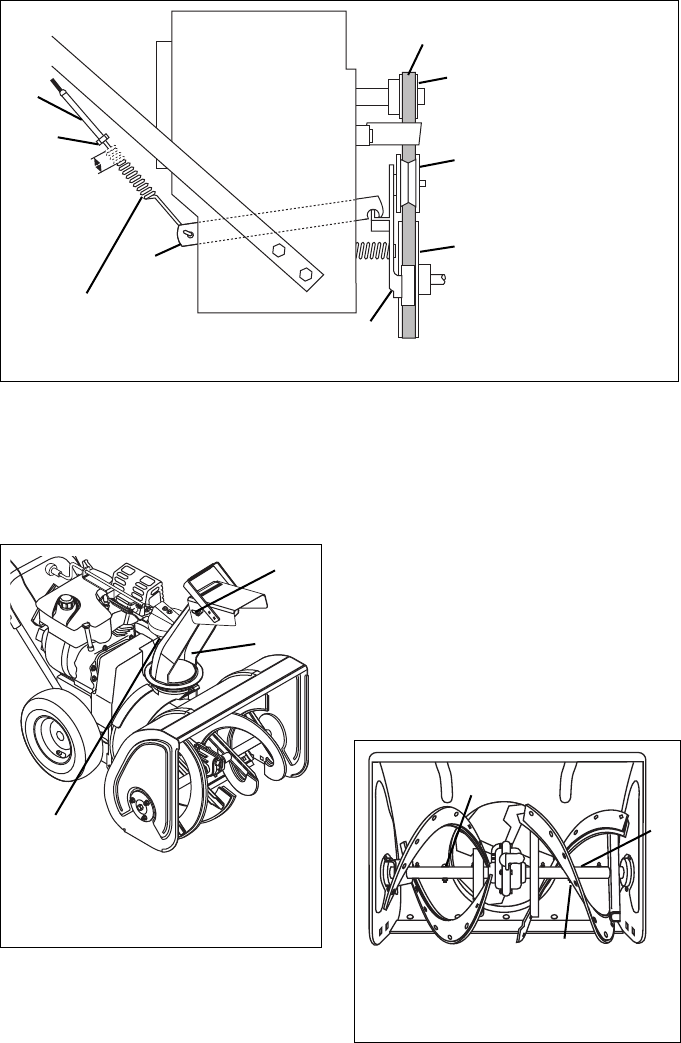

ATTACHMENT CLUTCH / BRAKE
ADJUSTMENT
1. Remove belt cover.
2. Check belt alignment (Figure 9).
Engine sheave and attachment pulley
must align vertically. Also, belt must be
centered in the idler pulley.
To move pulley or sheave:
a.Loosen set screw.
b.Slide pulley/sheave and key to desired
position.
c.Tighten set screw.
3. Adjust cable slack.
IMPORTANT: The clutch cable must be slack
when the bail is disengaged.
a.With clutch bail disengaged, loosen
jam nut on cable adjuster.
b.Lift spring arm, but do not move idler
arm.
c.Turn adjuster body to remove all slack
from the cable. Do not stretch spring
or move idler arm.
d.Release spring arm and turn back the
adjuster body 5 turns (approximately
1/4 in or 6 mm). Finger tighten jam nut.
e.Hold adjuster body with pliers and
tighten jam nut with wrench.
4. Check spring length.
a.Measure the length of the clutch cable
spring.
b.Engage and hold the attachment
clutch bail.
c.Measure the length of the spring
again. The spring should be
1/8-3/16 in (3-5 mm) longer when the
bail is engaged.
5. Adjust spring length.
a.Loosen the idler adjustment nut.
b.To increase spring extension, move
idler towards belt (Figure 7).
c.To decrease spring extension, move
idler away from belt.
d.Tighten idler adjustment nut.
6. Check brake.
When the clutch bail is disengaged, the
brake must contact attachment belt.
When the clutch bail is engaged, the
brake must be more than 1/16 in (1.6 mm)
away from the belt.
7. Repeat steps 4 – 6 until:
Spring stretch and brake contact are
correct.
IMPORTANT: If attachment clutch/brake
cannot be adjusted within tolerances, see your
Dealer for repairs.
8. Check belt finger clearance.
With clutch bail engaged, belt fingers
should be 1/16 – 1/8 in (1.6–3 mm) from
belt. Adjust belt fingers as necessary.
9. Replace belt cover.
10. Check that auger/impeller stops within
3 seconds after attachment clutch/
impeller brake bail is released.
WARNING: IMPROPER
ADJUSTMENT could result in
unexpected movement of auger
and impeller causing death or
serious injury. Auger/impeller must
stop within 3 seconds when
attachment clutch bail is released.
Cap Screws
OS1881
Figure 8
GB - 20
DISCHARGE CHUTE
If Chute does not stay in position while
operating, tighten nut on carriage bolt at pivot
point to increase tension on spring (Figure 10).
If the deflector cap does not remain set in
position tighten nut on right side of cap until
proper drag is obtained.
SHEAR BOLTS
IMPORTANT: Use only Ariens shear bolts for
replacement. Use of any other type of shear
bolt may result in severe damage to unit.
Occasionally a foreign object may enter the
auger/impeller housing and jam the auger,
breaking shear bolts (Figure 11) which secure
the auger to the shaft. This allows auger to
turn freely on the shaft preventing damage to
gear drive.
For Replacement:
1. Slide auger outward and align hole in
shaft with hole in auger.
2. Drive shear bolt through hole (if shear bolt
was broken this will drive remaining part
from shaft).
3. Secure shear bolt with nut.
1. Cable Adjuster Body
2. Jam Nut
3. Clutch Cable Spring
4. Spring Arm
5. Idler Arm
6. Attachment Pulley
7. Idler
8. Engine Sheave
9. Attachment Belt
1
2
3
4
OS2201
Figure 9
7
5
8
6
9
1/8–3/16 in
(3–5 mm)
1
2
3
1. Discharge Chute
2. Carriage Bolt, Nut, Spring
3. Deflector & Hardware
OS1851
Figure 10
1
2
1. Auger Shaft
2. Shear Bolts
OS0402
2
Figure 11
GB - 21
AUGER EDGE REPLACEMENT
Over time the rubber edges of the auger will
wear. Contact your Ariens Dealer for
replacement.
IMPORTANT: Replace rubber edges before
metal auger begins to wear.
NOTE: After replacement of auger rubber
edges, adjust scraper blade. See Scraper
Blade Adjustment below.
SCRAPER BLADE ADJUSTMENT
IMPORTANT: Damage to auger/impeller
housing will result if blade wears down too far.
Scraper blade is adjustable to compensate for
wear.
To adjust scraper blade:
1. Tip unit back onto handlebar, support
housing and loosen nuts retaining blade.
2. If unit does not scrape cleanly, move
scraper blade forward. If unit does not
drive forward and scraper blade drags,
move scraper blade to the rear.
Tighten hardware and test unit. Repeat
adjustment as required until proper operation
is obtained.
SHORT TERM
IMPORTANT: NEVER spray unit with high
pressure water or store unit outdoors.
Run with attachment clutch engaged a few
minutes after each use to free unit of any
loose or melting snow.
Inspect unit for visible signs of wear, breakage
or damage.
Keep all nuts, bolts and screws properly
tightened and know unit is in safe working
condition.
Store unit in a cool, dry protected area.
LONG TERM
Clean unit thoroughly with mild soap and low
pressure water and lubricate (see
Maintenance). Touch up all scratched painted
surfaces.
Remove weight from wheels by putting blocks
under frame or axle.
When storing unit for extended periods of time,
remove all fuel from tank and carburetor (run
dry). Refer to Engine Manual.
STORAGE
WARNING: AVOID INJURY. Read
and understand Storage Safety Rules
in Safety section before proceeding.
TROUBLESHOOTING
PROBLEM PROBABLE CAUSE CORRECTION
Engine will not
crank/start. 1. Fuel tank is empty.
2. Build up of dirt and residue
around governor/carburetor.
3. Key Switch not in run
position.
4. Electric starter not
functioning.
5. Engine ignition problems.
1. Fill fuel tank.
2. Clean area around governor/
carburetor.
3. Put Key Switch into run
position.
4. Check for a bad starter or
connections.
5. See Engine Manual.
GB - 22
To obtain a complete parts manual, find your
model and serial number. Then go to
www.ariens.com or call 1-800-678-5443.
Engine stops. 1. Out of fuel.
2. Mechanical jam in blower
rake or impeller.
3. Polluted fuel supply.
4. Faulty spark plug.
1. Fill fuel tank.
2. Turn off engine, remove key,
and wait for all moving parts
to stop. Check for and
remove obstruction and
repair before restart.
3. Replace with clean fuel.
4. Replace or clean spark plug.
Engine problems. See Engine Manual.
Unit does not
throw snow
1. Shear bolts broken.
2. Attachment clutch/brake
not adjusted properly.
3. Attachment drive belt worn
or damaged.
1. Replace shear bolts (see
Shear Bolts).
2. Adjust attachment clutch/
brake (see Attachment
Clutch / Brake Adjustment).
3. Replace attachment drive
belt (see Attachment Drive
Belt Replacement ).
TROUBLESHOOTING
PROBLEM PROBABLE CAUSE CORRECTION
ACCESSORIES
See your authorized Ariens dealer to add
the additional accessories available for your
Sno-Thro.
Part No. Description
73203100 Slicer Bar
72200600 120 Volt Starter Kit
(932102)
73202500 240 Volt Starter Kit
(932310)
SERVICE PARTS
Be sure to always use genuine Ariens parts
to keep your Sno-Thro running like new.
Part No. Description
53200500 Shear Bolt Replacement Kit
03243659 Scraper Blade (932102)
03243259 Scraper Blade (932103, 310)
07211400 Impeller Belt
21533400 Spark Plug (932102)
21533500 Spark Plug (932103, 310)
GB - 23
SPECIFICATIONS
Model Number 932102 932103 932310
Description 520 624 624
Engine - Tecumseh HSSK50-
67409T OHSK60-
71505D OHSK60-
71504D
Power Max - HP (Kw/min-1)5 (3.73) 6 (4.47)
Fast Idle Speed - RPM (min-1)3600±150
Displacement - in (cc) 11.88 (195)
Electric Start Optional 120V 120V Optional 240V
Fuel See Engine Manual
Tank Capacity - qt (Liters) 2.0 (1.9) 3.5 (3.3)
Snow Clearing Width - in (cm) 20 (50.8) 24 (61.0)
Snow Throwing Distance - ft. (m) 3-35 (.9-10.6)
Chute - Rotation Angle 220˚
Impeller Speed - Max RPM (min-1)1240
Auger
Diameter - in (cm) 11 (27.9)
Speed - Max RPM (min-1)124
Auger Clutch and Brake Yes
Tires - in (cm) 12 (30.5)
Size and Weight
Length - in (cm) 49 (124.5)
Height - in (cm) 38 (96.5)
Width - in (cm) 20.5 (52.1) 24.3 (61.7)
Weight - lbs (Kg) 110 (49.9) 129 (58.5) 124 (56.2)
CE Sound and Vibration
Oper. Ear Sound Pressure (Lpa) in dBAN/A 89
Vibration Measure @ Operator Hands
m/sec2
XN/A 2.4
YN/A 9.2
ZN/A 2.9
GB - 24
3 Year Limited Sno-Thro Warranty
Ariens Company warrants to the original purchaser that consumer products manufactured
by Ariens Company will be free from defects in material and workmanship for a period
of three (3) years after the date of purchase, and will repair any defect in material or
workmanship, and repair or replace any defective part, subject to the conditions, limitations
and exclusions set forth herein.
The three year duration of this warranty applies only if the product is put to ordinary,
reasonable, and usual personal, family, or household uses. If the product is put to any
business, commercial, or industrial use, then the duration of this warranty is ninety (90)
days after the date of purchase, or one (1) year after the date of purchase if the product
is labeled as a Professional/Commercial Product. If any product is rented or leased,
then the duration of this warranty is ninety (90) days after the date of purchase.
Genuine Ariens service parts and accessories not purchased with the product covered
by this warranty, but which are later purchased and used with that product, are warranted
to be free from defects in material and workmanship for a period of ninety (90) days
after date of purchase, and Ariens Company will repair or replace any such part or
accessory free of charge, except for labor, during that period.
Ariens Company
655 West Ryan Street
P.O. Box 157
Brillion, WI 54110-0157
920-756-2141
Fax 920-756-2407
www.ariens.com
This warranty is subject to the following conditions, limitations, and exclusions:
This warranty is valid only if the following conditions are
met:
•The warranty registration card must be completed and
returned to Ariens Company.
•The purchaser must perform maintenance and minor
adjustments explained in the owner’s manual.
• The purchaser must promptly notify Ariens Company or an
authorized Ariens service representative of the need for
warranty service.
The following items are not covered by this warranty:
•Engines and engine accessories are covered only by the
warranty made by the engine manufacturer, and are not
covered by this warranty.
• Parts that are not genuine Ariens service parts are not
covered by this warranty.
• Shoes, runners, scraper blades, shear bolts, headlights, light
bulbs, are not covered by this warranty.
• Any defect which is the result of misuse, alteration, improper
assembly, improper adjustment, neglect, or accident, is not
covered by this warranty.
• Products which were not purchased in the United States,
Puerto Rico, or Canada are not covered by this warranty. In
all other countries, contact place of purchase.
This warranty is subject to the following limitations:
•The purchaser must transport the product to and from the
place of warranty service.
• Warranty service must be performed by an authorized Ariens
service representative. (To find an authorized Ariens service
representative, contact Ariens Company at the number or
address above.)
• Batteries are warranted only for a period of twelve (12)
months after date of purchase, on a prorated basis. For the
first ninety (90) days of the warranty period, a defective
battery will be replaced free of charge. If the applicable
warranty period is more than 90 days, Ariens Company will
cover the prorated cost of any defective battery, for up to
twelve (12) months after the date of purchase.
•Normal maintenance items including, but not limited to, belts,
idlers, cables, friction wheels, tires, wheels, electrical
components are warranted for a two year period from the
date of purchase unless a shorter period would apply based
on how the product is used, then the shorter period will
apply.
Form: ALW3-042301
DISCLAIMER OF FURTHER WARRANTY
Ariens Company makes no warranty, express
or implied, other than what is expressly made
in this warranty. If the law of your state provides
that an implied warranty of merchantability, or
an implied warranty of fitness for particular
purpose, or any other implied warranty, applies
to Ariens Company, then any such implied
warranty is limited to the duration of this
warranty. Some states do not allow limitations
on how long an implied warranty lasts, so the
above limitation may not apply to you.
LIMITATION OF REMEDY AND DAMAGES
Ariens Company’s liability under this warranty, and under any
implied warranty that may exist, is limited to repair of any
defect in workmanship, and repair or replacement of any
defective part. Ariens Company shall not be liable for incidental,
special, or consequential damages (including lost profits).
Some states do not allow the exclusion of incidental or
consequential damages, so the above limitation or exclusion
may not apply to you.
This warranty gives you specific legal rights,
and you may also have other rights which vary
from state to state.
GB - 25
DURA-CLEAN™ Auger
Limited Lifetime Warranty
Ariens Company hereby warrants to the original purchaser that the rubber components
of the DURA-CLEAN™ Auger manufactured by Ariens Company will be free from
defects in material and workmanship and will not wear out for the life of the sno-
thro, except as noted below.
Protection Plan
Ariens Company will provide for the replacement of any of the rubber components
of the DURA-CLEAN™ Auger found upon examination by the Ariens Company to
be defective or worn out. Replacements will be supplied free of charge. Labor is not
included after two (2) years from the date of purchase of the sno-thro.
Ariens Company
655 West Ryan Street
P.O. Box 157
Brillion, WI 54110-0157
920-756-2141
Fax 920-756-2407
LIMITATION OF REMEDY AND DAMAGES
Ariens Company’s liability under this express warranty, and
under any implied warranty that may exist, is limited to repair
or replacement of any defective part. In no event shall Ariens
Company be liable for incidental, special, or consequential
damages (including lost profits). This warranty gives you
specific legal rights. You may also have other rights which
vary from state to state. Some states do not allow the
exclusion of incidental or consequential damages, or
limitations on how long an implied warranty lasts, so the
above limitations and exclusions may not apply to you.
DISCLAIMER OF FURTHER WARRANTY
Ariens Company makes no warranty other than
what is expressly made in this warranty. If the law
of your state provides that an implied warranty of
merchantability, or an implied warranty of fitness
for a particular purpose, applies to Ariens Company,
any such implied warranty is limited to the duration
of this express warranty.
This warranty is subject to the following exceptions, conditions, and limitations:
Usage Requirement
The lifetime limited warranty shall apply if the product is put
to ordinary, reasonable, and usual personal household use.
If the product is put to any business, commercial, industrial,
rental, or leased use, the warranty shall be against defects
in material and workmanship for ninety (90) days following
the date of purchase.
Exclusions (No Warranty)
There will be no warranty coverage if the product has been
altered, misused, mis-assembled, improperly adjusted,
neglected, damaged by accident, or if service is completed
by someone other than an authorized Ariens dealer.
This warranty applies only to products purchased in the
United States (including Puerto Rico) and Canada. In all
other countries, contact place of purchase.
Ariens Company may from time to time change the design of its products. Nothing contained in this warranty shall be
construed as obligating Ariens Company to incorporate such design changes into previously manufactured products, nor
shall such changes be construed as an admission that previous designs were defective.
Form: DC-042400
Ariens Company
655 West Ryan Street
P.O. Box 157
Brillion, WI 54110-0157
920-756-2141
Fax 920-756-2407
www.ariens.com

Navigation menu
