Parts Manual

Models

932105 - ST8526LE

932506 - ST8526LE

00295800A 9/04

Printed in USA

Sno-Thro®

2

THE MANUAL

Before you operate your unit, carefully and completely

read manuals supplied with the unit. The contents will

provide you with an understanding of safety instructions

and controls during normal operation and maintenance.

For your safety and the safety of others always read,

understand, and follow all DANGER, WARNING, and

CAUTION messages found in manuals and on safety

decals.

Hardware descriptions are given in decimals.

SERVICE AND REPLACEMENT PARTS

When ordering replacement parts or making service

inquiries, know the Model and Serial numbers of your

unit and engine.

Numbers are located on the product registration card in

the unit literature package. They are printed on a serial

number label, located on the frame of your unit.

• Record Unit Model and Serial numbers here:

• Record Engine Model and Serial numbers here:

UNAUTHORIZED REPLACEMENT PARTS

Use only Ariens replacement parts. The replacement of

any part on this vehicle with anything other than an

Ariens authorized replacement part may adversely affect

the performance, durability, or safety of this unit and may

void the warranty. Ariens disclaims liability for any claims

or damages, whether warranty, property damage,

personal injury or death arising out of the use of

unauthorized replacement parts.

Decimals to Fractions

.063 1/16 .563 9/16

.125 1/8 .625 5/8

.188 3/16 .688 11/16

.250 1/4 .750 3/4

.313 5/16 .813 13/16

.375 3/8 .875 7/8

.438 7/16 .938 15/16

.500 1/2 1.00 1

PRODUCT REGISTRATION

The Ariens dealer must register the product at the time of

purchase. Registering the product will help the company

process warranty claims or contact you with the latest

service information. All claims meeting requirements

during the limited warranty period will be honored,

whether or not the product registration card is returned.

Keep a proof of purchase if you do not register your unit.

Customer Note: If Dealer does not register your product,

please fill out, sign and return the product registration

card to Ariens or go to www.ariens.com.

YOUR SATISFACTION IS IMPORTANT

Questions? Please follow these helpful steps:

1. Refer to the manuals supplied with your unit.

They will guide you through safe and proper

operation and maintenance.

They contain specifications on your unit.

If your questions are not answered in these manuals,

go to step number two.

2. Contact Your Dealer.

Our dealers will be happy to supply any service or

advice required to keep your unit operating at peak

efficiency.

A factory trained staff is available to support your

equipment needs. They stock genuine Ariens parts

and lubricants manufactured with the same precision

and skill as the original.

If your questions are not resolved by the support

staff, ask for the manager or owner.

When contacting your Dealer supply your model and

serial numbers.

TO SPEED PARTS ORDERING:

1. Know the model and serial numbers of your unit.

2. Know the part number required.

3. Know the quantity required.

4. Know the part description.

3

MODELS

Domestic

Model 932105 (8526)

8.5 H.P. 26” Sno-Thro

Serial No. 000101 and up

Global

Model 932506 (8526)

8.5 H.P. 26” Sno-Thro

Serial No. 000101 and up

TABLE OF CONTENTS

DECALS

Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

ENGINE AND DRIVE

Engine and Belt Drive . . . . . . . . . . . . . . . . . . . . . . . . 4

Friction Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

FRAME AND HOUSING

Handlebar and Controls . . . . . . . . . . . . . . . . . . . . . . . 8

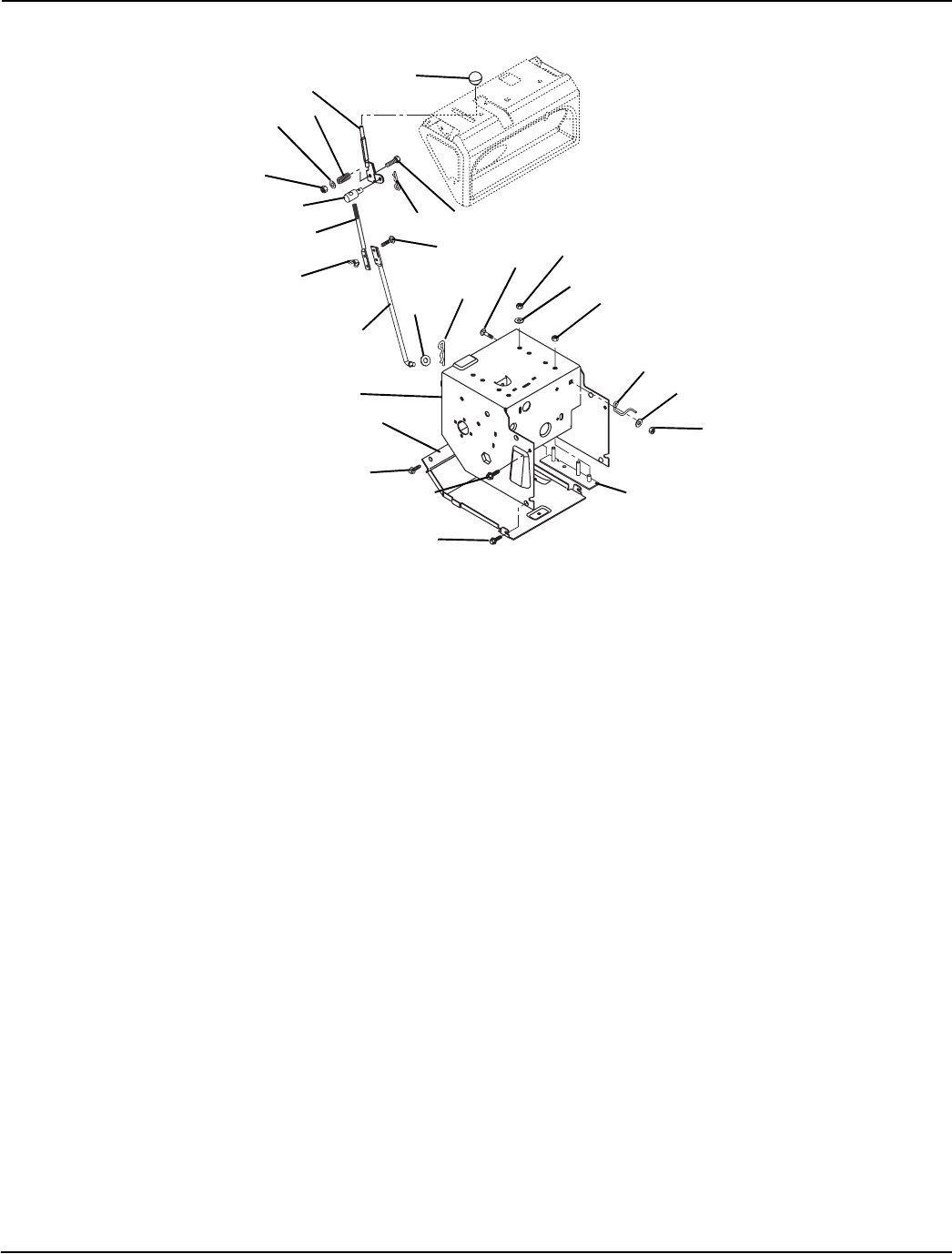

Speed Selector and Frame . . . . . . . . . . . . . . . . . . . 10

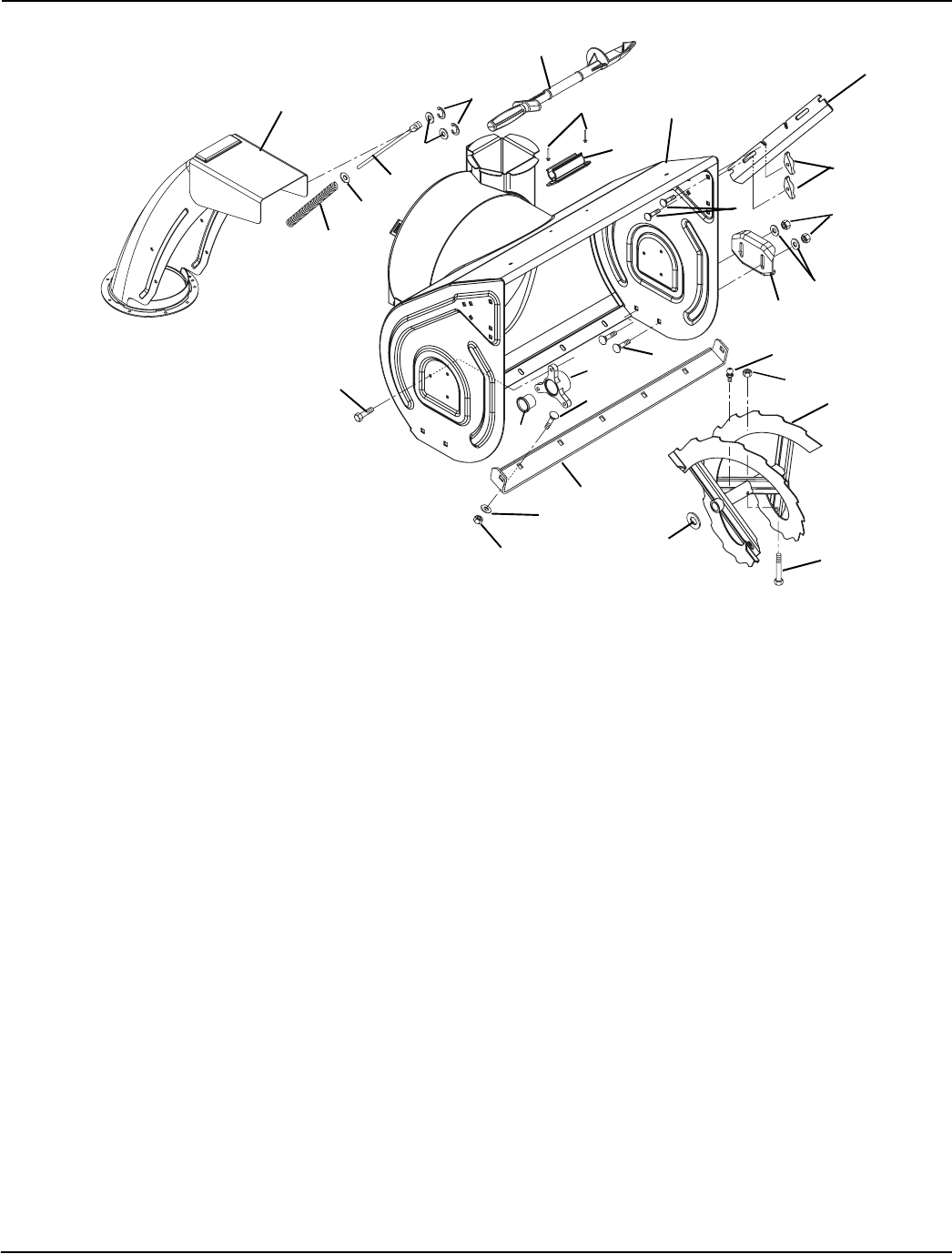

Auger and Chute . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

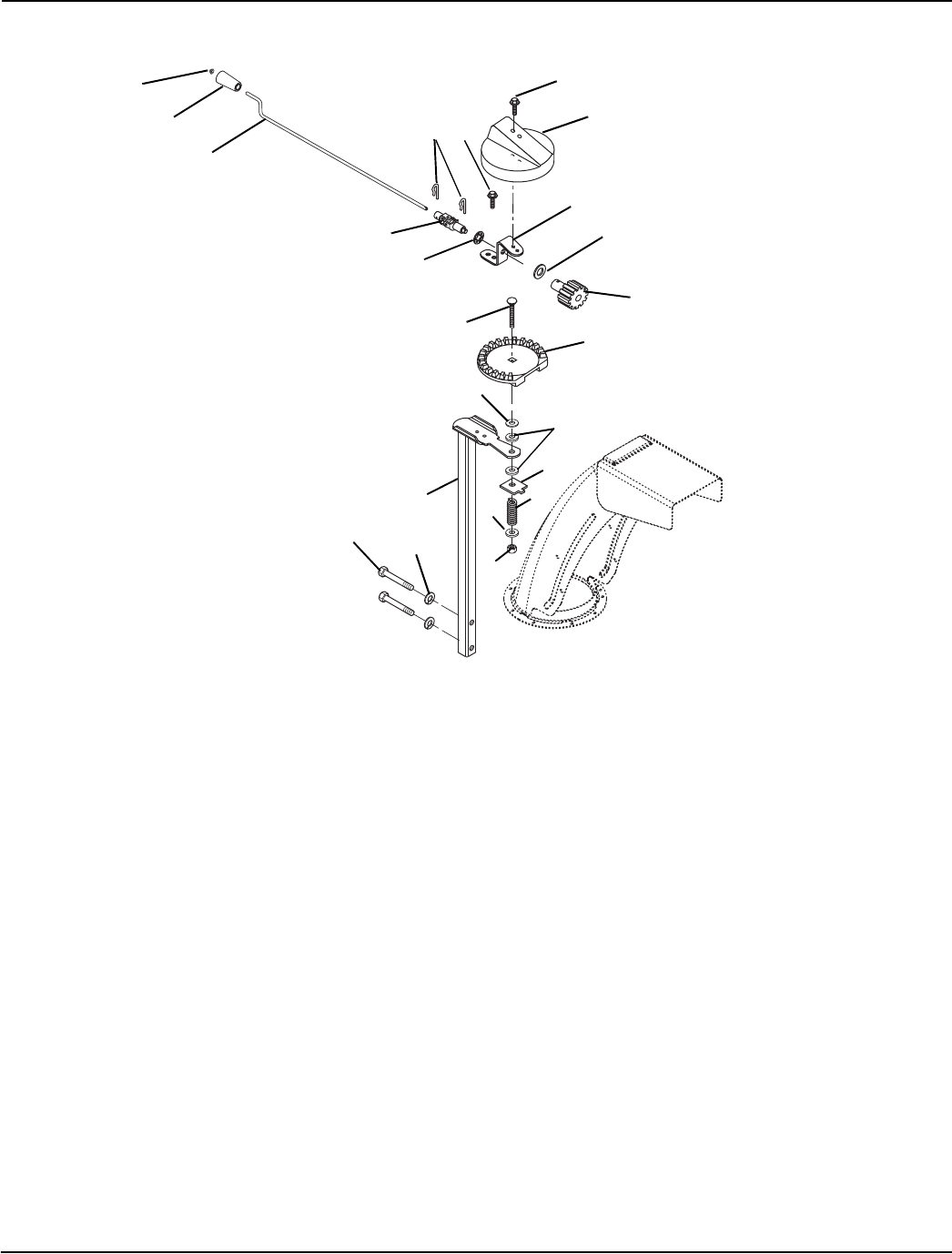

Discharge Chute Crank . . . . . . . . . . . . . . . . . . . . . . 12

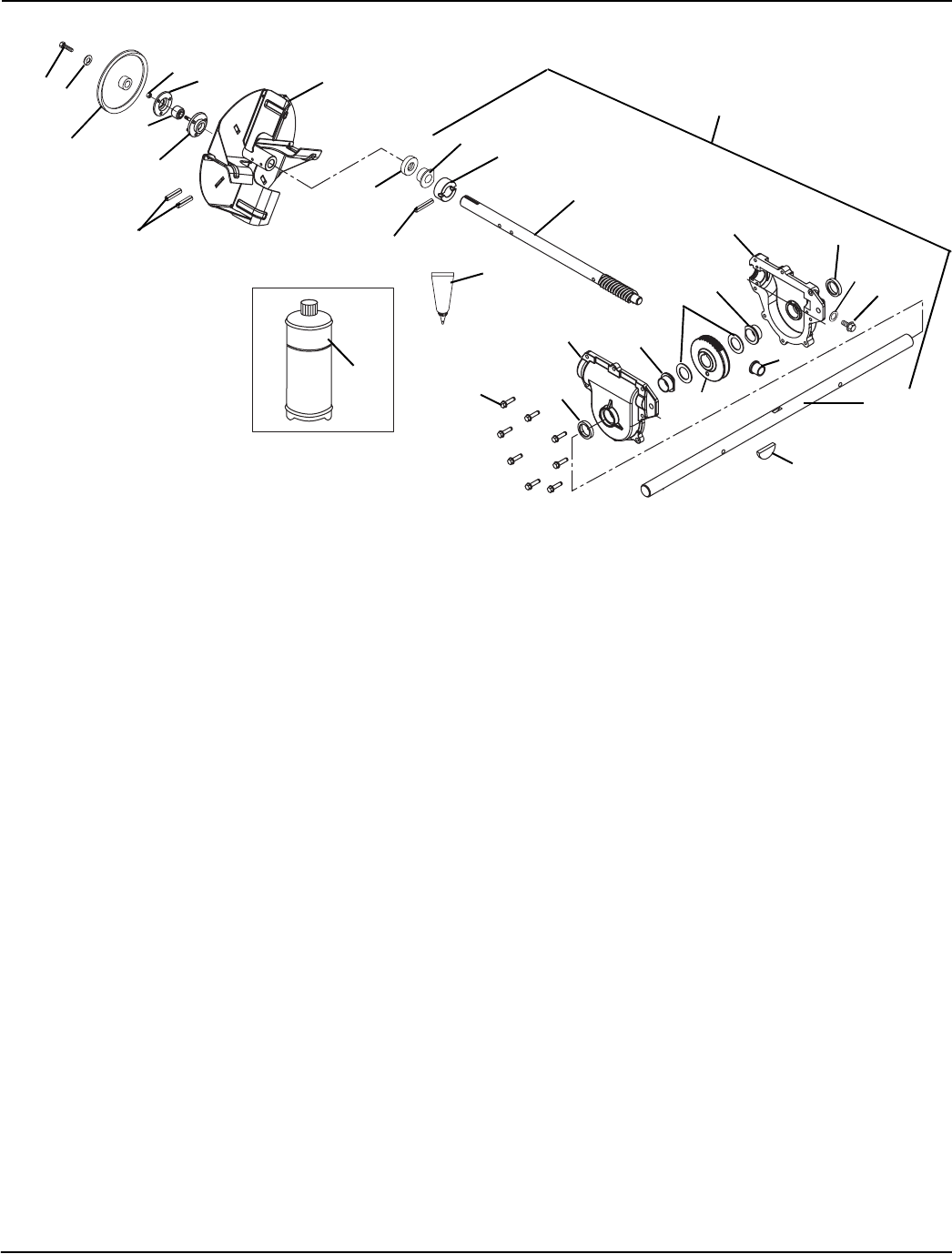

Gearcase and Impeller. . . . . . . . . . . . . . . . . . . . . . . 13

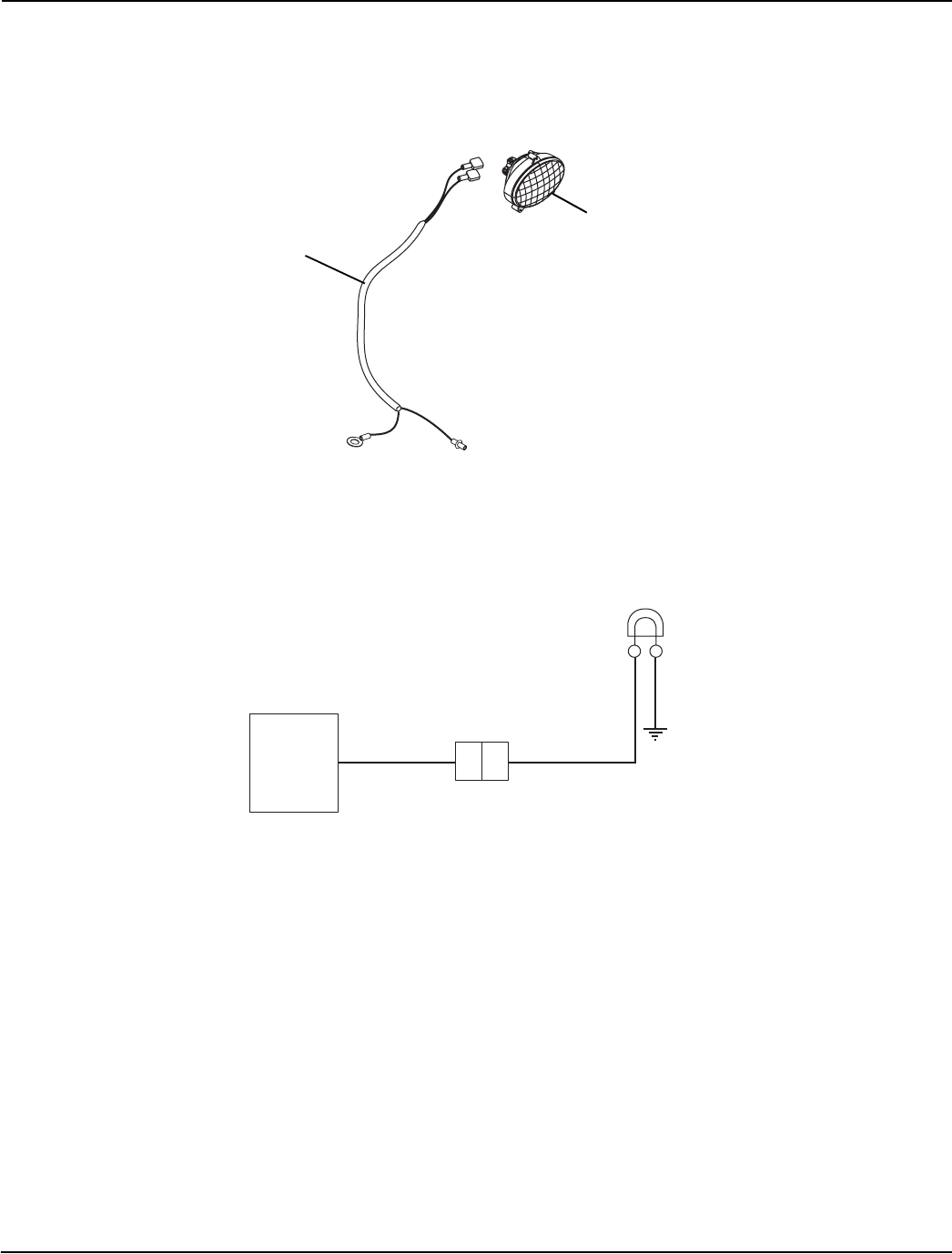

Electrical and Wiring Diagram . . . . . . . . . . . . . . . . . 14

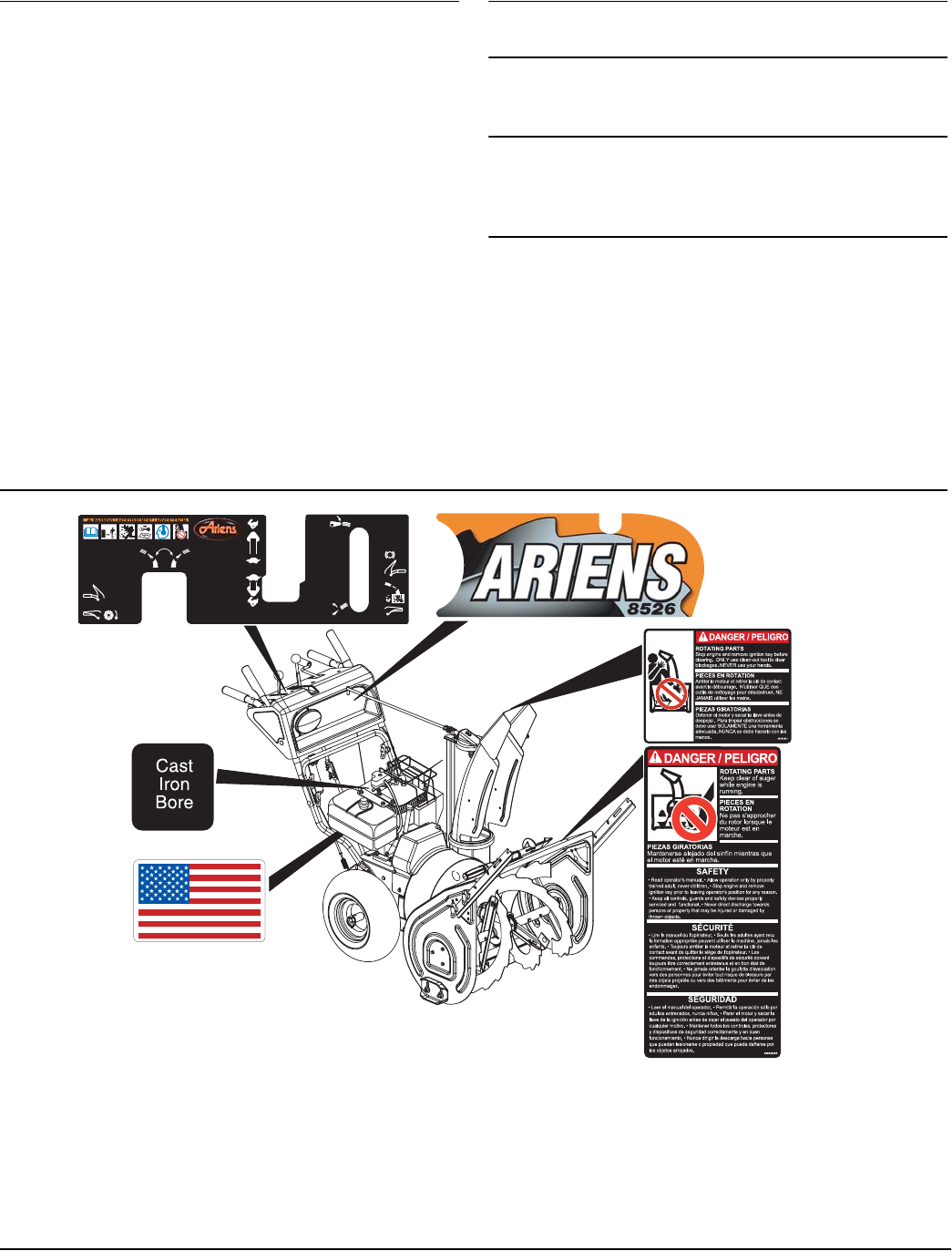

DECALS

Item Part No. Qty. Description

1 08000006 1 Decal, Control Panel ST8526

2 08000005 1 Decal, Front Panel ST8526

3 05305100 1 Decal, American Flag

4 08093901 1 Decal, Danger- Rotating Parts

5 08094000 1 Decal, Danger

6 07797600 1 Decal, Cast Iron Bore

08000006

PS0307

1

3

4

5

2

6

4

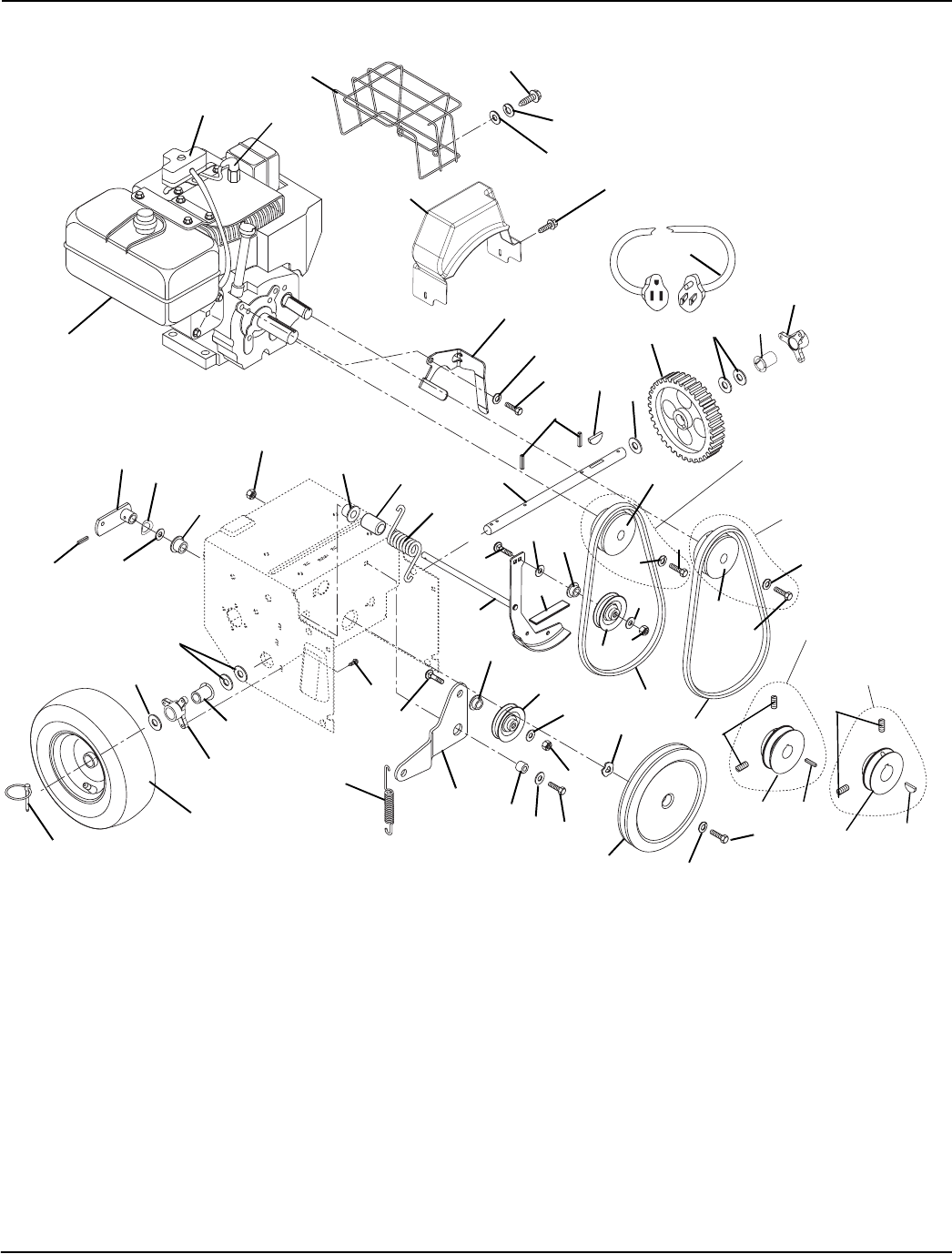

ENGINE AND BELT DRIVE

Model 932105, 506

Item Part No. Qty. Description

1 07100024 2 Wheel 5.00 x 6.00

07155900 2 Tire 15 x 5.00-6

07100016 2 Tire/Wheel Assembly15 x 5.00-6

07156400 2 Tube 15 x 5.00-6

2 00272300 1 Pulley, 3L w/hub, .625 x 6.5"

3 08200021 1 Engine, 8.5HP Tecumseh LH318SA 120V (105 SN 3810 and up)

08260004 1 Engine, 8.5HP Tecumseh LH 120V (105 SN 101-3809)

08200020 1 Engine, 8.5HP Tecumseh LH318SA (506 SN 101 and up)

4 05947000 1 Bolt, Hex .31-18 x .75 Grade 5

5 06435700 1 Washer, Flat Steel .38 x .88 x .083

6 01035800 1 Spacer Bushing

PS0256

1

2

3

11 12

42

8

9

10 13

23

20

17

28

16

40

17

18

16

35

40

31

25

22

27

14 7654

24

22

21

27

38

39

19

27

26

25

48

51

15

30

32

29

44 45

46

37

43

36

47

48

50 49

41

56

40

53 52

55

54

54

57

34

33

(105 SN 5232 and up,

506 SN 333 and up)

58

58

59

35 60

31

(105 SN 101-523

1,

506 SN 101-332

)

(105 SN 3810 and u

p,

506 SN 101 and up

)

(105 SN 101-380

9)

5

ENGINE AND BELT DRIVE

Model 932105, 506

Item Part No. Qty. Description

7 03206900 1 Idler Arm

8 00291851 1 Belt Finger

9 06307400 1 Washer, Locking .312 x .097

10 05947300 1 Bolt, Hex .31-24 x .75 Grade 5

11 00274700 1 Belt Cover

12 07411600 2 Screw, Tapping Hex Washer Head .25-20 x .37

13 06601200 1 Key, Woodruff .25 x .75 x .313 SAE 91

14 08317200 1 Spring, Tension .047 x .44 x 3.37

15 00295700 1 Shaft, Axle

16 00275200 2 Bushing, Rake Shaft .75

17 05502100 2 Bushing, Flange .500 x .625 x .500 x .750

18 08300007 1 Spring, Torsion

19 53213400 1 Brake Arm w/Pad (Includes item 29)

20 02485551 1 Lever, Clutch

21 06219200 1 Bolt, Round Head Square Neck .31-18 x 1.25 Grade 5

22 06435700 2 Washer, Flat Steel .38 x .88 x .083

23 05802600 1 Pin, Roll .16 x .88

24 01213100 1 Bearing Spacer

25 02457400 2 Idler

26 06435700 1 Washer, Flat Steel .38 x .88 x .083

27 06529800 3 Nut, Locking Center .31-18

28 07053700 2 Pin, Lock .31 x 1.75

29 00295600 1 Brake Pad

30 07200007 1 V-Belt, 4L x 12.435CD

31 00278900 1 Sheave, Engine (105 SN 5232 and up, 506 SN 333 and up)

00349200 1 Sheave, Engine w/Keyway (105 SN 101-5231, 506 SN 101-332)

32 01021100 1 Spur Gear

33 07228600 1 V-Belt 3L-Section 33.37 x .38 (Traction Drive)

34 21533400 AR Plug, Spark

35 00279300 1 Sheave, Camshaft (105 SN 3810 and up, 506 SN 101 and up)

03232700 1 Pulley, Camshaft (105 SN 101-3809)

36 06400007 1 Washer, Wave .69 x .84 x .011

37 06442700 2 Washer, Flat Steel .22 x .50 x .05 (506)

38 06221800 1 Round Head Square Short Neck .31-18 x 1.00 Grade 5

39 01305900 1 Shoulder Spacer

40 06441400 5 Washer, Flat Steel .75 x 1.13 x .062

41 05802900 2 Pin, Roll .156 x 1.00

42 02483100 1 Cord, Extension 120 V (105)

43 72403600 1 120 V Starter Kit

44 02460200 1 Guard, Muffler (506)

45 07413600 2 Screw, Tapping 10-16 x .75 (506)

46 06308100 2 Washer, Locking 10 x .05 (506)

47 05900011 1 Bolt, Hex .25-28 x 1.0 Precote 80

48 06308000 2 Washer, Locking .250 x .077

49 05900009 1 Bolt, Hex .38-24 x 1.0 Precote 80

50 06308800 1 Washing, Locking .38 x .094

51 05900010 1 Bolt, Hex .25-28 x .75 Precote 80

52 05500013 1 Bushing, Sleeve

53 06400005 1 Washer, Wave .50 x .75 x .015, .13 Free Height

54 05500014 2 Bushing, Flange Split Nyliner .75”HP

55 07400003 6 Screw, Tapping .25-20 x .50 w/Vibra-Tite

56 06444200 2 Washer, Flat .755 x 1.25 x .125

57 06439200 1 Washer, Flat Steel .505 x 1.00 x .062

58 06005500 2 Screw, Set .31-18 x .38 (105 SN 3810-5231, 506 SN 101-332)

06005500 4 Screw, Set .31-18 x .38 (105 SN 101-3809)

59 06601800 1 Key, Straight .25 x 1.75 x .25 (105 SN 101-5231, 506 SN 101-332)

60 06601500 1 Key, Woodruff .125 x .625 x .250 (105 SN 101-3809)

6

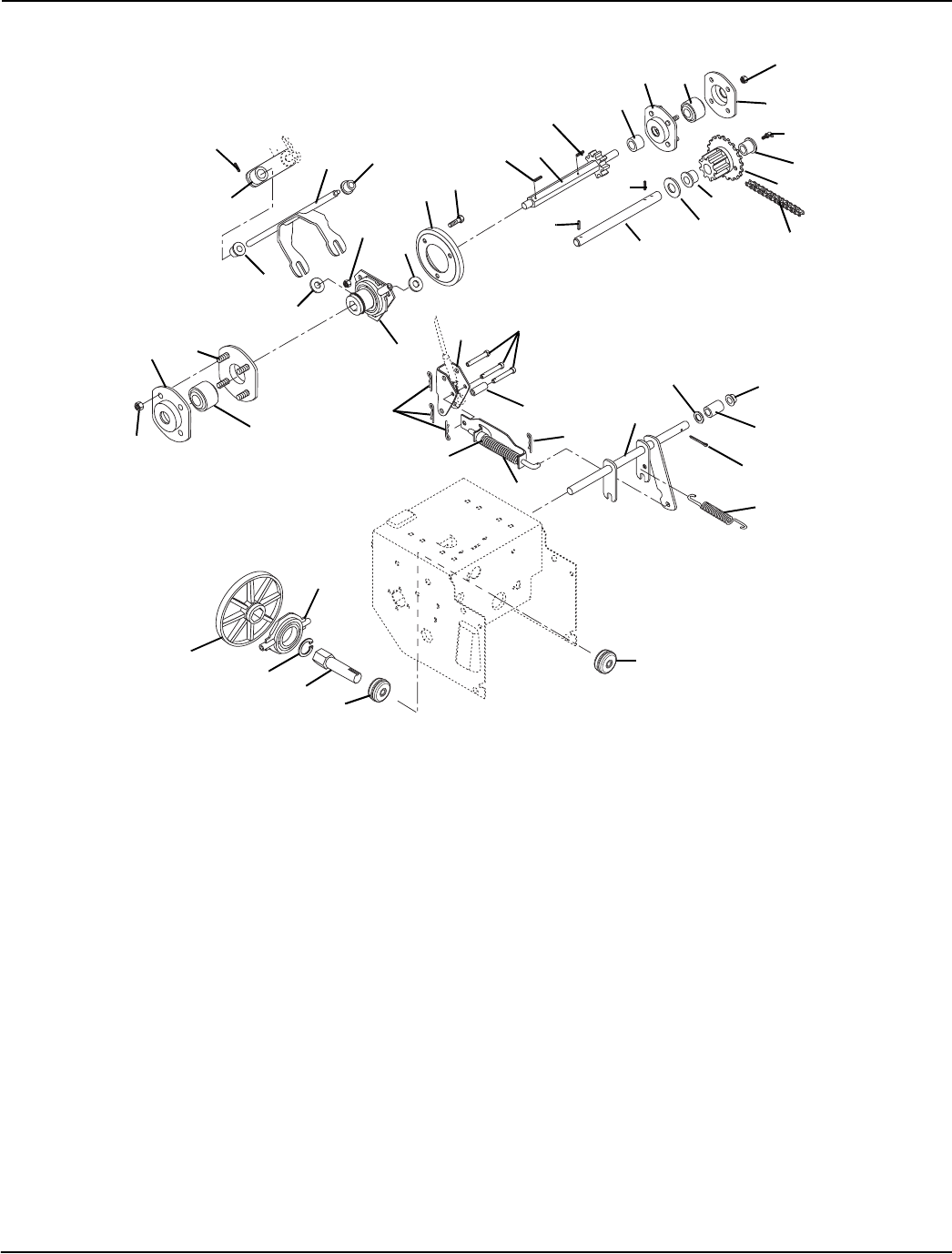

FRICTION DRIVE

Model 932105, 506

Item Part No. Qty. Description

1 03242100 1 Spacer, .325 x .625 x .455

2 05802600 1 Pin, Roll .16 x .88

3 03248500 1 Arm, Speed Change

4 05502100 1 Bushing, Flange .500 x .625 x .500 x .750

5 03231700 1 Fork, Speed

6 05514500 1 Bushing, Flange .33 x .44 x .44 x .56

7 06530600 8 Nut, Locking Dual Face 10-24

8 05502600 2 Bushing, Flange .63 x .75 x .50 x .88

9 05802900 1 Pin, Roll .16 x 1.00

10 06439200 2 Washer, Flat Steel .51 x 1.00 x .062

11 03235300 1 Shift Carrier

20

21

22 40

40

35

2

3

33

34

41

13

31

32

27

1

26

28 42

29

10

11

6

4

5

12 23

14

15 36

18

24

37

38

25

16

9

8

19

18

10

7

17

7

19

17

PS1050

8

15

39

30

43

7

FRICTION DRIVE

Model 932105, 506

Item Part No. Qty. Description

12 03248300 1 Disc, Friction

13 03248600 1 Chain, Roller #41 x 27 Pitches

14 03248400 1 Hex Shaft

15 05804700 2 Pin, Roll .125 x .88

16 05800900 1 Pin, Roll .13 x 1.00

17 00308500 2 Bearing, Flange

18 05435200 2 Bearing, Ball .437 x 1.375 x .437

19 03226900 2 Bearing, Flange

20 03201100 1 Friction Plate

21 03225900 1 Bearing Assembly

22 00291600 1 Spindle Shaft

23 05947900 3 Bolt, Hex .25-20 x .50 Grade 5

24 06529700 3 Nut, Locking Center .25-20

25 03232600 1 Pinion Shaft

26 03248000 1 Bracket, Traction Arm

27 06714700 3 Pin, Clevis .243/.248 x 1.38

28 06701900 3 Pin, Hair Internal .06 x .18 x .77

29 53209100 1 Assembly, Traction Clutch

30 03221100 1 Clutch Fork

31 03231500 1 Spacer .50 x .75 x .32

32 01208600 1 Cap .50 Rod

33 08314100 1 Spring, Tension .06 x .44 x 1.56

34 06707100 1 Pin, Cotter .12 x 1.0

35 05704300 1 Ring, Retaining External 1.25 x .05

36 03248700 1 Spacer,.45 x .62 x 1.23

37 53211000 1 Assembly, Pinion and Sprocket (Includes Item 8)

38 06436100 2 Washer, Flat Steel .63 x 1.01 x .062

39 03242100 1 Spacer .325 x .625 x .455

40 05400004 2 Bearing-Ball, .625 x 1.38 x .43 Snap Ring

41 06441900 1 Washer, Flat .531 x 1.06 x .095

42 06713500 1 Pin, Hair Internal .08 x .18 x 1.18

43 07029700 1 Drive Fitting, Hydraulic

8

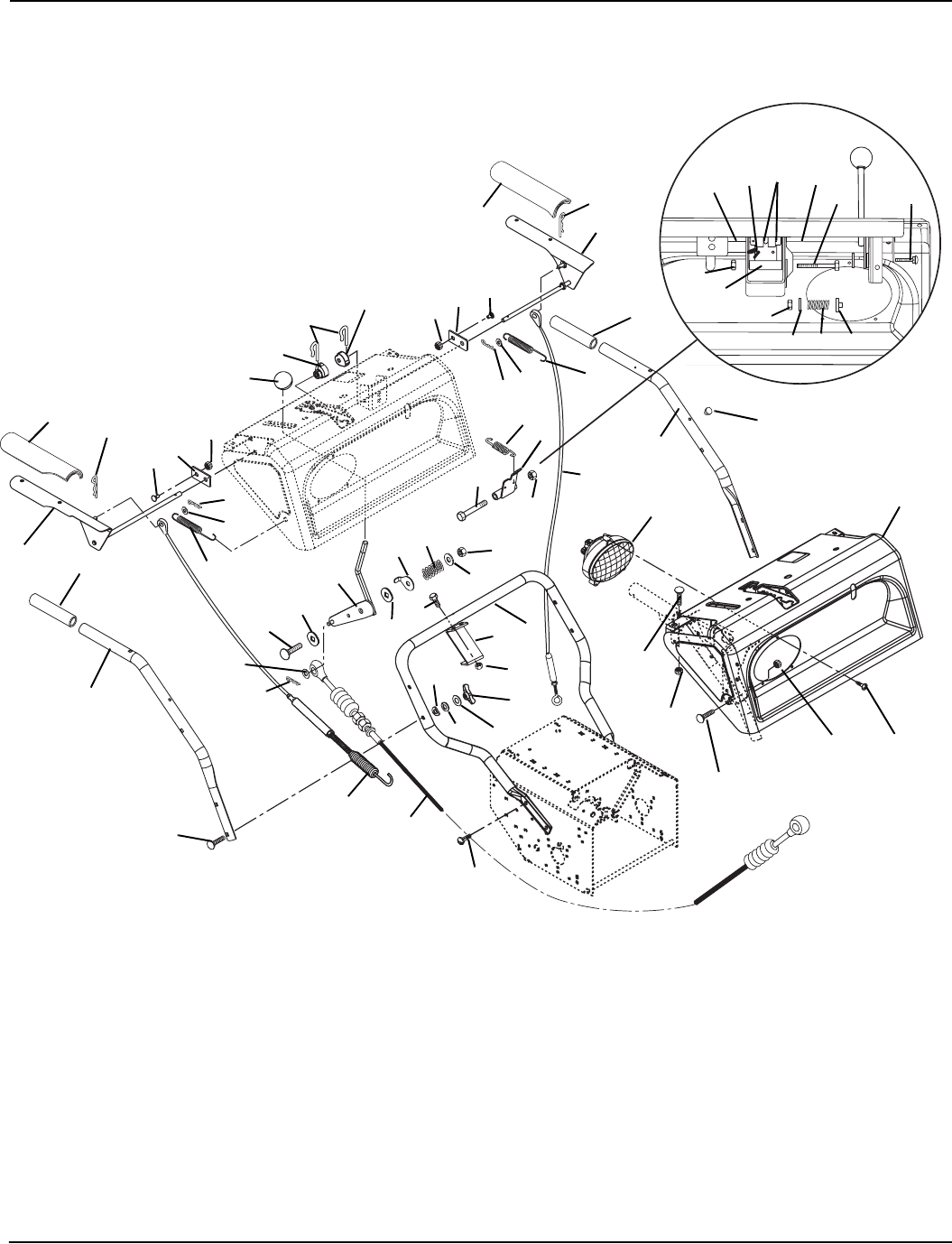

HANDLEBARS AND CONTROLS

Model 932105, 506

Item Part No. Qty. Description

1 07518700 2 Handle Grip

2 02491951 1 Handlebar, Upper-Right Hand

3 02492051 1 Handlebar, Upper-Left Hand

4 03242951 1 Handlebar, Lower

PS0692

1

3

2

4

6

5

8

9

10

11

13

16

17

19

20

21

23

25

30

28

29

31

32

26

27

7

1

11

12

15

20

21 28

29

12

21

13

17

19

18

Rear View

16

14

22

41

42

24

18

29

34 35

28

33

35

36 37

38

39

45 44

46

46

47

48

40

4647 48

43

34

39

38 37 36

9

HANDLEBARS AND CONTROLS

Model 932105, 506

Item Part No. Qty. Description

5 06220100 2 Bolt, Round Head Square Neck .25-20 x 1.25

6 06529700 2 Nut, Locking Center .25-20

7 06220200 2 Bolt, Round Head Square Neck .31-18 x 1.75 Grade 5

8 06529800 4 Nut, Locking Center .31-18

9 07511800 2 Bumper

10 53213700 1 Panel w/Decals Hybrid

11 08335400 2 Spring, Tension .051 x .50 x 4.87

12 00274251 1 Lever, Right Hand

13 00274351 1 Lever, Left Hand

14 07047100 4 Bolt Serrated Hex Flange Washer Head .31-18 x .62 Grade 5

15 06714500 2 Pin, Spring Clip

16 08337000 1 Spring, Tension .05 x .44 x 1.45

17 00356900 1 Arm, Interlock

18 05957800 1 Bolt, Hex .38-16 x 3.00 Grade 5

19 06529600 1 Nut, Locking Center .38-16

20 06714800 2 Pin, Hair

21 02492100 2 Cam, Interlock

22 02485000 1 Headlamp, Oval with 1156 Bulb

23 07416700 3 Screw, Tapping 10-16 x .75 Hi-Lo

24 06948900 1 Cable, Traction

25 06900007 1 Cable, Auger-Hybrid

26 06435700 4 Washer, Flat Steel .38 x .875 x .083

27 06307400 4 Washer, Locking .31 x .10 Heavy

28 06437300 3 Washer, Flat Steel .28 x .62 x .065

29 06701900 3 Pin, Hair Internal .06 x .18 x .77

30 06221600 4 Bolt, Round Head Square Neck .31-18 x 2.25

31 06446800 4 Washer, Saddle .32 x .94 x .062

32 07531700 4 Knob, Wing .31-18

33 00273600 1 Lever, Deflector

34 06224300 1 Bolt, Round Head Square Neck .38-16 x 2.00

35 01123800 2 Friction Washer

36 00184100 1 Flange, Pressure

37 08320900 1 Spring, Compression .187 x .56 x 1.62

38 06436200 1 Washer, Flat Steel .406 x .812 x .065

39 06529600 1 Nut, Locking Center .38-16

40 07533500 1 Knob, Ball-Black 1.47” .375-16

41 02496400 1 Grip, Clutch Lever RH

42 02496500 1 Grip, Clutch Lever LH

43 06945001 1 Cable, Deflector Control

44 00292751 1 Bracket, Chute Cable

45 05952500 2 Bolt, Hex .25-20 x 1.50

46 06529700 4 Nut, Locking Center .25-20

47 00184751 2 Bracket, Retaining

48 06220600 2 Bolt, Round Head Square Neck .25-20 x .50

10

SPEED SELECTOR AND FRAME

Model 932105, 506

Item Part No. Qty. Description

1 07533500 1 Knob, Ball Black 1.47, .38-16

2 03247900 1 Lever, Shift

3 06224400 1 Bolt, Round Head Square Neck .38-16 x 2.50

4 08335700 1 Spring, Compression .13 x .78 x 1.25

5 06435900 1 Washer, Flat Steel .44 x 1.00 x .083

6 06529600 1 Nut, Locking Center .38-16

7 06713500 2 Pin, Hair Internal .08 x .18 x 1.18

8 02492800 1 Rod, Shift-Upper

9 02493000 1 Pivot, Rod

10 00297059 1 Main Frame

11 03233800 2 Plate, Bolt

12 07411600 4 Screw, Tapping .25-20 x .37 Hex Washer Head

13 03232459 1 Cover, Bottom

14 06435700 1 Washer, Flat Steel .38 x .88 x .08

15 06529800 1 Nut, Locking Center .31-18

16 06529200 3 Nut, Hex .31-18

06529800 1 Nut, Locking Center .31-18

17 03239500 1 Rod, Shift-Lower

18 00289900 1 Belt Finger-Lower

19 06219800 2 Bolt, Round Head Square Neck .25-20 x 1.00 Grade 5

20 06537500 2 Nut, Locking Wing .25-20

21 06220800 1 Bolt-Round Head Square Short Neck .31-18 x .75 Grade 5

22 06307400 3 Washer, Locking .31 x .10 Heavy

06310500 1 Washer, Locking Internal .31

06437200 1 Washer, Flat Steel .344 x .688 x .065

23 06441900 1 Washer, Flat Steel .53 x 1.06 x .095

24 07412900 4 Screw, Tapping .38-16 x .50 Hex Washer Head

25 06530200 2 Nut, Locking-Nylon .312-18

PS0703

1

2

3

4

6

7

8

9

10

11

12

13

14

15

17

18

19

20

21 16

7

23

24

25

5

12

22

11

AUGER AND CHUTE

Model 932105, 506

Item Part No. Qty. Description

1 06435900 4 Washer, Flat Steel .44 x 1.00 x .083

2 53213500 1 Housing, 26" w/Decal

3 02483859 2 Runner, Double Flange

4 06529600 4 Nut, Locking Center .38-16

5 06435700 5 Washer, Flat Steel .38 x .88 x .083

6 00268659 1 Blade, Scraper 26"

7 06529800 7 Nut, Locking Center .31-18

8 07012600 4 Fitting, Lube .25-28 x .26

9 52421100 1 Rake, Left Hand - 26" (1” I.D. x 15.75" O.D.) (Includes Item 8)

52421200 1 Rake, Right Hand- 26" (1” I.D. x 15.75" O.D.) (Includes Item 8)

10 51001500 2 Shear Bolt Service Assembly (Includes Item 7)

11 06212000 4 Bolt, Round Head Square Neck .38-16 x 1.00

12 06220800 9 Bolt, Round Head Square Neck .31-18 x .75

13 06436300 2 Washer, Flat Steel 1.01 x 1.51 x .062

14 52420400 1 Chute, Discharge w/Remote

15 00170300 1 Mount, Snow Cleanout

16 06813600 2 Rivit, Pop .187 x .45 Dome

17 00170200 1 Device, Snow Cleanout

18 00262159 2 Cutter, Drift

19 07531700 4 Knob - Wing .31-18

20 00275100 2 Bushing, Rake Shaft 1”

21 05500011 2 Bushing, Flange Split Nyliner 1.0” I.D.

22 07412000 6 Screw, Tapping .25-20 x .50

23 02479800 1 Rod, Chute

24 06437200 1 Washer, Flat Steel .344 x .688 x .065

25 08335200 1 Spring, Compression

26 06437300 2 Washer, Flat Steel .281 x .62 x .065

27 05718500 2 Retaining Ring External .218 x .035

PS0711

1

12

17

25

14

15

16

24

23

27

21

22

26

2

19

3

4

8

5

20

13 10

9

6

18

11

12

7

7

12

DISCHARGE CHUTE CRANK

Model 932105, 506

Item Part No. Qty. Description

1 01019800 1 Cap, 3/8 Rod

2 07500001 1 Knob, Chute Crank

3 00184600 1 Crank, Chute

4 07412000 4 Screw .25-20 x .50 Hex Washer Head Self Tapping

5 03223000 1 Cover, Gear

6 06714500 2 Pin, Spring Clip

7 03222900 1 Gear, Chute

8 06224400 1 Bolt, Round Head Square Neck .38-16 x 2.50 Grade 5

9 53204400 1 Pinion Gear with Bracket (Contains Items10-12)

10 06436100 1 Washer, Flat Steel .63 x 1.01 x .062

11 03220551 1 Bracket, Gear

12 03224300 1 Push Nut

13 06439300 1 Washer, Flat Steel .38 x 1.50 x .062

14 01123800 2 Friction Washer

15 00256751 1 Pedestal, Chute Support

16 03219000 1 Friction Plate

17 08320900 1 Spring, Compression .19 x .56 x 1.62

18 06436200 1 Washer, Flat Steel .41 x .81 x .065

19 06529600 1 Nut, Locking Center .38-16

20 02495900 1 Universal Joint

21 05958500 2 Bolt, Hex .38-16 x 1.75

22 06308800 2 Washer, Locking .38 x .094

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

21 22

20

PS1061

4

1

2

3

13

GEAR CASE AND IMPELLER

Model 932105, 506

Item Part No. Qty. Description

1 00258500 1 Pulley, 4L w/Hub

2 00008000 1 Ariens 16 oz. Bottle of L2 Lube

3 05600001 1 Seal, Oil .875 x 1.375 x .25

4 05806800 1 Pin, Groove .250 x 1.50 Type E

5 05803700 2 Pin, Roll .25 x 1.75

6 00258251 1 Impeller-14" 4 Blade

7 05500008 1 Bushing, Flange .876 x 1.500 x .750

8 00255100 1 Thrust Collar .875 I.D.

9 52419600 1 Assembly, Worm Shaft & Gear

10 00254100 1 Gearcase, Aluminum, LH

11 05618800 2 Seal, Oil 1.00 x 1.38 x .25

12 00301700 1 Bearing Flange

13 07417000 1 Screw, Tapping .38-16 x .75 Roloc

14 00257500 1 Shaft, Rake 26"

15 05500007 1 Bushing, Flange .629 x 1.00 x .750

16 07412400 8 Screw, Tapping .25-20 x 1.00

17 06416600 2 Washer, Hard Thrust 1.01 x 1.54 x .062

18 00031700 1 Loctite Gasket 518

19 00254000 1 Gearcase, Aluminum, RH

20 05520500 2 Bushing, Flange 1.003 x 1.50 x .625

21 53213600 1 Gearcase, Assembly - 26” Aluminum

22 06529700 3 Nut, Locking Center .25-20

23 01014200 1 Bearing Flange

24 05409300 1 Bearing, Ball .880 x 1.750 x .50

25 05900012 1 Bolt, Hex .31-24 x .75 Precote 80

26 06307400 1 Washer, Locking .312 x .097

27 06600800 1 Key, Woodruff .25 x .875 x .375

28 06442500 1 Washer, Fiber .437 x .656 x .032

1

4

2

5

6

25

13

14

16

19

18

17

3

78

11

20

20

21

10

26

9

15

27

11

22 23

24

12

PS1071

9

28

14

ELECTRICAL AND WIRING DIAGRAM

Model 932105, 506

Item Part No. Qty. Description

1 02485000 1 Headlamp, Oval with 1156 Bulb

2 00349600 1 Harness, Wire-Light

PS0900

ENGINE

1

A.C. LIGHTING

HEAD LIGHT KIT

2

YELLOW

YELLOW

1

2

Ariens Company

655 West Ryan Street

P.O. Box 1 57

Brillion, WI 54110-0157

920-756-2141

Fax 920-756-2407

www.ariens.com
